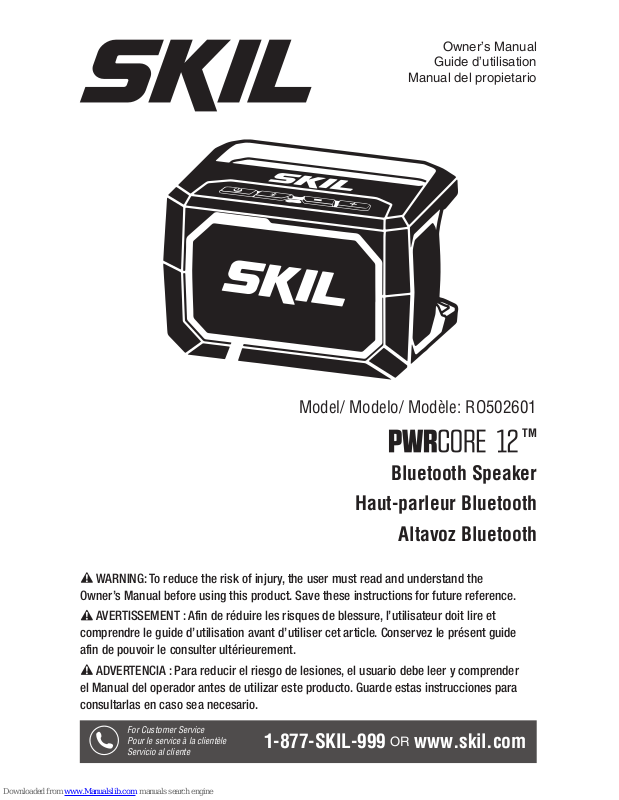

Skil PWRCORE 12 RO502601 Owner's Manual
WARNING: To reduce the risk of injury, the user must read and understand the
Owner’s Manual before using this product. Save these instructions for future reference.
AVERTISSEMENT : Afin de réduire les risques de blessure, l’utilisateur doit lire et
comprendre le guide d’utilisation avant d’utiliser cet article. Conservez le présent guide
afin de pouvoir le consulter ultérieurement.
ADVERTENCIA : Para reducir el riesgo de lesiones, el usuario debe leer y comprender
el Manual del operador antes de utilizar este producto. Guarde estas instrucciones para
consultarlas en caso sea necesario.
Owner’s Manual
Guide d’utilisation
Manual del propietario
For Customer Service
Pour le service à la clientèle
Servicio al cliente
Bluetooth Speaker
Haut-parleur Bluetooth
Altavoz Bluetooth
TM
1-877-SKIL-999 OR www.skil.com
Model/ Modelo/ Modèle: RO502601
2
TABLE OF CONTENTS
Important Safety Instructions ......................................3
FCC Caution ....................................................4
Symbols .....................................................5-7
Get to Know Your Bluetooth Speaker ...............................8
Specications ..................................................8
Operating Instructions ........................................9-11
Maintenance ...................................................12
Troubleshooting ...............................................12
Limited Warranty of SKIL Cordless Tool ............................13
3
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Read all safety warnings, instructions, illustrations and specications
provided with this power tool. Failure to follow all instructions listed
below may result in electric shock, re and/or serious injury.
To reduce the risk of re or electric shock, do not expose this apparatus to rain or
moisture. Do not use this apparatus near water. Dry location use only.
Only operate this apparatus in a well-ventilated area.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
Only use attachments/accessories specied by the manufacturer.
Detach the battery pack from the apparatus during lightning storms or when unused for
long periods of time.
Refer all servicing to qualied service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped. Service or maintenance
performed by unqualied personnel could result in a risk of injury.
A battery operated apparatus with integral batteries or a separate battery pack must be
recharged only with the specied charger for the battery. A charger that may be suitable
for one type of battery may create a risk of re when used with another battery.
Never disassemble the apparatus or try to do any rewiring on the apparatus’s electrical
system.
Maintain the apparatus. Check for misalignment, breakage of parts and any other
condition that may affect the apparatus operation. If damaged, have the apparatus
repaired before use. Use the apparatus in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the apparatus
for operations different from those intended could result in a hazardous situation.
Keep the apparatus away from other metal objects, such as paper clips, coins, keys,
nails, screws, or other small metal objects that can make a connection from one
terminal to another. Shorting the terminals together may cause burns or a re.
Do not use the apparatus if it has been dropped or received a sharp blow. A damaged
apparatus will increase the risk of re.
Dispose of a used battery promptly. Keep away from children. Do not disassemble and
do not dispose of in re.
Recharge only with the charger specied by the manufacturer. A charger that is suitable
for one type of battery pack may create a risk of re when used with another battery pack.
Save these instructions. Refer to them frequently and use them to instruct others who may
use this product. If you loan someone this product, loan them these instructions also.
4
FCC CAUTION
The manufacturer is not responsible for radio interference caused by unauthorized
modications to this equipment. Such modications could void the user’s authority to operate
the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause
undesired operation.
NOTICE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
DANGER
People with electronic devices, such as pacemakers, should consult
their physician(s) before using this product. Operation of electrical
equipment in close proximity to a heart pacemaker could cause interference or failure
of the pacemaker.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
5
SYMBOLS
Safety Symbols
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols and the explanations with them deserve your careful attention and understanding.
The symbol warnings do not, by themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident prevention measures.
WARNING
Be sure to read and understand all safety instructions in this Owner's
Manual, including all safety alert symbols such as “DANGER,”
“WARNING,” and “CAUTION” before using this tool. Failure to following all instructions listed
below may result in electric shock, re, and/or serious personal injury.
The denitions below describe the level of severity for each signal word. Please read the manual
and pay attention to these symbols.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
CAUTION, used with the safety alert symbol, indicates a hazardous
situation which, if not avoided, will result in minor or moderate injury.
Damage Prevention and Information Messages
These inform the user of important information and/or instructions that could lead to equipment
or other property damage if they are not followed. Each message is preceded by the word
“NOTICE”, as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are not followed.
WARNING
The operation of any power tools can result in
foreign
objects being thrown into your eyes, which can result
in severe eye damage. Before beginning power tool operation, always
wear safety goggles or safety glasses with side shields and a full face
shield when needed. We recommend a Wide Vision Safety Mask for use
over eyeglasses or standard safety glasses with side shields. Always use
eye protection which is marked to comply with ANSI Z87.1.
6
SYMBOLS (CONTINUED)
IMPORTANT: Some of the following symbols may be used on your tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to operate the
tool better and more safely.
Symbol Name Designation/Explanation
V Volts Voltage (potential)
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
kg Kilograms Weight
min Minutes Time
s Seconds Time
Wh Watt-hours Battery capacity
Ah Ampere-Hours Battery capacity
Direct current Type or a characteristic of current
Li-ion RBRC seal
Designates Li-ion battery recycling
program
Ni-Cad RBRC seal
Designates Ni-Cad battery recycling
program
Read manual symbol Alerts user to read manual
Wear eye protection symbol
Always wear safety goggles or safety
glasses with side shields and a full face
shield when operating this product.
7
SYMBOLS (CERTIFICATION INFORMATION)
IMPORTANT: Some of the following symbols for certication information may be used on your
tool. Please study them and learn their meaning. Proper interpretation of these symbols will
allow you to operate the tool better and more safely.
This symbol designates that this tool is listed by Underwriters Laboratories.
This symbol designates that this tool is recognized by Underwriters
Laboratories.
This symbol designates that this tool is listed by Underwriters
Laboratories, to United States and Canadian Standards.
This symbol designates that this tool is listed by the Canadian
Standards Association.
This symbol designates that this tool is listed by the Canadian
Standards Association, to United States and Canadian Standards.
This symbol designates that this tool is listed by the Intertek Testing
Services, to United States and Canadian Standards.
This symbol designates that this tool complies to NOM Mexican
Standards.
8
GET TO KNOW YOUR BLUETOOTH SPEAKER
PWRCORE-12™ Bluetooth Speaker
Fig. 1
ON/OFF Button
Indicator
USB Power Port
Audio IN Jack
Dustproof Cover
Audio Wire
Bluetooth-Pairing Button
Volume + Button
Volume - Button
SPECIFICATIONS
Rated voltage 12V d.c.
USB output voltage 5V d.c.
USB output current Max 2.1A
9
OPERATING INSTRUCTIONS
WARNING
To reduce the risk of re, personal injury, and product damage due to
a short circuit, never immerse your tool, battery pack or charger in
uid or allow a uid to ow inside them. Corrosive or conductive uids, such as seawater,
certain industrial chemicals, and bleach or bleach-containing products, etc, can cause a short
circuit.
WARNING
If any parts are damaged or missing do not operate this product until
the parts are replaced. Use of this product with damaged or missing parts
could result in serious personal injury.
WARNING
Do not attempt to modify this speaker or create accessories not
recommended for use with this speaker. Any such alteration or
modication is misuse and could result in a hazardous condition leading to possible serious
injury.
This cordless Bluetooth speaker must be used only with the battery packs and charger
listed below:
Battery Pack Charger
2Ah 4AH
SKIL BY500101 SKIL BY519801 SKIL QC535701
NOTICE: Please refer to the battery and charger manuals for detailed operating information.
To Attach Battery Pack (Fig. 2)
a) Align the raised portion on the battery pack
with the grooves on the back of the Bluetooth
speaker, then slide the battery pack onto the
Bluetooth speaker as shown.
b) Make sure that the latch on the battery
pack snaps into place and that the battery
pack is secured to the tool before beginning
operation.
NOTICE: When placing the battery pack onto
the tool, be sure that the raised rib on the
battery pack aligns with the groove in the tool
and that the latches snap into place properly.
Improper attachment of the battery pack can
cause damage to internal components.
To Detach Battery Pack (Fig. 2)
Depress the battery-release button, located on the front of the battery pack, to release the
battery pack. Pull the battery pack out and remove it from the speaker. (Fig. 2)
Fig. 2
Attach
Detach
BatteryRelease
Button
10
Turn the Speaker ON/OFF (Fig. 3)
a) To turn on the Bluetooth speaker, press and
hold the ON/OFF button for approximately 1
second; the blue indicator will illuminate and
begin to ash to indicate that the Bluetooth
speaker is active.
b) To turn off the Bluetooth speaker, press and
hold the ON/OFF button for approximately
3 seconds; the blue indicator light will be
off to indicate that the Bluetooth speaker is
deactivated.
c) When the Bluetooth speaker has not been
in use for approximately 10 minutes, the
Bluetooth speaker will automatically turn off
with a sound and the blue indicator light will
be off.
Volume
Use the Volume + button and Volume - button to increase or decrease the volume of the
speaker, respectively.
USB Power Port (Fig. 4)
When a battery pack is installed and the
speaker is turned on, the USB power port on
the Bluetooth speaker supplies a charging site
suitable for your cell phone or other small USB
device (5 Volt DC, up to 2.1 Amp).
NOTICE: Any device that uses more than 2.1A
of DC electrical current will trip a self-resetting
overload switch and disable the output. To
reactivate the Bluetooth speaker, remove the
device and turn on the Bluetooth speaker.
Fig. 4
Fig. 3
ON/OFF Button Indicator
11
Connecting to Bluetooth
a) Turn on the Bluetooth speaker. The speaker will default to Bluetooth pairing mode and the
indicator light will ash blue continuously until it has successfully paired or has timed out.
b) If previously paired to the desired device, the speaker will automatically reconnect to the
same device when the speaker is turned on.
c) If no Bluetooth device was previously paired, the speaker will continue to search for a signal
for about 10 minutes.
d) To pair the speaker to a different device, press and hold the Bluetooth pair button for 3
seconds until the blue indicator light ashes. The speaker will then be in Bluetooth pairing
mode and can be connected to a different device. Consult the instructions for your device.
Connecting directly to AUX Device
a) Insert the plug of the audio wire into the audio IN jack and make sure that they are properly
connected.
b) Turn on the Bluetooth speaker. The speaker will be in AUX mode and the indicator will
shine blue.
c) Connect an MP3 player, CD player, or other audio device directly to the speaker, using the
audio wire and plug.
NOTE: In the absence of a connection to an audio wire, the speaker will enter into Bluetooth
pairing mode. When connected to an audio wire, the speaker will change from Bluetooth
pairing mode to AUX mode.
12
MAINTENANCE
WARNING
To avoid serious personal injury, always remove the battery pack
from the tool when cleaning or performing any maintenance.
Service
WARNING
Preventive maintenance performed by unauthorized personnel may
result in misplacing of internal wires and components which could
cause serious hazard. We recommend that all tool service be performed by a SKIL Factory
Service Center or Authorized SKIL Service Station.
General Maintenance
WARNING
When servicing, use only identical replacement parts. Use of any
other parts could create a hazard or cause product damage.
Cleaning
WARNING
Always use only a soft, dry cloth to clean the Bluetooth speaker. Never use
detergent or alcohol. Clean dust and debris from vents. Keep the speaker
handle clean, dry and free of oil or grease. Never use ammable or combustible solvents
around tools.
WARNING
Certain cleaning agents and solvents damage plastic parts. Some of
these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents,
ammonia and household detergents that contain ammonia.
Storage
Store the tool indoors in a place that is inaccessible to children. Keep away from corrosive
agents.
TROUBLESHOOTING
Problem Cause Remedy
The Bluetooth speaker
does not work.
Low battery capacity. Charge the battery.
Bluetooth speaker is not
charging USB device.
The device draws more than
the rated output of the port.
Remove the device and turn
the Bluetooth speaker on again.
Use only 5V DC devices that
draw no more than 2.1 Amp
Bluetooth speaker is not
properly paired with audio
device.
1. Out of Bluetooth pairing
range.
2. The speaker is connected
to the audio wire.
3. Incorrect pairing operation
1. Move your device or speaker
within 30 feet connecting
range.
2. Unplug the wire and connect
the speaker by Bluetooth.
3. Refer to Connecting to
Bluetooth and correctly
pair the audio device to the
speaker.
Loading...
