Operating Instructions
AirChek® XR5000
SKC Inc.
863 Valley View Road
Eighty Four, PA 15330 USA
Form 38047 Rev 1401
Table of Contents
Description .......................................................................................................................1
Performance Profi le ........................................................................................................2
Setup .................................................................................................................................4
Charging the Battery Pack (Li-Ion) ...........................................................................4
Reading the Charging Status LED on the Single Charger ............................5
Keypad Basics .........................................................................................................6
Turning the Pump On ...............................................................................................6
Turning the Pump Off ...............................................................................................6
Locking the Keypad .................................................................................................7
Checking Battery Charge Level ...............................................................................7
Accessing User Setup Functions .............................................................................7
Entering Functions ........................................................................................7
Exiting Functions ...........................................................................................7
User Setup Functions ..............................................................................................8
Function Overview ........................................................................................8
Clearing Accumulated Run Time ...................................................................8
Setting Flow Rate ..........................................................................................8
Setting a Timed Run......................................................................................9
Setting a Run Delay with Continuous Run ....................................................9
Setting a Run Delay and Timed Run ...........................................................10
Canceling a Timed Run and/or Run Delay ..................................................11
Calibration ......................................................................................................................12
High Flow: 1000 to 5000 ml/min ............................................................................12
Low Flow: 5 to 500 ml/min .....................................................................................13
Sampling ........................................................................................................................14
Sampling ................................................................................................................14
Flow Fault ..............................................................................................................14
Battery Replacement .....................................................................................................16
Replacing the Battery Pack (Li-Ion) .......................................................................16
Maintenance ...................................................................................................................17
Accessories ...................................................................................................................18
Replacement Parts ........................................................................................................19
Warranty .........................................................................................................................19
Indicates a warning or caution.
www.skcinc.com
AirChek XR5000 Quick Guide
Keypad Basics
(star key) Scrolls through parameters in user setup functions.
(up/down arrow keys) Increase or decrease fl ow rate, timed run, and run delay time.
Key Sequences
Press keys individually.
[] Press keys simultaneously. Toggles between Run and Hold
Security code to access user setup functions. With pump in a
Operation
• Pump On Press and hold .
• Pump Off Press and hold through countdown. Auto-off will shut down
• Mode Change Press [] to toggle between Run and Hold.
• Keypad Lock Press 5 times quickly to activate. Press 5 times quickly
• Run/Hold With pump in a non-running state (no fl ashing blue LED),
Accessing User Setup Functions
• Entering User Setup Functions
With pump in a non-running state (no fl ashing blue LED), press .
• Exiting User Setup Functions
Press []. Pump is ready. Press [] to run the pump or to start a run delay.
User Setup Functions
To navigate while in user setup functions, press until the desired function displays.
and exits user setup functions.
non-running state (no fl ashing blue LED), press keys in
sequence.
pump after 5 minutes without activity.
to deactivate.
press [] to run pump. Press [] to Hold pump when
completed.
Function When LCD Displays User Action Result
Clear Accumulated
Run Time
Function only available
when accumulated run
time exists.
Adjust Flow Rate* “---” and fl ashing
Set Timed Run
Set Run Delay
* Changing fl ow rate in user setup functions will not clear accumulated run time.
† Changing timed run and/or run delay settings in user setup functions will clear accumulated run time.
CLr and fl ashing
Hold
ADJ Flow
†
Flashing Set Timed
Run and min
†
Flashing Set Run
Delay and min
Press [].
Press or .
Press [] to exit
functions.
Press or .
Press [] to exit
functions.
Press or .
Press [] to exit
functions.
Clears run and run
time and exits functions. Press [] to
run pump.
Flow increases/
decreases. Press
[] to run pump.
Minutes increase/
decrease. Press
[] to run pump.
Minutes increase/
decrease. Press
[] to start run
delay. Blue LED
fl ashes. Pump starts
after delay elapses.
www.skcinc.com
Description
SKC AirChek XR5000 Sample Pumps are designed to offer users enhanced battery
power and easy operation in a lightweight pump that provides accurate airfl ows from
5 to 5000 ml/min.
• Three battery options provide fl exibility and economy for different applications
including long run times.
• The large three-button keypad and straightforward user setup functions offer userfriendly conveniences.
AirChek XR5000 pumps feature a patented* isothermal fl ow sensor that measures fl ow
directly and acts as a secondary standard, constantly maintaining the set fl ow rate. A
built-in sensor compensates for changes in temperature that occur after calibration.
* U.S. Patent No. 5,892,160
Inlet port with
protective fi lter
Battery charge
level indicator
Bright blue
pump status
LED
Easy-to-read
liquid crystal
display (LCD)
Battery pack
(3 options
available)
Not shown:
Beltclip (back)
Battery
charging jack
(back)
Large,
simple
operating
keypad
AirChek XR5000 Air Sampling Pump
1
Performance Profi le
Flow Range: 1000 to 5000 ml/min (5 to 500 ml/min requires optional
low fl ow adapter kit)
Compensation Range: 5000 ml/min at 10 inches water back pressure
4000 ml/min at 20 inches water back pressure
2000 ml/min at 50 inches water back pressure
Typical Back Pressure of Sampling Media (inches water)
Flow Rate (L/min) 1.0 1.5 2.0 2.5 3.0 3.5 4.0 5.0
Filter/Pore Size (μm)
25-mm MCE/0.8 6 9 12 15 18 21 25 31
25-mm MCE/0.45 14 22 28 35 40 44 50 63
37-mm MCE/0.8 234567911
37-mm PVC/5.0 11222.5334
37-mm, polycarbonate/0.45 4 6 8 1012151721
25-mm MCE/0.45 microvacuum 21 31 40 48 59 69 79 100
37-mm PTFE/1.0 1.5 2.5 4 5.5 7 8 9.5 12
Compare the information in this table to pump compensation range to determine appropriate applications.
Flow Compensation
System: Patented* isothermal closed loop fl ow sensor
Accuracies: Timing: 1 min/mo at 25 C
Flow Rate: ± 5% of set-point after calibration to
desired fl ow
Battery Charge
Level Indicator: Icon displays on LCD at full, mid, low charge, imminent
low battery fault, and low battery fault.
Temperature Range: Operating: 32 to 113 F (0 to 45 C)
Charging: 32 to 113 F (0 to 45 C)
Storage: -4 to 95 F (-20 to 35 C)
Operating Humidity: 0 to 95% non-condensing
Typical Run Time†:
XR5000 Model 2 L/min 5 L/min
High-power Li-Ion 40 hrs 22 hrs
Standard Li-Ion 20 hrs 11 hrs
† Results of run time tests using 37-mm, 0.8-μm MCE filters with new pumps and
batteries. Pump and battery performance may vary.
For extended run times, the pump may be operated while
attached to the charger.
Timed Run, Run Delay,
and Continuous Run 1 to 9999 minutes (6.8 days). If run time exceeds
Display Range: 6.8 days, timer display rolls over.
Flow Fault: If pump is unable to compensate for > 15 seconds due to
excessive back pressure, the pump stops, displays fl ow
fault icon, and holds run time display. Auto-restart is
attempted every 15 seconds up to 5 times.
Low Battery Fault: 15 seconds to sleep
* U.S. Patent No. 5,892,160
2
Performance Profi le
Auto-off: 5 minutes of inactivity
Battery Pack: High-power Li-Ion (4 cell), rechargeable, 7.4 V, 4.4-Ah
(model dependent)
or
Battery Recharge Time: Standard Li-Ion (2 cell): approximately 4 hrs
(with SKC-approved chargers;
varies with battery capacity
and level of discharge)
Tubing: Requires 1/4-inch ID tubing
Size: High-power Li-Ion: 5.5 x 3 x 2.3 in (14 x 7.6 x 5.8 cm)
Weight: High-power Li-Ion: 21 oz (0.6 kg)
Case: Anti-static plastic
RFI/EMI Shielding: CE marked for RFI/EMI protection
Approvals: •
• RoHS compliant
capacity, 32.6 Wh (Cat. No. P85004 for UL Listed pump)
Standard Li-Ion (2 cell), rechargeable, 7.4 V, 2.2-Ah
capacity, 16.3 Wh (Cat. No. P85002 for UL Listed pump)
High-power Li-Ion (4 cell): approximately 8 hrs
Standard Li-Ion model: 4.3 x 3 x 2.3 in (10.9 x 7.6 x 5.8 cm)
Standard Li-Ion model: 16 oz (0.45 kg)
for use in hazardous locations. Models that are
UL Listed for intrinsic safety contain the logo on
the label. These models must be used with battery pack
Cat. No. P85004 or P85002 to maintain the UL intrinsic
safety listing.
Cautions:
• For safe operation in hazardous locations, ensure the pump label
contains the logo and the battery pack label contains Cat.
No. P85004 or P85002. Use of any other battery pack or device to
power the pump voids the UL Listing for intrinsic safety.
• Use onl y the charger and battery packs designed for the AirChek
XR5000 pump to ensure reliable performance. Failure to do so voids
any warranty.
• Use only SKC-approved parts to ensure reliable performance and to
maintain the UL Listing for intrinsic safety. Failure to do so voids any
warranty.
• Failure to follow warnings and cautions voids any warranty.
3
Setup
Charging the Lithium-Ion Battery Pack
For models containing a lithium-ion battery pack only.
Power
supply
Shown with single charger (Cat. No. 222-241). A
fi ve-station charger is available; see Accessories
on page 18. Follow charger instructions.
STOP!
Completely charge a new battery pack
before operating the pump. It may be
necessary to charge the battery a few
times before maximum battery capacity
is achieved.
Intrinsic safety circuitry inside the
battery causes the pump to selfdischarge during storage. Charge
Li-Ion pump battery completely
before calibration and sampling to
achieve optimum pump operation.
Jack
Charging
unit

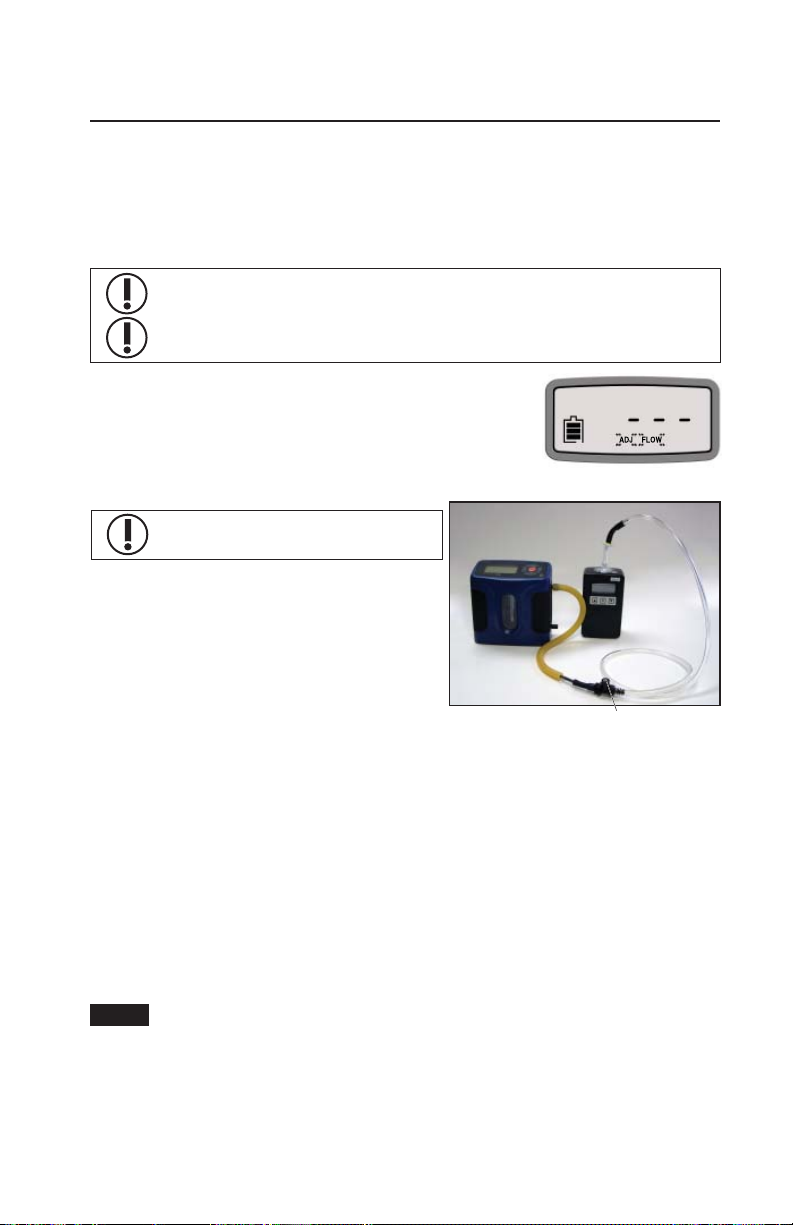

AirChek XR5000 charging train
with single charger
Battery
charging
jack
1. For a complete charge, ensure the pump is not running. Insert plug on charging
unit into the battery charging jack on back of pump. Ensure plug is oriented so
that the arrow on the plug is facing upward.
Ensure proper orientation of charging cable before plugging it into
the charging jack. Improper orientation/contact will short circuit the
battery and voids any warranty.
Short circuiting the battery pack will render it immediately inoperative.
2. Insert plug on power supply into jack on charging unit.
3. Pull locking tab to side and insert appropriate
wall plug into power supply. Release locking
tab. Plug power supply into a wall outlet.
The standard 2-cell Li-Ion battery pack will
recharge in approximately 4 hours. The highpower 4-cell Li-Ion battery pack will recharge in
approximately 8 hours. Run pump for 5 minutes
after charging is complete.
Note
Note
After charging the battery pack, it is good practice to run the pump for
approximately 5 minutes before calibrating. This ensures the battery is in
more steady-state conditions and improves the agreement in pre and postsampling calibrations.
The battery pack may be kept on SKC-approved Li-Ion battery chargers for
an indefi nite time.
4
Interchangeable wall plugs insert into
power supply.
Setup
Reading the Charging Status LED on the Single Charger
The Li-Ion Charging Unit (Cat. No. P22300) indicates battery charge status via
an LED on the unit that blinks in specifi c patterns. Observe the LED steadily for
> 5 seconds to read charge status.
LED Action Charge Status
ON
steady
ON
2 sec
OFF
2 sec
OFF
.25 sec
ON
.25 sec
ON
(Repeats) Approximately
2 sec
OFF
(Repeats) Charge completed
2 sec
Charge in progress
80% charged
Power supply
jack
Charge status
LED
Note
The battery pack may be kept on SKC-approved Li-Ion battery chargers for
an indefi nite time.
Cautions:
• Do not charge or operate pump from charger in hazardous
locations.
• Use only the charger and battery packs designed for the AirChek
XR5000 pump to ensure reliable performance. Failure to do so will
void any warranty.

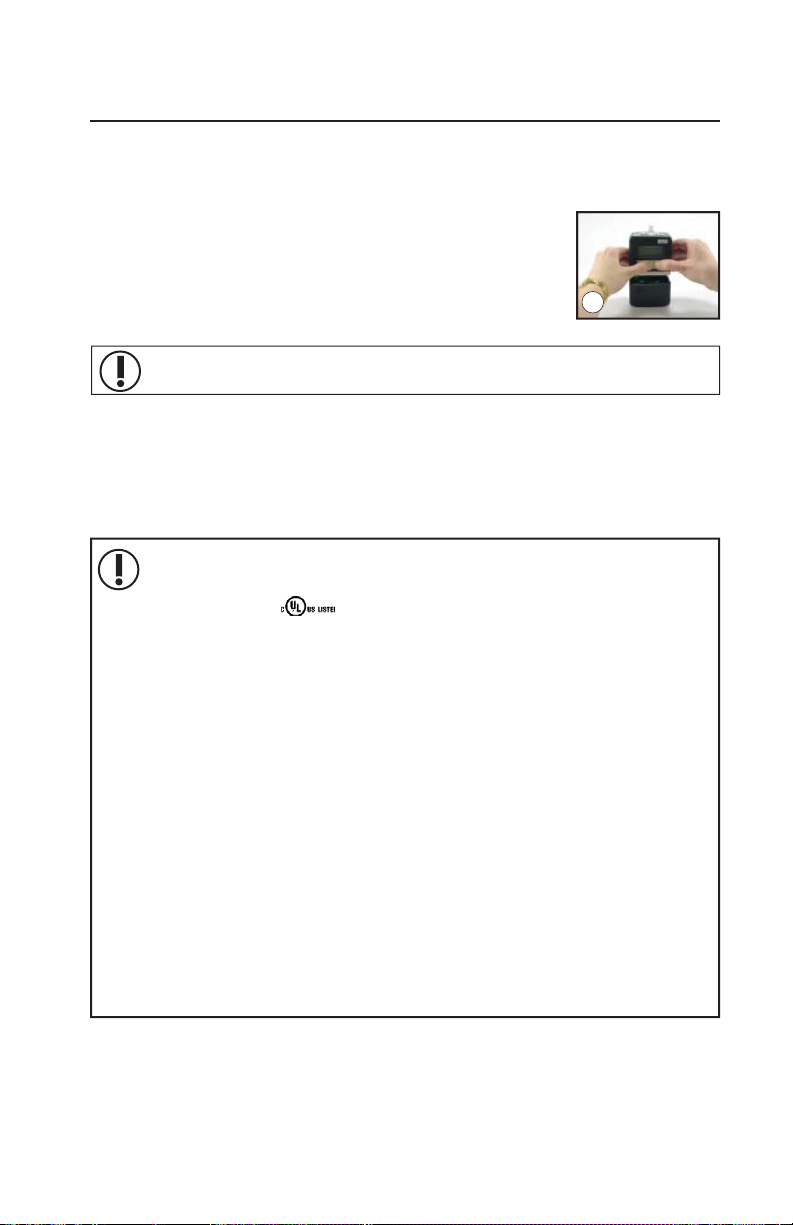

• For safe operation in hazardous locations, ensure the pump label
contains the
No. P85004 or P85002. Use of any other battery pack or device to
power the pump voids the UL Listing for intrinsic safety.
• Tampering with the battery pack or using a repaired or rebuilt
battery pack voids any warranty and UL Listing for intrinsic safety.
• Do not open, disassemble, short circuit, crush, incinerate, or
expose the battery to fi re or high temperatures.
• Use only the SKC-approved charger for this pump. Use of an
unapproved charger may damage the battery and pump and voids
any warranty.
• Failure to follow warnings and cautions voids any warranty.
logo and the battery pack label contains Cat.
See http://www.skcinc.com/instructions/1756.pdf for more information
on SKC pump battery packs.
5
Setup
Keypad Basics

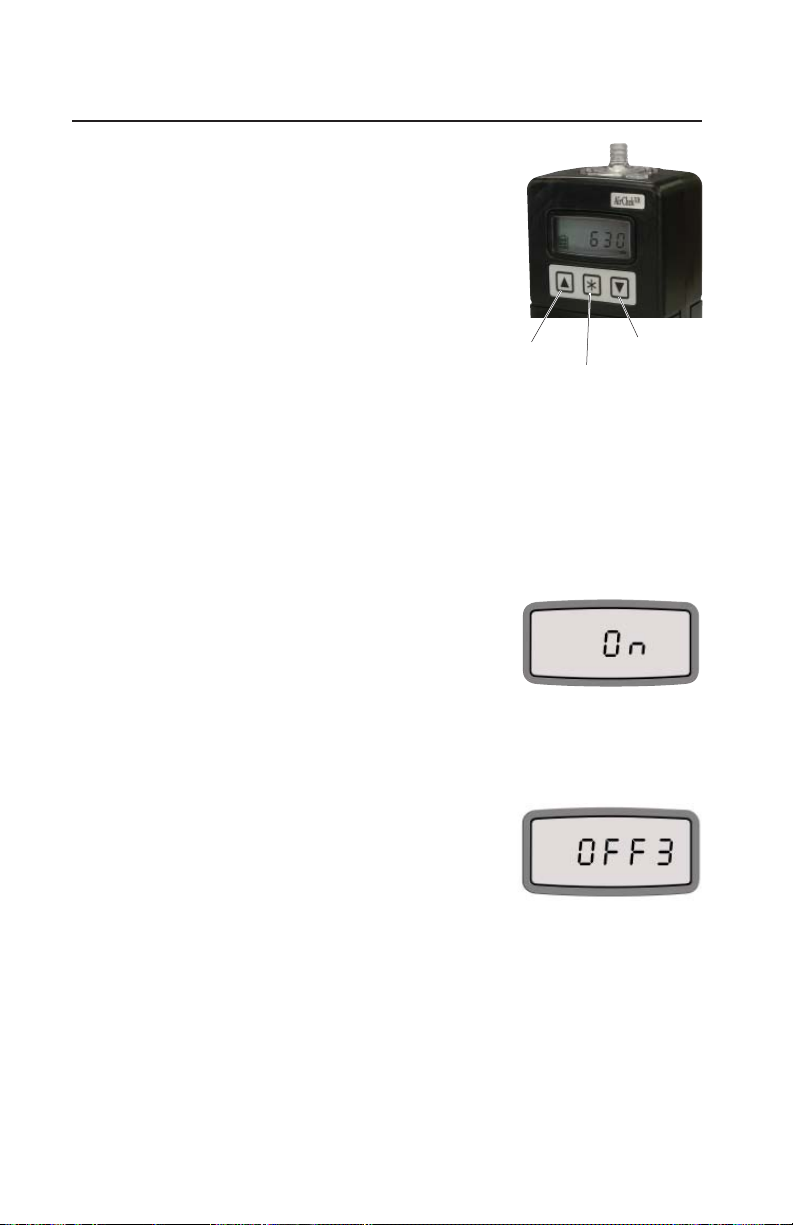

The AirChek XR5000 operates by pressing key sequences
on the keypad located on the front of the pump case.
Keys
Scrolls through parameters in user setup functions
Increases fl ow rate, timed run, and run delay time
Star
key
Down
arrow
key
Decreases fl ow rate, timed run, and run delay time
Key Sequences
Press keys individually.
[] Press simultaneously to toggle between Hold and Run modes and to exit user
setup functions.
Security code. With pump in a non-running state (no fl ashing blue LED), press
to access user setup functions.
Up
arrow
key
Turning the Pump On
• Press and hold until display shows “ON.”
• Press [] to run the pump or to place a running
pump in Hold. A blue LED on top of the pump
indicates pump is running or that there is a run
delay programmed into the pump.
Turning the Pump Off
• Manual Off (Sleep mode): With pump in a non-
running state (no flashing blue LED), press and
hold until a countdown from 3 to 1 appears
on the LCD and pump shuts off. Manual Off will
operate even when keypad is locked.
• Auto Off (Sleep mode): Turns off a non-running
pump (no flashing blue LED) after five minutes of
inactivity.
6
Locking the Keypad
Locking: In any mode, press 5 times quickly.
A flashing “L” will appear in the lower right corner
of the display.
Unlocking: Press 5 times quickly. The flashing
“L” will disappear from the display. The keypad
may be operated normally.
Setup
Note
• While the keypad is locked, the key will still operate to allow manual
pump shut off in a non-running state (no fl ashing blue LED).
• A locked keypad will remain locked until the user unlocks it. Turning the
pump off and on does not affect keypad lock status.

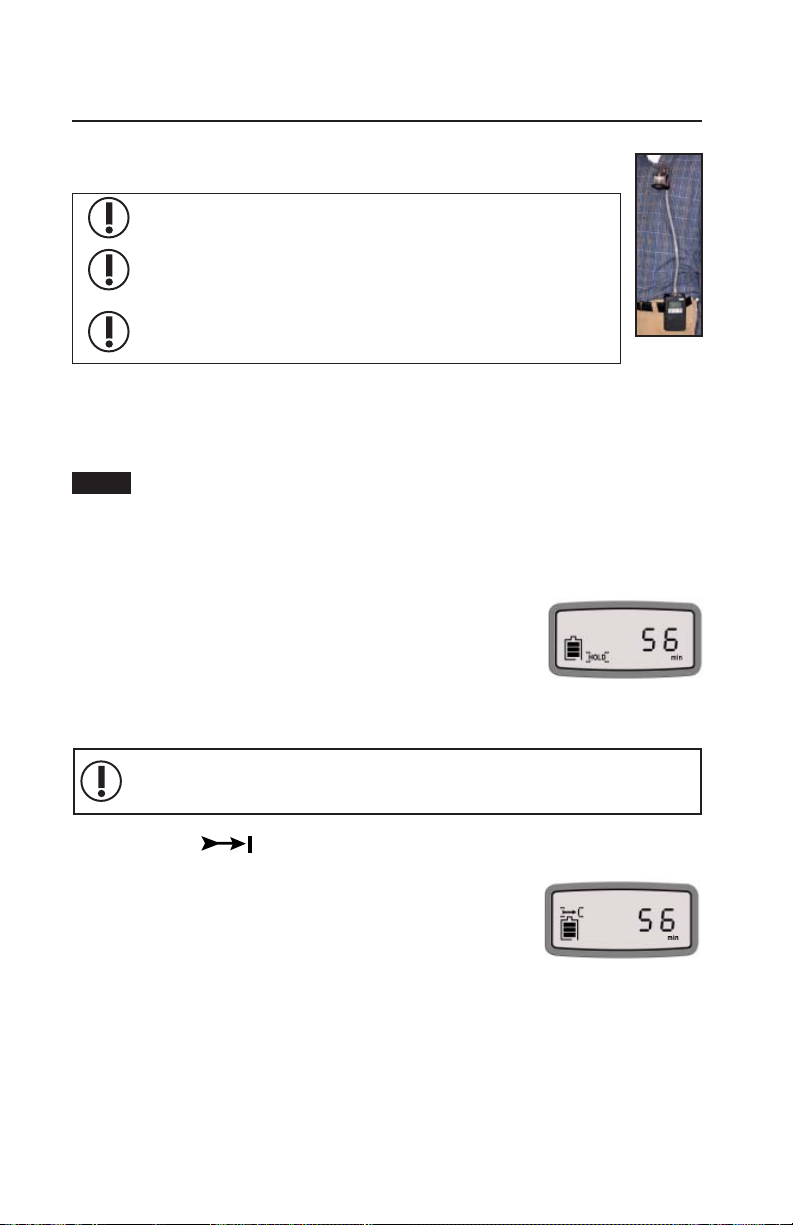

Checking Battery Charge Level
Three bars indicate a full charge (normally appears after charging), approximately
75% to 100%.
Two bars indicate the battery is charged enough to operate the pump, approximately 25% to 75%.
One bar indicates battery charge is low (charge battery), approximately 1% to 25%.
No bars indicate that low battery fault is imminent.
Low Battery Fault
No bars and a fl ashing outline indicate a low battery fault (pump will go into
Hold and go to sleep after 15 seconds in low battery fault). Accumulated run time
will be retained.
Accessing User Setup Functions
Entering Functions:
• With pump in a non-running state (no flashing blue LED), press .
Exiting Functions:
• Press [] to exit user setup functions. Pump is ready to run.
Note
User setup functions cannot be accessed while the keypad is locked.
7
Setup
User Setup Functions
Function Overview
User setup functions are listed below in the order in which they display. Note that the
CLr function for clearing accumulated run time is only available when accumulated
run time exists.
No Accumulated Run Time Accumulated Run Time
CLr
ADJ Flow ADJ Flow
Set Timed Run Set Timed Run
Set Run Delay Set Run Delay
Clearing Accumulated Run Time
1. With the pump in a non-running state (no fl ashing blue
LED), press .
2. Press [] at CLr display to clear accumulated run
time. Pump is ready to run.
Note
Note
CLr will not cancel Timed Run or Run Delay time settings (see Canceling a
Timed Run and/or Run Delay).
• Changing the timed run and/or run delay settings in user setup functions will
automatically clear accumulated run time.
• Changing the fl ow rate in user setup functions will not clear accumulated
run time.
Setting Flow Rate
1. With pump in a non-running state (no fl ashing blue
LED), press .
2. Connect pump inlet to a calibrator.
3. Press until ADJ and Flow fl ash on display.
4. Press to increase or to decrease fl ow. Dashed
lines will move up and down on the LCD to indicate
direction of adjustment. Flow rate will not display
on the pump LCD. Observe the calibrator for fl ow
reading.
5. Press [] to accept fl ow setting and to exit user setup functions.
See Calibration for instructions on calibrating pump fl ow rate.
8
Setup
Setting a Timed Run
Program the AirChek XR5000 from its keypad to run from 1 to 9999 minutes.
With pump in a non-running state (no fl ashing blue LED):
1. Press to enter user setup functions.
2. Press until a fl ashing Set Timed Run and min
appear on the display.
3. Press to increase or to decrease minutes.
4. Press [] to accept timed run setting and to exit user setup functions. The
setting will appear on the display and the pump will be ready to run.
5. Press [] to run the pump.
During a timed run:
a. The blue LED on top of the pump case will fl ash.
“Timed Run Remaining” will display and count down in
minutes on the LCD.
b. Accumulated run time can be displayed by pressing and
holding .
c. Run can be paused (Hold) by pressing []. The time remaining and accumu-
lated run time displays will freeze. Run can be resumed by pressing []. Time
remaining and cumulative run time will resume.
d. At the end of the run, the pump will stop and “Timed Run Remaining” and “0”
will display. To display accumulated run time, press and hold .
e. To return to “Timed Run” display, press []. This will also clear accumulated
run time.
Note
Reminder
If pump goes to sleep following the run and is awakened, the pump will
display “Timed Run Remaining” and “0.” Accumulated run time from the run
remains and can be displayed by pressing and holding .
Pressing [] after a completed run automatically clears accumulated run
time.
Setting a Run Delay with Continuous Run
Program the AirChek XR5000 from its keypad to automatically start a sample run after
a specifi ed period of time (1 to 9999 minutes) has elapsed.
With pump in a non-running state (no fl ashing blue LED):
1. Press to enter user setup functions.
2. Press until a fl ashing Set Run Delay and min appear
on the display.
3. Press to increase or to decrease minutes.
4. Press [] to accept run delay setting and to exit user setup functions. Run
delay time will display on the LCD and the pump will be ready to start run delay.
5. Press [] to activate the pump.
9
Setup
During a run delay with continuous run:
a. The blue LED on top of the pump case will fl ash during the run delay even though
the pump is not running.
b. Run delay time remaining will count down in minutes and
display on the LCD.
c. Once the run delay time has elapsed, the pump will start
running. Accumulated run time will count up in minutes.
d. Run can be paused (Hold) by pressing []. The accumulated run time display
will freeze. Run can be resumed by pressing []. Accumulated run time display will resume.
e. Once the run is complete, stop the pump by pressing []. Accumulated run
time will display.
Note
Setting a Run Delay and Timed Run
With pump in a non-running state (no fl ashing blue LED):
1. Press to enter user setup functions.
2. Press until fl ashing Set Timed Run and min appear
3. Press to increase or to decrease minutes (1 to
4. Press to scroll to a fl ashing Set Run Delay and min.
5. Press to increase or to decrease minutes (1 to
6. Press [] to accept run delay and timed run settings
7. Press [] to activate the pump.
During a run delay with timed run:
a. The blue LED on top of the pump case will fl ash dur-
b. Run delay time remaining will count down in minutes
c. Once the run delay time has elapsed, the pump will
d. Accumulated run time can be displayed by pressing
e. Run can be paused (Hold) by pressing []. The time remaining and accumu-
If pump goes to sleep following the continuous run and is awakened, the
pump will display accumulated run time.
on the display.
9999 minutes).
9999 minutes).
and to exit user setup functions. The run delay setting
will appear on the LCD and the pump will be ready to start run delay.
ing the run delay even though the pump is not running.
and display on the LCD.
start running. “Timed Run Remaining” will display
and count down in minutes on the LCD.
and holding .
lated run time displays will freeze. Run can be resumed by pressing []. Time
remaining and cumulative run time will resume
10
Setup
f. At the end of the run, the pump will stop and “Timed Run Remaining” and “0”
will display. To display accumulated run time, press and hold .
g. To return to “Timed Run” display, press []. This will also clear accumulated
run time.
Note
Reminder
If pump goes to sleep following the timed run and is awakened, the pump
will display “Timed Run Remaining” and “0.” Accumulated run time from the
run remains and can be displayed by pressing and holding .
When setting a timed run or run delay with a large number of minutes in user
Tip
setup functions, press with or . This activates the speed count feature
which scrolls through timed run or run delay minutes in increments of 100.
Pressing [] after a completed run automatically clears accumulated run
time.
Canceling a Timed Run and/or Run Delay
With pump in a non-running state (no fl ashing blue LED):
1. Press to enter user setup functions.
2. Press until fl ashing Set Timed Run and min appear
on the display.
3. Press until time displays as 0.
4. Repeat for Run Delay if needed.
5. Press [] to exit user setup functions. Pump will be ready to run.
Note
Selecting CLr in user setup functions after a sample run will clear accumulated
run time only. It will not clear Timed Run or Run Delay time settings.
11
Calibration
Calibration (High Flow: 1000 to 5000 ml/min)
Before use, allow pump to equilibrate after moving it from one
temperature extreme to another.
1. Run pump for 5 minutes before performing calibration.
2. Connect pump inlet to the outlet of a primary standard calibrator with
representative sample medium in line.
With pump in a non-running state (no fl ashing blue LED):
3. Press to enter user setup functions.
4. Press until ADJ and FLOW fl ash on display. Press
to increase fl ow. Press to decrease fl ow. Dashed
lines will move up or down on the display to indicate
graphically the direction of the adjustment. Flow rate
will not display on pump LCD. Observe the calibrator
to determine fl ow rate.
5. Follow the calibrator operating instructions. Once the desired fl ow rate is
indicated on the calibrator (within ± 5%), press [] to accept fl ow setting and
to exit user setup functions. The pump will be ready to run.
Note
6. Disconnect the calibrator and tubing. Replace representative tubes with new
• Changing the fl ow rate in user setup functions will not clear accumulated
run time.
• Changing the timed run and/or run delay settings in user setup functions will
automatically clear accumulated run time.
unexposed media for sampling.
12
Calibration
Calibration (Low Flow: 5 to 500 ml/min)
Requires Constant Pressure Controller (CPC) and Adjustable Low Flow Tube Holder see Accessories, Low Flow Adapter Kit on page 18. The low fl ow tube holder (low fl ow adapter
kit, Cat. No. 210-500) used with CPC allows up to four tube samples to be taken simultaneously,
each at different fl ow rates if desired.
Before use, allow pump to equilibrate after moving it from one
temperature extreme to another.
Charge pump battery completely before calibration and sampling.
1. Run pump for 5 minutes before performing calibration.
2. a. For single-tube applications, set the fl ow rate to 1500
ml/min (see Setting Flow Rate).
b. For multiple-tube applications, the pump fl ow rate
must be set at ≥ 15% higher than the sum of the fl ow
rates through all tubes.
Do not exceed 500 ml/min fl ow rate
per tube for multiple-tube sampling.
3. Use tubing on the CPC to connect the pump
inlet to the CPC outlet (the side of the CPC
without a label). Connect the inlet side of the
CPC (marked “to sample”) to the Adjustable
Low Flow Tube Holder.
4. Label all tubes and ports if performing
multiple-tube sampling.
5. Insert opened representative tubes into the
rubber sleeve(s) of each port on the Adjustable
Low Flow Tube Holder. If any ports remain unused, place unopened tubes in
them; it is important to “seal” unused ports.
6. Loosen the brass fl ow adjust screw on the low fl ow holder. Use tubing to connect the
exposed end of one tube to a primary standard calibrator.
7. Turn on pump. Turn the fl ow adjust screw (needle valve) on the tube holder until the
calibrator indicates the desired fl ow rate (do not adjust the fl ow rate of the pump).
For multiple-tube sampling, repeat this procedure for each port to calibrate the fl ow
rate for each tube. Seal unused ports during calibration with unopened tubes.
8. Disconnect the calibrator and tubing. Replace representative tubes with new
unexposed tubes for sampling.
Adjust fl ow with fl ow adjust
screw on tube holder.
Note
The CPC has two small inlet ports on the bottom of the unit. These ports should
be inspected periodically for blockage, which can occur when sampling in dusty
environments. Blocked ports will cause back pressure to increase. Clean ports
with a small pick and use air to blow away particles.
13
Sampling
Sampling
• Before use, allow pump to equilibrate after moving it from
one temperature extreme to another.
• Use of any device or battery pack other than P85004 and
P84002 to power the pump voids the UL Listing for intrinsic
safety.
• Charge pump battery completely before calibration and
sampling.
1. Calibrate pump fl ow rate (see Setting Flow Rate and Calibration).
2. Replace representative sampling media with new unexposed media.
3. To start a continuous or timed sample run, press []. Record start time and
other pertinent information.
Note
• Sampling will start automatically if a run delay is set and initiated. Sampling
will stop automatically if a timed run is set and initiated.
• For automatic start and stop, set and initiate both a run delay and a timed run.
• For multiple-tube sampling, seal unused holder ports with unopened tubes.
4. Sample for the time specifi ed in the method used. Accumulated run time will
display on the LCD.
5. To stop a sample run, press []. This places the pump in
Hold. Record stop time and other pertinent information.
a. To resume sample run without clearing accumulated
run time, press [].
b. To clear accumulated run time, place pump in Hold, press to enter
user setup functions, and press [] when CLr displays.
When using impingers, place a trap between the pump and the
impinger to protect the pump from harmful liquids or vapors. Failure
to use the impinger trap voids any warranty.
Flow Fault
If the pump is unable to compensate for longer than 15 seconds
due to excessive back pressure, the pump enters fl ow fault.
During fl ow fault, the fault icon displays on the display and
fl ashes during the length of the fault, the pump enters Hold
mode, and the accumulated run time display is retained. The
pump will restart in 15 seconds and try to continue sampling.
If the fl ow remains restricted, the pump will return to fl ow
fault. Auto-restart is attempted every 15 seconds up to 5 times.
Flow fault time is not added to accumulated run time.
Flow fault during
continuous run
To clear a fl ow fault and the fl ow fault icon, determine the cause of the fault, remedy
the fault cause, and press
[] to remove the icon from the LCD and restart the pump.
14
Sampling
Note
Tip
A low battery fault may occur instead of a fl ow fault when there is a low battery
charge at the time of the fault, excessive back pressure, and/or when there is a
very short distance between the restriction and the pump inlet (e.g., fi nger fault
versus pinched tubing). The fl ow fault icon will not appear and auto-restart
will not be activated under these conditions. A low battery fault icon (see
page 7) will appear instead and the pump will go to Sleep.
If pump goes to Sleep while in fl ow fault, the fl ow fault icon may remain on the
display when the pump is subsequently turned on. T o remove the icon from the
display, place pump in Hold, press to enter user setup functions, and
press [] when CLr appears.
15
Battery Replacement
122
Replacing the Li-Ion Battery Pack
For models containing a lithium-ion battery pack only
To retain display data, ensure pump is placed in Hold before
disconnecting the battery pack. Display data will not be retained if
battery is removed while pump is running.

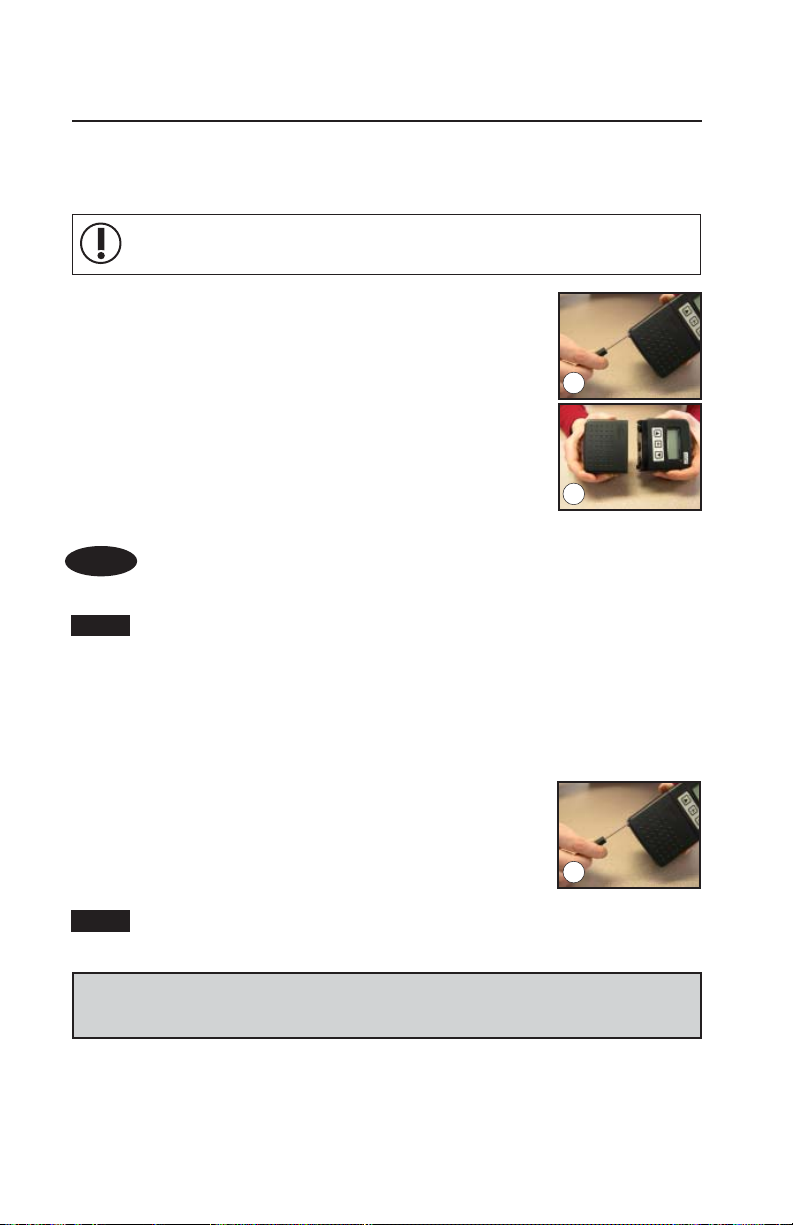

Removing Existing Battery Pack
1. Release the battery pack by removing the two screws on
the bottom of the battery pack housing.
2. Pull battery pack housing away from pump case.
Installing the New Battery Pack
STOP!
Note
1. Align the pump case with the battery pack. The etched SKC logo should be on
2. Replace 2 screws on the bottom of the battery pack housing
3. Charge the new battery pack completely before use.
Note
Completely charge a new battery pack before operating the pump
(see page 4).
It may be necessary to charge the battery a few times before maximum battery
capacity is achieved.
the same side as the LCD and keypad. Press the two parts together until snug. The
pump will power up and the LCD will display the last mode used (typically Hold)
and possibly accumulated run time from the last sample run.
and use a Phillips head screwdriver to tighten screws in an
alternating fashion.
If the pump does not operate as expected after replacing the battery pack, see
Maintenance, Resetting Pump to Manufacturer Settings.
See www.skcinc.com/instructions/1756.pdf for more information on
SKC pump battery packs.
16
Maintenance
2
Resetting Pump to Manufacturer Settings
If the pump does not operate as expected, perform the following procedure:
1. Remove the battery pack (see Removing Existing Battery
Pack).
2. On the pump keypad, press and hold and simultaneously while attaching the pump to the new battery
pack. The LCD should display the software version
number (525X).
Do not release hold on the two keys until the pump is fi rmly attached to
the battery pack.
3. Release and .
4. Press 2 times. The LCD should read 0. If it does not, repeat Steps 1 through 4
until successful.
5. Install 2 screws and use a Phillips head screwdriver to tighten screws in an alternating fashion.
Cautions:
• For safe operation in hazardous locations, ensure the pump label
contains the
No. P85004 or P85002. Use of any other battery pack or device to
power the pump voids the UL Listing for intrinsic safety.
• Do not charge or operate pump from charger in hazardous locations.
• Use only the charger and battery packs designed for the AirChek
XR5000 pump to ensure reliable performance. Failure to do so
voids any warranty.
• Use only SKC-approved parts to ensure reliable performance and
to maintain the UL Listing for intrinsic safety. Failure to do so voids
any warranty.
• Tampering with the battery pack or using a repaired or rebuilt
battery pack voids any warranty and UL Listing for intrinsic safety.
• Do not open, disassemble, short circuit, crush, incinerate, or
expose the battery to fi re or high temperatures.
• Use only the SKC-approved charger for this pump. Use of an unapproved charger may damage the battery and pump and voids any warranty.
• Failure to follow warnings and cautions voids any warranty.
logo and the battery pack label contains Cat.
17
Accessories
Description Cat. No.
Defender Primary Standard Calibrator, 50 to 5000 ml/min
fl ow range, includes lead-acid battery, charger (100-240 V),
software, and 1-meter serial cable 717-510M
Single Charging Kit, for models with Li-Ion battery packs only,
100-240 V AC, 50/60 Hz, includes charging unit, power supply,
and interchangeable wall plugs 223-241
Take Charge 5 Five-station Li-Ion Battery Charger, for Li-Ion
model XR5000 pumps and Leland Legacy pumps, includes charging
unit and power cable, 100-240 V AC 223-441
Protective Pouches
Red, for high visibility, for high-power model 224-96A
Black, noise reducing, for high-power model 224-96C
Black, for high-power model 224-88
Black, noise reducing, for standard model 224-913
Low Flow Adapter Kit (5 to 500 ml/min) suitable for all XR5000
pump models, includes constant pressure controller (CPC), adjustable
low fl ow tube holder, and Type A protective tube cover 210-500
Constant Pressure Controller (CPC), for sampling in the
5 to 500 ml/min fl ow range. Use with adjustable low fl ow
holder listed below. A CPC is included in Low Flow Adapter
Kit above. 224-26-CPC
Adjustable Low Flow Tube Holders for
Low Flow (5 to 500 ml/min) Sampling
Use with CPC listed above. Require separate tube covers listed below
Single, included in Low Flow Adapter Kit above 224-26-01
Dual 224-26-02
Tri 224-26-03
Quad 224-26-04
Sample Tube Protective Covers
Use with adjustable fl ow tube holders listed above.
Type A (tubes 6-mm OD x 70-mm L), included in
Low Flow Adapter Kit above 224-29A
Type B (tubes 8-mm OD x 110-mm L) 224-29B
Type C (tubes 10-mm OD x 150-mm L) 224-29C
Type D (tubes 10-mm OD x 220-mm L) 224-29D
18
Replacement Parts
Description Cat. No.
Battery Packs
4-cell Li-Ion* Battery Pack P85004
2-cell Li-Ion* Battery Pack P85002
Accessories
Belt Clip P20139
Filter/O-ring, pk/3 P20140
Inlet/Filter Housing P20142
Inlet Filters, pk/50 P40011
Battery Pack Cover P20419
* Li-Ion batteries may be subject to special shipping regulations.
Cautions:
• For safe operation in hazardous locations, ensure the pump label
contains the
No. P85004 or P85002. Use of any other battery pack or device to
power the pump voids the UL Listing for intrinsic safety.
• Use only SKC-approved parts to ensure reliable performance and
to maintain the UL Listing for intrinsic safety. Failure to do so voids
any warranty.
• Any warranty and UL Listing for intrinsic safety are void if pumps
are not repaired by SKC or authorized SKC repair centers.
• Failure to follow warnings and cautions voids any warranty.
logo and the battery pack label contains Cat.
Li-Ion Battery Shipment
Rechargeable lithium-ion batteries for use with SKC sample pumps have been tested in accordance with the UN
Manual and are proven to meet requirements of each test in the UN Manual of Test Criteria, Part II, subsection 38.3.
They have a watt-hour (Wh) rating below 100.
Per 2013 IATA regulations for air shipments, packaging must meet the specifi cations of and contain labeling and
documentation required by IATA Packaging Instructions 967 (UN 3481, Section II), 966 (UN 3481, Section II), and 965
(UN 3480, Sections IA > 10 Kg G and IB 2.5 to 10 Kg G). See IATA Lithium Battery Guidance Document: Transport
of Lithium Metal and Lithium Ion Batteries, Revised for the 2013 Regulations
SKC Limited Warranty and Return Policy
SKC products are subject to the SKC Limited Warranty and Return Policy, which provides
SKC’s sole liability and the buyer’s exclusive remedy. To view the complete SKC Limited
Warranty and Return Policy, go to http://www.skcinc.com/warranty.asp.
19
Loading...
