Sitecom WLX-2004 User Manual

WLX-2004

Table of Contents

Contents

1. Package Contents ........................................................................................................................ 3

2. Cautions .......................................................................................................................................... 4

2.1 Usage Cautions ...................................................................................................................... 4

2.2 Power ......................................................................................................................................... 4

2.3 Repair ........................................................................................................................................ 4

2.4 Disposing of the WiFi TV adapter ................................................................................... 4

2.5 Others ........................................................................................................................................ 4

3. Product layout ............................................................................................................................... 5

4. LOGIN procedure ......................................................................................................................... 6

5. Wizard .............................................................................................................................................. 7

5.1 Connect Via WPS (Softbutton) ........................................................................................ 7

5.2 Connect Manually.................................................................................................................. 9

6. Basic Settings ............................................................................................................................. 12

7. Advanced ...................................................................................................................................... 13

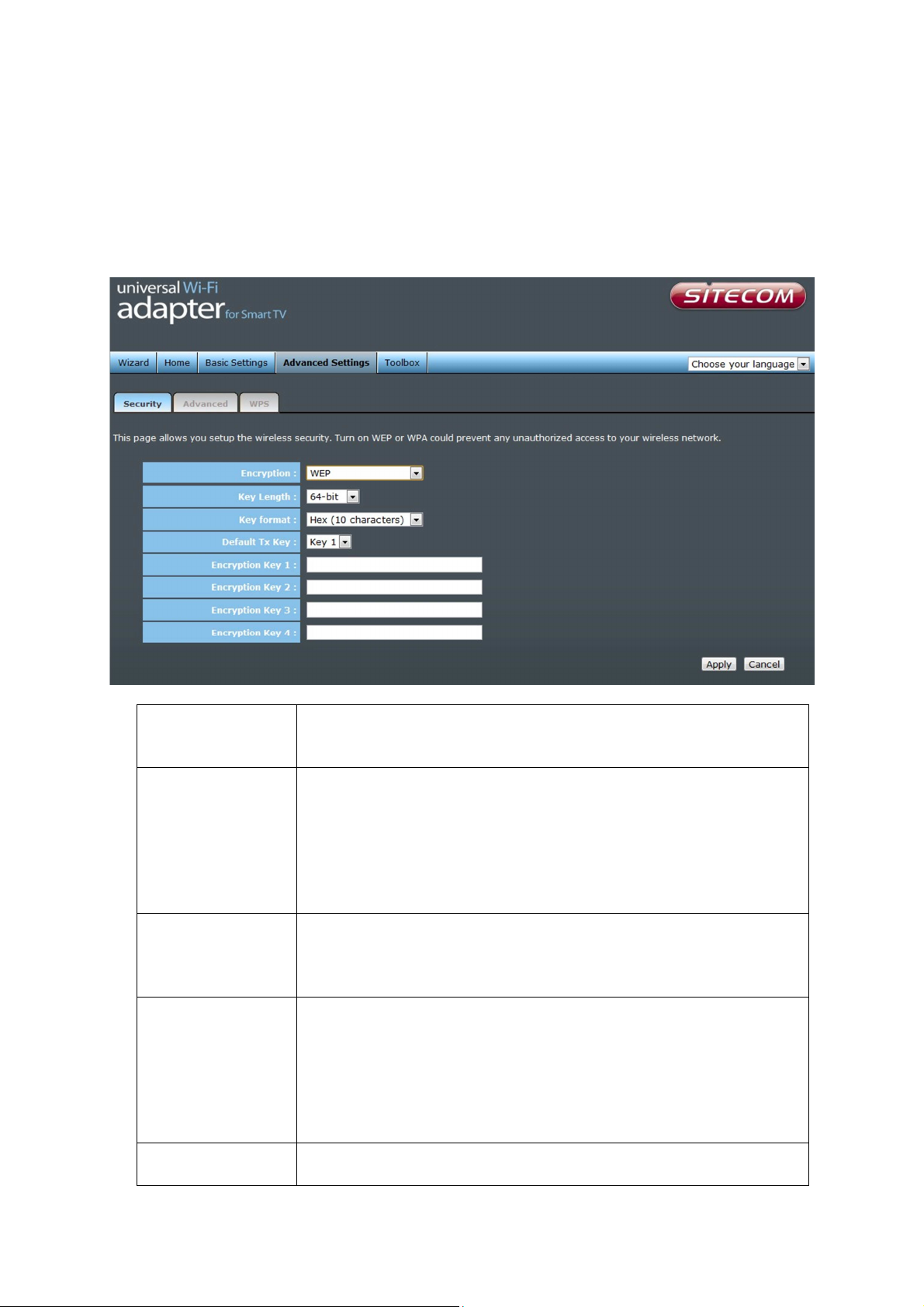

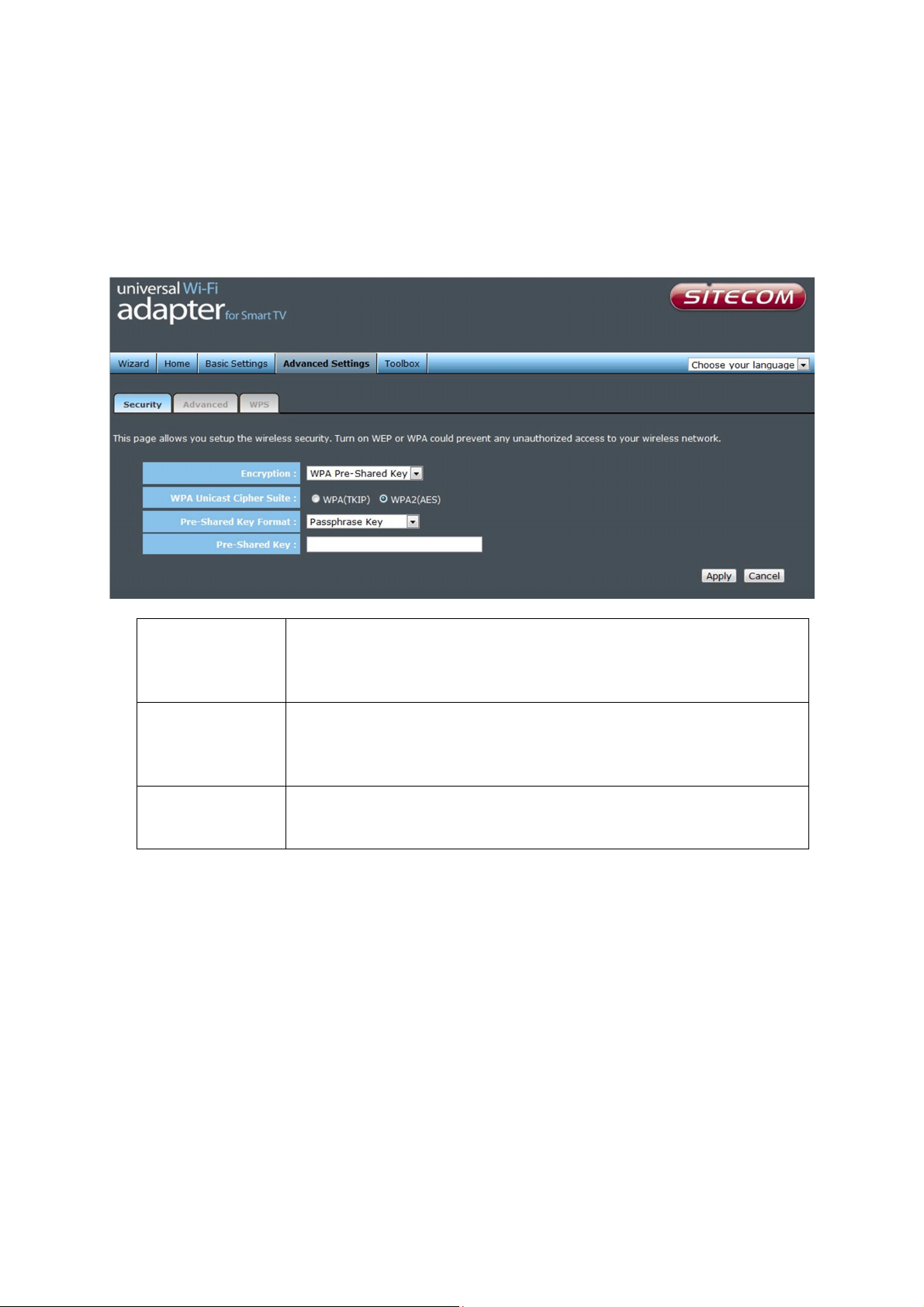

7.1 Security................................................................................................................................... 13

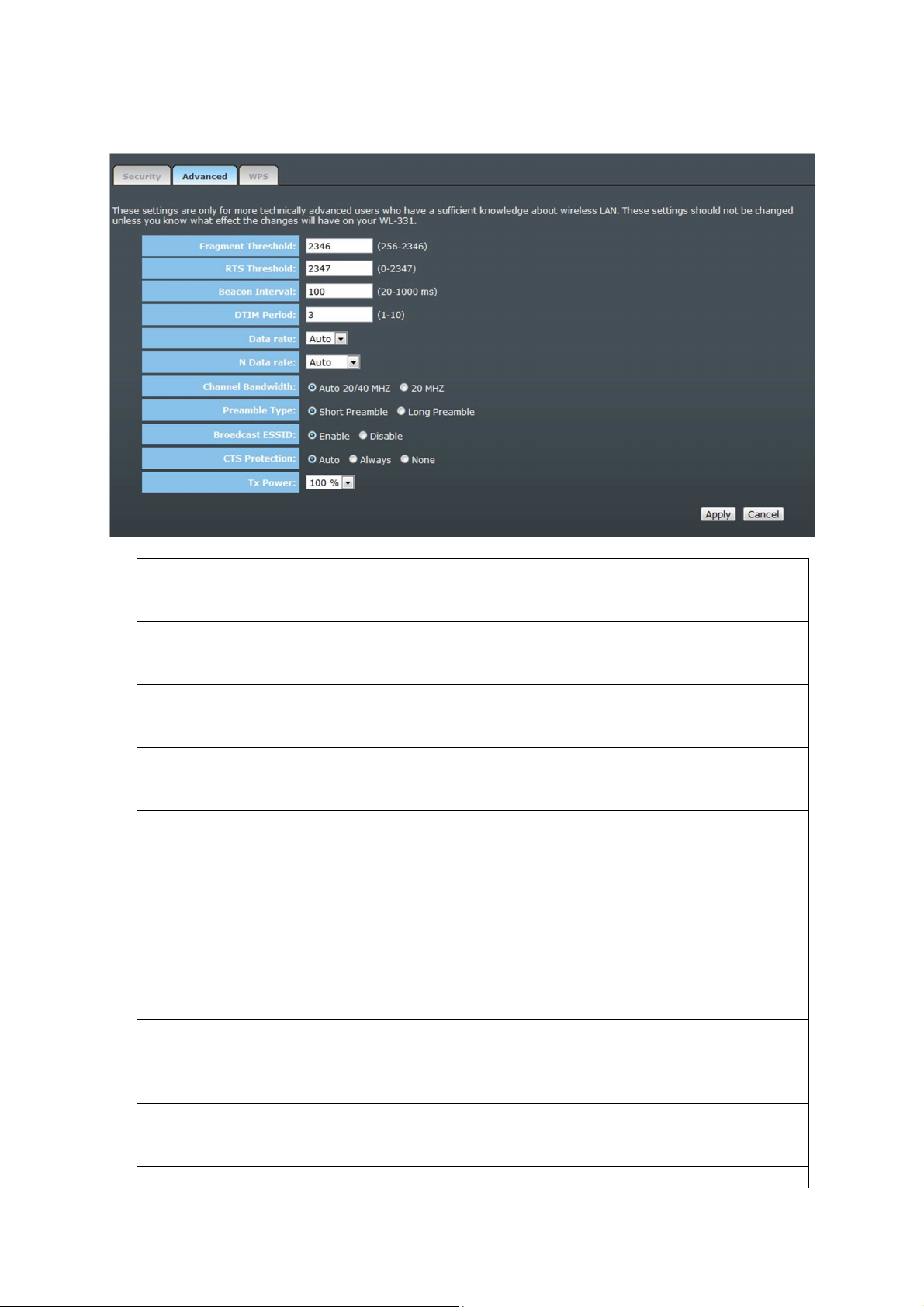

7.2 Advanced................................................................................................................................ 17

7.3 WPS .......................................................................................................................................... 19

8 Toolbox ........................................................................................................................................... 21

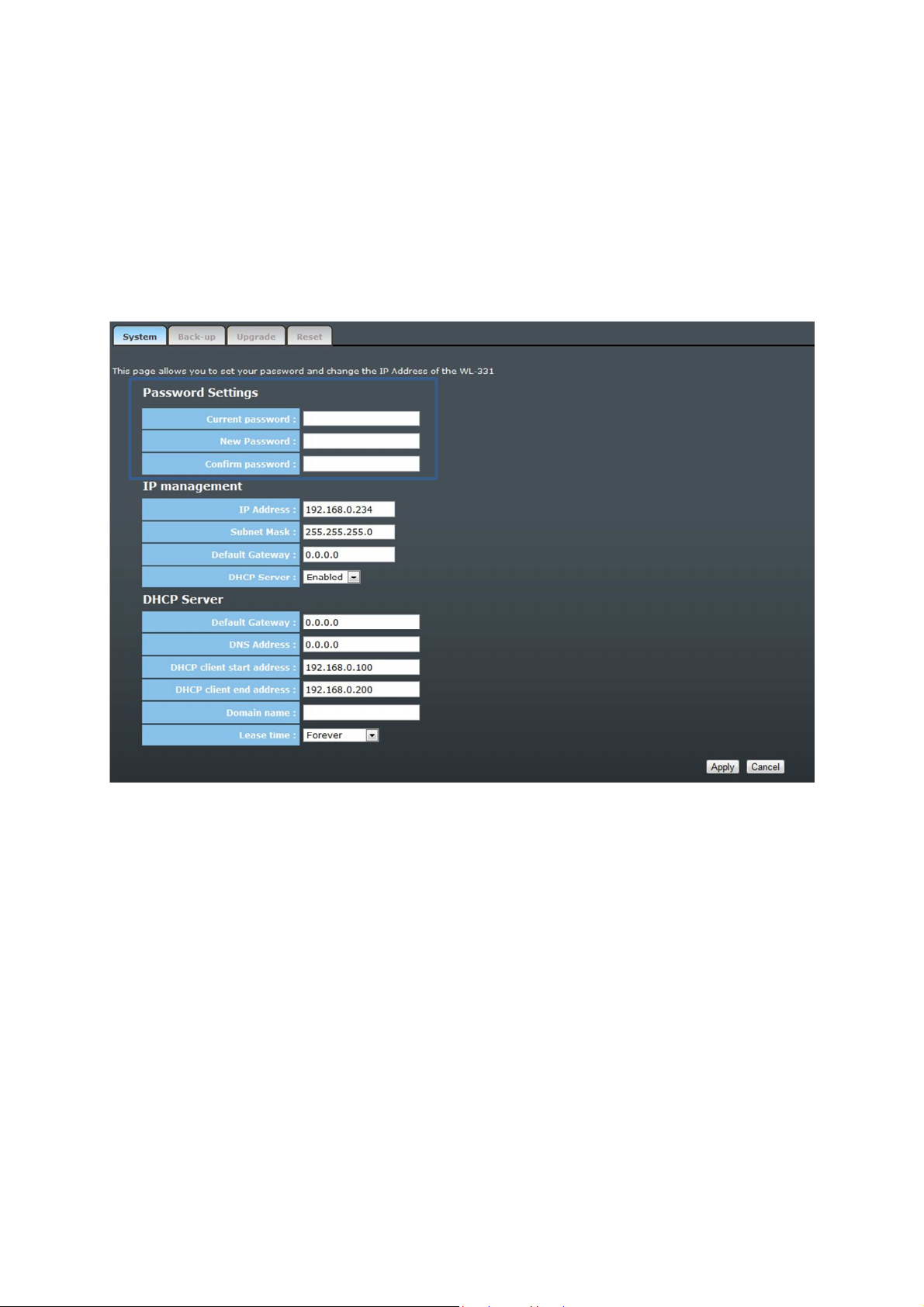

8.1 System .................................................................................................................................... 21

8.1.2 Change Password ................................................................................................................. 21

8.1.3 IP management .................................................................................................................... 22

8.1.4 DHCP Server.......................................................................................................................... 23

8.2 Back-up ................................................................................................................................... 24

8.3 Upgrade .................................................................................................................................. 25

8.4 Reset ........................................................................................................................................ 26

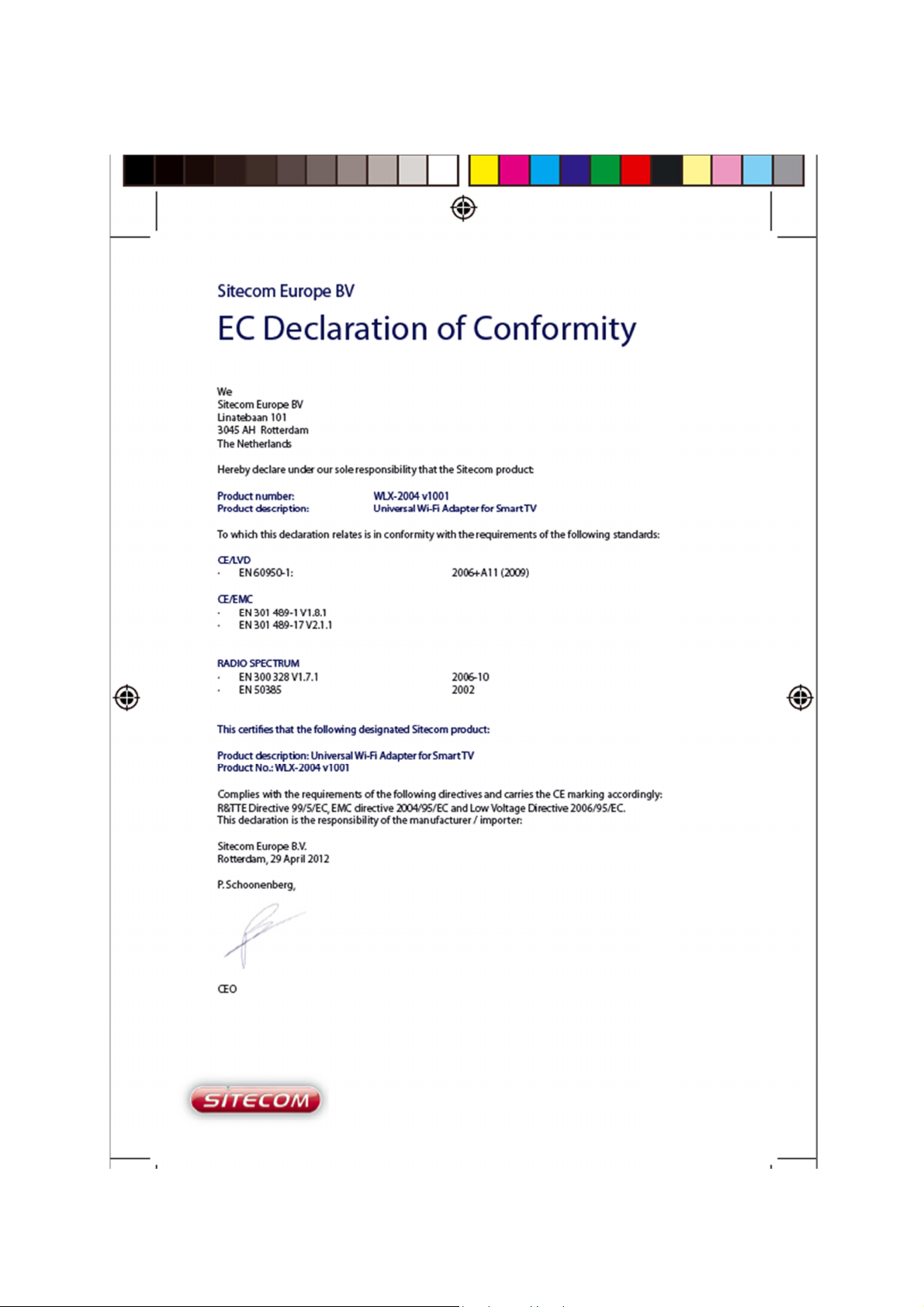

Declaration of conformity ............................................................................................................ 27

1. Package Contents

Open the package carefully, and make sure that none of the items listed below are
missing. Do not discard the packing materials, in case of return; the unit must be
shipped back in its original package.

1. The WLX-2004 Universal WiFi TV adapter for smart TV

2. An USB to Micro USB cable

2. Cautions

This WiFi adapter’s design and manufacturer has your safety in mind. In order to
safely and effectively use this router, please read the following before usage.

2.1 Usage Cautions

The user should not modify this WiFi TV adapter. The environmental temperature
should be within +5 ~ +35 degrees Celsius.

2.2 Power

When placing the adapter cable, make sure it cannot get damaged or be subject to
pressure. To reduce the risk of electric shock, unplug the adapter first before cleaning
it. Never connect the adapter to the WiFi TV adapter in a humid or dusty area. Do not
replace the adapter or cable’s wire or connector.

2.3 Repair

If the WiFi TV adapter has a problem, you should take it to an appointed repair centre
and let the specialists do the repair. Never repair the WiFi TV adapter yourself, you
might damage the WiFi TV adapter or endanger yourself.

2.4 Disposing of the WiFi TV adapter

When you dispose of the WiFi TV adapter, be sure to dispose it appropriately. Some
countries may regulate disposal of an electrical device, please consult with your local
authority.

2.5 Others

When using this WiFi TV adapter, please do not let it come into contact with water or
other liquids. If water is accidentally spilled on the WiFi TV adapter, please use a dry
cloth to absorb the spillage. Electronic products are vulnerable, when using please
avoid shaking or hitting the WiFi TV adapter, and do not press the buttons too hard.

- Do not let the WiFi TV adapter come into contact with water or other liquid.

- Do not disassemble, repair or change the design of the WiFi TV adapter, any
damage done will not be included in the repair policy.

- Avoid hitting the WiFi TV adapter with a hard object, avoid shaking the WiFi TV
adapter and stay away from magnetic fields.

- If during electrostatic discharge or a strong electromagnetic field the product will
malfunction, unplug the power cable. The product will return to normal performance
the next time it is powered on.

3. Product layout

Power led = Orange
Wlan Led = White
Lan Led = Blue

Power Input - Micro USB

WPS/Reset button

- 0-5 seconds for WPS

- 10-15 seconds reset

- >15 seconds for reset to
factory defaults

4. LOGIN procedure

Connect the WLX-2004 via an Ethernet cable directly to the computer and make sure

the device is powered via the Micro USB cable. Wait for 30 seconds to let the device

boot up fully. After that, proceed with the following steps to access the configuration

pages of the WLX-2004.

1. OPEN your browser (e.g. Internet Explorer).

2. Type http://192.168.0.234 in the address bar and press [Enter]

Please input user name and password in the field respectively. The default user name is

‘admin’, and the default password is ‘admin’. Press the ‘OK’ button to see the web

management interface of this device.

5. Wizard

Click ‘Wizard’ to easily configure the WiFi TV adapter.

5.1 Connect Via WPS (Softbutton)

If the access point you wish to connect to supports WPS then this is the easiest
way to configure this client. ‘Click on Connect via WPS’.

To start WPS, Click on ‘start to process’ at WPS via Push Button.

The following pop up will appear to inform you that the client will now attempt to
make a WPS connection. Click ‘OK’ and click on the WPS button of your Access
point or router within 2 minutes.

If WPS is successful Click ‘OK’ to continue.

Click ‘OK’. The device will now restart and apply the changes.

Please note: The DHCP server of the client will be disabled after the Setup
Wizard is completed. If you wish to access the GUI pages of the client without
resetting the device to defaults, configure your PC to a static IP within the range
of the WiFi TV adapter e.g. 192.168.0.x and open the GUI pages as explained in
chapter ‘Login procedure’.

If WPS was unsuccessful click ‘OK’ to return to the first step of the wizard.

5.2 Connect Manually

If the Access point you wish to connect to does not support WPS you can also
connect manually. Click ‘Connect Manually’ to continue.

The WiFi TV adapter will now show an overview of all networks within range. If
the Network you wish to connect to does not show up in the list, click ‘refresh’
to rescan the environment.

If your network still does not show up the signal from your Access Point might be
too weak. Either place the Access point closer to the WiFi TV adapter or move the
WiFi TV adapter closer to the Access Point.

If the network you wish to connect does appear in the list. Select it by clicking on
the corresponding radio button and click ‘Next’ to continue.

Enter the security key of your wireless network and click ‘next’ to continue.

The WiFi TV adapter will now verify if the key is correct. Please wait for 20
seconds.
