Sitecom WLR-9500 operation manual

WLR-9500

User Manual

Table of Contents

Introduction ............................................................................................................ 3

Package Contents ..................................................................................................... 5

Cautions ................................................................................................................ 6

Product Layout......................................................................................................... 7

Network + System Requirements ...................................................................................10

Setup your Router ....................................................................................................11

Setup your Computer ................................................................................................12

Configure your Internet connection ...............................................................................16

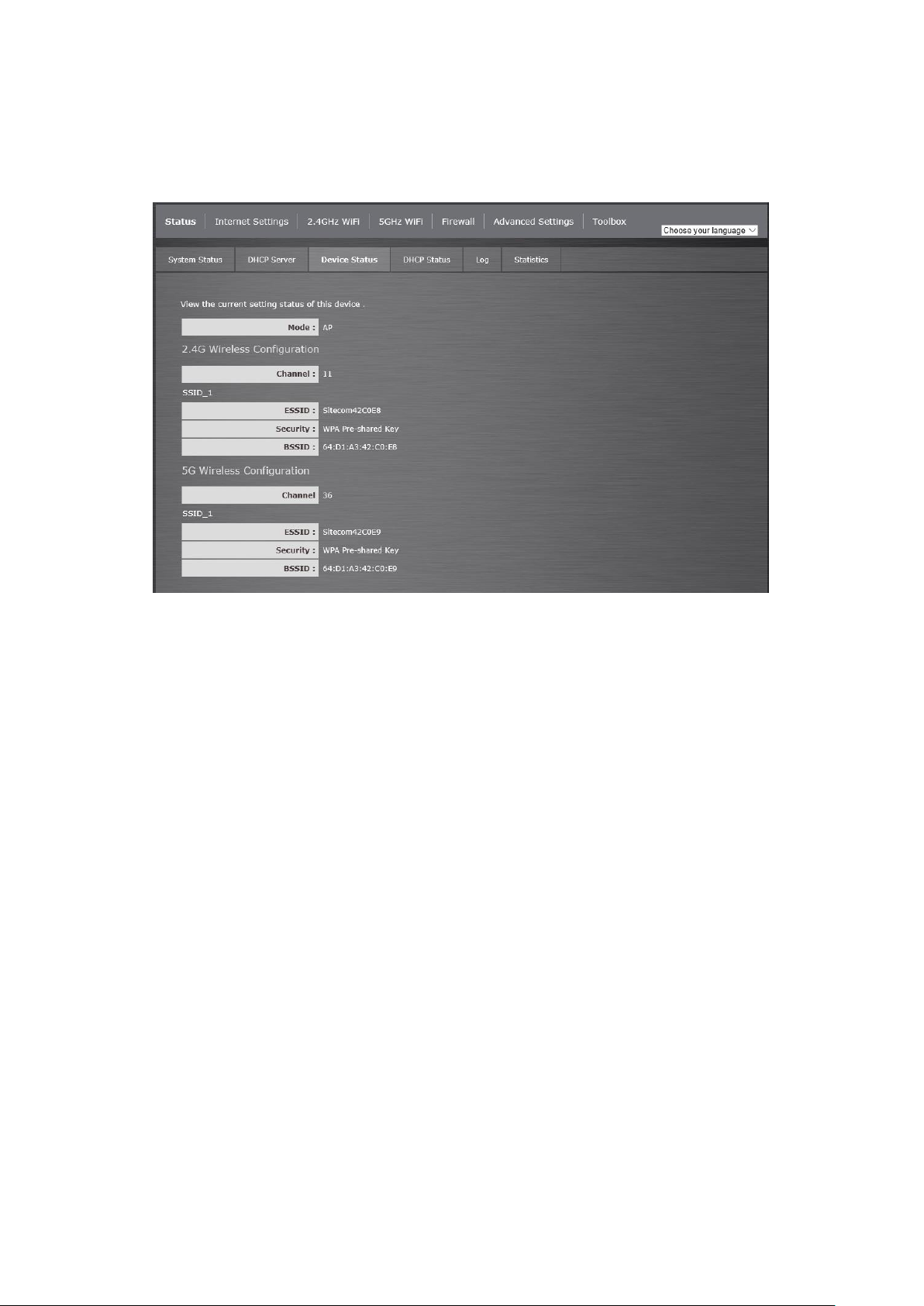

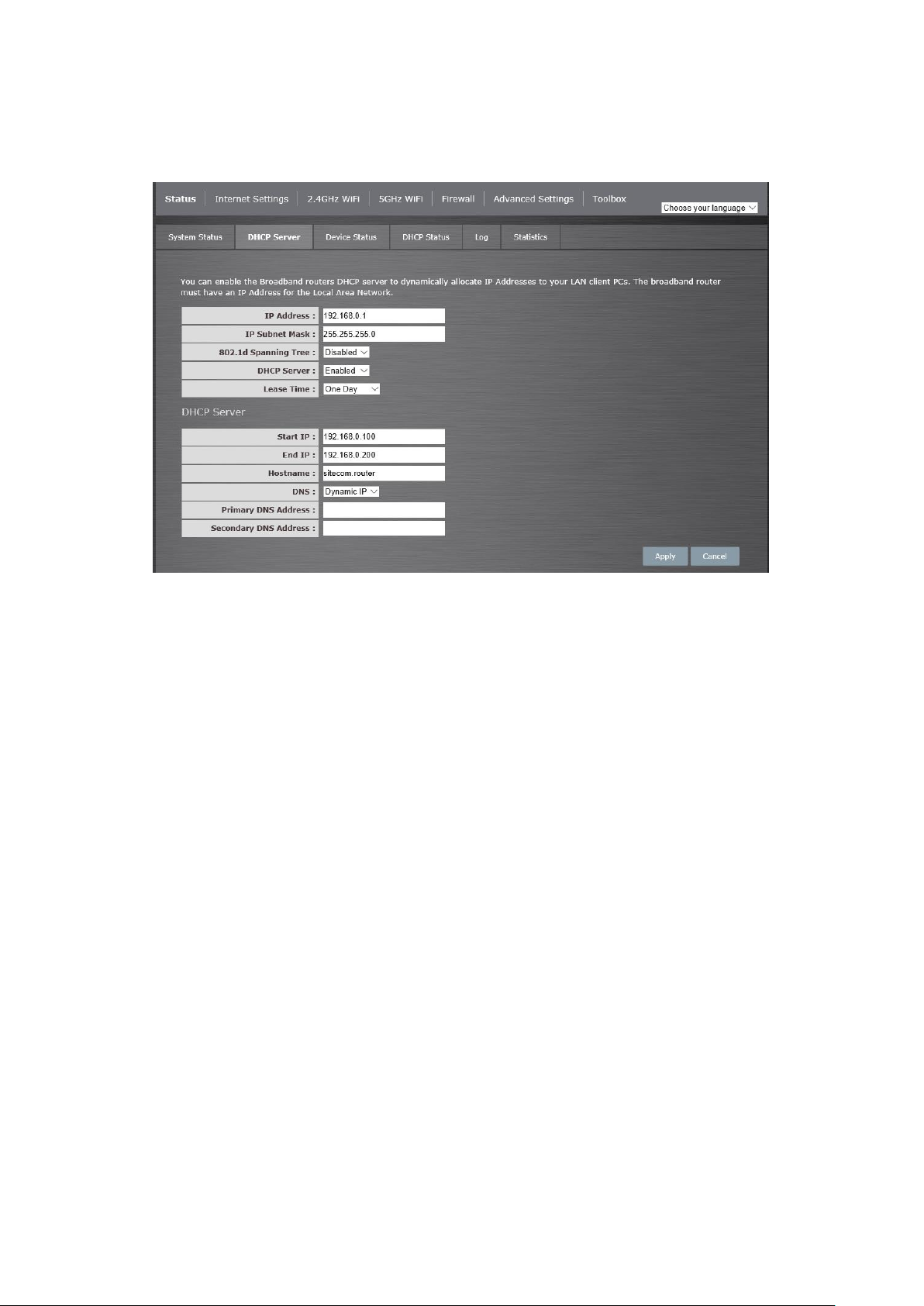

Configure your Router ...............................................................................................19

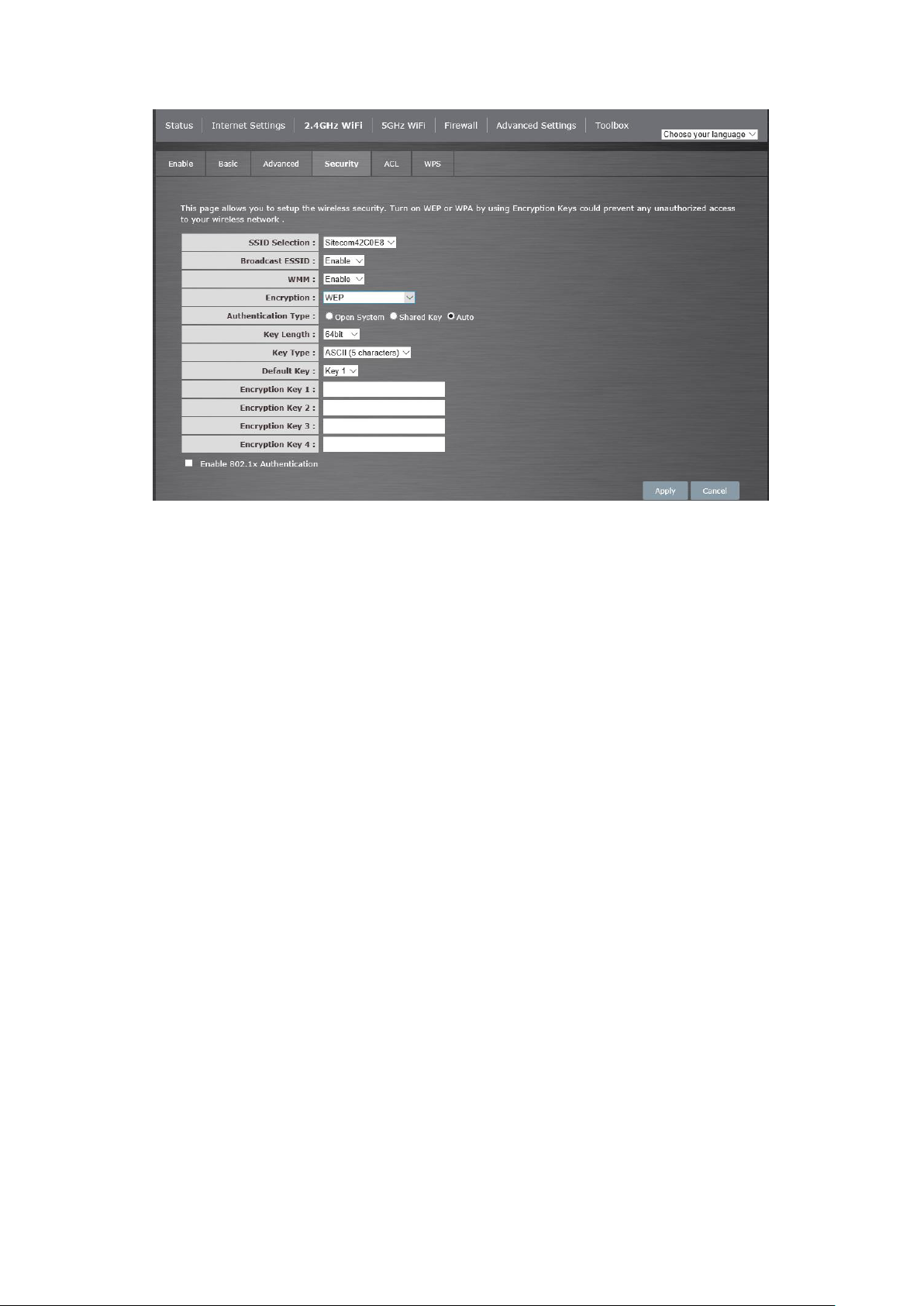

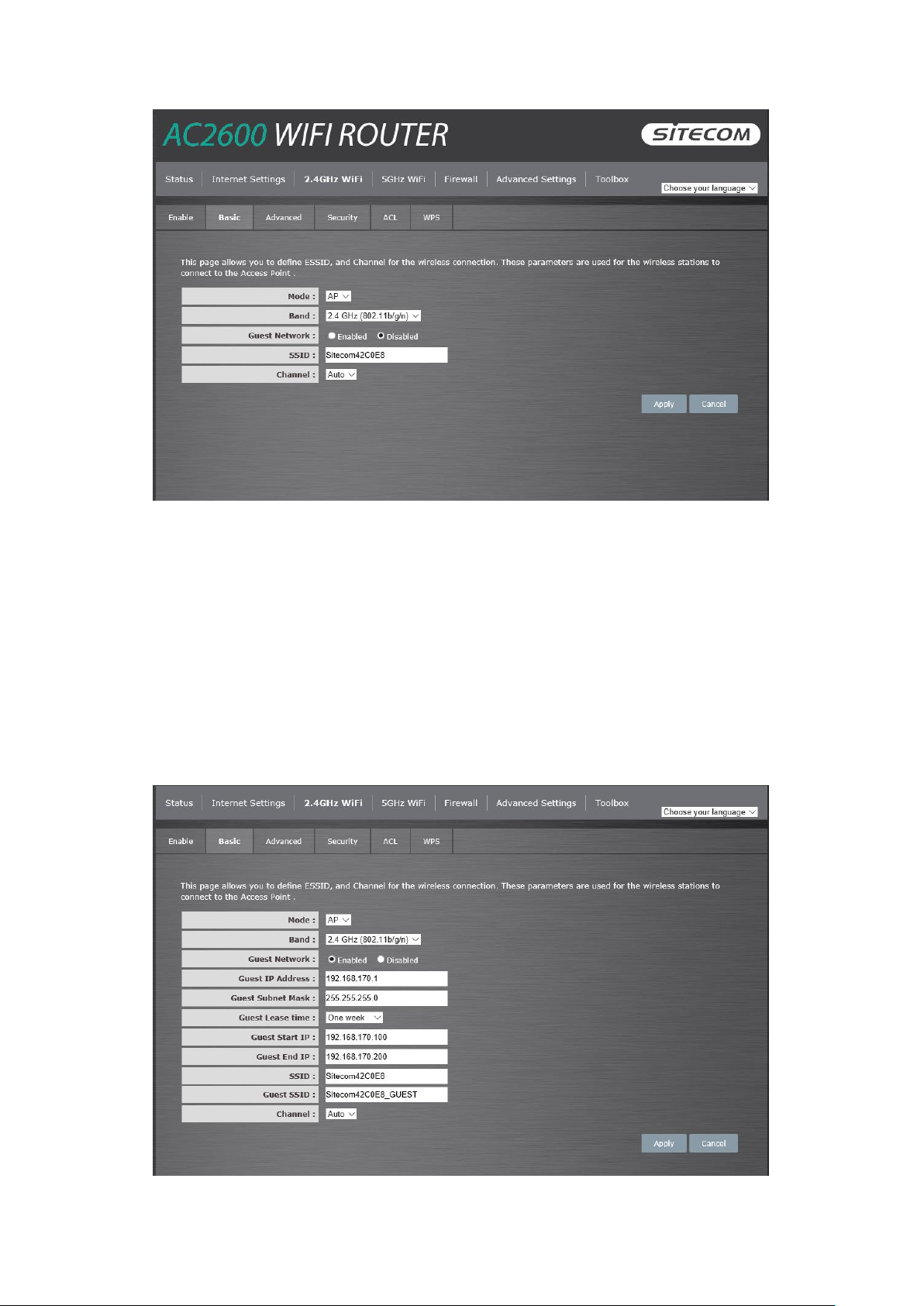

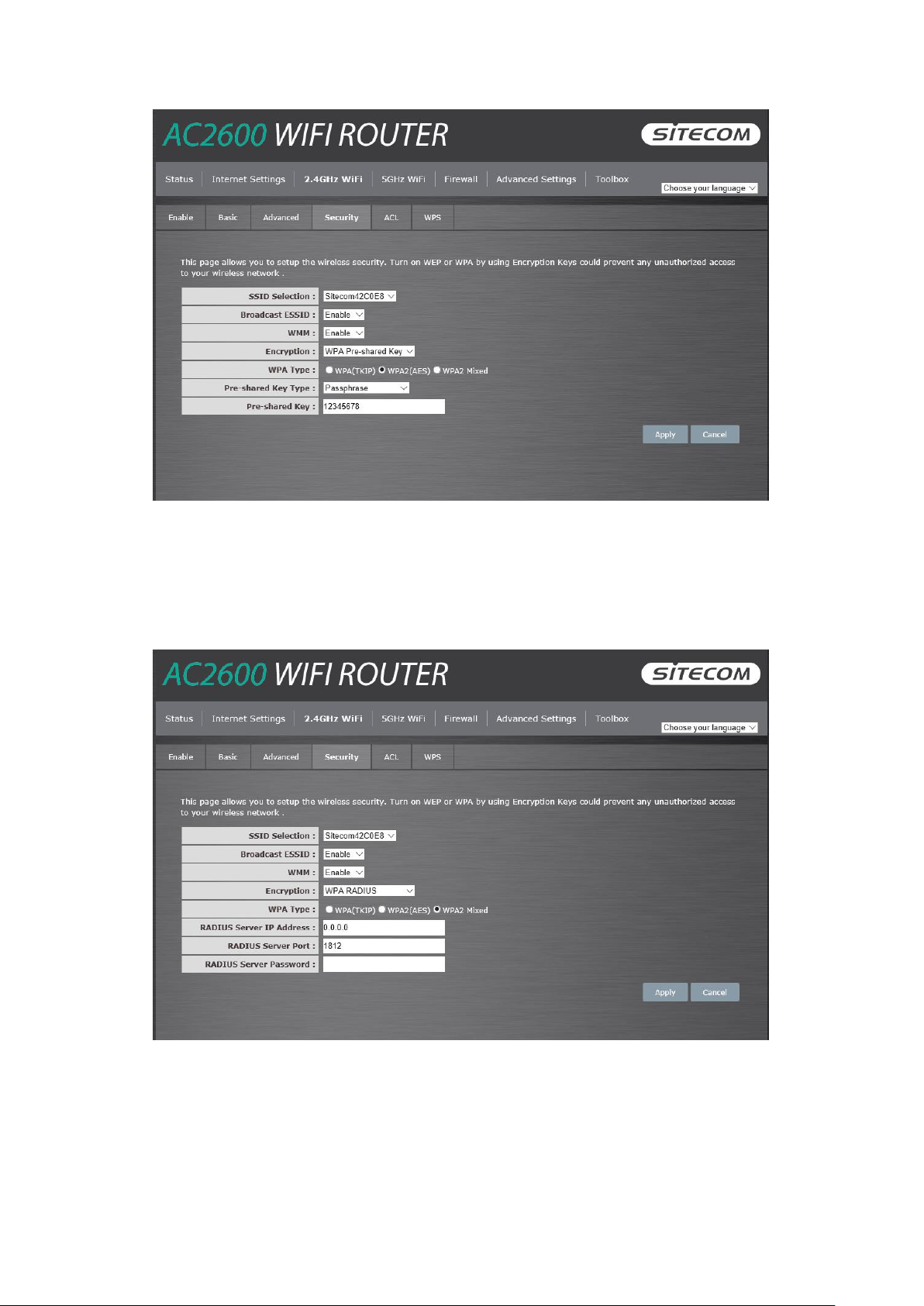

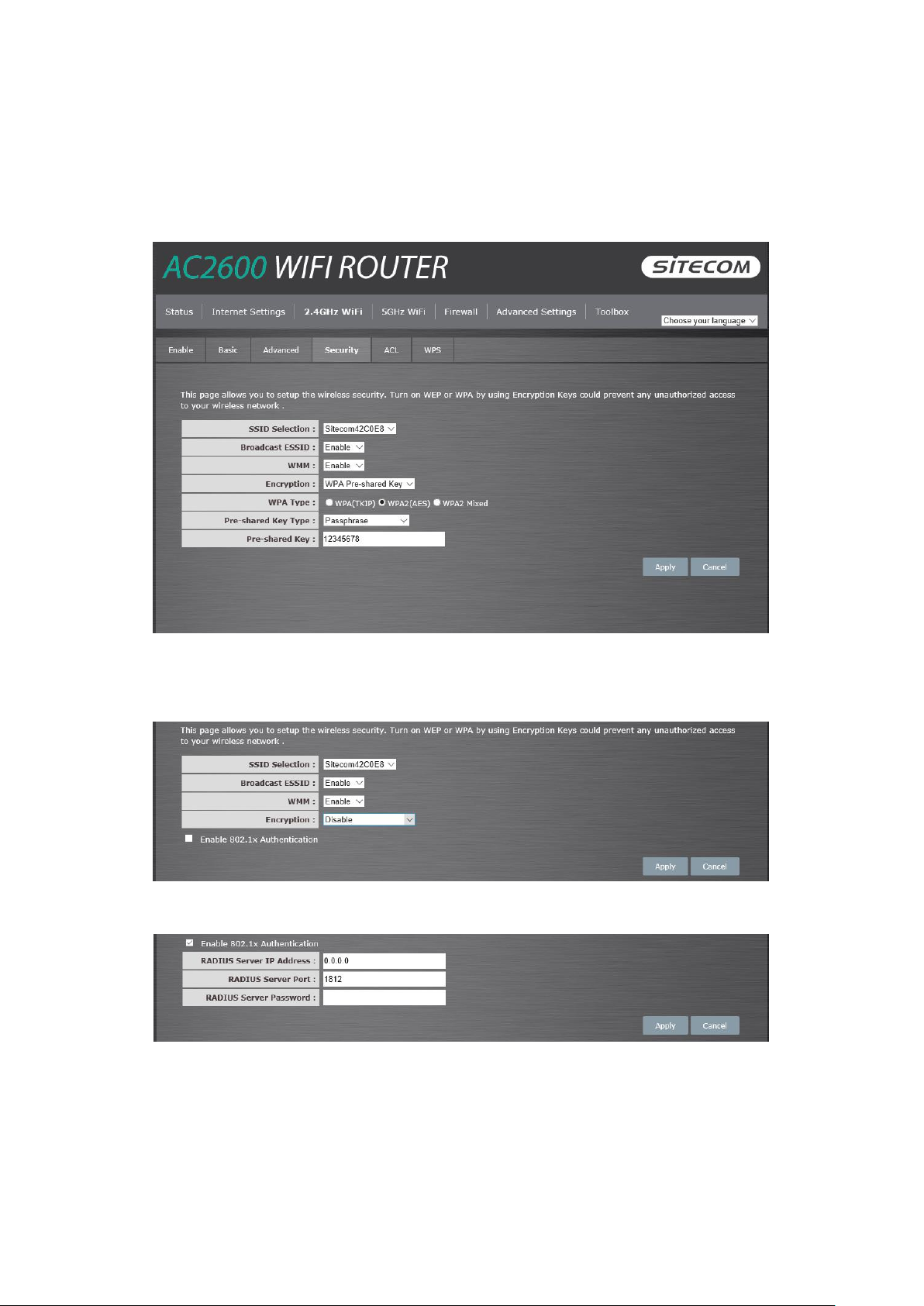

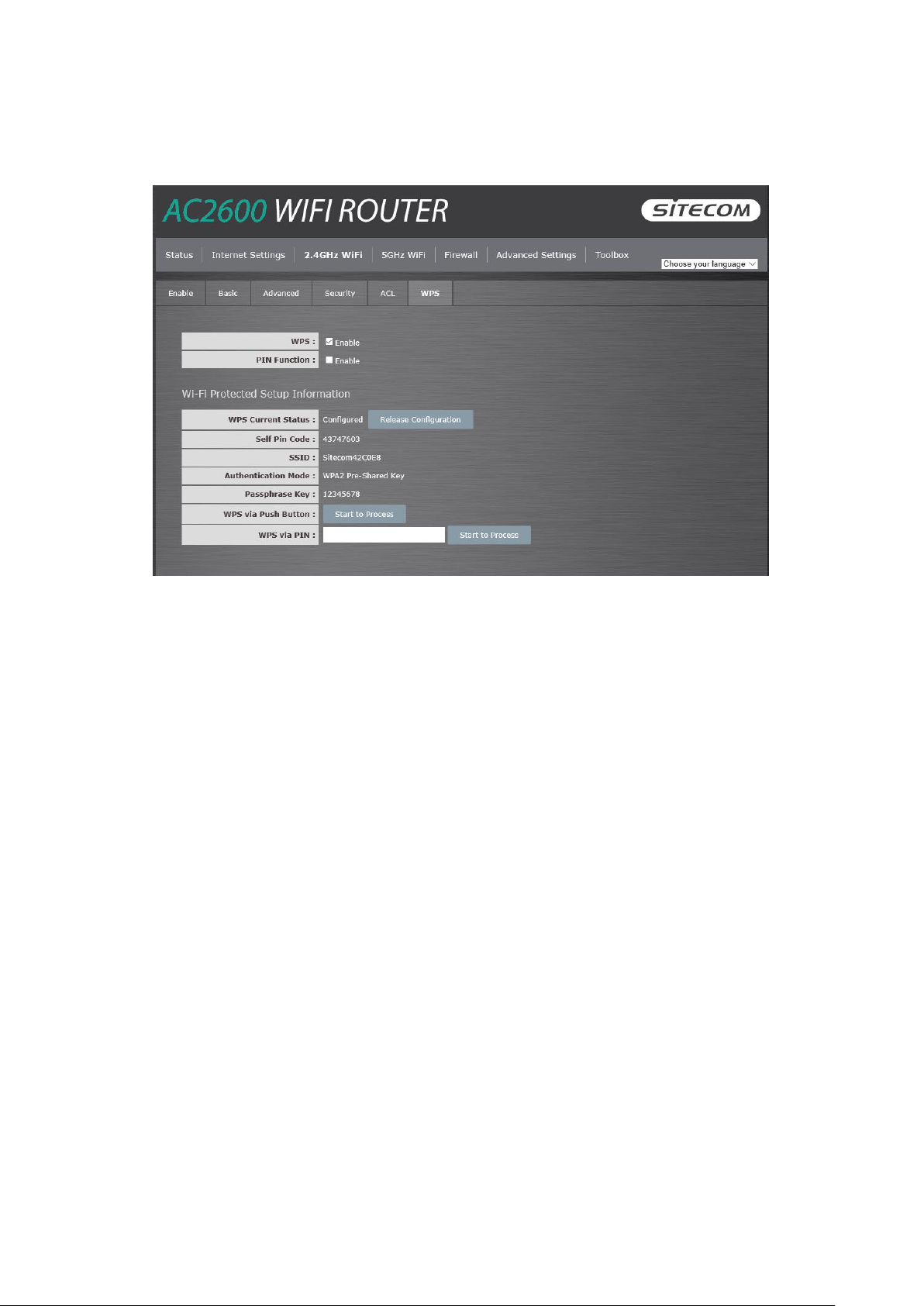

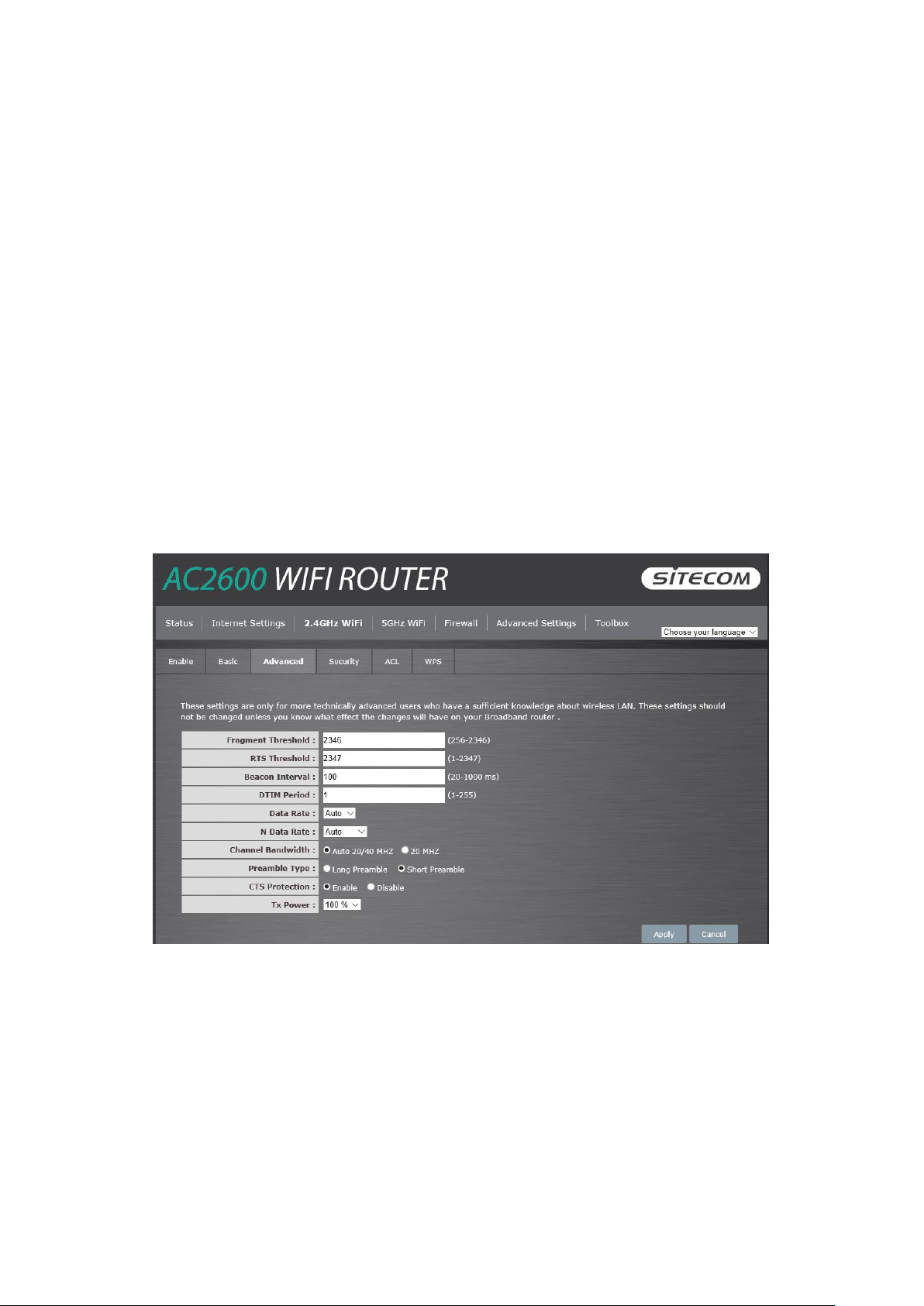

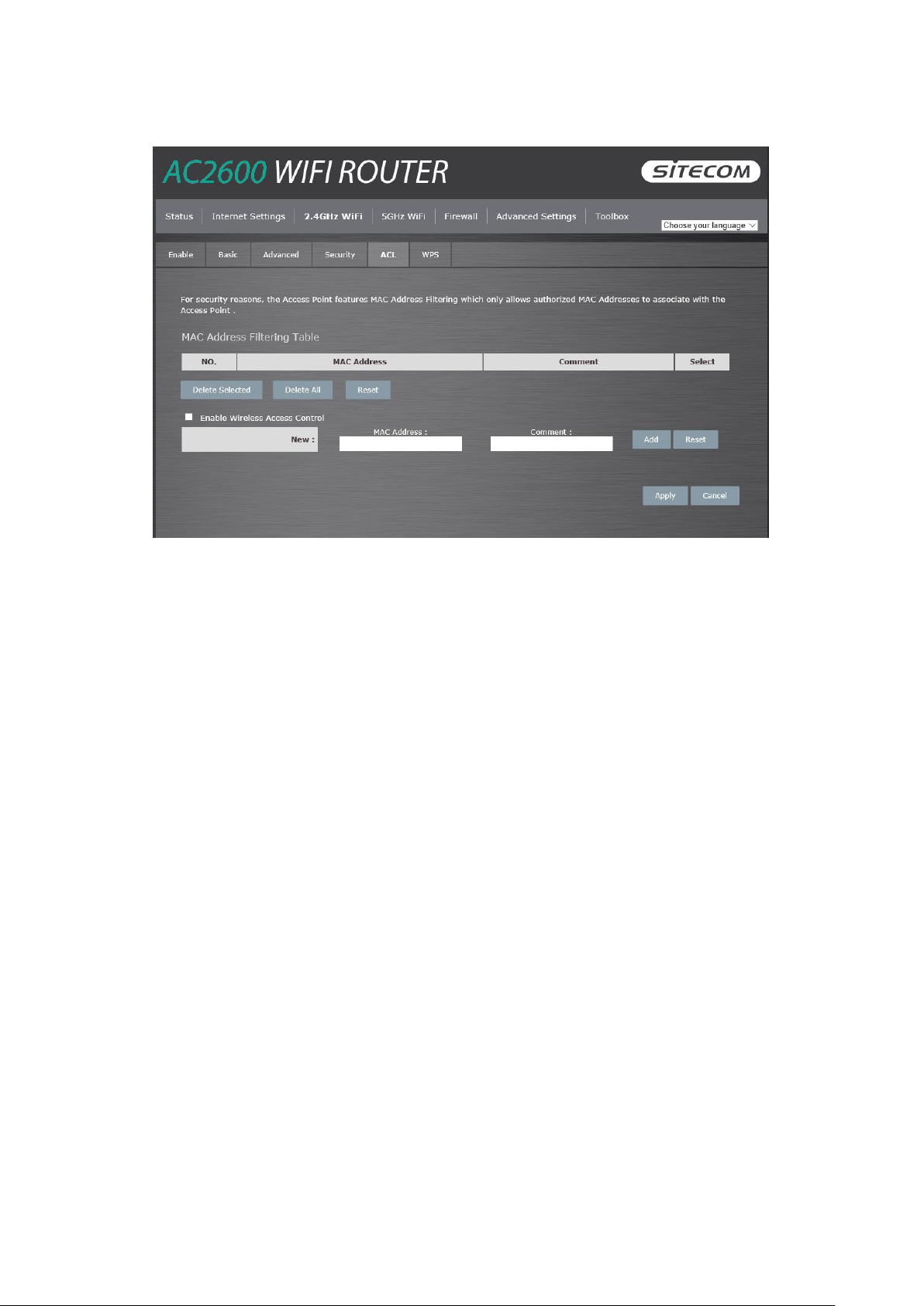

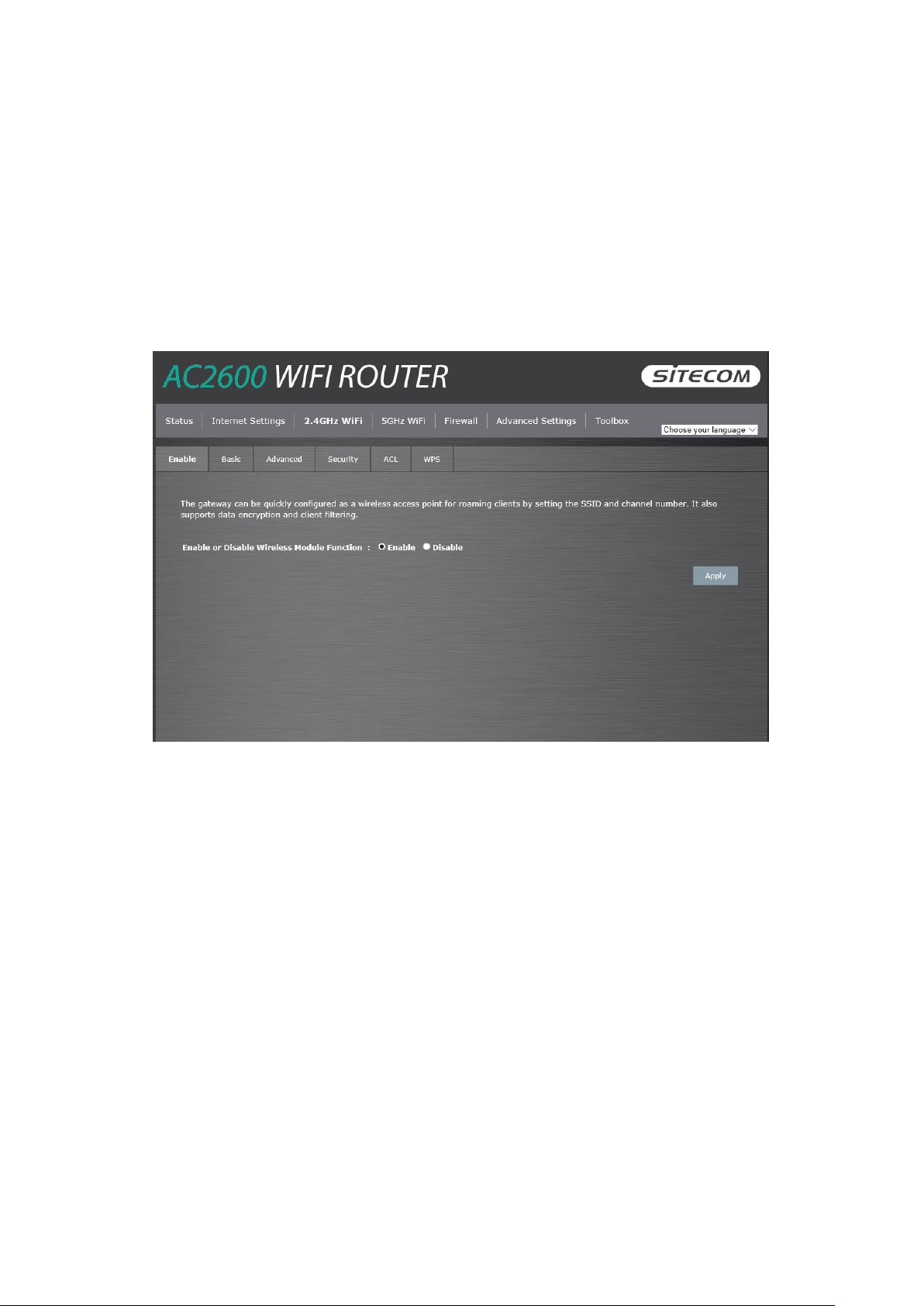

Wireless Settings ......................................................................................................24

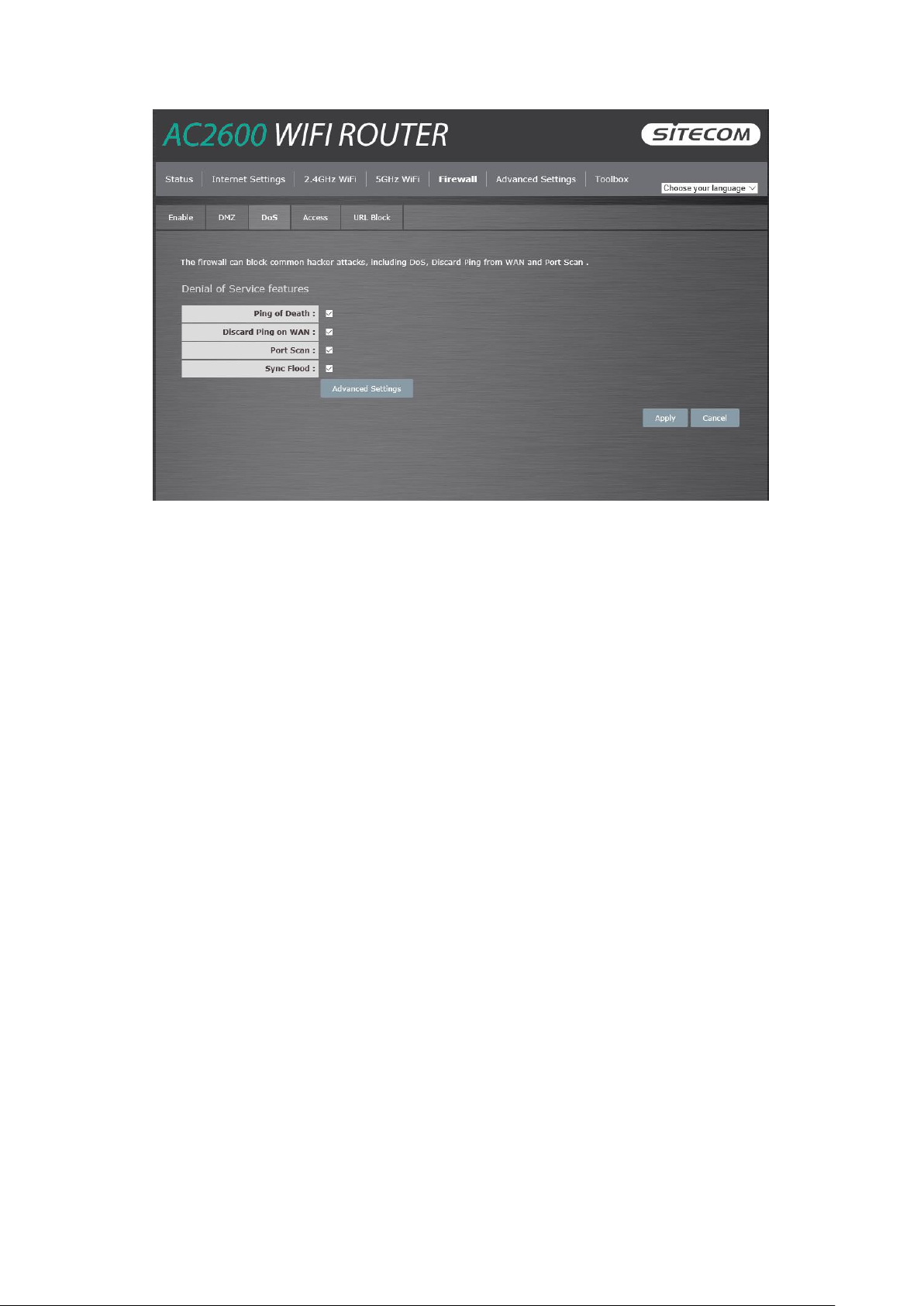

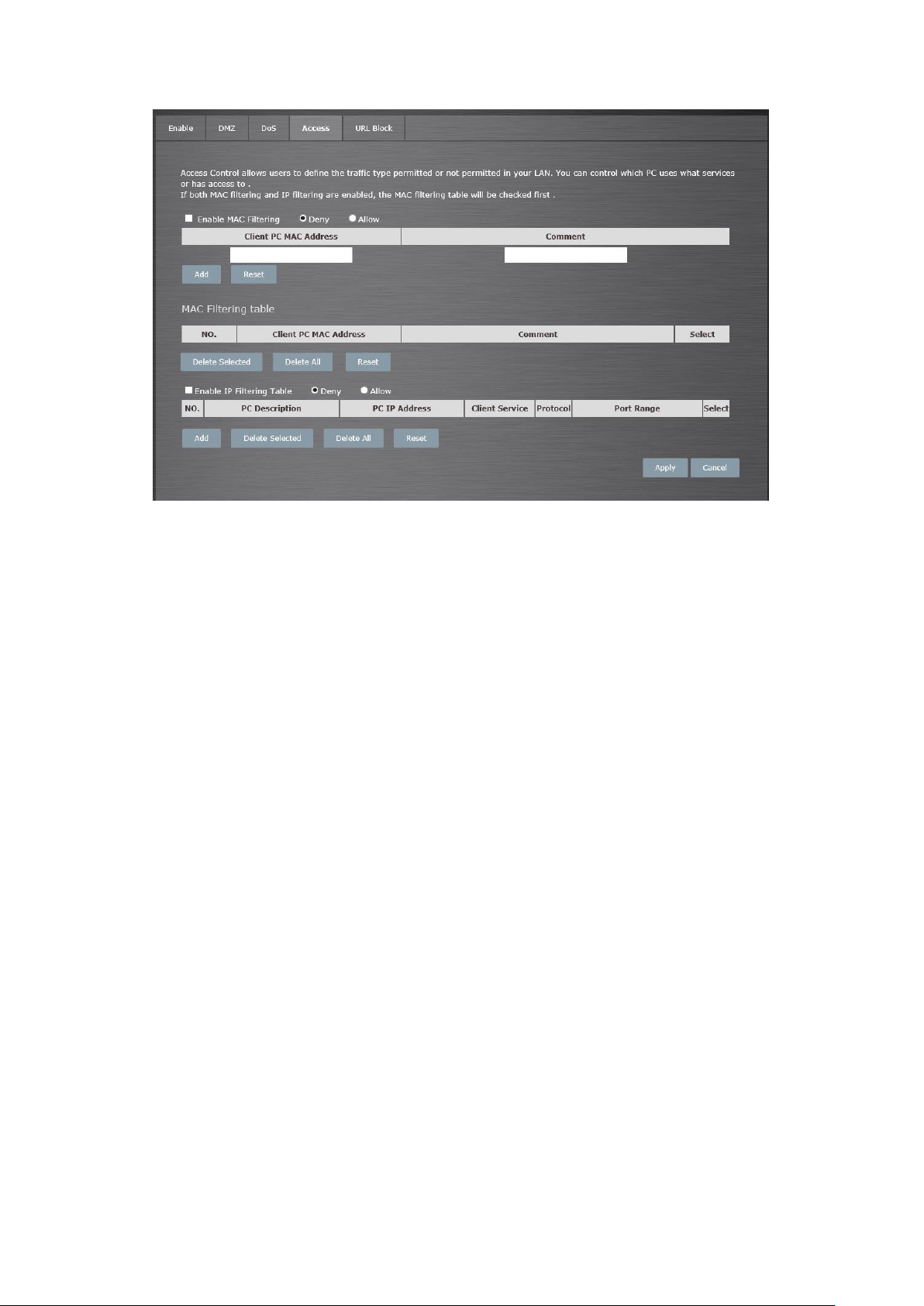

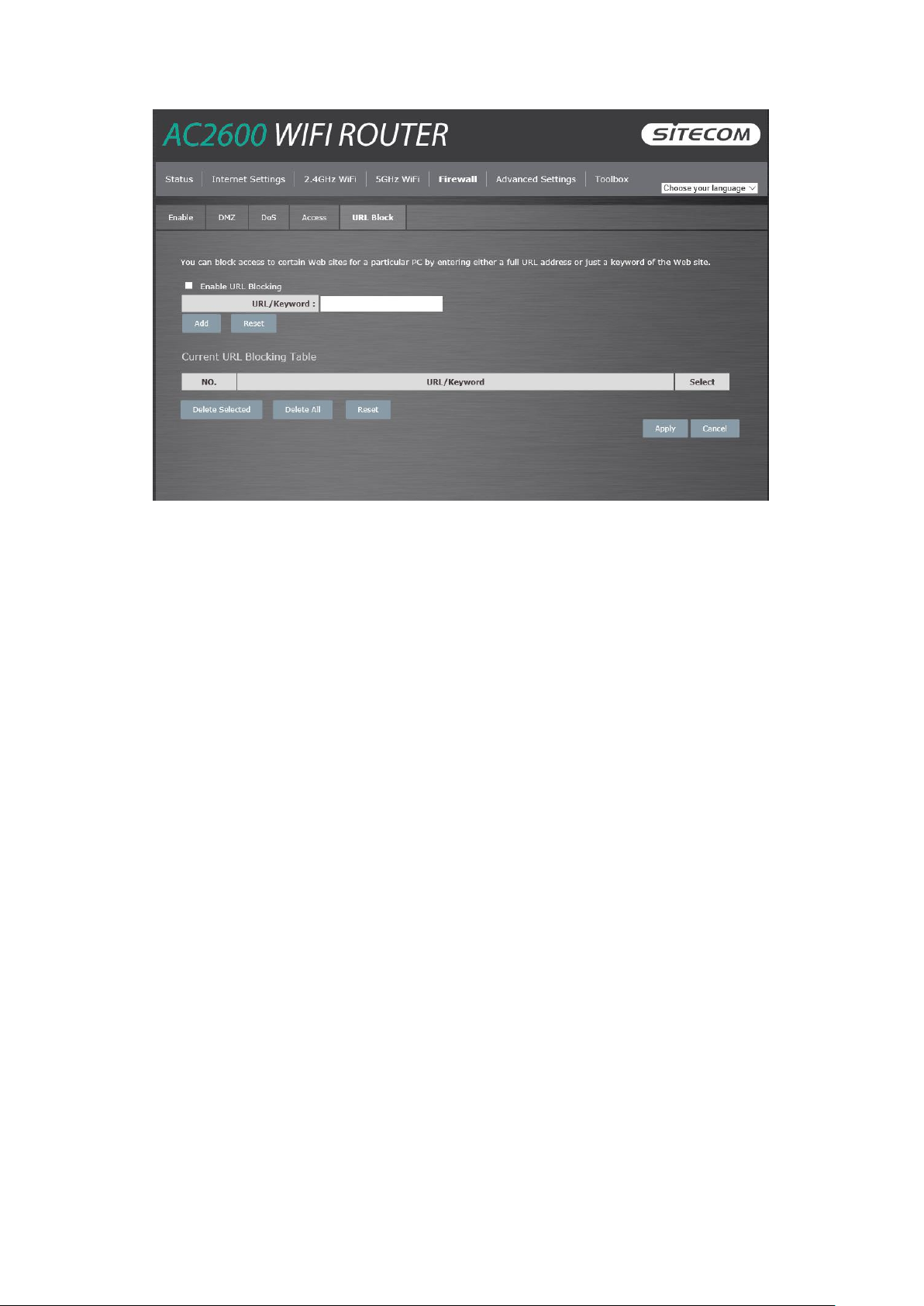

Firewall Settings ......................................................................................................33

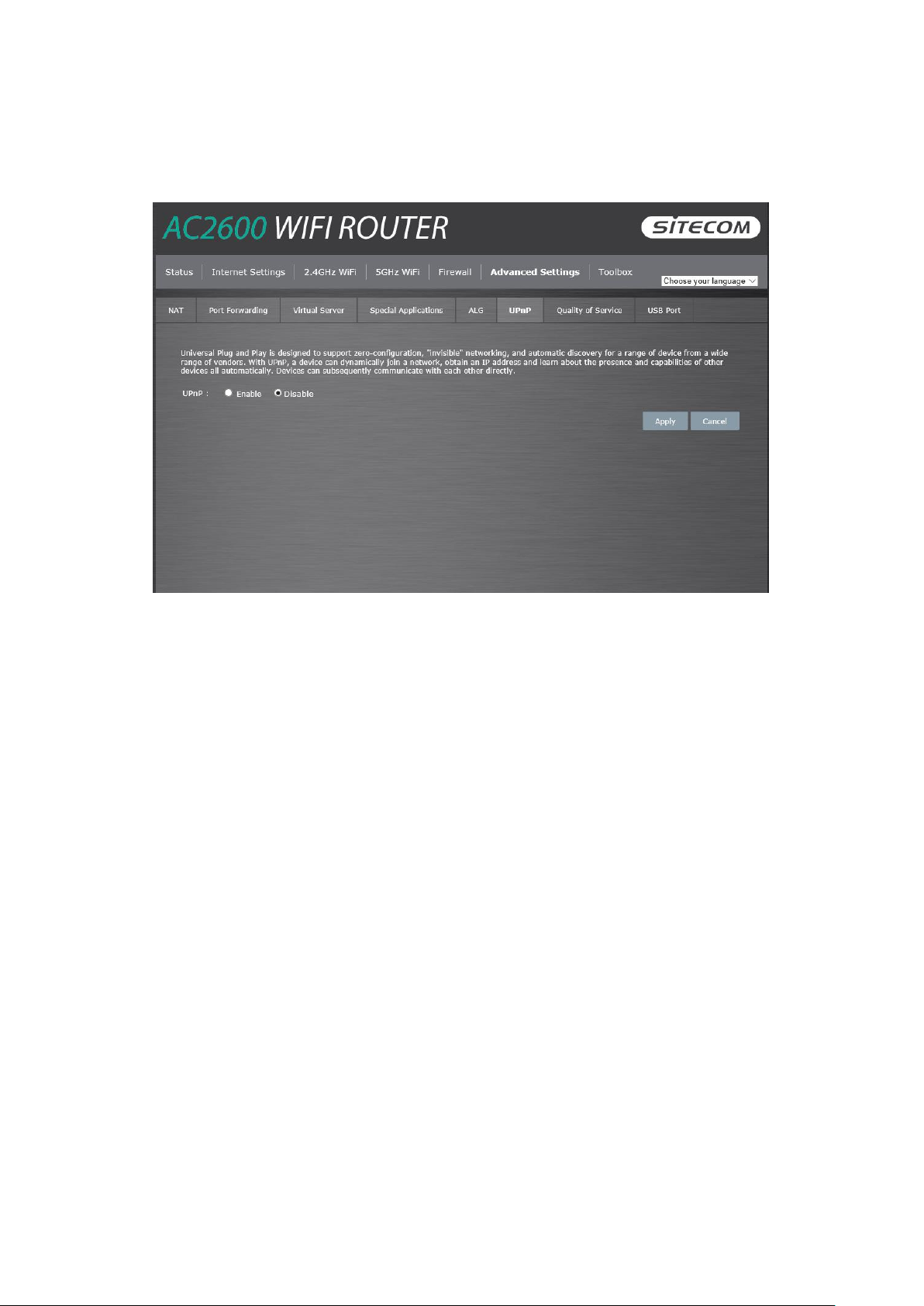

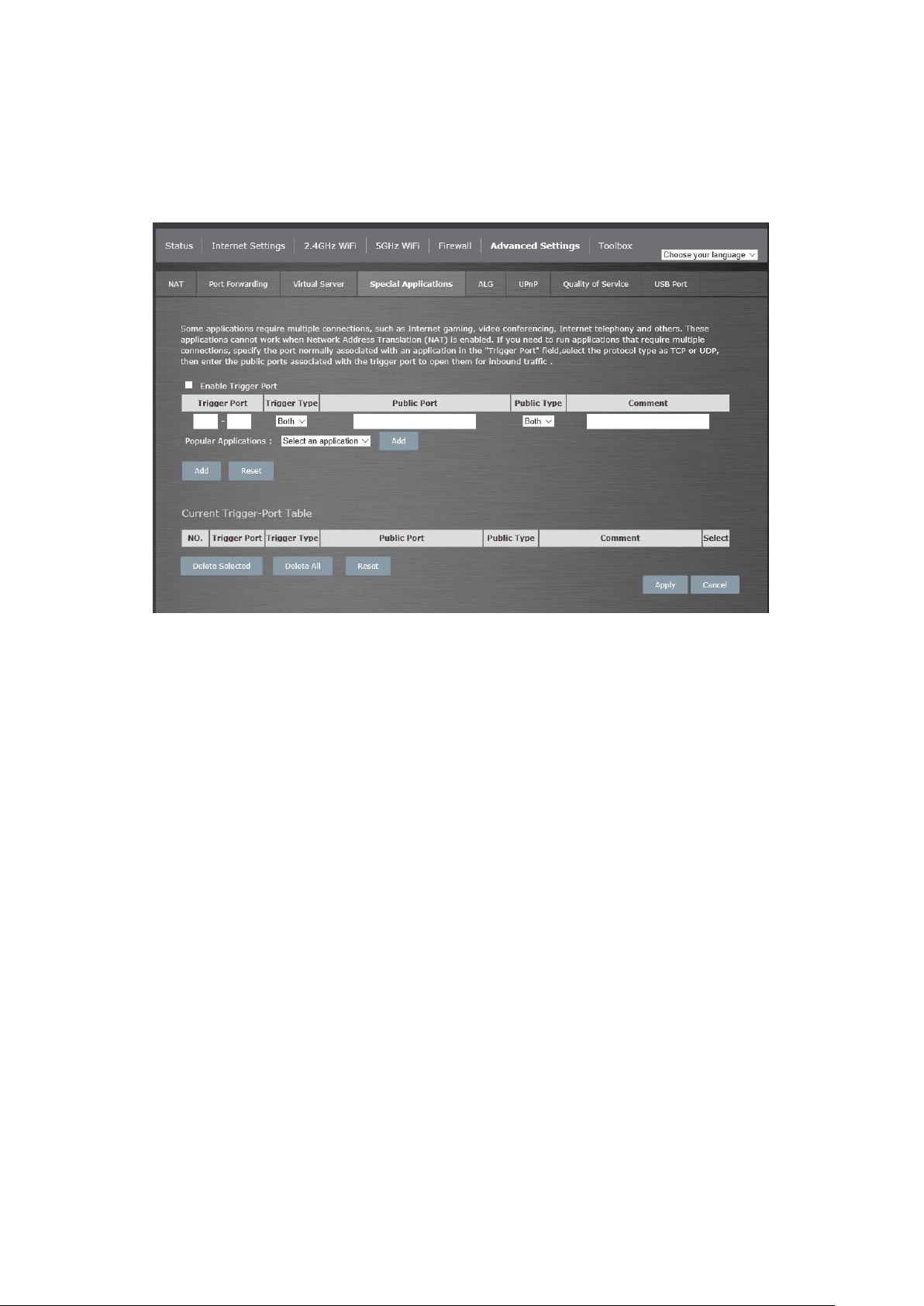

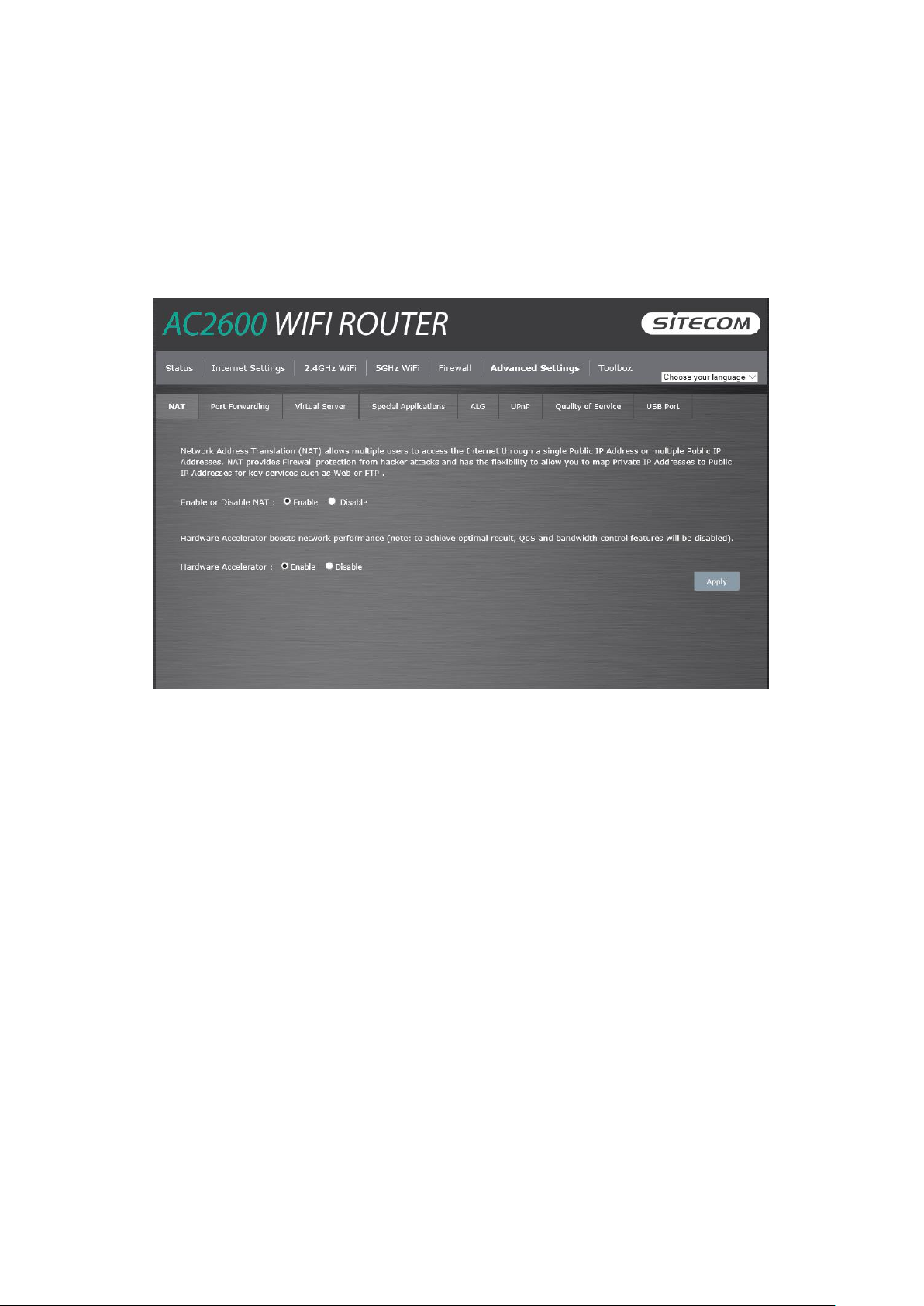

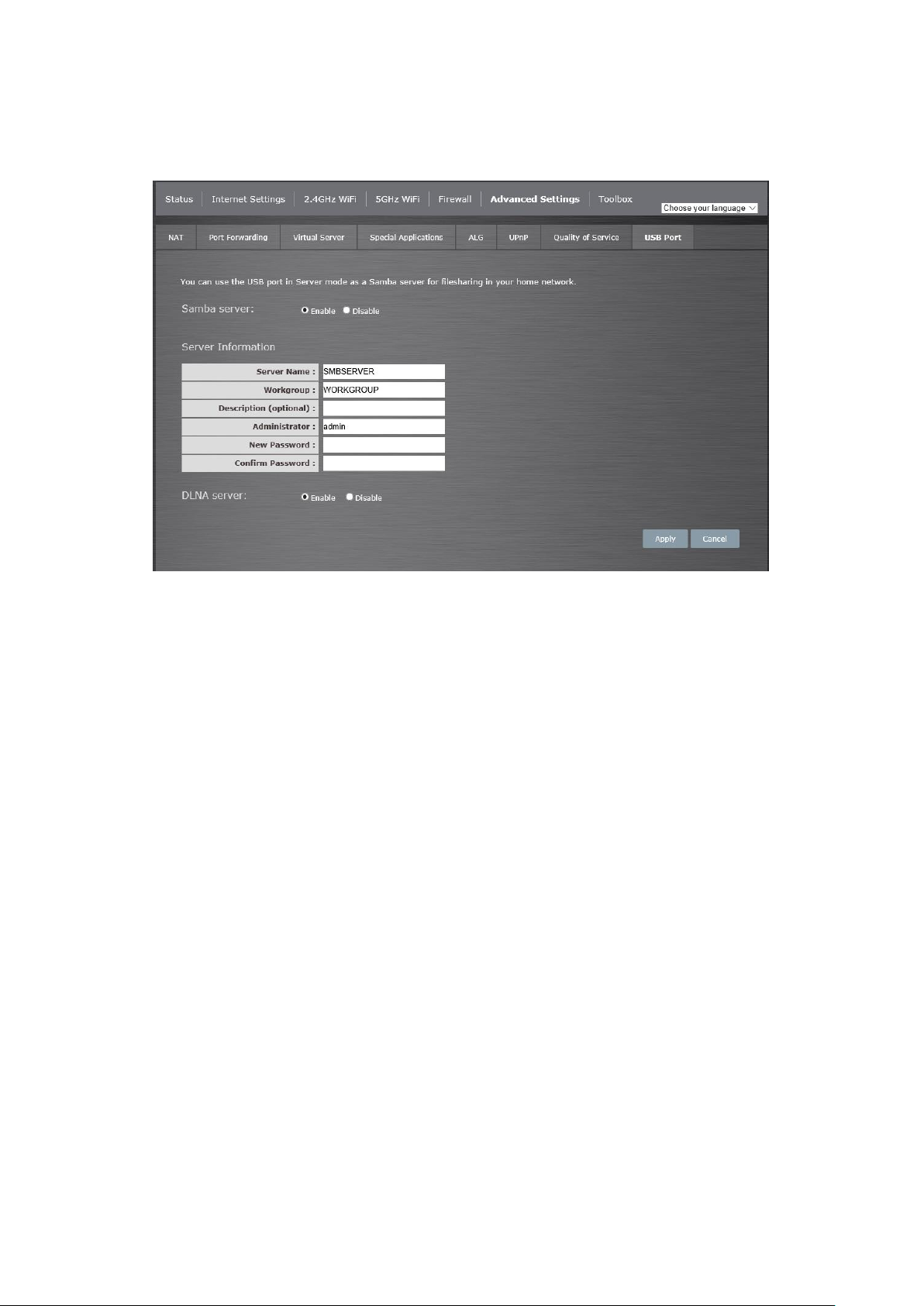

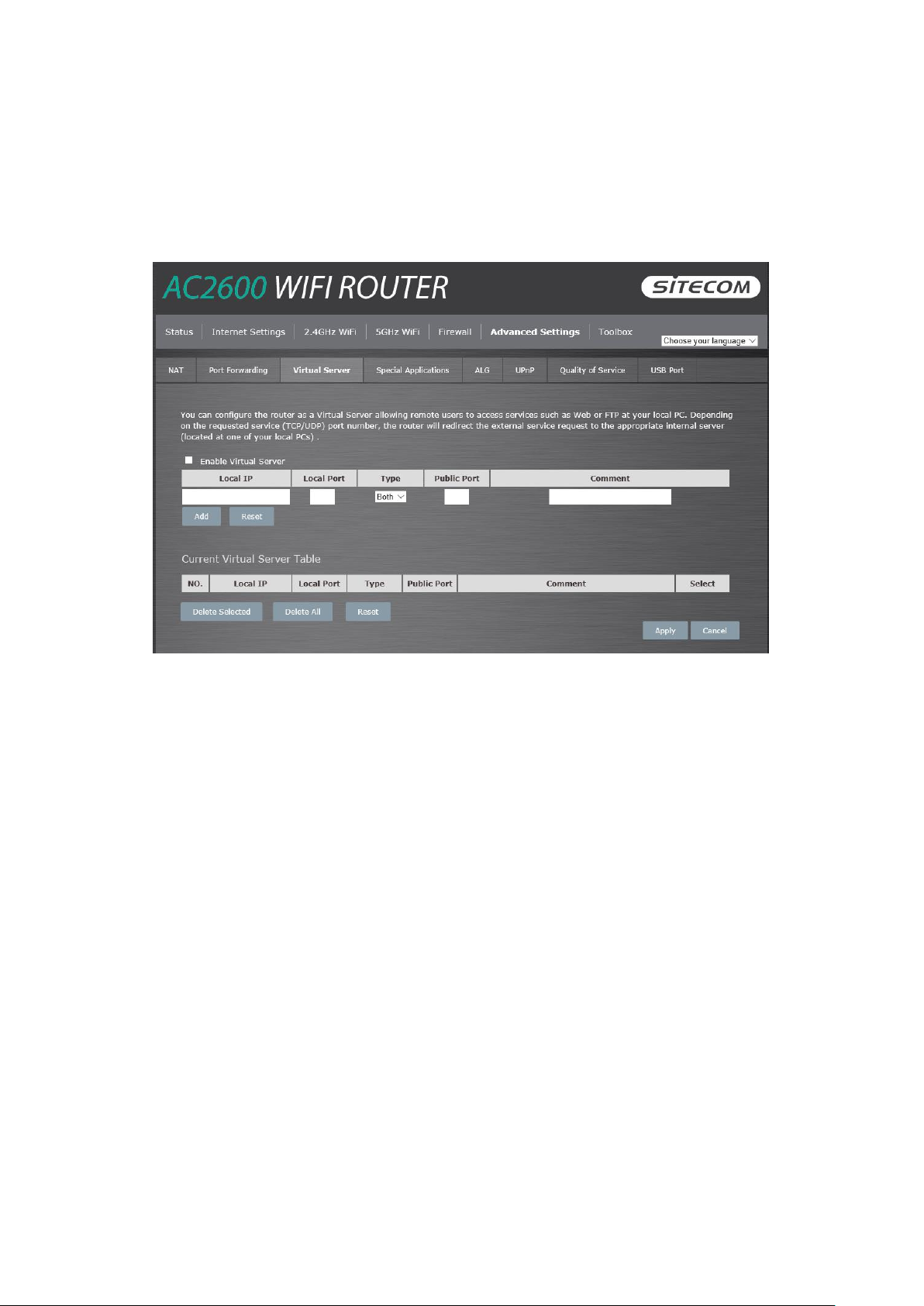

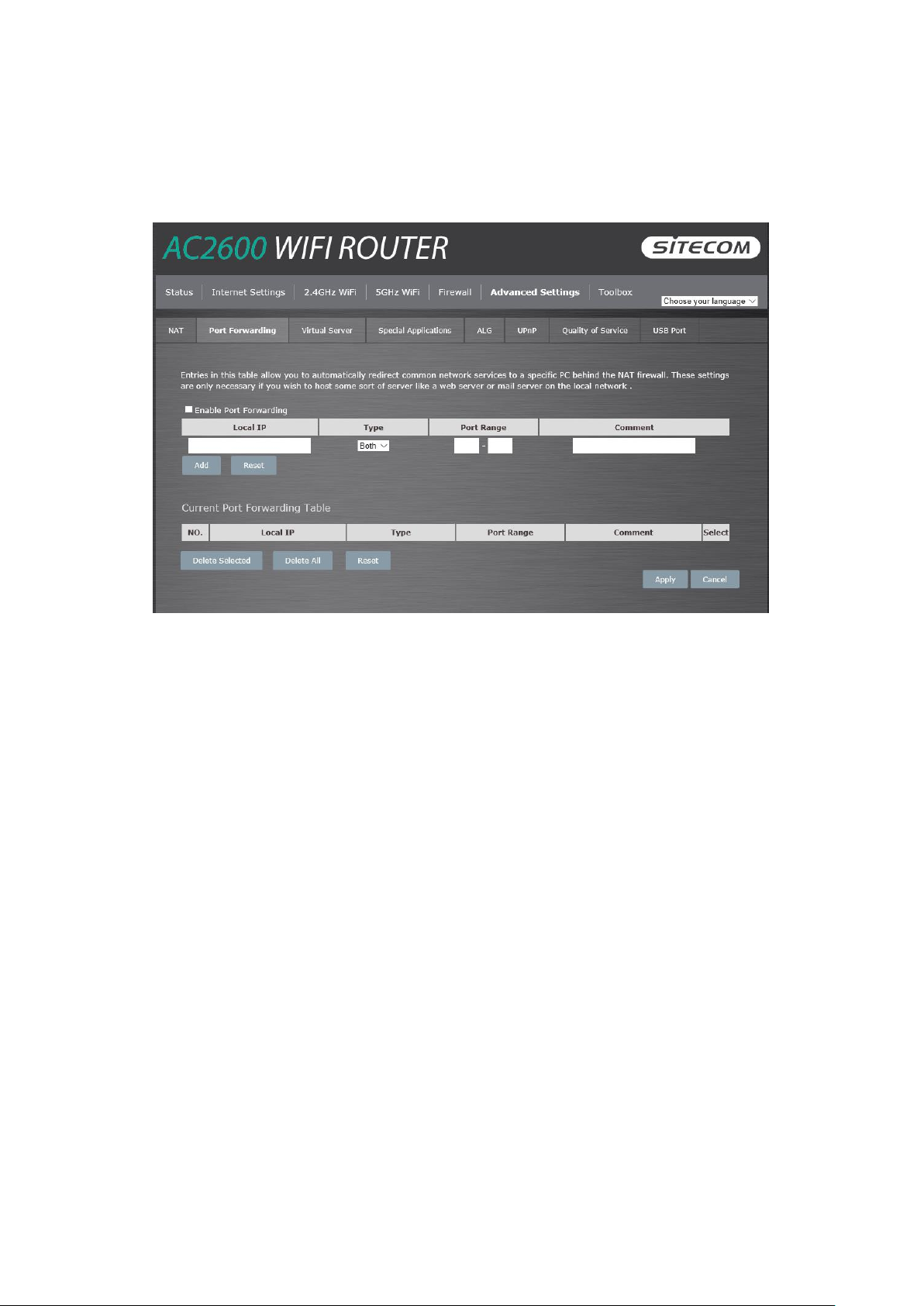

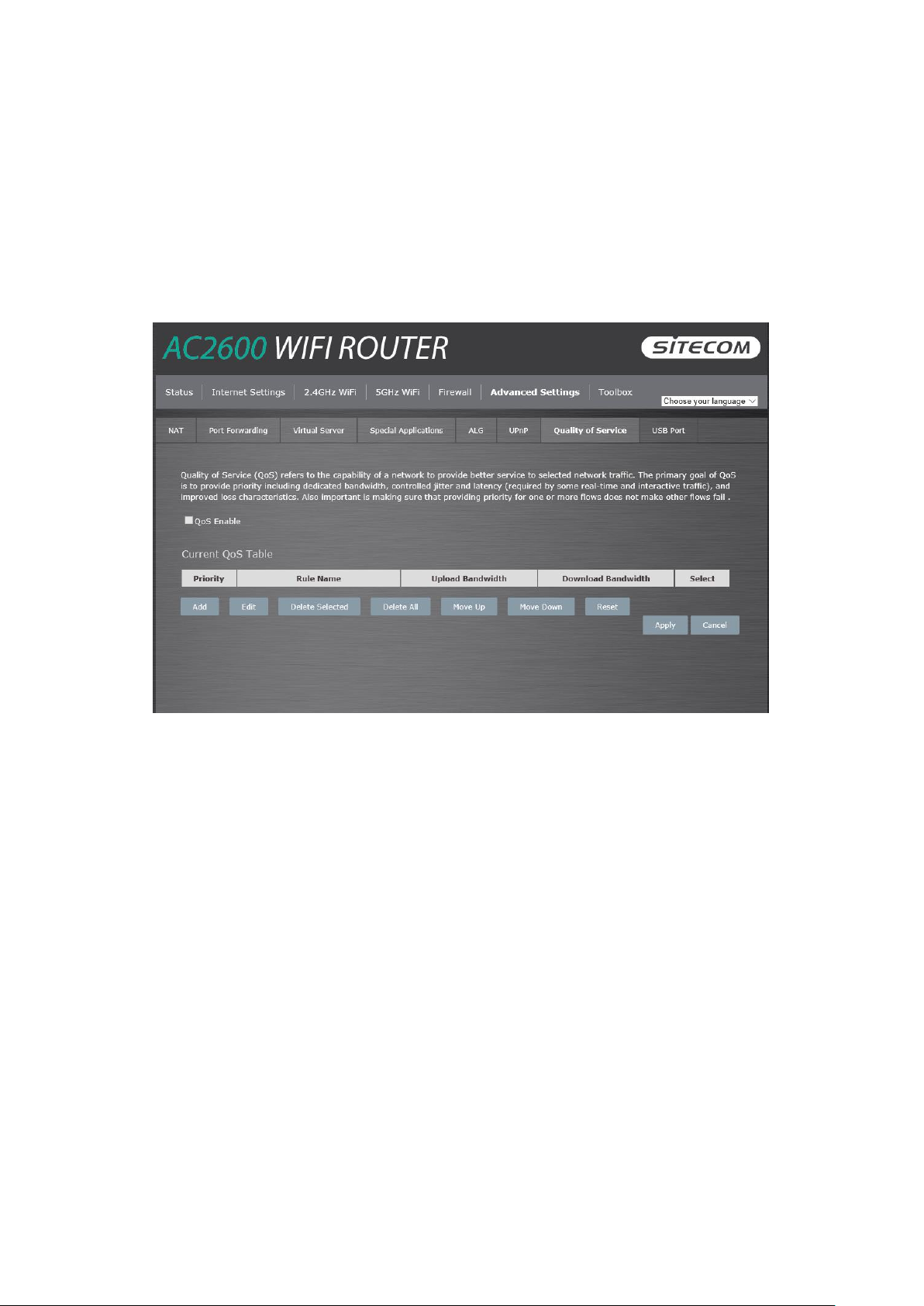

Advanced Settings ...................................................................................................38

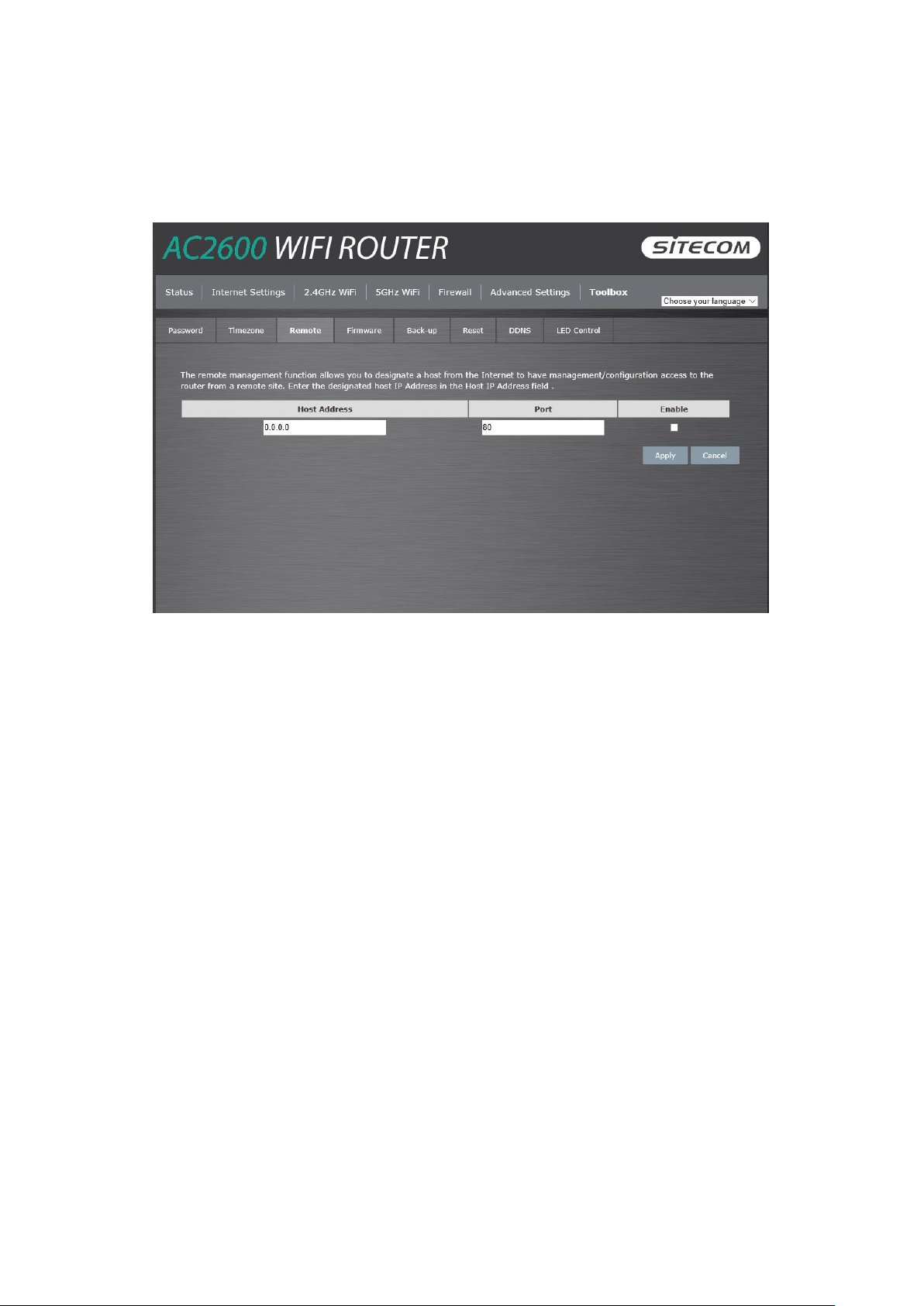

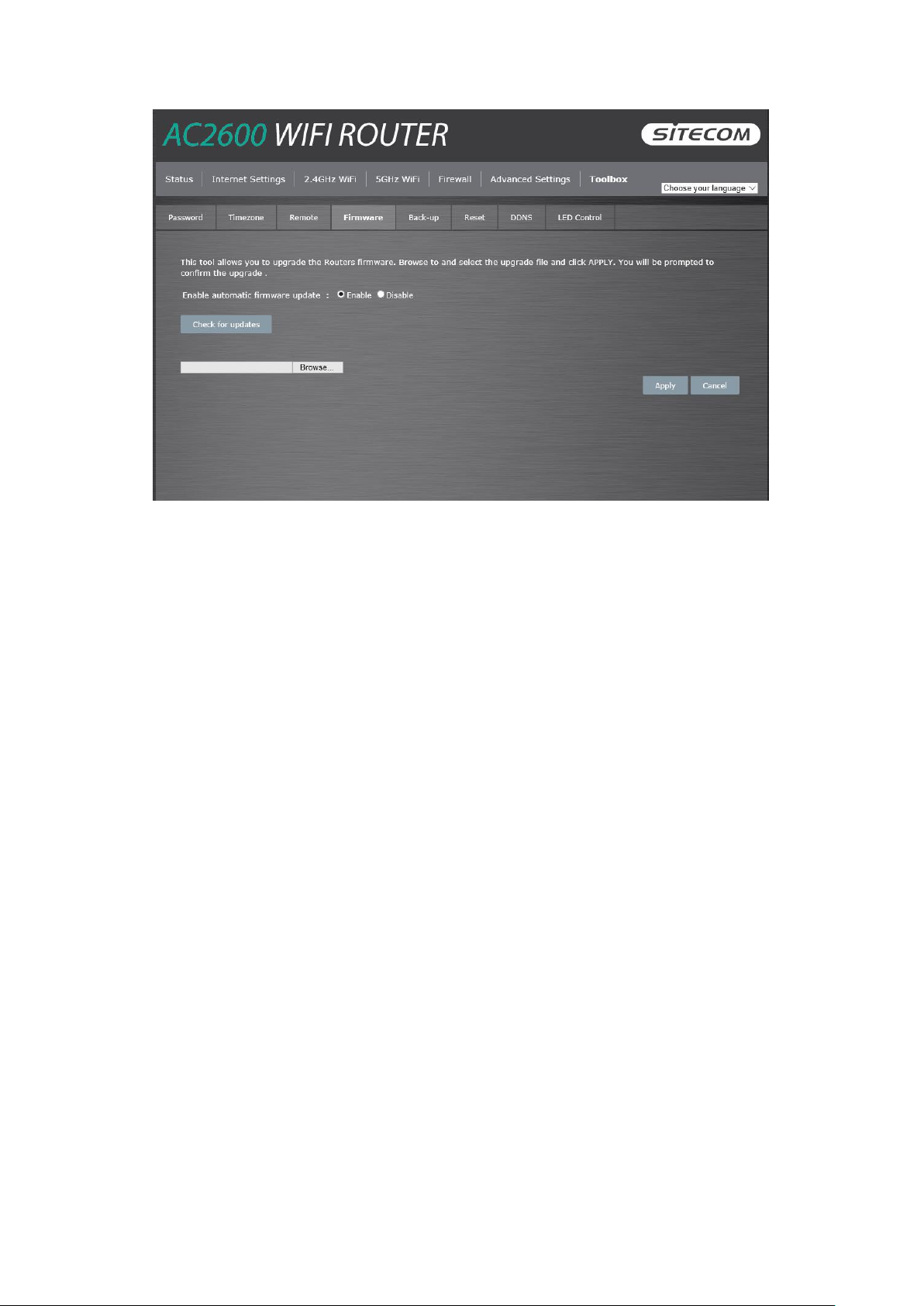

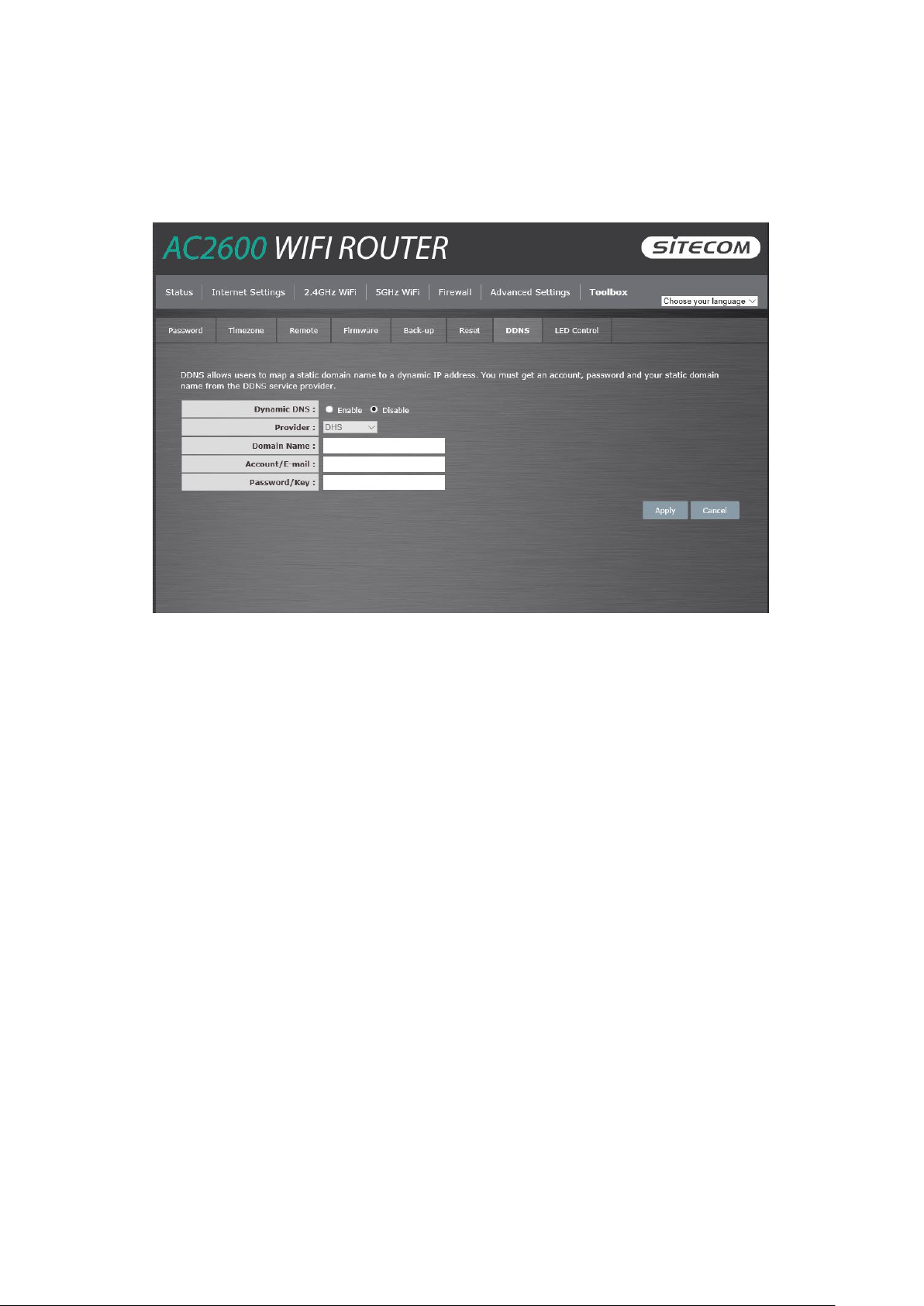

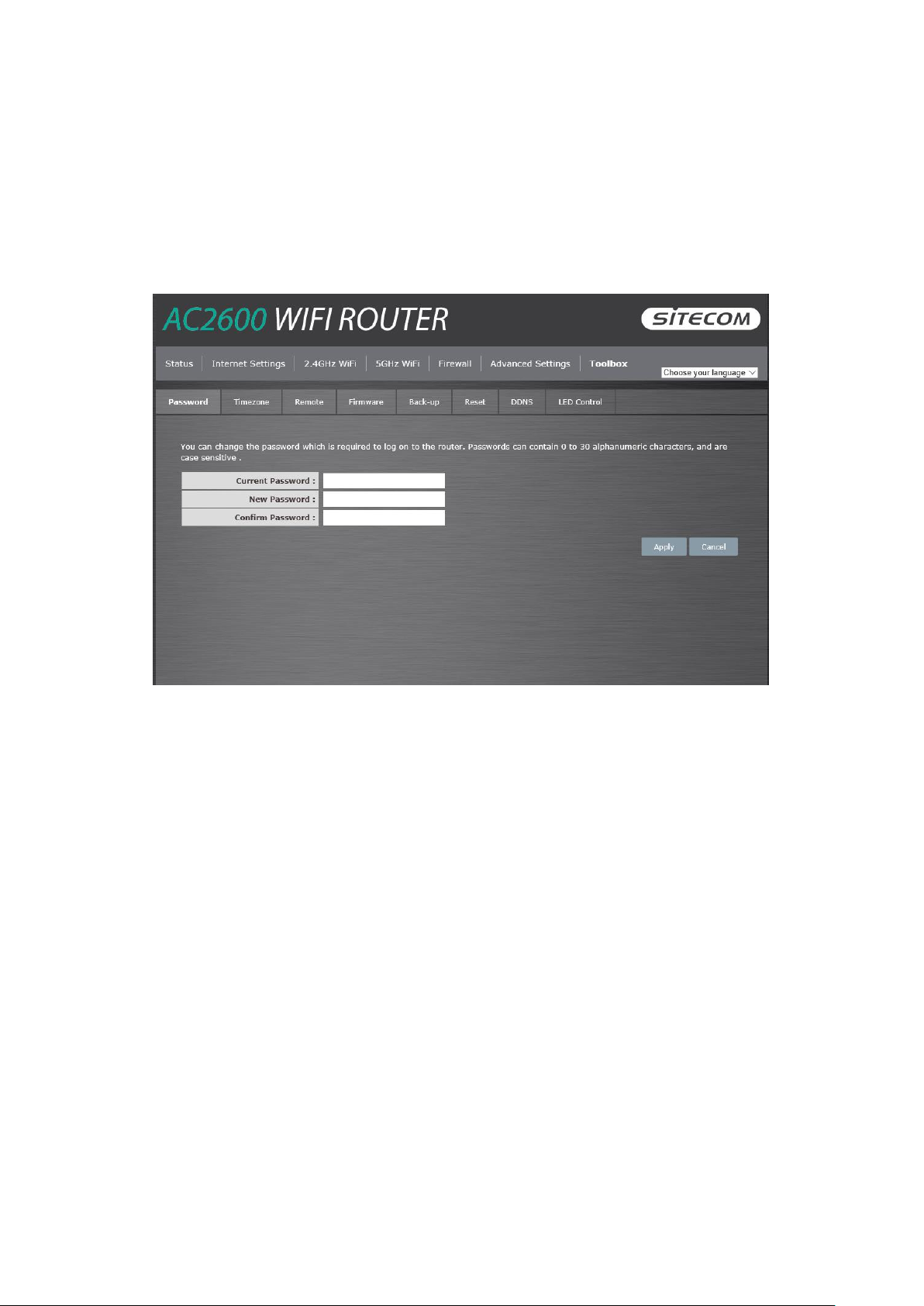

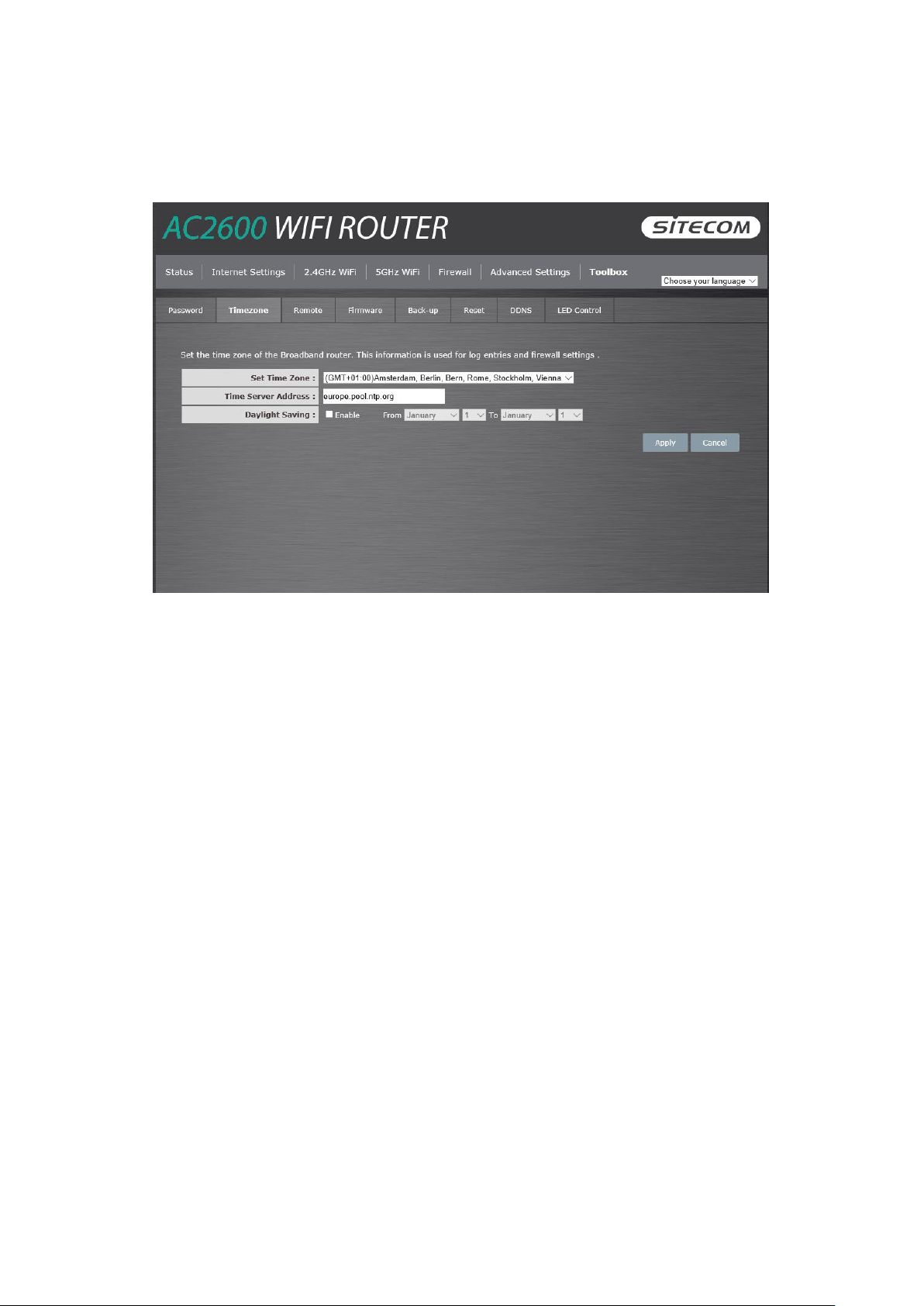

Toolbox Settings ......................................................................................................45

Revision 1.0

Note: All the information contained in this manual was correct at the time of publication.

However, as our engineers are always updating and improving the product, your device’s

software may have a slightly different appearance or modified functionality than presented in this manual.

Introduction

Congratulations on your purchase of the AC2600 WiFi Router. This router is compliant with

802.11a/b/g/n/ac and up to 6 times faster than standard 802.11n based routers while still being compatible with 802.11g & 802.11b devices. This router is not only a Wireless Access Point, but also doubles as a 4-port full-duplex Gigabit switch that connects your wired-Ethernet devices together at 10/100/1000 Mbps speeds.

At 800Mbps wireless transmission rate on 2.4GHz and 1750 Mbps wireless transmission rate on 5GHz, the Access Point built into the router uses advanced MIMO (Multi-Input, Multi-Output) technology to transmit multiple streams of data in a single wireless channel, giving you seamless access to multimedia content. The robust RF signal travels farther, eliminates dead spots and extends the network range. For data protection and privacy, the router encodes all wireless transmissions with WEP, WPA, or WPA2 encryption.

With the built-in DHCP Server & powerful SPI firewall, the router protects your computers against intruders and most known Internet attacks and also provides safe VPN pass-through. With the incredible speed and QoS function of 802.11n, the router is ideal for media-centric applications like streaming video, gaming, and VoIP telephony to run multiple media-intense data streams through the network at the same time, with no degradation in performance.

Features

Advantages

Incredible Data Rate up to 1750Mbps*

Heavy data payloads such as MPEG video

streaming

IEEE 802.11n Compliant and backwards

compatible with 802.11b/g/n

Fully Interoperable with IEEE 802.11b /

IEEE802.11g, IEEE 802.11n compliant

devices with legacy protection

Four 10/100/1000 Mbps gigabit Switch

Ports (Auto-Crossover)

Scalability, extend your network.

Firewall supports Virtual Server

Mapping, DMZ, IP Filter, ICMP Blocking,

SPI

Avoids the attacks of Hackers or Viruses

from Internet

Support 802.1x authenticator, 802.11i

(WPA/WPA2, AES), VPN pass-through

Provide mutual authentication (Client and

dynamic encryption keys to enhance

security

USB Ports

Connect a USB storage device and share it

in your network.

Guest Network

Devices connected to the Guest network

will have Internet connection but no access

to the main network and cannot

communicate with each other.

IPv6 support

Support for Static, Native, 6RD and DS-Lite.

Key Features

* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n, ac chipset used. Actual throughput may vary. Network conditions and environmental factors lower actual throughput rate. All specifications are subject to change without notice.

Package Contents

Open the package carefully, and make sure that none of the items listed below are missing. Do not discard the packing materials, in case of return; the unit must be shipped back in its original package.

Cautions

This router’s design and manufacturer has your safety in mind. In order to safely and effectively

use this router, please read the following before usage.

Usage Cautions

The user should not modify this router. The environmental temperature should be within +5 ~ +35 degrees Celsius.

Power

The router’s power voltage is DC 12V 1.5A.

When using this router, please connect the supplied AC adapter or AC adapter cable to the router’s power jack. When placing the adapter cable, make sure it can’t get damaged or be subject to pressure. To reduce the risk of electric shock, unplug the adapter first before cleaning it. Never connect the adapter to the router in a humid or dusty area. Do not replace the adapter or cable’s wire or connector.

Repair

If the router has a problem, you should take it to an appointed repair center and let the specialists do the repair. Never repair the router yourself, you might damage the router or endanger yourself.

Disposing of the Router

When you dispose of the router, be sure to dispose it appropriately. Some countries may regulate disposal of an electrical device, please consult with your local authority.

Others

When using this router, please do not let it come into contact with water or other liquids. If water is accidentally spilled on the router, please use a dry cloth to absorb the spillage. Electronic products are vulnerable, when using please avoid shaking or hitting the router, and do not press the buttons too hard.

 Do not let the router come into contact with water or other liquid.  Do not disassemble, repair or change the design of the router; any damage done will

not be included in the repair policy.

 Avoid hitting the router with a hard object, avoid shaking the router and stay away from

magnetic fields.

 If during electrostatic discharge or a strong electromagnetic field the product will

malfunction, unplug the power cable. The product will return to normal performance the next time it is powered on.

Port

Description

Power connector

Connect the 12V DC adapter to this port

LAN (Black)

Connect your PCs or network devices to these ports

WAN (Grey)

Connect your ADSL/Cable modem to this port

USB Port

Connect a USB device to this port

Product Layout

Button

Description

OPS Button

Press 2 seconds for WPS/OPS mode

Reset

Push a pin in the reset hole to reset to factory defaults.

Backlabel and Network Details Folder

The Network Details Folder describes the IP address, login details, network name, security code and OPS button functionality.

LED

Description

Power

Shows the device is turned on.

Internet

Shows the device is connected to the internet.

LAN

Shows the cable is connected.

LAN

Shows the cable is connected.

LAN

Shows the cable is connected.

LAN

Shows the cable is connected.

USB1

Shows a device is connected to the USB port.

USB2

Shows a device is connected to the USB port.

2.4GHz WiFi

Shows 2.4GHz WiFi activity.

5GHz WiFi

Shows 5GHz WiFi activity.

LED Definition

As shown from the top to the bottom.

Network Requirements

An Ethernet-based broadband modem

Web-based Configuration

Computer with the following:

- Windows®, Macintosh, or Linux-based operating

system

- An installed Ethernet adapter or wireless adapter

- Supported Browsers:

Internet Explorer 9 or higher Firefox Safari 4 or higher Chrome

Network + System Requirements

To begin using the router, make sure you meet the following as minimum requirements:

Setup your Router

You can place the router on a desk or other flat surface, or you can mount it on a wall. For optimal performance, place your router in the center of your home (or your office) in a location that is away from any potential source of interference, such as a metal wall or microwave oven. This location must be close to a power connection and your ADSL/Cable modem.

Connect the supplied power-adapter to the power inlet port and connect it to a wall outlet. Switch the router on by pushing the switch on the back of the device. The router automatically enters the self-test phase. During self-test phase, the Power LED will be lit continuously to indicate that this product is in normal operation.

Setup your Computer

Windows, Manual Connection

 Click on the icon for wireless connectivity. This is usually located in the System Tray, next

to the clock.

 Select the Sitecom network. The correct network name can be found on the sticker on

bottom of the router, or in the Network Details Folder.

 Fill in the password for the wireless network. The correct password can be found on the

sticker on the bottom of the router, or in the Network Details Folder.

 Wait for the icon to display that it’s connected to the network.

Windows, OPS Connection

 Click on the icon for wireless connectivity. This is usually located in the System Tray, next

to the clock.

 Select the Sitecom network. The correct network name can be found on the sticker on

bottom of the router, or in the Network Details Folder.

 Push the OPS Button on the router. For 2.4GHz, press 0-5 seconds. For 5GHz, press 5-10

seconds.

 Wait for the icon to display that it’s connected to the network.

Mac OSX

 Click on the icon for wireless connectivity. This is usually located in the System Tray, next

to the clock.

 Select the Sitecom network. The correct network name can be found on the sticker on

bottom of the router, or in the Network Details Folder.

 Fill in the password for the wireless network. The correct password can be found on the

sticker on the bottom of the router, or in the Network Details Folder.

 Wait for the icon to display that it’s connected to the network.

• OPEN your browser (e.g. Internet Explorer).

• Type http://sitecom.router in the address bar and press [Enter].

• Type user name and password. The default username is admin, the password can be

found on the back label on the bottom of your router.

• Click OK.

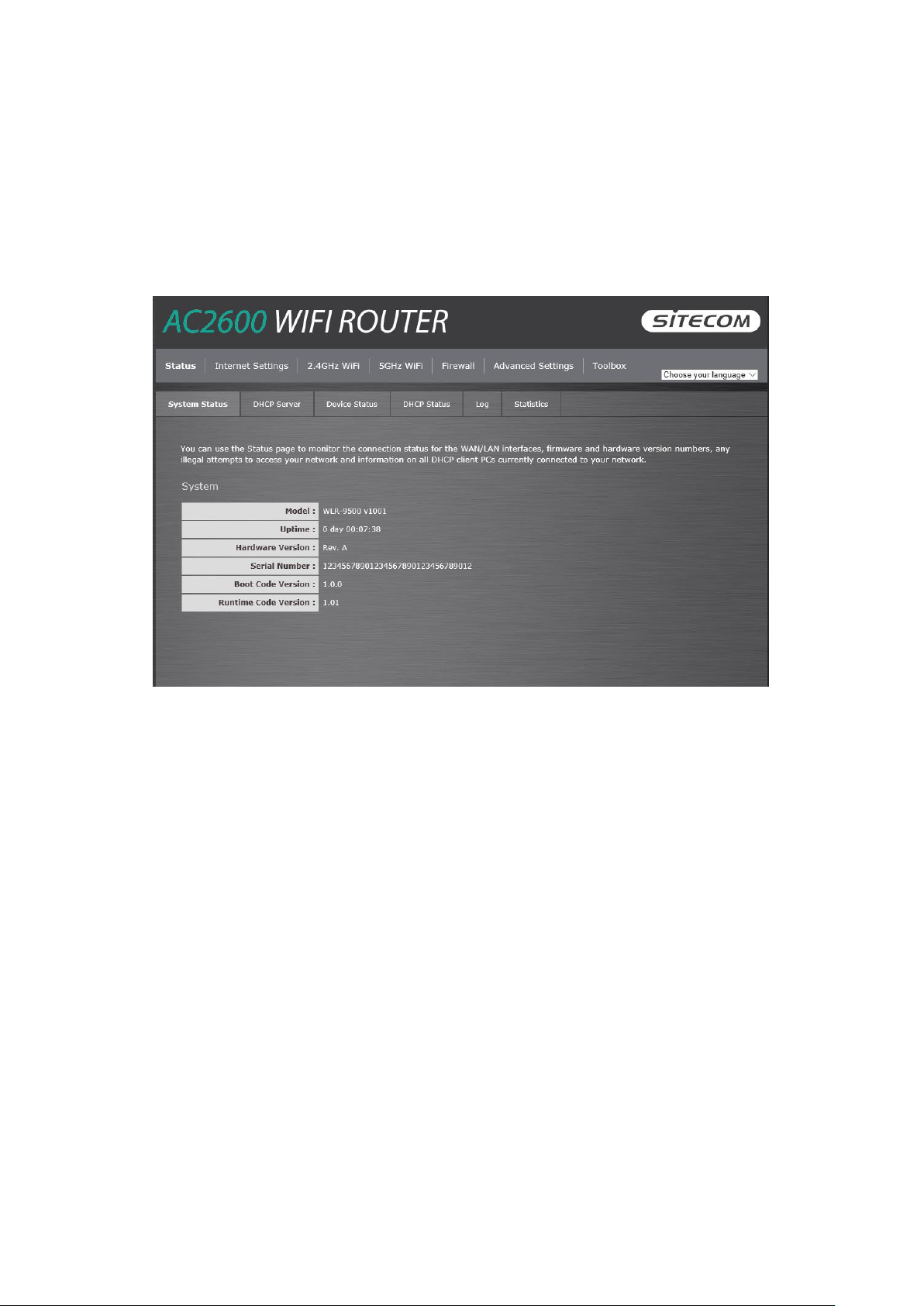

• You will see the home page of the AC2600 WiFi Router.

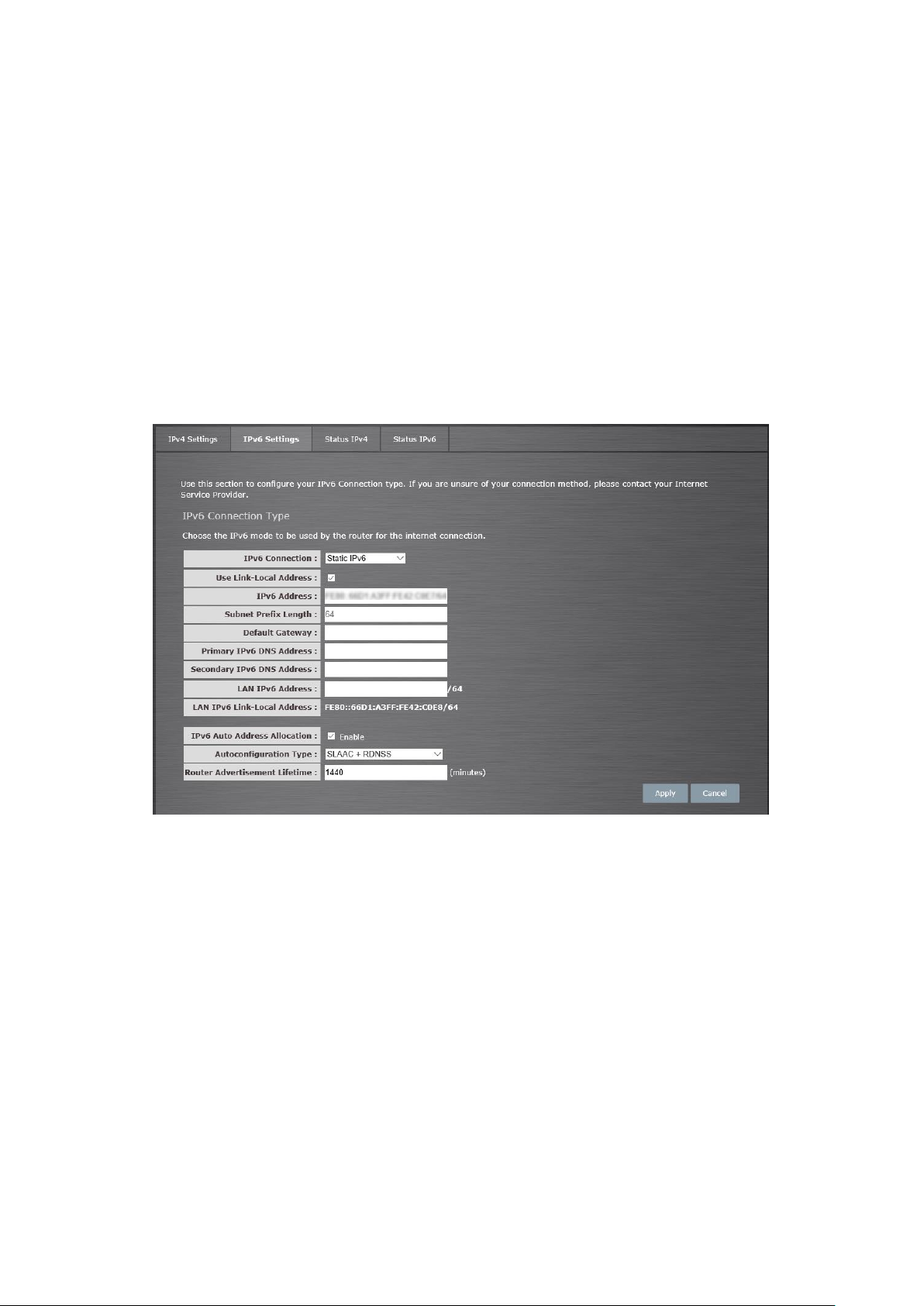

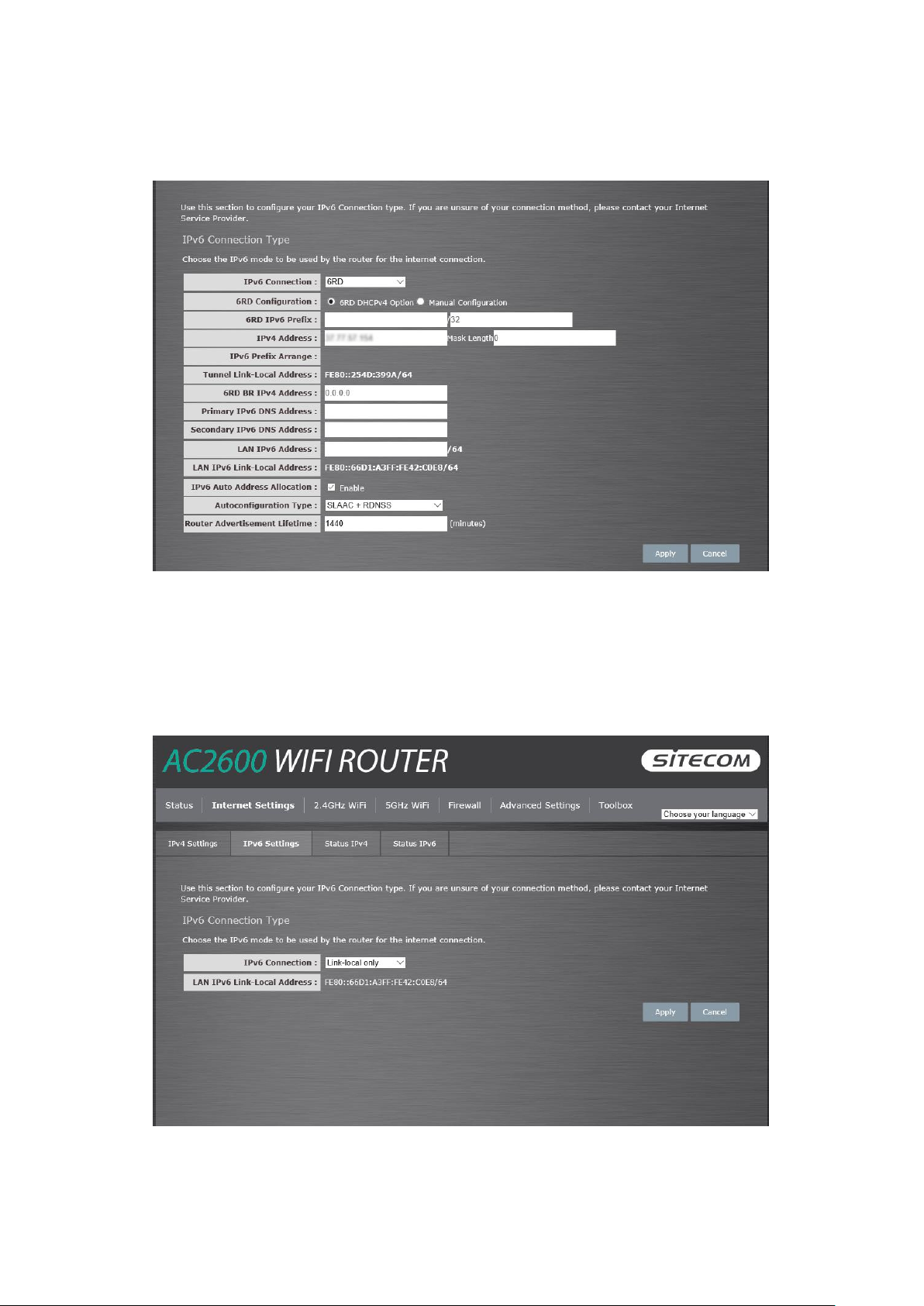

Configure your Internet connection

From the menu, select “Internet Settings”.

Depending on the chosen setting, you may need to enter your user name and password, MAC address or hostname in the following window. After you have entered the correct information, click Apply.
