WLR-5002
User Manual
Table of Contents
Introduction .......................................................................................................... 3
Package Contents .................................................................................................. 5
Cautions ............................................................................................................... 6
Product Layout ...................................................................................................... 7
Network + System Requirements ............................................................................ 9
Setup your Router ................................................................................................10
Setup your Computer ............................................................................................11
Login to your Router .............................................................................................14
Configure your Internet connection .........................................................................15

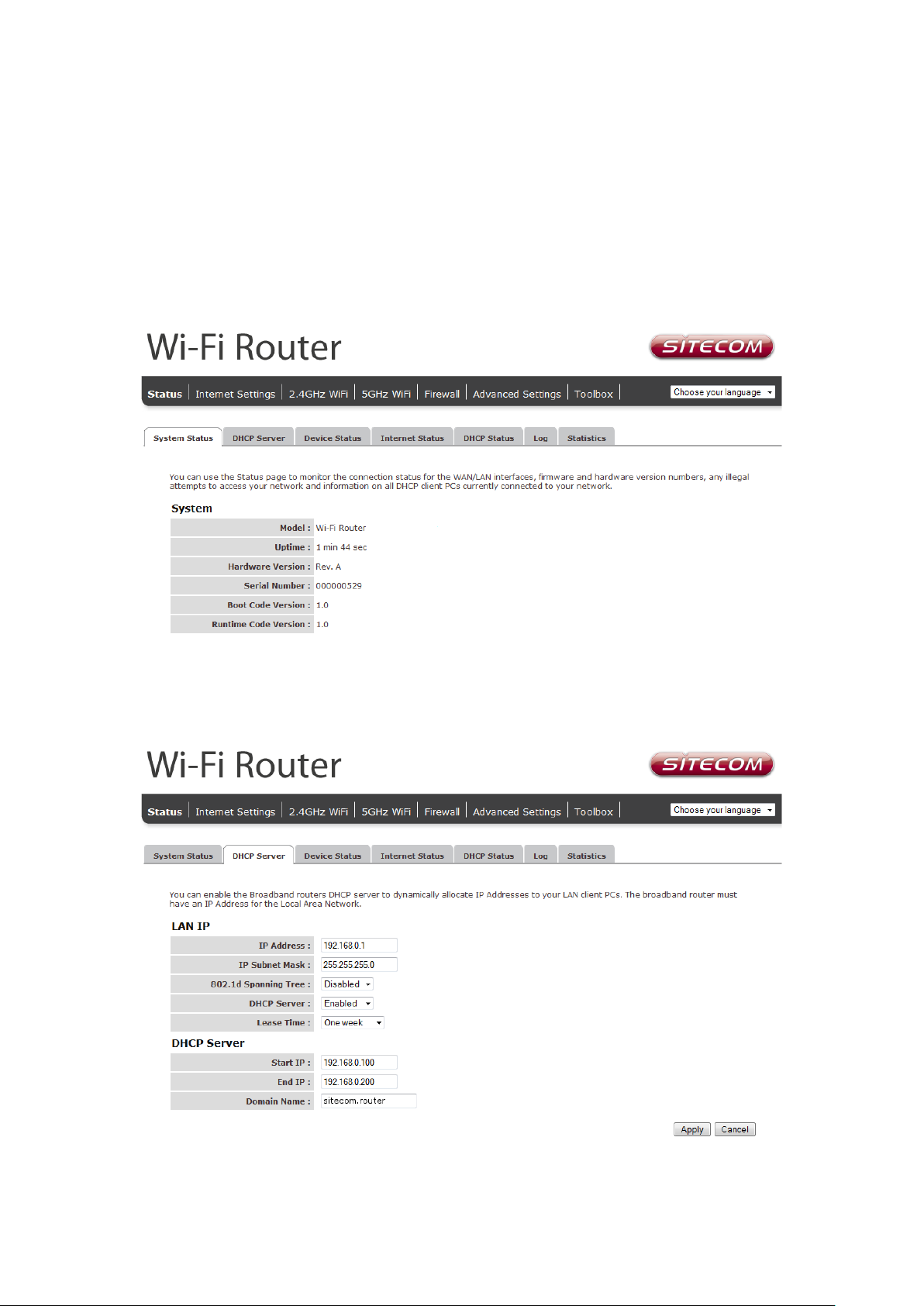

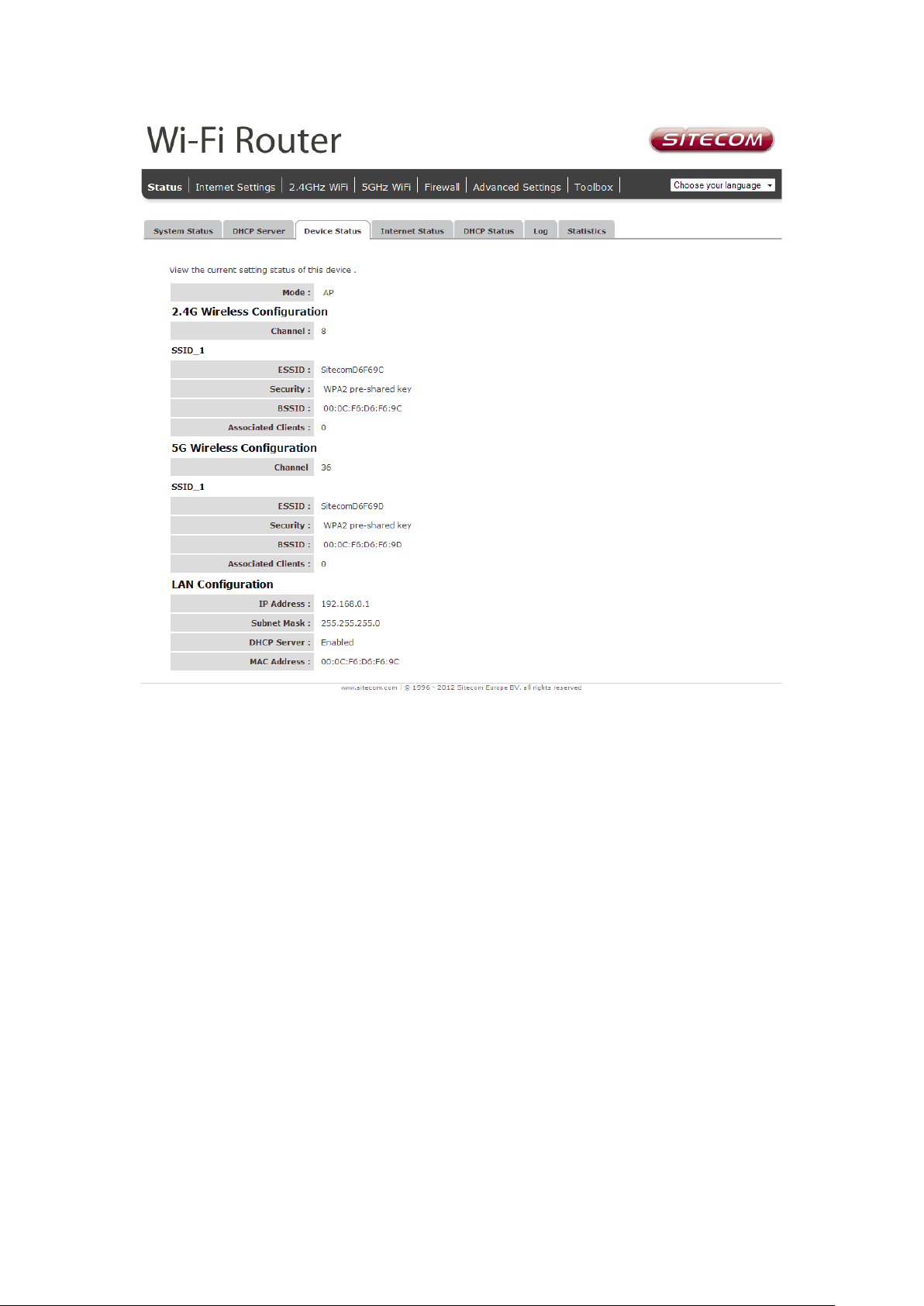

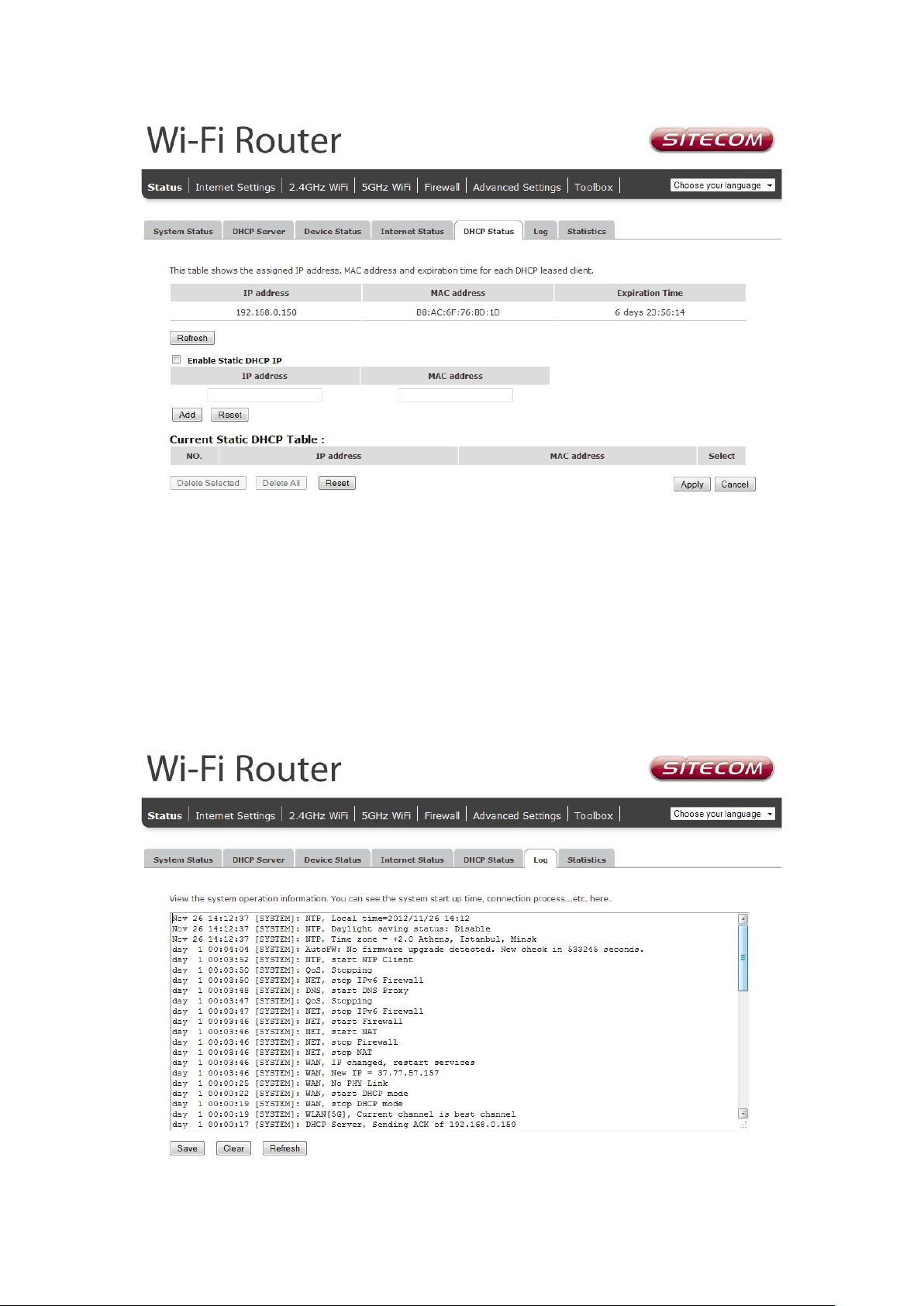

Configure your Router ...........................................................................................18

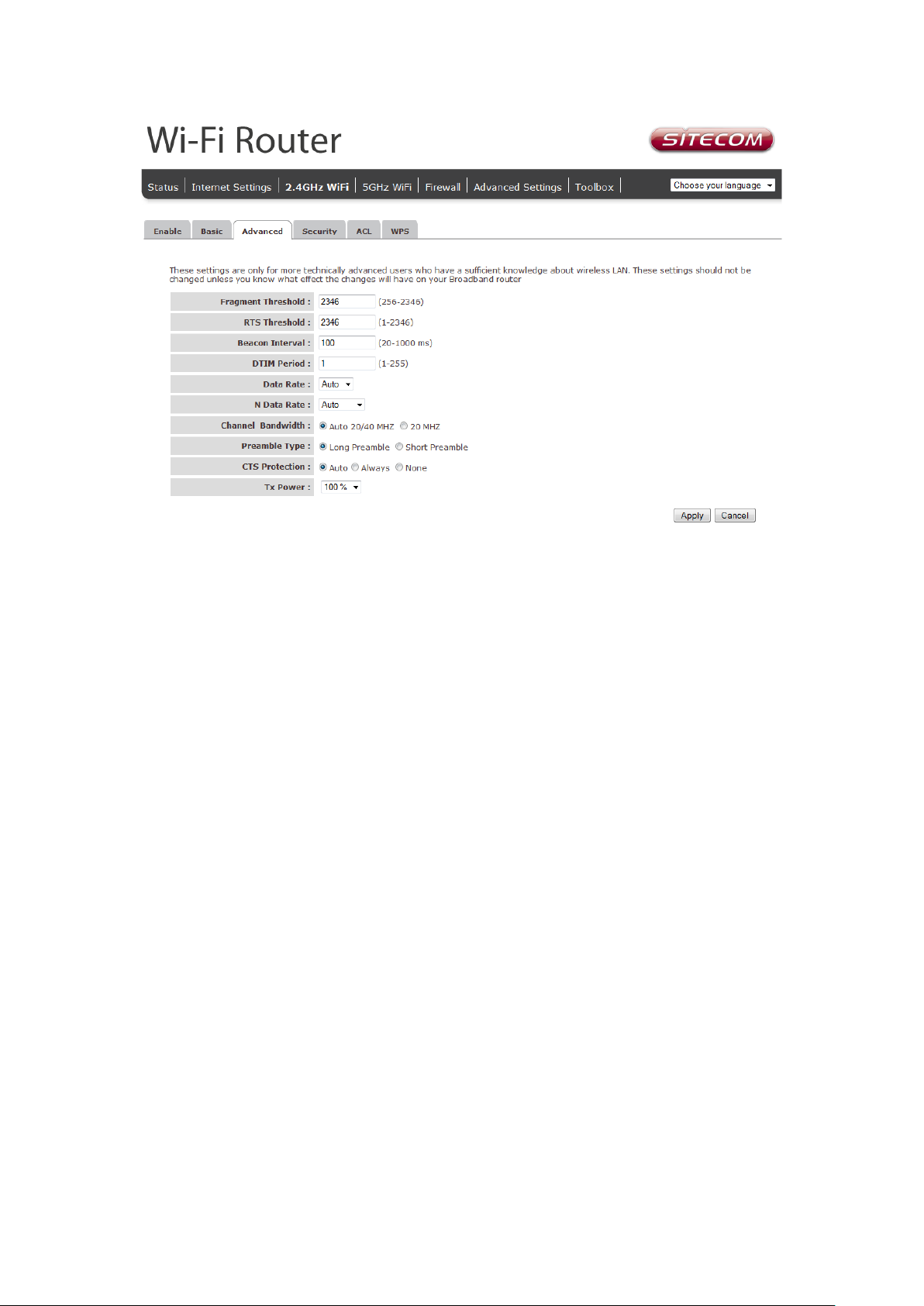

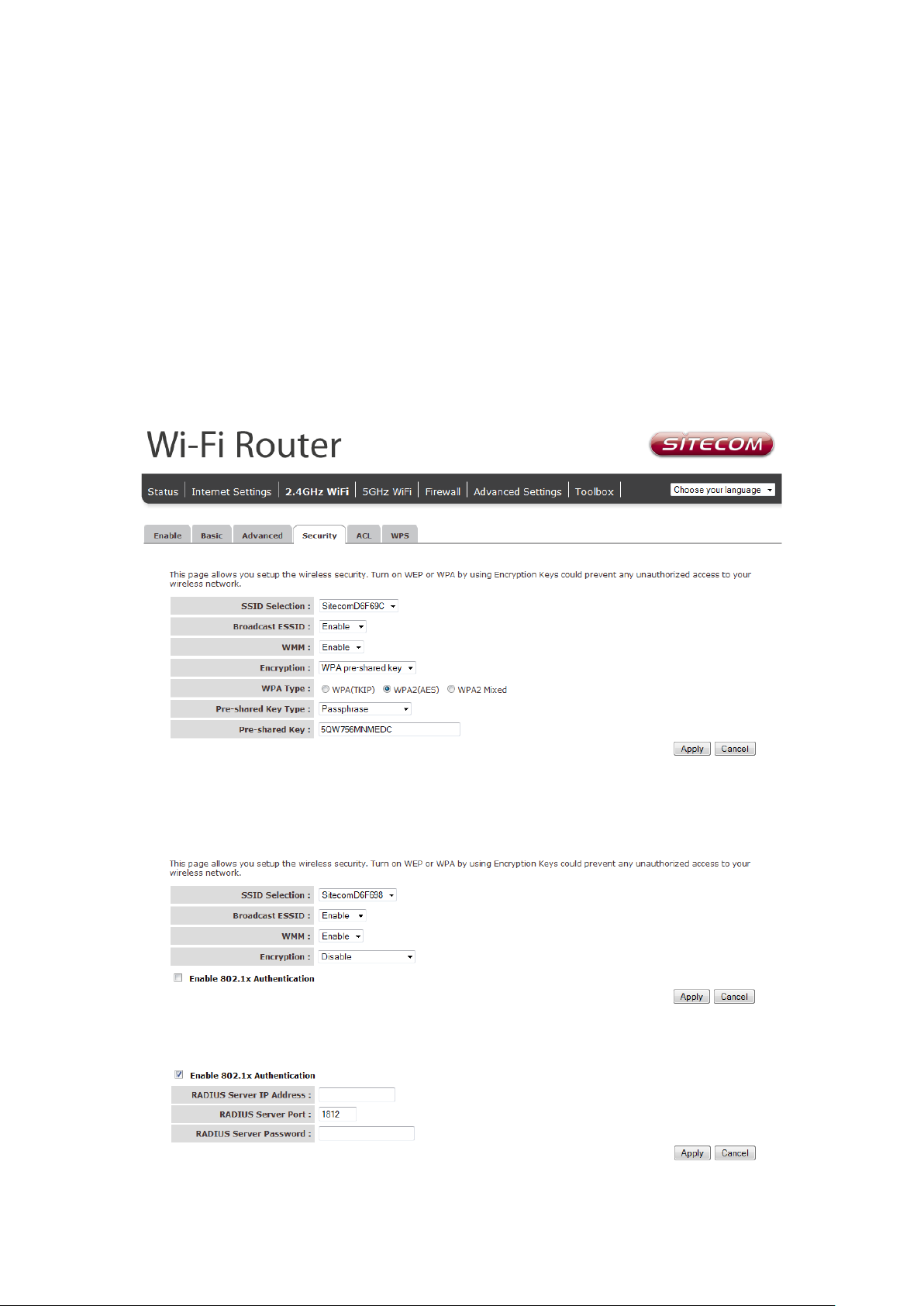

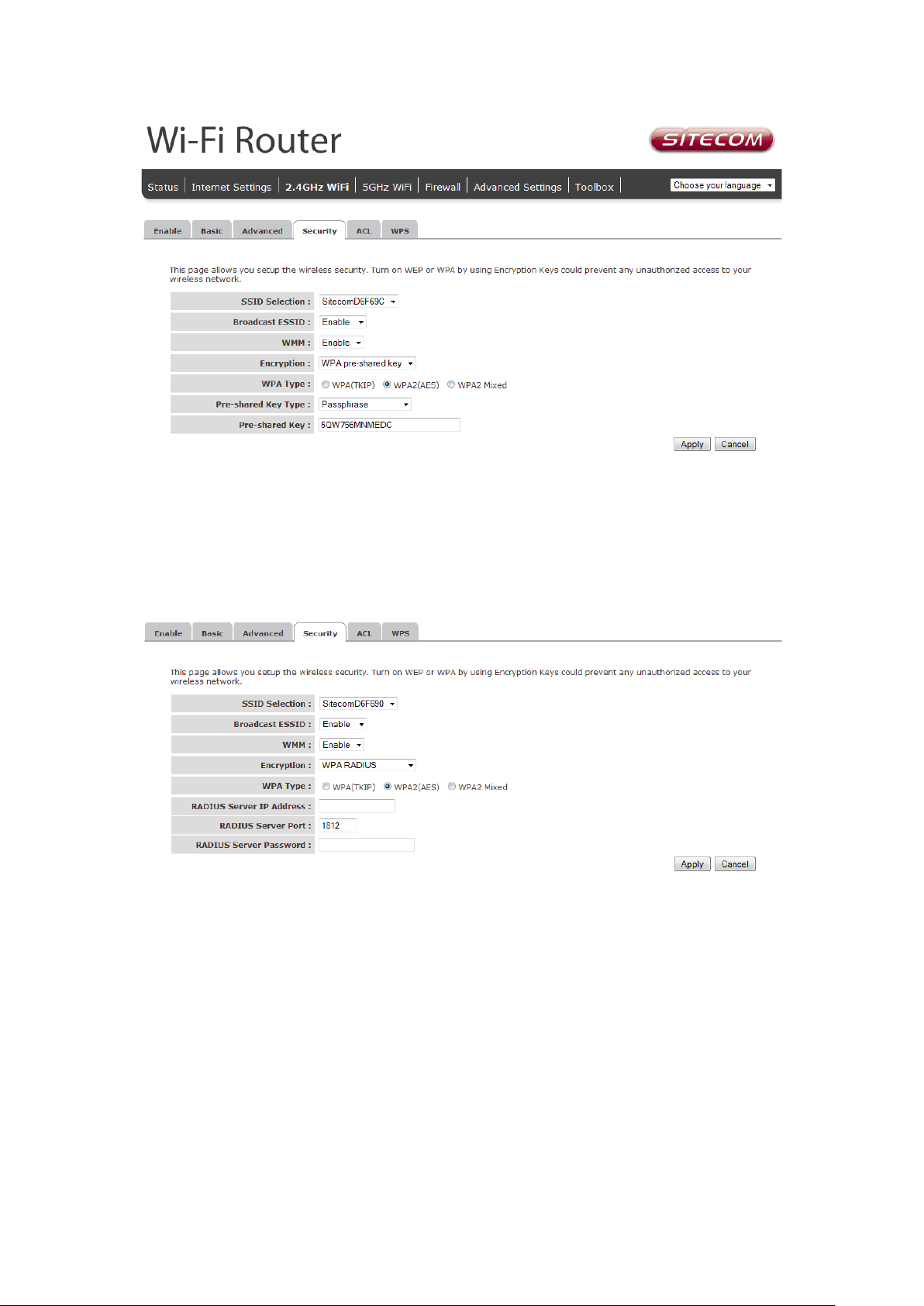

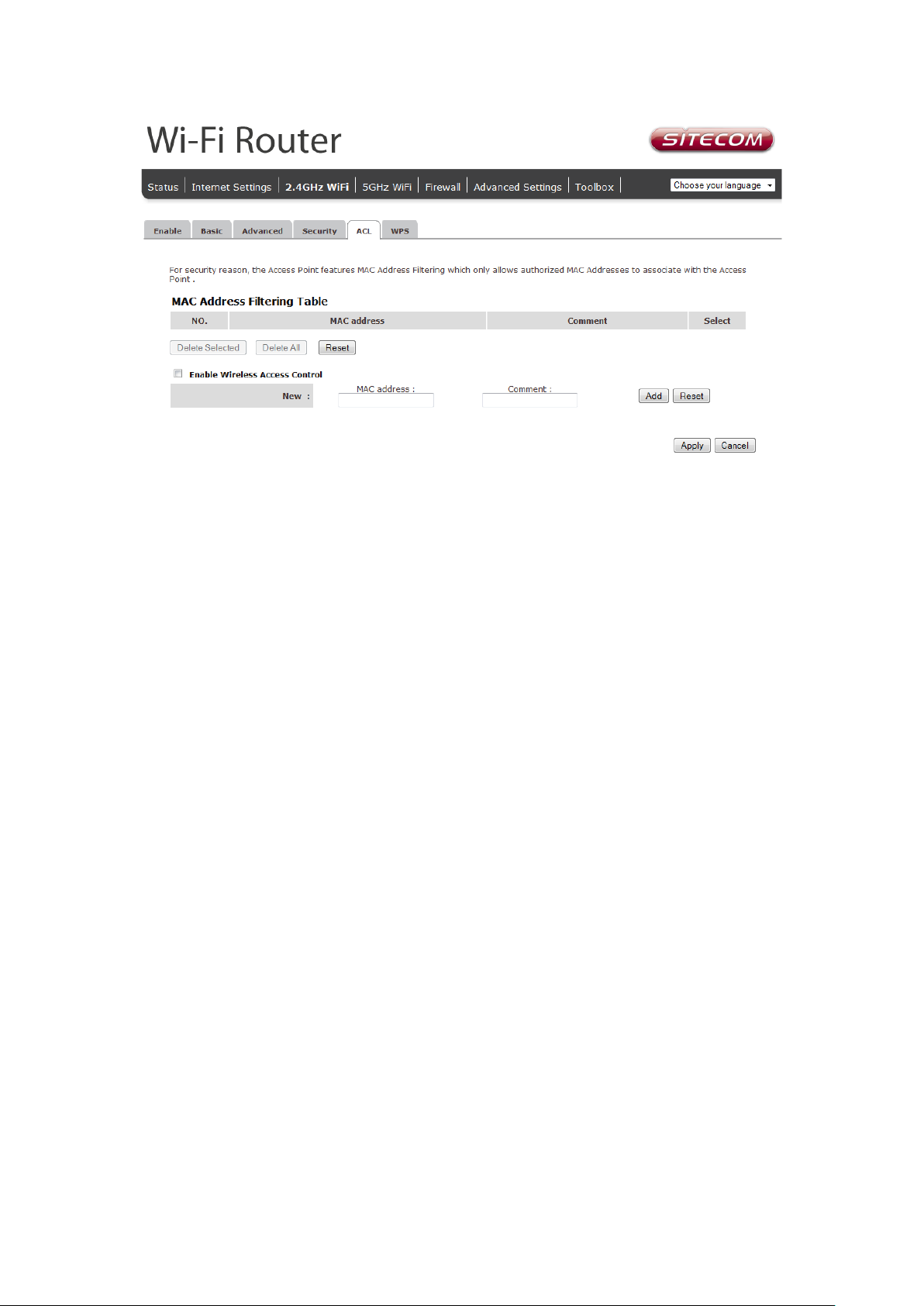

Wireless Settings ..................................................................................................23

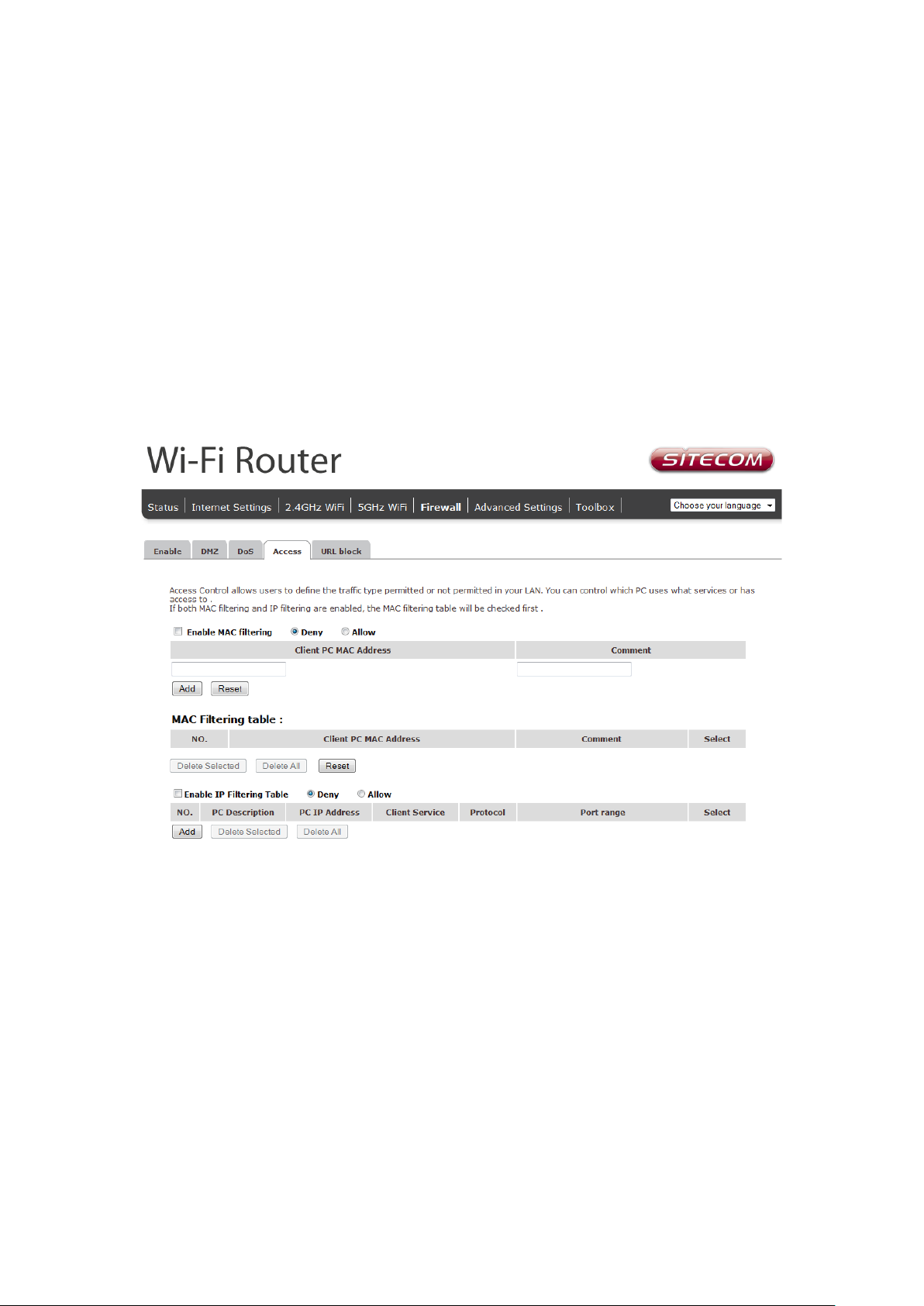

Firewall Settings ...................................................................................................31

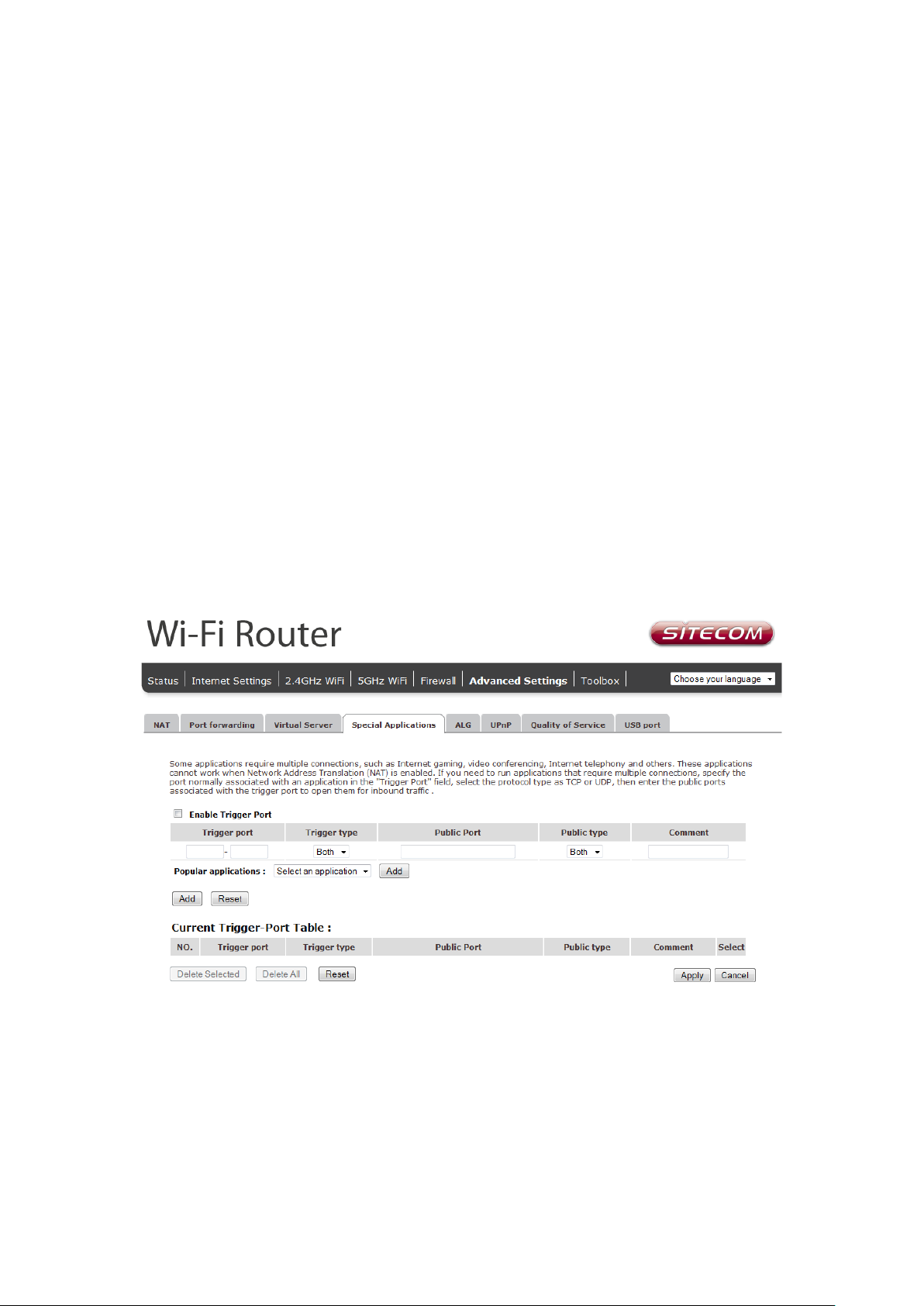

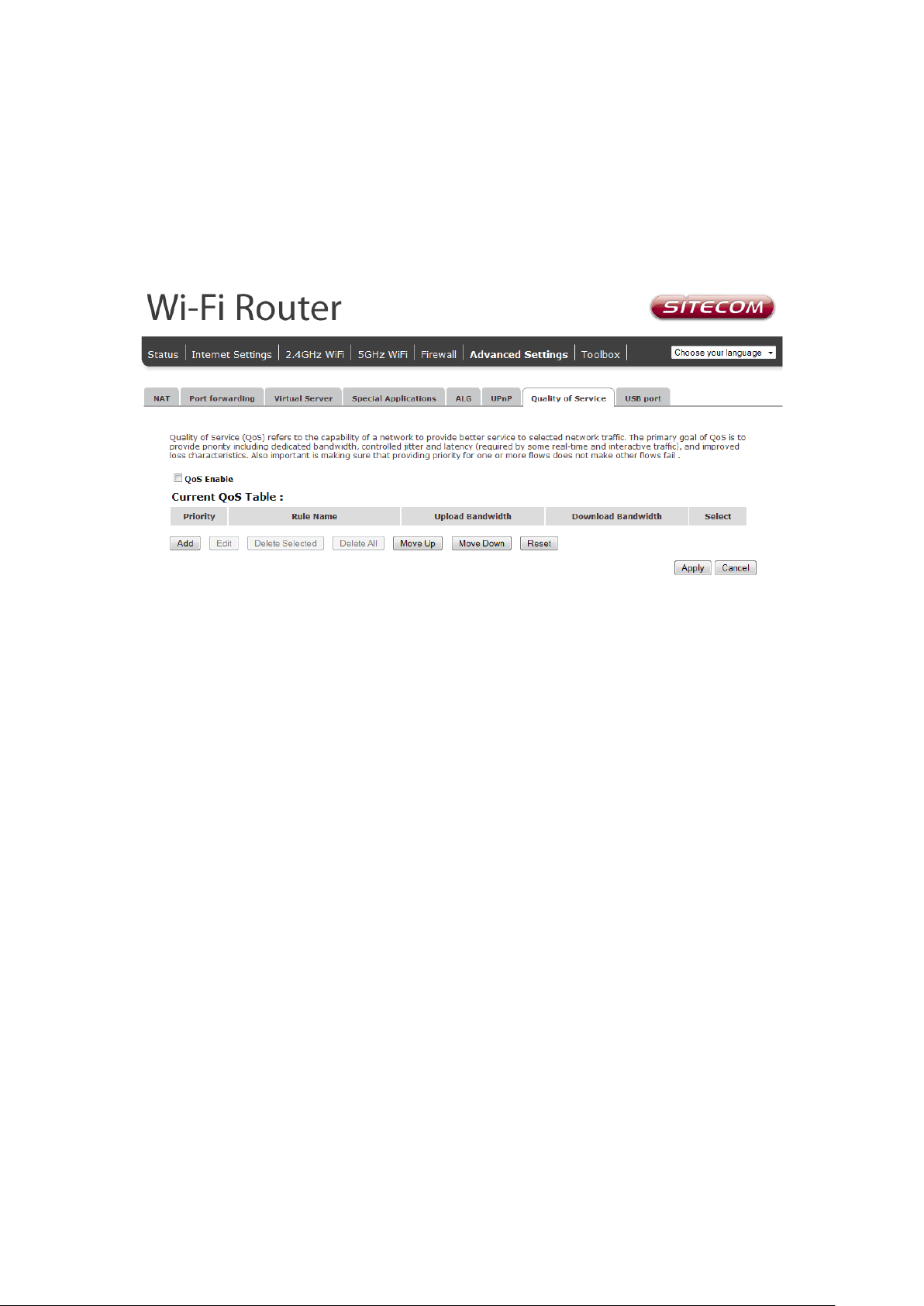

Advanced Settings ................................................................................................35

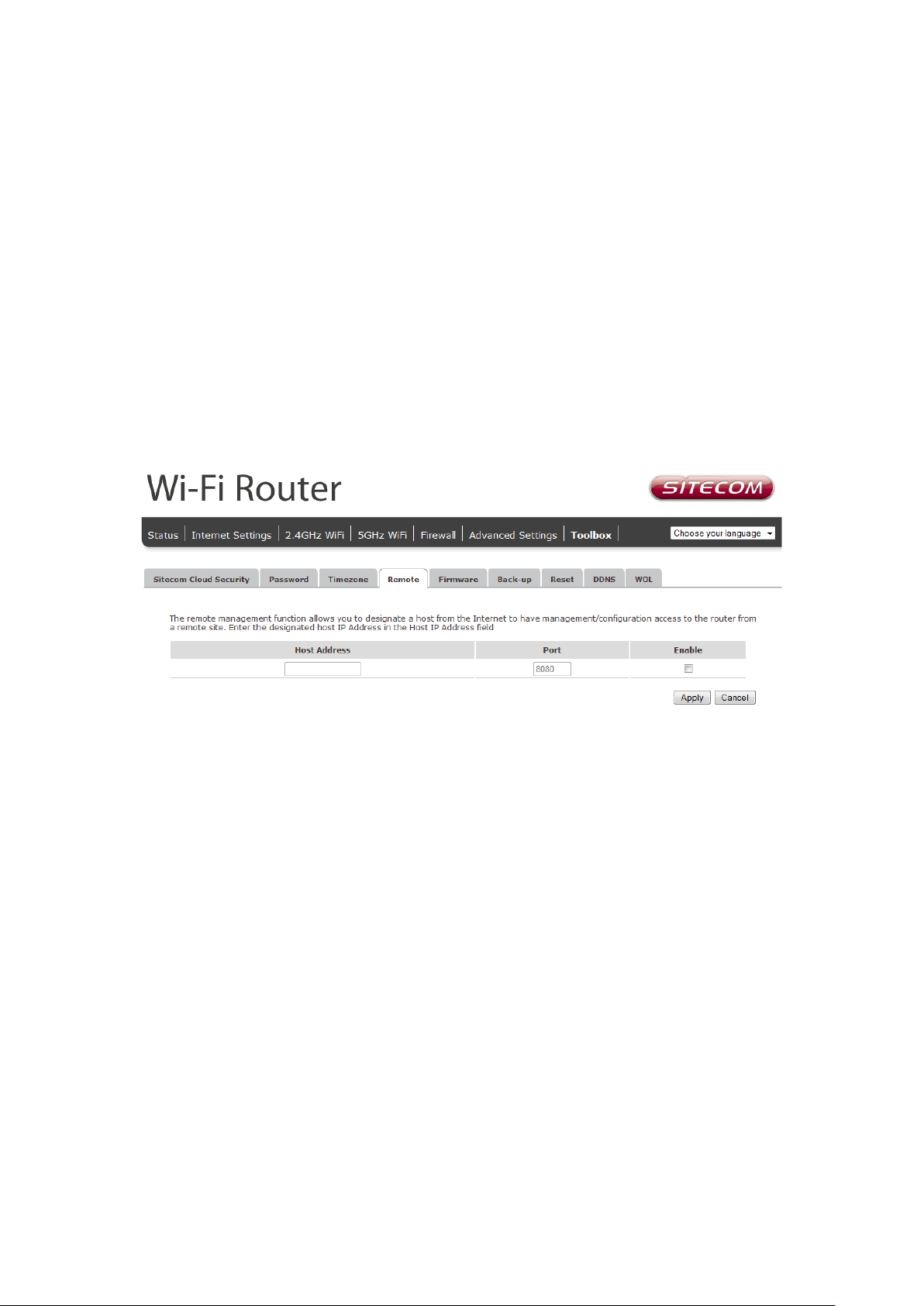

Toolbox Settings...................................................................................................41

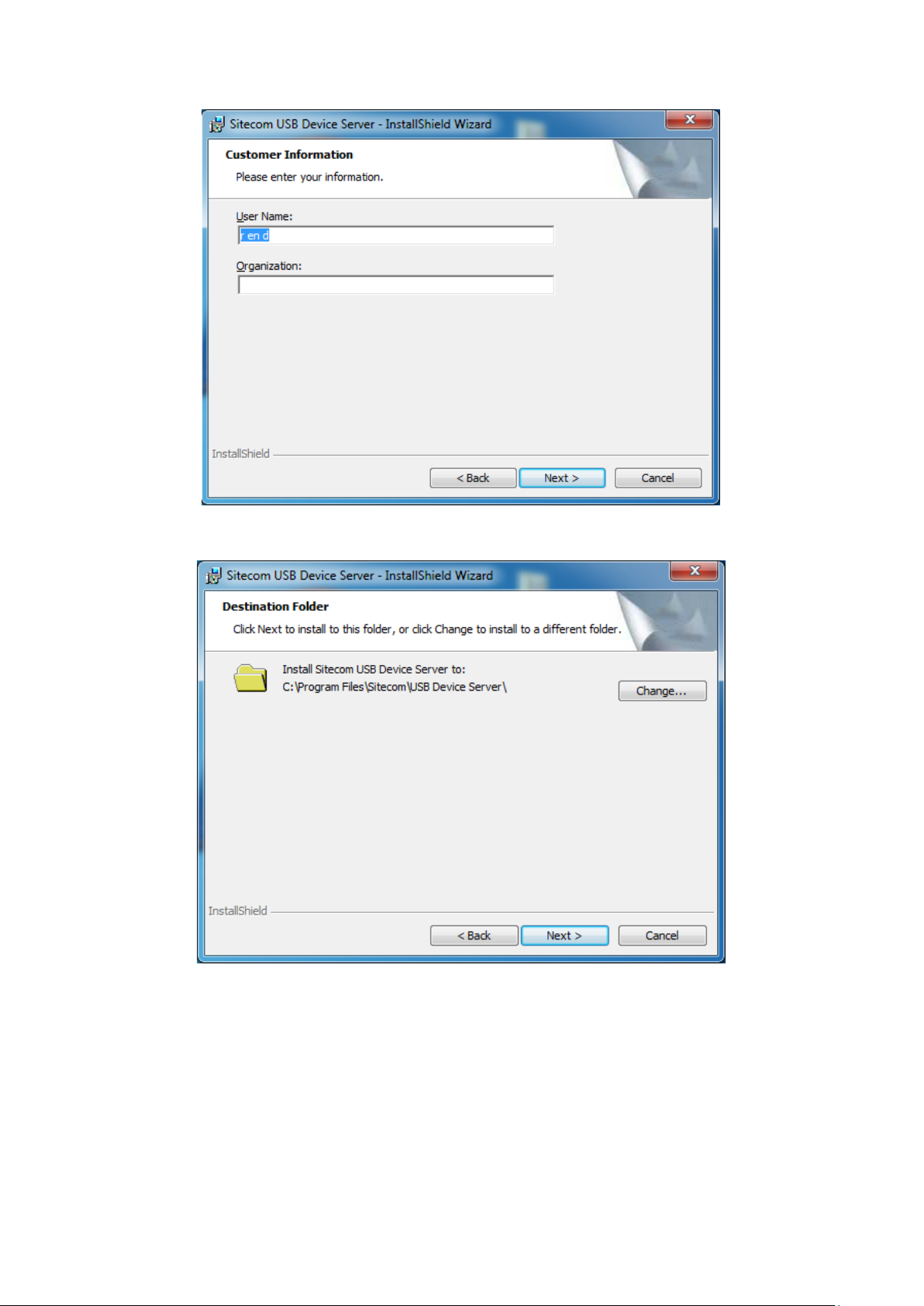

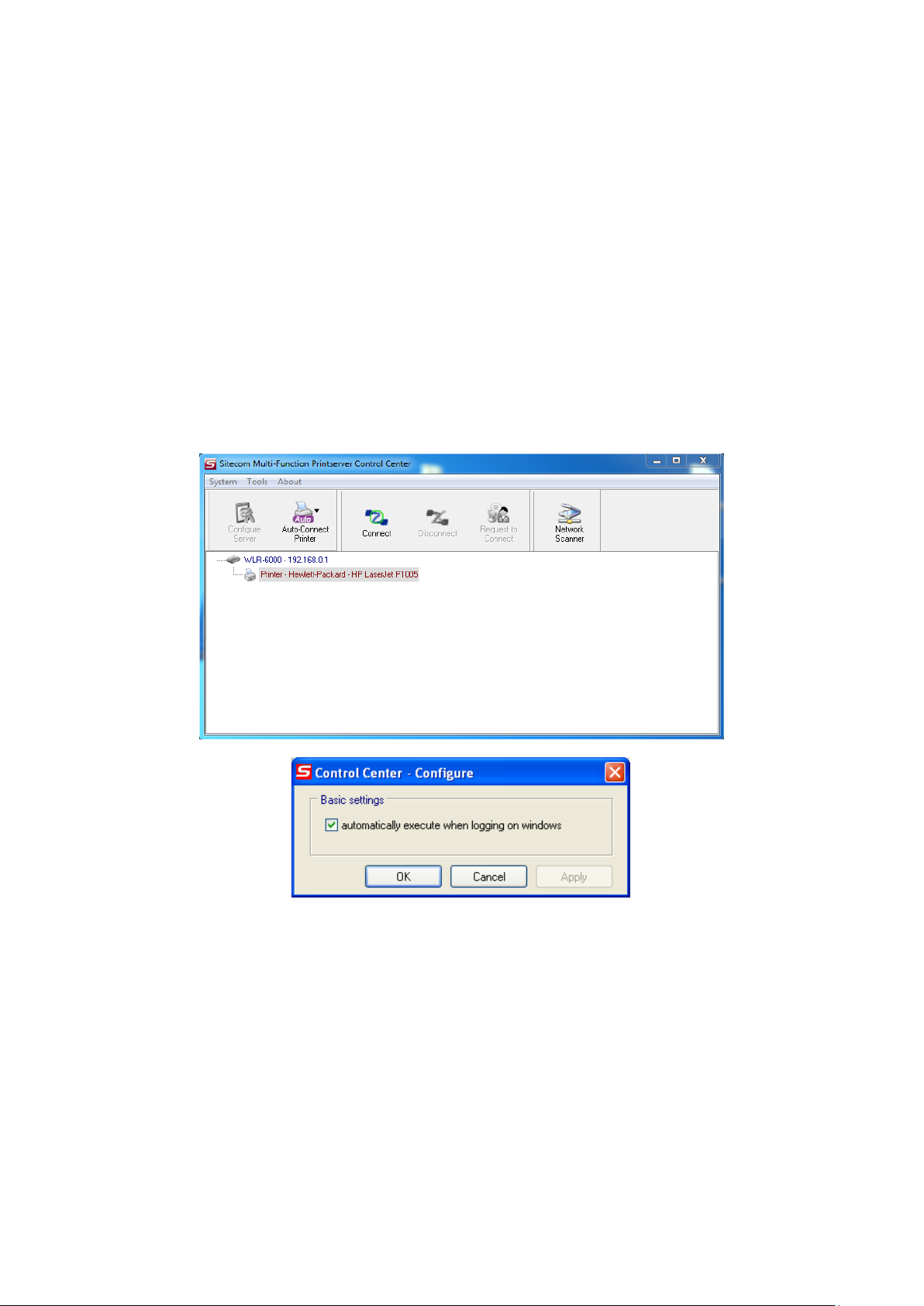

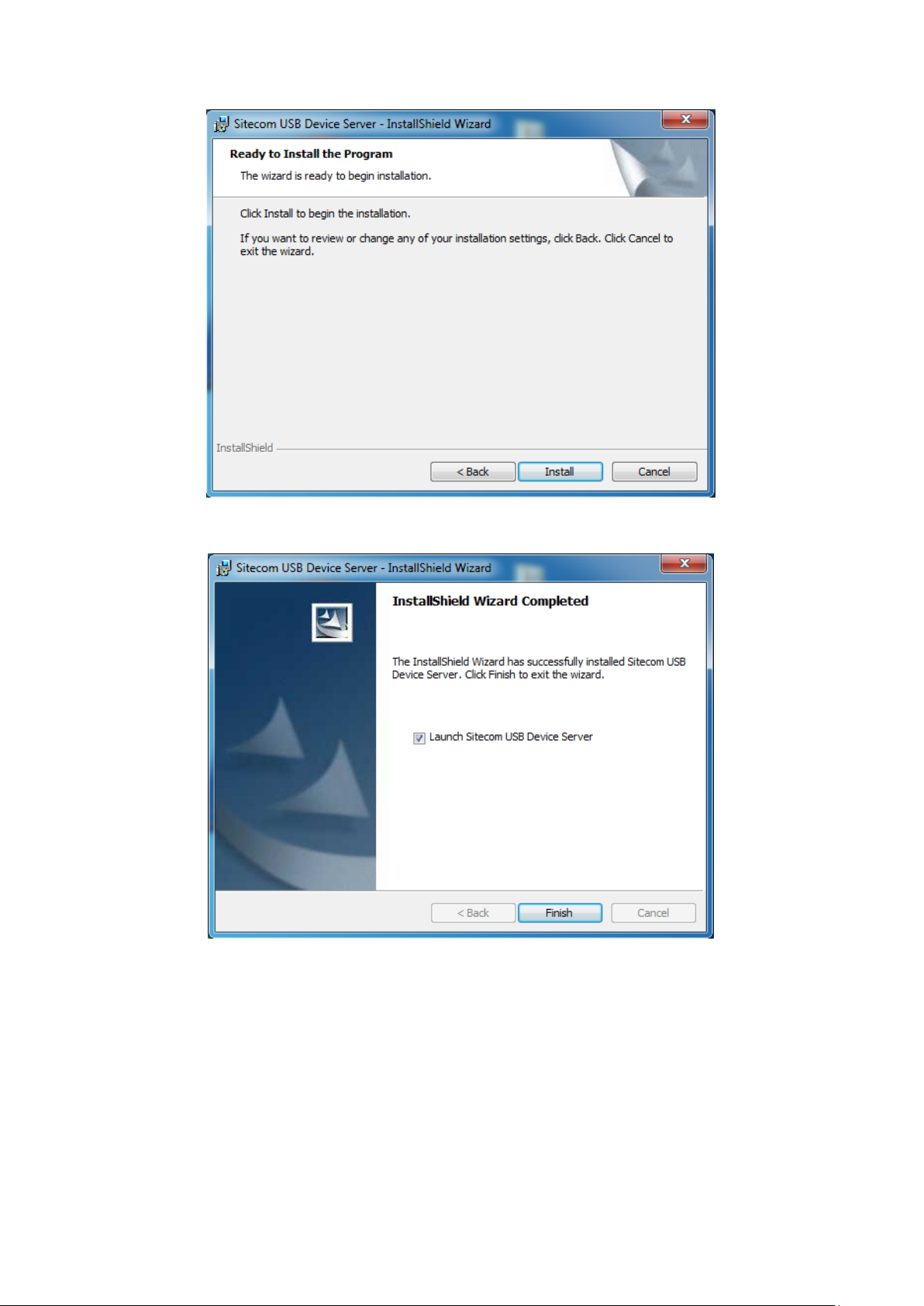

Addendum A: USB Port Control Center ....................................................................45

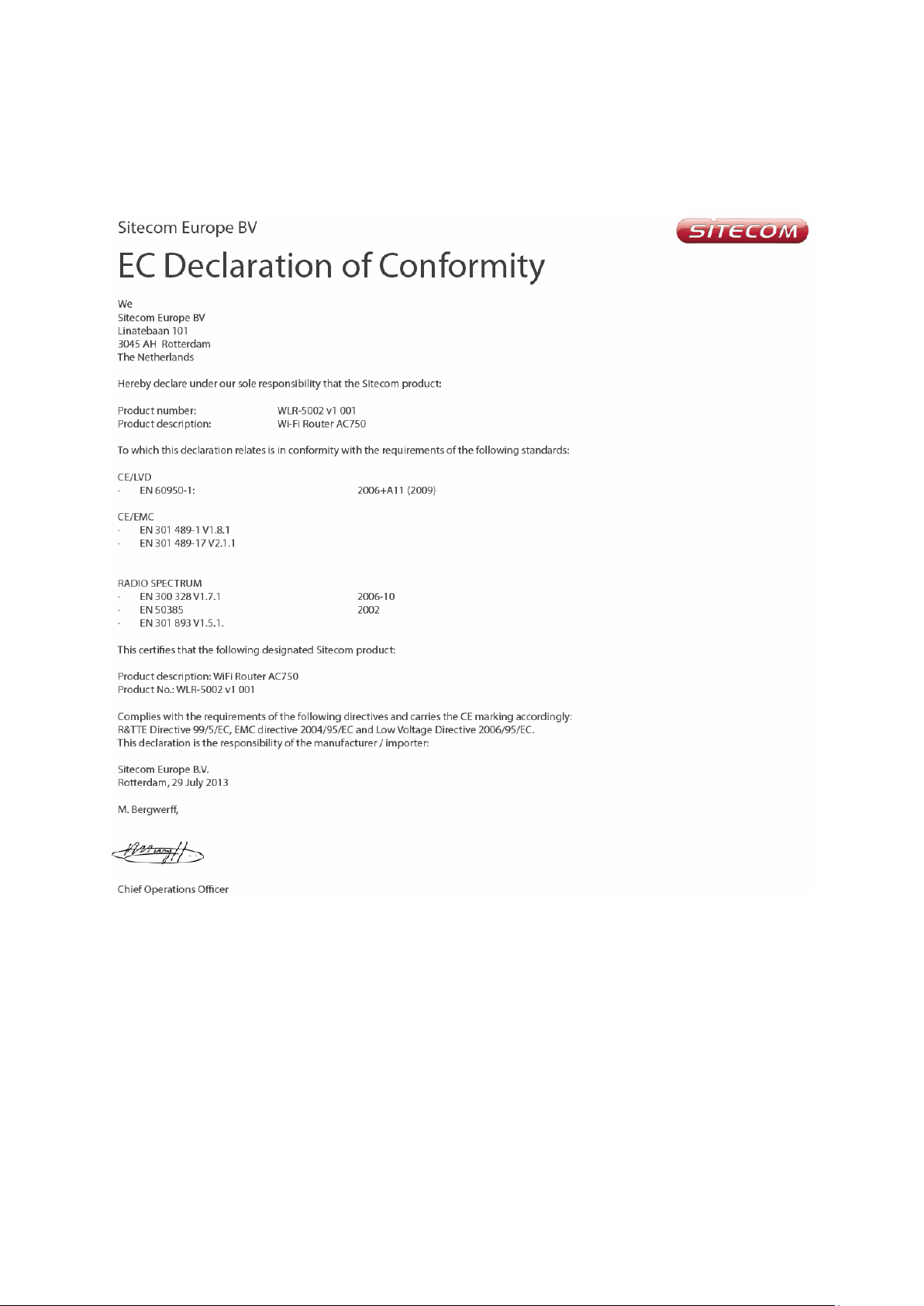

Addendum B: Declaration of Conformity ..................................................................55
Revision 1.0
© Sitecom Europe BV 2013
Note: All the information contained in this manual was correct at the time of publication.
However, as our engineers are always updating and improving the product, your device’s
software may have a slightly different appearance or modified functionality than
presented in this manual.
Introduction
Congratulations on your purchase of the WiFi Router AC750. This router is compliant with
the 802.11ac draft and and up to 2 times faster than standard 802.11n based routers
while still being compatible with 802.11g & 802.11b devices. This router is not only a
Wireless Access Point, but also doubles as a 4-port full-duplex Gigabit switch that
connects your wired-Ethernet devices together at 10/100/1000 Mbps speeds.
At 300Mbps wireless transmission rate on 2.4GHz and 433 Mbps wireless transmission
rate on 5GHz, the Access Point built into the router uses advanced MIMO (Multi-Input,
Multi-Output) technology to transmit multiple streams of data in a single wireless
channel, giving you seamless access to multimedia content. The robust RF signal travels
farther, eliminates dead spots and extends the network range. For data protection and
privacy, the router encodes all wireless transmissions with WEP, WPA, or WPA2
encryption.
With the built-in DHCP Server & powerful SPI firewall, the router protects your computers
against intruders and most known Internet attacks and also provides safe VPN passthrough. With the incredible speed and QoS function of 802.11n, the router is ideal for
media-centric applications like streaming video, gaming, and VoIP telephony to run
multiple media-intense data streams through the network at the same time, with no
degradation in performance.
Features
Advantages
Incredible Data Rate up to
433Mbps*
Heavy data payloads such as MPEG video
streaming
IEEE 802.11n Compliant and
backwards compatible with
802.11b/g/n
Fully Interoperable with IEEE 802.11b /
IEEE802.11g, IEEE802.11n compliant
devices with legacy protection
Four 10/100/1000 Mbps gigabit
Switch Ports (Auto-Crossover)
Scalability, extend your network.
Firewall supports Virtual Server
Mapping, DMZ, IP Filter, ICMP
Blocking, SPI
Avoids the attacks of Hackers or Viruses
from Internet
Support 802.1x authenticator,
802.11i (WPA/WPA2, AES), VPN
pass-through
Provide mutual authentication (Client
and dynamic encryption keys to enhance
security
Guest Network
Devices connected to the Guest network
will have Internet connection but no
access to the main network and cannot
communicate with each other.
IPv6 support
Support for Static, Native, 6RD and DS-
Lite.
USB Port
Connect any USB device and share it in
your network.
Key Features
* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n, ac chipset
used. Actual throughput may vary. Network conditions and environmental factors lower
actual throughput rate. All specifications are subject to change without notice.
Package Contents
Open the package carefully, and make sure that none of the items listed below are
missing. Do not discard the packing materials, in case of return; the unit must be
shipped back in its original package.
The WLR-5002 WiFi Router AC750
A 110V~240V to 12V 1A Switching Power Adapter
A Quick Install Guide
An UTP cable
Cautions
This router’s design and manufacturer has your safety in mind. In order to safely and
effectively use this router, please read the following before usage.
Usage Cautions
The user should not modify this router. The environmental temperature should be within
+5 ~ +35 degrees Celsius.
Power
The router’s power voltage is DC 12V 1A.
When using this router, please connect the supplied AC adapter or AC adapter cable to
the router’s power jack. When placing the adapter cable, make sure it can’t get damaged
or be subject to pressure. To reduce the risk of electric shock, unplug the adapter first
before cleaning it. Never connect the adapter to the router in a humid or dusty area. Do
not replace the adapter or cable’s wire or connector.
Repair
If the router has a problem, you should take it to an appointed repair center and let the
specialists do the repair. Never repair the router yourself, you might damage the router
or endanger yourself.
Disposing of the Router
When you dispose of the router, be sure to dispose it appropriately. Some countries may
regulate disposal of an electrical device, please consult with your local authority.
Others
When using this router, please do not let it come into contact with water or other liquids.
If water is accidentally spilled on the router, please use a dry cloth to absorb the spillage.
Electronic products are vulnerable, when using please avoid shaking or hitting the router,
and do not press the buttons too hard.
Do not let the router come into contact with water or other liquid.
Do not disassemble, repair or change the design of the router; any damage done
will not be included in the repair policy.
Avoid hitting the router with a hard object, avoid shaking the router and stay
away from magnetic fields.
If during electrostatic discharge or a strong electromagnetic field the product will
malfunction, unplug the power cable. The product will return to normal
performance the next time it is powered on.
Port
Description
Power connector
Connect the 12V DC adapter to this port
LAN (Yellow)
Connect your PCs or network devices to these ports
WAN (Blue)
Connect your ADSL/Cable modem to this port
USB Port
Connect a USB device to this port
Button
Description
OPS BUTTON
Press 0-5 seconds for OPS mode
Press 15 Seconds to reset the router to factory defaults.
Product Layout
Backlabel and Network Details Folder
The Network Details Folder describes the IP address, login details, network name,
security code and OPS button functionality.
Port
Description
OPS (White)
Shows OPS activity.
Power (Red)
Shows the device is turned on.
2.4GHz (Blue)
Shows 2.4GHz WiFi activity.
WAN (Blue)
Shows the WAN cable is connected.
LAN (Blue)
Shows the cable is connected.
LAN (Blue)
Shows the cable is connected.
LAN (Blue)
Shows the cable is connected.
LAN (Blue)
Shows the cable is connected.
LED Definition
As shown from the top to the bottom.
Network + System Requirements
To begin using the router, make sure you meet the following as minimum requirements:
PC/Notebook.
Operating System – Microsoft Windows XP/VISTA/7/8 or Mac OSX
1 Free Ethernet port.
WiFi card/USB dongle (802.11 a/b/g/n/ac) – optional.
External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45).
PC with a Web-Browser (Internet Explorer, Safari, Firefox, Opera)
Ethernet compatible CAT5e cables.
Setup your Router
You can place the router on a desk or other flat surface, or you can mount it on a wall.
For optimal performance, place your router in the center of your home (or your office) in
a location that is away from any potential source of interference, such as a metal wall or
microwave oven. This location must be close to a power connection and your ADSL/Cable
modem.
Connect the supplied power-adapter to the power inlet port and connect it to a wall
outlet. Switch the router on by flipping the switch on the back of the device. The router
automatically enters the self-test phase. During self-test phase, the Power LED will be lit
continuously to indicate that this product is in normal operation.
Setup your Computer
Windows, Manual Connection
Click on the icon for wireless connectivity. This is usually located in the System
Tray, next to the clock.
Select the Sitecom network. The correct network name can be found on the
sticker on bottom of the router, or in the Network Details Folder.
Fill in the password for the wireless network. The correct password can be found
on the sticker on the bottom of the router, or in the Network Details Folder.
Wait for the icon to display that it’s connected to the network.
Windows, OPS Connection
Click on the icon for wireless connectivity. This is usually located in the System
Tray, next to the clock.
Select the Sitecom network. The correct network name can be found on the
sticker on bottom of the router, or in the Network Details Folder.
Push the OPS Button on the router. Keep the button pushed for 0-5 seconds.
Wait for the icon to display that it’s connected to the network.
Mac OSX
Click on the icon for wireless connectivity. This is usually located in the System
Tray, next to the clock.
Select the Sitecom network. The correct network name can be found on the
sticker on bottom of the router, or in the Network Details Folder.
Fill in the password for the wireless network. The correct password can be found
on the sticker on the bottom of the router, or in the Network Details Folder.
Wait for the icon to display that it’s connected to the network.
Login to your Router
LOGIN procedure

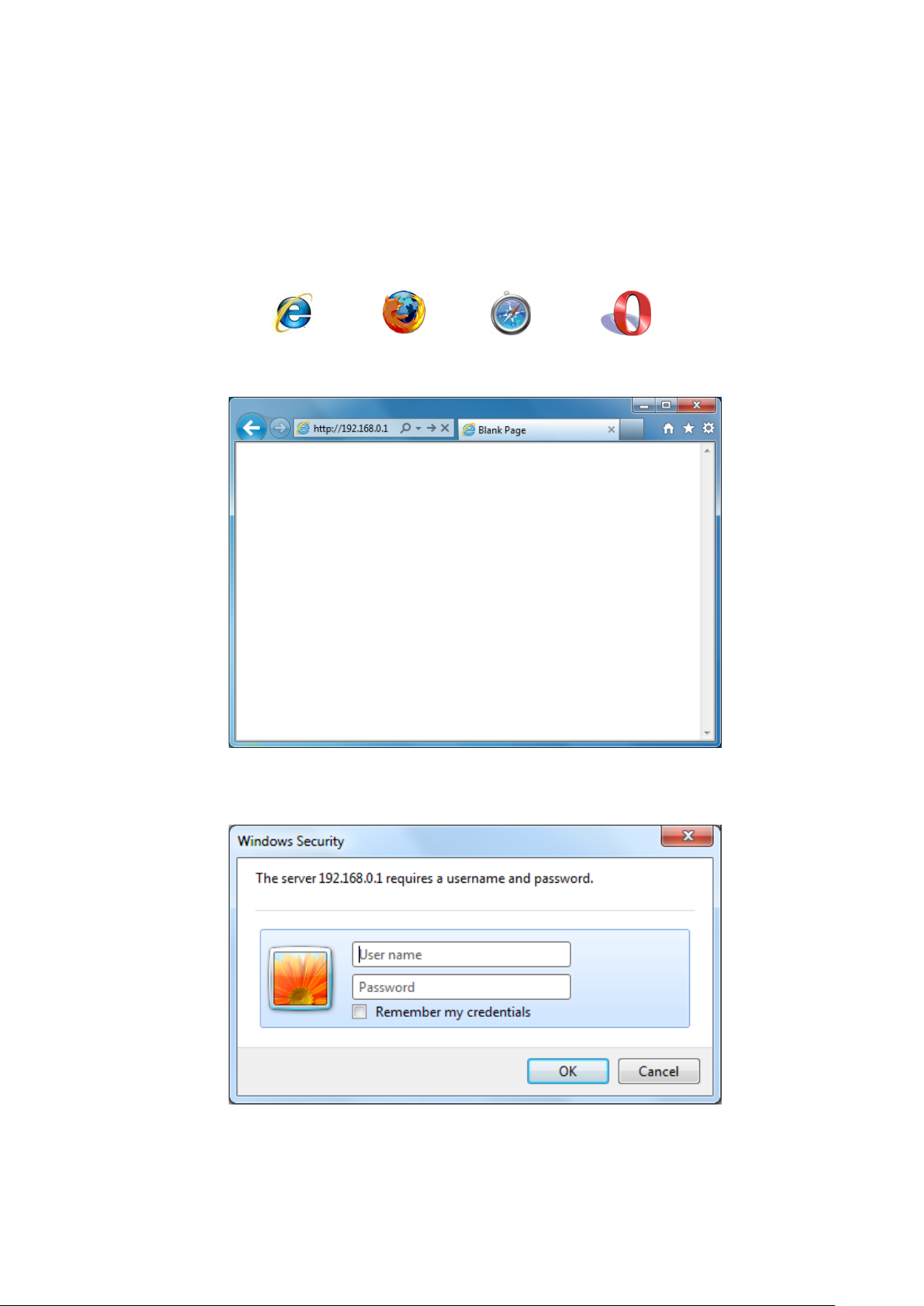

• OPEN your browser (e.g. Internet Explorer).
• Type http://sitecom.router in the address bar and press [Enter].
• Type user name and password. The default username is admin, the password
can be found on the back label on the bottom of your router.
• Click OK.
• You will see the home page of the WiFi Router AC750.
Configure your Internet connection
From the menu, select “Internet Settings”.
Depending on the chosen setting, you may need to enter your user name and password,
MAC address or hostname in the following window. After you have entered the correct
information, click Apply.
IPv6 Configuration
The IPv6 (Internet Protocol version 6) section is where you configure your IPv6
Connection type.
IPv6 Connection Type
There are several connection types to choose from: Static IPv6, Autoconfiguration, 6RD
and Link-local only. If you are unsure of your connection method, please contact your
IPv6 Internet Service Provider.
Static IPv6 Mode
This mode is used when your ISP provides you with a set IPv6 addresses that does not
change. The IPv6 information is manually entered in your IPv6 configuration settings.
You must enter the IPv6 address, Subnet Prefix Length, Default Gateway, Primary DNS
Server and Secondary DNS Server. Your ISP provides you with all this information.
6RD Mode
In the 6RD mode, no additional configuration is necessary.
Link-local Mode
The Link-local address is used by nodes and routers when communicating with
neighboring nodes on the same link. This mode enables IPv6-capable devices to
communicate with each other on the LAN side.
