Sitecom WLR-4100 User Manual

WLR-4100

User Manual

Table of Contents

Introduction .......................................................................................................... 3

Key Features ......................................................................................................... 4

Package Contents .................................................................................................. 5

Cautions ............................................................................................................... 6

Product Layout ...................................................................................................... 7

Network + System Requirements ............................................................................ 9

Setup your Router ................................................................................................10

Setup your Computer ............................................................................................11

Configure your Internet connection .........................................................................15

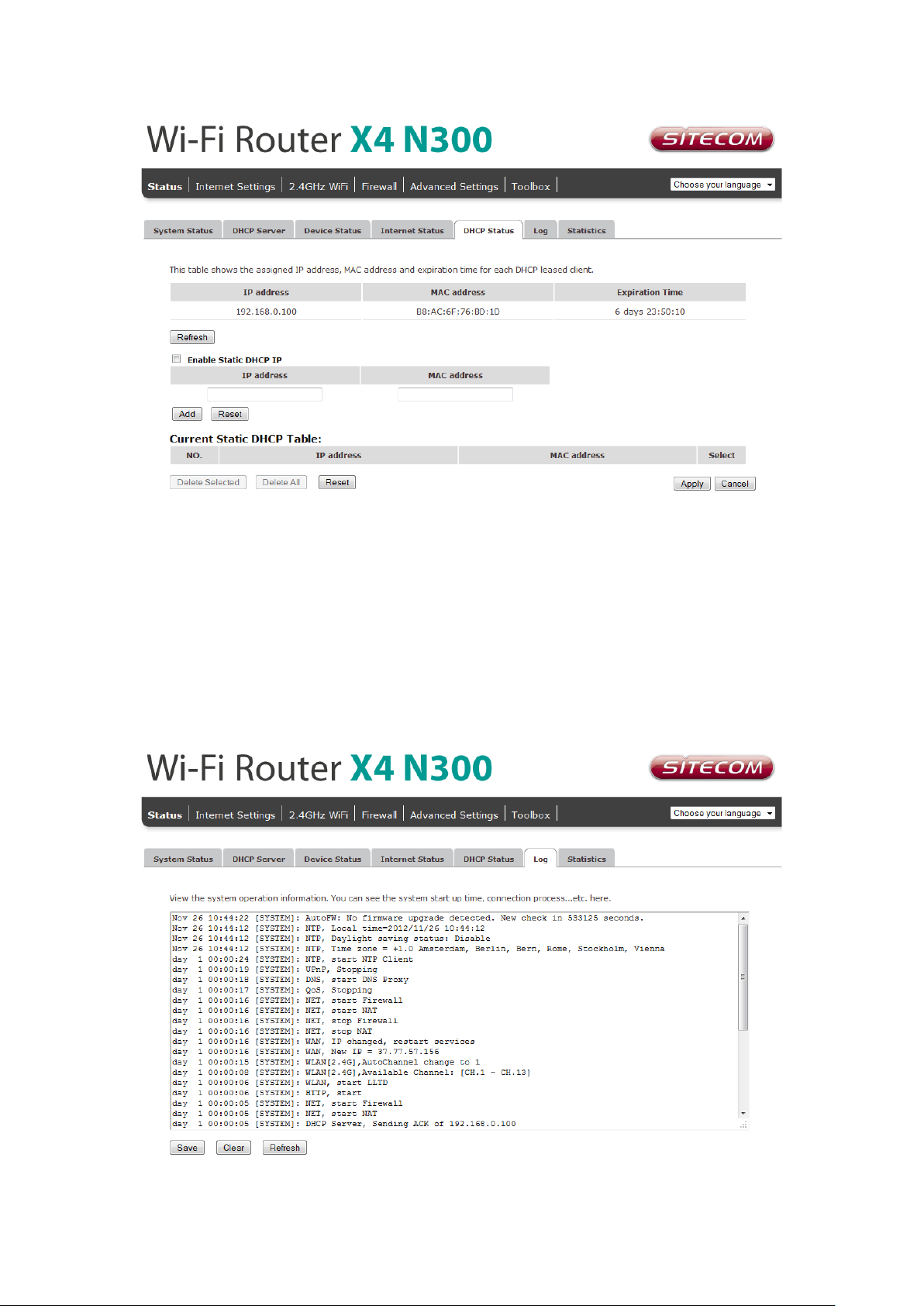

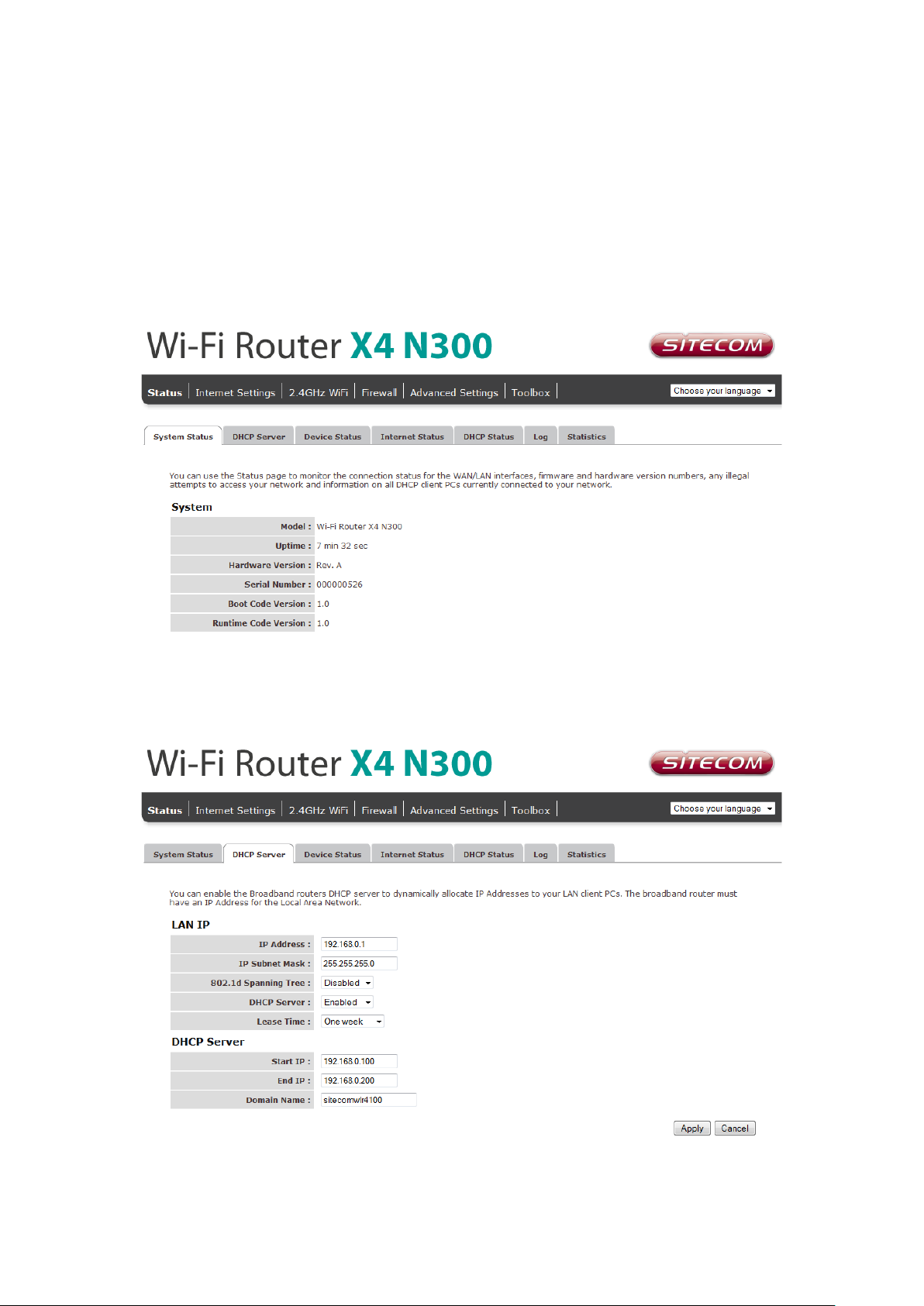

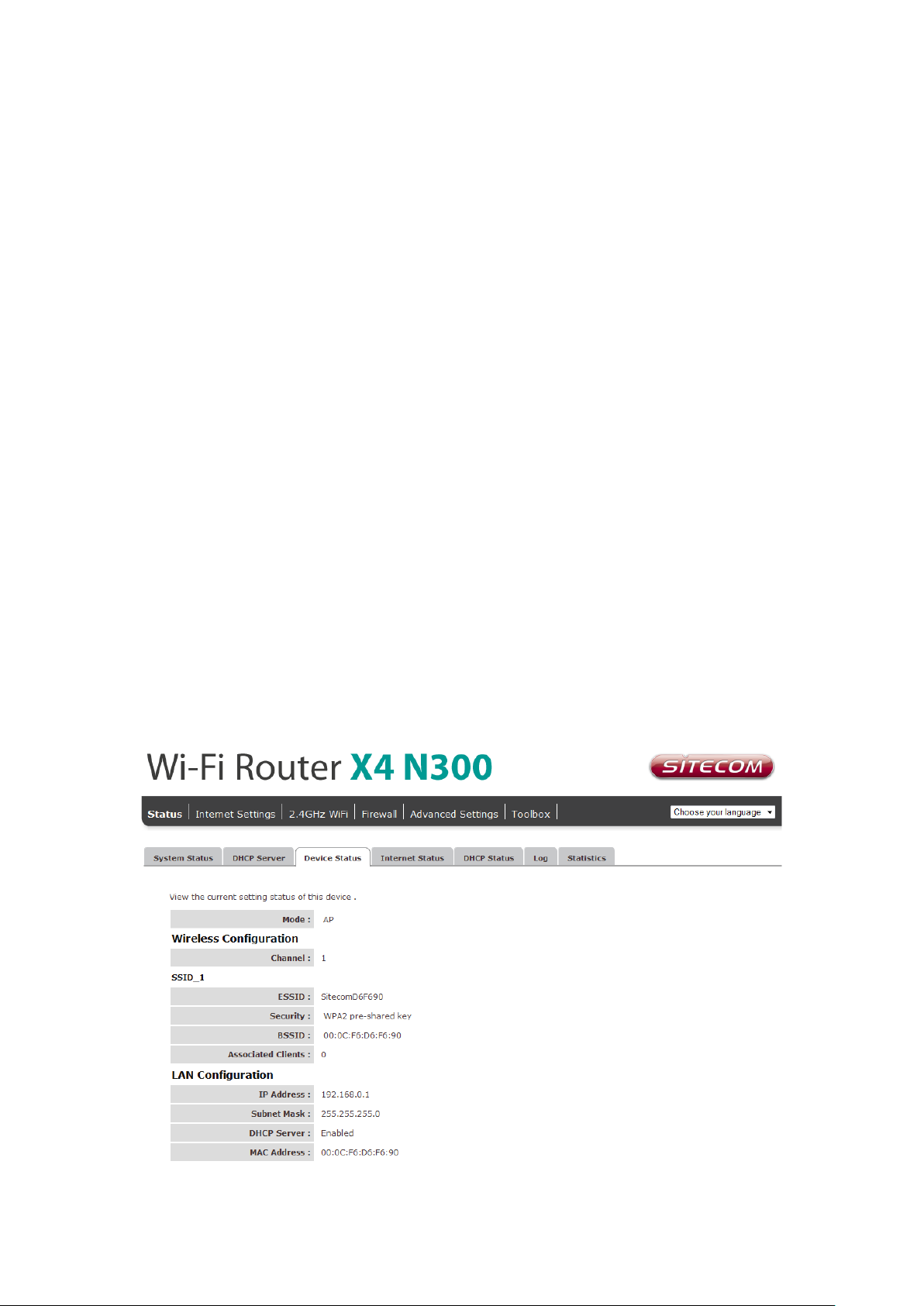

Configure your Router ...........................................................................................18

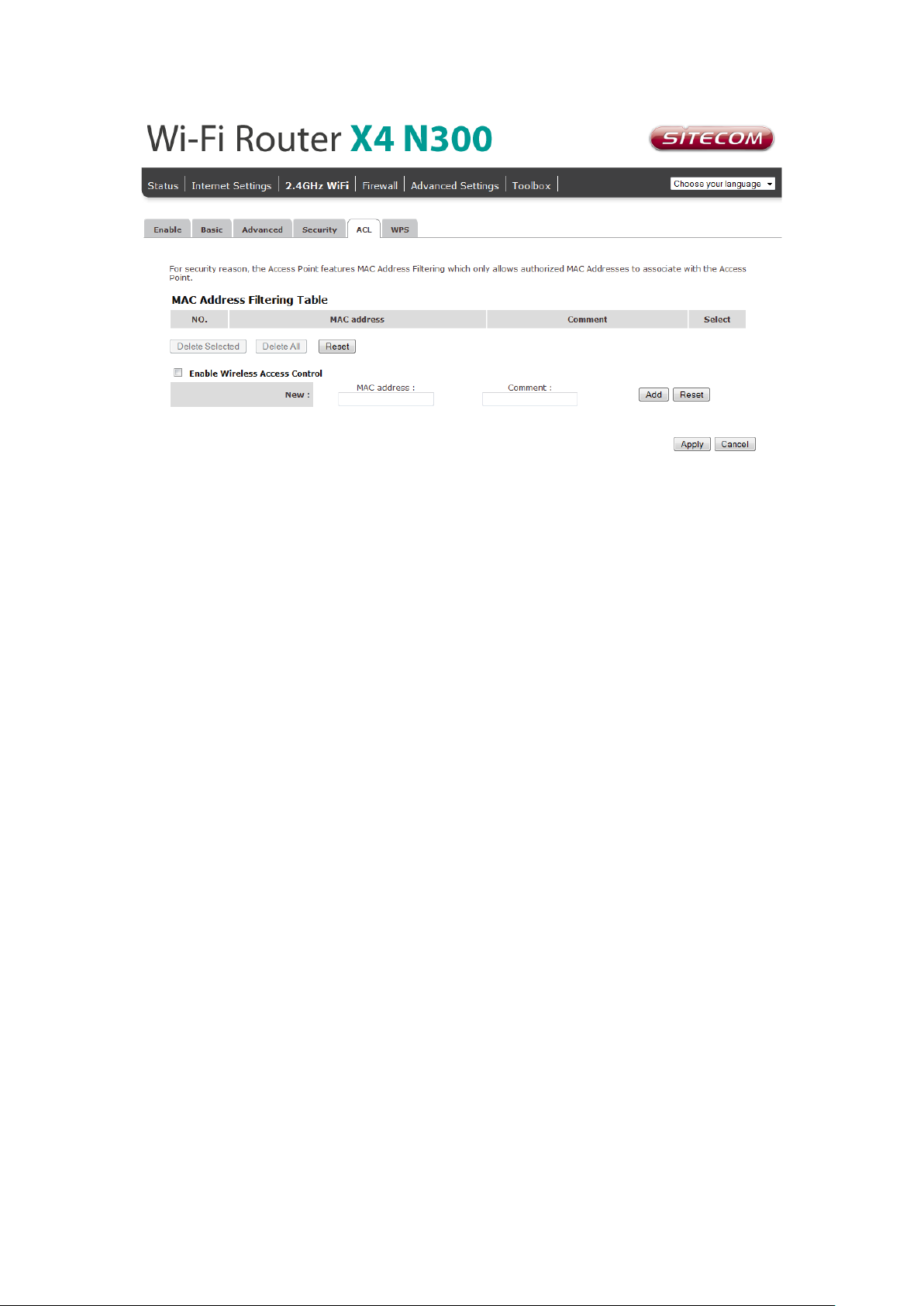

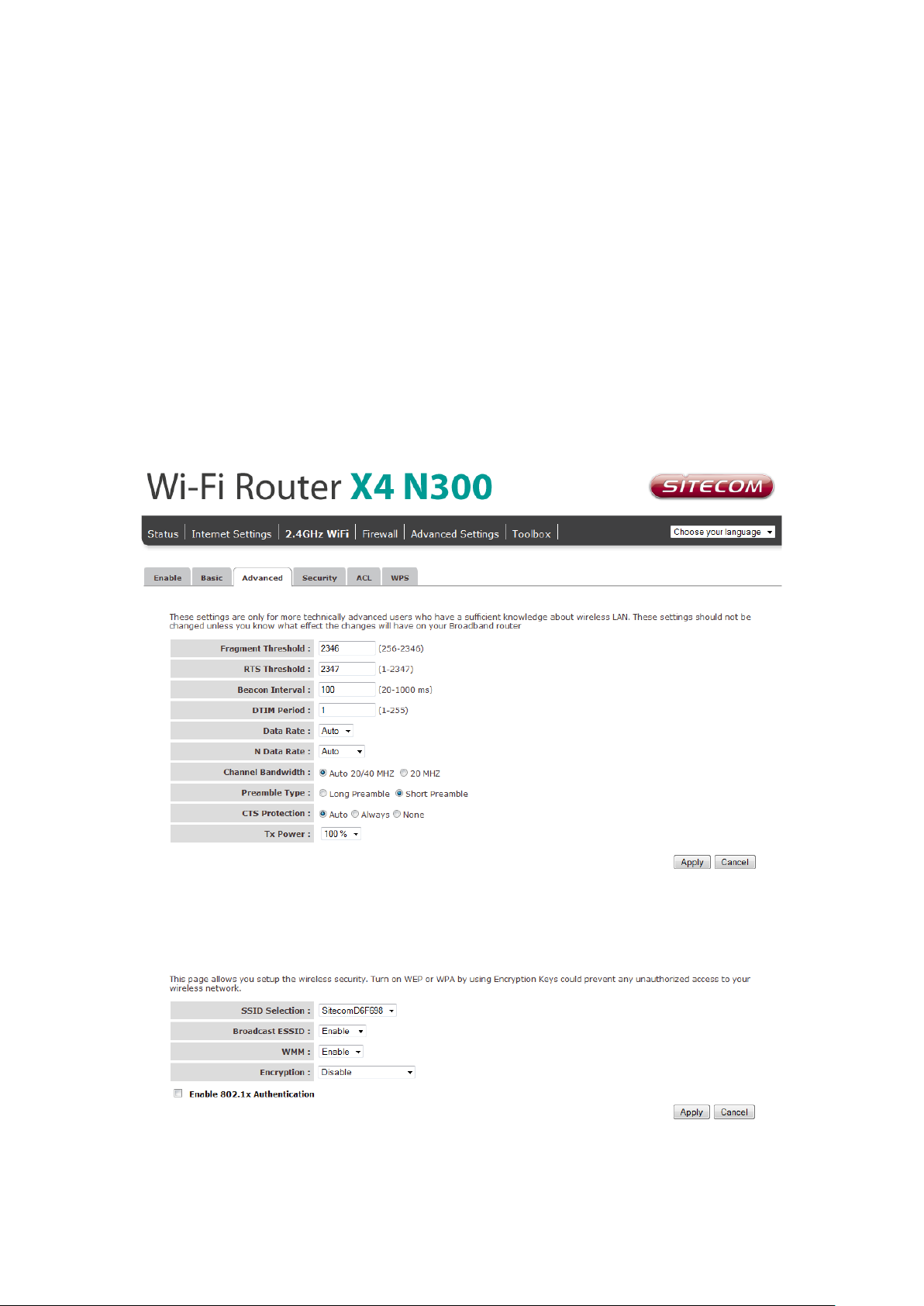

Wireless Settings ..................................................................................................23

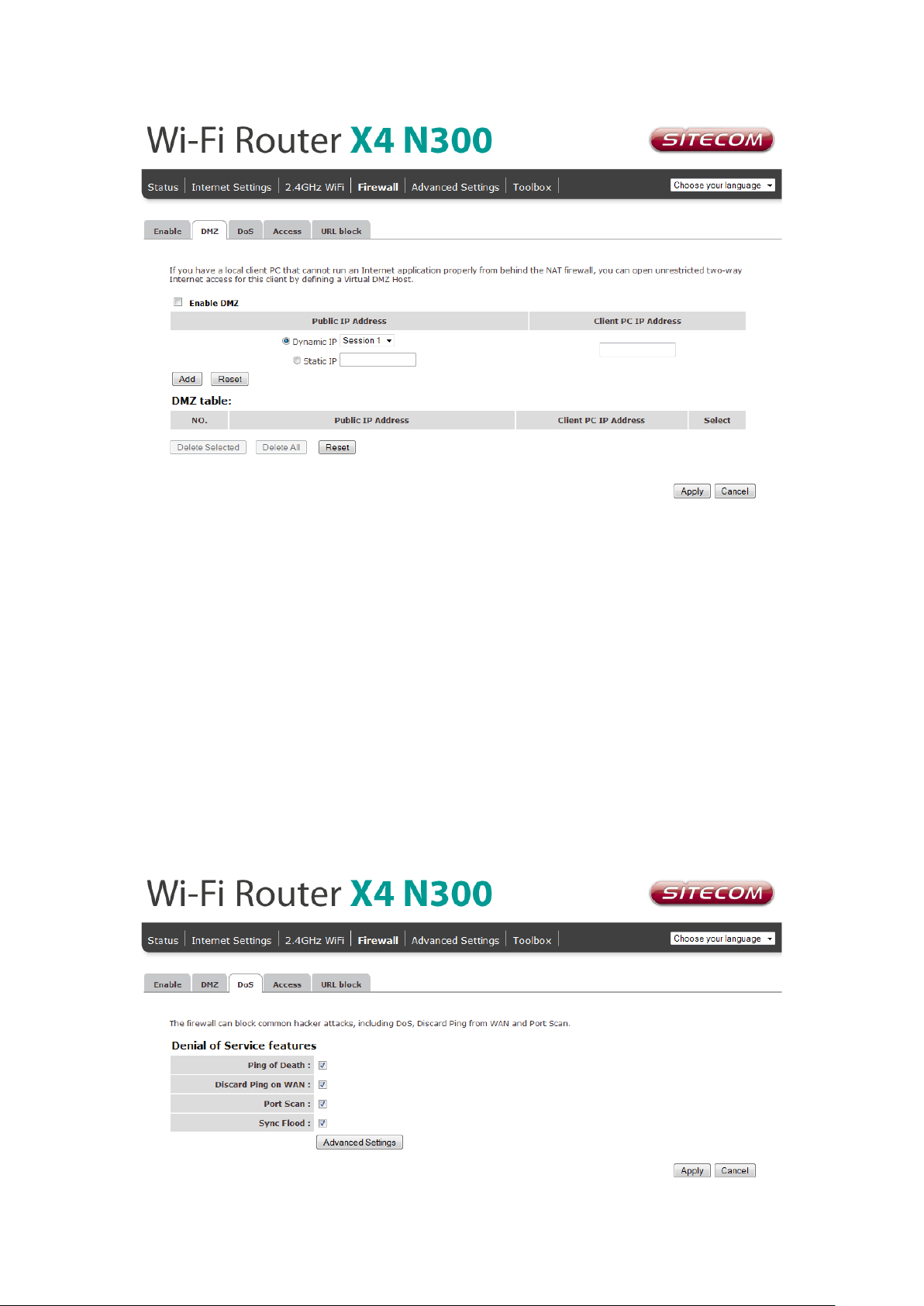

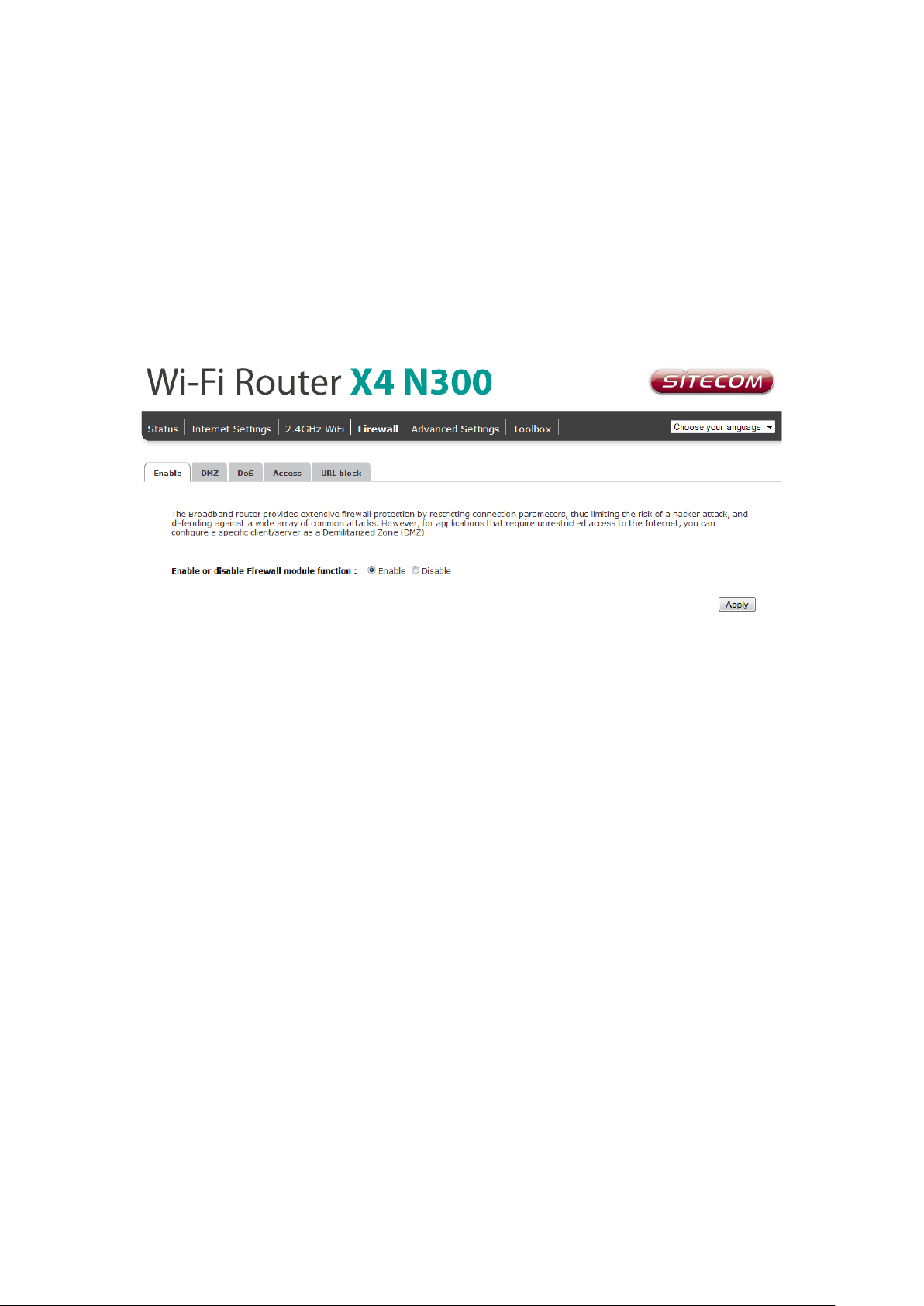

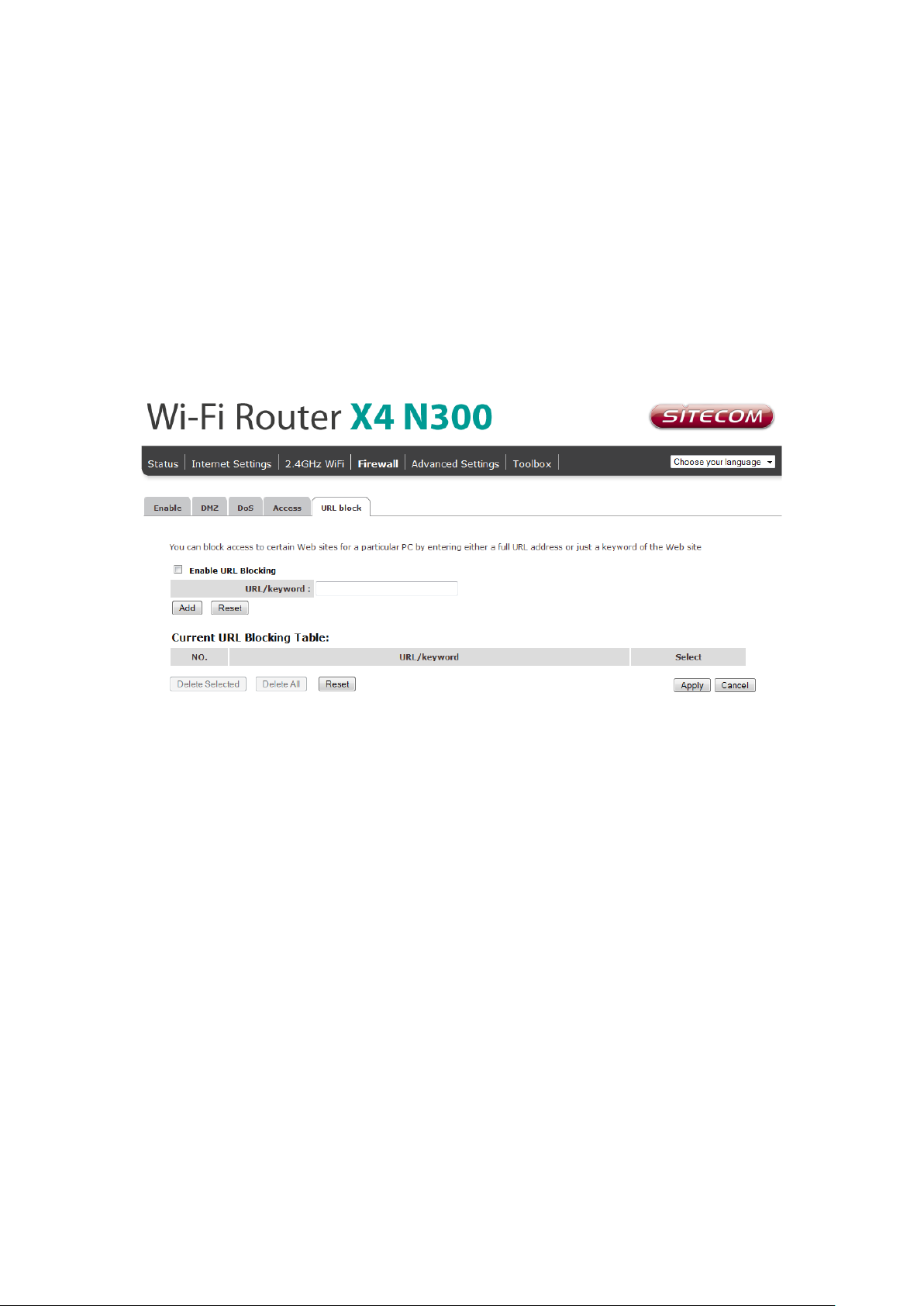

Firewall Settings ...................................................................................................31

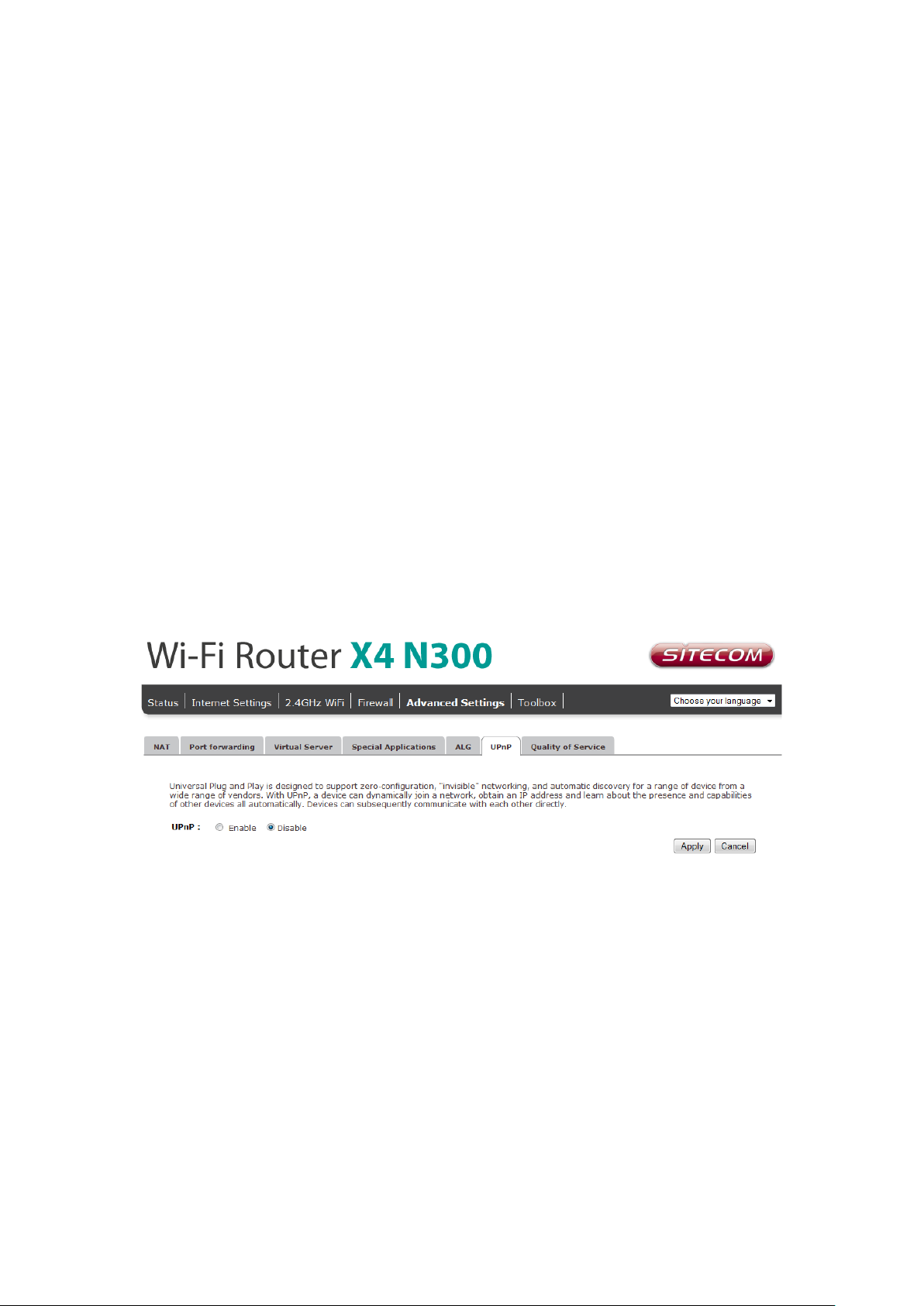

Advanced Settings ................................................................................................35

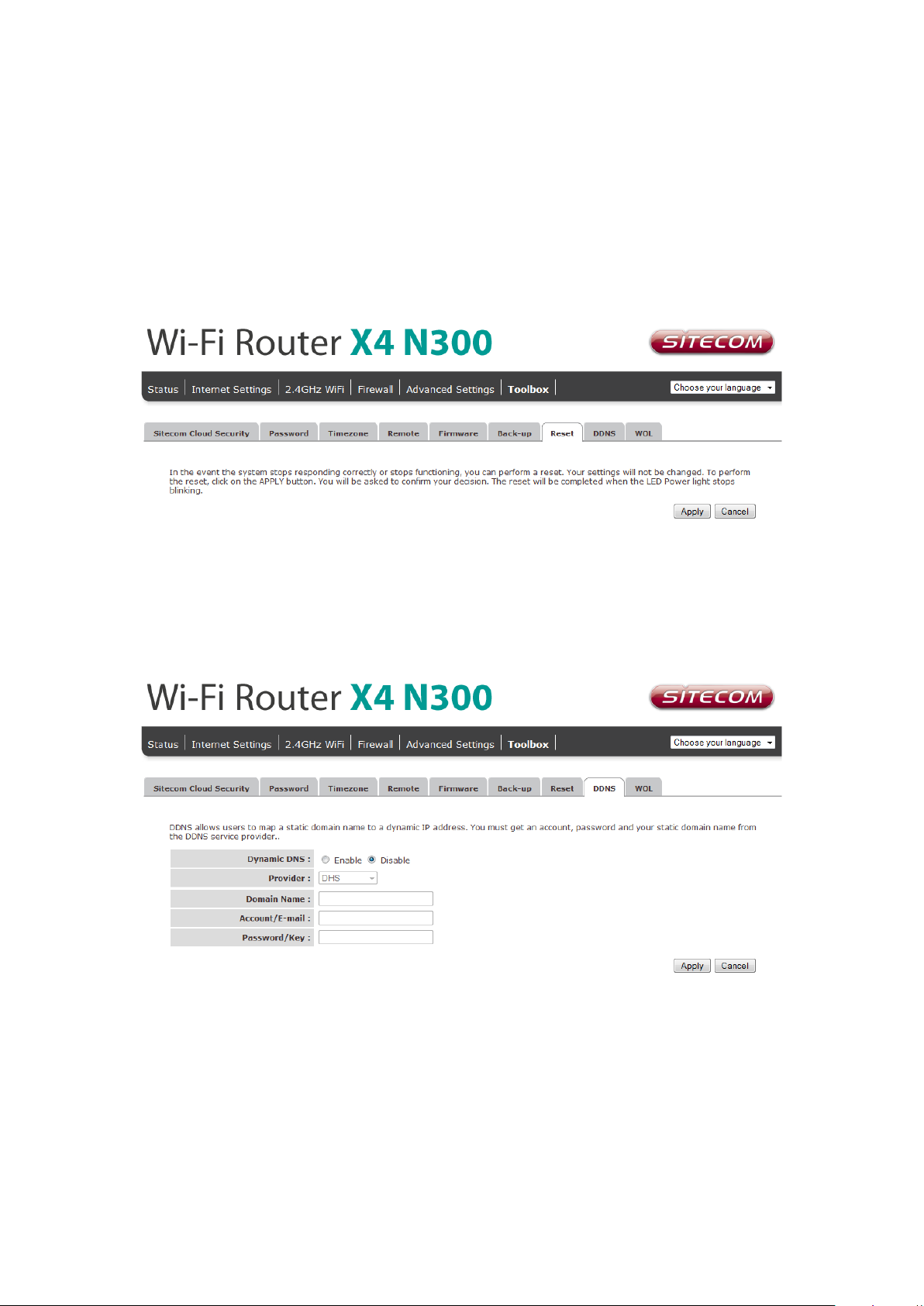

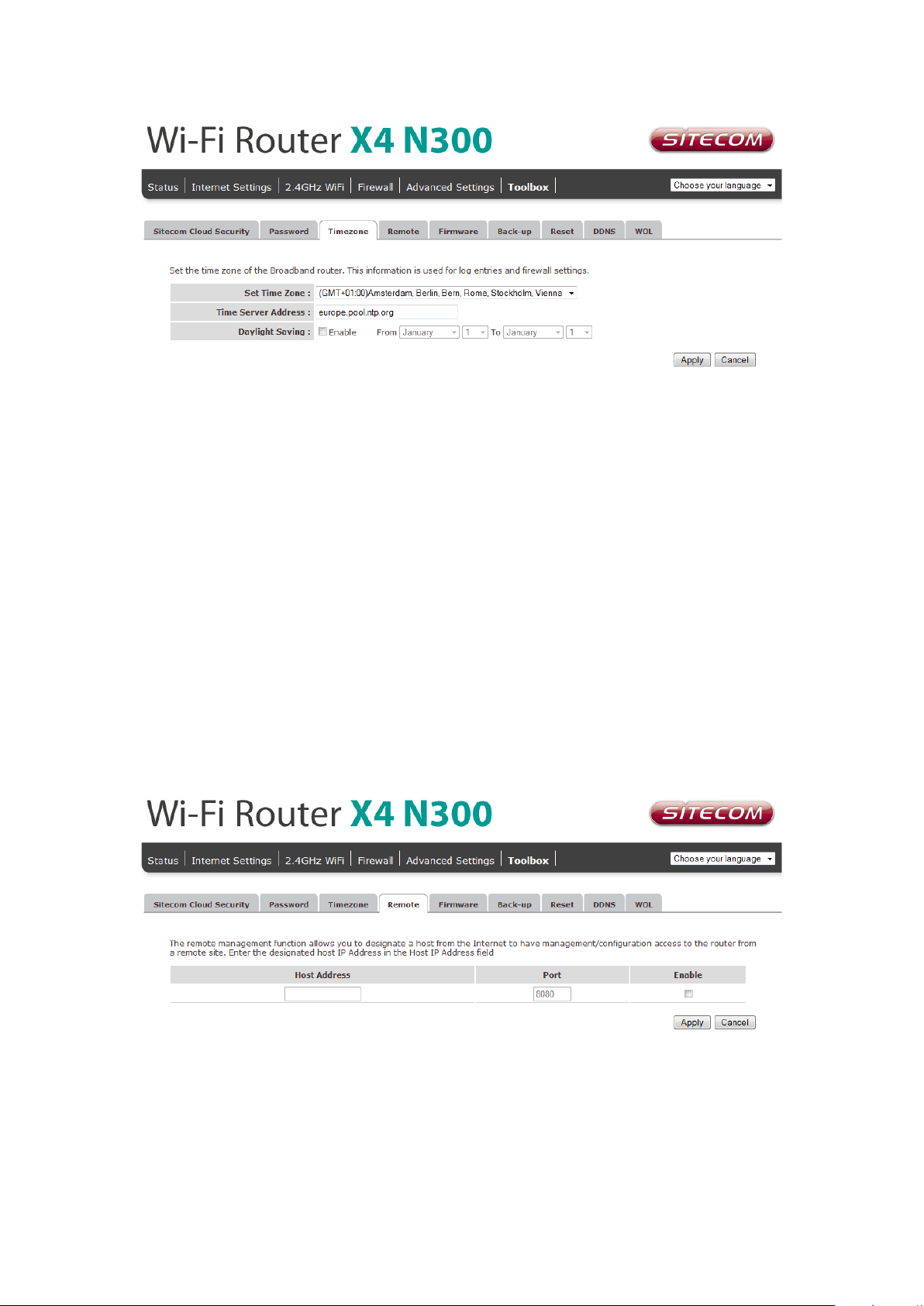

Toolbox Settings...................................................................................................40

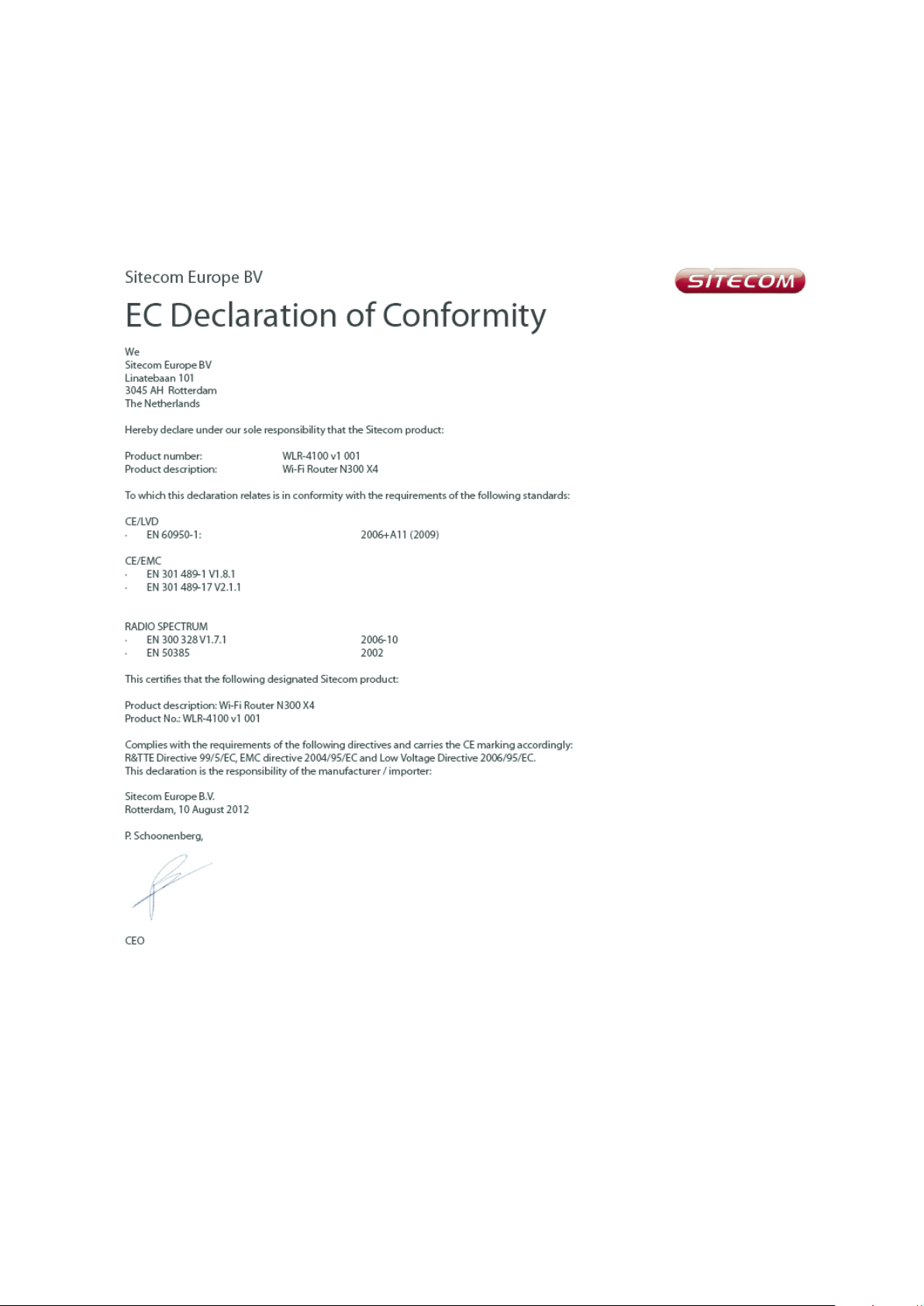

Addendum A: Declaration of Conformity ..................................................................47

Revision 2.1

Note: All the information contained in this manual was correct at the time of publication.

However, as our engineers are always updating and improving the product, your device’s software may have a slightly different appearance or modified functionality than presented in this manual.

Introduction

Congratulations on your purchase of the WiFi Router X4 N300. This router is compliant with 802.11n and up to 6 times faster than standard 802.11g based routers while still being compatible with 802.11g & 802.11b devices. This router is not only a Wireless Access Point, but also doubles as a 4-port full-duplex Gigabit switch that connects your wired-Ethernet devices together at 10/100/1000 Mbps speeds.

At 300 Mbps wireless transmission rate, the Access Point built into the router uses advanced MIMO (Multi-Input, Multi-Output) technology to transmit multiple streams of data in a single wireless channel, giving you seamless access to multimedia content. The robust RF signal travels farther, eliminates dead spots and extends the network range. For data protection and privacy, the router encodes all wireless transmissions with WEP, WPA, or WPA2 encryption.

With the built-in DHCP Server & powerful SPI firewall, the router protects your computers against intruders and most known Internet attacks and also provides safe VPN passthrough. With the incredible speed and QoS function of 802.11n, the router is ideal for media-centric applications like streaming video, gaming, and VoIP telephony to run multiple media-intense data streams through the network at the same time, with no degradation in performance.

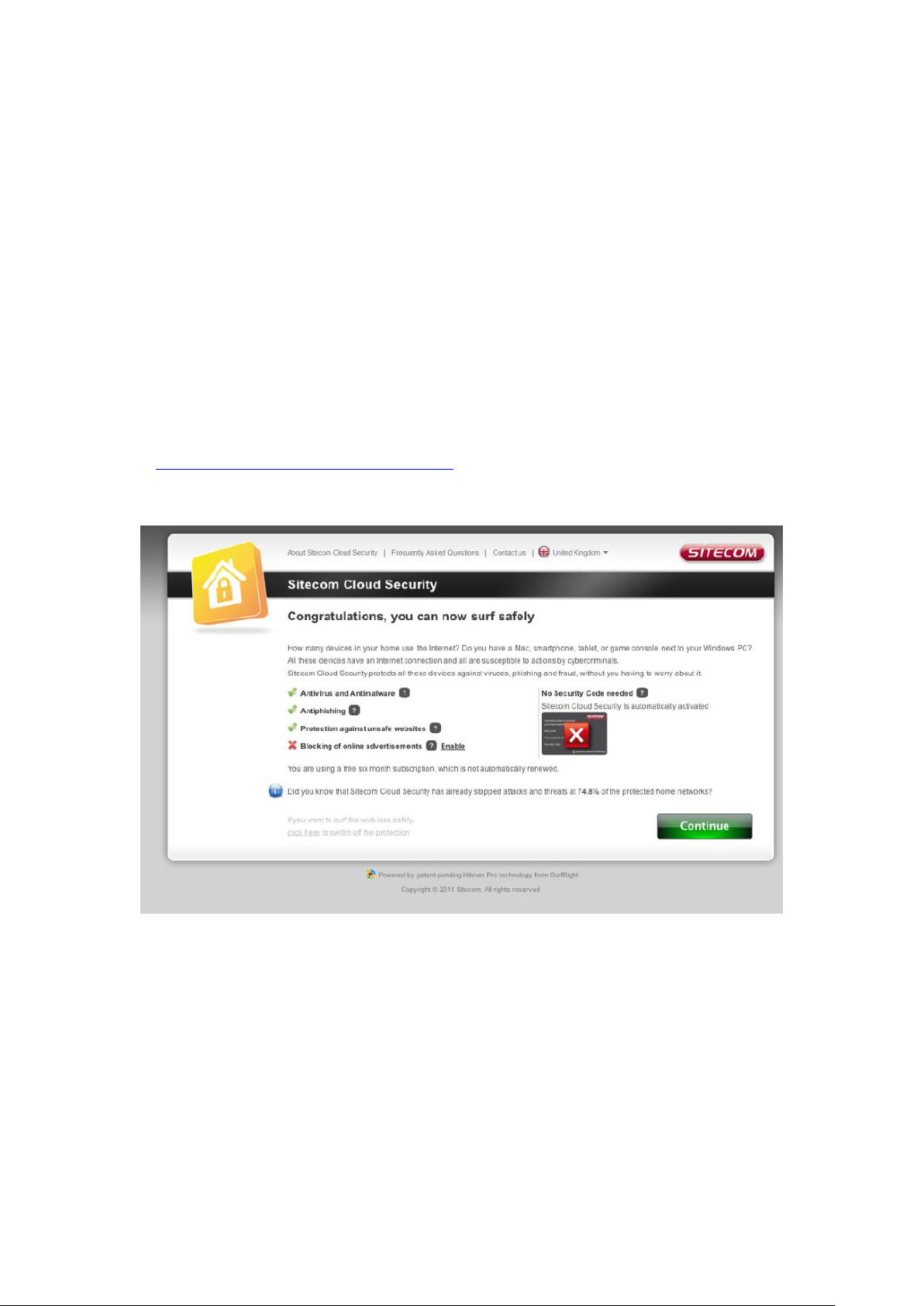

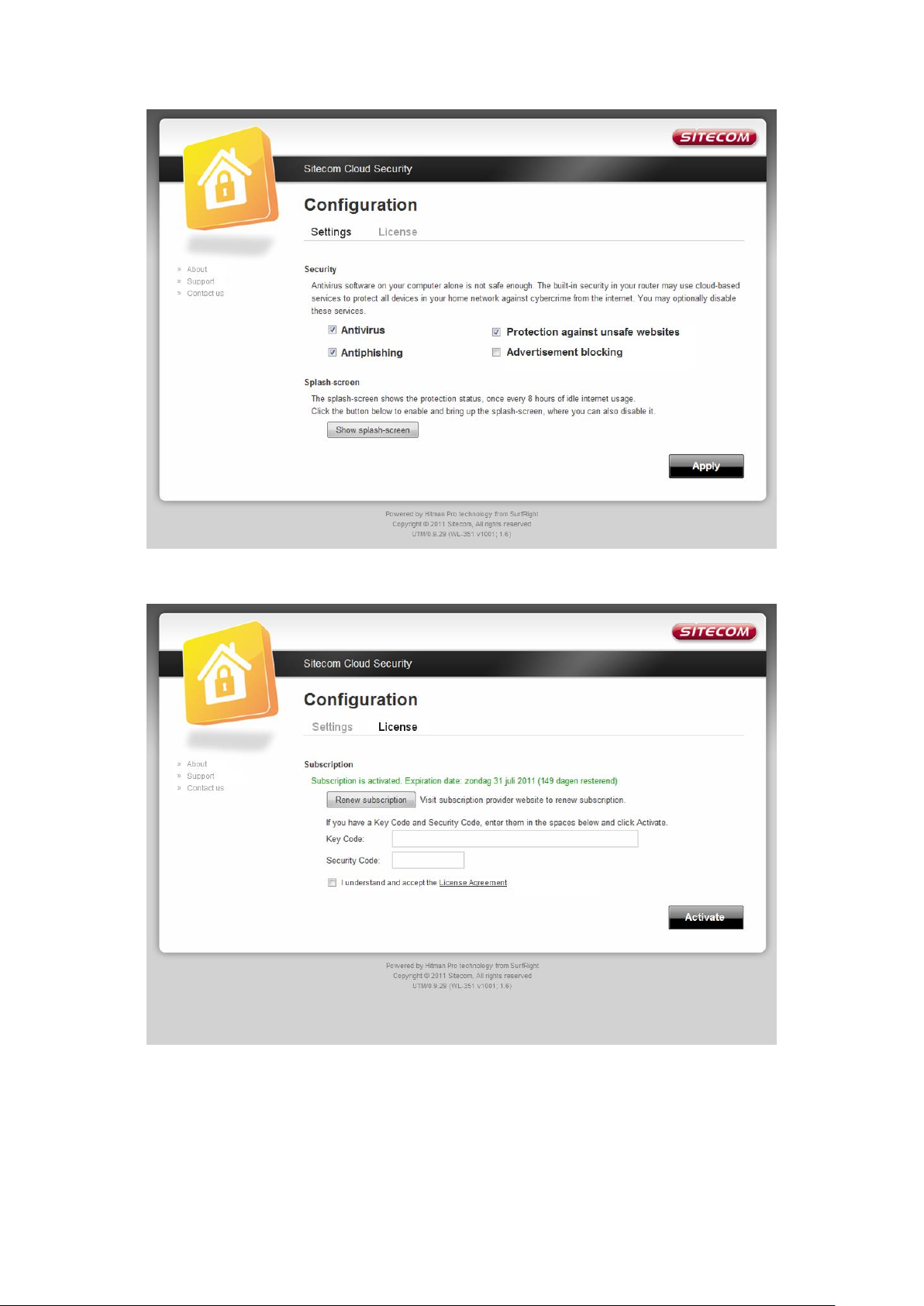

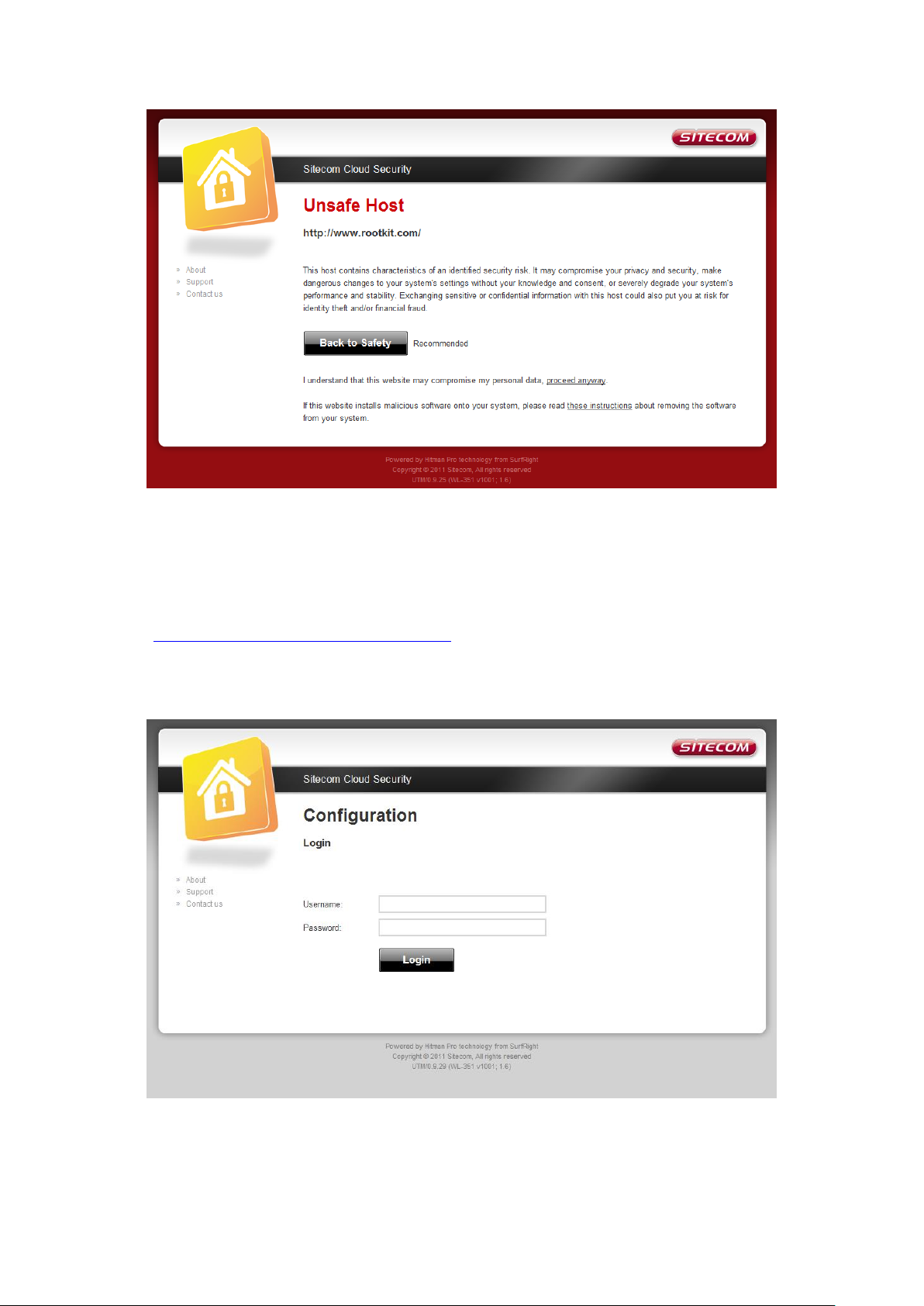

With Sitecom Cloud Security, Sitecom goes one step further and ensures that you can surf the Internet even more safely, not only on your PC, but on all the devices in your home which you use to access the Internet. It does not matter whether you surf the Internet on a laptop, a tablet, a mobile telephone or your television. Thanks to the security that is integrated in the router, all the Internet devices in your home are protected against the dangers of Internet criminality.

Features

Advantages

Incredible Data Rate up to

300Mbps*

Heavy data payloads such as MPEG video

streaming

IEEE 802.11n Compliant and

backwards compatible with

802.11b/g

Fully Interoperable with IEEE 802.11b /

IEEE802.11g compliant devices with

legacy protection

Four 10/100/1000 Mbps gigabit

Switch Ports (Auto-Crossover)

Scalability, extend your network.

Firewall supports Virtual Server

Mapping, DMZ, IP Filter, ICMP

Blocking, SPI

Avoids the attacks of Hackers or Viruses

from Internet

Support 802.1x authenticator,

802.11i (WPA/WPA2, AES), VPN

pass-through

Provide mutual authentication (Client

and dynamic encryption keys to enhance

security

Sitecom Cloud Security

Protect your home against cybercrime

while browsing.

Guest Network (Firmware 2.0 and

higher only)

Devices connected to the Guest network

will have Internet connection but no

access to the main network and cannot

communicate with each other.

IPv6 support (Firmware 2.0 and

higher only)

Support for Static, Native, 6RD and DS-

Lite.

Key Features

* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual throughput may vary. Network conditions and environmental factors lower actual throughput rate. All specifications are subject to change without notice.

Package Contents

Open the package carefully, and make sure that none of the items listed below are missing. Do not discard the packing materials, in case of return; the unit must be shipped back in its original package.

 The WLR-4100 WiFi Router X4 N300  A 110V~240V to 12V 1A Switching Power Adapter  A Quick Install Guide  An UTP cable

Cautions

This router’s design and manufacturer has your safety in mind. In order to safely and

effectively use this router, please read the following before usage.

Usage Cautions

The user should not modify this router. The environmental temperature should be within +5 ~ +35 degrees Celsius.

Power

The router’s power voltage is DC 12V 1A.

When using this router, please connect the supplied AC adapter or AC adapter cable to the router’s power jack. When placing the adapter cable, make sure it can’t get damaged or be subject to pressure. To reduce the risk of electric shock, unplug the adapter first before cleaning it. Never connect the adapter to the router in a humid or dusty area. Do not replace the adapter or cable’s wire or connector.

Repair

If the router has a problem, you should take it to an appointed repair center and let the specialists do the repair. Never repair the router yourself, you might damage the router or endanger yourself.

Disposing of the Router

When you dispose of the router, be sure to dispose it appropriately. Some countries may regulate disposal of an electrical device, please consult with your local authority.

Others

When using this router, please do not let it come into contact with water or other liquids. If water is accidentally spilled on the router, please use a dry cloth to absorb the spillage. Electronic products are vulnerable, when using please avoid shaking or hitting the router, and do not press the buttons too hard.

 Do not let the router come into contact with water or other liquid.  Do not disassemble, repair or change the design of the router; any damage done

will not be included in the repair policy.

 Avoid hitting the router with a hard object, avoid shaking the router and stay

away from magnetic fields.

 If during electrostatic discharge or a strong electromagnetic field the product will

malfunction, unplug the power cable. The product will return to normal performance the next time it is powered on.

Port

Description

Power connector

Connect the 12V DC adapter to this port

LAN (Yellow)

Connect your PCs or network devices to these ports

WAN (Blue)

Connect your ADSL/Cable modem to this port

Button

Description

OPS BUTTON Press 0-5 seconds for OPS mode

Press 15 Seconds to reset the router to factory defaults.

Product Layout

Backlabel and Network Details Folder

The Network Details Folder describes the IP address, login details, network name, security code and OPS button functionality.

Port

Description

OPS (White)

Shows OPS activity.

Power (Red)

Shows the device is turned on.

2.4GHz (Blue)

Shows 2.4GHz WiFi activity.

WAN (Blue)

Shows the WAN cable is connected.

LAN (Blue)

Shows the cable is connected.

LAN (Blue)

Shows the cable is connected.

LAN (Blue)

Shows the cable is connected.

LAN (Blue)

Shows the cable is connected.

LED Definition

As shown from the top to the bottom.

Network + System Requirements

To begin using the router, make sure you meet the following as minimum requirements:

 PC/Notebook.  Operating System – Microsoft Windows XP/VISTA/7 or Mac OSX  1 Free Ethernet port.  WiFi card/USB dongle (802.11 a/b/g/n) – optional.  External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45).  PC with a Web-Browser (Internet Explorer, Safari, Firefox, Opera)  Ethernet compatible CAT5e cables.

Setup your Router

You can place the router on a desk or other flat surface, or you can mount it on a wall. For optimal performance, place your router in the center of your home (or your office) in a location that is away from any potential source of interference, such as a metal wall or microwave oven. This location must be close to a power connection and your ADSL/Cable modem.

Connect the supplied power-adapter to the power inlet port and connect it to a wall outlet. Switch the router on by flipping the switch on the back of the device. The router automatically enters the self-test phase. During self-test phase, the Power LED will be lit continuously to indicate that this product is in normal operation.

Setup your Computer

Windows, Manual Connection

 Click on the icon for wireless connectivity. This is usually located in the System

Tray, next to the clock.

 Select the Sitecom network. The correct network name can be found on the

sticker on bottom of the router, or in the Network Details Folder.

 Fill in the password for the wireless network. The correct password can be found

on the sticker on the bottom of the router, or in the Network Details Folder.

 Wait for the icon to display that it’s connected to the network.

Windows, OPS Connection

 Click on the icon for wireless connectivity. This is usually located in the System

Tray, next to the clock.

 Select the Sitecom network. The correct network name can be found on the

sticker on bottom of the router, or in the Network Details Folder.

 Push the OPS Button on the router. Keep the button pushed for 0-5 seconds.

 Wait for the icon to display that it’s connected to the network.

Mac OSX

 Click on the icon for wireless connectivity. This is usually located in the System

Tray, next to the clock.

 Select the Sitecom network. The correct network name can be found on the

sticker on bottom of the router, or in the Network Details Folder.

 Fill in the password for the wireless network. The correct password can be found

on the sticker on the bottom of the router, or in the Network Details Folder.

 Wait for the icon to display that it’s connected to the network.

• OPEN your browser (e.g. Internet Explorer).

• Type http://192.168.0.1 in the address bar and press [Enter]. For routers with

Firmware 2.0 or higher you can also type http://sitecom.router.

• Type user name and password. The default username is admin, the password

can be found on the back label on the bottom of your router.

• Click OK.

• You will see the home page of the WiFi Router X4 N300.

Configure your Internet connection

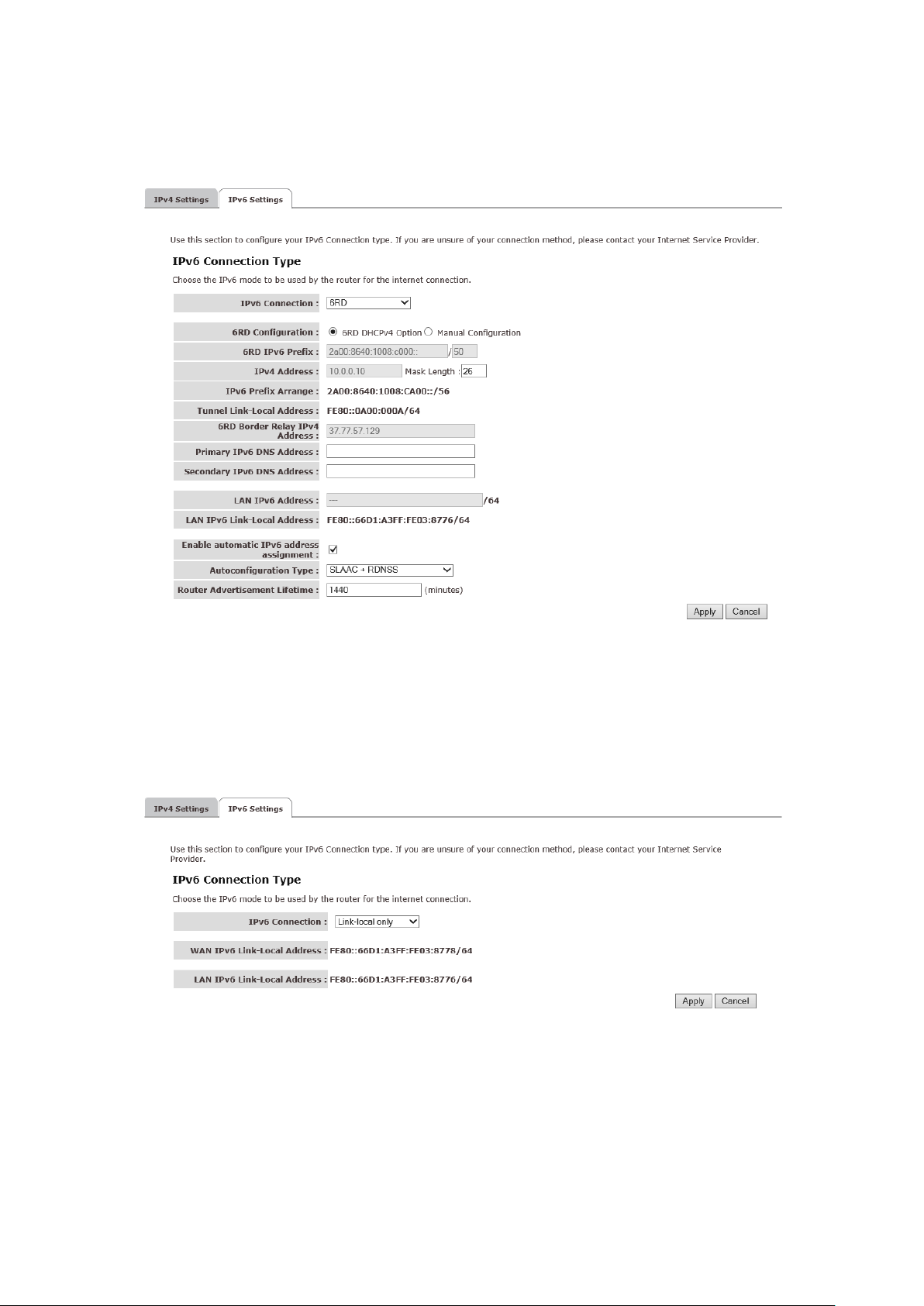

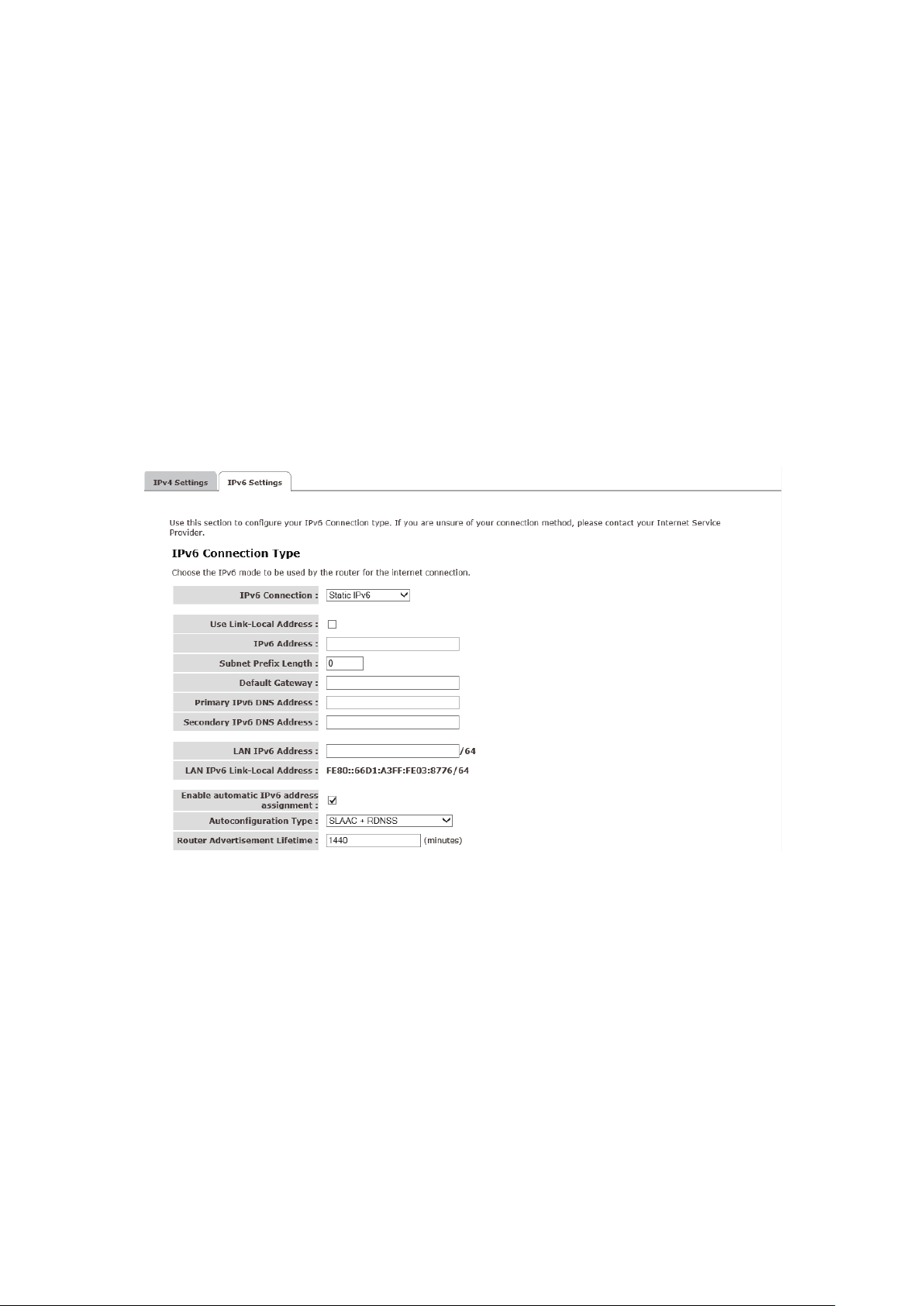

From the menu, select “Internet Settings”.

Depending on the chosen setting, you may need to enter your user name and password, MAC address or hostname in the following window. After you have entered the correct information, click Apply.
