Sitecom WLR-3100, WLR-2100 User Manual
WLR-2100/3100
Wireless Router N300
(802.11b/g/n)
P
User Manual
T
ABLE OF CONTENTS
1 KEY FEATURES .................................................................................. 4
2 PACKAGE CONTENTS ......................................................................... 5
3 CAUTIONS ......................................................................................... 6
4 PRODUCT LAYOUT ............................................................................. 7
5 NETWORK + SYSTEM REQUIREMENTS ............................................. 10
6 WLR-2100/3100 PLACEMENT .......................................................... 10
7 SETUP LAN, WAN ............................................................................. 11
8 PC NETWORK ADAPTER SETUP ........................................................ 12
9 BRING UP THE WLR-2100/3100 ...................................................... 16
10 INITIAL SETUP WLR-2100/3100 ..................................................... 16
11 CONFIGURATION WIZARD .............................................................. 25
12 WIRELESS SETTINGS ...................................................................... 27
13 FIREWALL SETTINGS ...................................................................... 37
14 ADVANCED SETTINGS ..................................................................... 43
15 TOOLBOX SETTINGS ........................................................................ 50
Revision 1.0
© Sitecom Europe BV 2012
Note: All the information contained in this manual was correct at the time of
publication.
However, as our engineers are always updating and improving the product, your
device’s software may have a slightly different appearance or modified
functionality than presented in this manual.
Introduction
Congratulations on your purchase of the WLR-2100/3100 Wireless Network
Broadband Router. The WLR-2100/3100 is compliant with 802.11n and up to
6 times faster than standard 802.11g based routers while still being
compatible with 802.11g & 802.11b. The WLR-2100/3100 is not only a
Wireless Access Point, but also doubles as a 4-port full-duplex Switch that
connects your wired-Ethernet devices together.
At 300 Mbps wireless transmission rate, the Access Point built into the Router
uses advanced MIMO (Multi-Input, Multi-Output) technology to transmit
multiple steams of data in a single wireless channel, giving you seamless
access to multimedia content. Robust RF signal travels farther, eliminates
dead spots and extends network range. For data protection and privacy, the
WLR-2100/3100 encodes all wireless transmissions with WEP, WPA, and
WPA2 encryption.
With the inbuilt DHCP Server & powerful SPI firewall, the WLR-2100/3100
protects your computers against intruders and most known Internet attacks
but provides safe VPN pass-through. With incredible speed and QoS function
of 802.11n(draft2.0), the WLR-2100/3100 is ideal for media-centric
applications like streaming video, gaming, and VoIP telephony to run multiple
media-intense data streams through the network at the same time, with no
degradation in performance.

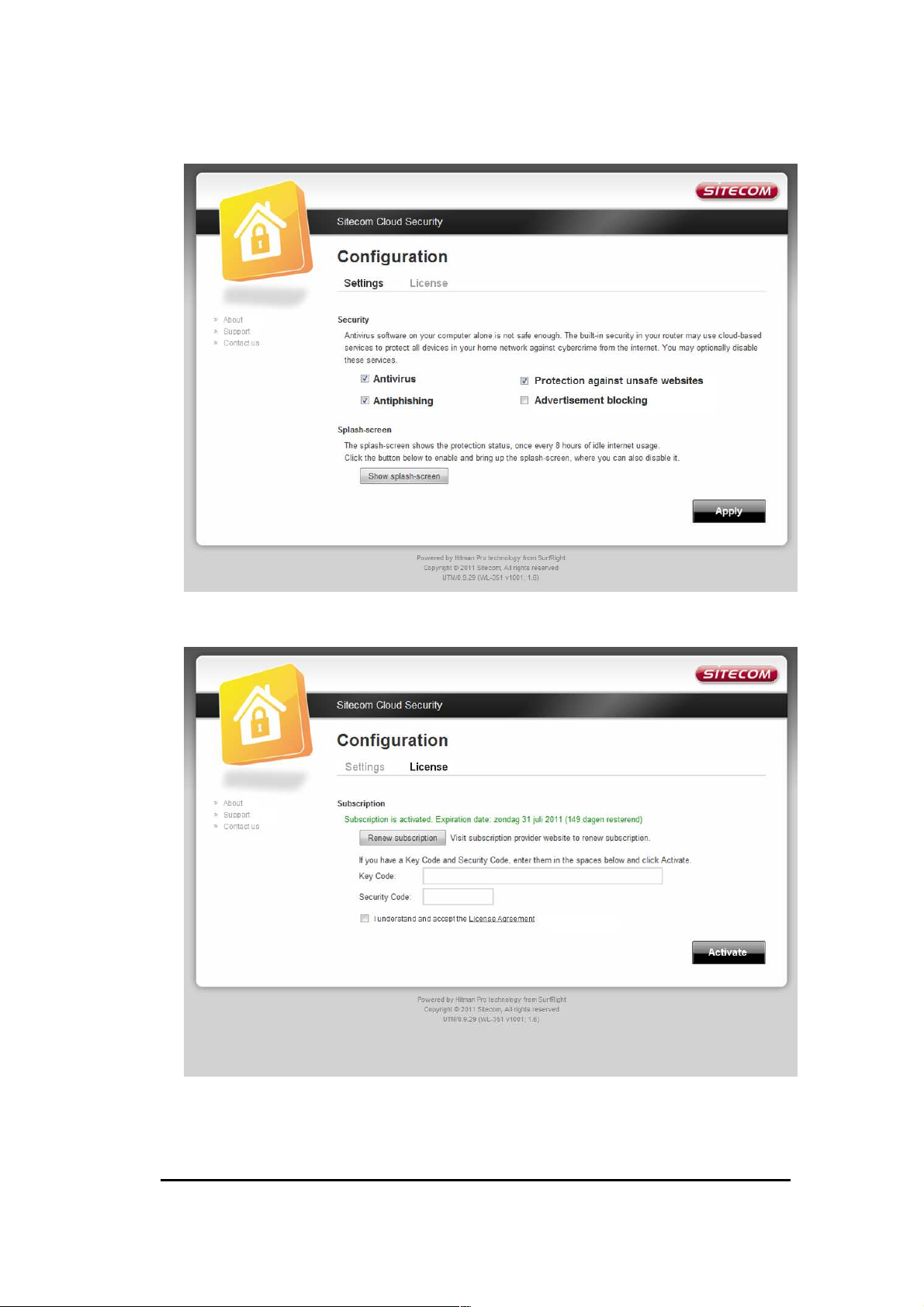

The router includes Sitecom Cloud Security to protect your home network
against cybercrime.
P
Features
Advantages
Four 10/100
Mbps Fast Switch
Ports
Scalability,
e
xtend your
network
.
Firewall supports Virtual Server
Avoids the attacks of Hackers or
Support 802.1x authenticator,
Provide mutual authentication
Sitecom Cloud Security
Security integrated in the router
1 Key Features
Incredible Data Rate up to
300Mbps*
IEEE 802.11n compliant and
backwards compatible with
802.11b/g
(Auto-Crossover)
Mapping, DMZ, IP Filter, ICMP
Blocking, SPI
802.11i (WPA/WPA2, AES), VPN
pass-through
Heavy data payloads such as
MPEG video streaming
Fully Interoperable with IEEE
802.11b / IEEE802.11g
compliant devices with legacy
protection
Viruses from Internet
(Client and dynamic encryption
keys to enhance security
protects all the devices in your
network against cybercrime
when surfing the Internet.
* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual
throughput may vary. Network conditions and environmental factors lower actual throughput rate.
All specifications are subject to change without notice.
4
2 Package Contents
Open the package carefully, and make sure that none of the items listed
below are missing. Do not discard the packing materials, in case of return;
the unit must be shipped back in its original package.
1. WLR-2100/3100 Router
2. 5V 1A Power Adapter
3. Quick Install Guide
4. CD (User’s Manual)
5. Warranty card
6. UTP cable
5
3 Cautions
This router’s design and manufacturer has your safety in mind. In order to
safely and effectively use this router, please read the following before usage.
3.1 Usage Cautions
The user should not modify this router. The environmental temperature
should be within +5 ~ +35 degrees Celsius.
3.2 Power
The router’s power voltage is DC 5V 1A.
When using this router, please connect the supplied AC adapter or AC adapter
cable to the router’s power jack. When placing the adapter cable, make sure
it can not get damaged or be subject to pressure. To reduce the risk of
electric shock, unplug the adapter first before cleaning it. Never connect the
adapter to the router in a humid or dusty area. Do not replace the adapter or
cable’s wire or connector.
3.3 Repair
If the router has a problem, you should take it to an appointed repair centre
and let the specialists do the repair. Never repair the router yourself, you
might damage the router or endanger yourself.
3.4 Disposing of the Router
When you dispose of the router, be sure to dispose it appropriately. Some
countries may regulate disposal of an electrical device, please consult with
your local authority.
3.5 Others
When using this router, please do not let it come into contact with water or
other liquids. If water is accidentally spilled on the router, please use a dry
cloth to absorb the spillage. Electronic products are vulnerable, when using
please avoid shaking or hitting the router, and do not press the buttons too
hard.
- Do not let the router come into contact with water or other liquid.
- Do not disassemble the router; repair the router or change the design of the
router, any damage done will not be included in the repair policy.
- Avoid hitting the router with a hard object, avoid shaking the router and
stay away from magnetic fields.
- If during electrostatic discharge or a strong electromagnetic field the
product will malfunction, unplug the power cable. The product will return to
normal performance the next time it is powered on.
6
Port
Description
Power connector
Connect the 5
V DC adapter to this port
LAN (
Yellow
) Connect your PC’s or network devices to this port
WAN (
Blue
) Connect your ADSL/Cable modem to this port
4 Product Layout
7
Backlabel
Button
Description
Press 2 seconds for WPS mode
The backlabel describes the IP address, login details, SSID, security code and
WPS button functionality.
WPS BUTTON
Press 10 seconds to reset the router
Press 15 Seconds to reset the router to factory
defaults.
8
LED Definition
Port
Description
LAN (
Blue
) Shows the cable is connected.
LAN (
Blue
) Shows the cable is connected.
LAN (
Blue
) Shows the cable is connected.
LAN (
Blue
) Shows the cable is connected.
W
AN (
Blue
) Shows the cable is connected.
WiFi
(Blue
) Shows
WiFi activity
and WPS.
Power (
Red)
Shows the device is turned on.
From left to right.
9
5 Network + System Requirements
To begin using the WLR-2100/3100, make sure you meet the following as
minimum requirements:
• PC/Notebook.
• Operating System – Microsoft Windows XP/VISTA/7
• 1 Free Ethernet port.
• WiFi card/USB dongle (802.11 b/g/n) – optional.
• External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45).
• PC with a Web-Browser (Internet Explorer, Safari, Firefox, Opera)
• Ethernet compatible CAT5 cables.
6 WLR-2100/3100 Placement
You can place the WLR-2100/3100 on a desk or other flat surface, or you can
mount it on a wall. For optimal performance, place your Wireless Broadband
Router in the center of your office (or your home) in a location that is away
from any potential source of interference, such as a metal wall or microwave
oven. This location must be close to a power connection and your ADSL/Cable
modem.
10
7 Setup LAN, WAN
WAN connection:
LAN connection:
11
8 PC Network Adapter setup
Windows XP
• Enter [Start Menu] select [Control panel] select [Network].
• Select [Local Area Connection]) icon=>select [properties]
12
• Select [Internet Protocol (TCP/IP)] =>Click [Properties].
• Select the [General] tab.
The router supports [DHCP] function, please select both [Obtain an IP
address automatically] and [Obtain DNS server address automatically].
13
Windows Vista/Seven
• Enter [Start Menu] select [Control panel] select [View network status
and tasks] -> select [Manage network connections].
• Select [Local Area Connection]) icon=>select [properties]
14
• Select [Internet Protocol Version 4 (TCP/IPv4)] =>Click [Properties].
• Select the [General] tab.
The router supports [DHCP] function, please select both [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
15
9 Bring up the WLR-2100/3100
Connect the supplied power-adapter to the power inlet port and connect it to
a wall outlet. The WLR-2100/3100 automatically enters the self-test phase.
During self-test phase, the Power LED will be lit continuously to indicate that
this product is in normal operation.
10 Initial Setup WLR-2100/3100
LOGIN procedure
1. OPEN your browser (e.g. Internet Explorer).
2. Type http://192.168.0.1 in the address bar and press [Enter]
16
3. Type user name and password (default username is admin. The password
can be found on the backlabel on the bottom of your router).
4. Click OK.
5. You will see the home page of the WLR-2100/3100.
The System status section allows you to monitor the current status of your
router.
The UP time, hardware information, serial number as well as firmware version
information is displayed here.
17
DHCP Server
The LAN tab gives you the opportunity to change the IP settings of the WLR-
2100/3100.
Click <Apply> at the bottom of this screen to save any changes.
IP address 192.168.0.1. It is the router’s LAN IP address (Your LAN clients
default gateway IP address).
IP Subnet Mask 255.255.255.0 Specify a Subnet Mask for your LAN segment.
802.1d Spanning Tree is Disabled by default. If the 802.1d Spanning Tree
function is enabled, this router will use the spanning tree protocol to prevent
network loops.
DHCP Server Enabled by default. You can enable or disable the DHCP server.
When DHCP is disabled no ip-addresses are assigned to clients and you have to
use static ip-addresses. When DHCP server is enabled your computers will be
assigned an ip-address automatically until the lease time expires.
Lease Time Forever. In the Lease Time setting you can specify the time period
that the DHCP lends an IP address to your LAN clients. The DHCP will change
your LAN client’s IP address when this time threshold period is reached.
18
DHCP START client IP/DHCP Client end IP You can select a particular IP
address range for your DHCP server to issue IP addresses to your LAN Clients.
Note: default IP range 192.168.0.100 192.168.0.200. If you want
your PC(s) to have a static/fixed IP address, then you’ll have to choose
an IP address outside this IP address Pool
Domain Name You can specify a Domain Name for your LAN. Or just keep the
default (sitecomwlrxxxx).
19
Device Status
View the Broadband router’s current configuration settings. Device Status
displays the configuration settings you’ve configured in the Wizard / Basic
Settings / Wireless Settings section.
20
Internet Status
This page displays whether the WAN port is connected to a Cable/DSL
connection. It also displays the router’s WAN IP address, Subnet Mask, and ISP
Gateway as well as MAC address, the Primary DNS. Press Renew button to
renew your WAN IP address.
21
Loading...
