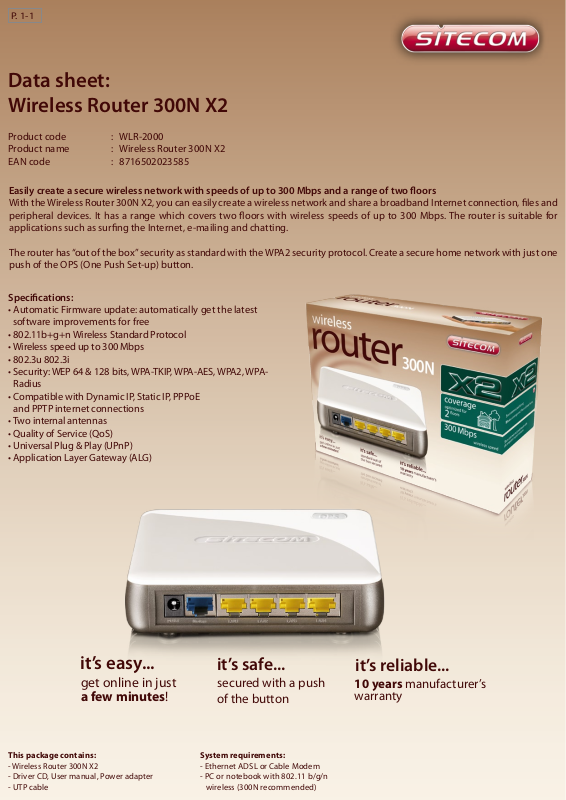

Sitecom WLR-2000 DATASHEET
P. 1-1
Data sheet:
Wireless Router 300N X2
Product code :
Product name :
EAN code :
Easily create a secure wireless network with speeds of up to 300 Mbps and a range of two oors
With the Wireless Router 300N X2, you can easily create a wireless network and share a broadband Internet connection, les and
peripheral devices. It has a range which covers two oors with wireless speeds of up to 300 Mbps. The router is suitable for
applications such as surng the Internet, e-mailing and chatting.
The router has “out of the box” security as standard with the WPA2 security protocol. Create a secure home network with just one
push of the OPS (One Push Set-up) button.
Specications:
• Automatic Firmware update: automatically get the latest
software improvements for free
• 802.11b+g+n Wireless Standard Protocol
• Wireless speed up to 300 Mbps
• 802.3u 802.3i
Security: WEP 64 & 128 bits, WPA-TKIP, WPA-AES, WPA2, WPA-
•
Radius
• Compatible with Dynamic IP, Static IP, PPPoE
and PPTP internet connections
• Two internal antennas
• Quality of Service (QoS)
• Universal Plug & Play (UPnP)
• Application Layer Gateway (ALG)
WLR-2000
Wireless Router 300N X2
8716502023585
it’s easy...
get online in just
a few minutes!
This package contains:
- Wireless Router 300N X2
- Driver CD, User manual, Power adapter
- UTP cable
it’s safe...
secured with a push
of the button
System requirements:
- Ethernet ADSL or Cable Modem
- PC or notebook with 802.11 b/g/n
wireless (300N recommended)
it’s reliable...
10 years manufacturer’s
warranty
P. 1-2
X1
150 Mbps
100 Mbps
2.4 GHz
1
-
out of the box WPA2
X2
300 Mbps
100 Mbps
2.4 GHz
2
-
out of the box WPA2
* The coverage can be inuenced by environmental factors * * The speed of your internet connection inuences the nal performance
Model
wireless speed
wired speed
wi- frequency
no. of internal antennas
StreamEngine
security /
Sitecom Cloud Security
X3
300 Mbps
100 Mbps
2.4 GHz
3
-
out of the box WPA2
optimized for 3 oors
& garden
optimized for 3 oors
& garden
optimized for 3 oors
& garden
optimized for 3 oors
& garden
optimized for 3 oors
& garden
optimized for 3 oors
& garden
X4
300 Mbps
1000 Mbps
2.4 GHz
3
-
out of the box WPA2
X5
300 Mbps
1000 Mbps
2.4 GHz + 5 GHz
4
-
out of the box WPA2
X6
450 Mbps
1000 Mbps
2.4 GHz + 5 GHz
5
-
out of the box WPA2
Standard Gigabit
Internet applications**
e-mailing, chatting and calling (VoIP)
downloading & streaming
simultaneous AV downloading/streaming
multiplayer gaming
high speed internet
Network applications
sharing documents
network streaming
local network gaming
sharing large media les
Media
300 Mbps
1000 Mbps
2.4 GHz + 5 GHz
4
out of the box WPA2
Gaming
300 Mbps
1000 Mbps
2.4 GHz + 5 GHz
2
(+2 external
dualband antennas)
out of the box WPA2
Premium
Product line
optimized for 1 oor optimized for 2 oors
wireless coverage*
Modem Router Only
X2X2
10 Mbps 100 Mbps 1000 Mbps
wired speed
10 Mbps 100 Mbps 1000 Mbps
wired speed
gigabit
10 Mbps 100 Mbps 1000 Mbps
wired speed
gigabit
10 Mbps 100 Mbps 1000 Mbps
wired speed
gigabit
10 Mbps 100 Mbps 1000 Mbps
wired speed
gigabit
Wi-Fi frequency
simultaneous
dualband
2.4 GHz 5 GHz
wireless
router
300N
coverage
300 Mbps
wireless speed
