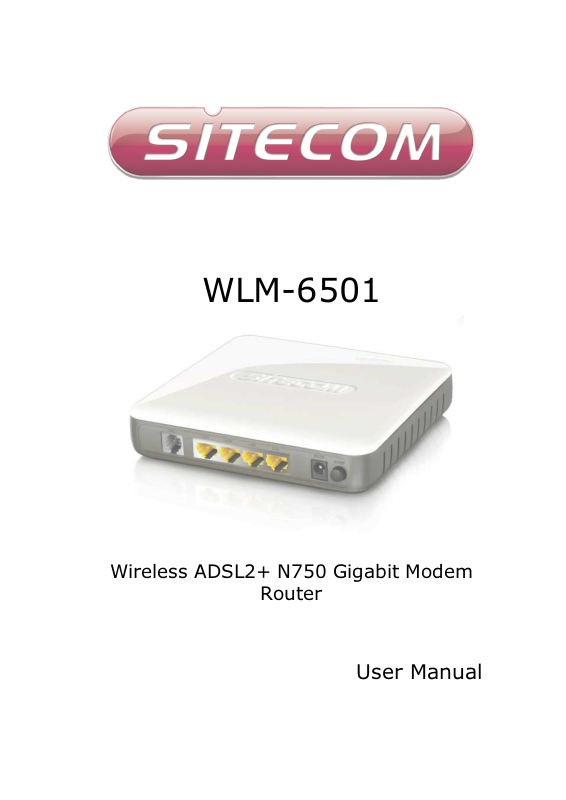

Sitecom WLM-6501 User Manual

Download

WLM-6501

Wireless ADSL2+ N750 Gigabit Modem

Router

User Manual

Table of Contents

Version: 1.0

INTRODUCTION....................................................................................... 4

KEY FEATURES ................................................................................. 5

PACKAGE CONTENTS ....................................................................... 6

CAUTIONS ....................................................................................... 7

PRODUCT LAYOUT ........................................................................... 8

ACK LABEL

SYSTEM REQUIREMENTS ............................................................... 10

WLM-6501 PLACEMENT ................................................................. 10

SETUP LAN, WAN ........................................................................... 10

PC NETWORK ADAPTER SETUP ...................................................... 11

INDOWS

INDOWS VISTA/WINDOWS

BRING UP THE WLM-6501 ............................................................. 14

10 INITIAL SETUP WLM-6501 ............................................................ 14

STATUS ................................................................................................. 15

TATUS

TATISTICS

DHCP L D

IAGNOSTICS

XP 11

7 12

PROCEDURE

IST

11 CONFIGURATION WIZARD ............................................................ 19

12 BASIC SETTINGS ........................................................................... 20

LAN S

ETTINGS

DHCP S WAN S S W

13 ADVANCED SETTINGS .................................................................... 30

A QOS 32 UPNP 34 R SNMP 36 DDNS 37 NAT 38 TR-69 39

ETTINGS

ECURITY SETTINGS

IRELESS

DVANCES WIRELESS

OUTING

ETTINGS

ACL 29

14 FIREWALL SETTINGS ..................................................................... 40

IREWALL

ACL 41 IP F DMZ 45 V

IRTUAL SERVER

ILTER

15 TOOLBOX SETTINGS ...................................................................... 47

ITECOM CLOUD SECURITY

ASSWORD

IME SETTINGS

IRMWARE UPGRADE

EBOOT

Revision 1.0 © Sitecom Europe BV 2011

Note: All the information contained in this manual was correct at the time of publication. However, as our engineers are always updating and improving the product, your device’s software may have a slightly different appearance or modified functionality than presented in this manual.

Introduction

Congratulations on your purchase of the WLM-6501 Wireless ADSL2+ Modem. This modem is fully compliant with 802.11b, 802.11g and 802.11n. This modem provides the best performance when used in combination with 802.11n client adapters.

The WLM-6501 is not only a Modem or Wireless Access Point, but can also be used to connect wired Ethernet devices at 10/100/1000Mbit speeds.

For data protection and privacy, the WLM-6501 can encode all wireless transmissions with WEP, WPA or WPA2 encryption. By default, the modem is secured with a WPA2 (AES) encryption key. (The WPA2-key is printed on the label underneath the modem.)

With a built-in DHCP Server & powerful SPI firewall the WLM-6501 protects your computers against intruders and known Internet attacks, and also provides safe VPN pass-through.

With Sitecom Cloud Security, Sitecom goes one step further and ensures that you can surf the Internet even more safely, not only on your PC, but on all the devices in your home which you use to access the Internet. It does not matter whether you surf the Internet on a laptop, a tablet, a mobile telephone or your television. Thanks to the security that is integrated in the router, all the Internet devices in your home are protected against the dangers of Internet criminality.

Features

Advantages

Firewall supports Virtual

Avoids the attacks of Hackers or Viruses

Integrated modem (Annex A)

Fully compatible with the fastest

Protect your home against cybercrime

1 Key Features

IEEE 802.11g compliant Fully Interoperable with IEEE 802.11b /

IEEE802.11g compliant devices

Based on 802.11n technology WLM-6501: Up to 6 times faster than

regular 802.11g

(in combination with a 150n or 802.11n wireless adapter)

Four 10/100/1000 Mbps Gigabit Port (Auto-Crossover)

To connect four wired PC's as well.

Server Mapping, DMZ, IP Filter, ICMP Blocking, SPI Supports 802.11i (WPA/WPA2, AES), VPN passthrough

Sitecom Cloud Security

from Internet

Provide mutual authentication (Client and dynamic encryption keys to enhance security)

ADSL2+ connections up-to-date.

while browsing.

2 Package Contents

Open the package carefully, and make sure that none of the items listed

below are missing. Do not discard the packing materials, in case of return;

the unit must be shipped back in its original package.

1. WLM-6501 modem/router

2. 110V~240V 12V 1A Power Adapter

3. Quick Install Guide

4. CD (User’s Manual)

5. Warranty card

6. UTP cable

7. RJ11 cable

3 Cautions

This router’s design and manufacturer has your safety in mind. In order to safely and effectively use this router, please read the following before usage.

3.1 Usage Cautions

The user should not modify this router. The environmental temperature should be within +5 ~ +35 degrees Celsius.

3.2 Power

The router’s power voltage is DC 12V 1A. When using this router, please connect the supplied AC adapter or AC adapter cable to the router’s power jack. When placing the adapter cable, make sure it can not get damaged or be subject to pressure. To reduce the risk of electric shock, unplug the adapter first before cleaning it. Never connect the adapter to the router in a humid or dusty area. Do not replace the adapter or cable’s wire or connector.

3.3 Repair

If the router has a problem, you should take it to an appointed repair centre and let the specialists do the repair. Never repair the router yourself, you might damage the router or endanger yourself.

3.4 Disposing of the Router

When you dispose of the router, be sure to dispose it appropriately. Some countries may regulate disposal of an electrical device, please consult with your local authority.

3.5 Others

When using this router, please do not let it come into contact with water or other liquids. If water is accidentally spilled on the router, please use a dry cloth to absorb the spillage. Electronic products are vulnerable, when using please avoid shaking or hitting the router, and do not press the buttons too hard.

- Do not let the router come into contact with water or other liquid.

- Do not disassemble the router, repair the router or change the design of the router, any damage done will not be included in the repair policy.

- Avoid hitting the router with a hard object, avoid shaking the router and stay away from magnetic fields.

- If during electrostatic discharge or a strong electromagnetic field the product will malfunction, unplug the power cable. The product will return to normal performance the next time it is powered on.

Port

Description

LAN / computer connections

Modem connection

WPS/Reset button

4 Product Layout

Power button

Power connector

ADSL Connect your telephone/ADSL cable this port

LAN

Power connector Connect your power adapter to this port. Power button Turn the modem On or Off.

Connect the cable from your PC or network device to this ports.

Back label

ower

Lights up when powered ON. Blinks on TEST/RESET

ADSL

Lights up when an

ADSL cable is connected.

Internet

Lights up when internet connection is UP.

WLAN

Lights up in Blue when WLAN is enabled. Blinks on traffic

OPS

Blinks when OPS mode is on

LAN

1~4

When a

LAN cable is connected the corresponding light lights up.

The back label describes the corresponding LED indications and port functionality.

LED Description

5 System Requirements

To begin using the WLM-6501, make sure you meet the following as minimum

requirements:

• PC/Notebook.

• 1 Free Ethernet port.

• Wi-Fi card/USB dongle (802.11 a/b/g/n) – optional.

• Annex A, ADSL internet connection.

• PC with a Web-Browser (Internet Explorer, Safari, Firefox, Opera)

•

Ethernet compatible CAT5 cables.

6 WLM-6501 Placement

You can place the WLM-6501 on a desk or other flat surface, or you can mount it on a wall. For optimal performance, place your Wireless Broadband Modem/Router in the center of your office (or your home) in a location that is away from any potential source of interference, such as a metal wall or microwave oven. This location must be close to a power connection and the ADSL/phone line should not be over 2 meters long.

7 Setup LAN, WAN

Modem connection

LAN / computer connections

8 PC Network Adapter setup

Windows XP

• Go to [Start Menu],  [Control panel],  [Network Connections].

• Right-mouse-click on the [Local Area Connection]) icon, and select

[properties]

• Select [Internet Protocol (TCP/IP)] =>Click [Properties].

• Select the [General] tab.

The WL-358/359 supports DHCP. Please select both [Obtain an IP address

automatically] and [Obtain DNS server address automatically].

Windows Vista/Windows 7

• Go to [Start Menu],  [Control panel],  [View network status and

tasks], -> [Manage network connections].

• Right-mouse-click on the [Local Area Connection]) icon, and select

[properties]

• Select [Internet Protocol Version 4 (TCP/IPv4)], and Click [Properties].

• Open the [General] tab.

The WLM-6501 supports DHCP. Please select both [Obtain an IP address

automatically] and [Obtain DNS server address automatically].

9 Bring up the WLM-6501

Connect the supplied power-adapter to the power inlet port and connect it to

a wall outlet. Press the Power-Button to turn the modem on.

The WLM-6501 automatically enters the self-test phase. During self-test

phase, the Power LED will blink briefly, and then will be lit continuously to

indicate that this product is in normal operation.

10 Initial Setup WLM-6501

1. OPEN your browser (e.g. Internet Explorer).

4 Type http://192.168.0.1 in address bar and press [Enter]

Type user name and password (The default username is “admin”, the password can be found on the back label of the device).

5 Click OK. 6 You will see the home page of the WLM-6501.

Status

The pages in the status section provide you general information about the operational status of your device.

Status

The System status section allows you to monitor the current status of your modem/router: the UP time, hardware information, serial number as well as firmware version information is displayed here. The page also shows extensive information concerning the ADSL status and current settings.

Statistics

You can view statistics on the processing of IP packets on the networking interfaces. You will not typically need to view this data, but you may find it helpful when working with your ISP to diagnose network and Internet data transmission problems. To display statistics for any new data, click “Refresh”.

DHCP List

This page shows all DHCP clients (LAN PCs) currently connected to your

network. The table shows the assigned IP address, MAC address and expiration

time for each DHCP leased client.

Diagnostics

The Diagnostics page allows you to test the current configuration. Click ‘Start’ to let the modem router perform several tasks to verify if the connection is operational.

11 Configuration Wizard

Click Wizard to configure the modem. The Setup wizard will now be displayed;

check that the adsl line is connected and click Next.

Select your country from the Country list. Select your internet provider. Click

Next.

Depending on the chosen provider, you may need to enter your user name and

password or hostname in the following window. After you have entered the

correct information, click Next.

Click Finish to complete the configuration.

12 Basic Settings

LAN Settings

This page is used to configure the LAN interface of your ADSL Router. You can set IP address, subnet mask, and IGMP Snooping or modify the IPv6 address range .

DHCP Settings

You can configure your network and the router to use the Dynamic Host Configuration Protocol (DHCP). This page allows you to select the DHCP mode that this router will support.

There are two different DHCP Modes: DHCP Server and DHCP Relay. When the router is acting as DHCP server, please configure the router in the “DHCP Server” page; while acting as DHCP Relay, you can setup the relay in the “DHCP Relay” page.

WAN Settings

This page allows you to manually configure the ADSL/WAN settings. The settings on this page require some knowledge concerning the WAN configuration we advice less-experienced users to configure the WAN settings using the Wizard (Chapter 10)

ATM VC

• Virtual Circuit: VPI (Virtual Path Identifier) and VCI (Virtual Channel

Identifier) define a virtual circuit.

• VPI: The valid range for the VPI is 0 to 255. Enter the VPI assigned to

you. This field may already be configured.

• VCI: The valid range for the VCI is 32 to 65535. Enter the VCI assigned to

you. This field may already be configured.

• ATM QoS: Select CBR to specify fixed (always-on) bandwidth for voice or

data traffic. Select UBR for applications that are non-time sensitive, such as e-mail. Select VBR for burst traffic and bandwidth sharing with other applications.

• PCR: Divide the DSL line rate (bps) by 424 (the size of an ATM cell) to

find the Peak Cell Rate (PCR). This is the maximum rate at which the sender can send cells.

• SCR: The Sustain Cell Rate (SCR) sets the average cell rate (long-term)

that can be transmitted.

• MBS: Maximum Burst Size (MBS) refers to the maximum number of cells

that can be sent at the peak rate. Type the MBS, which is less than 65535

Encapsulation:

• ISP: Select the encapsulation type your ISP uses from the Encapsulation

list. Choices vary depending on what you select in the Mode field. If you select Bridge in the Mode field, select 1483 Bridged IP.

If you select Routing in the Mode field, select PPPoA, 1483 Bridged IP, 1483 Router IP or PPPoE.

PPPoE/PPPoA

• User Name: Enter the user name exactly as your ISP assigned.

• Password: Enter the password associated with the user name above.

• Encapsulation: select Bridge in the Mode field, select either PPPoA or

RFC 1483.

• select Routing in the Mode field, select PPPoA, RFC 1483, ENET ENCAP or

PPPoE.

• Multiplex: Select the method of multiplexing used by your ISP. Choices are

VC or LLC.

• Connection: The schedule rule(s) have priority over your Connection

settings.

• Always on: Select Always on Connection when you want your connection

up all the time.

• Connect on Demand: Select Connect on Demand when you don't want

the connection up all the time and specify an idle time-out in the Max Idle

Timeout field

• Get IP Address: Choose Static or Dynamic

• Static IP Address: Enter the IP address of ADSL Router in dotted

decimal notation, for example, 192.168.1.254 (factory default).

• IP Subnet Mask: The default is 255.0.0.0. User can change it to other

such as 255.255.255.0.Type the subnet mask assigned to you by your ISP

(if given).

• Gateway: You must specify a gateway IP address (supplied by your ISP)

when you use 1483 Bridged IP in the Encapsulation field in the

previous screen.

• Network Address Translation: Select None, Many to One or Many to

Many from the drop-sown list box. Refer to the NAT chapter for more

details.

• RIP Version: Select the RIP version from RIP-1, RIP-2B and RIP-2M.

• RIP Direction: Select the RIP direction from None, Both, In Only and Out

Only.

• Multicast: IGMP (Internet Group Multicast Protocol) is a network-layer

protocol used to establish membership in a Multicast group - it is not used

to carry user data.

Wireless Settings

Band

Please select the radio band from one of the following

This section provides the wireless network settings for your router. You can enable and configure the wireless AP function here.

Parameter Description

options.

2.4GHz(B): 2.4GHz band, only allows 802.11b wireless network client to connect this router (maximum transfer rate 11Mbps).

2.4 GHz (G): 2.4GHz band, only allows 802.11g wireless network client to connect this router (maximum transfer rate 54Mbps).

2.4 GHz (B+G):2.4GHz band, only allows 802.11b and 802.11g wireless network client to connect this router (maximum transfer rate 11Mbps for 802.11b clients, and maximum 54Mbps for 802.11g clients).

2.4 GHz (N): 2.4GHz band, only allows 802.11n wireless network client to connect this router (maximum transfer rate 150Mbps).

2.4 GHz (G+N):2.4GHz band, only allows 802.11g and 802.11n wireless network client to connect this router (maximum transfer rate 54Mbps for 802.11g clients, and maximum 150Mbps for 802.11n clients).

2.4 GHz (B+G+N): 2.4GHz band, allows 802.11b,

802.11g, and 802.11n wireless network client to connect this router (maximum transfer rate 11Mbps

for 802.11b clients, maximum 54Mbps for 802.11g

Mode

It allows you to set the router to act in “AP”, “Client”

use. If you want to let the router automatically to find

Associated Clients

Click “Show Active Clients” button and you can see

clients, and maximum 150Mbps for 802.11n clients).

or “WDS” mode.

SSID The SSID (up to 32 printable ASCII characters) is the

unique name identified in a WLAN. The ID prevents the unintentional merging of two co-located WLANs. The default SSID of the router is “default”.

Channel Width Set channel width of wireless radio. Do not modify

default value if you don’t know what it is, default setting is ‘Auto 20/40 MHz’.

Control Sideband Select the upper band or lower band for your radio

frequency. While upper band is selected, the channel number you can select is from channel 5 to channel

11. While lower band is selected, the channel number you can select is from channel 1 to channel 7.

Channel Number It is the radio channel used by the wireless LAN. All

devices in the same wireless LAN should use the same channel. Please select the country you are located and designate a channel that the router will

an available channel with the highest signal strength, please select “Auto”.

Radio Power (mW) Set the maximum output power of the router. The

higher output power, the wider coverage range.

the wireless clients connected to the router.

When you finish, click ‘Apply Changes’ to save the settings made and restart the router so the settings will take effect after it reboots.

Encryption

You can choose “None” to disable the encryption or select

Security Settings

This router provides complete wireless LAN security functions, include WEP, IEEE

802.1x, IEEE 802.1x with WEP, WPA with pre-shared key and WPA with RADIUS. With these security functions, you can prevent your wireless LAN from illegal access. Please make sure your wireless stations use the same security function.

Parameter Description

“WEP”, “WPA(TKIP)”, “WPA2(AES)” or “WPA2 Mixed” mode for security. When “WEP” is enabled, please click “Set WEP Key” button to choose the default key and set the four sets of WEP keys. WEP –WEP is less level of security than WPA. WEP supports 64-bit and 128-bit key lengths to encrypt the wireless data.

WPA(TKIP) – WPA uses Temporal Key Integrity Protocol (TKIP) for data encryption. TKIP utilized a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers. WPA2(AES) – WPA2, also known as 802.11i, uses Advanced Encryption Standard (AES) for data encryption. AES utilized a symmetric 128-bit block data encryption.

WPA Mixed – The router supports WPA (TKIP) and WPA2 (AES) for data encryption. The actual selection of the encryption methods will depend on the clients.

Use 802.1x Authentication

IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to this wireless router before accessing the wireless LAN. The authentication is processed by a RADIUS server. Check this box to authenticates user by

IEEE 802.1x.

Authentication

Enter

the

port (default is 1812)

, the

IP address and

the

WEP-64Bits WEP is less level of security than WPA. WEP supports 64-bit

and 128-bit key lengths to encrypt the wireless data. The longer key length will provide higher security. When “WEP64Bits” is selected, you have to enter exactly 5 ASCII characters (“a-z” and “0-9”) or 10 hexadecimal digits ("0-9", "a-f") for each Key (1-4).

WEP-128Bits When “WEP-128Bits” is selected, you have to enter exactly 13

ASCII characters (“a-z” and “0-9”) or 26 hexadecimal digits ("0-9", "a-f") for each Key (1-4).

WPA Authentication Mode

Pre-Shared Key Format

Pre-Shared Key Please enter 8-63 characters as the “Pre-Shared Key”.

There are two types of authentication mode for WPA. Enterprise (RADIUS) – It uses an external RADIUS server to perform user authentication. To use RADIUS, enter the IP address of the RADIUS server, the RADIUS port (default is

1812) and the shared secret from the RADIUS server. Please refer to “Authentication RADIUS Server” setting below for RADIUS setting.

Personal (Pre-Shared Key) – Pre-Shared Key authentication is based on a shared secret that is known only by the parties involved. To use WPA Pre-Shared Key, select key format and enter a password in the “Pre-Shared Key Format” and “Pre-Shared Key” setting respectively. You may select to select Passphrase (alphanumeric format) or Hexadecimal Digits (in the “A-F”, “a-f” and “0-9” range) to be the Pre-shared Key. For example: Passphrase: ”iamguest” Hexadecimal Digits: “12345abcde”

RADIUS Server

When you finish, click ‘save’ to save the settings made and restart the router so the settings will take effect after it reboots.

password of external RADIUS server are specified here.

Wireless ACL

Parameter

Description

Actions

This wireless router supports MAC Address Control, which prevents

unauthorized clients from accessing your wireless network.

Active

MAC Address Enter the MAC Address of the wireless clients for the

When you finish, click ‘save’ to save the settings made and restart the router so the settings will take effect after it reboots.

Choose to either

Enable – Enabled the Wireless Access Control Disable – Disable the Wireless Access Control

Allow – Only allow the wireless clients with the MAC

Address you have specified can access to the router.

Deny – The wireless clients with the MAC Address you have specified will be denied accessing to the router.

filtering control.

Fragmentation

Fragment Threshold specifies the maximum size of

RTS Threshold

This value should remain at its default setting of 2347.

13 Advanced Settings

The advanced settings pages allow users to modify the more complex features of this device.

Advances wireless

This page allows advanced users who have sufficient knowledge of wireless LAN. These setting shall not be changed unless you know exactly what will happen for the changes you made on your router.

Parameter Description

Beacon Interval The interval of time that this wireless router broadcast

a beacon. Beacon is used to synchronize the wireless network. The range for the beacon period is between 20 and 1024 with a default value of 100 (milliseconds).

Threshold

packet during the fragmentation of data to be transmitted. If you set this value too low, it will result in bad performance. Enter a value from 256 to 2346.

Should you encounter inconsistent data flow, only minor modifications are recommended. If a network packet is smaller than the preset “RTS threshold” size, the RTS/CTS mechanism will not be enabled. The wireless router sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission.

DTIM Broadcast SSID If this option is enabled, the router will automatically

transmit the network name (SSID) into open air at regular interval. This feature is intended to allow clients to dynamically discover the router. If this option is disabled, the router will hide its SSID. When this is done, the clients cannot directly discover the router and MUST be configure with the SSID for accessing to the router. It is used to protect your network from being accessed easily.

When you finish, click ‘save’ to save the settings made and restart the router so the settings will take effect after it reboots.

QoS

QoS allows you to classify Internet application traffic by source/destination IP address and port number. You can assign priority for each type of application and reserve bandwidth for it. The packets of applications with higher priority will always go first. Lower priority applications will get bandwidth after higher priority applications get enough bandwidth. This can let you have a better experience in using critical real time services like Internet phone, video conference …etc. All the applications not specified by you are classified as rule name “Others”. The rule with a smaller priority number has a higher priority; the rule with a larger priority number has a lower priority. You can adjust the priority of the rules by moving them up or down.

Classification

Enable/Disable QoS You can check “Enable QoS” to enable QoS

functionality for the WAN port.

Add a rule Enter all the data required for the rule you wish to set and click

Add to save this rule.

Edit a QoS rule Select the rule you want to edit and click “Edit”, then enter

the detail form of the QoS rule. Click “Apply” after editing the form and the

rule will be saved.

Discipline Save allows to save the selected Qos discipline without changing

the current rules.

Rules&Action summary provides an overview of the current effective Qos

settings.

Click ‘Add’ To save and apply the new rule.

UPnP

Parameter

Description

Auto

configured

This will allow Upnp enabled applications to open

When the UPnP function is enabled, the router can be detected by UPnP compliant system such as Windows 7. The router will be displayed in the Neighborhood of Windows 7, so you can directly double click the router or right click the router and select “Invoke” to configure the router through web browser.

UPnP Enable or disable UPnP feature.

required ports in your router.

When you finish, click ‘Save’ to save the settings made and restart the router so the settings will take effect after it reboots.

Routing

Parameter

Description

Subnet Mask

The network mask of the destination

subnet. The default

The page enables you to define specific route for your Internet and network data. Most users do not need to define routes. On a typical small home or office LAN, the existing routes that set up the default gateways for your LAN hosts and for the router provide the most appropriate path for all your Internet traffic.

You may need to define routes if your home setup includes two or more networks or subnets, if you connect to two or more ISP services, or if you connect to a remote corporate LAN.

Click ‘Add route’ to add a self defined router

Destination IP Adress

Gateway IP adress Metric Defines the number of hops between network nodes that

When you finish, click ‘Save’ to save the settings and restart the router so the settings will take effect after it reboots.

The destination can be specified as the IP address of a subnet or a specific host in the subnet. It can also be specified as all zeros to indicate that this route should be used for all destinations for which no other route is defined (this is the route that creates the default gateway).

gateway uses a mask of 0.0.0.0. Gateway IP that should be used enter an address or select a pvc channel

data packets travel. The default value is 0, which means that the subnet is directly one hop away on the local LAN network.

SNMP

Select “Disable” or “Enable” to disable

or enable the

Simple Network Management Protocol (SNMP) is a troubleshooting and management protocol that uses the UDP protocol on port 161 to communicate between clients and servers. The router can be managed locally or remotely by SNMP protocol.

Parameter Description

SNMP feature.

Get Community Name of the read-only community. This read-only

community allows read operation to all objects in the MIB.

Set Community Name of the write-only community. This write-only

community allows write operation to the objects defines as read-writable in the MIB.

When you finish, click ‘Save’ to save the settings made and restart the router so the settings will take effect after it reboots.

DDNS

DynDns Settings

Dynamic DNS (DDNS) allows you to map the static domain name to a dynamic IP address. You must get an account, password and your static domain name from the DDNS service providers.

Parameter Description

Enable Check the box to enable DDNS function. DDNS Provider Select your DDNS service provider here. This router

supports DynDNS and TZO service providers

Host Name Enter the domain name you’ve obtained from DDNS

service provider.

Username Enter the username assigned by the DDNS service

provider.

Password Enter the password assigned by the DDNS service

provider.

Wildcard support Enable or disable the usage of wildcards (i.e. *.* )

When you finish, click ‘Save’ to save the settings made and restart the router so the settings will take effect after it reboots.

NAT

This page allows viewing or changing of the current status of the NAT for each VC.

Here it’s possible to set Virtual server or DMZ settings for each virtual circuit. For more information about the DMZ and virtual server please read chapter 13

Firewall.

TR-69

As a bidirectional SOAP/HTTP-based protocol, it provides the communication between customer-premises equipment (CPE) and Auto Configuration Servers (ACS). It includes both a safe auto configuration and the control of other CPE management functions within an integrated framework. In the course of the boom of the broadband market, the number of different Internet access possibilities grew as well (e.g. modems, routers, gateways, set-top box, VoIPphones). At the same time the configuration of this equipment became more complicated -- too complicated for the end-users. For this reason the TR-069 standard was developed. It provides the possibility of auto configuration of these access types. The technical specifications are managed and published by the Broadband Forum. Using TR-069, the terminals can get in contact with the Auto Configuration Servers (ACS) and establish the configuration automatically. Accordingly other service functions can be provided. TR-069 is the current standard for activation of terminals in the range of DSL broadband market.

SPI Enable or Disable the firewall (Warning: If you

14 Firewall Settings

The Broadband router provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attacks, and defending against a wide array of common Internet attacks. However, for applications that require unrestricted access to the Internet, you can configure a specific client/server as a Demilitarized Zone (DMZ).

Firewall

Parameter Description

Firewall Enable or Disable the firewall

enable SPI, all traffic initiated from WAN will be blocked)

ACL

This page is used to IP addresses for Access Control. If ACL is enabled only the IP Addresses that are in the ACL Table can access the CPE.

ACL Enable or disable Access Control

ACL Rule index Select an index number for the rule you are creating.

Active Select if the Rule should be active or not

Secure IP Address Enter the range IP addresses for which this rule should be

effective.

Application Select an application from the list or choose ‘all’.

Interface Select the interface for this rule, ‘WAN’ or ‘LAN’.

IP Filter

Filter Type

Choose the type of filter you wish to use, there are 3 possible types of

filter .

- IP/Mac Filter

- Application filter

- URL block

IP Filter Rule Editing

• IP Filter Rule Index: This is item number

• Active: Select Yes from the drop down list box to enable IP filter rule.

• Source IP Address: The source IP address or range of packets to be

monitored.

• Subnet Mask: It is the destination IP addresses based on above

destination subnet IP

• Source Port Number: This Port or Port Ranges defines the port allowed

to be used by the Remote/WAN to connect to the application. Default is

set from range 0 ~ 65535. It is recommended that this option be

configured by an advanced user.

• Destination IP Address: This is the destination subnet IP address.

• Subnet Mask: It is the destination IP addresses based on above

destination subnet IP

• Destination Port Number: This is the Port or Port Ranges that defines

the application.

• Protocol: It is the packet protocol type used by the application, select

either TCP or UDP or ICMP

• Rule Unmatched: Select action for the traffic unmatching current rule;

Forward to leave it pass through, and NEXT to check it by the next rule.

IP Filter Listing

• #: Item number.

• Active: Whether the connection is currently active.

• Src IP Mask: The source IP address or range of packets to be monitored.

• Dest IP Mask: This is the destination subnet IP address.

• Src port: This Port or Port Ranges defines the port allowed to be used by

the Remote/WAN to connect to the application. Default is set from range

0 ~ 65535. It is recommended that this option be configured by an

advanced user.

• Dest Port: This is the Port or Port Ranges that defines the application.

• Protocol: It is the packet protocol type used by the application, select

either TCP or UDP or ICMP

Application filter

Here you can choose which applications should be blocked or allowed access.

Choose which application should be allowed or denied access and click ‘Save’ to apply the settings.

The URL block

Here it’s possible to block certain websites.

Filter type

Enter the website you wish to block and make sure the rule is active. Click ‘Save’ to apply the new rule.

URL Filter Listing

Shows all entered URL block rules.

DMZ

The DMZ Host is a local computer exposed to the Internet. When setting a particular internal IP Address as the DMZ Host, all incoming packets will be checked by the firewall and NAT algorithms then passed to the DMZ Host.

For example, if you have a local client PC that cannot run an Internet application (e.g. Games) properly from behind the NAT firewall, then you can open the client up to unrestricted two-way Internet access by defining a DMZ Host.

Enable DMZ and enter the IP address for which you want unrestricted access to the internet in the DMZ Host IP address. Click Apply to save and apply the settings.

Virtual server

Use the Virtual Server function when you want different servers/clients in

your LAN to handle different service/Internet application type (e.g. Email,

FTP, Web server etc.) from the Internet. Computers use numbers called port

numbers to recognize a particular service/Internet application type. The

Virtual Server allows you to re-direct a particular service port number (from

the Internet/WAN Port) to a particular LAN private IP address and its service

port number.

Local IP This is the LAN client/host IP address that the Public Port number

packet will be sent to.

Start port Here the starting port number must be entered End port Here the end port number must be entered

Note : The ports from the start port till the End port will be opened

Click the ‘edit icon’ to change an existing rule.

Click ‘Apply’ for the changes to take effect.

15 TOOLBOX Settings

Sitecom Cloud Security

Antivirus software alone is not safe enough. You can now benefit from additional built-in security in your modem or router. Protect all devices in your home network against cybercrime while browsing. Activated automatically, your network and devices are better secured than ever before.

Your Sitecom device comes with a 6 month free Sitecom cloud security subscription.

After you have set up your Sitecom device for internet access, open the webbrowser and enter http://www.sitecomcloudsecurity.com in the address bar.

If the device has been properly configured the following web page should be shown.

Here you can see which security features are activated.

The Sitecom Cloud Security service offers the following protection options:

- Anti-Malware

- Anti-Phishing

- Protection against unsafe websites

- Advertisement blocking

With the protection of unsafe websites activated the Sitecom Cloud Security will always check if a website is safe. If it is not safe it will inform you that is not safe to enter.

If you still wish to visit this webpage click on ‘proceed anyway’. Alternatively click ‘Back to Safety’ so that your security will not be breached.

If you wish to change your security options or to extend your subscription at any time, open http://www.sitecomcloudsecurity.com from your web browser.

You will be asked for a username and password. These can be found on the backlabel on the bottom of your Sitecom router or modem.

If the login succeeded you can click on ‘Settings’ to change your security options.

Or click ‘License’ to renew your subscription.

If you wish to disable to Sitecom cloud security at any time, open the webpage of your Sitecom product and log in with the supplied credentials (these can be

found on the back label on the bottom of your Sitecom device).

Go to Toolbox and select “Sitecom Cloud Security”.

Click the “Disable” radio button and click ‘Apply’ for the settings to take effect.

Password

This page allows you to set the password to access the web server of the router.

If the password you typed in ‘New Password’ and ‘Confirmed Password’ field are not the same, you’ll see the following message:

“Please retype the new password again when you see above message.”

If the current and new passwords are correctly entered, after you click ‘Apply’, you’ll be prompted to input your new password:

Please use new password to enter web management interface again, and you should be able to login with new password.

Time Settings

the specified time zone. You can set

Enable SNTP client

heck the box to enable router to update time from

The Time Zone allows your router to set its time; especially for recording System Log.

Parameter Description

Current Time The current time of

the current time by yourself or configured by SNTP server.

Time Zone Select Select the time zone of the country you are currently

in. The router will set its time based on your selection.

update SNTP server The IP address or the host name of the SNTP server.

When you finish, click ‘Save’. The router so the settings will take effect after it reboots.

SNTP server.

You can select from the list or set it manually.

Firmware Upgrade

Enable Automatic firmware update When enabled the router will check for updates on the firmware if an updated firmware has been released the router will inform you that a newer firmware is available and offers to download and install the firmware.

This page also allows you to manually upgrade the firmware for the router. Click “Browse” button to select the firmware file and click “Upload” button to start upgrading.

Romfile backup Allows saving all current settings to a file.

IMPORTANT! Do not turn off your router while this procedure is in progress.

Reboot

Whenever you use the Web configuration to change system settings, the changes are initially placed in temporary storage. To save your change for future use, you have to click “Apply” to reboot the router. If you have encountered problems during the configuration, you can click the “OPS” button in the top panel of the router over 15 seconds to reset default settings.

Sitecom WLM-6501 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
