Sitecom WLK-1500 DATASHEET

P. 1-1

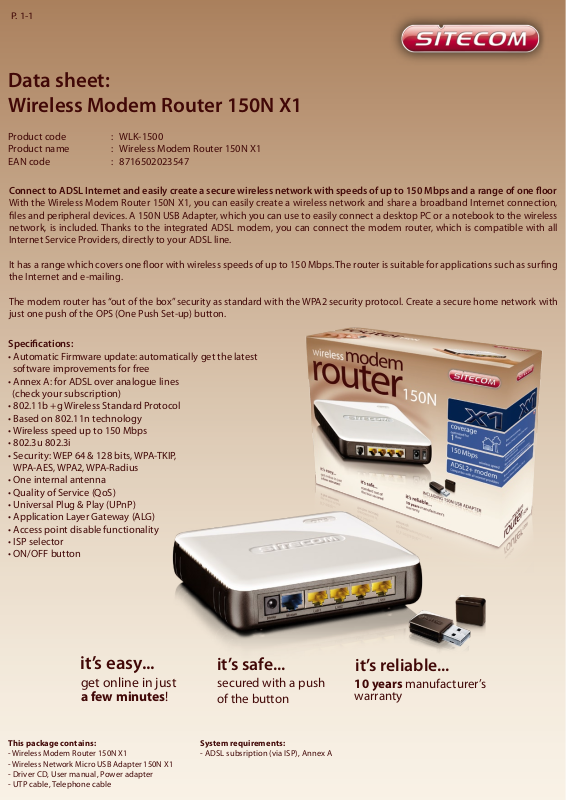

Data sheet:
Wireless Modem Router 150N X1

Product code :
Product name :
EAN code :

Connect to ADSL Internet and easily create a secure wireless network with speeds of up to 150 Mbps and a range of one oor

With the Wireless Modem Router 150N X1, you can easily create a wireless network and share a broadband Internet connection,
les and peripheral devices. A 150N USB Adapter, which you can use to easily connect a desktop PC or a notebook to the wireless
network, is included. Thanks to the integrated ADSL modem, you can connect the modem router, which is compatible with all
Internet Service Providers, directly to your ADSL line.

It has a range which covers one oor with wireless speeds of up to 150 Mbps. The router is suitable for applications such as surng
the Internet and e-mailing.

The modem router has “out of the box” security as standard with the WPA2 security protocol. Create a secure home network with
just one push of the OPS (One Push Set-up) button.

Specications:

• Automatic Firmware update: automatically get the latest
software improvements for free

• Annex A: for ADSL over analogue lines
(check your subscription)

• 802.11b +g Wireless Standard Protocol

• Based on 802.11n technology

• Wireless speed up to 150 Mbps

• 802.3u 802.3i

Security: WEP 64 & 128 bits, WPA-TKIP,

•

WPA-AES, WPA2, WPA-Radius

• One internal antenna

• Quality of Service (QoS)

• Universal Plug & Play (UPnP)

• Application Layer Gateway (ALG)

• Access point disable functionality

• ISP selector

• ON/OFF button

WLK-1500
Wireless Modem Router 150N X1
8716502023547

it’s easy...

get online in just

a few minutes!

This package contains:

- Wireless Modem Router 150N X1

- Wireless Network Micro USB Adapter 150N X1

- Driver CD, User manual, Power adapter

- UTP cable, Telephone cable

it’s safe...

secured with a push
of the button

System requirements:

- ADSL subsription (via ISP), Annex A

it’s reliable...

10 years manufacturer’s
warranty

P. 1-2

10 Mbps 100 Mbps 1000 Mbps

wired speed

10 Mbps 100 Mbps 1000 Mbps

wired speed

gigabit

10 Mbps 100 Mbps 1000 Mbps

wired speed

gigabit

10 Mbps 100 Mbps 1000 Mbps

wired speed

gigabit

10 Mbps 100 Mbps 1000 Mbps

wired speed

gigabit

Wi-Fi frequency

simultaneous

2.4 GHz 5 GHz

X

1

X

1

X1

150 Mbps

100 Mbps

2.4 GHz

1

out of the box WPA2

X2

300 Mbps

100 Mbps

2.4 GHz

2

out of the box WPA2

* The coverage can be inuenced by environmental factors * * The speed of your internet connection inuences the nal per formance

Model

wireless speed

wired speed

wi- frequency

no. of internal antennas

X3

300 Mbps

100 Mbps

2.4 GHz

3

out of the box WPA2

X4

300 Mbps

1000 Mbps

2.4 GHz

3

out of the box WPA2

X5

300 Mbps

1000 Mbps

2.4 GHz + 5 GHz

4

out of the box WPA2

X6

450 Mbps

1000 Mbps

2.4 GHz + 5 GHz

5

out of the box WPA2

Standard Gigabit

Internet applications**

e-mailing, chatting and calling (VoIP)

downloading & streaming

simultaneous AV downloading/streaming

multiplayer gaming

high speed internet

Network applications

sharing documents

network streaming

local network gaming

sharing large media les

Product Line modem routers

wireless coverage*

security /

Sitecom Cloud Security

optimized for 3 oors
& garden

optimized for 3 oors
& garden

optimized for 3 oors
& garden

optimized for 3 oors
& garden

optimized for 1 oor optimized for 2 oors

wireless

modem

150N

coverage

optimized for

1

150 Mbps

wireless speed

ADSL2+ modem

Compatible with all internet providers
