Sitecom WL-586 DATASHEET

P. 1-1.

RoHS

compliant

Designed in Europe

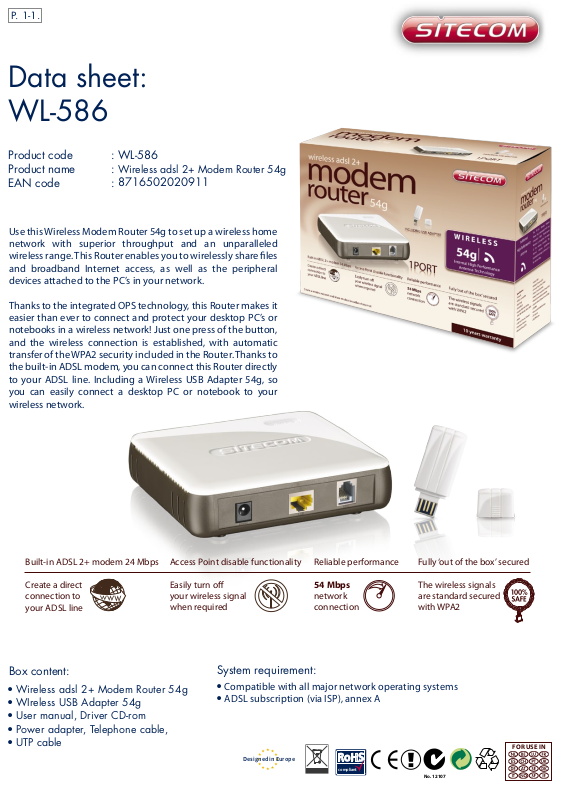

Data sheet:
WL-586

Product code :
Product name :
EAN code :

Use this Wireless Modem Router 54g to set up a wireless home
network with superior throughput and an unparalleled
wireless range. This Router enables you to wirelessly share les
and broadband Internet access, as well as the peripheral
devices attached to the PC’s in your network.

Thanks to the integrated OPS technology, this Router makes it
easier than ever to connect and protect your desktop PC’s or
notebooks in a wireless network! Just one press of the button,
and the wireless connection is established, with automatic
transfer of the WPA2 security included in the Router. Thanks to
the built-in ADSL modem, you can connect this Router directly
to your ADSL line. Including a Wireless USB Adapter 54g, so
you can easily connect a desktop PC or notebook to your
wireless network.

WL-586

Wireless adsl 2+ Modem Router 54g

8716502020911

Built-in ADSL 2+ modem 24 Mbps

Create a direct
connection to
your ADSL line

Box content:

• Wireless adsl 2+ Modem Router 54g

• WIreless USB Adapter 54g

• User manual, Driver CD-rom

• Power adapter, Telephone cable,

• UTP cable

Access Point disable functionality

Easily turn o
your wireless signal
when required

System requirement:

•

Compatible with all major network operating systems

•

ADSL subscription (via ISP), annex A

Reliable performance

54 Mbps

network
connection

Fully ‘out of the box’ secured

The wireless signals
are standard secured
with WPA2

FOR USE IN

No. 12107

P. 1-2.

Technical specifications:
WL-586

• Annex A

• ADSL2+ compatible

• 802.11 b/g

• 802.3u 802.3i

• Security: WEP 64 & 128 bits,

WPA-TKIP, WPA-AES, WPA2, WPA

• Radius

• Secured (out of the box)

• One Internal Antenna

• One Push Setup (OPS)

• Hidden SSID

• Quality of Service (QoS)

• Universal Plug ‘n PLay (UPnP)

• Access Control List (ACL)

• Statefull Packet Inspection rewall (SPI)

• Denial of Service (DoS) protection

• Dynamic Domain Name Server (DDNS)

• URL lter

• Accesspoint disable function

• ISP Selector

• ON/OFF Button
