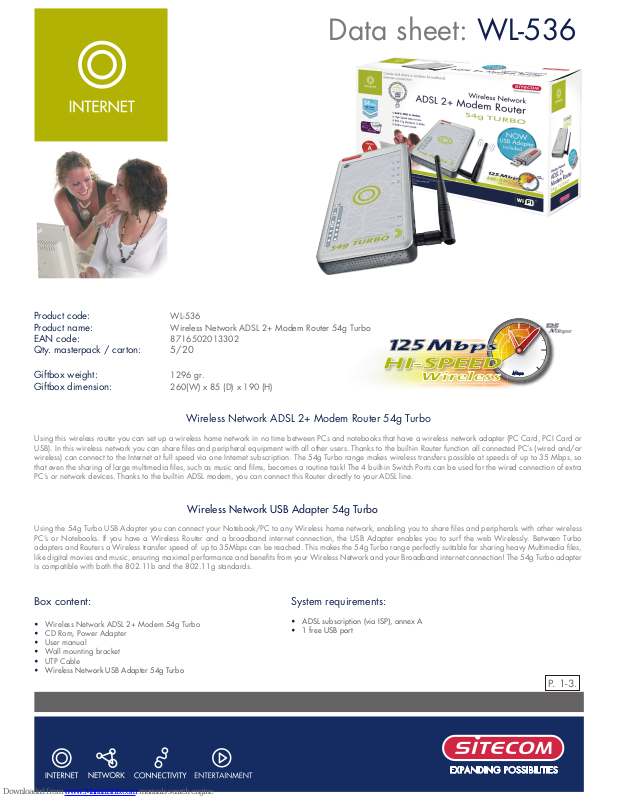

Data sheet: WL-536
P. 1-3.
Product code: WL-536
Product name: Wireless Network ADSL 2+ Modem Router 54g Turbo
EAN code: 8716502013302
Qty. masterpack / carton: 5/20
Giftbox weight:
1296 gr.
Giftbox dimension: 260(W) x 85 (D) x 190 (H)
Box content:
• Wireless Network ADSL 2+ Modem 54g Turbo
• CD Rom, Power Adapter
• User manual
• Wall mounting bracket
• UTP Cable
• Wireless Network USB Adapter 54g Turbo
Wireless Network ADSL 2+ Modem Router 54g Turbo
Using this wireless router you can set up a wireless home network in no time be tween PCs and notebooks that have a wireless network adapter (PC Card, PCI Card or
USB). In this wireless network you can share fi les and peripheral equipment with all other users. Thanks to the built-in Router function all connected PC’s (wired and/or
wireless) can connect to the Internet at full speed via one Internet subscription. The 54g Turbo range makes wireless transfers possible at speeds of up to 35 Mbps, so
that even the sharing of large multimedia fi les, such as music and fi lms, becomes a routine task! The 4 built-in Switch Ports can be used for the wired connection of extra
PC’s or network devices. Thanks to the built-in ADSL modem, you can connect this Router directly to your ADSL line.
Wireless Network USB Adapter 54g Turbo
Using the 54g Turbo USB Adapter you can connect your Notebook/PC to any Wireless home network, enabling you to share fi les and peripherals with other wireless
PC’s or Notebooks. If you have a Wireless Router and a broadband internet connection, the USB Adapter enables you to surf the web Wirelessly. Between Turbo
adapters and Routers a Wireless transfer speed of up to 35Mbps can be reached. This makes the 54g Turbo range perfectly suitable for sharing heavy Multimedia fi les,
like digital movies and music, ensuring maximal performance and benefi ts from your Wireless Network and your Broadband internet connection! The 54g Turbo
adapter
is compatible with both the 802.11b and the 802.11g standards.
System requirements:
• ADSL subscription (via ISP), annex A
• 1 free USB port
Data sheet: WL-536
P. 2-3.
Wireless Network ADSL 2+ Modem Router
54g Turbo
lP Sharing
The NAT/NAPT function lets you share the ADSL line to all the Intranet users (support up to 253 users). It also provides virtual serverand virtual DMZ functions to let
your internal servers be accessed from the Internet.
Wireless Turbo G Access Point
The MAC/BBP IC features Range-OVERDRIVETMand Packet-OVERDRIVETMtechnology that combines Packet Burst and Frame Aggregation for up to 35 Mbps throughput, without resorting to channel bonding that decreases available channels and increases interference.
Build-in High Performance ADSL2+ modem
This ADSL router can run at speeds of up to 24 Mbit/s downstream and 2 Mbit/s upstream, providing higher data rates than those found
in traditional ADSL systems. However, backward compatibility with existing ADSL services and interoperability with legacy equipment are maintained.
Support ADSL2+ standard
The ADSL router supports ADSL standard: G.dmt, G.lite, G.992.3, G.992.4, G.992.5 (Annex A)
Wireless Access Point
The wireless access point function can let your IEEE 802.11g/b wireless client devices access the Intranet through this router.
Supports Special Applications
The router can let you setup trigger ports of special applications, and let you utilize Internet services smoothly.
Anti-DoS SPI Firewall
The SPI (StatefulPacket Inspection) fi rewall can protect your Intranet PCs from illegal access and many kinds of DoS attacks from the Internet,
and alert you by e-mail in the fi rst time if some event happens. It also provides Internet access control function.
Virtual Server and DMZ
The virtual server and DMZ function let you setup your servers in the Intranet and still can provide services to the Internet users.
DHCP
Automatically assgin IPs to the Intranet PCs.
Web Confi guration
You can confi gure the router through the friendly Web user interface with a browser.
Features
• NAT/NAPT IP Sharing
• SPI Anti-DoS Firewall
• Virtual Server/DMZ
• IEEE 802.54g Turbo G Access Point
• Supports 64/128 Bit Key Length WEP Encryption
• Advanced Quality of Service (QoS) - 802.11e, WMM
• Supports Special Applications (Port Triggers)
• Supports DDNS (DynDNS, TZO)
• VPN Pass Through (IPSec/PPTP)
• Obtain WAN IP by PPPoE/Static IP/PPTP/DHCP/L2TP
• DHCP Server
• Web User Interface (Remote Confi guration)
• System Status (Port Connectivity, DHCP MAC/IP Mapping)
• Security Log
• Firmware Upgrade
• Supports ADSL standard G.dmt, G.lite, G.992.3, G.992.4, G.992.5 (Annex A)
Specifi cations
• Product WL-174
• CPU Trendchip TC3084
• Front End Trendchip TC3162P
• RF Ralink RT2561 ST
• Flash 2 MB NOR Flash
• RAM 8 MB SDRAM
• ADSL Ports RJ-11 x 1
• LAN Ports 10/100M UTP Port x 4
• Antenna RP-SMA Detachable Antenna
• Power 12V DC, 1A Linear Power Adaptor
• Dimension 30(H)*187(W)*100(D) mm
• Temperature 10~40 oC
• Humidity 10~90% (Non-Condensing)
• Certifi cation FCC Class B, CE Mark
