Introduction

Congratulations on your purchase of the WL-351/368 Wireless Gigabit Router

300N. The WL-351/368 is compliant with 802.11n and up to 6 times faster

than standard 802.11g based routers while still being compatible with

802.11g & 802.11b gadgets. The WL-351/368 is not only a Wireless Access

Point, but also doubles as a 4-port full-duplex Gigabit switch that connects

your wired-Ethernet devices together at 10/100/1000 Mbps speeds.

At 300 Mbps wireless transmission rate, the Access Point built into the Router

uses advanced MIMO (Multi-Input, Multi-Output) technology to transmit

multiple streams of data in a single wireless channel, giving you seamless

access to multimedia content. The robust RF signal travels farther, eliminates

dead spots and extends the network range. For data protection and privacy,

the WL-351/368 encodes all wireless transmissions with WEP, WPA, or WPA2

encryption.

With the inbuilt DHCP Server & powerful SPI firewall, the WL-351/368

protects your computers against intruders and most known Internet attacks

and also provides safe VPN pass-through. With the incredible speed and QoS

function of 802.11n, the WL-351/368 is ideal for media-centric applications

like streaming video, gaming, and VoIP telephony to run multiple media-

intense data streams through the network at the same time, with no

degradation in performance.

1 Key Features

Features Advantages

Incredible Data Rate up to

Heavy data payloads such as

300Mbps*

IEEE 802.11n Compliant and

backward compatible with 802.11b/

g

Four 10/100/1000 Mbps gigabit

Switch Ports (Auto-Crossover)
Firewall supports Virtual Server

Mapping, DMZ, IP Filter, ICMP

Blocking, SPI
Support 802.1x authenticator,

802.11i (WPA/WPA2, AES), VPN

pass-through
WDS (Wireless Distribution System) Make wireless AP and Bridge

* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual

throughput may vary. Network conditions and environmental factors lower actual throughput rate.

All specifications are subject to change without notice.

MPEG video streaming

Fully Interoperable with IEEE

802.11b / IEEE802.11g

compliant devices with legacy

protection

Scalability, extend your network.

Avoids the attacks of Hackers or

Viruses from Internet

Provide mutual authentication

(Client and dynamic encryption

keys to enhance security

mode simultaneously as a

wireless repeater

2 Package Contents

Open the package carefully, and make sure that none of the items listed

below are missing. Do not discard the packing materials, in case of return;

the unit must be shipped back in its original package.

1. The WL-351/368 Router

2. A 220V~240V Power Adapter

3. A Quick Install Guide

4. A CD (User’s Manual)

5. A Warranty card

6. An UTP cable

3 Product Layout

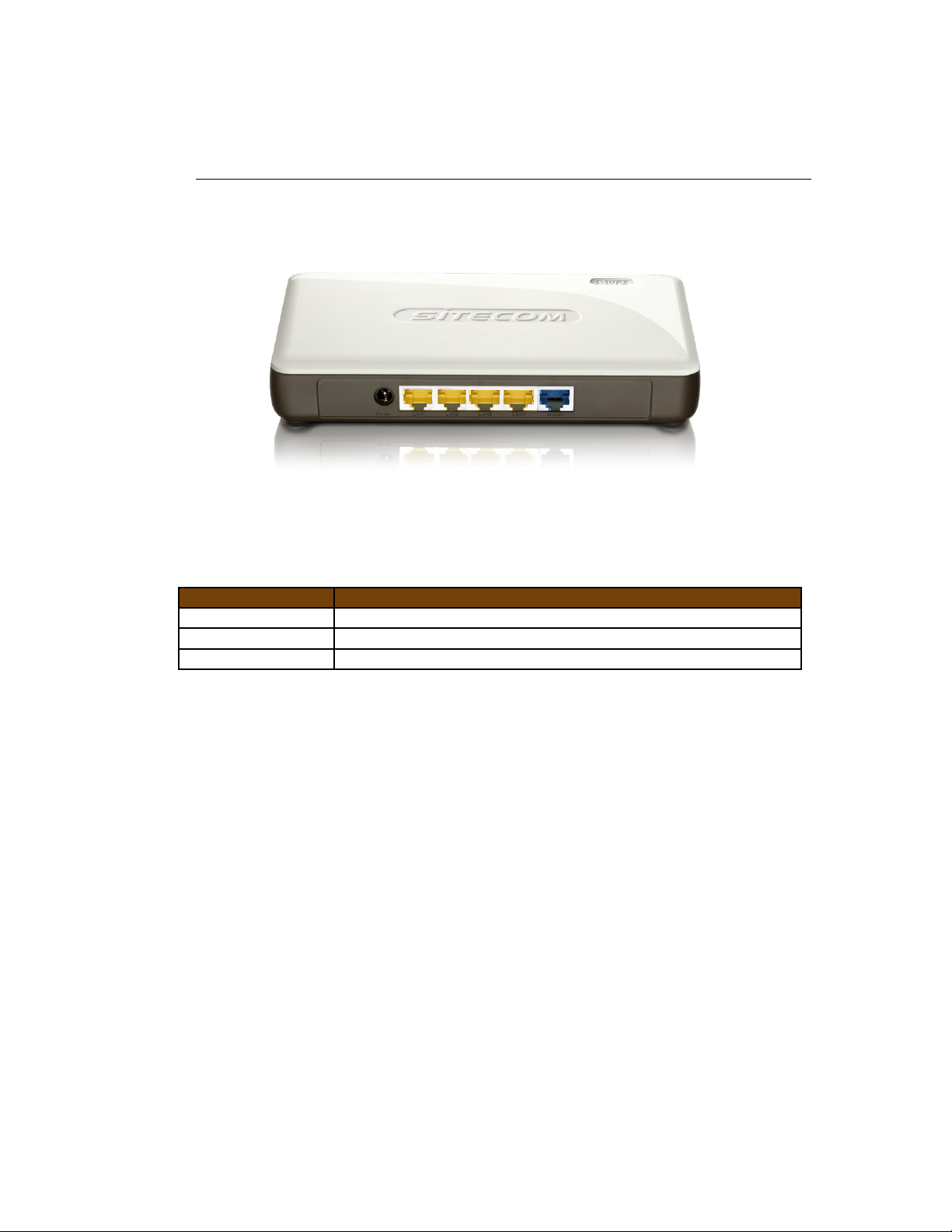

Port Description

Power connector Connect the 12V DC adapter to this port
LAN (Yellow) Connect your PC’s or network devices to this port
WAN (Blue) Connect your ADSL/Cable modem to this port

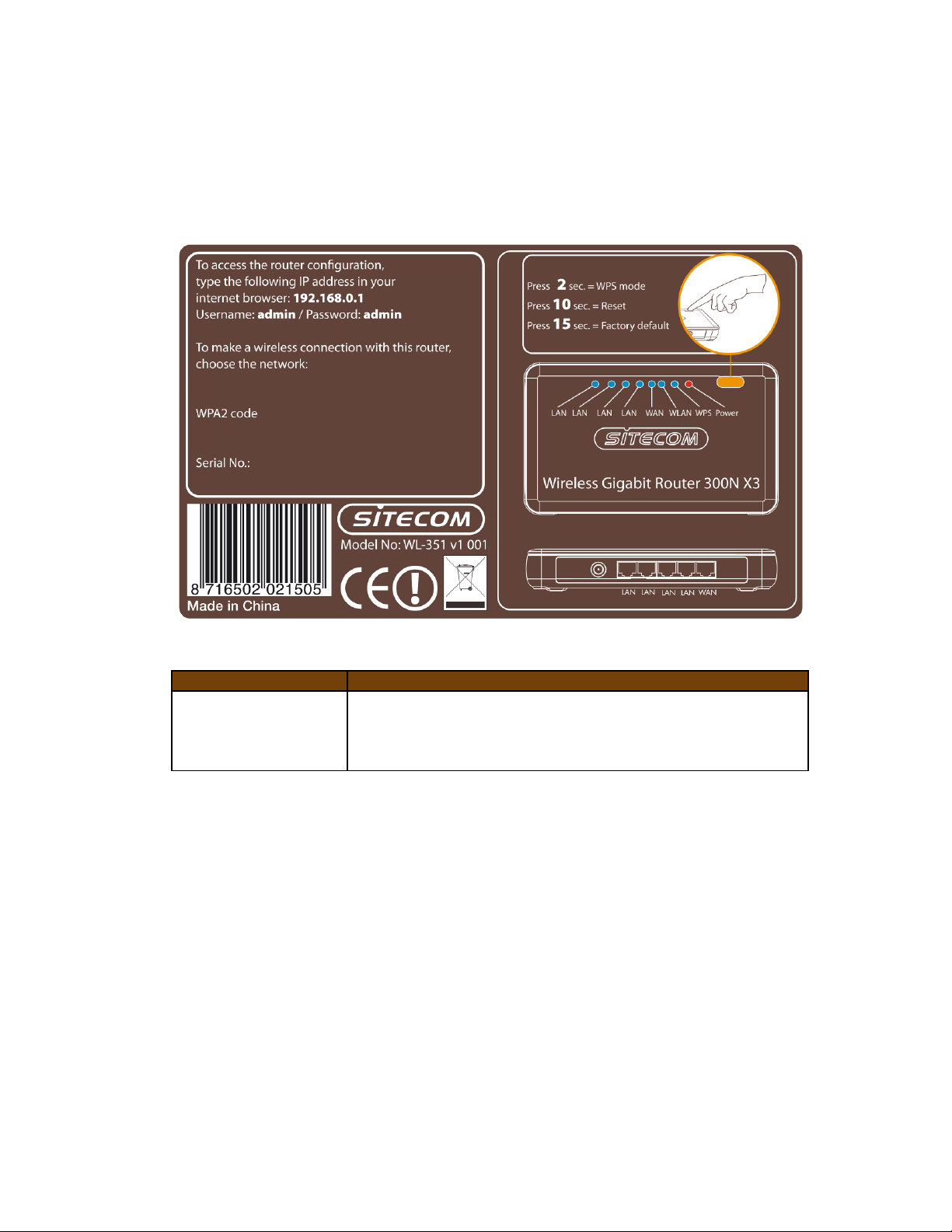

Backlabel

The backlabel describes the IP address, login details, SSID, security code and

WPS button functionality.

Button Description

Press 2 seconds for WPS mode

WPS BUTTON

Press 10 seconds to reset the router

Press 15 Seconds to reset the router to factory defaults.

4 Network + System Requirements

To begin using the WL-351/368, make sure you meet the following as minimum

requirements:

• PC/Notebook.

• Operating System – Microsoft Windows XP/2000/VISTA

• 1 Free Ethernet port.

• WiFi card/USB dongle (802.11 b/g/n) – optional.

• External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45).

• PC with a Web-Browser (Internet Explorer, Safari, Firefox, Opera)

• Ethernet compatible CAT5 cables.

5 WL-351/368 Placement

You can place the WL-351/368 on a desk or other flat surface, or you can mount

it on a wall. For optimal performance, place your Wireless Broadband Router in

the center of your office (or your home) in a location that is away from any

potential source of interference, such as a metal wall or microwave oven. This

location must be close to a power connection and your ADSL/Cable modem.

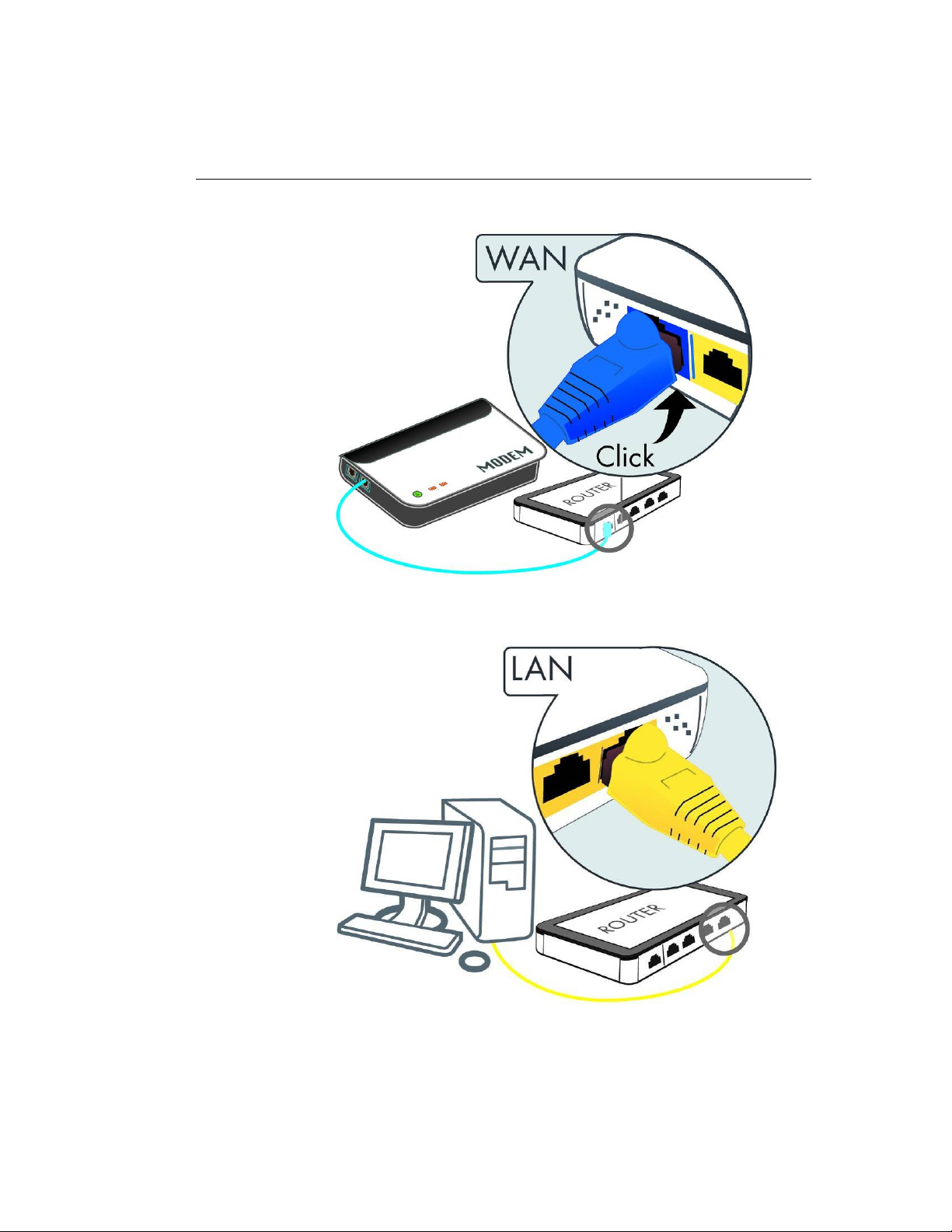

6 Setup LAN, WAN

WAN connection:

LAN connection:

7 PC Network Adapter setup

Windows XP

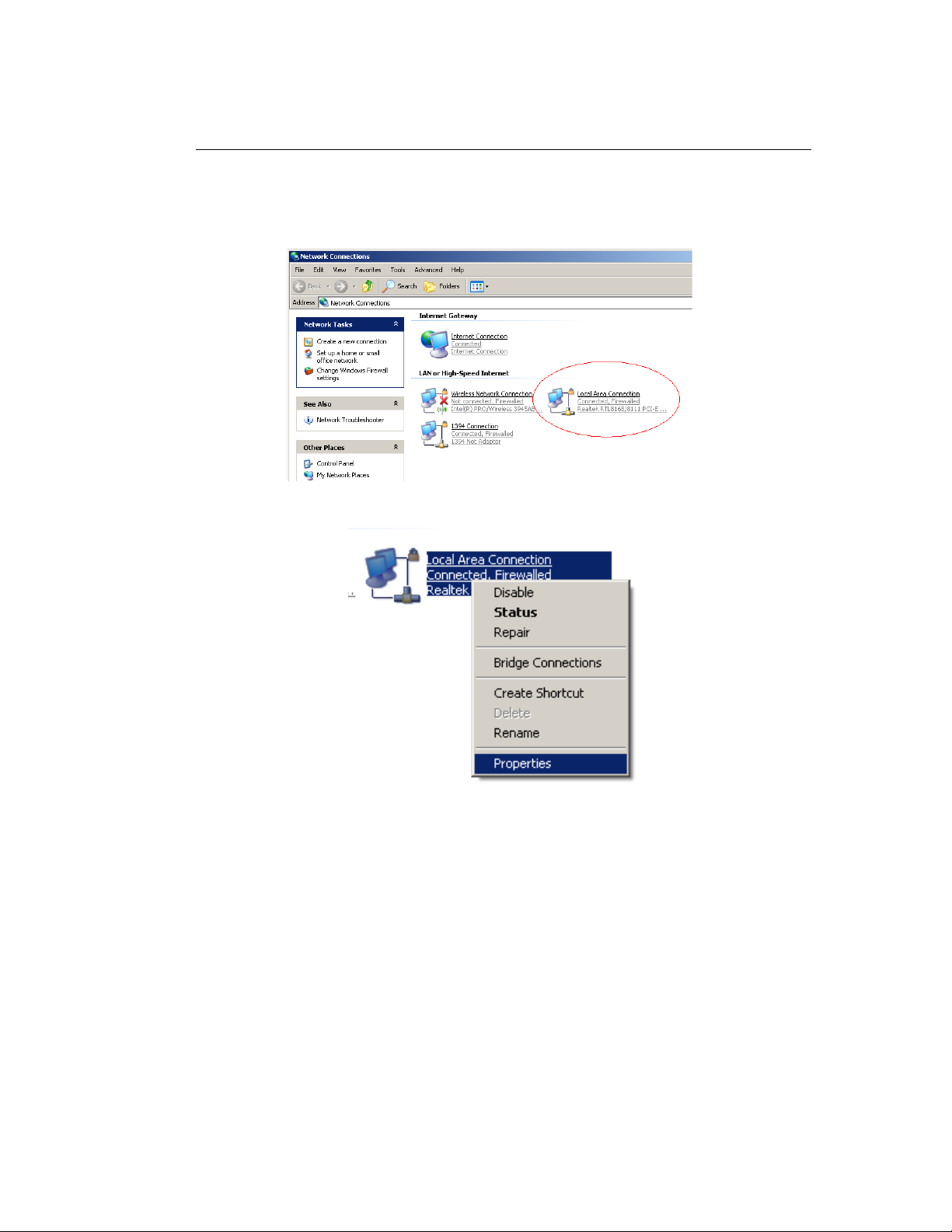

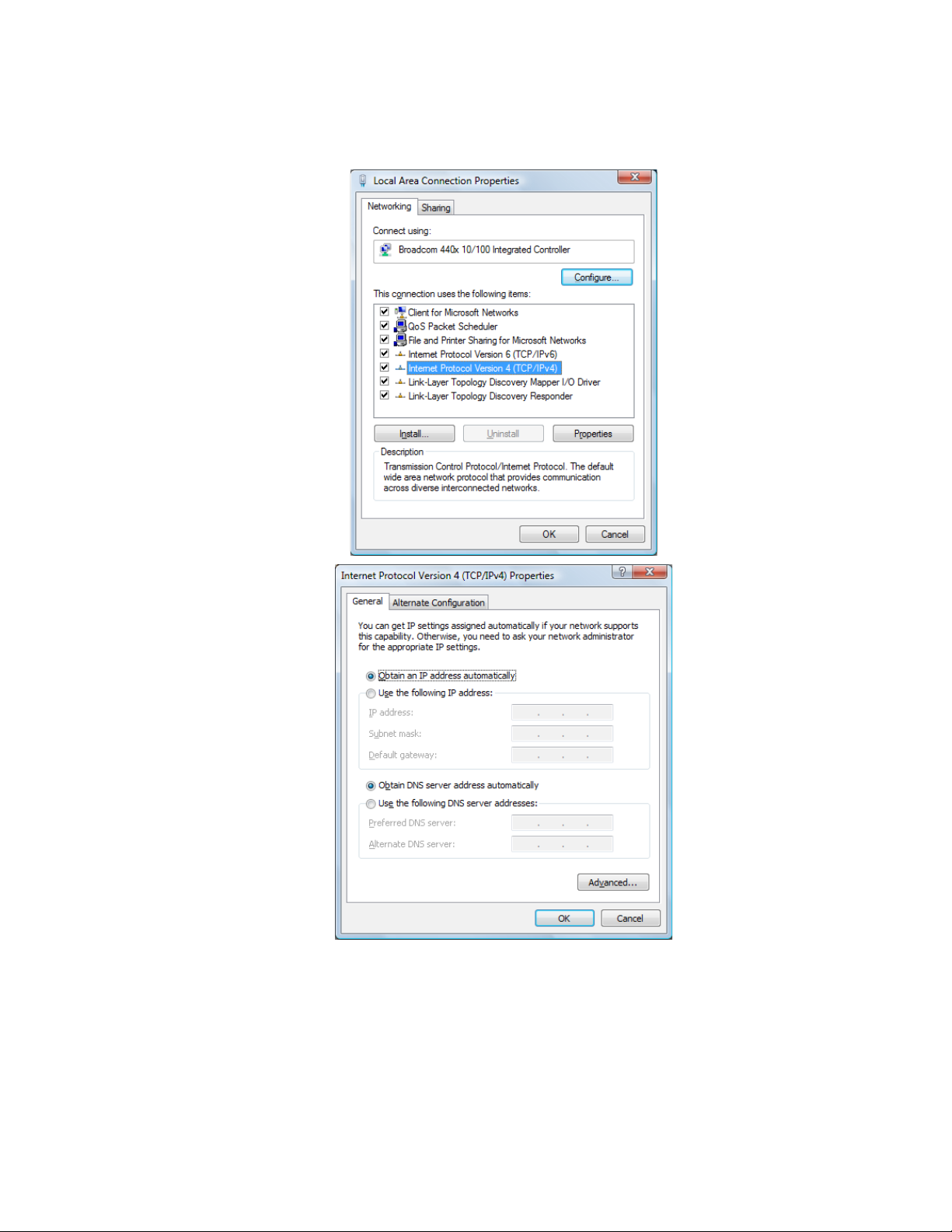

• Enter [Start Menu]  select [Control panel]  select [Network].

• Select [Local Area Connection]) icon=>select [properties]

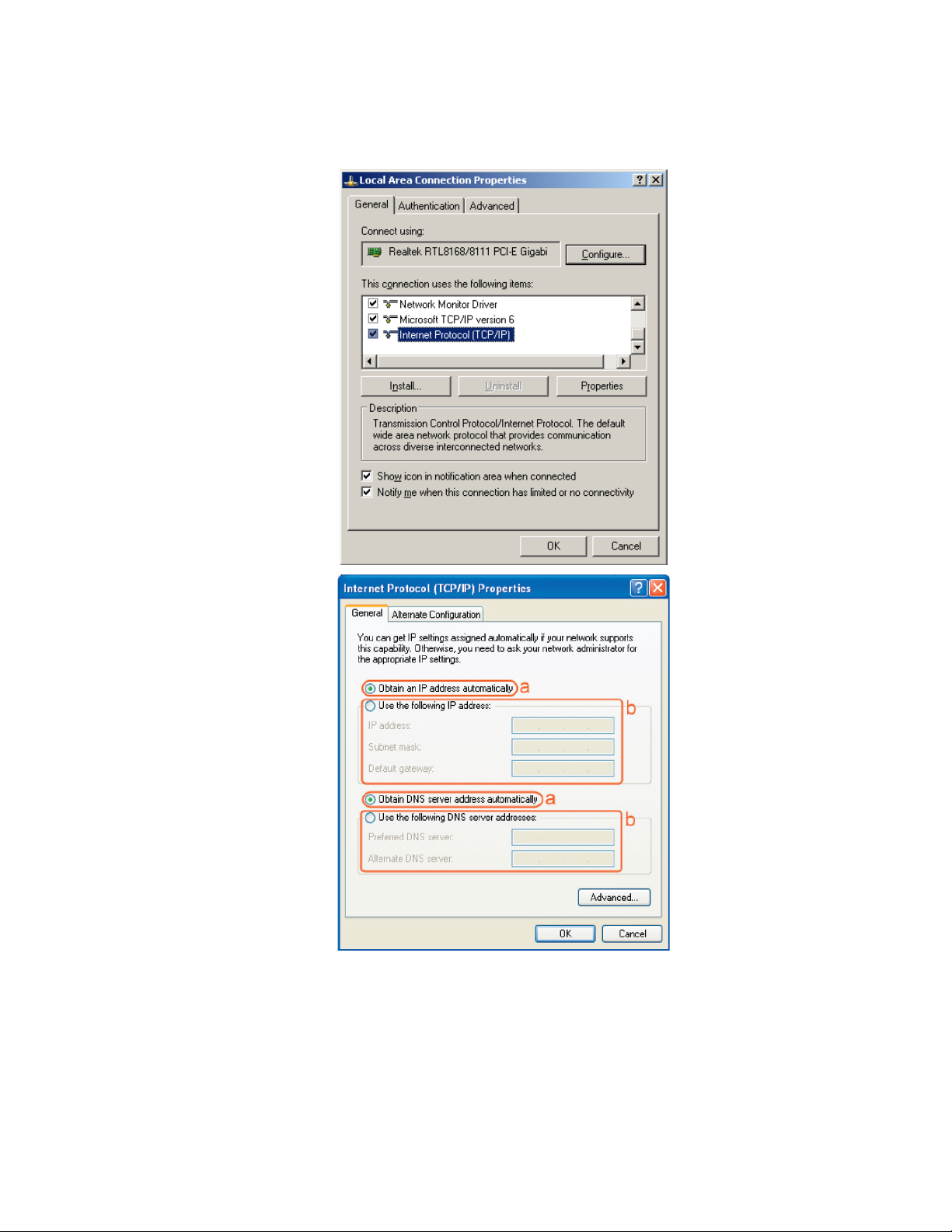

• Select [Internet Protocol (TCP/IP)] =>Click [Properties].

• Select the [General] tab.

a. The WL-351/368 supports [DHCP] function, please select both [Obtain

an IP address automatically] and [Obtain DNS server address

automatically].

Windows Vista

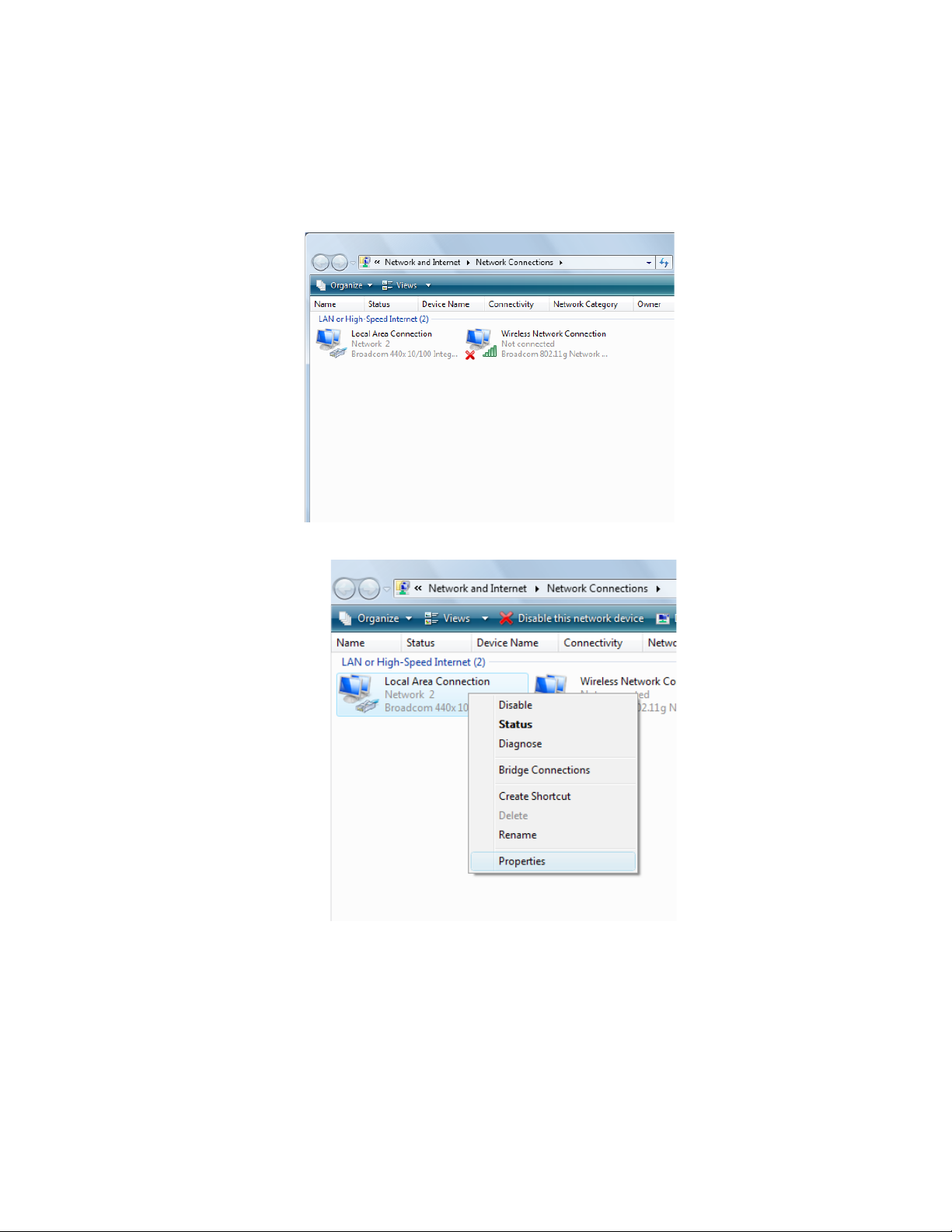

• Enter [Start Menu]  select [Control panel]  select [View network status

and tasks] -> select [Manage network connections].

• Select [Local Area Connection]) icon=>select [properties]

• Select [Internet Protocol Version 4 (TCP/IPv4)] =>Click [Properties].

• Select the [General] tab.

The WL-351/368 supports [DHCP] function, please select both [Obtain an IP

address automatically] and [Obtain DNS server address automatically].

8 Bring up the WL-351/368

Connect the supplied power-adapter to the power inlet port and connect it to

a wall outlet. The WL-351/368 automatically enters the self-test phase.

During self-test phase, the Power LED will be lit continuously to indicate that

this product is in normal operation.

9 Initial Setup WL-351/368

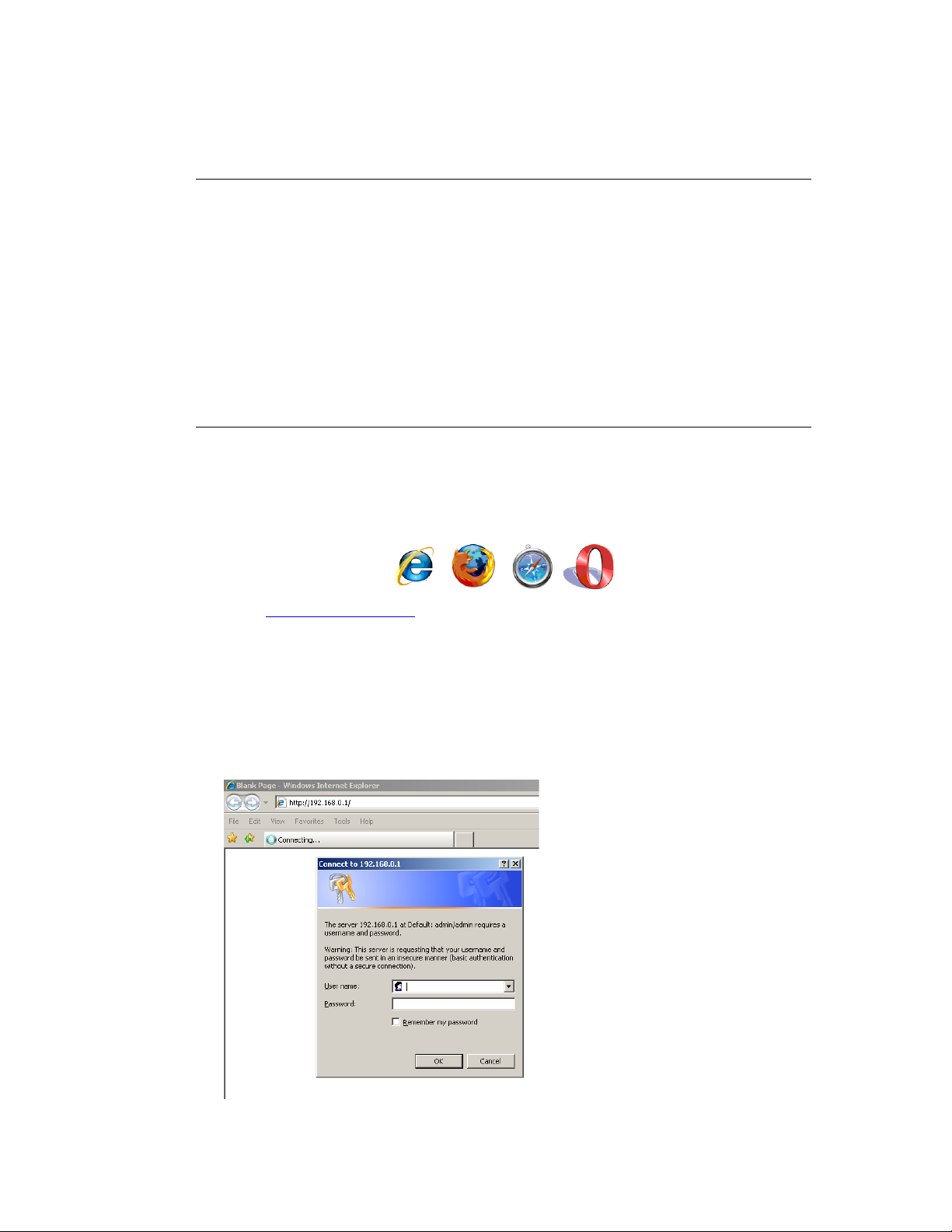

LOGIN procedure

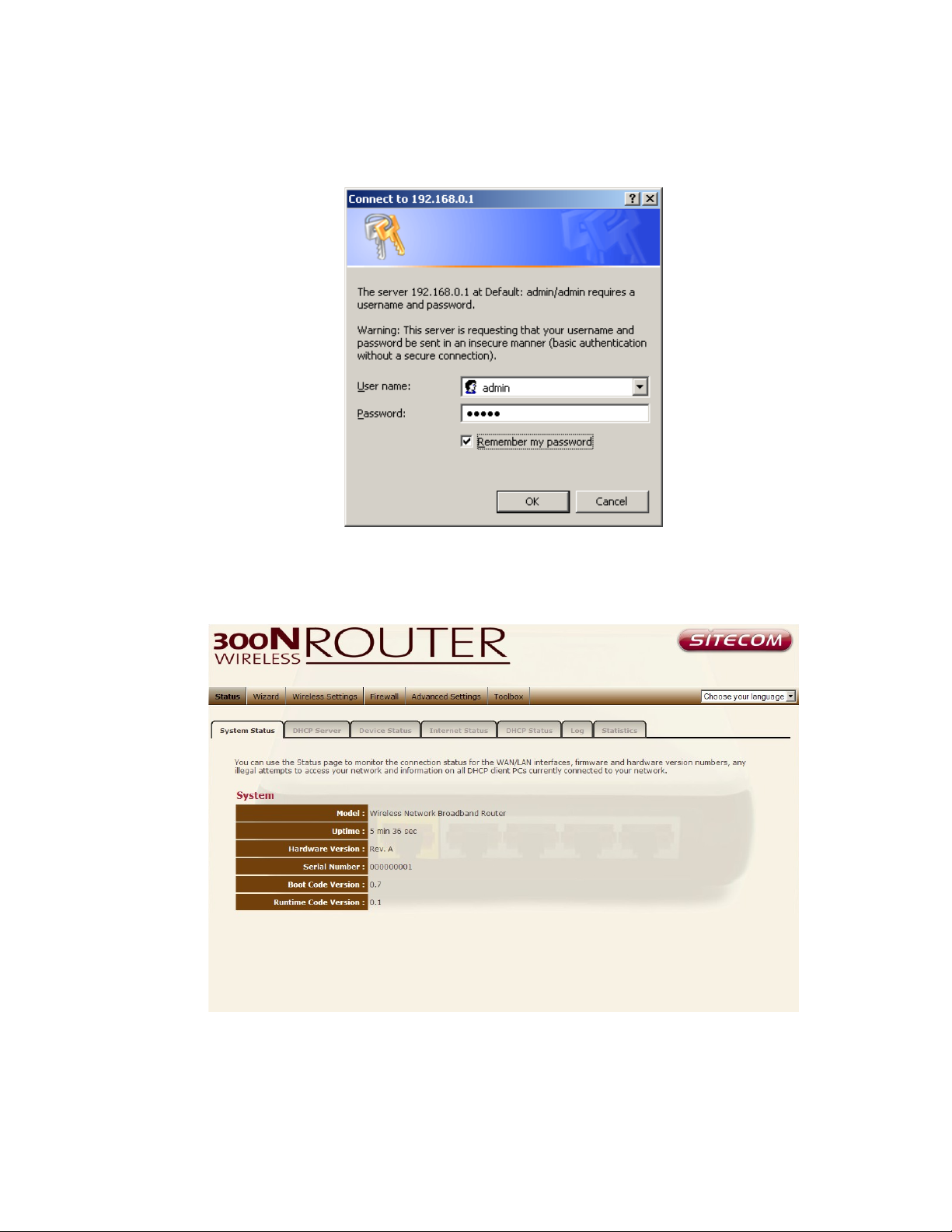

1. OPEN your browser (e.g. Internet Explorer).

2. Type http://192.168.0.1 in the address bar and press [Enter]

3. Type user name and password (default is admin/admin).

4. Click OK.

5. You will see the home page of the WL-351/368.

The System status section allows you to monitor the current status of your router

the UP time, hardware information, serial number as well as firmware version

information is displayed here.

LAN settings

The LAN tab gives you the opportunity to change the IP settings of the WL-

351/368.

Click <Apply> at the bottom of this screen to save any changes.

IP address 192.168.0.1. It is the router’s LAN IP address (Your LAN clients

default gateway IP address).

IP Subnet Mask 255.255.255.0 Specify a Subnet Mask for your LAN segment.

802.1d Spanning Tree is Disabled by default. If the 802.1d Spanning Tree

function is enabled, this router will use the spanning tree protocol to prevent

network loops.

DHCP Server Enabled by default. You can enable or disable the DHCP server.

When DHCP is disabled no ip-addresses are assigned to clients and you have to

use static ip-addresses. When DHCP server is enabled your computers will be

assigned an ip-address automatically until the lease time expires.

Lease Time Forever. In the Lease Time setting you can specify the time period

that the DHCP lends an IP address to your LAN clients. The DHCP will change

your LAN client’s IP address when this time threshold period is reached.

IP Address Pool You can select a particular IP address range for your DHCP

server to issue IP addresses to your LAN Clients.

Note: default IP range is 192.168.0.100 ~ 192.168.0.200. If you want

your PC(s) to have a static/fixed IP address, then you’ll have to choose

an IP address outside this IP address Pool

Domain Name You can specify a Domain Name for your LAN. Or just keep the

default (sitecomwl351).

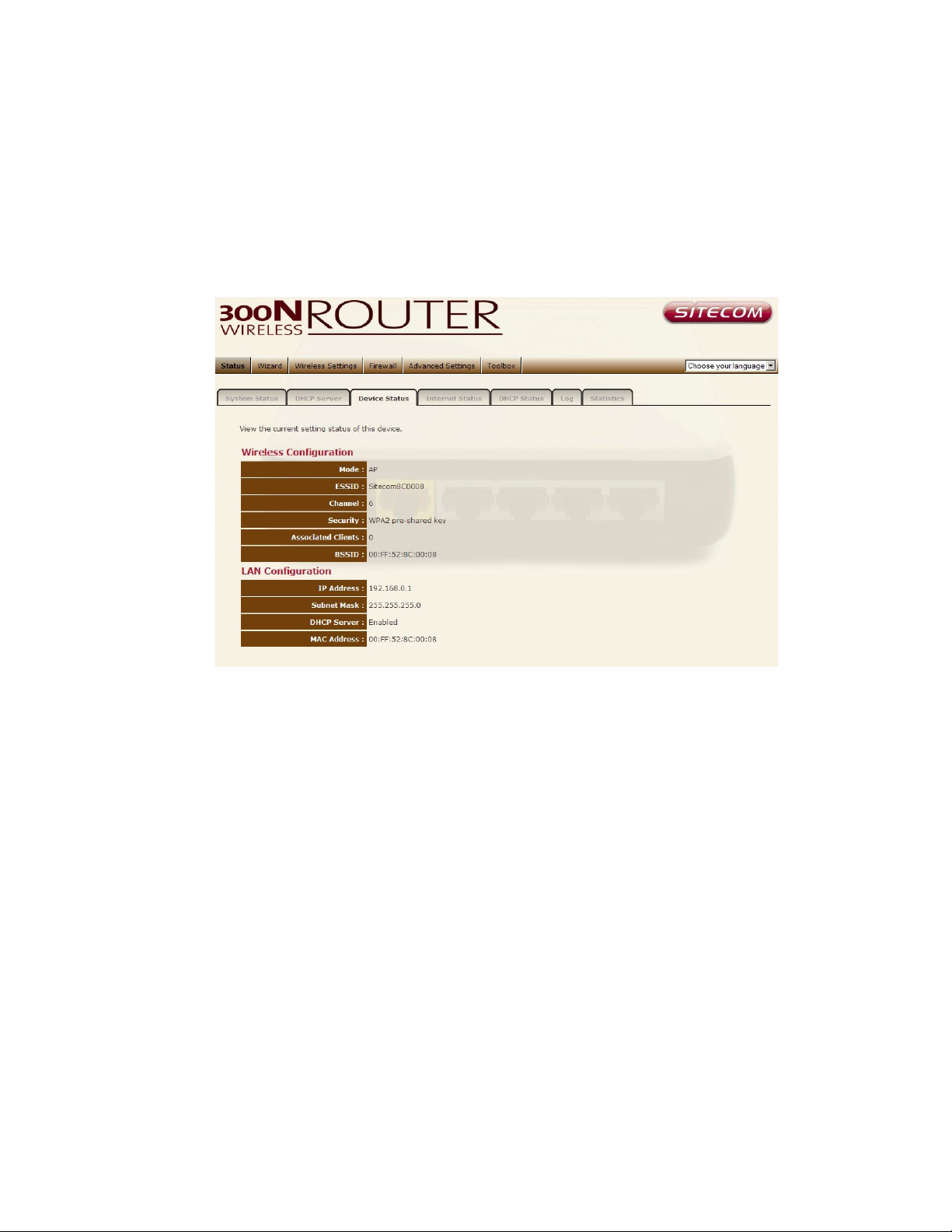

Device Status

View the Broadband router’s current configuration settings. Device Status

displays the configuration settings you’ve configured in the Wizard / Basic

Settings / Wireless Settings section.

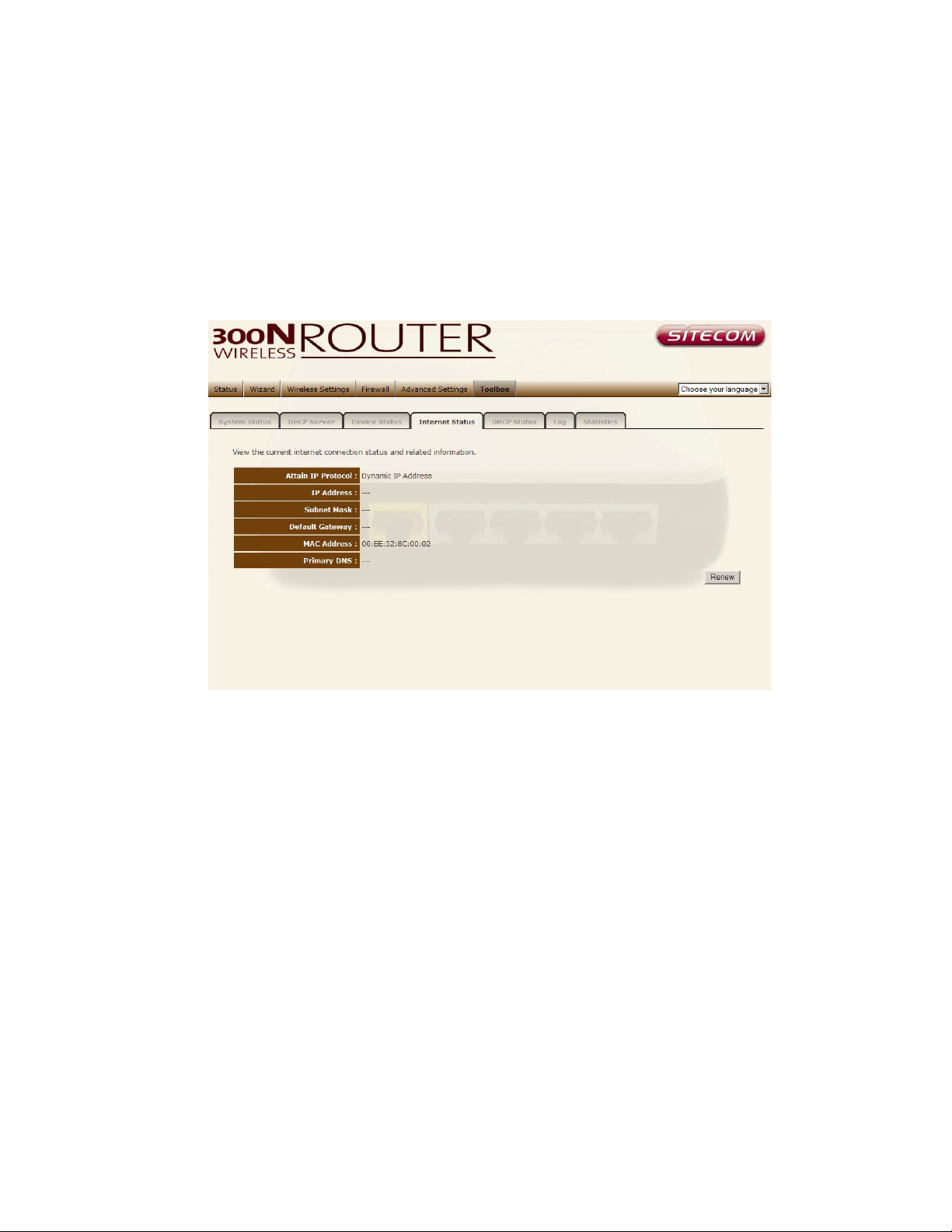

Internet Status

This page displays whether the WAN port is connected to a Cable/DSL

connection. It also displays the router’s WAN IP address, Subnet Mask, and ISP

Gateway as well as MAC address, the Primary DNS. Press Renew button to

renew your WAN IP address.

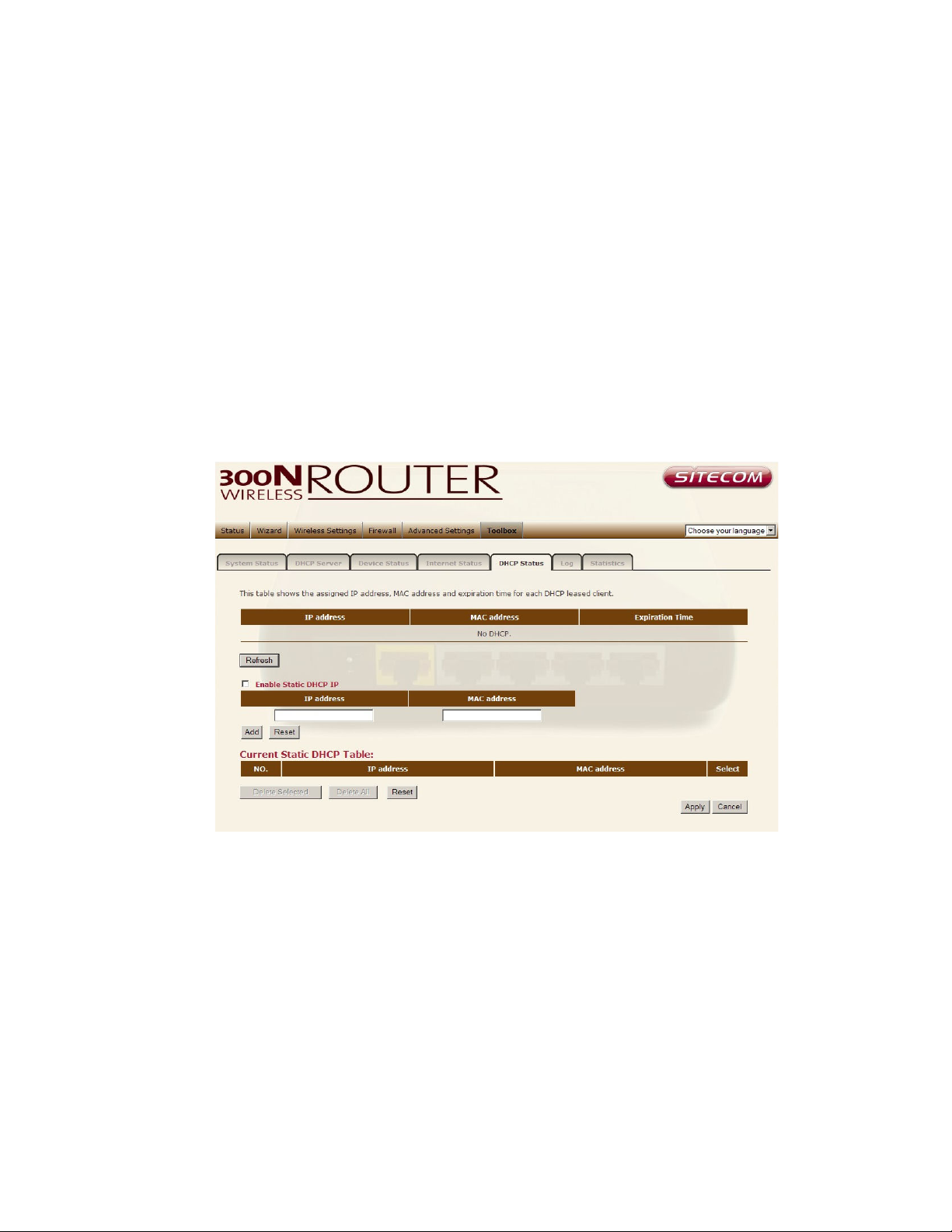

DHCP Client Status

DHCP This page shows all DHCP clients (LAN PCs) currently connected to your

network. The table shows the assigned IP address, MAC address and expiration

time for each DHCP leased client. Use the Refresh button to update the available

information.

You can check Enable Static DHCP IP. It is possible to add more static DHCP

IPs. They are listed in the table Current Static DHCP Table. IP can be deleted

at will from the table.

Click apply button to save the changed configuration.

WL-351/368 Log

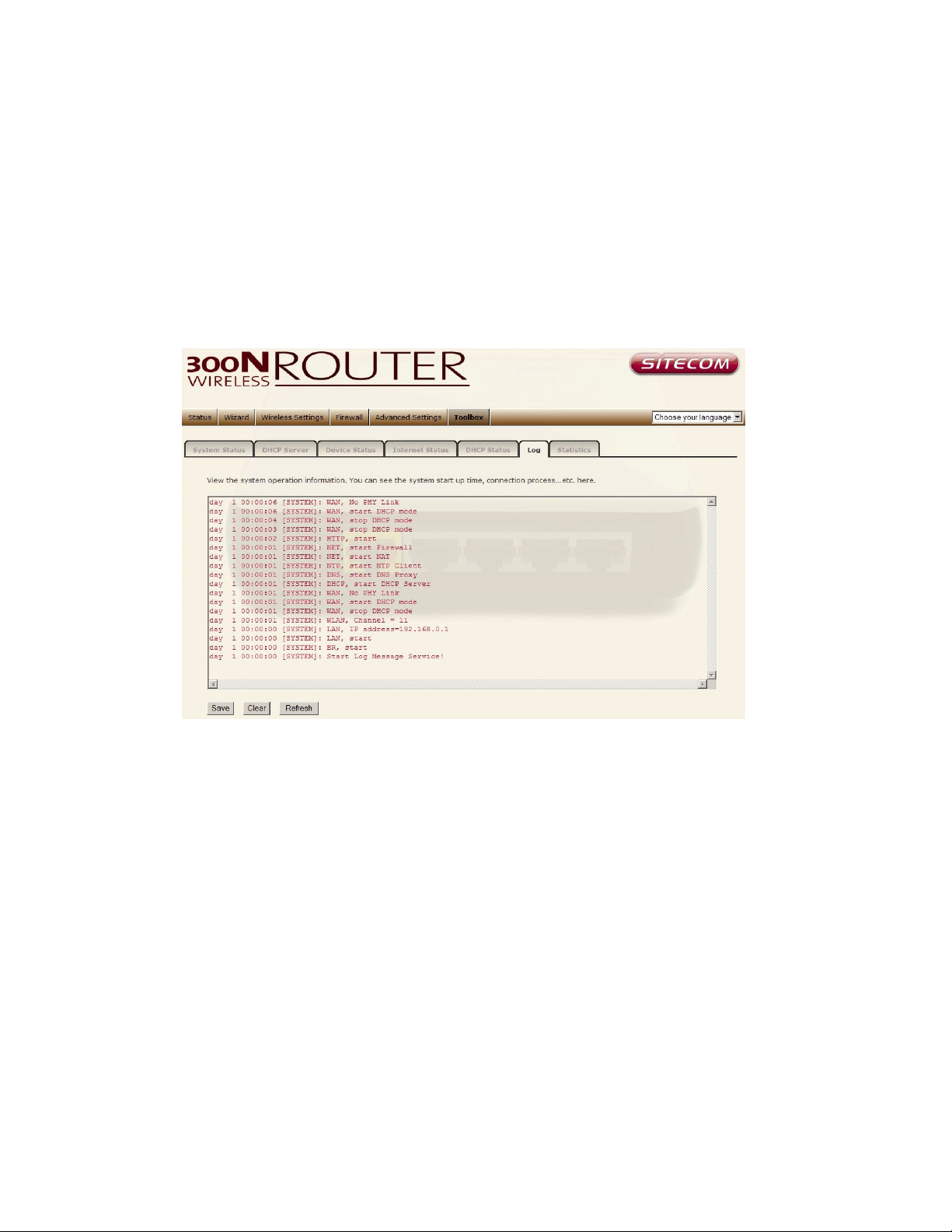

View the operation log of the WL-351/368. This page shows the current

system log of the Broadband router. It displays any event occurred after system

start up. At the bottom of the page, the system log can be saved <Save> to a

local file for further processing or the system log can be cleared <Clear> or it

can be refreshed <Refresh> to get the most updated information. When the

system is powered down, the system log will disappear if not saved to a local file.

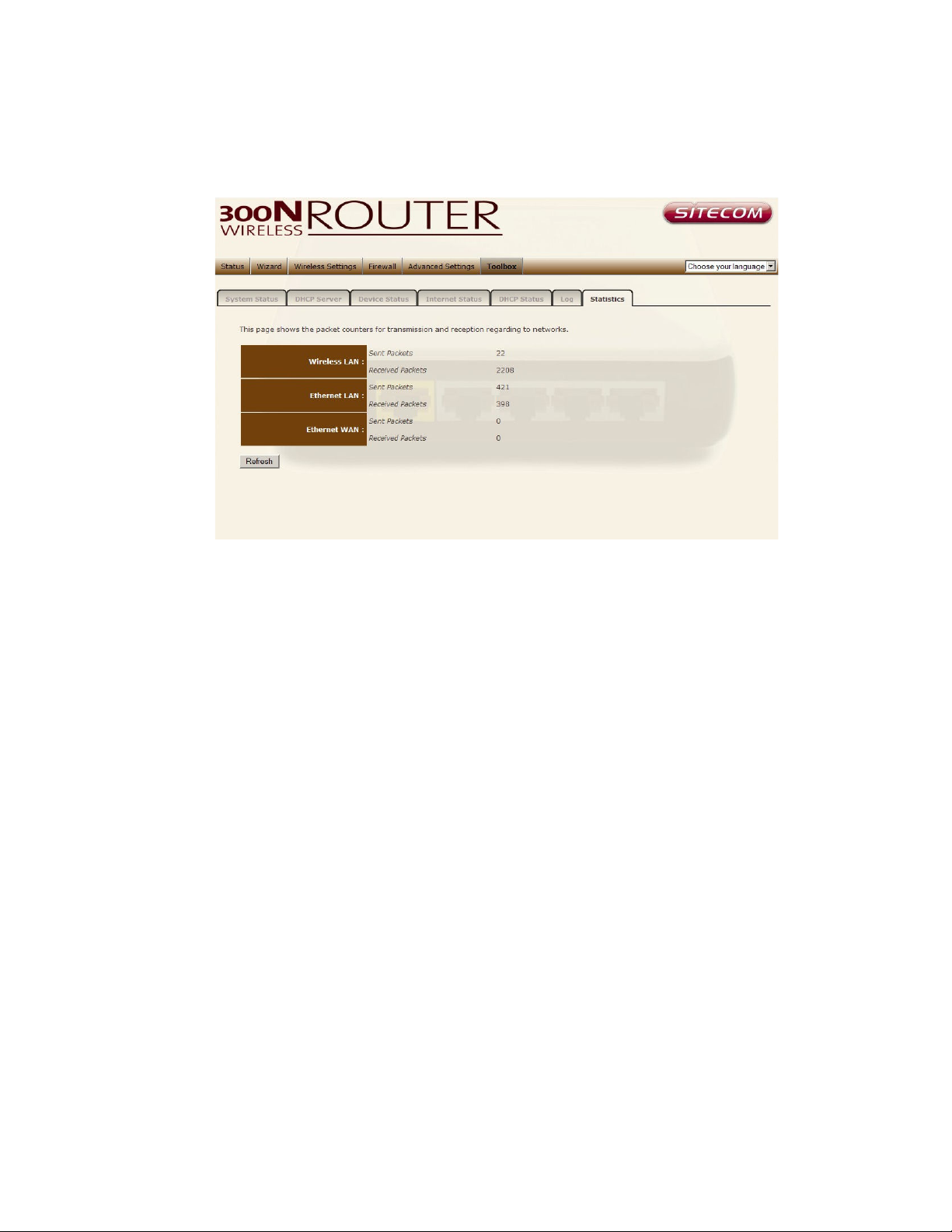

WL-351/368 Statistics

Shows the counters of packets sent and received on WAN, LAN & WLAN.

10 Configuration Wizard

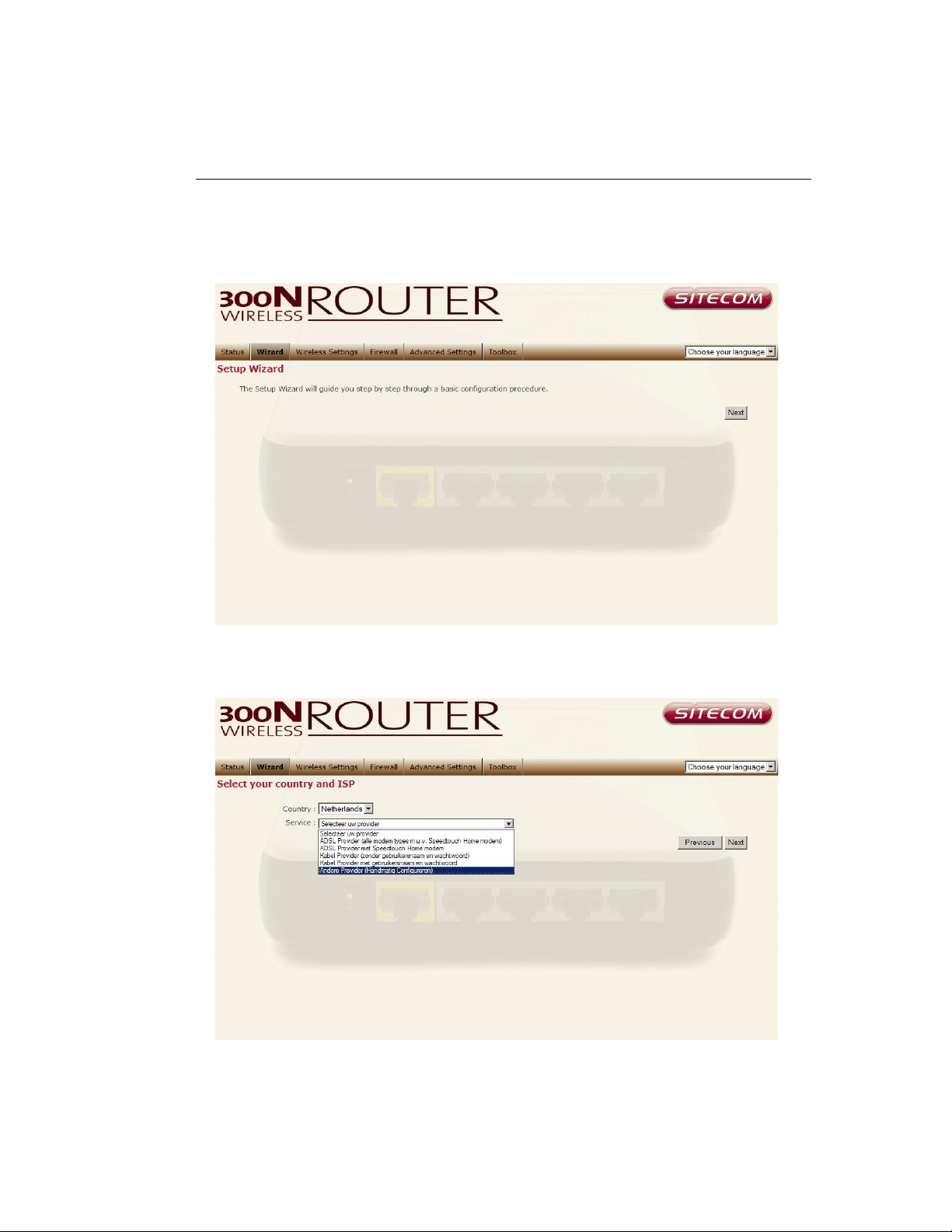

Click Wizard to configure the router. The Setup wizard will now be displayed;

check that the modem is connected and click Next.

Select your country from the Country list. Select your internet provider. Click

Next.

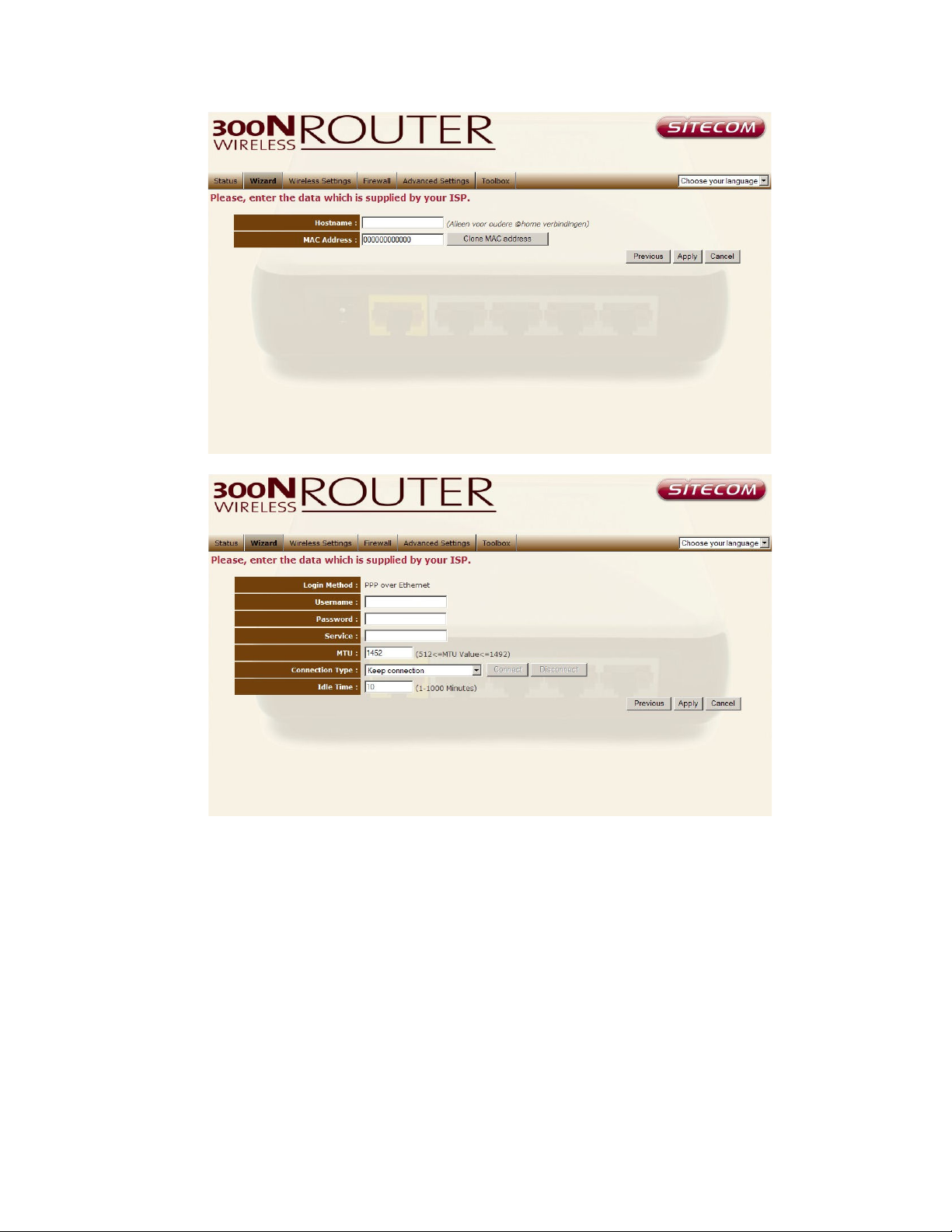

Depending on the chosen provider, you may need to enter your user name
and password, MAC address or hostname in the following window. After you
have entered the correct information, click Next.

Click APPLY to complete the configuration.

11 Wireless Settings

You can set parameters that are used for the wireless stations to connect to this

router. The parameters include Mode, ESSID, Channel Number and Associated

Client.

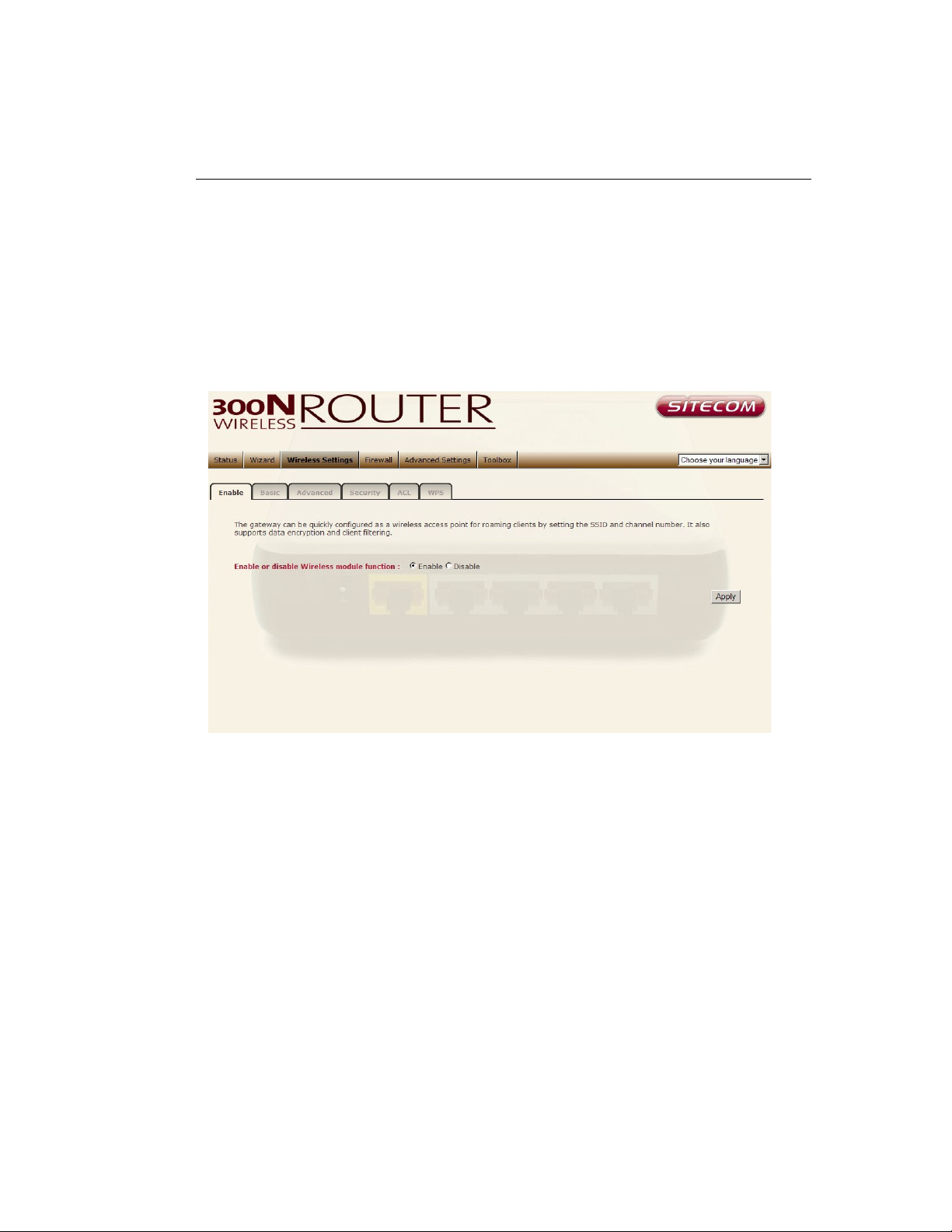

Wireless Function

Enable or Disable Wireless function here. Click Apply and wait for module to

be ready & loaded.

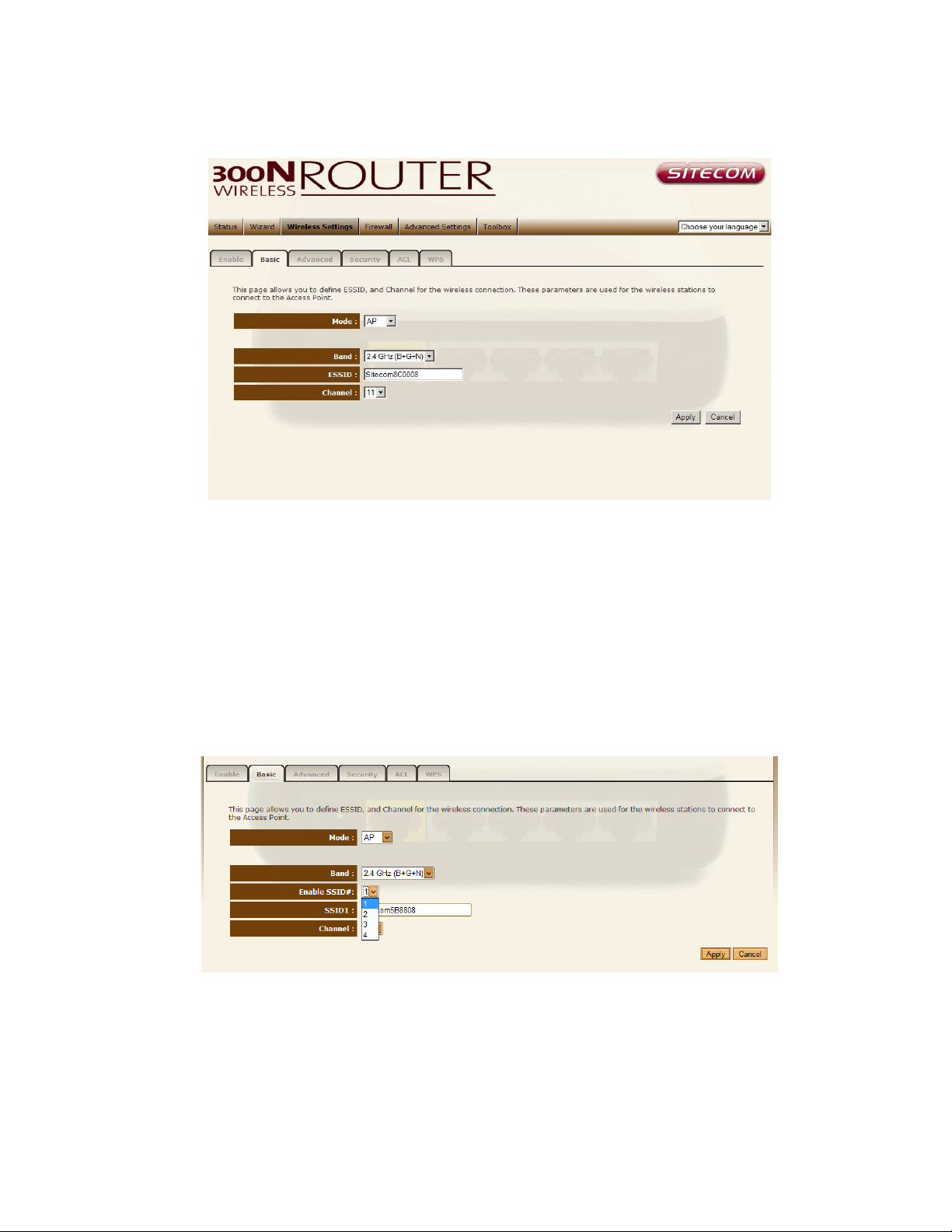

Basic Settings

Mode Allows you to set AP or WDS mode.

Band Allows you to set the AP fixed at 802.11b or 802.11g mode. You can

also select B+G mode to allow 80211b and 802.11g clients at the same time.

Enable SSID # Allows you to enable up to four SSIDs for this router.

SSID This is the name of the wireless signal which is broadcasted. All the

devices in the same wireless LAN should have the same ESSID.

Channel The channel used by the wireless LAN. All devices in the same

wireless LAN should use the same channel.

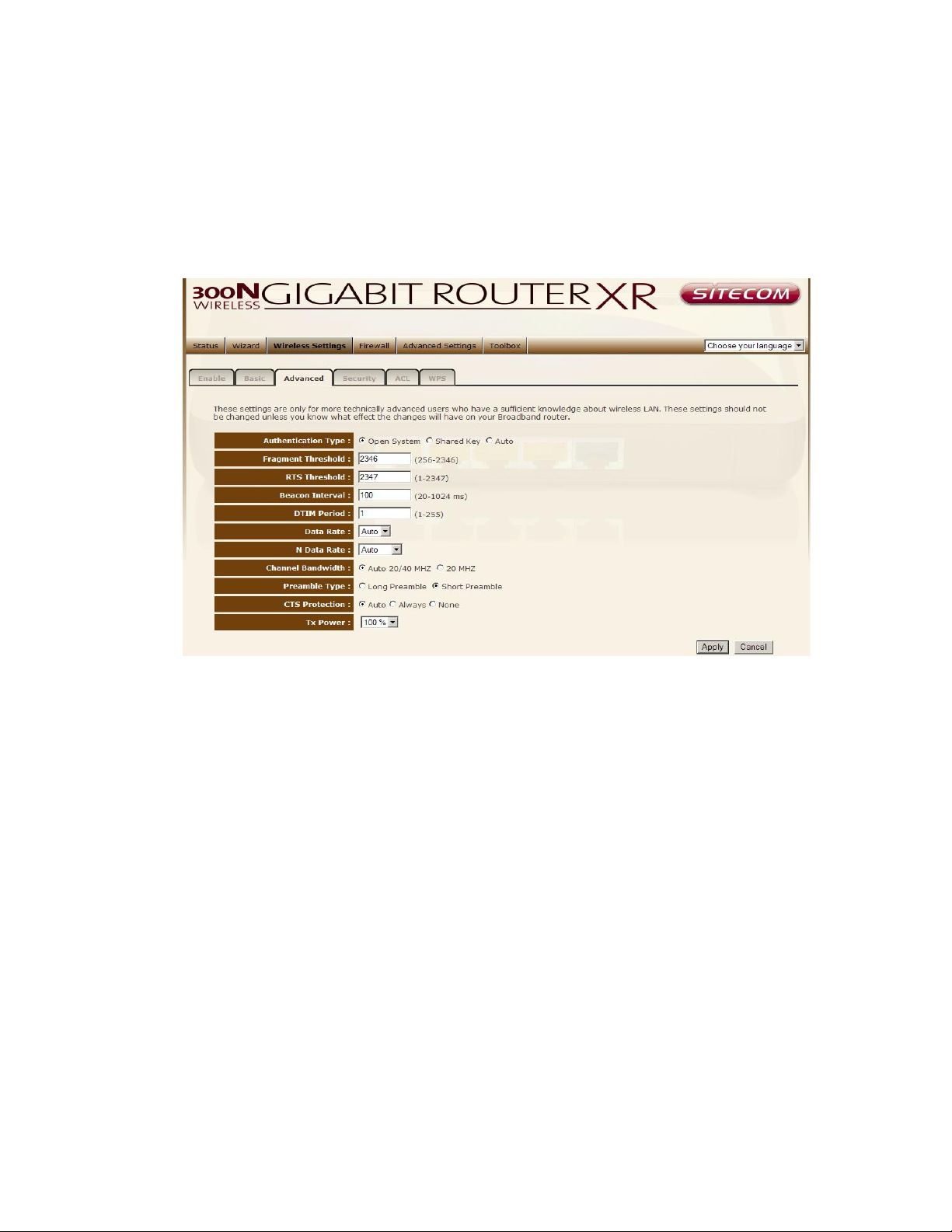

Advanced Settings

This tab allows you to set the advanced wireless options. The options included

are Authentication Type, Fragment Threshold, RTS Threshold, Beacon

Interval, and Preamble Type. You should not change these parameters unless

you know what effect the changes will have on the router.

Authentication Type There are two authentication types: "Open System"

and "Shared Key". When you select "Open System", wireless stations can

associate with this wireless router without WEP encryption. When you select

"Shared Key", you should also setup a WEP key in the "Encryption" page.

After this has been done, make sure the wireless clients that you want to

connect to the device are also setup with the same encryption key.

Fragment Threshold "Fragment Threshold" specifies the maximum size of a

packet during the fragmentation of data to be transmitted. If you set this

value too low, it will result in bad performance.

RTS Threshold When the packet size is smaller then the RTS threshold, the

wireless router will not use the RTS/CTS mechanism to send this packet.

Beacon Interval is the interval of time that this wireless router broadcasts a

beacon. A Beacon is used to synchronize the wireless network.

Data Rate The “Data Rate” is the rate that this access point uses to transmit

data packets. The access point will use the highest possible selected

transmission rate to transmit the data packets.

N Data Rate The “Data Rate” is the rate that this access point uses to

transmit data packets for N compliant wireless nodes. Highest to lowest data

rate can be fixed.

Channel Bandwidth is the range of frequencies that will be used.

Preamble Type The “Long Preamble” can provide better wireless LAN

compatibility while the “Short Preamble” can provide better wireless LAN

performance.

CTS Protection: It is recommended to enable the protection mechanism.

This mechanism can decrease the rate of data collision between 802.11b and

802.11g wireless stations. When the protection mode is enabled, the

throughput of the AP will be a little lower due to a lot of frame-network that is

transmitted.

TX Power can be set to a bare minimum or maximum power.

Security

This Access Point provides complete wireless LAN security functions, included

are WEP, IEEE 802.11x, IEEE 802.11x with WEP, WPA with pre-shared key

and WPA with RADIUS. With these security functions, you can prevent your

wireless LAN from illegal access. Please make sure your wireless stations use

the same security function, and are setup with the same security key.

SSID Selection Here you choose the SSID for which you wish to set the

security.

Broadcast ESSID If you enabled “Broadcast ESSID”, every wireless station

located within the coverage of this access point can discover this access point

easily. If you are building a public wireless network, enabling this feature is

recommended. Disabling “Broadcast ESSID” can provide better security.

WMM WiFi Multi Media if enabled supports QoS for experiencing better audio,

video and voice in applications.

Disable

When you choose to disable encryption, it is very insecure to operate the WL-

351/368.

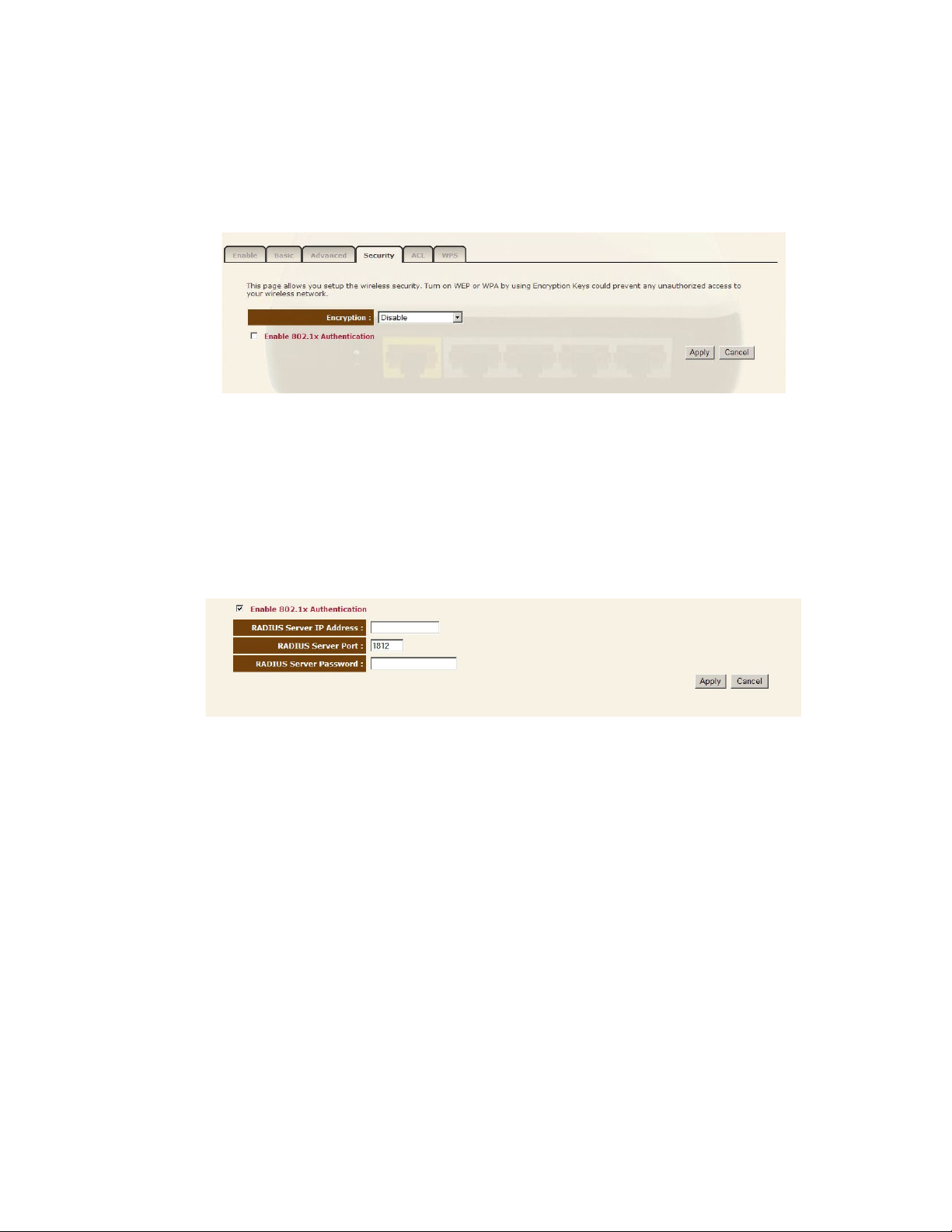

Enable 802.1x Auth

IEEE 802.1x is an authentication protocol. Every user must use a valid

account to login to this Access Point before accessing the wireless LAN. The

authentication is processed by a RADIUS server. This mode only authenticates

users by IEEE 802.1x, but it does not encrypt the data during communication

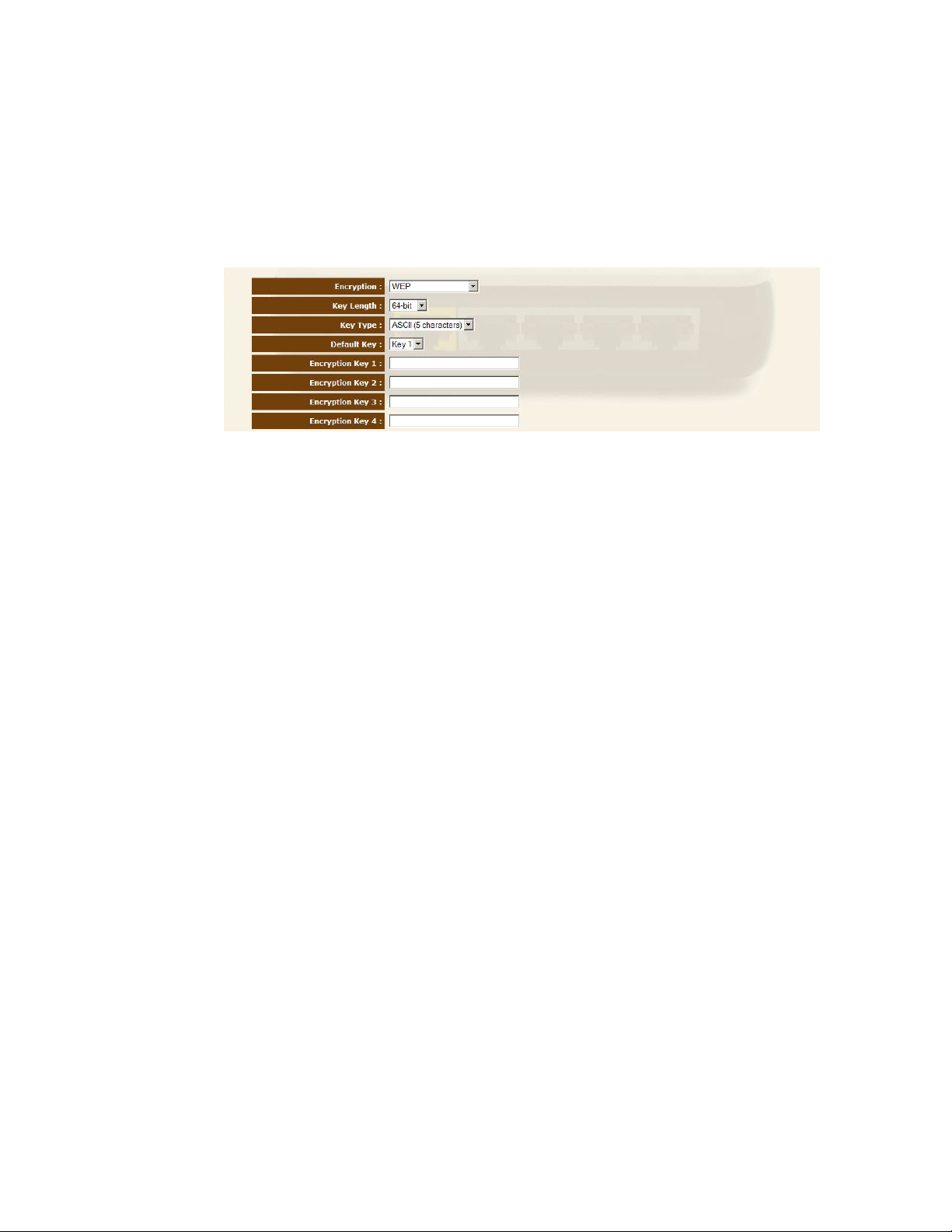

WEP

When you select 64-bit or 128-bit WEP key, you have to enter WEP keys to

encrypt data. You can generate the key by yourself and enter it. You can

enter four WEP keys and select one of them as a default key. Then the router

can receive any packets encrypted by one of the four keys.

Key Length You can select the WEP key length for encryption, 64-bit or 128-

bit. The larger the key will be the higher level of security is used, but the

throughput will be lower.

Key Format You may select ASCII Characters (alphanumeric format) or

Hexadecimal Digits (in the "A-F", "a-f" and "0-9" range) to be the WEP Key.

Key1 - Key4 The WEP keys are used to encrypt data transmitted in the

wireless network. Use the following rules to setup a WEP key on the device.

64-bit WEP: input 10-digits Hex values (in the "A-F", "a-f" and "0-9" range) or

5-digit ASCII character as the encryption keys. 128-bit WEP: input 26-digit

Hex values (in the "A-F", "a-f" and "0-9" range) or 13-digit ASCII characters

as the encryption keys.

Click <Apply> at the bottom of the screen to save the above configurations.

You can now configure other sections by choosing Continue, or choose Apply

to apply the settings and reboot the device.

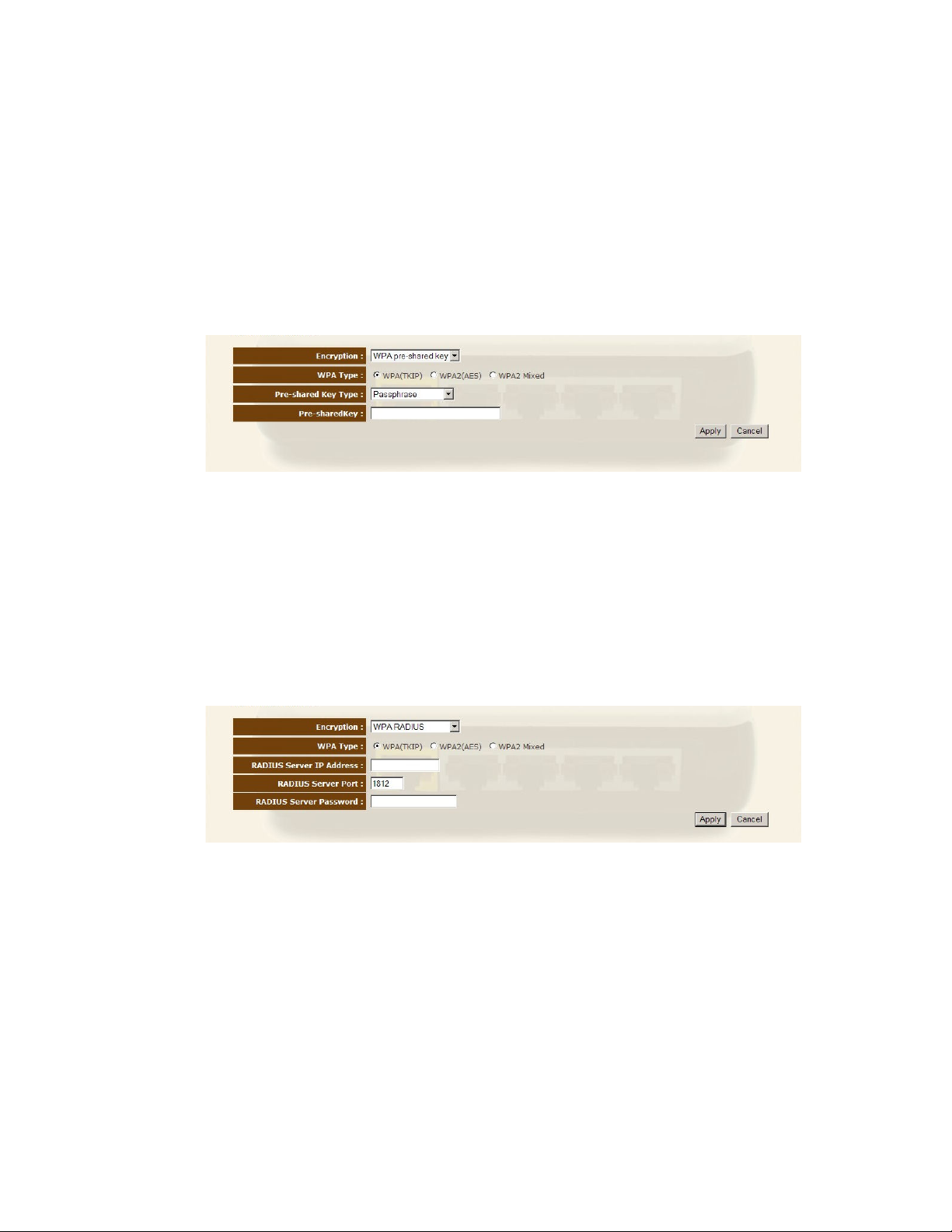

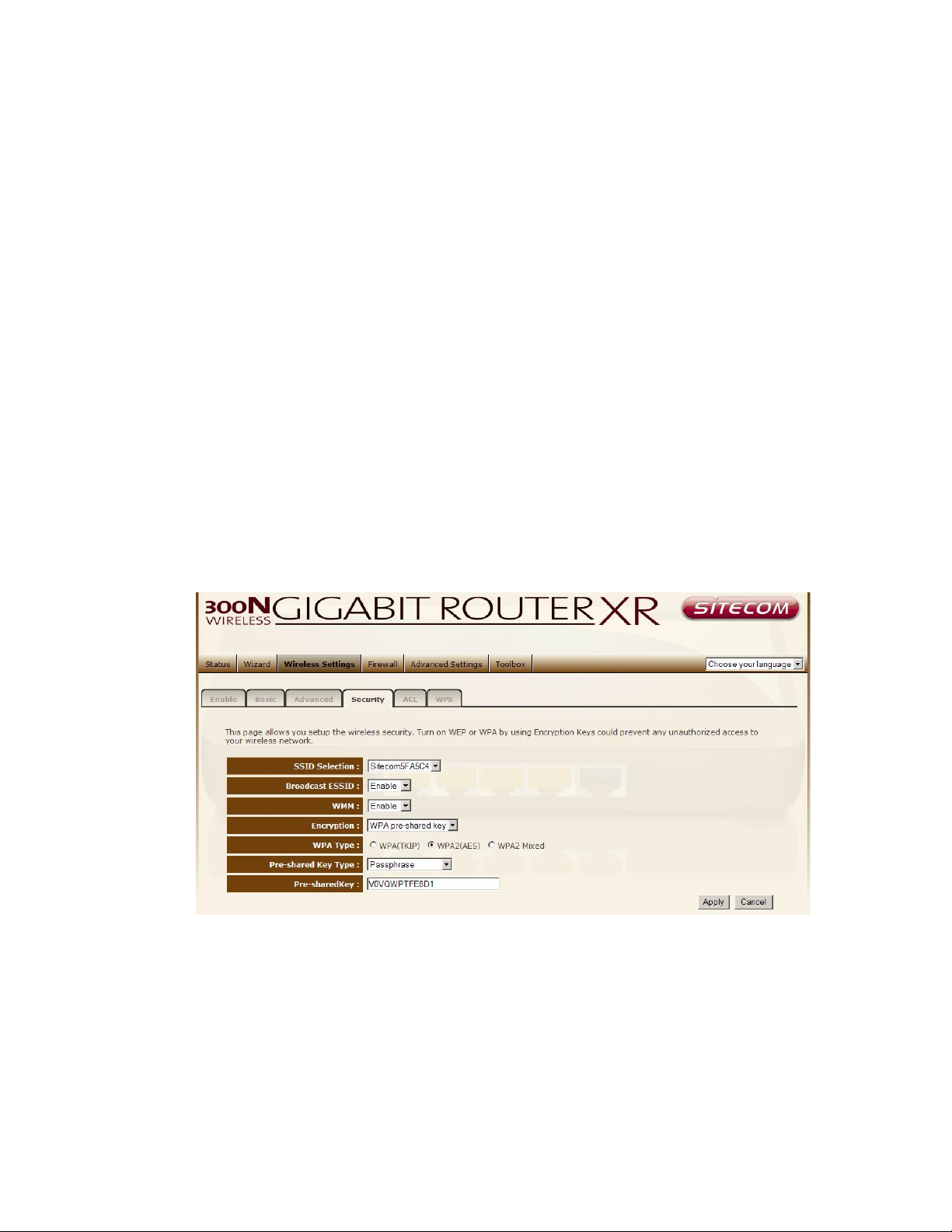

WPA Pre-shared Key

Wi-Fi Protected Access (WPA) is an advanced security standard. You can use a

pre-shared key to authenticate wireless stations and encrypt data during

communication. It uses TKIP or CCMP (AES) to change the encryption key

frequently. So the encryption key is not easy to be cracked by hackers. This is

the best security available.

WPA-Radius

Wi-Fi Protected Access (WPA) is an advanced security standard. You can use

an external RADIUS server to authenticate wireless stations and provide the

session key to encrypt data during communication. It uses TKIP or CCMP

(AES) to change the encryption key frequently. Press Apply button when you

are done.

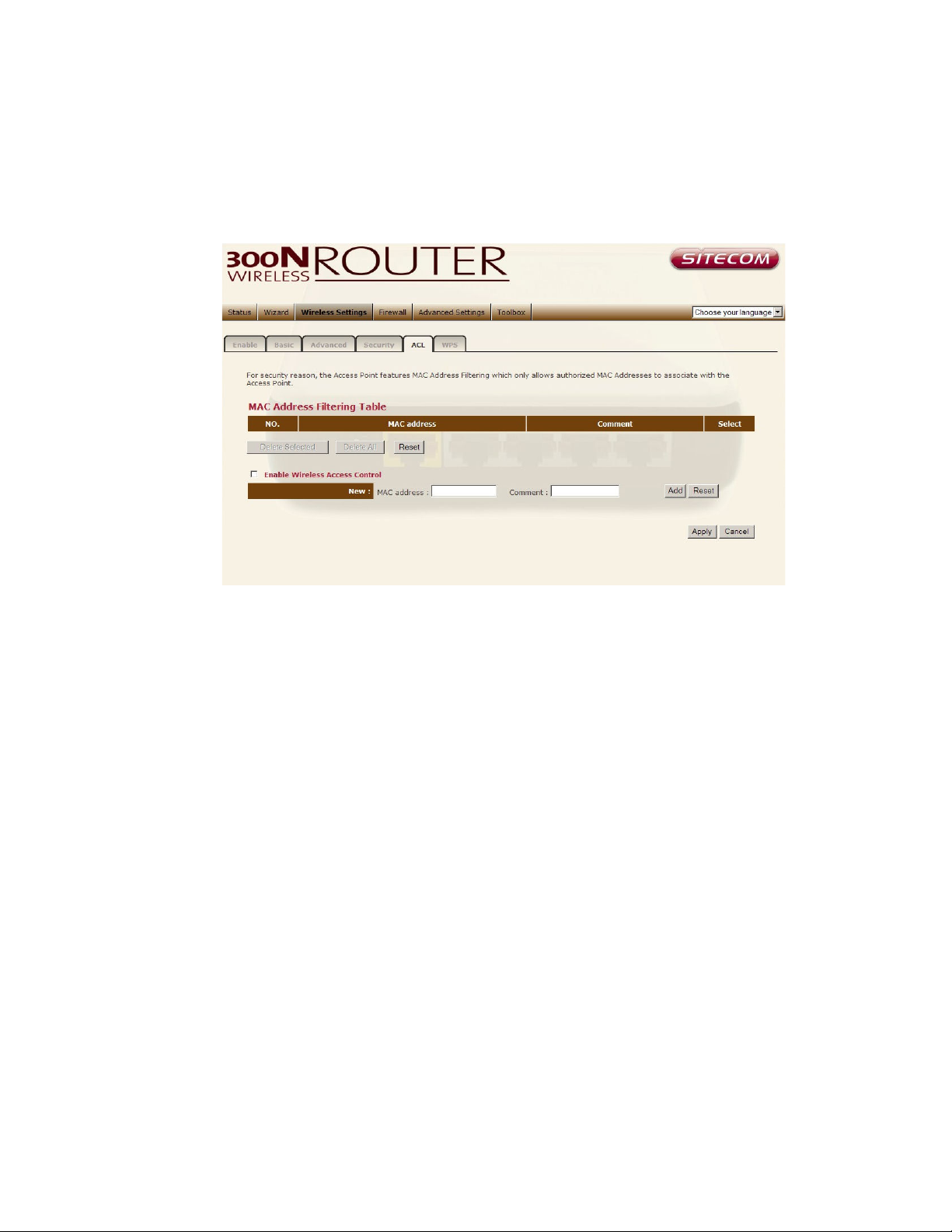

ACL

This wireless router supports MAC Address Control, which prevents

unauthorized clients from accessing your wireless network.

Enable wireless access control Enables the wireless access control function

Adding an address into the list Enter the "MAC Address" and "Comment"

of the wireless station to be added and then click "Add". The wireless station

will now be added into the "Current Access Control List" below. If you are

having any difficulties filling in the fields, just click "Clear" and both "MAC

Address" and "Comment" fields will be cleared.

Remove an address from the list If you want to remove a MAC address

from the "Current Access Control List ", select the MAC address that you want

to remove in the list and then click "Delete Selected". If you want to remove

all the MAC addresses from the list, just click the "Delete All" button. Click

"Reset" will clear your current selections.

Click <Apply> at the bottom of the screen to save the above configurations.

You can now configure other sections by choosing Continue, or choose Apply

to apply the settings and reboot the device.

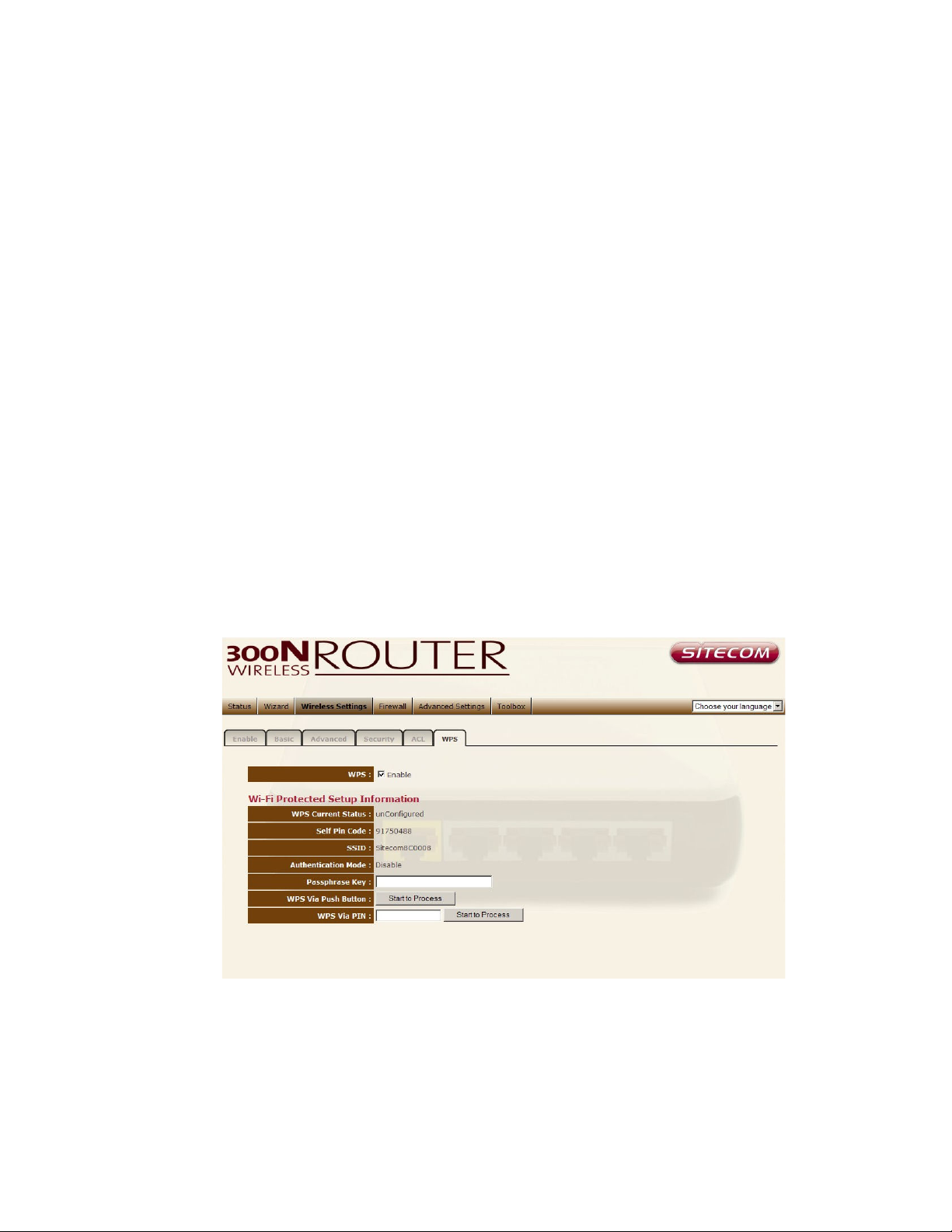

WPS

Wi-Fi Protected Setup (WPS) is the simplest way to establish a connection

between the wireless clients and the wireless router. You don’t have to select

the encryption mode and fill in a long encryption passphrase every time when

you try to setup a wireless connection. You only need to press a button on

both wireless client and wireless router, and WPS will do the rest for you.

The wireless router supports two types of WPS: WPS via Push Button and

WPS via PIN code. If you want to use the Push Button, you have to push a

specific button on the wireless client or in the utility of the wireless client to

start the WPS mode, and switch the wireless router to WPS mode. You can

simply push the WPS button of the wireless router, or click the ‘Start to

Process’ button in the web configuration interface. If you want to use the PIN

code, you have to know the PIN code of the wireless client and switch it to

WPS mode, then fill-in the PIN code of the wireless client through the web

configuration interface of the wireless router.

WPS Check the box to enable WPS function and uncheck it to disable the

WPS function.

WPS Current Status If the wireless security (encryption) function of this

wireless router is properly set, you’ll see a ‘Configured’ message here.

Otherwise, you’ll see ‘UnConfigured’.

Self Pin Code This is the WPS PIN code of the wireless router. You may need

this information when connecting to other WPS-enabled wireless devices.

SSID This is the network broadcast name (SSID) of the router.

Authentication Mode It shows the active authentication mode for the

wireless connection.

Passphrase Key It shows the passphrase key that is randomly generated by

the wireless router during the WPS process. You may need this information

when using a device which doesn’t support WPS.

WPS via Push Button Press the button to start the WPS process. The router

will wait for the WPS request from the wireless devices within 2 minutes.

WPS via PIN You can fill-in the PIN code of the wireless device and press the

button to start the WPS process. The router will wait for the WPS request

from the wireless device within 2 minutes.

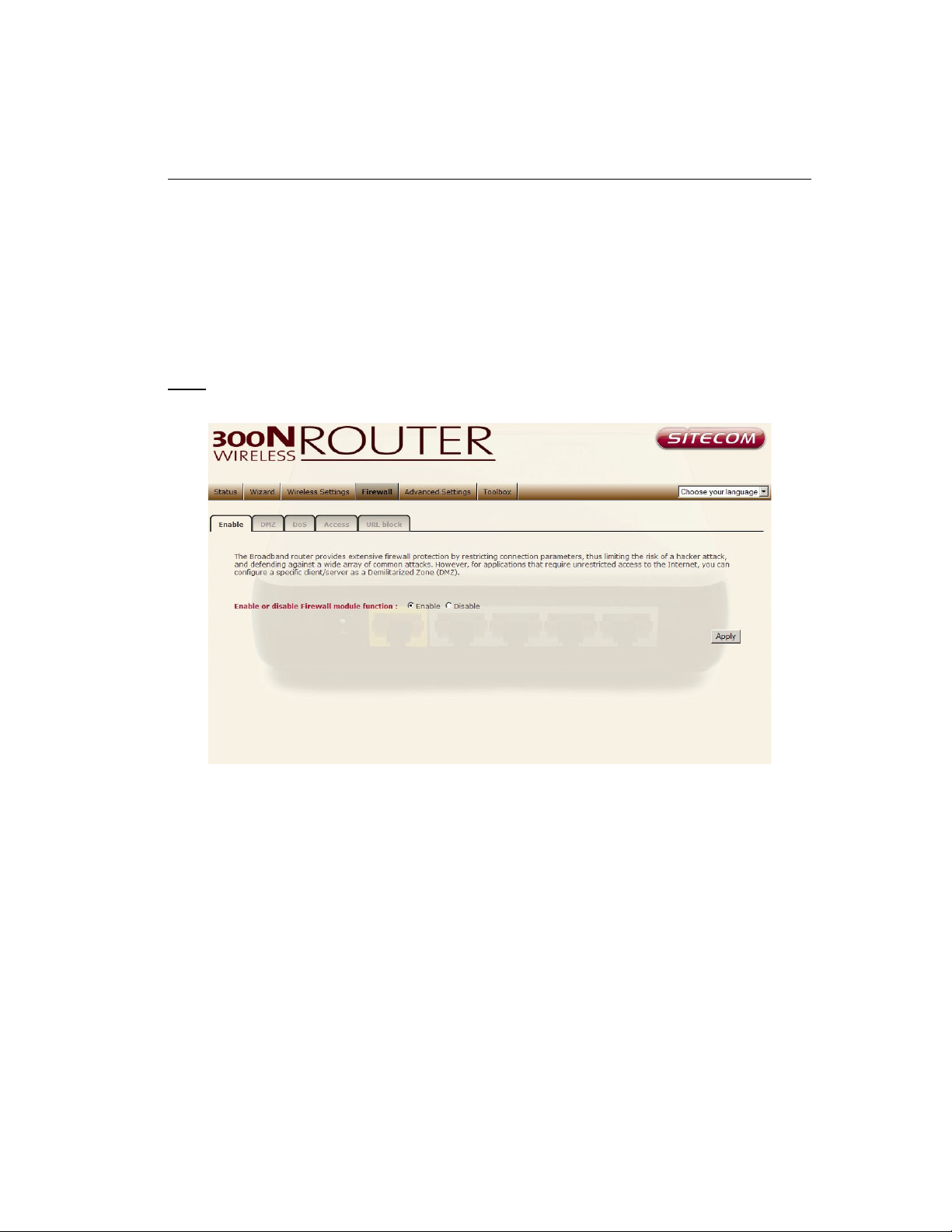

12 Firewall Settings

The Broadband router provides extensive firewall protection by restricting

connection parameters, thus limiting the risk of hacker attacks, and defending

against a wide array of common Internet attacks. However, for applications that

require unrestricted access to the Internet, you can configure a specific

client/server as a Demilitarized Zone (DMZ).

Note: To enable the Firewall settings select Enable and click Apply

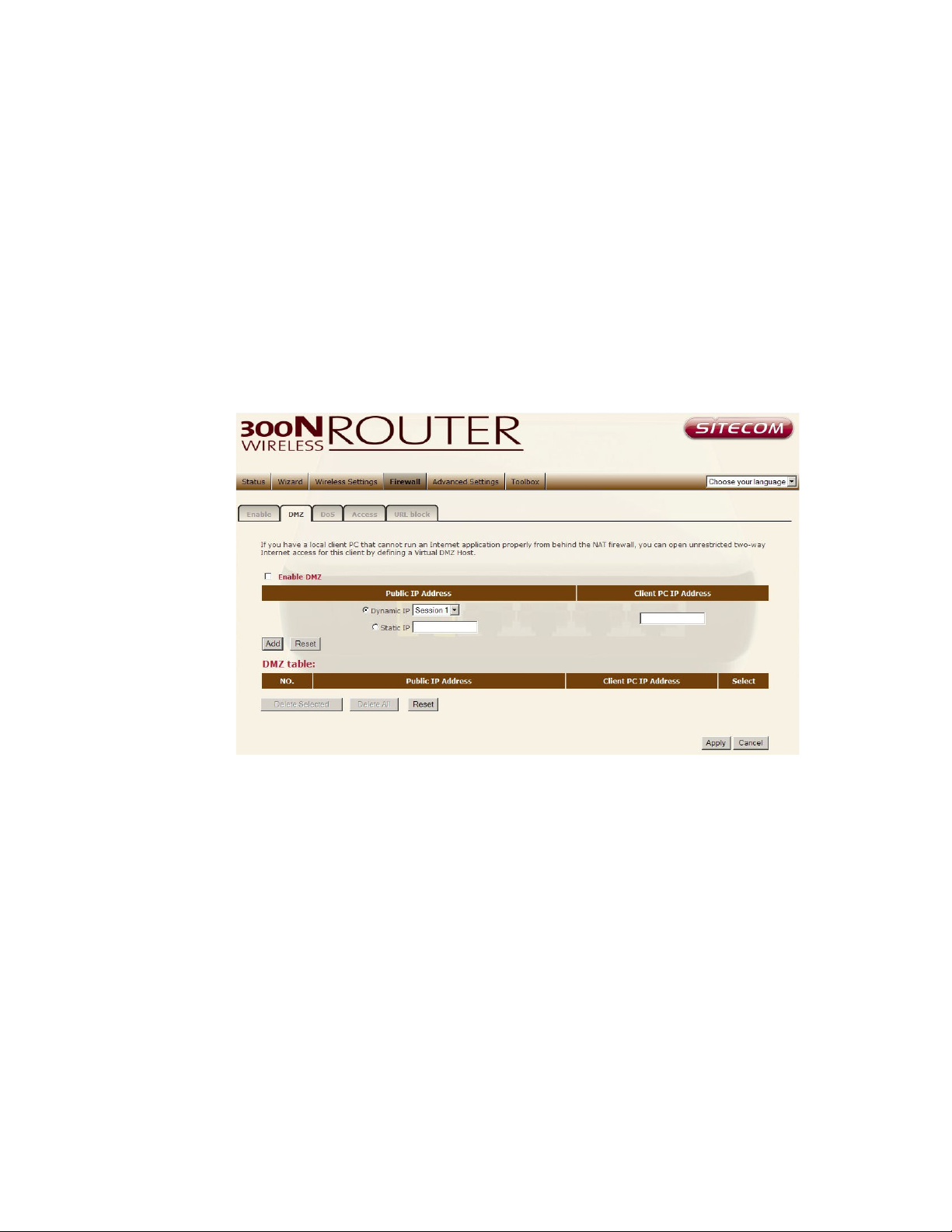

DMZ

If you have a client PC that cannot run an Internet application (e.g. Games)

properly from behind the NAT firewall, then you can open up the firewall

restrictions to unrestricted two-way Internet access by defining a DMZ Host.

The DMZ function allows you to re-direct all packets going to your WAN port

IP address to a particular IP address in your LAN. The difference between the

virtual server and the DMZ function is that the virtual server re-directs a

particular service/Internet application (e.g. FTP, websites) to a particular LAN

client/server, whereas DMZ re-directs all packets (regardless of services)

going to your WAN IP address to a particular LAN client/server.

Enable DMZ Enable/disable DMZ

Public IP Address The IP address of the WAN port or any other Public IP

addresses given to you by your ISP

Client PC IP Address Fill-in the IP address of a particular host in your LAN

that will receive all the packets originally going to the WAN port/Public IP

address above.

Click <Apply> at the bottom of the screen to save the above configurations.

Denial of Service (DoS)

The Broadband router's firewall can block common hacker attacks, including

Denial of Service, Ping of Death, Port Scan and Sync Flood. If Internet attacks

occur the router can log the events.

Ping of Death Protections from Ping of Death attack

Discard Ping From WAN The router’s WAN port will not respond to any Ping

requests

Port Scan Protects the router from Port Scans.

Sync Flood Protects the router from Sync Flood attack.

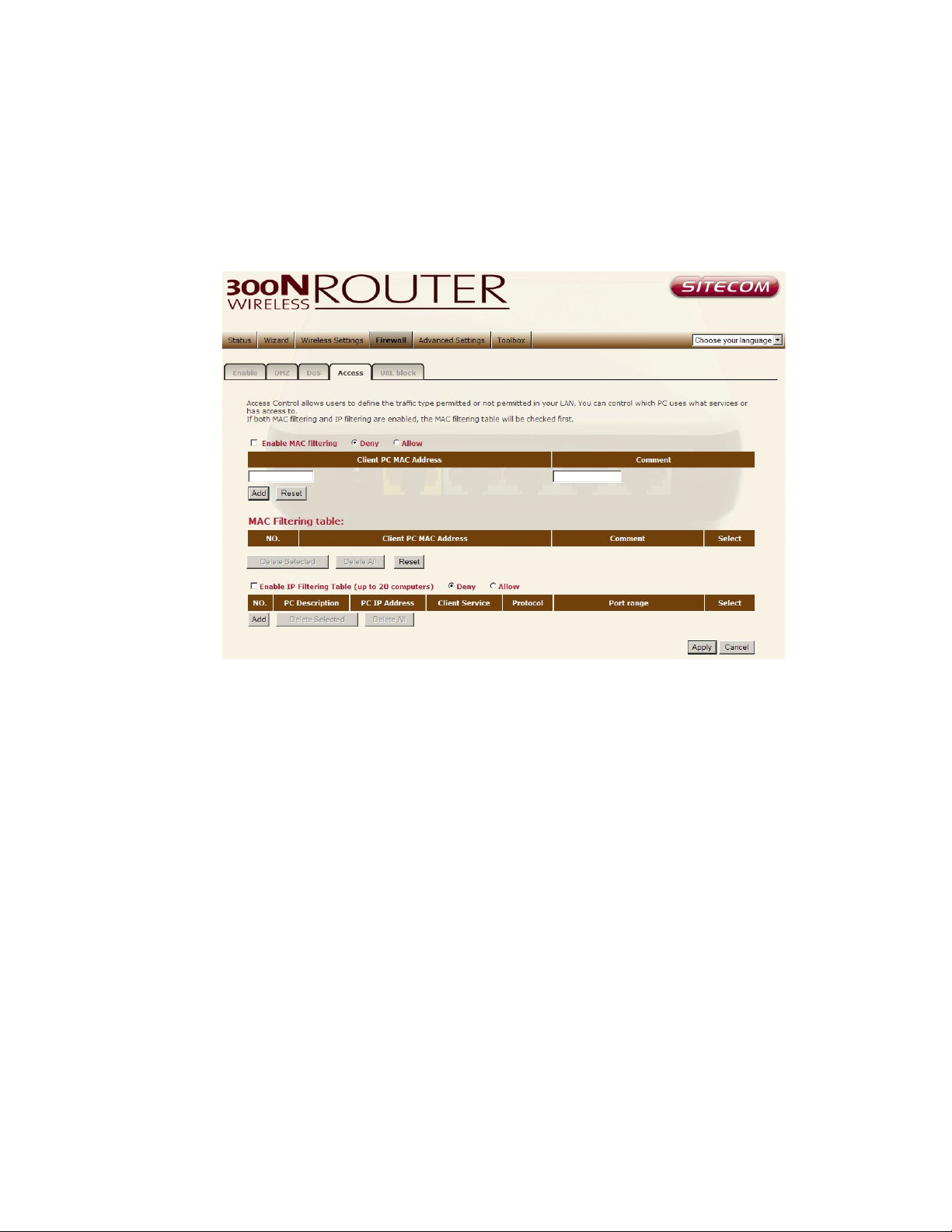

Access

You can restrict users from accessing certain Internet applications/services

(e.g. Internet websites, email, FTP etc.), Access Control allows users to define

the traffic type permitted in your LAN. You can control which PC client can

have access to these services.

Deny If you select “Deny” then all clients will be allowed to access Internet

accept for the clients in the list below.

Allow If you select “Allow” then all clients will be denied to access Internet

accept for the PCs in the list below.

Filter client PCs by IP Fill in “IP Filtering Table” to filter PC clients by IP.

Add PC You can click Add PC to add an access control rule for users by IP

addresses.

Remove PC If you want to remove some PCs from the "IP Filtering Table",

select the PC you want to remove in the table and then click “Delete

Selected". If you want to remove all PCs from the table, just click the "Delete

All" button.

Filter client PC by MAC Check “Enable MAC Filtering” to enable MAC

Filtering.

Add PC Fill in “Client PC MAC Address” and “Comment” of the PC that is

allowed to access the Internet, and then click “Add”. If you find any typo

before adding it and want to retype again, just click "Reset" and the fields will

be cleared.

Remove PC If you want to remove some PC from the "MAC Filtering Table",

select the PC you want to remove in the table and then click "Delete

Selected". If you want to remove all PCs from the table, just click the "Delete

All" button. If you want to clear the selection and re-select again, just click

“Reset”.

Click <Apply> at the bottom of the screen to save the above configuration.

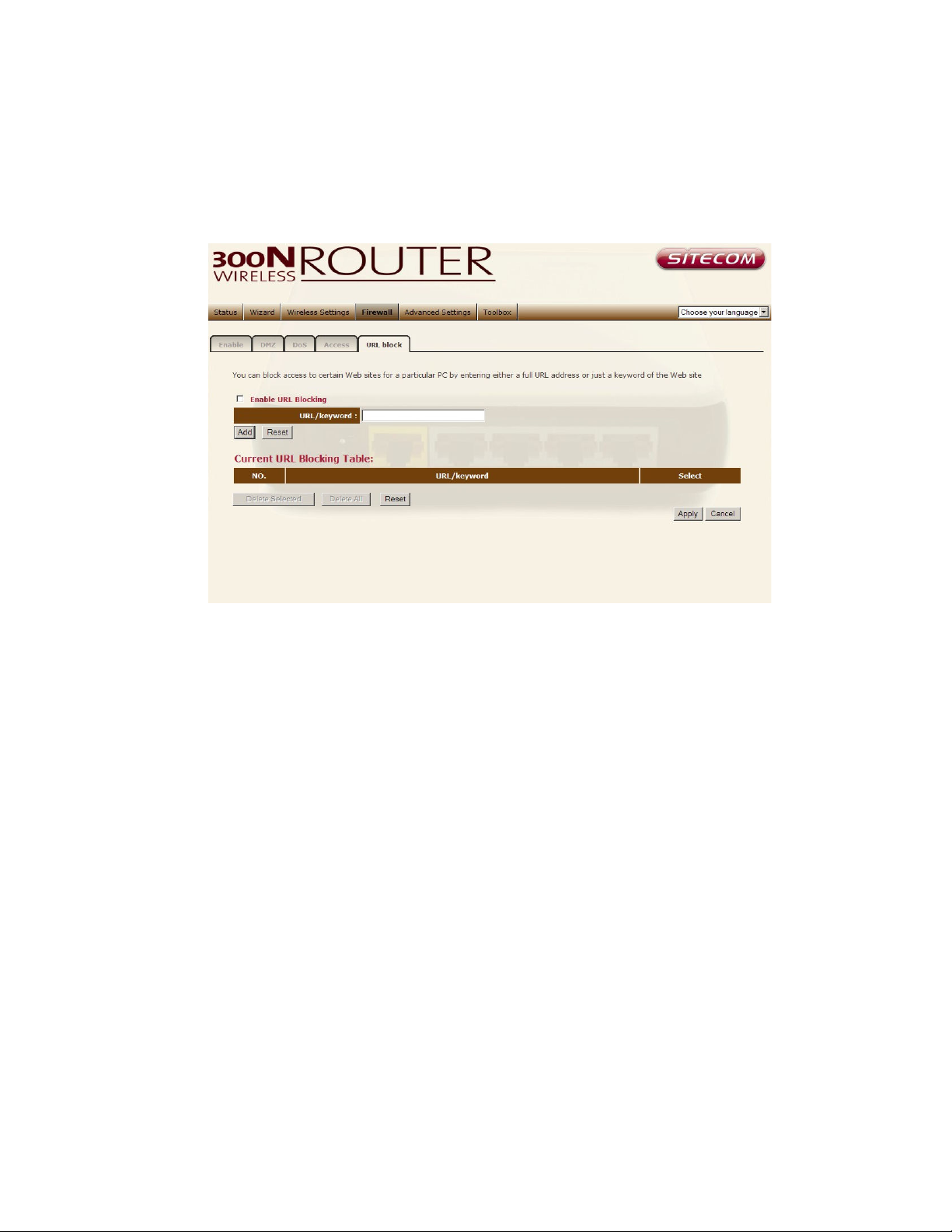

URL block

You can block access to some Web sites from particular PCs by entering a full

URL address or just keywords of the Web site.

Enable URL Blocking Enable/disable URL Blocking

Add URL Keyword Fill in “URL/Keyword” and then click “Add”. You can enter

the full URL address or the keyword of the web site you want to block.

Remove URL Keyword If you want to remove some URL keywords from the

"Current URL Blocking Table", select the URL keyword you want to remove in

the table and then click "Delete Selected". If you want remove all URL

keywords from the table, just click "Delete All" button. If you want to clear

the selection and re-select again, just click “Reset”.

Click <Apply> at the bottom of the screen to save the above configurations

13 Advanced Settings

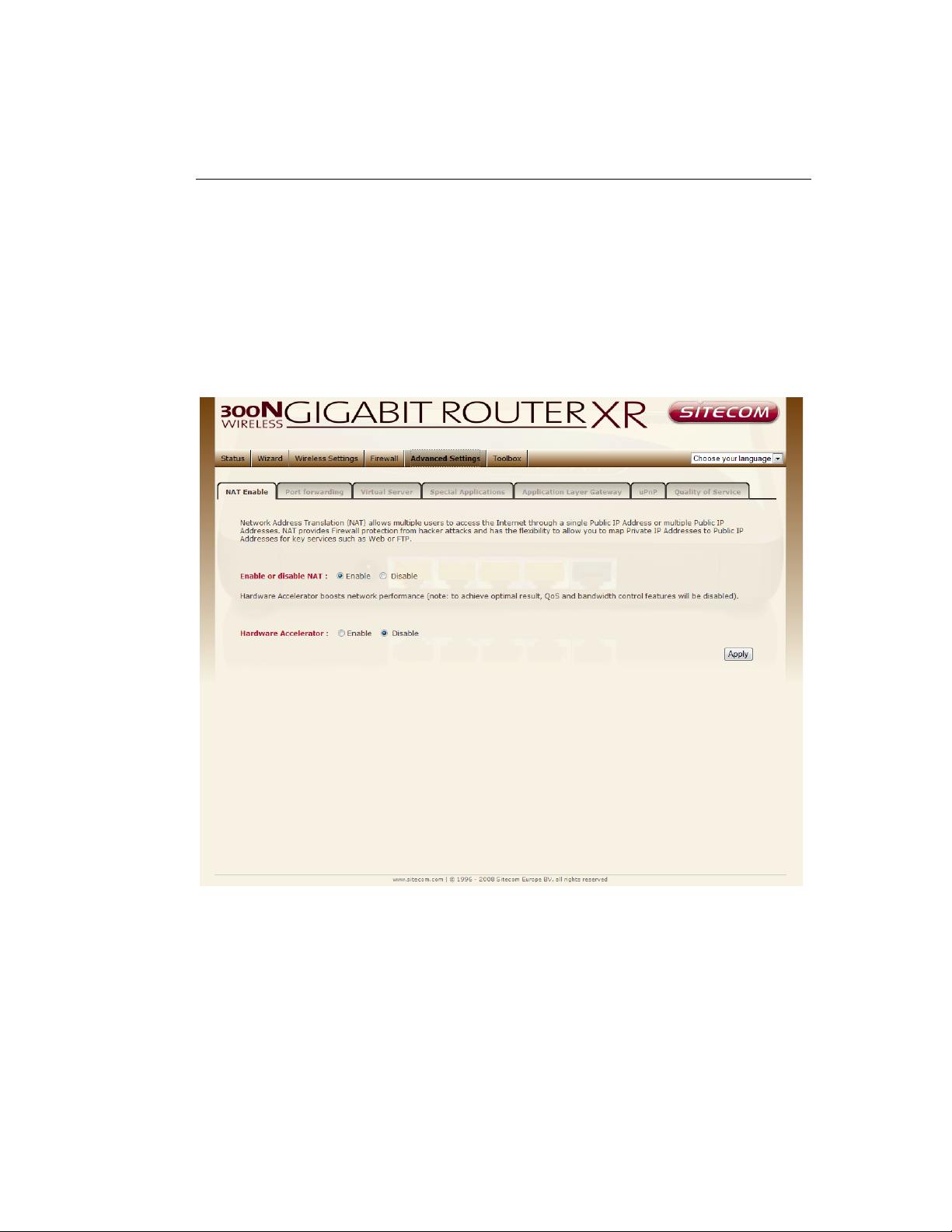

Network Address Translation (NAT) allows multiple users at your local site to

access the Internet through a single Public IP Address or multiple Public IP

Addresses. NAT provides Firewall protection from hacker attacks and has the

flexibility to allow you to map Private IP Addresses to Public IP Addresses for

key services such as Websites and FTP. Select Disable to disable the NAT

function.

Hardware accelerator boosts network performance. Enable this feature to
reach (internet)speeds up to 400Mbps. (Note: to achieve optimal results,
the QOS and Bandwidth control features will be disabled.)

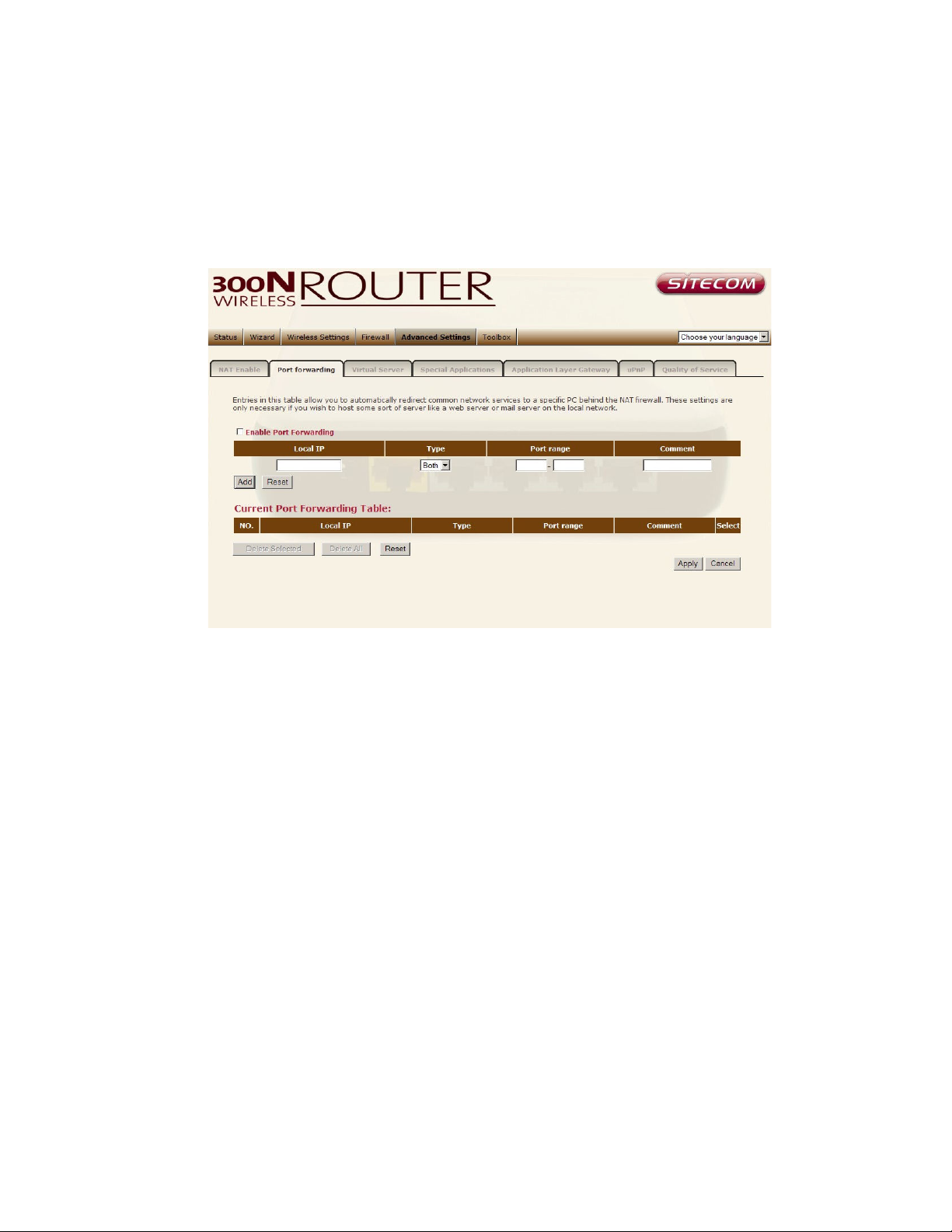

Port Forwarding

Port Forwarding allows you to re-direct a particular range of service port

numbers (from the Internet/WAN Port) to a particular LAN IP address. It helps

you to host servers behind the router NAT firewall.

Enable Port Forwarding Enable Port Forwarding

Private IP This is the private IP of the server behind the NAT firewall.

Type This is the protocol type to be forwarded. You can choose to forward

“TCP” or “UDP” packets only, or select “both” to forward both “TCP” and “UDP”

packets.

Port Range The range of ports to be forward to the private IP.

Comment description of this setting.

Add Port Forwarding Fill in the "Private IP", “Type”, “Port Range” and

"Comment" of the setting to be added and then click "Add". Then this Port

Forwarding setting will be added into the "Current Port Forwarding Table"

below.

Remove Port Forwarding If you want to remove a Port Forwarding setting

from the "Current Port Forwarding Table", select the Port Forwarding setting

that you want to remove in the table and then click "Delete Selected". If you

want to remove all Port Forwarding settings from the table, just click "Delete

All" button. Click "Reset" will clear your current selections.

Virtual Server

Use the Virtual Server function when you want different servers/clients in

your LAN to handle different service/Internet application type (e.g. Email,

FTP, Web server etc.) from the Internet. Computers use numbers called port

numbers to recognize a particular service/Internet application type. The

Virtual Server allows you to re-direct a particular service port number (from

the Internet/WAN Port) to a particular LAN private IP address and its service

port number.

Enable Virtual Server Enable Virtual Server.

Private IP This is the LAN client/host IP address that the Public Port number

packet will be sent to.

Private Port This is the port number (of the above Private IP host) that the

below Public Port number will be changed to when the packet enters your

LAN (to the LAN Server/Client IP)

Type Select the port number protocol type (TCP, UDP or both). If you are

unsure, then leave it to the default “both” setting. Public Port Enter the

service (service/Internet application) port number from the Internet that will

be re-directed to the above Private IP address host in your LAN

Comment The description of this setting.

Add Virtual Server Fill in the "Private IP", "Private Port", "Type", “Public

Port” and "Comment" of the setting to be added and then click "Add". Then

this Virtual Server setting will be added into the "Current Virtual Server Table"

below.

Remove Virtual Server If you want to remove Virtual Server settings from

the "Current Virtual Server Table", select the Virtual Server settings you want

to remove in the table and then click "Delete Selected". If you want to

remove all Virtual Server settings from the table, just click the "Delete All"

button. Click "Reset" will clear your current selections.

Click <Apply> at the bottom of the screen to save the above configurations.

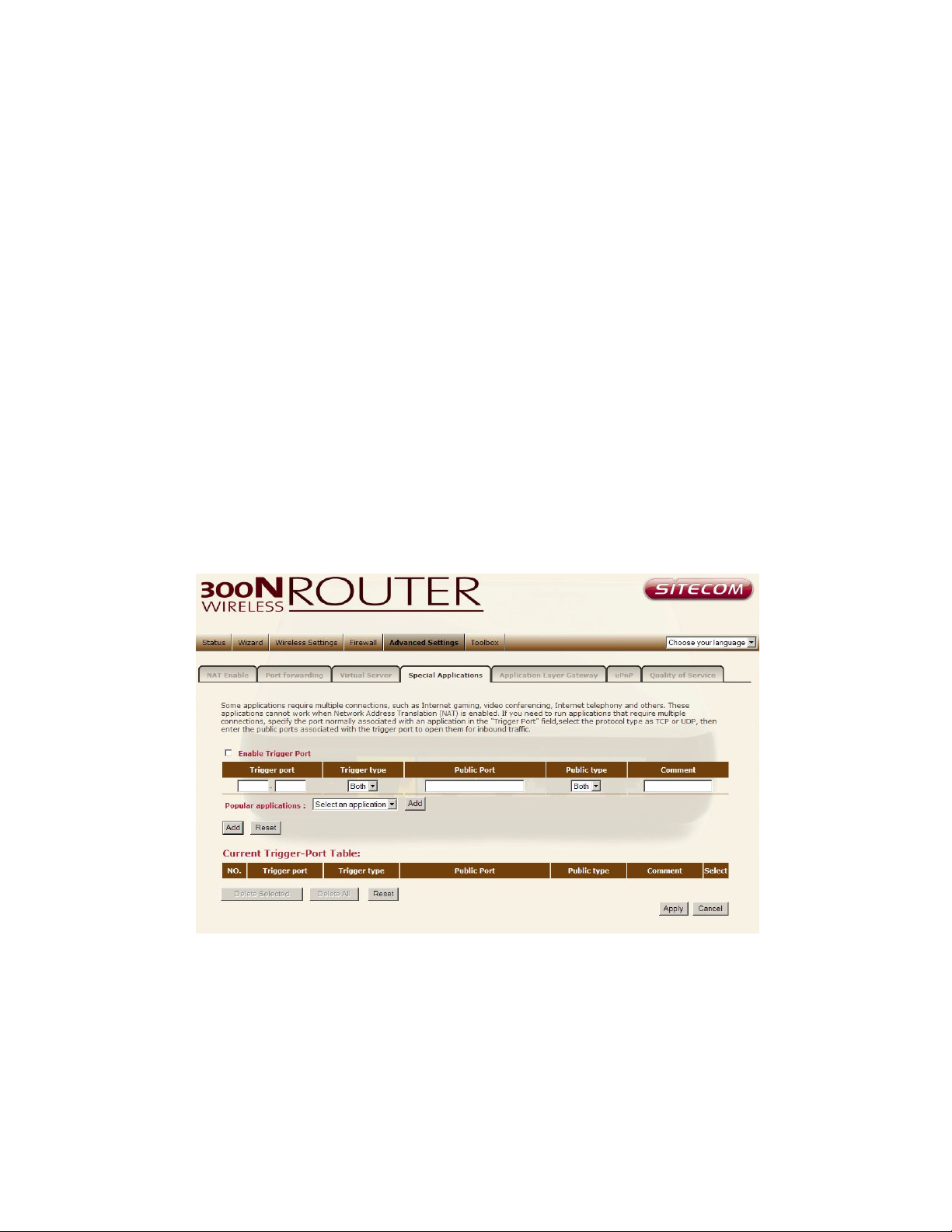

Special Applications

Some applications require multiple connections, such as Internet games,

video Conferencing, Internet telephony and others. In this section you can

configure the router to support multiple connections for these types of

applications.

Enable Trigger Port Enable the Special Application function.

Trigger Port This is the out going (Outbound) range of port numbers for this

particular application.

Trigger Type Select whether the outbound port protocol is “TCP”, “UDP” or

both.

Public Port Enter the In-coming (Inbound) port or port range for this type of

application (e.g. 2300-2400, 47624)

Public Type Select the Inbound port protocol type: “TCP”, “UDP” or both

Comment The description of this setting.

Popular applications This section lists the more popular applications that

require multiple connections. Select an application from the Popular

Applications selection. Once you have selected an application, select a

location (1-10) in the Copy to selection box and then click the Copy to button.

This will automatically list the Public Ports required for this popular application

in the location (1-10) you specified.

Add Special Application Fill in the "Trigger Port", "Trigger Type”, “Public

Port”, "Public Type", "Public Port" and "Comment" of the setting to be added

and then click "Add". The Special Application setting will be added into the

"Current Trigger-Port Table" below. If you happen to make a mistake, just

click "Clear" and the fields will be cleared.

Remove If you want to remove Special Application settings from the "Current

Trigger-Port Table", select the Special Application settings you want to remove

in the table and then click "Delete Selected". If you want remove all Special

Application settings from the table, just click the "Delete All" button. Click

"Reset" will clear your current selections.

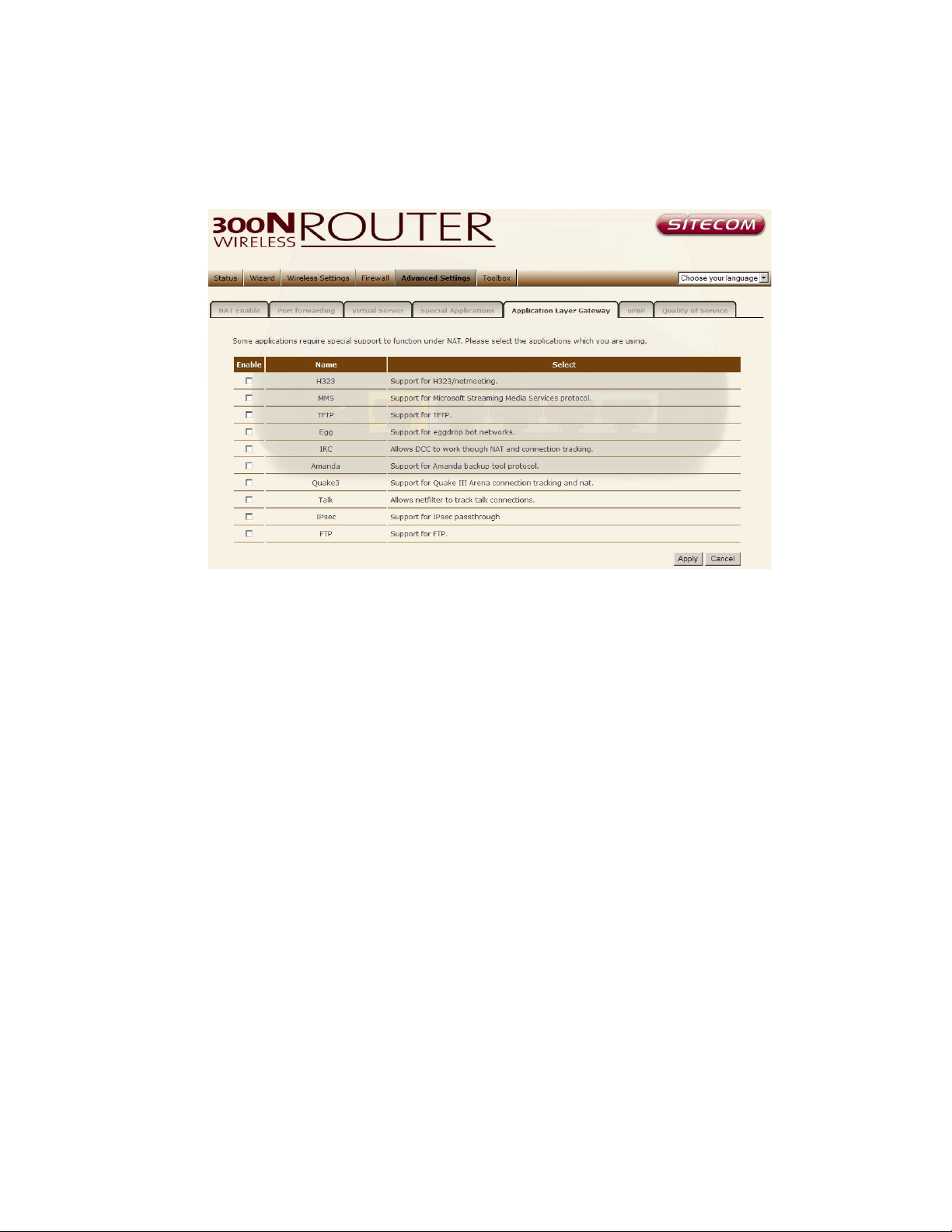

ALG

You can select applications that need “Application Layer Gateway” support.

Enable select enable “Application Layer Gateway”, then the router will let the

selected application correctly pass through the NAT gateway.

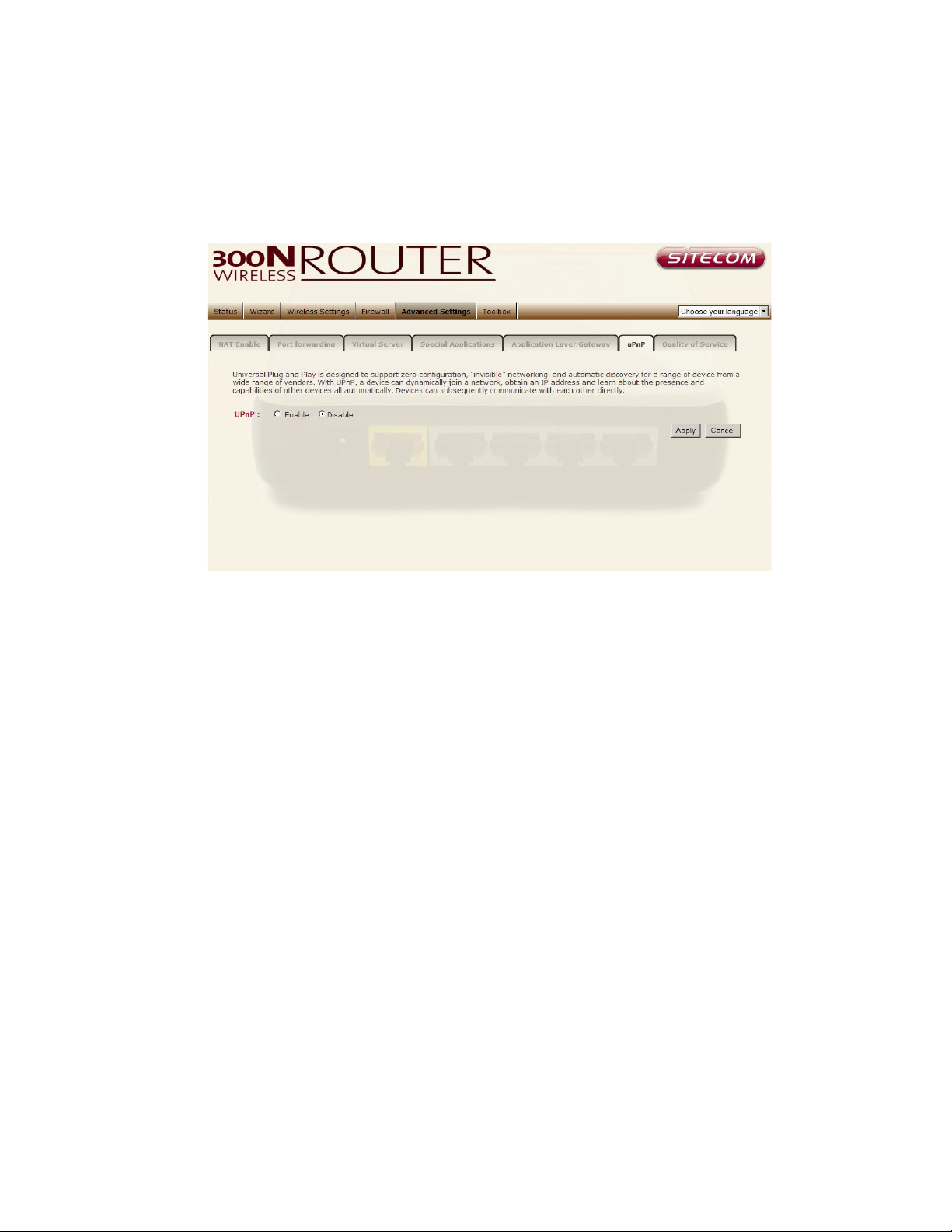

UPNP

With UPnP, all PCs in you Intranet will discover this router automatically, so

you don’t have to configure your PC and it can easily access the Internet

through this router.

UPnP Feature You can enable or Disable the UPnP feature here. After you

enable the UPnP feature, all client systems that support UPnP, like Windows

XP, can discover this router automatically and access the Internet through this

router without having to configure anything. The NAT Traversal function

provided by UPnP can let applications that support UPnP connect to the

internet without having to configure the virtual server sections.

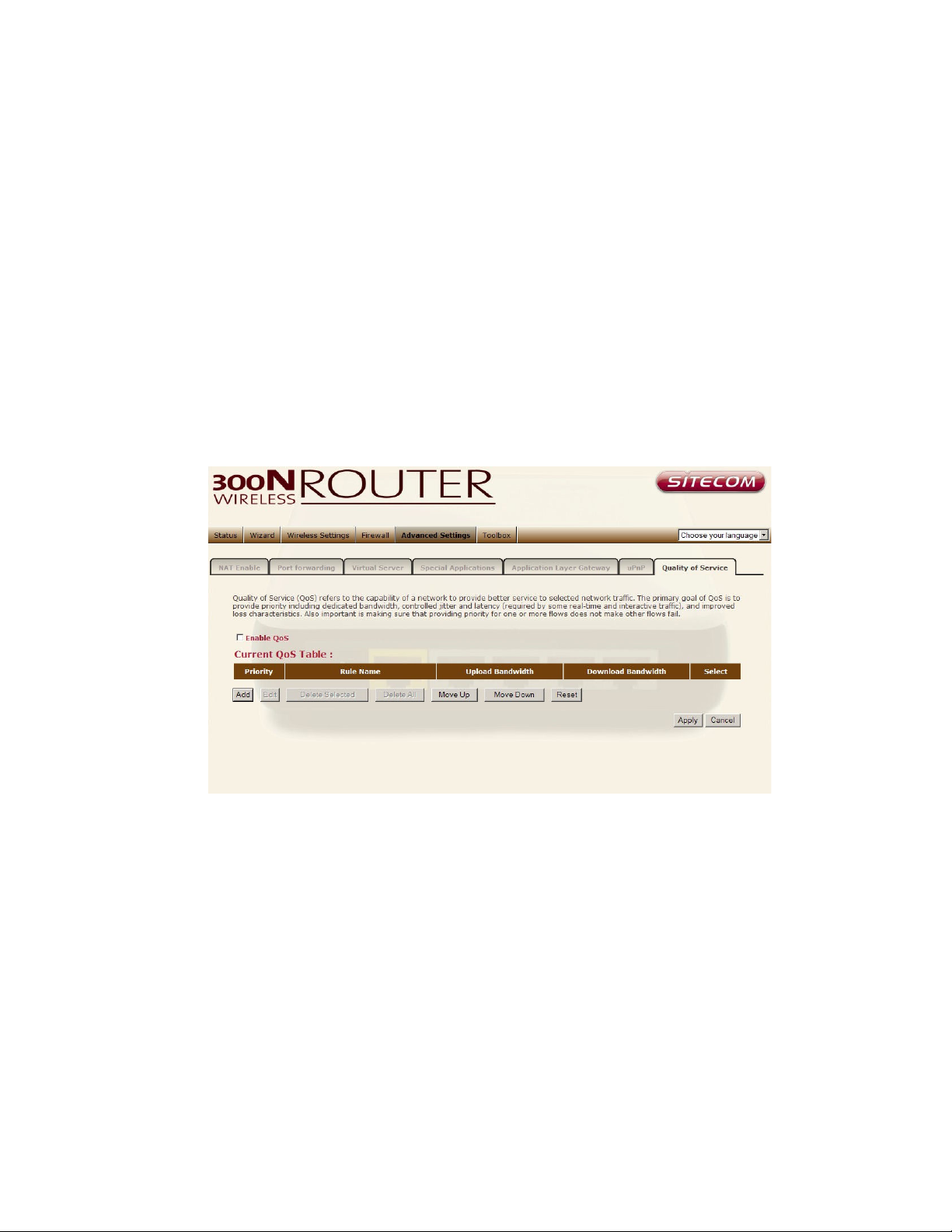

QoS

QoS can let you classify Internet application traffic by source/destination IP

address and port number. You can assign priority for each type of application

and reserve bandwidth for it. The packets of applications with higher priority

will always go first. Lower priority applications will get bandwidth after higher

priority applications get enough bandwidth. This can let you have a better

experience in using critical real time services like Internet phone, video

conference …etc. All the applications not specified by you are classified as rule

name “Others”. The rule with a smaller priority number has a higher priority;

the rule with a larger priority number has a lower priority. You can adjust the

priority of the rules by moving them up or down.

Enable/Disable QoS You can check “Enable QoS” to enable QoS

functionality for the WAN port.

Add a QoS rule into the table Click “Add” then enter a form of the QoS

rule. Click “Apply” after filling out the form the rule will be added into the

table.

Remove QoS rules from the table If you want to remove QoS rules from

the table, select the QoS rules you want to remove in the table and then click

"Delete Selected". If you want remove all QoS rules from the table, just click

the "Delete All" button. Clicking "Reset" will clear your current selections.

Edit a QoS rule Select the rule you want to edit and click “Edit”, then enter

the detail form of the QoS rule. Click “Apply” after editing the form and the

rule will be saved.

Adjust QoS rule priority You can select the rule and click “Move Up” to

make its priority higher. You also can select the rule and click “Move Down” to

make its priority lower.

14 TOOLBOX Settings

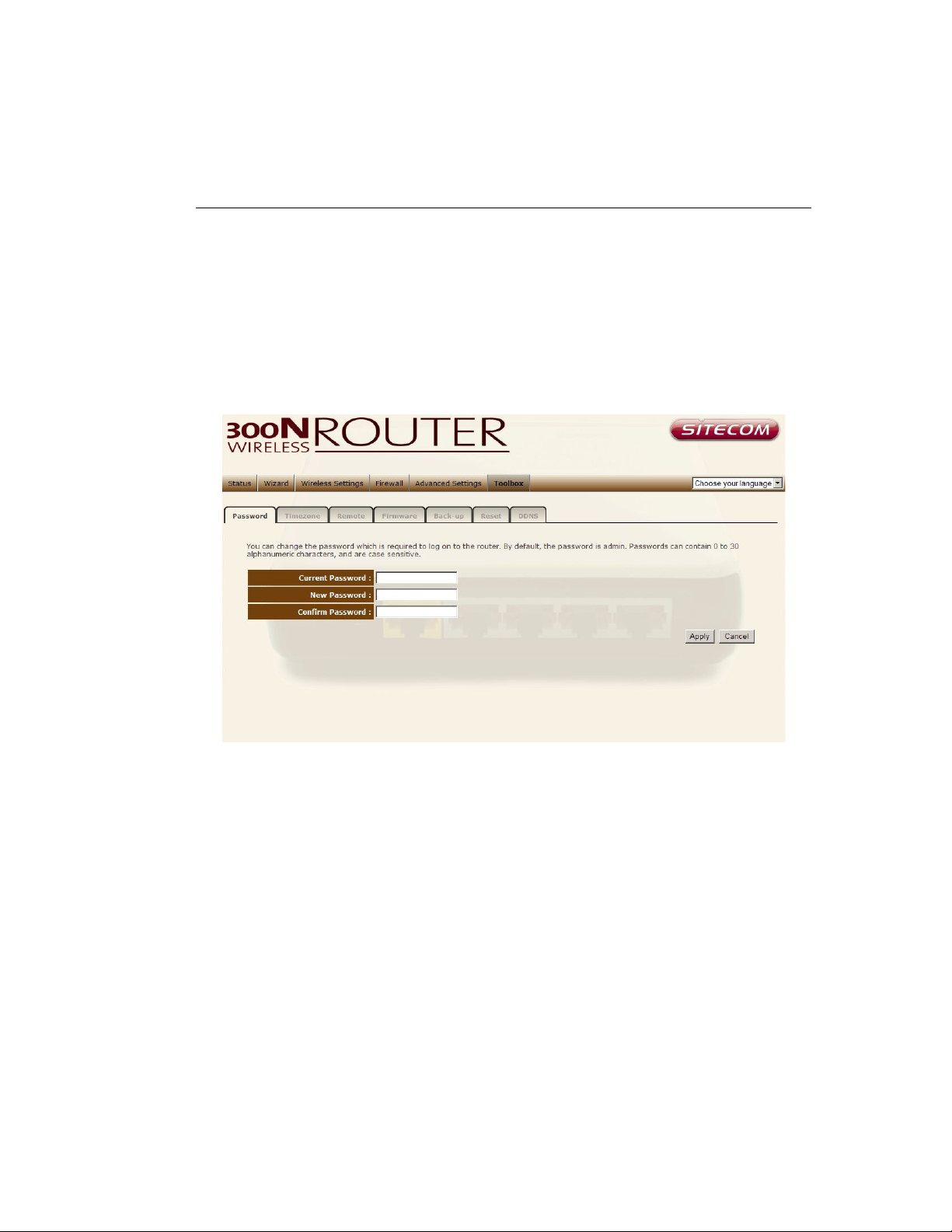

Password change options

You can change the password required to log into the broadband router's

system web-based management. By default, the password is: admin.

Passwords can contain 0 to 12 alphanumeric characters, and are case

sensitive.

Current Password Fill in the current password to allow changing to a new

password.

New Password Enter your new password.

Confirmed Password Enter your new password again for verification

purposes.

Click <Apply> at the bottom of the screen to save the above configurations

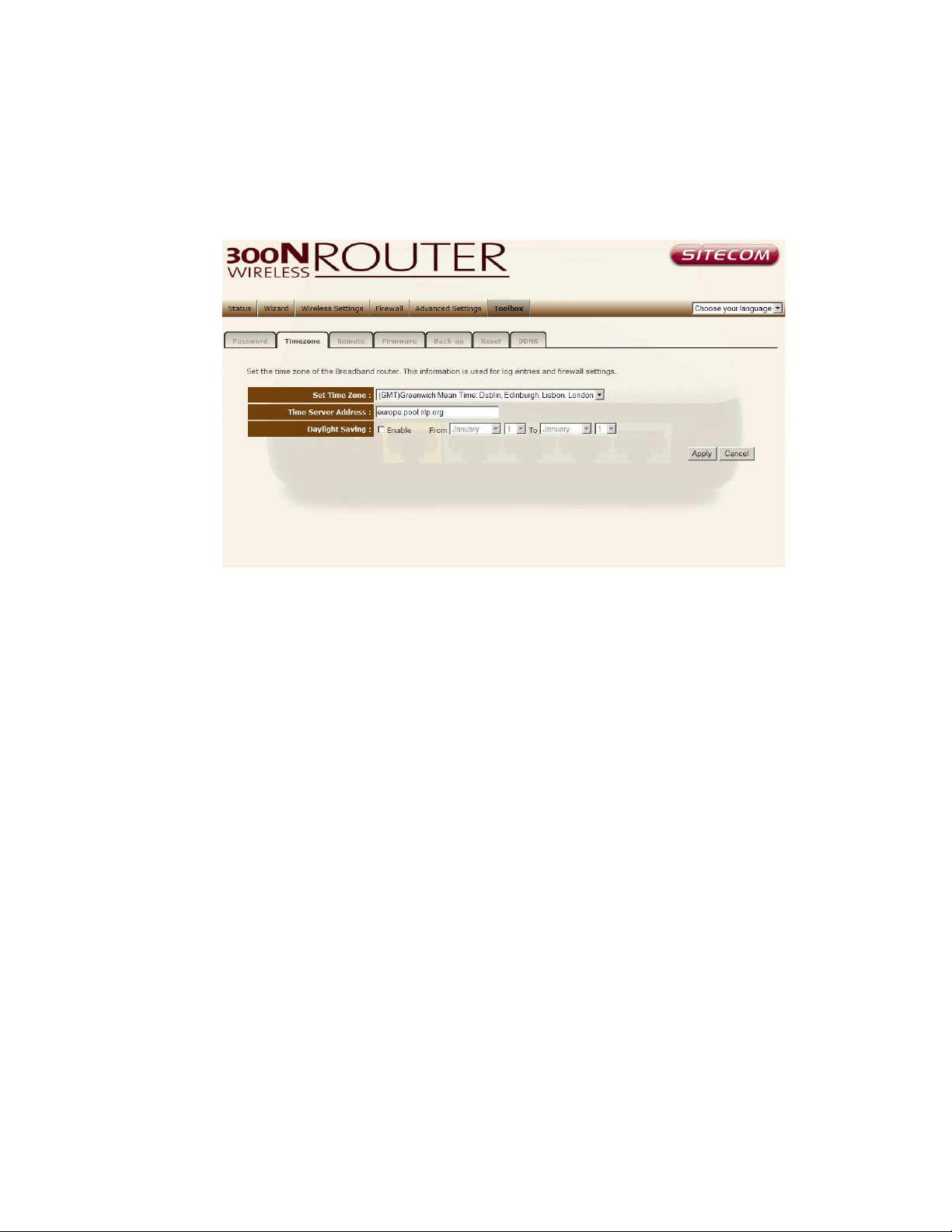

Time Zone

The Time Zone allows your router to base its time on the settings configured

here, which will affect functions such as Log entries and Firewall settings.

Set Time Zone Select the time zone of the country you are currently in. The

router will set its time based on your selection.

Time Server Address You can set an NTP server address.

Enable Daylight Savings The router can also take Daylight savings into

account. If you wish to use this function, you must check/tick the enable box

to enable your daylight saving configuration (below).

Start Daylight Savings Time Select the period in which you wish to start

daylight Savings Time

End Daylight Savings Time Select the period in which you wish to end

daylight Savings Time

Click <Apply> at the bottom of the screen to save the above configurations

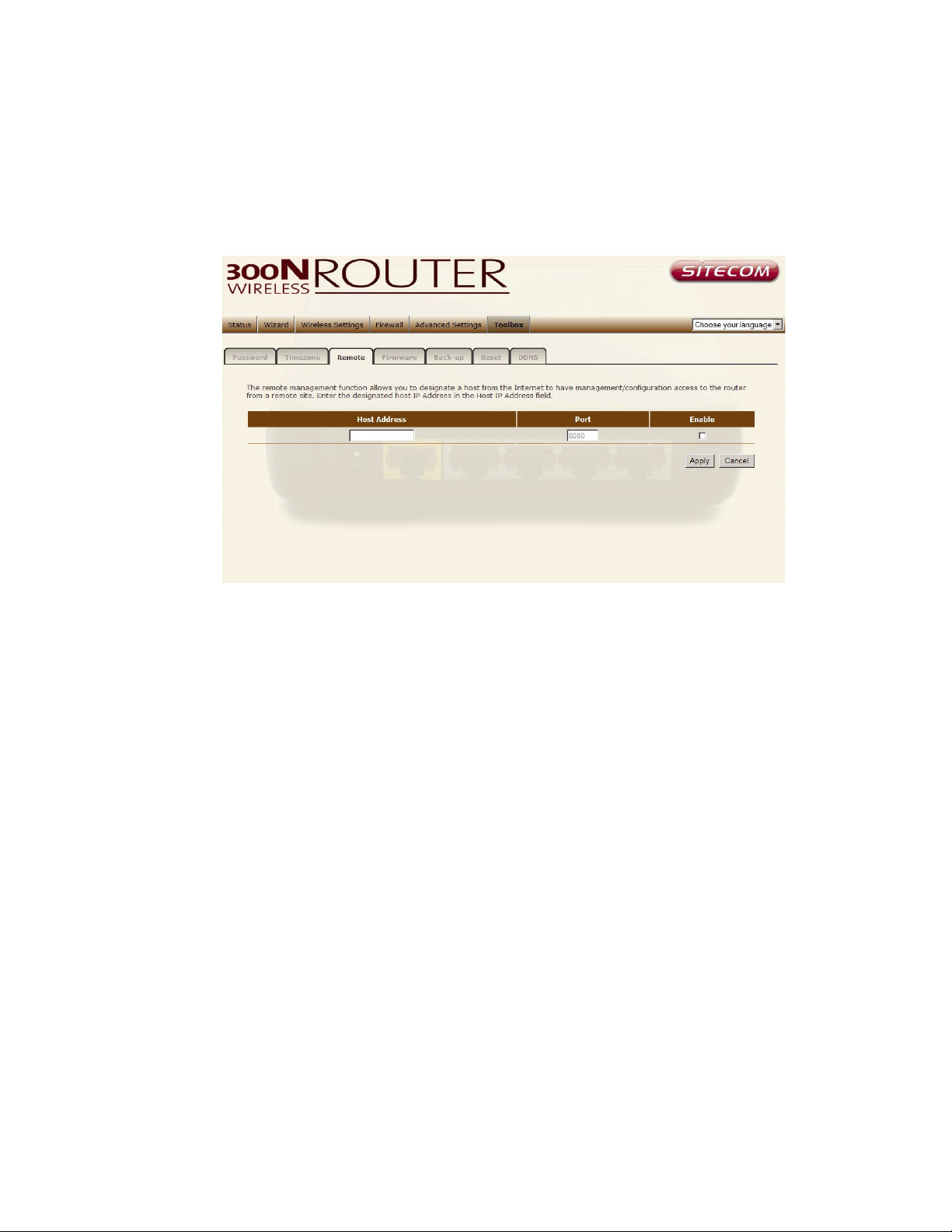

Remote Management

The remote management function allows you to designate a host in the

Internet the ability to configure the Broadband router from a remote site.

Enter the designated host IP Address in the Host IP Address field.

Host Address This is the IP address of the host in the Internet that will have

management/configuration access to the Broadband router from a remote

site. If the Host Address is left 0.0.0.0 this means anyone can access the

router’s web-based configuration from a remote location, providing they know

the password.

Port The port number of the remote management web interface.

Enabled Select “Enabled” to enable the remote management function.

Click <Apply> at the bottom of the screen to save the above configurations.

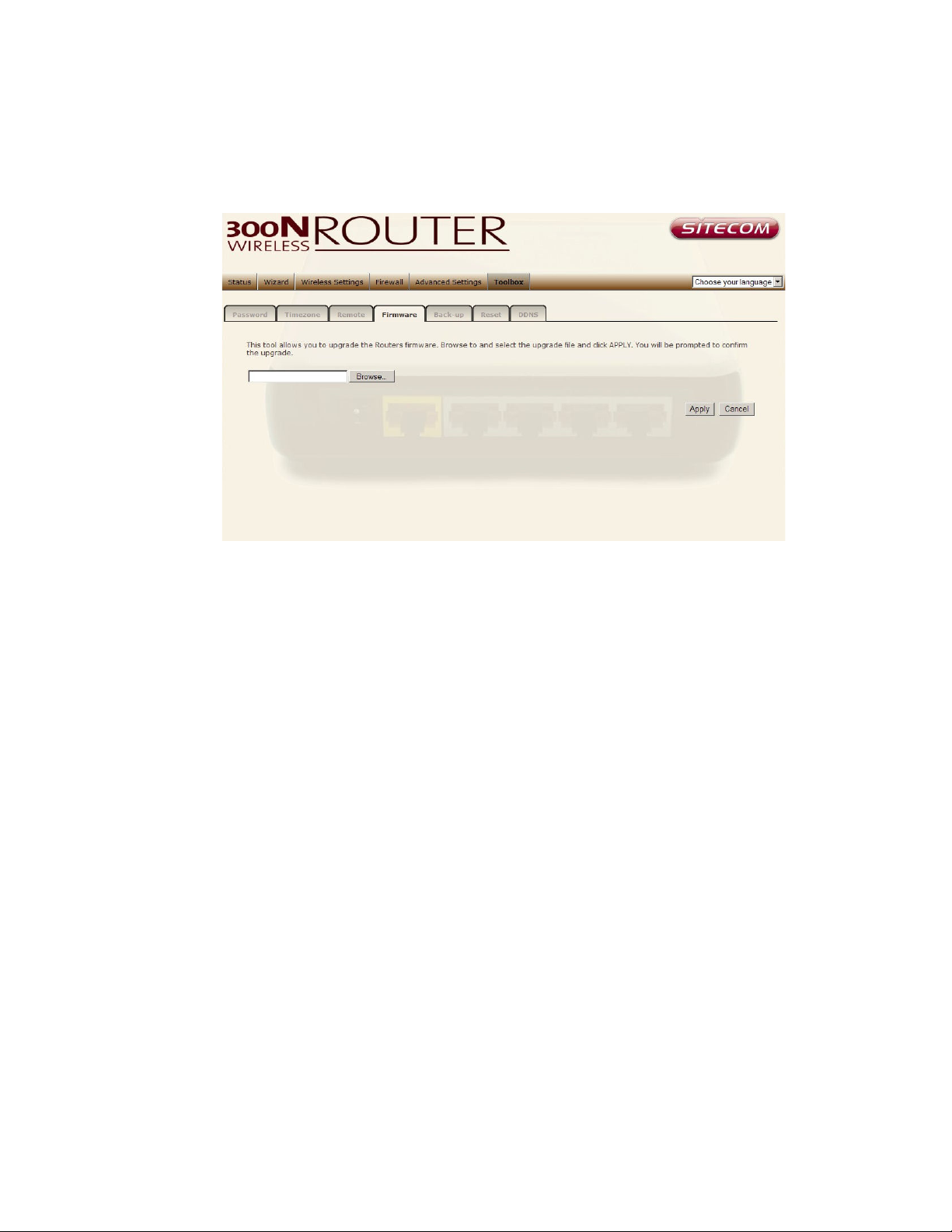

Firmware Upgrade

This page allows you to upgrade the router’s firmware.

Firmware Upgrade This tool allows you to upgrade the Broadband router’s

system firmware. To upgrade the firmware of your Broadband router, you

need to download the firmware file to your local hard disk, and enter that file

name and path in the appropriate field on this page. You can also use the

Browse button to find the firmware file on your PC.

Once you’ve selected the new firmware file, click <Apply> at the bottom of

the screen to start the upgrade process

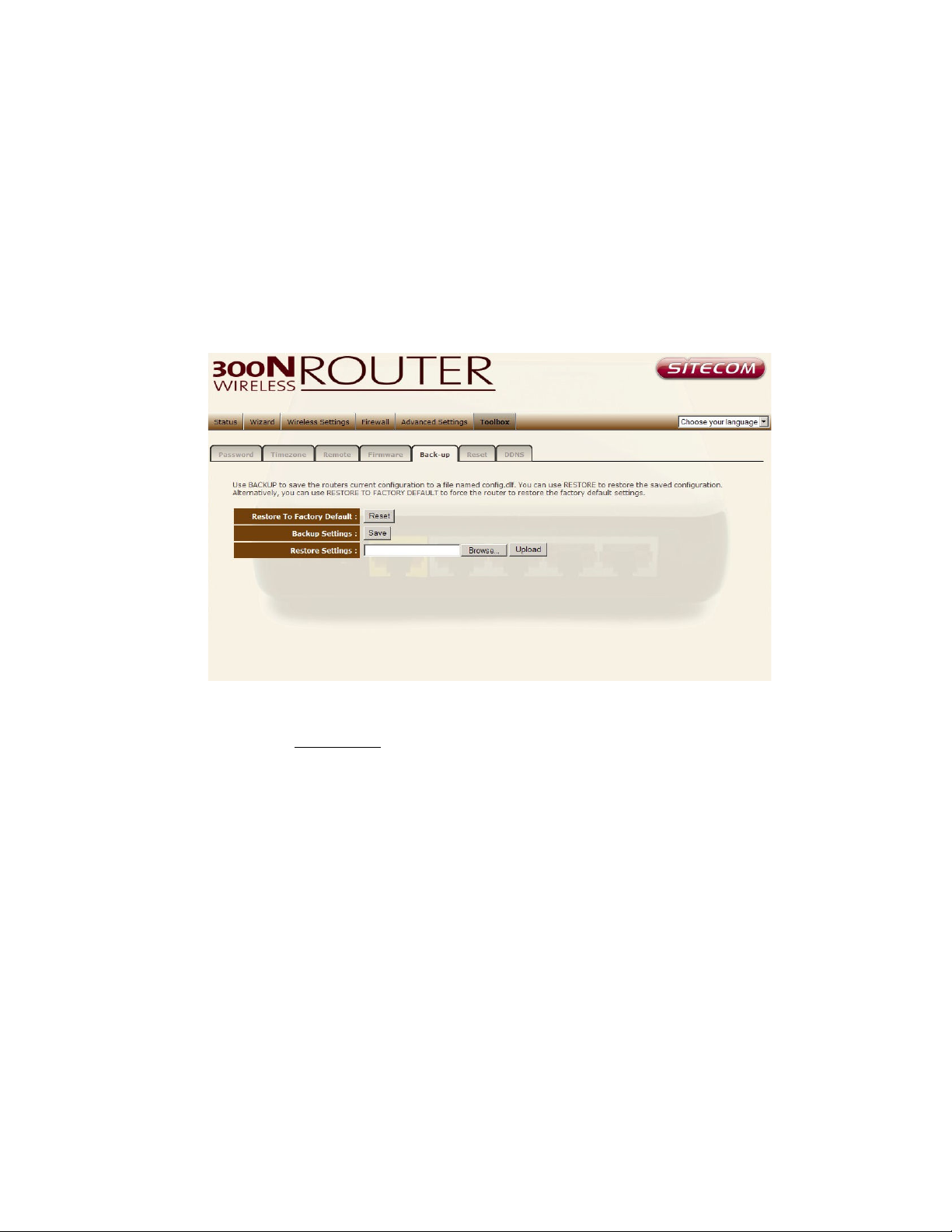

Backup Settings

The Backup screen allows you to save (Backup) the router’s current

configuration settings. When you save the configuration setting (Backup) you

can re-load the saved configuration into the router through the Restore

selection. If extreme problems occur you can use the Restore to Factory

Defaults selection, this will set all configurations to its original default settings

(e.g. when you first purchased the router).

Use the "Backup" tool to save the Broadband router current configuration to a

file named "config.bin" on your PC. You can then use the "Restore" tool to

restore the saved configuration to the Broadband router. Alternatively, you

can use the "Restore to Factory Defaults" tool to force the Broadband router

to perform a power reset and restore the original factory settings.

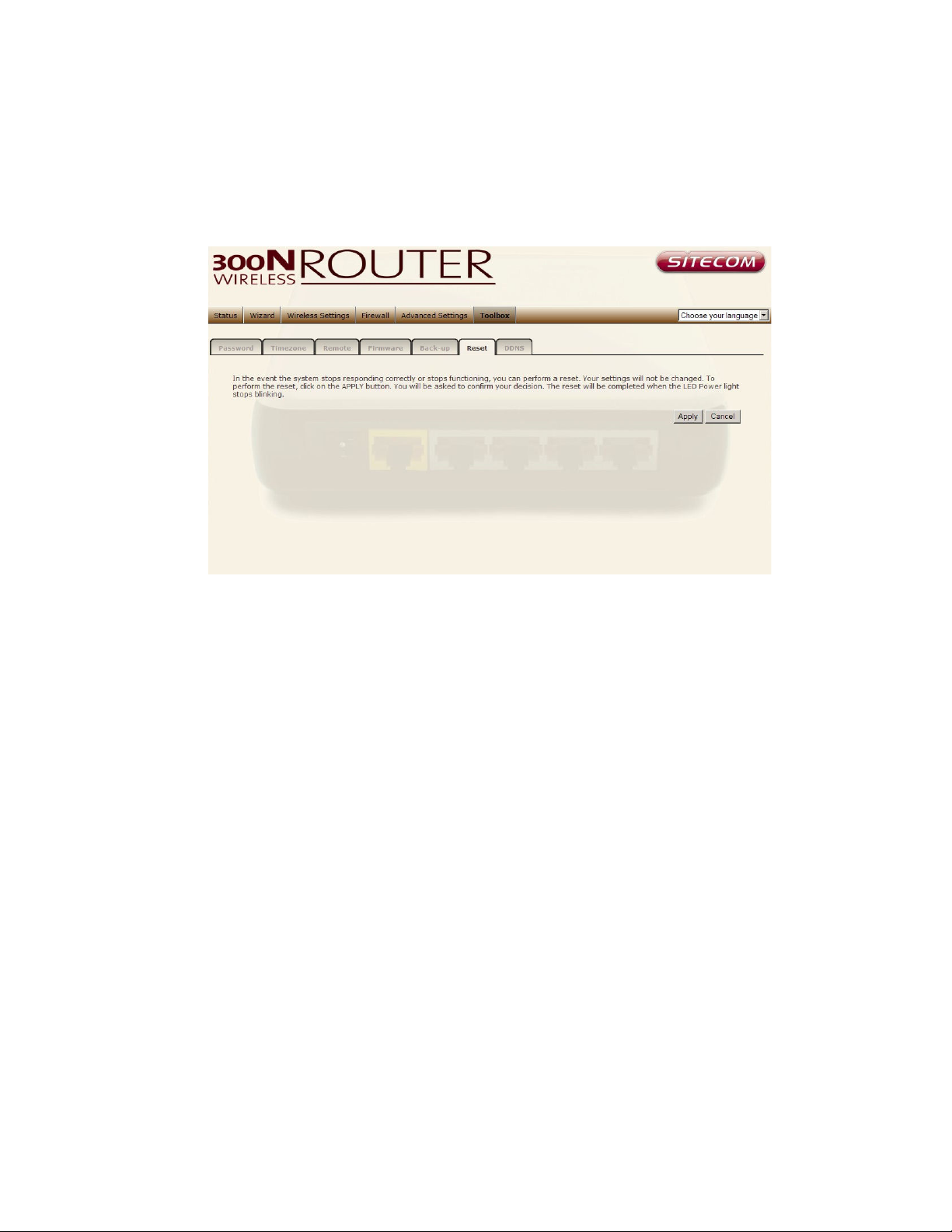

Reset

You can reset the router’s system should any problem exist. The reset

function essentially re-boots your router’s system.

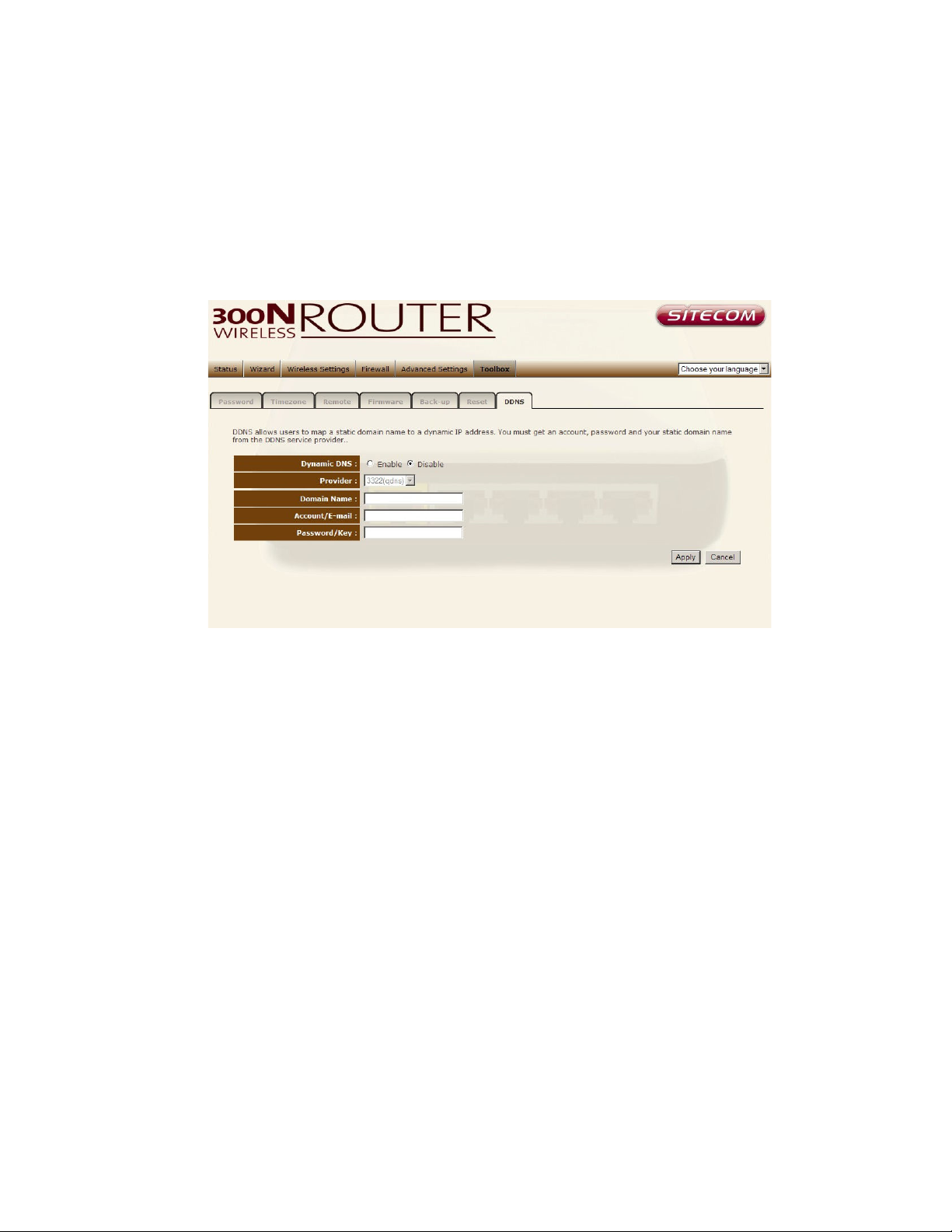

DDNS

DDNS allows you to map the static domain name to a dynamic IP address.

You must get an account, password and your static domain name from the

DDNS service providers. This router supports DynDNS, TZO and other

common DDNS service providers.

Enable/Disable Enable or disable the DDNS function of this router

Provider Select a DDNS service provider

Domain name Fill in your static domain name that uses DDNS

Account/E-mail The account that your DDNS service provider assigned to

you

Password/Key The password you set for the DDNS service account above

Click <Apply> at the bottom of the screen to save the above configurations.

Parts of the firmware of the WL-351/368 Wireless Broadband router are subject to the GNU

general public license.

Appendix A: Licensing Information

This product includes third-party software licensed under the terms of the GNU General Public

License.. You can modify or redistribute this free software under the terms of the GNU General
Public License. Please see Appendix B for the exact terms and conditions of this license.

Specifically, the following part of this product is subject to the GNU GPL:

# Package name Source

1 Linux v2.6.21 www.kernel.org
2 Iptables v1.3.5 www.netfilter.org/
3 Bridge-utils v1.2 bridge.sourceforge.net/
4 Busybox v1.7.5 www.busybox.net/
5 Rp-pppoe v3.8 freshmeat .net/projects/rp-pppoe/
6 Pptp-client v1.7.1 pptpclient.sourceforge.net/
7 Ppp v2.4.3 ppp.samba.org/
8 Udhcp v0.9.9-pre udhcp.busybox.net/
9 iproute2 v2.6.16-060323 www.linux-foundation.org/en/Net:Iproute2
10 Dnsmasq v2.39 www.thekelleys.org.uk/dnsmasq/doc.html
11 Ez-ipupdate v3.0.11b8 ez-ipupdate.com/
12 Libupnp v1.6.0 upnp.sourceforge.net/
13 Wireless-tools v28 RaLink SDK 3.1.0.0
14 U-boot v1.1.3 RaLink SDK 3.1.0.0
15 gcc-3.3.6 RaLink SDK 3.1.0.0
16 Uclibc-0.9.29 RaLink SDK 3.1.0.0

Availability of source code

Sitecom Europe BV has made available the full source code of the GPL licensed software,
including any scripts to control the compilation and installation of the object code in the driver

section of this product.

No Warranty

The free software included in this product is distributed in the hope that it will be useful, but
WITHOUT ANY LIABILITY OF OR ANY WARRANTY FROM THE LICENSOR.

Appendix B: GNU GENERAL PUBLIC LICENSE

Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place

- Suite 330, Boston, MA 02111-1307, USA Everyone is permitted to copy and distribute
verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it.
By contrast, the GNU General Public License is intended to guarantee your freedom to share and
change free software--to make sure the software is free for all its users. This General Public
License applies to most of the Free Software Foundation's software and to any other program
whose authors commit to using it. (Some other Free Software Foundation software is covered
by the GNU Library General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public
Licenses are designed to make sure that you have the freedom to distribute copies of free
software (and charge for this service if you wish), that you receive source code or can get it if

you want it, that you can change the software or use pieces of it in new free programs; and that
you know you can do these things. To protect your rights, we need to make restrictions that
forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions
translate to certain responsibilities for you if you distribute copies of the software, or if you
modify it. For example, if you distribute copies of such a program, whether gratis or for a fee,
you must give the recipients all the rights that you have. You must make sure that they, too,
receive or can get the source code. And you must show them these terms so they know their
rights. We protect your rights with two steps: (1) copyright the software, and (2) offer you this
license which gives you legal permission to copy, distribute and/or modify the software. Also, for
each author's protection and ours, we want to make certain that everyone understands that
there is no warranty for this free software. If the software is modified by someone else and
passed on, we want its recipients to know that what they have is not the original, so that any
problems introduced by others will not reflect on the original authors' reputations. Finally, any
free program is threatened constantly by software patents. We wish to avoid the danger that
redistributors of a free program will individually obtain patent licenses, in effect making the
program proprietary. To prevent this, we have made it clear that any patent must be licensed
for everyone's free use or not licensed at all. The precise terms and conditions for copying,
distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND
MODIFICATION

0.
This License applies to any program or other work which contains a notice placed by the
copyright holder saying it may be distributed under the terms of this General Public License.
The "Program", below, refers to any such program or work, and a "work based on the Program"
means either the Program or any derivative work under copyright law: that is to say, a work
containing the Program or a portion of it, either verbatim or with modifications and/or
translated into another language. (Hereinafter, translation is included without limitation in the
term "modification".) Each licensee is addressed as "you". Activities other than copying,
distribution and modification are not covered by this License; they are outside its scope. The act
of running the Program is not restricted, and the output from the Program is covered only if its
contents constitute a work based on the Program (independent of having been made by running
the Program). Whether that is true depends on what the Program does.

1.
You may copy and distribute verbatim copies of the Program's source code as you receive it, in
any medium, provided that you conspicuously and appropriately publish on each copy an
appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to
this License and to the absence of any warranty; and give any other recipients of the Program a
copy of this License along with the Program. You may charge a fee for the physical act of
transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2.
You may modify your copy or copies of the Program or any portion of it, thus forming a work
based on the Program, and copy and distribute such modifications or work under the terms of
Section 1 above, provided that you also meet all of these conditions: a) You must cause the
modified files to carry prominent notices stating that you changed the files and the date of any
change. b) You must cause any work that you distribute or publish, that in whole or in part
contains or is derived from the Program or any part thereof, to be licensed as a whole at no
charge to all third parties under the terms of this License. c) If the modified program normally
reads commands interactively when run, you must cause it, when started running for such
interactive use in the most ordinary way, to print or display an announcement including an
appropriate copyright notice and a notice that there is no warranty (or else, saying that you
provide a warranty) and that users may redistribute the program under these conditions, and
telling the user how to view a copy of this License. (Exception: if the Program itself is
interactive but does not normally print such an announcement, your work based on the Program
is not required to print an announcement.) These requirements apply to the modified work as a
whole. If identifiable sections of that work are not derived from the Program, and can be
reasonably considered independent and separate works in themselves, then this License, and its
terms, do not apply to those sections when you distribute them as separate works. But when
you distribute the same sections as part of a whole which is a work based on the Program, the
distribution of the whole must be on the terms of this License, whose permissions for other

licensees extend to the entire whole, and thus to each and every part regardless of who wrote
it. Thus, it is not the intent of this section to claim rights or contest your rights to work written
entirely by you; rather, the intent is to exercise the right to control the distribution of derivative
or collective works based on the Program. In addition, mere aggregation of another work not
based on the Program with the Program (or with a work based on the Program) on a volume of
a storage or distribution medium does not bring the other work under the scope of this License.

3.
You may copy and distribute the Program (or a work based on it, under Section 2) in object
code or executable form under the terms of Sections 1 and 2 above provided that you also do
one of the following: a) Accompany it with the complete corresponding machine-readable
source code, which must be distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or, b) Accompany it with a written offer, valid for at
least three years, to give any third party, for a charge no more than your cost of physically
performing source distribution, a complete machine-readable copy of the corresponding source
code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily
used for software interchange; or, c) Accompany it with the information you received as to the
offer to distribute corresponding source code. (This alternative is allowed only for
noncommercial distribution and only if you received the program in object code or executable
form with such an offer, in accord with Subsection b above.) The source code for a work means
the preferred form of the work for making modifications to it. For an executable work, complete
source code means all the source code for all modules it contains, plus any associated interface
definition files, plus the scripts used to control compilation and installation of the executable.
However, as a special exception, the source code distributed need not include anything that is
normally distributed (in either source or binary form) with the major components (compiler,
kernel, and so on) of the operating system on which the executable runs, unless that
component itself accompanies the executable. If distribution of executable or object code is
made by offering access to copy from a designated place, then offering equivalent access to
copy the source code from the same place counts as distribution of the source code, even
though third parties are not compelled to copy the source along with the object code.

4.
You may not copy, modify, sublicense, or distribute the Program except as expressly provided
under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program
is void, and will automatically terminate your rights under this License. However, parties who
have received copies, or rights, from you under this License will not have their licenses
terminated so long as such parties remain in full compliance.

5.
You are not required to accept this License, since you have not signed it. However, nothing else
grants you permission to modify or distribute the Program or its derivative works. These actions
are prohibited by law if you do not accept this License. Therefore, by modifying or distributing
the Program (or any work based on the Program), you indicate your acceptance of this License
to do so, and all its terms and conditions for copying, distributing or modifying the Program or
works based on it.

6.
Each time you redistribute the Program (or any work based on the Program), the recipient
automatically receives a license from the original licensor to copy, distribute or modify the
Program subject to these terms and conditions. You may not impose any further restrictions on
the recipients' exercise of the rights granted herein. You are not responsible for enforcing
compliance by third parties to this License.

7.
If, as a consequence of a court judgment or allegation of patent infringement or for any other
reason (not limited to patent issues), conditions are imposed on you (whether by court order,
agreement or otherwise) that contradict the conditions of this License, they do not excuse you
from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your
obligations under this License and any other pertinent obligations, then as a consequence you
may not distribute the Program at all. For example, if a patent license would not permit royalty­free redistribution of the Program by all those who receive copies directly or indirectly through
you, then the only way you could satisfy both it and this License would be to refrain entirely
from distribution of the Program. If any portion of this section is held invalid or unenforceable
under any particular circumstance, the balance of the section is intended to apply and the
section as a whole is intended to apply in other circumstances. It is not the purpose of this
section to induce you to infringe any patents or other property right claims or to contest validity
of any such claims; this section has the sole purpose of protecting the integrity of the free

software distribution system, which is implemented by public license practices. Many people
have made generous contributions to the wide range of software distributed through that
system in reliance on consistent application of that system; it is up to the author/donor to
decide if he or she is willing to distribute software through any other system and a licensee
cannot impose that choice. This section is intended to make thoroughly clear what is believed to
be a consequence of the rest of this License.

8.
If the distribution and/or use of the Program is restricted in certain countries either by patents
or by copyrighted interfaces, the original copyright holder who places the Program under this
License may add an explicit geographical distribution limitation excluding those countries, so
that distribution is permitted only in or among countries not thus excluded. In such case, this
License incorporates the limitation as if written in the body of this License.

9.
The Free Software Foundation may publish revised and/or new versions of the General Public
License from time to time. Such new versions will be similar in spirit to the present version, but
may differ in detail to address new problems or concerns. Each version is given a distinguishing
version number. If the Program specifies a version number of this License which applies to it
and "any later version", you have the option of following the terms and conditions either of that
version or of any later version published by the Free Software Foundation. If the Program does
not specify a version number of this License, you may choose any version ever published by the
Free Software Foundation.

10.
If you wish to incorporate parts of the Program into other free programs whose distribution
conditions are different, write to the author to ask for permission. For software which is
copyrighted by the Free Software Foundation, write to the Free Software Foundation; we
sometimes make exceptions for this. Our decision will be guided by the two goals of preserving
the free status of all derivatives of our free software and of promoting the sharing and reuse of
software generally.

NO WARRANTY

11.
BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE
PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE
STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE
PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND
PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE,
YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12.
IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY
COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE
PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY
GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA
BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A
FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH
HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS
