WL-361
Wireless Mobile Router 150N
User Manual
Revision: 1.0
T
ABLE OF CONTENTS
1
KEY FEATURES................................................................................. 4
2
PACKAGE CONTENTS ....................................................................... 5
3
PRODUCT LAYOUT ........................................................................... 6
4
NETWORK + SYSTEM REQUIREMENTS ............................................. 8
5
WL-361 PLACEMENT ........................................................................ 8
6
SETUP LAN, WAN............................................................................. 9
7
PC NETWORK ADAPTER SETUP ...................................................... 10
8
BRINGING UP THE WL-361............................................................ 14
9
INITIAL SETUP OF THE WL-361..................................................... 14
10 CONFIGURATION WIZARD ............................................................ 24

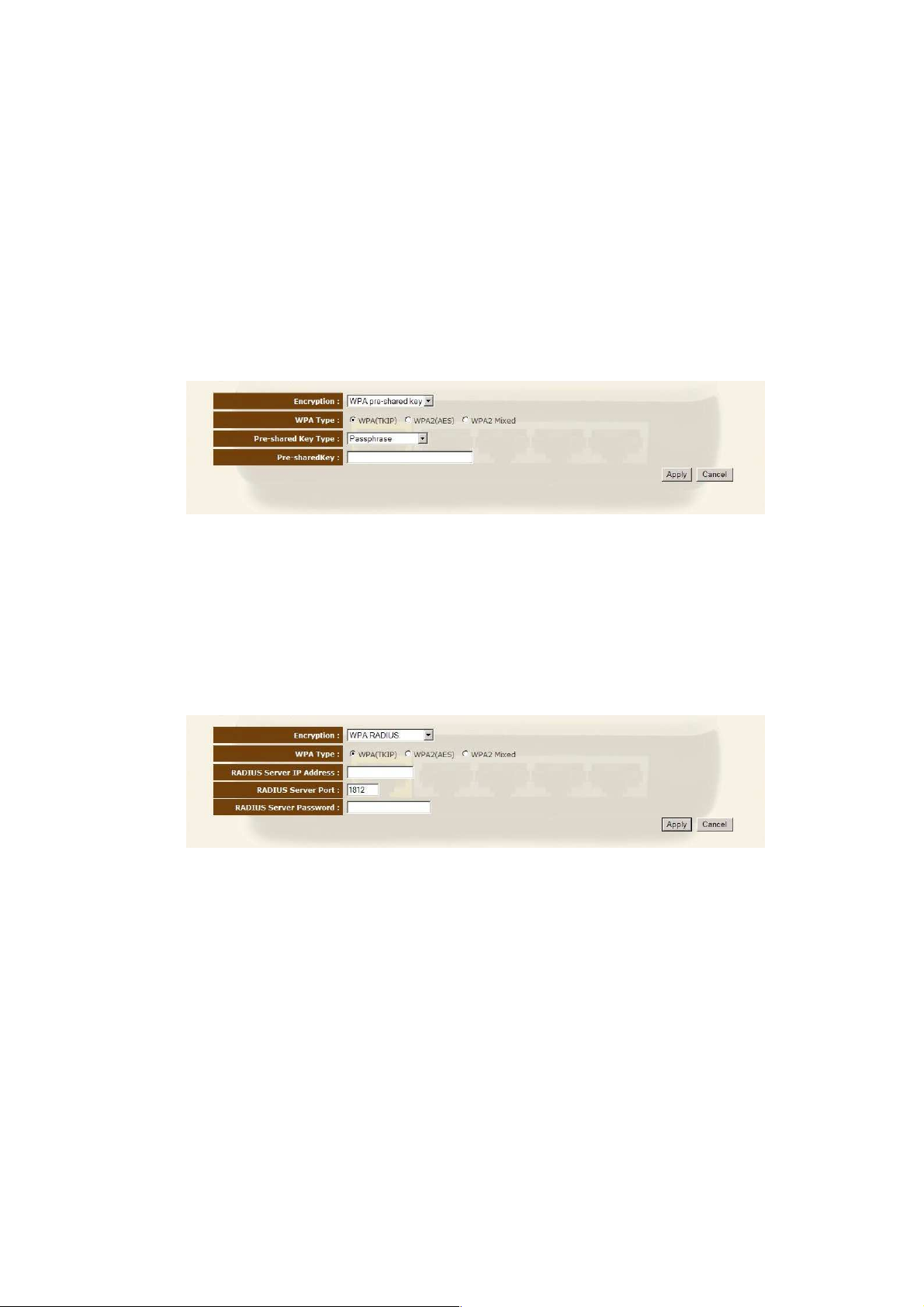

11 WIRELESS SETTINGS..................................................................... 26

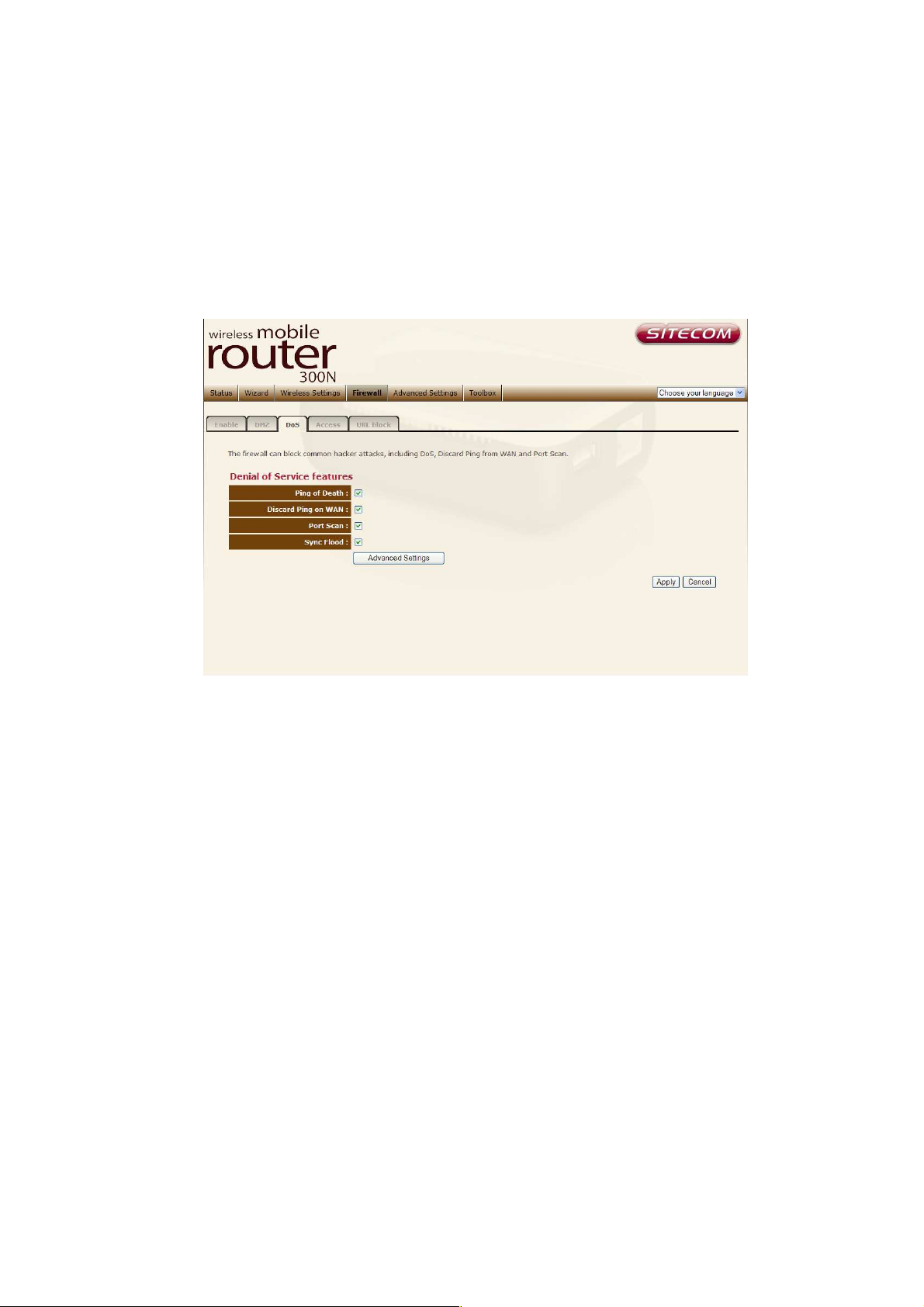

12 FIREWALL SETTINGS..................................................................... 36

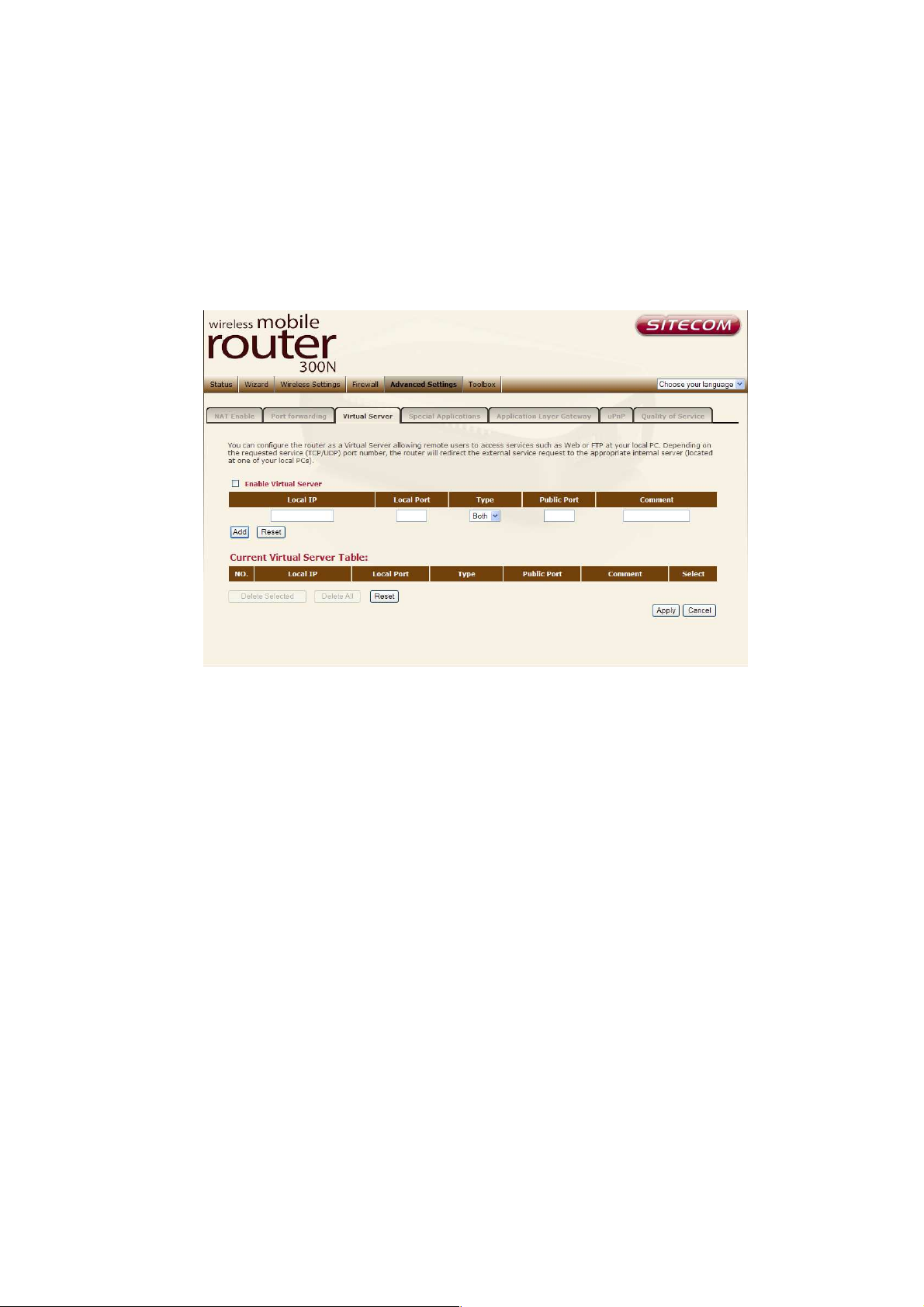

13 ADVANCED SETTINGS.................................................................... 42

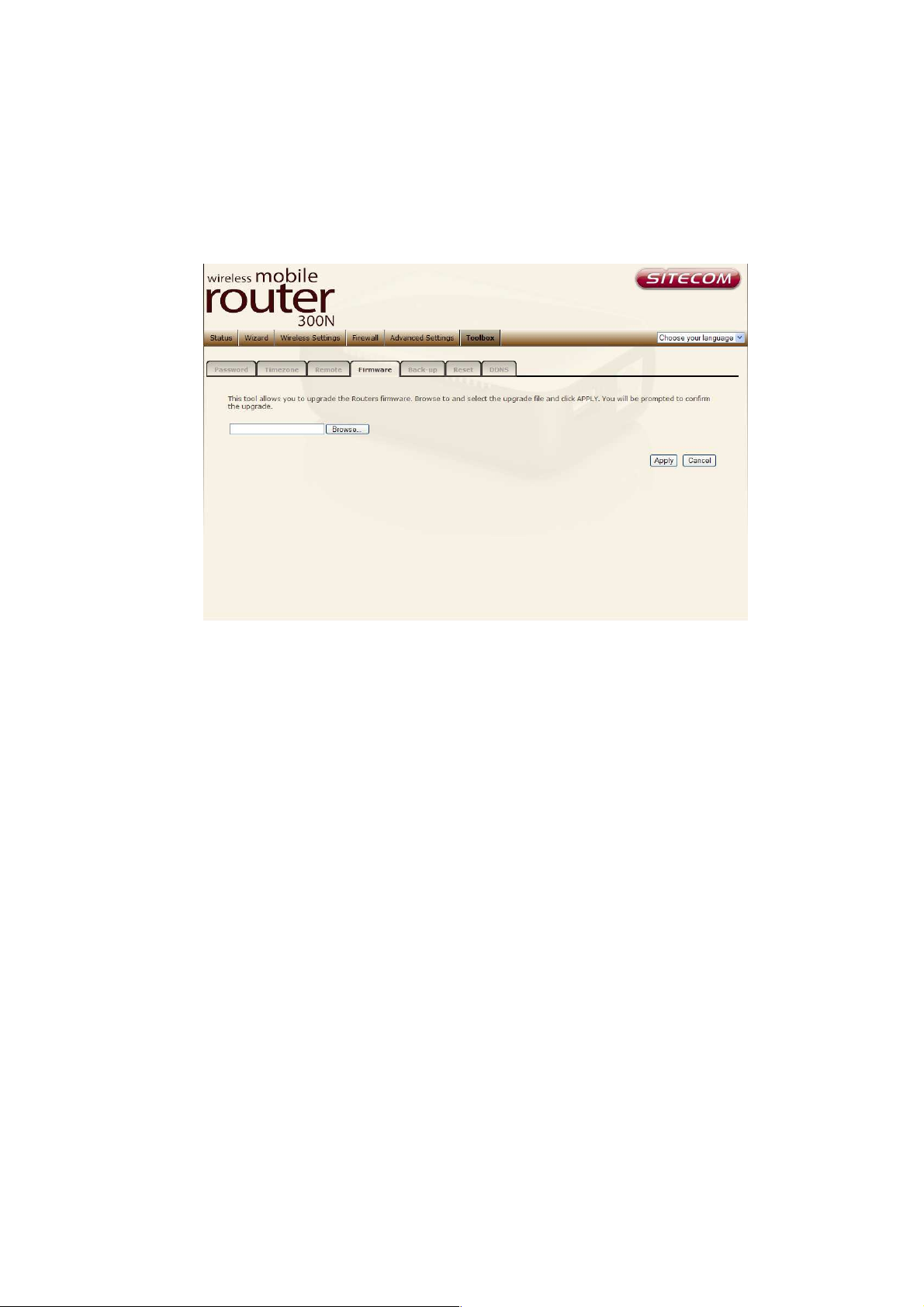

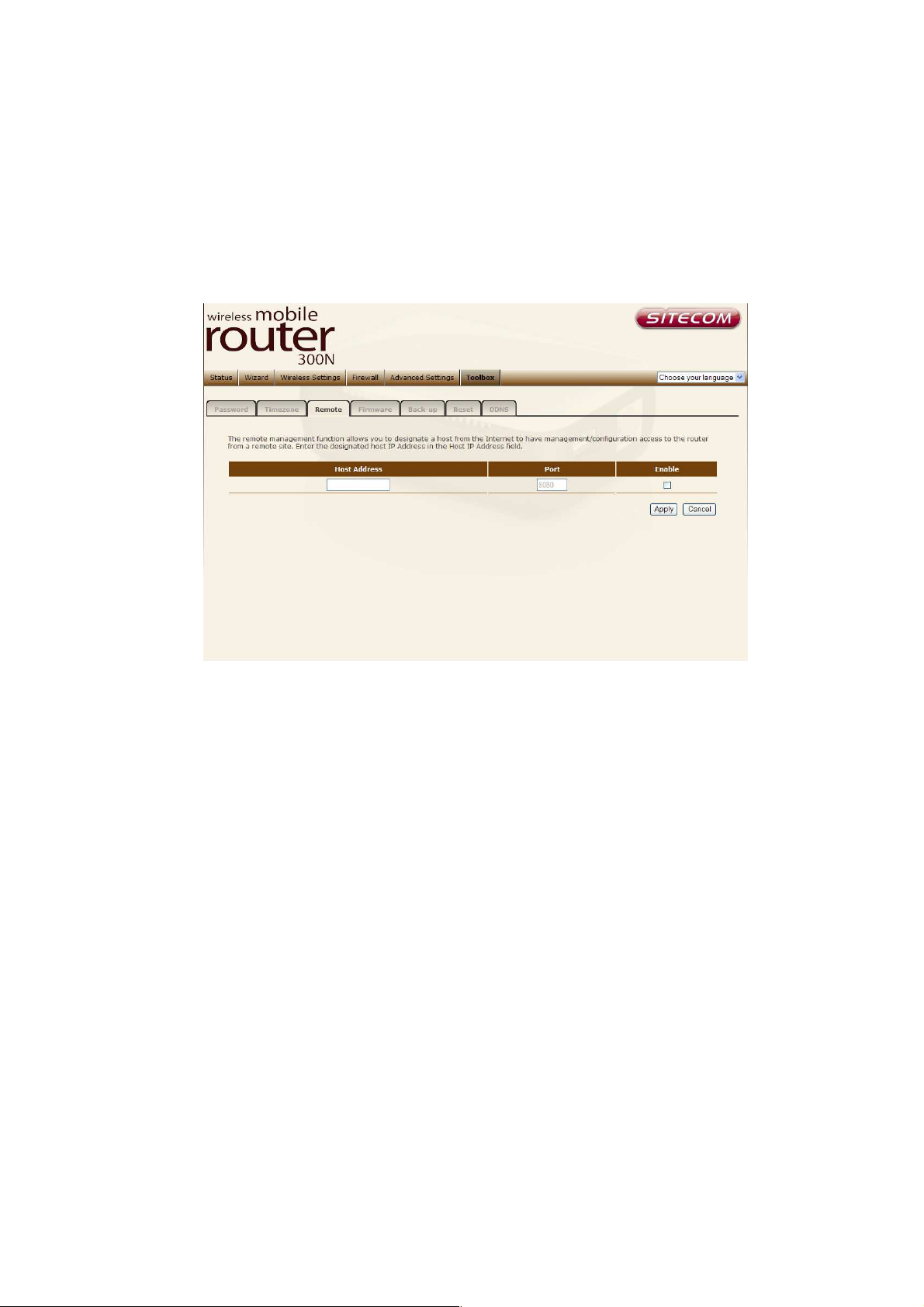

14 TOOLBOX SETTINGS ...................................................................... 52
2
Introduction
Congratulations on your purchase of the WL-361 Wireless Mobile Router 150N.
The WL-361 is compliant with draft 802.11n v 2.0 up to 6 times faster than
standard 802.11g based routers while still being compatible with 802.11g &
802.11b gadgets.
At 150 Mbps wireless transmission rate, the Access Point built into the Router
uses advanced MIMO (Multi-Input, Multi-Output) technology to transmit multiple
steams of data in a single wireless channel, giving you seamless access to
multimedia content. Robust RF signal Mobiles farther, eliminates dead spots and
extends network range. For data protection and privacy, the WL-361 encodes all
wireless transmissions with WEP, WPA, and WPA2 encryption.
With the built-in DHCP Server & powerful SPI firewall, the WL-361 protects your
computers against intruders and most known Internet attacks but provides safe
VPN pass-through. With the small form factor and built-in power supply, the WL-
361 is ideal for use on the move, in hotels or on campsites.
Besides, it also provides a USB port which let you easily share a 3G/UMTS
modem. The battery allows for up to 6 hours of work without the need for a
power socket.
1 Key Features
Features Advantages
Incredible Data Rate up to
150Mbps*
IEEE 802.11n draft 2.0 Compliant
and backward compatible with
802.11b/g
USB port for 3G USB modem
Firewall supports Virtual Server
Mapping, DMZ, IP Filter, ICMP
Blocking, SPI
Support 802.1x authenticator,
802.11i (WPA/WPA2, AES), VPN
pass-through
Heavy data payloads such as
MPEG video streaming
Fully Interoperable with IEEE
802.11b / IEEE802.11g
compliant devices with legacy
protection
Wireless internet everywhere,
even without broadband
availability.
Avoids the attacks of Hackers or
Viruses from Internet
Provide mutual authentication
(Client and dynamic encryption
keys to enhance security
Connect a client via a secure
OPS (One Push Setup)
connection with one push of a
button.
* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual
throughput may vary. Network conditions and environmental factors lower actual throughput rate.
All specifications are subject to change without notice.
2 Package Contents
Open the package carefully, and make sure that none of the items listed
below are missing. Do not discard the packing materials, in case of return;
the unit must be shipped back in its original package.
1. WL-361 Router
2. USB cable
3. Power adapter 5V
4. Quick Install Guide
5. CD (User’s Manual)
6. Warranty card
7. UTP cable
3 Product Layout
Port Description
RJ45 Connect your ADSL/Cable modem to this port
3G
Top Cover
On the top cover you can see the LEDs that show the functionality of the
device. Also present is the OPS button which allows you to connect your
computer with a secure wireless connection with the push of a button.
Connect your 3G USB modem to this port
From left to right the LED’s show the following:
Internet, Power, Ethernet, WPS, WLAN, 3G (USB)
Button Description
Press 2 seconds for OPS mode
OPS
Press 10 seconds to reset the router
Press 15 Seconds to reset the router to factory
defaults.
Back label
The back label describes the IP address, login details, SSID, security and code.
4 Network + System Requirements
To begin using the WL-361, make sure you meet the following as minimum
requirements:
• PC/Notebook.
• Operating System – Microsoft Windows XP/2000/VISTA
• Wi-Fi card/USB client (802.11 b/g/n).
• External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45),
or a 3G USB modem.
• Web-Browser (Internet Explorer, Safari, Firefox, Opera)
5 WL-361 Placement
You can place the WL-361 on a desk or other flat surface, or you can mount it
on a wall. For optimal performance, place your Wireless Mobile Router 150N in
the center of your office (or your home) in a location that is away from any
potential source of interference, such as a metal wall or microwave oven. This
location must be close your ADSL/Cable modem in case you’re using the WAN
port.
6 Setup LAN, WAN
The WL-361 has one Ethernet port that doubles as a WAN (Internet) port and
a LAN port.
When no 3G USB client is inserted in the USB port, the port functions as WAN.
When a 3G USB client is inserted in the USB port, the port functions as LAN.
To use only the 3G USB connection, just insert a 3G USB client into the
designated USB port.
7 PC Network Adapter setup
Windows XP
• Enter [Start Menu] select [Control panel] select [Network].
• Select [Local Area Connection]) icon=>select [properties]
• Select [Internet Protocol (TCP/IP)] =>Click [Properties].
• Select the [General] tab.
a. The WL-361 supports [DHCP] function, please select both [Obtain an IP
address automatically] and [Obtain DNS server address automatically].
Windows Vista
• Enter [Start Menu] select [Control panel] select [View network status
and tasks] -> select [Manage network connections].
• Select [Local Area Connection]) icon=>select [properties]
• Select [Internet Protocol Version 4 (TCP/IPv4)] =>Click [Properties].
• Select the [General] tab.
The WL-361 supports [DHCP] function, please select both [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
8 Bringing up the WL-361
Connect the supplied power-adapter to the power inlet port and connect it to
a wall outlet, or switch the router on without the power adapter connected to
work off the battery. The WL-361 automatically enters the self-test phase.
During self-test phase, the Power LED will be lit continuously to indicate that
this product is in normal operation.
9 Initial Setup of the WL-361
LOGIN procedure
1. OPEN your browser (e.g. Internet Explorer).
2. Type http://192.168.0.1 in the address bar and press [Enter].
3. Type user name and password (default is admin/admin).
4. Click OK.
5. You will see the home page of the WL-361.
The System status section allows you to monitor the current status of your
router: the UP time, hardware information, serial number as well as firmware
version information is displayed here.
LAN settings
The LAN tab gives you the opportunity to change the IP settings of the WL-361.
Click <Apply> at the bottom of this screen to save any changes.
IP address 192.168.0.1. It is the router’s LAN IP address (Your LAN clients
default gateway IP address).
IP Subnet Mask 255.255.255.0 Specify a Subnet Mask for your LAN segment.
802.1d Spanning Tree is Disabled by default. If the 802.1d Spanning Tree
function is enabled, this router will use the spanning tree protocol to prevent
network loops.

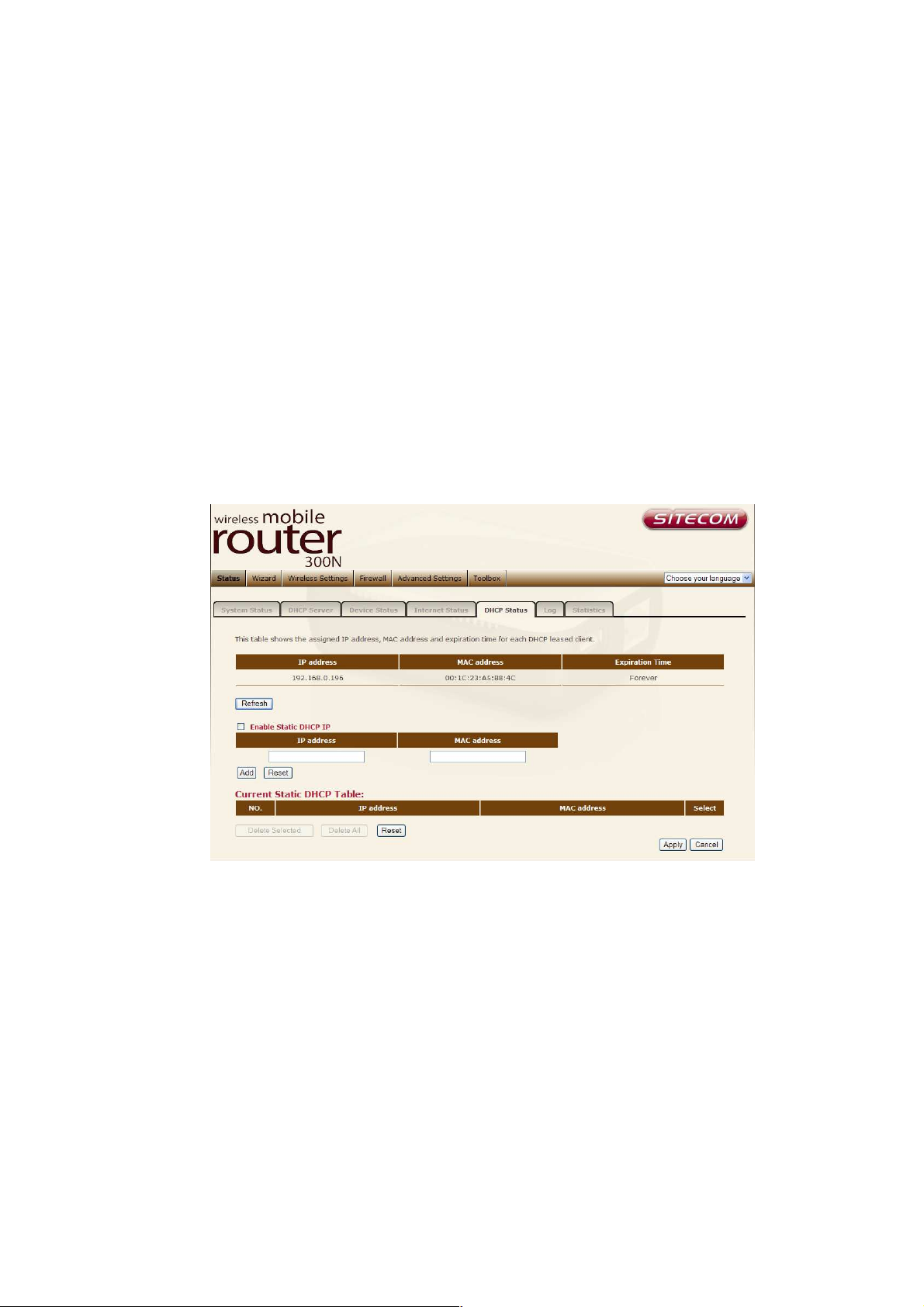

DHCP Server Enabled by default. You can enable or disable the DHCP server.
When DHCP is disabled no IP-addresses are assigned to clients and you have to
use static IP-addresses. When DHCP server is enabled your computers will be
assigned an IP-address automatically until the lease time expires.
Lease Time Forever. In the Lease Time setting you can specify the time period
that the DHCP lends an IP address to your LAN clients. The DHCP will change
your LAN client’s IP address when this time threshold period is reached.
IP Address Pool You can select a particular IP address range for your DHCP
server to issue IP addresses to your LAN Clients.
Note: default IP range 192.168.0.100 - 192.168.0.200. If you want
your PC(s) to have a static/fixed IP address, then you’ll have to choose
an IP address outside this IP address Pool
Domain Name You can specify a Domain Name for your LAN, or just keep the
default (sitecomwl361).
Device Status
View the Broadband router’s current configuration settings. Device Status
displays the configuration settings you’ve configured in the Wizard / Basic
Settings / Wireless Settings section.
