WL-340/341/342
300N Wireless Router
(802.11bgn draft 2.0)
User Manual
Revision:1.0
TABLE OF CONTENTS
1KEY FEATURES ................................................................................................................................... 5
2PACKAGE CONTENTS ...................................................................................................................... 6
3PRODUCT LAYOUT ............................................................................................................................ 7
4NETWORK + SYSTEM REQUIREMENTS ..................................................................................... 9
5WL-340/341/342 PLACEMENT .......................................................................................................... 9
6SETUP LAN, WAN .............................................................................................................................. 10
7PC NETWORK ADAPTER SETUP (WINDOWS XP) ................................................................... 11
8BRING UP THE WL-340/341/342 ..................................................................................................... 13
9 INITIAL SETUP WL-340/341/342 .................................................................................................... 13

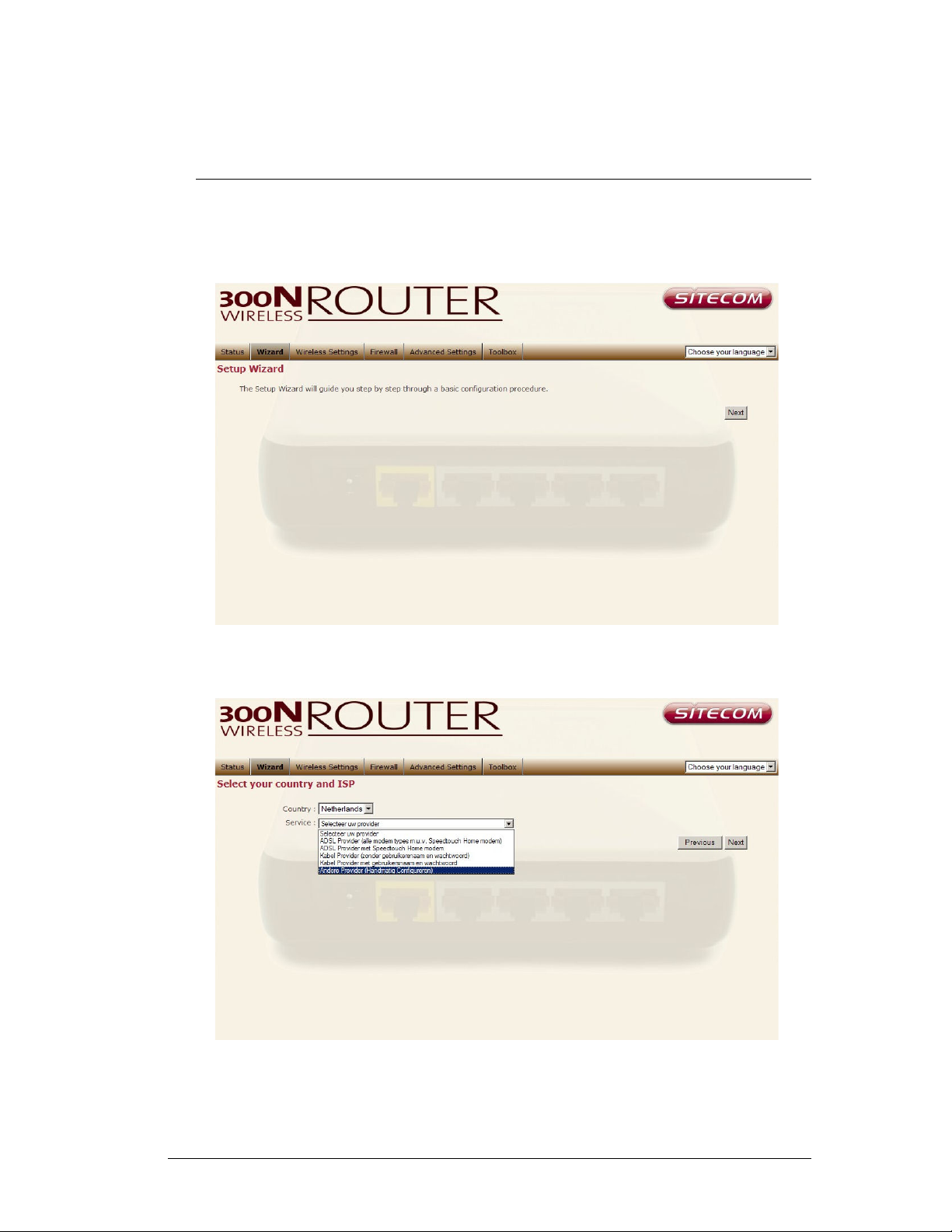

10 CONFIGURATION WIZARD ........................................................................................................ 22

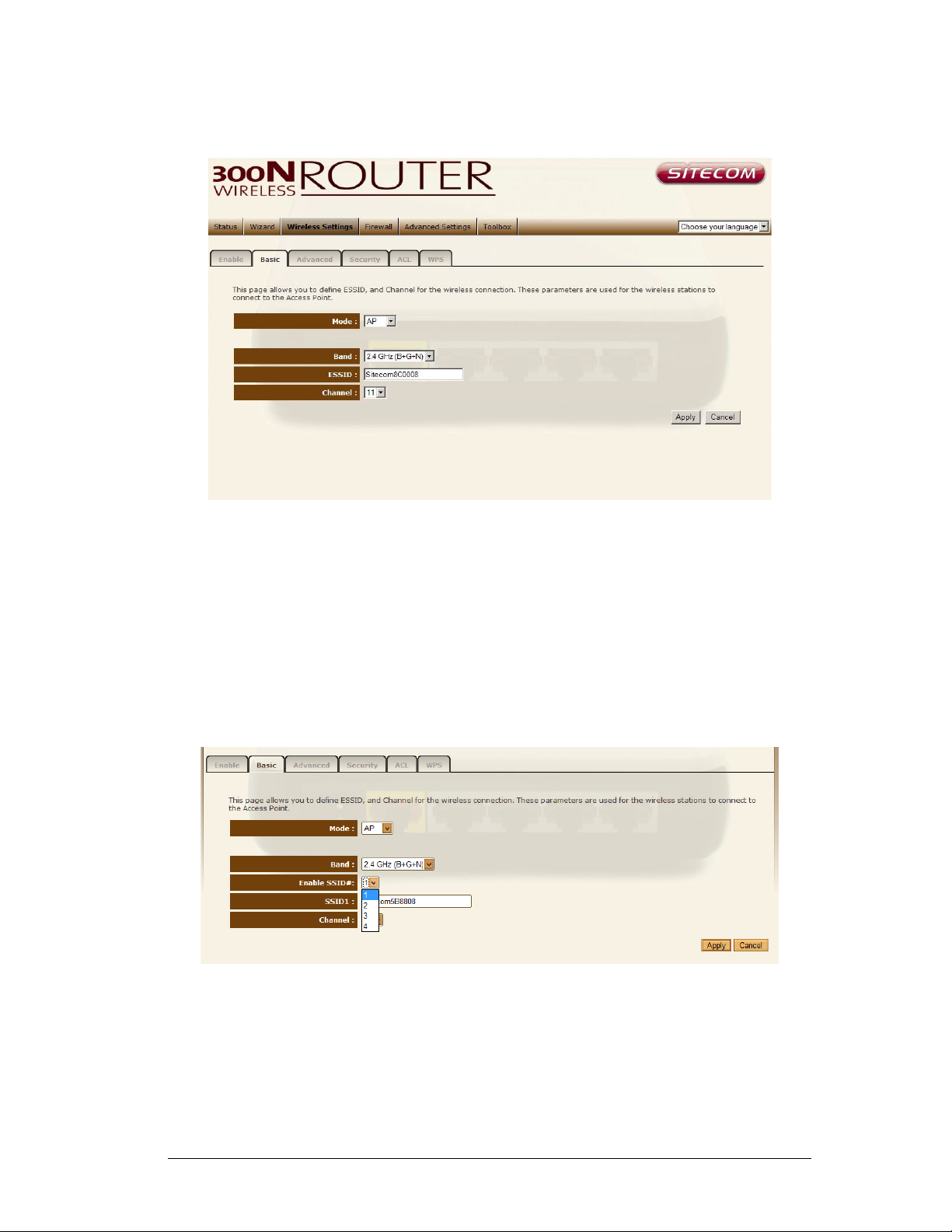

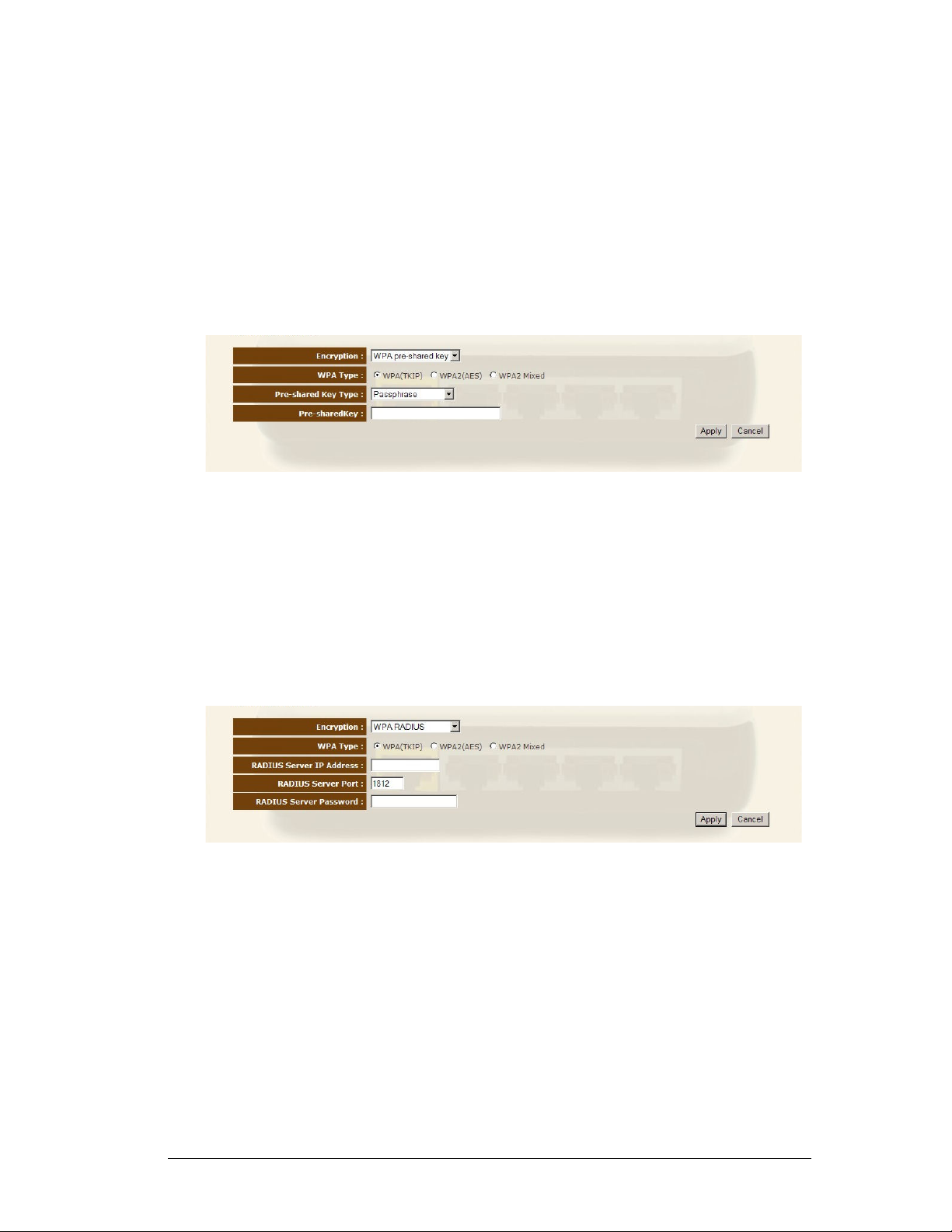

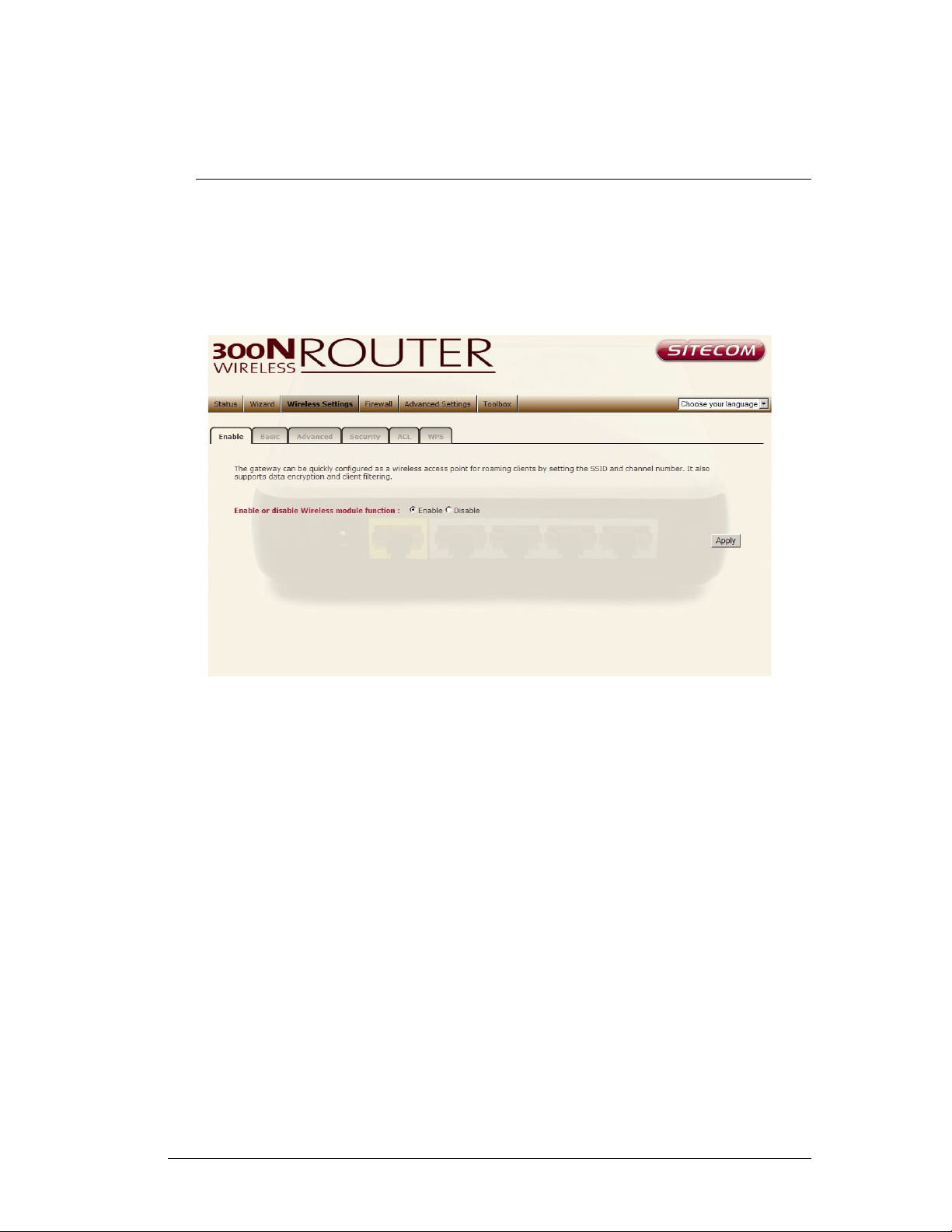

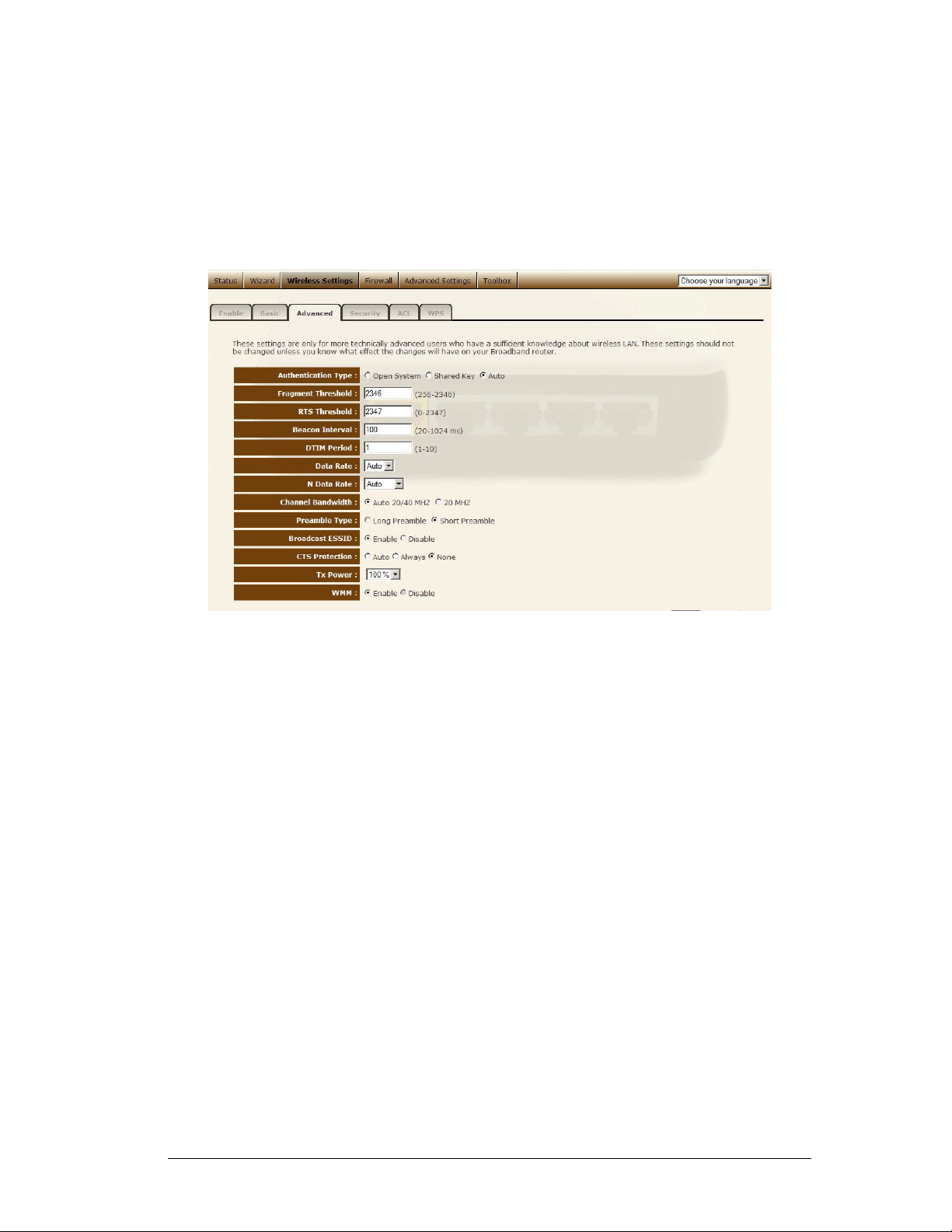

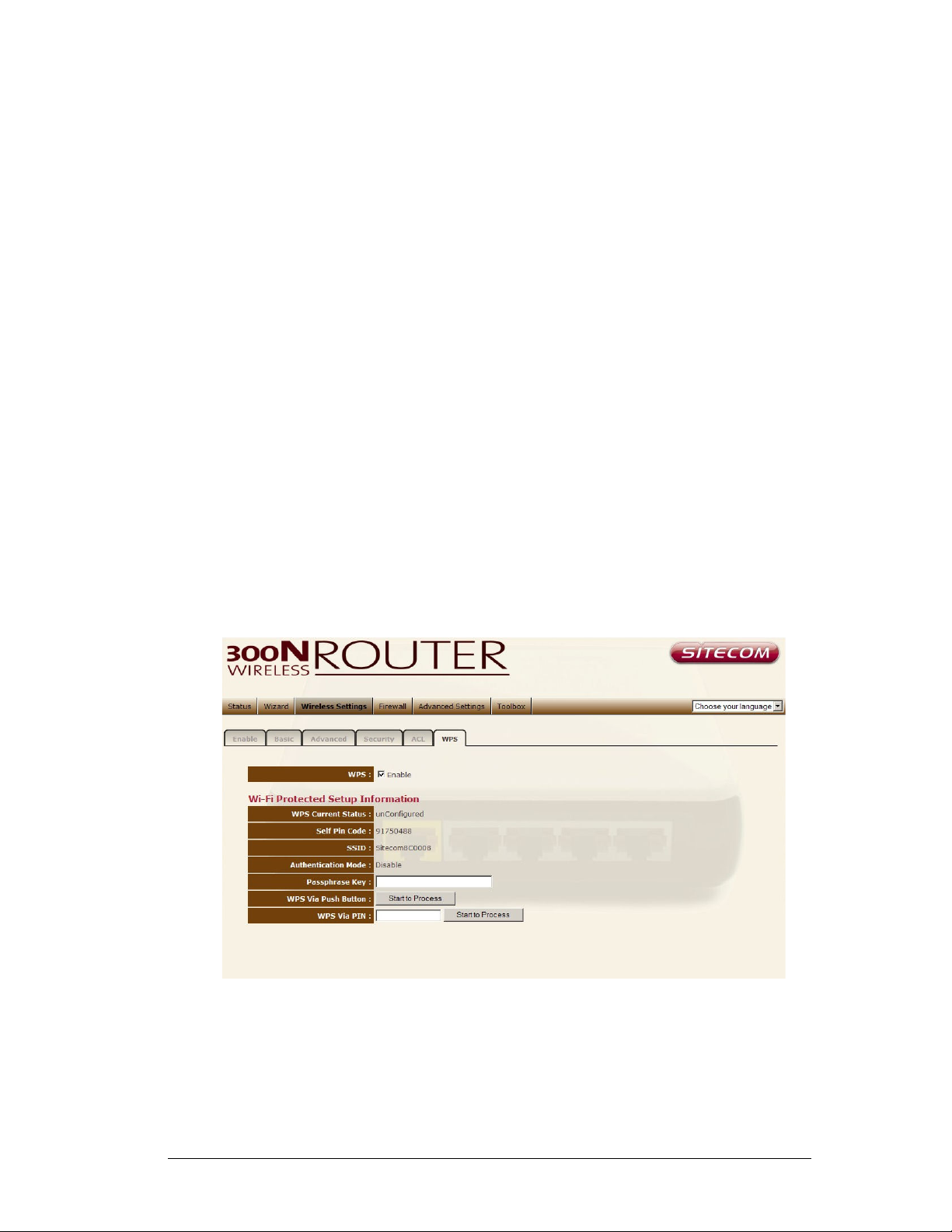

11 WIRELESS SETTINGS ................................................................................................................... 24
12 FIREWALL SETTINGS .................................................................................................................. 34

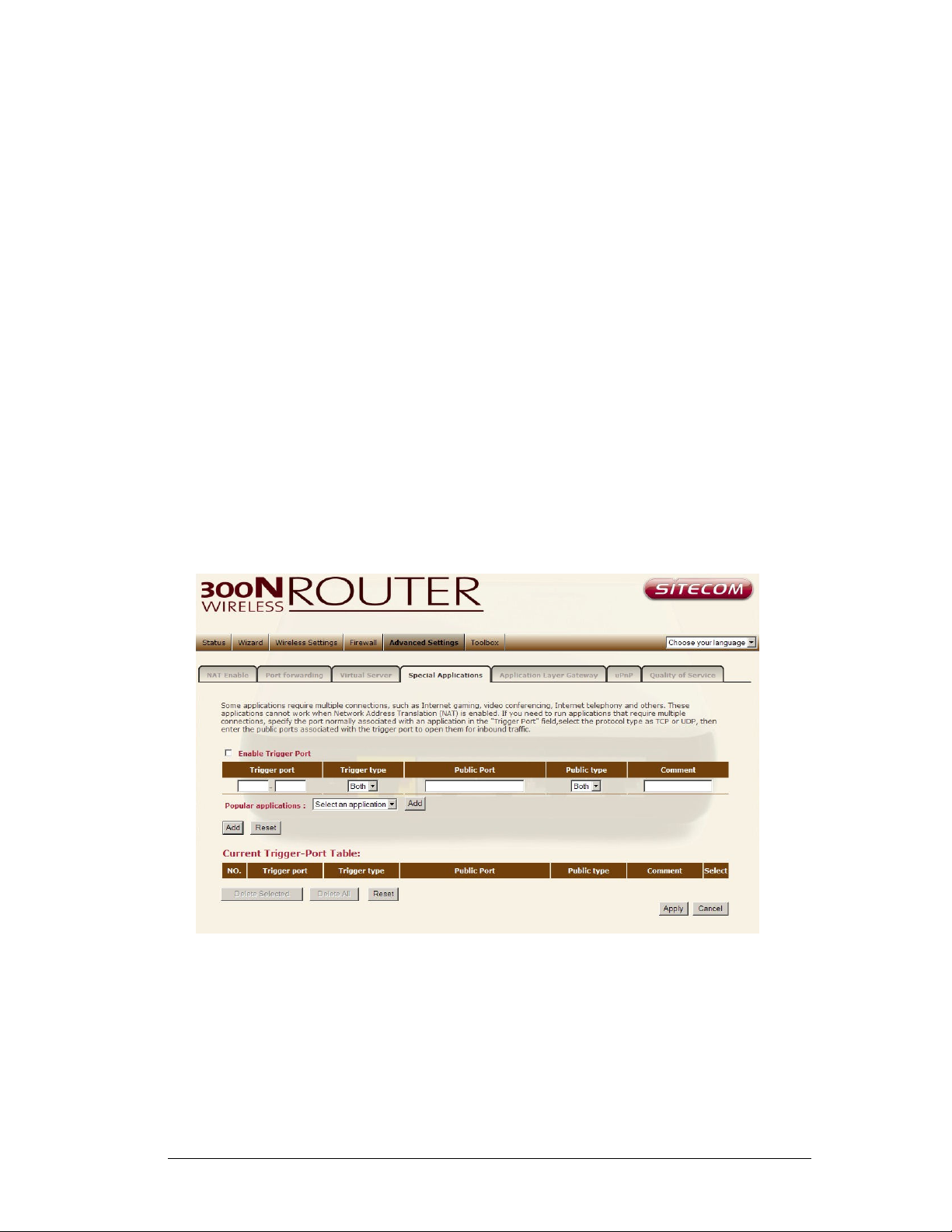

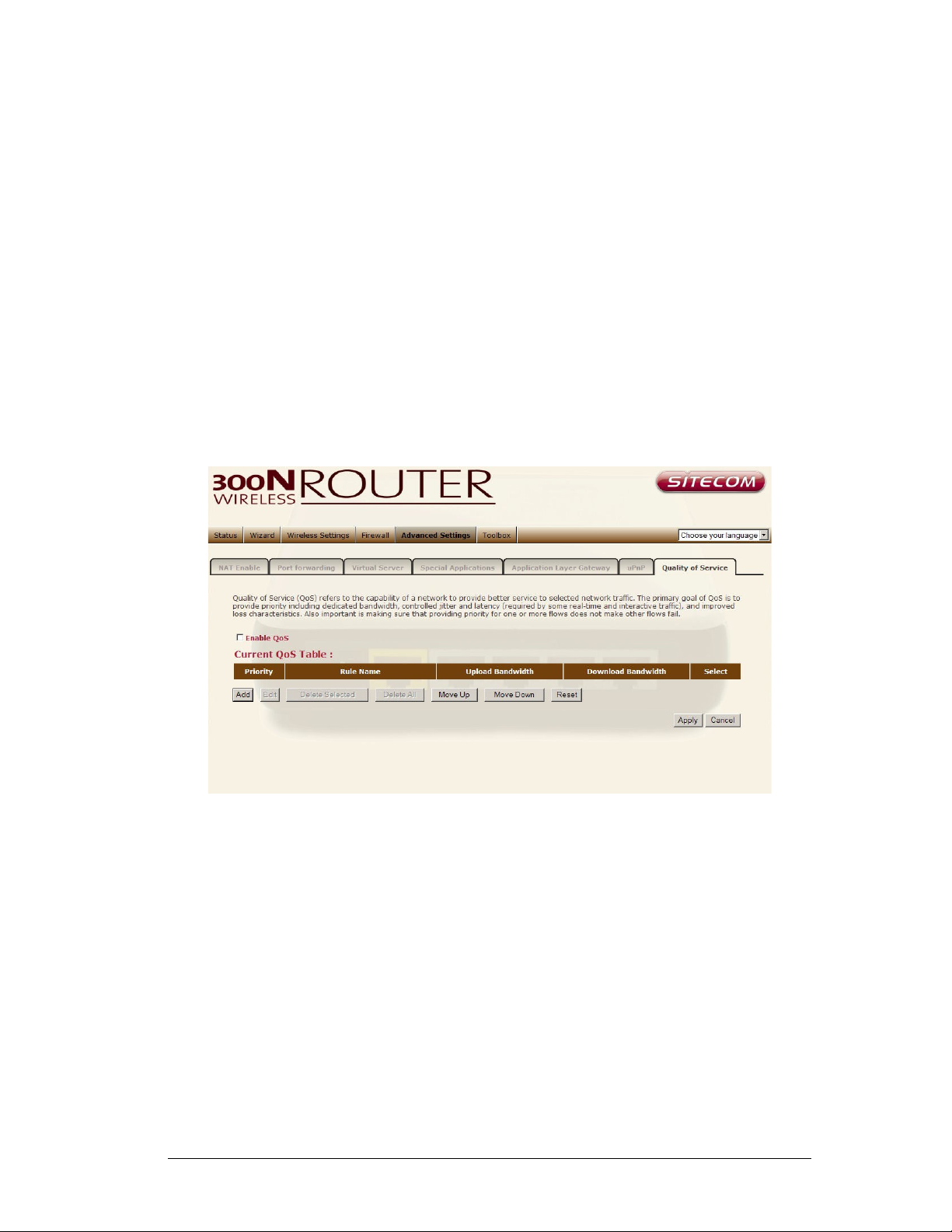

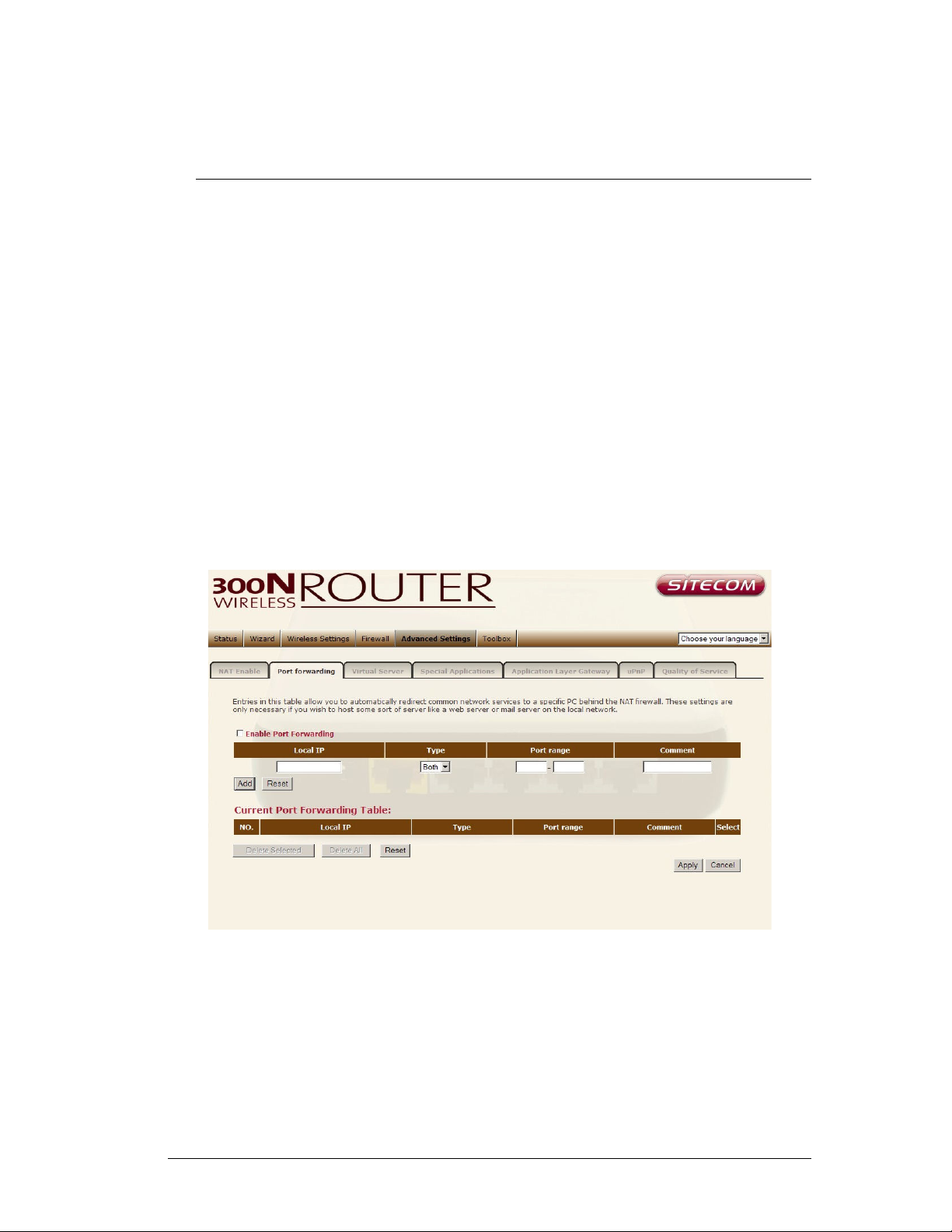

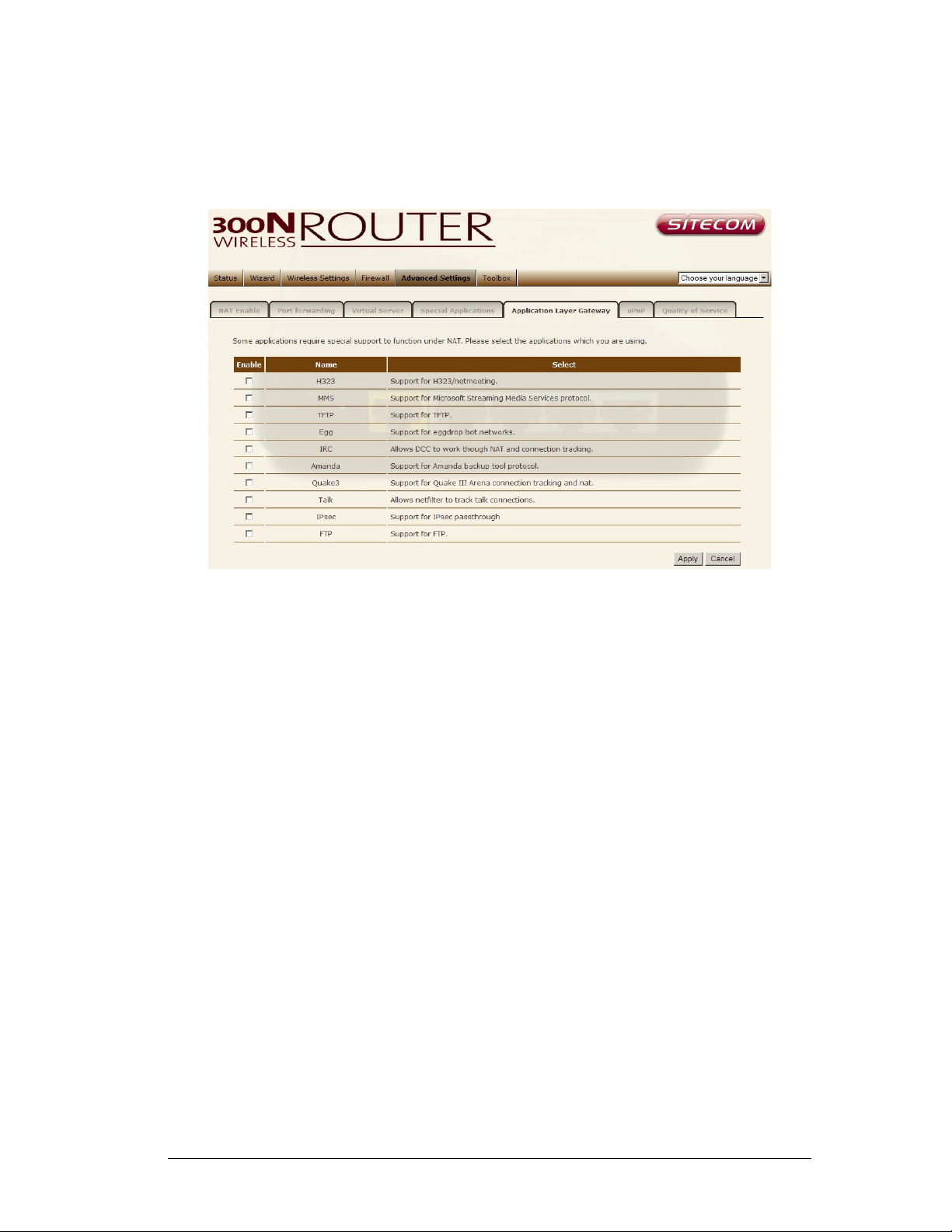

13 ADVANCED SETTINGS ................................................................................................................ 40

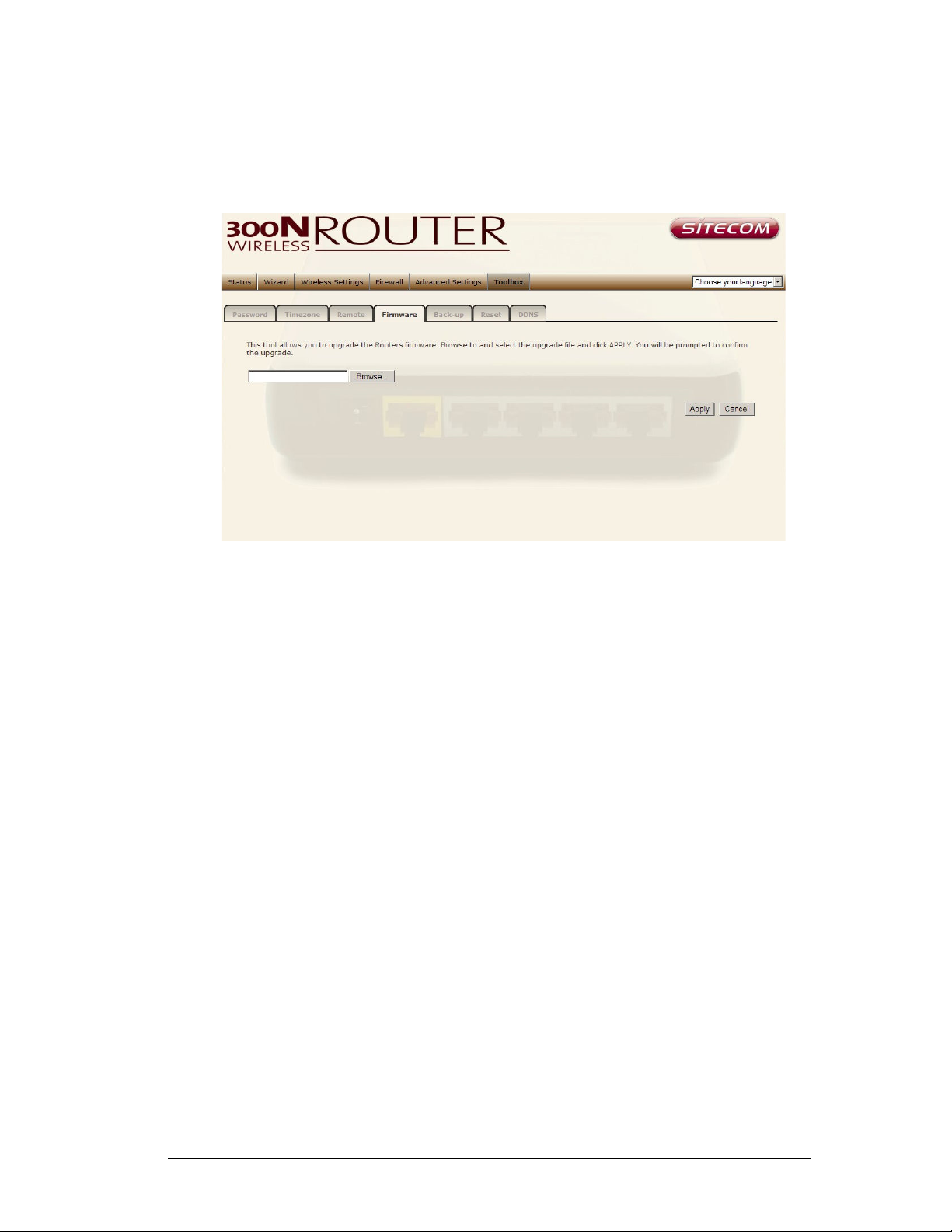

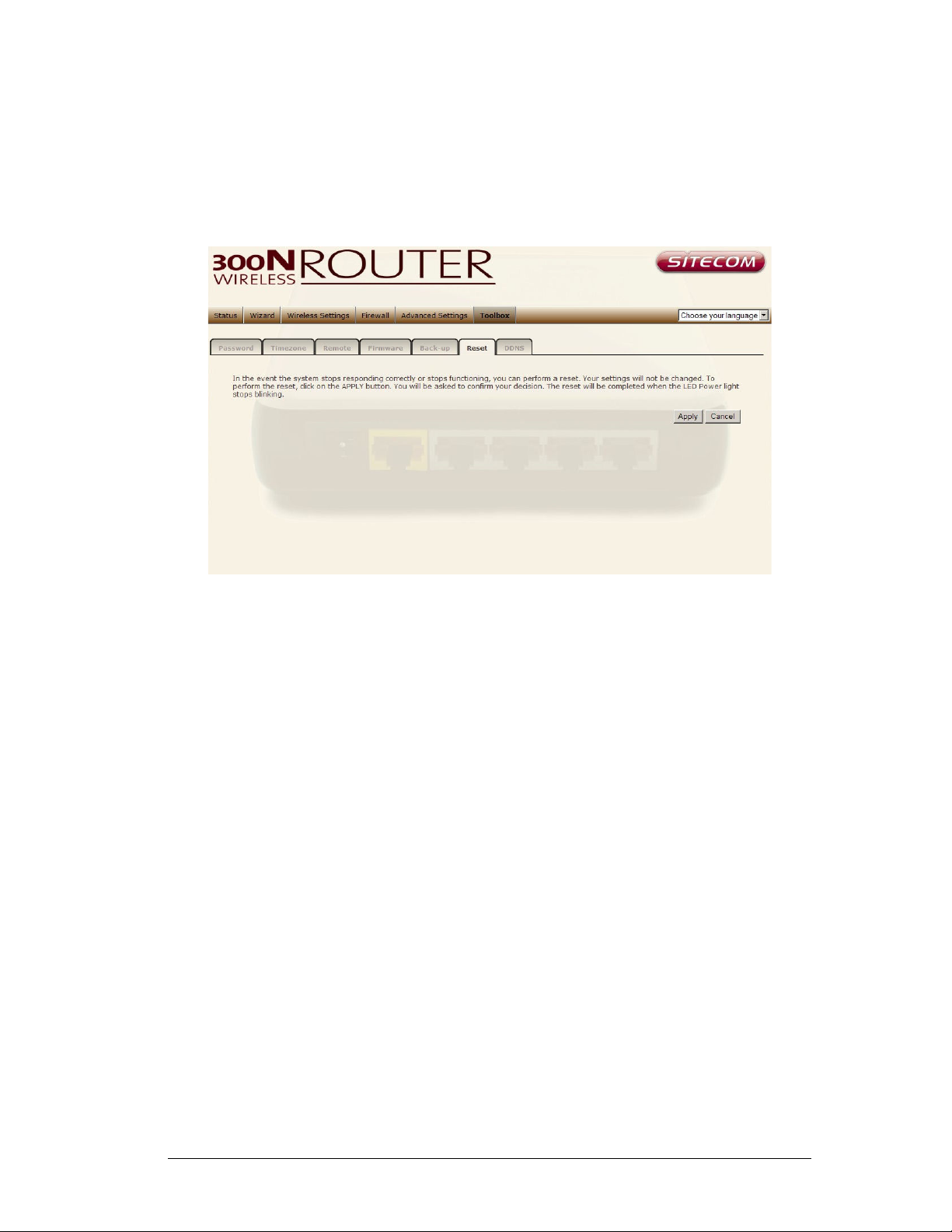

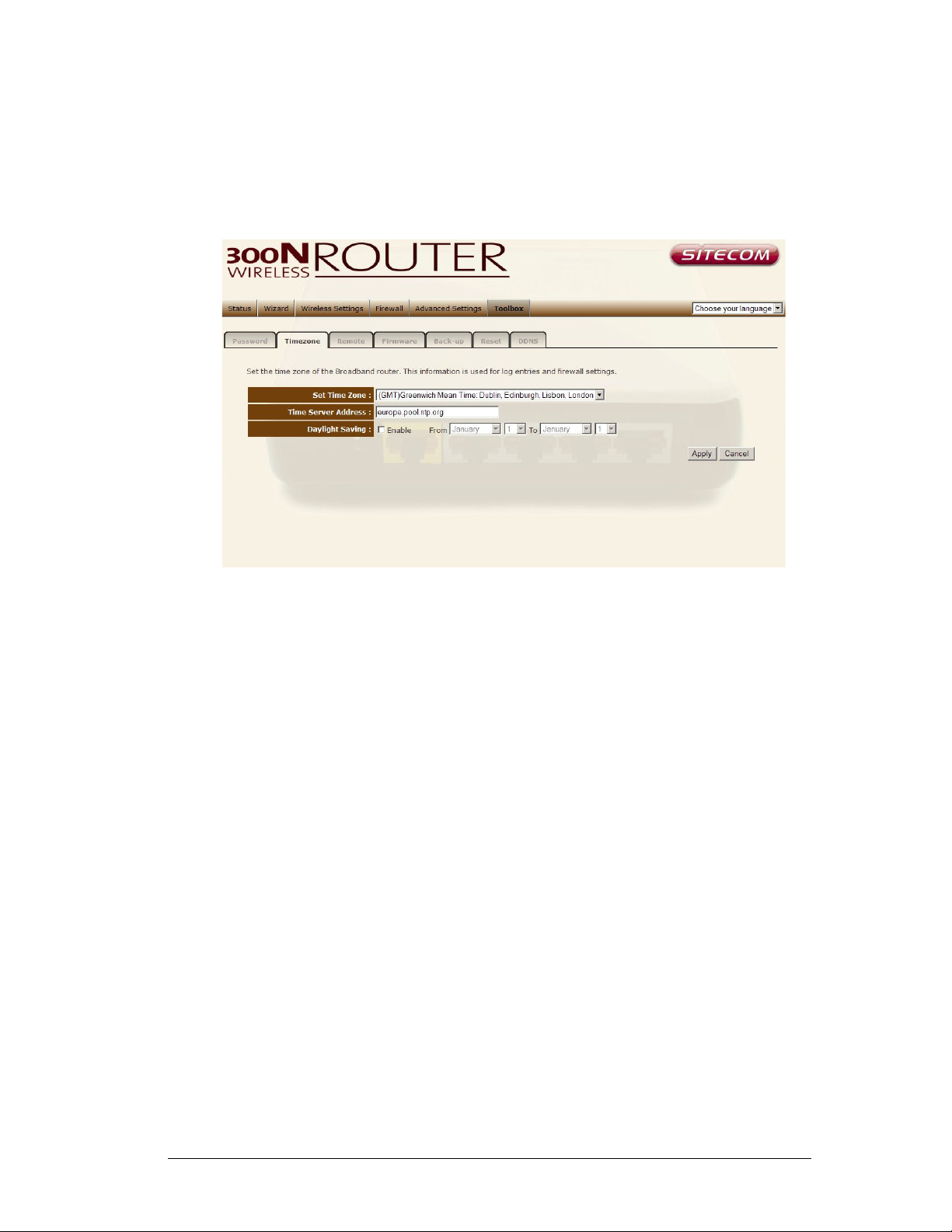

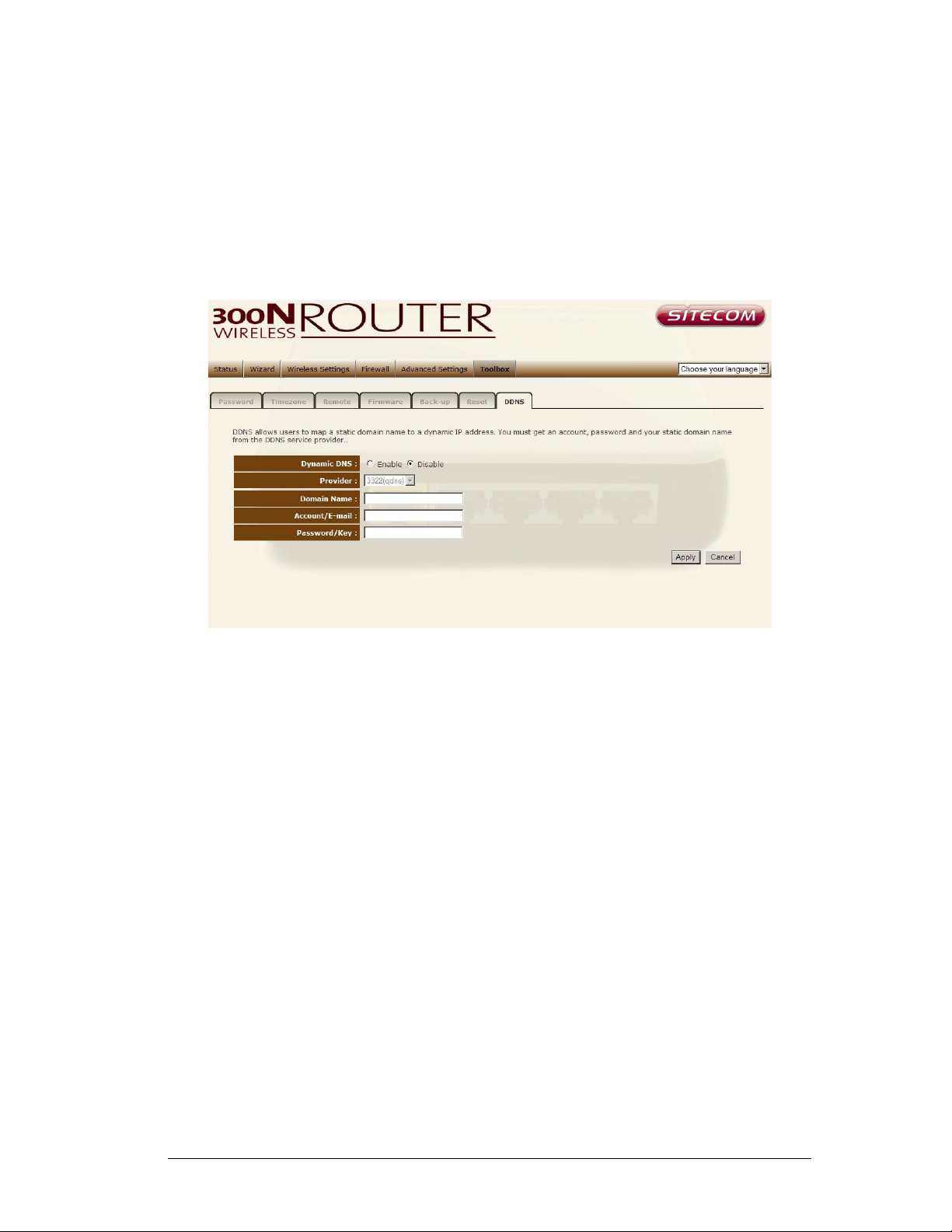

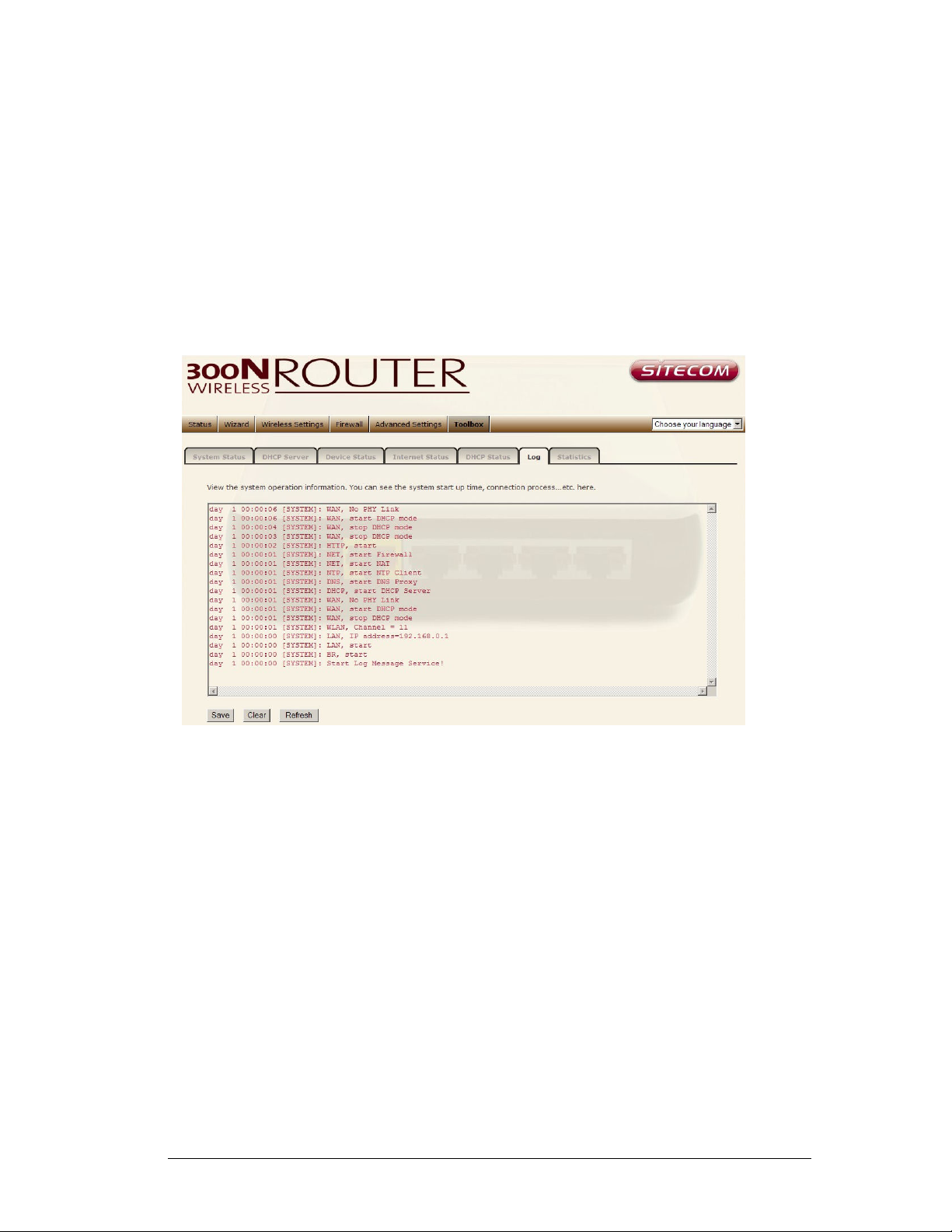

14 TOOLBOX SETTINGS .................................................................................................................. 50
2
Introduction
Congratulations on your purchase of the WL-340/341/342 Wireless Network
Broadband Router. The WL-340/341/342 is compliant with draft 802.11n v 2.0
up to 6 times faster than standard 802.11g based routers while still being
compatible with 802.11g & 802.11b gadgets. The WL-340/341/342 is not only
a Wireless Access Point, but also doubles as a 4-port full-duplex Switch that
connects your wired-Ethernet devices together at.
At 300 Mbps wireless transmission rate, the Access Point built into the Router
uses advanced MIMO (Multi-Input, Multi-Output) technology to transmit
multiple steams of data in a single wireless channel, giving you seamless
access to multimedia content. Robust RF signal travels farther, eliminates
dead spots and extends network range. For data protection and privacy, the
WL-340/341/342 encodes all wireless transmissions with WEP, WPA, and
WPA2 encryption.
With the inbuilt DHCP Server & powerful SPI firewall, the WL-340/341/342
protects your computers against intruders and most known Internet attacks
but provides safe VPN pass-through. With incredible speed and QoS function
of 802.11n(draft2.0), the WL-340/341/342 is ideal for media-centric
applications like streaming video, gaming, and VoIP telephony to run multiple
media-intense data streams through the network at the same time, with no
degradation in performance.
3
1 Key Features
Features Advantages
Incredible Data Rate up to
Heavy data payloads such as
300Mbps*
IEEE 802.11n draft 2.0 Compliant
and backward compatible with
802.11b/g
Four 10/100 Mbps Fast Switch Ports
(Auto-Crossover)
Firewall supports Virtual Server
Mapping, DMZ, IP Filter, ICMP
Blocking, SPI
Support 802.1x authenticator,
802.11i (WPA/WPA2, AES), VPN
pass-through
WDS (Wireless Distribution
System)
* Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual
throughput may vary. Network conditions and environmental factors lower actual throughput rate.
All specifications are subject to change without notice.
MPEG video streaming
Fully Interoperable with IEEE
802.11b / IEEE802.11g
compliant devices with legacy
protection
Scalability, extend your network.
Avoids the attacks of Hackers or
Viruses from Internet
Provide mutual authentication
(Client and dynamic encryption
keys to enhance security
Make wireless AP and Bridge
mode simultaneously as a
wireless repeater
4
2 Package Contents
Open the package carefully, and make sure that none of the items listed
below are missing. Do not discard the packing materials, in case of return;
the unit must be shipped back in its original package.
1. WL-340/341/342 Router
2. 220V~240V Power Adapter
3. Quick Install Guide
4. CD (User’s Manual)
5. Warranty card
6. UTP cable
5
3 Product Layout
Port Description
Power connector Connect the 12V DC adapter to this port
WAN (Blue) Connect your ADSL/Cable modem to this port
LAN (Yellow) Connect your PC’s or network devices to this port
6
Backlabel
The backlabel describes the IP address, login details, SSID, security code and
WPS button functionality.
Button Description
Press 2 seconds for WPS mode
WPS BUTTON
Press 10 seconds to reset the router
Press 15 Seconds to reset the router to factory defaults.
7
4 Network + System Requirements
To begin using the WL-340/341/342, make sure you meet the following as
minimum requirements:
• PC/Notebook.
• Operating System – Microsoft Windows XP/2000/VISTA
• 1 Free Ethernet port.
• WiFi card/USB dongle (802.11 b/g/n) – optional.
• External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45).
• PC with a Web-Browser (Internet Explorer, Safari, Firefox, Opera)
• Ethernet compatible CAT5 cables.
5 WL-340/341/342 Placement
You can place the WL-340/341/342 on a desk or other flat surface, or you can
mount it on a wall. For optimal performance, place your Wireless Broadband
Router in the center of your office (or your home) in a location that is away from
any potential source of interference, such as a metal wall or microwave oven.
This location must be close to a power connection and your ADSL/Cable modem.
8
6 Setup LAN, WAN
WAN connection:
LAN connection:
9
7 PC Network Adapter setup (Windows XP)

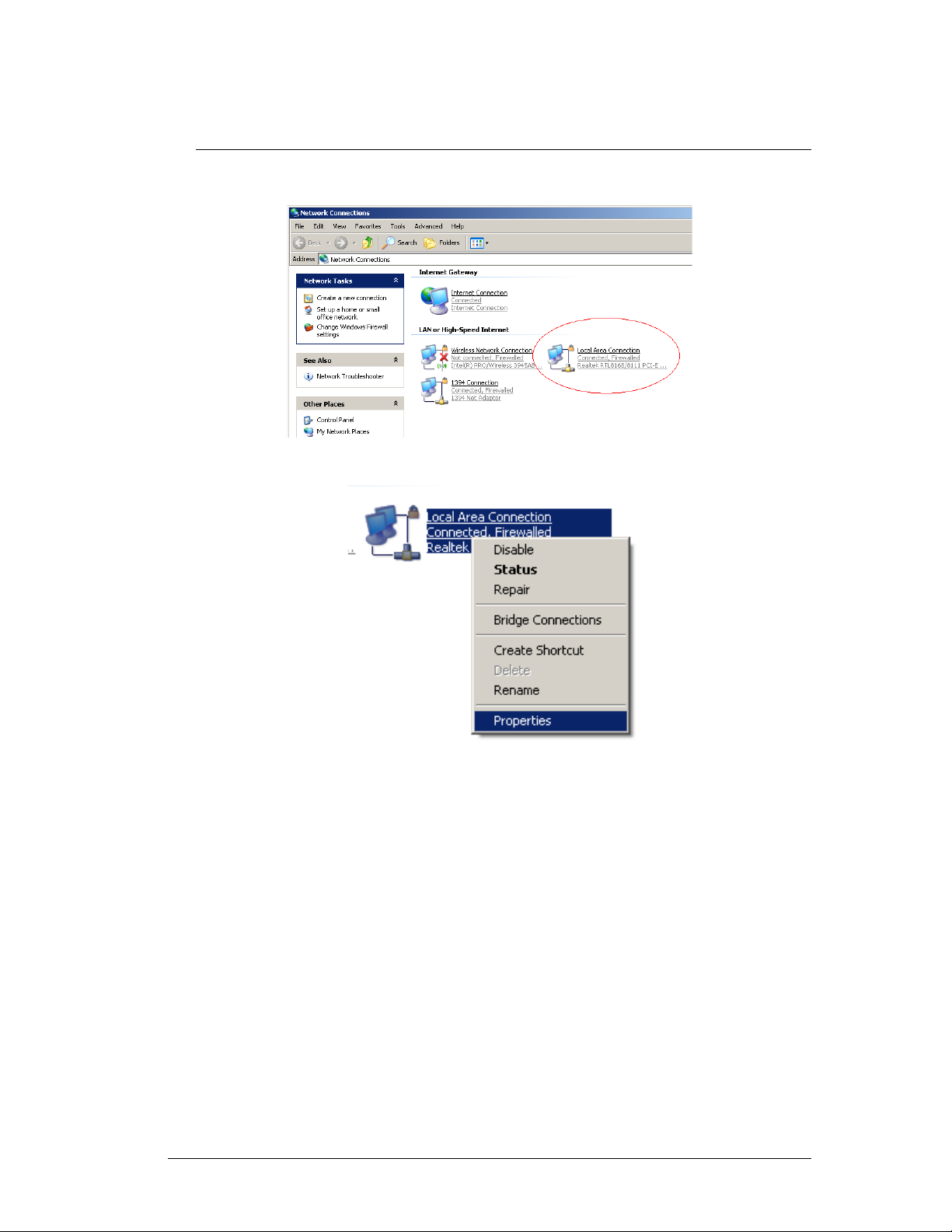

• Enter [Start Menu] select [Control panel] select [Network].
• Select [Local Area Connection]) icon=>select [properties]
10
• Select [Internet Protocol (TCP/IP)] =>Click [Properties].
• Select the [General] tab.
a. The WL-340/341/342 supports [DHCP] function, please select both
[Obtain an IP address automatically] and [Obtain DNS server address
automatically].
11
8 Bring up the WL-340/341/342
Connect the supplied power-adapter to the power inlet port and connect it to
a wall outlet. The WL-340/341/342 automatically enters the self-test phase.
During self-test phase, the Power LED will be lit continuously to indicate that
this product is in normal operation.
9 Initial Setup WL-340/341/342
LOGIN procedure

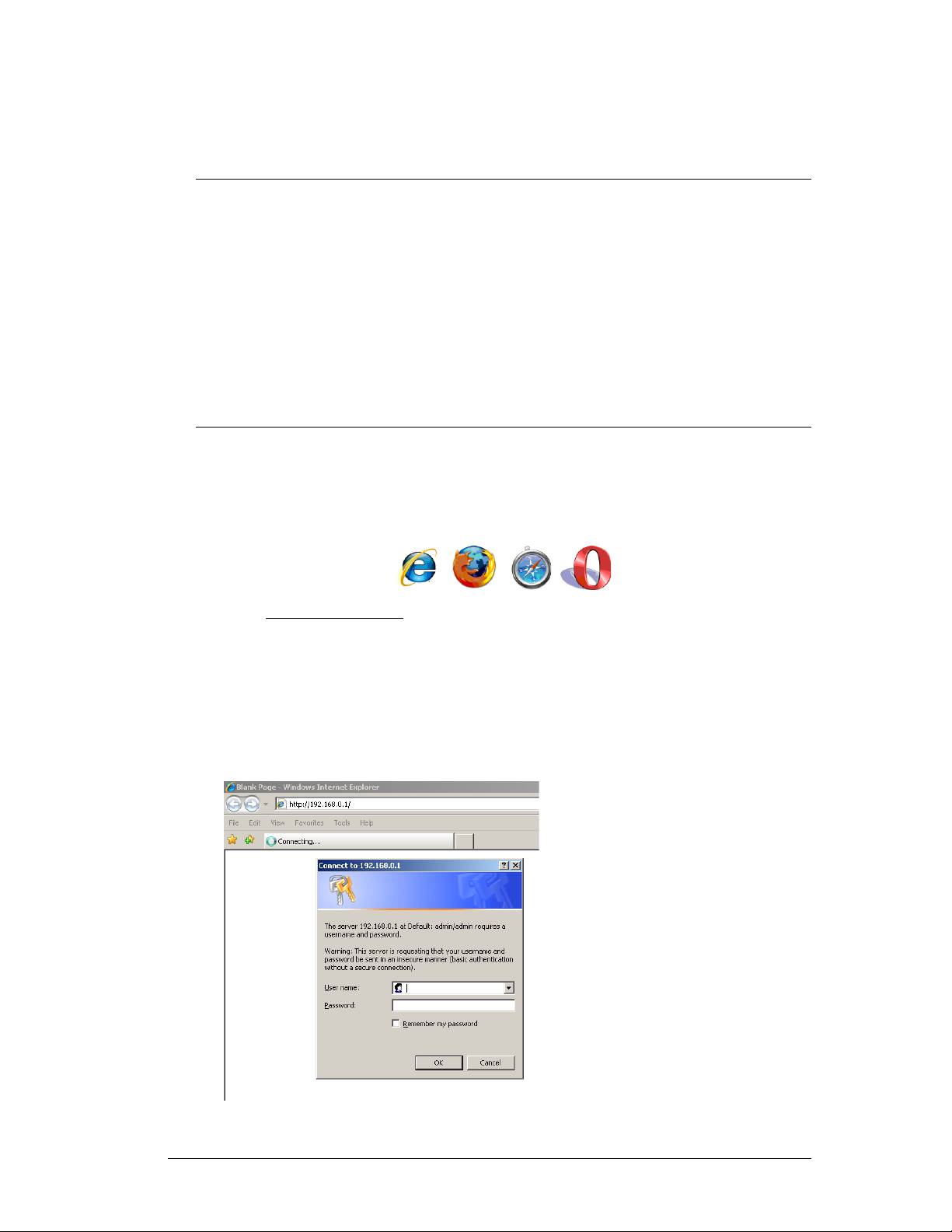

1. OPEN your browser (e.g. Internet Explorer).
2. Type http://192.168.0.1 in address bar and press [Enter]
12
3. Type user name and password (default is admin/admin).
4. Click OK.
5. You will see the home page of the WL-340/341/342.
The System status section allows you to monitor the current status of your router
13
the UP time, hardware information, serial number as well as firmware version
information is displayed here.

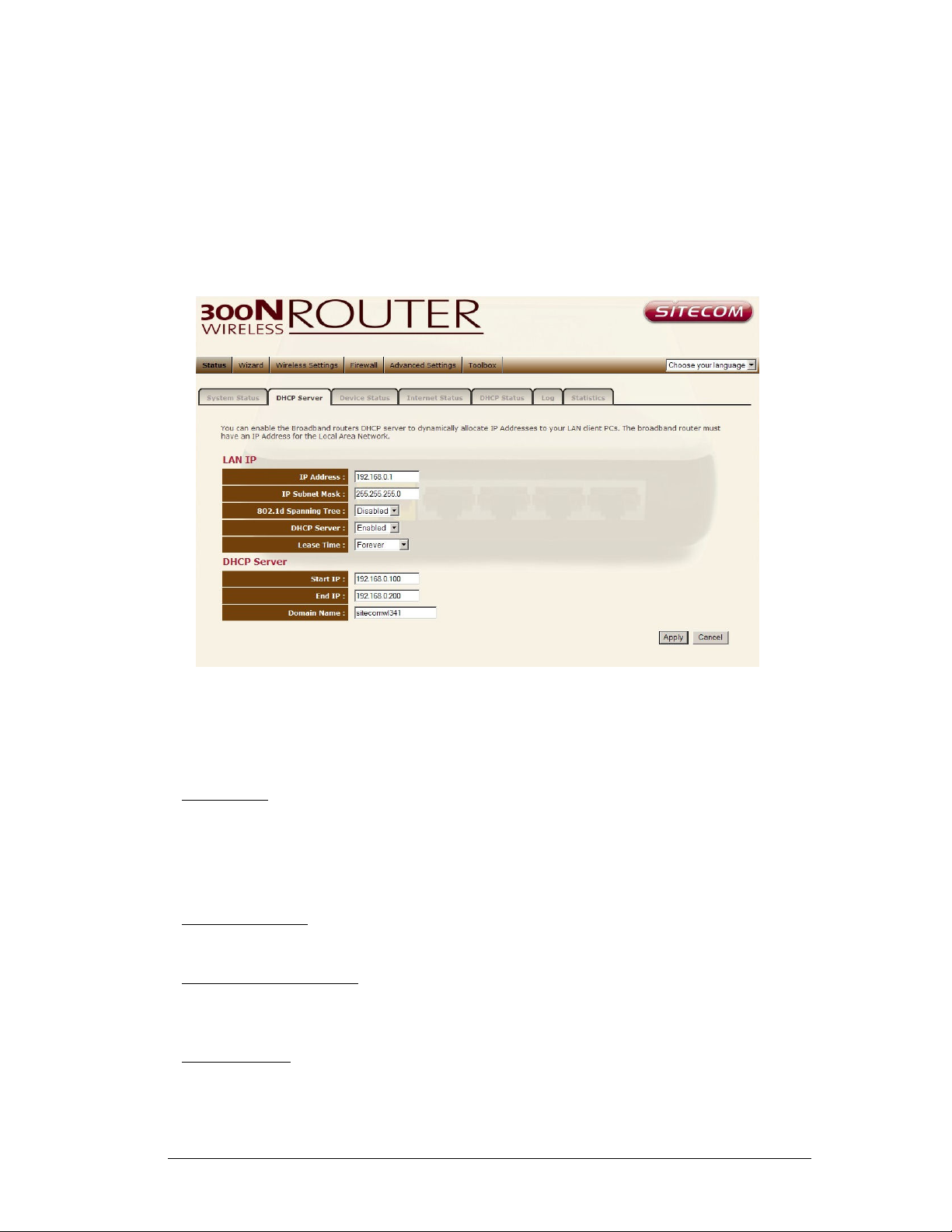

LAN settings
The LAN tab gives you the opportunity to change the IP settings of the WL-
340/341/342.
Click <Apply> at the bottom of this screen to save any changes.
IP addres s 192.168.0.1. It is the router’s LAN IP address (Your LAN clients default
gateway IP address).
IP Subnet Mask 255.255.255.0 Specify a Subnet Mask for your LAN segment.
802.1d Spanning Tree is Disabled by default. If the 802.1d Spanning Tree function
is enabled, this router will use the spanning tree protocol to prevent network loops.
DHCP Server Enabled by default. You can enable or disable the DHCP server.
When DHCP is disabled no ip-addresses are assigned to clients and you have to
14
use static ip-addresses. When DHCP server is enabled your computers will be
assigned an ip-address automatically until the lease time expires.
Lease Time Forever. In the Lease Time setting you can specify the time period
that the DHCP lends an IP address to your LAN clients. The DHCP will change
your LAN client’s IP address when this time threshold period is reached.
IP Address Pool You can select a particular IP address range for your DHCP
server to issue IP addresses to your LAN Clients.
Note: default IP range 192.168.0.100 192.168.0.200. If you want your PC(s) to have a static/
fixed IP address, then you’ll have to choose an IP address outside this IP address Pool
Domain Name You can specify a Domain Name for your LAN. Or just keep the
default (sitecomwl34x).
15
Device Status
View the Broadband router’s current configuration settings. Device Status displays
the configuration settings you’ve configured in the Wizard / Basic Settings /
Wireless Settings section.
16
Internet Status
This page displays whether the WAN port is connected to a Cable/DSL connection.
It also displays the router’s WAN IP address, Subnet Mask, and ISP Gateway as
well as MAC address, the Primary DNS. Press Renew button to renew your WAN
IP address.
17
DHCP Client Status
DHCP This page shows all DHCP clients (LAN PCs) currently connected to your
network. The table shows the assigned IP address, MAC address and expiration
time for each DHCP leased client. Use the Refresh button to update the available
information.
You can check Enable Static DHCP IP. It is possible to add more static DHCP IPs.
They are listed in the table Current Static DHCP Table. IP can be deleted at will
from the table.
Click apply button to save the changed configuration.
18
