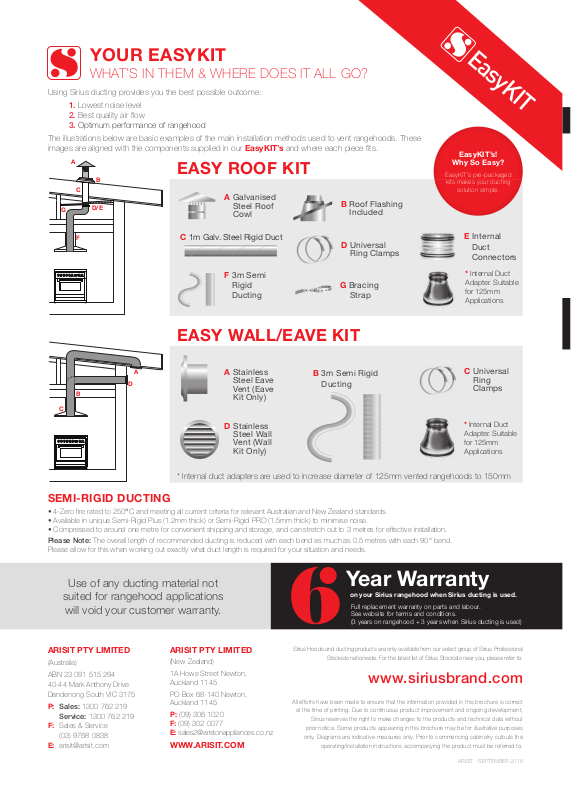

YOUR EASYKIT
WHAT’S IN THEM & WHERE DOES IT ALL GO?
Using Sirius ducting provides you the best possible outcome:
1. Lowest noise level
2. Best quality air flow
3. Optimum performance of rangehood
The illustrations below are basic examples of the main installation methods used to vent rangehoods. These
images are aligned with the components supplied in our EasyKIT’s and where each piece fits.
A
B
C
G
D/E
EASY ROOF KIT
A Galvanised
Steel Roof
Cowl
B Roof Flashing
Included
EasyKIT’s!
Why So Easy?
EasyKIT’s pre-packaged
kits makes your ducting
solution simple.
F
C 1m Galv. Steel Rigid Duct
D Universal
Ring Clamps
F 3m Semi
Rigid
Ducting
G Bracing
Strap
EASY WALL/EAVE KIT
A
D
B
C
* Internal duct adapters are used to increase diameter of 125mm vented rangehoods to 150mm
SEMI-RIGID DUCTING
• 4-Zero fire rated to 250°C and meeting all current criteria for relevant Australian and New Zealand standards.
• Available in unique Semi-Rigid Plus (1.2mm thick) or Semi-Rigid PRO (1.5mm thick) to minimise noise.
• Compressed to around one metre for convenient shipping and storage, and can stretch out to 3 metres for effective installation.
Please Note: The overall length of recommended ducting is reduced with each bend as much as 0.5 metres with each 90° bend.
Please allow for this when working out exactly what duct length is required for your situation and needs.
A Stainless
Steel Eave
Vent (Eave
Kit Only)
D Stainless
Steel Wall
Vent (Wall
Kit Only)
B 3m Semi Rigid
Ducting
E Internal
Duct
Connectors
* Internal Duct
Adapter. Suitable
for 125mm
Applications
C Universal
Ring
Clamps
* Internal Duct
Adapter. Suitable
for 125mm
Applications
Use of any ducting material not
suited for rangehood applications
will void your customer warranty.
ARISIT PTY LIMITED
(Australia)
ABN 23 091 515 294
40-44 Mark Anthony Drive
Dandenong South VIC 3175
Sales: 1300 762 219
P:
Service: 1300 762 219
F:
Sales & Service
(03) 9768 0838
E:
arisit@arisit.com
ARISIT PTY LIMITED
(New Zealand)
1A Howe Street Newton,
Auckland 1145
PO Box 68-140 Newton,
Auckland 1145
P: (09) 306 1020
F: (09) 302 0077
E: sales2@aristonappliances.co.nz
WWW.ARISIT.COM
Year Warranty
on your Sirius rangehood when Sirius ducting is used.
Full replacement warranty on parts and labour.
See website for terms and conditions.
(3 years on rangehood + 3 years when Sirius ducting is used)
Sirius Hoods and ducting products are only available from our select group of Sirius Professional
Stockists nationwide. For the latest list of Sirius Stockists near you, please refer to:
www.siriusbrand.com
All efforts have been made to ensure that the information provided in this brochure is correct
at the time of printing. Due to continuous product improvement and ongoing development,
Sirius reserves the right to make changes to the products and technical data without
prior notice. Some products appearing in this brochure may be for illustrative purposes
only. Diagrams are indicative measures only. Prior to commencing cabinetry cutouts the
operating/installation instructions accompanying the product must be referred to.
ARISIT - SEPTEMBER 2018
universal ducting
SOLUTIONS
Year Warranty
DO NOT use low quality
flexible ducting on your high
performance rangehood!
Use of any ducting material not suited for rangehood
application will void your customer warranty. This is due
to the fact that poor quality flexible ducting can create
additional noise and dramatically reduce the extraction
rate of your high powered kitchen rangehood.
Don’t let poor quality ducting ruin
the performance of your rangehood.
If in doubt,
DIAL before
Sirius provides a full range of high quality, cost effective
ducting kits and individual parts which will provide you with
the best result for your rangehood and add an additional 3
years warranty when used with a Sirius rangehood.
If you or your installers are not sure on any part of the
installation or parts required, Sirius ducting consultants
are just a phone call away.
