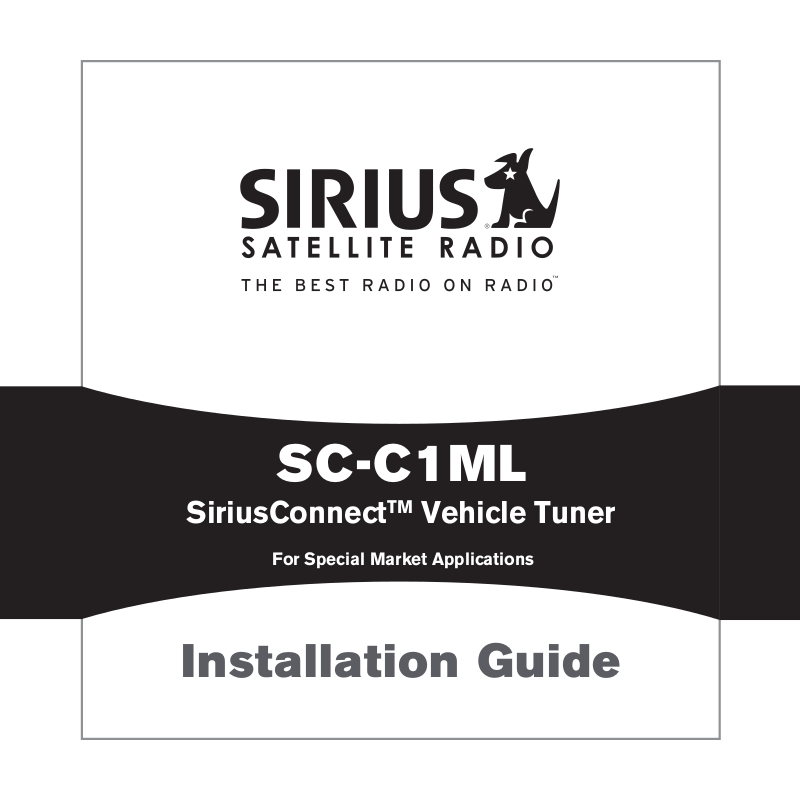

Sirius SC-C1ML Owners Guide

SC-C1ML

SiriusConnectTM Vehicle Tuner

For Special Market Applications

Installation Guide

Congratulations on the Purchase of your new SIRIUS SC-C1 SiriusConnectTM Vehicle Tuner.

The SC-C1ML is packaged for Special Market applications and requires an optional SIRIUS approved antenna. The SC-C1 SiriusConnect Vehicle Tuner is des igned to work with any Sir ius-Ready or SAT Radio Ready headunit. Some headun its will require the use of a SiriusConne ct Inte rface Translator. Please consult your headunit manufacturer fo r more details concerning compatibility and interface availability. The SC-C1 can also be integrated in select factory audio systems. Please consult your retailer for interface compatibility options. For the latest information about this and other SIRIUS products and accessories, visit http://www.sirius.com.

Compatib le with Sir ius-Ready o r

SAT-Radi o Ready Hea dunits

May requ ire a Siriu sConnect In terface

cable or translator

Table of Contents

TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

WARNING AND SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . 4

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FCC Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

FCC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Canadian Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . 6

PACKAGE CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Connector Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Basic system wiring options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Installing the SC-C1 Vehicle Tuner . . . . . . . . . . . . . . . . . . . . . . . . 10

Alternate Mounting Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Activating Your SC-C1 Tuner . . . . . . . . . . . . . . . . . . . . . . . . . . 12

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

[ Table o f Conte nt s ]

3

Warning and Safety Information

Safety Precautions

Be sure to observe the following warnings. Failure to follow these sa fety instructions and warnings ma y result in a serious accident and/or personal injury.

Install the cables and wiring so that it is not crimped or pinched by screws or sharp metal

• edges. Route the cables away from moving parts or sharp pointed e dges. This will prevent crimping an d damage to the wiring. If the wiring must pass through a metal hole, be su re to use a ru bber grommet to prevent the wire’s insulation from being c ut by the metal e dge of the hole .

Use caution if you need to disconnect the battery terminal. Please co nsult the vehicle ’s

• owner’s man ual or a service technician prior to removing the battery positive or groun d connection, as it may cause damage to the vehicle’s electrical system or require repro gramming of the vehicle’s computer-controlled devices.

Do not oper ate any function that takes your attention away from safel y driving your ve hicle.

• Any functio n that requires your prolonged attention should only be pe rformed after com ing to a comple te stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

Do not open , disassemble or alter the unit in any way. Doing so may result in fire, electric

• shock or pr oduct damage.

Do not inse rt any objects into the unit. Doing so may result in fire, electric shock o r prod-

• uct damage.

Do not install in locations that might hin der vehicle opera tion. Doing so may obstr uct vision

• or hamper m ovement which can result in a serious accident.

Do not inst all the unit to high levels of humidity, moisture or dust. Doing so can res ult in

• electric sh ock or product failure.

[ Warni ng a nd Sa fe ty I nform at io n ]

4

FCC Warning

This equipm ent may generate or use radio frequency energy. Changes or modifications to this equipment m ay cause harmful interference unless the modifications are expressly approv ed in this User G uide. The user could lose the authority to operate this eq uipment if an una uthorized change or modification is made.

FCC Compliance

Note: This equipment has been tested and found to comply with Part 15 of the FCC Rules . These rules are designed to provide reasonable protection against har mful interference . This equipment m ay cause harmful interference to radio communications if i t is not installe d and used in acc ordance with these instructions. However, there is no guar antee that interf erence will not oc cur in a particular installation. If this equipment does c ause harmful inte rference to radio or television reception, which can be determined by turning the equipment off and on, the use r is encouraged to try to correct the interference by one of more of the fo llowing measures:

Relocate th e receiving antenna.

•

Increase th e separation between the other equipment and the receiver.

•

Consult the dealer or an experienced radio technician for help.

•

Canadian Compliance

This Class B digital apparatus complies with Canadian ICES-003 Cet apparei l numérique de la classe B est conforme à la nome NMB-003 du Canada.

[ Warni ng a nd Sa fe ty I nform at io n ]

5

Copyrights & Trademarks

Hardware, s ubscription, and activation fee required. For full Terms & Conditions, visi t http://siri us.com. Prices and programming are subjec t to change. Not available in HI a nd AK. Equipment a nd subscription sold separately. Installation required wit h some equipment.

[ Copyr ig ht s & T ra de ma rks ]

6
