Sirius DH4 Quick Start Guide

Insert the Radio Dock Adapter Into the Dock

Connect the Home Dock and Dock the Radio

Place & Aim the Indoor/Outdoor Home Antenna

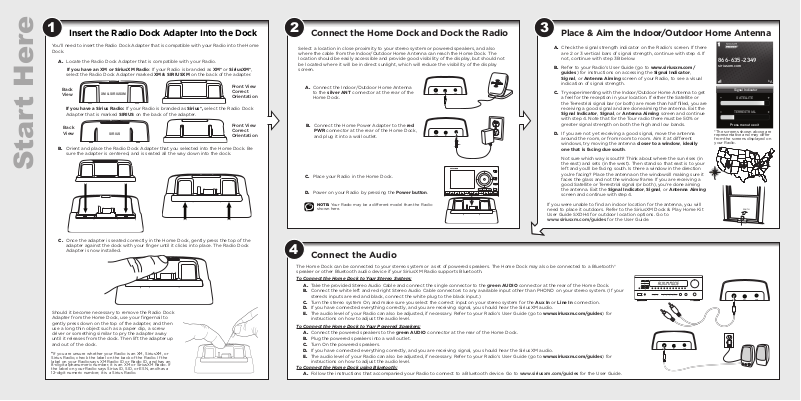

Start Here

You’ll need to insert the Radio Dock Adapter that is compatible with your Radio into the Home Dock.

A. Locate the Radio Dock Adapter that is compatible with your Radio.

If you have an XM or SiriusXM Radio: If your Radio is branded as XM* or SiriusXM*,

select the Radio Dock Adapter marked XM & SIRIUSXM on the back of the adapter.

Back View

XM & SIRIUSXM

Front View Correct Orientation

If you have a Sirius Radio: If your Radio is branded as Sirius*, select the Radio Dock

Adapter that is marked SIRIUS on the back of the adapter.

Back View

SIRIUS

Front View Correct Orientation

B. Orient and place the Radio Dock Adapter that you selected into the Home Dock. Be

sure the adapter is centered, and is seated all the way down into the dock.

Select a location in close proximity to your stereo system or powered speakers, and also where the cable from the Indoor/Outdoor Home Antenna can reach the Home Dock. The location should be easily accessible and provide good visibility of the display, but should not be located where it will be in direct sunlight, which will reduce the visibility of the display screen.

A. Connect the Indoor/Outdoor Home Antenna

to the silver ANT connector at the rear of the

AUDIOANT PWR

Home Dock.

B. Connect the Home Power Adapter to the red

PWR connector at the rear of the Home Dock,

and plug it into a wall outlet.

C. Place your Radio in the Home Dock.

D. Power on your Radio by pressing the Power button.

NOTE: Your Radio may be a different model than the Radio

shown here.

AUDIOANT PWR

PLUS

34567890

alerts

t-mix

t-scn

twx

b / #

A. Check the signal strength indicator on the Radio’s screen. If there

are 2 or 3 vertical bars of signal strength, continue with step 4. If not, continue with step 3B below.

B. Refer to your Radio’s User Guide (go to www.siriusxm.com/

guides) for instructions on accessing the Signal Indicator, Signal, or Antenna Aiming screen of your Radio, to see a visual

indication of signal strength.

C. Try experimenting with the Indoor/Outdoor Home Antenna to get

a feel for the reception in your location. If either the Satellite or the Terrestrial signal bar (or both) are more than half ﬁlled, you are receiving a good signal and are done aiming the antenna. Exit the Signal Indicator, Signal, or Antenna Aiming screen and continue with step 4. Note that for the Tour radio there must be 50% or greater signal strength on both the high and low bands.

D. If you are not yet receiving a good signal, move the antenna

around the room, or from room to room. Aim it at different windows, try moving the antenna closer to a window, ideally one that is facing due south.

Not sure which way is south? Think about where the sun rises (in

the east) and sets (in the west). Then stand so that east is to your left and you’ll be facing south. Is there a window in the direction you’re facing? Place the antenna on the windowsill making sure it faces the glass and not the window frame. If you are receiving a good Satellite or Terrestrial signal (or both), you’re done aiming the antenna. Exit the Signal Indicator, Signal, or Antenna Aiming screen and continue with step 4.

If you were unable to ﬁnd an indoor location for the antenna, you will need to place it outdoors. Refer to the SiriusXM Dock & Play Home Kit User Guide SXDH4 for outdoor location options. Go to www.siriusxm.com/guides for the User Guide.

866-635-2349

siriusxm.com

Signal Indicator

ATELLIT

TERRESTRIA

Press menu to exit

*The screens shown above are representative and may differ from the screens displayed on your Radio.

SOUTH

C. Once the adapter is seated correctly in the Home Dock, gently press the top of the

adapter against the dock with your finger until it clicks into place. The Radio Dock Adapter is now installed.

Connect the Audio

The Home Dock can be connected to your stereo system or a set of powered speakers. The Home Dock may also be connected to a Bluetooth® speaker or other Bluetooth audio device if your SiriusXM Radio supports Bluetooth.

To Connect the Home Dock to Your Stereo System:

A. Take the provided Stereo Audio Cable and connect the single connector to the green AUDIO connector at the rear of the Home Dock. B. Connect the white left and red right Stereo Audio Cable connectors to any available input other than PHONO on your stereo system. (If your

stereo’s inputs are red and black, connect the white plug to the black input.)

C. Turn the stereo system On, and make sure you select the correct input on your stereo system for the Aux In or Line In connection.

AUDIOANT PWR

D. If you have connected everything correctly, and you are receiving signal, you should hear the SiriusXM audio. Should it become necessary to remove the Radio Dock Adapter from the Home Dock, use your ﬁngernail to gently press down on the top of the adapter, and then use a long thin object such as a paper clip, a screw driver or something similar to pry the adapter away until it releases from the dock. Then lift the adapter up and out of the dock.

*If you are unsure whether your Radio is an XM, SiriusXM, or

Sirius Radio, check the label on the back of the Radio. If the label on your Radio says XM Radio ID or Radio ID, and has an 8-digit alphanumeric number, it is an XM or SiriusXM Radio. If the label on your Radio says Sirius ID, SID, or ESN, and has a 12-digit numeric number, it is a Sirius Radio.

E. The audio level of your Radio can also be adjusted, if necessary. Refer to your Radio’s User Guide (go to www.siriusxm.com/guides) for

instructions on how to adjust the audio level.

To Connect the Home Dock to Your Powered Speakers:

A. Connect the powered speakers to the green AUDIO connector at the rear of the Home Dock.

B. Plug the powered speakers into a wall outlet.

C. Turn On the powered speakers.

D. If you have connected everything correctly, and you are receiving signal, you should hear the SiriusXM audio.

E. The audio level of your Radio can also be adjusted, if necessary. Refer to your Radio’s User Guide (go to www.siriusxm.com/guides) for

instructions on how to adjust the audio level.

To Connect the Home Dock using Bluetooth:

A. Follow the instructions that accompanied your Radio to connect to a Bluetooth device. Go to www.siriusxm.com/guides for the User Guide.

AUDIOANT PWR

select

PULL

mute

t-mix

memo

t-scn

jump

bank

direct

display

PULL

SXWBR1 Remote Control Functions

Power Button Press to turn Radio on and off.

Previous/Next Channel Previous/Next Channel

Press open Linear Tune and to tune to the previous/next channel.

Select Button

Press to execute a focused button, tile,

Dock & Play Home Kit

QUICK START GUIDE

or other screen element. Press and hold to execute a focused button, tile, or other screen element which has a press & hold function (such as the Now Playing screen channel logo to save/ delete channel as a favorite).

Favorites Button Favorites Button

Press to open a list of channels, sports teams, Pandora Artist Stations, and on-demand shows that have been saved as favorites for easy tuning.

Skip Back Button Press to skip back to the beginning of the song/segment. Press to skip back one song/segment. Press and hold to Continuously skip back.

Number Buttons Press 0-9 to enter numerical digits. At the Now Playing screen, press 0-9 to open Direct Tune and enter the digits pressed on the remote control.

Jump Button Press to Jump to the previously tuned channel/content. (Perform a TuneStart if possible when TuneStart is enabled.)

Settings Button Press to display additional selections for Pandora Artist Stations, For You recommendations, and Radio information. Also access listener preferences and Radio settings.

For use with Tour

Voice Button

Press to enter a voice command such as, search, channel, play, find, go to, listen to, tune, open – and more.

Arrow Buttons Up/Down Press to navigate current screen focus up/down to a button, tile, or other screen element (such as channel number, channel logo, or metadata on the Now Playing screen, and on/off sliders in Settings, etc.)

Arrow Buttons Left/Right Press to navigate current screen focus left/right to a button, tile, or other screen element. Press to increase/decrease by one step Audio Level, FM Channel, or Brightness settings. Press and hold to navigate to a previous page of a multiple page list, such as in categories and channels, favorites, etc., and scroll Linear Tune. Continuously increase/decrease Audio Level, FM Channel, or Brightness settings.

Categories Button Press to opens a list of the channels, ondemand content, and sports games and teams in categories for browsing and tuning.

Live/Skip Forward Button When Skip Forward button is shown: press to skip forward one song or segment. Press and hold to continuously skip forward. When Live button is shown: None.

Home Button Returns to the Now Playing Home screen from any other screen.

Play/Pause Button Press to play audio or pause audio.

IMPORTANT! Pull tab and remove before using Remote Control.

Speciﬁcations

System

Power Requirements: 110 V AC, 200 mA (max) Operating Temperature: -4°F to +140°F (-20°C to +60°C) Audio Output: 1.5 V

Home Dock

Dimensions: 4.1 in (W) X 1.8 in (H) X 1.7 in (D) 105 mm (W) X 45 mm (H) X 44 mm (D)

Weight

Weight (with adapter): 1.9 oz (54 g)

Audio Connector: 1/8 in (3.5 mm) female Antenna Connector: SMB male

Remote Controls (2)

Dimensions: 1.6 in (W) x 4.7 in (H) x 0.63 in (D)

41 mm (W) x 120 mm (H) x 64 mm (D) Weight: 2.1 oz (60 g) Battery: CR2032 (3 V)

Home Power Adapter

Input: 100-240 V AC, 50-60 Hz, 0.2 A

Output: 5.0 V DC, 1.5 A

Indoor/Outdoor Home Antenna

Type: SiriusXM Indoor/Outdoor Connector: SMB female Cable Length: Approximately 20 ft (6.1 m)

Stereo Audio Cable

Connectors: 1/8 in (3.5 mm) stereo male to RCA left & right Cable Length: Approximately 5.9 ft (180 cm)

(without adapter)

(max)

rms

: 1.8 oz (50 g)

What’s in the Box?

Home Dock

select

memo

t-mix

SXWBR1 Remote Control

(For use with Tour)

PULL

jump

PULL

IR Remote Control

(For use with all

radios except Tour)

t-scn

display

direct

mute

bank

Self installation instructions and tips are provided for your convenience. It is your responsibility to determine if you have the knowledge, skills and physical ability required to properly perform an installation. SiriusXM shall have no liability for damage or injury resulting from the installation or use of any SiriusXM or third party products. SiriusXM product warranties do not cover the installation, removal or reinstallation of any product.

Sirius XM Radio Inc. 1221 Avenue of the Americas New York, NY 10020

1.866.635.2349

SXDH4QSG 200331a

siriusxm.com

IR Remote Control Functions

Power Button

Press to turn Radio on and off.

Pause and Replay Buttons Pause and Replay Buttons

For Radios which have these features, press to pause, rewind, and replay live radio and smart favorite channels.

Select Button

When in a menu or list, press to confirm selection of highlighted item; for SiriusXM Radios which have these features, when in TuneMix or TuneScan, press to end TuneMix/Scan and continue playing the currently tuned channel; for some Sirius Radios, press to directly enter a channel number.

TuneMix/Memo Button TuneMix/Memo Button

For SiriusXM Radios which have this feature, press to begin TuneMix; for Sirius Radios which have this feature, press to save artists or songs.

FM Button For Radios which have this feature, press to access and cycle through FM presets. (Vehicle Dock only).

Number Buttons Press to tune to a stored favorite channel; for Radios which have this feature, also used to enter a channel number and directly tune to that channel.

Jump Button For Radios which have these features, press to directly access traffic and weather of the chosen city; access the previous channel or a favorite channel.

For use with all Radios except Tour

Arrow Buttons Up/Down

Press to preview and tune to channels through the channel lineup; also press to scroll through lists and highlight menu items.

Arrow Buttons Left/Right Press to search for channels by category.

Menu Button Press to access advanced features and configuration options.

TuneScan Button For SiriusXM Radios which have this feature, press to begin TuneScan.

Direct/Display Button For XM and SiriusXM Radios which have this feature, press to directly enter a channel number; for Sirius Radios which have this feature, press to customize the way you view content on the display.

Mute Button Press to silence the audio. Press again to hear to the audio.

Bank Button Bank Button

For Radios which have this feature, press to switch between favorite channel banks or bands.

IMPORTANT! Pull tab and remove before using Remote Control.

Important Legal Information

© 2020 Sirius XM Radio Inc. SiriusXM, Automatic, Pandora and all related logos are trademarks of Sirius XM Radio Inc. and its respective subsidiaries. All other marks, channel names and logos are the property of their respective owners. All rights reserved. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

SiriusXM subscriptions are sold separately. See our Customer Agreement for complete terms at siriusxm.com, including how to cancel, which includes calling SiriusXM at 1-866-635-2349.

Hardware and subscription sold separately. All fees, content and features are subject to change. Our satellite service is available only to those at least 18 and older. Installation instructions are provided. You must determine if you have the knowledge, skills and ability required to properly perform installation. Professional installation recommended. SiriusXM product warranties do not cover the installation, removal or reinstallation of any product.

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov.

Please Recycl

Indoor/Outdoor

Home Antenna

Home Power

Adapter

XM & SiriusXM Radio Dock Adapter

Sirius Radio Dock Adapter
