How To Use and Care For Your
Zigzag Sewing Machine
S' / ?
MODEL 5
7
1
Page 2
yr #
INDEX
JS^
Features and Parts
....................................... 2-3-4
Needle and Thread Chart .......................................... 5
Page
Setting the Needle
Winding the Bobbin
Threading the Bobbin Case
Placing Bobbin Case in Shuttle
....................................................
.................................................
.....................................
...............................
Upper Threading........................................................ g
Straight Stitching ................................................... iQ
Setting the Stitch Length
Stitch Length Chart
.......................................
.................................................
11
11
Sewing in Reverse .................................................. 11
Adjusting the Tensions
......................................
11-12
Adjusting Pressure and Feed................................... 12
General Sewing
...................................................
12
Light Weight Fabrics .......................................... 13
Darning and Monogramming
.............................
13
Preparing to Sew ..................................................... 13
Removing the Work
Setting Needle Position
Adjusting The Stitch Width
................................................
..........................................
....................................
14
15
16
Creative Embroidery.......................................... 16-17
Samples of Creative Embroidery
Decorative Stitch Designs
.....................
17-18
.....................................
18
Blind Stitch Hem .................................................... ig
Sewina on Buttons
........................
-................... . 9D
8
6
6
7
Making Buttonholes
How to Use Accessories
.............................................
.................... ...
............
21
22-25
Narrow Hemmer................................................ 22
Lace Trimmed Hem............................................. 22
Page
Lace Edge
French Seam
...........................................................
.......................................................
22
22
Flat Felled Seam ................................................. 22
Hand Rolled Effect
Quilting Guide
.............................................
....................................................
22
23
Seam Gauge ........................................................ 23
Adjustable Cording and Zipper Foot 24
Sewing in Zipper
............................................
24-25
Care and Maintenance of Your Machine
....................26-29
How to Oil Your Machine
How to Replace Light Bulb
...................................
................................
26
26
Adjusting and Changing "V" Belt •27-28
Cleaning and Oiling the Shuttle
Accessories
Trouble Chart
.............................................................
....................................................
......................
28-29
29
30-32
Attachments........................................................... 34
Attachment Foot ................................................. 35
Edgestitcher ................................................... 35-36
Binder .............................................................. 37
Hemmer
..................
-.................................. 38-39
A ^
Page 3
;:/ât \
•■* I* «
tà iß iß iß Iß (ß fß iß 'S U U
ê,..
'i: ' ;í '«à
:í ш
4. i
ij» Ф J5* Ф ф! 'j>
Ш, . к
Ä. Ä, il Зк 3^
i
•r-i
Ol
Page 4
FEATURES AND PARTS
1 9
1
1 -
1
1 '
1
|-
1 *
1 •*
1
1 ?
1
1
é,
1. Hand Wheel
2. Bobbin Winder
3. Stitch Length Dial
4. Push Button Reverse
■
•
5. Bobbin Winding Tension
6. Drop Feed Buttons
7. Needle Plate with Seam Guide
8. Cover Plate
9. Presser Foot
10. Attachment and Foot Thumb Screw
11. Needle Clamp and Screw
12. Needle Bar Thread Guide
(Front
View)
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
Thread Guides
Tension Regulator
Sew Lite Switch
Take-up Lever
Pressure Release-Darner
Arm Thread Guides
Pattern Selector Lever
Needle Position Lever
Stop Adjustment Screw
Stitch Width & Release Lever
Spool Pins
Buttonhole Lever
Page 5
Fig. 2
25. Presser Bar Lifter
26. Thread Cutter
27. Feed
28. Motor
29. Belt
Page 6
fi V. i
*
-,
»
•4
•■ik
-
NEEDLE
Fabric
Extremely heavy
tarpaulin, sacking,
canvas, duck, etc.
Heavy upholstery
fabric, ticking.
denim, leatherette
Medium heavy drapery
fabric, velveteen.
suiting, felt, terry, etc.
Medium broadcloth.
percale, gingham, linen.
chintz, taffeta, sheer.
wool, shantung, etc.
Sheer voile, lawn.
dimity, crepe.
handkerchief linen.
plastic film, etc.
Very sheer chiffon.
batiste, lace, organdy.
ninon, net, marauisette. e
-THREAD
Needle
No
4
3
2
1
0
00
\a
- FABRIC - STITCHING
Machine
Stitches Cotton
Per Inch
6
to
8
8
to
10
10
to
12
12
to
14
14
to
16
(Plastic film)
8 to 10
16
to
on
Thread
10
to
30
30
to
40
40
to
60
60
to
80
80
to
100
100
to
1 ur\
GUIDE
Mercerized
Thread
Heavy Duty
Heavy Duty
Heavy Duty
50
50
50
Silk
or
Nylon
A
Page 7
SETTING THE NEEDLE
, the needle bar (A) to its hiahest ooint
needi? cf ’
renkced removed and
replaced When replacing needle (Flat Side to Right ) in
After changing »he needle make one comnlete re^n
? lie ''*■"* '”' *•“•* •“ '-o 'u™7h' ?|edU°;
in tile correct position. is
WINDING THE BOBBIN
Disengage the hand wheel (A Fig. 4.) from the stitching
mechanism by turning the clutch (B Fig. 4) toward you or
ounterclockwise. Place a spool of thread on one of the
spool pins (A Fig. 5) lead thread through the front thread
thr^d I I. machine. Run end of
D on spindk of\ ®dge and place bobbin
against haid \ 1 " ^“^er pulley
against hand wheel. Hold thread end loosely and start
lurn clutch away from you until sewing mechanism ic.
ird°w?eer‘* "
Break off loose thread end used to start the winding.
it iiM
!►
I).
►
e
►
|i>
p»^
I*'
1».
p
C-
p
p
r
■V' pifi
W ' ^
Page 8
n
THREADING THE
BOBBIN CASE
Step 1 (illustrated in Fig. 6).
Hold bobbin case between thumb
and forefinger of left hand so that
the slot in the edge of the bobbin
case is on top. Take the bobbin
between thumb and forefinger of
right hand so that the thread on
top leads from left to right. Step
2. Insert bobbin into bobbin case,
pull the thread into the slot of the
bobbin case as shown in Fig. 7. and
draw it under the tension spring
and into the fork-shaped opening
of the spring as shown in Fig. 8.
SLOT
A
li5N SPRIWG
Page 9
8
PLACING BOBBIN CASE IN SHUTTLE
Open hinged cover plate left of the needle.
(See 8, Fig. 1) Hold the bobbin case latch, (D),
Fig. 9, between the thumb and forefinger of the left
hand, with at least three inches of thread running
from the top of the bobbin case to the right. Insert
and center the bobbin case on the stud of the shuttle
body, (C). Be sure the bobbin case finger, (E),
is opposite the shuttle race notch, (A). Press the
bobbin case (B) into the shuttle as far as possible
until latch catches on the center post of the shuttle.
THEN release the bobbin case latch, (D). Press
bobbin case again after latch has been released to
make sure the bobbin case is hooked securely in
place. Close the cover plate.
Fig. 9
Fig. 10
Page 10
/1
UPPER THREADING
(Fig. 10)
1. Turn the hand wheel toward you to raise the takeup lever and needle to their highest position.
2. Place spool of thread on the spool pin nearer the
needle. ^ ^
3. Lead thread through rear and front arm thread
guides (A).
4.
down and between tension discs B from right to left
5.
up and around into the notch on check spring (C)
over tension discs.
6.
Down under thread guide bar and into guide (D)
7.
up into take-up lever from right to left (E)
8. down through guide (D) in thread bar again
9. into thread guide F) Fig. 11
10, through needle clamp guide (G) and into needle
from left to right pulling three to four inches of
thread through needle.
allT «V Zt “T"
.hen irbe tuTed“ uP- A loop will be fo^ed oner the upper .breed „bich
hen can be pulled out straight (Fig. 11), Place both thread ends und.r it,. -x pi.
fnot - J
Page 11
10
STRAIGHT STITCHING
For straight sewing on fine fabric or very soft material, you
may want to use the straight stitch presser foot and the straight
stitch needle plate which are included in your accessory box.
Both have narrow needle slots.
Changing the Presser Foot and Needle Plate :
(1) Presser Foot
(A) Loosen thumb screw (10, Fig. 1) and remove zigzag
presser foot.
(B) Replace with straight stitch presser foot (Fig. 12A).
(2) Needle Plate
(A) Open cover plate.
(B) Remove screws holding needle plate
(7, Fig. 1), to bed plate.
(C) Remove zigzag needle plate
(D) Replace with straight switch needle
plate 12B.
Be sure to set stitch width lever 22 at 0,
or the needle will break in striking the foot or
plate.
Set selector lever 19 and buttonhole lever 24
at "M" position, and needle position lever 20
at "L". (Fig. 12C)
Fig. 12-A
Fig. 12-C
Fig. 12-B
V
e
e
r
- 1»
‘
►
f,. ,
»■
(-
r
Page 12
SETTING THE STITCH LENGTH
The length of the stitch is regulated by the dial, 3, shown in Fig. 1. Near 0 is shortest
stitch and 4 is longest, but the dial may be set any spot between marking for a variety of
lengths. Turn the dial to the left to lengthen and to the right to shorten the stitch. The
number of the stitch length you choose shoule appear under the dot of the control plate.
STITCH LENGTH CHART (Approximate)
11
Figures on indicator 0
Number^f stitches per inch No Feeding
0.5
39
21
1
11
2
3
7
4
8
SEWING IN REVERSE
When you wish to sew backward to tie the threads at the beginning or the end of a seam,
press the R button (4 Fig. 1) in as far as it will go. The machine will sew backward as long
as the button is held down.
ADJUSTING THE TENSIONS
Always adjust the upper tension with the presser foot down,
as the tension is released when it is raised. To increase tension
on the upper thread, turn dial (Fig. 13) to the right, or clock
wise. To decrease, turn to the left. The higher the number
on the dial, the tighter the tension. Before adjusting lower
tension be sure that the machine is threaded properly.
When necessary to change the bobbin tension, turn small
screw (Fig. 14) on side of the bobbin case clockwise to tighten.
Page 13
12
When the upper and under tensions are properly
balanced, a perfect stitch will be formed with both
threads interlocking in fabric (Fig, 15).
When the upper tension is too tight, the lower
thread is pulled up over the upper thread which is
lying fiat on the fabric (Fig. 16).
When the upper tension is too loose, the upper
thread forms loops over the lower thread lying flat on
the fabric (Fig. 17).
4
ADJUSTING PRESSURE
AND FEEDING OF FABRIC
GENERAL SEWING. Usually for straight sewing and zigzag stitching the pressure bar cap
or darner release (17, Fig. 18), is at its lowest position and the "UP" button is pushed in,
Fig. 19.
Fig. 15
Fig. 16
Fig. 17
,mim ■
Fig.18
Fig. 14
Wirr 1 Q
*
I»
j4
r
r
;
(
r
4"
r
Page 14
SEWING THIN OR LIGHT WEIGHT FABRICS.
When lighter pressure is required to sew satisfactorily on thin
silk or filmy material, the pressure cap should be about halfway
down. Release all the way by pressing the snap lock, Ä, (Fig. 20),
and then press cap B down again to halfway spot. Lower the feed
slightly by pushing the "Down" button halfway down.
DARNING AND MONOGRAMMING. In order to move the
fabric freely in any direction for darning, mending and certain
kinds of free-hand embroidery, release the pressure cap B comp
letely by pressing down on the snap lock, A, (Fig. 20). Push the
"Down" button completely down, which drops the feed well below
the needle plate. To return feed to normal, push the "UP" button
in.
Fig. 20
PREPARING TO SEW
Have take-up lever at highest point before starting to sew. Do not try to help the feeding
by pulling the material as this may deflect the needle and cause it to break.
NEVER run machine without material under presser foot.
Place material and threads in position under the presser foot and lower the presser foot.
Turn the hand wheel toward you until the needle is at its highest point. You are now ready
to begin sewing. By having the needle at its highest point, it is not necessary to touch the
hand wheel to start the machine. You merely press the control. The speed of the machine
13
Page 15
14
REMOVING THE WORK
Be sure to stop the machine when the thread take-up
lever and needle bar are at their highest position.
Now raise the presser foot and draw the fabric back
and to the left, (Fig. 21-A and B), and pass the thread over
the thread cutter.
Pull down slightly, holding thread in both hands, so
as not to bend the needle.
Leave the ends of thread under the presser foot.
Fig. 21-A
§, ^
li
1='
I
►
►
w
1»
ilf
I*
Fig. 21-B
Page 16
ri
SETTING NEEDLE POSITION
The needle bar should be at its highest point when adjusting position to avoid tearing
the fabric or bending the needle.
Select needle position by moving needle position lever
(20, Fig. 22).
L indicates the left needle position, "C" the center,
and "R" the right.
In the left position you sew ;
Straight Stitching (using straight stitch needle plate
and foot)
Buttonholes and Sewing-on Buttons.
15
When using straight stitch needle plate and foot, BE
needle position is set at ”L".
The Right position is for:
All of Decorative Stitch Designs and Blind Stitch Hems
Decor.live stitch designs can be sewn at any position, but for best results use "R" position.
Fig. 22
Page 17
16
.
ADJUSTING THE STITCH WIDTH
To stitch continuously at one width of zigzag stitching set pattern selector lever (19, Fig.
1), and buttonhole lever (24, Fig. 1) at "M" and zigzag stitch width lever (22, Fig. 1) at the
chosen stitch width number and lock in position with zigzag stitch width locks (21, Fig. 1).
Should you wish to move freely between any two widths, such as in doing free-hand
embroidery, set left hand zigzag width lock at selected number and right hand lock at
number 5 or lower.
The 2 widths will be produced until the zigzag lever is moved.
CREATIVE EMBROIDERY
and zigzag needle plate are in place.
The satin stitch, (Fig. 22), which is really just a very
short zigzag stitch, and the basis for most embroidery, is
obfained by setting the stitch length as near 0 as possible
without stopping the feeding action.
The width may be set anywhere from just past 0 to 5.
Fig. 22
*
f.
^ r
w
t »5«
p>
r
►
V
p»
»
r
r
Page 18
-.f>
With the machine set for a short stitch length, different designs can be made by swinging
the zigzag stitch width lever back and forth between 0 and 5 or any other combination of
widths and also using the various settings of the needle positioning lever. Set a rhythm for
yourself and then proceed. After a while you will become quite skillful, varying your designs
by the speed of the machine, stitch length, width and manipulation of the zigzag stitch width
and needle positioning levers.
SAMPLES OF CREATIVE EMBROIDERY
A. With needle position lever extreme left sew a few
stitches at 5 width, then quickly move lever back
to 0 for a short period. Count, if necessary, to es
tablish a rhythm.
B. With needle position lever extreme right gradually
move zigzag stitch width lever to 5 then snap it
back quickly to 0.
C. With needle position lever center gradually move
zigzag stitch width lever to 5 then snap it back
quickly to 0.
D. With needle position lever extreme left gradually
move zigzag stitch width lever to 5 then [snap it
back quickly to 0.
E. Set stitch width at approximately 1% start with
needle position lever at the extreme left position
make a few stitches, quickly move needle position
lever to center position then right, back to center
2^
17
Page 19
18
F Set stitch width at 5, stitch length at UA- Do a few zigzag stitches, drop feed for 3 or
4 stitches, then raise it again. By operating the drop feed button rhythmically. It is not
necessary to count stitches.
G. Drop feed, lock stitch width at 5, take 3 or 4 stitches, leave needle in fabric left of stitches.
Pivot fabric on needle to make next daisy petal. Continue until flower design is com
plete.
Lock threads by setting stitch width at 0 and taking 3 or 4 stitches in center of design.
DECORATIVE STITCH DESIGNS
To sew the decorative stitch designs set machine as
follows:
(1) Needle position lever (20, Fig. 24) at ”R".
(2) Buttonhole lever (24, Fig. 24) at "M".
(3) Stitch length dial (3, Fig. 24) near 0.
(4) To select a pattern, hold release lever (22, Fig. 24;
to the right as far as possible - then move pattern
selector lever (19, Fig. 24) to desired stitch design
setting.
,
i»
C;
C
»r
Ir
w
Page 20
5 o
19
BLIND STITCH HEM
To make a blind stitch hem follow next steps:
(1) Set needle position lever at ”R".
(2) Set buttonhole lever at "M".
(3) Set stitch length dial at 3.
(4) Set pattern selector lever for blind stitch (
!
Blind stitch hems provide a durable hem finish that is almost invisible and comparable to
hand sewing.
Prepare the garment in the same manner as for hand hemming.
STEP
1
STEP
STEP
COMPLETED
Step 1. (Fig. 33) If hem with folded edge is used make first fold deep.
Step 2. Turn hem to the depth desired and baste from upper edge. Press in place.
Step 3. Fold hem back toward right side of garment leaving extended.
Step 4. Place meterial under presser foot, sew with stitchlength set to suit material being
Page 21
20
SEWING ON BUTTONS
1. Remove hinged presser foot and attach button sewing foot.
(See Figs. 26, 27)
2. Push "DOWN" button in.
3. Move zigzag width lever, to 'O', position or to the extreme left.
Place the button so that its left hole comes directly under the
needle, then gently lower the presser foot. Move the zigzag
width lever to the right until the needle comes exactly over the
right hole of the button. Turn the balance wheel slowly by
hand to be sure the needle clears both holes of the button.
Correct width if necessary and lock with stops.
4. When needle goes into the center of each hole, run the machine
at medium speed, making five or six stitches, stopping with the
needle in the left hole.
5. To lock the zigzag stitch and prevent raveling,
set the stitch width at 0, and take a few stitches
in the same hole. If you wish you may place
a rounded toothpick over the button, between
the two holes, and sew button to fabric in
regular way.
Remove the toothpick and wind thread under the button, forming
a shank. Fasten.
Apply the above method to sew on buttons with four holes,
hooks and snaps, etc. If four hole button is to be sewn, follow the
same procedure above for the two hole button.
Now lift presser foot slightly and move fabric to permit stitching
the remaining two holes. Hooks, snaps etc., are sewn to the fabric
with the same procedure as for sewing two hole buttons.
Fig. 28
Fig. 26
Fig. 27
'
■
E|
I
I:
■'
»'
►
i,
I*
P
p
r
1»
p
p
F
Page 22
£250-4.
21
MAKING BUTTONHOLES
First, mark the beginning and end of the buttonhole on fabric with a
basting line or tailor's chalk. Make one on scrap fabric (following
directions below) to be sure machine adjustments are correct.
1. Replace presser foot with buttonhole foot which is grooved deep
ly underneath to prevent piling up of threads (See Fig. -
2 Set the stitch width at appreximately number 2 by locking the iett
■ stop adjustment screw (21, Fig. 1). and lock the right stop ^]ustment screw at extremely right position. Set the stitch length at
STproximately number 0.5. Set pattern selector lever at M .
3. Set buttonhole lever (24, Fig. 29) at 1, lower needle careMly
into mark on fabric indicating the beginning to the buttonhole.
Lower presser foot and sew the left side of buttonhole. (Step ).
4. Stop machine and raise needle to the highest position, se
buttonhole lever at 2 and sew the bar tack (Step 2)-
5 With needle at highest position set buttorihole lever at 3 and
sew the right side of buttonhole. (Stop 3).
6. Stitch to the starting point of the buttonhole. Stop machine
and raise needle to the highest position, set buttonhole lever
at 4 and sew the bar tack. (Step 4). , , ,. i i
7. Should you prefer to sew the right side of buttonhole
(revers stitching) first-start with Step 3 and follow with
'5
steps 4, 1 and 2. x. j. ■ i
If you plan to make buttonholes on sheer or soft material,
place tarlatan or paper under fabric which can be torn away
after stitching. And it is alway wise to make several button
holes on scraps of fabric before working on the garment.
For buttonhole with more cutting space, set stitch width
Step 1 Step 2 Step 3 Step 4
Fig. 29-Ä
Fig. 29-B
Page 23
22
HOW TO USE ACCESSORIES

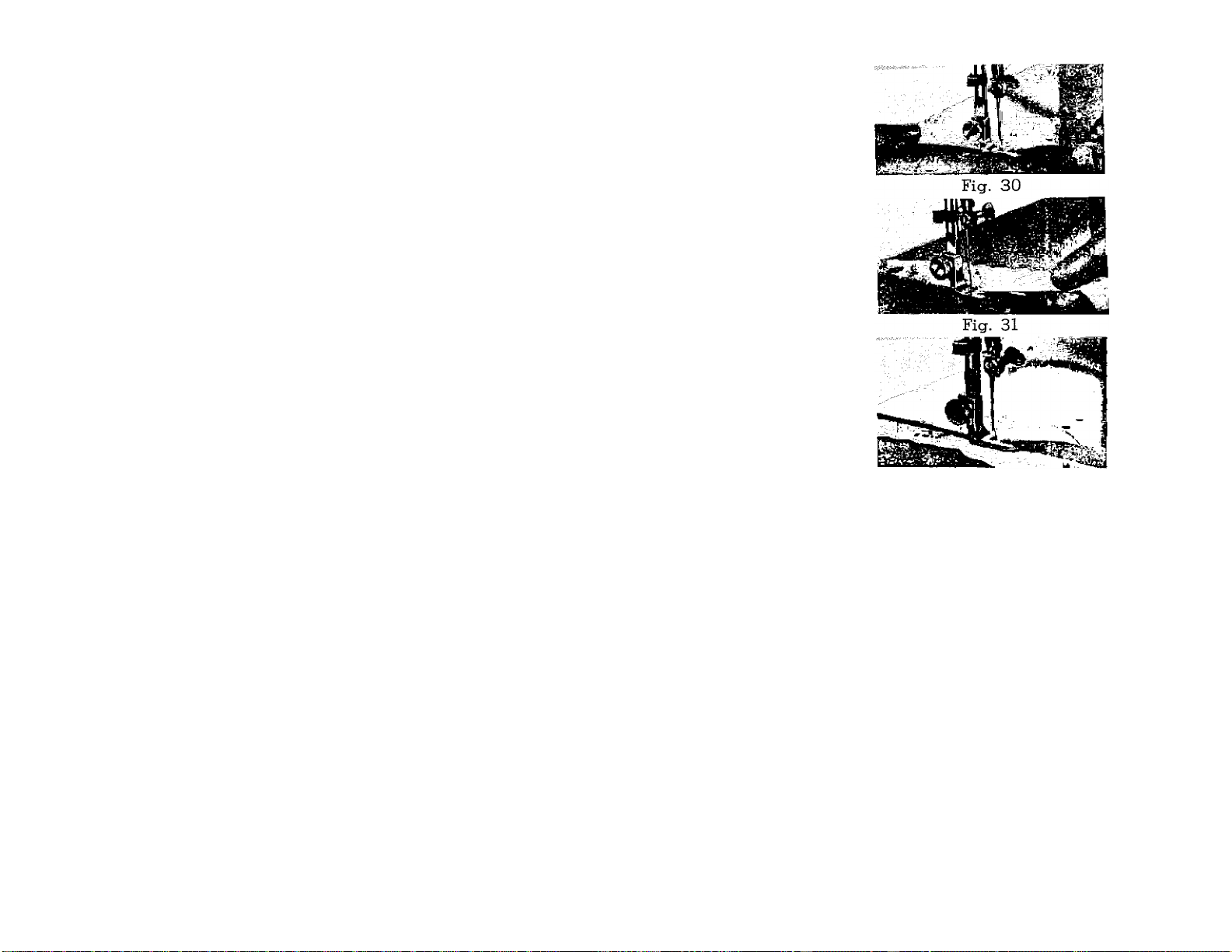

NARROW HEMMER. With the needle at its
highest position, replace regular presser foot with
narrow hemmer (Fig. 30). For a plain narrow hem,
make a 1/8 inch double fold for about two inches
along edge of fabric. Hold each end of the two inch
fold, slip underneath hemmer. Bring fold up into the
scroll of hemmer, draw forward to end and fasten with
point of needle. Lower presser bar lifter. Gently pull
ends of thread as you start stitching.
Guide material slightly to right, and it will take
a double turn through scroll.
LACE TRIMMED HEM. To sew a narrow hem and
attach lace in one stitching, insert lace in the slot next
to needle (Fig. 31). Sew hem as above, guiding lace
under needle and hem into scroll.
LACE EDGE WITH INVISIBLE STITCHING. Hold
lace 1/8 inch from raw edge on right side of fabric.
Insert both in scroll as for plain narrow hem (Fig.
32). Let hem roll over a little fullness in lace by
feeding it freely under scroll.
FRENCH SEAM. With right sides together, place top
piece of material 1/8 inch inside edge of lower piece. Fig. 32
Insert in hemmer scroll, allowing hem to roll over and sew in top fabric, making French seam.
FLAT FELLED SEAM. Open out French seam and insert rolled edge in scroll of hemmer.
Edgestitch to lay seam flat.
HAND ROLLED EFFECT. Use a narrow zigzag stitch, just wide enough to catch both
edges of the narrow, rolled hem.
Page 24
23
:
QUILTING GUIDE. This guide for making pa
rallel rows of stitching is attached by placing the
pronged holder between the presser foot and the
presser foot clamp screw (Fig. 33).
Adjust the curved bar to press lightly on the
fabric.
By letting the guide radio on the first stitching
line, successive rows will be an equal distance apart.
When the bar is attached so that the curved part
is to the right of the needle, it may also serve as a
seam width guide.
SEAM GAUGE OR CLOTH GUIDE. Use the
seam gauge as a guide for straight seams and even
‘3
’
rows of top stitching along edges of fabric. Fasten
gauge with accompanying screw in threaded hole in
needle plate or in bed of machine (Fig. 34). Adjust
to seam width desired.
Fig. 33
M
Fig. 34
Page 25
24
THE ADJUSTABLE CORDING
AND ZIPPER FOOT
This attachment is used to make and
insert covered cording, and to sew in
zippers. Loosen thumb screw to slide
foot to either right or left of needle.
CORDING. Fold bias strip of fabric
over cord. Loosen thumb screw and
set foot so needle is centered in needle
hole. Machine bastes cord in place
(Figs. 35~37).
Fig. 37
"'A
Fig. 35
To sew covered cord to material, reset adjustable
foot so needle stitches closer to cord, and on edge
of base fabric.
Fig. 36
SEWING IN ZIPPER
Loosen thumb screw and slide foot so needle enters
center of needle hole. Guide metal of zipper along
edge of foot (Fig. 37). Stitching should be close to
zipper to allow easy opening and closing. Adjust to
sew from either right or left side, whichever is more
convenient.
Page 26
. ;
‘
Fig. 38
Page 27
CARE^AND MAINTENCE OF
YOUR MACHINE
HOW TO OIL YOUR MACHINE
Your machine should be oiled occasionally to
keep it operating smoothly-how often depends on
the amount of sewing you do.
Before oiling the upper part of the sewing unit
at points indicated by arrows in Fig. 41 turn hand
wheel toward you until the take-up lever is at its
lowest point.
Avoid over-oiling, only a drop is needed at
each point.
To oil parts under the bed of the machine, tip the umt back
on its hinges and apply a drop of oil at each point indicated in
Fig. 42.
The face plate opens
sideways on hinges mak
ing oiling and cleaning
easy. Oil at sports indi
cated in Fig. 43.
-Fig. 42
HOW To REPLACE LIGHT BULB
The lamp is built-in under the face plate. Open the face plate.
Unscrew bulb and replace with bulb of same size, which is avai
lable from your sewing machine dealer.
Fig. 41
Fig. 43
Page 28
1 ’
i ’
■l
^ ■ O
■3
rt
'■, O
4
' ] O
4k
V
■4
" 3
•’ll 3
'
27
ADJUSTING AND CHANGING "V" BELT niachine the hand wheel
If it should ever become necessary to replace the belt on your
must first be loosened and moved out.
Fig. 44
Fig. 45
Fig. 46
t oi wheel by t.bin. out the ».11 soxew B near the ed,e.
3
Fiq 44. Turn nut counter-clockwise until it can be Idled oih which iits
2 Befoie moving the hand wheel, note the position ol the washer C F g. 45 which
under the clutch nut. It may fall out when you are changing the belt.
3. Pull hand wheel away from machine carefully Fi^^^^ Pull it just for enoug o
make the arooved section which holds the belt accessible.
4. Slide old celt over hand wheel and over pulley on the end of motor.
5 Slide new belt into grooved section and over motor pulley.
r,"±.№w‘fal“n oTfoilao; s”*ha“te lips D arc pointing toward the clutch nut.
Page 29
28
After doing this, turn the clutch toward you to disengage the sewing mechanism. If the
needle still moves up and down as you turn the hand wheel, again remove the clutch nut.
Give the washer a half turn and replace the nut.
CLEANING AND OILING THE SHUTTLE
(See Figs. 47 and 48)
The stitch forming mechanism occasionally becomes clogged with loose threads and lint.
This will interfere with the efficient operation of the machine. Cleaning and removal of
the lint will safeguard the performance. To remove the shuttle assembly, proceed as follows:
1. Turn the balance wheel until the needle reaches its highest position. Tilt head back
on its hinges.
2. Remove bobbin case (A), Fig. 47.
3. Turn the two shuttle race cover clamps (B) outward and remove the shuttle race cover
(C) and shuttle body (D).
Fig. 47
Fig. 48
Page 30
4. Clean, the shuttle race, the shuttle and shuttle race cover by removing all threads, lint, etc.
5. Apply a drop of oil with finger tip to outer edge of shuttle.
When the cleaning has been completed, proceed as follows to replace the shuttle assembly :
1. Turn the balancewheel until the needle reaches its highest position.
2. Place shuttle body, (D), against shuttle driver and adjust into position.
3. Replace shuttle race cover, (C), fitting pin at lower
77/
edge into notch, and lock into position with shuttle
race cover clamps, (B), making certain the clamps
have been snapped securely into position.
4. Put bobbin into bobbin case.
5. Put the bobbin case into the shuttle race, fitting
tongue into notch E of race cover.
ACCESSORIES (Fig. 49)
1. Plastic Oiler (Sealed and Filled)
2. Package of Needles (5)
3. Large Screw Driver
4. Small Screw Driver
5. Quilter Guide
6. Cloth Guide
7. Button Sewing Foot
8. Buttonhole Foot
9. Presser Foot for Straight Sewing
10. Narrow Hemmer
11. Cord and Zipper Foot
12. Thumb Screw
13. Felt Washers (2) (for spool pins)
14. Bobbins (3)
Fig. 49 I®- N®®dle Plate for Straight Sewing
2S
Page 31
30
TROUBLE CHART
Trouble
If Machine
Binds
Probable Cause Correction
Thread or lint in
race way
1—With take-up lever in highest position, tilt head
back on hinges and remove bobbin case.
2— Turn clamps outward and remove race cover.
3— Remove hook.
4— Clean thread and lint from all parts, including
race.
5— Run a drop of oil along rim of hook.
6— Replace shuttle, then race cover. Snap clamps
into place.
7— Grasp threaded bobbin case by latch and re
place, fitting tongue into notch of race cover.
Page 32
31
I
Trouble
Bent needle
Skipping
stitches
:
Irregular
stitches
Uneven
stitches
'3
Needle placed incorrectly
in clamp
Too fine a needle for thread
being used
Upper thread tension too
loose
Improper threading
Bobbin not wound evenly
Pulling or holding
material
Not enough tension on
upper thread
Poor quality thread
Needle too fine for thread
being used
Probable Cause
Correction
Discard and replace.
See instruction page 6.
See needle and thread chart, page 5.
Tighten upper tension.
See threading instruction, page 8 and 9.
Rewind bobbin.
Avoid pulling or holding material, just guide it.
Increase tension.
Try different thread.
See needle and thread chart, page 5.
Page 33
32
Trouble
Upper thread
breaking
Material
puckering
Probable Cause
Improperly threaded
Too much tension
Starting with take up in
incorrect position
Improper setting of needle
Eye or blunt needle
Bent or blunt needle
Tensions too tight
Dull needle
Stitch length too long
Correction
Refer to threading instructions see page 8
and rethread machine.
Loosen tension on upper thread by turning
thread tension knob to lower number.
Always start sewing with take up lever in
highest position.
Refer to needle setting instructions see page
6.
Try a new needle.
Discard all blunt or bent needles and replace
with new.
See tensions adjustment page 11.
Change needle.
Reduce stitch length.
Machine not
operating
Bobbin winder near hand
wheel.
Move bobbin winder to off position away
from hand wheel.
Page 34
33
'.w
3
i
;
.
I
«
Your sewing machine comes equipped with the basic set of acces
sories described earlier in this book.
The following pages illustrate additional time saving attachments
that have been designed specifically for your machine. They are
available at modest cost from your dealer. If your dealer cannot
supply you with these items, ask him to order them for you by
part number. Then you will be assured of receiving the genuine
part designed for best performance with your machine.
If a sewing machine dealer is not available mail your inquiry
directly to:
WHITE SEWING MACHINE COMPANY
11750 BEREA ROAD
CLEVELAND, OHIO 44111
In Canada
WHITE CONSOLIDATED INDUSTRIES, LTD.
1470 BIRCHMOUNT ROAD
SCARBOROUGH, ONTARIO, CANADA
Page 35
34
SOME OF THE ATTACHMENTS AVAILABLE FOR YOUR MACHINE
'' Fig. 50
--PART # 1403
Huffier
PART # 4990
Darning Spring
i '
'
•4___
PART # 82S28
Attachment Foot
% PART #76SS2
■KT n PART #76581 1/. PART #76550
PART #76852
PART # 76SS4
Edgestitcher
Needle position lever must be in the left position when using these attachments.
Page 36
ill
Fig. 51
35
ATTACHMENT FOOT
In order to attach the binder, edgestitcher and the
hemmers, it is necessary to remove the presser foot
and replace it with the attachment foot (Fig. 51).
Mount binder, edgestitcher or hemmers, sliding the
attachment to the left as far as possible and tighten
screw.
The mounting slot enables you to sew as close to
or as far away from the edge as desired. Just move
the attachment to the correct position before tighten
ing the mounting screw.
I
I -3
I
I
■ Q
I
!!7
s
EDGESTITCHER
The edgestitcher is used in making
dainty lace insertions, edgings and
pipings.
The slots in the edgesticher serve
as guides in sewing together various
pieces of material. If you want to
sew lace, lace and embroidery, or
lace and tucked strips together,
place the piece of material that will
be on top in slot 1 (Fig. 53) and
the lower fabric in slot 4. For
instance, if you are sewing lace
orl m-n t
sJ
---------
X-1-
Fig. 52
Fig. 53
Page 37
36
Be sure to draw the lace and material under the needle and back of the edgestitcher so that
the feed will carry it backward as you stitch. Holdthe fabric in the left hand and the lace
in the right, being sure the fabric overlaps the lace slightly.
Rick Rack can be sewn to the edge of the material in the same manner.
To trim with wide piping, place the fabric in slot 4, and the fold of the piping to the left
in slot 3, for a narrow piping place fabric in slot 2 and the folded edge of the piping to the
right in slot 3.
Slot 5 may be used as a guide in stitching a French seam.
See Figs. 54~57 for suggestions on how to use the edgestitcher. There are hundreds of
other uses.
Fig. 54
Fig. 55
Fig. 57
Page 38
BINDER
"'TheTprn mol oI It scroll is used for unfolded bms^^out 15A6 i^wMn
FOLDED BINDING (Fig. 60) . , i ,
Cut a point on folded binding, insert in appropriate slot
Draw through slot and under binder with strong pm. Test
stitching to be sure it is on the edge. Ad]ust by sliding
binder to right or left.
TWO-TONE BINDING (Fig. 60)
Two bindings can be sewn on fabric edge also in cme
operation When two are used, always skip one size be
tween widths, inserting '
HAND-CUT BIAS BINDING (Fig. 61)
Cut 15/16 inch bias binding fold in half for a couple
See Fig. 58 and
59 for sugges
tions on how to
use the binder.
There are hund
reds of other
uses.
37
Page 39
38
THE SET OF HEMMERS
Before .tteching eny of the hemmere, bo sme
bobbir. Ihreed is pulled up. Then, with henrmer in
piece, hold top thread loosely end turn hand wheel
one lull turn toward you, making a loop unde,
hemmer. Grasp bobbin thread with both
slip horizontally under hemmer toward back Bobbr
thread will catch loop and carry upper thread to
back of hemmer.
Fold material to suit for two inches along edge
hold at each end of fold. Slip fold into g hemmer. Draw forward to end of hem
np over spoon (Fig 62). ^uj^hing.
and fasten with point of needle, run
rViri B2') Fold hem m material back ol nemi
HEMMER SET
You can make a hem 1/4 , 3/8 , b/d , or
which hemmer you use. For a few ol the many uses see Frgs.
1. 1 /A" 2/R" 5/8" or 7/8" in width, depending upon
Page 40
Fig. 63
HEMMER SET
39
Fig. 64
Page 41
RÜFFLER
T, nn '^1
Fig. 70 1 L-
will produce yards oi J,:L’’;r"aT tL" sarue time
This highly versatile f "^^^taiL pleating a skirt, adding fullness to
Use the ruffler for making aprons, curt , P
the bodice of a dress, etc.
Ta. _ nr\ n.
Fig. 71-A
Page 42
F
■> 'S
■I %
V
41
RÜFFLER
if Av] y\
'3
Fig. 72
:
:
:
iJ
y
Fig. 73
•n*i __ n^c
Loading...
