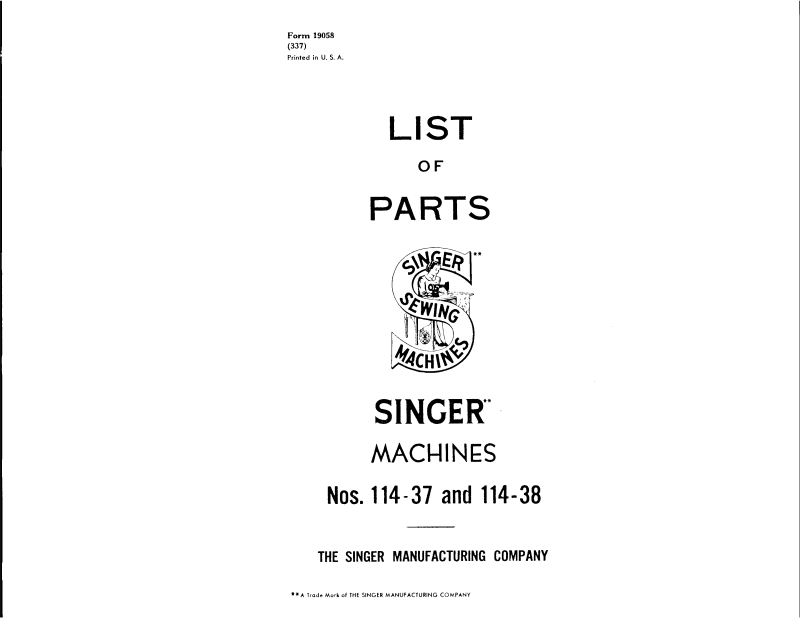

Singer 114-38 User Manual

Specifications and Main Features

  • Model Numbers: 114-37 and 114-38
  • Function: Attaching buttons on shirts, waists, underclothing, white goods, garments, etc.
  • Stitch Types: Sixteen stitches including cross stitch and fastening stitches.
  • Compatible with two and four hole buttons.
  • Speed: 1500 R.P.M.
  • Work Holding Clamp: Quivers up the cylinder.
  • Universal Clamp: Can take buttons of 10 lignes to 50 lignes.
  • Clamp Adjustment: Can be longitudinally adjusted from 5/64 inch to 3/16 inch.
  • Thread Control: Enhanced thread controlling mechanism and thread nipping device are provided in order to stabilize the end of the thread until the first stitch has been made.
  • Other Features: Cut or Break thread mechanism and stop motion at the end of operation.

Frequently Asked Questions

Q: What is the maximum thickness of materials that the machines can sew?

A: The machine is capable of sewing materials as thick as 7/16 inch, which encompasses the button as well as the material.

Q: Which maintenance oil is necessary?

A: Use “TYPE B” or TYPE D” oil which can be bought in the Singer Sewing Machine Company stores. TYPE D oil is the oil that has the least staining effect on fabrics.

Q: In case of continuous use of the machines, how often should they be oiled?

A: They can be lubricated with oil not less than twice in a day.

Q: Are the machines fitted for both two-hole and four-hole buttons?

A: Correct, two-hole and four-hole buttons can be fitted into both models.

Q: Is the clamp convertible to allow different sizes of buttons?

A: Yes, the universal clamp is adjustable to fit buttons ranging from 10 to 50 lignes.
