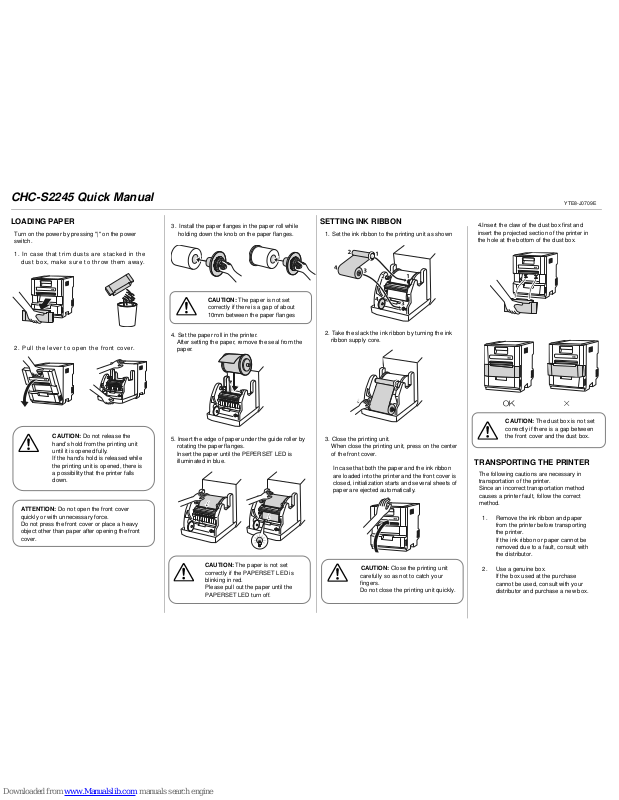

Sinfonia Technology CHC-S2245 Quick Manual

CHC-S2245 Quick Manual

LOADING PAPER

SETTING INK RIBBON

TRANSPORTING THE PRINTER

CAUTION: The paper is not set

correctly if the PAPERSET LED is
blinking in red.
Please pull out the paper until the
PAPERSET LED turn off.

CAUTION: The dust box is not set
correctly if there is a gap between
the front cover and the dust box.

CAUTION: The paper is not set
correctly if there is a gap of about
10mm between the paper flanges

CAUTION: Do not release the
hand’s hold from the printing unit
until it is opened fully.
If the hand’s hold is released while
the printing unit is opened, there is
a possibility that the printer falls
down.

1. Set the ink ribbon to the printing unit as shown

3. Close the printing unit.
When close the printing unit, press on the center

of the front cover.

In case that both the paper and the ink ribbon
are loaded into the printer and the front cover is
closed, initialization starts and several sheets of
paper are ejected automatically.

2. Take the slack the ink ribbon by turning the ink
ribbon supply core.

4.Insert the claw of the dust box first and
insert the projected section of the printer in
the hole at the bottom of the dust box.

CAUTION: Close the printing unit
carefully so as not to catch your
fingers.
Do not close the printing unit quickly.

4. Set the paper roll in the printer.
After setting the paper, remove the seal from the
paper.

3. Install the paper flanges in the paper roll while

holding down the knob on the paper flanges.

ATTENTION: Do not open the front cover
quickly or with unnecessary force.
Do not press the front cover or place a heavy
object other than paper after opening the front

c

over.

5. Insert the edge of paper under the guide roller by
rotating the paper flanges.

Insert the paper until the PEPERSET LED is

illuminated in blue.

OK ×

2. P ull the l ev er t o op en th e fr on t cov er.

Turn on the power by pressing "|" on the power
switch.

1. In c ase t ha t tr im d usts are st ac ke d in the
du st box , m ak e su re t o t hr ow t he m away.

The following cautions are necessary in
transportation of the printer.
Since an incorrect transportation method
causes a printer fault, follow the correct
method.

1. Remove the ink ribbon and paper
from the printer before transporting
the printer.
If the ink ribbon or paper cannot be
removed due to a fault, consult with
the distributor.

2. Use a genuine box.
If the box used at the purchase
cannot be used, consult with your
distributor and purchase a new box.
