Sinclair ASH-28AT User Manual

USER'S MANUAL

ASH-28AT

TITAN SERIES

CONTENTS

Please read this

OWNERS MANUAL

carefully prior to

use

Care and maintenanceStructure and mechanism Remote control operation procedure

Functions and Working temperature range

Operation mechanism

Technical specifications

Important notices

Structure description

Name and Function-Remote control

COOL mode operation procedure

HEAT mode operation procedure

DRY mode operation procedure

SLEEP mode operation procedure

AUTO mode operation procedure

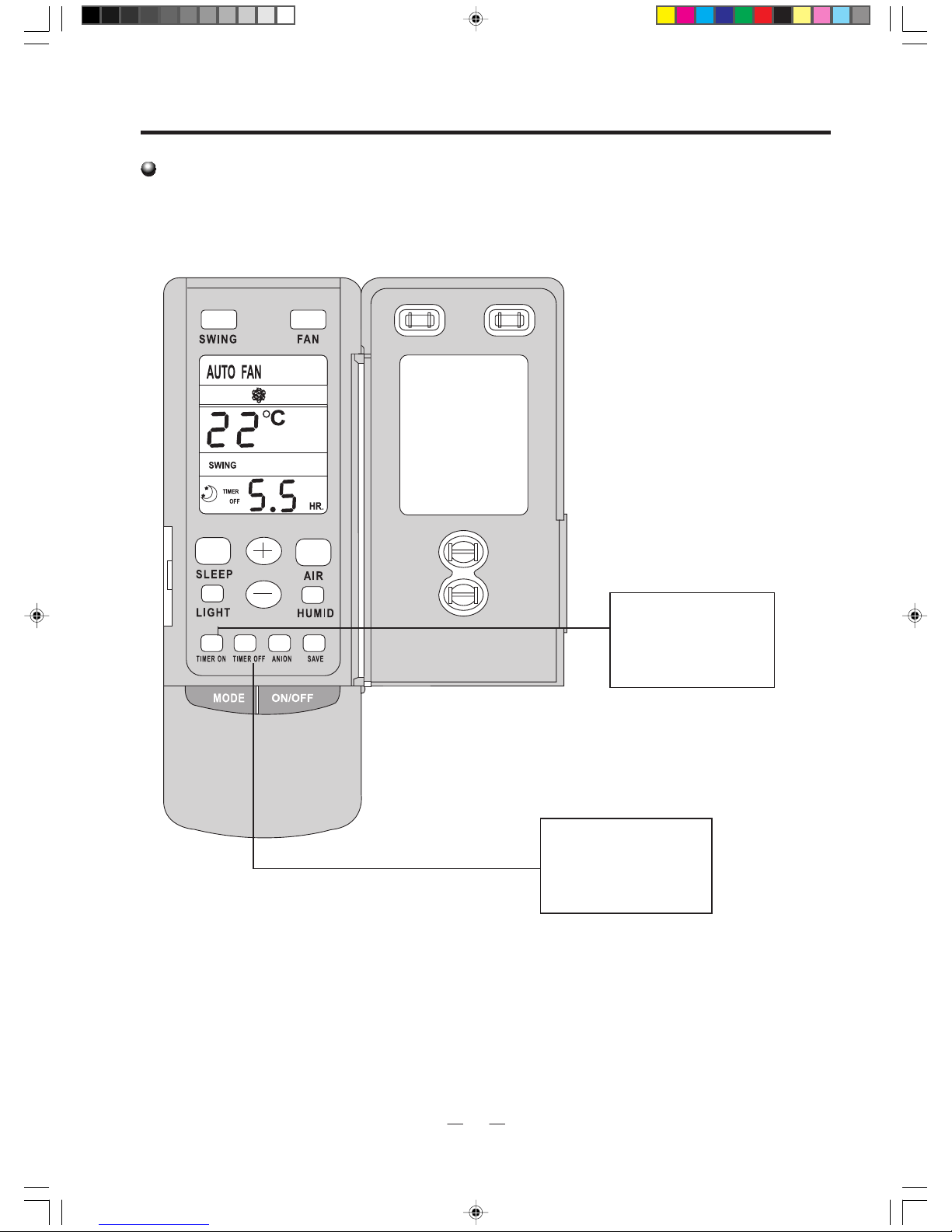

TIMER mode operation procedure

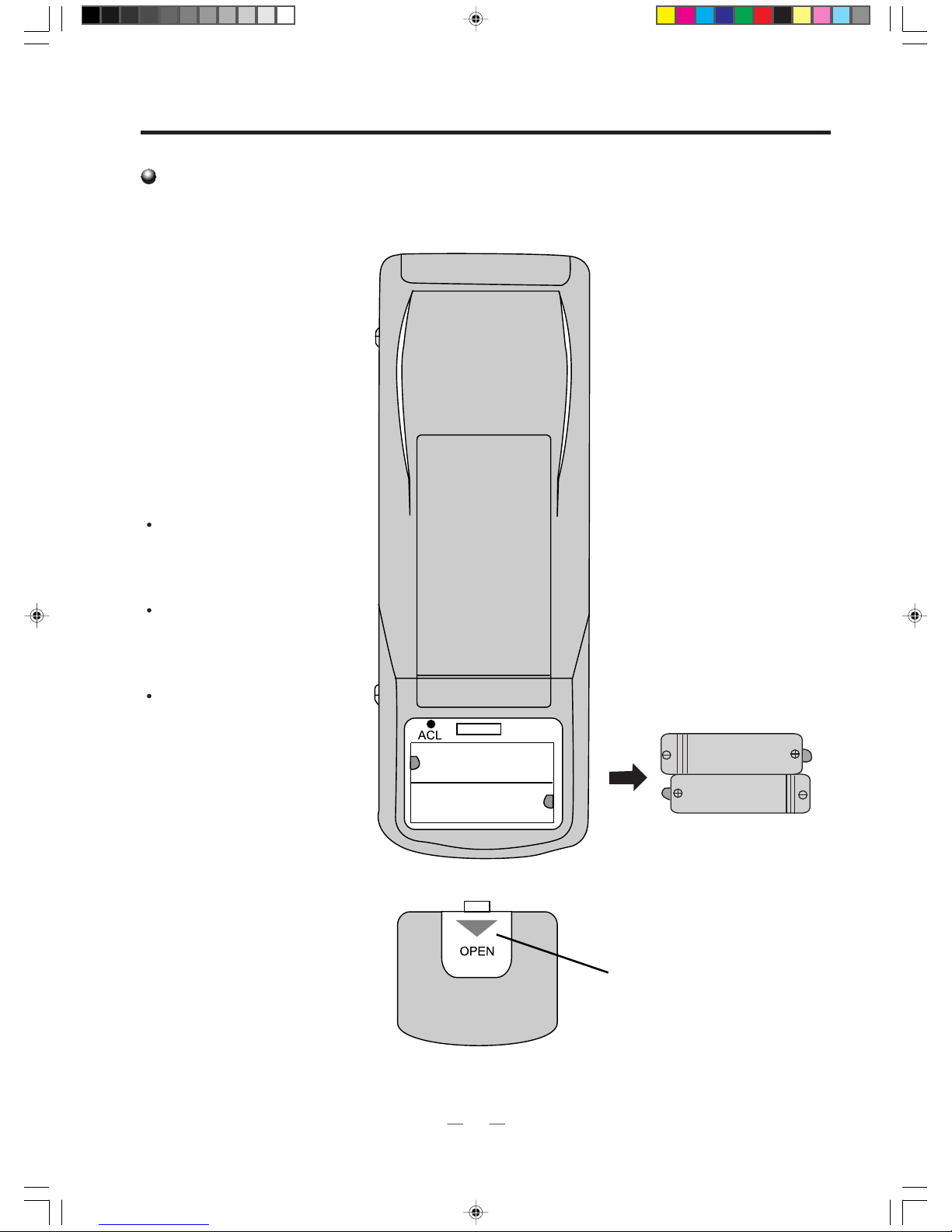

How to insert batteries

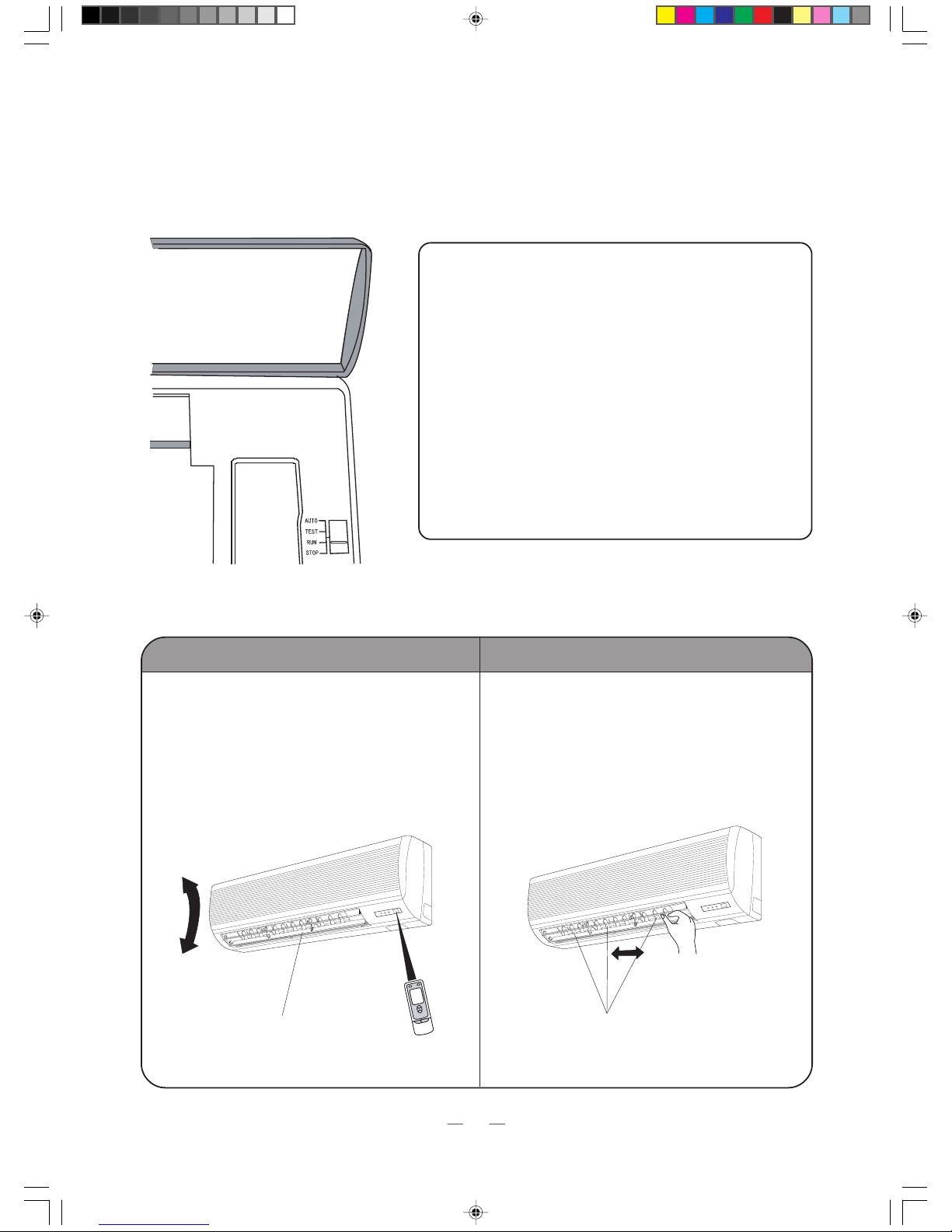

Emergency run operation procedure

Air flow direction adjustment procedure

Special performance

Operation conditions

Installation precaution

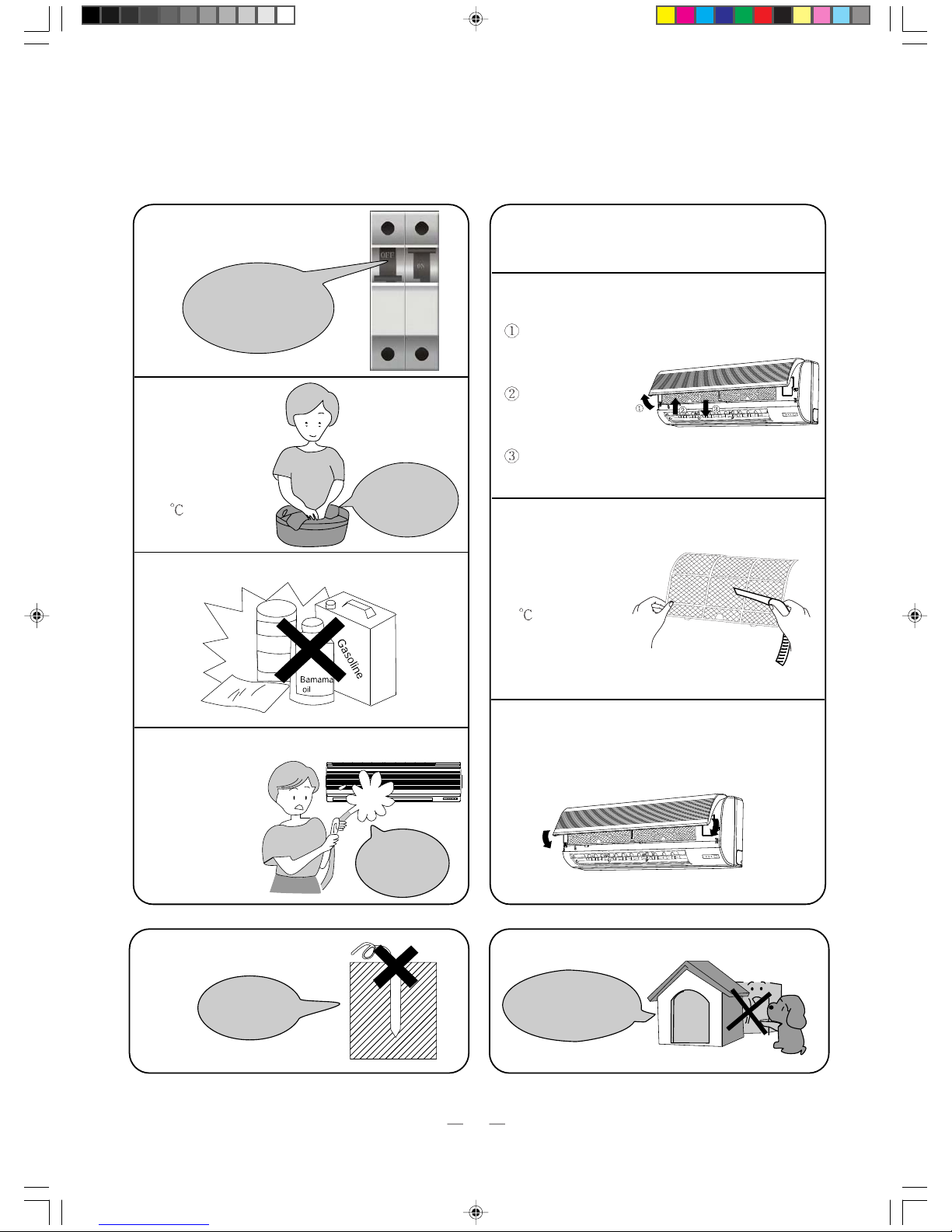

Care and maintenance

When malfunction happening

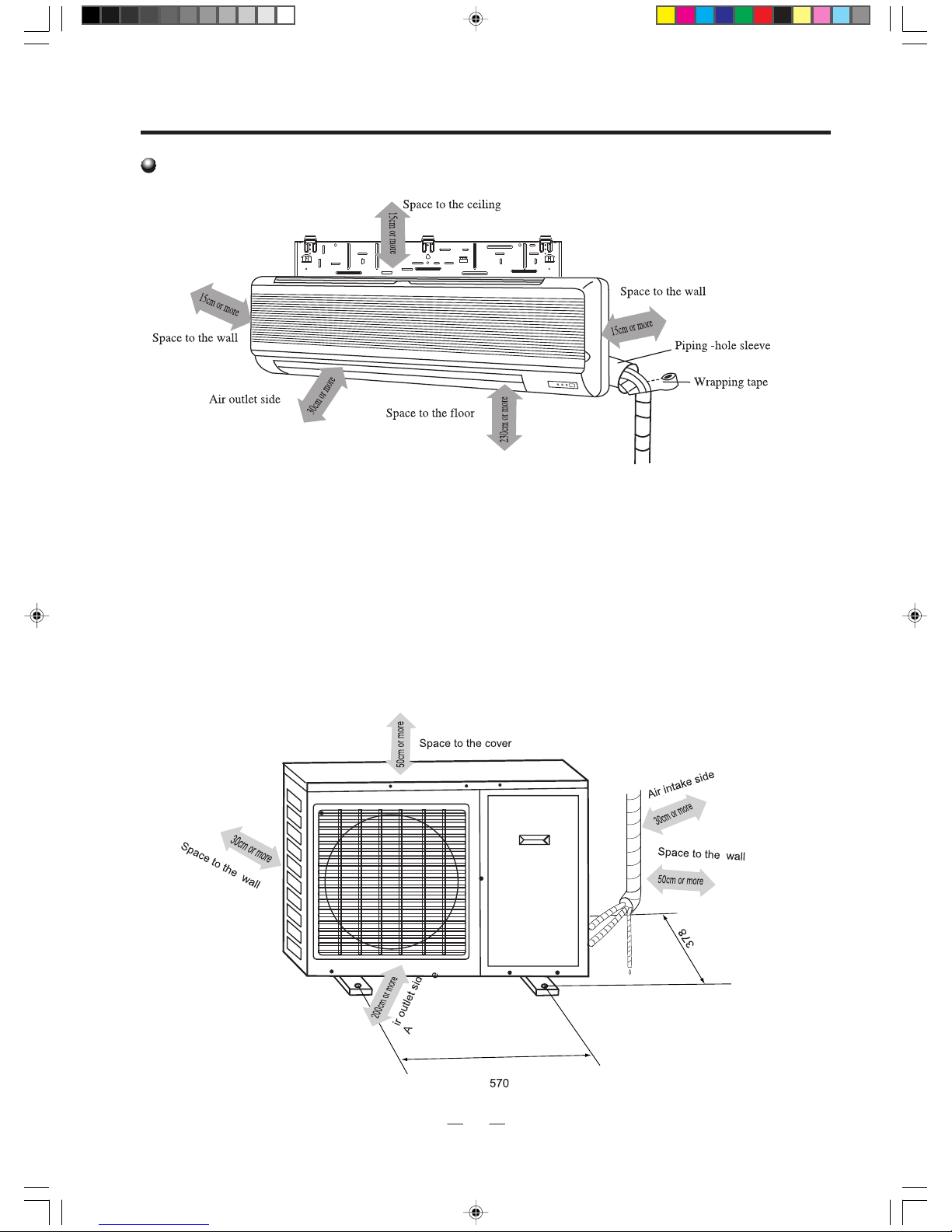

Installation dimension diagram

Installation location

Install the indoor unit

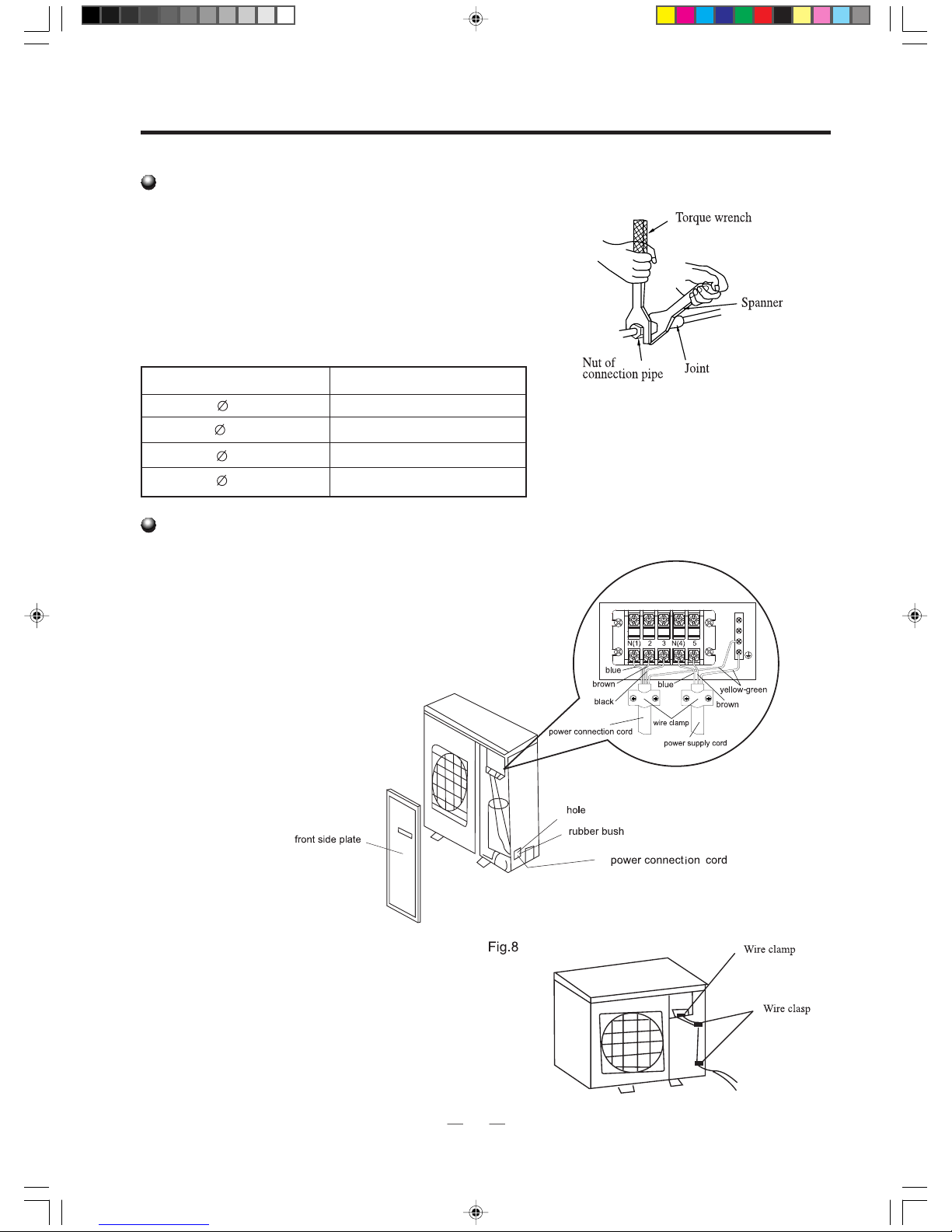

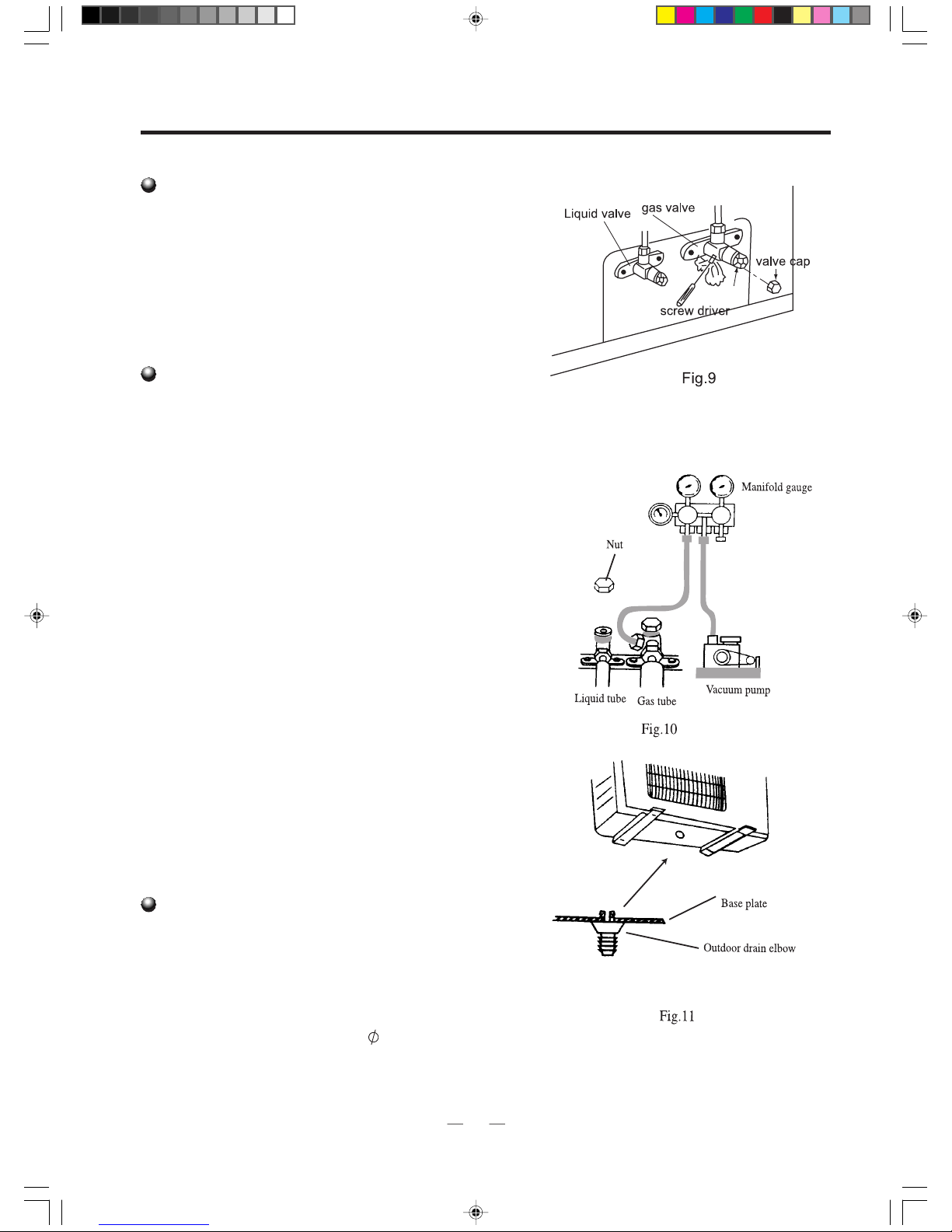

Install the outdoor unit

Routine check after installation

1
2
4
5
6
7
8

9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
22
23
25
27

Name and Function-Remote control(Remove the cover)

For to prevent flicker impressions during the start of the compressor (technical process)following installation
conditions do apply.

1 ASH-28AT will be connected only to a supply with the relevant system impedance no
more than Zmax=0.267

2 The power connection for the air conditioner has to be done at the main power distribution. This distribution has to

be of an low impedance. Normally the required impedance is eached at a 32A fusing point.

3 No other equipment has to be connected to this power line.
4 For detailed installation acceptance please refer to your contract with the power supplier, if restrictions do apply

far products like washing machines air conditioners or electrical ovens.

5 For power details of the air conditioner refer to the rating plate of the product.
6 For any question contact your local seller.

7 This product must not be disposed together with the domestic waste.

This product has to be disposed at an authorized place for recycling
of electrical and electronic appliances.

8 The fuse indoor: T5AL, AC250V, outdoor: T3.15AL, AC250V.

1

Working voltage:50Hz 230V

Installation precaution:
To prevent possible hazards due to insulation failure,the unit must be grounded.

Provide a power outlet to be used exclusively for each unit,and a power supply disconnect and circuit breaker and
current fuse protector should be provide in the exclusive line.
Each wiring connection must be done in accordance with the wiring system diagram.Wrong wiring may cause the unit
to misoperate or become damage.

Please cut off power supply when unit will not be used for a long time.

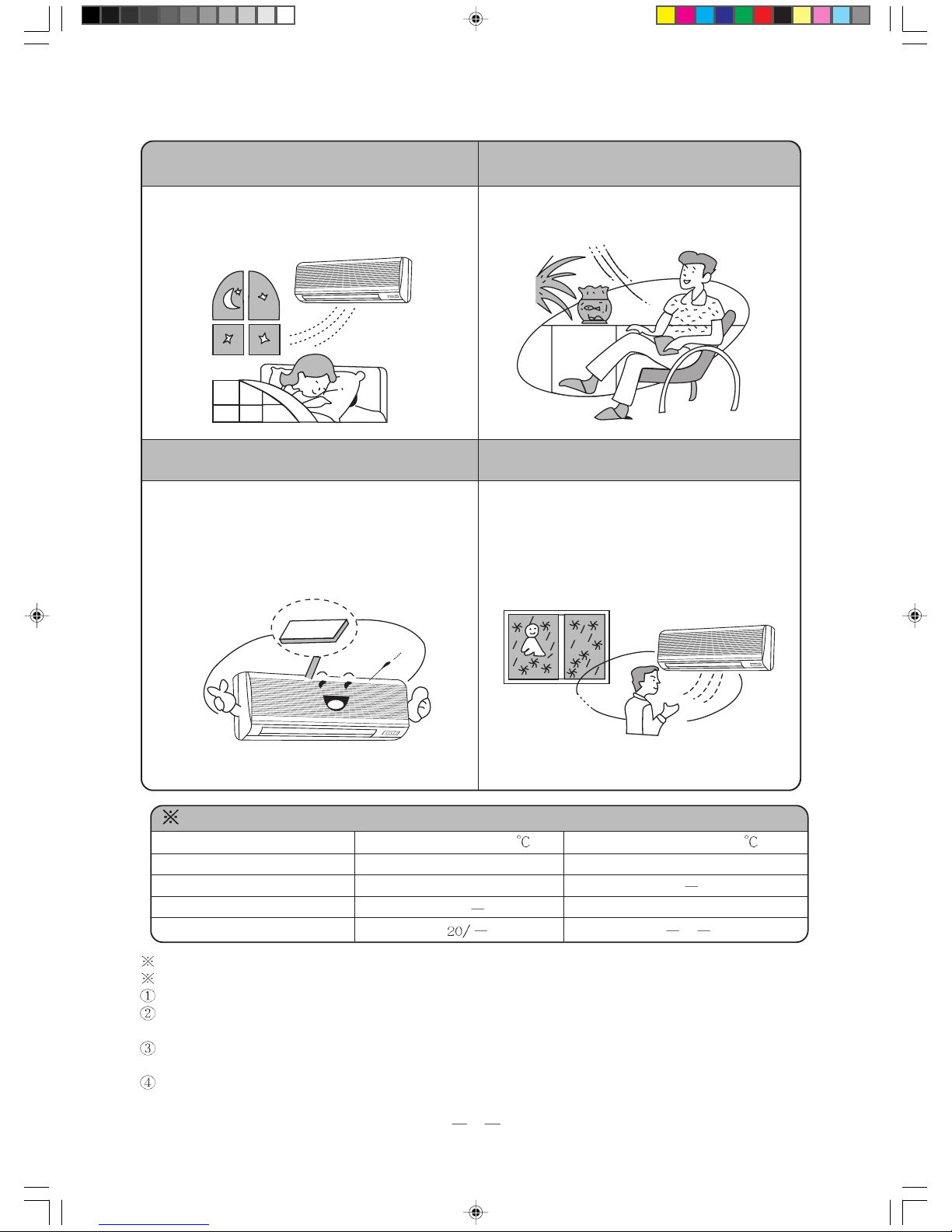

Functions

Dehumidifying in rainy or humid season

Without reducing room temp.,air conditioner can
dehumidify and make room air dry and comfortable.

Heating in winter (heat pump type)

In cold winter,air conditioner can supply warm air to
rise room temp.

Indoor side DB/WB( ) Outdoor side DB/WB( )
Maximum cooling32/23 43/26
Minimum cooling 21/15
Maximum heating 27/ 24/18
Minimum heating 5/ 6

Cooling in summer

In hot summer,air conditioner can cool room air by
transfering heat out.

Operating automatically

According to room temp. change,microcomputer can
automaticlly set COOL or HEAT or FAN operation mode,
so as for best effect.

Working temperature range

AUTO

An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.

⑤

2

Operation mechanism

Cooling cycle

Connected with pipes,indoor unit and outdoor unit form a refrigeration system.With power,compressor takes in
low temp.and low pressure refrigerant vapour from evaporator of indoor unit,presses it into high temp.and high
pressure gas,then discharges it into condenser of outdoor unit.By help of axialflow fan,heat is removed to outdoor
air from the gas which then condenses into liquid.After capillary tube throtting,the liquid drops temp.and pressure,
flows into evaporator.There,by help of cross-flow fan,the liquid absorbs heat from room air,evaporates and
becomes low pressure vapour which then flows into compressor again,beginning next cooling cycle.Therefore,

heat is transfered from indoor to outdoor,and room gets cool.

Ventilation cycle

Ventilation cycle divides into indoor and outdoor two parts.With suction of cross-flow fan,room air flows through
filters,exchanges heat in evaporator,then returns to room.In this way,room air can be cool and dehumidified.At
the same time,pumped by axial-flow fan,outdoor air flows through condenser and exchanges heat.

Heating cycle

Heat pump type air conditioner uses a commutator (4-way electromagnetic valve) to change refrigerant flow
direction.When heating,refrigerant firstly enters indoor heat-exchanger,releasing heat and condensing.Then it
enters outdoor heat-exchanger,absorbing heat and evaporating.Because consumption power changes into heat
which is discharged in room,heating efficiency is very good.

3

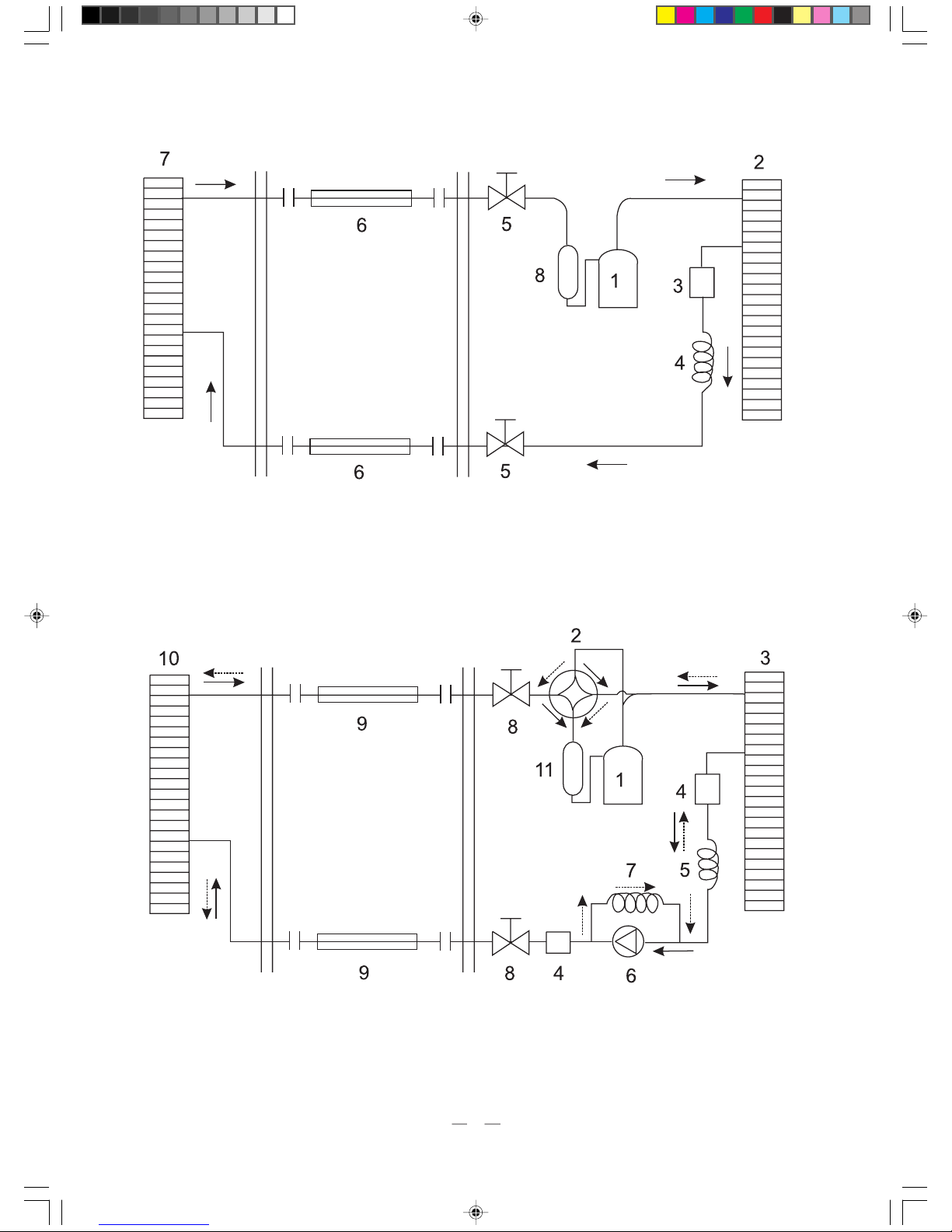

(1) Schematic diagram of cool only type

1.Compressor 2.Outdoor heat-exchanger 3.Filter 4.Capillary tube

5.Stop valve 6.Connecting pipes 7.Indoor heat-exchanger 8.Accumulator

(2) Schematic diagram of heat pump type

1.Compressor 2. 4-way electromagnetic valve 3.Outdoor heat-exchanger 4.Filter

5.Master capillary tube 6.Check valve 7.Auxiliary capillary tube 8.Stop valve

9.Connecting pipes 10.Indoor heat-exchanger 11.Accumulator

4

Technical specification

Model

ASH-28AT

Funcitions Cool/Heat

Cooling capacity(W)

8000

Heating capacity(W)

8800

Power supply

230V~50Hz

Cooling(W)

4000

Rated input

Heating(W)

3600

Cooling(W)

2800

Input power

Heating(W)

2800

Refrigerant R410A 2600g

Indoor

49

Noise dB(A)

Outdoor

60

Climate type

T1

Moisture protection

IP24

Isolation I

Indoor unit 1178*326*227 Dimension

(mm)

Outdoor unit 1006*340*847
Indoor unit 17.5 Weight(kg)

Outdoor unit 90

All above should be changed without notice. There are latest and accurate specification

on the nameplate of your air conditioner.

Smell

Sometimes there is some smell out
of indoor unit,as does not mean any
machine failure,but because of
suction air mixed with smell of
furniture or smoking etc.

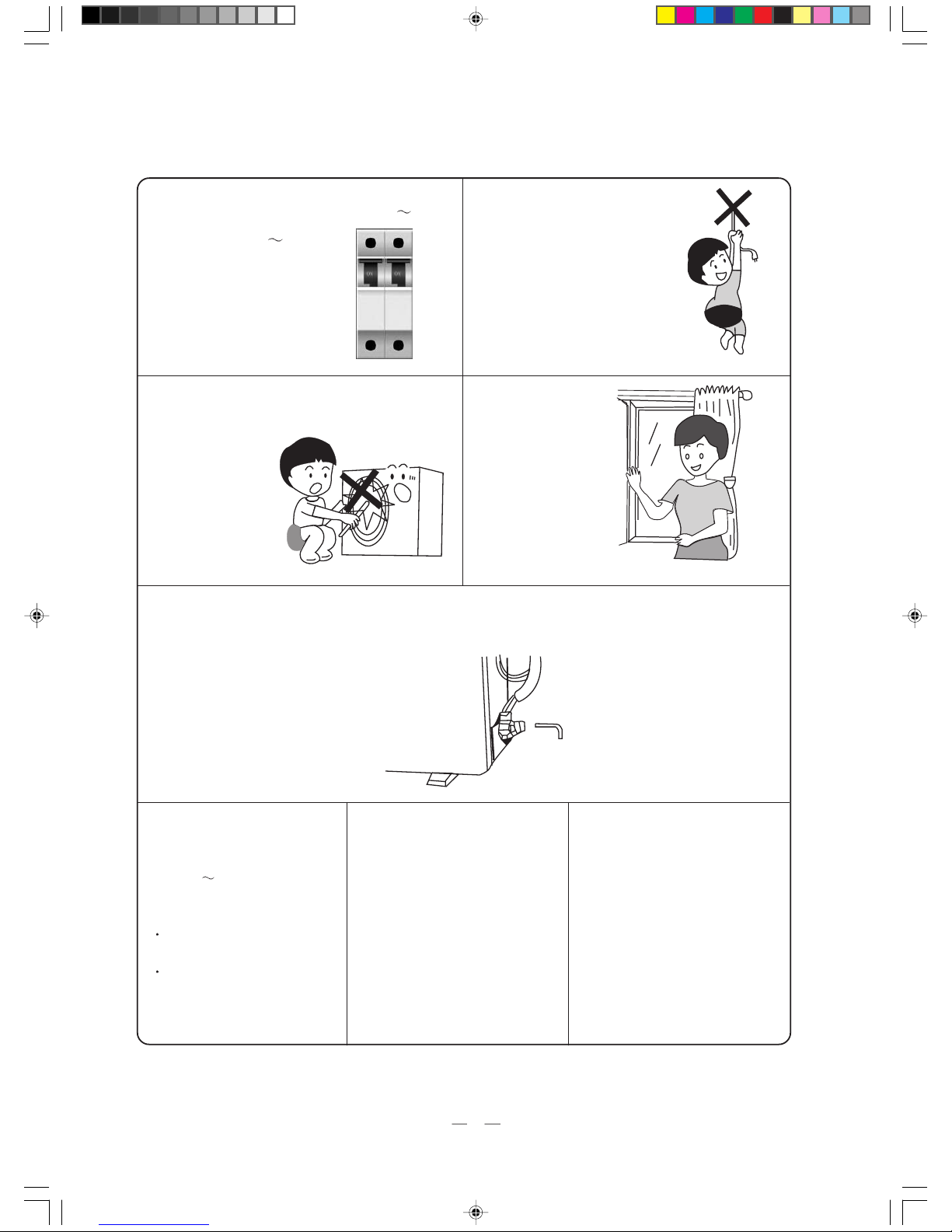

Important notices

Do not cut or pull strongly power
lines and connecting lines.

Close doors and windows
(better using contains)while
operating air conditioner,to
avoid cool or heat leakage
which affects air condition.
If room air is quite turbid,you
should open a door or
window a little for a
moment to get some outdoor
fresh air.

It is only specific technician who can operate the stop valve of outdoor unit,otherwise it is possible to make refrigerant leak
out and compressor breakdown.

Air Conditioner should be
operated with stable voltage
in range of 198-253

V

1Ph,
otherwise, compressor
would vibrate terribly to
damage refrigeration
system.

Do not insert any foreign
materials into the air inlet
or air outlet, it is very
dangerous.

Delay operation

To avoid action of overload protector
or other security devices,we design a
delay for 3

4 minutes before starting
cooling or heating or dehumidifying
cycle in following situations:

To start again immediatelly after

stopping;

To adjust operation mode.

Electric circuit

Must use special electric circuit,do
not use longer power lines,do not
share a same socket with other
electric appliances to avoid fire etc.

230V

5

⑴Handling switch
⑵Wiring cover
⑶　Surface panel
⑷Filter
⑸Deflector
⑹Singal window
⑺Front panel
⑻Piping and wiring
⑼Drain hose
⑽Air outlet net

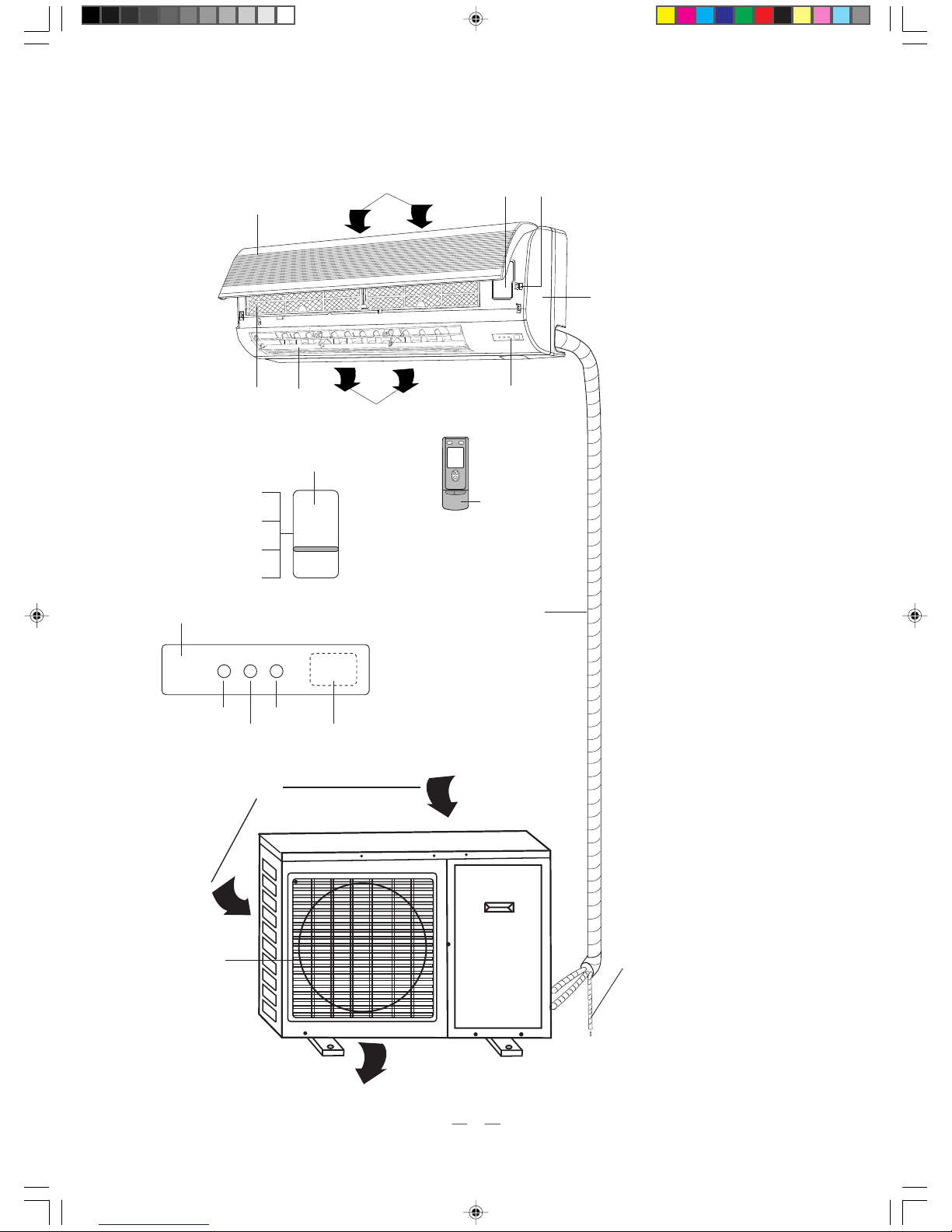

Structure description

Signal transmit

⑴

⑻

⑵

⑶

⑷

⑸

⑹

⑺

⑼

⑽

⑾

Air in

Air out

Air in

Air out

Outdoor unit

Indoor unit

⑹

⑴

AUTO

TEST

RUN

STOP

6

HEAT

COOL

RUN

7

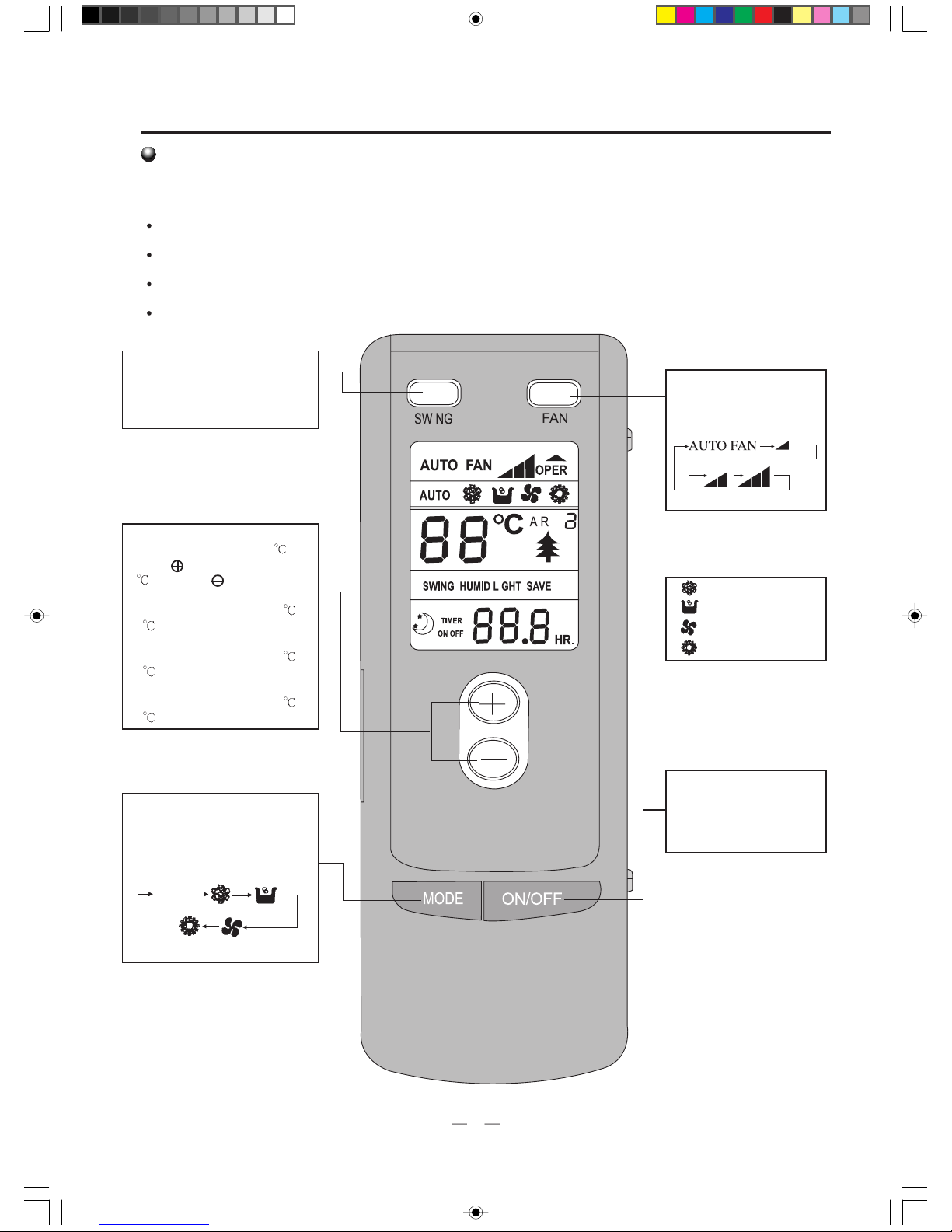

Remote control operation procedure

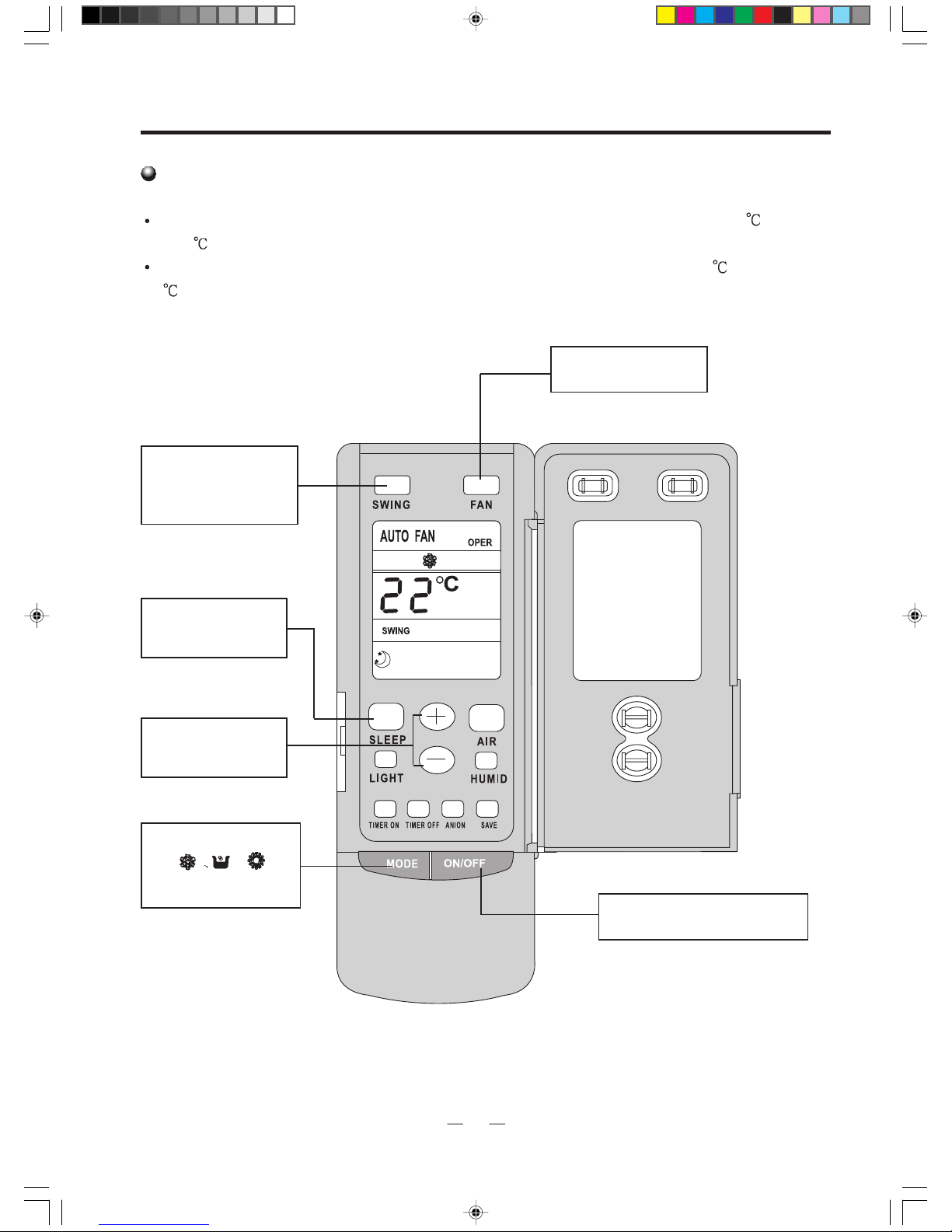

Name and Function-Remote control

Note:

Be sure that there are no obstructions.
The remote control signal can be received at a distance of up to about 10m.
Don’t drop or throw the remote control.
Don’t place the remote control in a location exposed to direct sunlight.

SWING button

When it is pressed, the louvers
start to rotate automatically and
stop when repressed.

TEMP. button
SET TEMP. increases 1

by
pressing button once,and decreases
1

by pressing button once.
At COOL mode operation, SET
TEMP. can be selected from 16

to

30

.
At DRY mode operation, SET
TEMP. can be selected from 16

to

30

.
At HEAT mode operation, SET
TEMP. can be selected from 16

to

30

.

MODE button
Press this button to change the
operation mode in order of mode
in order of:

FAN button

Press this button to change
the fan speed of:

“ ” COOL mode
“ ” DRY mode
“ ” FAN mode
“ ” HEAT mode

ON/OFF button
Press this button to turn on
or turn off the unit.

REMOTE CONTROL OPERATION PROCEDURE

AUTO

8

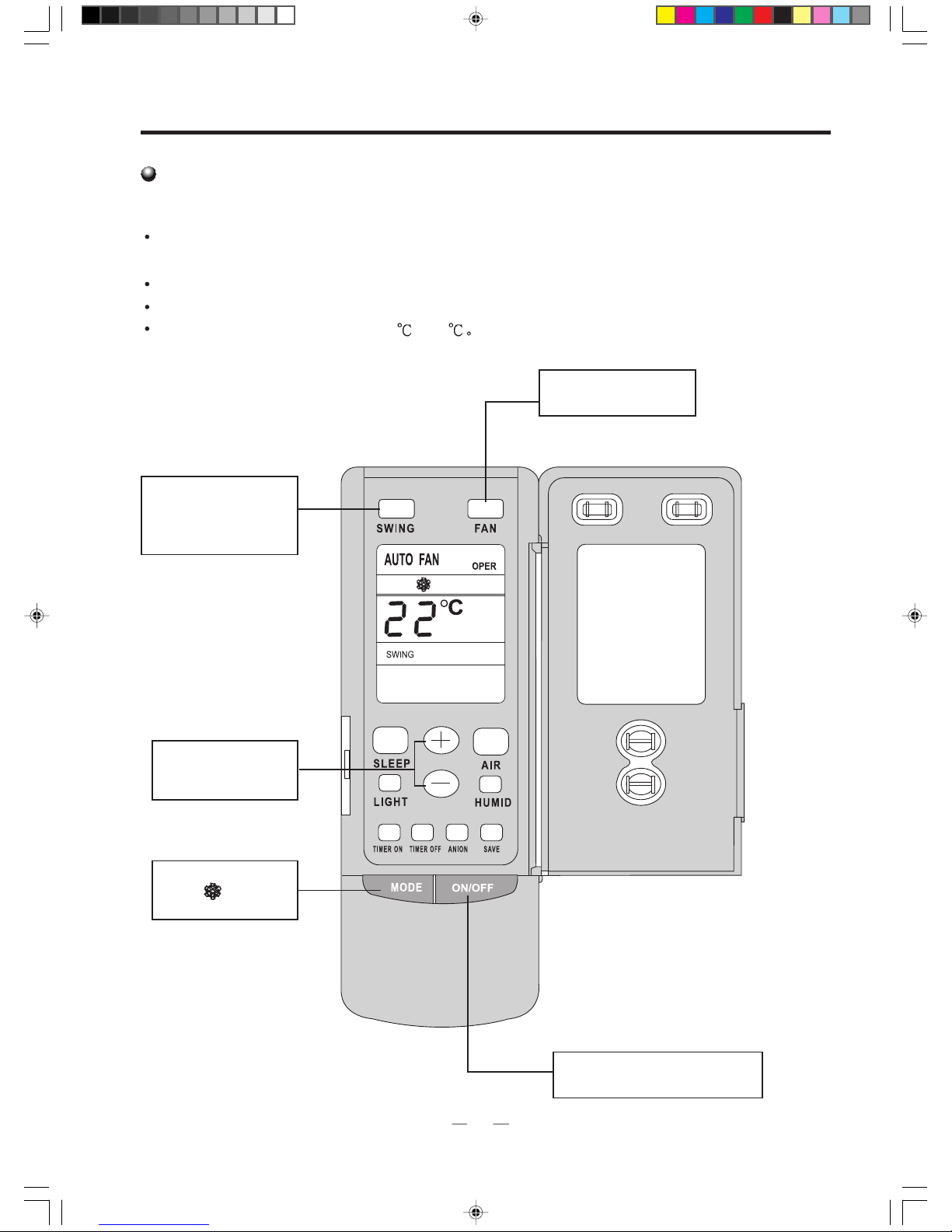

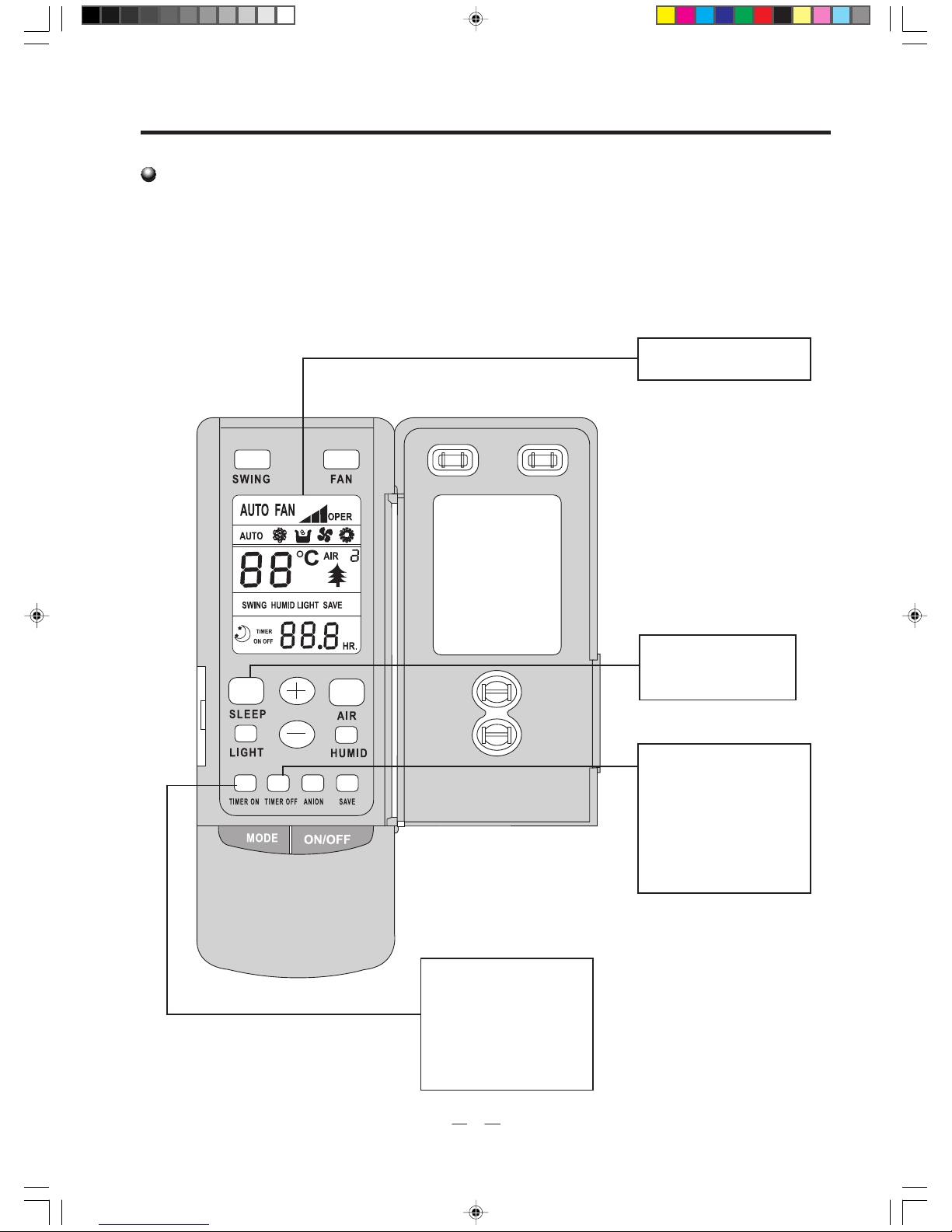

Name and Function-Remote control. (Remove the cover)

Note:This type of remote controller is a kind of new current controller.

some buttons of the controller which are not available to this Air condi-

tioner will not be described below.

Liquid crystal displayer.
It shows all set contents.

SLEEP button
Press this button to set
SLEEP operation.

TIMER OFF button
At operating, press TIMER
OFF button, set OFF TIME
in range of 0 to 24 hour to
stop the unit automatically.

TIMER ON button
At stopping, press TIMER
ON button, set ON TIME in
range of 0 to 24 hour to start
the unit automatically.

9

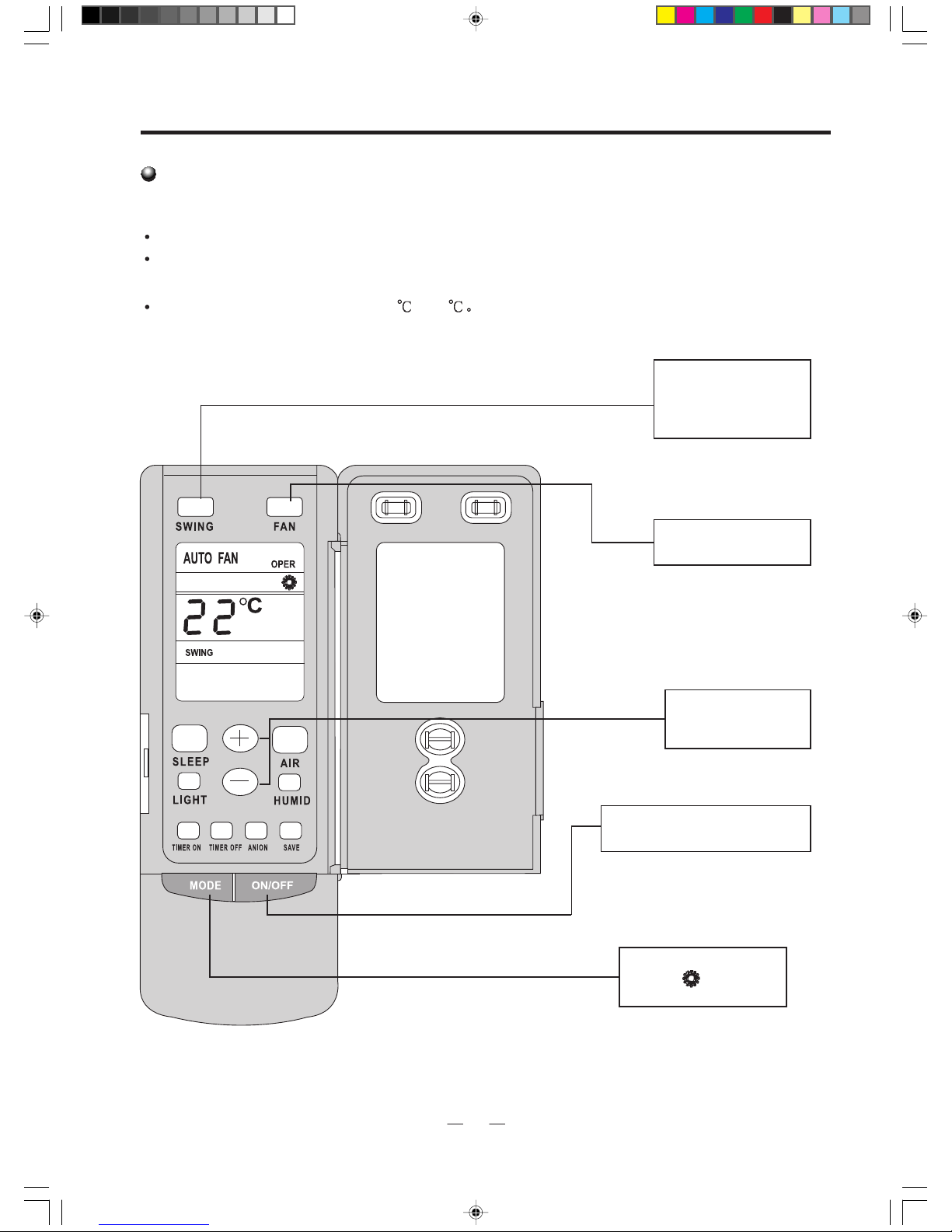

COOL mode operation procedure

According to difference between room temp. and set temp., microcomputer can control cooling on or

not.

If room temp. is higher than set temp., compressor runs at COOL mode.

If room temp. is lower than set temp., compressor stops and only indoor fan motor runs.

SET TEMP. should be in range of 16

to 30

4.Press FAN button, set

fan speed.

5.Press TEMP. but-

ton, set suitable SET
TEMP.

2.Press MODE button,

set operation
mode.

3.Press SWING button,

the louvers start to ro­tate automatically, and
stop when repress.

1.Plug in, press ON/OFF button,
then air conditioner is turned on.

10

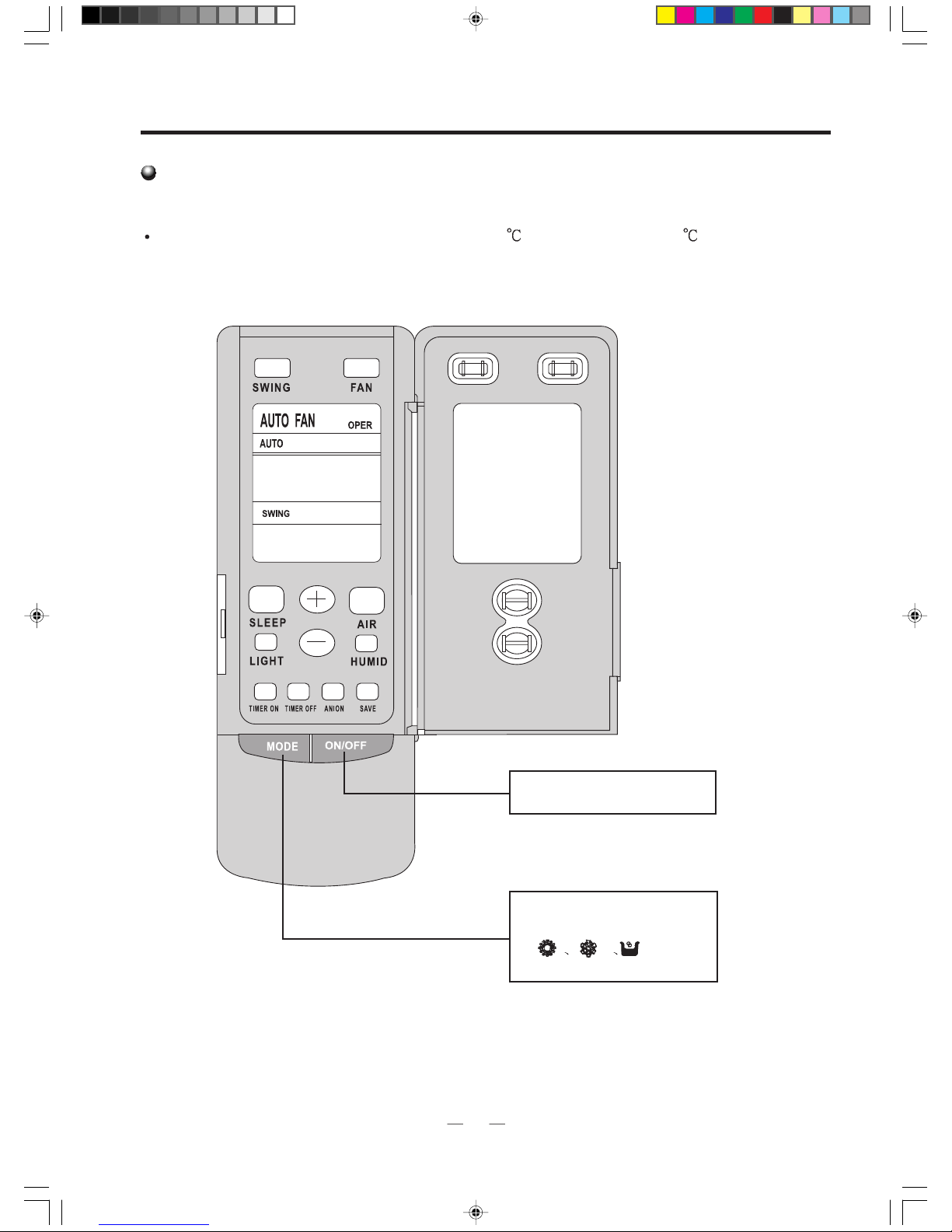

HEAT mode operation procedure

If room temp. is lower than set temp., compressor runs at HEAT mode;
If room temp. is higher than set temp., compressor and outdoor fan motor stop, only indoor fan
motor runs.
SET TEMP. should be in range of 16

to 30

4.Press FAN button, set

fan speed.

5.Press TEMP. but-

ton, set suitable
SET TEMP.

1.Plug in, press ON/OFF button,
then air conditioner is turned on.

2.Press MODE button,

set operation
mode.

3.Press SWING button, the

louvers start to rotate
automatically, and stop
when repress it.

11

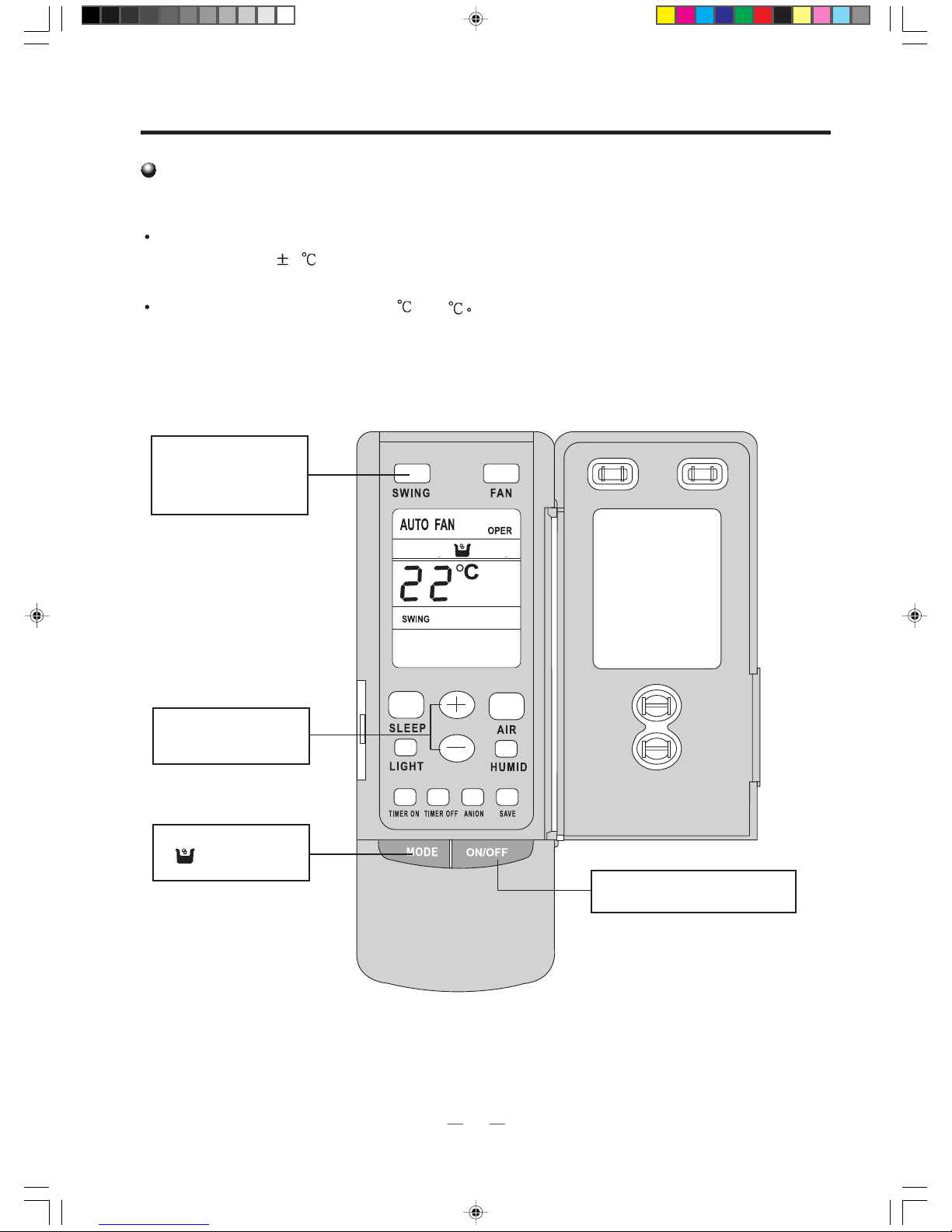

DRY mode operation procedure

If room temp. is lower than set temp., compressor , outdoor and indoor fan motor stop. If room
temp. is between

2 of set temp., Air conditioner is drying. If room temp. is higher than set
temp., it’s at COOL mode.
SET TEMP. should be in range of 16

to 30

3.Press SWING button,

the louvers start to ro­tate automatically, and
stop when repress it.

4.Press TEMP. button,
set suitable SET TEMP.

2.Press MODE button,set
operation mode.

1.Plug in,press ON/OFF button,

then air conditioner is turned on.

12

SLEEP mode operation procedure

4.Press FAN button, set

fan speed.

5.Press TEMP. but-

ton, set suitable
SET TEMP.

1.Plug in, press ON/OFF button,
then air conditioner is turned on.

2.Press MODE button,

set or op­eration mode.

3.Press SWING button, the

louvers start to rotate
automatically, and stop
when repress.

6.SLEEP button
Press it to set SLEEP

operation.

When the unit is cooling or drying, if SLEEP operation is set, SET TEMP. would increase 1 in 1 hour
and 2

in 2 hours. Indoor fan motor runs at low speed.

When the unit is heating , if SLEEP operation is set, SET TEMP. would decrease 1

in 1 hour and

2

in 2 hours. Indoor fan motor runs at low speed.

13

AUTO mode operation procedure

At AUTO mode operation, standard SET TEMP. is 25 for COOL mode and 20 for HEAT mode.

2.According to room temp., micro­computer can automatically set

operation

mode,so as for best effect.

1.Plug in, Press ON/OFF button,

then air conditioner is turned on.

14

TIMER mode operation procedure

At stopping,press TIMER
ON button, set ON TIME

in range of 0 to 24 hour to
start the unit automatically.

At operating, press TIMER
OFF button.set OFF TIME
in range of 0 to 24 hour to
stop the unit automatically.

15

How to insert batteries

1.Remove the cover from the back
of the remote control.

2.Insert the two batteries ( Two AAA
dry - cell batteries ) and press but­ton “ACL”.

3.Re - attach the cover.

NOTE:

Don’t confuse the new
and worn or different
batteries.
Remove batteries when
not in use for a long
time.
The remote control sig­nal can be received at a
distance of up to about
10m.

1 Remove the cover
3 Re - attach the cover.

2 Insert the two AAA batteries

16

Emergency run operation procedure

If Wireless remote controller lost,open the surface panel and operate as following:

d. When turning it to Stop position, the unit will stop running.

c. When turning it to Run position, the main unit will run at the

received remote control order.

b. When turning it to Test position, the main unit will enter into

Cool mode, indoor fan will run at high fan speed, if there is remote

control signal, main unit will run at the remote control signal, at

this time to shield the low pressure switch.

a. When turning it to Auto position, unit will run in Auto mode,

if there is remote control signal, it will run at the remote control

signal.

Manual switch (Auto, Test, Run, Stop)

Air flow direction adjustment procedure

1.Adjusting up/down air flow direction

With wireless remote controller,adjust air flow direction
by rotating the UP/DOWN deflectors up and down
automatically or stopping at an angle.
* Press SWING button,the deflectors start to rotate and

stop when repress.

2.Adjusting left/right air flow direction

As shown,move the LEFT/RIGHT deflectors by hand,
adjust air flow left or right or three different directions
to every corner of room so as to make everywhere temp.
average.

deflectors

Adjusting left/right air flow direction

17

COOL mode operation

Outdoor temp. should be in range of 18

to 43 ,
otherwise it is possible for air conditioner to
breakdown.
Room temp. should be in range of 16 to 32 .
Room humidity should be lower than 80%,
otherwise it is possible to dew at air conditioner
surface and even drop water.

DRY mode operation

Outdoor temp. should be in range of 18 to 43

,otherwise it is possible for air conditioner to
breakdown.
Room temp. should be in range of 16

to 32

Special performance

Time delay in heating

* To avoid cold air,indoor fan motor does not start

till compressor works for 30 seconds.

* To keep heating,when room temp. reaches SET

TEMP. and compressor stops,indoor fan motor
works at LOW speed.

When power is failed

* All operations stop.
* Press ON/OFF button to restore operations.
* If made mistakes in operation,plug out,then plug in

well,and press ON/OFF button.

Operation conditions

Avoiding evaporator frost

After compressor continually working more than

6

minutes,and evaporator pipe temp. keeping no

higher than 0

in 3 minutes,the compressor and

outdoor fan motor stop,while indoor fan motor
runs at SET SPEED. When evaporator pipe temp.

is not lower than 10

,and after 3 minutes delay,air

conditioner restores previous operation.

HEAT mode operation

Outdoor temp. should be over -5 ,otherwise it
is possible for protect devices inside to act and air
conditioner can not start.

18

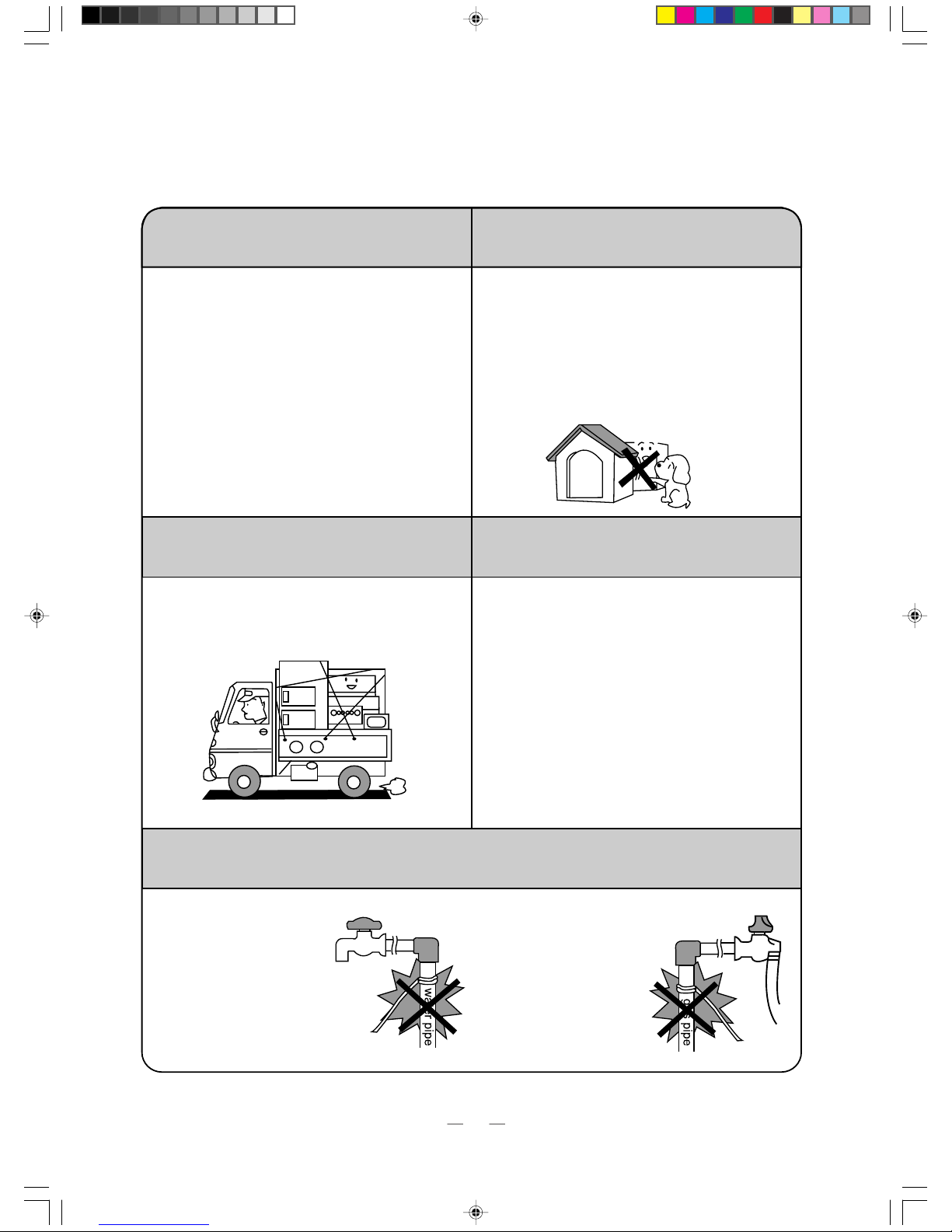

Installation position

* Drain the condensed water from indoor unit into

ground pipe.

* Install indoor unit far away TV set or radio etc., to

avoid disturbing video or voice.

* In salt and coastal area or place where is near

thermal springs and polluted by sulphureous gas,
or other special areas,please contact with seller
before use.

* Avoid place where is possible for flammable gas to

leak out.
* Avoid other heat sources or direct sun light.
* Avoid place where is easy for children to touch.

Remove

When remove air conditioner to other place,it needs
special technician,so contact with seller firstly.

Earth wire

Do not connect earth wire to following places:

Water pipe
Sometimes,there is some
plastic material such as
polythene used as part of
water pipe,which is not
available for earth.

Installation precaution

Noise

* Install on place firmly enough to avoid transmitting

or increasing noise and vibration.

* Do not put objects in front of outdoor unit air outlet,

to avoid increasing noise.

* Be sure not to make trouble to neighbors with hot air

or noise from outdoor unit.

* Please contact with saler as soon as there is strange

noise during operation.

Electric lines location

* Must connect with ground.
* Must use rated voltage and electric circuit specific

for air conditioner.

* Avoid octopus type of multi-plug which would cause

over heat.
* Do not pull power lines strongly.
* To fit an electrical leakage-proof switch,please

contact with special eletric seller.
* Chose proper fuse to meet with the current

specification.
* Power lines should be thick enough.

Gas pipe
If there is electrical
leakage accidently
from air conditioner,it
is easy to cause fire or
explosion,as is very
dangerous.

remove

19

Cleaning filters

Air filters should be cleaned once every two weeks.

1.Open surface panel only after air conditioner stops at
all.

Pull here up (both
sides of the surface
panel);

Push filters up till
hooks are free from
the front panel;

Pull down and take

out filters.

2.Clean filters with a vacuum cleaner or by typing them
gently.
If they are very
dirty,wash them in
warm water below
40

dissolved with
neutral scouring
agent,then dry them
in cool air.

3.Insert them at original position,then push down and
close surface panel.

* Check air inlet and outlet of outdoor unit.

Care and maintenance

Cleaning unit

1.Switch off first before cleaning.

2.Clean surface panel
with a soft and dry
cloth,which is soaked
warm water below
40

3.Do not use chemical solvent for cleaning.

4.Do not splash water directly to indoor unit,

in which there are

microcomputer

and circuit plate,

they must not be

touched by water.

* Check earth wire

Is it broken
or loose?

Air lock could result
in bad efficiency.

Accident will
happen.

Must dry the cloth
by hands before
cleaning

Switch off only after
air conditioner
stops at all.

20

Immediately stop all operations and plug out,contact with your seller in the following situations.

* Operation starts or stops abnormally;
* Power fuse or switch often breaks;
* Carelessly splash water or something into air conditioner;
* Electrical lines are much hot or lines cover breaks;
* Other strange situations.

When malfunction happening

Please check the following items before ask for repair,it saves your time and money.

Fault phenomenon

T rouble shooting

* Is power fail?
* Is plug out?
* Is power fuse or switch off?
* Is voltage higher than 264V or lower than 206V?
* Is SET TIME suitable?

* Is air inlet or outlet locking?
* Is there any other heat source in room?
* Are air filters dirty very much?
* Is indoor fan speed set at LOW?
* Is SET TEMP. suitable?

* If disturbed abnormally or operation modes changed

too frequently,sometimes the electric controller
would lose function.Please plug out and plug in again,
it maybe OK.

* Check batteries of wireless remote controller,if

voltage is little,change batteries.

* If wireless remote controller displays unclear or

displays all symbols,please change batteries.

* At COOL or DRY mode operation,sometimes there

is foggy air flowing out of indoor unit,this is because
that room humid air has been cooling rapid.

Air conditioner
does not operate
at all.

Cooling efficiency
is not good.

Wireless remote
controller is not
available.

Foggy air flows
out.

OFF

21

IMPORT ANT NOTES

The installation must be done by trained and qualified service
personnel with reliability according to this manual.
Contact with service center of SINCLAIR before installation to
avoid the malfunction due to unprofessional installation.
When picking up and moving the units, you must be guided by
trained and qualified personnel.
The distance between air outlet and the combustible must be
over 50cm if the heater element is equipped.

*

*

*

*

Installation dimension diagram

22

Indoor unit

1. The inlet and outlet should not be covered so that the outflow air can reach all parts of the room.

2. Install in a location where is permitting easy connection with the outdoor unit.

3. A location from which the condensation water can be drained out conveniently.

4. Avoid a location where there is heat source, high humidity or inflammable gas.

5. Install in a location where is strong enough to withstand the full weight and vibration of the unit.

6. Be sure that the installation conforms to the installation dimension diagram.

7. Be sure to leave enough space to allow access for routine maintenance.

8. Install in a location where is lm or more away from other electric appliances such as television, audio device, etc.

9. Select location where is easy to remove and clean the filter.

Outdoor unit

1. Select location from which noise and outflow air emitted by unit will not inconvenience neighbors.

2. Select location where there should be sufficient ventilation.

3. The inlet and outlet should not be covered.

4. The location should be able to withstand the full weight and vibration of the outdoor unit.

5. There should be no danger of flammable gas or corrosive gas leaks.

6. Be sure that the installation conforms to the installation dimension diagram.

NOTE:

Install in the following place may cause malfunction. If it is unavoidable, contact with service center of
SINCLAIR please.
Place where oil (machine oil ) is used.
The place where a lot of salinities such as coast exists.
Place where a sulfured gas such as the hot spring zones is generated.
Place where high - frequency waves are generated by radio equipment,welders and medical equipment.
Other place with special circumstance.
Wrong wiring connection will cause electrical malfunction.
Do not pull the wire when fixing it with wire clamp.
The appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.

Installation location

10.Do not use the unit in the immediate surroundings of a laundry a bath a shower or a swimming pool.

23

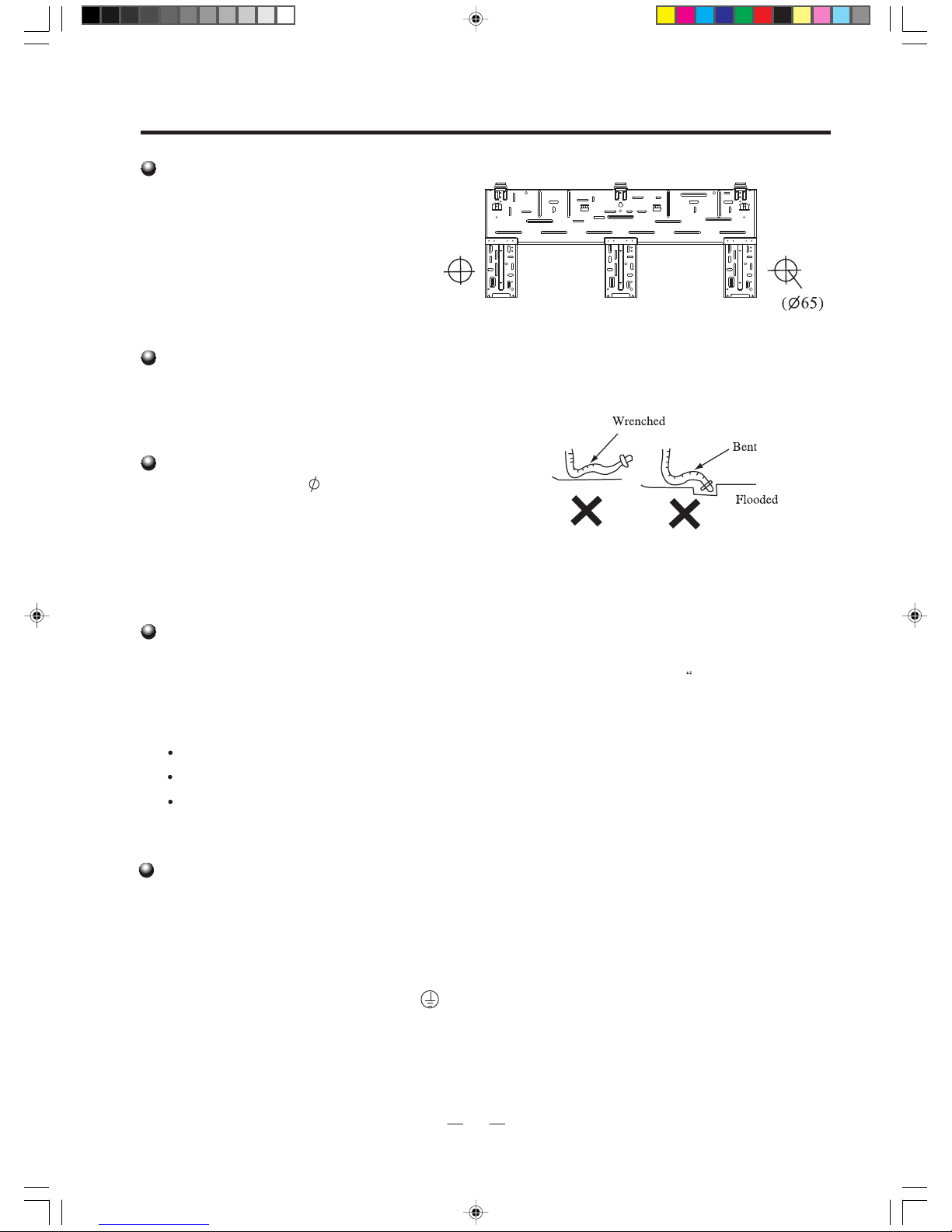

Install the rear panel

1.Always mount the rear panel horizontally.

2.Fix the rear panel on the selected location with
screws supplied with the unit.

3.Be sure that the rear panel has been fixed firmly
enough to withstand the weight of an adult of
60kg, furthermore, the weight should be
evenly shared by each screw.

Install the drain hose

1.For well draining, the drain hose should be placed at a downward
slant.

2.Do not wrench or bend the drain hose or flood its end by water.

Install the piping hole

1.Make the piping hole ( 65) in the wall at a slight downward
slant to the outdoor side. The center of the hole should be
determined refer to Fig.2.

2.Insert the piping-hole sleeve into the hole to prevent the
connection piping and wiring from being damaged when passing
through the hole.

Install the connection pipes

Electrical wiring

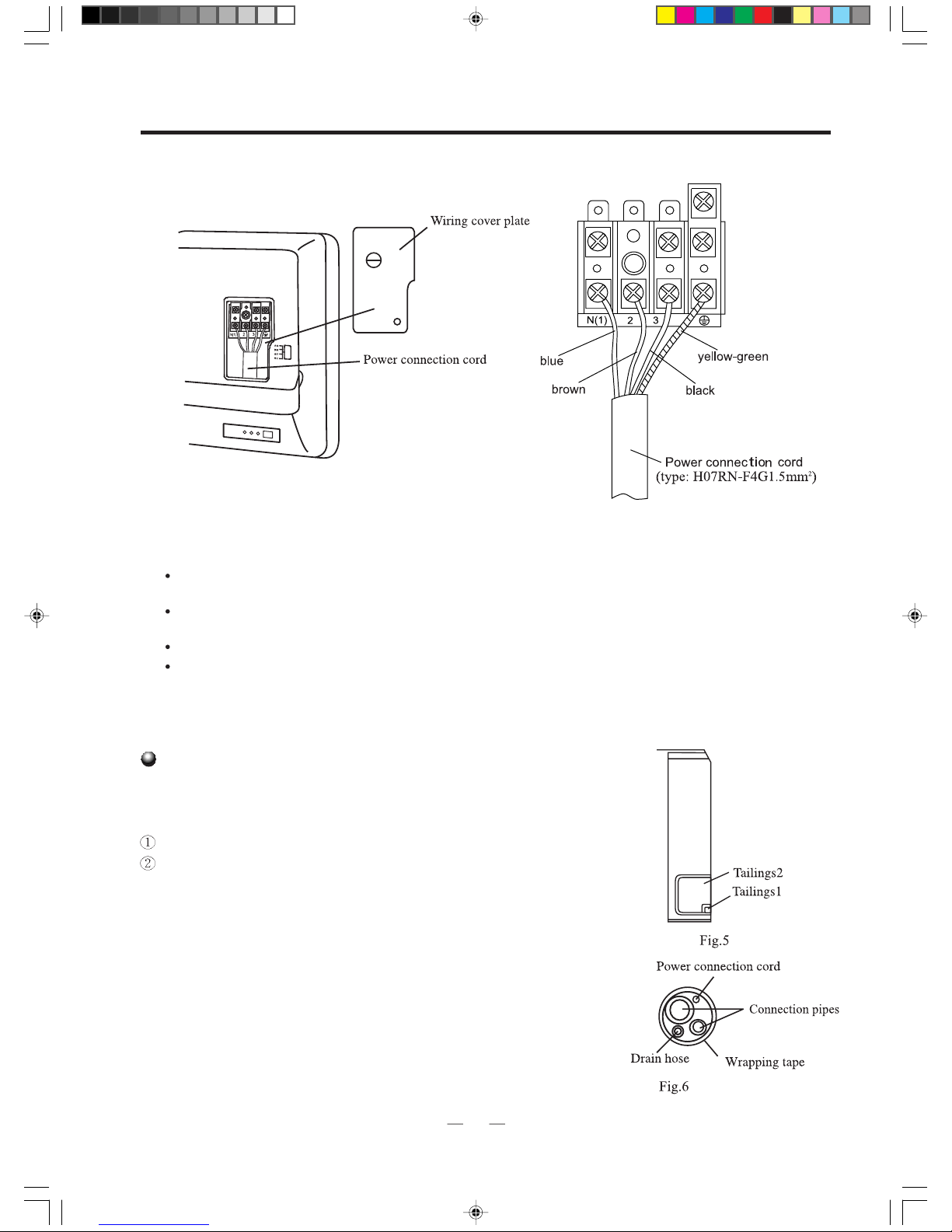

1. Open the surface panel.

2. Remove the wiring cover. (Fig.4)

3. Route the power connection cord from the back of the indoor unit and pull it toward the front through the wiring
hole for connection.

4. Connect the blue wire of the power connection cord to the terminal “N(1)”, the brown one to “2”, the black one to “3”,
and the yellow- green one ( earth wire ) to “ ” as shown in Fig.4.

Install the indoor unit

Connect the connection pipes with the relevant union pipes of the indoor unit (Shown in P25 Install the connection
pipes” ).

NOTE:

Connect the connection pipes with the indoor unit firstly and the outdoor unit secondly.
Be careful in bending the connection pipes, or you will damage the pipes.
If the tightening torque is too great in tightening the flare nuts, leakage will happen.

(Fig.3)

(Fig.2)

24

Fig.4

Install the indoor unit

1.When routing the piping and wiring from the left or right side of the indoor
unit, cut off the tailings from the chassis in necessary(shown in Fig.5).

Cut off tailing 1 when only power cord is routed.
Cut off tailings 1 and 2 when connect pipe and power cord are routed.

2.Wrap the piping and wiring and pull them through the cut-off tailings hole
(shown in Fig. 6).

3.Hang the 2 mounting slots of the indoor unit on the upper tabs of the rear panel
and check if it is firm enough.

4.The height of the installed location should be 2.3m or more from the floor.

NOTE:

All the electrical work must be done by qualified personnel according to relative wiring regulation and this
manual.
The power supply is type Y connection. If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
The rated voltage and the exclusive circuit must be used.
Leakage circuit-breaker and air switch of correct capacity must be installed. The air switch of 32A should be
used in these models.

25

Install the outdoor unit

1.Align the center of the piping flare with the relevant valve.

2.Screw in the flare nut by hand and then tighten the nut with spanner

and torque wrench refer to the diagram at right.

NOTE:

Wrong wiring connection will cause electrical mal-

function.
Do not pull the wire when fixing it with wire clamp.
Do not let the wire too loose in the outdoor unit.

Note: Exceeding tightening torque will damage the

flare surface.

Tightening torque table

Electric wiring connection

2.Break through the hole for wires and put

on rubber bush.

3.Pull all wires throught the rubber bush.

4.Remove the wire clamp and connect the

end of the power connection cord with
screws to the wiring terminal board ac­cording to the “WIRING DIAGRAM” of
outdoor unit.

5.Make sure that the wiring has been con-

nected firmly.

6.Tighten the wire with clamp and clasp.

Fig.7

1.Remove the front side plate (Fig.8).

Hex nut diameter (mm)

6

9.5
12
16

Tightening torque(N.m)

15~20
31~35
50~55
60~65

Install the connection pipe

26

Connecting the pipe

1.Remove the flare nuts from the cut - off valves of the outdoor unit.

2.Align the center of the piping flare with the relevant valve, and screw
in the flare nut about 3~4 turns by hand.

3.Tighten the flare nut with spanner and torque wrench.

4.Remove the valve caps of the gas valve and liquid valve and the ser­vice port nut.

Air purging and leakage test

For the air conditioners with R22 refrigerant, as the below step:

1.Loosen the valve stem of the liquid valve with a hex wrench.

2.Push the check valve core of the gas valve to discharge air and mois­ture remaining in the refrigerant system.

3.Stop pushing the valve core as soon as the refrigerant starts to be
discharged, and reinstall the service port nut.

4.Open the liquid valve and gas valve entirely (shown in Fig.9).

5.Tighten the valve caps and test leakage at all joints of the piping (both
indoor and outdoor) with liquid soap or leak detector.

6.If possible, discharge air and moisture remaining in the refrigerant
system with a vacuum pump. (shown in Fig.10)

1.Remove the nuts of one-way valve.

2.Evacuate from the one-way valve with a vacuum pump until the
vacuum meter is 5 Torr, and keep up evacuating 1 hour or more.

3.Turn off the valve and fighten the nuts.

4.Fully open valves.(Fig.9)

5.Tighten the nuts, then check whether there is gas leaking out.

*Moisture inside pipeline must be less 200 PPm.

Outdoor condensation drainage
(Heat pump type only)

When the unit is heating or defrosting,the waste water formed in the
outdoor unit can be drained out reliably through the drain hose.

Installation:

Install the outdoor drain elbow in the 25 hole on the base plate as
shown in Fig.11, and joint the drain hose to the elbow, so that the waste
water formed in the outdoor unit can be drained out to a proper place.

Install the outdoor unit

27

Routine check after installation

Check after installation

Items to be checked

Has the air conditioner been fixed firmly?
Have you done the refrigerant leakage test?
Is heat insulation sufficient?
Does the unit drain well?

Is the voltage in accordance with the rated volt­age marked on the nameplate?

Is the electrical wiring and piping connection in­stalled correctly and securely?

Has the unit been connected to a secure earth
connection?

Is the power cord specified?

Has the inlet and outlet been covered?

Has the length of connection pipes and the re­frigerant capacity been recorded?

Possible malfunction

The unit may drop, shake or emit noise.

It may cause insufficient refrigerating
capacity.

It may cause condensation and dripping.
It may cause condensation and dripping.

It may cause electric malfunction or damage
the part.
It may cause electric malfunction or damage
the part.

It may cause electrical leakage.
It may cause electric malfunction or damage

the part.
It may cause insufficient refrigerating

capacity.

The refrigerant capacity is not accurate.

Situation

ENVIRONMENTAL INFORMATION

This unit contains fluorinated gases with greenhouse effect covered by the Kyoto Protocol.
Maintenance and disposal must be carried out by qualified persons only.
Refrigerant gas R410A, GWP = 1730

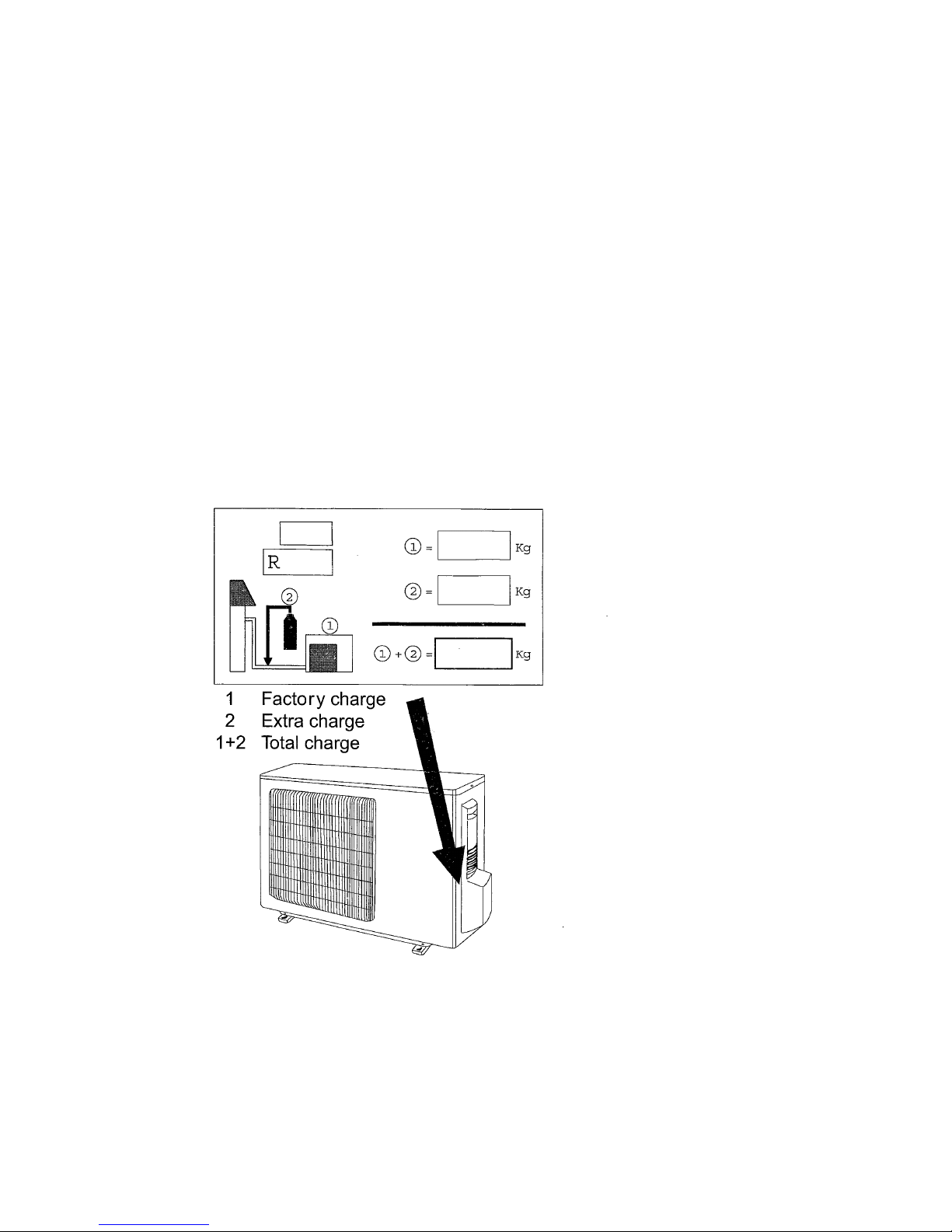

EXTRA REFRIGERANT CHARGE

Pursuant to Regulation EC 842/2006 on certain fluorinated greenhouse gases, in case of extra
refrigerant charge, it is compulsory to:

- Fill in the label accompanying the unit inserting the factory quantity of refrigerant

charge (see the technical label), the extra refrigerant charge and the total charge.

- Apply the label next to the technical label applied on the unit. For the split-type air

conditioner apply on the outdoor unit.
