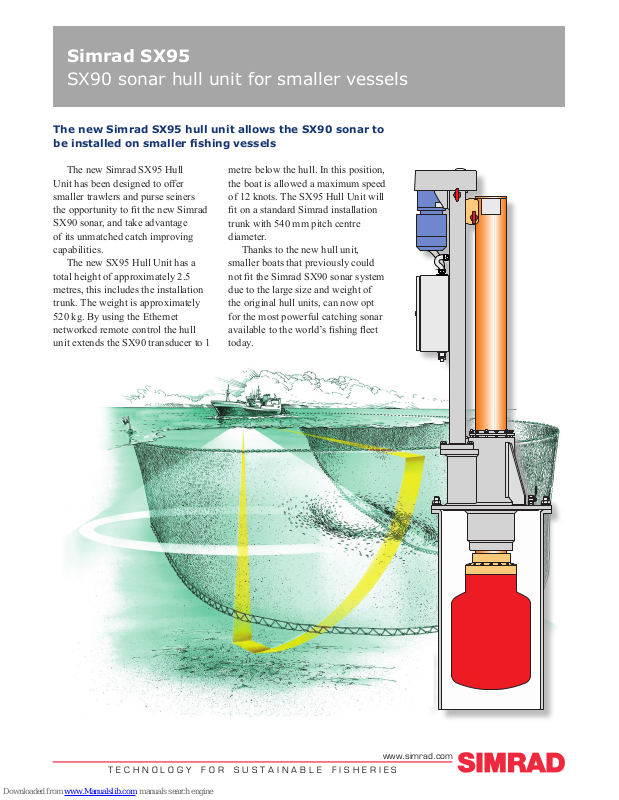

Simrad SX95
SX90 sonar hull unit for smaller vessels
The new Simrad SX95 hull unit allows the SX90 sonar to
be installed on smaller shing vessels
TECHNOLOGY FOR SUSTAINABLE FISHERIES
www.simrad.com
The new Simrad SX95 Hull
Unit has been designed to offer
smaller trawlers and purse seiners
the opportunity to t the new Simrad
SX90 sonar, and take advantage
of its unmatched catch improving
capabilities.
The new SX95 Hull Unit has a
total height of approximately 2.5
metres, this includes the installation
trunk. The weight is approximately
520 kg. By using the Ethernet
networked remote control the hull
unit extends the SX90 transducer to 1
metre below the hull. In this position,
the boat is allowed a maximum speed
of 12 knots. The SX95 Hull Unit will
t on a standard Simrad installation
trunk with 540 mm pitch centre
diameter.
Thanks to the new hull unit,
smaller boats that previously could
not t the Simrad SX90 sonar system
due to the large size and weight of
the original hull units, can now opt
for the most powerful catching sonar
available to the world’s shing eet
today.
Page 2
SIMRAD SX95
155
[6,102]
1645
[64,764]
874
[34,409]
220
[8,660]
Lifting
point
Lifting
point
990
[38,976]
1000
[39,370]
662
[26,063]
382
[15,039]
ø150
[5,906]
ø483
[19,016]
ø508
[20,000]
ø580
[22,835]
Bow
CD015414-005 Page1of1
318900 Rev.A
Note:
All measurements are in mm and [inches].
The drawing is not in scale.
Outline dimensions
Page 3
SIMRAD SX95
M16
0.5
16 HOLES,SPACING 22.5
O
Classification society marking
ø540
ø460
+1
-0
ø580
+
-
2
(508)
990
+
-
3
(12.5)
45°
10
18
-0
+1
22.5°
CD15106-003 Page1of1
830-113361 Rev.A
Note:
All measurements are in mm.
The drawing is not in scale.

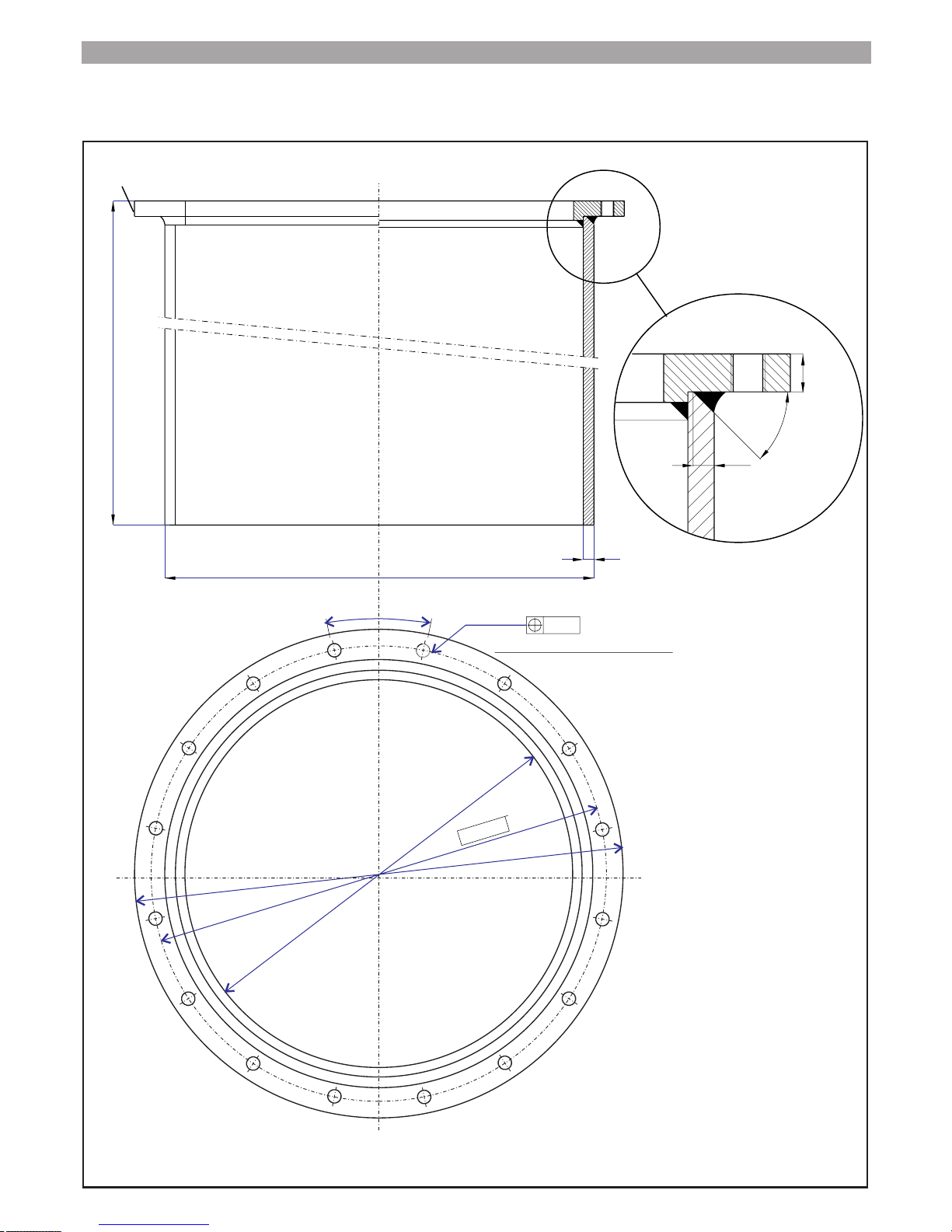

Installation trunk
Page 4
324839 / Rev.A / August 2008
SIMRAD SX95
(CD015414-003)
L
J
A
C
D
E
G
H
F
I
B
K
M

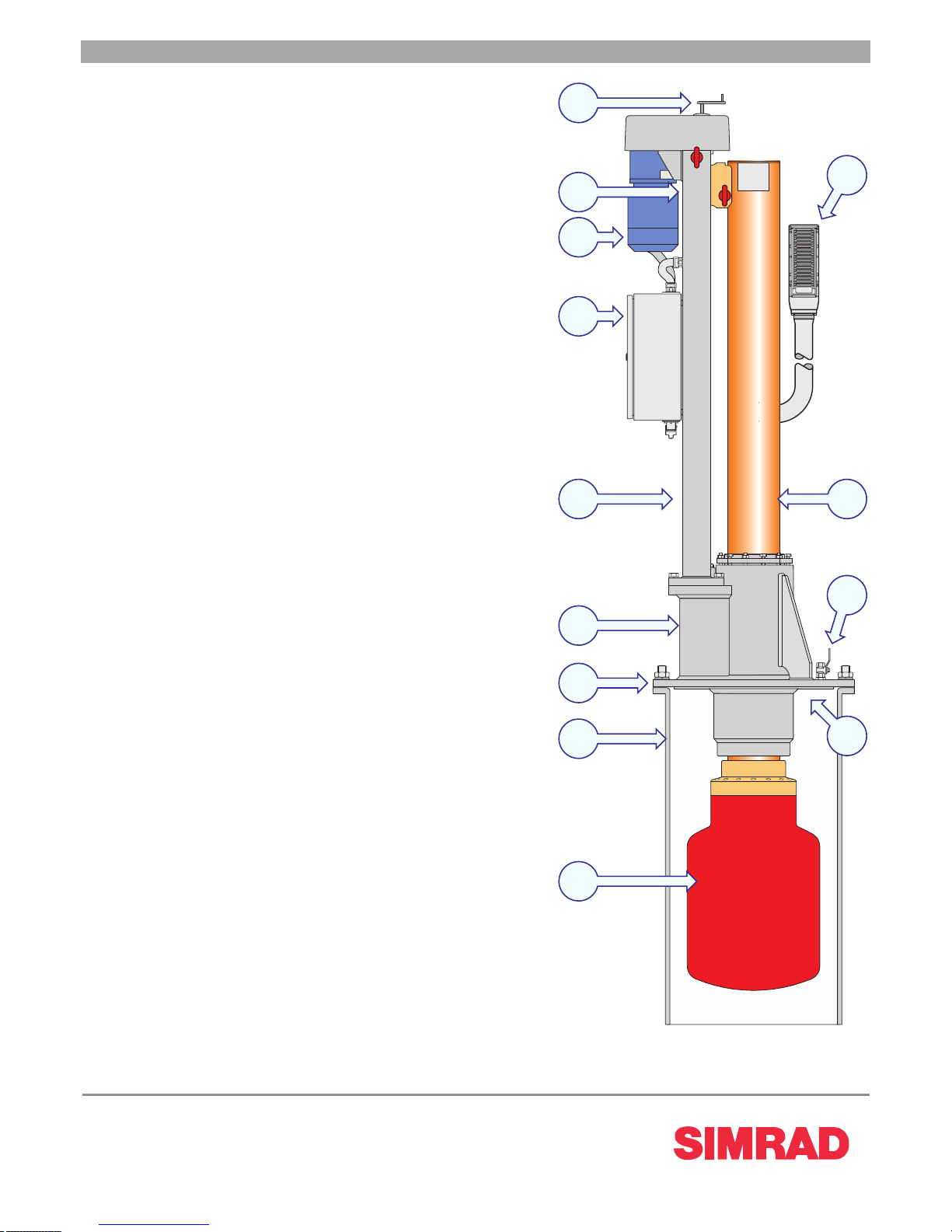

The Simrad SX95 hull unit is designed for
smaller shing vessels.
The SX95 Hull Unit has 1.0 m stroke length. The maximum
vessel speed is speed 12 knots. The transducer is lowered and
hoisted by means of remote control. A single Ethernet cable
connects the Motor Control Unit to the SX90 Transceiver Unit. In
case of a power failure, the transducer array can be hoisted manually
by means of a hand crank.
(A) Hand crank for manual hoisting and lowering
(B) Identication label
(C) Hoisting motor
(D) Motor Control Unit
(E) Hoisting unit
(F) Transducer shaft sleeve
(G) Mounting ange
(H) Mounting trunk
(I) Transducer
(J) Transducer cable
(K) Transducer shaft
(L) Air bleeding cock
(M) Zinc anodes
