Introduction

The Simrad RS90S VHF radio is a comprehensive solution for marine VHF radio applications.

The radio comprises:

• RS90S VHF transceiver.

• One wired handset as standard, and optionally up to 3 more wired

handsets. (Maximum of 4 wired handsets in total.)

• Up to 2 optional wireless handsets.

• Up to 4 optional external speakers.

In addition to routine ship-to-ship or ship-to-shore VHF communications, the RS90S has many advanced features, including:

• NMEA 2000 and NMEA 0183 network connectivity, which allows the

radio to share information with other onboard devices, such as a GPS antenna, a chart plotter or a multi-function display.

• Digital Selective Calling (DSC) for automated distress calls, and for

calling individual vessels using their Maritime Mobile Service Identity (MMSI). Also includes a track buddy function.

• Automatic Identiﬁcation System (AIS) for monitoring nearby vessels

(receive only).

• Automatic Terminal Information Service (ATIS) function for controlled

VHF communications in European inland waterways (EU models).

• Automatic weather alert using TONE and SAME systems (US models).

• Monitoring multiple VHF channels simultaneously (country speciﬁc).

• Intercom calls between handsets.

• Voice recording.

• Fog horn and loud-hailer modes.

• Horn button connection.

• Up to three instant favourite channel selections.

Introduction | RS90S User Manual

| 11

Page 12

Getting started

Caution: Under extreme operating conditions, the

Handsets

All the operating functions of the RS90S are carried out using the handsets. Each handset contains a microphone, a small internal loudspeaker and various buttons for controlling the radio.

Two types of handset are available:

• Up to four wired handsets can be connected. There must be at least

one wired handset connected to the station one terminal in the installation.

• Up to two wireless handsets can be installed. The wireless handsets

communicate with the transceiver by 2.4 GHz radio communication. The wireless handsets are powered by internal rechargeable batteries, and are charged by inductive charging when on the cradle.

When there are multiple handsets, they are synchronized so that there is no conﬂict of operation and each display the same information on their screens.

temperature of the rear heat-sink on this radio may exceed normal surface temperatures. Caution is advised to prevent possible skin burns.

12 |

Handset naming

Handset names appear on screen at times—for example, when another handset has control of the radio.

Wired handsets HS1, HS2, HS3, HS4

The above handsets—1 standard and 3 optional—are connected to the transceiver. The volume controls on these handsets control the corresponding external speakers.

Getting started | RS90S User Manual

Page 13

Handset parts

1 Red distress cover with button beneath 2 Screen 3 PTT button 4 Volume control 5 Function keys 6 Keypad (wired handsets only).

Subscribing a wireless handset

At installation time, wireless handsets must be registered in the transceiver. For instructions, see “Subscribing a wireless handset” on page 85.

Getting started | RS90S User Manual

| 13

Page 14

Charging a wireless handset

When a wireless handset is not in use, it should be placed on its cradle for charging.

14 |

Locate the bottom of the handset onto the cradle ﬁrst, and then press the top of the handset inwards until it clicks into the top lugs.

Handset operation priority

If you want to use HS1, but it displays “HS# IN USE,” it means that another handset is operating.

To shift control to HS1:

1. Press [X].

2. The display shows “Take Control?”

• Press [OK] to take over control.

• Or, [X] to leave the other handset in control.

Getting started | RS90S User Manual

Page 15

Handset control buttons

1 Short press for AIS menu.

Long press for Intercom / Hailer mode.

2 Press to select the priority channel.

3 Short press for Exit key.

Long press for power on/oﬀ.

4 Squelch keys. Also used for moving cursor left/right.

5 Three favourite channel key.

6 Short press for weather station (US models).

Long press for Navigation mode.

7 Change channel, or scroll menu options.

8 Short press for [OK] key.

Long press to toggle high/low power.

9 Short press for DSC menu.

Long press for menu.

10 Short press to start dual-watch or tri-watch mode.

Long press to start scanning channels.

For more information on keys, see “Appendix 2 - Keys reference” on page 111.

Getting started | RS90S User Manual

| 15

Page 16

Switching on and o

Switching on the system

The VHF radio is switched on from a wired handset.

To switch on the radio:

1. Press and hold [X] on a wired handset until the startup screen

showing version numbers appears.

2. When prompted, press [X] to exit the startup screen and display the

main operating screen.

This switches on the transceiver and the wired handset.

¼ Note: A wireless handset can only switch itself on and oﬀ. See

“Switching on a wireless handset” on page 17.

Switching o the system

The system is switched oﬀ by holding down the [X] key on a wired handset until the display shows “Release key to power oﬀ.”

Just one handset

1. In standby mode, press [X] on the wired handset until the display

shows “Release key to power oﬀ.”

16 |

2. Release the [X] key.

More than one wired handset

HS1 (handset 1) has a power-oﬀ menu. All the other handsets simply power themselves oﬀ.

Handset 1 power-oﬀ menu:

• SYSTEM

Turns oﬀ all handsets and the transceiver.

• HS1

Turns oﬀ the handset itself. Displays “SYSTEM IS WORKING” with no backlight.

¼ Note: You can ignore the power-oﬀ menu and keep holding down

[X] until the display shows “Release key to power oﬀ.”

Getting started | RS90S User Manual

Page 17

Switching on a wireless handset

• Press and hold [X] until the display illuminates.

The display shows “Searching,” then “Connecting,” and then the current operating screen.

¼ Notes:

• This only switches on the individual wireless handset, not the

transceiver.

• If the transceiver is oﬀ, the wireless handset continues to display

“Searching”.

• At install time, wireless handsets must be subscribed. See

“Subscribing a wireless handset” on page 85.

Switching o a wireless handset

¼ Note: This procedure only switches oﬀ the wireless handset. It does

not switch oﬀ any other handsets or the transceiver.

1. Press and hold [X] until the following message appears:

“Release key to power oﬀ.”

2. Release the [X] key.

Handset status display

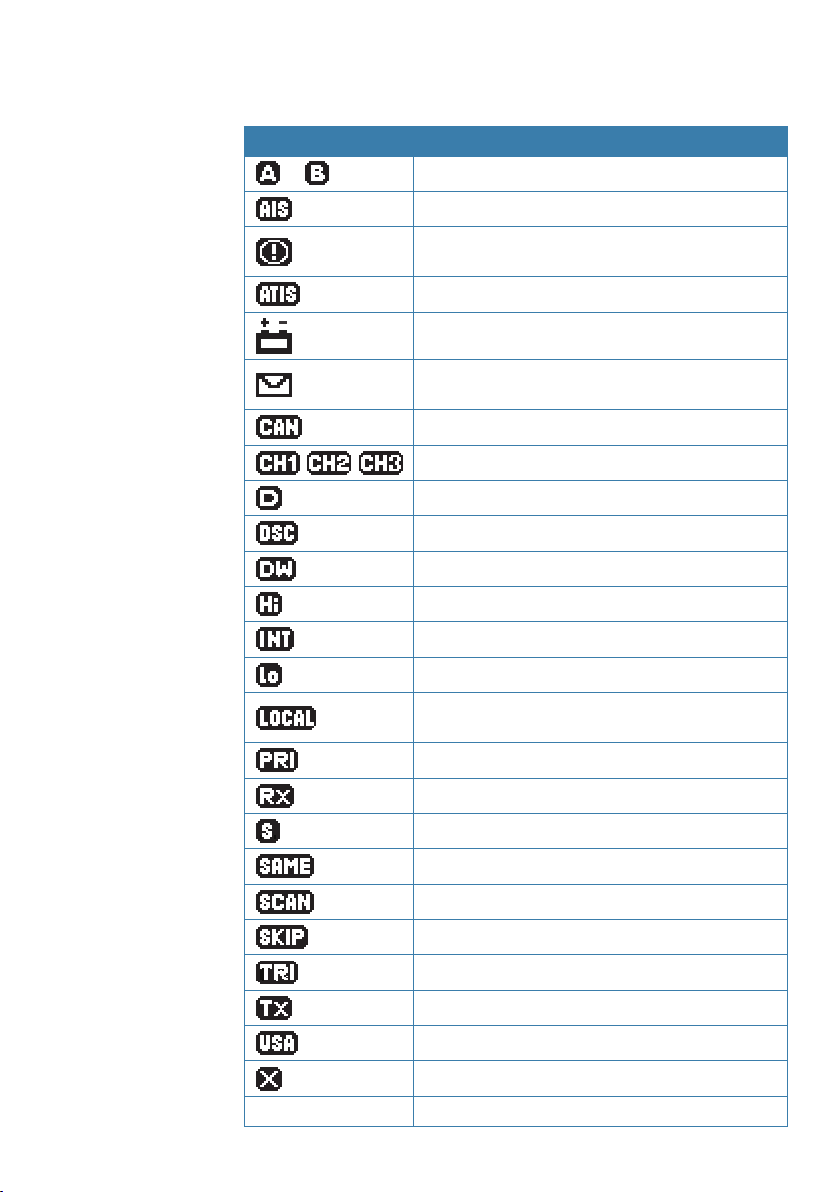

A small icon located on the lower right of the screen shows the status of all connected handsets.

The above example shows that handset 1 and handset 3 are online and this handset is handset 1.

Getting started | RS90S User Manual

| 17

Page 18

The standby screen

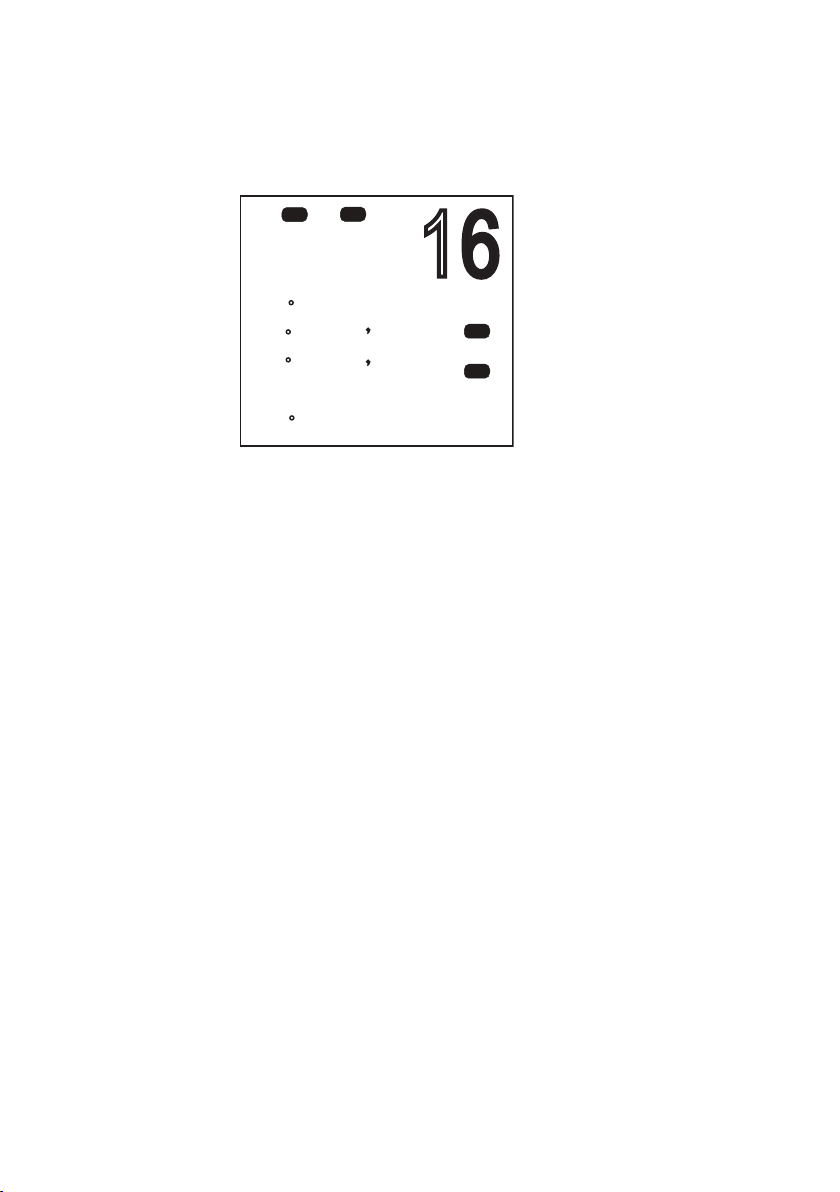

The following illustration shows a typical operating screen in standby mode. The radio is in standby mode when it is waiting to send or receive calls.

DSC

DISTRESS 14:43

128

012 WPT: HARBR

The above screen shows:

• The radio is tuned to channel 16, which has been designated as the

priority channel (PRI).

• In this unit, Channel 16 has been named “DISTRESS.”

• Transmitting power is set to high (Hi).

• DSC is enabled.

• The time is 14:43 UTC.

• The current course is 128° true and speed over ground is 5.0 knots.

• The current latitude is 55°33.122’N and longitude 012°42.408’E.

• The channel bank selected is International (INT).

• The name of the destination waypoint is HARBR.

• The unit selected is Nautical Miles (nm).

• The destination waypoint is 8 nm away at a bearing of 275° true.

• The current Cross-Track-Error is 0.5 nm to port (requires a course

change to starboard).

275

UTC

33.122

42.408

8.00

n m

PRI

INT

0.50>

18 |

Getting started | RS90S User Manual

Page 19

During normal operation, the following icons may be displayed on the screen depending on setup:

Symbol Meaning

Channel suﬃx

AIS is enabled

Flashing if a weather alert has been received (US models only)

ATIS is enabled

Low battery warning. Activates at 10.5 V

Incoming DSC call. Flashing if there are unread call log messages

Canadian channel bank is selected

, ,

Favourite channel 1, 2 or 3 is selected

The current channel is a duplex channel

DSC is enabled

Dual watch mode

High transmission power (25 W)

International channel bank selected

Low transmission power (1 W)

‘Local’ sensitivity selected.. Otherwise blank for distance sensitivity

The priority channel is selected

The radio is receiving

The Shift key has been pressed

The SAME alert setting is ‘ON’

Channel scanning in operation

This channel is being skipped in the scan

Tri watch mode

The radio is transmitting

USA channel bank is selected

Auto Switch is set to OFF

•

Getting started | RS90S User Manual

Voice recording is ON

| 19

Page 20

Modes

The RS90S has several diﬀerent modes of operation. The main mode is standby mode, during which the radio is ready to send or receive VHF calls. Generally, pressing the [X] key will exit any special mode and return to standby mode.

Scanning mode

In scanning mode, the radio scans selected channels for radio activity.

Navigation mode

Navigation mode displays distance and bearing to a selected waypoint.

Hailer mode

Hailer mode allows you to use the radio to hail other vessels or deck crew through a connected loud-hailer speaker.

Hailer mode also features a listen-back mode, which uses the PA speaker as a microphone to listen for a response.

Fog horn mode

Fog horn mode allows you to use the radio to sound a fog horn tone through a connected loud-hailer speaker.

20 |

Intercom mode

Intercom mode allows you to use the handsets to communicate from one handset to the others in your vessel.

Standby Mode

In standby mode, the RS90S displays the main operating screen on the handset(s) and is ready to send or receive calls on the selected channel.

Changing channel

Diﬀerent jurisdictions in the world have allocated diﬀerent sets of VHF radio channels for diﬀerent purposes. These sets are known as channel banks. The available channel banks and their corresponding channels are given in “Appendix 7 - Channel charts” on page 119.

Getting started | RS90S User Manual

Page 21

Normally the radio should be left tuned to the priority channel CH16 (CH16 or CH09 (US models)) in case an emergency call is broadcast on that channel. The RS90S can also be set to monitor several channels at the same time. In this case, the radio continuously scans the selected channels and, if activity is heard on a channel, it will switch to that channel while the activity continues. Then it will revert to scanning. See “Scanning channels” on page 29.

You can use one of the following methods to change channel:

• Press [16/9] to switch immediately to the priority channel (see

“Priority channels” below).

• Press ▲ or ▼ until you reach the required channel number.

• Press and hold ▲ or ▼ to rapidly scroll through the channel

numbers. When the number you require is displayed, release the key.

• Input the number on the keypad (wired handset only), and when

the required channel number is ﬂashing on screen, press [OK], or wait for 2 seconds for the number to be accepted automatically. When entering a single-digit channel number, preﬁx the channel number with 0.

• Repeat press [3CH] to scroll through your three favourite channels.

See “Three favourite channels 3CH” on page 29.

• Press [WX] and then ▲ or ▼ to tune to a weather station (US model

only). See “Receiving weather alerts (US model only)” on page 27.

• Press [WX] to go directly to a set favourite channel (EU models only).

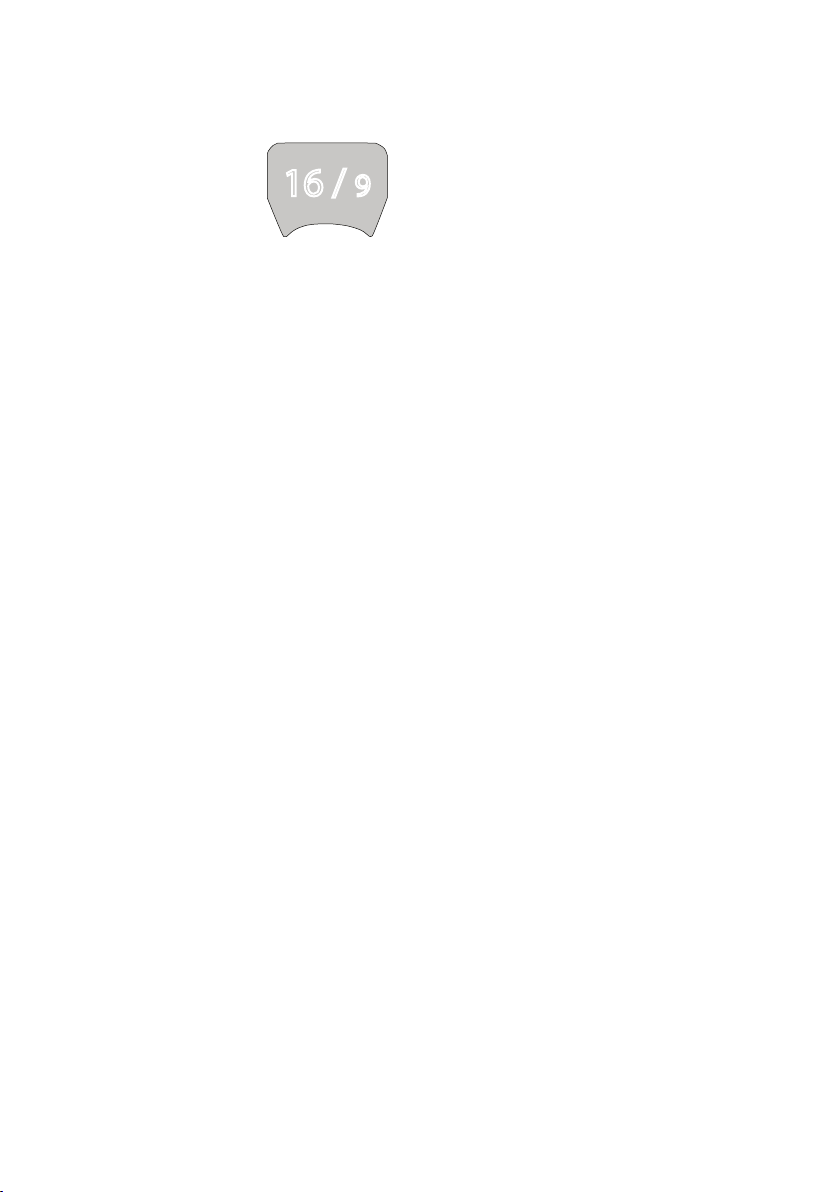

16 / 9

Priority channels

Channel 16 is the international emergency priority channel. On Channel 16, operators must give priority to any emergency calls occurring on that frequency. In the US, Channel 9 is also an emergency priority channel.

To switch directly to Channel 16 (or Channel 9 if congured):

• Press the 16/9 button.

¼ Note: The default emergency channel is CH16. On US models,

you can change the default emergency channel to CH9 by holding down 16/9 until the unit beeps and displays 09. Repeat the procedure to change back to CH16 as the default emergency channel.

Getting started | RS90S User Manual

| 21

Page 22

Adjusting squelch

The squelch adjustment allows you to adjust the sensitivity of the radio so that background noise is minimized. In areas of high static noise, such as close to large cities, you can improve quality of reception by adjusting the squelch.

• Use the ◄ and ►keys to adjust the level up or down respectively.

• Adjust the level until the background noise just disappears.

¼ Note: You can also adjust the sensitivity of the VHF receiver using

the Local/Distance setting. See “Radio sensitivity” on page 108.

Setting transmission power

The RS90S has two transmission power settings: High 25 W (Hi) Low 1 W (Lo)

To change the power setting:

Press and hold [H/L] until the Hi or Lo icon on the display changes.

¼ Notes:

• Channel 16 always remains in high transmission power.

• Some channels allow only low-power transmissions. If you try to

change to high power, the RS90S will sound an error beep.

• Some channels allow only low power transmissions initially, but can

be forced to high power by holding down [H/L] and PTT at the same time.

• See “Appendix 7 - Channel charts” on page 119 for a list of channel

data.

22 |

Getting started | RS90S User Manual

Page 23

PTT Key

The Push to Talk (PTT) key activates the microphone and transmits your voice over the selected channel.

¼ Notes:

• Pressing PTT while a menu is displayed will exit the menu without

making any selection.

• DSC transmission has higher priority than PTT voice transmission.

• During PTT transmission, the radio cannot receive a DSC call.

• If PTT gets stuck or accidentally held in the talk position, a built-in

timer sounds an error beep and shuts down the transmission after 5 minutes.

Using the menus

DSC

DSC SETUP

USER MMSI GROUP SETUP INDIV REPLY DSC FUNC

DSC

MENU SELECT

WAYPOINT N2K D ATA VOICE REC BACKLIGHT

PRI

USA

PRI

USA

The [CALL/MENU] button provides access to two diﬀerent menus as follows:

• Short press to access the DSC menu.

• Long press (press and hold) to access the main menu.

To use the menus:

• Use ▼ or ▲ to scroll to the option you want.

• Press [OK] to select a menu option, or

• Press [X] to go back without selecting an option.

¼ Note: If the radio is left in menu mode, after a default time of

10 minutes, it beeps a warning and then automatically returns to standby mode.

Shortcut keys

The RS90S wired handset keypad includes a SHIFT key that modiﬁes the function of some keys.

• Press [SHIFT] to display the shift icon (S), and then press the number

key to access the required function.

SHIFT + 2 Press [SHIFT], then press 2 to access the AIS SETUP menu.

SHIFT + 3 Press [SHIFT], then press 3 to access the external speaker ON/OFF.

SHIFT + 4 Press [SHIFT], then press 4 to access the Waypoint menu.

Getting started | RS90S User Manual

| 23

Page 24

Entering data

Entering data with a wired handset

Enter data using the keypad. The ﬁrst press of a key inputs the number corresponding to the key; subsequent presses input letters of the alphabet as indicated on the key. For example, 2, A, B, and C are typed using the same key.

After a short pause, the cursor automatically jumps to the next space; or, you can press [OK] to move to the next space immediately.

¼ Note: Characters can only be entered in upper case.

To replace a character:

• Use the ◄ and ►keys to move the cursor to the character. You can

then type over the character.

To nish entering data:

Press [OK] repeatedly to reach the end of the line. The cursor will then move to the next input required, or a save/cancel option will be displayed for you to select as required.

¼ Note: You can press [X] at any time to go back one step.

Entering data with a wireless handset

24 |

Use the ▲and ▼keys to scroll through the available characters, and then press [OK] to select the required character.

Warning messages

See “Appendix 4 - Warning Messages” on page 113.

Alert tones

See “Appendix 3 - Beep tones and call alerts” on page 113.

Getting started | RS90S User Manual

Page 25

Operating procedures

Making a routine radio call

Making a routine ship to ship or ship to shore call.

1. Select a calling channel.

See “Changing channel” on page 20.

2. Listen to make sure that there is no traﬃc on the channel.

3. Hold down [PTT] and announce the station you want to contact

and your own vessel’s details. When you have ﬁnished speaking, say “Over” and then release [PTT].

4. When you receive a reply on the calling channel, agree a working

channel.

5. Change to the working channel.

6. Continue the conversation:

• Hold down [PTT] while you are speaking.

• Release [PTT] while you are listening.

7. When ﬁnished, press [16/9] to return to the radio watch channel.

¼ Note: When you call a coast station, the coast station operator

normally states a suitable working channel.

Calling a buddy

You can call a buddy using their MMSI on the DSC system. For further information, see “Introduction to DSC” on page 40.

Operating procedures | RS90S User Manual

| 25

Page 26

Making a channel 16/9 distress call

1. If not already on the priority channel, press the [16/9] key.

16 / 9

2. Listen to make sure there is no traﬃc on the channel.

3. Hold down [PTT] and announce your distress call.

4. Say your call sign, details of your vessel, its position and the nature of

the distress.

5. Say “over” and then release [PTT] when you have ﬁnished speaking.

6. Allow a short time for a reply.

7. If you don’t hear a reply, repeat the distress call (steps 3 to 6 as

above).

8. When you receive a reply, continue the conversation:

• Hold down [PTT] while you are speaking.

• Release [PTT] while you are listening.

You may be asked to change to a working channel.

¼ Notes:

26 |

• In the USA, you can toggle between Channel 16 and Channel 9 as

the priority channel. Hold down [16/9] until a beep sounds and the required priority channel is displayed.

• This feature needs to be setup in the radio settings (“Setting the

priority channel” on page 90).

Making a DSC distress call

Using the DSC system (where available) you can make a distress call by pressing a single Distress button. For further information, see “Introduction to DSC” on page 40.

Operating procedures | RS90S User Manual

Page 27

Receiving weather alerts (US model only)

The National Oceanic and Atmospheric Administration (NOAA) provides several weather forecast channels on USA and Canadian channel banks. If severe weather is forecast, the NOAA broadcasts a weather alert on 1050 Hz.

To access weather alerts:

1. Short press [WX] to enter WX mode.

2. Press ▲ or ▼ to change WX channel.

3. If WX TONE ALERT setting is ON (see “Setting up weather tone

alert” on page 91), the radio will monitor the WX channel you select. If an alert tone is broadcast from the NOAA weather station, the weather alert is picked up automatically and the RS90S alarm sounds. Press any key to cancel the alarm and to hear the weather alert message.

4. When ﬁnished, press [WX] again or [X] to exit WX mode.

¼ Note: In WX mode, the Wx icon appears on screen.

Receiving SAME alerts (US model only)

The NOAA All Hazards Weather Radio Service (NWR) works in conjunction with the Emergency Alert System (EAS) to issue weather alerts for speciﬁc geographic areas or weather warnings. It uses a digital encoding system known as Speciﬁc Area Message Encoding (SAME) to broadcast these alerts.

Each transmitter in the NWR network is identiﬁed with a unique 6-digit SAME code.

If SAME is enabled and the 6-digit country IDs you want to monitor have been entered, the radio will sound the weather alarm when it detects a weather alert on the selected weather channel.

For SAME alert setup, see “Setting up SAME alert” on page 92.

Operating procedures | RS90S User Manual

| 27

Page 28

Receiving a SAME ALERT

If SAME ALERT is ON and an NWR or EAS alert for your geographic area is broadcast, the RS90S detects the alert signal and sounds the alarm.

Press any key to cancel the alarm.

• If the alert is being sent by NOAA NWR, the radio automatically

tunes to the designated frequency so that you can listen to the alert.

• If the alert is being sent by the EAS, the nature of the alert is shown

on screen as WARNING, WATCH, ADVISORY, or TEST.

Press any key to show the nature of the alert.

¼ Note: The list of alerts is shown in “Appendix 3 - Beep tones and call

alerts” on page 113.

Receiving SAME TEST messages

In addition to the WARNING, WATCH and ADVISORY alerts, the EAS also send out TEST messages so that you can check that your WX ALERT setup is working correctly. The TEST message is usually transmitted between 1000 and 1200 (10.00AM and noon) every Wednesday.

If your WX ALERT setup is working correctly, the alert sounds and TEST is displayed on screen, followed by a broadcast message from the National Weather Service.

28 |

¼ Note: If there is a threat of severe weather, the test will be

postponed until the next ﬁne weather day.

Favourite channel (non-US models)

In standby mode, press [WX] to access your favourite channel, press again or [X] to go back to the last working channel.

¼ Notes:

• To set up the favourite channel, see “Setting up a favourite channel”

on page 91.

• You can store just one channel as the favourite channel. It can, for

example, be a weather reporting station.

Operating procedures | RS90S User Manual

Page 29

DSC

OVER WRITE CH3?

YES NO

DSC

3CH MODE DELETE CH1?

YES NO

Three favourite channels 3CH

Once set up, you can use the three favourite channels in two ways:

• Repeat press [3CH] to toggle between your three favourite channels,

• Scan the three channels and the priority channel.

To add a favourite channel:

• To add a favourite channel for the ﬁrst time, select that channel then

hold 3CH to store it in the CH1 location.

• You can repeat the procedure to store two more favourite channels

USA

CH1

USA

in the CH2 and CH3 locations respectively.

• Once the three locations are full, if you try to add another favourite

channel, the radio will overwrite the CH3 location after prompting you to conﬁrm.

To delete a favourite channel:

• Select that channel and then hold down [3CH]. The radio will

remove that favourite channel after prompting you to conﬁrm.

To toggle between your three favourite channels:

• Press [3CH] to enter 3CH mode.

• The radio displays “3CH MODE” and CH1, CH2, or CH3 to show

which of your favourite channels is currently selected.

• Repeat press [3CH] to switch between the three channels.

To exit 3CH mode:

• Press [X].

Scanning channels

The RS90S can automatically monitor more than one channel at the same time. It scans a selected range of channels, and when a valid signal is received, the radio stops scanning and remains on that channel so that you can hear the communication. However, if the signal from the channel ceases for more than 5 seconds, the scan automatically restarts.

Four scan modes are provided:

• All scan

Scans all available channels in sequence, but also checks the priority channel every 2 seconds.

Operating procedures | RS90S User Manual

| 29

Page 30

• Dual watch scan

Scans the selected channel and channel 16.

• 3CH scan

Scans your three favourite channels and the priority channel.

• Tri watch scan (US models only)

Scans the current channel, channel 16 and channel 9.

ALL SCAN mode

Hold down [SCAN] for about 3 seconds to start ALL SCAN mode. The radio displays the SCAN icon and “ALL SCAN.” You will see the channel numbers changing.

• If you hear a communication of interest, press [SCAN] or [PTT] to

stop at the currently scanned channel.

• Press [X] to quit scan mode and return to the previously selected

channel.

¼ Notes:

• Scan is not allowed in some EU countries.

• If TONE ALERT or SAME is enabled (US models only), the weather

channel is also scanned.

Skipping busy channels

30 |

If one channel is always busy with traﬃc, you can set the radio to skip that channel during scanning.

To skip a channel:

• While the channel is displayed during scan, press [OK] to skip over it.

To resume scanning a skipped channel:

• With scanning OFF, as you scroll up and down through channels, the

SKIP icon will be displayed when you are on a skipped channel. With the SKIP channel selected, press [OK] to cancel the SKIP function.

¼ Notes:

• You cannot skip the priority channel.

• The SKIP icon will disappear when the radio is powered OFF/ON.

Operating procedures | RS90S User Manual

Page 31

3CH scan mode

• With any of your favourite channels selected (by pressing the 3CH

key), hold down [SCAN] to start scanning your favourite channels and the priority channel.

• Press [SCAN] again to stop at the broadcast channel.

• During scanning, press [X] to cancel 3CH scanning and return to the

previously selected channel.

• Press SCAN or PTT to stop at the currently scanned channel.

• To scan only one of your favourite channels, press 3CH then

immediately press and release SCAN.

For further information on 3CH, see “Making a routine radio call” on page 25.

¼ Note: 3CH scan functionality is limited in some European countries

and, if ATIS is enabled, the 3CH scan mode will be disabled.

Dual watch scan

Dual watch scan monitors the current working channel and the priority channel.

To enter dual watch scan:

• Short press [SCAN].

The DW icon will be displayed on screen.

To exit dual watch scan:

• Press [SCAN] or [X].

¼ Notes:

• For US models, you can select Channel 9 as the priority channel (see

“Priority channels” on page 21 ).

• To scan both channel 16 and channel 9, see “Tri watch scan” next

page.

Operating procedures | RS90S User Manual

| 31

Page 32

DSC

HAILER

HAILER FOG HORN INTERCOM ANNOUNCE

DSC

HAILER OUTPU T VOL

LO HI

Tri watch scan

(US models only)

Tri watch monitors the current working channel, Channel 16 and Channel 9.

For tri watch, you need to enable both channel 16 and channel 9 as priority channels. See “Setting the priority channel” on page 90.

To enter tri watch scan:

• Short press [SCAN].

The TRI icon will be displayed on screen.

To exit tri watch scan:

• Press [SCAN] or [X].

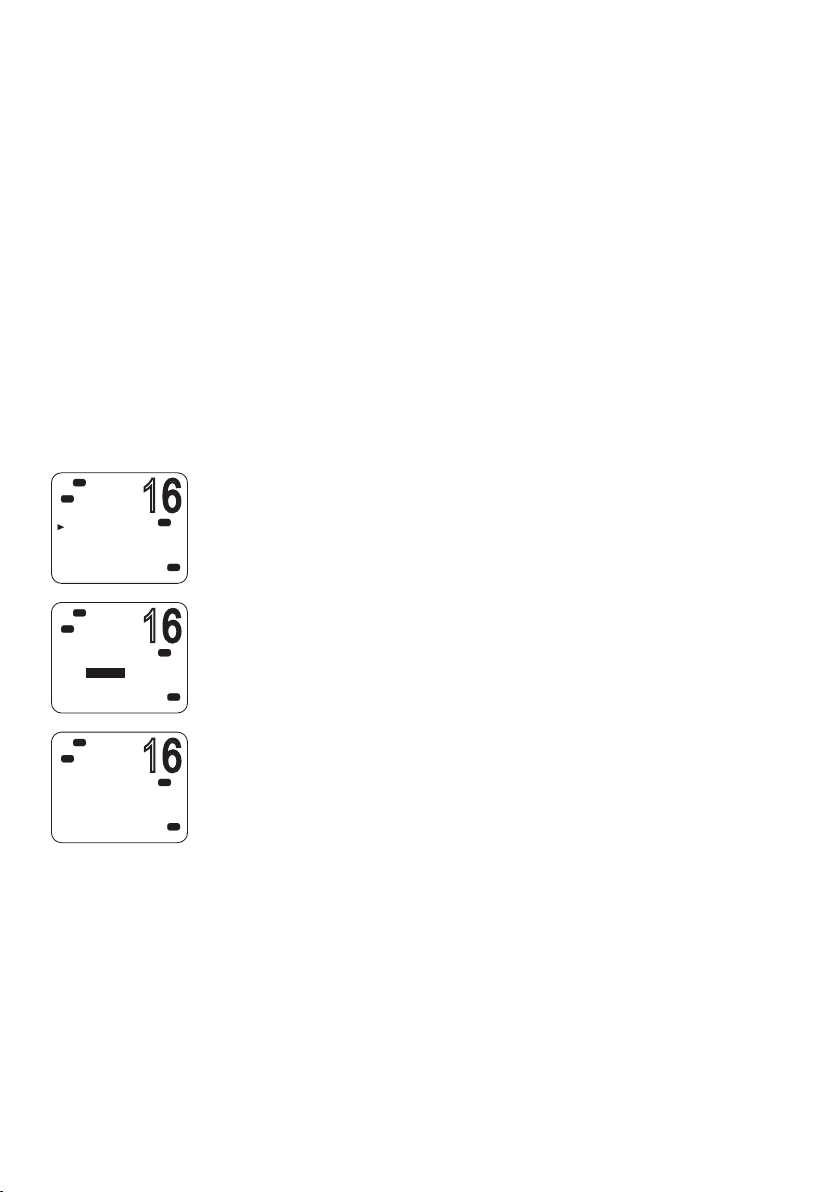

Using the hailer

If the RS90S is connected to a suitable public address (PA) speaker,

PRI

USA

PRI

USA

you can use the Hailer function to hail other vessels or deck crew. The Hailer function also features a listen-back mode, which uses the PA speaker as a microphone to listen for a response.

1. Press and hold [AIS/IC] until the HAILER menu appears.

2. Select HAILER.

3. Press [PTT] to talk.

4. Release [PTT] to listen for a response.

32 |

DSC

HAILER

LISTEN

5. When ﬁnished, press [X] to exit Hailer mode.

PRI

¼ Notes:

• While pressing [PTT], you can change the volume of the PA speaker

USA

using the volume control on the side of the handset.

• Hailer mode is only available on the wired handsets.

Operating procedures | RS90S User Manual

Page 33

DSC

HAILER

HAILER FOG HORN INTERCOM ANNOUNCE

DSC

FOG HORN

HORN UNDERWAY STOP SAIL

DSC DSC

HORN OUTPU T VOL

LO H I

DSC

HORN LISTEN

Using the fog horn

If the RS90S is connected to a suitable public address (PA) speaker, you can use the Fog Horn function to sound certain international standard fog horn tones through the PA speaker.

1. Press and hold [AIS/IC] until the HAILER menu appears.

PRI

2. Select FOG HORN.

USA

PRI

USA

PRI

USA

PRI

USA

There are 8 internationally recognized fog horn signals available:

HORN Manual operation UNDERWAY One long tone STOP Two long tone SAIL One long, two short ANCHOR One long warble TOW One long, three short AGROUND Warble sequence SIREN Manual operation

3. Select the required signal, then press [OK] to start.

• Press [OK] to sound the HORN or SIREN.

• The other signals will sound automatically approximately every

two minutes until you press [X] to cancel.

4. When ﬁnished, press [X] to exit horn mode.

¼ Notes:

• When the fog horn is not sounding, it is in Listen mode.

• While pressing [PTT], you can change the volume of the PA system

using the volume control on the side of the handset.

• In Horn mode, you can press [PTT] to talk through the PA speaker.

• If a horn button has been installed, you can press the button for a

momentary sounding of the horn.

Operating procedures | RS90S User Manual

| 33

Page 34

Using the intercom

When two or more handsets (wired or wireless) are installed, you can use the radio to communicate between handsets.

Lo Hi

DSC

HAILER

HAILER FOG HORN INTERCOM ANNOUNCE

DSC

INTERCOM PUSH TO TALK

DSC

HAILER

HAILER FOG HORN INTERCOM ANNOUNCE

Lo Hi

DSC

MAN

ANNOUNCING

1. Press and hold [AIS/IC].

2. Select INTERCOM from the menu.

PRI

3. Press [PTT] to talk.

USA

4. When ﬁnished, press [X] to quit Intercom mode.

¼ Notes:

• Intercom mode only works when two or more handsets are

installed. While the intercom is being used, the VHF radio is disabled,

USA

except for incoming DSC calls.

• The intercom system is half duplex; you cannot receive and transmit

at the same time; you must release the [PTT] key to listen.

• The receiving handset(s) can adjust their volume controls.

Using the announce function

You can use the handset to make announcements to the other handsets and any external speakers that are connected.

1. Press and hold [AIS/IC] until the HAILER menu appears.

2. Select ANNOUNCE.

PRI

3. Press [PTT] to talk.

USA

4. When ﬁnished, press [X] to exit Announce mode.

¼ Notes:

• The Announce function does not listen for a response.

PRI

• During Announce mode, if a voice signal is received on a VHF

USA

channel, an Rx icon appears on screen.

• If an alert such as ATIS, AIS, DSC or WX is received, or the [DISTRESS]

key is pressed or a DSC call received, the radio will exit Announce mode and handle the alert or DSC call.

34 |

Operating procedures | RS90S User Manual

Page 35

Using the voice recorder

When activated, the voice recorder function records all received and transmitted voice communications.

If memory is full, it will overwrite previous recordings.

Recording

Long press the voice recorder key to access the recording menu. Select RECORDER and then ON’ to enable the recording function.

¼ Note: Voice recording is ON by default.

Playback

Press the voice recorder key to play the recording. A playback icon will be displayed on lower right of the screen. During playback, select ‘FWD 5S’ from the menu to fast forward 5 seconds.

When ﬁnished playing back, the radio will return to standby mode.

Sharing NMEA 2000 data

NMEA 2000 (N2K) is a communications network standard used for connecting marine electronic devices. It is the successor to NMEA

0183.

¼ Note: The RS90S also supports NMEA 0183.

Various devices can be connected via a network cable and can share data on the network. This allows the devices to work together and, for example, one display unit can show information from diﬀerent sources.

The RS90S uses N2K to share the following data:

• Waypoint data to a chart plotter. See “Sending waypoint data to a

chart plotter” on page 39.

• AIS

• Display navigation data received from other devices: Depth, speed,

course, heading and wind data.

Operating procedures | RS90S User Manual

| 35

Page 36

Waypoint procedures

A waypoint refers to the latitude, longitude and name of a place that you have entered into the radio. A waypoint can be a destination, a point along a planned course, or any location useful for navigation, such as a ﬁshing spot.

You can use waypoints as follows:

• Display the coordinates, bearing and distance to a waypoint on the

standby screen. See “Navigating to a waypoint” on page 38.

• Output a waypoint’s coordinates and other details via NMEA 2000

for display on a chart plotter or other compatible device. See “Sending waypoint data to a chart plotter” on page 39.

¼ Note: The RS90S can store up to 200 waypoints.

DSC

MENU SELECT

WAYPOINT N2K D ATA VOICE REC BACKLIGHT

DSC

WAYPOINT

WP LIST NEAREST WP

DSC

WP LIST NEW W P

DSC

SAV E

YES NO

Adding a new waypoint

1. Select MENU → WAYPOIN T → WP LIS T.

PRI

Your waypoint list will be displayed.

USA

2. Press [OK].

NEW WP starts to ﬂash.

3. Press [OK] again to add a new waypoint.

PRI

4. Enter a waypoint name (maximum 6 characters).

USA

5. Enter the latitude. Use ▲ or ▼ key to select N or S as required, and

then press [OK] to move to the longitude setting.

6. Enter the longitude. Press [OK] once you have selected E or W.

PRI

7. When prompted, select YES or NO to save the new waypoint.

USA

¼ Note: When the waypoint list is full, you must delete an entry before

you can create a new entry.

PRI

USA

36 |

Waypoint procedures | RS90S User Manual

Page 37

Editing a waypoint

DSC

WAYPOINT

WP LIST NEAREST WP

DSC

WP LIST NEW W P HARBR FISH1 FISH2

DSC

HARBR

WP EDIT DELETE GO TX WPT D ATA

DSC

WAYPOINT

WP LIST NEAREST WP

DSC

WP LIST NEW W P HARBR FISH1 FISH2

1. Select MENU → WAYPOIN T → WP LIS T.

PRI

USA

The display shows your list of waypoints.

2. Press [OK].

NEW WP starts to ﬂash.

3. Scroll down to the entry you want to edit.

PRI

4. While the required waypoint is ﬂashing, press [OK].

USA

5. To edit the waypoint, select WP EDIT.

6. Edit the waypoint name, latitude or longitude. You can press [OK]

PRI

repeatedly until the cursor moves to the required place.

7. When ﬁnished, press [OK] repeatedly if necessary to reach the SAVE

USA

prompt.

8. Select YES or NO to save the data as required.

Deleting a waypoint

1. Select MENU → WAYPOIN T → WP LIS T.

PRI

USA

PRI

USA

The display shows your list of waypoints.

2. Press [OK].

NEW WP starts to ﬂash.

3. Scroll down to the entry you want to delete.

4. While the required waypoint is ﬂashing, press [OK].

5. Select DELETE.

DSC

FISH2

WP EDIT DELETE GO TX WPT D ATA

6. If you select YES at the prompt, the waypoint will be deleted

immediately.

PRI

USA

Waypoint procedures | RS90S User Manual

| 37

Page 38

DSC

WAYPOINT

WP LIST NEAREST WP

DSC

WP LIST NEW W P HARBR FISH1 FISH2

DSC

FISH2

WP EDIT DELETE GO TX WPT D ATA

Navigating to a waypoint

Navigating to a waypoint requires two steps:

• Selecting which waypoint you want to navigate to.

• Pressing [NAV] to go to Navigation mode.

PRI

USA

PRI

USA

PRI

USA

These steps are explained below.

Selecting a waypoint from your list

1. Select MENU → WAYPOIN T → WP LIS T.

2. Press [OK] and then scroll to the required waypoint and press [OK]

again.

3. Select GO.

4. When prompted, select YES.

When in Navigation mode (see below), the distance and bearing from your current position to the selected waypoint will be displayed on the bottom line of the standby screen.

Selecting the nearest waypoint

38 |

DSC

WAYPOINT

WP LIST NEAREST W P

DSC

NEAREST W P

243

FISH1

075

FISH2

¼ Note: This option is only available when a valid signal from a GPS

device is present.

PRI

1. Select MENU → WAYPOIN T → N EA R ES T W P.

USA

The display shows your list of waypoints with the nearest at the top.

2. Scroll to the required waypoint and press [OK].

PRI

USA

When in Navigation mode, the distance and bearing to it from your current position will be shown on the bottom line of the standby screen.

Waypoint procedures | RS90S User Manual

Page 39

DSC

FISH2

WP STOP TX WPT D ATA

Entering navigation mode

• Long press [NAV] to enter navigation mode.

In navigation mode, the following details about the destination waypoint will be displayed on the standby screen:

Name of waypoint B: Bearing in degrees; ‘t’ for true D: Distance X: Cross track error

Cross track error is the distance the vessel is to one side of the straight line between two waypoints.

Exiting navigation mode

• Long press [NAV] or press [X].

Stop navigating to a waypoint

1. Select MENU → WAYPOIN T → WP LIS T.

2. Press [OK] then scroll to the required waypoint and press [OK] again.

PRI

3. Select WP STOP.

USA

4. When prompted, select YES.

Sending waypoint data to a chart plotter

DSC

FISH2

WP EDIT DELETE GO TX WPT D ATA

You can send waypoint data via NMEA 2000 to a compatible chart plotter.

1. Select MENU → WAYPOIN T → WP LIST.

PRI

The display shows your list of waypoints.

2. Press [OK].

USA

3. Scroll to the required waypoint, and then press [OK].

4. Select TX WPT DATA to send the data to the chart plotter.

Waypoint procedures | RS90S User Manual

| 39

Page 40

DSC procedures

Introduction to DSC

DSC (Digital Selective Calling) is part of the Global Maritime Distress and Safety System. It allows radio stations to contact each other on a dedicated digital channel (channel 70). The radios automatically exchange the digital contact and acknowledgement messages on channel 70, freeing up the other VHF channels for voice communications.

Once they have established contact, both radios automatically switch to a VHF working channel for the operators to carry out normal voice communication.

Each DSC radio has a unique 9-digit number, known as a Maritime Mobile Service Identity (MMSI), which is used to contact that individual radio.

DSC radios continuously monitor channel 70 irrespective of what other channels they are working on. If someone calls your vessel via DSC, your radio will sound an alert tone for you to respond to the call.

If the RS90S radio is connected to a GPS system, it will automatically send your location when calling other stations. This is especially useful for distress calls.

40 |

DSC process

The calling and acknowledging process on channel 70 operates as follows:

1. The calling radio transmits a DSC signal on channel 70.

2. Receiving radio(s) sound alert tones for their operators.

3. For individual, LL request and DSC test calls, the receiving radio

sends a DSC acknowledge signal on channel 70.

4. Both the calling and receiving radios switch to a working VHF

channel (except for LL request and DSC test calls).

5. Calling and receiving operators commence normal VHF voice

communications on the working channel.

6. Press [X] to return to standby mode.

DSC procedures | RS90S User Manual

Page 41

Distress calls

DSC is particularly useful for sending distress signals to all stations. The process is automated to the extent that if you are under stress, you can simply press a single, dedicated distress button—the red button beneath the red cover on top of the RS90S handset.

When sending a distress call, the DSC radio automatically transmits as much information as is available, including:

• The MMSI of the ship in distress;

• The position of the ship in distress; (If the radio is connected to a

GPS);

• The nature of the distress.

¼ Notes:

• Before the DSC functions can be used, you must enter a valid MMSI

into the RS90S radio. See “Entering or viewing your individual MMSI” on page 95.

• If the small DSC icon is not displayed on the standby screen,

DSC may have been turned oﬀ in settings. See “Enabling DSC functionality” on page 98.

Softkeys

A softkey is a name that appears at the bottom of the screen and provides additional functionality to the [SCAN] and/or [OK] and/or [3CH] buttons during DSC operations.

Dot symbols on the handset keys and just under the display screen indicate which keys correspond to the softkeys as follows:

• • • • • •

[SCAN] key [OK] key [3CH] key

The following table shows the softkeys that occur in DSC mode.

Key label Function

ACK Acknowledge a call ACCEPT Accept a channel request NEW-CH Request a new channel PAUSE Pause a call countdown sequence RESEND Resend the call SILENC Silence an audible alarm

DSC procedures | RS90S User Manual

| 41

Page 42

DSC Distress calls

DISTRESS

Initiating an UNDEFINED distress call immediately

1. Flip open the red cover on top of the handset.

2. Press and hold the red [DISTRESS] key for about 3 seconds.

DSC

DISTRES C ALL

UNDEFINED HOLD DISTRES 3 SECONDS. .

DSC

DISTRES C ALL

UNDEFINED

FIRE

FLOODING

COLLISION

DSC

DISTRES C ALL

FIRE

HOLD DISTRES 3 SECONDS. .

The radio counts down the 3 seconds, and then:

• Beeps loudly,

PRI

USA

• Displays “DISTRESS CALL SENDING” on screen, and

• Sends out the UNDEFINED distress call to all stations on channel

70.

3. Release the [DISTRESS] key.

4. If you have time, observe any acknowledgement of your call and

follow up by sending a MAYDAY distress call on Channel 16. See “Continuing a distress call” on page 43.

Initiating a distress call of specic nature

1. Flip open the red cover on top of the handset.

2. Press the red [DISTRESS] key brieﬂy.

3. The radio will display a list for you to select the nature of the distress:

UNDEFINED FIRE

PRI

USA

PRI

USA

FLOODING COLLISION GROUNDING LISTING SINKING ADRIFT ABANDONING PIRACY OVER BOARD

4. USE the ▲ and ▼ keys to reach the required nature of distress, and

then press and hold the [DISTRESS] key for about 3 seconds.

42 |

The radio counts down the 3 seconds, and then:

• Beeps loudly,

• Displays “DISTRESS CALL SENDING” on screen, and

• Sends out the speciﬁed distress call to all stations on channel 70.

5. Release the [DISTRESS] key.

DSC procedures | RS90S User Manual

Page 43

Continuing a distress call

1. After you have initiated a distress call as above, the radio goes

into call repeat mode—it automatically repeats the distress call approximately every 4 minutes, until the call is acknowledged by an oﬃcial search and rescue station.

The display shows the time remaining to the next resend.

You can press ▼ or ▲ to scroll through the transmitted Distress call information.

2. You now have the following soft-key options:

• RESEND

Displays “HOLD DISTRESS 3 SECONDS TO SEND.” You can then:

• Hold down the red [DISTRESS] key for 3 seconds to resend the

call, or

• Press the [EXIT] softkey to return to waiting for an

acknowledgement.

• PAUSE

Pauses the call repeat mode. You can then:

• Press the [EXIT] softkey to resume the same call.

• CANCEL

Displays “DISTRESS CALL SEND CANCEL.” You can then:

• Press the [NO] softkey to return to waiting for an

acknowledgement.

• Press the [YES] softkey to send the DISTRESS CANCEL signal.

• Press [PTT] and report your situation using the handset.

• When ﬁnished talking, press [X] to return to standby mode.

3. After receiving an acknowledgment, press the [SILENC] softkey.

4. Press [X] to quit the current distress acknowledgment.

¼ Notes:

• Prior to receiving an acknowledgement, you cannot terminate the

distress alert call. It can only be cancelled by completing the distress call cancel process as described above.

• Call information is stored in the Distress Call Log. See “Calling using

the distress log” on page 51.

DSC procedures | RS90S User Manual

| 43

Page 44

Receiving a distress call

When the radio receives a DSC distress call, it:

• Sounds a two-tone alarm through the handset(s) and speaker(s),

and

• Automatically switches to channel 16 after 10 seconds if there is

no user intervention.

If the two-tone distress alarm sounds on your radio:

1. Press the [SILENC] softkey to silence the alert.

You do not need to send a DSC acknowledgement; this will be done by an oﬃcial search and rescue station.

2. Maintain a listening watch on Channel 16 for voice communications

from ship and coast stations about the distress.

3. You can then:

• Press ▼ or ▲ to scroll through details of the distress call,

• Press [PTT] to talk, or

• Press [X] to exit the DSC session.

Distress acknowledgement: (DISTRESS ACK) or distress relay all ships: (DISTRESS REL)

Only oﬃcial Search and Rescue stations are permitted to send these signals.

44 |

When your radio receives a Distress Acknowledgement signal it does the following:

• Cancels any Distress Mode transmissions,

• Sounds a two-tone alert, and

• Automatically switches to channel 16 after 10 seconds if there is

no user intervention.

1. Press the [SILENC] softkey to silence the alert.

2. Press the [ACCEPT] softkey to switch to CH16 immediately.

3. Maintain a listening watch on CH16, and standby to give assistance.

4. You can:

• Press ▼ or ▲ to scroll through details of the call,

• Press PTT to talk to the coast station or other ship, or

• Press [X] to exit the DSC session.

DSC procedures | RS90S User Manual

Page 45

Distress relay individual (INDIV DISTR RELAY)

When the radio receives an Individual Distress Relay call, it sounds the alert tone and displays INDIV DISTR RELAY.

1. Press the [SILENC] softkey to silence the alarm.

2. You can then:

• Press ▼ or ▲ to scroll through details of the call.

• All models

Press the [ACCEPT] softkey to immediately accept the change to CH16. Note: The radio automatically changes to CH16 after 10 seconds.

• US models

Press [ACK] softkey to ACK the call.

• Press [X] to quit the current DSC session.

Sending routine DSC calls

Brieﬂy press [CALL / MENU] to access the DSC menu options:

Call type Page

INDIVIDUAL page 46 LAST CALL page 47 GROUP page 48 ALL SHIPS page 49 CALL LOG page 50 DISTR LOG page 51 SENT CALL page 52 LL REQUEST page 52 TRACK BUDDY page 53 DSC TEST page 56

The above functions are explained in the sections below.

To make a DSC Distress call, see “DSC Distress calls” on page 42.

DSC procedures | RS90S User Manual

| 45

Page 46

AIS

DSC

SUNBIRD INDIVIDUA L ROUTINE WAIT..00:10 X-->EXIT

AIS

DSC

SUNBIRD SEND AGAIN

YES NO

General usage

• When an alert sounds, press the [SILENC] softkey to stop the

beeping sound.

• When choosing a working channel, select INTER-SHIP; the radio will

USA

PRI

USA

automatically list suitable ship-to-ship (Simplex) channels that you can use for a particular function. Duplex channels cannot usually be called, however, if you wish to use a Duplex channel, select MANUAL, and then select your channel of choice. If the call is to a Coast Station the radio will recognize this and specify the correct working channel.

• After sending an LL request, the radio waits for 30 seconds for an

acknowledgement before prompting you to send again.

46 |

DSC

DSC C ALL

INDIVIDUA L LAST C ALL GROUP ALL SHIPS

DSC

INDIVIDUA L

ROUTINE SAFETY URGENCY

Lo Hi

DSC

INDIVIDUA L

MANUA L NEW SUNBIRD KITIWAKE

DSC

CHOOSE CH:

INTER-SHIP MANUA L

DSC

SUNBIRD INDIVIDUA L ROUTINE

SET INTER

DSC

SUNBIRD INDIVIDUA L ROUTINE

SEND?

Sending an individual DSC Call

PRI

1. Select DSC MENU → INDIVIDUAL.

USA

2. Select the priority level: ROUTINE, SAFETY or URGENCY.

3. Select the buddy you want to call from the list, or

PRI

USA

PRI

USA

• Select MANUAL NEW and enter the MMSI you want to call.

4. On the “CHOOSE CH” screen, select INTER-SHIP. (Or, select MANUAL

to use a duplex channel—see point 2 of “General usage” on page

46.)

The display shows “SET INTER”

5. Use ▲ or ▼ to reach the working channel you want to specify and

press [OK].

6. When the SEND prompt appears:

• Press [OK] to send the call request on CH70, or

• Press [X] to exit without sending.

7. When you hear the acknowledgement alert tone:

• Press the [SILENC] softkey to silence the alert.

• Press [PTT] to commence voice communication.

8. If there is no reply within 30 seconds, the display shows: “SEND

AGAIN?”

You can then select:

• [YES] to send again, or

• [NO] to quit and return to standby mode.

DSC procedures | RS90S User Manual

Page 47

¼ Note: For information on receiving an individual DSC call, see

“Receiving a DSC individual call” on page 59.

Calling the MMSI of the last call received

(This will send a ROUTINE, INDIVIDUAL call.)

DSC

DSC C ALL

INDIVIDUA L LAST C ALL GROUP ALL SHIPS

DSC

SUNBIRD INDIVIDUA L ROUTINE 05:00

DSC

CHOOSE CH:

INTER-SHIP MANUA L

DSC

SUNBIRD INDIVIDUA L ROUTINE

SET INTER

DSC

SUNBIRD INDIVIDUA L ROUTINE

SEND?

1. Select DSC MENU → LAST CALL.

2. The display shows the details of the most recent incoming call.

PRI

3. Press [OK] to display the “CHOOSE CH” screen.

USA

4. On the “CHOOSE CH” screen, select INTER-SHIP. (Or, select MANUAL

to use a duplex channel—see point 2 of “General usage” on page

PRI

46.)

The display shows “SET INTER”

USA

5. Use ▲ or ▼ to reach the working channel you want to specify and

press [OK].

6. When the SEND prompt appears:

USA

• Press [OK] to send the call request on CH70, or

• Press [X] to exit without sending.

7. When you hear the acknowledgement alert tone:

• Press the [SILENC] softkey to silence the alert.

USA

• Press [PTT] to commence voice communication.

8. If there is no reply within 30 seconds, the display shows: “SEND

AGAIN?”

You can then select:

USA

• [YES] to send again, or

• [NO] to quit and return to standby mode.

DSC procedures | RS90S User Manual

| 47

Page 48

Sending a group call

Lo Hi

DSC

DSC C ALL

INDIVIDUA L LAST C ALL GROUP ALL SHIPS

DSC

GROUP

MYGROUP1 MYGROUP2

DSC

CHOOSE CH:

INTER-SHIP MANUA L

DSC

MYGROUP1 GROUP C ALL

SET INTER

DSC

MYGROUP1 GROUP C ALL

SEND?

A group MMSI is a shared MMSI. When a DSC call is transmitted by one of the vessels in the group, all the radios that have the same

PRI

USA

MMSI entered will receive the message, and can reply on the chosen channel if necessary.

To enter a group MMSI, see “Creating a group MMSI” on page 96.

¼ Notes:

PRI

• Unlike the DSC or ATIS MMSI, a group MMSI can be changed at any

USA

time.

• Group calls are always sent with ROUTINE priority.

• No DSC acknowledgement is required for a group call.

1. Select DSC MENU → GROUP.

USA

2. The display shows the names of your pre-programmed groups.

3. Select the group that you want to call.

4. On the “CHOOSE CH” screen, select INTER-SHIP. (Or, select MANUAL

to use a duplex channel—see point 2 of “General usage” on page

USA

46.)

The display shows “SET INTER”

5. Use ▲ or ▼ to reach the working channel you want to specify and

press [OK].

USA

6. When the SEND prompt appears:

• Press [OK] to send the call request on CH70, or

• Press [X] to exit without sending.

48 |

¼ Note: For information on receiving a group call, see “Receiving a DSC

group call” on page 60.

DSC procedures | RS90S User Manual

Page 49

DSC

DSC C ALL

INDIVIDUA L LAST C ALL GROUP ALL SHIPS

DSC

ALL SHIPS

SAFETY URGENCY

DSC

CHOOSE CH:

INTER-SHIP MANUA L

DSC

ALL SHIPS SAFETY

SET INTER

Sending an all ships call

1. Select DSC MENU → ALL SHIPS.

PRI

2. Select one of the two call priorities:

USA

PRI

USA

PRI

USA

• SAFET Y

Use to send safety information to all ships within range.

• URGENCY

Use when a serious situation or problem arises that could lead to a distress situation.

3. On the “CHOOSE CH” screen, select INTER-SHIP. (Or, select MANUAL

to use a duplex channel—see point 2 of “General usage” on page

46.)

The display shows “SET INTER”

4. Use ▲ or ▼ to reach the working channel you want to specify and

press [OK].

5. When the SEND prompt appears:

• Press [OK] to send the call request on CH70, or

• Press [X] to exit without sending.

DSC

ALL SHIPS SAFETY

SEND?

¼ Note: For information on receiving an all-ships call, see “Receiving a

DSC all-ships call” on page 59.

PRI

USA

Call Logs

The call logs store details of the DSC calls as follows:

Call type Description

Last call Details of the last incoming call

Call Log Details of the last 20 incoming calls

(does not include distress calls)

Distress log Details of the last 20 distress calls received Sent calls log Details of the last 20 sent calls

You can use the call logs to call back a vessel that sent a call.

DSC procedures | RS90S User Manual

| 49

Page 50

DSC

02 SUNBIRD INDIVIDUA L ROUTINE 05:00

DSC

02 SUNBIRD INDIVIDUA L ROUTINE 05:00

DSC

02 SUNBIRD

CALL BACK DELETE

DSC

CHOOSE CH:

INTER-SHIP MANUA L

DSC

SUNBIRD INDIVIDUA L ROUTINE

SET INTER

DSC

SUNBIRD INDIVIDUA L ROUTINE

SEND?

Calling using the call log

The call log contains the contact details for the 20 most recent incoming calls, so that you can call one of them back quickly.

1. Select DSC MENU → CALL LOG.

USA

The display shows the details of the most recent call.

2. Use ▲ and ▼ to ﬁnd the caller you want to call back and press [OK].

3. Choose the option:

• CAll BACK — to send a DSC call request, or

• DELETE — to delete the call from the call log.

4. On the “CHOOSE CH” screen, select INTER-SHIP. (Or, select MANUAL

to use a duplex channel—see point 2 of “General usage” on page

46.)

The display shows “SET INTER”.

5. Use ▲ or ▼ to reach the working channel you want to specify and

press [OK].

6. When the SEND prompt appears:

• Press [OK] to send the call request on CH70, or

• Press [X] to exit without sending.

7. When you hear the acknowledgement alert tone:

• Press the [SILENC] softkey to silence the alert.

• Press [PTT] to commence voice communication.

8. If there is no reply within 30 seconds, the display shows: “SEND

AGAIN?”

You can then select:

• [YES] to send again, or

• [NO] to quit and return to standby mode.

50 |

DSC procedures | RS90S User Manual

Page 51

Calling using the distress log

The Distress Log contains the Distress Log data for the 20 most recently received distress calls, so that you can call any of them quickly. Always try to make voice contact on CH16 ﬁrst, as follows:

DSC

DSC C ALL

GROUP ALL SHIPS CALL LOG DISTR LOG

DSC

01 RENA DISTRESS UNDEFINED CANCEL OK-->OPTION

DSC

RENA

CALL BACK DELETE SAV E MMSI INFO

1. Select DSC MENU → DIST LOG.

The display shows the details of the most recent call.

PRI

2. Use ▲ and ▼ to ﬁnd the caller you want to call back and press [OK].

USA

3. Choose CALL BACK — to send a call request.

Other options are:

PRI

• DELETE — to delete the call from the distress log.

• SAVE MMSI — to save the caller’s MMSI.

USA

• INFO — to view more information about the distress call.

4. On the “CHOOSE CH” screen, select INTER-SHIP. (Or, select MANUAL

PRI

to use a duplex channel—see point 2 of “General usage” on page

46.)

USA

The display shows “SET INTER”

5. Use ▲ or ▼ to reach the working channel you want to specify and

press [OK].

6. When the SEND prompt appears:

• Press [OK] to send the call request on CH70, or

• Press [X] to exit without sending.

7. When you hear the acknowledgement alert tone:

• Press the [SILENC] softkey to silence the alert.

• Press [PTT] to commence voice communication.

8. If there is no reply within 30 seconds, the display shows: “SEND

AGAIN?”

You can then select:

• [YES] to send again, or

• [NO] to quit and return to standby mode.

DSC procedures | RS90S User Manual

| 51

Page 52

Viewing the sent call log

DSC

DSC C ALL

ALL SHIPS CALL LOG DISTR LOG SENT C ALL

DSC

01 KITTIWAKE INDIVIDUA L ROUTINE 05:00

DSC

DSC C ALL

CALL LOG DISTR LOG SENT C ALL LL REQUEST

Lo Hi

DSC

LL REQUEST

SUNBIRD KITTIWAKE AXIOM

DSC

SUNBIRD LL REQUEST

SEND?

The Sent Call log contains details for the 20 most recent calls sent from your radio.

PRI

USA

You can review details of each call, and delete calls from the list as required.

1. Select DSC MENU → SENT CALL.

The ﬁrst entry in the call log is the most recent sent call.

PRI

2. Press ▲ or ▼ to scroll through the sent calls.

USA

3. With a particular call displayed, press [OK] to display the DELETE

prompt:

• Press DELETE to delete the entry from the sent call log, or

• Press [X] to exit without deleting.

Sending an LL request for the position of a buddy

The latitude and longitude request (LL request) function allows you to send a DSC request to an MMSI on your buddy list and the

PRI

USA

PRI

USA

PRI

USA

response will contain the current latitude and longitude position of the other vessel. In this way, you can check the location of your buddy. This is also known as a “polled position request.”

¼ Note: You must ﬁrst set up details of your buddy in the buddy list

(see “Buddy list setup” on page 86).

1. Press DSC MENU → LL REQUEST.

2. Select the buddy whose LL position you want to request.

3. When the “SEND?” prompt appears, press [OK] to send the LL

request.

4. If the buddy radio responds with a position, the RS90S beeps:

• Press the [SILENC] softkey to silence the alert.

• Press ▲ or ▼ to view the LL information received.

52 |

5. If there is no reply within 30 seconds, the display shows: “SEND

AGAIN?”

You can then select:

• [YES] to send again, or

• [NO] to quit and return to standby mode.

DSC procedures | RS90S User Manual

Page 53

Tracking a buddy - introduction

You can select a buddy or list of buddies continuously track their positions.

You can also start and stop tracking your buddy and add or remove buddies from your buddy track list.

The radio sends an LL Request to each buddy in turn at a set time interval and, if a response is received from a buddy, it displays the buddy’s LL position on screen.

To set up buddy tracking, you need to:

1. Setup your buddies list. See “Buddy list setup” on page 86.

2. Create a tracking list of up to three buddies.

3. Set the tracking interval.

4. Select a buddy to track.

5. Start/stop tracking the buddy.

Steps 2 to 5 are explained below.

¼ Note: You can also send an individual DSC latitude and longitude

request to a buddy. See “Sending an LL request for the position of a buddy” on page 52.

DSC

DSC C ALL

DISTR LOG SENT C ALL LL REQUEST TRACK BUDD

DSC

TRACK BUDDY

STA RT TRACK SET BUDDY TRACKLIST INTERVAL

DSC

TRACKLIST

ADD NEW

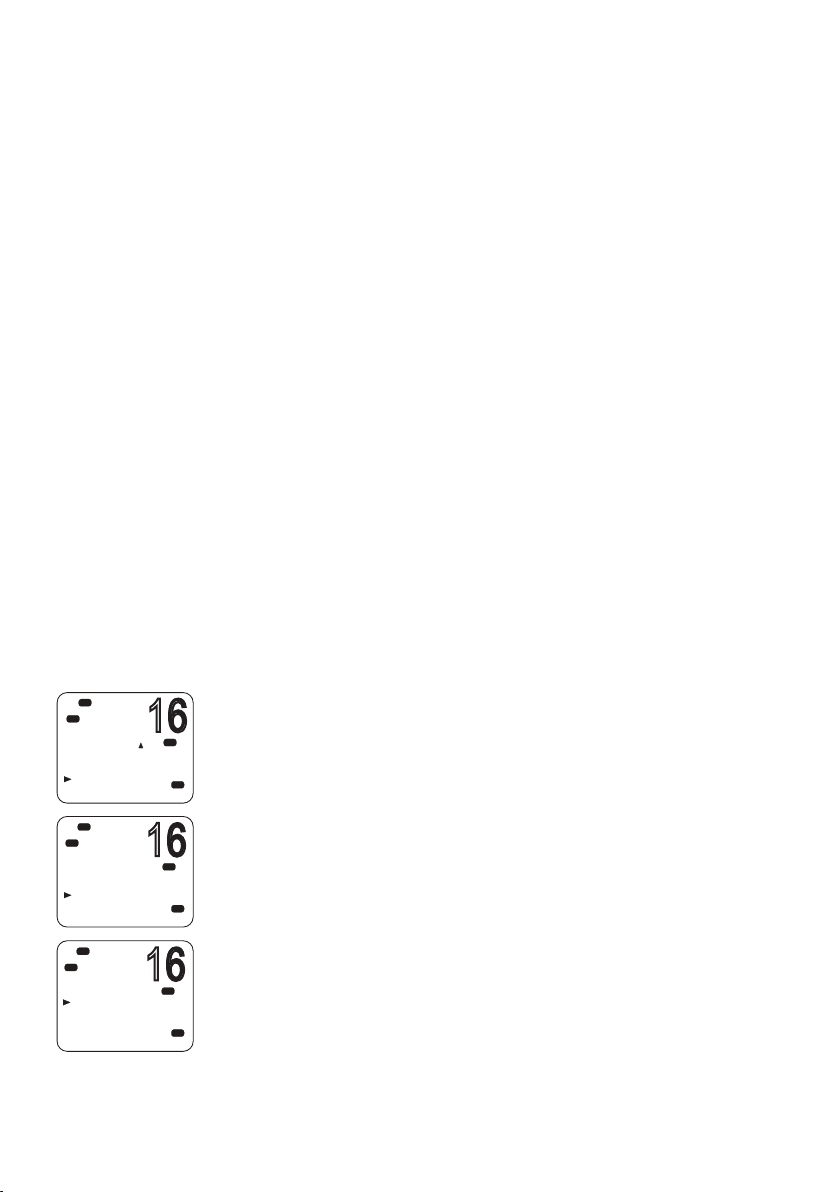

Creating your tracking list

1. Select DSC MENU → TRACK BUDDY.

2. Select TRACKLIST. Any buddies already on the tracking list will be

PRI

USA

PRI

USA

PRI

USA

listed.

3. To add a buddy to the tracking list, select ADD NEW to show your

list of buddies.

4. Select a buddy then press [OK] to add that buddy to the tracking list.

To delete a buddy from the tracking list

Select that buddy, then press [OK].

• Select YES to delete, or

• NO to keep the buddy in the list.

¼ Note: The tracking list is limited to three buddies.

DSC procedures | RS90S User Manual

| 53

Page 54

DSC

DSC C ALL

DISTR LOG SENT C ALL LL REQUEST TRACK BUDD

Setting the track buddy update interval

You can set the interval at which the position requests are sent out.

1. Select DSC MENU → TRACK BUDDY.

PRI

2. Select INTERVAL.

USA

3. Select the required interval: 15, 30 or 60 minutes.

DSC

TRACK BUDDY

STA RT TRACK SET BUDDY TRACKLIST INTERVAL

DSC

INTERVAL

15 MIN 30 MIN 1 HOUR

DSC

DSC C ALL

DISTR LOG SENT C ALL LL REQUEST TRACK BUDD

Lo Hi

DSC

TRACK BUDDY

STA RT TRACK SET BUDDY TRACKLIST INTERVAL

DSC

SET BUDDY

BLUEBIRD KITTIWAKE

OF F OF F

4. Press [OK].

PRI

USA

PRI

USA

Selecting a buddy to track

1. Select DSC MENU → TRACK BUDDY.

2. Select SET BUDDY to show the tracking status of each buddy on

PRI

USA

PRI

USA

your tracking list.

3. Select the buddy whose status you want to change.

4. Select ON or OFF as required to change the tracking status and press

[OK] to conﬁrm.

54 |

DSC

SET BUDDY BLUEBIRD

ON OFF

PRI

USA

DSC procedures | RS90S User Manual

Page 55

DSC

DSC C ALL

DISTR LOG SENT C ALL LL REQUEST TRACK BUDD

DSC

TRACK BUDDY

STA RT TRACK SET BUDDY TRACKLIST INTERVAL

DSC

START TRACK

BLUEBIRD KITTIWAKE

DSC

STA RT TRACK

YES NO

ON OF F

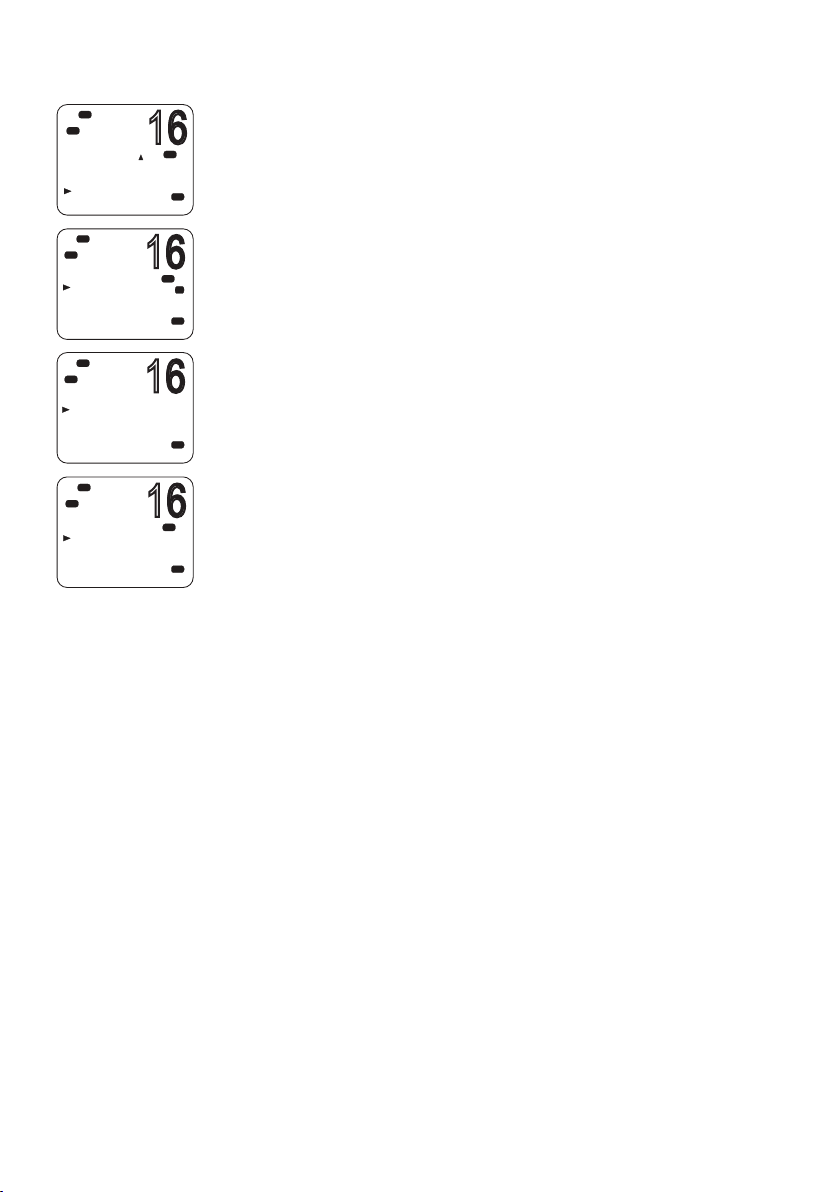

Start or stop tracking a Buddy

¼ Note: START TRACK will only track buddies on your TRACKLIST

PRI

USA

PRI

USA

PRI

USA

whose status is ON.

1. Select DSC MENU → TRACK BUDDY.

2. Select START TRACK.

The display shows the status of each buddy on your tracking list (ON or OFF).

3. Check that the status of the buddies that you want to track is ON,

and then press [OK].

4. When prompted:

• Select YES to start tracking, or

• NO to STOP tracking.

The radio sends an LL Request to each buddy in turn at the interval time and, if a response is received from a buddy, displays the buddy’s LL position on screen.

For information on receiving a response to an LL request, see “Receiving a response to a DSC LL request” on page 61.

DSC procedures | RS90S User Manual

| 55

Page 56

Sending a DSC test call

DSC

DSC CALL

SENT CALL LL REQUEST TRACK BUDDY DSC TEST

DSC

DSC TEST

MANUA L NEW SUNBIRD KITTIWAKE WANDERER

DSC

SUNBIRD DSC TEST

SEND?

To make sure DSC is working correctly, you can send a test call to a buddy or any other station equipped with a DSC radio.

PRI

1. Select DSC MENU → DSC TES T.

2. Select a buddy from your buddy list, or select MANUAL NEW to

USA

enter the MMSI you want to call.

3. When the SEND prompt appears:

USA

• Press [OK] to send the request on CH70, or

• Press [X] to exit without sending.

4. When you hear the acknowledgement alert tone:

PRI

USA

• Press the [SILENC] softkey to silence the alert.

DSC

SUNBIRD DSC TEST

WAIT..00:10 X-->EXIT

PRI

USA

DSC

TEST ACK FROM SUNBIRD

--:--

SILENC

00:10

PRI

USA

5. If there is no reply within 30 seconds, the display shows: “SEND

AGAIN?”

You can then select:

• [YES] to send again, or

• [NO] to quit and return to standby mode.

56 |

¼ Note: For information on receiving a DSC test call, see “Receiving a

DSC test call” on page 61.

Receiving DSC calls

Several types of DSC calls can be received from vessels or coast stations within range:

Call type Page

Distress page 58 Individual page 59 All ships page 59 Group page 60 Geographic page 60 DSC test call page 61

DSC procedures | RS90S User Manual

Page 57

General process

When the radio receives a DSC call, it does several things as follows:

• Sounds the alert tone to notify you of the call.

• Displays a ﬂashing

has been received and stored in the call log. When all call in the call log and distress log have been viewed, the icon stops ﬂashing. For information on call logs, see “Calling using the call log” on page

50.

• Displays the MMSI (or name) of the calling station. You can press

▲ and ▼ to view more details of the call, including the requested working channel.

• For individual calls, displays “AUTO SWITCH” or “NO AUTO SW,”

depending on the INDIV REPLY setting. It will automatically or manually send an an acknowledgement to the calling radio and switch to the requested channel.

• For Group or All-Ships calls, displays “AUTO SWITCH” or “NO AUTO

SW,” depending on the Auto Switch setting.

With Auto Switch set to ON, when receiving a Group or All-Ships call, the radio will automatically switch to the requested channel if not cancelled within 10 seconds. This might disrupt important communications that are already in progress on the current working channel. To avoid this, you can prevent the radio from automatically switching channel by setting the AUTO SWITCH option to OFF.

icon on screen, which indicates that a call

DSC

ALL SHIP SAFETY FROM SUNBIRD AUTO SWIT CH

01:15

SILENC

DSC

ALL SHIP SAFETY FROM SUNBIRD AUTO SWIT CH

00:08

For information on setting the auto switch option, see “Automatic channel switch options” on page 99.

The procedures for receiving calls with Auto Switch either on or oﬀ are described below.

AUTO SWITCH

(For Group or All-ships calls with AUTO SWITCH set to ON)

PRI

USA

PRI

USA

When the radio sounds the incoming DSC call alert:

1. Press the [SILENC] softkey to silence the alert.

2. To see more details about the call, including the requested channel,

press ▲ or ▼.

3. You now have the following three options:

• Press [ACCEPT] to switch to the requested channel immediately,

DSC procedures | RS90S User Manual

| 57

Page 58

CIS

DSC

INDIVIDUA L ROUTINE FROM SUNBIRD NO AUTO S W

01:15

SILENC

CNS

DSC

INDIVIDUA L ROUTINE FROM SUNBIRD NO AUTO S W

01:15

NEW-CH ABLE

DSC

ROUTINE FROM SUNBIRD NO AUTO S W CH09 REQUEST

01:15

NEW-CH ABLE

DSC

INDIV ACK

CHANGE CHAN

SET CHANNEL

ABLE

• Do nothing to allow the radio to automatically switch after 10

seconds, or

• Press [X] to cancel the automatic switch and remain on the

current channel.

4. When needed, press [PTT] to talk on the selected working channel.

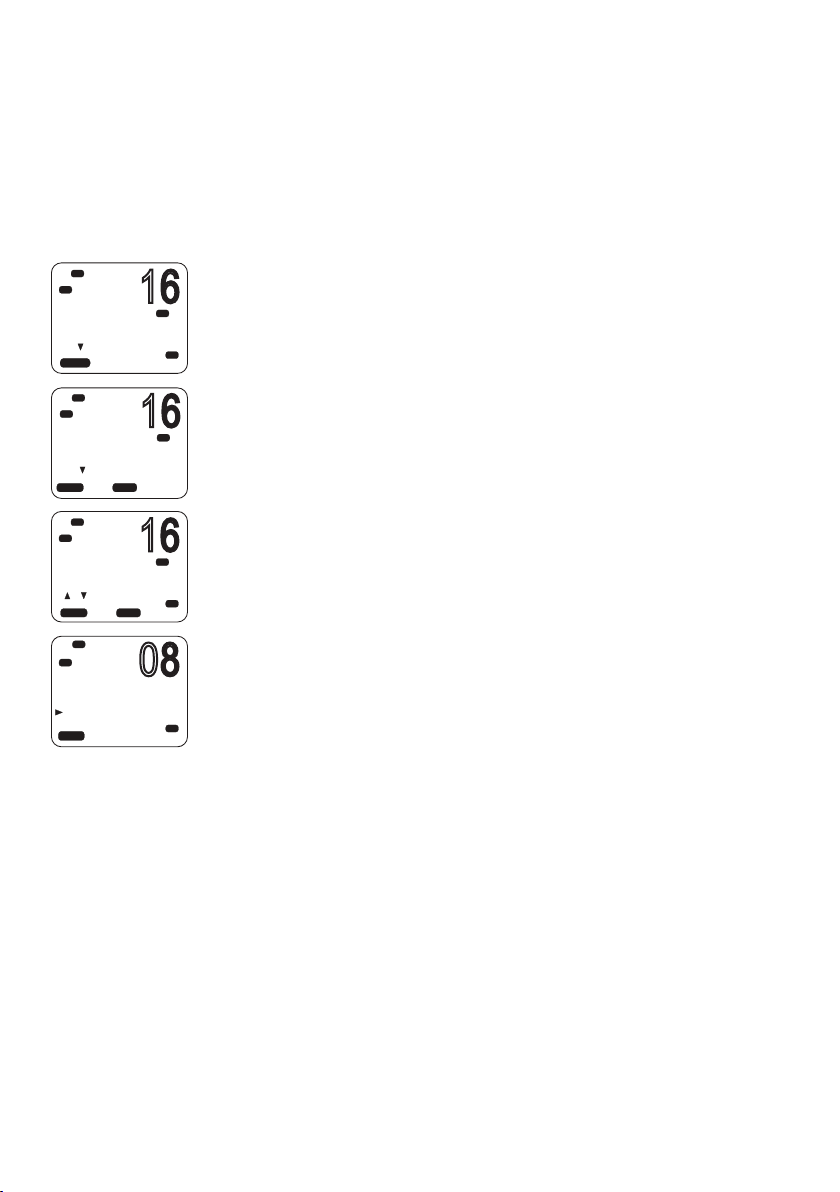

AUTO ACK

(For Individual calls with INDIV REPLY set to Auto)

PRI

ASU

PRI

ASU

USA

When the radio sounds the incoming DSC call alert:

1. Press the [SILENC] softkey to silence the alert.

2. To see more details about the call, including the requested channel,

press ▲ or ▼.

3. You can then use one of the following three softkeys:

• [ABLE]

Acknowledge the call on the requested channel. The radio will send the acknowledge signal and change to the designated channel.

• [NEW-CH]

Acknowledge the call, but request a diﬀerent channel:

• Press ▲ or ▼ to reach the channel you want to use, and then

press the [ABLE] softkey. The radio will send a request for your preferred channel.

¼ Note: AUTO ACK is not allowed in some EU countries.

• [UNABLE]

Acknowledges the call, but signals that you are unable to use the requested channel. Note: this option is not available for ROUTINE calls. If INDIV REPLY is set to AUTO, the radio will automatically send an acknowledgement to the caller if there is no user intervention within 10 seconds.

• When needed, press [PTT] to talk on the selected working

channel.

58 |

Receiving a DSC distress call

See “DSC Distress calls” on page 42.

DSC procedures | RS90S User Manual

Page 59

DSC

INDIVIDUA L ROUTINE FROM SUNBIRD NO AUTO S W

01:15

SILENC

CNS

DSC

INDIVIDUA L ROUTINE FROM SUNBIRD NO AUTO S W

01:15

NEW-CH ABLE

DSC

INDIV ACK SENT T O SUNBIRD

01:15

RE-ACK

Receiving a DSC individual call

When the radio receives a DSC call, it sounds the alert tone for 2

PRI

ASU

PRI

USA

minutes and displays the priority level and the calling MMSI (or buddy name).

1. Press the [SILENC] softkey to silence the alert.

2. Press ▲ or ▼ to view further information about the call, including

the channel requested, or

• Press [X] to exit without acknowledging.

3. Use the procedures described in “AUTO ACK” on page 58 to

acknowledge the call, depending on your radio’s INDIV REPLY settings.

4. The radio will send an acknowledge signal to the calling station.

The radio displays the elapsed time since the incoming call (prior to acknowledgment); or the elapsed time since acknowledgement (after acknowledgment).

5. Press the RE-ACK softkey to send the acknowledgement at any time.

6. The caller should respond to your acknowledgement by making

voice contact on the designated channel. If not, you can press PTT to initiate voice contact yourself.

¼ Notes:

DSC

ALL SHIP SAFETY FROM SUNBIRD AUTO SWIT CH

01:15

SILENC

DSC

ALL SHIP SAFETY FROM SUNBIRD AUTO SWIT CH

00:08

• The call data is stored in your Call Log (see “Calling using the call log”

on page 50).

• For information on sending a DSC individual call, see “Sending an

individual DSC Call” on page 46.

Receiving a DSC all-ships call

When the radio receives a DSC call, it sounds the alert tone for 2 minutes and displays the priority level and the calling MMSI (or buddy name).

1. Press the [SILENC] softkey to silence the alert.

PRI

2. Press ▲ or ▼ to view further information about the call, including

USA

PRI

USA

the channel requested, or

• Press [X] to exit without acknowledging.

3. Use the procedures described in “AUTO SWITCH” on page 57

to acknowledge the call, depending on your radio’s auto switch settings.

DSC procedures | RS90S User Manual

| 59

Page 60

4. If appropriate, press PTT to talk on the currently displayed channel.

¼ Notes:

• The call data will be stored in your Call Log (see “Calling using the

call log” on page 50).

• For information on sending a DSC all-ships call, see “Sending an all

ships call” on page 49.

Receiving a DSC group call

When a DSC call is transmitted by one of the vessels in a group, all the radios that have the same MMSI entered will receive the message.

When the radio receives a DSC group call, it sounds the alert tone for 2 minutes and displays the priority level (ROUTINE for a group call) and the calling MMSI (or group name).

The radio may change to the requested channel depending on the AUTO SWITCH setting.

1. Press the [SILENC] softkey to silence the alert.

2. Press ▲ or ▼ to view further information about the call.

3. You do not need to send an acknowledgement.

4. If appropriate, press PTT to talk on the designated channel.

60 |

¼ Notes:

• The call data is stored in your Call Log (see “Call Logs” on page 49).

• For information on setting up your group MMSIs see “Creating a

group MMSI” on page 96.

• For further information, see “Sending a group call” on page 48.

Receiving a DSC geographic area call

A geographic call is received by vessels within a speciﬁc geographic boundary area. The display shows the calling MMSI (or buddy name).

When you receive notiﬁcation of a GEOGRAPHIC call:

1. Press the [SILENC] softkey to silence the alert.

2. Press ▲ or ▼ to view further information about the call, including

the channel requested.

3. Listen to the working channel for an announcement from the calling

station.

DSC procedures | RS90S User Manual

Page 61

Receiving a response to a DSC LL request

When you receive GPS data from a buddy in response to your LL request you should make a written note of the position.

1. Press [SILENC] softkey to silence the alert.

2. Press ▲ or ▼ view further information about the call.

3. When ﬁnished, press [X].

¼ Notes:

• To send an LL request, see “Sending an LL request for the position of

a buddy” on page 52.

• LL request data is not stored on the RS90S.

Receiving a DSC test call

You can set up the radio to respond to incoming DSC TEST calls with an automatic response or manual response. To change the option, see “Setting up DSC test reply” on page 100.

Manual response

1. On receiving a DSC test request, the radio sounds a two-tone alert.

2. Press the [SILENC] softkey to silence the alert.

3. Press the [ACK] softkey to acknowledge the DSC Test Call.

Auto response

On receiving a DSC test request, the radio automatically replies after a 10 second delay with an ACK signal.

DSC procedures | RS90S User Manual

| 61

Page 62

ATIS

EU models only.

The Automatic Transmitter Identiﬁcation System (ATIS) is mandatory for vessels navigating on some European waterways. The system allows authorities to monitor and regulate VHF radio communications by identifying any vessel that makes a VHF transmission. Each vessel is required to have an ATIS-enabled radio on board and is allocated a unique ATIS Maritime Mobile Service Identity (MMSI).

Each time a radio operator ﬁnishes talking and releases the PTT key, the radio transmits a short digital message, which includes the ATIS MMSI. The receiving station can then look up details of the vessel, saving time in communication on the busy VHF channels.

Unlike DSC, the ATIS signal is transmitted on the same VHF channel as the voice transmission.

Before you can enable ATIS, you must enter the ATIS MMSI. See “Entering or checking your ATIS MMSI” on page 97.

Before you can enable ATIS, DSC must be turned oﬀ. See ”Enabling DSC functionality” on page 98. To enable ATIS, see “Enabling ATIS functionality” on page 97.

¼ Notes:

62 |

• ATIS is disabled in US models.

• When ATIS is enabled, the ATIS icon appears on screen.

• In some European countries SCAN functionality is limited, and, if ATIS

is enabled, the 3CH SCAN and Dual scan modes will be disabled.

DSC procedures | RS90S User Manual

Page 63

AIS procedures

The marine Automatic Identiﬁcation System (AIS) is a vessel location and information reporting system. It allows vessels to automatically share information such as position, speed, course and identity via a VHF radio link.

The received details of nearby vessels can be displayed on the handset screen together with closest point of approach times and distances. These details are also sent to the NMEA ports for display on a chart plotter if one is connected.

Closest point of approach (CPA) is the calculated closest distance between your vessel and a target vessel based on the current speed and course.

Time to closest point of approach (T/CPA) is the calculated time for a target vessel to arrive at the closest point of approach based on the current speed and course. If the radio detects that another vessel will come closer than the set CPA distance and within the set T/CPA time, the CPA alarm will sound. Both conditions must be met for the CPA alarm to sound.

For information on enabling AIS and setting the CPA time and distance criteria, see “AIS Setup” on page 102.

For general information about AIS, see “Appendix 5 - AIS information” on page 113.

For information on how to conﬁgure your chart plotter or software to make use of the RS90S AIS data, see the manual provided with that product.

¼ Notes:

• Before the AIS functions can be used, the RS90S must receive its

own position from a GPS device, or manually entered data.

• The RS90S VHF radio includes an AIS receiver but does not transmit.

To access the AIS displays:

• Press [AIS]

• Repeat press [AIS] to switch between the three available displays:

MMSI list (list of nearby vessels) PPI display T/CPA list

From any of the above displays, you can select an MMSI to display details about the particular vessel.

AIS procedures | RS90S User Manual

| 63

Page 64

List of nearby vessels

The MMSI list displays a list of vessels within VHF range. As in below example, the list is arranged in ascending order; closest ﬁrst.

8n MMMSI LIST 1/2

1 SEASPRAY

225 0.59nM

2 SUNBIRD

275 1.43nM

Each vessel’s MMSI (or name, depending on AIS setup) will be displayed, together with its bearing and distance from your position.

PPI display

The Plan Position Indicator (PPI) shows the geographical location of AIS targets with respect to your position, which is represented in the centre of the circular display. See example below:

AIS CHART 1/9 8

64 |

Symbols

• The solid circle in the middle is your vessel.

• Hollow diamonds represent vessels that are within the current zoom

distance.

• The solid diamond is the selected target vessel.

• The tails represent course over ground.

¼ Note: Units on the PPI display are always nautical miles.

To zoom in or out:

• Press [3CH] to zoom in.

• Press [Scan] to zoom out.

Scales available are 1nm / 2 nm / 4 nm / 8 nm / 16 nm / 32 nm.

AIS procedures | RS90S User Manual

Page 65

T/CPA screen

The Time and Closest Point of Approach (T/CPA) screen shows the closest point of approach settings together with a list of vessels that will approach within those criteria.

• CPA alert distance is set up in MENU → AIS SETUP → CPA. (See

“Setting up the CPA distance” on page 103.)

• T/CPA alert time is set up in MENU → AIS SETUP → TCPA. (See

“Setting up the T/CPA time” on page 104.)

The approaching AIS target’s details will be listed on the left of the screen.

Once the vessel is within alert distance (CPA) and time ( T/CPA), it will be placed in the T/CPA list.

The alert sounds for every vessel within the criteria every time their AIS signal is received.

T/CPA APPROACH

1/ 9 05:00min 8 nM

• In the example above, the criteria are: 5:00 min and 8 nM.

¼ Notes:

• The scale on the T/CPA Approach screen is automatically set to the

optimum for the selected target. You cannot zoom in or out on this screen.

• If the radio detects a T/CPA or CPA breach, the T/CPA Approach

screen will automatically popup with an alert tone. Press [X] to stop the alert; otherwise, the alert will sound again after 1 minute.

AIS procedures | RS90S User Manual

| 65

Page 66

AIS target information

From one of the AIS screens, you can display available detailed information about a target vessel:

1. Press ▲ or ▼ to highlight the required target. (Hold down ▲ or ▼

to scroll rapidly.)

2. Press [OK] to view full details of the selected target, including (as an

exmple):

• NAME:

MMSI: TCPA: 4:39s CPA: 0.59nM WIDTH: 26.0m LENGTH: 158.0m RECEIVED: 0m33s CALL SIGN: MYHV6 DRAUGH T: DIS T: 1.01nM IMO: BEAR: 155’ HEADING: ROT: 725. 6’/min SOG: 0.0KTS COG: 0.0’ 55’51.240’N, 012’49.991’E TYPE: CARGO NAV STATUS: NOT DEFINED

66 |

The display alternates between the ﬁrst and next page every 5 seconds.

3. When ﬁnished, press [X] to exit.

AIS procedures | RS90S User Manual

Page 67

Installation

Checklist

The following items are included in the RS90S radio package:

RS90S VHF radio transceiver

• RS90S transceiver unit

• 2 m power supply cable

• 8-pin terminal connector x4

• 2-pin terminal connector x2

• Spare 10 A fuse

• Cable retaining bracket with cable ties and mounting screws

• Transceiver fasteners:

• M3.5 x 28 mm machine screw x4

• M3.5 hex nut x4

• Flat washer x4

Wired handset

• HS90 wired handset with cradle

• 5 m handset connector cable, including mid-cable connector.

• Flush mounting plate for handset connector cable socket

• Silicon cover for cable connector

• Handset fasteners:

• M3.5 x 15 mm self-tapping screw x2 (cable mounting plate)

• M3.5 x 10 mm self-tapping screw x2 (top holes)

• M3.0 x 40 mm self-tapping screw x1 (bottom hole)

• M3.0 x 40 mm machine screw x1 (bottom hole)

• M3.5 x 28 mm machine screw x2 (top holes)

• M3.5 nut x2

• M3.0 nut x1

• Assorted spring washers and ﬂat washers

Installation | RS90S User Manual

| 67

Page 68

External speaker unit

• External speaker (with 5 m cable)

• Foam gasket (for ﬂush mounting)

• Plastic speaker surface mount box

• Speaker fasteners:

• M3 x 10 mm self-tapping screw x4 (speaker only)

• M3 x 10 mm machine screw x4 (speaker only)

• M3 x 40 mm self-tapping screw x4 (speaker and surface mount

box)

• M3 x 40 mm machine screw x4 (speaker and surface mount box)

• M3 nut x8

• Spring washer x8

• Flat washer x8

Documentation

• User Manual

• Warranty Card

¼ Note: A VHF antenna is not provided by Simrad. An antenna with

a PL259 plug is required. Consult your Simrad dealer for advice if required.

68 |

System diagram legend

1 RS90S VHF radio transceiver 2 12 VDC fused power supply 3 HS35 wireless handset (optional - maximum 2 handsets) 4 HS90 wired handset (maximum 4 handsets) 5 External loudspeaker (maximum 4 speakers) 6 NMEA 0183 GPS network connection 7 AIS Data output 8 Loud hailer speaker (optional) 9 VHF antenna with PL259 connector 10 NMEA 2000 network connection 11 External GPS Antenna (optional)

Installation | RS90S User Manual

Page 69

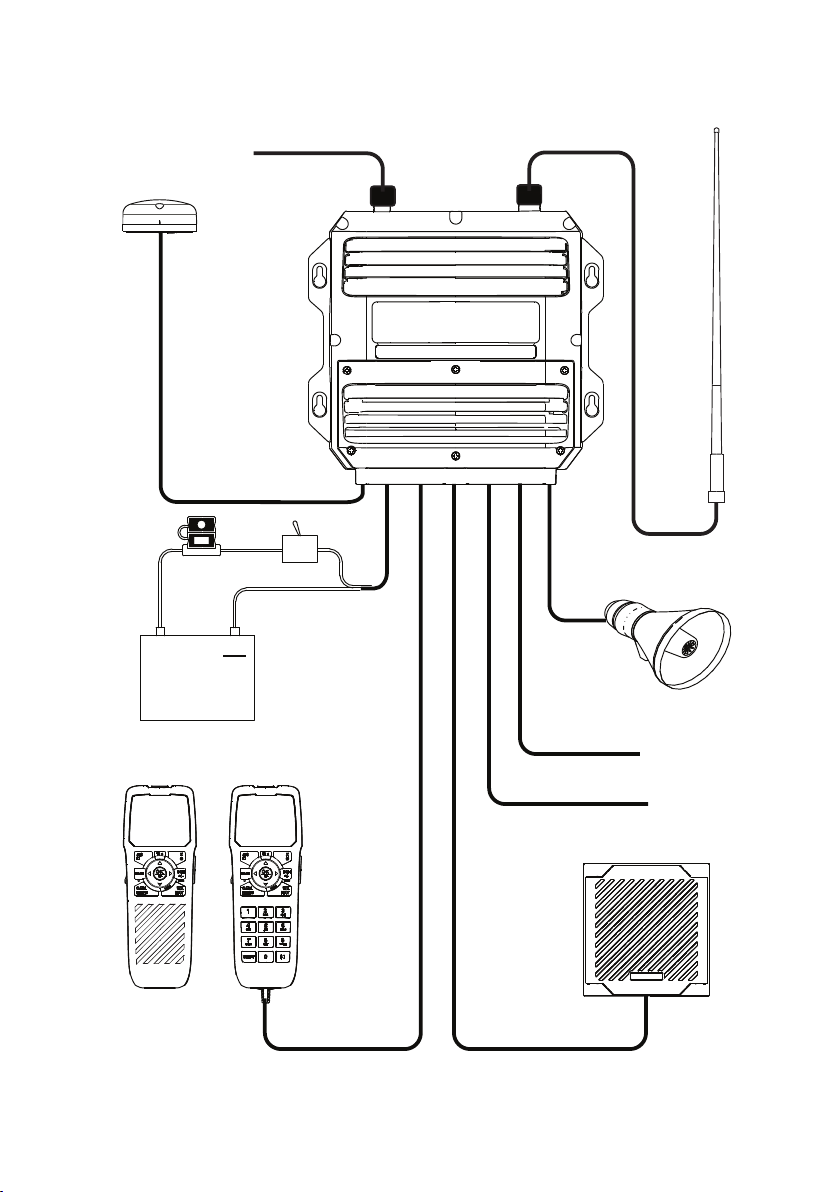

System overview diagram

12 VDC

Installation | RS90S User Manual

| 69

Page 70

Positioning

Caution: Under extreme operating conditions, the

RS90S VHF radio transceiver

Make sure that the position of the transceiver:

• Is at least 1 m (39 inches) from the VHF antenna.

• Allows easy connection to the 12 VDC electrical source, the antenna,

and the NMEA 2000 connection.

• Is at least 45 cm (18 inches) from any magnetic compass to avoid

magnetic deviation of the compass during radio operation.

• Provides suitable space for installing the wired handset cradle(s)

nearby. (A 20 m extension cable is available as an optional extra.)

• Provides reasonable access to the wiring via the top panel.

The transceiver can be positioned vertically on a bulkhead or horizontally. Avoid positions that might get wet or hot, such as in the engine compartment or close to the bilge.

Ideally, the transceiver is positioned vertically with the wiring glands facing downwards in order to prevent the ingress of water.

temperature of the rear heat-sink on this radio may reach a surface temperature that is unsafe to touch. Caution is advised to prevent possible skin burns.

70 |

Installation | RS90S User Manual

Page 71

Installing the transceiver

15.5 mm (0.61”)

65.0 mm (2.56”)

1. Hold the transceiver at the chosen location and mark the 4 hole

positions onto the mounting surface.

2. Drill the 4 holes where marked with a drill bit suited to the selected

mounting fasteners.

3. Attach the transceiver using the supplied self-tapping screws or

machine screws.

211.2 mm (8.31”)

195.1 mm (7.68”)

92.4 mm (3.64”)

195.7 mm (7.70”)

Installation | RS90S User Manual

| 71

Page 72

Installing a wired handset cradle

This is the same as installing a wireless handset cradle with the exception that no wiring is required. See “Installing a wireless handset cradle” on page 74.

(7.54”)

191.5 mm

69.0 mm (2.72”)

(4.80”)

122.0 mm

20.0 mm (0.79”)

1 x 3.5 mm (0.14”) hole

2 x 5.0 mm (0.20”) holes

(7.97”)

202.5 mm

72 |

Installation | RS90S User Manual

Page 73

Installing a handset cable connector

Each wired handset cable includes a connector assembly that must be installed in a bulkhead, dashboard or other suitable panel.

Socket body

Mounting surface

Bezel

Drill 24 mm diameter hole to clear socket body

Connector cover

Installation | RS90S User Manual

| 73

Page 74

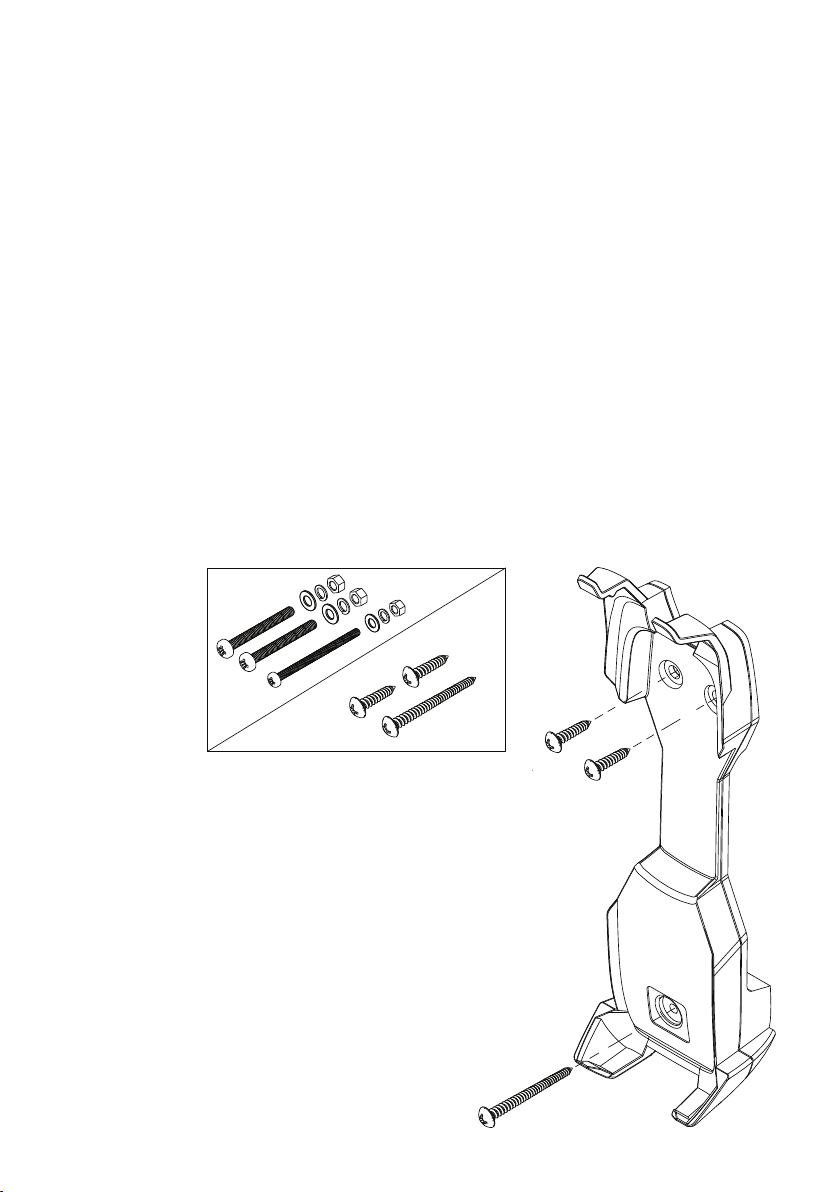

Installing a wireless handset cradle

The wireless handset has a cradle that incorporates inductive charging for the rechargeable battery.

1. Choose a suitable location that provides suﬃcient room for the

handset to ﬁt securely in the charging cradle.

2. Hold the cradle at the chosen location and mark the positions of the

fastening holes and the wire hole onto the mounting surface.

3. Drill the holes where marked with a drill bit suited to the selected

mounting fasteners.

4. Feed the wire through the wire hole. If mounting outside, apply a

suitable sealant or ﬁt a cable gland.

5. Attach the handset cradle using the supplied self-tapping screws or

pan head machine screws.

6. Connect the wire to a 12 VDC source via a 1 A fuse:

• Red wire to 12 VDC positive

• Black wire to negative.

74 |

Installation | RS90S User Manual

Page 75

External speakers installation options

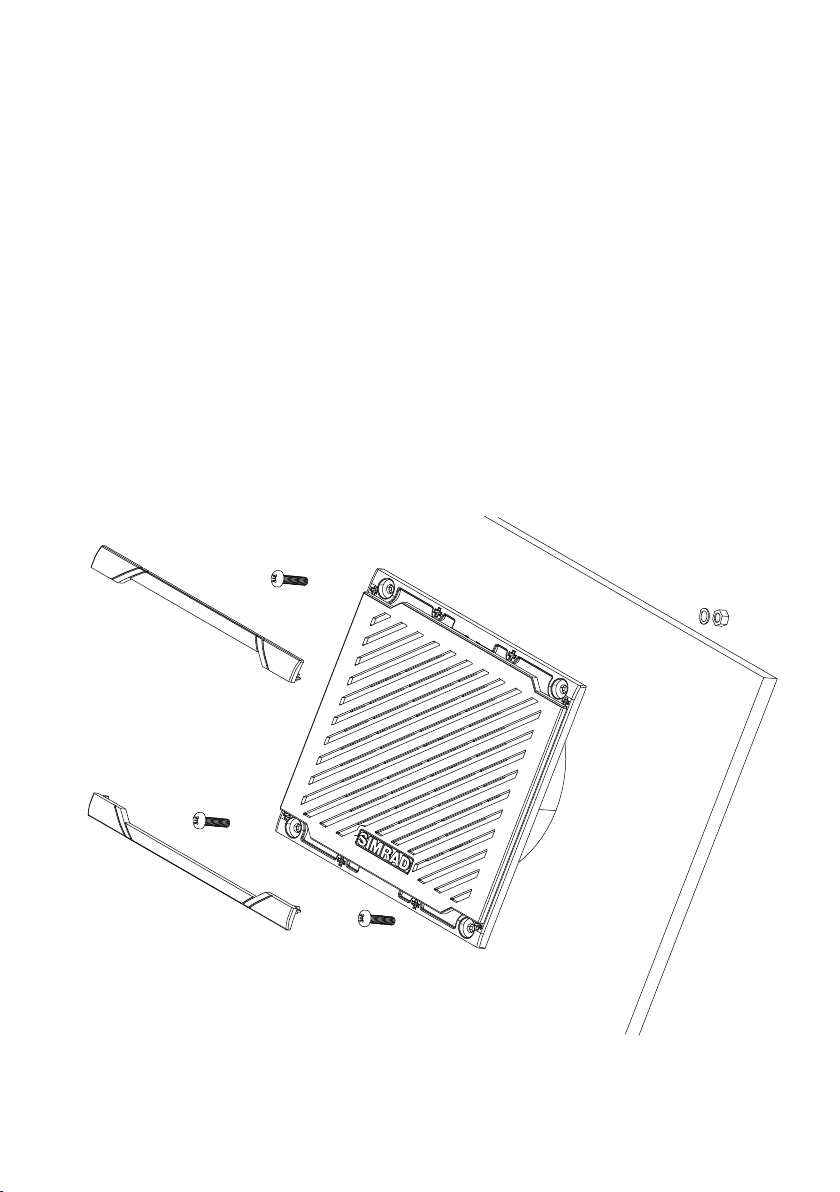

Flush mount option

1. Fit the foam gasket to the rear of the speaker and remove the plastic

trims that cover the screw holes.

2. Cut a 92 mm (3 5/8”) diameter hole in the mounting surface,

allowing space for the speaker’s overall dimensions.

3. Temporarily ﬁt the speaker and mark the four screw holes.

4. Drill holes of appropriate size for fasteners to be used.

5. Fit the speaker and secure with a small amount of sealant applied to

the fasteners.

6. Reﬁt the plastic trim piece.

Installation | RS90S User Manual

| 75

Page 76

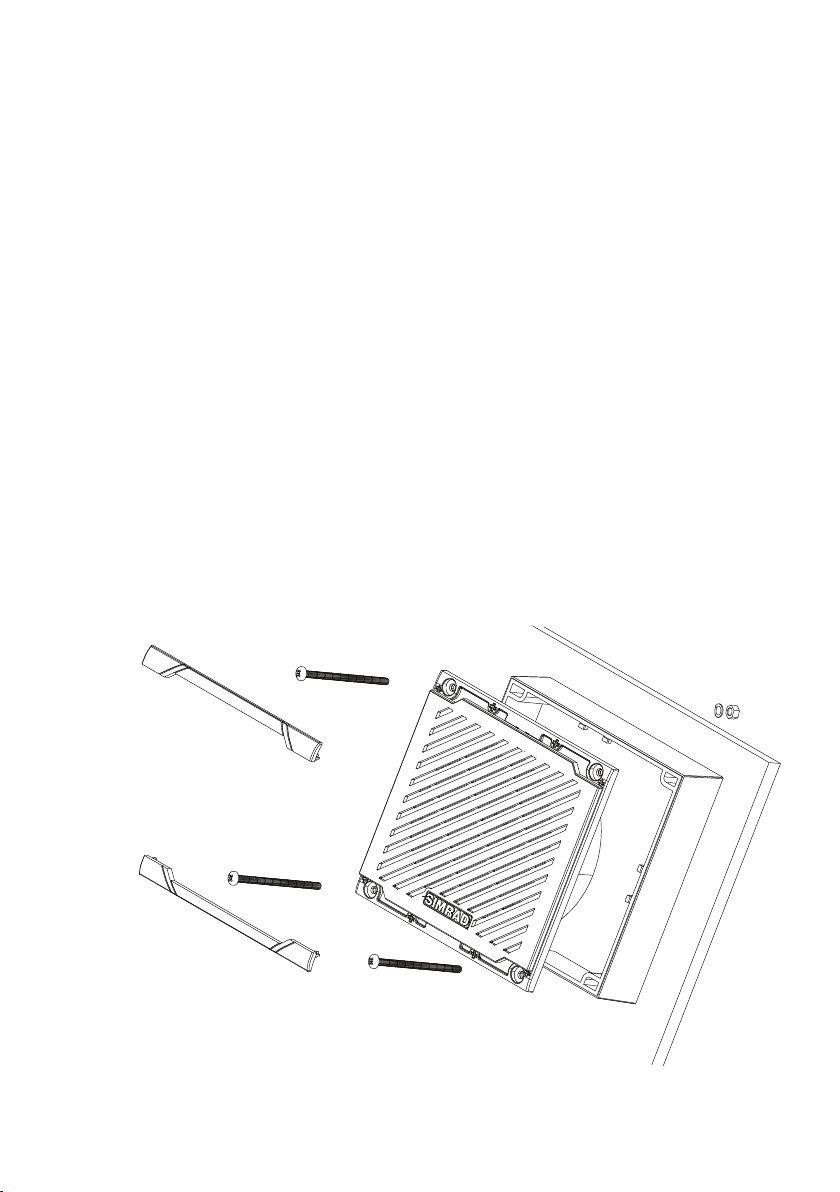

External speaker - surface mount option

1. Position the surface mount box at desired location and mark the

four screw holes through the corner tunnels. Make sure the drain hole in box is oriented to be at lowest side.

2. Drill holes of appropriate size for fasteners to be used.

3. Remove the plastic trims that cover the screw holes on speaker front.

4. Drill a hole in the mounting surface for the speaker wire, ensuring

hole is near one of the corner screw holes, to prevent cable pinching under speaker.

5. Feed speaker wire through surface mount box and through

mounting surface hole.

6. Apply sealant to the cable and around hole.

7. Fix the speaker with fasteners through it and the box, ensuring the

logo on speaker and drain hole in box are aligned.

8. Replace the plastic trims.

76 |

Installation | RS90S User Manual

Page 77

Transceiver external connectors

Connector 13 - VHF antenna

A suitable radio antenna (not supplied) must be mounted and connected with a PL259 connector before you can operate the radio. Consult your Simrad dealer for advice, if necessary.

Always mount the VHF antenna as high as possible and at least 1 m (39 inches) from the transceiver.

Connector 14 - NMEA 2000 (N2K) connector

The RS90S radio can be connected to an NMEA 2000 network using a cable (not supplied). For further information, see “NMEA 2000 Network” on page 83.

¼ Note: A GPS source is required to enable full functionality of DSC

calling, especially DISTRESS calls.

Transceiver internal connectors

To access the internal connectors, remove the cover plate by unscrewing the captive screws. The connectors are on the internal circuit board, which is located as shown below.

Internal connector blocks

Installation | RS90S User Manual

| 77

Page 78

Transceiver internal connector numbering

78 |

Installation | RS90S User Manual

Page 79

Connector 1 - Fuse

Install a 10 Amp MINI® blade fuse.

Connector 2 - Power connection

Label Wire colour

VCC Red GND (Negative) Black

¼ Notes:

• Voltage: 12 VDC (10.8 VDC to 15.6 VDC)

• 2 m twin-core power cable is supplied

• If you need to shorten the power cable, ensure that the two

ferrite cores are moved and installed on the shorter cable.

Connectors 3, 4, 5 and 6 - Wired handsets

Number Label Wire colour

1 GND Black 2 TX/RX_A Blue 3 TX/RX_B Green 4 VCC Red 5 POWER-SW White 6 PTT Grey 7 MIC_AF- Yellow 8 MIC_AF+ Orange

¼ Notes:

• All the necessary wires are included in the handset cable

supplied.

• The wired handset cable includes a connector assembly that

must be installed in a bulkhead, dashboard or other suitable panel.

Installation | RS90S User Manual

| 79

Page 80

Connector 7 - External speakers

Number Label Wire colour

1 GND Black 2 SPK1 Red 3 GND Black 4 SPK2 Red 5 GND Black 6 SPK3 Red 7 GND Black 8 SPK4 Red

¼ Notes:

• You can connect a (minimum) 4W,8 Ω or an 8W,4 Ω speaker to each pair of speaker terminals.

• Speakers are supplied pre-terminated with 5 m twin-core cable (red/black).

Connector 8 - GPS Input - NMEA 0183 (4800 bps), and Horn button connections

Number Label Description

2 RX GPS- NMEA 0183 Input-

3 TX GPSO NMEA 0183 Output+

4 GND NMEA 0183 Output-

5 GND Wire to horn button 6 HORN Wire to horn button 7 - Not connected 8 - Not connected

RX GPS+ NMEA 0183 Input+

Balanced, RS-422, GPS data input

Connect to ship’s NMEA 0183 input

Single end, GND

80 |

¼ Notes:

• Use a normally-open horn button.

• A GPS source is required to enable full functionality of DSC

calling, especially DISTRESS calls.

Installation | RS90S User Manual

Page 81

Connector 9 - AIS Output NMEA 0183 (38400 bps)

Number Label Description

2 RS-422- Output- (RS-422 type) 3 AIS_TX Output+ (RS-232 type)

4 GND Output- (RS-232 type) 5 AIS_RX Not used 6 GND Not used 7 - Not connected 8 - Not connected

RS-422+ Output+ (RS-422 type)

AIS RS-422 data output only

Connect to PC or chart plotters

Connector 10 - Loud hailer speaker

Number Label Description

1 HAILER SPK+ 2 HAILER SPK-

Important: Do not short circuit these 2 pins, as it may cause damage to the radio.

Install the hailer speaker in a forward-facing location on the boat. This is because, in addition to transmitting foghorn sounds, the hailer speaker ‘listens back’ when not transmitting.

¼ Note: Use a 4-8 ohm speaker or loud hailer horn rated at no less

than 30 W. Higher impedance will reduce audio output volume.

Connector 11 - Programming connector

This is a Micro-USB receptacle used for factory diagnostic purposes.

Installation | RS90S User Manual

| 81

Page 82

Connector 12 - External GPS Antenna connector

Install the external GPS-500 Antenna (optional)

It is not recommended that the GPS antenna is mounted up a mast where the motion of the vessel will cause the antenna to swing and potentially reduce the accuracy of the GPS position.

Also, do not mount the antenna in the direct path of a radar transmitter.

Mount the GPS-500 to either a pole or hard surface then run the cable to the transceiver. In all cases, ensure the selected location enable the antenna to have a clear, unobstructed view of the sky.

82 |

To pole mount the external GPS-500 antenna, you will require a 1-inch 14 TPI thread pole:

• Screw the pole adapter onto the threaded portion of the pole.

• Feed the cable attached to the GPS antenna through the adapter

and pole.

• Mount the pole into position.

• Fit the GPS antenna to the pole adapter using the 2 small screws.

To surface mount the external GPS-500 antenna, select a ﬂat clean surface area that has a clear view of the sky. Mount the antenna using the supplied gasket and the 2 small screws:

Installation | RS90S User Manual

Page 83

• Mark and drill the 2 mounting holes and a further hole if necessary

for the GPS cable.

• Install the gasket by ﬁrstly threading the attached cable through the

centre of the gasket.

• Screw the GPS antenna to the mounting surface.

¼ Note: Ensure the surface mounting area is clean with no dirt, old

paint or debris.

• Run the GPS cable to the transceiver:

• Route the cable to your VHF transceiver unit, adding any necessary

extension cables.

• Connect the cable from the GPS antenna to the GPS connector

(SMA) on the VHF transceiver as shown in page 77.

Setting up the radio

¼ Note: You must enter your User MMSI before the DSC functions of

this radio will work.

For full setup details, see the Setup section in chapter 8.

NMEA 2000 Network

The radio can be connected to an NMEA 2000 network using an NMEA 2000 compliant cable (not supplied).

¼ Notes:

• The NMEA backbone must be terminated at each end.

• The ‘drop’ cable to each device must not exceed 6 m.

• Further information on NMEA 2000 is available on the Simrad

website.

Installation | RS90S User Manual

| 83

Page 84

NMEA 2000 Network Diagram

12 VDC

SIMRAD

STBY AUTO

MARK

GOTO

PAGES

OUT

MOB

NSS 7

120

1. Simrad chart plotter or MFD

2. GPS antenna (via NMEA 2000)

3. 12 VDC supply

4. NMEA 2000 backbone with termination

5. VHF antenna

6. RS90S VHF radio transceiver

84 |

Installation | RS90S User Manual

Page 85

Setup

Wireless handset setup

Subscribing a wireless handset

DSC

MENU SELECT

AIS SETUP GPS SIM WIRELESS HS RESET

DSC

HS SETTING

SUBSCRIBE REGISTERED

Lo Hi

DSC

YES NO

DSC

WAITING X-->EXIT

At installation time, wireless handsets need to be registered in the RS90S transceiver. Once registered, a handset automatically

PRI

connects to the transceiver when both are switched on. For information about operating the handsets, see “Handsets” on page

USA

12.

1. Make sure the wireless handset is charged and turned OFF.

2. Make sure any other wireless handsets are also turned OFF.

PRI

3. On the wired handset, Select MENU → WIRELESS HS → SUBSCRIBE.

USA

4. Select YES. The radio will display WAITING.

5. Turn on the wireless handset. The display will show SEARCHING.

PRI

6. Press and hold the [SCAN] on the wireless handset until the display

USA

shows REGISTER.

The display will soon show CONNECTING, and then the handset will be registered in the transceiver.

PRI

USA

Setup | RS90S User Manual

| 85

Page 86

DSC

MENU SELECT

AIS SETUP GPS SIM WIRELESS HS RESET

DSC

WIRELESS HS

SUBSCRIBE REGISTERED

DSC

CLEAR

FIRST SECOND

Unsubscribing a wireless handset

To delete an already registered handset:

PRI

1. Select MENU → WIRELESS HS → REGISTERED.

2. Select the handset you wish to remove.

USA

3. Select CLEAR <handset name>.

4. Select YES.

PRI

USA

PRI

USA

Buddy list setup

The buddy list stores up to 20 contact names and MMSIs. Contact names are stored in the order of entry, with the most recent entry shown ﬁrst.

86 |

Once set up, you can use the buddy list to:

• DSC call an individual buddy; see “Sending an individual DSC Call”

on page 46.

• DSC request location of a buddy; see “Sending an LL request for the

position of a buddy” on page 52.

• DSC track selected buddies; see “Tracking a buddy - introduction” on

page 53.

• DSC Test call; see “Sending a DSC test call” on page 56.

Setup | RS90S User Manual

Page 87

Add a new buddy

DSC

MENU SELECT

WAYPOINT N2K D ATA BACKLIGHT BUDDY LIST

DSC

BUDDY LIST

MANUA L NEW

DSC

MENU SELECT

WAYPOINT N2K D ATA BACKLIGHT BUDDY LIST

DSC

BUDDY LIST

MANUA L NEW BLUEBIRD

KITTIWAKE

DSC

BLUEBIRD

EDIT DELETE

You can enter a maximum of 20 buddy names.

1. Select MENU → BUDDY LIST → MANUAL NEW.

2. Enter the buddy name, one character at a time up to a maximum of

USA

11 alphanumeric characters.

3. Press [OK] repeatedly if necessary until the cursor moves to the

MMSI entry line.

4. Enter the MMSI number associated with the buddy name, then press

USA

[OK] repeatedly until STORE/CANCEL is displayed.

5. Scroll to STORE or CANCEL as required and then press [OK].

¼ Note: When the buddy list is full, you cannot make a new entry until

you have deleted an existing entry.

Edit or delete a buddy name

1. Select MENU → BUDDY LIST.

2. Scroll to the required entry and press [OK].

3. To edit the buddy, select EDIT, and then:

USA

• Edit the buddy name, or

• To edit only the MMSI, press [OK] repeatedly until the cursor

moves to the MMSI line.

• When ﬁnished editing, press [OK] repeatedly if necessary until

STORE/CANCEL appears.

• Scroll to STORE or CANCEL as required and then press [OK].

DSC

BLUEBIRD

EDIT DELETE

DSC

DELETE BUDDY BLUEBIRD

YES NO

To delete a buddy:

• Select DELETE at step 3, and then YES. The buddy will be deleted

from the list immediately.

USA

Setup | RS90S User Manual

| 87

Page 88

Radio setup

DSC

MENU SELECT

LOCAL/DIST CONTRAST GPS/DATA RADIO SETU

DSC

RADIO SETUP

UIC CH NAME RING VOLUME KEY BEEP

DSC

UIC

‘

USA INT L CANADA

DSC

MENU SELECT

LOCAL/DIST CONTRAST GPS/DATA RADIO SETU

DSC

RADIO SETUP

UIC CH NAME RING VOLUME KEY BEEP

DSC

CH NAME

PORT OPS

DSC

PORT OPS

EDIT DELETE

UIC

PRI

USA

PRI

USA

PRI

USA

US and AUS models only.

This option allows you to switch between USA, International, or Canadian channel banks. The selected channel bank is displayed on the LCD along with the last used channel. For details of channel banks, see “Appendix 7 - Channel charts” on page 119.

1. Select MENU → RADIO SETUP → UIC.

2. Select the desired channel bank then press [OK].

Editing channel names

If a channel has been assigned a name, the name appears next to the channel number on the standby screen. You can edit or delete

PRI

USA

PRI

USA

PRI

USA

PRI

USA

the channel names.

A list of default channel names is given in “Appendix 7 - Channel charts” on page 119.

1. Select MENU → RADIO SETUP → CH NAME.

2. Use ▲ and ▼ to scroll to the one you want to change then press

[OK].

3. Select EDIT.

4. Enter the new name over the existing one.

5. Press [OK] repeatedly if necessary to display the YES/NO

conﬁrmation.

6. Scroll to YES or NO as required and press [OK].

To delete a channel name:

Use a similar procedure to the above, but select DELETE at step 3.

88 |

Setup | RS90S User Manual

Page 89

DSC

RADIO SETUP

UIC CH NAME RING VOLUME KEY BEEP

Ring volume

PRI

USA

The radio sounds a two-tone alert when it detects an incoming DSC call. You can change the volume level.

1. Select MENU → RADIO SETUP → RING VOLUME.

DSC

RING VOLUME

HIGH LOW

DSC

RADIO SETUP

UIC CH NAME RING VOLUME KEY BEEP

DSC

KEY BEEP

ON OFF

DSC

RADIO SETUP

UNITS EX T SPEAKER WATC H MODE WX ALERT

DSC

UNITS

METRIC NAUTICA L STATUTE

2. Scroll to HIGH or LOW as required, then press [OK].

PRI

USA

Key beep

You can change the key beep volume or turn the key beeps oﬀ

PRI

USA

completely.

1. Select MENU → RADIO SETUP → KEY BEEP.

2. Scroll to the required setting: ON or OFF, then press [OK].

¼ Note: The key beep setting is separate for each handset.

PRI

USA

Units

You can select your preferred measurement units for distance and cross-track error (for waypoint navigation).

PRI

1. Select MENU → RADIO SETUP → UNITS.

USA

2. Scroll to the required measurement units: METRIC, NAUTICAL or

STATUTE, then press [OK].

PRI

¼ Note: Nautical Miles is the only unit available in AIS mode.

USA

Setup | RS90S User Manual

| 89

Page 90

DSC

RADIO SETUP

UNITS EX T SPEAKER WATC H MODE WX ALERT

DSC

EX T SPEAKER

ON OFF

External speaker

You can switch the external speaker ON or OFF.

PRI

1. Select MENU → RADIO SETUP → EXT SPEAKER.

USA

2. Scroll to ON or OFF as required, and then press [OK].

PRI

USA

Setting the priority channel

DSC

RADIO SETUP

KEY BEEP UNITS EX T SPEAKER WATC H MODE

DSC

WATC H MODE

ONLY 16CH 16CH+9CH

US model only.

If you are operating on the USA or Canadian channel banks, you can

PRI

USA

set the radio to scan CH16 and CH9 as well as the working channel.

1. Go to menu option RADIO SETUP → WATCH MODE.

2. Select one of the two options:

• 16CH to enable Channel 16 only, or

PRI

USA

• 16CH+9CH to enable both Channel 16 and Channel 9.

This setting aﬀects Dual Watch and Tri watch modes.

When watch mode is only channel 16:

• The [16/9] key switches to channel 16.

• Short press [SCAN] enters dual-watch mode.

• Long press [SCAN] scans all available channels.

When watch mode is channel 16 and channel 09:

• Short press the [16/9] key switches to the current priority channel.

• Long press the [16/9] key toggles the priority channel between CH16

and CH09.

• Short press [SCAN] enters tri-watch mode.

• Long press [SCAN] scans all available channels.

90 |

For further information, see:

• “Priority channels” on page 21.

• “Dual watch scan” on page 31.

• “Tri watch scan” on page 32.

Setup | RS90S User Manual

Page 91

Setting up a favourite channel

DSC

RADIO SETUP

KEY BEEP UNITS EX T SPEAKER FAV CH SET

DSC

FAV CHANNEL

SELECT

SHIP SHIP

DSC

RADIO SETUP

UNITS EX T SPEAKER WATC H MODE WX ALERT

DSC

WX ALERT

TONE ALER T SAME ALER T SAME CODE

DSC

TONE ALER T

ON OFF

Non-US models only.

The WX key can be programmed to a channel of your choice so that

PRI

USA

you have quick access to that channel. For further information, see “Favourite channel (non-US models)” on page 28.

1. Select MENU → RADIO SETUP → FAV CH SET.

2. Use the ▲ and ▼ keys to select the required channel, and then

PRI

USA

press [OK].

¼ Notes:

• For US models, the WX key has a diﬀerent purpose. See “Receiving

weather alerts (US model only)” on page 27.

• You can store just one favourite channel.

Setting up weather tone alert

US model only.

PRI

1. Select MENU → RADIO SETUP → WX ALERT → TONE ALERT.

2. Select ON or OFF as required.

USA

Tone alert ON.

• If an alert tone is broadcast from the NOAA weather station, the

PRI

USA

PRI

USA

weather alert is picked up automatically and the alarm sounds. Press any key to cancel the alarm and to hear the weather alert message.

• The Weather alert symbol will be displayed on screen to show that

the weather alert tone setting is on.

Weather alert symbol:

Tone alert OFF

With this setting, the radio ignores weather alerts.

Setup | RS90S User Manual

| 91

Page 92

DSC

RADIO SETUP

UNITS EX T SPEAKER WATC H MODE WX ALERT

DSC

WX ALERT

TONE ALER T SAME ALER T SAME CODE

DSC

SAME ALER T

ON OFF

Setting up SAME alert

US model only.

¼ Note: SAME ALERT works only after you have entered and selected a

SAME code for your geographic area (see “Entering a SAME code” on page 92).

For usage, see “Receiving SAME alerts (US model only)” on page

PRI

USA

PRI

USA

PRI

USA

27.

1. Select MENU → RADIO SETUP → WX ALERT → SA ME ALERT.

2. Select On or OFF as required.

¼ Note: SCAN mode will operate up to 50% more slowly when SAME

ALERT is ON to allow time to decode the special warning code transmissions.

SAME alert ON

• The radio will receive any local NWR or EAS alerts.

• The SAME icon will be displayed on screen to show that the SAME

alert setting is on.

SAME alert OFF

With this setting, the radio ignores SAME weather alerts.

92 |

DSC

RADIO SETUP

UNITS EX T SPEAKER WATC H MODE WX ALERT

DSC

WX ALERT

TONE ALER T SAME ALER T SAME CODE

DSC

SAME CODE

NEW CODE 012011

Entering a SAME code

US model only.

PRI

USA

PRI

USA

PRI

USA

Before you can receive SAME weather alerts, you must enter and then select a SAME code for your geographic area into the radio.

To ﬁnd the SAME codes for your geographic area:

• Telephone 1-888-NWR-SAME (1-888-697-7263), or

• Visit www.nws.noaa.gov/nwr/indexnw.htm

1. Select MENU → RADIO SETUP → WX ALERT → SAME CODE.

If you have already entered some SAME codes, they will be listed.

2. Select NEW CODE. Enter the new SAME code along the dashed line,

one number at a time.

3. When prompted, select STORE and press [OK] to store the SAME

code.

Repeat if necessary to enter a maximum of 10 SAME codes.

Setup | RS90S User Manual

Page 93

DSC

RADIO SETUP

UNITS EX T SPEAKER WATC H MODE WX ALERT

DSC

WX ALERT

TONE ALER T SAME ALER T SAME CODE

Selecting a working SAME code

PRI

USA

PRI

USA

US model only.

In order to receive SAME weather alerts, you must select a SAME code that you have previously entered into the radio.

1. Select RADIO SETUP then WX ALERT → SAME CODE.

2. If you have already entered some SAME codes, they will be listed.

3. Select the SAME code for your geographic area.

DSC

SAME CODE

NEW CODE 012011

DSC

012011

EDIT DELETE CODE SELECT CODE

DSC

RADIO SETUP

UNITS EX T SPEAKER WATC H MODE WX ALERT

DSC

WX ALERT

TONE ALER T SAME ALER T SAME CODE

DSC

SAME CODE

NEW CODE 012011

Choose SELECT CODE. Then select YES.

PRI

USA

PRI

USA

Selected SAME codes are displayed with the word ‘ON’ next them in the list

Editing or deleting a SAME code

PRI

USA

PRI

USA

PRI

USA

US model only.

1. Select RADIO SETUP → WX ALERT → SAME CODE.

2. If you have already entered some SAME codes, they will be listed.

3. Select the SAME code for your geographic area.

4. Select EDIT or DELETE as required.

DSC

012011

EDIT DELETE CODE SELECT CODE

PRI

USA

Setup | RS90S User Manual

| 93

Page 94

94 |

DSC

GPS/DATA

MANUA L SETTING GPS SOURCE

DSC

GPS SOURCE

NMEA2000 LGC3000

Selecting the GPS source

A valid GPS connection is required for DSC to function. The RS90S radio can use either it’s internal GPS system or an external GPS source.

The internal GPS system required an external GPS antenna to be installed. Installation instructions can be found in the RS90S Installation Manual.

External GPS sources can be derived from either NMEA 0183 or NMEA 2000 protocol to receive GPS data from a compatible GPS unit. Up to 4 sources can be connected.

1. Select GPS/DATA →GPS SOURCE.

2. Select the required GPS source, and then press [OK].

PRI

USA

¼ Note: NMEA 2000 SOURCE options will appear only if an NMEA 2000

network is connected to the radio and is operational.

PRI

USA

Data / Source

LEVEL-2 LEVEL-3 Function Options

GPS SETTING TIME OFFSET +00:00

TIME FORMAT 12 HR/24 HR

TIME DISPLY ON/OFF

LL DISPLY ON/OFF

COG/SOG ON/OFF

GPS ALERT ON/OFF

GPS SOURCE MANUAL SET LAT / LON / TIME

NMEA 2000 AUTO SELECT

NMEA 0183 Set checksum

INTERNAL GPS Select

GPS SIM Set GPS simu-

lator mode

DEPTH NONE

...

Setup | RS90S User Manual

N2K-1

N2K-2 etc. ...

(ON/OFF)

ON/OFF

Page 95

DSC

MENU SELECT

CONTRAST GPS/DATA RADIO SETUP DSC SETUP

DSC

DSC SETUP

USER MMSI GROUP SETUP INDIV REPLY DSC FUNC

DSC Setup

Entering or viewing your individual MMSI

The user MMSI (Marine Mobile Service Identity) is a unique 9 digit number, similar to a personal telephone number. It is used on marine transceivers that are capable of using the DSC system.

Contact the appropriate authorities in your country to obtain your user MMSI.

¼ Notes:

• Entering the MMSI is a once-only operation. You can display and

read your user MMSI at any time, but you can only enter it once.

• Enter the number carefully before pressing [OK] the second time. If

PRI

USA

PRI

USA

you make a mistake, the radio will have to be sent back to the dealer to be reset.

• Your MMSI is also shown on the startup screen when you power on

the transceiver.

1. Select MENU → DSC SETUP → USER MMSI.

If you have already entered your MMSI, it will be shown on screen.

If you are entering your MMSI, a dashed line appears.

DSC

VIEW MMSI

XXXXXXXXX

2. Enter your MMSI along the dashed line, one number at a time.

3. Press [OK] to store your user MMSI.

PRI

4. Enter your user MMSI again as a password check, then press [OK] to

USA

permanently store the user MMSI.

Introduction to group MMSI

A group MMSI is a shared MMSI. When a DSC call is transmitted by one of the vessels in the group, all the radios that have the same MMSI entered will receive the message.

The RS90S radio can store up to 20 group MMSIs. In other words, you can be in 20 diﬀerent groups.

A group MMSI always starts with 0.

For information on sending a DSC group call, see “Sending a group call” on page 48.

Setup | RS90S User Manual

| 95

Page 96

DSC

MENU SELECT

CONTRAST GPS/DATA RADIO SETUP DSC SETUP

Lo Hi

DSC

DSC SETUP

USER MMSI GROUP SETUP INDIV REPLY DSC FUNC

DSC

GROUP S ETUP

MANUA L NEW

DSC

MENU SELECT

CONTRAST GPS/DATA RADIO SETUP DSC SETUP

Lo Hi

DSC

DSC SETUP

USER MMSI GROUP SETUP INDIV REPLY DSC FUNC

Creating a group MMSI

1. Select MENU → DSC SETUP → GROUP SETUP.

2. Select MANUAL NEW.

PRI

USA

If this is the ﬁrst time that you are entering a group name, a dashed line appears.

3. Enter the group name along the dashed line. It can be a maximum

of 11 alphanumeric characters.

PRI

4. Press [OK] repeatedly if necessary to reach the MMSI line.

5. Enter the group MMSI. The ﬁrst number is always a 0.

USA

6. Press [OK] repeatedly until STORE/CANCEL is displayed.

7. Select STORE or CANCEL as required.

PRI

USA

Editing or deleting a group MMSI

1. Select MENU → DSC SETUP → GROUP SETUP.

PRI

USA

PRI

USA

The display shows the list of existing group names.

2. Scroll to the group you want to edit and press [OK].

• To delete the group, select DELETE then YES. The group will be

deleted immediately.

• To edit the group, select EDIT.

3. Edit the group name as required.

GROUP S ETUP

96 |

DSC

MANUA L NEW SAIL CLUB FISH MATES

4. Press [OK] repeatedly if necessary until the cursor moves to the

MMSI line.

PRI

5. Edit the MMSI. (Note that the ﬁrst number is always a 0.)

USA

6. Press [OK] repeatedly until STORE/CANCEL is displayed.

7. Scroll to STORE or CANCEL as required and press [OK].

Setup | RS90S User Manual

Page 97

Entering or checking your ATIS MMSI

EU models only.

The ATIS MMSI is a special MMSI that is used on inland waterways in Europe for identifying the ship or vessel that made a VHF radio transmission. The MMSI is transmitted on the VHF channel each time the radio operator ﬁnishes talking and releases the PTT key. For further information, see “ATIS” on page 62.

DSC

MENU SELECT

CONTRAST GPS/DATA RADIO SETUP DSC SETUP

DSC

DSC SETUP

USER MMSI GROUP SETUP ATIS MMSI ATIS SELEC

DSC

INPUT ATIS MMSI

9 - - - - - - - - -

DSC

MENU SELECT

CONTRAST GPS/DATA RADIO SETUP DSC SETUP

DSC

DSC SETUP

USER MMSI GROUP SETUP ATIS MMSI ATIS SELEC

DSC

ATIS SELECT

ON OFF DSC I S O N

¼ Notes:

• You can display and read your ATIS MMSI at any time, but you can

PRI

USA

only enter it once.

• Enter the number carefully before pressing [OK] the second time. If

you make a mistake, the radio will have to be sent back to the dealer to be reset.

1. Select MENU → DSC SETUP → ATIS MMSI.

PRI

INT

If you have already entered your ATIS MMSI, it is shown on screen.

If you are entering a new ATIS MMSI, a dashed line appears.

2. Enter your ATIS MMSI along the dashed line, one number at a time.

PRI

INT

An ATIS MMSI always starts with the number 9.

3. Press [OK].

4. Enter your ATIS MMSI again as a password check, then press [OK] to

permanently store the ATIS MMSI.

Enabling ATIS functionality

PRI

USA

PRI

INT

PRI

INT

EU models only.

1. Select MENU → DSC SETUP → ATIS SELECT.

2. Scroll to ON or OFF as required and press [OK].

¼ Notes:

• Before you can enable ATIS, you must enter an ATIS MMSI. See

“Entering or checking your ATIS MMSI” above.

• Before you can enable ATIS, DSC must be turned oﬀ. See “Enabling

DSC functionality” on page 98.

• When ATIS is enabled, the ATIS icon is displayed on screen.

• In some European countries, SCAN functionality is limited, and, if

ATIS is enabled, the 3CH SCAN mode will be disabled.

Setup | RS90S User Manual

| 97

Page 98

DSC

MENU SELECT

CONTRAST GPS/DATA RADIO SETUP DSC SETUP

Lo Hi

DSC

DSC SETUP

USER MMSI GROUP S ETUP INDIV REPLY DSC FUNC

DSC

INDIV REPLY

MANUA L AUTO

Individual DSC call - reply options

The reply to an incoming DSC individual call can be automatic or

PRI

manual.

• An automatic reply sends an acknowledgement and then sets the

USA

requested working channel, ready for a conversation.

• A manual reply prompts you to acknowledge the call.

1. Select MENU → DSC SETUP → INDIV REPLY.

PRI

2. Scroll to MANUAL or AUTO as required and press [OK].

USA

For information on receiving an individual DSC call, see “Receiving a DSC individual call” on page 59.

PRI

USA

Enabling DSC functionality

MENU SELECT

DSC SETUP

DSC FUNC

98 |

DSC

CONTRAST GPS/DATA RADIO SETUP DSC SETUP

DSC

USER MMSI GROUP S ETUP INDIV REPLY DSC FUNC

DSC

ON OFF

Warning: DSC is an important safety function; disabling

PRI

it is not recommended.

DSC is only available after a valid USER MMSI has been entered. For

USA

instructions on entering your MMSI, see “Entering or viewing your individual MMSI” on page 95.

1. Select MENU → DSC SETUP → DSC FUNC.

PRI

2. Scroll to ON or OFF as required and press [OK]

USA

¼ Notes:

• It is not possible to have both ATIS and DSC on at the same time. If

you want to enable DSC, you must ﬁrst switch ATIS oﬀ.

PRI

• When DSC functionality is selected, the

USA

screen.

Setup | RS90S User Manual

icon is displayed on

Page 99

DSC

MENU SELECT

CONTRAST GPS/DATA RADIO SETUP DSC SETUP

DSC

DSC SETUP

GROUP S ETU INDIV REPLY DSC FUNC LL REPLY

DSC

LL REPLY

MANUA L AUTO OFF

LL polling calls - reply options

A DSC LL polling call is received by the radio when one of your buddies sends a request for your position—latitude and longitude request (LL request)—normally at regular intervals.

PRI

USA

For information on LL requests (polling) see “Sending an LL request for the position of a buddy” on page 52.

You can set up the radio to respond to an LL polling request in one of three ways:

PRI

• MANUAL

Reply manually to any incoming LL polling requests.

USA

• AUTO

Automatically reply to any incoming LL polling requests.

PRI

USA

• OFF

Ignore all incoming LL polling requests.

1. Select MENU → DSC SETUP → LL REPLY.

2. Scroll to MANUAL, AUTO or OFF as required and press [OK].

Automatic channel switch options

When a DSC call is received, it may include a request to change to a speciﬁc channel for subsequent communications.

With Auto Switch set to ON, when receiving a DSC call, the radio will automatically switch to the requested channel if not cancelled within 10 seconds. This might disrupt important communications that are already in progress on the current working channel. To avoid this, you can prevent the radio from automatically switching channel by setting the AUTO SWITCH feature to OFF.

If Auto Switch is set to OFF, the

icon will be displayed on screen

to remind you that this feature is set to oﬀ.

Additionally, the text “AUTO SW OFF” will be included in an All Ships or Group call.

Setup | RS90S User Manual

| 99

Page 100

DSC

MENU SELECT

CONTRAST GPS/DATA RADIO SETUP DSC SETUP

DSC

DSC SETUP

INDIV REPL DSC FUNC LL REPLY AUTO SWIT C

DSC

AUTO SWIT CH

ON OFF

To enable or disable automatic channel switching:

1. Select MENU → DSC SETUP → AUTO SWITCH.

2. Scroll to ON or OFF as required and press [OK].

PRI

USA

PRI

USA

PRI

USA

Setting up DSC test reply

MENU SELECT

DSC SETUP

100 |

DSC

CONTRAST GPS/DATA RADIO SETUP DSC SETUP

DSC

DSC FUNC LL REPLY AUTO SWIT CH TEST REPLY

DSC

TEST REPLY

AUTO MANUA L

You can set up the radio to respond to incoming DSC TEST calls with an automatic or manual response.

PRI

1. Select MENU → DSC SETUP → TEST R EPLY.

USA

2. Scroll to AUTO or MANUAL as required and press [OK].

• AUTO

PRI

USA

On receiving a DSC TEST call, waits for 10 seconds, and then automatically acknowledges the call.

• MANUAL

On receiving a DSC TEST call, requires you to press the [ACK] soft key to acknowledge the call.

PRI

USA

For information on receiving a DSC test call, see “Receiving a DSC test call” on page 61.

Setup | RS90S User Manual

simrad RS90S Blackbox VHF User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Getting started

Handsets

Handset control buttons

The standby screen

Modes

Changing channel

Adjusting squelch

Setting transmission power

PTT Key

Using the menus

Shortcut keys

Entering data

Warning messages

Alert tones

Operating procedures

Making a routine radio call

Calling a buddy

Making a channel 16/9 distress call

Making a DSC distress call

Receiving weather alerts (US model only)

Receiving SAME alerts (US model only)

Favourite channel (non-US models)

Three favourite channels 3CH

Scanning channels

Using the hailer

Using the fog horn

Using the intercom

Using the announce function

Using the voice recorder

Sharing NMEA 2000 data

Waypoint procedures

Adding a new waypoint

Editing a waypoint

Deleting a waypoint

Navigating to a waypoint

DSC procedures

Introduction to DSC

DSC Distress calls

Sending routine DSC calls

Receiving DSC calls

ATIS

AIS procedures

List of nearby vessels

PPI display

T/CPA screen

AIS target information

Installation

Checklist

Positioning

Installing the transceiver

Installing a wired handset cradle

Installing a handset cable connector

Installing a wireless handset cradle

External speakers installation options

Transceiver external connectors

Transceiver internal connectors

Setting up the radio

NMEA 2000 Network

Setup

Wireless handset setup

Buddy list setup

Radio setup

DSC SETUP
