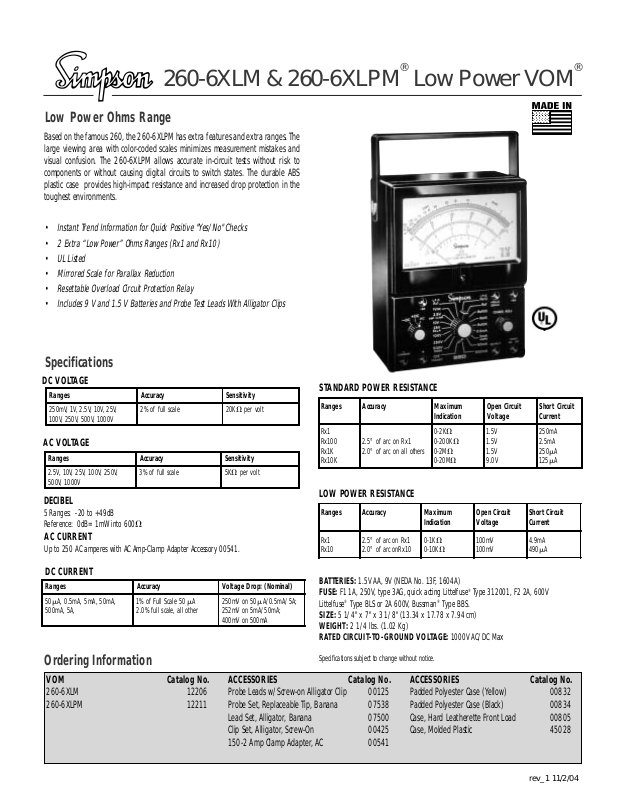

Simpson 260-6XLM, 260-6XLPM Datasheet

Specifications

260-6XLM & 260-6XLPM®Low Power VOM

®

Based on the famous 260, the 260-6XLPM has extra features and extra ranges. The
large viewing area with color-coded scales minimizes measurement mistakes and
visual confusion. The 260-6XLPM allows accurate in-circuit tests without risk to
components or without causing digital circuits to switch states. The durable ABS
plastic case provides high-impact resistance and increased drop protection in the
toughest environments.

Low Power Ohms Range

•

Instant Trend Information for Quick Positive "Yes/No" Checks

•

2 Extra “Low Power” Ohms Ranges (Rx1 and Rx10)

•

UL Listed

•

Mirrored Scale for Parallax Reduction

•

Resettable Overload Circuit Protection Relay

•

Includes 9 V and 1.5 V Batteries and Probe Test Leads With Alligator Clips

Ordering Information

VOM Catalog No.

260-6XLM 12206
260-6XLPM 12211

ACCESSORIES Catalog No.

Probe Leads w/Screw-on Alligator Clip 00125
Probe Set, Replaceable Tip, Banana 07538
Lead Set, Alligator, Banana 07500
Clip Set, Alligator, Screw-On 00425
150-2 Amp Clamp Adapter, AC 00541

ACCESSORIES Catalog No.

Padded Polyester Case (Yellow) 00832
Padded Polyester Case (Black) 00834
Case, Hard Leatherette Front Load 00805
Case, Molded Plastic 45028

DC VOLTAGE

AC VOLTAGE

DC CURRENT

AC CURRENT

Up to 250 AC amperes with AC Amp-Clamp Adapter Accessory 00541.

STANDARD POWER RESISTANCE

Specifications subject to change without notice.

BATTERIES: 1.5V AA, 9V (NEDA No. 13F, 1604A)
FUSE: F1 1A, 250V, type 3AG, quick acting Littelfuse

®

Type 312001, F2 2A, 600V

Littelfuse

®

Type BLS or 2A 600V, Bussman®Type BBS.

SIZE: 5 1/4" x 7" x 3 1/8" (13.34 x 17.78 x 7.94 cm)
WEIGHT:2 1/4 lbs. (1.02 Kg)
RATED CIRCUIT-TO-GROUND VOLTAGE: 1000V AC/DC Max

DECIBEL

5 Ranges: -20 to +49dB
Reference: 0dB= 1mW into 600

LOW POWER RESISTANCE

Ranges Accuracy Sensitivity

250mV, 1V, 2.5V, 10V, 25V,
100V, 250V, 500V, 1000V

2% of full scale 20K per volt

Ranges Accuracy Sensitivity

2.5V, 10V, 25V, 100V, 250V,
500V, 1000V

3% of full scale 5K per volt

Ranges Accuracy Maximum

Indication

Open Circuit
Voltage

Short Circuit
Current

Rx1
Rx10

2.5° of arc on Rx1

2.0° of arc onRx10

0-1K
0-10K

100mV
100mV

4.9mA
490A

Ranges Accuracy Maximum

Indication

Open Circuit
Voltage

Short Circuit
Current

Rx1
Rx100
Rx1K
Rx10K

2.5° of arc on Rx1

2.0° of arc on all others

0-2K
0-200K
0-2M
0-20M

1.5V

1.5V

1.5V

9.0V

250mA

2.5mA
250A
125A

Ranges Accuracy Voltage Drop: (No minal )

50A, 0.5mA, 5mA, 50mA,
500mA, 5A,

1% of Full Scale 50 A

2.0% full scale, all other

250mV on 50A/0.5mA/5A;
252mV on 5mA/50mA;
400mV on 500mA

rev_1 11/2/04
