Simplicity Series 1 User Manual

ASSEMBLY INSTRUCTIONS OPERATOR’S MANUAL PARTS LIST

European Walk-Behind Leaf Blower Series 1

Actual product may differ slightly from product pictured above

Manual No. 7078091 (I.R. - 09/14/04)

Models Covered:

ELBC6151BV

(Part # 7085911)

preliminaries

Congratulations!

You have just purchased one of the finest pieces of outdoor power equipment on the market today. If properly cared for, your new blower will provide years of dependable service. Please read and follow this instruction manual carefully in order to get the most out of your new equipment.

As you carefully unpack your unit, you will find the following items:

1 Blower Unit 1 Handle Assembly including:

1 – Upper Handle with foam grip 1 – Lower Handle

1 Front Caster Wheel Kit including:

1 – Pair Front Caster Brackets (l&r) 1 – Front Caster Wheel 1 – Axle Bolt with lock nut

1 Package of assembly hardware 1 Package containing operating manuals and warranty registration

Each product leaves our factory in excellent condition; occasionally, however, some damage may occur during shipment. If any such damage is found upon initial inspection, immediately notify the transport carrier who delivered your machine, as they are solely responsible for such damage, as well as any subsequent adjustments necessary.

Before assembly, please take a moment and record your model number and serial number below for future reference (both numbers are located on the silver tag attached to the machine):

Model number_______________________________

Serial number________________________________

Also be sure to promptly fill out and return the warranty registration enclosed in your manual packet.

Your new blower requires very little assembly. Simply follow the instructions contained within this manual to begin enjoying the benefits of your new unit.

CALIFORNIA PROPOSITION 65 WARNING

Gasoline and Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects and other reproductive harm.

As an owner of off-road gasoline or diesel engine equipment and/or as an employer, you also may have an obligation under the California Occupational Safety and Health Act or under Proposition 65 to warn persons exposed to gas and diesel engine exhaust and/or other Proposition 65 chemicals in and around your workplace. See California Health and Safety Code section 25249.5, Title 22 of the California Code of Regulations at Section 1200 er seq., and Title 8 of the California Code of Regulations Section 5194.

TRAINING

• Read, understand, and follow all instructions in the manual and on the unit before starting. If the operator(s) or mechanic(s) can not read English it is the owner’s responsibility to explain this material to them.

• Become familiar with the safe operation of the equipment, operator controls, and safety signs.

• All operators and mechanics should be trained. The owner is responsible for training the users.

• Only allow responsible adults, who are familiar with the instructions, to operate the unit.

• Never let children or untrained people operate or service the equipment. Local regulations may restrict the age of the operator.

• The owner/user can prevent and is responsible for accidents or injuries occurring to themselves, other people or property.

PREPARATION

• Evaluate the terrain to determine what accessories and attachments are needed to properly and safely perform the job. Use only accessories and attachments approved by the manufacturer.

• Wear appropriate clothing including safety shoes, safety glasses and ear protection. Long hair, loose clothing or jewelry may get tangled in moving parts.

• Inspect the area where the equipment is to be used and remove all objects such as rocks, toys and wire, which can be thrown by the machine.

• Use extra care when handling gasoline and other fuels. They are flammable and vapors are explosive. a) Use only an approved container. b) Never remove fuel cap or add fuel with the engine running. Allow engine to cool before refueling. Do not smoke. c) Never refuel or drain the machine indoors.

• Check that operator’s presence controls, safety switches and shields are attached and functioning properly. Do not operate unless they are functioning properly.

OPERATION

• Never run an engine in an enclosed area.

• Operate only in the daylight or with good artificial light, keeping away from holes and hidden hazards.

• Be sure of your footing while using pedestrian controlled equipment, especially when backing up. Walk, don’t run.

• Do not operate in reverse unless absolutely necessary. Always look down and behind before and while traveling in reverse.

• Be aware of the blower discharge direction and do not point it at anyone. Do not operate the blower without deflectors in place.

• Never leave a running unit unattended. Always stop engine before leaving unit.

• Never operate with guards not securely in place. Be sure all safety features are attached, adjusted properly and functioning properly.

• Never operate with the discharge deflectors removed or altered.

• Do not change the engine governor setting or over speed the engine.

• Stop on level ground, shut off engine before leaving the operator’s position for any reason.

• Stop equipment and inspect impeller blades after striking objects or abnormal vibration occurs. Make necessary repairs before resuming operations.

• Keep hands and feet away intake and discharge areas.

• Keep pets and bystanders away.

• Do not operate the unit while under the influence of alcohol or drugs.

• Use caution when crossing roads and sidewalks. Stop engine if not blowing.

• Use care when loading or unloading the machine into a trailer or truck.

• Use care when approaching blind corners, shrubs, trees or other objects that may obscure vision.

SLOPE OPERATION

Slopes are a major factor related to loss-of-control and tipover accidents, which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope, or if you feel uneasy on it, do not drive on it.

• Blow across the face of slopes; never up and down.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could overturn the unit. Tall grass can hide obstacles.

• Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction.

Do Not

• Do not start or stop on a slope. If tires lose traction, proceed slowly straight down the slope.

• Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.

• Do not use near drop-offs, ditches, or embankments. The operator could lose footing or balance or blower could suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in.

• Do not operate on slopes with wet grass. Reduced footing or traction could cause sliding.

• Do not use on excessively steep slopes.

safety rules regarding outdoor power equipment

IMPORTANT! READ CAREFULLY THE FOLLOWING SAFETY RULES BEFORE ASSEMBLING OR OPERATING UNIT.

CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the unit and its activity. Never assume that children will remain where you last saw them.

• Keep children out of the blowing area and under the watchful care of another responsible adult.

• Be alert and turn unit off if children enter the area.

• Before and during reverse operation, look behind and down for small children.

• Never allow children to operate the unit.

• Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

EMISSIONS

• Engine exhaust from this product contains chemicals known, in certain quantities, to cause cancer, birth defects, or other reproductive harm.

• Look for the relevant Emissions Durability Period and Air Index information on the engine emissions label.

MAINTENANCE AND STORAGE

• Always observe safe refueling and fuel handling practices when refueling the unit after transportation or storage.

• Always follow the engine manual instructions for storage preparations before storing the unit for both short and long term periods.

• Always follow the engine manual instructions for proper start-up procedures when returning the unit to service.

• Never store the machine or fuel container inside where there is an open flame, such as in a water heater. Allow unit to cool before storing.

• Shut off fuel while storing or transporting. Do not store fuel near flames or drain indoors.

• Keep all hardware, especially impeller bolt, tight and keep all parts in good working condition. Replace all worn or damaged decals.

• Never tamper with safety devices. Check their proper operation regularly.

• Clean leaves and debris from mufflers and engine to prevent fires. Clean up oil or fuel spillage.

• Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.

• Never make adjustments or repairs with the engine running unless specified otherwise.

• Park machine on level ground. Never allow untrained personnel to service machine.

• Carefully release pressure from components with stored energy. (e.g. springs)

• Only replace impellers. Never straighten or weld them.

• Keep hands and feet away from moving parts.

• Frequently check components and replace with manufacturer’s recommended parts, when necessary.

• Use only factory authorized replacement parts when making repairs.

• Always comply with factory specifications on all settings and adjustments.

• Only authorized service locations should be utilized for major service and repair requirements.

• Never attempt to make major repairs on this unit unless you have been properly trained. Improper service procedures can result in hazardous operation, equipment damage and voiding of manufacturer’s warranty.

safety rules regarding outdoor power equipment (cont.)

unit assembly

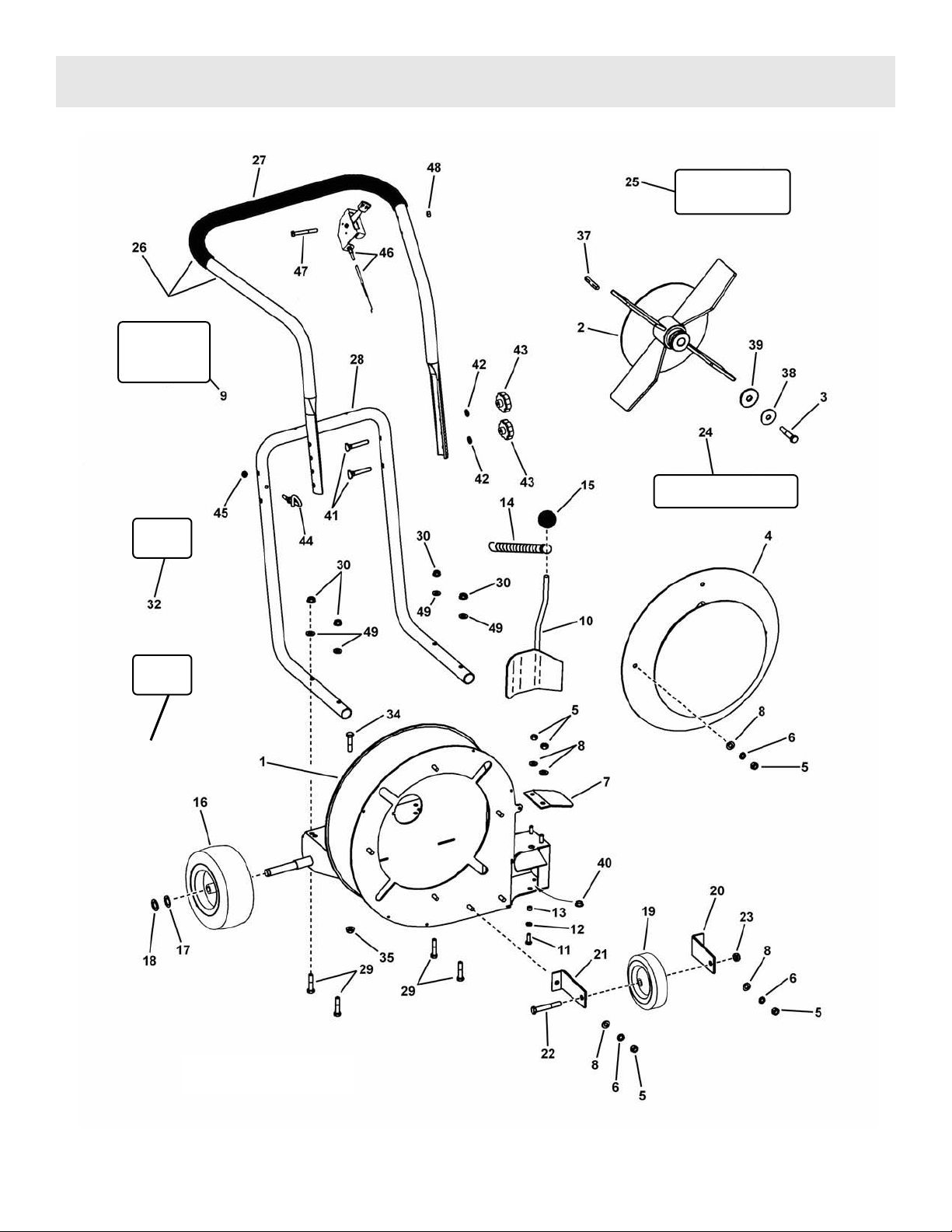

Note: Please refer to Parts List for correct part identification and placement.

FRONT WHEEL ASSEMBL

• Attach left and right caster brackets to caster wheel using 3/8-18 x 2-1/4 bolt and lock nut. Insert bolt through hole in bracket. Place caster wheel onto bolt. Place other caster bracket onto bolt. Secure with lock nut. Do not over tighten. Wheel must rotate freely. Place caster brackets onto the threaded studs located near the discharge on the front of the machine. Place flat washer and split lock washer on each stud. Note: Angled edge

of mounting brackets should be upwards, with holes toward bottom. Fasten with two 5/16-18 hex

nuts. Do not tighten.

• Check caster wheel for proper vertical alignment (camber), adjust as necessary, then tighten nuts.

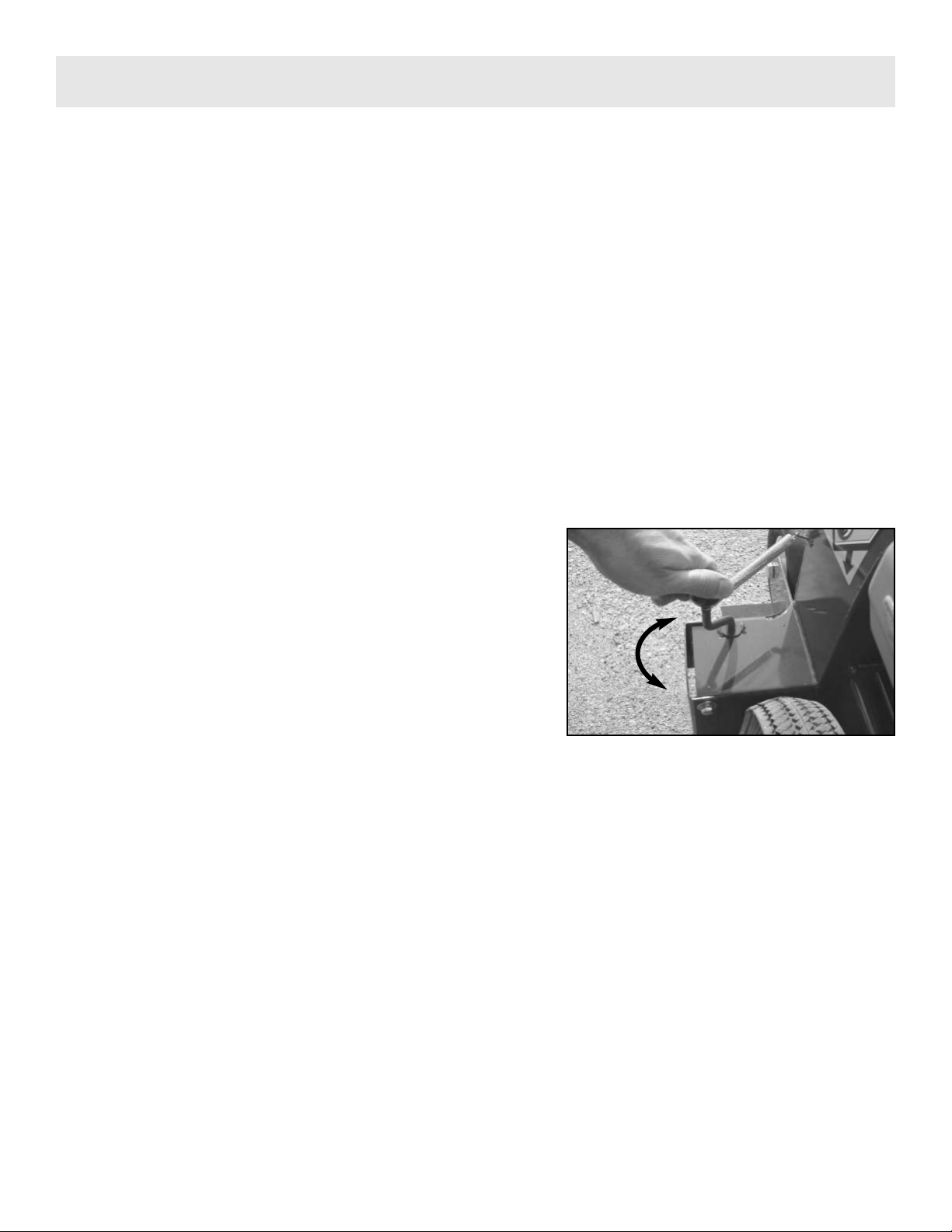

SIDE AIR DEFLECTOR

• Attach side air deflector to top of discharge chute by aligning holes in deflector with threaded studs in top of chute snout. Fasten with two 5/16-18 hex nuts and split lock washers. Note: Deflector should be angled

downward.

HANDLE ASSEMBLY

• The upper handles are shipped in the folded storage position. To unfold, loosen two handle knobs and rotate up to the operating position. The upper handles are secured with four knobs. Insert two 5/16-18 x 2 curved head bolts through the handles directly below the two shipping knobs. Place one internal tooth lock washer on each of the bolts. Thread knobs onto curved head bolts. Tighten all four knobs securely.

Assembly complete. Your unit is now ready to be started and checked for proper operation. Some minor final adjustments may be required; see the Maintenance portion of this manual.
