Simplicity S38 User Manual

IMPORTANT SAFETY INSTRUCTIONS

Read All Instructions Carefully Before Using This Appliance

When using an electrical appliance, basic precautions should always be followed, including the
following :

WARNING -

11. Do not leave appliance when plugged in. Unplug from outlet when not in use and before

servicing.

12. Do not use outdoors or on wet surfaces.

13. Do not allow to be used as a toy. Close attention is necessary when used near children.

14. Use only as described in this manual.

Use only manufacturer's recommended attachments.

15. Do not use with damaged cord or plug. If appliance is not working as it should, has been

dropped, damaged, left outdoors, or dropped into water, return it to a service center.

16. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around

sharp edges or corners. Do not run appliance over cord.
Keep cord away from heated surfaces.

17. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

18. Do not handle plug or appliance with wet hands.

19. Do not put any object into openings. Do not use with any opening blocked:

keep free of dust, lint, hair, and anything that may reduce air flow.

10. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

11. Turn off all controls before unplugging.

12. Use extra care when cleaning on stairs.

13. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where
they may be present.

14. This appliance is intended for household use only and not for commercial or industrial use.

15. Do not operate the cleaner if :

- the power cord is damaged.

- the hose shows visible signs of damage.

16. Do not use without dust bag and/or filters in place.

17. Hold plug when rewinding into cord reel. Do not allow plug to whip when rewinding.

18. The hose contains electrical wires. Do not use if damaged, cut or punctured.
Avoid picking up sharp objects.

19. To reduce the risk of electric shock, this appliance has a polarized plug.

20. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

21. Always turn off this appliance before connecting or disconnecting motorized nozzle.

22. Use only with motorized nozzle model SPB-250.

To reduce the risk of fire, electric shock, or injury :

SAVE THESE INSTRUCTIONS

3

CONTENTS

CANISTER FEATURES
HOW TO USE POWER NOZZLE
HOW TO USE CLEANING TOOLS
HOW TO REPLACE VACUUM BAG
HOW TO REPLACE FILTERS

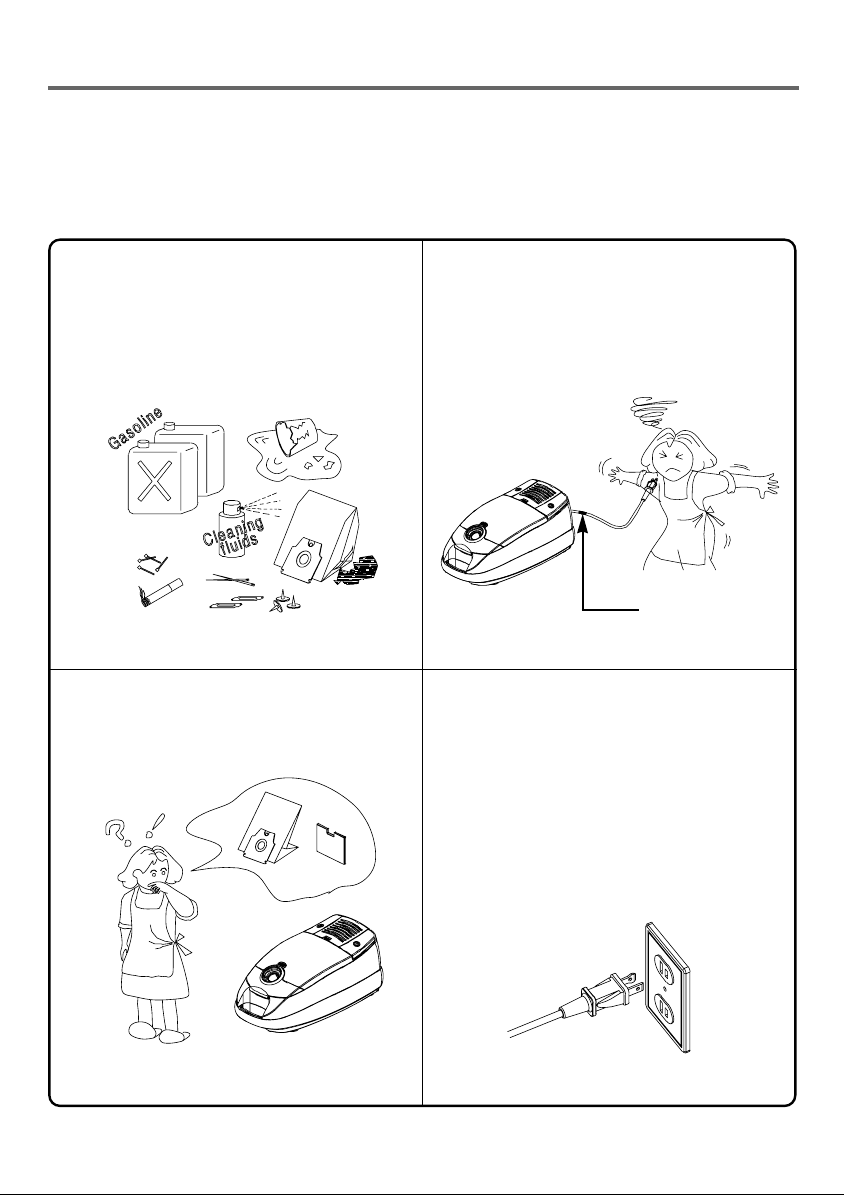

SAFETY PRECAUTIONS
TROUBLESHOOTING GUIDE

..................................................

...................................

............................................

...................................................

...........................................

4

4 ~ 5
6 ~ 9

....................................

..................................

10
10
11
12
13

CANISTER FEATURES

POWER CONTROL HANDLE

When lit, change
vacuum bag or
check for clog in
hose

When lit, change
HEPA filter
(page 11)

Light indicates
when power
nozzle is in use.

U

S

CHECK
BAG

SERVICE
FILTER

POWER
BRUSH

T

I

O

C

MAX
HIGH
MED
LOW
OFF

N

Power Levels:

MAX 100%
HIGH 75%
MED 50%
LOW 25%
OFF 0%

Increase power

Decrease power

One touch
integrated wand

Power nozzle
On / Off

DIRT SENSOR

POWER
BRUSH

ON

OFF

On / Off Button

When light is
green your carpet
is clean.

When light is
orange keep
vacuuming-dirt is
found.

When light is red,
reset the circuit
breaker
switch(page 7).

5

Floor brush

Power nozzle

➪Please, refer to page 6~9.

<How to Use Power Nozzle>

FLOOR BRUSH STORAGE

• Insert the wand holder into the parking slot on bottom or backside of u

On-board
cleaning tools

HOSE ADAPTER

Adapter
button

Flexible hose

• When separating the hose from the body, press
the adapter buttons to release the hose.

MAIN ON / OFF BUTTON

Canister body

Parking slot

• ON - Canister power is on and Power nozzle is off.

• OFF - All power is off.

CORD REWIND

6

HOW TO USE POWER NOZZLE

OPERATION

1. Turning on the Power Nozzle

The power nozzle can only be turned on if the
canister is also turned on (canister on / off
switch is located on the main body). The
power nozzle on / off switch is located on the
handle. Simply press the power nozzle button
to engage the power nozzle.

To achieve best cleaning results, slowly pass
the power nozzle back and forth over the
carpet or floor.

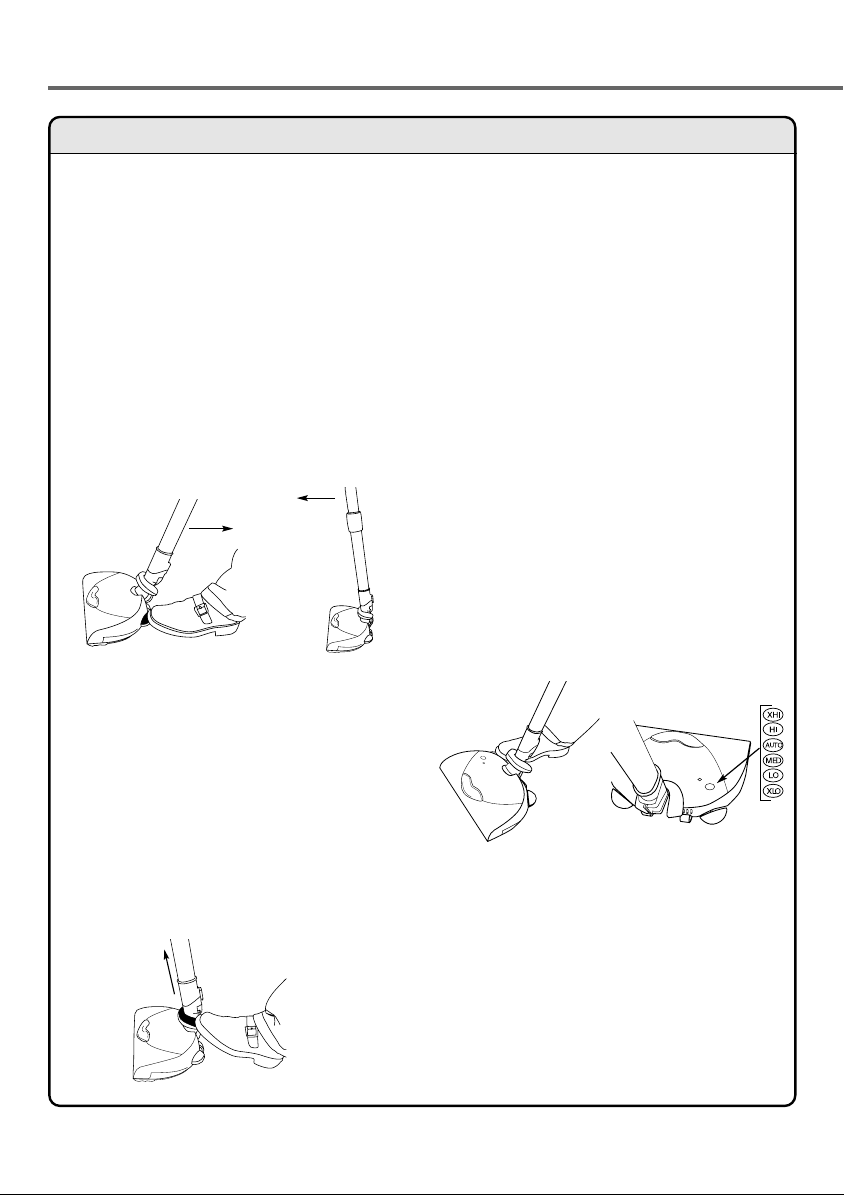

2. Using the Power Nozzle

After turning on the canister and power nozzle,
release the wand by pressing the left pedal on the
back side of the power nozzle (see diagram 3)

Diagram 3

3. Remove / Insert the Wand From The Power
Nozzle

Removing the wand from the power nozzle
allows you, for example, to use cleaning tools
for baseboard or ceiling cleaning. To do this,
first turn the power nozzle and canister off.
Then, press the wand release collar (see
diagram 5) and pull the wand out. To reinsert
the wand into the power nozzle, simply press
the wand back into the neck of the power
nozzle. The wand will then "click" back into
place.

Diagram 4

Diagram 5

4. Carpet Height Adjustment

Your power nozzle has six different settings to
clean a variety of carpet types and floor
surfaces. To adjust the carpet height setting of
the power nozzle, press the right pedal located
on the back of the power nozzle (see diagram

6). Each press of this pedal will adjust the
height to the next carpet height position.

To determine which setting you are currently
on, locate and look through the height indicator
window on the top of the unit (see diagram 7).
You will see one of the six settings as
mentioned earlier and detailed below:

Setting: Intended Use:

1. XHI Very thick or plush carpet

2. HI Thick or plush carpet

3. Auto General carpet thickness and bare
floors

4. MED Average plush carpet

5. LO Thin plush carpet

6. XLO Low pile carpet (indoor/outdoor type
carpet)

Diagram 6 Diagram 7

Carpet Height Notes: When using the power

nozzle, start on the "auto" setting. If pushing the
power nozzle forward feels sluggish or hard to
push, then adjust to a higher setting (i.e. HI or
XHI). If the power nozzle feels very easy to push,
you may want to lower the power nozzle for more
effective cleaning. The "Auto" setting is the
recommended setting for hard floor surfaces (i.e.
tile, vinyl, wood).

7

OPERATION

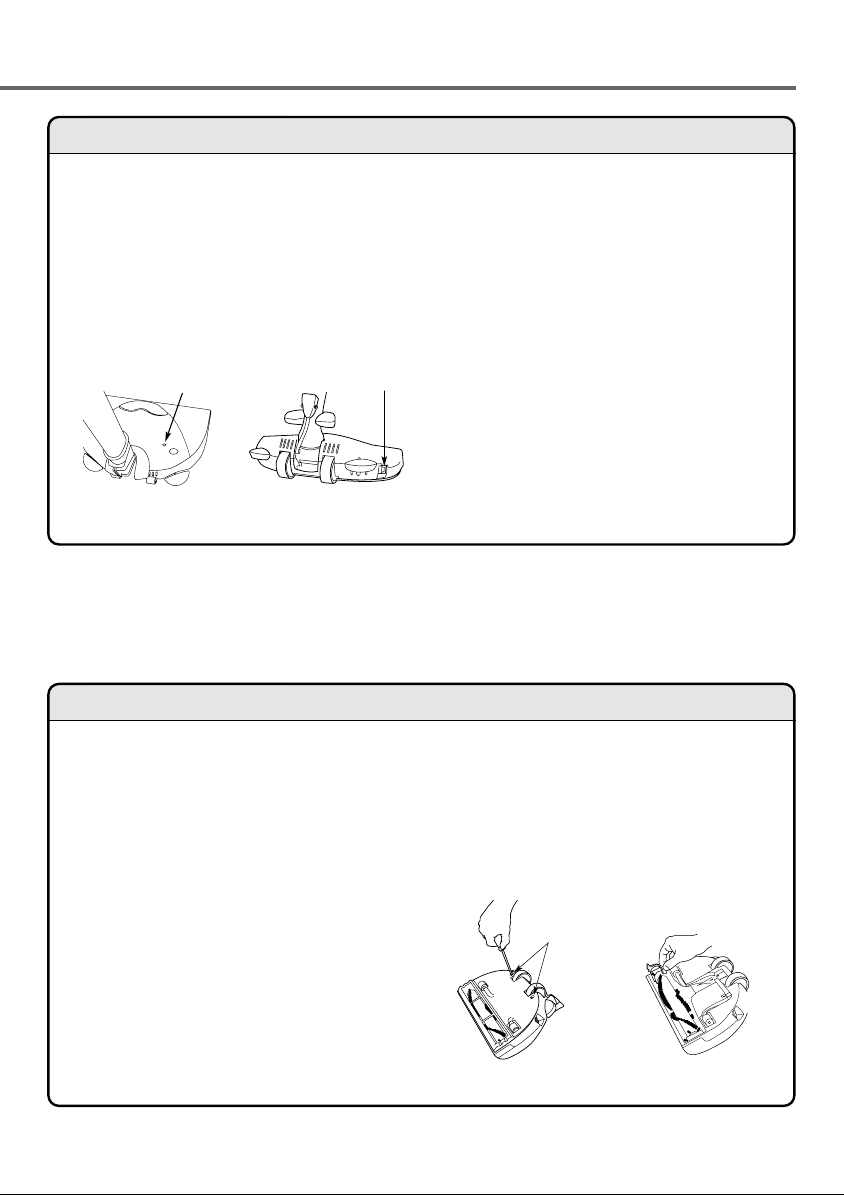

5. Warning Light / Dirt Sensor

Your power nozzle comes equipped with a
circuit breaker safety system that protects it
due to a jammed power nozzle situation.
Common items that cause jammed brushrolls
include socks, excessive threads, corners of
area rugs, etc. The warning indicator light on
top of the unit (see diagram 8) will change from
green to red should this condition occur.

Warning Light / Dirt Sensor Circuit Breaker Switch

Diagram 8

Diagram 9

MAINTENANCE AND CARE

1. Removing the Brushroll

IMPORTANT: Before performing any

maintenance work on the power nozzle,
always unplug the vacuum cleaner and
disconnect the wand.

Your brushroll may need to be removed at
times, for example, to cut threads that have
become tangled around the brushroil or to
replace the belt (see "Replacing the Belt").

To remove the brushroll, turn the unit over and
lift off the metal bottom plate by first
unscrewing the two bottom plate screws
located by the rear wheels (see diagram 10).
Pull out the belt cover guard (see diagram 11)
and pull the brushroll out.

If the circuit breaker trips:

a. Turn off the vacuum cleaner and power nozzle

then unplug the power cord.

b. Remove the object preventing the brushroll

from turning.
Locate the circuit breaker switch on the back of

c.

the power nozzle and press it to reset the breaker
(see diagram 9).

d.

When the unit is turned back on, the warning light
should be green and ready to go. If the circuit trips
again, repeat steps 1-3 again to correct the problem.
If this does not correct the problem, contact
your authorized vacuum cleaner retailer for
further assistance.

6. Dirt Sensor

The warning indicator light will turn orange if
the dirt sensor detects dirt in the carpet and
will change to green when the carpet is clean.

To reinstall the brushroll, reinsert the brushroll
back into the unit (make sure the belt is
attached properly). Next, insert the belt cover
guard. Then, place the metal bottom plate
back onto the unit (insert the front end of the
bottom plate first). Re-insert the two bottom
plate screws and secure.

Bottom

Plate Screws

Diagram 10 Diagram 11

8

MAINTENANCE AND CARE

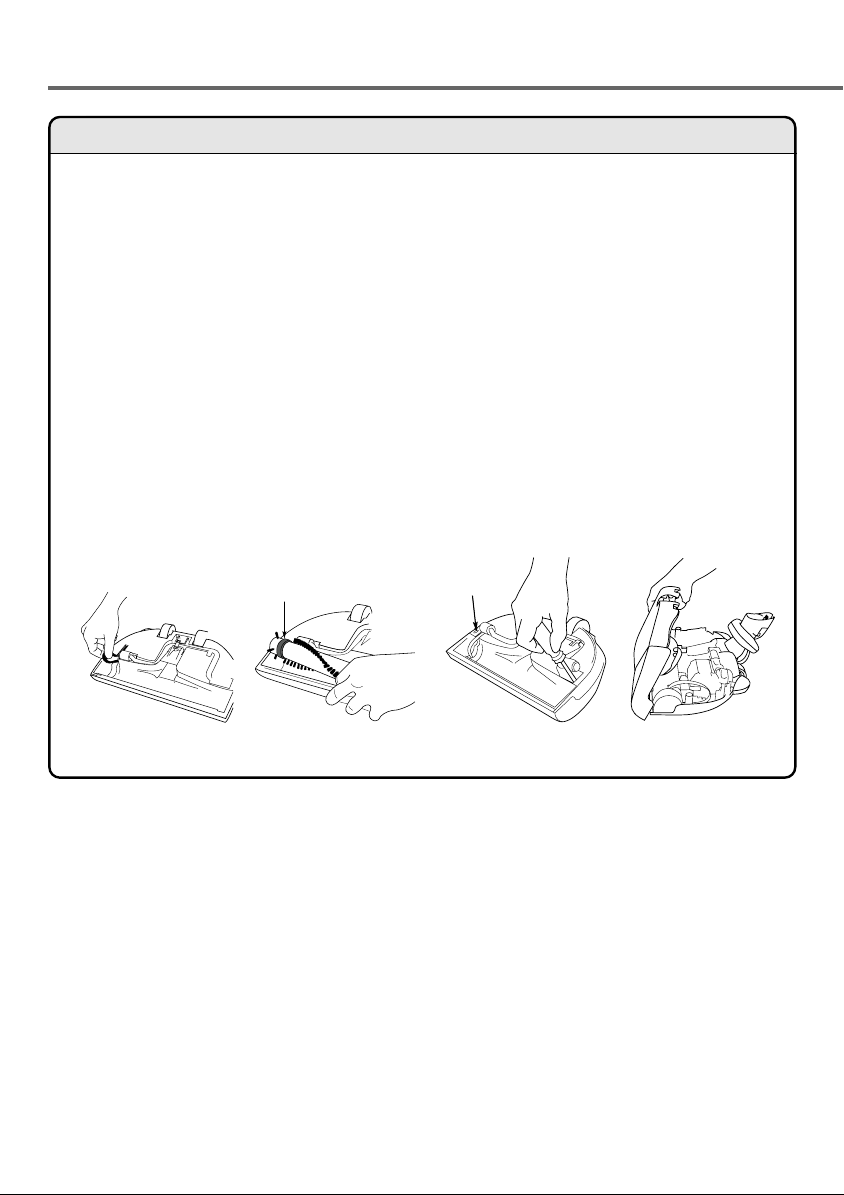

2. Replacing the Power Nozzle Belt

IMPORTANT: Before performing any

maintena-nce work on the power nozzle,
always unplug the vacuum cleaner and
disconnect the wand.

To replace the power nozzle belt, you must
first remove the brushroll (see "Removing the
Brushroll"). Locate and discard broken belt.

To install new belt, locate the power nozzle
motor pulley and loop the belt around it (see
diagram 12). Place the other end of the belt
around the brushroll making sure the belt is
seated in the "belt groove" of the brushroll (see
diagram 13). Insert the brushroll back into the
brushroll tray and place the belt guard back
into position (see diagram 11). Place the
metal bottom plate back onto the unit (insert
the front end of the bottom plate first). Re­insert the two bottom plate screws and secure.

Belt

Diagram 12 Diagram 13 Diagram 14 Diagram 15

3. Replacing the Bulb

IMPORTANT: Before performing any

maintenance work on the power nozzle,
always unplug the vacuum cleaner and
disconnect the wand.

Turn the power nozzle over and remove the
bottom plate by first unscrewing the two
bottom plate screws located by the rear
wheels (see diagram 10). Locate and remove
the two top cover screws (see diagram 14).
Turn the power nozzle back over, push the
power nozzle neck flat, and remove the top
cover (see diagram 15). Simply pull the bulb
out (no twisting) and reinsert a factory­authorized bulb. Place the top cover back on
the unit, turn the machine over and re-insert
the two top cover screws. Reinstall the bottom
plate.

Top Cover

Screw

9

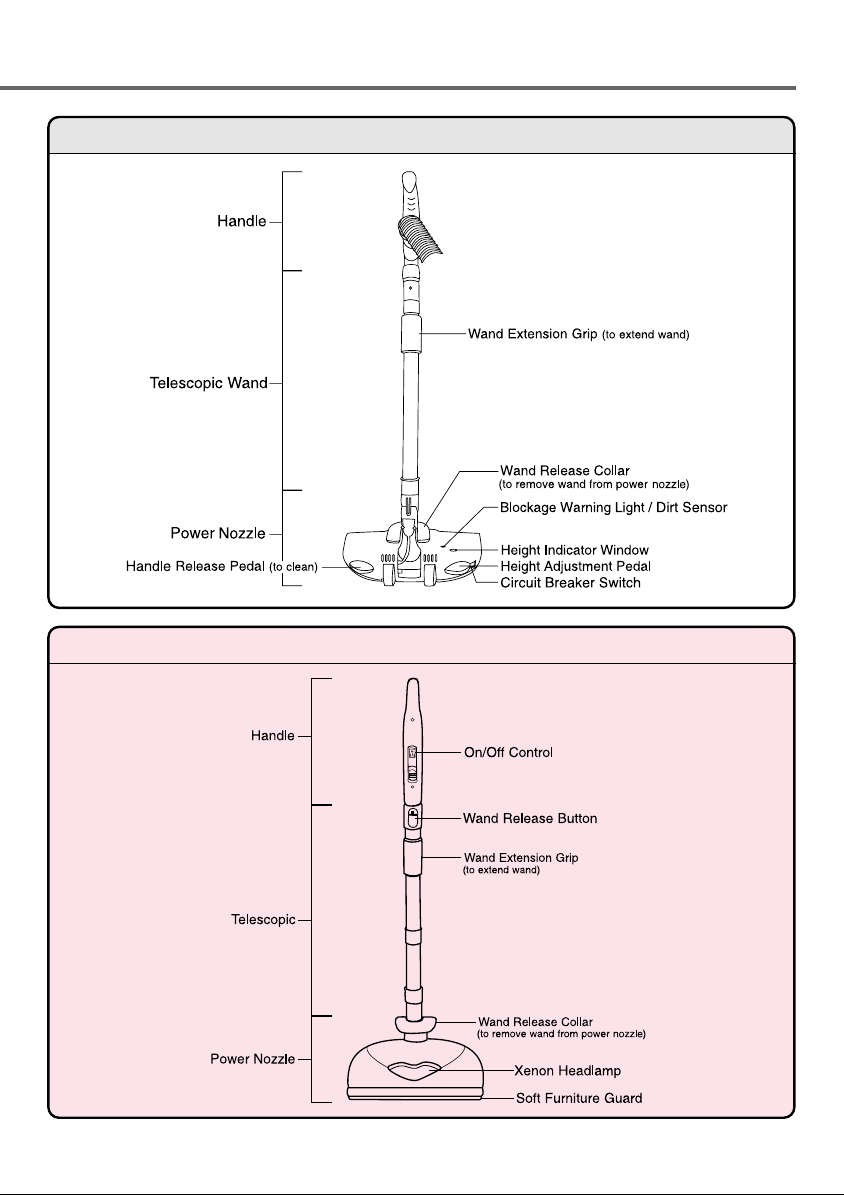

DIAGRAM 1 REAR VIEW OF POWER WAND AND NOZZLE ASSEMBLY

DIAGRAM 2 FRONT VIEW OF POWER WAND AND NOZZLE ASSEMBLY

10

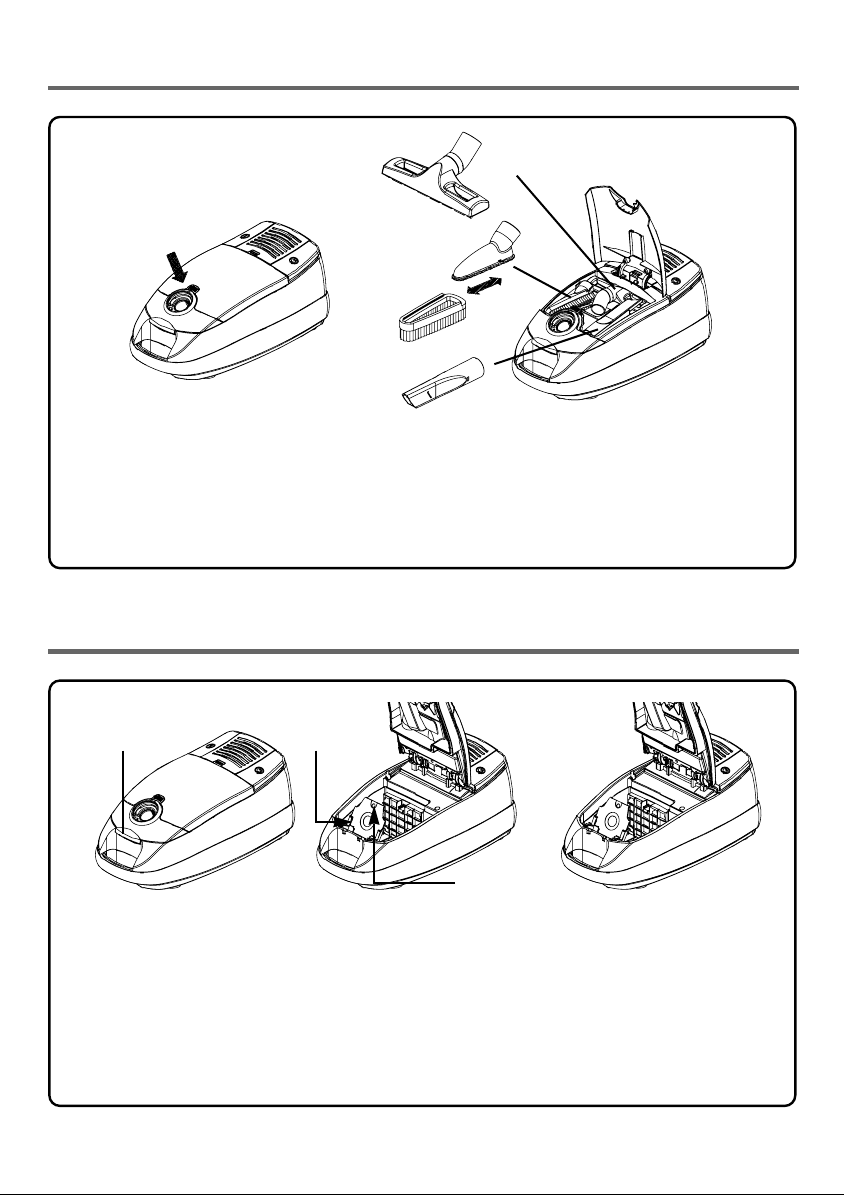

HOW TO USE CLEANING TOOLS

• Open the tool cover lid to access tools.

Tool cover lid
button

• On-board tools can be attached either to the power handle or to the end of the wand.

Floor brush: effective for hard surface cleaning (wood, tile, etc)
Upholstery tool: ideal for cleaning furniture
Dusting brush: (slides off the end of the upholstery tool) for shelves, tables, etc
Crevice: designed to clean in tight spaces (i.e. between sofa cushions)

Upholstery tool

Dusting brush

Crevice tool

Floor brush

REPLACING VACUUM BAG

Dust cover
latch.

Dust bag
holder

Bag collar

• Turn canister off, remove
hose, and open the dust
cover.

NOTE: The "change bag" light is located on the power handle and will light up when either the bag

is full or when a clog is detected in the machine. If upon inspection the bag is not full,
please inspect the hose or wand for a clog and remove.

• Grab the bag collar and pull
the vacuum bag out of the dust
bag holder. Insert new bag.

• Do not re-use vacuum bag.

• Dust cover will not close

without a bag in the unit or if
the bag is not fully inserted.

11

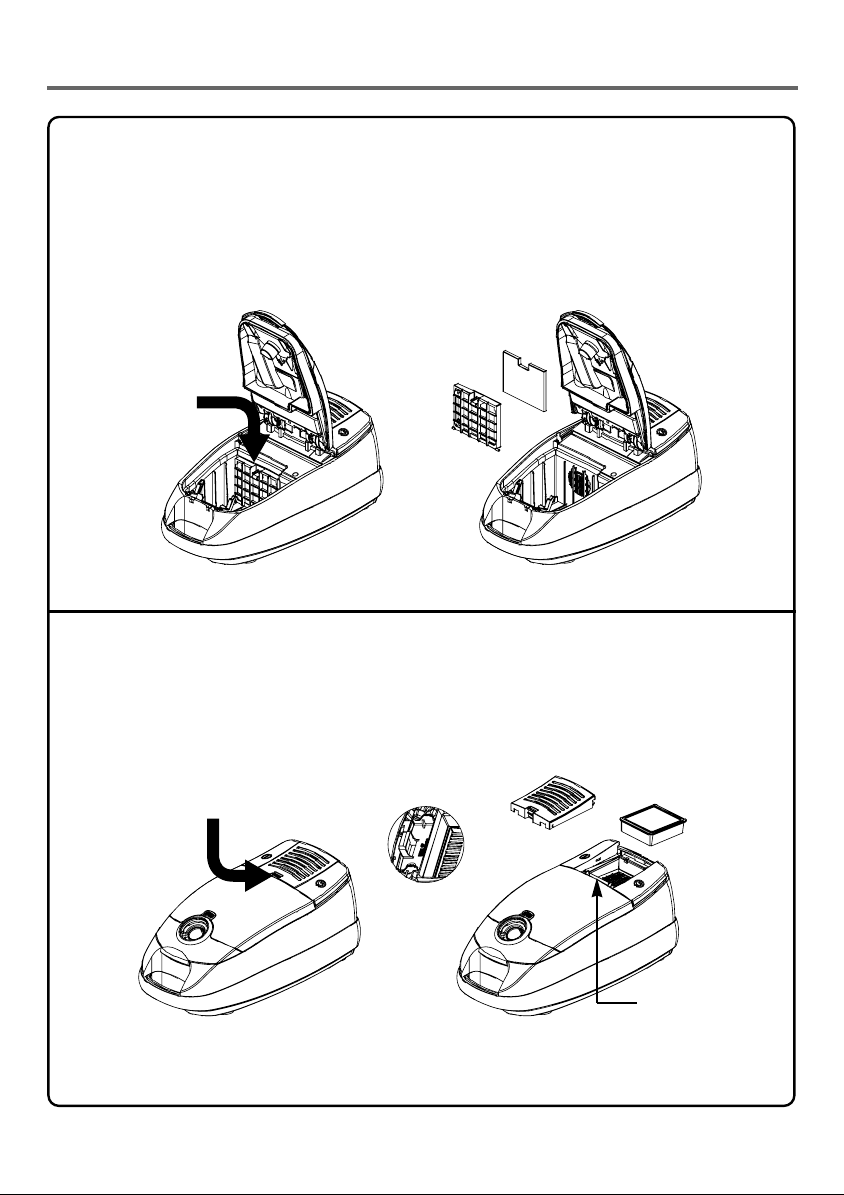

REPLACING THE FILTERS

Replacing the charcoal filter:

• Unplug canister and remove the hose.

• Open the dust cover and locate the charcoal filter behind the bag.

• Remove filter case and discard used filter.

• Insert new charcoal filter into filter case and re-insert case.

• Close the dust cover.

Dust cover lid

Charcoal filter

Charcoal
filter

Filter case

Replacing the S-Class HEPA filter:

• Unplug canister and remove HEPA filter cover.

• Remove and discard used HEPA filter.

• Insert new S-Class HEPA filter.

• Press the "reset filter button" located next to the S-Class HEPA filter.

• Reinsert HEPA filter cover onto the machine.

HEPA filter cover latch

HEPA filter cover

S-Class HEPA filter

Reset Button

NOTE : Change the S-Class HEPA filter when the "service filter" light is illuminated on the power

handle. Genuine S-Class HEPA filters cannot be washed or re-used.

12

SAFETY PRECAUTIONS

This vacuum cleaner should be used for normal dry household dust and dirt.
The manufacturer cannot be held responsible for any damage caused by use or operation of the cleaner
contrary to these instructions.
If the cleaner is wrongly operated for a purpose other than that for which it is intended, no liability can be
accepted for any possible damage.

• Do not vacuum areas which contain moisture
or water, flammable matter, needles, pins, razor
blades, matches, cigarettes, etc., since they
may damage the vacuum or dust bag.

• Make sure a dust bag and a charcoal filter are
always inserted.

• When rewinding the power cord, hold the plug
before pressing the cord rewind button to
prevent the cord from whipping.

• Do not pull the power cord out beyond the red
mark.

RED MARK

• This product is equipped with a polarized
alternating current line plug (a plug having
one blade wider than the other). This plug
fits into the power outlet only one way.
This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact
an electrician to replace the obsolete outlet.
Do not defeat the safety purpose of the
polarized plug.

13

TROUBLESHOOTING GUIDE

■ Please check each item below if you have trouble with your vacuum.
Before checking, ensure that the vacuum is unplugged from the power supply.

Problem

• Suction power is weak.

• The vacuum does not work.

• Power cord does not rewind.

• Power cord won't pull out of

the cleaner.

Check Point

• Dust bag

• Wand or hose

• Is the hose adapter inserted

into the suction opening of the
cleaner completely?

• When the dust bag is full or
blocked or any of the
accessories are blocked, the
over-heating protection for the
motor is activated.

• Power cord

• Power cord

Note

• If dust bag is full, replace it.

• If clogged or blocked, remove

the object.

• Insert it completely.

• Switch off and unplug the

cleaner and check the dust
bag and accessories and
remove any blockages. The
cleaner can be switched on
again after approximately 20
minutes.

• Pull the power cord out a little
and press the cord rewind
button again.

• Do not pull it by force. Rewind
it a little by pressing the cord
rewind button and try pulling it
out again.

SPECIFICATIONS

Model
Rating
Power
Weight
Dimension (L X W X H)
Cord Length

• Specifications can be changed for improvement without notice.
For assistance please visit www.simplicity vac.com or call 1-888-9 Simply

14

120V/60Hz

12 Amps

26.25 Pounds

21.3" x 11.4" x 9.8"
28 feet

S38

ABOUT THIS MANUAL

ABOUT THIS MANUAL

담 당 최전형과장님 TEL

MODEL S38(영)
BUYER Simplicity

1차 6차
2차 7차

일 정 3차 8차

4차 9차

5차 10차
제판 한
규격 148X210

인인쇄쇄 광광주주

MEMO 2004.07.26-신규

VISION CREATIVE, INC.

중구 남대문로 5가 526

대우재단빌딩 16층

연연락락처처

VVIISSIIOONN

TEL: [phone] FAX: [phone]

담담 당당

전지현
