Owner’s Manual

Models: S10S, S10D S10P, S10SAND

www.SimplicityVac.com

Contents

Getting Started

Important Safety Instructions 2

Polarization Instructions 3 State of California Proposition 65 Warnings 3 Description of the Vacuum 4 Assembling the Vacuum 5

Operation

Reclining the Handle 6

On/Off Switch 6 Edge Cleaning 6 Automatic Carpet Height Adjustment 6 Bare Floor Cleaning 6

Maintenance and Care

Power Cord Care 7

Vacuuming Under Furniture 7 Replacing the Vacuum Bag 8 Removing/Reinstalling the Bottom Plate 9 Replacing the Agitator Belt 10 Lifetime Belt Protection 10 Brushroll Jam Indicator 11 Resetting the Circuit Breaker 12 Replacing the Squeegee 12 Annual Checkup 12

Problem Solving Guide

Troubleshooting 13

Visit Simplicity Vacuums Online 13 How to Contact Your Authorized Retailer 13 Key Replacement Parts 13 For Best Performance 13

Warranty 14

IMPoRtAnt sAFetY InstRUCtIons

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE

USING THIS APPLIANCE

The manufacturer cannot accept responsibility for damage

IMPoRtAnt:

To reduce the risk of fire, electric shock or injury:

caused when the appliance is not used according to the instructions, or for uses other than those for which it was intended.

• Do not leave appliance when plugged in.

Unplug from outlet when not in use and before servicing.

• Do not use outdoors or on wet surfaces.

• Do not allow to be used as a toy. Close

attention is necessary when used by or near children.

• Use only as described in this manual.

• Do not use with damaged cord or plug.

If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to your Authorized Simplicity Retailer for service.

• Do not pull or carry by cord, use cord as

a handle, close a door on the cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

• Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with wet hands.

• Do not put any object into openings. Do

not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.

• Keep hair, loose clothing, fingers and all

parts of body away from openings and moving parts.

• Do not pick up anything that is burning or

smoking, such as cigarettes, matches or hot ashes.

• Do not use without vacuum bag in place.

• Turn off all controls before unplugging.

• Use extra care when cleaning on stairs.

• Do not use to pick up flammable or

combustible liquids such as gasoline or use in areas where they may be present.

• Do not attempt to service the unit while

appliance is plugged in.

sAVe tHese InstRUCtIons.

PoLARIZAtIon InstRUCtIons

Power Cord, 2-Wire Polarized Cord

To reduce the risk of electric shock, this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to

cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to

cause birth defects or other reproductive harm.

DesCRIPtIon oF tHe VACUUM

1 Ergonomic Handle

2 On/Off Power Switch

3 Bag Compartment

4 Vacuum Nozzle

5 Headlight

6 Furniture Guard

7 Brushroll Jam Indicator (models S10P and S10SAND only)

8 Circuit Breaker Reset Button (models S10S and S10D only)

9 Handle Release Pedal

10 Quick Release Cord Hook

11 Upper Cord Hook

Attaching the Handle to the Vacuum

DESCRIPTION

DRAWING SIZE:D

PART NUMBER

SHEET 1 OF 1

± .02

± .01

°30" COMMON TO BE CONCETRIC TO .002

TACONY CORPORATION CLAIMS PROPRIETARY

RIGHTS IN THE MATERIAL DISCLOSED HERE IN.

THIS DRAWING IS ISSUED FOR ENGINEERING

INFORMATION ONLY. IT MAY NOT BE REPRO-

DUCED, NOR MAY THE INFORMATION HERE IN

BE USED FOR MANUFACTURING PURPOSES

WITHOUT WRITTEN PERMISSION FROM TACONY

CORPORATION.

DESCRIPTION

DRAWING SIZE:D

PART NUMBER

SHEET 1 OF 1

± .02

± .01

°30" COMMON TO BE CONCETRIC TO .002

TACONY CORPORATION CLAIMS PROPRIETARY

RIGHTS IN THE MATERIAL DISCLOSED HERE IN.

THIS DRAWING IS ISSUED FOR ENGINEERING

INFORMATION ONLY. IT MAY NOT BE REPRO-

DUCED, NOR MAY THE INFORMATION HERE IN

BE USED FOR MANUFACTURING PURPOSES

WITHOUT WRITTEN PERMISSION FROM TACONY

CORPORATION.

DESCRIPTION OF CHANGE

REV

PART NUMBER

SHEET 1 OF 1

2 3 4

NOTE: Do not plug in the vacuum until it is completely assembled.

The vacuum cleaner and the handle are packed separately and require assembly.

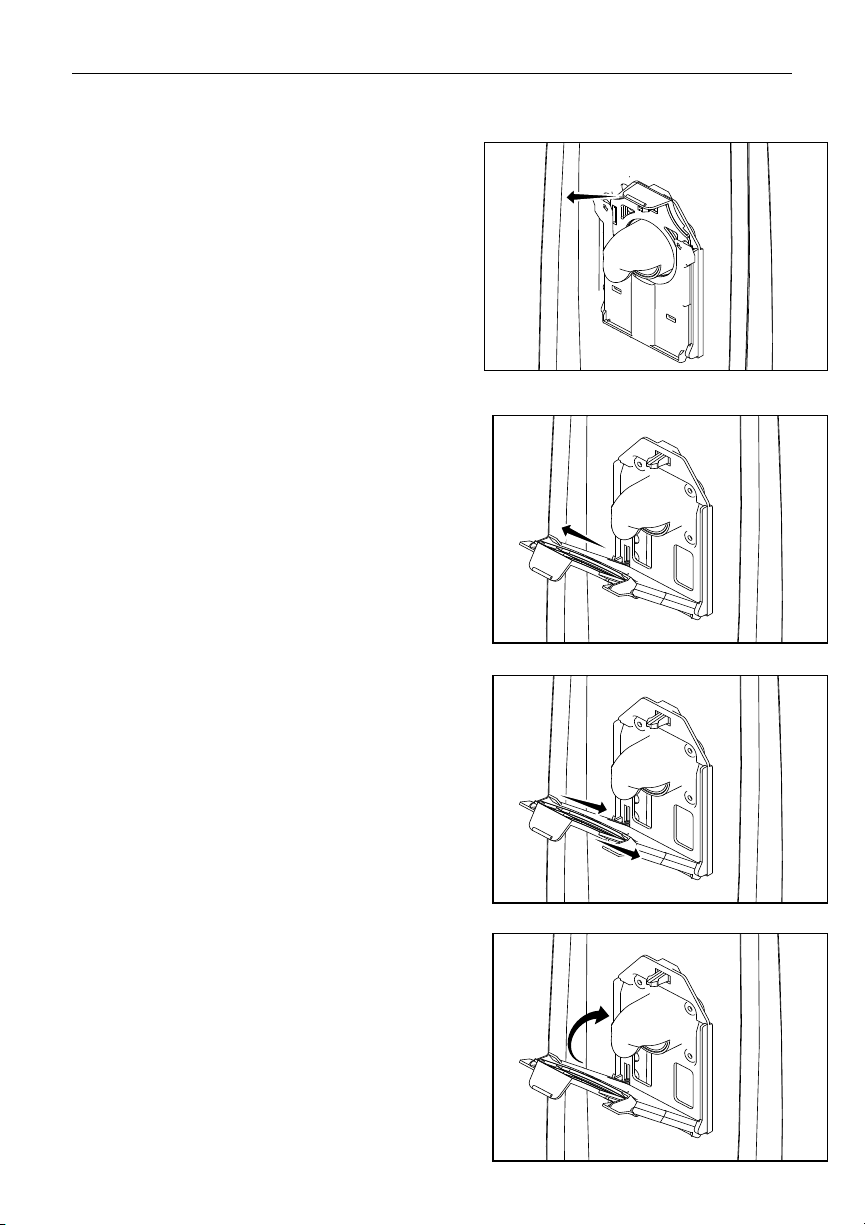

• Thread the cord through the lower and upper cord guides on the back of the vacuum bag (Fig. 1).

• Remove the handle bracket by removing the two screws (Fig. 2).

• Place handle onto the back of the vacuum, aligning holes with pegs (Fig. 3).

• Place the handle bracket back into position (Fig. 4).

• Secure with two screws removed in Step 2.

AsseMbLIng tHe VACUUM

Fig. 1

Fig. 2

• Open the bag compartment to ensure a vacuum bag is in place.

• Your vacuum is now ready for use.

• If storing the vacuum, wrap the cord clockwise

around the top and bottom cord hooks. Fasten the plug to the wrapped cord using the channel on the plug.

Unwinding the Power Cord

• The lower cord hook rotates to allow for quick access to the power cord. Turn the lower cord hook upward and you can quickly drop the power cord to the floor without unwinding it from the cord hooks.

• When storing the vacuum cleaner, turn the lower

cord hook to the downward position and wind the power cord around the cord storage hooks.

Fig. 3

Fig. 4

oPeRAtIon

DESCRIPTION OF CHANGE

REV

PART NUMBER

SHEET 1 OF 1

2 3 4

BYECN NODATEREV

5.000SCALE

DESCRIPTION

DRAWING SIZE:D

PART NUMBER

SHEET 1 OF 1

± .02

± .01

° 30" COMMON TO BE CONCETRIC TO .002

TACONY CORPORATION CLAIMS PROPRIETARY

RIGHTS IN THE MATERIAL DISCLOSED HERE IN.

THIS DRAWING IS ISSUED FOR ENGINEERING

INFORMATION ONLY. IT MAY NOT BE REPRO-

DUCED, NOR MAY THE INFORMATION HERE IN

BE USED FOR MANUFACTURING PURPOSES

WITHOUT WRITTEN PERMISSION FROM TACONY

CORPORATION.

This vacuum is intended for household use only.

Reclining the Handle

• Press the handle release pedal located on the back of the vacuum with your foot to recline the handle (Fig. 1).

On/Off Switch

• The power switch located on the vacuum handle, is a

three-way switch (Fig. 2). The middle position is the “Off” setting, the rear position is the “On” setting and

the forward position is for “Maximum Power” (Fig. 3).

• Use the “Maximum Power” setting for carpet cleaning.

Use the “On” setting for cleaning bare floors and throw rugs. Always turn the vacuum cleaner to the “Off” setting before unplugging it from the electrical outlet.

Edge Cleaning

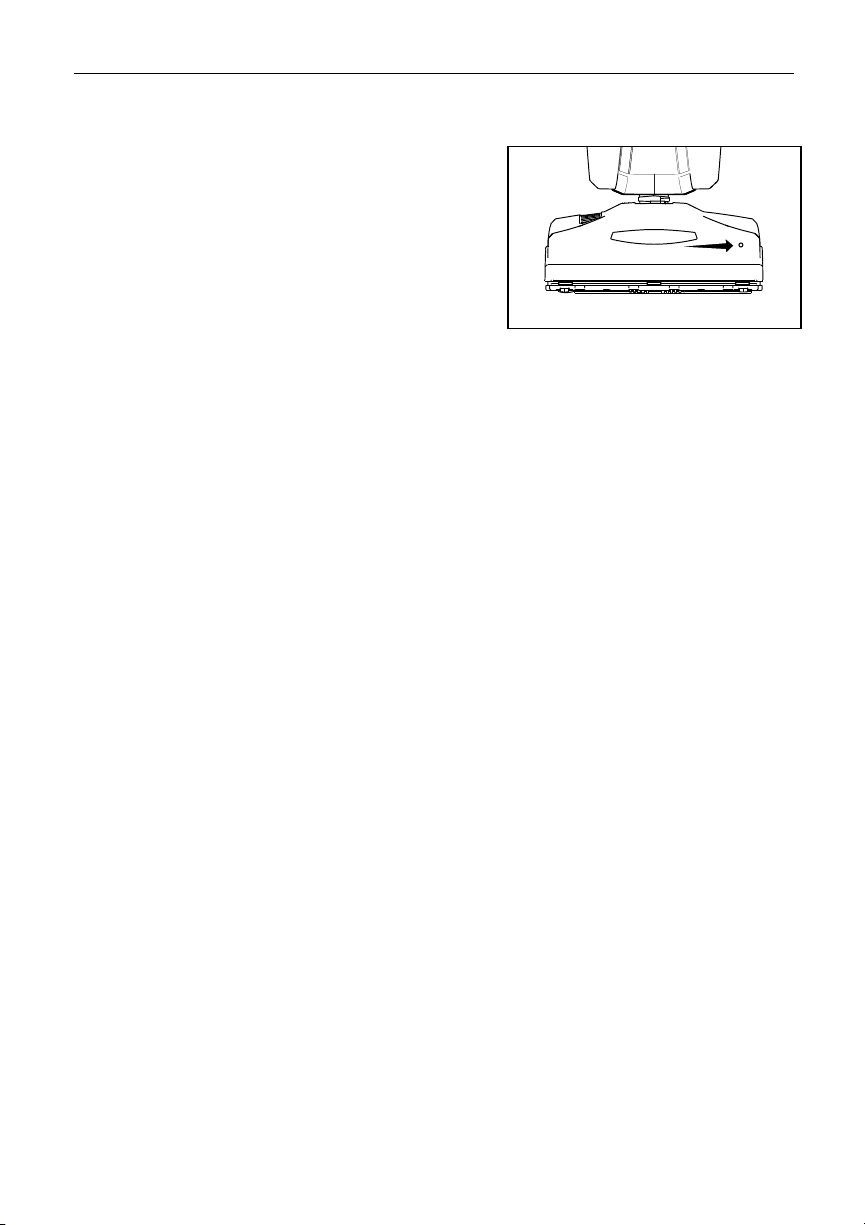

The edge cleaning feature provides improved cleaning

near walls and stationary furniture. For maximum edge

cleaning, place the left side of the nozzle, from the user’s perspective, against the wall or stationary furniture.

Automatic Carpet Height Adjustment

Your vacuum is designed with an automatic selfadjusting nozzle. No manual adjustments are required. The height of the nozzle automatically adjusts to the flooring surface. This self-adjusting feature allows the nozzle to float evenly over all flooring surfaces.

Fig. 1

Fig. 2

OFF

MAX

POWER

Fig. 3

Bare Floor Cleaning

Your vacuum is equipped with a squeegee on the bottom of the vacuum to improve its effectiveness in cleaning

bare floors (Fig. 4). When cleaning tile, hardwood, vinyl,

etc., use the “On” setting for best results.

Fig. 4

Power Cord Care

DESCRIPTION

DRAWING SIZE:D

PART NUMBER

SHEET 1 OF 1

± .02

± .01

°30" COMMON TO BE CONCETRIC TO .002

TACONY CORPORATION CLAIMS PROPRIETARY

RIGHTS IN THE MATERIAL DISCLOSED HERE IN.

THIS DRAWING IS ISSUED FOR ENGINEERING

INFORMATION ONLY. IT MAY NOT BE REPRO-

DUCED, NOR MAY THE INFORMATION HERE IN

BE USED FOR MANUFACTURING PURPOSES

WITHOUT WRITTEN PERMISSION FROM TACONY

CORPORATION.

• If the cord or plug has any apparent damage,

refrain from using the vacuum. Please visit an Authorized Simplicity Retailer for a new cord or plug.

• When the vacuum is in use, hold the cord to

keep from running over it.

• Avoid obstructions and do not pull the cord

around sharp edges or corners.

• Always keep the cord away from heated

surfaces and never close doors on it as this may cause damage to the wiring.

• To unplug, always grasp the plug, not the cord.

Vacuuming Under Furniture

MAIntenAnCe AnD CARe

Your vacuum will lay flat on the floor for effective cleaning under beds and tables.

• Press the handle release pedal once for normal

vacuum cleaning (Fig. 1).

• Continue to lower the handle to enable the

vacuum to lay flat on the floor (Fig. 2).

Fig. 1

Fig. 2

MAIntenAnCe AnD CARe

Replacing the Vacuum Bag

NOTE: Unplug the vacuum cleaner from the electrical outlet before changing the bag.

• Unzip the bag compartment.

• Remove the used vacuum bag by

pulling the green bag collar tab away from the vacuum (Fig. 1). Slide the used bag out of the bag holder which automatically seals the bag opening (Fig. 2). Discard the used bag.

• To install a new bag, slide the bottom of the green bag collar into the bag holder until it “snaps” into place (Fig. 3).

• Push the top of the bag collar

upward until the collar “snaps” into

place on the vacuum (Fig. 4).

Fig. 1

Fig. 2

• Tuck the bag corners into the bag

compartment then zip the bag compartment closed.

Fig. 3

Fig. 4

DESCRIPTION OF CHANGE

REV

PART NUMBER

SHEET 1 OF 1

2 3 4

Removing and Reinstalling the Bottom Plate

WARNING! To Reduce the Risk of Electrical

Shock or Injury From Moving Parts, Unplug Before Servicing or Cleaning.

To Remove the Bottom Plate:

• Press the handle release pedal to place the

vacuum cleaner in the flat position.

• Turn the vacuum cleaner over, exposing the

bottom plate.

• Turn the two screws a quarter turn to release the

bottom plate (Fig. 1). Remove the bottom plate.

MAIntenAnCe AnD CARe

• Reinstall the bottom plate by aligning the front

edge of the bottom plate into the notches inside the nozzle housing (Fig. 2).

• Press the bottom plate into position until the

plate “clicks” on both sides. Tighten the two screws a quarter turn to secure the bottom plate.

Fig. 1

Fig. 2

MAIntenAnCe AnD CARe

Replacing the Agitator Belt

(Models S10S and S10D only)

WARNING! To Reduce the Risk of Electrical Shock or Injury From Moving Parts, Unplug Before Servicing or Cleaning.

NOTE: To ensure maximum cleaning efficiency, the belt should be checked regularly to be sure it is in good condition. Check to see if the belt is stretched,

cracked, or if excessive slipping is

occurring. Replace if needed.

• Remove the bottom plate (see page 9).

• Remove the brushroll and the worn or

broken belt from the brushroll pulley and the motor drive shaft (Fig. 1).

• Loop the new belt around the motor drive shaft and the brushroll (Fig. 2).

Fig. 1

• Reinstall the brushroll into the housing.

Turn the brushroll by hand, making sure the belt is not twisted and all rotating parts move smoothly.

• Reinstall the bottom plate (see page 9).

Lifetime Belt Protection Warranty

(Models S10P and S10SAND only)

Your vacuum belt is covered with a lifetime warranty. Should the vacuum belt break, simply bring your vacuum to your Authorized Simplicity Retailer for a free replacement.

Fig. 2

Brushroll Jam Indicator

(Models S10P and S10SAND only)

If an object, such as a throw rug or article of clothing is ever picked up into your vacuum, the vacuum will sense this “jammed brushroll” condition and turn off the brushroll. When this happens, the Brushroll Jam Indicator light on the top of the nozzle will flash in red.

• Turn off the vacuum and remove the cause of

the jam. Turn the vacuum back on.

• If the brushroll is free of obstructions and the

Brushroll Jam Indicator light is still flashing, it’s likely the clogged condition is located in the vacuum motor fan. If so, please take your Freedom to an Authorized Simplicity Retailer for service.

MAIntenAnCe AnD CARe

Resetting the Circuit Breaker

(Models S10S and S10D only)

WARNING! To Reduce the Risk of Electrical Shock or Injury From Moving Parts, Unplug Before Servicing or Cleaning.

Your vacuum features a circuit breaker to protect the machine against damage due to a surge in the electrical current. Electrical surging can be a result of, though not limited to, a jammed motor fan.

Should your vacuum cleaner experience a jammed brushroll with the circuit breaker tripping, first turn the vacuum off and unplug the unit. Inspect the brushroll by removing the bottom plate (see page 9) and remove any debris that may be causing the jam. Reinstall the

bottom plate (see page 9) and reset the circuit

breaker by pressing the Circuit Breaker Reset Button. Plug in the power cord and turn on the vacuum. If the vacuum fails to turn on, visit an Authorized Simplicity Retailer for assistance.

Replacing the Squeegee

If your squeegee splits or begins to look worn, simply slide the worn squeegee from its track and slide a new one into the track. If you have trouble installing the new squeegee, please visit an Authorized Simplicity Retailer for help.

Circuit Breaker

Reset Button

Annual Checkup

To keep your vacuum in peak operating condition, it is recommended you bring it to an Authorized Simplicity Retailer for an annual checkup. The retailer will conduct a

comprehensive examination to ensure your

vacuum is in top operating condition.

PRobLeM soLVIng gUIDe

Troubleshooting

WARNING! To Reduce the Risk of Electrical Shock or Injury From Moving Parts, Unplug

Before Servicing or Cleaning.

CAUTION! To Reduce the Risk of Electric Shock, Do Not Handle Plug or Appliance with Wet Hands.

PROBLEM

Vacuum won’t turn on

Vacuum won’t pick up or low suction

Dust escaping from vacuum

Any other service should be performed by an Authorized Simplicity Retailer.

To locate your nearest Authorized Simplicity Retailer, visit our website at

www.SimplicityVac.com or call 888.9.SIMPLY.

POSSIBLE REASON

• Power cord not rmly plugged in

• Blown fuse or tripped

breaker

• Needs service

• Vacuum bag full

• Broken belt

• Worn brushroll

• Vacuum bag not installed properly

Key Replacement Parts

• Genuine HEPA Media Vacuum Bags: SLH-6

• Genuine Vacuum Belts: S10B-2

POSSIBLE SOLUTION

• Plug cord in rmly

• Check house fuse or

breaker. Replace fuse/ reset breaker.

• Take to Authorized Simplicity Retailer

• Install new bag

• Replace belt

• Replace brushroll

• Install bag properly.

Review bag installation (page 8).

For Best Performance

• Keep your vacuum clean and in good operating condition.

• Change the vacuum bag once a month or when the bag is 2/3 full to maximize cleaning performance.

• Always use genuine vacuum bags and replacement parts. Use of other products may result in poor

cleaning performance, potential vacuum cleaner damage and may void vacuum warranty. Genuine

products are designed for maximum cleaning performance.

• Have your vacuum checked annually by your Authorized Simplicity Retailer.

• Store your vacuum carefully in a dry area.

• For optimum cleaning performance and safety, follow your owner’s manual instructions.

WARRAntY

What is Covered:

This warranty covers any defects in material and workmanship in your new Simplicity vacuum and applies exclusively to the original purchaser.

How Long Coverage Lasts:

Warranty coverage for S10S and S10D lasts four years. S10P and S10SAND lasts 5 years. Household models used commercially are only warranted for 90 days.

What is Not Covered:

• Damage to the vacuum which occurs from neglect, abuse, alterations, accident, misuse or improper maintenance.

• Normal replacement items: disposable bags, belts (models S10S and S10D only) and light bulbs.

What We Will Do:

This warranty provides, at no cost to you, all labor and parts to keep this vacuum in correct operating condition during the warranted period.

How to Get Service:

Warranty service can only be obtained by presenting the vacuum to an Authorized Simplicity Retailer. A proof-of-purchase and product serial number will be required before service is rendered. To locate your nearest service center, please call 1-888-9-SIMPLY or visit

www.SimplicityVac.com.

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER WARRANTIES WHETHER WRITTEN, ORAL, EXPRESSED OR IMPLIED, (INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE). THIS WARRANTY DISCLAIMS LIABILITY FOR INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

How State Law Applies:

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
