Simplicity Lecacy User Manual

Parts Manual

9

Not for

Reproduction

Lecacy / 2000 / 2900

Series Tractors & Mower Decks

20HP Product

Mfg. No. Description

1692870 Legacy, 20HP V-Twin 1692871 Legacy, 20HP LC Hydro 1693114 Legacy, 20HP V-Twin (CE/Export) 1693118 Legacy, 20HP LC Hydro (CE/Export) 1693124 2020, 20HP V-Twin 1693128 2020LC, 20HP LC Hydro 1693132 2920, 20HP V-Twin 1693136 2920LC, 20HP LC Hydro 1693219 Legacy, 20HP V-Twin 1693220 2920, 20HP V-Twin 1693221 2020, 20HP V-Twin 1693250 Legacy, 20HP V-Twin (CE/Export)

23HP Product

Mfg. No. Description

1693764 Legacy, 23HP V-Twin Tractor 1693769 2023H, 23HP V-Twin Tractor 1693770 2923H, 23HP V-Twin 1693771 Legacy, 23HP V-Twin Tractor (CE/Export)

25HP Product

Mfg. No. Description

1692872 Legacy, 25HP V-Twin 1693116 Legacy, 25HP V-Twin (CE/Export) 1693126 2025, 25HP V-Twin 1693134 2925, 25HP V-Twin

1693561 Legacy, 25HP V Hydro w/Additional Hydraulics (USA & CE) 1693562 2025, 25HP V-Twin Hydro w/Additional Hydraulics 1693563 2925, 25HP V Hydro w/Additional Hydraulics

Mower Decks

Mfg. No. Description

1692863 48" Mower Deck 1693122 48" Mower Deck 1693252 48" Mower Deck (CE/Export) 1694138 48" Mower Deck 1693630 54" Mower Deck 1693632 54" Mower Deck 1693726 54" Mower Deck (CE/Export) 1693728 54" Mower Deck (CE/Export) 1694071 54" Mower Deck (USA & CE) 1692860 60" Mower Deck 1693123 60" Mower Deck 1693253 60" Mower Deck (CE/Export) 1694072 60" Mower Deck 1694073 60" Mower Deck (CE/Export)

173124

Rev.

TP 400-2155-C-LG-SMA

C

Not for

Reproduction

Table Of Content

s

Not for

Reproduction

PRODUCT COMPONENTS PAGES

Frame & Transaxle Group ...................................................................................................................................

Front Axle & Steering Group ................................................................................................................................

Hydraulic Steering Unit - SERVICE PARTS ........................................................................................................

Engine Group - Air Cooled Models ......................................................................................................................

Engine Group - Liquid Cooled Models .................................................................................................................

Drive Shaft - SERVICE PARTS ...........................................................................................................................

Drive Shaft, Throttle, Choke & Seal - Air Cooled Models ....................................................................................

Drive Shaft, Throttle, Choke & Seal - Liquid Cooled Models ...............................................................................

Front PTO Group .................................................................................................................................................

Hydraulic Group ...................................................................................................................................................

Hydraulics Group - Auxiliary Lift - Diagram 2 ......................................................................................................

Hydraulics Group - Auxiliary Lift ...........................................................................................................................

Gearbox - SERVICE PARTS ...............................................................................................................................

Axle Housing SERVICE PARTS - Peerless Model 2650-007 .............................................................................

Transaxle SERVICE PARTS - Peerless Model 2600-025 ...................................................................................

Brake Control & Parking Brake Group .................................................................................................................

Foot Control, Cruise & Differential Lock Group ...................................................................................................

Two Speed Control Group ...................................................................................................................................

Electrical Group - Lower Harness - All Models ....................................................................................................

Electrical Group - Main Harness - Air Cooled Model s .............................. ...........................................................

Electrical Group - Main Harness - Liquid Cooled Models ....................................................................................

Hood, Dash & Footrest Group .............................................................................................................................

Seat & Deck Group .............................................................................................................

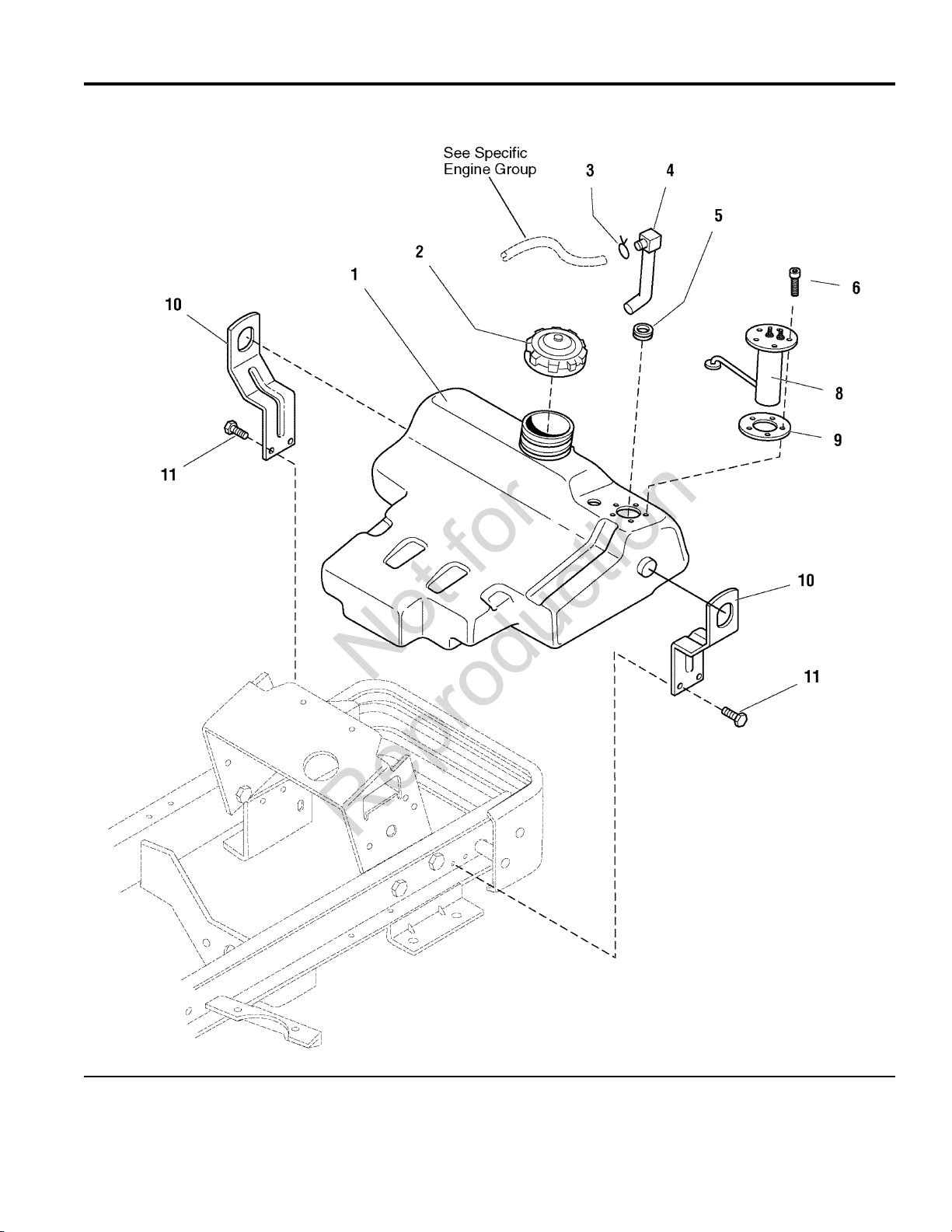

Fu

el Tank Group ..................................................................................................................................................

Implement Lift Group ............................................................................................................................................

Wheels & Tires Group ..........................................................................................................................................

Decals Group - Brand & Model ............................................................................................................................

Decals Group - Safety & Common ......................................................................................................................

Heat Shield Group ................................................................................................................................................

Hydrostatic Pump - SERVICE PARTS ................................................................................................................

Tilt Assembly - SERVICE PARTS ........................................................................................................................

48" Mower Deck - Baffle & Inner Roller Group ....................................................................................................

48" Mower Deck - Baffles (Export Models) ..........................................................................................................

48" Mower Deck - Deflector & Stone Guard Group .............................................................................................

48" Mower Deck - Drive, Belt, Arbor & Blade Group ...........................................................................................

48" Mower Deck - Height Adjust & Hitch Group ..................................................................................................

48" Mower Deck - Housing, Cover & Gauge Wheel Group .................................................................................

48" Mower Deck - Roller Bar Group - (Serial No. 1 to 59999) ............................................................................

48" Mower Deck - Roller Bar Group - (Serial No. 60000 and above) .................................................................

54" Mower Deck - Drive, Belt, Arbor & Blade Group ...........................................................................................

54" Mower Deck - Height Adjust & Hitch Group ..................................................................................................

54" Mower Deck - Housing, Cover & Gauge Wheel Group .................................................................................

54" Mower Deck - Roller Bar Group ....................................................................................................................

60" Mower Deck - Baffle & Inner Roller Group ....................................................................................................

60" Mower Deck - Baffles (Export Models) ..........................................................................................................

60" Mower Deck - Deflector & Stone Guard Gro

60" Mower Deck - Drive, Belt, Arbor & Blade Group ...........................................................................................

60" Mower Deck - Height Adjust & Hitch Group ..................................................................................................

up .............................................................................................

.................................

12 14 18 22 24 26 28 30 32 34 36 38 40 42 46 50 54 56 58 60 62 64 66 68 70 72 74 76 78 82 84 86 88 90 94

98 100 102 106 110 112 114 116 118 120 122 126

4 8

Frame & Transaxle Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985115

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

4

TP 400-2155-C-LG-SMA

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

Frame & Transaxle Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

FRONT BUMPER ASSEMBLY 1 1718478SM 1 CARRIAGE BOLT, 3/8-16 x 1-1/4 2 1960268SM 4 LOCKWASHER, 3/8 3 1916965SM 12 NUT, Hex, Full, 3/8-16 4 1916950SM 4 FRAME ASSEMBLY 5 1715248SM 1 CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4 6 1664847SM 6 TOWER ASSEMBLY, Steering 7 1716293SM 1 SUPPORT, Seat Deck 8 1715938SM 1 REAR BUMPER ASSEMBLY 9 1686884SM 1 CARRIAGE BOLT, (Short Neck) 5/16-18 x 2 10 1931339SM 4 NUT, Flange Lock, 5/16-18 11 1927557SM 4 CAPSCREW, Hex Head, 1/2-13 x 1-1/2 12 1920328SM 4 LOCKWASHER, 1/2 13 1916966SM 18 SPACER, RR Bumper 14 1717095SM 4 CAPSCREW, Taptite, 5/16-18 x .62 15 1930601SM 4 CAPSCREW, Hex Head, 1/2-13 x 1-1/4 16 1921176SM 1 CAP, Oil Fill 17 1720529SM 1 TUBE, Oil Fill 18 1716498SM 1 HOSE, Fluid Level 19 1717065SM 1 CLAMP, SAE #6 20 2829301SM 2 FITTING, Elbow 21 1675793SM 2 CAPSCREW, Hex Head, 1/2-13 x 1-1/2 22 1920328SM 12 KEY, 5/16 x 5/16 x 2-1/2 23 2820456SM 2 PLATE, Bearing Retainer 24 1715935SM 2 CAPSCREW, Hex Head, 3/8-16 x 5/8 25 1922586SM 8 HUB ASSEMBLY, Rear (Includes Studs) 26 1715423SM 2 CAPSCREW, Hex Head, 1/2-13 x 2 27 1921024SM 4 CAPSCREW, 5/8-11 x 1-1/4 28 1923151SM 4 LOCKWASHER, 5/16 29 1917373SM 4 DRAWBAR 30 1674422SM 1 PEERLESS HOUSING ASSEMBLY, Axle (See Axle Housing Service Parts ) 31 * 2 SPACER, Axle 32 1674417SM 2 **TRANSAXLE, 2 Speed (See Transaxle Service Parts ) 33 ** 1 SPACER, Mounting 34 1960233SM 4 GEAR, Bevel 35 1674418SM 1 CAPSCREW, Hex Head., 3/8-16 x 4 36 1922648SM 4 FILTER, Oil 37 1650954SM 1 ***HYDROSTATIC PUMP 38 1717052SM 1 RING, Retaining #62 39 2827103SM 1 O" RING 40 2824135SM 1

Footnotes

Note* See Service Parts for REFERENCE Transaxle Service Parts- Peerless Model 2650-007 Note** See Service Parts for REFERENCE Transaxle Service Parts- Peerless Model 2600-025

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

5

TP 400-2155-C-LG-SMA

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

Frame & Transaxle Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985115

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

6

TP 400-2155-C-LG-SMA

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

Frame & Transaxle Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

SET SCREW, 1/4-20 x 5/16 41 1930545SM 1 SHAFT & HUB, Fan 42 1716256SM 1 FAN 43 1700814SM 1 WASHER, 1/4 44 1921319SM 1 LOCKWASHER, Dished, 1/4 45 1931704SM 1 LOCKWASHER, 1/4 46 1916964SM 1 CAPSCREW, 1/4-20 x 7/8 47 1924009SM 1

Footnotes

Note* See Service Parts for REFERENCE Transaxle Service Parts- Peerless Model 2650-007 Note** See Service Parts for REFERENCE Transaxle Service Parts- Peerless Model 2600-025

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

7

TP 400-2155-C-LG-SMA

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

Front Axle & Steering Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985120

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

8

TP 400-2155-C-LG-SMA

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

Front Axle & Steering Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

CAP, Steering 1 1715920SM 1 NUT, Hex, 5/8-18 2 1960576SM 1 WASHER, 5/8 3 1924366SM 1 WHEEL ASSEMBLY, Steering 4 1715919SM 1 BOOT, Tilt 5 1716259SM 1 KEY, Woodruff, 3/16 x 3/4 6 2805123SM 1 NUT, Flange Lock, 1/4-20 7 1960294SM 4 TILT ASSEMBLY (See Tilt Assembly Service Parts ) 8 1716258SM 1 CAPSCREW, M06-1 x 16mm 9 2860444SM 4 LOCKWASHER, 1/4 10 1916964SM 4 ADAPTER, Tilt 11 1716260SM 1 STEERING UNIT, Hydraulic (See Hydraulic Steering Unit Service Parts ) 12 1716257SM 1 FITTING, Hydraulic 13 2831230SM 1 FITTING, Hydraulic 14 2822522SM 3 HOSE ASSEMBLY, Steering, 30" Long 15 1716323SM 1 HOSE ASSEMBLY, Steering, 40" Long 16 1716322SM 1 WASHER, Plain, 21/32 x 1-1/4 17 1960020SM 1 RING, Retaining #62 18 2827793SM 1 CYLINDER, Steering 19 1686926SM 1

20 1685444SM -

SEAL KIT, Steering Cylinder (Includes Rod Seal, Washer, Retaining Ring, Wiper & Spacer) ( Not Shown)

NUT, Hex, Jam, 3/4-16 21 1922015SM 1 WASHER, Plain, 3/4 x 1 22 1960114SM 1 RING, Retaining #75 23 2827732SM 1 BALL JOINT ASSEMBLY 24 1717589SM 1 CAPSCREW, Hex Head, 3/8-16 x .88 25 2823485SM 1 WASHER, Spring 26 1663151SM 1 SPACER, .766 x 1.00 x .62 27 1679556SM 1 HUB ASSEMBLY, Steering 28 1722265ASM 1 KEY, Hi-Pro 29 2830671SM 1 BUSHING, Bronze Spindle, .98 x 1.111 30 1715767SM 4 NUT, Flange Lock, 1/2-13 31 1930644SM 2 FRONT AXLE 32 1715264SM 1 WASHER, 1.00 33 1919394SM 3 SPINDLE ASSEMBLY, RH 34 1715310ASM 1 NUT, Hex, Flange Lock 7/16-14 35 1930650SM 2 SPACER, .453 x 3/4 x .39 36 1716953SM 2 CARRIAGE BOLT, 7/16-14 x 1-1/4 37 1960135SM 2 TIE ROD 38 1715313SM 1 SPINDLE ASSEMBLY, LH 39 1715309ASM 1 FITTING, Grease 40 1704314SM 3

Footnotes

Note* See Service Parts for Hydraulic Steering Unit - SERVICE PARTS Note* See Service Parts for Tilt Assembly - SERVICE PARTS

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

9

TP 400-2155-C-LG-SMA

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

Front Axle & Steering Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985120

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

10

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Front Axle & Steering Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

RING, Retaining #98 41 2832577SM 1 SPACER, Tube Axle 42 1715762SM 2 WASHER, 1/2 43 1924361SM 2 CAPSCREW, Hex Head, 1/2-13 x 3-1/2 44 1960286SM 2 SPACER, Axle Pivot 45 1687103SM 1 TIE 46 1701011SM 2

Footnotes

Note* See Service Parts for Hydraulic Steering Unit - SERVICE PARTS Note* See Service Parts for Tilt Assembly - SERVICE PARTS

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

11

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Hydraulic Steering Unit - SERVICE PARTS

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1716257

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

12

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Hydraulic Steering Unit - SERVICE PARTS

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

CAPSCREW 1 1718713SM 7 CAP, End 2 1718714SM 1 SEAL, O-ring 3 1718715SM 3 SEAL 4 1718716SM 1 O-RING 5 1718717SM 1 GEROTOR 6 1718718SM 1 SPACER 7 1718719SM 1 DRIVE (Includes Sleeve & Spool) 8 1718720SM 1 PLATE, Wear 9 1718721SM 1 SEAL, Dust 10 1718722SM 1 BALL 11 1718723SM 1 KIT, Plug & O-ring, (Includes Plug & O-ring Seal) 12 1718724SM 1 SEAL, Quad 13 1718725SM 1 KIT, Bearing (Includes Bearing & Bearing Races) 14 1718726SM 1 KIT, Centering Spring (Includes Spring Spacer, Center Spring & Spring Retaining Ring) 15 1718727SM 1 RETAINING RING, External 16 1718728SM 1 PIN 17 1718729SM 1 SEAL KIT (Includes all seals & O-rings above) 18 1718730SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

13

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Engine Group - Air Cooled Models

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

E985755

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692872 - Legacy 1693114 - Le 1693116 - Legac 1693124 - 2020 1693126 - 2025

2009

1693132 - 2920 1693134 - 2925 1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Legacy

14

1693561 - Le 1693562 - 2025 1693563 - 2925 1693764 - Le 1693769 - 2023H 1693770 - 2923H

1693771 - Le

TP 400-2155-C-LG-SMA

Engine Group - Air Cooled Models

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

BELT, P.T.O. (Matched Set of 2 Belts) 1 1716996SM 1 CAPSCREW, Hex Head, 7/16-2 x 3.25 2 1960351SM 1 LOCKWASHER, 7/16 3 1918199SM 4 WASHER, Hex, 7/16 4 1708264SM 1 FAN, Electric Clutch 5 1717070SM 1 SPACER, Clutch Fan 6 1717525SM 1 ELECTRIC CLUTCH 7 1686881SM 1 SPACER, Clutch 8 1717526SM 1 KEY 9 2154096SM 1 CAPSCREW, Hex Head, 3/8-16 x 5/8 10 1922586SM 1 LOCKWASHER, 3/8 11 1916965SM 5 SHIELD, Heat (Early models only) 12 1717608ASM 1 CAPSCREW, Hex Head, 7/16-14 x 1 13 1920676SM 2 MUFFLER 14 1719787SM 1 NUT, Hex 15 * 4 HEAT SHIELD 16 1708873ASM 1 CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2 17 1924856SM 2 GASKET, Exhaust Manifold 18 * 2 ENGINE, 23HP Kohler 19 * 1 ENGINE, 20HP Kohler 19 * 1 ENGINE, 25HP Kohler 19 * 1 NUT, Hex Nylon 1/4-20 20 1920397SM 1 WASHER, 1/4 21 1921319SM 2 CAPSCREW, Hex Head (Engine Bolt) 22 * 1 EDGING, Side 12.5 Lg 23 1717496SM 2 GROMMET (Early models only) 24 1704862SM 2 CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4 25 1664847SM 4 EDGING, Top 18 Lg 26 1717588SM 1 CAPSCREW, Hex Head, 1/4-20 x 3/4 27 1923341SM 1 SHIELD, Firewall 28 1717505SM 1 ANGLE BRACKET 29 2108186SM 1 HOSE, Fuel 60-1/2 Lg 30 1718678SM 1 CLAMP, Hose 31 2860112SM 2 FUEL FILTER 32 2173206SM 1 NIPPLE, Pipe 3/8 x 1-1/4 33 1717530SM 1 ELBOW, 3/8 34 1717529SM 1 VALVE, Shut Off 35 1717473SM 1 L-BOLT, 3/8-16 x 1.75 36 1717000SM 4 WASHER, 3/8 37 1918266SM 2 NUT, Hex Full 3/8-16 38 1916950SM 4

Footnotes

Note* See your local Kohler distributor for service parts.

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692872 - Legacy 1693114 - Le 1693116 - Legac 1693124 - 2020 1693126 - 2025

2009

1693132 - 2920 1693134 - 2925 1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Legacy

15

1693561 - Le 1693562 - 2025 1693563 - 2925 1693764 - Le 1693769 - 2023H 1693770 - 2923H

1693771 - Le

TP 400-2155-C-LG-SMA

Engine Group - Air Cooled Models

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

E985755

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692872 - Legacy 1693114 - Le 1693116 - Legac 1693124 - 2020 1693126 - 2025

2009

1693132 - 2920 1693134 - 2925 1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Legacy

16

1693561 - Le 1693562 - 2025 1693563 - 2925 1693764 - Le 1693769 - 2023H 1693770 - 2923H

1693771 - Le

TP 400-2155-C-LG-SMA

Engine Group - Air Cooled Models

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

ROD, Anti Rotation 39 1717527SM 1 CLAMP 40 1712286SM 1 ELBOW, Exhaust 41 1719788SM 1 WASHER, 5/16 42 1960044SM 2

Footnotes

Note* See your local Kohler distributor for service parts.

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692872 - Legacy 1693114 - Le 1693116 - Legac 1693124 - 2020 1693126 - 2025

2009

1693132 - 2920 1693134 - 2925 1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Legacy

17

1693561 - Le 1693562 - 2025 1693563 - 2925 1693764 - Le 1693769 - 2023H 1693770 - 2923H

1693771 - Le

TP 400-2155-C-LG-SMA

Engine Group - Liquid Cooled Models

y

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

E985113

The above parts group applies to the following Mfg. Nos.:

1692871 - Legac 1693118 - Legacy 1693128 - 2020LC 1693136 - 2920LC

2009

18

TP 400-2155-C-LG-SMA

Engine Group - Liquid Cooled Models

y

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

BELT, P.T.O. (Matched Set of 2 Belts) 1 1716995SM 1 CAPSCREW, Hex Head, M10-1.5 x 80mm 2 1960582SM 1 LOCKWASHER, 7/16 3 1918199SM 1 WASHER, Hex, 7/16 4 1708264SM 1 FAN, Electric Clutch 5 1717070SM 1 SPACER, Clutch Fan 6 1717525SM 1 ELECTRIC CLUTCH 7 1686881SM 1 SPACER, Clutch 8 1717526SM 1 KEY 9 2154096SM 1 MUFFLER 10 1716918SM 1 CAPSCREW, Hex Head, M8 - 1.25 x 20mm 11 1950018SM 2 LOCKWASHER, 5/16 12 1917356SM 9 NUT, Hex Flange Lock, M6 13 1960525SM 4 HEAT SHIELD 14 1708873ASM 1 CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2 15 1924856SM 2 GASKET, Exhaust Manifold 16 * 2 ENGINE, 20HP Kawasaki 17 * 1 CLAMP, Hose 18 2860112SM 6 HOSE, Fuel, 60-1/2 Lg (cut to length of 21-3/4) 19 1718678SM 1 CAPSCREW, Hex Head, Taptite, 1/4-20 x 3/8 20 1929000SM 2 FUEL PUMP 21 * 1 HOSE, Fuel, 60-1/2 Lg (cut to length of 51) 22 1718678SM 1 FUEL FILTER 23 2173206SM 1 HOSE, Fuel, 60-1/2 Lg (cut to length of 12) 24 1718678SM 1 TIE 25 1701011SM 2 EDGING, Side 12.5 26 1717496SM 2 GROMMET 27 1704862SM 2 SHIELD, RH 28 1717494SM 1 CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4 29 1664847SM 6 NUT, PAL, 1/4-20 30 1960368SM 2 EDGING, Top 9 31 1717519SM 2 SHIELD, Upper 32 1717495SM 1 CAPSCREW, Hex Head, 1/4-20 x 3/4 33 1923341SM 2 DECAL, Radiator 34 1717596SM 1 SCREEN ASSEMBLY 35 1717501SM 1 SEAL, Radiator 36 1717534SM 1 NUT, Whizlock,1/4-20 37 1930641SM 2 SHIELD, LH 38 1717493SM 1 CAPSCREW, Hex Head, 1/4-20 x 1 39 1921960SM 2 WASHER, 1/4 40 1921319SM 2

Footnotes

Note* See your local Kawasaki distributor for service parts.

The above parts group applies to the following Mfg. Nos.:

1692871 - Legac 1693118 - Legacy 1693128 - 2020LC 1693136 - 2920LC

2009

19

TP 400-2155-C-LG-SMA

Engine Group - Liquid Cooled Models

y

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

E985113

The above parts group applies to the following Mfg. Nos.:

1692871 - Legac 1693118 - Legacy 1693128 - 2020LC 1693136 - 2920LC

2009

20

TP 400-2155-C-LG-SMA

Engine Group - Liquid Cooled Models

y

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

VOLTAGE REGULATOR 41 * 1 HOSE, Air Inlet 42 1717489SM 1 HOSE CLAMP 43 * 1 CAPSCREW, Hex Head, 8mm x 25 44 1960347SM 4 VALVE, Oil Drain 45 1715649SM 1 HOSE ASSEMBLY, Return 46 1716321SM 1 ROD, Anti Rotation 47 1717527SM 1 CAPSCREW, Hex Head, 3/8-16 x 1 48 1921210SM 1 SPACER 49 1650506SM 1

Footnotes

Note* See your local Kawasaki distributor for service parts.

The above parts group applies to the following Mfg. Nos.:

1692871 - Legac 1693118 - Legacy 1693128 - 2020LC 1693136 - 2920LC

2009

21

TP 400-2155-C-LG-SMA

Drive Shaft - SERVICE PARTS

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1716482

The above parts group applies to the following Mfg. Nos.:

1692860 - 60" Mower 1692863 - 48" Mower 1693122 - 48" Mower 1693123 - 60" Mower 1693252 - 48" Mower 1693253 - 60" Mower

2009

1693630 - 54" Mower 1693632 - 54" Mower 1693726 - 54" Mower 1693728 - 54" Mower 1694071 - 54" Mower 1694072 - 60" Mower

22

1694073 - 60" Mower 1694138 - 48" Mower

TP 400-2155-C-LG-SMA

Drive Shaft - SERVICE PARTS

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

SPRING LOCK REPAIR KIT (Neapco) 1 1686603SM 1 SPRING LOCK REPAIR KIT (Weasler) 1 1718475SM 1 YOKE ASSEMBLY (Neapco) 2* 1 YOKE ASSEMBLY (Weasler) 2 1709350SM 1 CROSS & BEARING KIT (Neapco) 3 1678805SM 2 CROSS & BEARING KIT (Weasler) 3 1679003SM 2 YOKE & TUBE ASSEMBLY 4* 1 DRIVE SHAFT, Complete 4 1716482SM 1 YOKE (Weasler) 5 2178527 1 YOKE (Neapco) 5 1678807SM 1

Footnotes

Note* Replace with Complete Drive Shaft P/N 1716482.

The above parts group applies to the following Mfg. Nos.:

1692860 - 60" Mower 1692863 - 48" Mower 1693122 - 48" Mower 1693123 - 60" Mower 1693252 - 48" Mower 1693253 - 60" Mower

2009

1693630 - 54" Mower 1693632 - 54" Mower 1693726 - 54" Mower 1693728 - 54" Mower 1694071 - 54" Mower 1694072 - 60" Mower

23

1694073 - 60" Mower 1694138 - 48" Mower

TP 400-2155-C-LG-SMA

Drive Shaft, Throttle, Choke & Seal - Air Cooled Models

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

ED85755

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692872 - Legacy 1693114 - Le 1693116 - Legac 1693124 - 2020 1693126 - 2025

2009

1693132 - 2920 1693134 - 2925 1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Legacy

24

1693561 - Le 1693562 - 2025 1693563 - 2925 1693764 - Le 1693769 - 2023H 1693770 - 2923H

1693771 - Le

TP 400-2155-C-LG-SMA

Drive Shaft, Throttle, Choke & Seal - Air Cooled Models

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

CONTROL, Throttle 1 1687184SM 1 CAPSCREW, Plastite 2 1960578SM 2 KNOB, Throttle 3 1715897SM 1 KNOB, Choke 4 1716247SM 1 NUT, Hex, #10-24 5 1960591SM 1 CONTROL, Choke 6 1716328SM 1 TIE 7 1701011SM 1 DRIVESHAFT ASSEMBLY (Includes Ref. Nos. 9-12) 8 1716233SM 1 YOKE 9 1709049SM 1 CROSS & BEARING KIT 10 1679003SM 2 YOKE & TUBE ASSEMBLY 11 1716233SM 1 YOKE & FLANGE ASSEMBLY 12 1709048SM 1 SCREW, Socket Head. M8 x 1.75 x 20mm 13 1960407SM 4 LOCKWASHER, Internal Tooth 14 1923300SM 4 SEAL, RH Tunnel 15 1717535SM 1 SEAL, Rear Tunnel 16 1717531SM 1 SEAL, LH Tunnel 17 1717532SM 1 SEAL, Driveshaft 18 1717488SM 2 CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4 19 1664847SM 4 WASHER, .34 ID x .69 OD x .06 20 1918265SM 2 SHIELD, Drive Shaft 21 1719336SM 1 SHIELD, Air, Driveline 22 1716935SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692872 - Legacy 1693114 - Le 1693116 - Legac 1693124 - 2020 1693126 - 2025

2009

1693132 - 2920 1693134 - 2925 1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Legacy

25

1693561 - Le 1693562 - 2025 1693563 - 2925 1693764 - Le 1693769 - 2023H 1693770 - 2923H

1693771 - Le

TP 400-2155-C-LG-SMA

Drive Shaft, Throttle, Choke & Seal - Liquid Cooled Models

y

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

ED85113

The above parts group applies to the following Mfg. Nos.:

1692871 - Legac 1693118 - Legacy 1693128 - 2020LC 1693136 - 2920LC

2009

26

TP 400-2155-C-LG-SMA

Drive Shaft, Throttle, Choke & Seal - Liquid Cooled Models

y

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

CONTROL, Throttle 1 1687184SM 1 CAPSCREW, Plastite 2 1960578SM 2 KNOB, Throttle 3 1715897SM 1 KNOB, Choke 4 1716247SM 1 NUT, Hex, #10-24 5 1960591SM 1 CONTROL, Choke 6 1716328SM 1 TIE 7 1701011SM 1 DRIVE SHAFT ASSEMBLY (Includes Ref. Nos. 9-12 ) 8 1716446SM 1 YOKE 9 1709049SM 1 CROSS & BEARING KIT 10 1679003SM 2 YOKE & TUBE ASSEMBLY (Must order complete assembly) 11 * 1 YOKE & FLANGE ASSEMBLY 12 1717044 1 SCREW, Socket Head, M8 x 1.25 x 50mm 13 1960573SM 4 LOCKWASHER, Internal Tooth 14 1917356SM 3 SEAL, RH Tunnel 15 1717533SM 1 SEAL, Rear Tunnel 16 1717531SM 1 SEAL, LH Tunnel 17 1717532SM 1

Footnotes

* Yoke Assembly not serviced seperately, must order complete drive shaft assembly Ref. No. 8.

The above parts group applies to the following Mfg. Nos.:

1692871 - Legac 1693118 - Legacy 1693128 - 2020LC 1693136 - 2920LC

2009

27

TP 400-2155-C-LG-SMA

Front PTO Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985116

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

28

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Front PTO Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

COVER, P.T.O. Shaft 1 1717632SM 1 RING, Retaining, 1.00 2 2832577SM 2 WASHER, 1.0 3 1960201SM 1 BEARING, Ball 4 1715419SM 2 NUT, Hex, Full, 5/16-18 5 1917372SM 4 LOCKWASHER, 5/16 6 1917356SM 4 CARRIAGE BOLT, 5/16-18 x 7/8 7 1931334SM 4 NUT, Push, Used for initial assembly only, Discard During Service. 8 1933988SM 4 PIN, 1/2 x 12 9 1715872SM 1 GUARD PLATE, P.T.O. 10 1716975SM 1 SHAFT, P.T.O. 11 1715314SM 1 PULLEY, P.T.O., Double 12 1716476SM 1 KEY, Hi Pro, 3/4 Dia. 13 2830671SM 1 NUT, Hex, Full, 3/8-16 14 1916950SM 2 LOCKWASHER, 3/8 15 1916965SM 2 WASHER, 13/32 16 1924940SM 3 BUSHING, 41/64 x 3/4 x 1/2 17 2176444SM 2 ARM ASSEMBLY, Idler 18 1717047SM 1 SPACER, 25/64 x 5/8 x 1-1/2 19 1669105SM 1 NUT, Push, 3/8 20 1931942SM 1 HAIRPIN, Cotter 21 1960098SM 1 CARRIAGE BOLT, 3/8-16 x 2-1/4 22 1931355SM 1 NUT, Hex, Flange Lock, 3/8-16 23 1960339SM 1 SPRING, Tension 24 1608395SM 1 SPACER, 25/64 x 5/8 x 5/8 25 1665699SM 1 PULLEY, Idler, 3-1/4 Dia. 26 1674736SM 1 CAPSCREW, Hex Head, 3/8-16 x 2-1/2 27 1921972SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

29

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Hydraulic Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985118

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

30

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Hydraulic Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

FITTING, Male, Straight 1 2822522SM 3 HOSE, Pump to Steer 2 1722510SM 1 FITTING, Hydraulic 3 2824403SM 1 ELBOW 4 1676397SM 1 CLAMP, Hose 5 2860266SM 6 HOSE, Return 6 1717568SM 1 FITTING, Hydraulic, 7/8-14 7 1669954SM 2 HOSE, Pre Formed 8 1677011SM 1 FITTING, Tube 9 1716312SM 1 HOSE ASSEMBLY, Return (Steer/Lift) 10 1716321SM 1 FITTING, Male 11 2171465SM 1 HOSE ASSEMBLY, Steer to Lift 12 1716311SM 1 FITTING, Tube Tee 13 1716314SM 1 CAP, Hex 14 1716370SM 1 HOSE, Hydraulic 1/2" 15 1674217SM 1 FITTING, Hose Elbow 90 Degree 1/2" 16 1723788SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

31

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Hydraulics Group - Auxiliary Lift - Diagram 2

y

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985457D2

The above parts group applies to the following Mfg. Nos.:

1693561 - Legac 1693562 - 2025 1693563 - 2925

2009

32

TP 400-2155-C-LG-SMA

Hydraulics Group - Auxiliary Lift - Diagram 2

y

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

HOSE ASSEMBLY, 17" Long 8 5045503 2 HOSE ASSEMBLY, 50" Long 9 1719565SM 2 HOSE SUPPORT 10 1719586SM 1 CAPSCREW, Hex Head, 1/4-20 x 3/4 26 1923341SM 4 LOCKWASHER, 1/4 27 1916964SM 6 NUT, Hex 1/4-20 28 1916622SM 6 HOSE, Hydraulic, 9" Long 41 1718413SM 1 FITTING, "T" 42 1719564SM 1 CLAMP, Hose 43 2860266SM 4 SCREW, Phillips Head, 1/4-20 x 1/2 44 1926025SM 4 INSERT, Plastic 45 1723013SM 1 MOUNTING PLATE 46 1723012SM 1 CAPSCREW, Hex Head,1/4-20 x 2-1/2 47 1923282SM 1 SPACER 48 1960234SM 2 VALVE ASSEMBLY 49 1718419SM 1 PLATE 50 1718988ASM 1 SPACER 51 1673796SM 3 LOCKWASHER, 5/16 52 1917356SM 2 NUT, Hex 5/16 53 1917372SM 2 VALVE SUPPORT ASSEMBLY 54 1718991SM 1 CARRIAGE BOLT, 5/16-18 x 1-1/2 55 1931337SM 2 CAPSCREW, Hex Head,1/4-20 x 3-1/2 56 2860603 1 POD, Seat Deck 57 1719393SM 1 DECAL, Hydraulic Levers 58 1719733SM 1 TUBE, Hydraulic 59 1719331SM 1 TUBE, Hydraulic 60 1719216SM 1 TUBE, Hydraulic 61 1719215SM 1 TUBE, Hydraulic 62 1719126SM 1 TUBE, Hydraulic 63 1719127SM 1 TUBE, Hydraulic 64 1719129SM 1 TUBE, Hydraulic 65 1719128SM 1 TUBE, Hydraulic 66 1719330SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1693561 - Legac 1693562 - 2025 1693563 - 2925

2009

33

TP 400-2155-C-LG-SMA

Hydraulics Group - Auxiliary Lift

y

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985457

The above parts group applies to the following Mfg. Nos.:

1693561 - Legac 1693562 - 2025 1693563 - 2925

2009

34

TP 400-2155-C-LG-SMA

Hydraulics Group - Auxiliary Lift

y

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

TIE, Self Locking 1 1701011SM 3 PIN, Yoke 2 1960277SM 1 PIN, Cotter 3 1918452SM 3 ANGLING CYLINDER ASSEMBLY 4 1677214SM 1 PIN, Flat Head, 5/8 x 1-5/8 5 1700394SM 1 TUBE FITTING, Male 6 2819171SM 2 NOSE PIECE ASSEMBLY 7 2173359SM 4 HOSE ASSEMBLY, 17" Long 8 5045503 2 HOSE ASSEMBLY, 50" Long 9 1719565SM 2 HOSE SUPPORT 10 1719586SM 1 NUT, Hex, 5/16-18 11 1931277SM 2 TUBE FITTING, Male 12 2819171SM 4 LIFT CYLINDER ASSEMBLY 13 1716944SM 1 PIN, Clevis 14 1722819SM 2 PIN, Saftey 15 2176012SM 2 NUT, Hex, 1/2-13 16 1916951SM 4 LOCKWASHER, 1/2 17 1916966SM 4 SUPPORT ASSEMBLY, Cylinder 18 1717645SM 1 CLAMP, Plate 19 1717642ASM 1 CAPSCREW, Hex Head,1/2-13 x 1-1/2 20 1920328SM 2 CAPSCREW, Hex Head,1/2-13 x 3-1/2 21 1960286SM 2 FITTING, Tube Male 22 1718436SM 4 PLUG, Plastic 23 2173360SM 4 SUPPORT 24 1718987ASM 1 COUPLER ASSEMBLY 25 2173358SM 4 CAPSCREW, Hex Head, 1/4-20 x 3/4 26 1923341SM 4 LOCKWASHER, 1/4 27 1916964SM 6 NUT, Hex 1/4-20 28 1916622SM 6 RETAINING RING 29 2166017SM 4 FITTING, Hose, 45 Degree 30 1719133SM 2 FITTING, Tube Male 31 1718435SM 2 FITTING, Elbow, 90 Degree 32 1719132SM 2 PLUG, Pressure 33 1717647SM 1 FITTING, Elbow, 90 Degree 34 2822523SM 1 LEVER ASSEMBLY 35 1719224SM 2 NUT, PUSH 36 1960140SM 4 PIN 37 2816001SM 2 LINK, L.H. 38 1719692SM 1 LINK, R.H. 39 1719218SM 1 FITTING, Elbow 40 1675789SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1693561 - Legac 1693562 - 2025 1693563 - 2925

2009

35

TP 400-2155-C-LG-SMA

Gearbox - SERVICE PARTS

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1717069

The above parts group applies to the following Mfg. Nos.:

1692860 - 60" Mower 1692863 - 48" Mower 1693122 - 48" Mower 1693123 - 60" Mower 1693252 - 48" Mower 1693253 - 60" Mower

2009

1694072 - 60" Mower 1694073 - 60" Mower 1694138 - 48" Mower

36

TP 400-2155-C-LG-SMA

Gearbox - SERVICE PARTS

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

CAPSCREW, Hex Head, Whizlock, 5/16-18 x 3/4 1 1930591SM 12 CAP, Thru 2* 2 GASKET, 0.015 (Replace with Gasket of Identical Thickness) 3 1700895SM A/R GASKET, 0.005 (Replace with Gasket of Identical Thickness) 3 1700896SM A/R GASKET, 0.003 (Replace with Gasket of Identical Thickness) 3 1700897SM A/R SEAL, Shaft, 1 x 1-1/2 x 5/16 4 2118118SM 2 BEARING RACE, Cup 5* 3 BEARING, Cone 6* 3 SHAFT 7* 1 GEAR 8* 1 BEARING, Cone 9* 1 BEARING RACE, Cup 10 * 1 PLUG, Pipe, Hex Socket Head 11 1716790SM 4 HOUSING, Gearbox 12 * 1 GEAR 13 * 1 SHAFT 14 * 1 CAP, Blank 15 * 1 SPACER (Early Models Only) 16 * 1

Footnotes

Note* If any of these need to be replaced, replace the gear box assembly (order P/N 1717069).

The above parts group applies to the following Mfg. Nos.:

1692860 - 60" Mower 1692863 - 48" Mower 1693122 - 48" Mower 1693123 - 60" Mower 1693252 - 48" Mower 1693253 - 60" Mower

2009

1694072 - 60" Mower 1694073 - 60" Mower 1694138 - 48" Mower

37

TP 400-2155-C-LG-SMA

Gearbox - SERVICE PARTS

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1719794

The above parts group applies to the following Mfg. Nos.:

1693630 - 54" Mower 1693632 - 54" Mower 1693726 - 54" Mower 1693728 - 54" Mower 1694071 - 54" Mower

2009

38

TP 400-2155-C-LG-SMA

Gearbox - SERVICE PARTS

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

CAPSCREW, Hex Head, Whizlock, 5/16-18 x 3/4 1 1930591SM 12 CAP, Thru 2* 2 GASKET, 0.015 (Replace with Gasket of Identical Thickness) 3 1700895SM A/R GASKET, 0.005 (Replace with Gasket of Identical Thickness) 3 1700896SM A/R GASKET, 0.003 (Replace with Gasket of Identical Thickness) 3 1700897SM A/R SEAL, Shaft, 1 x 1-1/2 x 5/16 4 2118118SM 2 BEARING RACE, Cup 5* 3 BEARING, Cone 6* 3 SHAFT 7* 1 GEAR 8* 1 BEARING, Cone 9* 1 BEARING RACE, Cup 10 * 1 PLUG, Pipe, Hex Socket Head 11 1716790SM 4 HOUSING, Gearbox 12 * 1 GEAR 13 * 1 SHAFT 14 * 1 CAP, Blank 15 * 1 SPACER (Early Models Only) 16 * 1

Footnotes

Note* If any of these need to be replaced, replace the gear box assembly (order P/N 1719794).

The above parts group applies to the following Mfg. Nos.:

1693630 - 54" Mower 1693632 - 54" Mower 1693726 - 54" Mower 1693728 - 54" Mower 1694071 - 54" Mower

2009

39

TP 400-2155-C-LG-SMA

Axle Housing SERVICE PARTS - Peerless Model 2650-007

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1709736

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

40

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Axle Housing SERVICE PARTS - Peerless Model 2650-007

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

1 782064 1

2 780127 1

3 774956 1

HOUSING, Axle, 8-3/8" Long Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

41

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Transaxle SERVICE PARTS - Peerless Model 2600-025

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1715820

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

42

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Transaxle SERVICE PARTS - Peerless Model 2600-025

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

1 772086 1

2 780097 1

2A 780100 3

2B 780099 2

3 770130 1

4 776209A 1

5 776120A 1

6 778098 1

9 784325A 1

10 784328 1

10A 784195 1

12 778155 1

13 778159 1

13A 778158 1

14 778157 2

15 778156 1

Transaxle Cover (Includes Ref. Nos. 2A & 2B) Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Transaxle Case (Includes Ref. Nos. 2, 2A & 2B) Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Output Gear (37 teeth) Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

SHIFT COLLAR ASSEMBLY Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Shift Fork (Diff-Lock) Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Bevel Pinion(13 teeth-steel)(Ship Loose Part) Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Bevel Gear (16 teeth-steel) Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Bevel Pinion (10 teeth-steel) Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

43

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Transaxle SERVICE PARTS - Peerless Model 2600-025

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1715820

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

44

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Transaxle SERVICE PARTS - Peerless Model 2600-025

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

87 788008 1

89 780125 2

92 786097 2

101 774486A 1

102 774487 1

103 792101 6

104 792011 6

124 788058B 1

124A 780190 1

149 784326A 1

149A 784331A 1

157 788049 2

171 780070 3

172 792099 1

173 792102 2

Spacer (Ship Loose Part) Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Differential Carrier (Includes Ref. No 31A) Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Differential Carrier Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

CAPSCREW, 3/8-16 x 2-3/4 Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Shift Rod (High-Low) Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Shift Rod (Diff-Lock) Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Thrust Washer .502 ID Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

45

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Brake Control & Parking Brake Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

P985107

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

46

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Brake Control & Parking Brake Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

KNOB, Parking Brake 1 1725277SM 1 NUT, Hex #10-24 2 1960591SM 1 ROD, Park Brake 3 1717004SM 1 CLIP, Rod 4 1717024SM 1 BRACKET, Park Brake Pivot 5 1717006SM 1 CARRIAGE BOLT, 1/4-20 x 3/4 6 1931317SM 1 SPACER, 9/32x 1/2 x 5/16 7 1960234SM 1 WASHER, 1/4 8 1921319SM 1 NUT, Hex, Center Lock, 1/4-20 9 1923358SM 1 ROD, Park Brake 10 1717005SM 1 BRACKET, Park Brake 11 1715846SM 1 SPACER, .325 x 3/4 x .63 12 1716360SM 1 WASHER, 5/16 13 1919381SM 2 CAPSCREW, Taptite, 5/16-18 x 1-1/4 14 1931202SM 1 SPACER 15 1656397SM 1 NUT, Hex, Nylon 3/8-16 16 1919439SM 1 SPRING, Extension 17 1704442SM 1 PIN, Cotter, 1/8 x 3/4 18 1918451SM 3 WASHER, Plain, 3/8 19 1924940SM 3 SPRING, Compression 20 1656632SM 1 ROD ASSEMBLY, Brake 21 1716297SM 1 CAPSCREW, Hex, 1/4-20 x 1 22 1921960SM 1 NUT, Hex, Nylon, 1/4-20 23 1920397SM 2 CALIPER ASSEMBLY, Brake (Includes Ref. Nos. 25 - 37) 24 1716192SM 1 CAPSCREW, Hex Head, 1/4-20 x 2 25 1921963SM 2 PAD, Brake, Outer 26 1718703SM 1 SPACER 27 1718704SM 2 SPRING, Compression 28 1718705SM 2 PAD, Brake, Inner 29 1718706SM 1 WASHER 30 1718707SM 1 BRACKET 31 1718708SM 1 BRACKET, Mounting 32 1718709SM 1 KLIP RING 33 1718710SM 1 WASHER 34 1718711SM 1 SPRING, Compression 35 1718712SM 1 NUT, Hex, 1/4-20 36 1916622SM 2 LOCKWASHER, 1/4 37 1916964SM 2 BRAKE, Disc 38 1716193SM 1 KEY, Woodruff, 3/16 x 3/4 #9 39 2805123SM 1 CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4 40 1664847SM 4

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

47

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Brake Control & Parking Brake Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

P985107

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

48

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Brake Control & Parking Brake Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

BRACKET, Caliper Mtg. 41 1715860SM 1 ROD, Brake 42 1716190SM 1 RIVET, Pop, 3/16 x 7/16 lg 43 1675044SM 2 ACTUATOR, Switch 44 1716318SM 1 STRAP 45 1663942 1 BRAKE ARM ASSEMBLY 46 1715861SM 1 BUSHING 47 2176440SM 1 WASHER, 3/4 48 1960114SM 2 KLIP RING, 3/4 49 2827794SM 1 CASPCREW, Taptite, 3/8-16 x 1 50 1927187SM 2 LEVER, Brake 51 1716327SM 1 PAD, Brake Pedal 52 1716188SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

49

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Foot Control, Cruise & Differential Lock Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985107

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

50

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Foot Control, Cruise & Differential Lock Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

KNOB, Cruise Control 1 1715896SM 1 PIN, Cotter, 3/32 x 3/4 2 1918447SM 4 SPRING, Torsion 3 1709236SM 1 WASHER, 1/2 x 1-1/4 4 1924361SM 3 BUSHING, Nylon 5 1715025SM 4 WASHER 6 1960206SM 1 HANDLE ASSEMBLY, Cruise 7 1715942SM 1 NUT, Hex, Whizlock, 7/16-14 8 1935041SM 2 PIN, Roll, 1/4 x 1-1/4 9 2816937SM 1 BUSHING 10 2176440SM 6 CONTROL ARM ASSEMBLY, Cruise 11 1715829SM 1 WASHER, Plain, 3/8 12 1924940SM 1 PIN, Cotter, 1/8 x 3/4 13 1918451SM 1 CROSS SHAFT ASSEMBLY, Brake 14 1715947SM 1 SPACER, Shock Absorber 15 1717595SM 1 CAPSCREW, Hex Head, 7/16-14 x 4 16 1960572SM 1 SHOCK ABSORBER 17 1714856SM 1 E-CLIP 18 2832724SM 1 WASHER, 1/2 19 1960027SM 2 LEVER ASSEMBLY, Control 20 1716462SM 1 ROD, Pedal to Lever 21 1715841SM 1 CONTROL ARM ASSEMBLY 22 1715826SM 1 WASHER, Plain, 7/8 23 1924940SM 2 WASHER, 3/4 24 1960114SM A/R CAPSCREW, Taptite, 5/16-18 x 3/4 25 1664847SM 4 PEDAL, Foot, Hydro 26 1715859SM 1 PAD, Pedal (Forward) 27 1715834SM 1 PAD, Pedal (Reverse) 28 1715835SM 1 FOOT PEDAL ASSEMBLY 29 1715831SM 1 PIN, Roll, 1/4 x 1-1/4 30 2816937SM 1 PIN, Roll, 1/4 x 1-3/4 31 1960587SM 1 SPRING, Torsion 32 1716500SM 1 NUT, Hex, Full, 5/16-18 33 1917372SM 2 LOCKWASHER, 5/16 34 1917356SM 2 CARRIAGE BOLT, 5/16-18 x 3/4 35 1931333SM 2 CARRIAGE BOLT, 3/8-16 x 2-1/4 36 1931355SM 1 PLATE, Pedal Stop 37 1716943SM 1 TUBE, Neutral 38 1717023SM 1 LOCKWASHER, 3/8 39 1916965SM 1 NUT, Hex, Jam, 3/8-16 40 1917421SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

51

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Foot Control, Cruise & Differential Lock Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985107

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

52

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Foot Control, Cruise & Differential Lock Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

ROD, Cruise (To Lever Assembly) 41 1715842SM 1 CAPSCREW, 1/4-20 x 3/4 42 1921961SM 1 NUT, Hex Nylon Lock, 1/4-20 43 1920397SM 1 CLEVIS 44 1716287SM 1 CABLE, Diff Lock 45 1716282* 1 CABLE, Diff Lock 45 1718424SM 1 ARM ASSEMBLY, Diff Lock 46 1718423SM 1 ARM ASSEMBLY, Diff Lock 46 1718423* 1 E-CLIP, Retaining Ring 47 1703805SM 1 BUTTON, Diff Lock 48 1716289SM 1 BUTTON, Diff Lock 48 1716289* 1 PIVOT ASSEMBLY, Diff Lock 49 1716448SM 1 WireTie 50 1701011SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

53

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Two Speed Control Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

H985107

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

54

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Two Speed Control Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

KNOB, Soft 1 1713843SM 1 ROD, Two Speed 2 1715823SM 1 CAPSCREW, Taptite, 5/16-18 x 1-1/2 3 1930600SM 4 BEARING HALF, Nylon 4 1674631SM 4 CAPSCREW, Taptite, 5/16-18 x 3/4 5 1664847SM 4 BRACKET, Two Speed 6 1716994ASM 1 ROD, Two Speed, Lower 7 1716470SM 1 PUSH NUT 8 1960518SM 1 QUADRANT, Two Speed 9 1716291SM 1 BRACKET, Slotted (Cruise & Two Speed) 10 1716472SM 1 WASHER, 1/2 x 1-1/4 11 1924361SM 3 SPACER 12 1709043SM 1 NUT, Hex, Nylon, 5/16-18 13 1919438SM 1 SPRING, Compression 14 1677746SM 1 WASHER, 5/16 15 1919381SM 2 CAPSCREW, Hex Head, 5/16-18 x 2-1/2 16 1921719SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

55

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Electrical Group - Lower Harness - All Models

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

L985109

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

56

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Electrical Group - Lower Harness - All Models

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

HARNESS, Rear (Models with Kohler Engines) 1 1717094SM 1 HARNESS, Rear (Models with Kawasaki Engines) 1 1717552SM 1 SWITCH, Seat (Normally Open - Models with Kawasaki Engines) - Gray 2 1700636SM 1 SWITCH, Seat (Normally Closed - Models with Kohler Engines) - Black 2 1716368SM 1 LOCKWASHER, 1/4 3 1921880SM 2 CAPSCREW, 1/4-20 x 3/4 4 1960357 2 TAIL LIGHT, Assembly (Includes Bulb) 5 1715915SM 2 BULB, Tail Light 6 1717650SM 2 NUT, Hex Flange, #10-32 7 1928919SM 2 NUT, KEPS Lock, #10-24 8 1960591SM 2 CAPSCREW, #10-24 x 5/8 9 1933737SM 2 SWITCH, Cruise 10 1717050SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

57

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Electrical Group - Main Harness - Air Cooled Models

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

U985109

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692872 - Legacy 1693114 - Le 1693116 - Legac 1693124 - 2020 1693126 - 2025

2009

1693132 - 2920 1693134 - 2925 1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Legacy

58

1693561 - Le 1693562 - 2025 1693563 - 2925 1693764 - Le 1693769 - 2023H 1693770 - 2923H

1693771 - Le

TP 400-2155-C-LG-SMA

Electrical Group - Main Harness - Air Cooled Models

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

BEZEL, Headlight 1 1715923SM 1 BULB, Headlight, Halogen 2 1717649SM 2 HARNESS, Headlight 3 1716198SM 1 CLIP 4 2830222 1 TIE 5 1701011SM 8 NUT, KEPS Lock, #10-24 6 1960591SM 2 SWITCH, Interlock (NO/NC) 7 1717050SM 1 CAPSCREW, #10-24 x 5/8 8 1933737SM 2 HARNESS, Main 9 1724876SM 1 SWITCH, Mower Height Adjust 10 1716329SM 1 ASSEMBLY, Switch & Key (Includes Ref. Nos. 12 -15) 11 1686734SM 1 KEYS (Set of 2) 12 1717163SM 1 COVER, Key Switch 13 1717550SM 1 NUT, Hex Flange, 5/8 14 1717549SM 1 WASHER, Internal Tooth, 5/8 15 1960547SM 1 CABLE, Battery to Starter, Kohler Engines 16 1708730SM 1 LOCKWASHER, 5/16 17 1917356SM 1 NUT, Hex Jam, 5/16-24, Kohler Engines 18 2820438SM 1 COVER, Starter Terminal 19 1713535SM 1 COVER, Positive Battery Terminal 20 1713534SM 1 CABLE, Battery to Ground 21 1716333SM 1 BATTERY (500 CCA) 22 1686714SM 1 ROD, Battery Hold Down 23 1716945SM 2 BRACKET, Battery 24 1718596ASM 1 NUT, Hex, Nylon Lock, 1/4-20 25 1920397SM 2 LOCKWASHER, 7/16 26 2860575SM 1 CAPSCREW, 7/16-14x 5/8 27 1920676SM 1 HARNESS, Power Outlet 28 1716987SM 1 BREAKER, Circuit 29 1665238SM 1 PANEL, Instrument (Includes Bulbs & Bulb Holders) 30 1715907SM 1 BULB, Instrument Panel 31 1717634SM 8 SWITCH, Headlights 32 1716951SM 1 SWITCH, Front P.T.O. 33 1716332SM 1 CLIP 34 2172434SM 1 HOLDER, Bulb 35 1722061SM 8

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692872 - Legacy 1693114 - Le 1693116 - Legac 1693124 - 2020 1693126 - 2025

2009

1693132 - 2920 1693134 - 2925 1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Legacy

59

1693561 - Le 1693562 - 2025 1693563 - 2925 1693764 - Le 1693769 - 2023H 1693770 - 2923H

1693771 - Le

TP 400-2155-C-LG-SMA

Electrical Group - Main Harness - Liquid Cooled Models

y

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

U985110

The above parts group applies to the following Mfg. Nos.:

1692871 - Legac 1693118 - Legacy 1693128 - 2020LC 1693136 - 2920LC

2009

60

TP 400-2155-C-LG-SMA

Electrical Group - Main Harness - Liquid Cooled Models

y

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

BEZEL, Headlight 1 1715923SM 1 BULB, Headlight, Halogen 2 1717649SM 2 HARNESS, Headlight 3 1716198SM 1 CLIP 4 2830222 1 TIE 5 1701011SM 7 NUT, KEPS Lock, #10-24 6 1960591SM 2 SWITCH, Interlock (NO/NO), Brake Pedal 7 1701521SM 1 CAPSCREW, #10-24 x 5/8 8 1933737SM 2 HARNESS, Main 9 1716200SM 1 SWITCH, Mower Height Adjust 10 1716329SM 1 ASSEMBLY, Switch & Key (Includes Ref. Nos. 12 -15) 11 1686734SM 1 KEYS (Set of 2) 12 1717163SM 1 COVER, Key Switch 13 1717550SM 1 NUT, Hex Flange, 5/8 14 1717549SM 1 WASHER, Internal Tooth, 5/8 15 1960547SM 1 CABLE, Battery to Starter 16 1717001SM 1 LOCKWASHER, 5/16 17 1917356SM 1 NUT, Hex Jam, M8-1.25, Yellow 18 2860433SM 1 COVER, Starter Terminal 19 1713535SM 1 COVER, Positive Battery Terminal 20 1713534SM 1 CABLE, Battery to Ground 21 1716333SM 1 BATTERY (500 CCA) 22 1686714SM 1 ROD, Battery Hold Down 23 1716945SM 2 BRACKET, Battery 24 1718596ASM 1 NUT, Hex, Nylon Lock, 1/4-20 25 1920397SM 2 LOCKWASHER, 3/8 26 2820427SM 1 CAPSCREW, 3/8-16 x 5/8 27 2822586SM 1 HARNESS, Power Outlet 28 1716987SM 1 BREAKER, Circuit 29 1665238SM 1 PANEL, Instrument (Includes Bulbs & Bulb Holders) 30 1716976SM 1 BULB, Instrument Panel 31 1717634SM 8 SWITCH, Headlights 32 1716951SM 1 SWITCH, Front P.T.O. 33 1716332SM 1 CLIP 34 2172434SM 1 HOLDER, Bulb 35 1722061SM 8

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692871 - Legac 1693118 - Legacy 1693128 - 2020LC 1693136 - 2920LC

2009

61

TP 400-2155-C-LG-SMA

Hood, Dash & Footrest Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985117

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

62

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Hood, Dash & Footrest Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

DASH, Upper 1 1715905SM 1 CARRIAGE BOLT, 1/4-20 x 5/8 2 1960252SM 4 LOCKWASHER, 1/4 3 1916964SM 4 NUT, 1/4-20 4 1916622SM 4 DASH, Lower 5 1715906SM 1 EDGING, Dash 6 1717074SM 1 CLIP 7 1717523SM 2 PAD, Footrest, RH 8 1715900SM 1 TUNNEL 9 1715898SM 1 CLIP, Footpad 10 1704351SM 12 PAD, Footrest, LH 11 1715899SM 1 CAPSCREW, Taptite, 1/4-20 x 1/2 12 1925003SM 10 ROD, Hood Latch 13 1718031SM 2 CARRIAGE BOLT, 5/16-18 x 1 14 1931335SM 2 ROD, Hood Latch Pivot 15 1717084SM 2 WASHER, Flat 16 1919326SM 2 LOCKWASHER, 5/16 17 1917356SM 14 NUT, Hex, 5/16-18 18 1917372SM 6 ROD, Hood Hinge 19 1718479SM 1 CAPSCREW, Hex Head Whizlock, 1/4-20 x 1 20 1921960SM 4 GRILL ASSEMBLY (Orange) 21 1686760SM 1 GRILL ASSEMBLY (Red) 21 1687165SM 1 NUT, Hex Whizlock, 1/4-20 22 1930641SM 12 NUT, Nylock, #10-24 23 1933896SM 4 WASHER 24 1960096SM 4 CLIP, Hood Latch 25 1718032SM 2 SIDE PANEL, LH (Orange) 26 1725823SM 1 SIDE PANEL, LH (Red) 26 1729532SM 1 SIDE PANEL, RH (Orange) 27 1725824SM 1 SIDE PANEL, RH (Red) 27 1729533SM 1 CAPSCREW, Hex Head Whizlock, 1/4-20 x 5/8 28 1960295SM 8 HEADLIGHT BEZEL 29 1715923SM 1 HOOD (Orange) 30 1715902CSM 1 HOOD (Red) 30 1715902DSM 1 EDGING, Hood 31 1718124SM 1 BAFFLE ASSEMBLY, Grille (See Ref. No. 21) 32 * 1

Footnotes

Note* See Ref. No. 21.

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

63

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Seat & Deck Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

K985117

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

64

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Seat & Deck Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

SEAT 1 1715912SM 1 SEAT BRACKET, RH 2 1716978SM 1 NUT, Hex Nylock, 3/8-16 3 1919439SM 2 WASHER, 13/32 4 1924940SM 2 SEAT BRACKET, LH 5 1716979SM 1 SPACER 6 1663752SM 2 CAPSCREW, 1/4-20 x 5/16 7 1925205SM 4 LOCKWASHER, 5/16 8 1917356SM 14 BRACKET, Seat Support 9 1716977ASM 1 NUT, Hex, 5/16-18 10 1917372SM 6 NUT, Hex Nylock, 5/16-18 11 1919438SM 6 WASHER, Bell 12 1709256SM 6 SPRING, Seat 13 1717051SM 2 CARRIAGE BOLT, 3/8-16 x 1 14 1931350SM 2 CARRIAGE BOLT, 5/16-18 x 3/4 15 1931333SM 6 SLIDER ASSEMBLY, RH, Slave 16 1717009SM 1 SLIDER ASSEMBLY, LH, Main 17 1717068SM 1 CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4 18 1664847SM 4 CUPHOLDER POD 19 1715913SM 1 HANDLE, LH 20 1716335SM 1 TAIL LIGHT, Assembly 21 1715915SM 2 CLIP 22 1718048SM 4 PUSHNUT, 5/16 23 1933988SM 4 WASHER, 5/16 24 1960044SM 4 CAPSCREW, 5/16-18 x 1/2 25 1920787SM 4 CAPSCREW, Hex Flange, 5/16-18 x 1/2 26 1931648SM 2 NUT, WhizWhizlock 5/16-18 27 1931277SM 2 CAPSCREW, #10 x 5/16 28 1960578SM 10 SEAT DECK (Orange) 29 1715911SM 1 SEAT DECK (Red) 29 1729527SM 1 CONTROL POD 30 1715914SM 1 HANDLE, RH 31 1716336SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

65

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Fuel Tank Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

FT85117

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

66

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Fuel Tank Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

TANK, Fuel 1 1715916SM 1 CAP, Fuel Tank 2 1715917SM 1 CLAMP, Hose 3 2860112SM 1 ELBOW, Fuel Tank 4 1717076SM 1 BUSHING, Fuel Tank Seal 5 1654930SM 1 SCREW, SEMS Torx Pan Head #10-32 x 1/2 6 2860665SM 5 SENDER, Fuel Level 8 1725301SM 1 GASKET, Fuel Tank 9 1685303SM 1 SUPPORT, Fuel Tank 10 1716927ASM 2 CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4 11 1664847SM 4

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

67

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Implement Lift Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985119

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

68

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Implement Lift Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

NUT, Hex, Full, 3/8-16 1 1916950SM 6 LOCKWASHER, 3/8 2 1916965SM 6 PLATE, Bearing 3 1718816A 2 CARRIAGE BOLT, 3/8-16 x 1-1/2 4 1921969SM 6 BUSHING, Lift 5 1716279SM 2 SHAFT ASSEMBLY, Lift 6 1716274SM 1 PIN, Clevis 7 1729275SM 1 HAIRPIN 8 1960033SM 1 HOSE, Valve to Cylinder (UP) 9 1716320SM 1 FITTING, Male, Straight 10 2819171SM 2 CYLINDER, Hydraulic Lift 11 1716944SM 1 KLIPRING, 1/2 12 1703805SM 2 HOSE, Valve to Cylinder (Down) 13 1716319SM 1 CAPSCREW, Taptite, 1/4-20 x 1-3/4 14 1960571SM 2 VALVE ASSEMBLY, Lift 15 1717558SM 1 FITTING, 90 Degree 16 2825011SM 2 HAIRPIN 17 1960221SM 1 CARRIAGE BOLT, 1/4-20 x 3/4 18 1931317SM 1 LINK ASSEMBLY, Lower 19 1716980SM 1 LINK ASSEMBLY, Upper 20 1716956SM 1 WASHER, Plain, 1/4 21 1921319SM 1 NUT, Hex, Nylon Lock, 1/4-20 22 1920397SM 4 BUSHING, Nylon 23 1715025SM 2 PAD, Hydraulic Lift 24 1717018SM 2 CAPSCREW, 1/4-20 x 3/4 25 1923341SM 2 PEDAL ASSEMBLY, Hydraulic Lift 26 1717015SM 1 SHAFT, Pivot 27 1715675SM 1 WASHER, Flat, 1/2 x 7/8 28 1960027SM 1 NUT, Hex Jam, 3/8-16 29 1960251SM 1 SPRING, Extension 30 1719594SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

69

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Wheels & Tires Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985122

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

70

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Wheels & Tires Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

2 1713529SM *

2 1717633SM *

WHEEL & TIRE ASSEMBLY, Large Front, 18 x 8.5 - 8 Tires (Includes Ref. Nos. 2, 3, 4) 1 1715414SM 2 WHEEL & TIRE ASSEMBLY, Small Front, 16 x 7.5 - 8 Tires (Includes Ref. Nos. 2, 3, 4) 1 1716337SM 2 TIRE, Standard, Large Front, 18 x 8.5 - 8 2 1713170SM 2 TIRE, Standard, Small Front, 16 x 7.5 - 8 2 1713528SM 2 TIRE, Optional 4-Ply, Small Front, 16 x 7.5 - 8 (For tractors equiped with front end

loaders) TIRE, Optional 4-Ply, Large Front, 18 x 8.5 - 8 (For tractors equiped with front end

loaders) BEARING, Ball 3 1717056SM 4 WHEEL ASSEMBLY, Small Front., for 16 x 7.5 - 8 Tires (Includes Ref. No. 3) 4 1717054SM 2 WHEEL ASSEMBLY, Large Front., for 18 x 8.5 - 8 Tires (Includes Ref. No. 3) 4 1717059SM 2 VALVE STEM & CAP 5 2172353SM 4 WASHER 6 1919394SM 2 RING, Retaining (0.984 shaft) 7 2832577SM 2 RETAINER, Cap 8 1676520SM 4 HUBCAP 9 1676519SM 4 STUD, Wheel, 7/16-20 x 1.23 10 1663805SM 10 NUT, Lug Bolt, 7/16-20 11 2177725SM 10 WHEEL & TIRE ASSEMBLY, Large Rear, 26 x 12.00-12 Tires (Includes Ref. No. 13, 14) 12 1715416SM 2 WHEEL & TIRE ASSEMBLY, Small Rear, 23 x 10.50-12 Tires (Includes Ref. No.13, 14) 12 1716338SM 2 TIRE, Optional with AG-Tread, Small Rear, 23 x 10.5 - 12 13 1657694SM * TIRE, Optional with AG-Tread, Large Rear, 26 x 12 - 12 13 1701345SM * TIRE, Standard, Small Rear, 23 x 10.50-12 13 1709969SM 2 TIRE, Standard, Large Rear, 26 x 12.00-12 13 1717062SM 2 WHEEL ASSEMBLY, Small Rear, for 23 x 10.50-12 Tires 14 1717057SM 2 WHEEL ASSEMBLY, Large Rear, for 26 x 12.00-12 Tires 14 1717061SM 2 RETAINER, Spec. Washer 15 1679383SM 2 NUT, Hex, Jam, 1 x 14 16 1960259SM 2

Footnotes

Note* No exchange program available on optional tires.

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

71

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Decals Group - Brand & Model

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

B985756

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

72

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Decals Group - Brand & Model

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

ICON, Simplicity 1 1717692SM 2 DECAL, RH Stripe & Logo (Simplicity Models) 2 1722773SM 1 DECAL, LH Stripe & Logo (Simplicity Models) 3 1722774SM 1 DECAL, Legacy 4 1722551SM 1 DECAL, Model, 20V Twin (Simplicity Models) 5 1717714SM 1 DECAL, Model, 25V Twin (Simplicity Models) 5 1722783SM 1 DECAL, Model, 20 Liquid-Cooled (Simplicity Models) 5 1722780SM 1 DECAL, Control Traction (Simplicity Models) 6 1717313SM 1 DECAL, Simplicity Logo 7 1722551SM 1 DECAL, USA Logo 8 1708927 1 DECAL, AGCO Allis Logo 9 1708926SM 2 DECAL, RH Stripe & Logo (AGCO Allis Models) 10 1717724 1 DECAL, RH Model, 2020 (AGCO Allis Models) 11 1717756 1 DECAL, RH Model, 2020LC (AGCO Allis Models) 11 1722984SM 1 DECAL, RH Model, 2025 (AGCO Allis Models) 11 1722987SM 1 DECAL, LH Stripe & Logo (AGCO Allis Models) 12 1717725 1 DECAL, LH Model, 2020 (AGCO Allis Models) 13 1718129 1 DECAL, LH Model, 2020LC (AGCO Allis Models) 13 1722984SM 1 DECAL, LH Model, 2025 (AGCO Allis Models) 13 1722987SM 1 DECAL, Control Traction (AGCO Allis & Massey Ferguson Models) 14 1718025SM 1 DECAL, Massey Ferguson Logo 15 1714363SM 1 DECAL, RH Stripe & Logo (Massey Ferguson Models) 16 1717722SM 1 DECAL, RH Model, 2920 (Massey Ferguson Models) 17 1717752SM 1 DECAL, RH Model, 2920LC (Massey Ferguson Models) 17 1717753SM 1 DECAL, RH Model, 2925 (Massey Ferguson Models) 17 1722991SM 1 DECAL, LH Stripe & Logo (Massey Ferguson Models) 18 1717723SM 1 DECAL, LH Model, 2920 (Massey Ferguson Models) 19 1718126 1 DECAL, LH Model, 2920LC (Massey Ferguson Models) 19 1718127SM 1 DECAL, LH Model, 2925 (Massey Ferguson Models) 19 1718128SM 1 DECAL, Control Traction (AGCO Allis & Massey Ferguson Models) 20 1718025SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

73

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Decals Group - Safety & Common

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

C985756

The above parts group applies to the following Mfg. Nos.:

1692860 - 60" Mower 1692863 - 48" Mower 1692870 - Le 1692871 - Legac 1692872 - Legac 1693114 - Legacy

2009

1693116 - Le 1693118 - Legacy 1693122 - 48" Mower 1693123 - 60" Mower 1693124 - 2020 1693126 - 2025

74

1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC 1693219 - Le 1693220 - 2920

1693221 - 2020 1693250 - Legacy 1693252 - 48" Mower 1693253 - 60" Mower 1693561 - Le 1693562 - 2025

TP 400-2155-C-LG-SMA

Decals Group - Safety & Common

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

DECAL, Belt, Blade 1 1722180SM 1 DECAL, Paint (Simplicity & AGCO Models) 2 1720454SM 1 DECAL, Paint (Massey Ferguson Models) 2 1717449 1 DECAL, Caution, Battery 3 1716539SM 1 DECAL, Warning, P.T.O. Cover 4 1716538SM 1 DECAL, Danger, Fan 5 1717602SM 2 DECAL, Operation, Upper Right Panel 6 1718610SM 1 DECAL, Operation, Upper Left Panel 7 1718613SM 1 DECAL, Operation SAFETY, Lower Panel 8 1718199SM 1 DECAL, Danger (Hand under deck) 9 1704276SM 1 DECAL, Belt Installation (54" Mower Decks) 10 1720911SM 1 DECAL, Belt Installation (48" Mower Decks) 10 1709069SM 1 DECAL, Belt Installation (60" Mower Decks) 10 1717582SM 1 DECAL, Danger (Chute In Place) 11 1704277SM 1 DECAL, Cutting Width (48" Mower Decks) 12 1722793SM 1 DECAL, Cutting Width (60" Mower Decks) 12 1722792SM 1 DECAL, Cutting Width (54" Mower Decks) 12 1722791SM 1 DECAL, Cutting Height Indicator, HI - LO (54"Mower Decks) 13 1721197SM 1 DECAL, Cutting Height Indicator, A-B-C-D-E (48" and 60" Mower Decks) 13 1717583SM 1 DECAL, Cutting Line 14 1664141SM 1 DECAL, OPEI (Not serviced) 15 * 1 I.D. Plates (Not serviced) 16 * 1

Footnotes

Note* Not a servicable part.

The above parts group applies to the following Mfg. Nos.:

1692860 - 60" Mower 1692863 - 48" Mower 1692870 - Le 1692871 - Legac 1692872 - Legac 1693114 - Legacy

2009

1693116 - Le 1693118 - Legacy 1693122 - 48" Mower 1693123 - 60" Mower 1693124 - 2020 1693126 - 2025

75

1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC 1693219 - Le 1693220 - 2920

1693221 - 2020 1693250 - Legacy 1693252 - 48" Mower 1693253 - 60" Mower 1693561 - Le 1693562 - 2025

TP 400-2155-C-LG-SMA

Heat Shield Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

I985117

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

76

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Heat Shield Group

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

CAPSCREW, Hex Head Whizlock, 1/4-20 x 5/8 1 1960295SM 12 MOULDING, 5" 2 1718134SM 2 SHIELD, Hood (Air Cooled Models Only) 3 1717506SM 1 NUT, Hex Whizlock, 1/4-20 4 1930641SM 8 SHIELD, Inner Hood 5 1717498ASM 1 NUT, Retainer, 1/4-20 6 1917867SM 4 INSULATION, Headlight 7 1717586SM 1 PLATE, Headlight Shield 8 1717590ASM 1 AIR DEFLECTOR, Headlight 9 1717579ASM 1 INSULATION, LH Hood 10 1727053SM 1 INSULATION, RH Hood 11 1727054SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

77

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Hydrostatic Pump - SERVICE PARTS

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1717052

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

78

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Hydrostatic Pump - SERVICE PARTS

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

HOUSING ASSEMBLY (Includes Ref. Nos. 49, 43 & 44) 1 1678975SM 1 SHAFT, Trunnion 2 1652194SM 1 BEARING, Ball 3 1652231SM 1 SHAFT, Pump 4 1678987SM 1 PLATE, Swash 5 1673533SM 1 PIN, Spring 6 1652226SM 3 PLATE, Thrust 7 1673532SM 2 BLOCK, Cylinder 8 1673535SM 2 PLUG, Hex Head 9 1652217SM 2 O" RING 10 2821884SM 2 KIT, Shim Pack 11 1652216SM 4 SPRING, Rel. Valve 12 1700813SM 1 CONE, Rel. Valve 13 1652214SM 2 PLUG, Pipe 14 2860625SM 4 CAPSCREW, 12 Pt. 15 1652212SM 2 O" RING 16 1652207SM 1 GEROTOR 17 1678985SM 1 PIN, Straight 18 1678984SM 1 HOUSING, Charge Pump 19 1678983SM 1 BEARING, Roller 20 1678979SM 1 SEAL, Lip 21 1678981SM 1 CAPSCREW, Hex Head, 3/6-16 x 1-1/4 22 1920415SM 2 CAPSCREW, Hex Head, 7/16-14 x 2 23 1927531SM 2 WASHER, Flat 24 1918199SM 2 FILTER ASSEMBLY 25 1650954SM 1 UNION, Filter 26 1671699SM 1 O" RING 27 1652196SM 2 PLUG, Hex Head. (Includes Ref. No. 27) 28 1652197SM 2 PLUG, Pipe (Includes Ref. No. 27) 29 1671665SM 1 CAPSCREW, Hex Head,3/8-16 x 2 30 1923701SM 4 SPRING, Rel. Valve 31 1652253SM 1 BEARING, Roller 32 1678979SM 2 SECTION, Center 33 1678980SM 1 PLATE, Valve (Pump) 34 1652223SM 1 PIN, Headless, St. 35 1652224SM 2 PLATE, Valve (Motor) 36 1652189SM 1 O" RING 37 1652221SM 2 RING, Back-Up 38 1652220SM 2 O" RING 39 1652219SM 2 SHAFT, Motor (See Repair Kit "E") 40 * 1

Footnotes

Note* Sold only as part of Shaft & Snap Ring Repair Kit (P/N 1703993).

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

79

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Hydrostatic Pump - SERVICE PARTS

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1717052

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

80

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Hydrostatic Pump - SERVICE PARTS

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

PIN, Headless 41 1652185SM 2 GASKET 42 1652184SM 1 BEARING, Needle 43 1652251SM 2 SEAL, Up 44 1652234SM 2 WASHER 45 1652235SM 2 RING, Retaining 46 1652192SM 2 SHAFT, Trunnion 47 1652183SM 1 BEARING, Ball 48 1678977SM 1 SEAL, Lip 49 1612093SM 1 CHARGE PUMP KIT (Includes Ref. Nos. 16, 17, 18, 19, 20 & 21) A 1678988SM CHECK VALVE ASSEMBLY (Includes Ref. Nos. 37, 38 & 39) B 1673537SM RELIEF VALVE KIT (Includes Ref. Nos. 9, 10, 11, 12 & 13) C 1700812SM RELIEF VALVE KIT (Includes Ref. Nos. 9, 10, 11, 13 & 31) D 1673538SM SHAFT & SNAP RING KIT E 1703993SM

Footnotes

Note* Sold only as part of Shaft & Snap Ring Repair Kit (P/N 1703993).

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

81

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Tilt Assembly - SERVICE PARTS

y

gacy

y

gacy

y

gacy

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1716258

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

82

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

Tilt Assembly - SERVICE PARTS

y

gacy

y

gacy

y

gacy

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

RING, Retaining 1 1718742SM 1 WASHER 2 1718743SM 1 WASHER, Spring Wave 3 1715202SM 1 BUSHING 4 1718739SM 2 SUPPORT, Wheel Shaft 5* 1 BUSHING 6 1718738 2 SPRING, Tilt 7 1718736SM 1 ASSEMBLY, Wheel Shaft 8* 1 ASSEMBLY, Latch 9 1686943SM 1 LEVER, Release 10 1718744SM 1 CAPSCREW 11 1718745SM 1 SPRING, Latch 12 * 1 SHAFT, Latch 13 * 1 WASHER 14 1718746SM 2 LOCKWASHER, Internal Tooth 15 1718747SM 2 CAPSCREW 16 1718741SM 6 PLATE, Support 17 * 2 BASE 18 * 1

Footnotes

Note* Not Serviced Separately. Order Steering Tilt Assembly 1716258.

The above parts group applies to the following Mfg. Nos.:

1692870 - Legac 1692871 - Legacy 1692872 - Le 1693114 - Legac 1693116 - Legac 1693118 - Legacy

2009

1693124 - 2020 1693126 - 2025 1693128 - 2020LC 1693132 - 2920 1693134 - 2925 1693136 - 2920LC

83

1693219 - Le 1693220 - 2920 1693221 - 2020 1693250 - Le 1693561 - Legac 1693562 - 2025

1693563 - 2925 1693764 - Legacy 1693769 - 2023H 1693770 - 2923H 1693771 - Le

TP 400-2155-C-LG-SMA

48" Mower Deck - Baffle & Inner Roller Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

BF85507

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

84

TP 400-2155-C-LG-SMA

48" Mower Deck - Baffle & Inner Roller Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

NUT, Hex Centerlock, 5/16-18 1 1923362SM 2 BRACKET & SHAFT ASSEMBLY, Inner 2 2108454ASM 1 ROLLER ASSEMBLY 3 1668513SM 2 WASHER 4 1960020SM 2 COTTER PIN 5 1918458SM 2 NUT, Hex, 5/16 6 1917372SM 4 LOCKWASHER, 5/16 7 1917356SM 4 BRACKET, Inner, LH 8 2108224ASM 1 CARRIAGE BOLT, 5/16-18 x 3/4 9 1931333SM 4 BAFFLE ASSEMBLY 10 1674774ASM 1 SCREW-HOOK, Baffle 11 1679385SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

85

TP 400-2155-C-LG-SMA

48" Mower Deck - Baffles (Export Models)

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1687641

The above parts group applies to the following Mfg. Nos.:

1693252 - 48" Mower

2009

86

TP 400-2155-C-LG-SMA

48" Mower Deck - Baffles (Export Models)

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

BAFFLE, RH 1 1718566SM 1 BAFFLE, LH 2 1718565SM 1 CARRIAGE BOLT, 3/8-16 x 1 3 1931350SM 3 LOCKWASHER, 3/8 4 1916965SM 3 NUT, 3/8-16 5 1916950SM 3

Footnotes

The above parts group applies to the following Mfg. Nos.:

1693252 - 48" Mower

2009

87

TP 400-2155-C-LG-SMA

48" Mower Deck - Deflector & Stone Guard Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985503

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

88

TP 400-2155-C-LG-SMA

48" Mower Deck - Deflector & Stone Guard Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

NUT, Hex, 3/8-16 1 1916950SM 7 LOCKWASHER, 3/8 2 1916965SM 7 BRACKET 3 1676203A 1 CAPSCREW, Hex Head, 3/8-16 x 1 4 1921210SM 2 DEFLECTOR ASSEMBLY 5 1677157CSM 1 CARRIAGE BOLT, 3/8-16 x 1 6 1931350SM 5 STONE GUARD 7 1677261ASM 1 ROD, Hinge 8 1676208SM 1 WASHER, Plain 9 1924366SM 2 SPRING, Torsion 10 1676213SM 1 CAP, Spring End 11 1723322SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

89

TP 400-2155-C-LG-SMA

48" Mower Deck - Drive, Belt, Arbor & Blade Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985163

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

90

TP 400-2155-C-LG-SMA

48" Mower Deck - Drive, Belt, Arbor & Blade Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

BELT, Deck, Double V 1 1675342SM 1 GEAR BOX (See Gear Box Service Parts ) 2 1717069SM 1 KEY 3 2822138SM 2 LOCKWASHER, 3/8 4 1916965SM 5 CAPSCREW, Hex Head, 3/8-16 x 3/4 5 1921965SM 4 PULLEY ASSEMBLY 6 1674643SM 1 SETSCREW, 5/16-18 x 1/2 7 1928721SM 2 CAPSCREW, Hex Head, 7/16-14 x 1-1/4, G8 8 2823471SM 6 LOCKWASHER, 7/16 9 1918199SM 3 WASHER, 7/16 10 1933263SM 3 PULLEY ASSEMBLY 11 1678663C 3 SHIELD, Bearing Upper, Arbor 12 1657969SM 3 ARBOR HOUSING, Top 13 1655729ASM 3 ARBOR SHAFT & BEARING ASSEMBLY, Complete (Includes Ref. Nos. 15, 16, & 17) 14 1676278A 3 BEARING 15 2108202SM 6 GASKET, Foam 16 1707335SM 3 ARBOR SHAFT 17 1676277SM 3 CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4 18 1664847SM 18 HOUSING ASSEMBLY, Bottom (IIncludes Ref. No. 20) 19 1703273ASM 3 FITTING, Lube 20 1704314SM 3 WASHER, Shim 21 1700230SM 3 SHIELD, Grass 22 1700229SM 3 ADAPTER, Blade 23 1655777SM 3 RING, Self Locking 24 1657528SM 3 BLADE 25 1679916ASM 3 WASHER, Spline 26 1679711SM 3 WASHER, Spring 27 1656916SM 3 NUT, Hex, 3/8-16 28 1916950SM 2 WASHER, Plain, 3/8 29 1924940SM 6 CAPSCREW, Hex, 5/16-18 x 1 3/4 30 1921977SM 1 WASHER, Plain 5/16 31 1919326SM 2 BUSHING 32 1676148SM 2 CARRIAGE BOLT, 3/8-16 x 1 1/4 33 1960268SM 1 IDLER ARM ASSEMBLY 34 1700395SM 1 LUBE FITTING 35 2815019SM 1 PULLEY, Idler 36 1725372SM 1 SPACER 37 2157081SM 1 WASHER, Internal Lock 38 1916803SM 1 STOP BRACKET, Idler 39 1679486SM 1 CAPSCREW, Hex Head, 3/8-16 x 2 40 1923701SM 1

Footnotes

Note* See Service Parts for Drive Shaft - SERVICE PARTS Note* See Service Parts for Gearbox - SERVICE PARTS

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

91

TP 400-2155-C-LG-SMA

48" Mower Deck - Drive, Belt, Arbor & Blade Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985163

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

92

TP 400-2155-C-LG-SMA

48" Mower Deck - Drive, Belt, Arbor & Blade Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

SPACER 41 1674669SM 1 SPRING, Extension 42 1674671SM 1 NUT, Hex Lock, 5/16-18 43 1923362SM 1 ROD, Spring Stop 44 1716960SM 1 NUT, Hex, 5/16-18 45 1917372SM 1 LOCKWASHER, 5/16 46 1917356SM 1 DRIVE SHAFT, Complete (See Drive Shaft Service Parts ) 47 1716482SM 1 CAPSCREW, Hex Head, 1/4-20 x 2 1/2 48 1923282SM 1 NUT, Hex Lock,1/4-20 49 1923358SM 2 SETSCREW, 5/16-18 x 1/2 50 1930543SM 1

Footnotes

Note* See Service Parts for Drive Shaft - SERVICE PARTS Note* See Service Parts for Gearbox - SERVICE PARTS

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

93

TP 400-2155-C-LG-SMA

48" Mower Deck - Height Adjust & Hitch Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

J985505

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

94

TP 400-2155-C-LG-SMA

48" Mower Deck - Height Adjust & Hitch Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

MOTOR, Electric Cutting Height Adjust 1 1715885SM 1 CAPSCREW, Hex Washer Head, Taptitek, 5/16-18 x 1, Black 2 1960373SM 2 BRACKET, Motor Mounting 3 1715875SM 1 LOCKWASHER, 1/4 4 1916964SM 3 CAPSCREW, Hex Head, 1/4-20 x 3/4 5 1923341SM 3 ADAPTER, Motor 6 1715886SM 1 WASHER, Plain, 1/4 7 1960353SM 1 NUT, Hex Centerlock, 1/4-20 8 1923358SM 1 ROLL PIN, 3/16 x 1 3/4 9 1960581SM 1 HUB, Shaft 10 1715887SM 1 WASHER, Nylon 11 1716998SM 1 BEARING, Thrust 12 1715891SM 1 SHAFT ASSEMBLY 13 1715888SM 1 NUT, Hex, 1/2-13 14 1916951SM 1 LOCKWASHER, 1/2 15 1916966SM 1 LEVER 16 1715881ASM 1 COVER, Rod 17 1716424SM 1 FITTING, Lube 18 1704314SM 1 TRUNNION 19 1715892SM 1 CARRIAGE BOLT, 1/2-13 x 2 1/2 20 1960489SM 1 SPACER 21 1679166SM 1 NUT, Hex Nylon Lock, 5/16-18 22 1919438SM 4 WASHER, Plain, 5/16 23 1919326SM 4 U-BOLT, Clamp 24 1678103SM 2 CLAMP 25 1708007SM 1 CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2 26 1924856SM 1 COVER 27 1717053SM 1 HARNESS, Mower lift 28 1716986SM 1 NUT, Hex Alm Insert Lock, 3/8-16 29 2860681SM 2 SPACER 30 1708973SM 2 WASHER, Plain, 3/8 31 1924940SM 2 CAPSCREW, Hex Head, 3/8-16 x 1 1/2 32 1921969SM 2 RETAINING RING, 5/8 33 2153124SM 2 WASHER, 5/8 34 1924366SM 2 HITCH & SHAFT ASSEMBLY 35 1719567ASM 1 ROD, Latch 36 1715872SM 1 PIN, Retainer 37 2176012SM 3 PIN, Hitch 38 1717075SM 2 HITCH & BAR ASSEMBLY, Mower Front Hitch 39 1715868ASM 1 SPACER 40 1715871SM 2

Footnotes

Note* If replacing bracket {Ref 42} on units prior to SN 60000, order PN 1719867 {Ref 35}. Spacer {Ref 40} and Shaft {Ref 41} are NO LONGER required as these are integral to the replacement bracket.

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

95

TP 400-2155-C-LG-SMA

48" Mower Deck - Height Adjust & Hitch Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

J985505

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

96

TP 400-2155-C-LG-SMA

48" Mower Deck - Height Adjust & Hitch Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

SHAFT, Hitch 41 1719567 1 HITCH & SHAFT ASSEMBLY 42 * 1 CAPSCREW, Hex Washer Head, Taptite 5/16-18 x 3/4 Black 43 1960541SM 1

Footnotes

Note* If replacing bracket {Ref 42} on units prior to SN 60000, order PN 1719867 {Ref 35}. Spacer {Ref 40} and Shaft {Ref 41} are NO LONGER required as these are integral to the replacement bracket.

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

97

TP 400-2155-C-LG-SMA

48" Mower Deck - Housing, Cover & Gauge Wheel Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985507

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

98

TP 400-2155-C-LG-SMA

48" Mower Deck - Housing, Cover & Gauge Wheel Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

HOUSING, 48" Mower Deck (Orange) 1 1686731SM 1 HOUSING, 48" Mower Deck (Red) 1 41716963 1 HOUSING, 48" Mower Deck (Solar Black) 1 1687141SM 1 ARM, Adjusting 2 1686868SM 2 NUT, Hex Jam, 5/8-18 3 1922014SM 6 WASHER, 5/8 4 1924366SM 4 BOLT, Shoulder, 1/2 x 1.53 - 3/8-16 5 2170135SM 2 TRUNNION 6 1677182SM 2 CHAIN, Lift 7 2107031SM 2 TUBE, Shrink Wrap (Early Models) 8 1686763SM 2 NUT, Hex Flange, Centerlock, 3/8-16 9 1930645SM 2 SUPPORT ASSEMBLY, 48 Mower Deck 10 1715924SM 1 NUT, Hex, 3/8-16 11 1916950SM 8 LOCKWASHER, 3/8 12 1916965SM 8 WASHER, 3/8 13 1924940SM 6 COVER, RH, 48 Mower Deck (Orange) 14 1679928C 1 COVER, RH, 48 Mower Deck (Red) 14 1679928D 1 COVER, RH, 48 Mower Deck (Solar Black) 14 1729552SM 1 PLUG, Cover 15 1674020SM 1 COVER, LH, 48 Mower Deck (Orange) 16 1679511C 1 COVER, LH, 48 Mower Deck (Red) 16 1679511D 1 COVER, LH, 48 Mower Deck (Solar Black) 16 1729551SM 1 CAPSCREW, Taptite, 1/4-20 x 3/8 17 1929000SM 10 CAPSCREW, Taptite, 5/16-18 x 5/8 18 1930601SM 4 CAPSCREW, Taptite, 5/16-18 x 1 19 1919326SM 4 KLIPRING, 5/8 20 1704420SM 4 WASHER, Plain, 5/8 21 1960020SM 4 WHEEL, Gauge 22 1716353SM 2 SPINDLE, Gauge Wheel 23 1716345A 2 SPRING, Compression 24 1716346SM 2 BRACKET ASSEMBLY, LH Gauge 25 1716347C 1 BRACKET ASSEMBLY, RH Gauge 26 1716942C 1 CAPSCREW, Hex Head, 3/8-16 x 1 27 1921210SM 6

Footnotes

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

99

TP 400-2155-C-LG-SMA

48" Mower Deck - Roller Bar Group - (Serial No. 1 to 59999)

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

S085505

The above parts group applies to the following Mfg. Nos.:

1692863 - 48" Mower 1693122 - 48" Mower 1693252 - 48" Mower 1694138 - 48" Mower

2009

100

TP 400-2155-C-LG-SMA

Simplicity Lecacy User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
