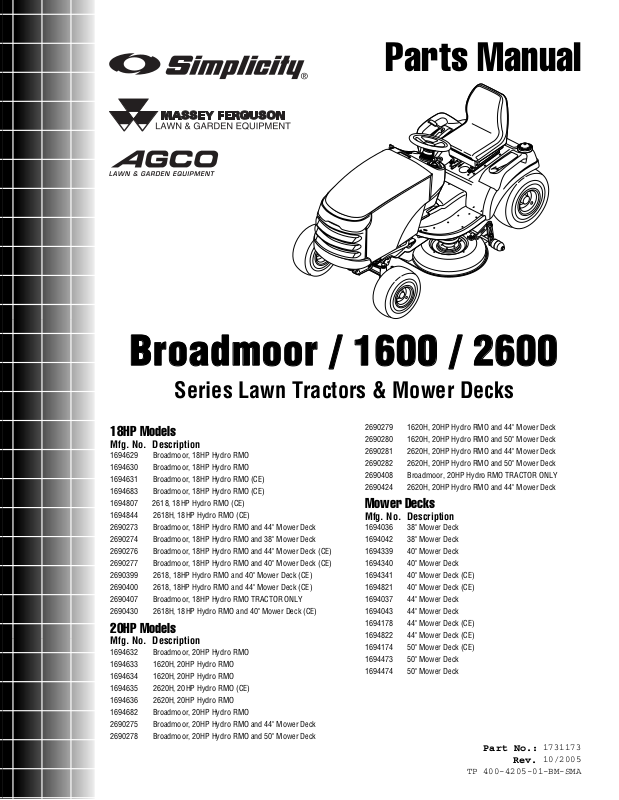

Parts Manual

Broadmoor / 1600 / 2600

Series Lawn Tractors & Mower Decks

18HP Models

Mfg. No. Description

1694629 Broadmoor, 18HP Hydro RMO 1694630 Broadmoor, 18HP Hydro RMO 1694631 Broadmoor, 18HP Hydro RMO (CE) 1694683 Broadmoor, 18HP Hydro RMO (CE) 1694807 2618, 18HP Hydro RMO (CE) 1694844 2618H, 18HP Hydro RMO (CE) 2690273 Broadmoor, 18HP Hydro RMO and 44" Mower Deck 2690274 Broadmoor, 18HP Hydro RMO and 38" Mower Deck 2690276 Broadmoor, 18HP Hydro RMO and 44" Mower Deck (CE) 2690277 Broadmoor, 18HP Hydro RMO and 40" Mower Deck (CE) 2690399 2618, 18HP Hydro RMO and 40" Mower Deck (CE) 2690400 2618, 18HP Hydro RMO and 44" Mower Deck (CE) 2690407 Broadmoor, 18HP Hydro RMO TRACTOR ONLY 2690430 2618H, 18HP Hydro RMO and 40" Mower Deck (CE)

20HP Models

Mfg. No. Description

1694632 Broadmoor, 20HP Hydro RMO 1694633 1620H, 20HP Hydro RMO 1694634 1620H, 20HP Hydro RMO 1694635 2620H, 20HP Hydro RMO (CE) 1694636 2620H, 20HP Hydro RMO 1694682 Broadmoor, 20HP Hydro RMO 2690275 Broadmoor, 20HP Hydro RMO and 44" Mower Deck 2690278 Broadmoor, 20HP Hydro RMO and 50" Mower Deck

2690279 1620H, 20HP Hydro RMO and 44" Mower Deck 2690280 1620H, 20HP Hydro RMO and 50" Mower Deck 2690281 2620H, 20HP Hydro RMO and 44" Mower Deck 2690282 2620H, 20HP Hydro RMO and 50" Mower Deck 2690408 Broadmoor, 20HP Hydro RMO TRACTOR ONLY 2690424 2620H, 20HP Hydro RMO and 44" Mower Deck

Mower Decks

Mfg. No. Description

1694036 38" Mower Deck 1694042 38" Mower Deck 1694339 40" Mower Deck 1694340 40" Mower Deck 1694341 40" Mower Deck (CE) 1694821 40" Mower Deck (CE) 1694037 44" Mower Deck 1694043 44" Mower Deck 1694178 44" Mower Deck (CE) 1694822 44" Mower Deck (CE) 1694174 50" Mower Deck (CE) 1694473 50" Mower Deck 1694474 50" Mower Deck

Part No.:

TP 400-4205-01-BM-SMA

Rev.

1731173 10/2005

Table Of Content

s

PRODUCT COMPONENTS PAGES

Frame & Front Axle Group ...................................................................................................................................

Steering Group - Manual Steering .......................................................................................................................

Engine & Electric Clutch Group - 16HP & 18HP Briggs & Stratton, Vanguard ...................................................

Engine & Electric Clutch Group - 18HP & 20HP Briggs & Stratton, Vanguard ...................................................

Engine Group - 18HP Kohler ...............................................................................................................................

Transmission Group - Tuff Torq K-57 ..................................................................................................................

Transmission SERVICE PARTS - Tuff Torq K-57A .............................................................................................

Controls Group .....................................................................................................................................................

Cruise Control Group ...........................................................................................................................................

Electrical Group ....................................................................................................................................................

Hood, Grille & Dash Group ..................................................................................................................................

Seat & Seat Deck Group ......................................................................................................................................

Lift Group - Manual Lift ........................................................................................................................................

Wheels & Tires Group ..........................................................................................................................................

Decals - Brand & Model .......................................................................................................................................

Decals - Safety & Common ..................................................................................................................................

38" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................

38" Mower Deck - Height Adjustment & Roller Bar .............................................................................................

38" Mower Deck - Housing, Arbors & Blades ......................................................................................................

40" Mower Deck - Belt, Idler Arm & Hitch ......................................................................................

40" Mower Deck - Height Adjustment & Roller Bar .............................................................................................

40" Mower Deck - Housing, Arbors & Blades ......................................................................................................

44" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................

44" Mower Deck - Height Adjustment & Roller Bar .............................................................................................

44" Mower Deck - Housing, Arbors & Blades ......................................................................................................

44" Mower Deck - Housing, Arbors & Blades CE ................................................................................................

50" Mower Deck - Clutch & Support ....................................................................................................................

50" Mower Deck - Height Adjustment & Roller Bar .............................................................................................

50" Mower Deck - Housing, Arbors & Blades ......................................................................................................

......................

10 12 14 16 20 22 24 26 28 30 32 34 36 38 40 42 46 48 50 54 58 60 64 66 70 72 76 80 82

Torque Specification Chart ..................................................................... Inside Back Cover

4 6 8

Frame & Front Axle Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

4

Torque to

150 ft. lbs.

(202 Nm)

3

2

1

50-57 ft. lbs.

39

36

38

37

5

Torque to

(48-56 Nm)

40

41

33

42

22

34

43

35

11

12

18

20

24

22

Torque to

22-40 ft. lbs.

(30-54 Nm)

986681

8

7

6

9

Torque to

22-40 ft. lbs.

(30-54 Nm)

1

10

2

1515

21

22

23

14

18

17

13

16

19

20

24

Torque to 13 ft. lbs.

25

Service Kit 1686985

Torque to

55-60 ft. lbs.

(74-81 Nm)

26

27

28

22

1

33

1

31

30

29

32

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

4

TP 400-4205-01-BM-SMA

Frame & Front Axle Group

PART NO. DESCRIPTIONREF NO QTY.

1 1930645 7 NUT, Hex Flange Lock, 3/8-16 2 1960035 2 WASHER 3 2860646 1 NUT, Hex Flange, 5/8-11 4 1722212A 1 PLATE, Axle 5 1724081A 1 TOWER & SUPPORT ASSEMBLY 6 1923683 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4 7 1723528A 1 SUPPORT 8 1664847 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4

9 1726989A 1 FRAME ASSEMBLY 10 2860645 1 CAPSCREW, 5/8-11 x 3-1/2 11 1704314 2 FITTING, Grease for Wear Plate, 1/4-20, with Ball 12 1933260 4 CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/4 13 1722541 1 LINK, Drag 14 1922755 1 WASHER 15 1960103 2 WASHER 16 1919262 1 NUT, Hex Jam, 1/2-20 17 1702779A 1 JOINT, Ball 18 1708236 1 SPACER 19 1931350 2 CARRIAGE BOLT, 3/8-16 x 1 20 1611705 2 SPACER 21 1722626A 1 ROD, Tie 22 1721682 6 BUSHING 23 1930650 2 NUT, Hex Flange Lock, 7/16-14 24 1704314 3 FITTING, Lube 25 1686985 1 SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30) 26 2823485 1 CAPSCREW, 3/8-16 x 7/8, GR8 27 1663151 1 WASHER, Spring, 3/8 28 1725112 1 HUB & ARM ASSEMBLY 29 2830671 1 KEY, Woodruff 30 1724264 1 SPINDLE, LH 31 1722200A 1 AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos. 22, 24, 41, 42 & 43) 32 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 33 1927531 2 CAPSCREW, Hex Head, 7/16-14 x 2, GR8 34 1721918A 1 HOOK, "J" 35 1721752 1 SPACER 36 1960086 4 SCREW, Torx Head, 5/16-18 x 7/8 37 1721805A 1 BUMPER, Black, Steel, Standard 37 1723502 1 BUMPER, Chrome, Optional 38 1930591 2 CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4 39 1724801A 1 PLATE, Axle Wear 40 1931277 2 NUT, Hex Falnge Whiz Lock, 5/16-18 41 1722199 1 SPINDLE, RH 42 1919394 1 WASHER 43 2832577 1 RETAINING RING

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

5

TP 400-4205-01-BM-SMA

Steering Group - Manual Steering

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985890

2

Steering cap snaps

1

5

6

15

21

8

9

over steering wheel.

3

7

4

20

Torque to 36-44 ft. lbs. or 48-60 Nm

19

Bearing mounts below frame. Slide pinion into gear before tightening nuts.

18

Use washers

5

as required.

17

15

16

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

10

6

5

11

12

14

13

Torque to 36-44 ft. lbs. or 48-60 Nm

6

TP 400-4205-01-BM-SMA

Steering Group - Manual Steering

PART NO. DESCRIPTIONREF NO QTY.

1 1722318 1 STEERING WHEEL, Straight, Shaft

2 1722319 1 CAP, Steering Wheel, SMI Logo

2 1725024 1 CAP, Steering Wheel, Plain

3 1960540 1 PIN, Spring, 5/16 x 2-1/2

4 1722749 1 COVER, Rubber, Upper Steering Shaft

5 1960114 5 WASHER, 3/4

6 2176440 2 BUSHING, 15/32 x 7/8 x 7/8, Nylon

7 1960636 2 NUT, Hex KEPS 5/6-18

8 1721736A 1 PLATE, Mounting Steering

9 1933988 2 NUT, Push 10 1960655 2 CARRIAGE BOLT, 5/16-18 x 1-1/4 11 1724470A 1 GEAR & SHAFT ASSEMBLY, Steering 12 1960032 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black 13 1930645 1 NUT, Hex Flange Two-Way Lock, 3/8-16 14 1664847 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 15 1721626 1 SHAFT & PINION ASSEMBLY, Steering Manual 16 1611710 1 RING, Clipring Extension 17 1722459 1 BEARING, 3/4 x 1-11/16 x 13/16, 3" Long Housing 18 1722461 1 SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal 19 1931211 2 NUT, Hex Flange Whiz Lock, 3/8-16, Small 20 1933260 2 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black 21 1919314 1 PIN, Cotter, 1-1/4, Black

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

7

TP 400-4205-01-BM-SMA

Engine & Electric Clutch Group - 16HP & 18HP Briggs & Stratton, Vanguard

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

29

26

27

22

1

30

Engine Manufacturer

Gasket & Hardware,

Torque to 18 ft. lbs.

(25 Nm)

23

986252

3

4

2

31

32

10

26

6

5

Tie cables to Left

Hand side of shield.

7

8

9

28

25

11

24

22

23

21

Install between Frame &

Ground cable on RH

rear engine capscrew.

Note: Orientation of All Keys

20

19

17

Torque to

45-50 ft. lbs.

(61-68 Nm)

The above parts group applies to the following Mfg. Nos.:

1694630 - Broadmoor 1694683 - Broadmoor 1694807 - 2618

18

Torque to

24-36 ft. lbs.

(31-48 Nm)

12

14

15

16

19

Position pulley

chamfer side up.

Tie clutch wire

to keep away

from pulley.

13

10

11

2005

8

TP 400-4205-01-BM-SMA

Engine & Electric Clutch Group - 16HP & 18HP Briggs & Stratton, Vanguard

PART NO. DESCRIPTIONREF NO QTY.

1 1723165 1 HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings

2 * 1 ENGINE, 16HP Briggs & Stratton Vanguard Twin, Model 303777, Type 1114-E1

2 * 1 ENGINE, 18HP Briggs & Stratton Vanguard Twin, Model 356777, Type 0113-E1

3 1722950 1 SEAL, Circle, 16HP Only

3 1722949 1 SEAL, Circle, 18HP Only

4 1722388A 1 BULKHEAD

5 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black

6 1727223 1 CONTROL, Throttle Double 39" Long w/Knobs

7 1701011 2 TIE, Wire, 7-5/16" Long

8 2860112 2 CLAMP, Hose Type E

9 1718678 1 HOSE, Fuel, 59" Long 10 1722392A 2 SHIELD, Side 11 1929000 8 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8 12 1722288 1 PULLEY & HUB ASSEMBLY 13 2832747 1 TIE, Self Locking, 3-5/8 Long 14 1708264 1 WASHER, Hex, 7/16, Black 15 1918199 1 LOCKWASHER, 7/16 16 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 3-3/4 17 1686880 1 CLUTCH, Electric 18 1720463 1 KEY, HI PRO, 1/4 x 2 1/2 19 2830598 4 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2 20 2820427 1 LOCKWASHER, External Tooth, 3/8 21 1722414A 1 SHIELD, Muffler Bottom 22 1960368 8 NUT, Speed, 1/4-20, Lug 23 1960295 4 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8 24 1935255 2 NUT, Speed, 5/16-18, Lug, Black 25 1722389A 1 DUCT, Muffler Top 26 2834683 2 CLIP, Wire 1/8 27 1722390A 1 DUCT, Muffler Extension 28 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black 29 1722625 1 MUFFLER, Briggs & Stratton, Vanguard Twin 30 * 1 GASKET, Briggs & Stratton, Vanguard Twin 31 1917356 4 LOCKWASHER, 5/16 32 2860660 4 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 7/8

Footnotes

* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

1694630 - Broadmoor 1694683 - Broadmoor 1694807 - 2618

2005

9

TP 400-4205-01-BM-SMA

Engine & Electric Clutch Group - 18HP & 20HP Briggs & Stratton, Vanguard

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Hand Tighten with

2 additional revolutions

with a wrench.

29

26

27

22

1

30

Engine Manufacturer

Gasket & Hardware,

Torque to 18 ft. lbs.

(25 Nm)

23

986773

3

4

2

31

32

10

26

6

5

Tie cables to Left

Hand side of shield.

7

8

9

28

25

11

24

22

23

21

Install between Frame &

Ground cable on RH

rear engine capscrew.

Note: Orientation of All Keys

The above parts group applies to the following Mfg. Nos.:

1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H 1694635 - 2620H 1694636 - 2620H

2005

1694682 - Broadmoor 1694844 - 2618H

20

19

18

17

Torque to

45-50 ft. lbs.

(61-68 Nm)

10

Torque to

24-36 ft. lbs.

(31-48 Nm)

12

14

15

16

19

Position pulley

chamfer side up.

Tie clutch wire

to keep away

from pulley.

13

10

11

TP 400-4205-01-BM-SMA

Engine & Electric Clutch Group - 18HP & 20HP Briggs & Stratton, Vanguard

PART NO. DESCRIPTIONREF NO QTY.

1 1723165 1 HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings

2 * 1 ENGINE, 18HP Briggs & Stratton Vanguard Twin, Model 356777, Type 0113-E1

2 * 1 ENGINE, 20HP Briggs & Stratton Vanguard Twin, Model 358777, Type 0110-E1

3 1722949 1 SEAL, Circle, 18HP & 20HP

4 1722388A 1 BULKHEAD

5 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black

6 1727223 1 CONTROL, Throttle Double 39" Long w/Knobs

7 1701011 2 TIE, Wire, 7-5/16" Long

8 2860112 2 CLAMP, Hose Type E

9 1718678 1 HOSE, Fuel, 59" Long 10 1722392A 2 SHIELD, Side 11 1929000 8 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8 12 1722288 1 PULLEY & HUB ASSEMBLY 13 2832747 1 TIE, Self Locking, 3-5/8 Long 14 1708264 1 WASHER, Hex, 7/16, Black 15 1918199 1 LOCKWASHER, 7/16 16 1960649 1 CAPSCREW, Hex Head, 7/16-20 x 3-1/2, 20HP 16 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4, 20HP 17 1686883 1 CLUTCH, Electric, 18HP 17 1686880 1 CLUTCH, Electric, 20HP 18 1720463 1 KEY, HI PRO, 1/4 x 2 1/2 19 2830598 4 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2 20 2820427 1 LOCKWASHER, External Tooth, 3/8 21 1722414A 1 SHIELD, Muffler Bottom 22 1960368 8 NUT, Speed, 1/4-20, Lug 23 1960295 4 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8 24 1935255 2 NUT, Speed, 5/16-18, Lug, Black 25 1722389A 1 DUCT, Muffler Top 26 2834683 2 CLIP, Wire 1/8 27 1722390A 1 DUCT, Muffler Extension 28 1924856 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black 29 1722625 1 MUFFLER, Briggs & Stratton, Vanguard Twin 30 * 1 GASKET, Briggs & Stratton, Vanguard Twin 31 1917356 4 LOCKWASHER, 5/16 32 2860660 4 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 7/8

Footnotes

* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H 1694635 - 2620H 1694636 - 2620H

2005

1694682 - Broadmoor 1694844 - 2618H

11

TP 400-4205-01-BM-SMA

Engine Group - 18HP Kohler

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Engine Manufacturer

Gasket & Hardware,

Torque to 18 ft. lbs.

(25 Nm)

1

2

986682

10

7

6

5

3

4

9

8

Tie cables to Left

Hand side fo shield.

11

12

13

29

31

14

30

29

18

Install between Frame &

Ground cable on RH

rear engine capscrew.

27

26

28

14

23

15

25

24

Torque to

19-23 ft. lbs.

(26 - 31 Nm)

Tie clutch wire

to keep away

from pulley.

22

17

18

Note: Orientation of All Keys

19

20

21

Torque to 45-50 ft. lbs. (61 - 68 Nm)

15

16

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor

2005

12

TP 400-4205-01-BM-SMA

Engine Group - 18HP Kohler

PART NO. DESCRIPTIONREF NO QTY.

1 1721704 1 MUFFLER 2 * 1 GASKET 3 * 2 LOCKWASHER, 5/16 4 * 2 CAPSCREW, Socket Head, 5/16-18 x 7/8, G8 5 1723165 1 HOSE, Oil Drain 6 * 1 ENGINE, 18HP Kohler Single, Model CV492S, Type PS-27534 7 1722950 1 SEAL, Circle 8 1722388A 1 BULKHEAD

9 1925003 2 CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2 10 1727223 1 CONTROL, Throttle Double 39" Long w/Knobs 11 2825094 1 TIE, Self Locking 12 2860112 2 CLAMP, Hose Type E 13 1723174 1 HOSE, 59" Long 14 2834683 2 CLIP, Wire 15 1722392A 2 SHIELD 16 1929000 4 SCREW, Hex Head Taptite, 1/4-20 x 3/8 17 1720463 1 KEY 18 1722288 1 PULLEY & HUB ASSEMBLY, 4-1/2 OD 19 1708264 1 WASHER, Hex 20 1918199 1 LOCKWASHER, 7/16 21 1960648 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4 22 1727664 1 CLUTCH, Electric, OGURA 23 2832747 1 TIE 24 2827187 4 CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/2 25 2820426 1 LOCKWASHER, External Tooth, 3/8 26 1722414A 1 SHIELD, Muffler Bottom 27 1960295 8 CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/8 28 1924856 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2 29 1960368 8 NUT, Speed, 1/4-20 30 1935255 2 NUT, Speed, 5/16-18 31 1722389A 1 DUCT, Muffler Top 32 1722487A 1 DUCT, Muffler Extension

Footnotes

* See your local Kohler distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor

2005

13

TP 400-4205-01-BM-SMA

Transmission Group - Tuff Torq K-57

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2

1

986603

3

4

34

5

Torque nut to

28 - 33 ft. lbs.

(35 - 44 Nm)

37

36

35

33

32

17

16

14

15

11

7

8

6

10

9

12

13

18

19

31

19

39

38

29

28

26

Spring to be

27

compressed to

2-1/2 inches with

brake locked.

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

29

25

14

20

30

21

8

22

23

24

TP 400-4205-01-BM-SMA

Transmission Group - Tuff Torq K-57

PART NO. DESCRIPTIONREF NO QTY.

1 1960676 2 SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4, Black

2 1722345 1 PAD, Footrest, LH, without Differential Lock

3 1722173 1 PAD, Footrest, RH

4 1960636 1 NUT, Hex KEPS, 5/16-18, Black

5 1704351 15 FASTENER, Panel

6 1960637 6 NUT, Hex KEPS, 3/8-16, Black

7 1931350 6 CARRIAGE BOLT, 3/8-16 x 1, Black

8 1960686 5 NUT, Hex Flange ESNA, 5/16-18, Black

9 1721728A 2 SUPPORT, Transmission 10 1724316 1 RING, Snap, Transmission 11 1724312 1 COLLOR, Spline, Transmission 12 1724315 2 LOCK WASHER, Transmission 13 1724314 1 FAN, 10 Blade, Transmission 14 1718076 1 RING, E Transmission 15 1960027 2 WASHER, 1/2 16 1721666 1 PULLEY & HUB ASSEMBLY 17 1726841 1 V-BELT, Drive 18 1726806 1 ROD, Transmission Release 19 1722460 3 PIN, Quick 20 1921332 1 CAPSCREW, Hex Head, 5/16-18 x 2 21 1919326 4 WASHER, 5/16, Black 22 1923141 4 CAPSCREW, Hex Head, 5/16-18 x 2-3/4, Black 23 1918267 1 WASHER, 15/32 x 15/16, Black 24 1918447 1 PIN, Cotter, Black 25 1726871 1 ROD, Brake 26 1722684 1 SPRING, Compression, 3-1/4" Long, Black 27 1729277 1 SPRING, Compression, 3-5/8" Long, Black 28 1960687 1 NUT, Hex FlangeESNA, 3/8-16, Black 29 1924940 3 WASHER, 3/8, Black 30 1722668 1 TRANSMISSION ASSEMBLY, K57, without Pulley 31 1726803 1 CONTROL ARM ASSEMBLY 32 1724423A 1 ARM, Control 33 1960636 2 NUT, KEPS Lock, 5/16-18 34 1721592A 1 STRAP, Torque 35 1931335 1 CARRIAGE BOLT, 5/16-18 x 1, Black 36 1960141 1 WASHER, 5/16, Black 37 1921978 1 CAPSCREW, Hex Head, 5/16-18 x 2, Black 38 1727215A 1 ACTUATOR, Switch 39 1924856 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

15

TP 400-4205-01-BM-SMA

Transmission SERVICE PARTS - Tuff Torq K-57A

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

SEAL KIT (Inclu de s Re f.)

#19 #20 #26 #59 #72

53

58

60

46

31

200

#81 #91

Sealant Washer Seal

1722668

87

86

85

95

90

13

7219

72

52

51

91

49

54

57 56

55

70

59

50

5744

45

47

48

28

30

32

27

69

73

70

71

3

12

35

11

14

77

28

30

29

25

27

102

101

100

26

97

22

21

5783

34

33

8

98

99

61

15

96

20

16

634

62

97

8

9

82

2

79

75

24

38

39

27

37

65

63

64

67

71

70

21

7

80

82

76

23

81

78

72

36

40

41

42

43

65

66

73

68

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

16

TP 400-4205-01-BM-SMA

Transmission SERVICE PARTS - Tuff Torq K-57A

PART NO. DESCRIPTIONREF NO QTY.

2 1724951 1 HOUSING ASSEMBLY, UPPER

3 1724938 1 HOUSING, LOWER

7 1718052 1 VENT VALVE 15

8 1724279 2 MAGNET, K50

9 1724280 1 HOLDER, MAGNET 11 1708684 1 SPRING 12 1724281 1 SHAFT, BYPASS 13 1720418 1 LEVER, BYPASS 14 1718061 1 RING 15 1724282 1 SEALING CAP 16 1708650 1 RING 35 19 1708691 2 PACKING 20 1724283 1 SEAL TC 21 1707789 14 SCREW, TAPPING 22 1724284 2 SCREW, TAPPING 24 1724939 1 CASE, CENTER 25 1718070 1 PIN 3 x 9.8 26 1724954 1 FILTER 27 1720805 3 BOLT 10 x 75 28 1724286 2 VALVE, IDS 1.0 29 1724287 2 SPRING, IDS 30 1724288 2 BALL, 3/16 31 1724940 1 CYLINDER BLOCK ASSEMBLY 32 1724290 1 SPRING, PUMP 33 1724941 1 SHAFT, PUMP 34 1718076 3 RING E15 35 1708673 1 BEARING 36 1718077 1 HOUSING 37 1724942 1 BEARING, THRUST 38 1724289 1 BLOCK, CYLINDER 39 1718084 1 WASHER 12 x 24 x 1 40 1724943 1 SHAFT, MOTOR 41 1708672 1 RING 15 42 1724944 1 GEAR, MOTOR 43 1718083 1 BEARING 6202UC3 44 1718089 2 THRUST METAL 45 1720426 1 SWASH PLATE ASSEMBLY 46 1718088 1 THRUST PLATE B 47 1718086 1 BEARING K81105 48 1718087 1 THRUST PLATE A 49 1724343 1 SHAFT, CONTROL 50 1724344 1 FULCRUM, ECCENTRIC 51 1724345 1 SPRING, TORSION 52 1724346 1 LEVER, CONTROL 53 1724347 1 ARM, CONTROL

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

17

TP 400-4205-01-BM-SMA

Transmission SERVICE PARTS - Tuff Torq K-57A

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

SEAL KIT (Inclu de s Re f.)

#19 #20 #26 #59 #72

53

58

60

46

31

200

#81 #91

Sealant Washer Seal

1722668

87

86

85

95

90

13

7219

72

52

51

91

49

54

57 56

55

70

59

50

5744

45

47

48

28

30

32

27

69

73

70

71

3

12

35

11

14

77

28

30

29

25

27

102

101

100

26

97

22

21

5783

34

33

8

98

99

61

15

96

20

16

634

62

97

8

9

82

2

79

75

24

38

39

27

37

65

63

64

67

71

70

21

7

80

82

76

23

81

78

72

36

40

41

42

43

65

66

73

68

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

18

TP 400-4205-01-BM-SMA

Transmission SERVICE PARTS - Tuff Torq K-57A

PART NO. DESCRIPTIONREF NO QTY.

54 1724348 1 PLATE, JERK 55 1708689 1 WASHER 56 1724349 1 PIN, COTTER 57 1724296 1 PIN, SPRING 59 1707879 2 PACKING 58 1718100 1 PIN 6.0A x 4.0 60 1708692 1 NUT 12 61 1724955 1 GEAR & PINION ASSEMBLY 62 1724945 1 GEAR, FINAL CONTR TRAC 63 1724946 2 COLLAR, PINION 64 1724947 1 SHAFT, REDUCTION 65 1724948 2 WASHER, 12 x 32 x 3.2 66 1724949 1 GEAR, REDUCTION 67 1724950 1 PINION, FINAL 68 1724304 1 SHAFT, AXLE RH 69 1724303 1 SHAFT, AXLE LH 70 1718112 2 WASHER, THRUST 71 1718113 2 RING 17 72 1718111 2 SEAL 19 x 32 x 8 73 1718110 2 BUSHING 19 x 21 75 1724305 1 SHOE, BRAKE 76 1724306 1 ARM, BRAKE 77 1724307 1 SHAFT, BRAKE 78 1724308 1 SPRING, RETURN B 79 1724309 1 BRAKE, ACTUATOR 80 1724310 1 PIN 81 1708690 2 PACKING 82 1724311 2 PIN, SPRING 83 1724312 2 COLLAR, SPLINE 85 1724314 1 FAN 86 1724315 1 LOCKWASHER 87 1724316 1 RING, SNAP 90 1720421 1 PIN 3.0A x 20 91 1724318 1 OIL SEAL 95 1707839 1 PIN, ROLL 97 1724956 2 WASHER, THRUST DIFF 98 1724958 2 PIN, 3.0A x 18 99 1724957 1 SPRING, CHARGE

100 1724953 1 CHARGE PUMP CASE ASSEMBLY 200 1727542 1 K57 SMP SEAL KIT

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

19

TP 400-4205-01-BM-SMA

Controls Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1

986599

3

2

4

6

5

9

18

19

8

7

11

38

30

35

34

35

37

36

33

29

31

32

15

30

24

26

28

27

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

25

39

24

20

40

23

41

17

6

8

12

16

10

13

14

20

21

1

10

4

22

5

TP 400-4205-01-BM-SMA

Controls Group

PART NO. DESCRIPTIONREF NO QTY.

1 1721353 1 ROD, Brake Lock

2 1721891 1 KNOB, Push On, Red Plastic "P"

3 1930591 1 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4

4 1919326 2 WASHER, 5/16, Black

5 1721476 1 ROD, Brake

6 1931353 2 CARRIAGE BOLT, 3/8-16 x 1 3/4

7 1663114 2 BUSHING, 5/8 x 3/4 x 3/4, Nylon

8 2821133 1 FITTING, Lube, 1/4

9 1725250 1 SPRING, Extension 10 1722460 3 PIN, Quick 11 1724917 1 ARM & HUB ASSEMBLY, Idler 12 1960020 1 WASHER, 5/8 13 1704420 1 RING, Clipring Extension 14 1721134 1 PULLEY, w/Bearing 15 1924940 1 WASHER, 3/8 16 1960687 2 NUT, Hex Flange ESNA, 3/8-16 17 1721133 1 PULLEY, Idler 18 1723237 2 BUSHING, 1 x 1-1/8 x 5/8, Nylon 19 1722513 1 ARM, Brake 20 1726763 1 PEDAL ASSEMBLY, Foot 21 1931320 1 CARRIAGE BOLT, 1/4-20 x 1-1/4 22 1918447 1 PIN, Cotter, Black 23 1721354A 1 LATCH, Brake 24 1664847 3 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 25 1919438 1 NUT, Hex Lock ESNA Light, 5/16-18 26 1919381 1 WASHER, 5/16, Black 27 1927557 2 NUT, Hex Flange Whiz Lock Large, 5/16-18 28 1722535A 1 PEDAL, Brake 29 1721577 1 PAD, Brake Pedal 30 1931334 4 CARRIAGE BOLT, 5/16-18 x 7/8 31 1921333 2 CAPSCREW, 5/16-18 x 1 32 1722083A 1 ACTUATOR, Switch 2.53" Long 33 1923683 1 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/4 34 1722070A 1 PEDAL, Forward 35 1960636 4 NUT, Hex KEPS, 5/16-18 36 1721675 1 PAD, Foot Pedal Forward 37 1722071A 1 PEDAL, Reverse 38 1721674 1 PAD, Foot Pedal Reverse 39 1920397 1 NUT, Hex Lock ESNA Light, 1/4-20 40 1686612 1 CAM, Roller 41 1721995 1 SPRING, Extension

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

21

TP 400-4205-01-BM-SMA

Cruise Control Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

3

2

1

986190

4

Lubricate both sides

of slot with grease.

Install rounded edge

of washer toward lever

& bracket assembly.

17

16

18

22

21

20

5

7

23

6

8

19

11

12

13

Install rounded edge

of washer toward lever

& bracket assembly.

25

8

9

10

24

12

15

Hole "A"

6

Control Arm from transmission group.

Brake arm at idler pivot.

The above parts group applies to the following Mfg. Nos.:

1694630 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H 1694635 - 2620H 1694636 - 2620H

2005

1694682 - Broadmoor

22

14

Hook into

hole "A"

of frame.

TP 400-4205-01-BM-SMA

Cruise Control Group

PART NO. DESCRIPTIONREF NO QTY.

1 1723713 1 DECAL, Cruise & Lift

2 1960666 1 SCREW, Torque Head Plus Socket Head, 1/4-20 x 7/8

3 1722303 1 KNOB, Cruise

4 1920397 1 NUT, Hex Lock ESNA Light, 1/4-20

5 1722003 1 LEVER & BRACKET ASSEMBLY, Cruise

6 1960103 2 WASHER, 3/8, Black

7 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4

8 2826192 2 WASHER, 9/16 x 1-1/4 x 1/8

9 1709043 1 SPACER, w/Flange, 11/32 x 15/32 x 3/4 10 1931342 1 CARRIAGE BOLT, 5/16-18 x 2 3/4 11 1960273 1 CARRIAGE BOLT, 5/16-18 x 2-1/4 12 1722460 2 PIN, Quick 13 1722117 1 ROD, Cruise 14 1722481 1 ROD, Return 15 2159106 1 SPRING, Cruise Return to Frame 16 1960636 2 NUT, Hex KEPS, 5/16-18 17 1960001 2 CAPSCREW, Hex Washer Head Plastite, 10-14 x 5/8 18 1717050 1 SWITCH, Push, Neutral Start, Gray 19 1722080 1 SPACER, 11/32 x 5/8 x 1-13/32 20 1919326 1 WASHER, 5/16, Black 21 1919381 1 WASHER, 5/16, Black 22 1919438 1 NUT, Hex Lock ESNA Light, 5/16-18 23 1677746 1 SPRING, Compression 24 1918447 1 PIN, Cotter 25 1705928 1 DISC, Fricion

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694630 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H 1694635 - 2620H 1694636 - 2620H

2005

1694682 - Broadmoor

23

TP 400-4205-01-BM-SMA

Electrical Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

HOOD MOUNTED

1

3

2

4

UNDER HOOD

Tie main harness and starter wire up. Wires should not hang below side panel with hood closed.

To Electric

Clutch

To Charge Circuit

To Fuel

Shut-Off

24

To Oil

Pressure

Sensor

To Engine

Magneto

44

DASH MOUNTED

7

8

6

5

Cruise Switch

(see controls group for mtg. hardware)

40

Pedal Switch

39

38

9

21

22

23

41

11

10

3818

20

19

Tie solenoid

24

Tie upper harness to tower.

UNDER HOOD

To Engine

Starter

33

34

16

17

24

wires to harness.

32

25

26

31

2115

Headlight

Switch

27

30

986604

12

13

14

Instrument Panel clip

8

29

28

UNDER SEAT

Seat Switch (NC)

43

42

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

37

UNDER FRAME

24

Reverse

Pedal

Switch

To Engine

Ground

35

36

TP 400-4205-01-BM-SMA

Electrical Group

PART NO. DESCRIPTIONREF NO QTY.

1 1721810 1 HEADLIGHT ASSEMBLY, 4 Bulb, (Includes Ref. Nos. 2 & 3)

2 1677371 4 BULB, Headlight, 12.8V

3 1723451 4 SOCKET ASSEMBLY, Headlight, Sealed

4 1722669 1 HARNESS, Headlight

5 1722887 1 SWITCH, PTO Push/Pull Symbols

6 1726556 1 MODULE, RMO (Includes Ref. No. 7)

7 1726557 1 KEY, RMO Module Plastic

8 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, Black

9 1665238 1 BREAKER, Circuit, 12 Volt 20 Amps 10 1665237 1 WIRE, 12GA 5-15/16 Long, Red 11 1722611 1 PLUG, Hole, Square 12 1725523 1 HOUR METER, (Includes Ref. Nos. 12) 13 1725524 1 PLUG, Dash 14 1725835 1 CLIP, Hour Meter (Service Only) 15 1920263 2 NUT, Hex, 5/16-24 16 2820426 3 LOCKWASHER, External Tooth, 5/16 17 1722739 1 SOLENOID 18 1686734 1 SWITCH ASSEMBLY, Ignition, 6 Pin, (Includes Ref. Nos. 17, 18, 19, 20 & 21) 19 1717163 1 KEYS, Set of 2 20 1717550 1 COVER, For Ignition Switch, Plastic 21 1717549 1 NUT, Hex Flange, 5/8-32, Ignition Switch 22 1960547 1 LOCKWASHER, Internal Tooth, 5/8, Thin 23 2101025 1 WASHER, Shim 24 1701011 3 TIE, Strap, 7-5/16 Long 25 1716951 1 SWITCH, Headlights , 2 Terminal 26 1713535 1 BOOT, Insulator Cable Terminal, 1-15/16 Long, Red 27 1721830 1 CABLE, #6 x 25" Long, Ring Terminals 28 1603618 1 CABLE, #6 x 8" Long, Ring Terminals 29 1677296 1 BOOT, Insulator Battery Terminal 30 2816622 3 NUT, Hex, 1/4-20 31 2816964 2 LOCKWASHER, 1/4 32 2821319 2 WASHER, 1/4 33 2823341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4 34 1713163 1 CABLE, #6 x 26 Long, Ring Terminal 35 1685215 1 BATTERY, 12 Volt 36 1722009 1 STRAP, Battery, 14 Long, Rubber 37 1929000 2 CAPSCREW, Hex Head Taptite, 1/4-20 x 3/8 38 1726810A 1 BRACKET, Switch Mount 39 1704379 1 SWITCH, Reverse Pedal 40 1723249 1 SWITCH, Push Button, Foot Pedal 41 1717050 1 SWITCH, Cruise Control, Grey, NO 42 1960536 2 CAPSCREW, Hex Washer Head Plastite, 1/4 x 1/2 43 1716368 1 SWITCH, Seat, Grey, NC 44 1726604 1 HARNESS, Wiring

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

25

TP 400-4205-01-BM-SMA

Hood, Grille & Dash Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1

986608

2

3

4

5

6

14

15

16

13

17

12

11

4

7

8

4

9

10

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

26

9

TP 400-4205-01-BM-SMA

Hood, Grille & Dash Group

PART NO. DESCRIPTIONREF NO QTY.

1 1721804C 1 PANEL, RH Side

1 1721804D 1 PANEL, RH Side, Red

2 1721801C 1 HOOD, no Louvers

2 1721801D 1 HOOD, no Louvers, Red

3 1722110C 1 HOOD, with Louvers

3 1722110D 1 HOOD, with Louvers, Red

4 1960295 12 CAPSCREW, Hex Head Flange Lock,1/4-20 x 5/8

5 1960392 1 SCREW, Phillips Head, #10-24 x 1/2

6 1687054 1 DASHBOARD, RMO, Black

6 1687055 1 DASHBOARD, RMO with Hydra Lift Slot, Black

7 1933896 1 NUT, Hex Nylock,#10-24

8 1723123 1 ROD, Dash Support

9 1930641 12 NUT, Hex Flange Lock, 1/4-20 10 1721803C 1 PANEL, LH Side 10 1721803D 1 PANEL, LH Side, Red 11 1721808A 1 HINGE, LH 12 1722391A 1 DUCT, Air Inlet 13 1721802C 1 GRILLE 13 1721802D 1 GRILLE, Red 14 1721810 1 HEADLIGHT ASSEMBLY, (Includes Ref. Nos. 15 & 16) 15 1677371 4 BULB, Headligh 16 1723451 4 SOCKET, Headlight 17 1721809A 1 HINGE, RH

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

27

TP 400-4205-01-BM-SMA

Seat & Seat Deck Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2

1

30

31

985908

6

5

4

3

27

7

8

9

10

11

12

13

14

15

16

Torque to

14

29

32

28

14-19 in. lbs.

(19 - 25.8 Nm)

26

5

25

See Electrical

Group

9

20

22

17

18

24

19

Torque to

25-30 in. lbs.

(2.8 - 3.3 Nm)

21

23

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

28

TP 400-4205-01-BM-SMA

Seat & Seat Deck Group

PART NO. DESCRIPTIONREF NO QTY.

1 1722129A 1 BRACKET, 1-5/8 x 1-3/4

2 1722307 1 * SEAT, 18" Back, Optional

2 1722306 1 * SEAT, 15" Back, Standard

3 1722128A 1 SUPPORT, Seat

4 2172434 1 CLIP, Wire

5 1709256A 2 WASHER, Spring, 5/16 x 1-1/4, Black

6 1714263 2 SPRING, Compression

7 1919438 10 NUT, Hex Lock, ESNA Light 5/16-18

8 1717051 2 SPRING, Compression

9 1930591 8 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4 10 1931339 2 CARRIAGE BOLT, 5/16-18 x 2 11 1931350 2 CARRIAGE BOLT, 3/8-16 x 1 12 1722356 1 SLIDE, Seat 13 1935255 4 NUT, Speed, 5/16-18, Lug 14 1930601 4 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 5/8 15 1722309 2 PLUG, Plastic 16 1722109 1 POD, with Cup Holder, LH 17 1722300 1 FUEL GAUGE 18 1722337 1 GROMMET 19 2860664 8 CAPSCREW, Hex Head Dog Point, 1/4-20 x 7/8 20 1931277 4 NUT, Hex Flange Whiz Lock, 5/16-18 21 1715917 1 CAP, Gas 22 1722340 1 TUBE & ELBOW ASSEMBLY 23 1654930 1 BUSHING, 3/8 x 9/16 x 5/8, Rubber 24 1722432 1 TANK, Fuel 25 1960636 8 NUT, Hex KEPS, 5/16-18 26 1722106C 1 DECK, Seat, Orange 26 1722106D 1 DECK, Seat, Red 27 1722108 1 POD, RH with 2 Slots 28 1722105C 1 TUNNEL, Orange 28 1722105D 1 TUNNEL, Red 29 1663752 2 SPACER, 25/64 x 5/8 x 3/16, Hardened 30 1930645 2 NUT, Hex Flange Two-Way Lock, 3/8-16 31 1924940 2 WASHER, 3/8 32 1960667 4 CAPSCREW, Hex Flange Whiz Lock Dog Point, 5/16-18 x 1

Footnotes

* Arm Rest Kit - 1686907

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

29

TP 400-4205-01-BM-SMA

Lift Group - Manual Lift

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986412

1

8

2

9

4

5

10

3

6

5

7

18

5

11

12

17

14

16

Install into left hand

13

side of lower dash.

15

The above parts group applies to the following Mfg. Nos.:

1694632 - Broadmoor 1694634 - 1620H 1694636 - 2620H

2005

30

TP 400-4205-01-BM-SMA

Lift Group - Manual Lift

PART NO. DESCRIPTIONREF NO QTY.

1 1722302 1 GRIP, Black Vinyl

2 1722024A 1 ROD, Lift Lever with Flats

3 1930645 1 NUT, Hex Flange Lock, 3/8-16

4 1924940 1 WASHER

5 1722460 2 PIN, Quick

6 2162085 1 SPRING, Compression

7 1723866 1 NUT, Push, 3/8

8 1923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4

9 1722284A 1 QUADRANT 10 1920397 2 NUT, Hex Lock ESNA, 1/4-20 11 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2 12 1960636 4 NUT, KEPS Lock, 5/16-18 13 1722607 1 SCREW, Torx Head, # 8-16 x 1/2 14 1722285 1 COVER, Dash 15 2156302 1 SPRING, Extension, 4-1/8 16 1725639 1 LIFT SHAFT ASSEMBLY, 17 1931333 4 CARIAGE BOLT, 5/16-18 x 3/4 18 1725638 1 ROD, Lift

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694632 - Broadmoor 1694634 - 1620H 1694636 - 2620H

2005

31

TP 400-4205-01-BM-SMA

Lift Group - Manual Lift

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Note: Models

with out Cruise

1

2

986780

9

8

10

4

5

11

21

5

Install into left hand

side of lower dash.

19

20

3

6

7

12

5

4

17

18

16

15

13

14

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694633 - 1620H 1694635 - 2620H 1694682 - Broadmoor

2005

1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

32

TP 400-4205-01-BM-SMA

Lift Group - Manual Lift

PART NO. DESCRIPTIONREF NO QTY.

1 1722302 1 GRIP, Black Vinyl

2 1722024A 1 ROD, Lift Lever with Flats

3 1930645 1 NUT, Hex Flange Lock, 3/8-16

4 1924940 1 WASHER

5 1722460 2 PIN, Quick

6 2162085 1 SPRING, Compression

7 1723866 1 NUT, Push, 3/8

8 1923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4

9 1722313 1 PLUG, Lift Cover (Models without Cruise Control) 10 1722284A 1 QUADRANT 11 1920397 2 NUT, Hex Lock ESNA, 1/4-20 12 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2 13 1919438 4 NUT, ESNA Lock, 5/16-18 14 1960044 1 WASHER, Flat, 5/16 x 1-1/4 15 1722491 1 CAM ASSEMBLY, Lift 16 1704629 1 SPACER 17 1727083A 1 LINK, Lift Upper 18 1722607 1 SCREW, Torx Head, # 8-16 x 1/2 19 1722285 1 COVER, Dash 20 1921977 4 CAPSCREW, Hex Head, 5/16-18 x 1-1/4 21 1721789 1 ROD, Lift

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694633 - 1620H 1694635 - 2620H 1694682 - Broadmoor

2005

1694683 - Broadmoor 1694807 - 2618 1694844 - 2618H

33

TP 400-4205-01-BM-SMA

Wheels & Tires Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Front Wheels

W986614

2

3

1

4

5

6

4

Use as required.

10

7

8

9

11

12

Rear Wheels

13

15

16

14

12

17

6

Use as required.

18

10

19

8

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618

34

TP 400-4205-01-BM-SMA

Wheels & Tires Group

PART NO. DESCRIPTIONREF NO QTY.

1 1722065 2 WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 2, 3, 4, 5, & 6)

2 1722838 1 TIRE, 15 x 6, Super Turf

3 1664090 1 TUBE, Tire, Front, 4.10/3.50

4 1717056 2 BEARING, Ball

5 1722837 1 WHEEL, 4-1/2" x 6"

6 2172353 4 VALVE STEM & CAP ASSEMBLY

7 1722726A 2 WASHER, Flat 1 (Double D)

8 1919394 4 WASHER, 1, (As Required for All Front)

9 2832577 2 RING, Retaining, External #98 10 1722676 4 CAP, Hub, Gray 11 1729279 2 KEY, Parellel, 3/16 x 3/16 x 1-1/2 12 2860202 4 WASHER, 3/4 13 1960114 2 WASHER 14 1726491 2 WHEEL & TIRE ASSEMBLY, (Includes Ref. Nos. 6, 15, 16 & 17) 15 1727136 1 TIRE, 22 x 10, 10 Super Turf 16 2173477 1 TUBE, Tire, 20 x 8, Rear 17 1726492 1 WHEEL, 7 x 9.97, W/ 3/4 OD Shaft 18 1722717A 2 WASHER, Special 19 2827794 2 RING, "E" External

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618

35

TP 400-4205-01-BM-SMA

Decals - Brand & Model

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

B986614

1

2

5

2

3

4

7

6

8

10

9

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618

36

TP 400-4205-01-BM-SMA

Decals - Brand & Model

PART NO. DESCRIPTIONREF NO QTY.

1 1717692 1 DECAL, ICON Simplicity, Orange

2 1722551 3 DECAL, Simplicity, Silver & Blue w/Icon

3 1722776 1 DECAL, Broadmoor, Silver & Blue

4 1722773 1 DECAL, Hood Stripe, RH, Simplicity, Blue & Silver

4 1722774 1 DECAL, Hood Stripe, LH, Simplicity, Blue & Silver

5 1708926 1 DECAL, AGCO, Logo Black, Chrome, Orange

6 1727069 1 DECAL, 1620, White, AGCO

7 1722818 1 DECAL, Hood Stripe, RH, AGCO

7 1722817 1 DECAL, Hood Stripe, LH, AGCO

8 1714363 1 DECAL, Massey Ferguson Logo, 3 Triangles

9 1725646 1 DECAL, 2618, Black, Massey Ferguson

9 1727070 2 DECAL, 2620, Black, Massey Ferguson 10 1727783 1 DECAL, Hood Stripe, LH, Massey Ferguson 10 1727784 1 DECAL, Hood Stripe, RH, Massey Ferguson

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618

37

TP 400-4205-01-BM-SMA

Decals - Safety & Common

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

1

8

7

C986614

DANGER

1

OPERATING ON SLOPES CAN BE DANGEROUS

SEE OPERATOR'S MANUAL. IF YOU CANNOT BACK-UP A HILL,DO NOT

4

2

DRIVE ON IT.

DO NOT TOW TRACTOR! DAMAGE MAY RESULT TO TRANSMISSION.

WARN ING

AVOID SERIOUS INJURY OR DEATH

• READ OPERATOR'S MANUAL(S).

• KNOW LOCATION AND FUNCTION OF ALL CONTROLS.

• KEEP SAFETY DEVICES (GUARDS, SHIELDS, SWITCHES, ETC.) IN PLACE AND WORKING.

• REMOVE OBJECTS THAT COULD BE THROWN BY THE BLADE.

• DO NOT MOW WHEN CHILDREN OR OTHERS A RE AR OUND.

• NEVER CARRY CHILDREN EVEN WITH BLADES OFF.

• LOOK DOWN AND BEHIND BEFOR E AND WHILE B ACKING.

• AVOID SUDDEN TURNS.

• IF YOU CANNOT BACK UP A HILL, DO NOT OP ERATE ON IT.

• GO UP AND DOWN SLOPES, NOT ACROSS .

• IF MACHINE STOPS GOING UP HILL, STOP BLADE A ND BACK DOWN SLOWLY.

• BE SURE BLADE(S) AND ENGINE ARE STOPPED BEFORE PLACING HANDS OR FEET NEAR BLADE(S).

• WHEN LEAVING MACHINE, SHUT OF F ENGINE, REMOV E KEY , AND SET PARKING BRAKE.

3

4

5

9

6

4

5

DANGER

ROTATING BLADES CUT OFF ARMS AND LEGS

STOP MOWER WHEN CHILDREN ARE NEAR. NO RIDERS— TH EY FALL OFF.

This product is equipped with

RMO™ System:

the RMO system. Refer to the operator's manual for a full explanation of the RMO system and for important safety messages.

1726923

13

16

17

18

17

19

13

12

16

10

11

8

11

12

13

14

15

14

38", 44" and 50" mower decks

20

18

13

14

15

8

40" mower deck

13

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618

38

TP 400-4205-01-BM-SMA

Decals - Safety & Common

PART NO. DESCRIPTIONREF NO QTY.

1 1722806 1 DECAL, Ignition Switch Symbols, White/Black

2 1718025 1 DECAL, Automatic Control Traction

3 1722779 DECAL, 18HP

3 1722780 1 DECAL, 20HP

4 1726923 1 DECAL, Tunnel Cover, Danger Slopes/Blades

4 1723175 1 DECAL, Tunnel Cover, Danger Slopes/Blades, (Export)

5 1727014 1 DECAL, Drive Belts, Mower Blades

6 1723296 2 DECAL, Protective Sticker

7 * 1 LABEL, Decibel, Power Mass (Export)

8 * 1 DECAL, I.D. Plate

9 1720454 1 DECAL, Touch Up Paint (Orange)

9 1725072 1 DECAL, Touch Up Paint (Red) 10 * 1 DECAL, Patent 11 1708927 1 DECAL, USA Logo Stars & Stripe 12 1723160 1 DECAL, Transmission Release Valve 13 1720389 2 DECAL, Danger Rotating Blades (Export) 14 1704276 1 DECAL, Danger Do Not Put Hands/Feet in Mower 15 1722771 1 DECAL, Free Floating Mower, Silver 16 * 1 DECAL, OPEI Certified 17 1722787 1 DECAL, 38", Silver on Black with Stripe 17 1722788 1 DECAL, 40", Silver on Black with Stripe 17 1722789 1 DECAL, 44", Silver on Black with Stripe 17 1722790 1 DECAL, 50", Silver on Black with Stripe 18 1704277 1 DECAL, Danger Do Not Operate Without Deflector 19 1721197 1 DECAL, Height of Cut, 38", 44" & 50" 20 1720919 1 DECAL, Height of Cut, 40"

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694629 - Broadmoor 1694630 - Broadmoor 1694631 - Broadmoor 1694632 - Broadmoor 1694633 - 1620H 1694634 - 1620H

2005

1694635 - 2620H 1694636 - 2620H 1694682 - Broadmoor 1694683 - Broadmoor 1694807 - 2618

39

TP 400-4205-01-BM-SMA

38" Mower Deck - Belt, Idler Arm & Hitch

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986056

2

3

4

14

5

6

4

1

15

4

7

16

88

10

9

11

16

17

12

Hook Spring to Belt Guide

Hook Spring {Ref 22} here when

assembled.

21

22

20

23

19

18

13

Mount Hitch Assembly and

Leveling Adjustment Rod

using upper set of holes

4

13

Insert Must Face Out

17

2

The above parts group applies to the following Mfg. Nos.:

1694036 - 38" Mower 1694042 - 38" Mower

2005

40

TP 400-4205-01-BM-SMA

38" Mower Deck - Belt, Idler Arm & Hitch

PART NO. DESCRIPTIONREF NO QTY.

1 1723025 1 V-BELT

2 1928957 2 CAPSCREW, Hex Head, 3/8-16 x 2-3/4

3 1677135A 1 GUARD, Belt

4 1922755 4 WASHER, Plain, 3/8

5 1716553 1 SPACER

6 1685150 1 PULLEY (Includes Ref. No. 5)

7 1665835 1 GRIP, Lever

8 1704520 1 CLUTCH LEVER ASSEMBLY (Includes Ref. Nos. 9 & 16)

9 2812808 1 FITTING, Grease 10 1916965 1 LOCKWASHER, 3/8 11 1916950 1 NUT, Hex, 3/8-16 12 1715435 1 SPRING 13 2860641 2 NUT, Hex Aluminum Insert, 3/8-16 14 1960339 1 NUT, Hex Flange, 3/8-16 15 1657242 1 SPACER 16 1663114 2 BUSHING 17 1924356 2 WASHER, 3/8 18 1924940 2 WASHER, Plain, 13/32 19 2157081 2 SPACER 20 1715759 1 ROD, Latch 21 1707432A 1 HITCH ASSEMBLY 22 2156302 1 SPRING 23 1921969 2 CAPSCREW, Hex Head, 3/8-16 x 1-1/2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694036 - 38" Mower 1694042 - 38" Mower

2005

41

TP 400-4205-01-BM-SMA

38" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

30

29

28

GREASE

31

32

34

42

17

23

24

41

986019

1

3

47

3

35

27

33

3

4

5

4

26

25

24

23

36

38

37

19

20

21

18

22

37

32

2

Insert Must Face Out

33

3

14

7

6

4

8

47

9

10

11

12

3

13

18

17

16

15

39

GREASE

9

40

43

44

18

27

45

46

9

Mount Hitch Assembly and

Leveling Adjustment Rod

using upper set of holes

The above parts group applies to the following Mfg. Nos.:

1694036 - 38" Mower 1694042 - 38" Mower

8

Insert Must Face Out

2005

42

TP 400-4205-01-BM-SMA

38" Mower Deck - Height Adjustment & Roller Bar

PART NO. DESCRIPTIONREF NO QTY.

1 1930644 2 NUT, Hex Flange Lock, 1/2-13

2 1686686 1 SHAFT & BAR ASSEMBLY (Includes Ref. No. 13)

3 1924366 8 WASHER, Plain, 1-1/4

4 1668513 6 ROLLER

5 1602946 2 SPACER

6 1704073A 1 BAR, Roller

7 1704082 2 NUT, Adjuster

8 2816965 2 LOCKWASHER, 3/8

9 2860641 2 NUT, Hex Aluminum Insert, 3/8-16 10 1677507 1 SLIDE 11 1924361 1 WASHER, Plain, 1/2 12 2172622 1 BOLT, Shoulder, 3/8-16 13 1960520 1 NUT, Push 14 1960020 1 WASHER, 5/8 15 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 16 1665374A 2 STRAP, Mower Arm ASSEMBLY 17 1931202 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4 18 1924940 5 WASHER, Plain, 13/32 19 2176012 1 CLIP, Pin, Safety 20 1705049 1 LINK ASSEMBLY, Lift 21 1918448 1 COTTER PIN 22 1918452 1 COTTER PIN 23 1917372 4 NUT, Hex, 5/16-18 24 1917356 4 LOCKWASHER, 5/16 25 1704116A 1 BRACKET, Height of Cut 26 1704083A 1 ARM, Rear, Mower, RH 27 1921977 4 CAPSCREW, Hex Head, 5/16-18 x 1-1/4 28 1719901 1 CRANK, Height of Cut 29 1714084 1 KNOB 30 1960093 1 PAL NUT 31 1704087 1 TRUNNION, Threaded 32 1960170 3 WASHER, 5/8 33 1704086 1 TRUNNION 34 2816001 1 PIN, Roll, 1 35 1704097 1 WASHER, Detent 36 1704077A 1 STRAP, Trunnion Retainer 37 1913744 2 NUT, Hex Jam, 1/2-13 38 1704081A 1 TRUNNION 39 2118053 1 PIN, Clevis 40 1723388A 1 SHAFT ASSEMBLY 41 1704114 1 INDICATOR, Height of Cut 42 1919381 1 WASHER, Flat, 5/16 43 1704115A 1 PLATE, Support 44 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694036 - 38" Mower 1694042 - 38" Mower

2005

43

TP 400-4205-01-BM-SMA

38" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

30

29

28

GREASE

31

32

34

42

17

23

24

41

986019

1

3

47

3

35

27

33

3

4

5

4

26

25

24

23

36

38

37

19

20

21

18

22

37

32

2

Insert Must Face Out

33

3

14

7

6

4

8

47

9

10

11

12

3

13

18

17

16

15

39

GREASE

9

40

43

44

18

27

45

46

9

Mount Hitch Assembly and

Leveling Adjustment Rod

using upper set of holes

The above parts group applies to the following Mfg. Nos.:

1694036 - 38" Mower 1694042 - 38" Mower

8

Insert Must Face Out

2005

44

TP 400-4205-01-BM-SMA

38" Mower Deck - Height Adjustment & Roller Bar

PART NO. DESCRIPTIONREF NO QTY.

45 1704093 1 ROD, Adjustment 46 1706644 1 SPACER 47 1722036 2 ROLLER

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694036 - 38" Mower 1694042 - 38" Mower

2005

45

TP 400-4205-01-BM-SMA

38" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

6

5

4

3

2

1

986017

Torque to 50-70 ft. lbs.

7

13 12

8

12

2

11

10

9

13

15

2

14

10

16

17

18

6

5

19

3

20

Apply gasket former to this surface if foam gasket is not used.

24

20

21

22

23

37

27

26

Viewed From Bottom

25

27

272726

36

28

27

26

35

Torque to 45-55 ft. lbs.

34

32

33

25

28

29

30

31

27

25

26

The above parts group applies to the following Mfg. Nos.:

1694036 - 38" Mower 1694042 - 38" Mower

2005

46

TP 400-4205-01-BM-SMA

38" Mower Deck - Housing, Arbors & Blades

PART NO. DESCRIPTIONREF NO QTY.

1 1705449 1 DEFLECTOR, Plastic

2 1960518 1 NUT, Push

3 1960353 2 WASHER, Plain

4 1704873 1 CLAMP

5 1916964 2 LOCKWASHER, 1/4

6 1916622 2 NUT, Hex, 1/4-20

7 1919326 1 WASHER, 5/16, Black

8 1723938 1 SPRING, Torsion

9 1706709A 1 ROD, Deflector, Front 10 1713616 2 HUB ADAPTER, Pulley 11 1720388 1 PULLEY, 1-1/4" O.D. 12 1713675 4 WASHER, Belleville 13 1714419 2 NUT, Hex Flange, 9/16-8 14 1720387 1 PULLEY, 4" O.D. 15 1927557 4 NUT, Hex Whiz Lock, 5/16-18 16 1919381 4 WASHER, Flat, 5/16 17 1723210 2 GUIDE, Belt 18 1924356 4 WASHER, 3/8 19 1713199A 2 COVER, Arbor Housing 20 1705897 4 BEARING 21 1713204 2 SPACER 22 1707335 2 GASKET, Foam 23 1713338 2 ARBOR HOUSING ASSEMBLY (Includes Ref. No. 24) 24 1704314 2 FITTING, Lube 25 1686815 1 HOUSING ASEMBLY, 38" 26 2860678 4 CAPSCREW, Taptite R, 5/16-18 x 1-3/4 27 1664847 8 CAPSCREW, Taptite, 5/16-18 x 3/4 28 2823471 2 CAPSCREW, Hex, Head, 7/16-14 x 1-1/4 29 1656916 2 WASHER, Spring 30 1713089 2 WASHER, Hex 31 1704856A 1 BLADE, Mower, 16-1/8", LH 32 1713196 2 SHIELD, Grass, Lower 33 1713612 2 SHAFT, Arbor 34 1713619 2 WASHER 35 1704101A 1 BLADE, Mower, 22-1/4", RH 36 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8 37 1705115 2 PLUG, Hole

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694036 - 38" Mower 1694042 - 38" Mower

2005

47

TP 400-4205-01-BM-SMA

40" Mower Deck - Belt, Idler Arm & Hitch

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

35

30

10

29

28

10

27

To Slot "A"

32

31

To Slot "B"

11

30

10 29

28

986250

1 2

3

2

4

6

9

10

12

13

2

5

7

8

26

Slot "A"

25

Insert Must Face Out

24

2

23

22

18

17

19

21

20

The above parts group applies to the following Mfg. Nos.:

1694339 - 40" Mower 1694340 - 40" Mower 1694341 - 40" Mower 1694821 - 40" Mower

16

Slot "B"

16

33

14

15

16

2005

48

TP 400-4205-01-BM-SMA

40" Mower Deck - Belt, Idler Arm & Hitch

PART NO. DESCRIPTIONREF NO QTY.

1 1919439 1 NUT, Hex Lock Esna Light, 3/8-16

2 1924940 6 WASHER, 3/8

3 1725408 1 PULLEY, Idler

4 1723391 1 V-BELT, Arbor Drive

5 1722175A 1 BELT GUIDE

6 1960534 2 WASHER, 3/8

7 1724835 1 ARM ASSEMBLY, Idler with Bushings & Fitting, 38 Tooth

8 1931355 1 CARRIAGE BOLT, 3/8-16 x 2

9 1928957 1 CAPSCREW, Hex Head, 3/8-16 x 2-3/4 G8 10 1922755 6 WASHER, 3/8 11 1715435 1 SPRING, Extension, Idler Arm 12 1657242 1 SPACER, Hardened 13 1922130 1 CAPSCREW, Hex Head, 3/8-16 x 2-1/4 14 1723952 1 PULLEY 15 1667812 1 SPACER 16 1928352 4 NUT, Hex Flange Whiz Lock, Large, 3/8-16 17 1921968 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/8 18 2172329 2 SPACER 19 1713578 1 ROD, Mower Hitch 20 2156302 1 SPRING, Extension, Hitch Release 21 1715759 1 ROD, Latch 22 1720044A 1 HITCH, Mower 23 1960519 1 NUT, Push 24 2860681 2 NUT, Hex Toplock Sprial Flange, 3/8-16 25 1721425 1 WASHER & NUT ASSEMBLY, 3/8 x 1-1/2 26 1674671 1 SPRING, Extension 27 1719923 1 ARM, Idler 28 1719221 2 HUB 29 1724802 2 PULLEY, Idler 30 1960315 2 CARRIAGE BOLT, 3/8-16 x 2 31 1930601 1 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1/2 32 1666697 1 SPACER 33 1722182A 1 BELT GUIDE 34 1724625 1 BELT, Timing, 38 Tooth

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694339 - 40" Mower 1694340 - 40" Mower 1694341 - 40" Mower 1694821 - 40" Mower

2005

49

TP 400-4205-01-BM-SMA

40" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Apply Locktite

380 in hole prior

to assembly.

20

22

21

19

18

11

8

7

6

17

986049

15

14

23

16

15

14

13

12

10

9

From "A"

37

38

24

60

59

36

58

25

626

27

29

24

2

30

31

33

32

2

38

28

24

34

61

Inser t Must Face Out

41

2

42

43

35

52

53

50

51

54

23

39

42

41

43

2

45

46

40

5

4

3

To "A"

36

40

44

2

47

15

48

14

1

49

644

51

55

57

56

24

25

24

51

Inser t Must Face Out

The above parts group applies to the following Mfg. Nos.:

1694339 - 40" Mower 1694340 - 40" Mower 1694341 - 40" Mower 1694821 - 40" Mower

2005

50

TP 400-4205-01-BM-SMA

40" Mower Deck - Height Adjustment & Roller Bar

PART NO. DESCRIPTIONREF NO QTY.

1 1722661 1 ROD

2 1924940 8 WASHER, 3/8

3 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1 3/4

4 1917421 1 NUT, Hex Jam, 3/8-16

5 1960601 1 NUT, Hex Flange, 3/8-16 Black

6 1720704 1 ROD & WASHER ASSEMBLY, Adjust Handle

7 1651820 1 GRIP, Black Vinyl For Rod

8 1721257 1 ROD, Latch

9 1720599 1 LATCH, 5/16 WIRE 10 1920397 1 NUT, Hex Lock Esna Light, 1/4-20 11 1921159 1 CAPSCREW, Hex Head, 1/4-20 x 2 1/4 12 1723409A 1 BRACKET, Adjusting 13 1666697 1 SPACER 14 1960044 5 WASHER, 5/16 15 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1 1/4 16 1917372 3 NUT, Hex 5/16-18 17 1917356 3 LOCKWASHER, Spring 5/16 18 1720695A 1 HANDLE ASSEMBLY, Lift, 40" Munching 19 1723321 1 SPRING, Compression 3-7/8" Long 20 1960674 1 PUSH NUT, 1/4 21 1713995 1 GRIP, Black Soft for Rod 22 1723124 1 BUTTON, Red 23 1960236 4 SPACER 24 1924366 7 WASHER, 5/8 25 1722036 2 ROLLER 26 1668513 6 ROLLER 27 1717675 2 ROLLER 28 1602946 1 SPACER 29 1723305A 1 SHAFT & BAR ASSEMBLY 30 1723303A 1 SHAFT ASSEMBLY 31 2860643 2 NUT, Hex, 5/16-18 32 1920161 1 NUT, Hex Jam, 5/16-18 33 7028200 1 TRUNNION 34 1724959 1 ROD, Height Adjustment 35 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 36 1915726 2 NUT, Hex, 5/8-11 37 2118053 1 PIN 38 1960074 2 CLIP, Hair Pin 39 1706645A 1 TRUNNION, Rod 40 1720659 2 UPSTOP 41 1931202 4 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4 42 1919381 6 WASHER, 5/16 43 1933988 4 NUT, Push, 5/16 44 1665374A 3 STRAP, Roller Support

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694339 - 40" Mower 1694340 - 40" Mower 1694341 - 40" Mower 1694821 - 40" Mower

2005

51

TP 400-4205-01-BM-SMA

40" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Apply Locktite

380 in hole prior

to assembly.

20

22

21

19

18

11

8

7

6

17

986049

15

14

23

16

15

14

13

12

10

9

From "A"

37

38

24

60

59

36

58

25

626

27

29

24

2

30

31

33

32

2

38

28

24

34

61

Inser t Must Face Out

41

2

42

43

35

52

53

50

51

54

23

39

42

41

43

2

45

46

40

5

4

3

To "A"

36

40

44

2

47

15

48

14

1

49

644

51

55

57

56

24

25

24

51

Inser t Must Face Out

The above parts group applies to the following Mfg. Nos.:

1694339 - 40" Mower 1694340 - 40" Mower 1694341 - 40" Mower 1694821 - 40" Mower

2005

52

TP 400-4205-01-BM-SMA

40" Mower Deck - Height Adjustment & Roller Bar

PART NO. DESCRIPTIONREF NO QTY.

45 1720919 1 DECAL, Height of Cut 46 1720931A 1 BRACKET, Height of Cut 47 1930651 1 NUT, Hex Centerlock 3/8-16 48 1935048 1 NUT, Hex Flange Lock, 5/16-18 49 1664847 8 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4 50 1704082 1 NUT, Hex Adjusting 51 2860681 3 NUT, Toplock Spiral Flange, 3/8-16 52 1704073A 1 BAR 53 1677507 1 SLIDE 54 1924361 1 WASHER, 1/2 55 2172622 1 BOLT, Shoulder, 3/8-16 x 1-11/32 56 1960520 1 NUT, Push 5/8 57 1706644 1 SPACER 58 1918447 1 PIN, Cotter 59 2108512 1 PIVOT, 3/4 Hex 60 1931335 2 CARRIAGE BOLT, 5/16-18 x 1 61 2108241 1 GUIDE ASSEMBLY, Rod

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694339 - 40" Mower 1694340 - 40" Mower 1694341 - 40" Mower 1694821 - 40" Mower

2005

53

TP 400-4205-01-BM-SMA

40" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

25

34

33

32

986248

4

41

45

44

43

42

45

37

36

27

38

39

40

647

5

6

67

46

68

69

48

610

11

612

Torque to

50-70 ft/lbs

(68-95.2 Nm)

1

2

3

13

31

3030

29

28

18

22

23

24

35

14

15

16

Torque to 14-18 ft.lbs.

(19-25 Nm)

17

21

19

3

20

26

18

22

23

24

17

19

3

20

Torque to 45-55 ft.lbs. (61-75 Nm)

The above parts group applies to the following Mfg. Nos.:

1694339 - 40" Mower 1694340 - 40" Mower 1694341 - 40" Mower 1694821 - 40" Mower

2005

54

TP 400-4205-01-BM-SMA

40" Mower Deck - Housing, Arbors & Blades

PART NO. DESCRIPTIONREF NO QTY.

1 1930584 1 CAPSCREW, Hex Head, 7/16-14 x 2-3/4 G8

2 1933263 1 WASHER, 7/16

3 1656916 3 WASHER, Spring

4 1714419 1 NUT, Hex Flange, 9/16-18

5 1713091 1 PULLEY

6 1719870 1 HUB

7 1724453 2 SPROCKET & FLANGE ASSEMBLY, Riveted, 38 Tooth

8 1657969A 2 SHIELD, Arbor Bearing, Upper

9 1655729A 2 HOUSING, Arbor Top 10 1707335 2 GASKET, Foam Poly 11 1722396 1 ARBOR SHAFT & BEARINGS ASSEMBLY 12 1703273A 2 HOUSING, Arbor Bottom with Lube Fitting 13 1664847 6 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4 14 1724601 1 COVER, Arbor, LH 15 1686978 1 HOUSING ASSEMBLY, 40", Orange 15 1687175 1 HOUSING ASSEMBLY, 40", Red 16 1719624A 1 BLADE, Mower, LH 17 1722258 2 PIN, Blade 18 1677274A 2 ADAPTOR, Arbor 19 1722257 2 WASHER, Spline 20 2827120 2 CAPSCREW, Hex Head, 7/16-14 x 2-1/4 G8 21 1960373 12 CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 1 22 1700230 2 WASHER, Shim 23 1700229A 2 SHIELD, Arbor Bearing, Lower 24 1655777 2 ADAPTER, Blade 25 1723453 1 DEFLECTOR, Discharge 26 1719623A 1 BLADE, Mower, RH 27 1931335 1 CARRIAGE BOLT, 5/16-18 x 1 28 1931318 1 CARRIAGE BOLT, 1/4-20 x 7/8 29 1960518 1 NUT, Push 30 1960353 2 WASHER, 1/4 31 1704873 1 CLAMP 32 1916964 1 LOCKWASHER, Spring 1/4 33 1916622 1 NUT, Hex 1/4-20 34 1719597 1 DOOR, Mulching, Black Plastic 35 1723938 1 SPRING, Torsion 36 1719617 1 ROD, Pivot 37 1917372 1 NUT, Hex 5/16-18 38 1917356 1 LOCKWASHER, Spring 5/16 39 1919381 1 WASHER, 5/16 40 1933988 1 NUT, Push 41 1721155 1 COVER ASSEMBLY, Arbor, RH (Includes Ref. Nos. 42 thru 46) 42 1724600 1 COVER, Arbor RH 43 1721259A 1 GUARD ASSEMBLY, RH

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694339 - 40" Mower 1694340 - 40" Mower 1694341 - 40" Mower 1694821 - 40" Mower

2005

55

TP 400-4205-01-BM-SMA

40" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

25

34

33

32

986248

4

41

45

44

43

42

45

37

36

27

38

39

40

647

5

6

67

46

68

69

48

610

11

612

Torque to

50-70 ft/lbs

(68-95.2 Nm)

1

2

3

13

31

3030

29

28

18

22

23

24

35

14

15

16

Torque to 14-18 ft.lbs.

(19-25 Nm)

17

21

19

3

20

26

18

22

23

24

17

19

3

20

Torque to 45-55 ft.lbs. (61-75 Nm)

The above parts group applies to the following Mfg. Nos.:

1694339 - 40" Mower 1694340 - 40" Mower 1694341 - 40" Mower 1694821 - 40" Mower

2005

56

TP 400-4205-01-BM-SMA

40" Mower Deck - Housing, Arbors & Blades

PART NO. DESCRIPTIONREF NO QTY.

44 1721132A 1 GUARD, Extension 45 1675044 4 RIVIT, Pop 46 1960096 4 WASHER, 3/16 x 3/4 x 1/16 47 1713675 2 WASHER, Bellville 48 1726825 1 ARBOR SHAFT & BEARING ASSEMBLY

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694339 - 40" Mower 1694340 - 40" Mower 1694341 - 40" Mower 1694821 - 40" Mower

2005

57

TP 400-4205-01-BM-SMA

44" Mower Deck - Belt, Idler Arm & Hitch

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Engine

Pulley

1

Arbor Drive

Pulley

Arbor Drive

Pulley

Movable Idler

Movable

Idler Pulley

Pulley

Arbor Drive

Pulley

2

5

7

8

9

Arbor Drive

Pulley

986945

3

4

11

A

12

7777

A

20

11

13

4

5

10

14

7777

6

77

8

9

77

15

16

Grease

11

17

19

A

25

24

7

26

23

22

14

11

18

Mount Hitch Assembly and

27

Leveling Adjustment Rod

using upper set of holes for 15" front tires

18

using lower set of holes for 16" front tires

21

The above parts group applies to the following Mfg. Nos.:

1694037 - 44" Mower 1694043 - 44" Mower 1694178 - 44" Mower 1694822 - 44" Mower

2005

58

TP 400-4205-01-BM-SMA

44" Mower Deck - Belt, Idler Arm & Hitch

PART NO. DESCRIPTIONREF NO QTY.

1 1601672 1 V-BELT, Mower Drive

2 1721532 1 V-BELT, Arbor Drive

3 1665835 1 GRIP, Lever

4 1916950 2 NUT, Hex, 3/8-16

5 1916965 2 WASHER, Lock, 3/8

6 1677135A 1 BELT STOP, Idler

7 1924940 14 WASHER, 3/8

8 1666294 2 SPACER, 25/64 x 21/32 x 7/16, Powder Metal

9 1685150 2 PULLEY, Idler, (Includes Ref. No. 8) 10 1960339 1 NUT, Hex Flange, 3/8-16, MAC Lock Large, Black 11 1676148 4 BUSHING, 5/8 x 3/4 x 13/32, Powder Metal 12 1715435 1 SPRING 13 1674669A 2 SPACER, 25/64 x 5/8 x 1-1/8, Case Hardened 14 2812808 2 GREASE FITTING 15 1704658 1 LEVER ASSEMBLY, Idler, (Includes Ref. Nos. 3, 11 & 14) 16 1960315 1 CARRIAGE BOLT, 3/8-16 x 2 17 1718561 1 LEVER ASSEMBLY, Idler Arm, (Includes Ref. Nos. 11 & 14) 18 1924356 2 WASHER, 3/8, Black 19 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 20 1656936 1 SPRING 21 1923938 1 CAPSCREW, Hex Head, 3/8-16 x 3-1/2 22 1921968 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/8 23 2157081 2 SPACER, 3/8 x 3/4 x 1/2 24 2860681 2 NUT, Hex Toplock Spiralock Flange, 3/8-16 25 2156302 1 SPRING 26 1707432A 1 HITCH ASSEMBLY 27 1715759 1 ROD, Latch

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694037 - 44" Mower 1694043 - 44" Mower 1694178 - 44" Mower 1694822 - 44" Mower

2005

59

TP 400-4205-01-BM-SMA

44" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

48

47

46

GREASE

45

36

30

31

4329

32

10

12

44

43

985973

Insert Must

18

10

16

Face Out

11

17

10

1715

20

11

14

15

19

10

Feet towards discharge

11

10

11

10

11

10

11

10

9

8

10

12

33

42

41

40

39

11

1713

21

3

4

5

6

7

9

8

9

21

28

27

26

Mount Hitch Assembly and

Leveling Adjustment Rod using upper set of holes for 15" front tires using lower set of holes for 16" front tires

34

38

25

The above parts group applies to the following Mfg. Nos.:

1694037 - 44" Mower 1694043 - 44" Mower 1694178 - 44" Mower 1694822 - 44" Mower

13

35

36

12

24

35

37

GREASE

3

22

23

Insert Must Face Out

2005

60

TP 400-4205-01-BM-SMA

44" Mower Deck - Height Adjustment & Roller Bar

PART NO. DESCRIPTIONREF NO QTY.

1 1685443 1 SHAFT & BAR ASSEMBLY, 44" (Includes Ref. No. 9) 2 1704082 1 NUT, Adjuster 3 2860681 3 NUT, Toplock Spiral Flange, 3/8-16 4 1677507 1 SLIDE 5 1924361 1 WASHER, Plain, 1/2 6 2172622 1 BOLT, Shoulder, 3/8-16 7 1602946 2 SPACER, 25/64 x 13/16 x 13/16, Steel, Black 8 1722036 2 ROLLER, Rounded, 2-1/2 Long

9 1960520 2 NUT, Push 10 1924366 10 WASHER, Plain, 1-1/4 11 1668513 7 ROLLER 12 1704074A 1 BAR, Roller 13 1930644 2 NUT, Hex, Flange, Lock, 1/2-13 14 1664847 5 CAPSCREW, Hex Head Taptite, 5/16 -18 x 3/4 15 1924940 3 WASHER, 3/8 16 1918448 1 PIN, Cotter 17 2176012 1 RETAINER, Pin, Spring 18 1705049 1 BRACKET & PIN ASSEMBLY 19 1720659 1 UPSTOP 20 1665374A 3 STRAP, Mower Arm Assembly 21 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 22 1723407A 1 ARM ASSEMBLY, Mower 23 1704093 1 ROD, Adjustment 24 1706644 1 SPACER, 3/8 x 3/4 x 15/16 25 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4 26 1722750 1 BRACKET, Upstop 27 1960373 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1, Black 28 1704080A 1 PLATE, Mower Support 29 1931202 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4 30 1919381 1 WASHER, 5/16, Black 31 1704114 1 INDICATOR, Height of Cut 32 1704097 1 WASHER, Detent 33 1704086 1 TRUNNION 34 2816001 1 PIN, Roll, 1 35 1913744 2 NUT, Hex, Jam, 1/2-13 36 1960170 3 WASHER, 33/64 37 2118053 1 PIN, Clevis 38 1704081A 1 TRUNNION 39 1960074 2 CLIP, Hair Pin 40 1917372 2 NUT, Hex, 5/16-18 41 1917356 2 WASHER, Lock, 5/16 42 1704116A 1 BRACKET, Height of Cut 43 1704083A 1 ARM, Rear, Mower, RH 44 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694037 - 44" Mower 1694043 - 44" Mower 1694178 - 44" Mower 1694822 - 44" Mower

2005

61

TP 400-4205-01-BM-SMA

44" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

48

47

46

GREASE

45

36

30

31

4329

32

10

12

44

43

985973

Insert Must

18

10

16

Face Out

11

17

10

1715

20

11

14

15

19

10

Feet towards discharge

11

10

11

10

11

10

11

10

9

8

10

12

33

42

41

40

39

11

1713

21

3

4

5

6

7

9

8

9

21

28

27

26

Mount Hitch Assembly and

Leveling Adjustment Rod using upper set of holes for 15" front tires using lower set of holes for 16" front tires

34

38

25

The above parts group applies to the following Mfg. Nos.:

1694037 - 44" Mower 1694043 - 44" Mower 1694178 - 44" Mower 1694822 - 44" Mower

13

35

36

12

24

35

37

GREASE

3

22

23

Insert Must Face Out

2005

62

TP 400-4205-01-BM-SMA

44" Mower Deck - Height Adjustment & Roller Bar

PART NO. DESCRIPTIONREF NO QTY.

45 1704087 1 TRUNNION, Threaded 46 1719901 1 CRANK, Height of Cut 47 1714084 1 KNOB, Height Crank 48 1960093 1 PAL NUT

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694037 - 44" Mower 1694043 - 44" Mower 1694178 - 44" Mower 1694822 - 44" Mower

2005

63

TP 400-4205-01-BM-SMA

44" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Apply gasket former to this surface if foam gasket is not used. Fill arbors with multipurpose grease after gasket former has cured.

39

33

16

28

32

31

985971

Torque nuts to 50-70 ft. lbs. (67-95 Nm.)

5

40

37

36

32

37

38

36

35

34

30

28

29

31

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

17

18

Note: Plug holes outside footrest with Ref. Nos. 17 & 18 as required.

16

27

The above parts group applies to the following Mfg. Nos.:

1694037 - 44" Mower 1694043 - 44" Mower

Torque arbor capscrews to 14-18 ft. lbs.

41

42

25

26

43

25

16

19

20

21

(19-24 Nm)

22

23

24

Torque screws to 45-55 ft. lbs. (61-75 Nm)

2005

64

TP 400-4205-01-BM-SMA

44" Mower Deck - Housing, Arbors & Blades

PART NO. DESCRIPTIONREF NO QTY.

1 1714419 3 NUT, Hex Flange, 9/16-18 2 1713675 6 WASHER, Bellevilled, 9/16 3 1713161 1 PULLEY, 4-1/2 O.D. 4 1713158 1 HUB, Double Pulley 5 1713098 3 PULLEY, 4-1/4 O.D. 6 1713533 1 HUB, Double Pulley 7 1655729A 3 COVER, Arbor Housing 8 2108202 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8

9 1715724 3 SPACER, 21/32 x 3/4 x 5/8 10 1715723 3 SPACER, 11/16 x 5/32 x 2-11/16 11 1705897 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32 12 1707335 3 GASKET, Foam 13 1713338 3 ARBOR HOUSING ASSEMBLY, (Includes Ref. No. 14) 14 1704314 3 FITTING, Grease 15 1720560A 1 COVER, Arbor 16 1664847 26 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4 17 1924856 1 CAPSCREW, Hex Washer Head, 5/16-18 x 1/2, Black 18 1931277 1 NUT, Hex Flange, 5/16, 19 1713619 3 WASHER, Bellevilled, 9/16, Black 20 1713612 1 SHAFT, Arbor (LH) 21 1713196 3 SHIELD, Grass, Lower 22 1704100A 3 BLADE, Mower, 16-1/8 (for 44" Decks) 23 1713089 3 WASHER, Hex, 11/16 x 2 24 1656916 3 WASHER, Spring 15/32, Black 25 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1 26 1713195 2 SHAFT, Arbor (Center & RH) 27 1685411 1 MOWER HOUSING ASSEMBLY, 44" Mower (Orange) 27 1687154 1 MOWER HOUSING ASSEMBLY, 44" Mower (Red) 28 1703601 1 COVER, Arbor 29 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8 30 1705115 1 PLUG, Hole 31 1960518 2 NUT, Push 32 1960353 2 WASHER, 1/4, Black 33 1704873 1 CLAMP 34 1919326 1 WASHER, 5/16, Black 35 1723938 1 SPRING 36 1916964 2 WASHER, Lock, 1/4 37 1916622 2 NUT, Hex, 1/4-20 38 1706709A 1 ROD, Deflector, Front 39 1705449 1 DEFLECTOR, Plastic 40 1713197 2 HUB, Pulley, Center & RH 41 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4 42 1927557 2 NUT, Hex Flagne Whiz Lock, 5/16-18 43 1724538A 1 BAFFLE, Blowout, 44" & 50"

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694037 - 44" Mower 1694043 - 44" Mower

2005

65

TP 400-4205-01-BM-SMA

44" Mower Deck - Housing, Arbors & Blades CE

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Apply gasket former to this surface if foam gasket is not used. Fill arbors with multipurpose grease after gasket former has cured.

39

33

16

32

31

28

29

36

34

37

44

35

30

37

36

25

26

43

42

38

32

31

Torque nuts to 50-70 ft. lbs. (67-95 Nm.)

5

40

41

16

27

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

17

18

Torque arbor capscrews to 14-18 ft. lbs. (19-24 Nm)

19

20

21

986089

16

Note: Plug holes outside footrest with Ref. Nos. 17 & 18 as required.

The above parts group applies to the following Mfg. Nos.:

1694178 - 44" Mower 1694822 - 44" Mower

2005

66

25

22

23

24

Torque screws to 45-55 ft. lbs. (61-75 Nm)

TP 400-4205-01-BM-SMA

44" Mower Deck - Housing, Arbors & Blades CE

PART NO. DESCRIPTIONREF NO QTY.

1 1714419 3 NUT, Hex Flange, 9/16-18

2 1713675 6 WASHER, Bellevilled, 9/16

3 1713161 1 PULLEY

4 1713158 1 HUB, Double Pulley

5 1713098 3 PULLEY

6 1713533 1 HUB, Double Pulley

7 1655729A 3 COVER, Arbor Housing

8 2108202 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8

9 1715724 3 SPACER, 21/32 x 3/4 x 5/8 10 1715723 3 SPACER, 11/16 x 5/32 x 2-11/16 11 1705897 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32 12 1707335 3 GASKET, Foam 13 1713338 3 ARBOR HOUSING ASSEMBLY, (Includes Ref. No. 14) 14 1704314 3 FITTING, Grease 15 1720560A 1 COVER, Arbor 16 1664847 26 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4 17 1924856 1 CAPSCREW, Hex Washer Head, 5/16-18 x 1/2, Black 18 1931277 1 NUT, Hex Flange, 5/16, 19 1713619 3 WASHER, Bellevilled, 9/16, Black 20 1713612 1 SHAFT, Arbor (LH) 21 1713196 3 SHIELD, Grass, Lower 22 1704100A 3 BLADE, Mower, 16-1/8 (for 44" Decks) 23 1713089 3 WASHER, Hex, 11/16 x 2 24 1656916 3 WASHER, Spring 15/32, Black 25 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1 26 1713195 2 SHAFT, Arbor (Center & RH) 27 1685411 1 MOWER HOUSING ASSEMBLY, 44" Mower (Orange) 27 1687154 1 MOWER HOUSING ASSEMBLY, 44" Mower (Red) 28 1703601 1 COVER, Arbor 29 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8 30 1705115 1 PLUG, Hole 31 1960518 2 NUT, Push 32 1960353 2 WASHER, 1/4, Black 33 1704873 1 CLAMP 34 1919326 1 WASHER, 5/16, Black 35 1723938 1 SPRING 36 1916964 2 WASHER, Lock, 1/4 37 1916622 2 NUT, Hex, 1/4-20 38 1706709A 1 ROD, Deflector, Front 39 1705449 1 DEFLECTOR, Plastic 40 1713197 2 HUB, Pulley, Center & RH 41 1716879A 1 BAFFLE, Anti-Blowout, LH (CE Only) 42 1931333 8 CARRIAGE BOLT, 5/16-18 x 3/4, Black (CE Only) 43 1927557 8 NUT, Hex Flange Whiz Lock, 5/16-18, Black (CE Only)

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694178 - 44" Mower 1694822 - 44" Mower

2005

67

TP 400-4205-01-BM-SMA

44" Mower Deck - Housing, Arbors & Blades CE

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Apply gasket former to this surface if foam gasket is not used. Fill arbors with multipurpose grease after gasket former has cured.

39

33

16

32

31

28

29

36

34

37

44

35

30

37

36

25

26

43

42

38

32

31

Torque nuts to 50-70 ft. lbs. (67-95 Nm.)

5

40

41

16

27

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

17

18

Torque arbor capscrews to 14-18 ft. lbs. (19-24 Nm)

19

20

21

986089

16

Note: Plug holes outside footrest with Ref. Nos. 17 & 18 as required.

The above parts group applies to the following Mfg. Nos.:

1694178 - 44" Mower 1694822 - 44" Mower

2005

68

25

22

23

24

Torque screws to 45-55 ft. lbs. (61-75 Nm)

TP 400-4205-01-BM-SMA

44" Mower Deck - Housing, Arbors & Blades CE

PART NO. DESCRIPTIONREF NO QTY.

44 1716878A 1 BAFFLE, Anti-Blowout, RH (CE Only)

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694178 - 44" Mower 1694822 - 44" Mower

2005

69

TP 400-4205-01-BM-SMA

50" Mower Deck - Clutch & Support

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Engine

Pulley

1

Arbor Drive

Pulley

Arbor Drive

Pulley

Movable Idler

Movable

Idler Pulley

Pulley

Arbor Drive

Pulley

2

5

7

8

9

Arbor Drive

Pulley

984271C

3

4

11

A

12

7777

A

20

11

13

4

5

10

14

7777

6

77

8

9

77

15

16

Grease

11

17

Insert Must Face Out

19

A

25

26

24

7

23

22

Mount Hitch Assembly and •

27

Leveling Adjustment Rod

using lower set of holes

14

11

18

21

The above parts group applies to the following Mfg. Nos.:

1694174 - 50" Mower 1694473 - 50" Mower 1694474 - 50" Mower

2005

70

TP 400-4205-01-BM-SMA

50" Mower Deck - Clutch & Support

PART NO. DESCRIPTIONREF NO QTY.

1 1707740 1 V-BELT, Mower Drive

2 1703836 1 V-BELT, Arbor Drive

3 1665835 1 GRIP, Lever

4 1916950 2 NUT, Hex, 3/8-16

5 1916965 2 WASHER, Lock, 3/8

6 1677135A 1 BELT STOP, Idler

7 1924940 14 WASHER, 3/8

8 1716553 1 HUB, 25/64 x 3/4 x 63/64, Powder Metal

9 1685150 2 PULLEY, Idler, (Includes Ref. No. 8) 10 1960339 1 NUT, Hex Flange, 3/8-16, MAC Lock Large, Black 11 1676148 4 BUSHING, 5/8 x 3/4 x 13/32, Powder Metal 12 1715435 1 SPRING 13 1674669A 2 SPACER, 25/64 x 5/8 x 1-1/8, Case Hardened 14 2812808 2 GREASE FITTING 15 1704658 1 LEVER ASSEMBLY, Idler, (Includes Ref. Nos. 11 & 14) 16 1960315 1 CARRIAGE BOLT, 3/8-16 x 2 17 1718561 1 LEVER ASSEMBLY, Idler Arm, (Includes Ref. Nos. 11 & 14) 18 1924356 2 WASHER, 3/8, Black 19 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 20 1656936 1 SPRING 21 1923938 1 CAPSCREW, Hex Head, 3/8-16 x 3-1/2 22 1921968 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/8 23 2157081 2 SPACER, 3/8 x 3/4 x 1/2 24 2860641 2 NUT, Hex Aluminum Insert Lock, 3/8-16 25 2156302 1 SPRING 26 1707432A 1 HITCH ASSEMBLY 27 1715759 1 ROD, Latch

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694174 - 50" Mower 1694473 - 50" Mower 1694474 - 50" Mower

2005

71

TP 400-4205-01-BM-SMA

50" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

45

44

43

GREASE

42

34

28

19

4327

29

986020

7

11

10

9

7

41

40

30

39

31

12

38

37

36

Insert Must Face Out

11

7

1713

15

14

GREASE

16

21

3

4

5

6

107

8

9

10

8

9

7

26

Mount Hitch Assembly and •

Leveling Adjustment Rod

using lower set of holes

25

24

23

32

33

22

3

Insert Must Face Out

34

12

33

35

17

3

18

20

21

9

19

The above parts group applies to the following Mfg. Nos.:

1694174 - 50" Mower

2005

72

TP 400-4205-01-BM-SMA

50" Mower Deck - Height Adjustment & Roller Bar

PART NO. DESCRIPTIONREF NO QTY.

1 1686687 1 SHAFT ASSEMBLY, Roller, 50", (Includes Ref. No. 10)

2 1704082 1 NUT, Adjuster

3 2860641 3 NUT, Hex Aluminum Insert Lock, 3/8-16

4 1677507 1 SLIDE

5 1924361 1 WASHER, Plain, 1/2

6 2172622 1 BOLT, Shoulder, 3/8-16

7 1924366 8 WASHER, Plain, 1 1/4

8 1709195 3 SPACER, 21/32 x 5/32 x 5/8

9 1722036 2 ROLLER, Rounded End 10 1960520 2 NUT, Push 11 1668513 8 ROLLER 12 1704074A 1 BAR, Roller 13 1930644 2 NUT, Hex Flange, 2 Way Lock, 1/2-13 14 1665374A 3 STRAP, Mower Arm Assembly 15 1664847 6 CAPSCREW, Hex Head Taptite, 5/16 -18 x 3/4 16 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 17 1718828A 1 ARM ASSEMBLY, Mower 18 1930570 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G8, 1/2 Thread 19 1919381 5 WASHER, 5/16, Black 20 1708088A 2 CHAIN, 4 Link, 6 3/32 Long 21 1919438 2 NUT, Hex Lock ESNA Light, 5/16-18, Black 22 1722995 1 ROD, Adjustment 23 1706644 1 SPACER, 3/8 x 3/4 x 15/16 24 1924940 1 WASHER, 3/8 25 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4 26 1704080A 1 PLATE, Mower Support 27 1931202 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4 28 1704114 1 INDICATOR, Cutting Height 29 1704097 1 WASHER, Detent 30 1704086 1 TRUNNION 31 2816001 1 PIN, Roll, 1 32 1706645A 1 TRUNNION 33 1915726 2 NUT, Hex, Jam, 1/2-13 34 1960170 1 WASHER, 11/32 35 2118053 1 PIN, Clevis 36 1960074 1 CLIP, Hair Pin 37 1917372 2 NUT, Hex, 5/16-18 38 1917356 2 WASHER, Lock, 5/16 39 1704116A 1 BRACKET, Cutting Height 40 1704083A 1 ARM, Rear, Mower, RH 41 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4 42 1704087 1 TRUNNION, Threaded 43 1719901 1 CRANK, Cutting Height 44 1714084 1 KNOB, Height Crank

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694174 - 50" Mower

2005

73

TP 400-4205-01-BM-SMA

50" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

45

44

43

GREASE

42

34

28

19

4327

29

986020

7

11

10

9

7

41

40

30

39

31

12

38

37

36

Insert Must Face Out

11

7

1713

15

14

GREASE

16

21

3

4

5

6

107

8

9

10

8

9

7

26

Mount Hitch Assembly and •

Leveling Adjustment Rod

using lower set of holes

25

24

23

32

33

22

3

Insert Must Face Out

34

12

33

35

17

3

18

20

21

9

19

The above parts group applies to the following Mfg. Nos.:

1694174 - 50" Mower

2005

74

TP 400-4205-01-BM-SMA

50" Mower Deck - Height Adjustment & Roller Bar

PART NO. DESCRIPTIONREF NO QTY.

45 1960093 1 PAL NUT

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694174 - 50" Mower

2005

75

TP 400-4205-01-BM-SMA

50" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

3

2

1

GREASE

48

34

38

10

4337

986421

5

4

6

12

712

21

20

47

46

40

39

45

41

7

8

6

9

4

10

4

22

44

43

42

6

11

4

14

1723

24

11

6

25

8

10

6

17

GREASE

26

7

12

9

4

213

18

19

104

6

15

16

5

4

20

21

36

Mount Hitch Assembly and •

Leveling Adjustment Rod

using lower set of holes

35

34

33

16

31

32

Insert Must Face Out

The above parts group applies to the following Mfg. Nos.:

1694473 - 50" Mower 1694474 - 50" Mower

28

29

30

12

29

16

27

2005

76

TP 400-4205-01-BM-SMA

50" Mower Deck - Height Adjustment & Roller Bar

PART NO. DESCRIPTIONREF NO QTY.

1 1719901 1 CRANK, Cutting Height

2 1714084 1 KNOB, Height Crank

3 1960093 1 PAL NUT

4 1924366 8 WASHER, Plain, 1 1/4

5 1709195 3 SPACER, 21/32 x 5/32 x 5/8

6 1668513 8 ROLLER

7 2825094 2 TIE, Self Locking

8 1708266A 2 CHAIN, 6 Link, 8 13/32 Long

9 1919438 2 NUT, Hex Lock ESNA Light, 5/16-18, Black 10 1919381 5 WASHER, 5/16, Black 11 1930570 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G8, 1/2 Thread 12 1725640A 2 LINK, Lift, Roller Shaft 13 1602946 2 SPACER 14 1686687 1 SHAFT ASSEMBLY, Roller, 50", (Includes Ref. No. 10) 15 1704082 1 NUT, Adjuster 16 2860641 3 NUT, Hex Aluminum Insert Lock, 3/8-16 17 1677507 1 SLIDE 18 1924361 1 WASHER, Plain, 1/2 19 2172622 1 BOLT, Shoulder, 3/8-16 20 1722036 2 ROLLER, Rounded End 21 1960520 2 NUT, Push 22 1704074A 1 BAR, Roller 23 1930644 2 NUT, Hex Flange, 2 Way Lock, 1/2-13 24 1665374A 3 STRAP, Mower Arm Assembly 25 1664847 6 CAPSCREW, Hex Head Taptite, 5/16 -18 x 3/4 26 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 27 1718828A 1 ARM ASSEMBLY, Mower 28 2118053 1 PIN, Clevis 29 1915726 2 NUT, Hex, Jam, 1/2-13 30 1960170 1 WASHER, 11/32 31 1706645A 1 TRUNNION 32 1722995 1 ROD, Adjustment 33 1706644 1 SPACER, 3/8 x 3/4 x 15/16 34 1924940 1 WASHER, 3/8 35 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4 36 1704080A 1 PLATE, Mower Support 37 1931202 2 CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4 38 1704114 1 INDICATOR, Cutting Height 39 1704097 1 WASHER, Detent 40 1704086 1 TRUNNION 41 2816001 1 PIN, Roll, 1 42 1960074 1 CLIP, Hair Pin 43 1917372 2 NUT, Hex, 5/16-18 44 1917356 2 WASHER, Lock, 5/16

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694473 - 50" Mower 1694474 - 50" Mower

2005

77

TP 400-4205-01-BM-SMA

50" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

3

2

1

GREASE

48

34

38

10

4337

986421

5

4

6

12

712

21

20

47

46

40

39

45

41

7

8

6

9

4

10

4

22

44

43

42

6

11

4

14

1723

24

11

6

25

8

10

6

17

GREASE

26

7

12

9

4

213

18

19

104

6

15

16

5

4

20

21

36

Mount Hitch Assembly and •

Leveling Adjustment Rod

using lower set of holes

35

34

33

16

31

32

Insert Must Face Out

The above parts group applies to the following Mfg. Nos.:

1694473 - 50" Mower 1694474 - 50" Mower

28

29

30

12

29

16

27

2005

78

TP 400-4205-01-BM-SMA

50" Mower Deck - Height Adjustment & Roller Bar

PART NO. DESCRIPTIONREF NO QTY.

45 1704116A 1 BRACKET, Cutting Height 46 1704083A 1 ARM, Rear, Mower, RH 47 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4 48 1704087 1 TRUNNION, Threaded

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694473 - 50" Mower 1694474 - 50" Mower

2005

79

TP 400-4205-01-BM-SMA

50" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Apply gasket former to this surface if foam gasket is not used. Fill arbors with multipurpose grease after gasket former has cured.

38

31

16

26

30

29

985972

Torque nuts to 50-70 ft. lbs. (67-95 Nm.)

5

40

39

36

35

30

36

37

35

34

33

32

28

27

29

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

25

The above parts group applies to the following Mfg. Nos.:

1694174 - 50" Mower

2005

80

41

42

25

24

40

23

Torque arbor capscrews to 14-18 ft. lbs.

16

(19-24 Nm)

17

18

19

20

21

22

Torque screws to 45-55 ft. lbs. (61-75 Nm)

TP 400-4205-01-BM-SMA

50" Mower Deck - Housing, Arbors & Blades

PART NO. DESCRIPTIONREF NO QTY.

1 1714419 3 NUT, Hex Flange, 9/16-18

2 1713675 6 WASHER, Bellevilled, 9/16

3 1713161 1 PULLEY

4 1713158 1 HUB, Double Pulley

5 1713098 3 PULLEY

6 1713533 1 HUB, Double Pulley

7 1655729A 3 COVER, Arbor Housing

8 2108202 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8

9 1715724 3 SPACER, 21/32 x 3/4 x 5/8 10 1715723 3 SPACER, 11/16 x 5/32 x 2-11/16 11 1705897 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32 12 1707335 3 GASKET, Foam 13 1713338 3 ARBOR HOUSING ASSEMBLY, (Includes Ref. No. 14) 14 1704314 3 FITTING, Grease 15 1720560A 1 COVER, Arbor 16 1664847 26 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4 17 1713619 3 WASHER, Bellevilled, 9/16, Black 18 1713612 1 SHAFT, Arbor (LH) 19 1713196 3 SHIELD, Grass, Lower 20 1708229A 3 BLADE, Mower, 18-1/8 21 1713089 3 WASHER, Hex, 11/16 x 2 22 1656916 3 WASHER, Spring 15/32, Black 23 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1 24 1713195 2 SHAFT, Arbor (Center & RH) 25 1685495 1 MOWER HOUSING ASSEMBLY, 50" Mower (Orange) 25 1687156 1 MOWER HOUSING ASSEMBLY, 50" Mower (Red) 26 1703601 1 COVER, Arbor 27 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8 28 1705115 1 PLUG, Hole 29 1960518 2 NUT, Push 30 1960353 2 WASHER, 1/4, Black 31 1704873 1 CLAMP 32 1919326 1 WASHER, 5/16, Black 33 1723938 1 SPRING 34 1723323 1 CAP, Spring End 35 1916964 2 WASHER, Lock, 1/4 36 1916622 2 NUT, Hex, 1/4-20 37 1706709A 1 ROD, Deflector, Front 38 1705449 1 DEFLECTOR, Plastic 39 1713197 2 HUB, Pulley, Center & RH 40 1724538A 1 BAFFLE, Anti-Blowout 41 1927557 2 NUT, Hex, Whizlock, 5/16-18 42 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694174 - 50" Mower

2005

81

TP 400-4205-01-BM-SMA

50" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Apply gasket former to this surface if foam gasket is not used. Fill arbors with multipurpose grease after gasket former has cured.

41

34

16

26

33

31

32

29

986429

Torque nuts to 50-70 ft. lbs. (67-95 Nm.)

5

40

42

39

38

33

39

40

38

37

36

35

28

30

28

27

32

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

25

Top of Upstop

angles rearward.

The above parts group applies to the following Mfg. Nos.:

1694473 - 50" Mower 1694474 - 50" Mower

2005

82

41

42

25

24

40

23

Torque arbor capscrews to 14-18 ft. lbs.

16

(19-24 Nm)

17

18

19

20

21

22

Torque screws to 45-55 ft. lbs. (61-75 Nm)

TP 400-4205-01-BM-SMA

50" Mower Deck - Housing, Arbors & Blades

PART NO. DESCRIPTIONREF NO QTY.

1 1714419 3 NUT, Hex Flange, 9/16-18

2 1713675 6 WASHER, Bellevilled, 9/16

3 1713161 1 PULLEY

4 1713158 1 HUB, Double Pulley

5 1713098 3 PULLEY

6 1713533 1 HUB, Double Pulley

7 1655729A 3 COVER, Arbor Housing

8 2108202 3 BEARING, Ball, 3/4 x 1-3/4 x 5/8

9 1715724 3 SPACER, 21/32 x 3/4 x 5/8 10 1715723 3 SPACER, 11/16 x 5/32 x 2-11/16 11 1705897 3 BEARING, Ball, 11/16 x 1-9/16 x 15/32 12 1707335 3 GASKET, Foam 13 1713338 3 ARBOR HOUSING ASSEMBLY, (Includes Ref. No. 14) 14 1704314 3 FITTING, Grease 15 1720560A 1 COVER, Arbor 16 1664847 26 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4 17 1713619 3 WASHER, Bellevilled, 9/16, Black 18 1713612 1 SHAFT, Arbor (LH) 19 1713196 3 SHIELD, Grass, Lower 20 1708229A 3 BLADE, Mower, 18-1/8 21 1713089 3 WASHER, Hex, 11/16 x 2 22 1656916 3 WASHER, Spring 15/32, Black 23 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1 24 1713195 2 SHAFT, Arbor (Center & RH) 25 1685495 1 MOWER HOUSING ASSEMBLY, 50" Mower (Orange) 25 1687156 1 MOWER HOUSING ASSEMBLY, 50" Mower (Red) 26 1703601 1 COVER, Arbor 27 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8 28 1705115 1 PLUG, Hole 29 1704098 1 UPSTOP 30 1611705 2 SPACER, W x 5/8 x L 31 1931202 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1-1/4 32 1960518 2 NUT, Push 33 1960353 2 WASHER, 1/4, Black 34 1704873 1 CLAMP 35 1919326 1 WASHER, 5/16, Black 36 1723738 1 SPRING 37 1723323 1 CAP, Spring End 38 1916964 2 WASHER, Lock, 1/4 39 1916622 2 NUT, Hex, 1/4-20 40 1706709A 1 ROD, Deflector, Front 41 1705449 1 DEFLECTOR, Plastic 42 1713197 2 HUB, Pulley, Center & RH 43 1724538A 1 BAFFLE, Anti-Blowout

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694473 - 50" Mower 1694474 - 50" Mower

2005

83

TP 400-4205-01-BM-SMA

50" Mower Deck - Housing, Arbors & Blades

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

Apply gasket former to this surface if foam gasket is not used. Fill arbors with multipurpose grease after gasket former has cured.

41

34

16

26

33

31

32

29

986429

Torque nuts to 50-70 ft. lbs. (67-95 Nm.)

5

40

42

39

38

33

39

40

38

37

36

35

28

30

28

27

32

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

25

Top of Upstop

angles rearward.

The above parts group applies to the following Mfg. Nos.:

1694473 - 50" Mower 1694474 - 50" Mower

2005

84

41

42

25

24

40

23

Torque arbor capscrews to 14-18 ft. lbs.

16

(19-24 Nm)

17

18

19

20

21

22

Torque screws to 45-55 ft. lbs. (61-75 Nm)

TP 400-4205-01-BM-SMA

50" Mower Deck - Housing, Arbors & Blades

PART NO. DESCRIPTIONREF NO QTY.

44 1927557 2 NUT, Hex, Whizlock, 5/16-18 45 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694473 - 50" Mower 1694474 - 50" Mower

2005

85

TP 400-4205-01-BM-SMA

Hardware Identification & Torque Specifications

Common Hardware Types

Hex Head Capscrew

Carriage Bolt

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

second number is present it represent the

When bolt or capscrew is identified as 1/2 - 16 x 2”, this means the second number represents the example, and the final number is the bolt or screw (in this example 2 inches long).

, meaning the

Nominal size

inside diameter

, or

body diameter

threads per inch

body length

Washer

Lockwasher

Hex Nut

is 1/2 inch; if a

threads per inch

is 1/2 inch; the

(16 in this

of the

The guides and ruler furnished below are designed to help you select the appropriate hardware and tools.

0

1/4 3/4

1/2

Nut, 1/2”

Inside Diameter

1

1/4 3/4

1/2

Screw, 1/2 x 2

2

1/4 3/4

1/2

3

1/4 3/4

1/2

4

Body

Diameter

Body

Length

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware Grade

Size Of Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32 8-36 10-24 10-32 1/4-20 1/4-28 5/16-18 11 15.0 17 23.1 25 34.0 5/16-24 12 16.3 19 25.8 27 34.0 3/8-16 20 27.2 30 40.8 45 61.2 3/8-24 23 31.3 35 47.6 50 68.0 7/16-14 30 40.8 50 68.0 70 95.2 7/16-20 35 47.6 55 74.8 80 108.8 1/2-13 50 68.0 75 102.0 110 149.6 1/2-20 55 74.8 90 122.4 120 163.2 9/16-12 65 88.4 110 149.6 150 204.0 9/16-18 75 102.0 120 163.2 170 231.2 5/8-11 90 122.4 150 204.0 220 299.2 5/8-18 100 136 180 244.8 240 326.4 3/4-10 160 217.6 260 353.6 386 525.0 3/4-16 180 244.8 300 408.0 7/8-9 140 190.4 400 544.0 600 816.0 7/8-14 155 210.8 440 598.4 660 897.6 1-8 220 299.2 580 788.8 900 1,244.0 1-12 240 326.4 640 870.4 1,000 1,360.0

1. These torque values are to be used for all hardware excluding: locknuts, self-tapping screws, thread forming screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque values must meet this specification.

No

Marks

SAE Grade 2 SAE Grade 5 SAE Grade 8

in/lbs in/lbs

19

2.1

20

2.3

27

3.1

31

3.5

66

7.6 8 10.9 12 16.3

76

8.6 10 13.6 14 19.0

30 31 43 49

NOTES

3.4

3.5

4.9

5.5

in/lbs

41 43 60 68

420 571.2

4.6

4.9

6.8

7.7

Wrench & Fastener Size Guide

1/4

1/4” Bolt or Nut

Wrench—7/16”

5/16

5/16” Bolt or Nut

Wrench—1/2”

3/8

3/8” Bolt or Nut

Wrench—9/16”

7/16 DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

1/2

DIA.

1/2” Bolt or Nut

Wrench—3/4”

MANUFACTURING, INC.

500 N. Spring Street / PO Box 997 Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

2005
