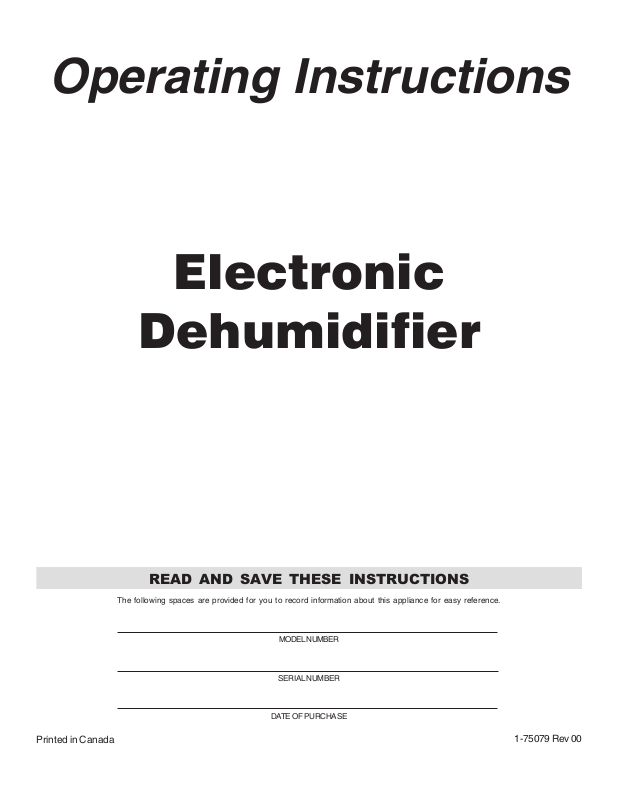

Simplicity 43-5407-2 Owner's Manual

Operating Instructions
Electronic
Dehumidifier
READ AND SAVE THESE INSTRUCTIONS
The following spaces are provided for you to record information about this appliance for easy reference.
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE
1-75079 Rev 00
Introduction
Congratulations, and thank you for purchasing our high quality dehumidifier. When the dehumidifier has been removed from the carton, it is completely assembled and ready for use. This product has been manufactured to the highest standard with safety and efficiency in mind, so please take a few minutes to understand its components and operating instructions. The following sections deal with information on basic electrical safety, selecting the proper location for optimum performance, the control panel, components, and care for this product.
Control Panel Operation
Important Electrical Information
This dehumidifier has been designed to work on ordinary household current. However, to avoid any unnecessary power interruptions, it is not recommended for use on a circuit containing other electrical equipment such as air conditioners, refrigerators or freezers. For your safety and protection, the power cord on this dehumidifier has been equipped with a grounding plug that must be plugged into a properly grounded receptacle. If the receptacle that you intend to use does not accept the grounding connector, or if you are unsure if your receptacle is properly grounded, you should have a properly grounded outlet installed.
DO NOT UNDER ANY CIRCUMSTANCES MODIFY THE GROUNDING PLUG IN ORDER TO MAKE IT FIT A RECEPTACLE.
Where To Position Your Dehumidifier
For best results, the dehumidifier should be operated in an enclosed area. Close all doors and windows and other outside openings to the room, as performance is greatly influenced by the rate at which new moisture enters the room. When positioning the dehumidifier in the room, be sure there are no restrictions to the air flowing into or out of the dehumidifier. For the best performance, allow at least 12 inches (30 cm) around the unit.
Operating Your Dehumidifier
1. Power Button “On / Off”
2. Relative Humidity Display RH (humidity level in room)
3. Temperature Display (room temperature) in °C or °F
4. Arrow ‘Up’ for selecting options in setup menu.
5. Arrow ‘Down’ for selecting options in setup menu.
6. Fan Speed Display: “High” large fan, “Low” small fan.
7. Humidity Setting in 5% increments, Fan Only option.
8. Bucket Full Audible Alarm option
9. Bucket “Full” Status Display
10.Menu button for accessing setup options
Initial Power-On Mode
When power is first applied to the control, it will automati­cally preset to following setting or if power is interrupted unit will reset to:
- Fan speed High
- Humidity setpoint 35% RH
- Bucket-Full Alarm ‘Off’
- Room temperature is shown in °F
Power-Off Mode
User can shut off the dehumidifier control by pressing the power button at any time except when the bucket is full. When powered off, the compressor and fan will be turned off sequentially, then the display screen will be turned off. When the power button is pressed again, the dehumidifier returns to the previous settings selected.
Operating Mode
When the dehumidifier is activated the Liquid Crystal Display (LCD) is on. Current room temperature and humidity level will be displayed. The icon of the selected fan speed will be ‘rotating’ when the fan is on. The Humidity bar will display the user selected humidity level setpoint.
(Fig 1) LCD Control Panel
Compressor and fan will be on if the room’s humidity level is higher than user setpoint. As an energy saving feature, after the room humidity level matches the user setpoint, the control will switch the fan to low speed until 5% below the setpoint. This feature only applies when the ‘High’ fan speed has been selected. The user can override this feature by selecting the High fan speed again, until the bucket fills or the desired humidity level is reached.
-2-
Operating Mode cont’d.,
Once the room humidity reaches 5 RH% below the user setpoint, the compressor and fan will be turned off sequen­tially. The compressor and fan will be turned on again when the humidity in the room is 3 RH% above the setpoint.
Auto-Pause Function
By pressing both ‘UP’ and ‘DOWN” arrows simultaneously for 3 seconds, the control will enter Pause mode. When activated the entire LCD display will flash, compressor & fan will be turned off sequentially. The control will stay in this condition for 60 minutes and then resume to normal opera­tion, or the power button can be pressed again to resume the operation sooner.
Fan Speed Setup
When the dehumidifier is plugged in and started or in the event of a power interruption, the fan speed is automatically set to “High”. You can adjust the fan to “Low” by pressing the ‘MENU’ button while the unit is operating. All icons on the LCD display will be off except the icon of the current fan speed. Pressing the ‘UP’ or ‘DOWN’ arrow button can be used to change the fan speed. Pressing MENU again will secure the fan speed and and will display the next setup option.
Bucket-Full
When a bucket ‘full’ condition is detected for 2 minutes, the compressor and fan will be turned off sequentially. The bucket icon will be displayed as solid and will flash. If selected, the Audible Alarm will sound initially with one long ‘beep’ followed by two short ‘beeps’ when the bucket is full. This sequence will be repeated once every hour until the bucket is emptied.
Bucket Full
Audible Alarm Set
Low-temp mode
When the room temperature falls below 59°F (15°C) for more than 10 minutes, the unit will automatically enter ‘Low-Temp’ operation. During ‘Low-Temperature’ operation, the fan will continue running with the selected fan speed. The compres­sor will cycle on and off. The control will reset to normal operation when the room temperature rises to 64°F (18°C) or higher for 10 minutes.
Defrost (De-icer) mode
When the room temperature is 59°F (15°C) or higher and the coil temperature falls below 35°F (2°C) for more than 10 min­utes, the unit will automatically enter ‘Defrost mode’. In ‘Defrost Mode’, the compressor will be turned off, but the fan will continue running with the selected fan speed. The com­pressor remains off until the coil temperature rises to 48°F (9°C) or higher for more than 10 minutes.
Menu Setup Mode
All the changes made by the operator will be effective immediately. Control settings will automatically return to the last programmed settings if the setup process is interrupted or no buttons are pressed within 2 minutes of pressing the MENU button.
High Speed Low Speed
Humidity Level Setup Bar
The humidity level setting bar with numbers will be dis­played. The ‘UP’ and ‘DOWN’ arrows can be used to change the humidity setpoint. The desired humidity level will be shown as solid blocks and flash on the LCD display. Once the setting bar reaches the highest block, the control will switch to Fan-Only Mode ( indicated by at the top of the humidity scale), and the compressor will be turned off.
Humidity scale in 5 RH% increments. Blocks indicate percentage of relative humidity desired. The Relative Humidity display on the LCD indicates actual relative humidity (RH) level in the
Humidity Scale
room.
Fan Only
Alarm control
Pressing the ‘MENU’ button again, a bell icon will be displayed on the LCD screen. The ‘UP’ & ‘DOWN’ button can be used to enable or disable the alarm option. The bell icon will show ‘ringing lines’ when option is enabled.
Audible Alarm Off Audible Alarm On
Temperature Display
By pressing the ‘MENU’ button again, the temperature readout will flash with the current scale (°C or °F). Pressing the ‘UP’ or ‘DOWN’ arrow will change the scale display.
Exit from Setup-Mode
Pressing the‘MENU’ button again will bring the control back to Operating Mode.
