Simplicity 4200H User Manual
Specifications and Main Features
- Model: 4200H and 600H series Lawn Tractors
- Engine: Briggs & Stratton air cooled 4 cycles engine
- Horsepower: 11 HP @ 3600rpm and 12 HP @ 3600rpm
- Cylinder: 1 horizontal
- Bore & Stroke: 11HP - 3.44 x 2.62 inch, 12HP - 3.44 x 3.06 inch
- Displacement: 11HP – 24.36 cu in and 12HP – 28.4 cu in
- Crankshaft: Vertical and syncrobalanced
- Battery: 12volts, amp hours=39
- Governor: Mechanical
- Fuel Tank: 8.3 liters or 2.2 gallons
- Transmission: Change in type of transmission from belt drive to hydrostatic with the aid of mechanical component
- Ground speeds @ 3400 rpm: Forwards (0 to 5.25 mph) Reverse (0 to 3.00 mph)
- Dimensions:
- Height: 99 cm or 39 in
- Width: 33.75 in or 88 cm
- Length: 65.25 in or 166cm
- Wheel Base: 115.6 cm or 45.5 inches
- Clearance- Front Axle: 228mm or 9 inches
- Clearance- Transmission: 120mm or 4.75 inches
- Turning Radius: 610 mm or 24Inch
- Tires:
- Front Tires: 15 x 6.00 x 6 Pneumatic
- Rear Tires: 18 x 8.50 x 8 Pneumatic
- Weight:
- 11 HP w/36” Mower: 1980 kg (436 lbs)
- 12 HP w/36” Mower: 433 lbs
(196 kg)
Frequently Asked Questions
Q: What kind of engine does the lawn tractor have?
A: The lawn tractor is equipped with a 4 cycle, air cooled Briggs and Stratton engine.
Q: What is the horsepower for each of the available tractor models?
A: The tractor models are available with either 11 or 12 horse power.
Q: What is the limit for the speed the tractor can attain?
A: The tractor is capable of attaining maximum ground speeds of 5.25 mph for forward motion and 3.00 mph for reverse motion.
Q: What is the design capacity of the fuel tank?
A: The fuel tank design capacity is 8.3 liters, with 2.2 gallons being the equivalent size in gallons.
Q: What tires have been put on the tractor?
A: The pneumatic front tires are rated 15 x 6.00 x 6, and the rear tires which are also pneumatic are rated 18x8.50x8.
Q: What is the weight of the tractor together with a 36 mower attachment?
A: The total weight of the 11 horse power attachment amounts to 436 lbs which is equivalent to 198 kg and that of 12 horse power attachment weighs 433 lbs or 196 kg.

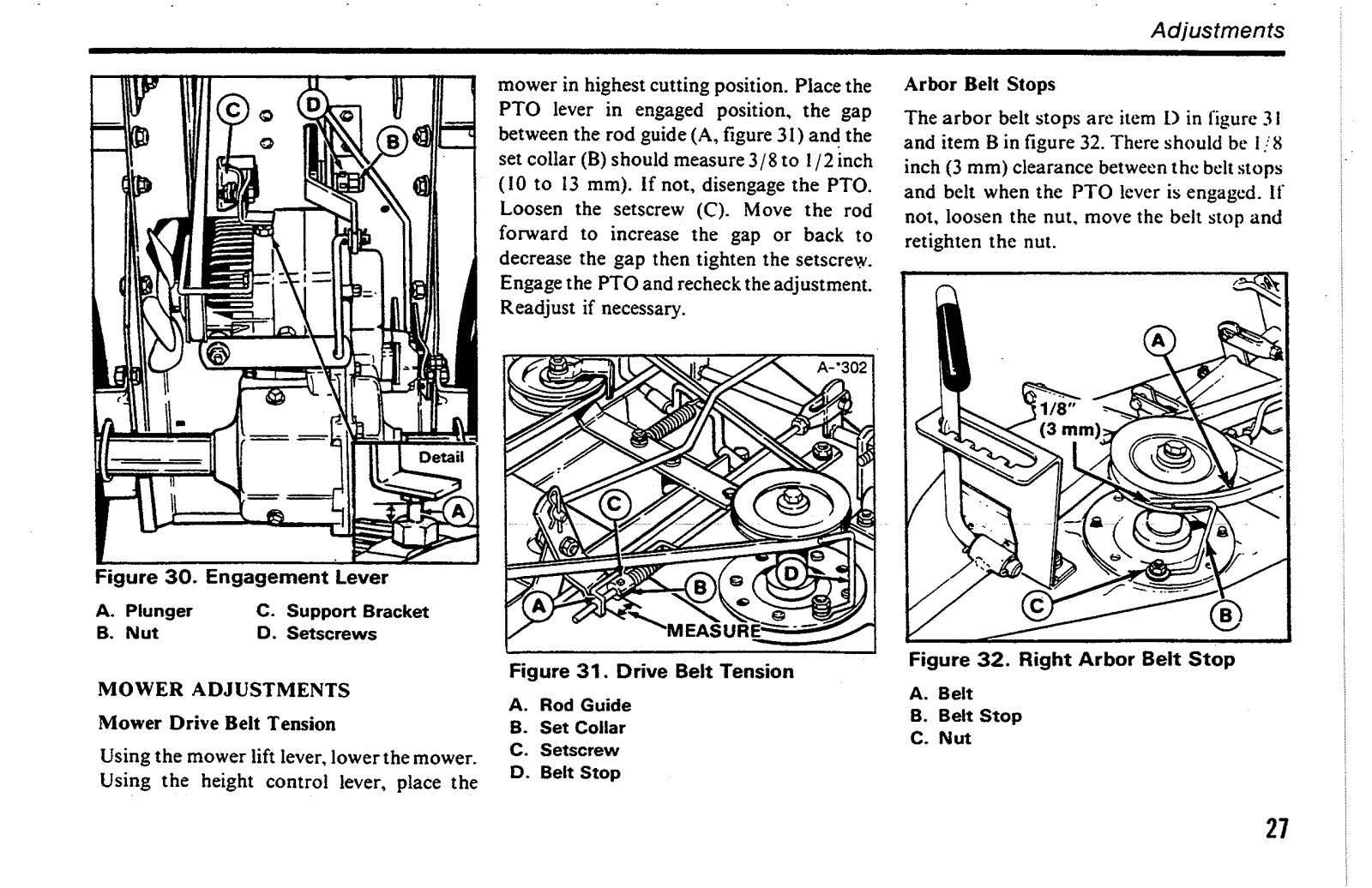

User Manual
