SimpleTech 60000-00010-011 User Manual
Cellphone
Cables
and Drivers
STI-17ESH2
STI-17FJH2
STI-17MBH1
STI-17MOH1
STI-17MOH2
STI-17MOH3
STI-17NCH1
STI-17NCH3
STI-17NCH4
STI-17OKH1
STI-17OKH2
STI-17OKH3
STI-17NKH1
STI-17NKH2
Q U I C K I N S T A L L A T I O N G U I D E
Contents
Introduction .......................................................................................... 3
1. Select the appropriate CellPhone Cable ........................................... 3
2. Connect cellphone cable with the modem........................................ 5
3. Installation Procedure for Cellphone Driver ................................. 6
3A . Installation Procedure for Win 3.1x or Win 95...................... 6

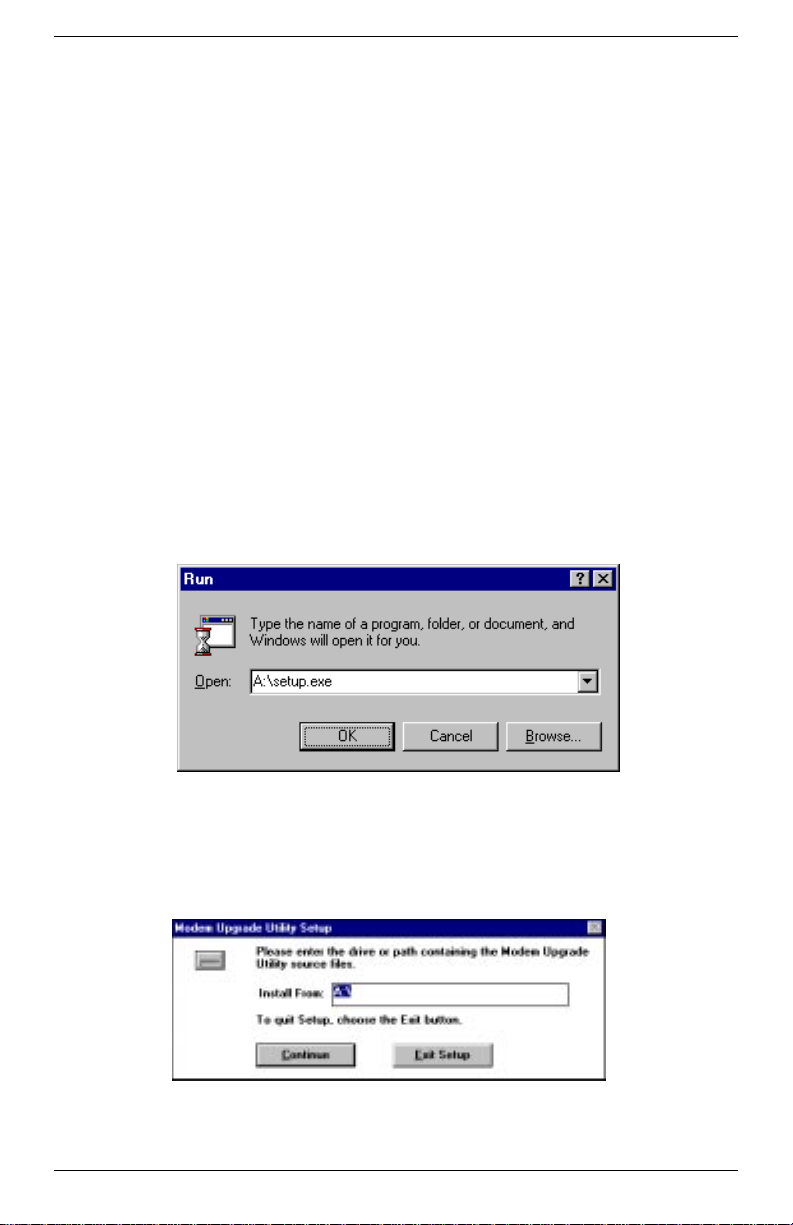

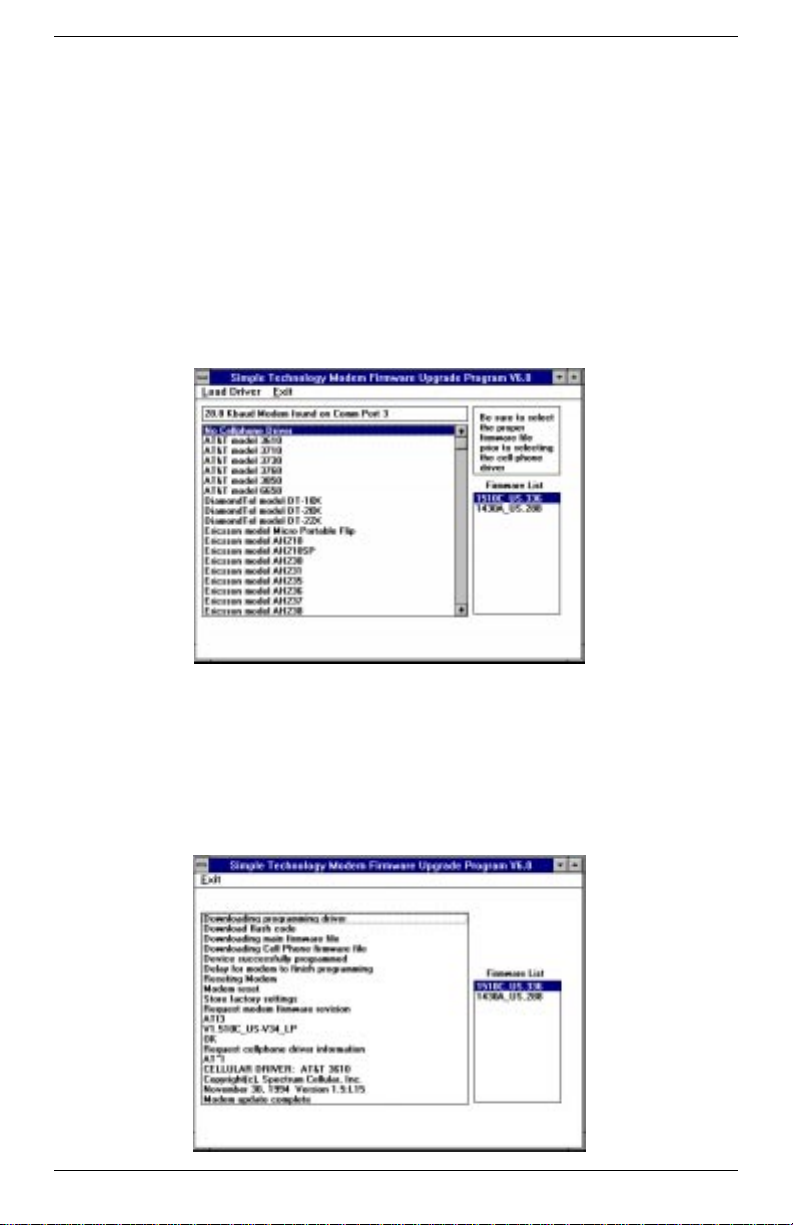

Running Modem Upgrade Utility.......................................... 7
4. Using the CellPhone with Cellphone cable ................................. 11
4A. Modifying Dialup Networking for Cellular Connection ..... 11
5. T echnical Support ........................................................................... 15
Page 2
Introduction
The Simple Technology 56K Communicator, 33.6K Communicator with
SimpleJack and 33.6K Communicator PC Card modems can be upgraded
for use with a cellular phone as follows:
1. Select the appropriate CellPhone cable.
2. Do not connect the CellPhone cable with the modem, until the
cellphone driver is installed.
3. Install CellPhone Driver in the modem flash memory by running the
provided software.
4. Connect the modem with the cellphone using the Cellphone cable.
The CellPhone must be switched off while connecting with the
cable. After the CellPhone is connected with the CellPhone Cable,
switch on the CellPhone and use the modem as directed in the
documentation that came with the modem.
1. Select the appropriate CellPhone Cable
The modem may be connected to cellular phones with the cables listed in the following chart.
To order a cellphone cable, look up the Part Number for the cable specific to your
cellphone. Then order the cable through your Simple Technology dealer.
For a Simple Technology dealer near you, contact Simple Technology at
1(800) 367 7330 or (714) 476-1180 or support@simpletech.com.
List of Cellphone Cables
Cellphone Cellphone Cellphone Cable
Manufacturer Model STI Part Number
AT&T 3610 STI-17NCH3
AT&T 3710, 3730 STI-17OKH1
AT&T 3760 STI-17OKH2
AT&T 3850 STI-17NKH2
AT&T 6650 STI-17NKH1
DiamondTel DT-18X, -20X, -22X STI-17MBH1
Ericsson Micro Portable Flip STI-17ESH2
Ericsson AH210 STI-17ESH2
Ericsson AH210SP STI-17ESH2
Ericsson AH230 STI-17ESH2
Ericsson AH231 STI-17ESH2
Ericsson AH235 STI-17ESH2
Ericsson AH236 STI-17ESH2
Ericsson AH237 STI-17ESH2
Ericsson AH238 STI-17ESH2
Ericsson AH250 STI-17ESH2
Ericsson AH300 STI-17ESH2
Page 3
Cellphone Cellphone Cellphone Cable
Manufacturer Model STI Part Number
Ericsson AH310 STI-17ESH2
Ericsson AH320 STI-17ESH2
Ericsson AH350 STI-17ESH2
Ericsson DH336 STI-17ESH2
Ericsson DH338 STI-17ESH2
Ericsson DH342 STI-17ESH2
Ericsson DH343 STI-17ESH2
Fujitsu PCX STI-17FJH2
GE CT500 STI-17ESH2
GE CT500SP STI-17ESH2
GE CT700, CT750 STI-17ESH2
GE CT800 STI-17ESH2
GE DT3000 STI-17ESH2
GE DT3325 STI-17ESH2
GE DT3500 STI-17ESH2
Mitsubishi 3500SPK, 4000SPK STI-17MBH1
Mitsubishi 4500, 5000, D100 STI-17MBH1
Motorola StarTac STI-17MOH3
Motorola Micro Digital Lite STI-17MOH1
Motorola MicroTAC Ultralite STI-17MOH1
Motorola MicroTAC Lite STI-17MOH1
Motorola MicroT AC Alpha STI-17MOH1
Motorola Elite STI-17MOH2
NEC P110, P120, P180, Sport STI-17NCH3
NEC P200, P201, P300, P301 STI-17NCH1
NEC P700 Series, P800 Series STI-17NCH4
Nokia 232 STI-17NKH2
Nokia 2120, 2160, 2168 STI-17NKH1
OKI 900, 910 STI-17OKH1
OKI 1145, 1150 STI-17OKH2
OKI 1300, 1325, 1335, 1375 STI-17OKH3
Pioneer 700, 720 STI-17MOH1
Pioneer 900, 920 STI-17MOH1
Technophone 515 STI-17NKH2
Technophone 815 STI-17NKH1
Once you have selected the right CellPhone cable, connect the STI Communicator modem PC card to the Cellular Phone with the CellPhone cable as
shown in the following pages.
Page 4
2. Connect cellphone cable with the modem
Attach the Cellphone cable to the Simple Technology modem PC Card as
shown below. Then insert the PC card modem in the PCMCIA socket. Do
not connect the Cellphone cable to the PC Card modem until the
installation of CellPhone driver is done as indicated in the following
chapter.
Figure 1. Connecting Cell Phone to Communicators
Figure 2. Connecting Cell Phone to Communicator with SimpleJack
Page 5
