Simcom 2013060301 Users Manual

T5320+G_User Guide_V1.01

Smart Machine Smart Decision

Document Title Version Date Status Document Control ID

T5320+G User Guide

1.01

2013-04-15

Release

T5320+G User Guide V1.01

General Notes

SIMCom offers this information as a service to its customers, to support application and engineering efforts that

use the products designed by SIMCom. The information provided is based upon requirements specifically

provided to SIMCom by the customers. SIMCom has not undertaken any independent search for additional

relevant information, including any information that may be in the customer’s possession. Furthermore, system

validation of this product designed by SIMCom within a larger electronic system remains the responsibility of the

customer or the customer’s system integrator. All specifications supplied herein are subject to change.

Copyright

This document contains proprietary technical information which is the property of SIMCom Limited, copying of

this document and giving it to others and the using or communication of the contents thereof, are forbidden

of a patent or the registration of a utility model or design. All specification supplied herein are subject to change

without notice at any time.

This device complies with part 15B of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference

(2) this device must accept any interference, including interference that may cause undesired operation.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance

could void the user's authorityto operate the equipment.

T5320+G_User Guide_V1.01 2 2013-04-15

Smart Machine Smart Decision

Version History

Date Version Description of change Author

2013-04-15 1.01 Origin Libing

T5320+G_User Guide_V1.01 7 2013-04-15

Smart Machine Smart Decision

1 Introduction

This document describes features, functions and interfaces of T5320+G terminal in great detail.

T5320+G is a quad-band GSM/GPRS/EDGE and dual-band UMTS /HSDPA that works on frequencies of GSM

850MHz, EGSM 900 MHz, DCS 1800 MHz, PCS 1900MHz and WCDMA 2100/900MHz, 2100/850 MHz or

1900/850MHz, which is a ideal solution for wireless m2m applications, the terminal features HSDPA Category

5/6 -3.6 Mbps.

With the help of this document user can understand T5320+G interface specifications, electrical and mechanical

quickly.

Table 1: T5320+G series frequency bands

Standard Frequency T5320E+G T5320J+G T5320A+G

GSM

WCDMA

HSPA

GSM 850MHz

EGSM 900MHz

DCS1800MHz

PCS1900MHz

WCDMA 850MHz

WCDMA 900MHz

WCDMA 1900MHz

WCDMA 2100MHz

HSDPA

HSUPA

3 3 3 3 3 3 3 3 3 3 3 3

3

3 3 3 3 3

3 3

3

Figure 1: T5320+G overview

T5320+G_User Guide_V1.01 8 2013-04-15

Smart Machine Smart Decision

2 Key features

T5320+G terminal terminal has the following features:

1. Standard AT commands set

2. SIMCom proprietary AT commands set

3. watch-dog function

4. Short circuit protection

5. Voice call

6. GPIOs

7. ADC function

8. GPS

Table 2: T5320+G key features

Feature Implementation

Power supply 5V ~ 30V

● Dual-mode UMTS/HSDPA/EDGE/GPRS operation

● GPRS Class B, multislot class 12 operation, Supports coding scheme: CS1-4

Transmission data

● EDGE multislot class 12 operation, Supports coding schemes MSC1-9

● UMTS R99 data rates-384 kbps DL/UL

● HSDPA Category 5/6 -3.6 Mbps and Category12-1.8 Mbps

● Integrate the TCP/IP protocol

z Class 4 (+33dBm) for GSM850 and EGSM900 z Class 1 (+30dBm) for DCS 1800 PCS GSM1900

Transmitting power

z Class 3 (+24dBm) for WCDMA 2100, WCDMA FDD BDI z Class 3 (+24dBm) for WCDMA 1900, WCDMA FDD BDII z Class 3 (+24dBm) for WCDMA 900, WCDMA FDD BDVIII z Class 3 (+24dBm) for WCDMA 850, WCDMA FDD BDV

● Mobile-Assisted mode

GPS

● Mobile-based mode

● Standalone mode

z Normal operation: -30°C ~ +75°C

Temperature range

z Restricted operation: -35°C ~ -30°C and +75 °C ~ +80°C* z Storage temperature -40°C ~ +85°C

CSD

SMS

z CSD feature: 9.6, 14.4, 64 kbps UL/DL

● MT, MO, CB, Text and PDU mode

● SMS storage: SIM card

● Support transmission of SMS alternatively over CSD or GPRS. User can

choose preferred mode.

FAX Group 3 Class 1

USIM interface Support USIM card: 1.8V, 3V

External antenna SMA type RF connector

Audio features

T5320+G_User Guide_V1.01 9 2013-04-15

Speech codec modes:

● Half Rate (ETS 06.20)

Smart Machine Smart Decision

● Full Rate (ETS 06.10)

● Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80)

● AMR (WCDMA)

● AMR+QCP (GSM)

● A5/1, A5/2, and A5/3 ciphering

USB Support USB2.0 Slave mode

Serial port:

z Full modem interface with status and control lines, unbalanced,

asynchronous.

RS232 serial port

z 1200bps to 115200bps. z Default rate is 115200bps. z Can be used for AT commands data stream. z Support RTS/CTS hardware handshake and software ON/OFF flow control. z Multiplex ability according to GSM 07.10 Multiplexer Protocol.

Phonebook management Support phonebook types: SM, FD, LD, RC, ON, MC.

SIM application toolkit

Support SAT class 3, GSM 11.14 Release 98 Support USAT

Physical characteristics

Size: 98*60*23mm

Weight: 129g

Firmware upgrade Firmware upgradeable by USB interface

*

T5320+G does work at this temperature, but some radio frequency characteristics may deviate from the GSM specification.

3 Terminal dimensions

T5320+G_User Guide_V1.01

10 2013-04-15

Smart Machine Smart Decision

Figure 2: Mechanical dimensions of T5320+G（Unit: mm）

4 Installation

The terminal can be fixed by two kickstands (Optional) that provided by SIMCom, the following figure is the

illustration.

T5320+G_User Guide_V1.01 11 2013-04-15

Smart Machine Smart Decision

Figure 3: Installation of the terminal

5 Interface introduction

5.1 Overview

T5320+G Terminal provides the following connectors for power supply, GPIOs, Audio, ADC, Serial port and

antenna:

z The GSM/WCDMA antenna interface(SMA type female connector) z The 4 PIN I/O port for power supply z The 10 PIN I/O port for audio, I2C, GPIOs and ADC z The standard RS232 interface z LED indicator for power (Red) and GSM/WCDMA netlight (Green) z USIM card holder z Micro USB interface z The GPS antenna interface(SMA type female connector)

T5320+G_User Guide_V1.01

12 2013-04-15

Smart Machine Smart Decision

Figure 4: T5320+G interface Front view

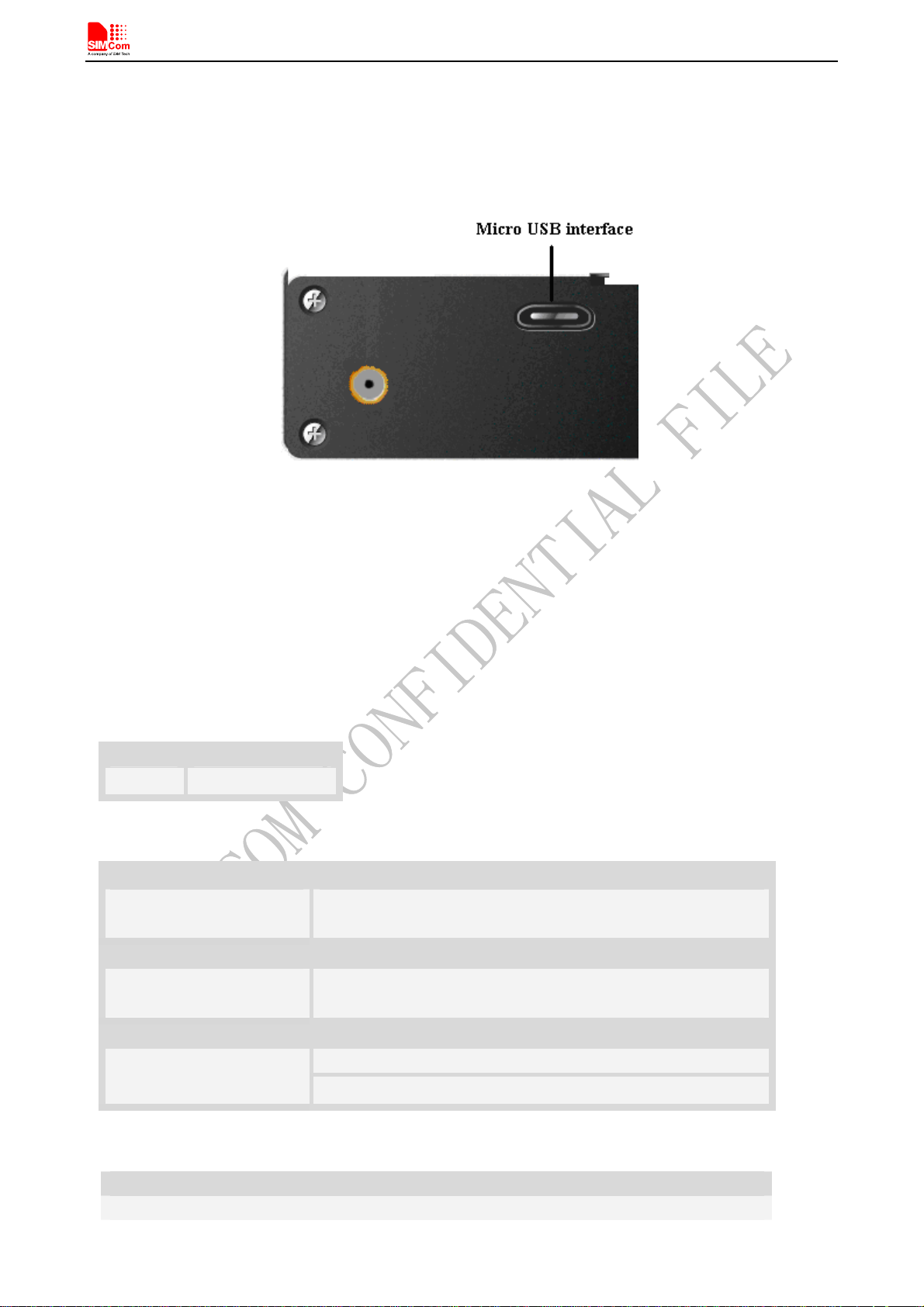

Figure 5: T5320+G interface Back view

Note: For the I/O interface, SIMCom provides 4-line cable and 10-line cable (optional) to assist developers, it will be introduced at the following chapter.

5.2 T5320+G Functional Diagram

The following figure shows a functional diagram of T5320+G and typical accessories.

T5320+G_User Guide_V1.01 13 2013-04-15

Smart Machine Smart Decision

5.3 Accessory information

Figure 6: T5320+G functional diagram

T5320+G_User Guide_V1.01 14 2013-04-15

Smart Machine Smart Decision

A: T5320+G Terminal

B: WCDMA/GSM Antenna

C: Male to Female DB9 Line

D: 5V Adapter

E: Two kickstands (Optional)

F: 10-Line cable (Optional)

G: Micro-USB cable

H: GPS Antenna

6 Application Interface

6.1 Power Supply

Customer can use the DC adapter that SIMCom provides as the power source.

If customer does not use the adapter, then DC source should be satisfied with the following requirements.

z Input voltage range 5-30V z Normal voltage 12V z Current ability 1A

The following chapter introduces the power line that SIMCom provides to customers, customer can power the

terminal by connect the terminal to the DC source via this line.

The power line includes four lines as the following figure shows, and table 2 gives a detailed description.

：

NOTE T5320+G side. User can login http://www.asia-atom.com/en/ for more information.

Table 3: The power line assignment

PIN Number Colour Item

1 white GPIO2

2 Red Power

3 Yellow GPIO3

4 Black Ground

The part number of power line connector is ATOM GROUP LIMITED ATOM010070190003 in

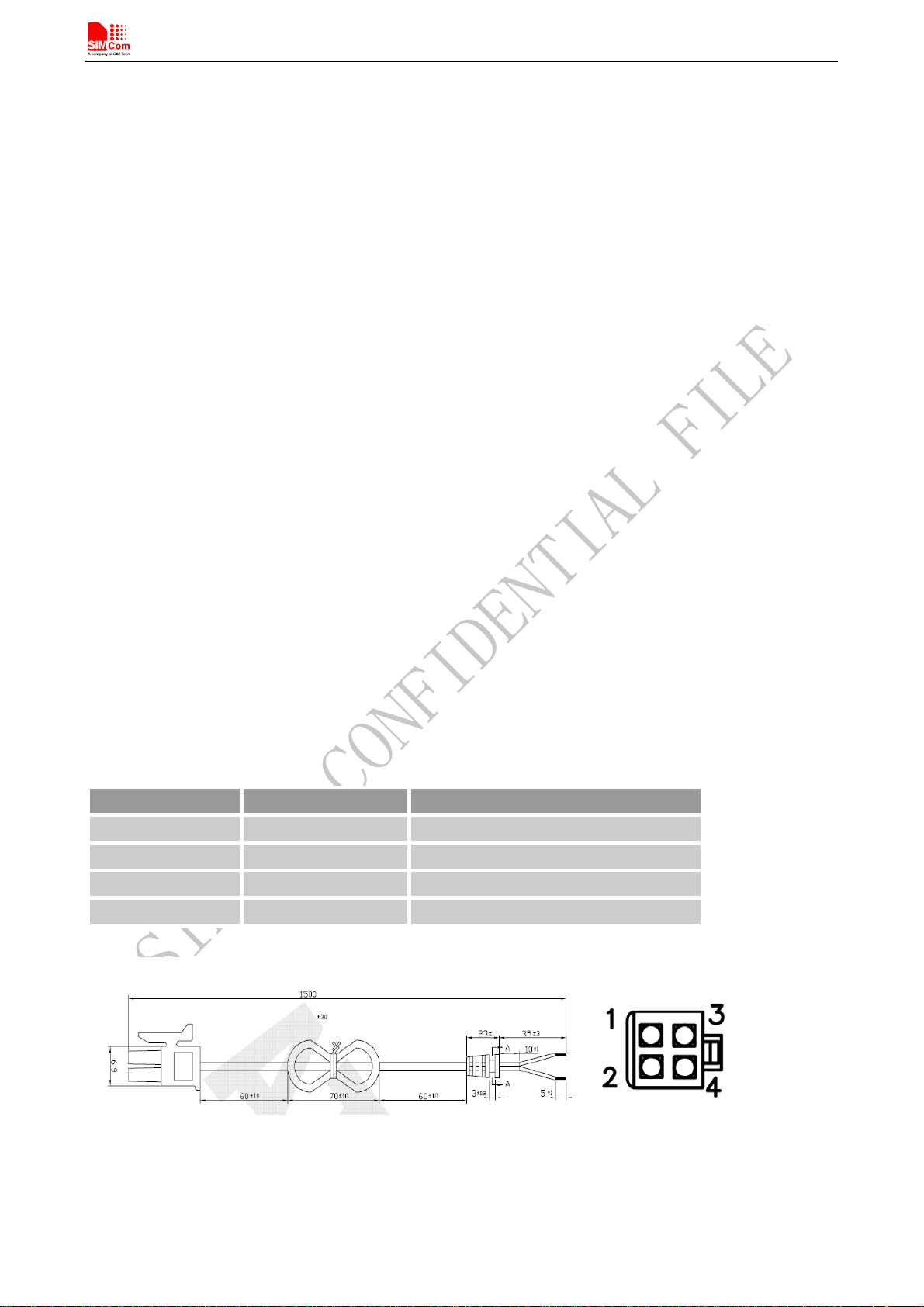

Figure 7: dimensions of power line（Unit: mm）

T5320+G_User Guide_V1.01 15 2013-04-15

Smart Machine Smart Decision

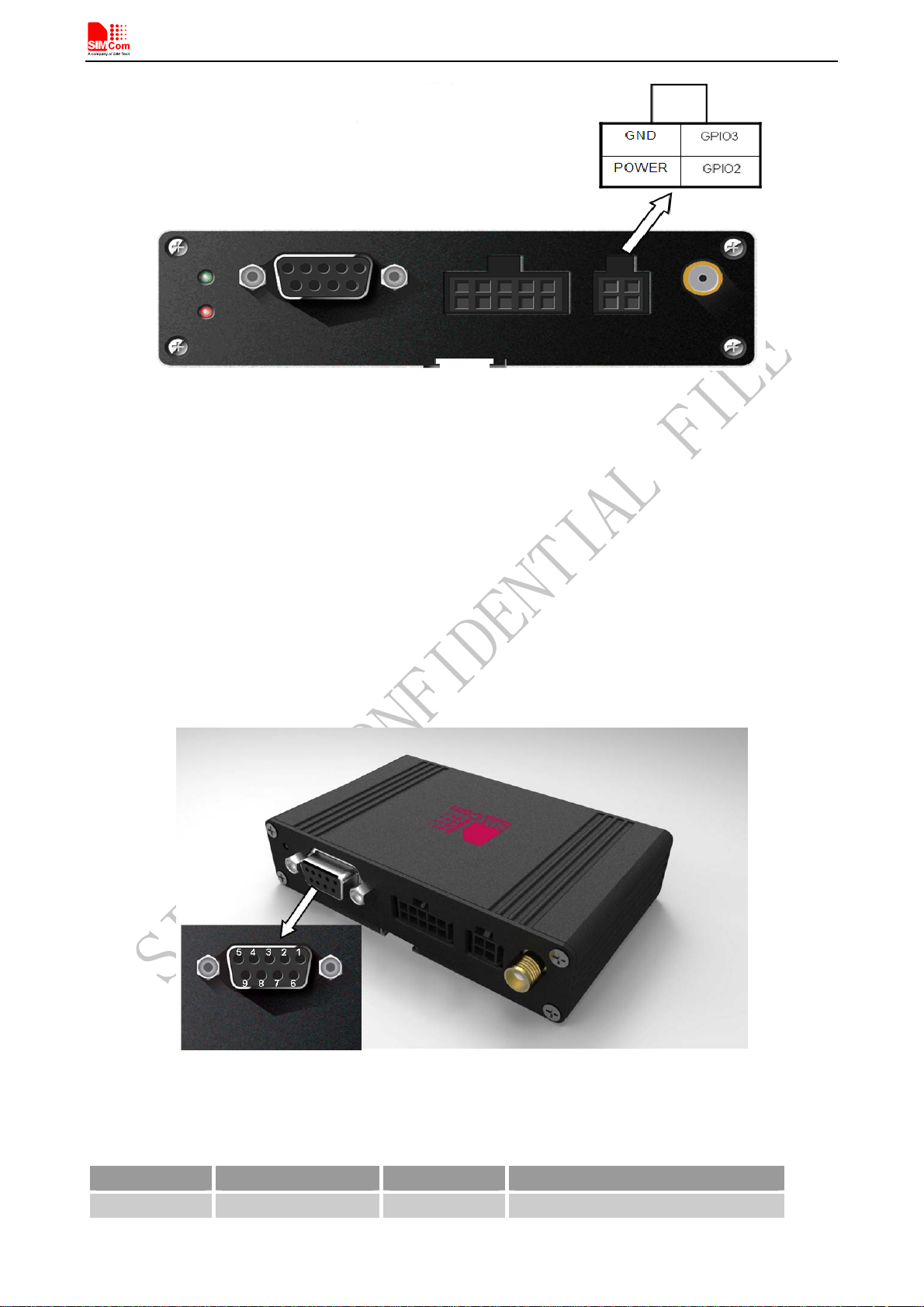

Figure 8: Power interface

When a valid power appears the terminal will power up automatic, for the MCU that inside the terminal processed

the power up part, MCU also acts as a Watch Dog, when the terminal runs wrong, MCU will cut off the power

and recover it immediately to restart the terminal.

6.2 Serial Interface

T5320+G provides one asynchronous RS232 serial port (female).The RS232 standard interface serves to connect

a PC, Data Terminal Equipment (DTE) or other application, which acts as host controller of the T5320+G

Terminal with all its functions. Through the RS232 interface it can be used as GSM/GPRS modem for sending

and receiving of SMS, Data and Fax calls.

Figure 9: Pin assignment RS-232 (D-Sub 9-pole female)

Table 4: 9-pole D-Sub (female) RS-232

Pin no Signal name I/O Function

1 DCD O Data Carrier Detected

T5320+G_User Guide_V1.01 16 2013-04-15

Smart Machine Smart Decision

2 RXD O Receive Data

3 TXD I Transmit Data

4 DTR I Data Terminal Ready

Attention: The ignition of T5320+G

Terminal is activated via a rising

edge of high potential (+3 ... +15 V)

5 GND

- Ground

6 DSR O Data Set Ready

7 RTS

I Request To Send

8 CTS O Clear To Send

9 RING O Ring Indication

Note: User can use AT command “AT+IPR=x” to set a fixed baud rate and the setting will be saved to non-volatile flash memory automatically. After the configuration is set as fixed baud rate, the URC such as "RDY", "+CFUN: 1" and "+CPIN: READY” will be reported when T5320+G is powered on.

Hyper terminal usually as the PC software tool to operate T5320+G; customer can set up a connection between

PC and terminal, configure the port properties as the figure 9 shows.

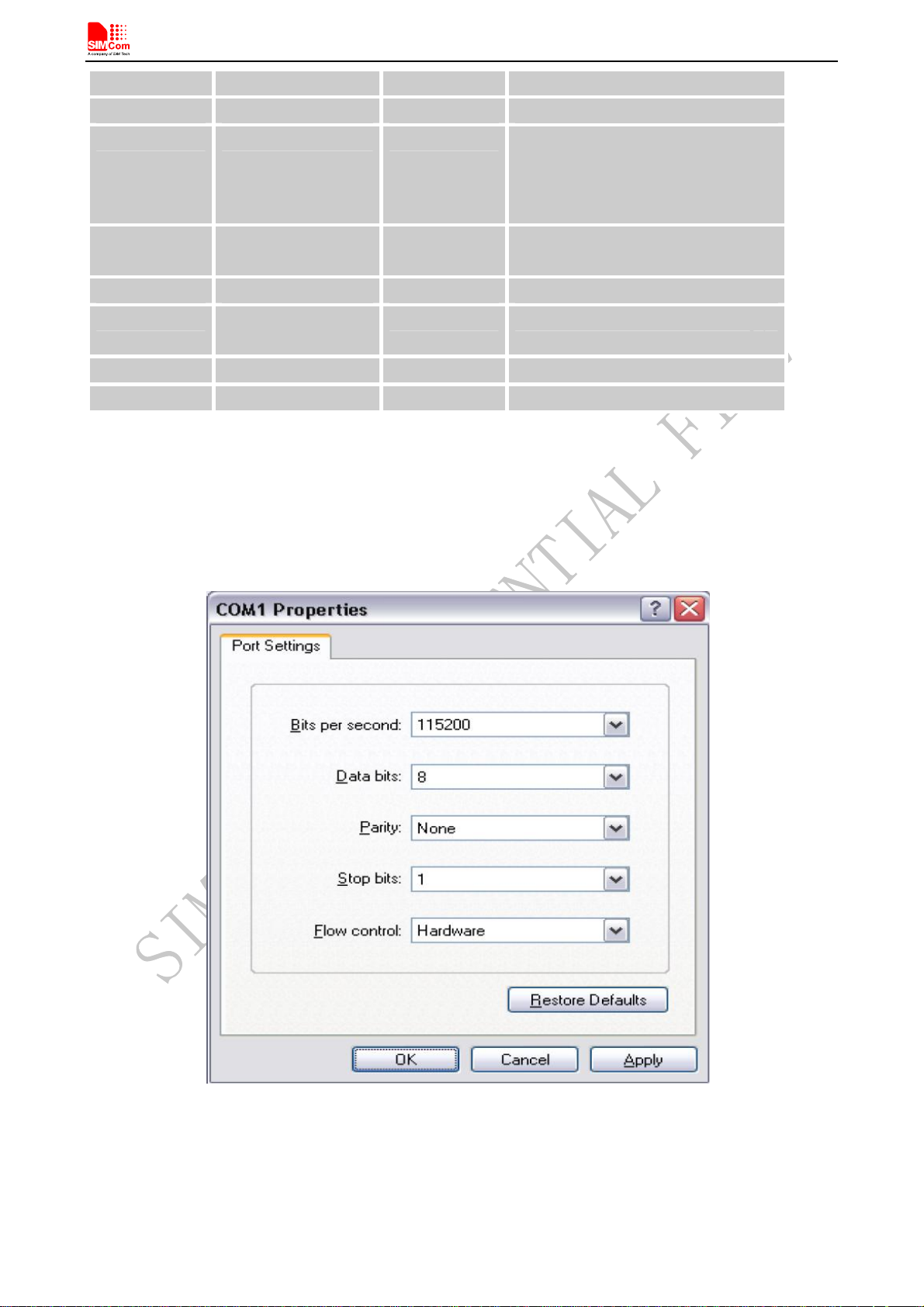

Figure 10: COM port properties of the hyper terminal

6.3

10 PIN I/O interface

T5320+G provides a 10 PIN I/O interface for customer use, including Audio, GPIOs and 1 ADC channel.

T5320+G_User Guide_V1.01 17 2013-04-15

Smart Machine Smart Decision

The following figure gives a brief view of signal assignment.

Figure 11: signal assignment of 10PIN I/O port

：

NOTE

The part number of the 10 PIN I/O connector is ATOM GROUP LIMITED ATOM010070190005 in

T5320+G side. User can login http://www.asia-atom.com/en/ for more information.

To make the usage conveniently, SIMCom provides a cable for customer, it can be inserted to the 10 PIN I/O port

so customer can develop their application by connecting some devices.

Figure 11 shows the specification of cable.

Figure 12: Dimensions of 10-line cable

Table 5: signal assignment of 10 pin cable

Connecting diagram

P1

1 Green I2C_SDA I/O

2 Yellow

Wire color and cutting

length

Signal name I/O Command

GPIO1 I/O

T5320+G_User Guide_V1.01 18 2013-04-15

Terminal signal

Configurable

by AT

commands

Smart Machine Smart Decision

3 Black GND Ground

4 Orange SPK+ O

1007 26#

5 Brown MIC+ I

6 White I2C_SCL I/O Configurable

7 Gray V_4V DC OUT

by AT

commands

8 Red ADC I

9 Purple SPK- O

10 Blue

MIC- I

6.3.1 Audio interface

T5320+G has one pair of audio input and audio output; it can be connected to a speakerphone directly.

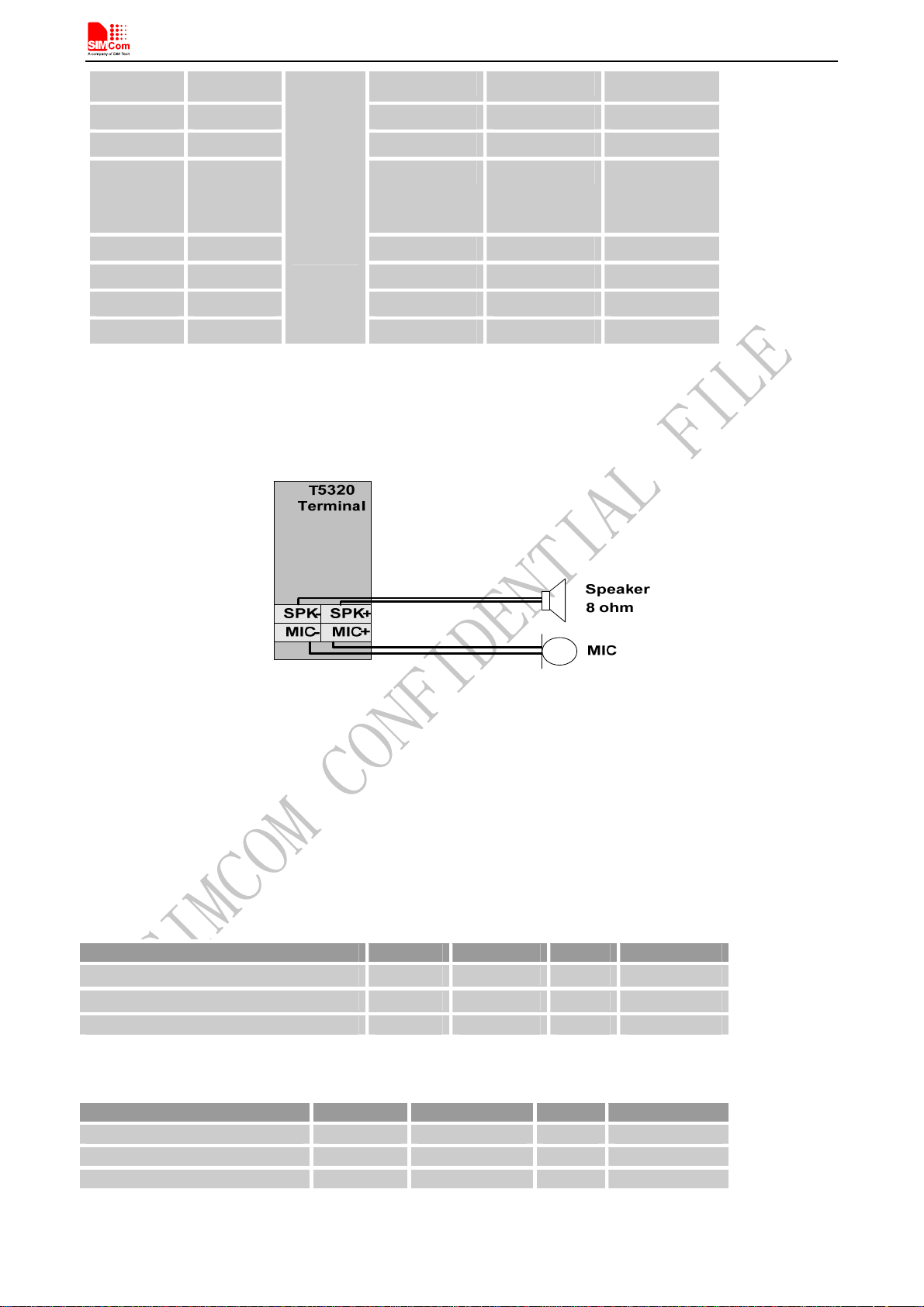

Figure 13: Speaker reference circuit

Firstly, customer must use the “AT +CSDVC=3” to select speaker audio channel.

Customer can set the terminal MIC gain level to make the sounds louder so that the listener can hear more clearly.

And if the sound a little lower on the terminal side, customer can use the “AT +CLVL” to make the sound higher

so that customer can hear clearly.

The AT commands should be send to the terminal by RS232 or USB interface, and the following table shows the

detail commands.

Table 6: MIC input characteristics

Parameter Min Typ Max Unit

Work i ng Volta g e - 1.8 - V

Working Current 0.07 0.4 1 mA

External Microphone Load Resistance 1.2 2.2 k Ohms

Table 7: Speaker output characteristics

Parameter Min Typ Max Unit

Quiescent Current - 2.5 4 mA Load resistance - 8 - Ohm Output power(1KHz) - 500 - mW

T5320+G_User Guide_V1.01 19 2013-04-15

Smart Machine Smart Decision

Table 8: Audio parameter

Parameter Influence to Range Gain range Calculation AT command

MICP/MICN

micAmp1

analogue amplifier

0…1 0…24dB 2 steps AT+CMICAMP1

gain before ADC

txVol

txGain

txFilter

rxGain

rxVol

Digital gain of input

signal after ADC

0,

1...65535

Digital gain of input

signal after

summation of

0,

1...65535

sidetone

Input PCM 13-tap

filter parameters, 7

0...65535 ---

values

Digital gain of

output signal after

summation of

0,

1...65535

sidetone

Digital Volume of

output signal after

speech decoder,

-300…300 dbm

before summation of

sidetone and DAC

Mute,

-84...+12dB

Mute,

-84...+12dB

Mute,

-84...+12dB

20 * log

(txVol/

16384)

20 * log

(txGain/

16384)

MATLAB

calculate

20 * log

(rxGain/

16384)

-300…300d

bm

AT+CTXVOL

AT+CTXGAIN

AT+CTXFTR

AT+CRXGAIN

AT+CLVL

AT+CVLVL

AT+CRXVOL

20 * log

(stGain/

16384) -12

MATLAB

calculate

AT+SIDET

AT+CRXFTR

stGain

rxFilter

Digital attenuation

of sidetone

Output PCM 13-tap

filter parameters, 7

values

0, 1...65535

Mute,

-96...0dB

0...65535 ---

Please refer to document [1] and document [3] for details.

6.3.2 ADC channel

T5320+G provides an auxiliary ADC, which can be used to measure the voltage. User can use AT command

“AT+CADC=2” to read the voltage value.

Table 9: ADC specification

Parameter Min Typ Max Unit

Voltage range 0 - 2.2 V

ADC Resolution - 12 - Bits

Sampling rate - - 200K Hz

Note: the maximum voltage that the ADC can gather is 2.2 V

T5320+G_User Guide_V1.01 20 2013-04-15

Smart Machine Smart Decision

Table 10: AT+CADC Read ADC

Description

Read the ADC value from modem. We support 3 type of ADC, raw type, temperature type and voltage type.

SIM PIN References

NO Vendor

Syntax

Test Command Responses

AT+CADC=? +CADC: (range of supported <adc>s)

OK

Write Command Responses

AT+CADC=<adc>

+CADC: <value>

OK

ERROR

Execution Command Responses

AT+CADC

Same as AT+CADC= 0:

+CADC: <value>

OK

Defined values

<adc>

ADC type:

0 – raw type.

1 – temperature type.

2 – voltage type(mv)

<value>

Integer type value of the ADC.

Examples

AT+CADC=? +CADC:(0-2) OK AT+CADC=0 +CADC: 187 OK

6.3.3 GPIO interfaces

T5320+G provides 3 GPIO pins. All GPIOs can be configured as inputs or outputs. User can use AT Commands

to read or write GPIOs status. Refer to document [1] for details.

T5320+G_User Guide_V1.01 21 2013-04-15

Smart Machine Smart Decision

Table 11: T5320+G GPIOs

T5320+G GPIO CPU Pin No. I/O Function

I/O

GPIO1 GPIO0

GPIO2 GPIO2

GPIO3 GPIO3

General input/output PIN. It can be used as wake/interrupt

signal to host from module If it is unused, left open.

I/O

General input/output PIN.

I/O

General input/output PIN.

Example 1: If user use T5320+G GPIO1 pin as an output GPIO:

1) AT+CGDRT=0,1 //set T5320+G GPIO1 to output

2) AT+CGSETV=0,1 //set T5320+G GPIO1 to high value

Example 2: If user use T5320+G GPIO4 pin as an input GPIO:

1) AT+CGDRT=5,0 //set T5320+G GPIO4 to input

Please refer to document [1] and document [2] for details.

6.4 LED indicator

A red led indicates the power status, when a valid power appears, the red led will lighten up. But a lighten up red

led does not mean that the terminal has been powered up.

A green led indicates the terminal status and GSM net status, after the terminal been powered up and registered to

the network, it will blink at a certain frequency.

Figure 14: Indicator LED

Table 12: Status of the NETLIGHT indicator (Green)

LED Status T5320+G behavior

Always On Searching Network/Call Connect 200ms ON, 200ms OFF Data Transmit 800ms ON, 800ms OFF Registered network

Off

Power off / Sleep

T5320+G_User Guide_V1.01 22 2013-04-15

Smart Machine Smart Decision

6.5 Micro USB interface

T5320+G provides a Micro USB interface. This interface is compliant with the USB2.0 specification. The

USB2.0 specification requires hosts such as the computer to support full-speed (12Mbps) and high-speed

(480Mbps). USB charging and USB-OTG is not supported.

Figure 15: Micro USB interface

Table 13: AT+CUSBSPD Switch T5320+G USB high or full speed

Description

This command is used to switch the speed of USB between high speed and full speed. If you just want to use full

speed to simplify the circuit then you can use this command to switch the USB speed. This command will save your

configuration so if you don’t change the speed the module will use the latest configuration forever.

This command will only takes effect on the next start-up.

SIM PIN References

NO Vendor

Syntax

Test Command Responses

AT+CUSBSPD=? +CUSBSPD: (list of supported <speed>s)

OK

Read Command Responses

AT+CUSBSPD? +CUSBSPD: <speed>

OK

Write Command Responses

AT+CUSBSPD=<speed>

OK

ERROR

Defined values

<speed>

Integer type and nonvolatile value.

T5320+G_User Guide_V1.01

23 2013-04-15

Smart Machine Smart Decision

0 – High speed

1 – Full speed (default value)

Examples

AT+CUSBSPD=? +CUSBSPD: (0-1) OK AT+CUSBSPD=0 OK AT+CUSBSPD=1 OK

6.6 USIM Card Interface

The USIM provides the required subscription verification information to allow the mobile equipment to attach to a

GSM or UMTS network. Both 1.8V and 3.0V SIM Cards are supported.

T5320+G does not support USIM card “hot” plug.

T5320+G_User Guide_V1.01 24 2013-04-15

Smart Machine Smart Decision

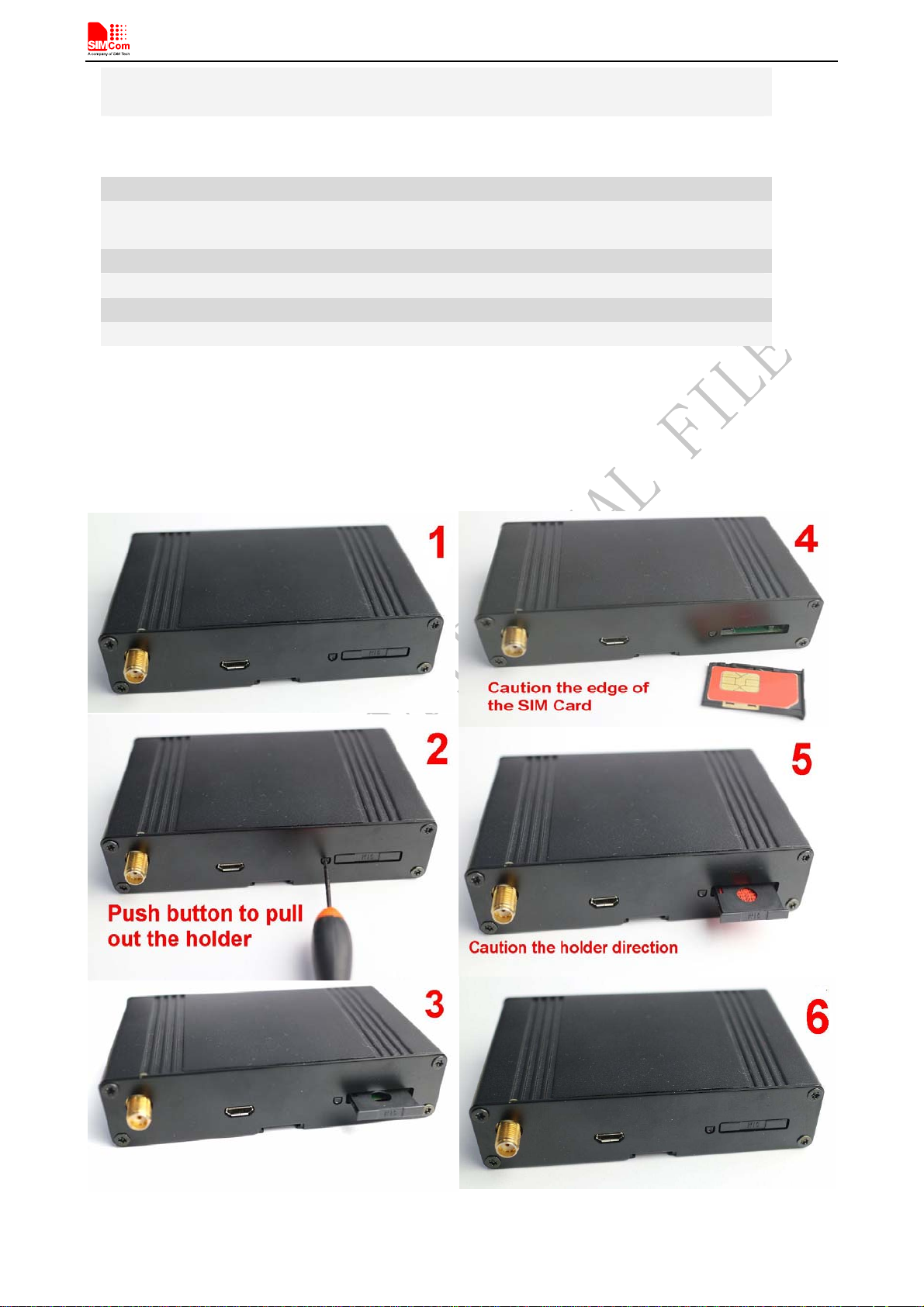

Figure 16: Installation of SIM Card

6.7 I2C Interface

T5320+G provides a I2C interface. I2C is used to communicate with peripheral equipments and can be operated

as either a transmitter or receiver, depending on the device function. Use AT Commands “AT+CRIIC and

AT+CWIIC” to read/write register values of related peripheral equipments connected with I2C interface.

Table 14: AT+CRIIC Read values from register of IIC device

Description

Read values from register of IIC device.

SIM PIN References

NO Vendor

Syntax

Test Command Responses

AT+CRIIC=? OK

Write Command Responses

AT+CRIIC=

+CRIIC: <data>

OK

ERROR

Defined values

<addr>

Device address. Input format must be hex, such as 0xFF.

<reg>

Register address. Input format must be hex, such as 0xFF.

<len>

Read length. Range:1-4; unit:byte.

<data>

Data read. Input format must be hex, such as 0xFF – 0xFFFFFFFF.

Examples

AT+CRIIC=0x0F, 0x0F, 2 +CRIIC: FFFF OK

Table 15: AT+CWIIC Write values to register of IIC device

Description

Write values to register of IIC device.

SIM PIN References

NO Vendor

Syntax

T5320+G_User Guide_V1.01 25 2013-04-15

Smart Machine Smart Decision

Test Command Responses

AT+CWIIC=? OK

Write Command Responses

OK AT+CWIIC=

ERROR

Defined values

<addr>

Device address. Input format must be hex, such as 0xFF.

<reg>

Register address. Input format must be hex, such as 0xFF.

<len>

Read length. Range: 1-4; unit: byte.

<data>

Data written. Input format must be hex, such as 0xFF – 0xFFFFFFFF.

Examples

AT+CWIIC=0x0F, 0x0F, 0x1234, 2 +CWIIC: 0x1234 OK

6.8 GPS Interface

T5320+G supports both A-GPS and S-GPS, and then provides three operating modes: mobile-assisted mode,

mobile-based mode and standalone mode. A-GPS includes mobile-assisted and mobile-based mode.

6.8.1 Technical specification

Tracking sensitivity -157 dBm Cold-start sensitivity -144 dBm Accuracy (Open Sky) <2m (CEP50) TTFF (Open Sky) Hot start <1s Cold start 35s（good signal）/ 100s(weak signal) Receiver Type 16-channel, GPS L1 Frequency (1575.42MHz), C/A Code Update rate Default 1 Hz GPS data format NMEA-0183 GPS antenna Passive/Active antenna

6.8.2 Antenna type

.The recommended antenna specifications are showed in following table:

Table 16: antenna choosing consideration

T5320+G_User Guide_V1.01 26 2013-04-15

Smart Machine Smart Decision

Patch

Center Frequency 1575.42MHz

Bandwidth(10db return loss) 10MHZ min.

Polarization R.H.C.P

LNA(for Active antenna)

Center Frequency 1575.42MHz

VSWR ≤2.0

Gain 27db typ.

Voltage DC 3.3*0.6 V

6.8.3 GPS operating

The DC3V voltage for active antenna is controlled by GPIO43.

Passive antenna

If user use passive antenna, The DC3V voltage must be cut off by GPIO43.

1) AT+CGFUNC=12,0 //set T5320+G GPIO43 to general GPIO

2) AT+CGDRT=43,1 //set T5320+G GPIO43 to output

3) AT+CGSETV=43,0 //set T5320+G GPIO43 to low value

4) AT+CGPS=1,1 // start GPS, standalone mode

Active antenna

If user use active antenna, The DC3V voltage must be exist for active antenna.

1) AT+CGFUNC=12,0 //set T5320+G GPIO43 to general GPIO

2) AT+CGDRT=43,1 //set T5320+G GPIO43 to output

3) AT+CGSETV=43,1 //set T5320+G GPIO43 to high value

4) AT+CGPS=1,1 // start GPS, standalone mode

Please refer to document [1] and document [23] for details.

6.9 Antenna interface

6.9.1 Antenna connector

Antenna connector allows transmission of radio frequency (RF) signals between the modem and the external

supplied antenna. The T5320+G modem is fitted with a 50Ω male SMA connector.

T5320+G_User Guide_V1.01 27 2013-04-15

Smart Machine Smart Decision

Figure 17: Antenna interface

6.9.2 Antenna type

The antenna is a very important component in the system. Since the antenna transmits and receives

electromagnetic signal, and its efficiency depends on the antenna’s type, placement and the environment of the

antenna operating.

The recommended antenna specifications are showed in following table:

Table 17: antenna choosing consideration

GSM 850/900/1800/1900MHz

Frequency range

WCDMA 1900/850MHz(T5320A+G)

WCDMA 2100/900MHz(T5320E+G)

WCDMA 2100/850MHz(T5320J+G)

Impedance 50 ohm

Input power

>33dBm (2W) peak power in GSM

>24dBm (0.25W) peak power in WCDMA

VSWR absolute max. ≤10:1

VSWR recommended ≤2:1

Gain < 3dBi

6.9.3 Antenna placement

The antenna performance is very easily influenced by other electronic devices. So the antenna placement should

be considered carefully as follow.

1. Place away from other electronic devices or other antennas.

2. Place far away from metal material.

3. Face the base station antenna directly if the signal strength is very weak.

T5320+G_User Guide_V1.01

28 2013-04-15

Smart Machine Smart Decision

7 Electrical, Reliability and Radio Characteristics

7.1 Absolute Maximum Ratings

The absolute maximum ratings stated in following table are stress ratings under non-operating conditions. Stresses

beyond any of these limits will cause permanent damage to T5320+G.

Table 18: Absolute maximum ratings

Symbol Parameter Min Typ Max Unit

VBAT Power supply voltage 5 - 30 V

*

V

Input voltage -0.3 - 2.8 V

I

*

I

Input current - - 6 mA

I

*

I

Output current - - 6 mA

O

*

These parameters are for digital interface pins, such as GPIO, UART.

7.2 Recommended Operating Conditions

Table 19: Recommended operating conditions

Symbol Parameter Min Typ Max Unit

VBAT Power supply voltage 5 5 30 V

IIH High-level input current -10 - 10 uA

IIL Low-level input current -10 - 10 uA

VIH High-level input voltage 2.4 - - V

VIL Low-level input voltage - - 0.4 V

VOH High-level output voltage 2.6 - - V

VOL Low-level output voltage - - 0.1 V

T

Operating temperature -35 +25 +80 ℃

OPER

T

Storage temperature -40 +85 ℃

STG

7.3 Electro-Static Discharge

T5320+G is an ESD sensitive component, so more attention should be paid to the procedure of handling and

packaging. The ESD test results are shown in the following table.

Table 20: The ESD characteristics (Temperature: 25 , Humidity℃ : 45 %)

Pin Contact discharge Air discharge

Shell ±10KV ±15KV

T5320+G_User Guide_V1.01 29 2013-04-15

Smart Machine Smart Decision

RF&GPS interface ±10KV ±15KV

RS232 interface ±10KV ±15KV

Audio interface ±10KV ±15KV

SIM card holder ±10KV ±15KV

7.4 Operating frequency

The operating frequencies in GSM850, EGSM900, DCS, PCS and WCDMA modes are conform to the

GSM/WCDMA Specifications, shown as bellow.

Table 21: Operating frequency

Mode Freq.TX(MHz) Freq.RX(MHz)

Channels(ARF C)

TX-RX offset

GSM-850 824.2 – 848.8 869.2 – 893.8 128 - 251 45 MHz

E-GSM-900

890.0-914.8 935.0-959.8 0–124 45M

880.2-889.8 925.2 - 934.8 975-1023 45M

DCS-1800 1710.2-1784.8 1805.2-1879.8 512–885 95 MHz

PCS-1900 1850.2 - 1909.8 1930.2 - 1989.8 512 - 810 80 MHz

WCDMA 2100 1920 - 1980 2110 - 2170 9612 – 9888 190 MHz

WCDMA 1900 1850 - 1910 1930 - 1990 9262 - 9538 80 MHz

WCDMA 900 880 - 915 925 - 960 2712 - 2863 45 MHz

WCDMA 850 824 - 849 869 - 894 4132 - 4233 45 MHz

7.5 Transmitter output power and receiver sensitivity

The T5320+G’s conducted transmitter output power and receiver sensitivity are shown as bellow:

Table 22: Transmitter output power and receiver sensitivity

Mode Power(dBm) Sensitivity(dBm)

GSM-850 +33 -106

E-GSM-900 +33 -106

DCS-1800 +30 -107

PCS-1900 +30 -107

WCDMA2100 +24 -106

WCDMA1900 +24 -106

WCDMA900 +24 -106

WCDMA850 +24 -106

T5320+G_User Guide_V1.01 30 2013-04-15

Smart Machine Smart Decision

8 Software/ Firmware Upgrade

The software can be upgraded via the Micro USB interface with the help of tools provided by SIMCom,

8.1 Tool introduction

The tool name is “SIMCOM 3G Module Software update tools(QDL)”, which runs on the windows OS, customers

can upgrade software conveniently by it.

This tool is a single-road download tool, one terminal can be upgraded by it every time. SIMCom also provides

multi-road download tools for customer’s factory use. Contact SIMCom sales for support.

Please do not power off T5320+G during the upgrade.

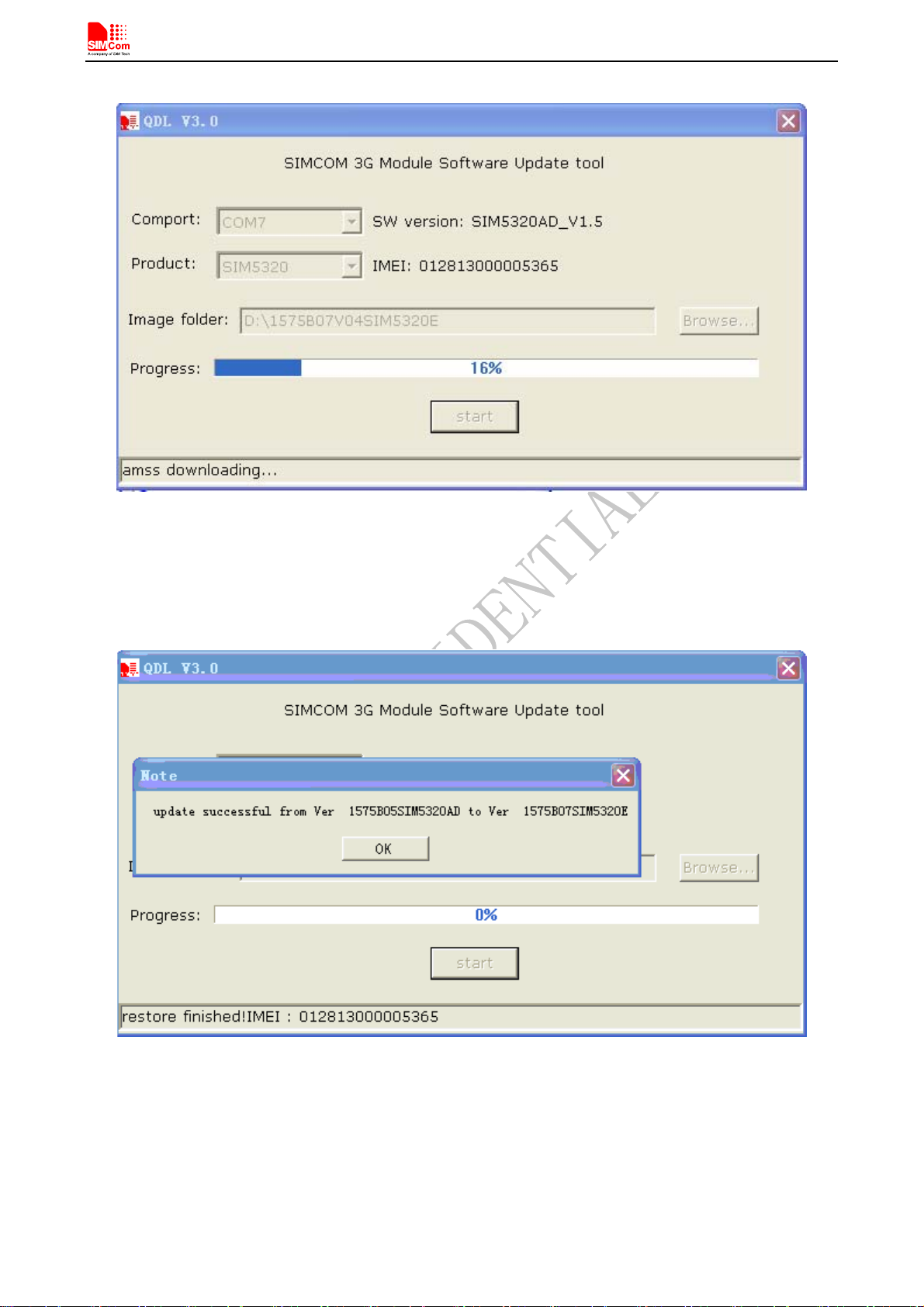

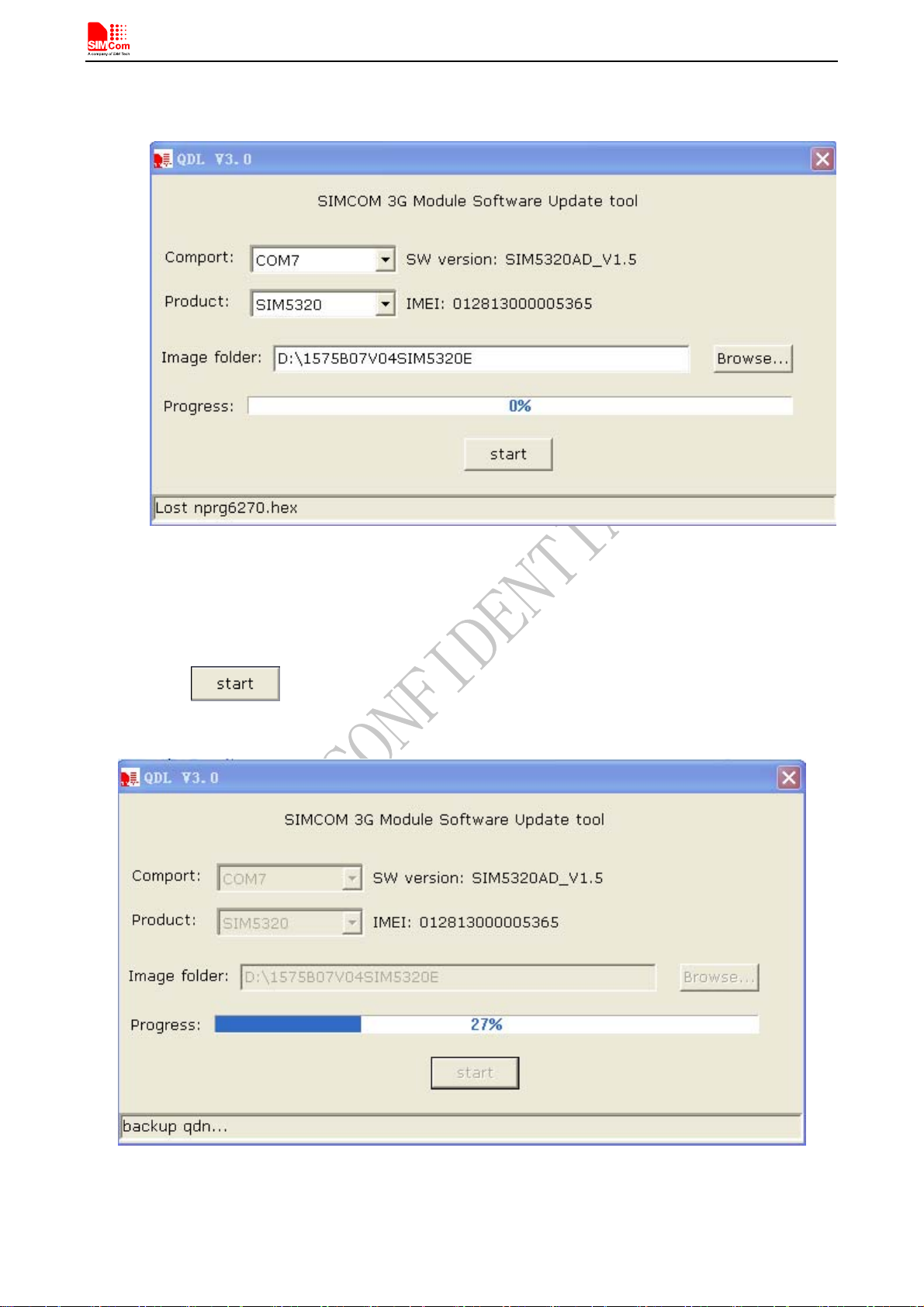

8.2 Illustration of software updating

z Connect the Micro USB port of T5320+G to the PC USB port and connect the direct current source adapter. z Installing module USB driver on PC OS. USB interface is mapped to five virtual ports: “SIMTECH USB

Modem”, “SIMTECH NMEA Device”, “SIMTECH ATCOM Device”, “SIMTECH Diagnostics interface” and “SIMTECH Wireless Ethernet Adapter”.

Figure 18: Virtual ports in computer manager window

z Open the tools, the main operation interface as the following figure shows:

Figure 19: QDL window

T5320+G_User Guide_V1.01 31 2013-04-15

Smart Machine Smart Decision

z Browse the source file

z Software download

Click the

Figure 20: Browse the source file

button, then the window will change like the following figure shows.

Figure 21: click download button without power up

z Upgrade in proceeding

T5320+G_User Guide_V1.01 32 2013-04-15

Smart Machine Smart Decision

Figure 22: Upgrade in proceeding

z Finish upgrading

Now the software is the new version, customer can check the software version by “ATI”.

Figure 23: Finish upgrading

T5320+G_User Guide_V1.01 33 2013-04-15

Smart Machine Smart Decision

T5320+G_User Guide_V1.01 34 2013-04-15

Smart Machine Smart Decision

Appendix

A. Related Documents

Table 23: Related documents

SN Document name Remark

[1]

[2] SIM5xxx_GPIO_Applicat

[3] Audio Application Note

[4]

[5] GSM 07.07

[6] GSM 07.10 Support GSM 07.10 multiplexing protocol

[7] GSM 07.05

[8] GSM 11.14

[9] GSM 11.11

SIM5320_ATC

ion_note

V1.01

ITU-T Draft new

recommendationV.25ter

SIM5320 AT Command Manual

Applications Note About SIM5xxx_GPIO

Applications Note About T5320+G Audio

Serial asynchronous automatic dialing and control

Digital cellular telecommunications (Phase 2+); AT command set for GSM

Mobile Equipment (ME)

Digital cellular telecommunications (Phase 2+); Use of Data Terminal

Equipment – Data Circuit terminating Equipment (DTE – DCE) interface

for Short Message Service (SMS) and Cell Broadcast Service (CBS)

Digital cellular telecommunications system (Phase 2+); Specification of

the SIM Application Toolkit for the Subscriber Identity Module – Mobile

Equipment (SIM – ME) interface

Digital cellular telecommunications system (Phase 2+); Specification of

the Subscriber Identity Module – Mobile Equipment (SIM – ME) interface

[10] GSM 03.38

[11] GSM 11.10

[12] 3GPP TS 51.010-1

[13] 3GPP TS 34.124

[14] 3GPP TS 34.121

[15] 3GPP TS 34.123-1

[16] 3GPP TS 34.123-3

[17] EN 301 908-02 V2.2.1

T5320+G_User Guide_V1.01 35 2013-04-15

Digital cellular telecommunications system (Phase 2+); Alphabets and

language-specific information

Digital cellular telecommunications system (Phase 2)； Mobile Station (MS) conformance specification； Part 1: Conformance specification

Digital cellular telecommunications system (Release 5); Mobile Station

(MS) conformance specification

Electromagnetic Compatibility (EMC) for mobile terminals and ancillary

equipment.

Electromagnetic Compatibility (EMC) for mobile terminals and ancillary

equipment.

Technical Specification Group Radio Access Network; Terminal

conformance specification; Radio transmission and reception (FDD)

User Equipment (UE) conformance specification; Part 3: Abstract Test

Suites.

Electromagnetic compatibility and Radio spectrum Matters (ERM); Base Stations (BS) and User Equipment (UE) for IMT-2000. Third Generation cellular networks; Part 2:

Smart Machine Smart Decision

s

R

o

l

Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD) (UE) covering essential requirements of article

3.2 of the R&TTE Directive

Electromagnetic compatibility and Radio Spectrum Matters

[18] EN 301 489-24 V1.2.1

Electromagnetic Compatibility (EMC) standard for radio equipment and Part 24: Specific conditions for IMT-2000 CDMA Direct Spread (UT Mobile and portable (UE) radio and ancillary equipment

[19] IEC/EN60950-1(2001)

[20] 3GPP TS 51.010-1

[21] GCF-CC V3.23.1

Safety of information technology equipment (2000)

Digital cellular telecommunications system (Release 5); Mobile Stati conformance specification

Global Certification Forum - Certification Criteria

Directive of the European Parliament and of the Council of 27 January 200

[22] 2002/95/EC

restriction of the use of certain hazardous substances in electrical and e equipment (RoHS)

[23] SIM52xx_GPS_Applicati

Applications Note About SIM5xxx GPS

on_Note

B. Terms and Abbreviations

Table 24: Terms and Abbreviations

Abbreviation Description

ADC Analog-to-Digital Converter

AMR Adaptive Multi-Rate

AT Attention commands

CS Coding Scheme

CSD Circuit Switched Data

CTS Clear to Send

DTE Data Terminal Equipment (typically computer, terminal, printer)

DTR Data Terminal Ready

DTU Data Transmit Unit

DTX Discontinuous Transmission

EFR Enhanced Full Rate

EGSM Enhanced GSM

ESD Electrostatic Discharge

ETS European Telecommunication Standard

FR Full Rate

GPRS General Packet Radio Service

GSM Global Standard for Mobile Communications

HR Half Rate

IMEI International Mobile Equipment Identity

Li-ion Lithium-Ion

MO Mobile Originated

MS Mobile Station (GSM engine), also referred to as TE

MT Mobile Terminated

T5320+G_User Guide_V1.01 36 2013-04-15

Smart Machine Smart Decision

PAP Password Authentication Protocol

PBCCH Packet Broadcast Control Channel

PCB Printed Circuit Board

PCL Power Control Level

PCS Personal Communication System, also referred to as GSM 1900

PDU Protocol Data Unit

PPP Point-to-point protocol

RF Radio Frequency

RMS Root Mean Square (value)

RTC Real Time Clock

RX Receive Direction

SIM Subscriber Identification Module

SMS Short Message Service

TE Terminal Equipment, also referred to as DTE

TX Transmit Direction

UART Universal Asynchronous Receiver & Transmitter

URC Unsolicited Result Code

USSD Unstructured Supplementary Service Data

Phonebook abbreviations

FD SIM fix dialing phonebook

LD SIM last dialing phonebook (list of numbers most recently dialed)

MC Mobile Equipment list of unanswered MT calls (missed calls)

ON SIM (or ME) own numbers (MSISDNs) list

RC Mobile Equipment list of received calls

SM SIM phonebook

NC Not connect

C. Safety Caution

Table 25: Safety caution

Marks Requirements

When in a hospital or other health care facility, observe the restrictions about the use of mobiles.

Switch the cellular terminal or mobile off, medical equipment may be sensitive to not operate

normally for RF energy interference.

Switch off the cellular terminal or mobile before boarding an aircraft. Make sure it is switched off.

The operation of wireless appliances in an aircraft is forbidden to prevent interference with

communication systems. Forget to think much of these instructions may lead to the flight safety or

offend against local legal action, or both.

Do not operate the cellular terminal or mobile in the presence of flammable gases or fumes. Switch

off the cellular terminal when you are near petrol stations, fuel depots, chemical plants or where

blasting operations are in progress. Operation of any electrical equipment in potentially explosive

atmospheres can constitute a safety hazard.

T5320+G_User Guide_V1.01 37 2013-04-15

Smart Machine Smart Decision

Your cellular terminal or mobile receives and transmits radio frequency energy while switched on.

RF interference can occur if it is used close to TV sets, radios, computers or other electric

equipment.

Road safety comes first! Do not use a hand-held cellular terminal or mobile when driving a

vehicle, unless it is securely mounted in a holder for hands free operation. Before making a call

with a hand-held terminal or mobile, park the vehicle.

GSM cellular terminals or mobiles operate over radio frequency signals and cellular networks and

cannot be guaranteed to connect in all conditions, for example no mobile fee or a invalid SIM card.

While you are in this condition and need emergent help, please remember using emergency calls.

In order to make or receive calls, the cellular terminal or mobile must be switched on and in a

service area with adequate cellular signal strength.

Some networks do not allow for emergency call if certain network services or phone features are in

use (e.g. lock functions, fixed dialing etc.). You may have to deactivate those features before you

can make an emergency call.

Also, some networks require that a valid SIM card be properly inserted in the cellular terminal or

mobile.

T5320+G_User Guide_V1.01

38 2013-04-15

Smart Machine Smart Decision

Contact us: Shanghai SIMCom Wireless Solutions Ltd.

Add: SIM Technology Building,No.633,Jinzhong Road,Changning District,Shanghai P.R. China 200335 Tel: +86 21 3235 3300 Fax: +86 21 3235 3301 URL: www.sim.com/wm

T5320+G_User Guide_V1.01 39 2013-04-15

Simcom 2013060301 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Version History

1 Introduction

2 Key features

3 Terminal dimensions

4 Installation

5 Interface introduction

5.1 Overview

5.2 T5320+G Functional Diagram

5.3 Accessory information

6 Application Interface

6.1 Power Supply

6.2 Serial Interface

10 PIN I/O interface

6.3.1 Audio interface

6.3.2 ADC channel

6.3.3 GPIO interfaces

6.4 LED indicator

6.5 Micro USB interface

6.6 USIM Card Interface

6.7 I2C Interface

6.8 GPS Interface

6.8.1 Technical specification

6.8.2 Antenna type

6.8.3 GPS operating

6.9 Antenna interface

6.9.1 Antenna connector

6.9.2 Antenna type

6.9.3 Antenna placement

7 Electrical, Reliability and Radio Characteristics

7.1 Absolute Maximum Ratings

7.2 Recommended Operating Conditions

7.3 Electro-Static Discharge

7.4 Operating frequency

7.5 Transmitter output power and receiver sensitivity

8 Software/ Firmware Upgrade

8.1 Tool introduction

8.2 Illustration of software updating

Appendix

A. Related Documents

B. Terms and Abbreviations

C. Safety Caution
