Sima Products XL-8, XL-12 User Manual

Sima XL Theater

Inflatable Indoor/Outdoor

Projection Screen & Amplified Speakers

User Manual for Models XL-8 and XL-12

www.simaproducts.com

Page 1

© 2006 Sima Products Corporation
140 Pennsylvania Ave.
Bldg #5
Oakmont, PA 15139
800-345-7462

www.simaproducts.com

PN 21744

Page 2

Table of Contents

TABLE OF CONTENTS ......................................................................................................................................................... 3

INTRODUCTION..................................................................................................................................................................... 4

LIST OF MATERIALS ............................................................................................................................................................ 5

SELECTING A SETUP SITE.................................................................................................................................................5

UNPACKING THE SCREEN .................................................................................................................................................. 6

INFLATING THE SCREEN..................................................................................................................................................... 6

SCREEN INSTALLATION WITH VELCRO STRIPS ............................................................................................................. 9

LACING UP THE SCREEN .................................................................................................................................................. 11

LIGHT GUARD INSTALLATION WITH VELCRO STRIPS ................................................................................................. 13

SETTING UP THE INFLATABLE HOME THEATER FOR FRONT AND REAR PROJECTION ........................................ 14

SECURING THE SCREEN TO THE GROUND ...................................................................................................................15

HOOKING UP THE SPEAKERS TO THE VOLUME CONTROL BOX ............................................................................... 16

SPEAKER SPECIFICATION AND DRAWINGS

SCREEN DEFLATION & REPACKING ...............................................................................................................................18

REPAIR KIT..........................................................................................................................................................................19

TROUBLESHOOTING GUIDE ............................................................................................................................................. 20

SPECIFICATIONS SHEET...................................................................................................................................................21

CONSUMER WARRANTY AND DEFECTIVE RETURN POLICY:..................................................................................... 22

- XL-SP-8............................... ..........................................................17

Page 3

Introduction

Congratulations on purchasing the XL Theater by Sima Products. Please read this instruction manual carefully before
installing your inflatable screen. When used properly according to this manual it will provide hours of entertainment for you
and your family.

General Information and Warnings

• Do not over inflate. Use only the supplied air pump as directed. Never use an air compressor.

• This screen is not a flotation device, do not use in any type of pool.

• To avoid danger of suffocation, keep children away from the screen when inflating and deflating. Do not let children

sit or play on the screen. Always deflate and store screen immediately after use.

• Do not use screen during high winds in excess of 15 mph or threat of lightning.

• Do not smoke near the screen. Keep away from fire.

• Do not use sharp objects in any manner around the XL Theater System.

• Do not climb or sit on inflated surfaces.

• Clean only with mild soap and water. Do not use harsh chemicals.

Sima Products has researched all regulations regarding the use of this XL Theater System. We have not found any
regulations related to the use of our screen; however we will not be responsible if some other regulations a pply to this
product in the country you intend to operate the system. It is the users responsibility to be aware of such regulations and
obey them. Sima Products will not accept any responsibility for failure to meet local regulations.

Model Size folded Size Inflated Weight (approximate)
XL-8 38”x20”20” 108”x96”x60” 50lbs

XL-12 40”x26”x26” 150”x120”x60” 70lbs

Page 4

List of Materials:

Your package should include the following materials:

XL-8

8’ Inflatable Frame
8’ White PVC Screen
8’ Black Light Guard
2 8” 80 Watt Speaker (XL-SP-8)
1 Air pump w/attachments (inflator / deflator) Part # 52387
1 Repair Kit (Four 6”square reinforced patches & 4 Tubes of Glue)
1 Nylon Storage Bag
1 Clear Plastic Ground Sheet 63"x115"x0.1mm
1 Stereo RCA Cables (30’)
4 White Nylon Ropes (20')
4 Ground Stakes
52 Velcro Quick Ties
1 Black Laced Screen Tie
1 Volume Control Box

XL-12

12’ Inflatable Frame
12’ White Vinyl Screen
12’ Black Light Guard
2 8” 80 Watt Speakers
1 Air pump w/attachments (inflator / deflator) Part # 52388
1 Repair Kit (Four 6”square reinforced patches & 4 Tubes of Glue)
1 Nylon Storage Bag
1 Clear Plastic Ground Sheet 63"x160"x0.1mm
1 Stereo RCA Cables (30’)
4 White Nylon Ropes
4 Ground Stakes
70 Velcro Quick Ties

1 Black Laced Screen Tie

1 Volume Control Box

Selecting A Setup Site

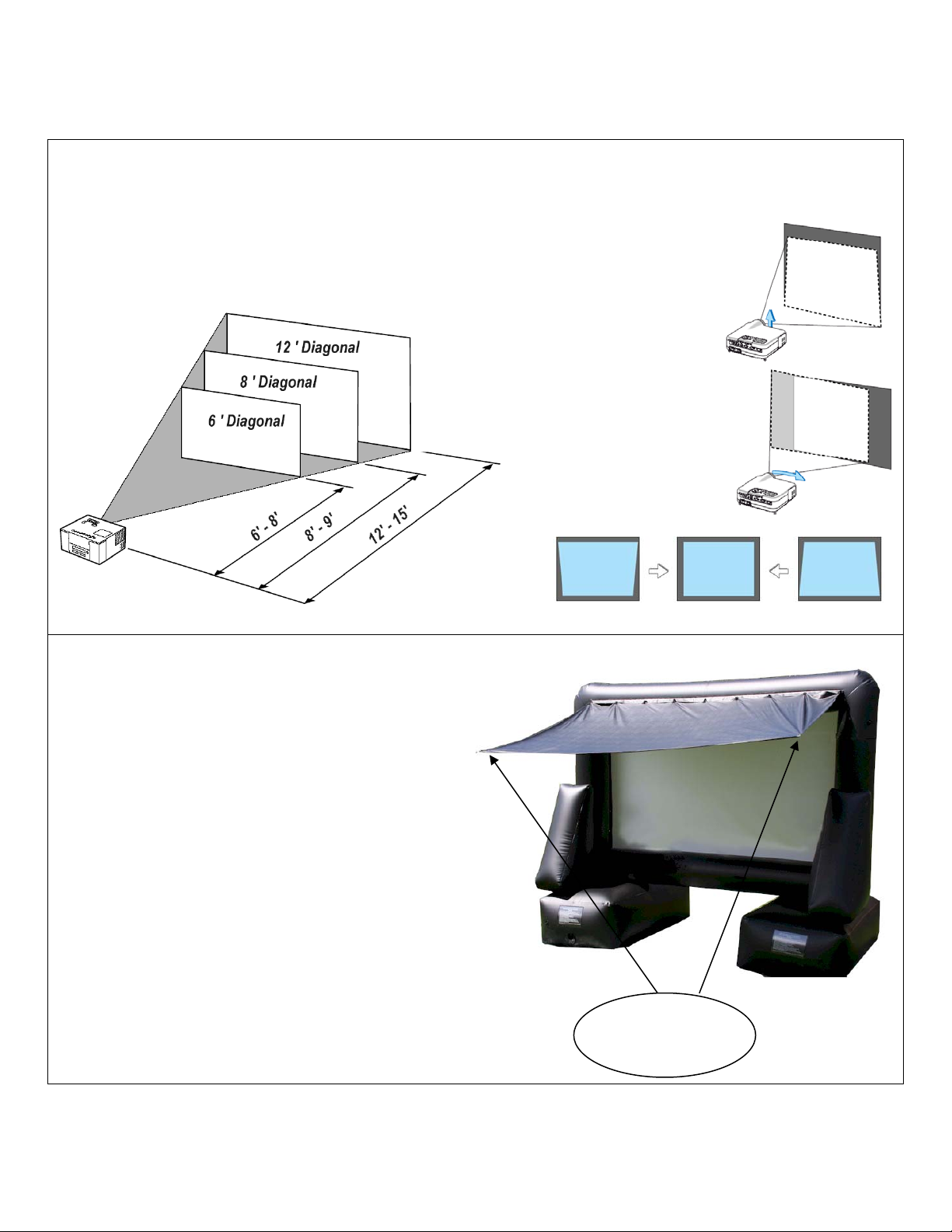

 Select a site that has the necessary height clearance for the

screen and enough room for your projector to properly focus and
size the projected image. The screen will stand nearly 11 feet in
height. Allow approximately 15 to 20 feet in front (or behind for
rear-projection) of the screen to adjust the project

 Be sure there are no sharp objects lying on the surface such as

rocks, roots, sticks, broken glass or pieces of metal that might
puncture or tear the screen.

 Check to be sure that an 110V/120V AC wall outlet is in reach to

plug in the air pump. Use a properly grounded GFI outlet if using
the product outdoors.

 Unpack the screen at the location in which it will be inflated.
 Once a site has been selected and prepared, lay out the clear

plastic ground cloth in the location that the screen bases will sit
on when inflated as shown at right.

or. (Fig. 1)

Page 5

Fig.1

Unpacking the Screen

1. Remove all the items from box as
shown at right. Don’t cut the boxes too
deep, as this may damage the screen.
(Fig. 2)

Note: Keep this box in good condition,
as it may be used to store the screen
when not in use.

Inflating the Screen

1. Remove the frame from the package.
Unroll the screen as shown at right. Be
sure both bases are facing the correct
way. (Both air valves should be facing
the same direction.) (Fig. 3)

2. Plug the AC air pump into an AC power
outlet. Note: Power supply must be
120V AC, 60 Hz. Use a properly
grounded GFI outlet if using the product
outdoors.

3. Locate the air inlet/outlet valves. You
will notice that each valve on each base
has two layers of seals that cutoff the
airflow. The outer seal is a threaded cap
that screws into place. (Fig. 4)

4. The inner seal is a rubber check valve
designed to hold in air when a certain
amount of pressure presses against it.
(Fig. 5)

Fig. 2

Fig. 3

Fig. 4 Fig. 5

Page 6

5. (Fig. 6) shows both style pumps for the XL Theater

6. Attach the inflator hose to the pump inflation port marked

7. Attach the other end of the AC pump hose to one of the air

8. Turn the pump to the “on” position. (On Switch is located

NOTE: THE FRAME SHOULD NOT TAKE MORE THAN 5

WARNINGS:

• Never attempt to disassemble or close the

• Never leave pump unattended while in use.

• Never allow sand, small rocks etc… to be

• Do not use under wet conditions – keep away

• Never look into or point the inflate port toward

• The power supply cord cannot be replaced. If

• Keep away from children

•

System. The top picture shows the pump included with the
8’ foot model and below it shows the pump for the 12’
model. Both style pumps are marked with an “inflation” port
for blowing up the frames.

“Inflate”. (Fig. 7)

valves on the frame by pushing the end firmly into the
inflation port. None of the attachments should be used on
the end of the hose. Be sure to close the unused valve so
it doesn’t leak air while inflating the screen. (Fig. 8)

on the face of the pump).

MINUTES TO INFLATE. MAKE SURE THE PUMP ISN’T
IN USE FOR MORE THEN 15 MINUTES. IT CAN
OVERHEAT!

openings while pump is operating.

sucked into the inflation or deflation port while
operating.

from water

your eyes while pump is operating.

the cord is damaged, contact Sima customer
service for a replacement pump.

When used outdoors or near water, use a
properly grounded GFI outlet.

Fig. 6

Fig. 7

Fig. 8

Page 7

5. As the frame fills with air, be sure it is clear of any nearby
objects. Guide the frame up as it fills with air, helping
to unfold and expand it. It should take approximately 5
minutes for the screen to inflate. (Fig. 9 - 12)

6. When the screen is about 80% full (frame is standing up
but there is a slight dip in the top part of the frame),
remove the hose from the inlet/outlet valve while the pump
is still in the “on” position. (Fig. 13) (If in the “off” position
you will lose air through the pump) After attaching the
screen to the frame in the following steps, you will “top it
off” by re-connecting the pump and fully inflating the
frame.

You are now ready to attach the screen using either the
screen lace or Velcro strips. Please see instructions for
attaching the screen to the frame further on in the
instruction manual.

Tip: If connecting the screen to the frame is difficult,
release some air to allow for more slack in the frame.

7. After the screen has been attached to the frame, continue
to inflate the frame so that the screen is pulled taut. (Fig.

14) Check the valve on the other base. Remove the cap
and check to make sure the inner seal is seated correctly.
In final be sure both valves are sealed correctly.

Note:

Fig. 9

Fig. 10

Fig. 11

Fig. 12

• The dark colored material from which the Inflatable
Theater Frame is construction tends absorb the heat
from the sun, which causes the air inside the frame to
warm up and expand if the screen is used on a sunny
day. If the frame is left out overnight, the air inside
the frame will cool and contract, which may cause the
frame to sag slightly. The sagging is not due to the
frame losing air, and can be corrected by "topping
off" the frame with air prior to use.

• It is recommended to keep the supplied air pump on
hand to add additional air when using the XL Theater
System during an all day event.

• Be sure to deflate frame and store after usage.

Page 8

Fig. 13

Fig. 14
