Sima Products SSW-4, SSW-6 User Manual
Speaker Selectors
Models SSW-4 and SSW-6
User Manual
(SSW-4)
(SSW-6)
Table of Contents
Important Safety Precautions............................................................. 2
What’s Included...................................................................................2
Introduction..........................................................................................3
Front Panel...........................................................................................3
Rear Panel ............................................................................................3
Typical Hook up...................................................................................4
Installation Tips...................................................................................4
Installation............................................................................................ 4
Operation.............................................................................................. 5
Trouble Shooting .................................................................................7
Technical Specifications......................................................................7
Limited Warranty................................................................................ 8
Important Safety Precautions
When using this product, basic safety precautions should always be followed to reduce
the risk of fire and electric shock, including the following:
Read and understand all instructions.
Follow all warnings and instructions marked on this product.
Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
To prevent fire or shock hazard, do not expose this product to rain or moisture. Do
not use near a bath tub, wash bowl, sink, or laundry tub; do not use in a wet
basement or in a swimming pool.
To avoid electrical shock, do not open the case of this product.
The unit should be situated away from heat sources such as radiators, stoves, etc.
What’s Included
1 - SSW Speaker Selector
1 - Sheet of labels
1 - This instruction manual
Date Purchased: ___________, Model: ___________
©1999 by Sima Products Corp.
All rights reserved. No part of this publication may be reproduced or transmitted
in any form or by any means without prior written permission from Sima
Products Corp.
Page 2
Introduction
The Sima speaker selectors have been
designed to let you add additional
speakers around your home or office
and turn them on and off without
purchasing additional amplifiers.
The Sima speaker selectors have the
following features:
• Ability to add up to 4 (SSW-4) or 6
(SSW-6) speaker pairs to your
amplifier
Front Panel
Figure 1, Front Panel (SSW-6 shown)
• Left and right “commons” are isolated
to work with all types of amplifiers
• Protection for amplifier and unit
• Small size to fit with any system
• No power required for operation
• Easy installation
• Can handle up to 100 watts amplifier
power with unique protection circuitry
Controls
1 Speakers 1 through 4/6 - Press
button in to select desired speaker.
Orange indicator will show which
speakers are active.
2 Indicators - Indicates selected
speakers when orange.
Rear Panel
Figure 2, Rear Panel (SSW-6 shown)
5 - Connection from amplifier -
from the speaker output of your
receiver or amplifier (100 watts
max).
Page 3
3 Labels - To customize your selector
to make speaker selection foolproof.
4 Protection Switch: Press in, with
the white indicator showing, to
activate impedance protection to
protect your amplifier from low
speaker impedance.

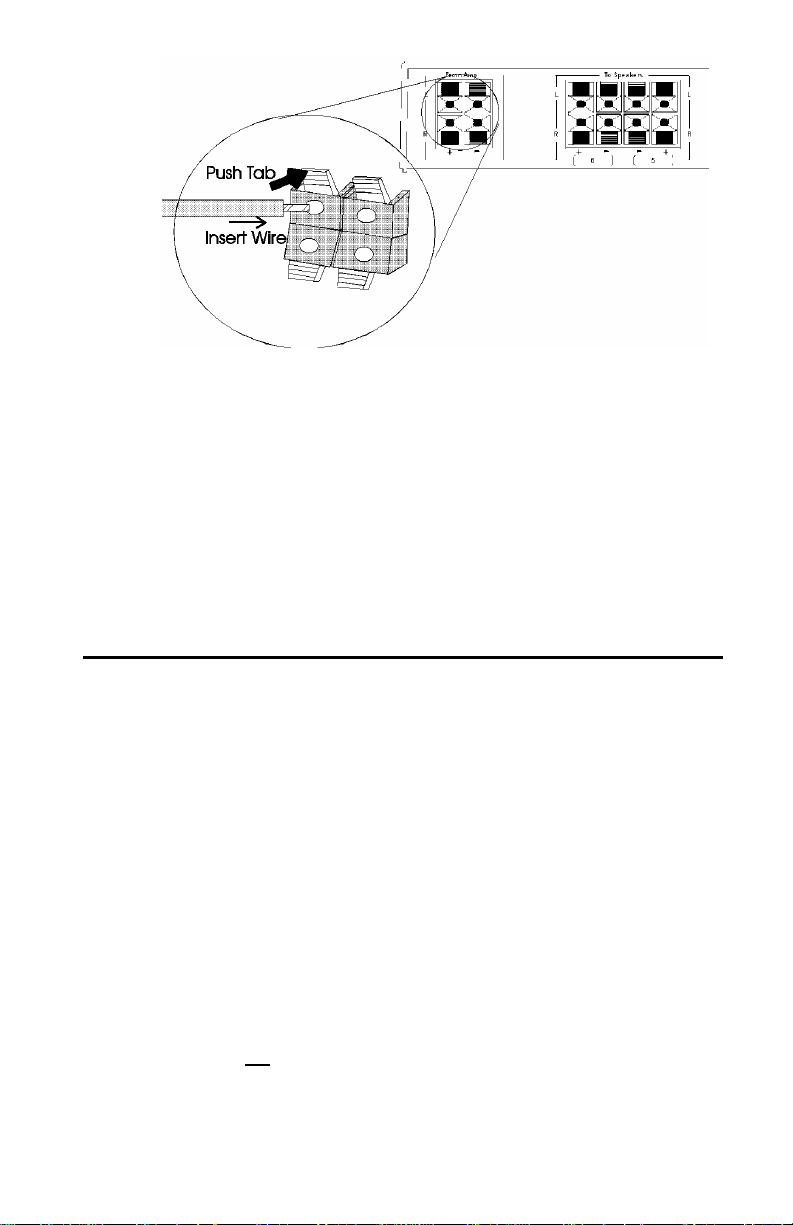

6 - Speaker Connections - Connect
your speakers to these terminals.
