SIM2 HT5000E, HT5000 User Manual

<<< usaer and installation manual

HT5000

<<< USER aND INSTaLLaTION MaNUAL

460604000

ht5000

1 REMOTE CONTROL AND KEYPAD

LIGHT

F1

ZOOM

FOCUS

F2

MENU ESC SOURCE

◀

▲

▼

▶

Backlights the keys on the remote control

BACKLIGHTING

SOURCE

Displays the source selection menu.

Switches on from Standby.

TEST PATTERN - ZOOM - FOCUS

MENU -

Switches on the On Screen Display and

navigates through its pages.

FREEZE

Freezes/unfreezes a moving picture.

ZOOM

Sets lens zoom

Function F1

FOCUS

Sets lens focus.

Function F2

AUTO

Automatically optimises the projected image.

STAND-BY

Sets the projector to stand-by .

KEYS 0-9

Select the sources directly.
Switches on from Standby.

ESCAPE

Deactivates the On Screen Display.

UP/DOWN/LEFT/RIGHT ARROW KEYS

Navigates between the On Screen Display menus and parame­ter adjustments. Arrow Up/Down call up the quick menus.

MENU +

Switches on the On Screen Display and
navigates between its pages.

MEMORIES

Activates the Memories management menu.

INFO

Displays information about the selected source
and projector status.

FORMAT

Selects the image Aspect ratio.

2

Activates the On Screen Display menus

and allows navigation thought the

Sets the unit to stand-by.

various pages.

▲,▼,◀,▶

Navigates between the On Screen Display
menus and parameter adjustments.

Deactivates the On Screen Display.

Calls up the
Source Selection menu.

ht5000

1 INTRODUCTION

FULL HD

1920x1080

The HT5000 projector represents the state of the art in image processing
combined with the innovative DLP™ sytsem and outstanding optics.

Its range of inputs (1 Composite Video input, 1 S-Video input, 2
Components or RGB input - 4 RCA - 5 BNC, 2 Graphic RGB input, 6
HDMI™ inputs, 1 HD-SDI input, 1 DVI-D input) allow it to be connected
to a wide range of analogue and digital sources: DVD players, video
recorders, satellite and terrestrial receivers, computers, video game
consoles, camcorders, etc.

Its image processing system allows optimum reproduction of a wide
range of input signals, from interlaced video to high definition and
digital graphics.
Faithful reproduction of signals at higher resolutions (such as high
definition video and graphics) occurs without loss of information or
reduction of image sharpness thanks to the processor’s high pixel rate
signal acquisition capabilities.

CONTENTS

1 INTRODUCTION 3
2 IMPORTANT SAFETY INSTRUCTIONS 4
3 UNPACKING 8
4 INSTALLATION 9
5 SWITCHING THE PROJECTOR ON AND OFF 11
6 CONNECTIONS 12
7 REMOTE CONTROL 15
8 ON SCREEN MENU 16

Different input signal resolutions can be adapted to match the specified
screen resolution without loss of image quality, thanks to a generous
selection of preset aspect ratios, some of which are user definable.

All picture adjustments can be made with the remote control interac­ting with a simple menu-activated On Screen Display; alternatively, the
projector can be controlled by a domestic automation system via its
serial port, by a USB 1.1 connection or by ethernet RJ45 connection.

The appliance has been subjected to exhaustive operating tests by
SIM2 to ensure maximum quality.
The projector bulb life should thus initially be around 30-60 hours.
Besides the usual checks, the Quality Control department also runs
additional statistical tests before despatch.
In this instance the packaging may show signs of having been
opened, and the hours operation of the lamp may be higher than
the value required under standard procedures.

9 CLEANING AND MAINTENANCE 26
10 COMMON PROBLEMS 26
11 OPTIONAL ACCESSORIES 27
Technical specifications 28
Structure of the on screen menu 29
Dimensions 31
Projection distance 33
Vertical - Horizontal Shift 34

DLP and DMD are registered trademarks of Texas Instruments.

HDMI, the HDMI logo and the expression High-Definition Multimedia Interface
are trade marks or registered marks of HDMI licensing LLC

3

ht5000

2 IMPORTANT SAFETY INSTRUCTIONS

This symbol indicates the possible electric
shock hazard associated with uninsulated live
components in the interior of the unit.

This symbol indicates the presence of im­portant instructions regarding the use and
maintenance of the product.

CAUTION

To reduce the risk of electric shock, disconnect the power supply cable on the rear panel before removing the top cover of the projector.
For technical assistance refer to trained personnel authorised by the manufacturer.

LAMP WARNING

If the lamp should suddenly burst with a loud bang, air the room thoroughly before using it.
Do not attempt to replace the bulb: contact your local service centre for the replacement.

ENVIRONMENTAL INFORMATION

This product contains materials derived from natural resources during its manufacture. It may contain materials which consti­tute a health and environmental hazard. To prevent noxious materials being released into the environment and to promote
the use of natural materials, SIM2 Multimedia provides the following information regarding the disposal and recyclig of the
product. Electrical and electronic waste materials (WEE) should never be disposed of in normal residential waste disposal
facliities. The label on the product, shown here, indicating a crossed out garbage can, is intended to remind you that the
product requires special handling at the end of its service life.
Materials such as glass, plastic and some chemical compunds are recoverable and can be recycled for reuse. Please
observe the following instructions:

1. When you no longer wish to keep your electrical and electronic equipment, take it to your local waste disposal
facility for recycling.

2. You may return your old equipment to your dealer when you buy a new product which is equivalent or has the same
functions as the old one. Call SIM2 Multimedia to find your local dealer.

3. If you need more information regarding recycling, reuse and product exchanges, please contact customer service
on the number given in the manual.

Please read the instructions regarding recycling of the internal and external packaging (including that used for shipping)
with which the product was delivered. With your help, we can reduce the amount of environmental resources consumed
in making electric and electronic equipment, reduce the use of dumps for used equipment and, in general, improve our
quality of life by making sure that hazardous materials are correctly scrapped.

Incorrect treatment of the product at the end of its service life and failure to follows the above disposal instructions are
punishable under local legislation.

Read all chapters of this manual carefully before switching on the projector. This manual provides basic instructions for using the HT5000
system. Installation, preliinary adjustments and procedures that necessitate the removal of the top cover and contact with electrical com­ponents must be done by authorised, trained technicians. To ensure safe operation and long term reliability use exclusively the power
cables supplied by the manufacturer. Observe all warnings and precautions.

4

ht5000

FCC STATEMENT

CLASS B PRODUCT

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules.

This Class B digital apparatus complies with Canadian ICES-003

Cet appareil numrique de la classe B est conforme la norme NMB-003 du Canada.

5

ht5000

1 Projection lens.

1

2

3

4

5

6

5

7

8

9

2 Magnetic cover for lens sostitution.
3 Remote control IR sensor on front of unit.
4 Unblock lens hole.
5 Adjustable feet.

6 Cooling air inlet/outlet vents.
7 Bulb compartement.
8 Connnection panel.
9 Cooling air inlet/outlet vents.

• Read this manual carefully and keep it in a safe place

This manual contains important information on how to

• Do not touch internal parts of the units

Inside the cabinet there are electrical parts carrying

• Disconnecting the appliance from the power supply.

The device which disconnects the unit from the mains is

6

for future consultation.

install and use this equipment correctly. Before using the
equipment, read the safety prescriptions and instructions
carefully. Keep the manual for future consultation.

dangerously high voltages and parts operating at high
temperature. Never open the cabinet. Entrust all servicing
and repair work to an authorised Service Centre. Opening
the cabinet voids the warranty.

the power plug. Ensure that the power cable plugs and
the electrical mains socket outlets are easily accessible
during installation operations. Pull the plug, not the cable,
to disconnect the unit from the mains.

• Use only the specified power supply.

Connect the units to a mains electrical supply with rated

voltage of between 100-240 V AC, 50/60 Hz and equipped
with a protective earth connection. If you are not sure of
your domestic mains rating, contact an electrician. Take
care to avoid overloading the power socket and any ex­tension leads.

• Changing the fuses.
Before changing the fuse disconnect the unit from the

mains power supply.

The fuse compartment is next to the power supply con-

nector. Remove the fuse holder with a flat head screwdriver
and replace the fuse. Fit a new spare fuse. Use only T 5A
H fuses.

• Be careful with cables.

Make certain cables are routed so that people will not be

impeded or tripped up.

Keep all cables away from children.

ht5000

Install the unit as close to the wall socket as possible. Avoid

stepping on power cables, make certain they do not be­come tangled, and never jerk or tug them; do not expose
them to sources of heat, and make sure they do are not
knotted or crimped. If the power cables become dama­ged, stop using the system and request the assistance of
an authorised technician.

•

Disconnect the unit from the mains power supply in the
event of electrical storms and when not in use.

To prevent damage from lightning strikes in the vicinity,

disconnect the unit during storms or when the sytsem is
going to be left unused for a long time.

• Avoid contact with liquids and exposure to damp.

Do not use the unit near to water (sinks, tubs, etc.); do not

place objects containing liquids on or near to the unit and
do not expose it to rain, humidity, drops of water or sprays;
do not use water or liquid detergent to clean it.

• Do not allow the unit to overheat.

To prevent this, allow a free space of at least 40 cm around

the back of the projector.
Do not block the ventilation slots.
Do not place the unit near to heat sources such as ovens,

radiators or other devices (including amplifiers).
Do not place the unit in a restricted area (shelving units,

bookshelves, etc.) and in general avoid placing it in poorly

ventilated areas as this can lead to overheating.

• Do not insert objects through the openings in the unit.

Make sure that no objects are inserted inside the units. If this

should occour, disconnect the unit from the power supply
immediately and call an authorised technician.

• Energy savings.
Disconnect the power supply when the projector is not

in use. This will considerably reduce power consumption
and also lengthen the service life of the unit’s electrical
circuitry.

• PRODUCT DISPOSAL
This projector utilizes a pressurizzed lamp containing a small

amount of mercury. Disposal of these materials may be
regulated due to enviromental considerations. For disposal
or recycling information please contact your local autorities
or, if you are located in the United States of America, the
Electronic Industries Alliance.

www.eiae.org

www.lamprecycle.org

• Never look directly at the projection lamp.

• Take special care regarding the movements of the

Do not place objects in the slots on the side of the lens,

• Position the unit on a stable surface.

Place the projector on a stable surface or use the provided

Never place the projector on its side or rear, lens or top

Never look directly into the lamp when it is on as the inten-

se light can damage your eyes. Take particular care that

children cannot do so.

lens.

and also ensure that the lens’s horizontal and vertical mo-

vements are unimpeded by external objects.

ceiling mounting bracket.

panel.

7

ht5000

3 UNPACKING

Remote Control

4 1.5V AAA batteries

Power cables
(EU, UK, USA)

Projector

User manual

CONTENTS OF PACKAGE

- the projector

- Remote control

- four 1.5V AAA batteries (for remote control)

- three power cables (EU, UK, USA) for the projector

- the user manual.

Fig.1

To remove the HT5000 system from its carton follow the
diagrams (Fig. 1).

For reason of the elevated weight of projector it reccom­mend to unpack the projector at least in 2 persons.

1.

Extract the carton box that contain the remote
control, the user manual and the power cables.

2.

Extract the projector from the box seizing it by the
special raising points.

If anything is missing, immediately inform your dealer.

8

ht5000

ZOOM

ZOOM

ZOOM

ZOOM

F1

FOCUS AUTO ASPECT VCR

HELPZOOM

F2

ZOOM

FOCUS

FOCUS

FOCUS

FOCUS

4 INSTALLATION

Position the projector on a stable, suitable platform or utilise the
optional bracket for a fixed ceiling installation.

WARNING: If using the ceiling mount bracket, scrupulously
observe the safety instructions included with the bracket
itself. If using a bracket other than that supplied by SIM2
Multimedia, make sure that the projector is at least 65 mm
below the ceiling and that the bracket does not obstruct the
air vents (intake and outlet).

If the projected image is not level, adjust the feet on its base
to obtain a level position, lining up the base of the projected
image to the base of the projection screen (Fig. 2).

Fig. 3

The motorized lens shift adjustment allows the projected image
to be moved vertically and horizontally (left or right)
The maximum adjustment is equal to half the height of the
image in either direction (Fig.3a).

Place the projector at the desired distance from the screen:
the size of the projected image is a function of the distance
between the lens and the screen and the lens zoom setting.
Use the motor zoom (Fig. 3) to zoom the projected image in
and out.
Use the motor focus function (Fig. 3) to obtain a clear image;
if the image is correctly focused, you should be able to see
each single pixel of the projected image when close to the
screen (Fig. 3).

Fig. 2

Fig. 3a

If this displacement is insufficient, tilt the projector and correct
the keystone error with the Keystone adjustment in the

SETUP

menu (Fig. 4).

9

ht5000

KEYSTONE

20%

TRIG 1

TRIG 2

TRIG 2TRIG 1

Fig. 4

Fig. 6

The Orientation adjustment in the Set up menu allows you to
reverse the image vertically and horizontally (Fig. 9), to allow
the projector to be used for desktop front, ceiling front, desktop
rear and ceiling rear installations (Fig. 5).

To activate an electric motorised screen a TRIG1 output is
provided at the rear of the projector (Fig. 6).
The output is activated (Voltage: 12V) when the projector is
switched on and is de-activated (no Voltage output) when the
projector is in stand-by mode.
You can also use black motorised curtains to delimit the screen
when the projected image aspect ratio changes (Fig. 7). This
option is controlled via the output TRIG2 at the rear of the
projector.

10

For rear projection the screen must be translucent.
For front projection, we recommend the use of a screen with
black matt borders to contain the projected image.

Preferably use a unit gain screen; high gain screens are only
effective when used with a small group of viewers close to the
screen’s axis.
Prevent ambient light shining directly on the screen during
projection as this will reduce the contrast of the projected
image.
Furniture and other objects with reflecting surfaces, as well as
light coloured walls should be avoided, as they are likely to
interfere with the screen’s characteristics.

Fig. 5

Fig. 7

ht5000

5 SWITCHING THE PROJECTOR ON AND OFF

I

0

Power Switch:
Position I: On
Position 0: Off

Fused
Power Socket

Power Plug

I

0

I

0

0

WARNING: Connect the projector to a power supply with a
nominal voltage within the following values: 100-240 V AC,
50/60 Hz. It must be earthed (Fig. 8).

Fig. 8

In position I the projector will initialise itself (red and green leds
on) and then goes into standby mode (red led on) (Fig. 9).

SWITCH ON FROM STANDBY

With the remote control press one of the keys:

- 0 to select the last imput selectet after last switching of.

- 1-9 to select the correspondent imput

With the keypad: press the ON/OFF button.

When the unit is switched on from standby the lamp switches
on; after a brief period of warming up, the image displays (blue
led on). The projected image comes from the input selected
when the unit was last switched off (Fig. 10).

If a very short time has passed since the unit was last switched
off, the lamp may not switch on because it is too hot.
Just wait a few minutes for the lamp to cool down sufficien­tly.

Fig. 10

Fig. 9

SWITCHING OFF AND RETURNING TO STANDBY

With the remote control: press .
With the keypad: press ON/OFF button.
When switching off, the projector goes into stand-by mode and
stores the input selection at the time of switch-off.
The fans keep running until the lamp cools down (blue and
red leds on), after which they automatically switch off. Do not

switch off the projector with the power switch until the fans
have stopped running.

11

ht5000

Initialisation

Status

Led blue

Led red

Standby

On

Cooling

: O

: On

: Flashing

Error (*)

Logo Backlit

Blue Color

Red Color

O / Blue Color (*)

Red Color

Red Color

LED SYSTEM TABLE

(*): IN CASE OF ERROR, CONTACT YOUR LOCAL AND AUTHORIZED SIM2 DEALER FOR SERVICE INFORMATION.

6 CONNECTIONS

Fig. 11

To obtain the best performance from your projector, we recom­mend the use of good quality “video cables”.

Poor quality cables will cause inferior picture performance.

For optimum connectivity we recommend you follow these
simple steps:

With exception of coaxial RCA/Phono type connectors,
always double-check that the plug is inserted the correct
way round to avoid damaging the plugs or the sockets on
the projector.

Remove cables by the plug and do not pull on the cable
itself. Avoid tangled cables.
Position the cables carefully to avoid a trip hazard espe­cially in low light areas.

12

ht5000

Connection panel

3

1

2

4

5

6

14

7

8 9 10 11 12 13

Television receiver

DVD Player

Videorecorder

Videocamera

Game Console

Television receiver

HDTV Receiver

DVD Player

Videorecorder

Game Console

Television receiver

HDTV Receiver

DVD Player

Videorecorder

Game Console

HDTV Player

Blue-Ray Player

HDTV Receiver

DVD Player

Computer

Computer

Professional & broadcasting equipements

HDTV Receiver

DVD Player

Game Console

HDTV Player

Blue-Ray Player

13

ht5000

COMPOSITE VIDEO

1

2

3

4

5

6

7

8 9 10 11 12 13

14

Fit an RCA connector with a Composite Video (CVBS) signal
to this input.
The output connector on the external appliance is normally
coloured yellow and will often be labelled VIDEO.
Other signal and socket formats may be preferable (because
they give better image quality), but this type of output socket is
still the most commonly used, and nearly all television receivers,
video recorders, DVD players and camcorders, etc. use it.

S-VIDEO

Fit a mini-DIN connector with an S-Video signal to this input.
The corresponding output at the external device is normally
identifiable by the labels S-VIDEO or Y/C.
This type is nearly as common as Composite Video, and is
preferable to the latter, since it gives higher image quality.

RGB/YPrPb

These inputs use a set of 4 RCA connectors and 5 BNC con­nectors. RGB and Component signals can be applied to each
set of connectors. With this video signals is possible to set YPrPb
video mode.
RGB signals can have composite synchronisation on the green
signal (RGsB), or on the HV signal.
Connect the R, G, B outputs of the source to the respective R,
G, B inputs of the HT5000 (taking care not to invert the positions)
and any synchronisation signals to the HV.
When hooking up, use the colours of the RCA connectors as
an aid as follows: the R connector is red, G is green, B is blue
and HV is white. You can use a SCART to RCA adapter cable to
connect the RGB signal from a source equipped with a SCART
output to this input.
The Component signals connect to the Y, Pr and Pb inputs:
take care that the inputs correspond to the outputs on the
source device.
Since these can be labelled differently, refer to Table 1 to
establish the correspondence between the various signals. As
indicated in the table, the colours of the connectors can also
be of help.
Only horizontal scanning frequencies of 15 kHz (standard video
resolution) or 32 kHz (high definition video, with progressive
scanning) can be applied to this input.
Progressive signals usually provide better quality than interlaced
signals, but if the source features both progressive and deinter­laced signal outputs it is good practice to compare the quality

of the pictures reproduced by the HT5000 in the two cases: the
deinterlacing performed by the HT5000 is often more effective
than that performed by the source itself.

GRAPHICS RGB / YPRPB

This input should be connected to an RGB-type video or graphic
signal using a cable with a DB15HD type connector.
The signal source device (typically a personal computer or game
console) must be able to provide separate H/V synchronisation or
composite H+V synchronisation.

DVI-D

This input allows you to advantage from the quality of the di­gital images .If your source is equipped with a DVI-D output,
YCrCb or RGB connect it to this input to exploit the quality of
the HT500E-LINK system.

HDMI™

HDMI™ (High Definition Multimedia Interface) integrates an
uncompressed high definition video signal with a multichannel
audio signal and allows exchange of control data between the
video source and the HT5000.
The HDMI input allows connection to video sources that use the
HDCP (High-Bandwidth Digital Content Protection) protocol to
protect their contents.
Once the video source has been connected to the HDMI
input, internal processing by the HT5000 separates the video
information from the audio information. The audio information
is made available on a digital output with a female TOSLINK
connector in compliance with the S/PDIF standard.
You can use a DVI-D > HDMI adapter cable to connect the
DVI-D signal from a source equipped with a DVI-D output.

SDI

HDSDI / SDI imput allow to connet digital serial sourses in com­ponent YPrPb in according of standards SMPTE292M (hight
definition) and SMPTE259M-C (standard resolution).
The signal is not compressed and it's transported by a coaxial
cable in digital mode.

14

ht5000

I

0

LAN RJ45

CONTROL USB

CONTROL RS232

MOTORISED SCREEN OUTPUTS

I

0

12 Volt

TRIG 1

TRIG 2
120 mA

RS232 INTERFACE CONNECTOR

Fig. 12

The projector is equipped with two outputs (Voltage: 12V) for
motorised projection screen and screen masking systems, used
for masking off the projection area to match the projected
image aspect ratio (Fig. 12).
The TRIG1 output is activated when the projector is switched on
(blue LED on) and is de-activated when the projector is in stan­dby mode (red LED on). The output TRIG2 can be set with the
“Screen control” adjustment in the “Aspect” menu. This output
allows reduction in the area of a 16:9 screen, into a 4:3 format,
by activating a horizontal screen masking system.

7 REMOTE CONTROL

The remote control requires four 1.5 V batteries, size AAA.
Insert the batteries, taking care to match the polarity, as indi­cated in the battery compartment in the handset.
Change the batteries in the remote control if experiencing
difficulty in sending commands to the projector.
Remove batteries from the remote control if it is not to be used
for a long period of time. The batteries are prone to leak and
corrode the remote control’s circuits.
The remote control sends commands to the projector via
infrared signals.

Fig. 13

The projector can be controlled from a PC: simply hookup the
interface connector to a PC’s RS232 serial cable or to a PC's
USB 1.1 cable or with ethernet lan (RJ45) in according with
standard ethernet 10/100 Mbit e TCP/IP. (Fig.13)
The Ethernet RJ45 and USB control require an additional software
provided by SIM2 Multimedia.

The projector is equipped with an infrared sensor on its front
panel and can therefore be controlled by pointing the remote
control towards the projection screen; the IR beam reflects off
the screen towards the projector.
There is another infrared sensor in the rear of projector.

Do not place objects between the remote control and the
receiver on the projector, as this can prevent the remote from
working.

15

ht5000


Contrast
Color
Tint
Sharpness
Filter
Cinema Mode

50
50
50

3
2

Off Auto

Auto

Noise Reduction

Brightness

60

2 S-VIDEO

5 GRAPHICS RGB

3 COMPONENT

1 VIDEO

1

2

3

5

S-VIDEO

GRAPHICS

COMPONENT

VIDEO

4 COMPONENT

4

COMPONENT

6 GRAPHICS RGB

6

GRAPHICS

7 DVI

7

DVI

Source list / Rename source

9 HDMI

12 HDMI

10 HDMI

8 HDMI

8

9

10

12

HDMI

HDMI

HDMI

HDMI

11 HDMI

11

HDMI

13 HDMI

13

HDMI

14 SDI

14

SDI

8 ON SCREEN MENU

Color Temperature
Gamma Correction

Position
Y/C Delay

1

Overscan

1

Aspect


All system functions can be operated from the keypad or
remote control, with the aid of a complete, user-friendly on
screen menu.

INPUTS

The input selection menu is called by pressing 0 on the remote
control or with the keypad SOURCE key. To select an input, scroll
through the list with the ▲ e ▼ keys until the required input is
highlighted, then press ▶.
Display of the input selection menu is terminated by pressing
the

ESC

key or when the On-Screen Menu display timeout in­terval (set in the Menu Setup) has elapsed or after the signal's
recognising.
The inputs can receive RGB and YPrPb signals, at 15 kHz, 32 kHz
or higher. The input and type of signal (RGB or YPrPB) are set in
the pull down menu at the right of the symbol < after pressing
the ◀ key (Fig. 14).

MAIN MENU

To access the main menu of the On Screen Display press
the

MENU

key on the keypad or the

MENU+

or

MENU-

key on the
remote control.
The main menu is divided into four windows,
SETUP and MENU

, in which the various adjustments are grouped

PICTURE, IMAGE

according to the frequency of use. Use the ▲ and ▼ keys to
select the line corresponding to the adjustment you wish to
make (Fig. 15).

Fig.15

The various menus only offer the relevant adjustments in ac­cordance with the type of input signal displayed (e.g. certain
typical adjustments for video signals, not necessary for graphic
signals, do not appear on the menus, and vice versa).
Some adjustments (e.g.

BRIGHTNESS

and

CONTRAST

) are associated
with a numerical value that can be varied within the set limits
using the ◀ and ▶ keys.
For others (e.g.

CINEMA MODE

) you can choose between two
options presented on the same line and selectable using the
keys ◀ and ▶ (Fig.16a/b).

,

HDMI 8-13 inputs can receive the signals from DVI-D sources.
During the short time it takes to find the signal, a box appears
showing the signal requested. As soon as the signal is shown
additional information is displayed in the box concerning the
video standard (for video signals) or resolution (for graphic
signals), format and the eventual user's memory.
This information can be recalled by pressing the numerical key
that it corresponds at the selected source.
In the
mation or not; for further information see
the

16

SETUP

MENU menu.

menu you can select whether to display this infor-

Fig.14

SOURCE INFORMATION

in

.

Fig.16a

ht5000

These submenus are accessed by pressing the < key, while exit

Color Temperature
Gamma Correction

Position

Overscan

Y/C Delay

Aspect


1

Normal

Anamorphic
Letterbox
Panoramic
Pixel to pixel

User 1

Subtitle

User 2
User 3

and return to the upper level occurs by pressing MENU+/-.
Press ESC on the remote control or keypad to interrupt the
menu display or wait for it to disappear automatically after
the number of seconds set on the

SET-UP page

.

Fig.16b


This menu includes all image adjustment settings. Adjustments
that are not available for a given input do not appear on the
menu. For a full listing of the menu, refer to paragraph
MENU LAYOUT

in the chapter

ADDITIONAL INFORMATION.

ON SCREEN

BRIGHTNESS

Use this control to adjust the darker areas of the picture (black
level), without significantly affecting bright areas. Increasing
the value will give more detail in darker parts of the picture. For
correct adjustment it may prove useful to display a grey scale
with at least twenty bands. Now try to reduce the brightness of
the black band as much as possible while ensuring that it can
still be distinguished from the adjacent band with brightness
slightly higher than black. Alternatively use a scene composed
of black objects alongside other dark coloured objects and try
to keep all the objects separately identifiable.

objects with lower level lighting, and try to ensure that all the
objects remain separately identifiable.

COLOR

This control (also called Saturation) increases or decreases the
picture colour intensity. When set to zero, colour images will be
shown in black and white. Increase the value until the colours
appear natural: suitable references include skin tones and grass
in landscape shots.

TINT

Controls the purity of colours. Basically determines the red-green
ratio of the picture.
Decreasing the value increases the red content of the image,
increasing it increases the green. For this adjustment use skin
tones or a test card image with colour bars as a reference.

SHARPNESS

This adjustment serves to modulate the signal to increase or
decrease the level of picture detail.
When the sharpness value is reduced the image details ap­pear less pronounced, while increasing the value raises image
definition, making the outline of objects sharper.
Note that an excessively high value may result in a ‘noisy’
picture and the edges of objects may appear unnaturally
clearly defined.

SHARPNESS MODE

This allows you to select the type of processing associated with
sharpness adjustment. For an interlaced or progressive video
signal, set to

VIDEO

; for PC graphics signals, set to

GRAPHICS

.
Sets the system to receive graphics signals rather than video
signals. If the
increase the clarity of the image. The

VIDEO

option is set, it applies Noise Reduction to

GRAPHICS

option deacti-

vates noise reduction.

FILTER

This allows you to select the mode in which the input signal is
processed. Selecting the most appropriate value for a given
input signal ensures the best horizontal and vertical definition
and makes the picture sharper.

CONTRAST

Use this control to adjust the image’s white level without affec­ting its dark areas. For correct adjustment it may prove useful
to display a grey scale with at least twenty bands. Now try to
increase the brightness of the white band as much as possible
while ensuring that it can still be distinguished from the adjacent
band with brightness slightly less than white. Alternatively use a
scene composed of well-lit white objects surrounded by light

CINEMA MODE

Use this option if the video signal source is a movie film (obtai­ned from a Teleciné device with 3:2 or 2:2 pull-down). In this
case a deinterlacing algorithm optimized for this type of signal
is applied.
Selecting AUTO mode causes the de-interlacer to analyse si­gnal characteristics and apply the correct deinterlacing mode
automatically.

17

ht5000

Selecting the NO option causes the de-interlacer to apply a

Brightness

Contrast

V

ideo

S-V

ideo

RGBS

YPrPb

RGB Grafico

SDI

HDMI™

DVI

RGBS 15kHz

YPrPb 15kHz

Adjustement

Inputs

Color - -

-

-

-

-

-

-

--

-

--

Tint

Sharpness

Sharpness mode

Filter

Cinema mode

Noise reduction

-

-

(1)

(3) (3) (3)

(2)

(3)(4)

(2)

(1) Present only if STANDBY VIDEO is NTSC
(2) Present only for interlaced video signals
(3) Presento only if SHARPNESS MODE is set on VIDEO
(4) Not avaible when DVI singol type is RGB

(4)

(4)

Motion compensated algorithm optimized for video camera
signals.

NOISE REDUCTION

This adjustment serves to select the noise reduction filter va­lue.
This adjustement is allowed for interlaced video signals, while
for the progressive video signals only if
on

VIDEO

.

SHARPNESS MODE

in set

NORMAL:

projects the image occupying the full height of the
screen while maintaining the aspect ratio of the input signal.
When the input signal aspect ratio is 4:3 black vertical bands
are displayed on the right and left of the picture.

ANAMORPHIC:

LETTERBOX:

correctly displays a 16:9 image.

serves to display a 4:3 letterbox image (with source
signal having black bands above and below the picture) so that
it fills the 16:9 screen and maintains the correct aspect ratio.


This menu features adjustments relating to picture Position,
Aspect ratio, Magnification etc.

ASPECT

This adjustment allows you to change the dimensions and
aspect ratio (relationship between width and height) of the
displayed image. There are six preset aspects available and
three personalised aspects (with user-settable parameters). You
can select a different aspect for each source: the selected
aspect ratio will be automatically applied the next time the
relative source is called.
You can also select the required aspect ratio by repeatedly
pressing the key , or by pressing and a numerical key
(1...9).The following aspects are available:

18

PANORAMIC:

widens the 4:3 image and cuts off a strip from the
top and bottom. Panoramic is ideal for displaying a 4:3 image
on the 16:9 screen of the Display.

SUBTITLES:

PIXEL TO PIXEL

raises the image, thus making space for subtitles.

: runs a pixel to pixel mapping of any image, without
adapting to the screen. The image is projected in the centre
of the screen and if its horizontal and/or vertical dimensions
are smaller than the display, it is bounded by vertical and/or
horizontal black bands.

USER 1, 2, 3

: use this option if none of the others are satisfactory.
The User formulas give you the ability to continuously adjust the
picture size horizontally and vertically.

COLOR TEMPERATURE

Changes the colour balance of the image.
The colour temperature setting is made by setting the white point
in the CIE chromaticity diagram.
Moving it horizontally (fig.17) changes the correlated colour
temperature, with the low temperatures to the right (more red)
and high temperatures to the left (more blue). The points on
the lowest horizontal line (Fig.18) represent the colours on the
black body curve.

There are 3 predefined colour temperature settings (High, Me­dium, Low) and USER setting that allows the manual regulation.
The colour temperature is constant on the vertical lines, but is
more or less different from the black body curve. This means
that the higher points of the graph are more green.
On the contrary, the lower points of the graphic yield a more
purple image.

ht5000

0.8

520

540

560

Infinity

10000

6500

4800

2850

1500

1000

580

590

620

650

450

470

480

0.6

0.4

0.2

0.0

0.2 0.4
X

0.6 0.8

Y

Green

x= 0,282
y= 0.320
T= 8700K

= 0,015

x

y

uv

Blue

Red

Fig. 17

cameras, and for viewing films or photos on your PC.
The Enhanced set is suitable for watching movies. The Graphics
set is suited to displaying graphics (PC, CAD, PC presentations,
etc.). User enables you to define your own curve. You can thus

Table 5 - Gamma correction settings

ST1 For general use

Standard

Gamma functions

EN1 Suited to displaying images from videoca

EN2 Suited to displaying images from videoca

Enhanced SIM2

Gamma functions

meras, digital cameras or TV studios in high
ambient light.

meras, digital cameras or TV studios in low
ambient light.

-

-

GAMMA CORRECTION

Determines the system’s response to the grey scale, empha­sising or attenuating the different grades of brightness (blacks,
dark, medium, light grey, whites) in the projected image.
The projector has a range of gamma functions which enable
you to display any image to the best effect for the type of
video source, the ambient lighting and your subjective pre­ferences.
There are 4 sets of gamma curves: Standard (ST), Enhanced
SIM2 (EN) and Graphics (GR), User. The Standard curve has been
defined for general use, and is set for videocameras, digital

EN3 Suited to displaying cinematographic material

EN4 Suited to displaying cinematographic material

EN5 Suited to displaying cinematographic material

in high ambient light.

in moderate ambient light.

in controlled ambient light.

Fig. 18

GR1 Suited to displaying graphic images (e.g. Win

Graphics

GR2 Suited to displaying graphic images in mode-

dows desktop) in moderate ambient light.

rate controlled light.

-

Gamma functions

USER With USER curve the the user may select the

User

exponent (gamma value) used for gamma
compensation.

19

ht5000

select the coefficient which determines the curve.

Video

S-Video

RGBS

YCrCb

RGB Grafico

RGBS 15kHz

YCrCb 15kHz

Regolazioni

Ingressi

Y/C Delay

-

-

-

-

Position

-

-

Phase

-

Frequency

-

-

Color Temperature

Gamma Correction

Overscan

-

Aspect

HDMI™

SDI

DVI

-

Values from 1.5 to 2.2 allow you to emphasise the detail of dark
images, but reduce overall contrast. Values higher than 2.2
increase overall contrast, but reduce the detail of dark areas.
Value 2.2 typically yields pleasant, contrasty images.

OVERSCAN

Eliminates irregularities around the outer borders of the image.
Some less accurate sources may produce an image with
uneven borders; thanks to the overscan function these imper­fections can be moved to outside the displayed area.

most common video sources, the overscanning value can be
in the range (no overscanning) to 32 (maximum). The resulting
image always maintains the selected aspect irrespective of
the selected overscan value.

POSITION

Use this adjustment to position the image vertically and hori­zontally.
These parameters do not normally require adjustment because
the system checks the input signal and automatically sets the
most suitable values. However, if the image is not perfectly
centralized it may prove useful to request the system to repeat
the input signal analysis and image positioning, calling the au­tomatic control procedure with button A on the remote control
or the

AUTO

button on the keypad. When this procedure is called
it is helpful to have a white or light coloured background on the
screen in the current picture.

For the

proach the screen sufficiently to observe the effects of the
adjustments.

Y/C DELAY

In the case of Video and S-Video signals, it may be necessary
to correct horizontal colour misalignment within the projected
image. For a given video standard (e.g. PAL or NTSC) the stored
value does not normally require further fine-tuning, unless the
source or connection cable has changed.

FREQUENCY/PHASE

These adjustment ensure correspondence between the number
of pixels making up the signal and the number of pixels that
make up the projected image.
These parameters do not normally require adjustment because
the system checks the input signal and automatically sets the
most suitable values. If however the image is disturbed (loss of
resolution between equidistant vertical bands or instability and
lack of detail in thin vertical lines) it may help to ask the system
to rerun the input signal analysis and set the best parameters
by calling up the automatic adjustment function with A on the
remote control or
If the automatic procedure fails to have the required effect,
enter the frequency and phase values manually and ap-

20

AUTO

on the keypad.

ht5000

SETUP

KEYSTONE

20%

The setup menu contains less frequently used adjustments
that may be required during installation (e.g. The display of
Test Patterns).

ORIENTATION

Reverse the image vertically and horizontally to best fit the
installation: i.e. desktop front, ceiling front, desktop rear and
ceiling rear (Fig.19).

Fig.19

KEYSTONE

This adjustment compensate the image distortion caused by
tilting the projector. We recommend installing the projector on
a surface which is perpendicular to the screen and use LENS
SHIFT adjustment to centre the image. Tilt the projector and use
Keystone correction only when necessary.

PROJECTION LENS

The ZOOM adjustment impacts on the motorized zoom lens
allowing to increase or decrease the dimension of the projected
image. The FOCUS adjustment impacts on the motorized lens
focus, allowing to obtain the highest definition on the projected
image. An accurate focus setting should allow the viewer to
distinguish each pixel that create the image one from another.
In the initial phase of installation the configurable keys (F1, F2)
serve as optical zoom and optical focus.

LAMP POWER

If your room is especially dark, the images from the system
HT5000 could result execessively bright. In order to enjoy won­derful images, the LAMP POWER allows to reduce the lamp
power. In this way, the brightness of the image will be adapted
to your projection conditions and a grater life lamp will be
guaranteed.

POWER ON

If selected (

AUTO

), this option allows the system when the
projector is connected to the mains power supply.
In STANDBY mode the projector remain in STANDBY mode and
awaits the power-up command from the remote control or
keypad.

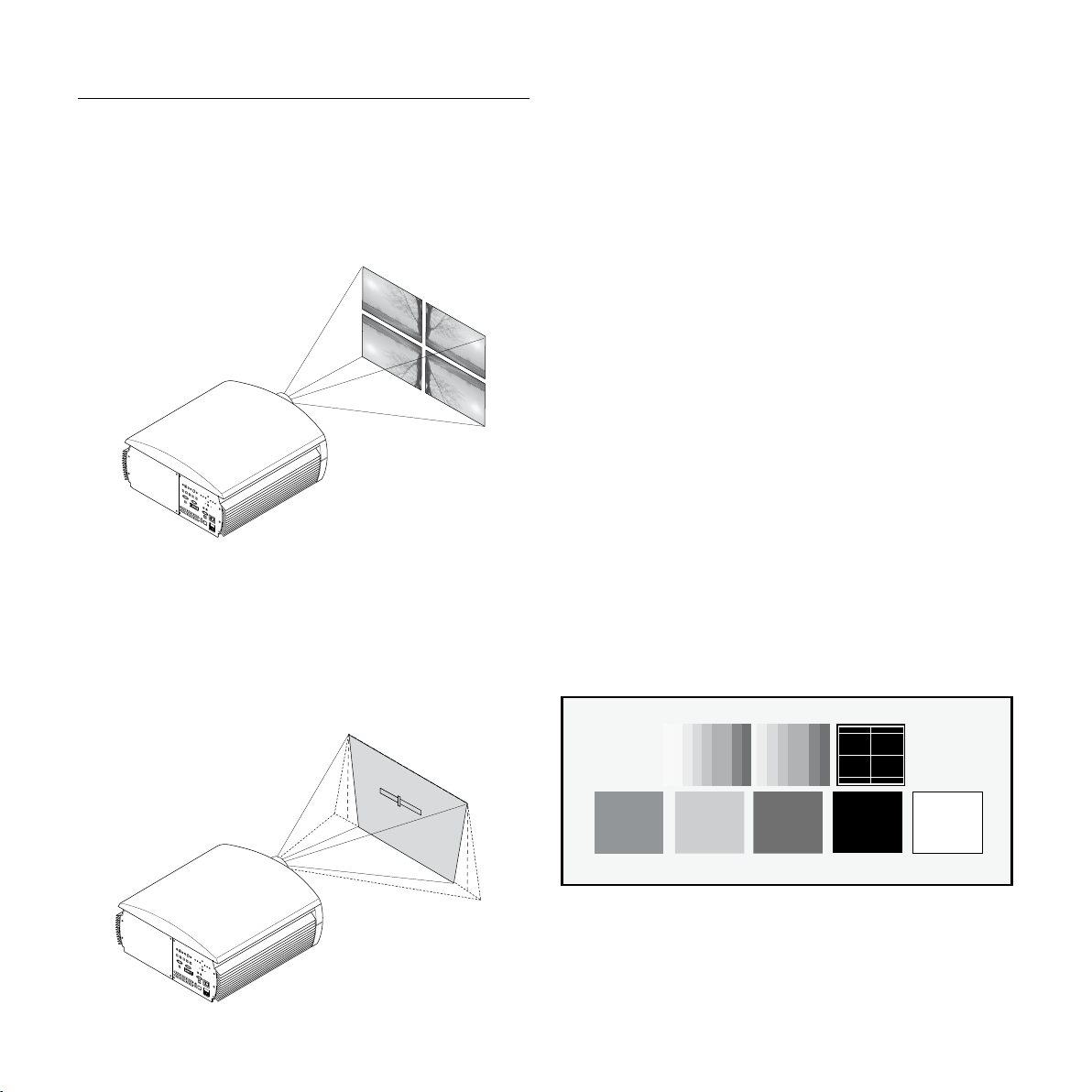

TEST PATTERNS

Displays a series of eight test patterns, which are useful when
installing the system and checking basic functions. Use the ▼
and ▲ keys to browse through the test patterns (Fig. 21).

Fig.20

Fig.21

INITIAL SETTINGS

Reconfigures the projector to original factory settings except
Position, Orientation, Y/C Delay, Zoom and Focus (Fig. 22).

21

ht5000

2 S-VIDEO

5 GRAPHICS RGB

3 COMPONENT

1 VIDEO

1

2

3

5

S-VIDEO

GRAPHICS 1

COMPONENT 1

VIDEO

4 COMPONENT

4

COMPONENT 2

6 GRAPHICS RGB

6

GRAPHICS 2

7 DVI

7

DVI

Input list / Rename input 1/1

9 HDMI

12 HDMI

10 HDMI

8 HDMI

8

9

10

12

HDMI 2

HDMI 5

HDMI 3

HDMI 1

11 HDMI

11

HDMI 4

13 HDMI

13

HDMI 6

14 SDI

14

SDI

Input list / Rename input 2/2

Cancel

Confirm

Edit source name

()?@

1

ABC

2

DEF

3

GHI

4

JKL

5

MNO

6

PQRS

7

-

+

TUV

8

0

WXYZ

9

_ _ _ _ _ _ _ _ _ _ _

Fig.22

No

Confirm?

Yes

MENUS

LANGUAGE

Selects On Screen Display menu language.

INPUTS LIST

In order to make the HT5000 system increasingly flexible, the
functions described below make it possible to modify the inputs
selection menu and adapt it so that it matches the require­ments of the user more closely. The main page displays all the
inputs physically present on the projector.
You can delete any inputs which are not in use. To do this,
select the input in the pull down menu which appears when
you press ◀, and choose whether to activate or deactivate
the input (Fig.23).
The deactivation or activation of the source results in automatic
renumbering of the remaining active inputs.

Active video signal sources (shown in the inputs selection menu)
are distinguished by tick symbols.
It can be useful to identify the input with a user defined name
rather than the type of signal (for example, with the name of
the connected device).
To do this, in the pull down menu select

NAME

and rename the
source.
This makes it easier to remember which source is connected to
a given input; you can use up to 12 alphanumeric characters
for the name (for further details, see

ENTERING TEXT

).

Entering text

The text entry menu in (Fig.24) makes it quick and easy to
enter text.

Fig.24

22

Fig. 23

Text input mode is same whether you are editing an existing
name or entering a name for the first time. Characters can
be inserted in any of the available positions (represented by
horizontal lines). Use the ◀ and ▶ keys to move the cursor left
or right respectively.
Press the number key corresponding to the character; pressing
once selects the first character, twice, the second character
and so on. The available characters are shown in the text insert
menu that appears in this input mode. Once you have ente­red a character, move to the next space on the right to enter
the next with the ▶ key on the remote control, and repeat the
procedure. The same applies if the letter is associated with the
same key as before. Use the ▲ key to switch from upper case
to lower case characters. Cancel errors with ▼ once you have
selected the character in question. Once you have terminated
the text input procedure confirm your text and save it by pres­sing the
modifications, press

MENU+ key on the remote control.

MENU-

on the remote control.

If you wish to cancel the

ht5000

F1-F2 keys

Source list
F1/F2 keys
Source info
OSD Backgroung
OSD Position
OSD Timeout

Language

Menu

English

Zoom
Focus
Magnification
Blank
Gamma correction
Color temperature

F1 F2

The remote control is equipped with two keys (F1 and F2) which
are associated with various different functions.
The screen has six options, one for each line, and two columns
indicating the keys F1-F2. You can select F1 and F2 with the keys
◀ and ▶ on the remote control; select the function to assign
to F1 or F2 with the keys
The function performed by the key is confirmed by the appea­rance of a dot on the corresponding column-row intersection
(Fig 25).
The following menu options are available.

Zoom

Accesses the lens zoom, so that ◀ and ▶ zoom into and out
The FOCUS setting drives the motorized focus to focus the
image; precise focus should enable you to see every pixel in
the image when close to the screen.

Focus

This option enables you to use the ◀ and ▶ keys to focus the
image.

Magnification

Activates the electronic zoom, the keys ◀ and ▶ zoom into the
image. If the key is pressed a second time you will activate
mode in which the ◀ and ▶, ▼ and ▲ keys enable you to pan
over the magnified image.
At the third pression of F1 or F2 key, the system reconfigures the
projector to original visualisation settings.

Blank

Switches off the video signal and displays a black page. As
soon as the key is pressed an OSD indication lasting a few se­conds confirms that the function has been activated. Pressing

▼ and ▲.

any further keys on the remote control restores the previous
conditions.

Color Temperature

Successive pressing F1 or F2 key makes it possible to select
among the available color temperature setting.

Gamma Correction

Successive pressing F1 or F2 key makes it possible to select
from among the available gamma curves.

SOURCE INFORMATION

When active (

YES

) each time the source is changed informa­tion is displayed relative to the signal type. If inactive, (NO) no
information about the source is displayed.

OSD BACKGROUND

Determines the type of background for the On Screen Display
(opaque or transparent).

OSD TIMEOUT

Determines the On Screen Display timeout. The adjustment is
made using the ◀ (decrease) and ▶ (increase) keys within a
6-200 second timeframe.

OSD POSITION

Fig.25

Allows the On Screen Display to be positioned in a particular area
of the projected image. The OSD can be positioned using the
arrow keys for fine adjustments or using keys 1...9 on the remote
control to select one of nine preset positions.

MEMORIES

The main picture parameters can be saved in discrete sets
of values called “

Memories

” so that they can be subsequently
applied as a group using a single command.
There are 6 distinct Memories (Memory 1,2...6) for each of the
14 signal types managed.
The image parameters that can be saved/recalled by the
Memories management system are the following:

PAN

Image Picture

BRIGHTNESS ASPECT
CONTRAST COLOR TEMPERATURE
COLOUR OVERSCAN
TINT GAMMA
SHARPNESS
FILTER
NOISE REDUCTION

23

ht5000

Some of these parameters may not be available for certain

0 Auto

3 S MEMORIA 1

Memories

Save current settings
Save initial settings
Rename

2 I

5 S MEMORY 5

6 S MEMORY 6

4 S MEMORY 4

1 S

inputs or certain input signals.
The menu page for the Memories management functions is
activated by pressing the key on the remote control.
The operations that can be performed on each memory
selected are described here below.

Save memory

To save the image parameter current values in memory 1,
move the cursor to line ‘1’ with the ▼ and ▲ ‚ keys and open
the pull-down menu by pressing the ◀ key (Fig.26). Now select
Save current settings. To confirm the operation, the message
Current settings saved in Memory appears in the botton line.
Memories 2...6 can be saved using the same procedure.

Fig.26

Recalling a memory

To retrieve memories select the required line and press ▶. The
parameters stored in the selected memory will be applied to
the displayed image, while a confirmation message will be
displayed.
The recalled Memory will be associated with the source and
signal type, and will be automatically recalled every time that
particular source and signal type combination is selected.

Restore current values

When you enter the

MEMORIES

menu a copy of the current

settings is saved in a temporary memory (designated by

- AUTO

). Once one or more memories have been recalled, you
can restore the settings that were effective at the moment the
Memories menu was accessed by selecting
Note that this operation must be executed before the

Memory

‘0’(

0 - AUTO)

Memories
menu page disappears (30 seconds after the final operation
with the remote control or keypad). The next time it appears,
in fact, the temporary memory will contain new information
that takes account of any Memories that were selected in the
penultimate access to the ‘

MEMORIES

page.

Memory 0 can be used even when you do not wish to enable
Memories management for the signal in use. Once Memory 0
has been selected, when a source is chosen, the settings that
were effective at the time the Memory was previously recalled
will be automatically applied.

0

.
’

Restore memory to original settings

To restore the original values of a previously modified Memory,
select the line relative to the Memor y in question and open
the corresponding drop-down menu (◀ key). Select the line
‘Save initial settings’.
To confirm the operation, the message ‘Initial settings saved in
Memory 1’ is shown at the bottom of the display and the letter
“I” appears to the left of the memory name.

Rename a memory

All Memories can be named. To assign a name (with a ma­ximum length of 12 alphanumeric characters) to a Memory,
select the option ‘Rename’ from the corresponding pull-down
menu. The text is input in accordance with the method descri­bed in the paragraph

24

ENTERING TEXT

.

ht5000

INFO

Displays the current status of the projector and information
concerning the projected video/graphic signal.
This function is displayed on pressing the key on the remote
control (or, in the absence of the On Screen Display, the ▶ key
on the keypad).

QUICK MENUS

The quick menus provide access to the main adjustments that
affect image quality without calling the main menu.
CONTRAST, COLOUR, TINT, SHARPNESS
the bottom of the screen one after the other when the ▼ and
▲ keys are pressed.

MESSAGES

The following messages could appear on your screen:

No Signal

The system does not recognise any signal applied to the se­lected input. In this case:

•

Make sure the selected input is connected to a video
or graphic signal and that that source is functioning cor­rectly.

•

Check the condition of the cables used to connect the
system to the various sources.

•

Make sure the video or graphic signals supplied by the
source are compatible with the system’s technical spe­cifications and, in particular, with those of the selected
input.

and

FILTER

adjustments appear at

BRIGHTNESS,

Out of range

This message appears when either the resolution or the ver­tical/horizontal frequency of the input signal exceeds system
specifications (when an input is supplied with an incompatible
signal (e.g. after setting the components input to YPrPb 15kHz
a progressive signal is connected).

25

ht5000

9 CLEANING AND MAINTENANCE

The projector does not require internal adjustment. There are
no user serviceable parts inside the projector.
To replace the bulb or any other repairs, contact your local
service centre.

To clean the outer cover of the projector use a soft cloth and
moisten slightly if necessary with water and a small amount of
neutral soap. Do not rub the rear panel markings.

10 TROUBLESHOOTING GUIDE

No power (LEDs always OFF)

• Check that the unit power switch are set to I.

• Check that the power cable is correctly connected to the

unit power sockets.

• Check the condition of the fuse located on the power
socket on the rear of the projector.

• Replace the fuse located on the projector’s power socket with an
identical type (T 5A H).

• If the fuse blows repeatedly, seek technical assistance from
your nearest Dealer.

Lamp fails to switch on

•

If this happens immediately after the last time the unit was
switched off, allow a few minutes between switching off and
switching on again. This will allow the lamp to cool down
sufficiently.
If the lamp fails to illuminate - even though the unit has

•

had time to cool down - seek technical assistance from
your nearest Dealer.
Check the state of the connection by interpreting the

•

code displayed by the system LEDs in accordance with
Fig. 11.

The lens may be cleaned with a very soft, non-abrasive small
brush, in order to remove dust particles. Alternatively, use a soft
dry cleaning cloth (of the type used for camera lens cleaning)
to remove fingerprints and grease marks.

SIM2 RECOMMENDS THAT THE POWDER FILTER IS CLEANED EACH
TIME THE LAMP IN CHANGED.

• Make sure the video or graphic signals supplied by the

source are compatible with the HT5000 system’s technical
specifications and, in particular, with those of the selected
input.

• Check the condition of the cables used to connect the
projector to its input sources.

•

Check the state of the connection by interpreting the code
displayed by the system LEDs.

•

Make sure the cooling air vents on the units are not blocked
and that the ambient temperature is below 35°C.

Image is disturbed, unstable or noisy

Check compatibility of the video or graphic signals with

•

the technical specifications of the system, and specifically,
with the specifications of the selected input.

•

Check all cables.

•

If the problem occurs on a terrestrial broadcast source
signal, check that the receiver has been correctly tuned
in and that the aerial system is in good working order.

•

If the problem occurs in a video signal from a videorecor­der, ensure that the videotape is in good condition

•

Adjust the Sharpness parameter in the
optimise the projected image.


menu to

No image

•

26

Make sure the selected input is connected to a video
or graphic signal and that that source is functioning cor­rectly.

ht5000

Incomplete image along borders (vertical and horizontal)

• Check compatibility of the video or graphic signals with

the technical specifications of the system, and specifically,
with the specifications of the selected input.

•

Recall the automatic image adjustment function by pres­sing the key “A” on the remote control.

•

Adjust the horizontal and vertical position of the image
with the
question).

•

Adjust the width and height of the image, selecting Aspect
in the

•

Adjust the overscan value applied to the image on the
IMAGE / OVERSCAN menu

Image too dark, too pale or unnaturally coloured

Check compatibility of the video or graphic signals with

•

the technical specifications of the system, and specifically,
with the specifications of the selected input.

•

Adjust the
in the

•

If necessary, adjust
(

IMAGE menu).

Graphic image with poor quality vertical detail

• Check compatibility of the video or graphic signals with

the technical specifications of the system, and specifically,
with the specifications of the selected input.

•

Press key “A” on the remote control.

•

Adjust the
to optimize the vertical details of the image (if available
for the input in question).

IMAGE / POSITION

IMAGE ADJUSTMENTS / ASPECT menu

CONTRAST, BRIGHTNESS, COLOUR

PICTURE menu

FREQUENCY

menu (if available for the input in

.

.

.

COLOR TEMPERATURE

and

PHASE

and

settings in the

and

TINT

parameters

GAMMA CORRECTION


menu

Video Image showing colour misalignment on vertical de­tails

• Check compatibility of the video or graphic signals with

the technical specifications of the system, and specifically,
with the specifications of the selected input.

•

Adjust

Y/C DELAY

misalignment.

Remote control does not work

Check remote control battery power and correct polari-

•

ty.

•

Ensure the area between the infrared sensors (on the front
panel of the projector) and the remote control is free from
obstructions.

•

Make sure the infrared sensors on the front and rear of the
projector are not exposed to intense light levels.

settings in the


menu to reduce colour

12 OPTIONAL ACCESSORIES

You can purchase the following optional accessories at your
Dealer:

- Ceiling mount kit

- Lens

A range of lenses are available from our dealers to satisfy
varying installation and projection distance needs. See the
Additional Information chapter for greater details on projection

distance and enlargement ratios.
Always contact our service centre to have the lens replaced.

Use only original or SIM2 Multimedia approved accessories.

Warning: for ceiling/wall installation, by means of suspension
bracket, carefully follow the instructions and safety instruc­tions recommended by the Manufacturer in the bracket’s
literature.

27

ht5000

TECHNICAL SPECIFICATIONS

ELECTRONICS

Input signals:

• COMPOSITE VIDEO (CVBS)
gold plated RCA connectors
1,0 V

• 1 S-VIDEO (Y/C)
4-pole mini-DIN connector
Y: 1.0 Vpp / 75 Ω, negative synchronisation
C: 0.286 V

0.3 V

• 2 COMPONENTS (Y/Pr/Pb/) - RGBS
1 set of 4 RCA connectors
1 set of 5 BNC connectors

- Component signals
Y: 1.0 Vpp / 75 Ω,
Pr,Pb:0.7 Vpp / 75 Ω

- RGB signal
R,B:0.7 Vpp / 75 Ω
G: 0,7 V

1.0 V
Positive or negative TTL, 0.3-5 Vpp / 1 kΩ

• RGBHV (analogue RGB)
female DB15HD connectors
R,B: 0.7 V
G: 0.7 V

1.0 Vpp / 75 Ω,
Positive or negative TTL, 0.3-5 Vpp / 1 kΩ

• 1 DVI (RGB-YPrPb digitale) 1 DVI-D female connector

• 2 HDMI HDCP

• 1 HD-SDI (BNC connector)

Control: Panel (keypad), remote control, via

Horizontal frequency:
Vertical frequency: 48 -100 Hz
Video Standard: automatic selection (PAL

High definition video standard: ATSC HDTV (480p, 720p, 1080I, 1080p)

Graphic standards: VGA, SVGA, XGA, SXGA, UXGA
Colour temperature: from 6500 to 10000 K
Contrast: >5000:1
Lamp: 300W (dimmable 250W)
Outputs: 2 12-V / 120 mA jack connector outputs (1

1 Optical audio output (TOSLINK connector)

pp

/ 75 Ω, negative synchronisation

pp

/ 75 Ω, [ nominal NTSC burst level]

pp

/ 75 Ω [nominal PAL, SECAM burst level]

negative or 3 level synchronisation [HDTV]

pp

/ 75 Ω, HV synchronisation

pp

/ 75 Ω,

negative or 3 level synchronisation [HDTV]

pp

/ 75 Ω

pp

/ 75 Ω, separate H/V Sync or H+V Sync

negative or 3 level synchronisation [HDTV]

RS232 from PC or home automation devices,
USB 1.1, LAN RJ45

from 15 to 80 kHz (up to to UXGA format @ 65 Hz)

B,G,H,I,M,N,60, SECAM, NTSC 3.58
and 4.43)

active with system powered on, 1 active with
16:9 aspect ratio selected)

GENERAL PROJECTOR SPECIFICATIONS

Power cable: (EU, UK and US); 2m length
Power supply: from 100 to 240 V AC, +/-10% tolerance
Frequency: from 48 to 62 Hz
power absorption: 400 W max
Fuse: T 5A H. 5 x 20 mm
Dimensions: 570 x 277 x 720 mm (LxAxP)
Weight (approx): 45 kg
Operating temperature: 10 to 35°C
Shipping temperature: -15 to 55°C
Storage temperature: -15 to 55°C
Humidity: 20% to 95% relative humidity nonconden-

sing
Safety: EN 60950
Portablity: desktop equipment
Compatibility
electromagnetic: EN 55022 Class B
EN 55024
EN 61000-3-2
EN 61000-3-3
Transport: IEC 68-2-31, IEC 68-2-32

28

ht5000

ON SCREEN MENU LAYOUT



Brightness
Contrast
Color
Tint
Sharpness
Filter
Cinema Mode
Best Color

Video • S-Video

[NTSC]

Normal
Anamorphic
Letterbox
Panoramic
Subtitles
Pixel to Pixel
User 1
User 2
User 3

Horizontal
Vertical
Screen control

Brightness
Contrast
Sharpness
Sharpness Mode

Brightness
Contrast
Color
Sharpness
Sharpness Mode

Noise reduction

Aspect
Color Temperature
Gamma Correction

Aspect
Color Temperature
Gamma Correction
Overscan
Position
Y/C Delay

Aspect
Color Temperature
Gamma Correction

Position
Frequency
Phase

Video • S-Video

Component
Ghaphics

Aspect

Overscan

Component
Ghaphics

Screen Control

High
Medium
Low

ST1 EN3 GR1
EN1 EN4 GR2
EN2 EN5 User

1,5 3,0

User

Gamma Correction

HDMI™
DVI
SDI

HDMI™
DVI
SDI

Cinema Mode

Noise reduction

Cinema Mode
Best Color
Noise reduction

Color Temperature

x= 0,282
y= 0.320
T= 8700K

= 0,015

uv

29

ht5000

SETUP

Orientation
Keystone

Projection Lens
Lamp Power
Power On
Test patterns
Initial settings

Floor
Floor-rear
Ceiling
Ceiling-rear

Horizontal
Vertical

Auto
Stand-by

Language
Source list
F1/F2 keys
Source info
OSD background
OSD Position
OSD Timeout

Zoom
Focus
Magnification
Blank
Color temperature
Gamma correction

Yes No

Italiano

English

Français

Español

Deusch

Português
Pycc

K

F1 F2

Active Yes No

Name

Cancel

Confirm

Edit source name

()?@1 ABC2 DEF

3

GHI4 JKL5MNO

6

PQRS

7

-

+

TUV

8

0

WXYZ

9

_ _ _ _ _ _ _ _ _ _ _

Cancel

Confirm

Edit memory name

()?@1 ABC2 DEF

3

GHI4 JKL5MNO

6

PQRS

7

-

+

TUV

8

0

WXYZ

9

_ _ _ _ _ _ _ _ _ _ _

Save current settings
Save initial settings
Rename

MENU

MEMORIES

1 S MEMORIA 1

Memrie

0 Auto

.. S MEMORY 3

Memories

.. S MEMORY 2

1 S MEMORY 1

6 S MEMORY 6

.. S MEMORY 5

.. S MEMORY 4

2 S-VIDEO

5 GRAPHICS RGB

3 COMPONENT

1 VIDEO

1

2

3

5

S-VIDEO

GRAPHICS

COMPONENT

VIDEO

4 COMPONENT

4

COMPONENT

6 GRAPHICS RGB

6

GRAPHICS

7 DVI

7

DVI

9 HDMI

12 HDMI

10 HDMI

8 HDMI

8

9

10

12

HDMI

HDMI

HDMI

HDMI

11 HDMI

11

HDMI

13 HDMI

13

HDMI

14 SDI

14

SDI

Zoom
Focus
Lens shift

N

30

ht5000

DIMENSION 1

(Unit: mm)

31

ht5000

DIMENSION 2

(*)

(*)

VALID MEASUREMENT ONLY
WITH STANDARD LENS

32

ht5000

PROJECTION DISTANCE

Meters

Feet

Lens Type FWA -1* FWA -2* Short Med-Short Med-Long Long

Ratio**

0.67:1 1.11:1 1.39~1.87:1 1.87~2.56:1 2.56~4.16:1 4.16~6.96:1

1.1 - 3.2 3 -15 4 - 24 4 - 24 9.1 - 45 12 - 80

Throw Distance

(meters)

Image Width Fixed Fixed Min Max Min Max Min Max Min Max

meters

1.5 1 2.1 2.8 2.8 3.8 3.8 6.2 6.2 10.4
3 2 3.4 4.2 5.6 5.6 7.7 7.7 12.5 12.5 20.9

4.5 3 5 6.3 8.4 8.4 11.5 11.5 18.7 18.7 31.3
6 6.7 8.3 11.2 11.2 15.4 15.4 25.0 25.0 41.8
9 10 12.5 16.8 16.8 23.0 23.0 37.4 37.4 62.6

10.5 12 14.6 19.6 19.6 24.0 26.9 43.7 43.7 73.1

13.5 15 18.8 24.0 25.2 34.6 34.6 45.0 56.2 80.0

Throw

Distance

Throw

*FWA – Fixed Wide Angle
** Throw Distance/Image Width

Lens Type FWA -1* FWA -2* Short Med-short Med-long Long
Throw

Ratio**

0.67:1 1.12:1 1.39~1.87:1 1.87~2.56:1 2.56~4.16:1 4.16~6.96:1

Throw Distance (feet)

Image Width Fixed Fixed Min Max Min Max Min Max Min Max

feet

5 3.3 5.6 7 9.4 9.4 12.8 12.8 20.8 20.8 34.8

10 6.7 11.2 13.9 18.7 18.7 25.6 25.6 41.6 41.6 69.6
15 10.0 16.8 20.9 28.1 28.1 38.4 38.4 62.4 62.4 104
20 13.4 22.4 27.8 37.4 37.4 51.2 51.2 83.2 83.2 139
30 20.1 33.6 41.7 56.1 56.1 76.8 76.8 125 125 209
35 23.4 39.2 48.7 65.5 65.5 89.6 89.6 146 146 244
45 30.1 50.4 62.6 84.2 84.2 115 115 187 187 262

(min - max)

3.2 - 9.9 9.9 -49 13.1-78.7 13.1-78.7 29.5 -147 39.3 - 262.3

Distance

Throw

(min - max)

(m)

(ft)

33

ht5000

Center= 0

+ 70% H

Screen Height = 1H

- 30% H

Center= 0

+ 30% W

Screen Width = 1W

- 30% W

VERTICAL SHIFT

UP:

- 30% of image height

+70% of image height

DOWN:

HORIZONTAL SHIFT

LEFT:

- 30% of image width

+30% of image width

RIGHT:

VERTICAL - HORIZONTAL SHIFT

34

SIM2 Multimedia S.p.a. Viale Lino Zanussi, 11 33170 Pordenone - ITALY

Phone +39.434.383.253-256 Fax [phone]

www.sim2.com e-mail: [e-mail]

SIM2 USA Inc. 10108 USA Today Way 33025 Miramar FL - USA

Phone [phone] Fax [phone]

www.sim2usa.com e-mail: [e-mail]

SIM2 Deutschland GmbH Frankfurt am Main, ArndStr. 34-36 D-60325

Tel. [phone] Fax. [phone]

www.sim2de.com e-mail: [e-mail]

SIM2 UK LTD

Steinway House Worth Farm,

Little Horsted Nr. Uckfield, East Sussex TN22 5TT

Phone

+44.01825.750850 Fax [phone]

www.sim2.co.uk

• In accordance with the manufacturer’s constant product development programme, product specifications and design are subject to changes without notice.

e-mail: [e-mail]

SIM2 Multimedia is certified

2.4 (05062007)
