SIM2 HT3000E User Manual

<<< user and installation manual

HT3000E

460649000

ht3000e

MENU

SOURCEESC

1 REMOTE CONTROL AND KEYPAD

LIGHT

F1

ZOOM

FOCUS

F2

Backlights the keys on the remote control

BACKLIGHTING

SOURCE

Displays the source selection menu.

BLANK SCREEN

MENU -

Switches on the On Screen Display and

navigates though its pages.

FREEZE

Freezes/unfreezes a moving picture.

ZOOM

Selects lens zoom adjustment.

FOCUS

Sets the lens focus.

AUTO

Automatically optimises the projected image.

Sets the unit to stand-by.

Activates the On Screen
Display menus and allows
navigation though the various

STAND-BY / ON

Sets the panel to stand-by .

KEYS 0-9

Select the sources directly.
Switches on the panel from Standby.

ESCAPE

Deactivates the On Screen Display.

UP/DOWN/LEFT/RIGHT ARROW KEYS

Navigates between the On Screen Display menus and parame­ter settings. Arrow Up/Down call up the quick menus.

MENU +

Switches on the On Screen Display and
navigates between its pages.

MEMORIES

Activates the Memories management menu.

INFO

Displays information about the selected source
and projector status.

FORMAT

Selects the image Aspect ratio.

▲,▼,◀,▶

Navigates between the On Screen Di­splay menus and parameter settings.

Deactivates the On Screen

2

Calls up the
Source Selection menu.

ht3000e

1 INTRODUCTION

FULL HD

1920x1080

The HT3000E projector represents the state of the art in image pro­cessing combined with the innovative DLP™ sytsem and outstanding
optics.

Its range of inputs (1 Composite Video input, 1 S-Video input, 1 Com­ponents or RGB input, 1 graphic RGB input, 2 HDMI™ inputs) allow it to
be connected to a wide range of analogue and digital sources: DVD
players, video recorders, satellite and terrestrial receivers, computers,
video game consoles, camcorders, etc.

Its image processing system allows optimum reproduction of a wide
range of input signals, from interlaced video to high definition and
digital graphics.
Faithful reproduction of signals at higher resolutions (such as high
definition video and graphics) occurs without loss of information or
reduction of image sharpness thanks to the processor’s high pixel rate
signal acquisition capabilities.

CONTENTS

1 INTRODUCTION 3
2 IMPORTANT SAFETY INSTRUCTIONS 5
3 UNPACKING 8
INSTALLATION 9
5 SWITCHING THE PROJECTOR ON AND OFF 11
6 CONNECTIONS 11
7 CONNECTIONS BOARD 13
8 REMOTE CONTROL 15
9 ON SCREEN MENU 16

Different input signal resolutions can be adapted to match the specified
screen resolution without loss of image quality, thanks to a generous
selection of preset aspect ratios, some of which are user definable.

All picture adjustments can be made with the remote control interac­ting with a simple menu-activated On Screen Display; alternatively,
the projector can be controlled by a domestic automation system
via its serial port.

The appliance has been subjected to exhaustive operating tests by
SIM2 to ensure maximum quality.
The projector bulb life should thus initially be around 30-60 hours.
Besides the usual checks, the Quality Control department also runs
additional statistical tests before despatch.
In this instance the packaging may show signs of having been
opened, and the hours operation of the lamp may be higher than
the value required under standard procedures.

10 CLEANING AND MAINTENANCE 27
11 COMMON PROBLEMS 27
12 OPTIONAL ACCESSORIES 28
A - technical specifications 28
B - Structure of the on screen menu 29
C- Dimensions 31
D- Projection distance 32

MANUAL VERSION 1.5 (08-10-2007)

DLP and DMD are registered trademarks of Texas Instruments.

HDMI, the HDMI logo and the expression High-Definition Multimedia Interface
are trade marks or registered marks of HDMI licensing LLC

3

ht3000e

FCC STATEMENT

CLASS B PRODUCT

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules.

This Class B digital apparatus complies with Canadian ICES-003

Cet appareil numrique de la classe B est conforme la norme NMB-003 du Canada.

4

ht3000e

2 IMPORTANT SAFETY INSTRUCTIONS

This symbol indicates the possible electric
shock hazard associated with uninsulated live
components in the interior of the unit.

This symbol indicates the presence of im­portant instructions regarding the use and
maintenance of the product.

CAUTION

To reduce the risk of electric shock, disconnect the power supply cable on the rear panel before removing the top cover of the projector.
For technical assistance refer to trained personnel authorised by the manufacturer.

LAMP WARNING

If the lamp should suddenly burst with a loud bang, air the room thoroughly before using it.
Do not attempt to replace the bulb: contact your local service centre for the replacement.

ENVIRONMENTAL INFORMATION

This product contains materials derived from NATIVE resources during its manufacture. It may contain materials which consti­tute a health and environmental hazard. To prevent noxious materials being released into the environment and to promote
the use of NATIVE materials, SIM2 Multimedia provides the following information regarding the disposal and recyclig of the
product. Electrical and electronic waste materials (WEE) should never be disposed of in normal residential waste disposal
facliities. The label on the product, shown here, indicating a crossed out garbage can, is intended to remind you that the
product requires special handling at the end of its service life.
Materials such as glass, plastic and some chemical compunds are recoverable and can be recycled for reuse. Please
observe the following instructions:

1. When you no longer wish to keep your electrical and electroic equipment, take it to your local waste disposal facil­ity for recycling.

2. You may return your old equipment to your dealer when you buy a new product which is equivalent or has the same
functions as the old one. Call SIM2 Multimedia to find your local dealer.

3. If you need more information regarding recycling, reuse and product exchanges, please contact customer service
on the number given in the manual.

Please read the instructions regarding recycling of the internal and external packaging (including that used for shipping)
with which the product was delivered. With your help, we can reduce the amount of environmental resources consumed
in making electric and electronic equipment, reduce the use of dumps for used equipment and, in general, improve our
quality of life by making sure that hazardous materials are correctly scrapped.

Incorrect treatment of the product at the end of its service life and failure to follows the above disposal instructions are
punishable under local legislation.

Read all chapters of this manual carefully before switching on the projector. This manual provides basic instructions for using the HT3000E
system. Installation, preliinary adjustments and procedures that necessitate the removal of the top cover and contact with electrical com­ponents must be done by authorised, trained technicians. To ensure safe operation and long term reliability use exclusively the power
cables supplied by the manufacturer. Observe all warnings and precautions.

5

ht3000e

PROJECTOR

100-240 Vac

50/60 Hz

HDM

I 1

ESC

SOURCE

5

0

I

HDMI 2

6

1 4

2

3

1

5

6

7

13

+12V

USB 1.1

R/Pr

CONTROL (RS232)

GRAPHICS RGB

C/Y

B/Pb

HV

S-VIDEO

AUDIO OUT

HDMI 1

REMOTE

3

2

S-VIDEO

MENU

ESC

SOURCE

1

4

O

I

HDMI 2

MENU

12

10

9

13

11

16

17

18

14

15

19

20

1 Projection lens.
2 Lens shift knob.
3 Remote control IR sensor on front of unit.
4 Cooling air inlet vents.
5 Adjustable feet.
6 Adjustable carry-handle.
7 Bulb compartment.
8 Fused power socket.
9 Main power switch.
10 Control keypad

• Read this manual carefully and keep it in a safe place

This manual contains important information on how to

• Do not touch internal parts of the units

Inside the cabinet there are electrical parts carrying

• Disconnecting the appliance from the power supply.

The device which disconnects the unit from the mains is

• Use only the specified power supply.

6

for future consultation.

install and use this equipment correctly. Before using the
equipment, read the safety prescriptions and instructions
carefully. Keep the manual for future consultation.

dangerously high voltages and parts operating at high
temperature. Never open the cabinet. Entrust all servicing
and repair work to an authorised Service Centre. Opening
the cabinet voids the warranty.

the power plug. Ensure that the power cable plugs and
the electrical mains socket outlets are easily accessible
during installation operations. Pull the plug, not the cable,
to disconnect the unit from the mains.

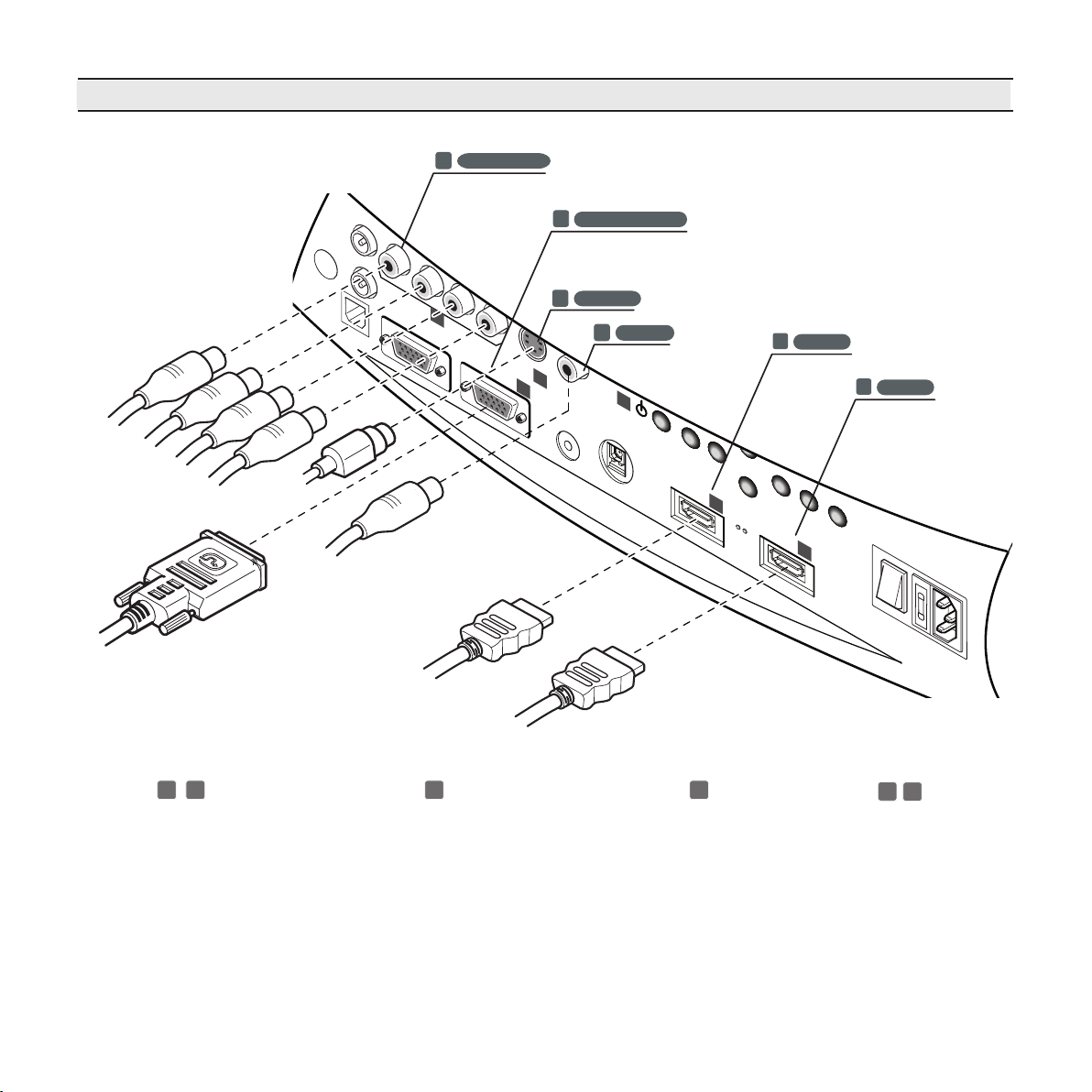

11 Composite video input.
12 S-Video input.
13 RGB / YCrCb input.
14 2 HDMI input
15 Audio output.
16 Remote control input
17 VGA input
18 RS232 serial interface.
19 USB 1.1 interface
20 Motorised screen control outputs.

Connect the units to a mains electrical supply with rated

voltage of between 100-240 VAC, 50/60 Hz and equipped
with a protective earth connection. If you are not sure of
your domestic mains rating, contact an electrician. Take
care to avoid overloading the power socket and any ex­tension leads.

• Connection of the units to the mains power supply.

Connect the unit as shown in Fig. 2.

Fig.2

ht3000e

ESC

SOURCE

0

I

250 V

T 3.15A H

3

4

2

1

HDMI 2

6

• Changing the fuses.

Before changing the fuse disconnect the unit from the

mains power supply.

The fuse compartment is next to the power supply con-

nector (Fig. 3). Remove the fuse holder (2) with a flat head
screwdriver and replace the fuse (3). Fit a new spare fuse
(4). Use only T 5A H fuses.

• Be careful with cables.

Make certain cables are routed so that people will not be

impeded or tripped up.
Keep all cables away from children.
Install the unit as close to the wall socket as possible. Avoid

stepping on power cables, make certain they do not be-

come tangled, and never jerk or tug them; do not expose

them to sources of heat, and make sure they do are not

knotted or crimped. If the power cables become dama-

ged, stop using the system and request the assistance of

an authorised technician.

• Disconnect the unit from the mains power supply in the event

of electrical storms and when not in use.

To prevent damage from lightning strikes in the vicinity,

disconnect the unit during storms or when the sytsem is

going to be left unused for a long time.

• Avoid contact with liquids and exposure to damp.

Do not use the unit near to water (sinks, tubs, etc.); do not

place objects containing liquids on or near to the unit and

do not expose it to rain, humidity, drops of water or sprays;

do not use water or liquid detergent to clean it.

Fig.3

• Do not allow the unit to overheat.

To prevent this, allow a free space of at least 40 cm around

the back of the projector.
Do not block the ventilation slots.
Do not place the unit near to heat sources such as ovens,

radiators or other devices (including amplifiers).
Do not place the unit in a restricted area (shelving units,

bookshelves, etc.) and in general avoid placing it in poorly

ventilated areas as this can lead to overheating.

• Never look directly at the projection lamp.

Never look directly into the lamp when it is on as the inten-

se light can damage your eyes. Take particular care that

children cannot do so.

• Take special care regarding the movements of the

lens.

Do not place objects in the slots on the side of the lens,

and also ensure that the lens’s horizontal and vertical mo-

vements are unimpeded by external objects.

• Position the unit on a stable surface.

Place the projector on a stable surface or use the provided

ceiling mounting bracket.
Never place the projector on its side or rear, lens or top

panel.

• Do not insert objects through the openings in the unit.

Make sure that no objects are inserted inside the units. If this

should occur, disconnect the unit from the power supply

immediately and call an authorised technician.

• Energy savings.

Disconnect the power supply when the projector is not

in use. This will considerably reduce power consumption

and also lengthen the service life of the unit’s electrical

circuitry.

7

ht3000e

1

2

3

4

3 UNPACKING

Instruction manual

Remote Control

1.5 V AAA batteries

Power cable
Europe, UK, US

Projector

Lens shift key

CONTENTS OF PACKAGE

- the projector

- Remote control

- four 1.5V AAA batteries (for remote control)

- three power cables (EU, UK, USA) for the projector

- the user manual.

- Lens shift key

To remove the HT3000E system from its carton follow
the diagrams (Fig. 4).

Keep the carton for use when transporting or ship­ping the unit.

Fig.4

If anything is missing, immediately inform your dealer.

Fig.5

8

ht3000e

ZOOM

ZOOM

ZOOM

ZOOM

F1

FOCUS AUTO ASPECT VCR

HELPZOOM

F2

ZOOM

FOCUS

FOCUS

FOCUS

FOCUS

KEYSTONE

20%

4 INSTALLATION

Position the projector on a stable, suitable platform or utilise the
optional bracket for a fixed ceiling installation.

WARNING: If using the ceiling mount bracket, scrupulously
observe the safety instructions included with the bracket
itself. If using a bracket other than that supplied by SIM2
Multimedia, make sure that the projector is at least 65 mm
below the ceiling and that the bracket does not obstruct the
air vents (intake and outlet).

If the projected image is not level, adjust the feet on its base
to obtain a level position, lining up the base of the projected
image to the base of the projection screen (Fig. 6).

Fig. 7

If this displacement is insufficient, tilt the projector and correct
the keystone error with the Keystone adjustment in the Installa­tion menu (Fig. 8a).

Place the projector at the desired distance from the screen:
the size of the projected image is a function of the distance
between the lens and the screen and the lens zoom setting.
Use the motor zoom (Fig. 7) to zoom the projected image in
and out.
Use the motor focus function (Fig. 7) to obtain a clear image;
if the image is correctly focused, you should be able to see
each single pixel of the projected image when close to the
screen (Fig. 7).

Fig. 6

Fig. 8

The Orientation adjustment in the Set up menu allows you to
reverse the image vertically and horizontally (Fig. 9), to allow
the projector to be used for desktop front, ceiling front, desktop
rear and ceiling rear installations (Fig. 9).

9

ht3000e

Fig. 9

To activate an electric motorised screen a 12 Volt output is
provided at the rear of the projector (Fig. 10).
The output is activated (Voltage: 12 Vdc) when the projector is
switched on and is de-activated (no Voltage output) when the
projector is in stand-by mode.
You can also use black motirised curtains to delimit the screen
when the projected image aspect ratio changes (Fig. 11a). This
option is controlled via the output at the rear of the projector.

screen’s axis.
Prevent ambient light shining directly on the screen during
projection as this will reduce the contrast of the projected
image.
Furniture and other objects with reflecting surfaces, as well as
light coloured walls should be avoided, as they are likely to
interfere with the screen’s characteristics.

Fig. 11a

The manual lens shift adjustment allows the projected image
to be moved vertically, up or down, in relation to the centre of
the screen; the maximum adjustment being equal to half the
height of the image in either direction (Fig. 11b).
Image shift range: 1/3 image.

For rear projection the screen must be translucent.
For front projection, we recommend the use of a screen with
black matt borders to contain the projected image.

Preferably use a unit gain screen; high gain screens are only
effective when used with a small group of viewers close to the

10

Fig. 10

Fig. 11b

ht3000e

5 SWITCHING THE PROJECTOR ON AND OFF

S-VIDEO

AUDIO OUT

HDMI 1

REMOTE

2

S-VIDEO

MENU

ESC

INPUT

1

5

4

0

I

Power Switch:
Position I: On
Position 0: Off

Fused
Power Socket

Power Plug

HDMI 1

ME

NU

ESC

INPUT

5

HDMI 2

6

0

I

232)

GRAPHICS RGB

HV

S-VIDEO

AUDIO OUT

HDMI 1

REMOTE

2

S-VIDEO

MENU

ESC

1

5

4

HDMI 2

6

WARNING: Connect the projector to a power supply with a
nominal voltage within the following values: 100-240 V AC,
50/60 Hz. It must be earthed (Fig. 12).

Fig. 12

In position I the projector will initialise itself (red and green leds
on) and then goes into standby mode (red led on) (Fig. 13).

SWITCH ON FROM STANDBY

With the remote control press one of the keys (Fig. 14):

- 0 to select the last imput selectet after last switching off.

- 1-9 to select the correspondent imput.

With the keypad: press the ON/OFF button.

Fig. 14

When the unit is switched on from standby the lamp switches
on; after a brief period of warming up, the image displays
(blue led on).
If a very short time has passed since the unit was last switched
off, the lamp may not switch on beause it is too hot.
Just wait a few minutes for the lamp to cool down sufficiently.

Note:

At power ON the picture could be displayed with a wrong

Fig. 13

orientation; this is not a fault.

11

ht3000e

Initialisation

Status

Led blue

Led red

Standby

On

Cooling

: O

: On

: Flashing

Error (*)

Logo Backlit

Blue Color

Red Color

O / Blue Color

(*)

Red Color

Red Color

SWITCHING OFF AND RETURNING TO STANDBY

+12V

USB 1.1

R/Cr

RS232

GRAPHICS RGB

C/Y

B/Cb

HV

S-VIDEO

AUDIO OUT

HDMI 1

REMOTE

3

2

S-VIDEO

MENU

ESC

INPUT

1

5

4

75

HDMI 2

6

With the remote control: press .
With the keypad: press .
When switching off, the projector goes into stand-by mode and
stores the input selection at the time of switch-off.
The fans keep running until the lamp cools down (green and

6 CONNECTIONS

red leds on), after which they automatically switch off. Do not
switch off the projector with the power switch until the fans have
stopped running.

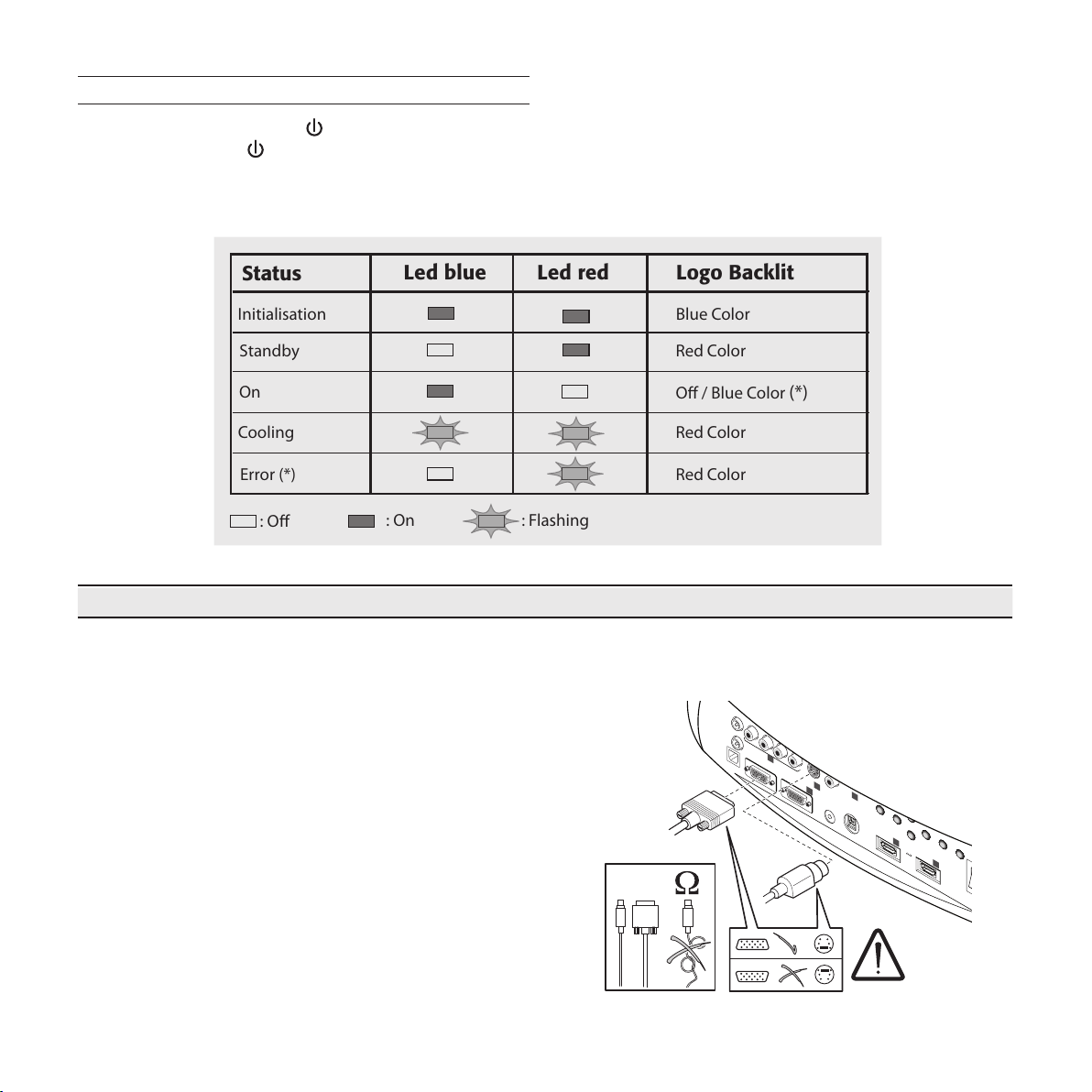

Table 1

To obtain the best performance from your projector, we recom­mend the use of good quality “video cables” to the various
signal sources (75 ohm Impedance).

Poor quality cables will cause inferior picture performance.

For optimum connectivity we recommend you follow these
simple steps:

- With exception of coaxial RCA/Phono type connectors,
always double-check that the plug is inserted the correct
way round to avoid damaging the plugs or the sockets on
the projector (Fig. 15).

- Remove cables by the plug and do not pull on the cable
itself.

- Avoid tangled cables.

12

- Position the cables carefully to avoid a trip hazard - espe­cially in low light areas.

Fig. 15

ht3000e

HT3000E - Connection panel

312

4

5

6

+12V

USB 1.1

R/Pr

CONTROL (RS232)

GRAPHICS RGB

C/Y

B/Pb

HV

S-VIDEO

AUDIO OUT

HDMI 1

REMOTE

3

2

S-VIDEO

MENU

ESC

SOURCE

1

4

O

I

1

VIDEO

GRAPHICS RGB

4

3

RGB - YPrPb

HDMI

5

HDMI

6

5

2

S-VIDEO

HDMI 2

6

Television receiver
DVD player
VCR
Videocamera
Video game console

Television receiver
HDTV receiver
DVD player
VCR

Video game console

Computer

DVD player
HDTV receiver

Fig.16

13

ht3000e

COMPOSITE VIDEO

1

2

3

4

5

6

Fit an RCA connector with a Composite Video (CVBS) signal
to this input.
The output connector on the external appliance is normally
coloured yellow and will often be labelled VIDEO.
Other signal and socket formats may be preferable (because
they give better image quality), but this type of output socket is
still the most commonly used, and nearly all television receivers,
video recorders, DVD players and camcorders, etc. use it.

S-VIDEO

Fit a mini-DIN connector with an S-Video signal to this input.
The corresponding output at the external device is normally
identifiable by the labels S-VIDEO or Y/C.
This type is nearly as common as Composite Video, and is
preferable to the latter, since it gives higher image quality.

RGB/YPrPb

These inputs use a set of 4 RCA connectors.
RGB and Component signals can be applied to each set of
connectors.
RGB signals can have composite synchronisation on the green
signal (RGsB), or on the HV signal.
Connect the R, G, B outputs of the source to the respective R, G,
B inputs of the HT3000E (taking care not to invert the positions)
and any synchronisation signals to the HV.
When hooking up, use the colours of the RCA connectors as
an aid as follows: the R connector is red, G is green, B is blue
and HV is white.
You can use a SCART to RCA adapter cable to connect the
RGB signal from a source equipped with a SCART output to
this input.
The Component signals connect to the Y, Pr and Pb inputs:
take care that the inputs correspond to the outputs on the
source device.
Since these can be labelled differently, refer to Table 1 to
establish the correspondence between the various signals. As
indicated in the table, the colours of the connectors can also
be of help.
Only horizontal scanning frequencies of 15 kHz (standard video
resolution) or 32 kHz (high definition video, with progressive
scanning) can be applied to this input.
Progressive signals usually provide better quality than interlaced
signals, but if the source features both progressive and deinter­laced signal outputs it is good practice to compare the quality

of the pictures reproduced by the HT3000E in the two cases:
the deinterlacing performed by the HT3000E is often more
effective than that performed by the source itself.

GRAPHICS RGB / YPrPb

This input should be connected to an RGB-type or YPrPb-type
video signal using a cable with a DB15HD type connector.
Using RGB-type signal, your source device must be able to
provide separate H/V synchronisation, composite H+V synchro­nisation or composite synchronisation on green (RGsB).
Using YPrPb-type signal, your have to provide Pr signal at red
pin, Y at green and Pb at blue.

HDMI™

HDMI™ (High Definition Multimedia Interface) integrates an
uncompressed high definition video signal with a multichannel
audio signal and allows exchange of control data between the
video source and the HT3000E.
The HDMI input allows connection to video sources that use the
HDCP (High-Bandwidth Digital Content Protection) protocol to
protect their contents.
Once the video source has been connected to the HDMI
input, internal processing by the HT3000E separates the video
information from the audio information. The audio information
is made available on a digital output with a female TOSLINK
connector in compliance with the S/PDIF standard.
You can use a DVI-D > HDMI adapter cable to connect the
DVI-D signal from a source equipped with a DVI-D output.

14

ht3000e

MOTORISED SCREEN OUTPUTS

+12V

USB 1.1

R/Cr

RS232

GRAPHICS RGB

C/Y

B/Cb

HV

S-VIDEO

AUDIO OUT

REMOTE

3

2

S-VIDEO

MENU

1

4

12Volt

120 mA

+

-

+

-

+

-

+

-

+12V

USB 1.1

R/Cr

RS232

GRAPHICS RGB

C/Y

B/Cb

HV

S-VIDEO

AUDIO OUT

HDMI 1

REMOTE

3

2

S-VIDEO

MENU

1

5

4

CONTROL RS 232

CONTROL USB

RS232 INTERFACE CONNECTOR

Fig. 17

The projector is equipped with two outputs (Voltage: 12 Vdc)
for motorised projection screen and screen masking systems,
used for masking off the projection area to match the projected
image aspect ratio (Fig. 17).
The +12V output is activated when the projector is switched
on (blue LED on) and is de-activated when the projector is in
standby mode (red LED on). The output can be set with the
“Screen control” adjustment in the “Aspect” menu. This output
allows reduction in the area of a 16:9 screen, into a 4:3 format,
by activating a horizontal screen masking system.

8 REMOTE CONTROL

The remote control requires four 1.5 V batteries, size AAA.
Insert the batteries, taking care to match the polarity, as indi­cated in the batter y compartment in the handset (Fig. 23).
Change the batteries in the remote control if experiencing
difficulty in sending commands to the projector.
Remove batteries from the remote control if it is not to be used
for a long period of time. The batteries are prone to leak and
corrode the remote control’s circuits.
The remote control sends commands to the projector via
infrared signals.
The projector is equipped with an infrared sensor on its front
panel and can therefore be controlled by pointing the remote

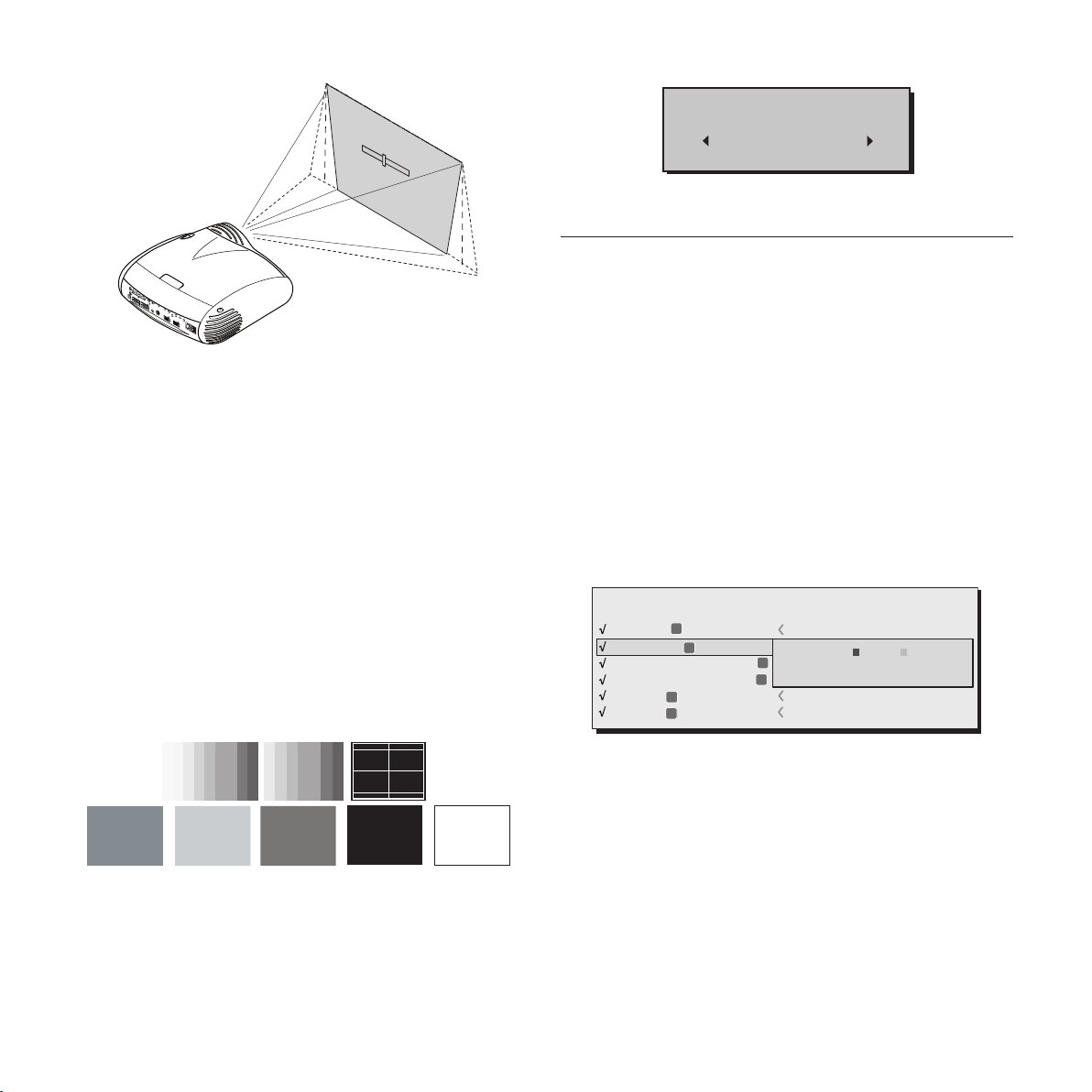

control towards the projection screen; the IR beam reflects off
the screen towards the projector (Fig. 19).
There is another infrared sensor in the rear of projector.

Fig. 18

The projector can be controlled from a PC: simply hookup
the interface connector to a PC’s RS232 serial cable or to a
PC's USB 1.1 cable.

Do not place objects between the remote control and the
receiver on the projector, as this can prevent the remote from
working.

4 batteries

1.5 V
AAA size

Fig. 19

15

ht3000e


Contrast
Color
Tint
Sharpness
Filter
Cinema Mode

50
50
50

3
2

Off Auto

Auto

Noise Reduction

Brightness

60

2 S-VIDEO

4 GRAPHICS RGB/YPrPb

3 COMPONENT / RGBS

1 VIDEO

1

2

3

4

S-VIDEO 3

GRAPH RGB 9

COMP RGB 5

VIDEO 1

5

5

HDMI

HDMI 5

Imputs

ACTIVE

NAME

Yes No

6

6

HDMI

HDMI 6

9 ON SCREEN MENU

Color Temperature
Gamma Correction

Position
Y/C Delay

1

Overscan

1

Aspect


All system functions can be operated from the keypad or
remote control, with the aid of a complete, user-friendly on
screen menu.

INPUTS

The input selection menu is called by pressing 0 on the remote
control or with the keypad SOURCE key. To select an input, scroll
through the list with the ▲ e ▼ keys until the required input is
highlighted, then press ▶.
Display of the input selection menu is terminated by pressing
the
terval (set in the Menu Setup) has elapsed orr after the signal's
recognising.
The inputs can receive RGB and YCrCb signals, at 15 kHz, 32
kHz or higher. The input and type of signal (RGB or YPrPB) are set
in the pull down menu at the right of the symbol < a seguito
della pressione del tasto ◀ (Fig. 20).

HDMI 1-2 input can receive the signals from DVI-D sources.
During the short time it takes to find the signal, a box appears
showing the signal requested. As soon as the signal is shown
in the box additional information is displayed concerning the
video standard (for video signals) or resolution (for graphic
signals), format and the eventual user's memorie.
This informations can be recolled by pressing numerical key
that it corresponds at the selected source.
In the
mation or not; for further information see
the

16

ESC

key or when the On-Screen Menu display timeout in-

SETUP

menu you can select whether to display this infor-

SOURCE INFORMATION

MENU

section of chapter

ADDITIONAL INFORMATION.

Fig.20

in

MAIN MENU

To access the main menu of the On Screen Display press
the

MENU

key on the keypad or the

MENU+

or

MENU-

key on the
remote control.
The main menu is divided into four windows,
SETUP and MENU

, in which the various adjustments are grouped

PICTURE, IMAGE

according to the frequency of use. Use the ▲ and ▼ keys to
select the line corresponding to the adjustment you wish to
make (Fig. 21).

Fig.21

The various menus only offer the relevant adjustments in ac­cordance with the type of input signal displayed (e.g. certain
typical adjustments for video signals, not necessary for graphic
signals, do not appear on the menus, and vice versa).
Some adjustments (e.g.

BRIGHTNESS

and

CONTRAST

) are associated
with a numerical value that can be varied within the set limits
using the ◀ and ▶ keys.
For others (e.g.

VIDEO TYPE

) you can choose between two options
presented on the same line and selectable using the keys ◀
and ▶ Fig.22a/b

.

Fig.22a

,

ht3000e

To access these submenus, press the <, mentre l’uscita ed

Color Temperature
Gamma Correction

Position

Overscan

Y/C Delay

Aspect


1

Normal

Anamorphic
Letterbox
Panoramic
Pixel to pixel

User 1

Subtitle

User 2
User 3

il ritorno al livello superiore avviene con la pressione dei tasti
MENU+/­Press ESC on the remote control or keypad to interrupt the
menu display or wait for it to disappear automatically after
the number of seconds set on the


This menu includes all image adjustment settings. Adjustments
that are not available for a given input do not appear on the
menu. Table 4 summarises the adjustments available for each
input. For a full listing of the menu, refer to paragraph
OF ON SCREEN MENUS

BRIGHTNESS

Use this control to adjust the darker areas of the picture (black
level), without significantly affecting bright areas. Increasing
the value will give more detail in darker parts of the picture. For
correct adjustment it may prove useful to display a grey scale
with at least twenty bands. Now try to reduce the brightness of
the black band as much as possible while ensuring that it can
still be distinguished from the adjacent band with brightness

slightly higher than black. Alternatively use a scene composed
of black objects alongside other dark coloured objects and try
to keep all the objects separately identifiable.

CONTRAST

Use this control to adjust the image’s white level without affecting
its dark areas.
For correct adjustment it may prove useful to display a grey
scale with at least twenty bands. Now try to increase the bri­ghtness of the white band as much as possible while ensuring
that it can still be distinguished from the adjacent band with
brightness slightly less than white. Alternatively use a scene
composed of well-lit white objects surrounded by light objects
with lower level lighting, and try to ensure that all the objects
remain separately identifiable.

COLOUR

This control (also called Saturation) increases or decreases the
picture colour intensity. When set to zero, colour images will be
shown in black and white. Increase the value until the colours
appear NATIVE: suitable references include skin tones and grass
in landscape shots.

TINT

Controls the purity of colours. Basically determines the red-green
ratio of the picture.

key.

in the chapter

SET-UP page

.

STRUCTURE

ADDITIONAL INFORMATION.

Fig.22b

Decreasing the value increases the red content of the image,
increasing it increases the green. For this adjustment use skin
tones or a test card image with colour bars as a reference.

SHARPNESS

This adjustment serves to modulate the signal to increase or
decrease the level of picture detail.
When the sharpness value is reduced the image details ap­pear less pronounced, while increasing the value raises image
definition, making the outline of objects sharper. Note that an
excessively high value may result in a ‘noisy’ picture and the
edges of objects may appear unatively clearly defined.

SHARPNESS MODE

This allows you to select the type of processing associated with
sharpness adjustment. For an interlaced or progressive video
signal, set to

VIDEO

; for PC graphics signals, set to

GRAPHICS

.
Sets the system to receive graphics signals rather than video
signals. If the
increase the clarity of the image. The

VIDEO

option is set, it applies Noise Reduction to

GRAPHICS

option deacti-

vates noise reduction.

FILTER

This allows you to select the mode in which the input signal is
processed. Selecting the most appropriate value for a given
input signal ensures the best horizontal and vertical definition
and makes the picture sharper.

CINEMA MODE

Use this option if the video signal source is a movie film (obtai­ned from a Teleciné device with 3:2 or 2:2 pull-down). In this
case a deinterlace algorithm optimized for this type of signal
is applied. Selecting AUTO mode causes the de-interlacer to
analyse signal characteristics and apply the correct deinterlace
mode automatically. Selecting the NO option causes the de­interlacer to apply a Motion compensated algorithm optimized
for video camera signals.

17

ht3000e

NOISE REDUCTION

Brightness

Contrast

V ideo

S-V ideo

RGBS

YCrCb

RGB Grafico

HDMI™

RGBS 15kHz

YCrCb 15kHz

Adjustments

Inputs

Colour - -

- --

-

-

-

-

- -

-

-

-

-

-

-

T int

Sharpness

Sharpness Mode

Filter

Present only if the V ideo Standard is NTSC

Cinema Mode

V ideo T ype

Noise reduction

-

-

-

-

-

-

- - -

This adjustment serves to select the noise reduction filter value.
In this latter case, simply click on the slider and set the value
with the ◀ and ▶ keys on the remote control.


This menu features adjustments relating to picture position,
aspect ratio, magnification etc.

ASPECT

This adjustment allows you to change the dimensions and
aspect ratio (relationship between width and height) of the
displayed image. There are five preset aspects available and
three personalised aspects (with user-settable parameters). You
can select a different aspect for each source: the selected
aspect ratio will be automatically applied the next time the
relative source is called.
You can also select the required aspect ratio by repeatedly
pressing the key , or by pressing and a numerical key
(1...8).The following aspects are available:

ANAMORPHIC:

LETTERBOX:

correctly displays a 16:9 image.

serves to display a 4:3 letterbox image (with source
signal having black bands above and below the picture) so that
it fills the 16:9 screen and maintains the correct aspect ratio.

PANORAMIC:

widens the 4:3 image and cuts off a strip from the
top and bottom. Panoramic is ideal for displaying a 4:3 image
on the 16:9 screen of the Display.

SUBTITLES:

PIXEL TO PIXEL

raises the image, thus making space for subtitles.

: runs a pixel to pixel mapping of any image, without
adapting to the screen. The image is projected in the centre
of the screen and if its horizontal and/or vertical dimensions
are smaller than the display, it is bounded by vertical and/or
horizontal black bands.

USER 1, 2, 3

: use this option if none of the others are satisfactory.
The User formulas give you the ability to continuously adjust the
picture size horizontally and vertically.

NORMAL:

projects the image occupying the full height of the
screen while maintaining the aspect ratio of the input signal.
When the input signal aspect ratio is 4:3 black vertical bands
are displayed on the right and left of the picture.

18

COLOR TEMPERATURE

Modifies the colour balance of the image.
It is possible to select one of the four presets or to use one of the
USER modes which allow manual adjustment. The four presets
are: HIGH, MEDIUM, LOW and NATIVE.
The first three settings allow selection of the same number of
"standard" temperature colour settings: a low temperature
corresponds to a warmer tone. The NATIVE setting positions the
temperature colour at an imtermediate position between LOW
and MEDIUM, making it possible to have slightly more light on
the image. By opening the relative menu, it is possible to enable
"Ultra Contrast": this functionality enables improved rendering of
darker parts of the images at the expense of a small reduction
in maximum light.
The USER setting, starting with the colour temperature obtained
with the NATIVE setting, enables manual variation of the tem­perature colour coordinates using a special colour correction
algorithm. By moving along the "horizontal" lines, the related
temperature colour varies, with low temperatures in the right
hand part(in which the red component increases) and high
temperatures in the left hand part of the graph (in which the
blue component increases). The temperature colour is constant
along the "vertical" lines but deviates from the black body line to
a greater or lesser extent. The means that by selecting points in
the upper part of the graph, there will be an increase in the

ht3000e

0.8

520

540

560

Infinity

10000

6500

4800

2850

1500

1000

580

590

620

650

450

470

480

0.6

0.4

0.2

0.0

0.2 0.4
X

0.6 0.8

Y

Green

x= 0,307 T= 8700K
y= 0.320

= 0,015

x

y

uv

1. Color Temperature

2. Ultra Contrast

On Off

sising or attenuating the different grades of brightness (blacks,
dark, medium, light grey, whites) in the projected image.
The projector has a range of gamma functions which enable
you to display any image to the best effect for the type of video
source, the ambient lighting and your subjective preferences.
There are 4 sets of gamma curves: Standard (ST), Enhanced
SIM2 (EN) and Graphics (GR), User. The Standard curve has
been defined for general use, and is set for videocameras,
digital cameras, and for viewing films or photos on your PC. The

Table 5 - Gamma correction settings

green component. On the other hand, by selecting the ele­ments in the lower part of the graph, an increase in the purple
component will be obtained. It is possible, as in the previous
case, to enable "Ultra Contrast" from within this menu. 1-2 Keys
allow to select "Ultra Contrast" menu

BEST COLOR

The projector uses the BrilliantColor(TM) algorithm to improve the
colour rendering of images. By enabling this function, the quality
of the image is optimised to the detriment of a moderate loss of
light. With this function disabled, the BrilliantColor(TM) algorithm
makes use of the maximum projector light.

GAMMA CORRECTION

Determines the system’s response to the grey scale, empha-

Blue

Red

Fig. 23

ST1 For general use

ST2

ST3

Standard

ST4

ST5

Gamma functions

EN1 Suited to displaying images from videoca-

EN2 Suited to displaying images from videoca-

Enhanced SIM2

Gamma functions

EN3 Suited to displaying cinematographic material

meras, digital cameras or TV studios in high
ambient light.

meras, digital cameras or TV studios in low
ambient light.

in high ambient.

Fig. 24

EN4 Suited to displaying cinematographic material

EN5 Suited to displaying cinematographic material

G1 Suited to displaying graphic images (e.g. Win-

Gamma

Graphics

G2 Suited to displaying graphic images in mode-

in moderate ambient.

in controlled ambient light.

dows desktop) in moderate ambient light.

rate controlled light.

functions

19

ht3000e

Enhanced set is suitable for watching movies. The Graphics set
is suited to displaying synthetic graphics (PC, CAD, PC presenta­tions, etc.). User enables you to define your own curve. You can
thus select the coefficient which determines the curve.
Values from 1.5 to 2.2 allow you to emphasise the detail of dark
images, but reduce overall contrast. Values higher than 2.2
increase overall contrast, but reduce the detail of dark areas.
For the most common video sources, the overscanning value
can be in the range (no overscanning) to 32 (maximum). The
resulting image always maintains the selected aspect irrespec­tive of the selected overscan value.

POSITION

Use this adjustment to position the image vertically and horizon­tally. Determines the aspect ratio of the projected image.
These parameters do not normally require adjustment because
the system checks the input signal and automatically sets the
most suitable values. However, if the image is not perfectly
centralised it may prove useful to request the system to repeat
the input signal analysis and image positioning, calling the au­tomatic control procedure with button A on the remote control
or the

AUTO

button on the keypad. When this procedure is called
it is helpful to have a while or light coloured background on the
screen in the current picture.

Frequency/phase

These adjustments, available for progressive signals and for si­gnals from a PC, ensure correspondence between the number
of pixels making up the signal and the number of pixels that
make up the projected image.
These parameters do not normally require adjustment because
the system checks the input signal and automatically sets the
most suitable values. If however the image is disturbed (loss of
resolution between equidistant vertical bands or instability and
lack of detail in thin vertical lines) it may help to ask the system
to rerun the input signal analysis and set the best parameters
by calling up the automatic adjustment function with A on the
remote control or
If the automatic procedure fails to have the required effect,
enter the frequency and phase values manually and ap­proach the screen sufficiently to observe the effects of the
adjustments.

OVERSCAN

Eliminates irregularities around the outer borders of the im­age.
Some less accurate sources may produce an image with
uneven borders; thanks to the overscan function these im­perfections can be moved to outside the displayed area. Il
parameter to 2.2, typically yields pleasant, contrasty images.

AUTO

on the keypad.

Y/C DELAY

In the case of Video and S-Video signals, it may be necessary
to correct horizontal colour misalignment within the projected
image. For a given video standard (e.g. PAL or NTSC) the stored
value does not normally require further fine-tuning, unless the
source or connection cable has changed.

SETUP

The setup menu contains less frequently used adjustments that
may be required during installation (e.g. On Screen Display
language selection or the display of Test Patterns).

ORIENTATION

Reverse the image vertically and horizontally to best fit the
installation: i.e. desktop front, ceiling front, desktop rear and
ceiling rear (Fig.25).

Fig.25

VERTICAL KEYSTONE

To get the best image quality, we recommend installing the
image on a surface which is perpendicular to the screen. If
the projected image is not level, adjust the feet on its base
to obtain a level position, lining up the base of the projected
image to the base of the projection screen (Fig.26).

If this adjustment is insufficient to centre the image, tilt the
projector and use the Vertical/horizontal keystone adjustment
to compensate for the resulting distortion.

20

ht3000e

2 S-VIDEO

4 GRAPHICS RGB/YPrPb

3 COMPONENT / RGBS

1 VIDEO

1

2

3

4

S-VIDEO 3

GRAPH RGB 9

COMP RGB 5

VIDEO 1

5

5

HDMI

HDMI 5

Imputs

ACTIVE

NAME

Yes No

6

6

HDMI

HDMI 6

Fig.28

No

Confirm?

Yes

KEYSTONE

20%

MENUS

LANGUAGE

It allow to select the languages available for the On Screen
Display menus.

LAMP POWER

To obtain the greatest picture quality, the LAMP POWER para­meter setting is used to vary the power with which the lamp
is supplied. In this way, besides adjusting the brightness of the
images to your projection conditions (size and type of screen,
environmental brightness), the lamp will have a longer life.

POWER ON

If selected (
projector is connected to the mains power supply.
In STANDBY mode the projector remain in STANDBY mode and
awaits the power-up command from the remote control or
keypad.

TEST PATTERNS

Displays a series of five test patterns, which are useful when
installing the system and checking basic functions. Use the ◀
and ▶ keys to browse through the test patterns (Fig. 27).

INITIAL SETTINGS

Reconfigures the projector to original factory settings except
Position, Orientation, Y/C Delay, Zoom and Focus (Fig. 28).

AUTO

), this option allows the system when the

Fig.26

Fig.27

INPUTS LIST

In order to make the HT3000E system increasingly flexible, the
functions described below make it possible to modify the inputs
selection menu and adapt it so that it matches the require­ments of the user more closely. The main page displays all the
inputs physically present on the projector.
You can delete any inputs which are not in use. To do this,
select the input in the pull down menu which appears when
you press ◀, and choose whether to activate or deactivate
the input (Fig.29).
The deactivation or activation of the source results in automatic
renumbering of the remaining active inputs.

Fig. 29

Active video signal sources (shown in the inputs selection menu)
are distinguished by tick symbols.
It can useful to identify the input with a user defined name
rather than the type of signal (for example, with the name of
the connected device).
To do this, in the pull down menu select

NAME

and rename the
source.
This makes it easier to remember which source is connected to
a given input; you can use up to 12 alphanumeric characters
for the name (for further details, see

ENTERING TEXT

).

21

ht3000e

Cancel

Confirm

Edit source name

()?@

1

ABC

2

DEF

3

GHI

4

JKL

5

MNO

6

PQRS

7

-

+

TUV

8

0

WXYZ

9

_ _ _ _ _ _ _ _ _ _ _

Table 6

Source list
F1/F2 keys
Source info
OSD Backgroung
OSD Position
OSD Timeout

Language

Menu

English

Zoom
Focus
Magnification
Blank
Gamma correction
Color temperature

F1 F2

Position

Aspect

Video

S-Video

RGBS

YCrCb

RGB Grafico

RGBS 15kHz

YCrCb 15kHz

!DJUSTMENTS

)NPUTS

Frequency

-

-

Phase

Gamma Correction

Colour Temperature

Y/C Delay

-

-

-

-

-

-

-

-

Overscan

-

DVI-D

HDMI™

Entering text

The text entry menu in (Fig.30) makes it quick and easy to
enter text.

same key as before. Use the ▲ key to switch from upper case
to lower case characters. Cancel errors with ▼ once you have
selected the character in question. Once you have terminated
the text input procedure confirm your text and save it by pres­sing the
modifications, press

MENU+ key on the remote control.

MENU-

on the remote control.

If you wish to cancel the

F1-F2 keys

The remote control is equipped with two keys (F1 and F2) which
are associated with various different functions.
The screen has six options, one for each line, and two columns
indicating the keys F1-F2. You can select F1 and F2 with the keys
◀ and ▶ on the remote control; select the function to assign
to F1 or F2 with the keys ▼ and ▲.
The function performed by the key is confirmed by the appea­rance of a dot on the corresponding column-row intersection
(Fig 31).
The following menu options are available.

Text input mode is same whether you are editing an existing
name or entering a name for the first time. Characters can
be inserted in any of the available positions (represented by
horizontal lines). Use the ◀ and ▶ keys to move the cursor
leftor right respectively.
Press the number key corresponding to the character; pressing
once selects the first character, twice, the second character
and so on. The available characters are shown in the text insert
menu that appears in this input mode. Once you have ente­red a character, move to the next space on the right to enter
the next with the ▶ key on the remote control, and repeat the
procedure. The same applies if the letter is associated with the

22

Fig.30

Fig.31

Zoom

Accesses the lens zoom, so that ◀ and ▶ zoom into and out
The FOCUS setting drives the motorized focus to focus the
image; precise focus should enable you to see every pixel in
the image when close to the screen.

Focus

This option enables you to use the ◀ and ▶ keys to focus the
image.

Magnification

Activates the electronic zoom, the keys ◀ and ▶ zoom into the
image. If the key is pressed a second time you will activate

PAN
mode in which the ◀ and ▶, ▼ and ▲ keys enable you to pan
over the magnified image.
At the thirr pression of ▼ key, the system reconfigures the
projector to original visualisation settings.

ht3000e

Blank

3 COMP/RGB (YPrPb 15KHz) 3 COMP/RGB (RGB 15KHz)

3 COMP/RGB (YPrPb 32KHz) 3 COMP/RGB (RGB 32KHz)

5 HDMI
6 HDMI

1 VIDEO

4 GRAPHICS RGB/YPrPb

2 S-VIDEO

Switches off the video signal and displays a black page. As
soon as the key is pressed an OSD indication lasting a few se­conds confirms that the function has been activated. Pressing
any further keys on the remote control restores the previous
conditions.

Color Temperature

Clicking the key in question again (F1 / F2) enables you to set
the colour temperature from

HIGH, MEDIUM, LOW, NATIVE and USER

.

Gamma Correction

Successive pressing of the key in question (F1 or F2) makes it
possible to select from among the available gamma curves.

SOURCE INFORMATION

When active (

YES

) each time the source is changed informa­tion is displayed relative to the signal type. If inactive, (NO) no
information about the source is displayed.

OSD BACKGROUND

Determines the type of background for the On Screen Display
(opaque transparent).

OSD TIMEOUT

Determines the On Screen Display timeout. The adjustment is
made using the ◀ (decrease) and ▶ (increase) keys within a
6-200 second timeframe.

OSD POSITION

Allows the On Screen Display to be positioned in a particular
area of the projected image. The OSD can be positioned using
the arrow keys for fine adjustments or keys 1...9 on the remote
control to select one of 9 preset positions.

MEMORIES

The main picture parameters can be saved in discrete sets
of values called “

Memories

” so that they can be subsequently
applied as a group using a single command.
There are 6 distinct Memories (Memory 1, Memory 2, Memory

3) for each of the 8 signal types managed:

making a total of 24 different available Memories.
The image parameters that can be saved/recalled by the
Memories management system are the following:

Image Picture

BRIGHTNESS ASPECT
CONTRAST COLOUR TEMPERATURE
COLOUR OVERSCAN
TINT GAMMA
SHARPNESS
FILTER
NOISE REDUCTION

Some of these parameters may not be available for certain
inputs or certain input signals, as indicated in Tables 4 and 5.
The menu page for the Memories management functions is
activated by pressing the key on the remote control.
The operations that can be performed on each memory se­lected are described here below.

23

ht3000e

232)

GRAPHICS RGB

HV

S-VIDEO

AUDIO OUT

HDMI 1

REMOTE

2

S-VIDEO

MENU

ESC

INPUT

1

5

4

HDMI 2

6

0 Auto

3 S MEMORIA 1

Memories

Save current settings
Save initial settings
Rename

2 I

5 S MEMORY 5

6 S MEMORY 6

4 S MEMORY 4

1 S

the corresponding drop-down menu (◀ key). Select the line
‘Save initial settings’.
To confirm the operation, the message ‘Initial settings saved in
Memory 1’ is shown at the bottom of the display and the letter
“I” appears to the left of the memory name.

Rename a memory

All Memories can be named. To assign a name (with a ma­ximum length of 12 alphanumeric characters) to a Memory,
select the option ‘Rename’ from the corresponding pull-down
menu. The text is input in accordance with the method descri­bed in the heading

TEXT INSERT

.

Save memory

To save the image parameter current values in memory 1,
move the cursor to line ‘1’ with the ▼ and ▲ ‚ keys and open
the pull-down menu by pressing the ◀ key (Fig.33). Now select
Save current settings. To confirm the operation, the message
Current settings saved in Memory.
Memories 2...6 can be saved using the same procedure.

Recalling a memory

To retrieve memories select the required line and press ▶. The
parameters stored in the selected memory will be applied
to the displayed image, while a confirmation message will
be displayed to confirm the operation ‘Memory 1 recalled.’.
The Memory recalled will be associated with the source and
signal type, and will be automatically recalled every time that
particular source and signal type combination is selected.

Restore memory to original settings

To restore the original values of a previously modified Memory,
select the line relative to the Memor y in question and open

24

Fig.32

Restore current values

When you enter the

MEMORIES

menu a copy of the current

settings is saved in a temporary memory (designated by

- AUTO

). Once one or more memories have been recalled, you

0

can restore the settings that were effective at the moment the
Memories menu was accessed by selecting
Note that this operation must be executed before the

Memory

‘0’(

0 - AUTO)

Memories

.

’
menu page disappears (30 seconds after the final operation
with the remote control or keypad). The next time it appears,
in fact, the temporary memory will contain new information
that takes account of any Memories that were selected in the
penultimate access to the

MEMORIES

page.

Memory 0 can be used even when you do not wish to enable
Memories management for the signal in use. Once Memory 0
has been selected, when a source is chosen, the settings that
were effective at the time the Memory was previously recalled
will be automatically applied.

Fig.33

ht3000e

INFO

Displays the current status of the projector and information
concerning the projected video/graphic signal.
This function is displayed on pressing the key on the remote
control (or, in the absence of the On Screen Display, the ▶ key
on the keypad).

QUICK MENUS

The quick menus provide access to the main adjustments that
affect image quality without calling the main menu. Brightness,
CONTRAST, COLOUR, TINT, SHARPNESS
the bottom of the screen one after the other when the ▼ and
▲ keys are pressed.

MESSAGES

The following messages could appear on your screen:

No Signal

The system does not recognise any signal applied to the se­lected input. In this case:

• Make sure the selected input is connected to a video
or graphic signal and that that source is functioning cor­rectly.

• Check the condition of the cables used to connect the
system to the various sources.

• Make sure the video or graphic signals supplied by the
source are compatible with the system’s technical spe­cifications and, in particular, with those of the selected
input.

and

FILTER

adjustments appear at

Out of range

This message appears when either the resolution or the vertical/
horizontal frequency of the input signal exceeds system specifi­cations (e.g. a QXGA graphic signal) or when an input is supplied
with an incompatible signal (e.g. after setting the components
input to YCrCb 15kHz a progressive signal is connected).

25

ht3000e

10 CLEANING AND MAINTENANCE

The projector does not require internal adjustment. There are
no user serviceable parts inside the projector.
To replace the bulb or any other repairs, contact your local
service centre.

To clean the outer cover of the screen use a soft cloth and
moisten slightly if necessary with water and a small amount of
neutral soap. Do not rub the rear panel markings.

11 TROUBLESHOOTING GUIDE

The lens may be cleaned with a very soft, non-abrasive small
brush, in order to remove dust particles. Alternatively, use a soft
dry cleaning cloth (of the type used for camera lens cleaning)
to remove fingerprints and grease marks.

No power (LEDs always OFF)

• Check that the units’ power switches are set to I.

• Check that the power cables are correctly connected to

the units’ power sockets.

• Check the condition of the fuse located on the power
socket on the rear of the projector.

• Replace the fuse located on the projector’s power socket with an
identical type (T 5A H).

• If the fuse blows repeatedly, seek technical assistance from
your nearest Dealer.

Lamp fails to switch on

• If this happens immediately after the last time the unit was
switched off, allow a few minutes between switching off and
switching on again. This will allow the lamp to cool down
sufficiently.

• If the lamp fails to illuminate - even though the unit has
had time to cool down - seek technical assistance from
your nearest Dealer.

• Check the state of the connection by interpreting the code
displayed by the system LEDs in accordance with Table

1.

No image

• Make sure the selected input is connected to a video
or graphic signal and that that source is functioning cor­rectly.

• Make sure the video or graphic signals supplied by the
source are compatible with the HT3000E system’s technical
specifications and, in particular, with those of the selected
input.

• Check theconditionofthe cablesusedtoconnect the

projector to its input sources. • Check the state of the con-
nection by interpreting the code displayed by the system
LEDs.

• Make sure the cooling air vents on the units are not blocked
and that the ambient temperature is below 35°C.

Image is disturbed, unstable or noisy

• Check compatibility of the video or graphic signals with
the technical specifications of the system, and specifically,
with the specifications of the selected input.

• Check all cables.

• If the problem occurs on a terrestrial broadcast source

signal, check that the receiver has been correctly tuned
in and that the aerial system is in good working order.

• If the problem occurs in a video signal from a videorecor­der, ensure that the videotape is in good condition and
that

VCR

mode is active in the

• Adjust the Sharpness parameter in the
optimise the projected image.


menu.


menu to

26

ht3000e

Incomplete image along borders (vertical and horizontal)

• Check compatibility of the video or graphic signals with
the technical specifications of the system, and specifically,
with the specifications of the selected input.

• Recall the automatic image adjustment function by pres­sing the key “A” on the remote control or ◀ on the projector’s
keypad.

• Adjust the horizontal and vertical position of the image
with the
question).

• Adjust the width and height of the image, selecting Aspect
in the

• Adjust the overscan value applied to the image on the
IMAGE / OVERSCAN menu

Image too dark, too pale or unNATIVEly coloured

• Check compatibility of the video or graphic signals with
the technical specifications of the system, and specifically,
with the specifications of the selected input.

• Adjust the
in the

• If necessary, adjust
(

IMAGE menu).

Graphic image with poor quality vertical detail

• Check compatibility of the video or graphic signals with
the technical specifications of the system, and specifically,
with the specifications of the selected input.

• Press key “A” on the remote control or ◀ on the projector’s
keypad to execute automatic adjustments.

IMAGE / POSITION

IMAGE ADJUSTMENTS / ASPECT menu

CONTRAST, BRIGHTNESS, COLOUR

PICTURE menu

menu (if available for the input in

.

.

.

COLOR TEMPERATURE

and

and

TINT

parameters

GAMMA CORRECTION

• Adjust the
to optimize the vertical details of the image(if available for
the input in question).

Video Image showing colour misalignment on vertical de­tails

• Check compatibility of the video or graphic signals with
the technical specifications of the system, and specifically,
with the specifications of the selected input.

• Adjust
misalignment.

Remote control does not work

• Check remote control battery power and correct polari­ty.

• Ensure the area between the infrared sensors (on the front
panel of the projector) and the remote control is free from
obstructions.

• Make sure the infrared sensors on the front and rear of the
projector are not exposed to intense light levels.

FREQUENCY

Y/C DELAY

and

PHASE

settings in the

settings in the


menu to reduce colour


menu

12 OPTIONAL ACCESSORIES

You can purchase the following optional accessories at your
Dealer:

- Ceiling mount kit

- Lens

A range of lenses are available from our dealers to satisfy
varying installation and projection distance needs. See the
Additional Information chapter for greater details on projection

distance and enlargement ratios.
Always contact our service centre to have the lens replaced.

Use only original or SIM2 Multimedia approved accessories.

Warning: for ceiling/wall installation, by means of suspension
bracket, carefully follow the instructions and safety instruc­tions recommended by the Manufacturer in the bracket’s
literature.

27

ht3000e

A TECHNICAL SPECIFICATIONS

ELECTRONICS

Input signals:

 •COMPOSITEVIDEO(CVBS)

gold plated RCA connectors
1,0 Vpp/75Ω,negativesynchronisation

 •1S-VIDEO(Y/C)

4-pole mini-DIN connector
Y: 1.0 Vpp/75Ω,negativesynchronisation
C: 0.286 Vpp/75Ω,[nominalNTSCburstlevel]

0.3 Vpp/75Ω[nominalPAL,SECAMburstlevel]

 •1COMPONENTS(Y/Pr/Pb/)-RGBS

1 set of 4 RCA connectors

- Component signals
Y: 1.0 Vpp/75Ω,
Pr,Pb:0.7 Vpp/75Ω

- RGB signal
R,B:0.7 Vpp/75Ω
G: 0,7 Vpp/75Ω,HVsynchronisation

1.0 Vpp/75Ω,
Positive or negative TTL, 0.3-5 Vpp/1kΩ

 •RGBHV(analogueRGB)

female DB15HD connectors
R,B: 0.7 Vpp/75Ω
G: 0.7 Vpp/75Ω,separateH/VSyncorH+VSync

1.0 Vpp/75Ω,
Positive or negative TTL, 0.3-5 Vpp/1kΩ

•2HDMIHDCP

Control: Panel (keypad), remote control, via

Horizontal frequency: from 15 to 80 kHz (up to to UXGA format @ 65

Vertical frequency: 48 -100 Hz
Video Standard: automatic selection (PAL

High definition video standard.: ATSC HDTV (480p, 720p, 1080i)
Graphic standards: VGA, SVGA, XGA, SXGA, UXGA
Colour temperature: from 6500 to 10000 K (36 steps)

negative or 3 level synchronisation [HDTV]

negative or 3 level synchronisation [HDTV]

negative or 3 level synchronisation [HDTV]

RS232 from PC or home automation devices,
USB 1.1

Hz)

B,G,H,I,M,N,60, SECAM, NTSC 3.58
and 4.43)

GENERAL PROJECTOR SPECIFICATIONS

Power cable: (EU, UK and US); 2m length
Power supply: from 100 to 240 V AC, +/-10% tolerance
Frequency: from 48 to 62 Hz
Power absorption: 300 W max
Fuse: T 5A H. 5 x 20 mm
Dimensions: 435 x 190 x 430 mm (LxAxP)
Weight (approx): 11 kg
Operating temperature: 10 to 35°C
Shipping temperature: -15 to 55°C
Storage temperature: -15 to 55°C
Humidity: 20% to 95% relative humidity nonconden-

sing
Safety: EN 60950
Portablity: desktop equipment
Compatibility
electromagnetic: EN 55022 Class B
EN 55024
EN 61000-3-2
EN 61000-3-3
Transport: IEC 68-2-31, IEC 68-2-32

Outputs: 2 12-V jack connector outputs (1 active with

1 Optical audio output (TOSLINK connector)

Image shift rang: 1/3 image

28

system powered on, 1 active with 16:9 aspect
ratio selected)

ht3000e

B ON SCREEN MENU LAYOUT



Brightness
Contrast
Color
Tint
Sharpness
Filter
Cinema Mode
Best Color

Video • S-Video

[NTSC]

Normal
Anamorphic
Letterbox
Panoramic
Subtitles
Pixel to Pixel
User 1
User 2
User 3

Horizontal
Vertical
Screen control

Brightness
Contrast
Sharpness
Sharpness Mode

Brightness
Contrast
Color
Sharpness
Sharpness Mode

Noise reduction

Aspect
Color Temperature
Gamma Correction

Aspect
Color Temperature
Gamma Correction
Overscan
Position
Y/C Delay

Aspect
Color Temperature
Gamma Correction

Position
Frequency
Phase

Video • S-Video

Component
Ghaphics

Aspect

Overscan

Component
Ghaphics

Screen Control

High
Medium
Low

ST1 EN3 GR1
EN1 EN4 GR2
EN2 EN5 User

1,5 3,0

User

Gamma Correction

HDMI™
DVI
SDI

HDMI™
DVI
SDI

Cinema Mode
Best Color

Noise reduction

Cinema Mode
Best Color

Noise reduction

Color Temperature

x= 0,307 T= 8700K
y= 0.320

= 0,015

x

y

uv

2. Ultra Contrast

On Off

29

ht3000e

SETUP

Orientation
Keystone

Projection Lens
Lamp Power
Power On
Test patterns
Initial settings

Floor
Floor-rear
Ceiling
Ceiling-rear

Horizontal
Vertical

Auto
Stand-by

Language
Source list
F1/F2 keys
Source info
OSD background
OSD Position
OSD Timeout

Zoom
Focus
Magnification
Blank
Color temperature
Gamma correction

Yes No

Italiano

English

Français

Español

Deusch

Português
Pycc

K

F1 F2

Active Yes No

Name

Cancel

Confirm

Edit source name

()?@1 ABC2 DEF

3

GHI4 JKL5MNO

6

PQRS

7

-

+

TUV

8

0

WXYZ

9

_ _ _ _ _ _ _ _ _ _ _

Cancel

Confirm

Edit memory name

()?@1 ABC2 DEF

3

GHI4 JKL5MNO

6

PQRS

7

-

+

TUV

8

0

WXYZ

9

_ _ _ _ _ _ _ _ _ _ _

Save current settings
Save initial settings
Rename

MENU

MEMORIES

1 S MEMORIA 1

Memrie

0 Auto

.. S MEMORY 3

Memories

.. S MEMORY 2

1 S MEMORY 1

6 S MEMORY 6

.. S MEMORY 5

.. S MEMORY 4

2 S-VIDEO

4 GRAPHICS RGB/YPrPb

3 COMPONENT

1 VIDEO

1

2

3

4

S-VIDEO

GRAPHICS

COMPONENT

VIDEO

5 HDMI HDMI
6 HDMI

6

5

HDMI

Zoom
Focus
Lens shift

N

30

ht3000e

C DIMENSIONS

31

ht3000e

D PROJECTION DISTANCE

Min projection distance

16/9

2,3 90”

2,7 107”

3,2 126”

3,6 144”

4,1 162”

4,6 180”

5,0 198”

5,5 215”

6,8 270”

8,2 323”

9,1 360”

11,4 449”

Max projection distance

1,1 44”

1,3 52”

1,6 61”

1,8 70”

2,0 78”

2,2 87”

2,4 96”

2,7 105”

3,3 131”

4,0 157”

4,4 174”

5,5 217”

m in. m in.

m in.

1,7 66”

2,0 79”

2,4 93”

2,7 106”

3,0 119”

3,4 132”

3,7 146”

4,0 159”

5,0 199”

6,0 238”

6,7 265”

8,4 331”

50”

60”

70”

80”

90”

100”

110’

120”

150”

180”

200”

250”

13,7 539”

6,6 261”

10,0 397”

300”

in.

max Lmax L

Screen size
(diagonal)

Screen width

Min projection distance

Max projection distance

Screen size
(diagonal)

Screen width

4/3

3,3 132”

2,8 110”

3,9 153”

4,5 175”

5,0 197”

5,6 219”

6,1 241”

6,7 263”

8,4 329”

10,0 395”

11,1 438”

13,9 548”

1,0 40”

1,2 48”

1,4 56”

1,6 64”

1,8 72”

2,0 80”

2,2 88”

2,4 96”

3,0 120”

3,7 144”

4,1 160”

5,1 200”

m in. m in.

m in.

2,0 81”

2,5 97”

3,3 129”

2,9 113”

3,7 145”

4,1 162”

4,5 178”

4,9 194”

6,1 242”

7,4 291”

8,2 323”

10,3 404”

50”

60”

70”

80”

90”

100”

110’

120”

150”

180”

200”

250”

16,7 658”

6,1 240”

12,3 485”

300”

in .

max Lmax L

32

SIM2 Multimedia S.p.a. •VialeLinoZanussi,11•33170Pordenone-ITALY

Phone+39.434.383.253-256•Fax+39.434.383260-261

www.sim2.com•e-mail:[e-mail]

SIM2 USA Inc. •10108USATodayWay•33025MiramarFL-USA

Phone+1.954.4422999•Fax+1.954.4422998

www.sim2usa.com•e-mail:[e-mail]

SIM2 Deutschland GmbH •Gewerbepark,17D-35606Solms

Phone0800.800.7462•Fax0800.900.7462

www.sim2.com•e-mail:[e-mail]

SIM2 UK LTD

•

Steinway House Worth Farm,

Little Horsted Nr. Uckfield, East Sussex TN22 5TT

Phone

+44.01825.750850 •Fax [phone]

www.sim2.co.uk

•Inaccordancewiththemanufacturer’sconstantproductdevelopmentprogramme,productspecificationsanddesignaresubjecttochangeswithoutnotice.

•e-mail:[e-mail]

SIM2 Multimedia is certified
