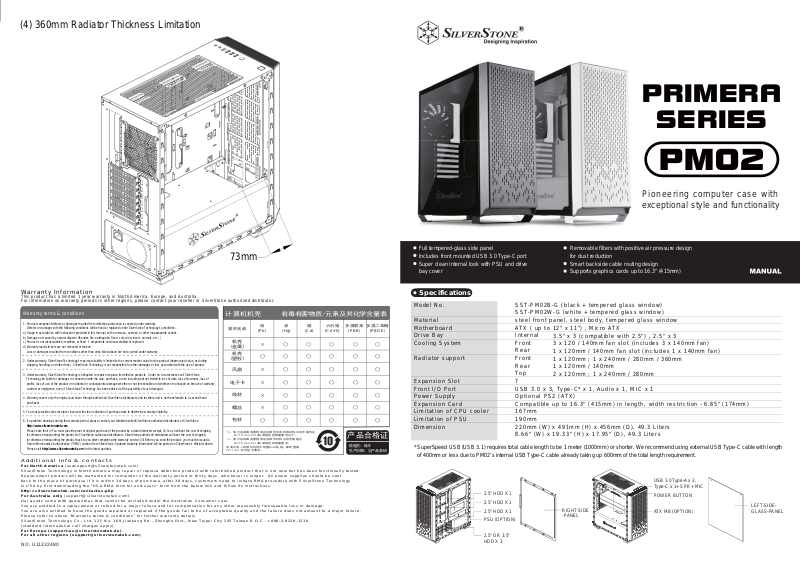

SilverStone SST-PM02B-G User Manual

(4) 360mm Radiator Thickness Limitation

PRIMERA

SERIES

PM02

Pioneering computer case with
exceptional style and functionality

73mm

Warranty Information

This product has a limited 1 year warranty in North America, Europe, and Australia.
For information on warranty periods in other regions, please contact your reseller or SilverStone authorized distributor.

Warranty terms & conditions

1. Product component defects or damages resulted from defective production is covered under warranty.
Defects or damages with the following conditions will be fixed or replaced under SilverStone Technology’s jurisdiction.
a) Usage in accordance with instructions provided in this manual, with no misuse, overuse, or other inappropriate actions.
b) Damage not caused by natural disaster (thunder, fire, earthquake, flood, salt, wind, insect, animals, etc…)
c) Product is not disassembled, modified, or fixed. Components not disassembled or replaced.
d) Warranty mark/stickers are not removed or broken.
Loss or damages resulted from conditions other than ones listed above are not covered under warranty.

2. Under warranty, SilverStone Technology’s maximum liability is limited to the current market value for the product (depreciated value, excluding
shipping, handling, and other fees). SilverStone Technology is not responsible for other damages or loss associated with the use of product.

3. Under warranty, SilverStone Technology is obligated to repair or replace its defective products. Under no circumstances will SilverStone
Technology be liable for damages in connection with the sale, purchase, or use including but not limited to loss of data, loss of business, loss of
profits, loss of use of the product or incidental or consequential damage whether or not foreseeable and whether or not based on breach of warranty,
contract or negligence, even if SilverStone Technology has been advised of the possibility of such damages.

4. Warranty covers only the original purchaser through authorized SilverStone distributors and resellers and is not transferable to a second hand
purchaser.

5. You must provide sales receipt or invoice with clear indication of purchase date to determine warranty eligibility.

6. If a problem develops during the warranty period, please contact your retailer/reseller/SilverStone authorized distributors or SilverStone
http://www.silverstonetek.com.
Please note that: (i) You must provide proof of original purchase of the product by a dated itemized receipt; (ii) You shall bear the cost of shipping
(or otherwise transporting) the product to SilverStone authorized distributors. SilverStone authorized distributors will bear the cost of shipping
(or otherwise transporting) the product back to you after completing the warranty service; (iii) Before you send the product, you must be issued a
Return Merchandise Authorization (“RMA”) number from SilverStone. Updated warranty information will be posted on SilverStone’s official website.
Please visit http://www.silverstonetek.com for the latest updates.

Additional info & contacts

For North America ([e-mail])
SilverStone Technology in North America may repair or replace defective product with refurbished product that is not new but has been functionally tested.
Replacement product will be warranted for remainder of the warranty period or thirty days, whichever is longer. All power supplies should be sent
back to the place of purchase if it is within 30 days of purchase, after 30 days, customers need to initiate RMA procedure with SilverStone Technology
in USA by first downloading the “USA RMA form for end-users” form from the below link and follow its instructions.

http://silverstonetek.com/contactus.php
For Australia only ([e-mail])

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Please refer to above “Warranty terms & conditions” for further warranty details.
SilverStone Technology Co., Ltd. 12F No. 168 Jiankang Rd., Zhonghe Dist., New Taipei City 235 Taiwan R.O.C. + 886-2-8228-1238
(standard international call charges apply)

For Europe ([e-mail])
For all other regions ([e-mail])

NO: G11232480

计算机机壳

部件名称

机壳

（金属）

机壳

（塑胶）

风扇

电子卡

线材

螺丝

包材

○：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T11364-2014标准规定的限量要求以下。
×：表示该有毒有害物质在该部件材料中的含量超出
SJ/T11364-2014标准规定的限量要求。
本表中有×的部件均符合欧盟RoHS法规，即欧盟第
2011/65/EU号指令要求。

铅

(Pb)

×

○○

×

×

×

×

○

有毒有害物质/元素及其化学含量表

汞

(Hg)

○

○

○

○

○

○

(Cd)

○

○

○

○

○

○

○

六价铬

镉

(Cr(VI))

○

○

○

○

○

○

○

(PBB)

○

○

○

○

○

○

○

多溴二苯醚

(PBDE)

○

○

○

○

○

○

○

多溴联苯

产品合格证

检验员：检01
生产日期：见产品条码

Full tempered-glass side panel
Includes front mounted USB 3.0 Type-C port
Super clean internal look with PSU and drive
bay cover

Removable filters with positive air pressure design
for dust reduction
Smart backside cable routing design
Supports graphics cards up to 16.3" (415mm)

Specifications

Model No.

Material
Motherboard
Drive Bay
Cooling System

Radiator support

Expansion Slot
Front I/O Port
Power Supply
Expansion Card
Limitation of CPU cooler
Limitation of PSU
Dimension

* SuperSpeed USB (USB 3.1) requires total cable length to be 1 meter (1000mm) or shorter. We recommend using external USB Type-C cable with length
of 400mm or less due to PM02’s internal USB Type-C cable already taking up 600mm of the total length requirement.

2.5" HDD X 1

2.5" HDD X 1

2.5" HDD X 1
PSU (OPTION)

2.5" OR 3.5"
HDD X 3

SST-PM02B-G (black + tempered glass window)
SST-PM02W-G (white + tempered glass window)
steel front panel, steel body, tempered glass window
ATX ( up to 12" x 11") , Micro ATX
Internal
Front
Rear
Front
Rear
Top

3.5" x 3 (compatible with 2.5") , 2.5" x 3
3 x 120 / 140mm fan slot (includes 3 x 140mm fan)
1 x 120mm / 140mm fan slot (includes 1 x 140mm fan)
1 x 120mm ; 1 x 240mm / 280mm / 360mm
1 x 120mm / 140mm

2 x 120mm ; 1 x 240mm / 280mm
7
USB 3.0 x 3, Type-C* x 1, Audio x 1, MIC x 1
Optional PS2 (ATX)
Compatible up to 16.3" (415mm) in length, width restriction –6.85" (174mm)
167mm
190mm
220mm (W) x 491mm (H) x 456mm (D), 49.3 Liters

8.66" (W) x 19.33" (H) x 17.95" (D), 49.3 Liters

USB 3.0 Type-A x 3,
Type-C x 1+ SPK + MIC

POWER BUTTON

RIGHT-SIDE

-PANEL

ATX MB (OPTION)

LEFT-SIDE­GLASS-PANEL

2.5" / 3.5" Disk Device Installation

(2) Power supply limitation

224.8 mm

Place your hard drive on the tray and secure with included screws. Caution: the secure
with mount of hard drive tray should be place at the same side with your hard drive
connector jack.

Positionieren Sie Ihre Festplatte am Einschub und sichern Sie sie mit den mitgelieferten
Schrauben. Achtung: Die Befestigung des Festplatteneinschubs sollte auf der Seite
erfolgen, auf der sich auch der Festplattenanschluss befindet.

Placez votre disque dur sur le plateau et fixez-le avec les vis fournies. Attention : le
support du plateau de disque dur doit être du même côté que la prise du connecteur
de disque dur.

Coloque su disco duro en la bandeja y fíjelo con los tornillos incluidos. Aviso: el disco
duro montado en la bandeja debería situarse en el mismo lado de su conector para
disco duro.

Collocare il disco rigido nel cassetto e fissarlo utilizzando le viti fornite in dotazione .
Attenzione: la parte con le prese del cassetto contenente il disco rigido deve essere
collocata sullo stesso lato del connettore del disco rigido.

Поместите жесткий диск в лоток и закрепите его винтами из комплекта . Внимание!
Крепление лотка выполняется с той же стороны, где расположен соединительный
разъем для жесткого диска.

將硬碟安裝至硬碟托盤中,並以內附螺絲鎖固後,請注意鎖固硬碟托盤的方向必須與硬碟
連接線接頭一致。

将硬盘安装至硬盘托盘中,并以内附螺丝锁固后,请注意锁固硬盘托盘的方向必须与硬盘
连接线接头一致。

ハードディスクをトレイに置き、付属のネジで固定します。注意：ハードディスクド
ライブトレイは、ハードディスクコネクタジャック と同じ向きに設置してください。

하드 드라이브를 트레이에 올려 놓고 제 공된 나사를 사용하여 고정합니 다. 주의:
하드 드라이브 트레이는 하드 드라이브 커넥터 잭과 동 일한 면에 놓고 장착해야
합니다.

Component size limitations

The PM02 was designed to accommodate oversized components, but we still recommend referring to the following
dimension guidelines:

(1) CPU Cooler limitation

3mm

The PM02 supports power supply with depth of up to 190mm.

Das PM02 unterstützt Netzteile mit einer Tiefe von bis zu 190mm.

Le PM02 est compatible avec les alimentations d'une profondeur inférieure ou égale à
190mm.

La PM02 acepta fuentes de alimentación con una profundidad de hasta 190mm.

PM02 supporta alimentatori con profondità fino a 190mm.

(3) Graphics card / expansion card length limitation

Корпус PM02 допускает установку блока питания глубиной до 190mm.

PM02可支援至長度190mm的PSU。

PM02可支持至长度190mm的PSU。

PM02は最高190mmの奥行きの電源をサポートします。

PM02은 190mm의 깊이를 갖는 파워 서플라이까지 지원합니다.

390mm

167mm

9mm

Height limitation for CPU cooler is 167mm with 29mm clearance over the motherboard’s
top edge.

Höhenbeschränkung für CPU-Kühler 167 mm mit einem Freiraum von 29 mm oberhalb
der Motherboard-Oberkante.

La limitation de hauteur des refroidisseurs de processeurs est 167mm avec un espace
de 29mm au-dessus du bord supérieur de la carte mere.

La limitación de altura para disipadores de CPU es de 167mm con un espacio libre
de 29mm sobre el borde superior de la placa base.

La limitazione dell’altezza del dissipatore di calore CPU è di 167 millimetri con uno
spazio libero di 29mm sopra il bordo superiore della scheda madre.

29mm

Ограничение по высоте для системы охлаждения процессора составляет 167 мм
с 29-мм зазором над верхним краем системной платы.

Cooler限高是167mm,Cooler外緣允許超出主機板上邊界29mm。

Cooler限高是167mm,Cooler外缘允许超出主板上边界29mm。

CPUクーラーの高さ限度は、マザーボード上側の余裕29mmを取って、167mmです。

CPU 쿨러의 높이 제한은 167mm로서 메인보드 상단 가장자리 위로의 허용 오차가
29mm입니다.

167mm

3mm

PM02 can support 16.3" (415mm) long cards, which covers all retail consumer graphics
cards available on the market.

PM02 unterstützt Karten bis 16,3" (415mm). Dies deckt alle auf dem Markt verfügbare
Consumer-Grafikkarten ab.

PM02 peut supporter des cartes de jusqu'à 16,3" (415mm) de long, ce qui couvre toutes
les cartes graphiques disponibles actuellement sur le marché.

La PM02 puede aceptar tarjetas largas de 16,3" (415mm), lo que cubre todas las
tarjetas gráficas para usuario disponibles en el mercado.

PM02 supporta schede lunghe 16,3" (415mm), coprendo tutte le schede grafiche
consumer in vendita al dettaglio disponibili sul mercato.

Корпус PM02 позволяет устанавливать 16,3" (415mm) карты, что покрывает весь
доступный рынок розничной продажи графических карт.

PM02支援到PCIE規格定義的上限16.3" (415mm)顯示卡,市面上零售的消費及顯示卡應該都能
安裝。

PM02支持到PCIE规格定义的上限16.3" (415mm)显示卡,市面上零售的消费及显示卡应该都能
安装。

PM02は16.3" (415mm)長のカードに対応します。これは市場に出回るリテール消費用グラ
フィックスカード全てを網羅します。

PM02는16.3" (415mm)의 긴 카드를 지원할 수 있으며, 이는 시중에 출시된 모든 소매
소비자용 그래픽 카드를 포함합니다.
