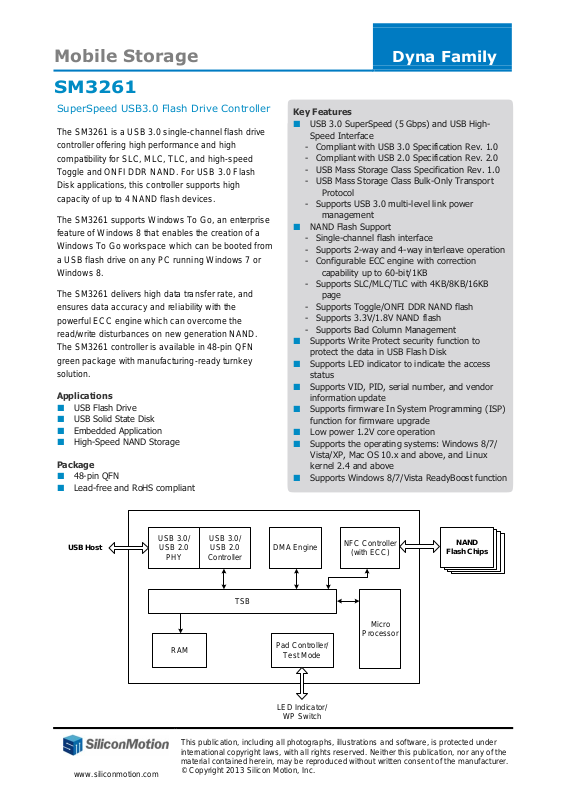

Page 1
Mobile Storage
Dyna Family
www.siliconmotion.com
This publication, including all photographs, illustrations and software, is protected under
international copyright laws, with all rights reserved. Neither this publication, nor any of the
material contained herein, may be reproduced without written consent of the manufacturer.
© Copyright 2013 Silicon Motion, Inc.

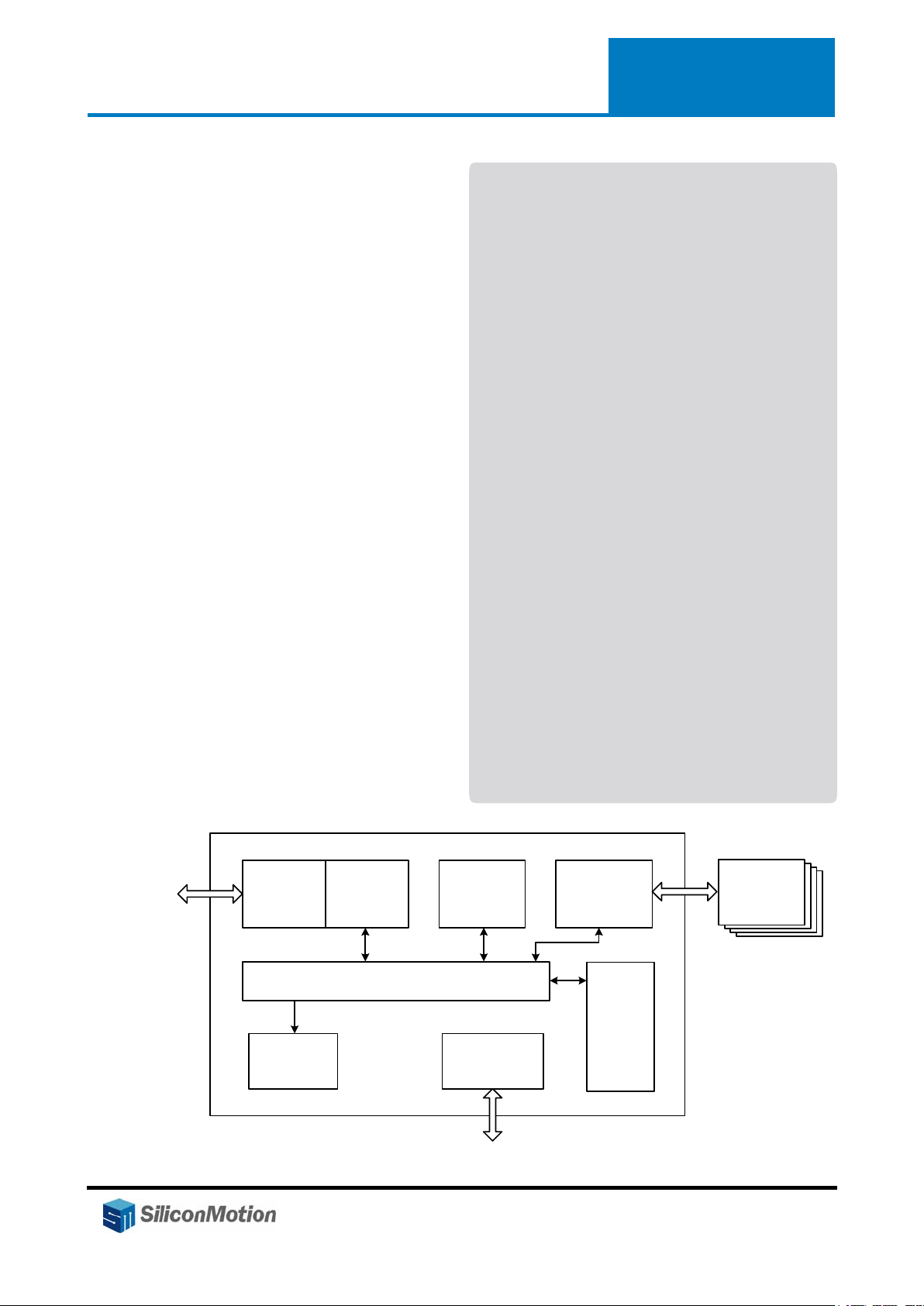

SuperSpeed USB3.0 Flash Drive Controller
USB 3.0/
USB 2.0
PHY
USB 3.0/
USB 2.0
Controller
Micro
Processor
TSB
DMA Engine
NFC Controller
(with ECC)
RAM
Pad Controller/
Test Mode
LED Indicator/
WP Switch
USB Host
NAND
Flash Chips
SM3261
The SM3261 is a USB 3.0 single-channel flash drive
controller offering high performance and high
compatibility for SLC, MLC, TLC, and high-speed
Toggle and ONFI DDR NAND. For USB 3.0 Flash
Disk applications, this controller supports high
capacity of up to 4 NAND flash devices.
The SM3261 supports Windows To Go, an enterprise
feature of Windows 8 that enables the creation of a
Windows To Go workspace which can be booted from
a USB flash drive on any PC running Windows 7 or
Windows 8.
The SM3261 delivers high data transfer rate, and
ensures data accuracy and reliability with the
powerful ECC engine which can overcome the
read/write disturbances on new generation NAND.
The SM3261 controller is available in 48-pin QFN
green package with manufacturing-ready turnkey
solution.
Applications
USB Flash Drive
USB Solid State Disk
Embedded Application
High-Speed NAND Storage
Package
48-pin QFN
Lead-free and RoHS compliant
Key Features
USB 3.0 SuperSpeed (5 Gbps) and USB High-
Speed Interface
- Compliant with USB 3.0 Specification Rev. 1.0
- Compliant with USB 2.0 Specification Rev. 2.0
- USB Mass Storage Class Specification Rev. 1.0
- USB Mass Storage Class Bulk-Only Transport
Protocol
- Supports USB 3.0 multi-level link power
management
NAND Flash Support
- Single-channel flash interface
- Supports 2-way and 4-way interleave operation
- Configurable ECC engine with correction
capability up to 60-bit/1KB
- Supports SLC/MLC/TLC with 4KB/8KB/16KB
page
- Supports Toggle/ONFI DDR NAND flash
- Supports 3.3V/1.8V NAND flash
- Supports Bad Column Management
Supports Write Protect security function to
protect the data in USB Flash Disk
Supports LED indicator to indicate the access
status
Supports VID, PID, serial number, and vendor
information update
Supports firmware In System Programming (ISP)
function for firmware upgrade
Low power 1.2V core operation
Supports the operating systems: Windows 8/7/
Vista/XP, Mac OS 10.x and above, and Linux
kernel 2.4 and above
Supports Windows 8/7/Vista ReadyBoost function
