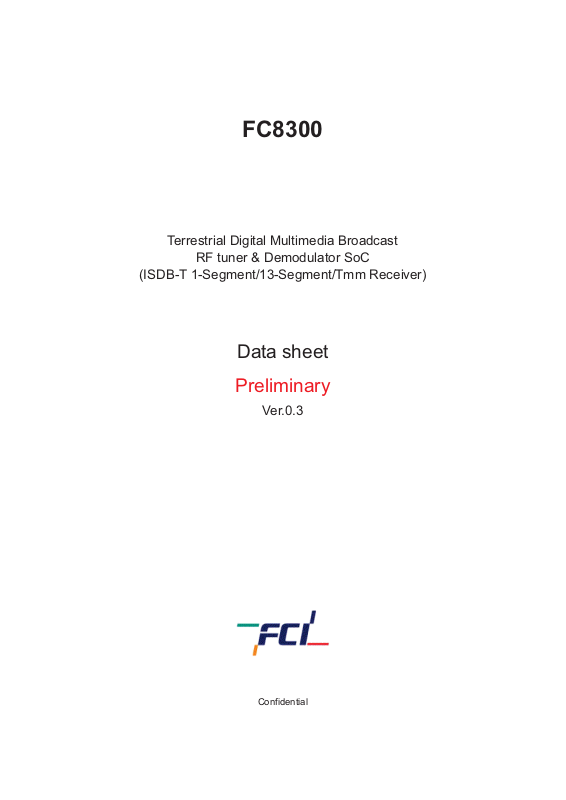

FC8300
Terrestrial Digital Multimedia Broadcast
RF tuner & Demodulator SoC
(ISDB-T 1-Segment/13-Segment/Tmm Receiver)
Data sheet
Preliminary
Ver.0.3
Confidential
Page 2
GG
FC8300
ing
SoC
G
G
Terrestrial Integrated Services Digital Broadcast
RF tuner & Demodulator
Contents
Introduction ....................................................................................................... 6
1.
1.1. General Description ......................................................................................... 6
1.2. Block Diagram ................................................................................................. 6
1.3. Feature ............................................................................................................ 7
1.4. Supported Transmission Parameters ............................................................... 8
2. Package Information ......................................................................................... 9
2.1. WLCSP Package – Top view ........................................................................... 9
2.2. WLCSP Package – Bottom view .................................................................... 10
2.3. BGA Package – Top view(TBD) ..................................................................... 11
2.4. BGA Package – Bottom view(TBD) ................................................................ 12
2.5. Pin Description ............................................................................................. 13
2.6. WLCSP1 Dimension ...................................................................................... 16
2.7. WLCSP 2 Dimension ..................................................................................... 18
2.8. BGA Dimension ............................................................................................. 20
3. Electrical Characteristics ............................................................................... 21
3.1. Absolute Maximum Rating ............................................................................. 21
3.2. Recommended Operating Condition .............................................................. 21
3.3. DC Characteristics ......................................................................................... 22
3.4. Clocks Electrical Characteristics .................................................................... 23
3.5. Electrical Performance ................................................................................... 24
3.6. Power Current ............................................................................................... 26
4. Power Management ........................................................................................ 27
4.1. Power On Sequence ...................................................................................... 27
4.2. Power Off Sequence ...................................................................................... 29
5. Host Interface .................................................................................................. 30
5.1. SPI Interface .................................................................................................. 30
5.2. I2C Interface .................................................................................................. 37
5.3. TSIF .............................................................................................................. 45
5.4. EBI2-LCD Interface ........................................................................................ 52
6. Diversity Application ....................................................................................... 57
6.1. Connection for Diversity ................................................................................. 57
7. Application Schematic .................................................................................... 62
Datasheet 2/64 གྷCopyright 2013 FCI (All Rights Reserved)
Page 3
GG
FC8300
ing
SoC
G
G
Terrestrial Integrated Services Digital Broadcast
7.1. Single Application Schematic (WLCSP) ......................................................... 62
7.2. 2-Diversity Application Schematic (WLCSP) .................................................. 64
RF tuner & Demodulator
Datasheet 3/64 གྷCopyright 2013 FCI (All Rights Reserved)
Page 4
GG
FC8300
ing
SoC
G
G
Terrestrial Integrated Services Digital Broadcast
RF tuner & Demodulator
Figures
Figure 1 WLCSP assignment (Top view) ......................................................................................... 9
Figure 2 WLCSP assignment (Bottom view) ................................................................................. 10
Figure 3. Top View ........................................................................................................................ 16
Figure 4. Bottom View ................................................................................................................... 16
Figure 6. Detail 1 ........................................................................................................................... 16
Figure 7. Detail 2 ........................................................................................................................... 16
Figure 5. Side View ....................................................................................................................... 16
Figure 8. Top View ........................................................................................................................ 18
Figure 9. Bottom View ................................................................................................................... 18
Figure 11. Detail 1 ......................................................................................................................... 18
Figure 12. Detail 2 ......................................................................................................................... 18
Figure 10. Side View ..................................................................................................................... 18
Figure 13. Top View ...................................................................................................................... 20
Figure 14. Bottom View ................................................................................................................. 20
Figure 15. Side View ..................................................................................................................... 20
Figure 16 TS_CLK_DIV = 0 and clock phase = 0 .......................................................................... 49
Figure 17 TS_CLK_DIV = 6 and clock phase = 0 .......................................................................... 50
Figure 18 TS_CLK_DIV = 0 and clock phase = 0 .......................................................................... 51
Figure 19 Single Application Schematic (WLCSP Top View) ......................................................... 62
Datasheet 4/64 གྷCopyright 2013 FCI (All Rights Reserved)
Page 5
GG
FC8300
ing
SoC
Version
Date
Description
Ver.
20
14
Initial
Ver.
2013. 06.04
A3,A4,B5 pin name Updated. 1.2.Block Diagr
D0, ID1 Pin
I/O Description Updated. Electrical Performance
C/N’
Updated.
Ver
2013. 06.12
WLCSP 2
G
G
Terrestrial Integrated Services Digital Broadcast
Revision History
RF tuner & Demodulator
0.1
0.2
. 0.3
13. 05.
release.
am Serial Interface I
‘Minimum input Level’, ‘
, BGA Information Updated.
Datasheet 5/64 གྷCopyright 2013 FCI (All Rights Reserved)
Page 6
GG
FC8300
ing
SoC
G
G
Terrestrial Integrated Services Digital Broadcast
RF tuner & Demodulator
1. Introduction
1.1. General Description
FC8300 is a highly integrated RF and Demodulator chip for receiving digital broadcasts such as ISDB-T 1-
Seg, 3-Seg, ISDB-Tmm, ISDB-T Full Seg, and ISDB-Tsb.
FC8300 is a single-die implementation of FCI’s proprietary RF and demodulator with outstanding in-door and
mobility performances. It provides good sensitivity and immunity to interference with low power consumption
mostly suitable for mobile phone and many other portable devices.

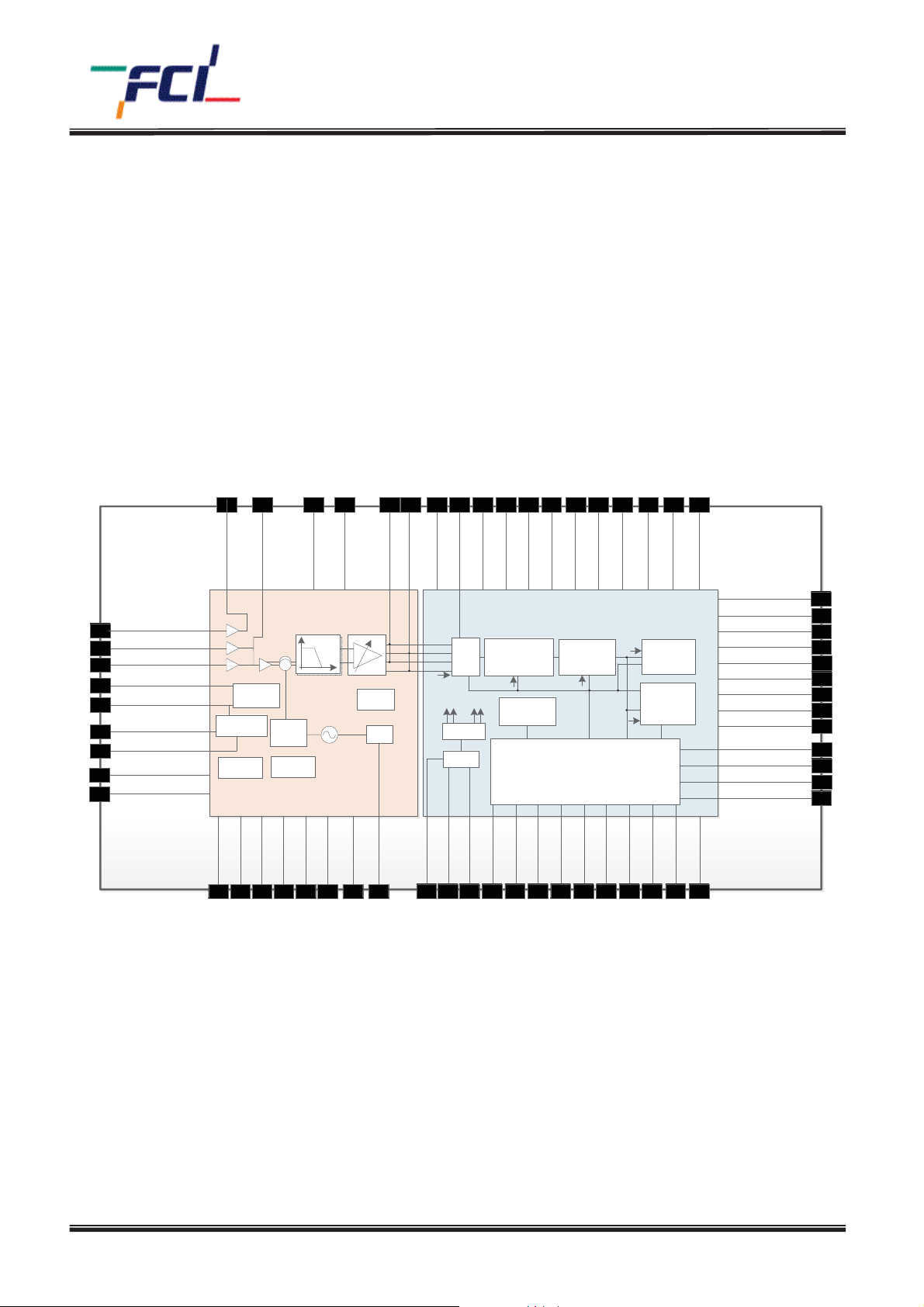

1.2. Block Diagram
WLCSP Block Diagram
B8 C8 D5 C5 H4 G7 A1 H3 A2 E3 H2 F6 F4 G1 D1
UHF_LOAD
UHF_IN
A7
VHF_IN
A6
VHFL_IN
A5
RF_AVDD
D8
RF_DIG_LDO_IN
E8
DIG_LDO_OUT
F8
LDO_EN
G8
AVSS
H7
AVSS
H8
RF_LDO
DIG_LDO
RF AGC
AVSS
AVSS
A8 B6 B7 C6 D6 E7 F7 E6
ATTEN2_IN
X
X
LO
chain
IF AGC
AVSS
AVSS
A3
AVSS
AVSS
A4
AVSS
AVSS
HPI
PLL
CP_OUT
DIG_AVDD
BB_IQ
BB_IQB
BB_I
BB_IB
BB_Q
BB_QB
DVDD
XTAL
DVSS
ADC_VDD
ADC
· · · ·
PLL
DVSS
VDDM
OFDM
Demodulator
I/F Control
Module
DVSS
IRESETB
Channel
Decoder
AP I/F
XI
XO_OUT
XO
G6 H6 H5 E1 B1 F5 B2 D2 E2 C3 C1
DVDD
BDATA7
BDATA6
BDATA5
TMODE
BDATA3
BDATA4
TMODE2
SEL_MODE
Decoder
Buffer
Control
BDATA2
BDATA1
VDDM
RS
BDATA0
C2 G5
F1
DVSS
ID1
DVSS
GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
HOST_INTB
BRDB
BCEB
BWEB
H1
B4
B3
C4
E5
F2
G3
G2
G4
D3
E4
D4
F3
G
Datasheet 6/64 གྷCopyright 2013 FCI (All Rights Reserved)
Page 7
GG
FC8300
ing
SoC
Item
Content
Supported
Broadcast
System
1/13 segment reception of ISDB
1/13 segment reception of ISDB
1/
Supported Channel Bandwidth 6,7 and 8[MHz]
Reception
frequency
VHF
VHF
UHF 470~806MHz
F
Built
Built
Built
Built
Embedded
Supports
Supports
Supports 8 GPIO ports
Interrupt signal output
High-speed channel switching and High-speed channel search available.
Ext
Clock
Support
Recommended Clock(MHz) : 19.2, 24.0, 26.0, 32.0
Interface
Control Path : SPI, I2C, EBI2
Data Path : SPI, TSIF(Serial/Paralle
Power supply
Recommended Supply Voltage :
Size 62
62
62
G
G
Terrestrial Integrated Services Digital Broadcast
1.3. Feature
RF tuner & Demodulator
eatures
Input
3 segment reception of Tsb(B29)
-L 90~108MHz
-H 170~240MHz
-in Inter Carrier Interference Canceller (ICIC).
-in continues controllable FFT window position control circuit.
-in co - channel interference suppressing circuit for Analog TV.
-in Status monitor: C/N, error rate, constellation.
MULTI-2 Descrambler for B-CAS(ARIB-B25)
Diversity Functions(Up to 4 diversity)
AC carrier Demodulation for Emergency Broadcasting
(*1)
ed External Crystal/Osc Clock(MHz) : 16.0 ~ 38.4MHz
-T(B31)
-Tmm(B46)
Core : 1.1V / I/O : 1.8V, 2.5V, 3.3V / RF & LDO : 1.5V ~ 1.8V
-balls WLCSP 1 : 3.4mm × 3.3mm × 0.63(max)
-balls WLCSP 2 : 3.4mm × 3.3mm × 0.38(max)
–balls BGA : 5.0mm × 5.0mm × 0.90(max)
(*1) FC8300 has 8pins which can be used for GPIO function in a particular case
The available number of GPIO interface depends on system construction
Datasheet 7/64 གྷCopyright 2013 FCI (All Rights Reserved)
-LCD
l), EBI2-LCD
Page 8
GG
FC8300
ing
SoC
Item
Parameter
Content
ISDB
(B31)
Segment
Band width[
Transmission mode
Mode1
Mode2
Mode3
Mode1
Mode2
Mode3
Guard interval
Modulation method
Code rate
Time interle
4,8,16
2,4,8
1,2,4
4,8,16
2,4,8
1,2,4
ISDB
(B46)
Segment
Band width[MHz]
Transmission mode
Mode1
Mode2
Mode3
Mode1
Mode2
Mode3
Guard interval
Modulation method
Code rate
Time interleave
4,8,16
2,4,8
1,2,4
4,8,16
2,4,8
1,2,4
ISDB
(B29)
Segment
Band width[MHz]
Transmission mode
Mode1
Mode2
Mode3
Mode1
Mode2
Mode3
Guard interval
Modulation method
Code rate
Time interleave
4,8,16
2,4,8
1,2,4
4,8,16
2,4,8
1,2,4
G
G
Terrestrial Integrated Services Digital Broadcast
1.4. Supported Transmission Parameters
RF tuner & Demodulator
-T
-Tmm
-Tsb
1 13
MHz] 6/7/8 6/7/8
1/4, 1/8, 1/16, 1/32 1/4, 1/8, 1/16, 1/32
QPSK, 16QAM QPSK, 16QAM,64QAM
1/2, 2/3, 3/4, 5/6, 7/8 1/2, 2/3, 3/4, 5/6, 7/8
ave
1 13
6/7/8 6/7/8
1/4, 1/8, 1/16, 1/32 1/4, 1/8, 1/16, 1/32
QPSK, 16QAM QPSK, 16QAM,64QAM
1/2, 2/3, 3/4, 5/6, 7/8 1/2, 2/3, 3/4, 5/6, 7/8
1 3
6/7/8 6/7/8
1/4, 1/8, 1/16, 1/32 1/4, 1/8, 1/16, 1/32
QPSK, 16QAM,64QAM
1/2, 2/3, 3/4, 5/6, 7/8 1/2, 2/3, 3/4, 5/6, 7/8
QPSK, 16QAM,64QAM
Datasheet 8/64 གྷCopyright 2013 FCI (All Rights Reserved)
