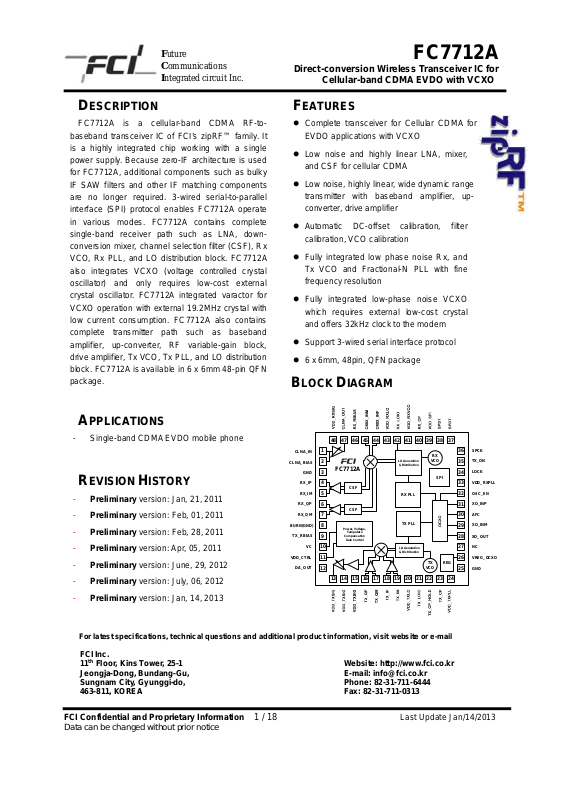

Page 1
Future
Communications
Integrated circuit Inc.
Cellular-band CDMA EVDO with VCXO
Direct-conversion Wireless Transceiver IC for
FC7712A
D
ESCRIPTION
FC7712A is a cellular-band CDMA RF-tobaseband transceiver IC of FCI’s zipRF™ family. It
is a highly integrated chip working with a single
power supply. Because zero-IF architecture is used
for FC7712A, additional components such as bulky
IF SAW filters and other IF matching components
are no longer required. 3-wired serial-to-parallel
interface (SPI) protocol enables FC7712A operate
in various modes. FC7712A contains complete
single-band receiver path such as LNA, downconversion mixer, channel selection filter (CSF), Rx
VCO, Rx PLL, and LO distribution block. FC7712A
also integrates VCXO (voltage controlled crystal
oscillator) and only requires low-cost external
crystal oscillator. FC7712A integrated varactor for
VCXO operation with external 19.2MHz crystal with
low current consumption. FC7712A also contains
complete transmitter path such as baseband
amplifier, up-converter, RF variable-gain block,
drive amplifier, Tx VCO, Tx PLL, and LO distribution
block. FC7712A is available in 6 x 6mm 48-pin QFN
package.
F
EATURES
Complete transceiver for Cellular CDMA for
EVDO applications with VCXO
Low noise and highly linear LNA, mixer,
and CSF for cellular CDMA
Lo w noise, highly linear, wide dynamic range
transmitter with baseband amplifier, upconverter, drive amplifier
Automatic DC-offset calibration, filter
calibration, VCO calibration
Fully integrated low phase noise Rx, and
Tx VCO and Fractional-N PLL with fine
frequency resolution
Fully integrated low-phase noise VCXO
which requires external low-cost crystal
and offers 32kHz clock to the modem
Support 3-wired serial interface protocol
6 x 6mm, 48pin, QFN package

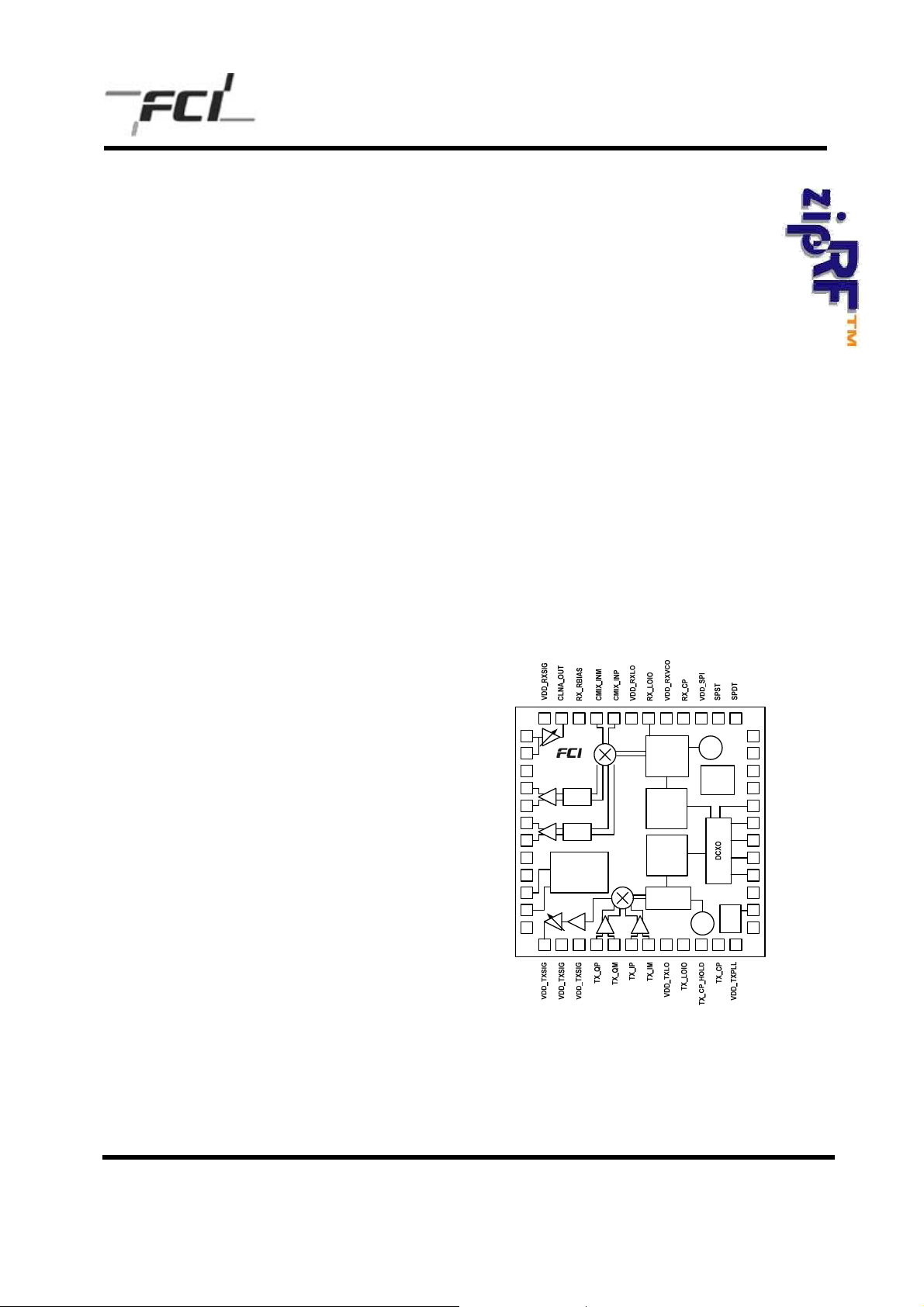

B
LOCK DIAGRAM
A
PPLICATIONS
-
Single-band CDMA EVDO mobile phone
R
EVISION HISTORY
-
Preliminary
-
Preliminary
-
Preliminary
-
Preliminary
-
Preliminary
-
Preliminary
-
Preliminary
version: Jan, 21, 2011
version: Feb, 01, 2011
version: Feb, 28, 2011
version: Apr, 05, 2011
version: June, 29, 2012
version: July, 06, 2012
version: Jan, 14, 2013
48 47 46 45 44 43 42 41 40 39 38 37
1
CLNA_IN
GND
RX_IP
RX_IM
RX_QP
RX_QM
DA_OUT
2
FC7712A
3
4
CSF
5
6
CSF
7
8
Power, Voltage,
Tempature
Compensation
9
VC
Gain Control
10
11
12
13 14 15 16 17 18 19 20 21 22 23 24
CLNA_BIAS
BURN(GND)
TX_RBIAS
VDD_CTRL
LO Generation
& Distribution
RX PLL
TX PLL
LO Generation
& Distribution
For latest specifications, technical questions and additional product information, visit website or e-mail
FCI Inc.
th
Floor, Kins Tower, 25-1 Website: http://www.fci.co.kr
11
Jeongja-Dong, Bundang-Gu, E-mail: [email protected]
Sungnam City, Gyunggi-do, Phone: 82-31-711-6444
463-811, KOREA Fax: 82-31-711-0313
VCO
VCO
SPI
REG
TX
35
34
33
32
31
30
29
28
27
26
25
TX_ON
LOCK
VDD_RXPLL
OSC_EN
XO_INP
AFC
XO_INM
XO_OUT
NC
VREG_DCXO
GND
SPCK
36
RX
FCI Confidential and Proprietary Information 1 / 18 Last Update Jan/14/2013
Data can be changed without prior notice
