RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
RS9116 n-Link™ and WiSeConnect™ Wi-Fi® and Dual-mode Bluetooth® 5
Wireless Connectivity AA1 Module Solution Overview
1.1 Features
Wi-Fi
• Compliant to single-spatial stream IEEE 802.11
b/g/n with single band support
• Support for 20 MHz channel bandwidth
• Transmit power up to +18 dBm with integrated PA
• Receive sensitivity as low as -96 dBm
• Data Rates:- 802.11b: Upto11 Mbps ; 802.11g:
Upto54 Mbps ; 802.11n: MCS0 to MCS7
• Operating Frequency Range:- 2412 MHz – 2484
MHz
Bluetooth
• Transmit power up to +16 dBm with integrated PA
• Receive sensitivity:- LE: -92 dBm, LR 125 Kbps: -
102 dBm
• Compliant to dual-mode Bluetooth 5
• <8 mA transmit current in Bluetooth 5 mode, 2
Mbps data rate
• Data rates: 125 Kbps, 500 Kbps, 1 Mbps, 2Mbps,
3 Mbps
• Operating Frequency Range:- 2.402 GHz - 2.480
GHz
• Bluetooth 2.1 + EDR, Bluetooth Low Energy 4.0 /
4.1 / 4.2 / 5.0
• Bluetooth Low Energy 1 Mbps, 2 Mbps and Long
Range modes
• Bluetooth Low Energy Secure connections
• Bluetooth Low Energy supports central role and
peripheral role concurrently.
• Bluetooth auto rate and auto TX power adaptation
• Scatternet* with two slave roles while still being
visible.
RF Features
• Integrated baseband processor with calibration
memory, RF transceiver, high-power amplifier,
balun and T/R switch
• Integrated Antenna and u.FL connector
• Diversity is supported
Power Consumption
• Wi-Fi Standby Associated mode current: 50uA @
1 second beacon listen interval
• Wi-Fi 1 Mbps Listen current: 14mA
• Wi-Fi LP chain Rx current: 19mA
• Deep sleep current <1uA, Standby current (RAM
retention) < 10uA
Operating Conditions
• Wide operating supply range: 1.75 V to 3.63 V
• Operating temperature: -40ºC to +85ºC (Industrial
grade)
Size
• Small Form Factor: 27 x 16 x 3.1 mm
Evaluation Kit
• Single Band EVK: RS9116X-SB-EVK1
Software Operating Modes
• Hosted mode (n-Link™): Wi-Fi stack, Bluetooth
stack and profiles and all network stacks reside on
the host processor
• Embedded mode (WiSeConnect™): Wi-Fi stack,
TCP/IP stack, IP modules, Bluetooth stack and
some profiles reside in RS9116; Some of the
Bluetooth profiles reside in the host processor
Hosted Mode (n-Link™)
• Available host interfaces: SDIO 2.0 and USB HS
• Application data throughput up to 50 Mbps (Hosted
Mode) in 802.11n with 20MHz bandwidth.
• Host drivers for Linux
• Support for Client mode, Access point mode (Upto
16 clients), Concurrent Client and Access Point
mode, Enterprise Security
• Support for concurrent Wi-Fi, dual-mode
Bluetooth 5
Embedded Mode (WiSeConnect™)
• Available host interface: UART, SPI, SDIO*, and
USB CDC
silabs.com | Building a more connected world. Rev 1.0.7 1 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
* For detailed list of Software features, and available profiles, please refer the Software Reference Manuals, or,
All power and performance numbers are under ideal conditions.
• TCP throughput > 20Mbps over SDIO host
interface with 20 MHz bandwidth
• Support for Embedded Client mode, Access Point
mode (Upto 8 clients), Concurrent Client and
Access Point mode, and Enterprise Security
• Supports advanced security features: WPA/WPA2-
Personal and Enterprise*
• Integrated TCP/IP stack (IPV4/IPV6),
HTTP/HTTPS, DHCP, ICMP, SSL 3.0/TLS1.2,
WebSockets, IGMP, DNS, DNS-SD, SNMP, FTP
Client, MQTT*
• Bluetooth inbuilt stack support for L2CAP,
RFCOMM, SDP, SPP, GAP
• Bluetooth profile support* for GAP, SDP, L2CAP,
RFCOMM, SPP, GATT, PBAP
• Wireless firmware upgrade and provisioning
• Support for concurrent Wi-Fi, dual-mode
Bluetooth 5
Wireless Co-Existence Modes
• Wi-Fi Access Point, Wi-Fi Client
• Wi-Fi Access Point + Wi-Fi Client
• Wi-Fi (Client / AP) + Bluetooth 5
• Wi-Fi (Client / AP) + Bluetooth Low Energy
• Wi-Fi (Client) + Bluetooth 5 + Bluetooth Low
Energy
Security
• Accelerators: AES128/256 in Embeded Mode
• WPA/WPA2-Personal, WPA/WPA2 Enterprise for
Client*
• Secure Firmware upgrade* with backup
Software and Regulatory Certification
• Wi-Fi Alliance*
• Bluetooth Qualification*
• Regulatory certifications (FCC, IC, CE/ETSI,
TELEC)*
Contact Silicon Labs for availability.
1.2 Applications
Wearables:
SmartWatches, Wristbands, Fitness Monitors, Smart Glasses, etc.
SmartHome:
Smart Locks, Motion/Entrance Sensors, Water Leak sensors, Smart plugs /switches, LED lights, Door-bell cameras,
Washers/Dryers, Refrigerators, Thermostats, Consumer Security cameras, Voice Assistants, etc.
Other consumer applications:
Toys, Anti-theft tags, Smart dispensers, Weighing scales, Blood pressure monitors, Blood sugar monitors, Portable
cameras, etc.
Other Applications (Medical, Industrial, Retail, Agricultural, Smart-City, etc.):
Healthcare Tags, Medical patches/pills, Infusion pumps, Sensors/actuators in Manufacturing, Electronic Shelf labels,
Agricultural sensors, Product tracking tags, Smart Meters, Parking sensors, Street LED lighting, Automotive Aftermarket, Security Cameras, etc.
1.3 Description
Silicon Labs' RS9116 single band AA1 module provides a comprehensive multi-protocol wireless connectivity solution
including 802.11 b/g/n (2.4GHz), and dual-mode Bluetooth 5. The modules offers high throughput, extended range
with power-optimized performance. The modules are FCC, IC, and ETSI/CE certified.
silabs.com | Building a more connected world. Rev 1.0.7 2 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
1.4 Block Diagrams
Figure 1 AA1 Module Block Diagram
Figure 2 RS9116 Connectivity Hardware Block Diagram
silabs.com | Building a more connected world. Rev 1.0.7 3 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Part Number
Flash
Package Type
Package Size
Silicon
Firmware
RS9116W-SB00-AA1-X24
Internal
LGA(79)
27 mm x 16 mm x 3.1 mm
1.3
1.2.24
RS9116N-SB00-AA1-X00
Internal
LGA(79)
27 mm x 16 mm x 3.1 mm
1.3
Not Applicable
Figure 3 Hosted Software Architecture Figure 4 Embedded Software Architecture
1.5 Device Information
Type
Rev
Version
silabs.com | Building a more connected world. Rev 1.0.7 4 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Table of Contents
1 Overview ................................................................................................................................................................. 1
1.1 Features ............................................................................................................................................................... 1
1.2 Applications .......................................................................................................................................................... 2
1.3 Description ........................................................................................................................................................... 2
1.4 Block Diagrams .................................................................................................................................................... 3
1.5 Device Information ............................................................................................................................................... 4
2 RS9116 AA1 module Pinout and Pin Description ............................................................................................... 7
2.1 Pin Diagram ......................................................................................................................................................... 7
2.2 Pin Description ..................................................................................................................................................... 8
2.2.1 RF & Control Interfaces .................................................................................................................................................. 8
2.2.2 Power & Ground Pins ..................................................................................................................................................... 8
2.2.3 Host & Peripheral Interfaces ........................................................................................................................................... 9
2.2.4 Miscellaneous Pins ....................................................................................................................................................... 19
3 RS9116 AA1 module Specifications ................................................................................................................... 20
3.1 Absolute Maximum Ratings ............................................................................................................................... 20
3.2 Recommended Operating Conditions ................................................................................................................ 20
3.3 DC Characteristics ............................................................................................................................................. 21
3.3.1 Reset Pin ..................................................................................................................................................................... 21
3.3.2 Power Sequence .......................................................................................................................................................... 22
3.3.3 Digital Input Output Signals .......................................................................................................................................... 26
3.3.4 USB ............................................................................................................................................................................. 26
3.3.5 Pin Capacitances ......................................................................................................................................................... 26
3.4 AC Characteristics ............................................................................................................................................. 26
3.4.1 Clock Specifications ..................................................................................................................................................... 26
3.4.2 SDIO 2.0 Slave ............................................................................................................................................................ 28
3.4.3 SPI Slave ..................................................................................................................................................................... 29
3.4.4 USB ............................................................................................................................................................................. 31
3.4.5 UART ........................................................................................................................................................................... 31
3.4.6 I2C Master and Slave ................................................................................................................................................... 31
3.4.7 I2S/PCM Master and Slave........................................................................................................................................... 33
3.4.8 GPIO pins .................................................................................................................................................................... 34
3.5 RF Characteristics .............................................................................................................................................. 34
3.5.1 WLAN 2.4 GHz Transmitter Characteristics .................................................................................................................. 35
3.5.2 WLAN 2.4 GHz Receiver Characteristics on High-Performance (HP) RF Chain ............................................................. 38
3.5.3 WLAN 2.4 GHz Receiver Characteristics on Low-Power (LP) RF Chain ........................................................................ 40
3.5.4 Bluetooth Transmitter Characteristics on High-Performance (HP) RF Chain .................................................................. 42
3.5.5 Bluetooth Transmitter Characteristics on Low-Power (LP) 0 dBm RF Chain .................................................................. 45
3.5.6 Bluetooth Receiver Characteristics on High-Performance (HP) RF Chain ...................................................................... 46
3.5.7 Bluetooth Receiver Characteristics on Low-Power (LP) RF Chain ................................................................................. 48
3.6 Typical Current Consumption ............................................................................................................................. 51
3.6.1 3.3 V ............................................................................................................................................................................ 51
3.6.2 1.85 V .......................................................................................................................................................................... 53
4 RS9116 AA1 module Detailed Description ........................................................................................................ 56
4.1 Overview ............................................................................................................................................................ 56
4.2 Module Features ................................................................................................................................................ 56
4.2.1 WLAN .......................................................................................................................................................................... 56
4.2.2 Bluetooth ...................................................................................................................................................................... 56
4.2.3 RF Transceiver ............................................................................................................................................................. 58
4.2.4 Host Interfaces ............................................................................................................................................................. 58
4.2.5 Wireless Coexistence Manager .................................................................................................................................... 58
4.2.6 Software ....................................................................................................................................................................... 58
4.2.7 Security ........................................................................................................................................................................ 59
4.2.8 Power Management ..................................................................................................................................................... 59
4.2.9 Low power modes ........................................................................................................................................................ 60
4.2.10 Memory ........................................................................................................................................................................ 61
5 RS9116 AA1 module Reference Schematics, BOM and Layout Guidelines ................................................... 62
5.1 SDIO/SPI/UART ................................................................................................................................................. 62
5.1.1 Schematics .................................................................................................................................................................. 62
5.1.2 Bill of Materials ............................................................................................................................................................. 63
5.2 USB/USB-CDC .................................................................................................................................................. 64
5.2.1 Schematics .................................................................................................................................................................. 64
5.2.2 Bill of Materials ............................................................................................................................................................. 66
5.3 Layout Guidelines .............................................................................................................................................. 67
silabs.com | Building a more connected world. Rev 1.0.7 5 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
6 RS9116 AA1 module Antenna Specifications ................................................................................................... 71
6.1 Overview ............................................................................................................................................................ 71
6.2 PCB Antenna Performance Specifications ......................................................................................................... 71
6.2.1 Return Loss Characteristic of the Antenna .................................................................................................................... 71
6.2.2 Module Reference Orientation ...................................................................................................................................... 71
6.2.3 Gain Plots .................................................................................................................................................................... 72
6.3 Antenna Parameters .......................................................................................................................................... 73
7 RS9116 AA1 module Storage, Handling and Soldering Conditions ................................................................ 74
7.1 Recommended Reflow Profile ............................................................................................................................ 74
7.2 Baking Instructions ............................................................................................................................................. 74
8 RS9116 AA1 module Package Description ........................................................................................................ 75
8.1 Dimensions ........................................................................................................................................................ 75
8.2 Package Outline ................................................................................................................................................. 76
8.2.1 Top View ...................................................................................................................................................................... 76
8.2.2 Side View ..................................................................................................................................................................... 77
8.3 PCB Landing Pattern ......................................................................................................................................... 78
8.3.1 Packing Information of Modules with Package Codes AA1 ............................................................................................ 79
9 RS9116 AA1 module Certification and Ordering Information .......................................................................... 80
9.1 Certification Information ..................................................................................................................................... 80
9.2 Compliance and Certification ............................................................................................................................. 80
9.2.1 Federal Communication Commission Statement ........................................................................................................... 80
9.2.2 Industry Canada / ISED Statement ............................................................................................................................... 81
9.2.3 CE ............................................................................................................................................................................... 82
9.2.4 TELEC ......................................................................................................................................................................... 82
9.2.5 Qualified Antenna Types for M15SB ............................................................................................................................. 82
9.2.6 Module Marking Information ......................................................................................................................................... 83
9.3 Module Package ................................................................................................................................................ 84
9.4 Ordering Information .......................................................................................................................................... 84
9.4.1 Device Nomenclature ................................................................................................................................................... 84
10 RS9116 AA1 module Documentation and Support ....................................................................................... 85
11 RS9116 AA1 module Revision History ........................................................................................................... 86
silabs.com | Building a more connected world. Rev 1.0.7 6 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
2 RS9116 AA1 module Pinout and Pin Description
2.1 Pin Diagram

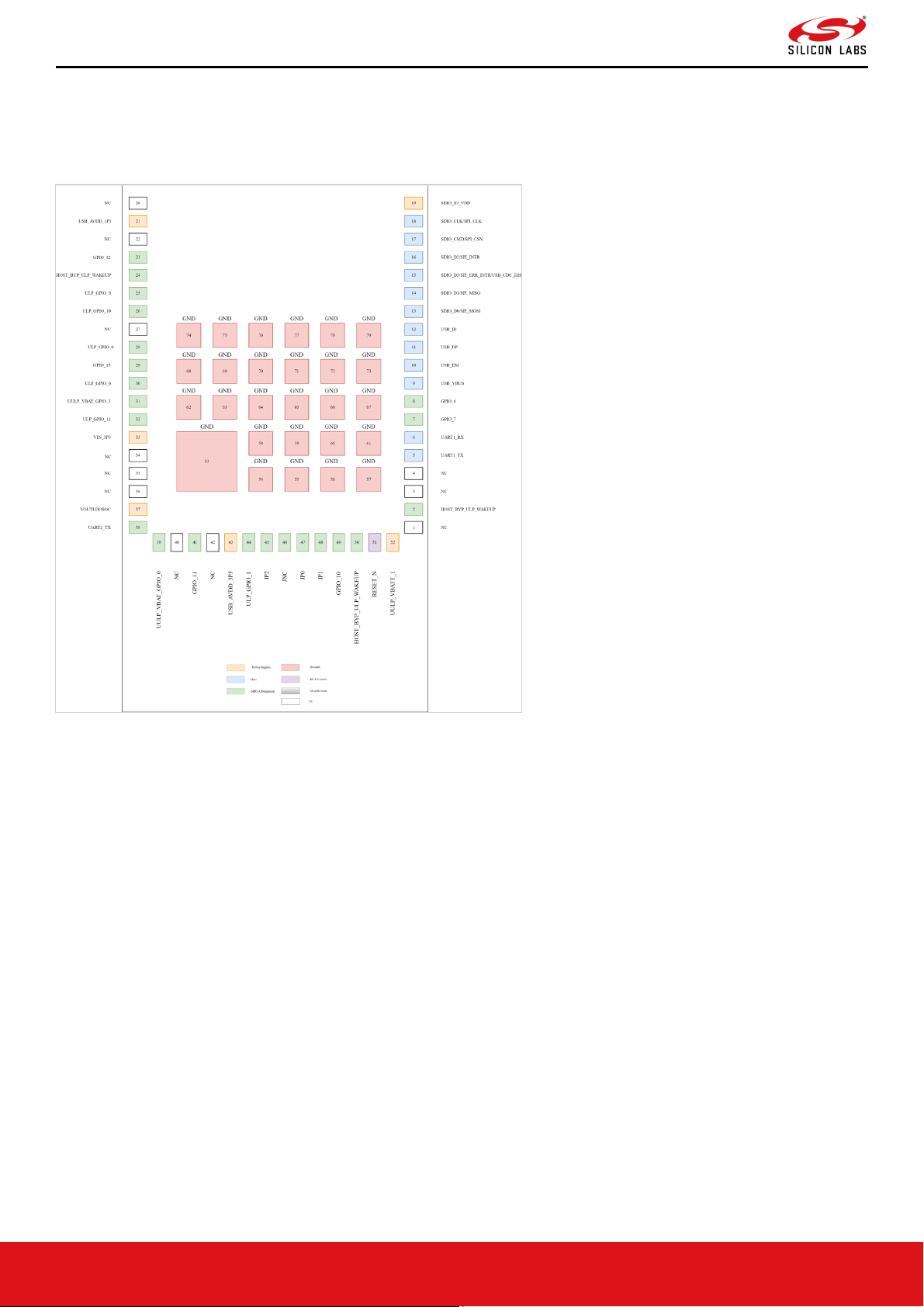

Figure 5 RS9116 AA1 Pin Diagram
silabs.com | Building a more connected world. Rev 1.0.7 7 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Pin Name
Pin Number
I/O Supply Domain
Direction
Initial State (Power up,
Description
RESET_N
51
UULP_VBATT_1
Input
NA
Active-low reset asynchronous reset
Pin Name
Type
Pin Number
Direction
Description
UULP_VBATT_1
Power
52
Input
Always-on VBATT Power supply to the UULP domains
VIN_3P3
Power
33
Input
Digital Power Supply
VOUTLDOSOC
Power
37
Output
The output of SoC LDO
SDIO_IO_VDD
Power
19
Input
I/O Supply for SDIO I/Os. Refer to the GPIOs section for details on
USB_AVDD_3P3
Power
43
Input
Power Supply for the USB interface
USB_AVDD_1P1
Power
21
Input
Power supply for the USB core
GND
Ground
53, 54, 55, 56, 57, 58,
GND
Common ground pins
2.2 Pin Description
2.2.1 RF & Control Interfaces
2.2.2 Power & Ground Pins
Active Reset)
signal.
Table 1 RF & Control Interfaces
which GPIOs have this as the I/O supply.
59, 60, 61, 62, 63, 64,
65, 66, 67, 68, 69, 70,
71, 72, 73, 74, 75, 76,
77, 78, 79
Table 2 Power and Ground Pins
silabs.com | Building a more connected world. Rev 1.0.7 8 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Pin Name
Pin Number
I/O Supply Domain
Direction
Initial State (Power up,
Description
1,2,3,4
GPIO_6
8
VIN_3P3
Inout
HighZ
Default: HighZ
GPIO_7
7
VIN_3P3
Inout
HighZ
Default: HighZ
UART1_RX
6
VIN_3P3
Inout
HighZ
Host
Default
Sleep
UART
UART1_RX
UART Host
HighZ
Non UART
HighZ
HighZ
UART1_TX
5
VIN_3P3
Inout
HighZ
Host
Default
Sleep
UART
UART1_TX -
HighZ
2.2.3 Host & Peripheral Interfaces
Active Reset)
Sleep: HighZ
This pin can be configured by software to
be any of the following
• I2S_DOUT - I2S interface output data.
• PCM_DOUT - PCM interface output
data.
Sleep: HighZ
This pin can be configured by software to
be any of the following
• I2S_CLK - I2S interface clock.
• PCM_CLK - PCM interface clock.
interface
serial input.
The UART interface is supported only in
WiSeConnect™.
UART Host
interface
serial
output.
silabs.com | Building a more connected world. Rev 1.0.7 9 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Pin Name
Pin Number
I/O Supply Domain
Direction
Initial State (Power up,
Description
1,2,3,4
Non UART
HighZ
HighZ
GPIO_10
49
VIN_3P3
Inout
HighZ
Default: HighZ
GPIO_11
41
VIN_3P3
Inout
HighZ
Default: HighZ.
GPIO_12
23
VIN_3P3
Inout
HighZ
Default: HighZ
GPIO_15
29
VIN_3P3
Inout
HighZ
Default: HighZ
Active Reset)
The UART interface is supported only in
WiSeConnect™.
Sleep: HighZ
This pin can be configured by software to
be any of the following
• I2S_DIN: I2S interface input data.
• PCM_DIN - PCM interface input data.
Sleep: HighZ
This pin can be configured by software to
be any of the following
• I2S_WS: I2S interface Word Select.
• PCM_FSYNC: PCM interface Frame
Synchronization signal.
Sleep: HighZ
This pin can be configured by software to
be any of the following
• UART1_RTS - UART interface
Request to Send, if UART Host
Interface flow control is enabled.
The UART interface is supported only in
WiSeConnect™.
Sleep: HighZ
silabs.com | Building a more connected world. Rev 1.0.7 10 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Pin Name
Pin Number
I/O Supply Domain
Direction
Initial State (Power up,
Description
1,2,3,4
This pin can be configured by software to
transmitted. The signal is toggled once
SDIO_CLK/SPI_CLK
18
SDIO_IO_VDD
Inout
HighZ
Host
Default
Sleep
SDIO
SDIO_CLK -
HighZ
SPI
SPI_CLK -
HighZ
Non-SDIO,
HighZ
HighZ
Active Reset)
be any of the following
• UART1_CTS - UART interface Clear
to Send, if UART Host Interface flow
control is enabled.
• UART1_TRANSPARENT_MODE -
UART Host interface Transparent
Mode, Indication that module has
entered into TRANSPERENT_MODE
• TSF_SYNC - Transmit
Synchronization Function signal to
indicate to the Host when a packet is
at the end of every transmitted packet.
The UART interface is supported only in
WiSeConnect™.
SDIO
interface
clock
SPI Slave
interface
clock
SPI
The SPI interface is supported only in
WiSeConnect™.
silabs.com | Building a more connected world. Rev 1.0.7 11 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Pin Name
Pin Number
I/O Supply Domain
Direction
Initial State (Power up,
Description
1,2,3,4
SDIO_CMD/SPI_CSN
17
SDIO_IO_VDD
Inout
HighZ
Host
Default
Sleep
SDIO
SDIO_CMD
HighZ
SPI
SPI_CSN -
signal of SPI
HighZ
Non-SDIO,
HighZ
HighZ
SDIO_D0/SPI_MOSI
13
SDIO_IO_VDD
Inout
HighZ
Host
Default
Sleep
SDIO
SDIO_D0 -
HighZ
SPI
SPI_MOSI -
HighZ
Non-SDIO,
HighZ
HighZ
Active Reset)
- SDIO
interface
CMD signal
Active-low
Chip Select
Slave
interface
SPI
The SPI interface is supported only in
WiSeConnect™.
SDIO
interface
Data0 signal
SPI Slave
interface
Master-OutSlave-In
signal
SPI
The SPI interface is supported only in
WiSeConnect™.
silabs.com | Building a more connected world. Rev 1.0.7 12 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Pin Name
Pin Number
I/O Supply Domain
Direction
Initial State (Power up,
Description
1,2,3,4
SDIO_D1/SPI_MISO
14
SDIO_IO_VDD
Inout
HighZ
Host
Default
Sleep
SDIO
SDIO_D1 -
HighZ
SPI
SPI_MISO -
HighZ
Non-SDIO,
HighZ
HighZ
SDIO_D2/SPI_INTR
16
SDIO_IO_VDD
Inout
HighZ
Host
Default
Sleep
SDIO
SDIO_D2 -
HighZ
SPI
SPI_INTR -
Signal to the
HighZ
Non-SDIO,
HighZ
HighZ
Active Reset)
SDIO
interface
Data1 signal
SPI Slave
interface
Master-InSlave-Out
signal
SPI
The SPI interface is supported only in
WiSeConnect™.
SDIO
interface
Data2 signal
SPI Slave
interface
Interrupt
Host
SPI
The SPI interface is supported only in
WiSeConnect™.
silabs.com | Building a more connected world. Rev 1.0.7 13 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Pin Name
Pin Number
I/O Supply Domain
Direction
Initial State (Power up,
Description
1,2,3,4
SDIO_D3/SPI_ERR_INT
15
SDIO_IO_VDD
Inout
Pullup
Host
Default
Sleep
SDIO
SDIO_D3 -
HighZ
SPI
SPI_ERR_I
HighZ
USB
USB_CDC_
High Disable
HighZ
Non-SDIO,
HighZ
HighZ
ULP_GPIO_0
28
VIN_3P3
Inout
HighZ
Default: HighZ
High signal to
that WLAN transmission is active. Part
R/USB_CDC_DIS
Active Reset)
SDIO
interface
Data3 signal
NTR - SPI
Bus Error
Interrupt
Signals
DIS - USBCDC Active-
Signal
SPI
The SPI interface is supported only in
WiSeConnect™.
Sleep: HighZ
This pin can be configured by software to
be any of the following
• WLAN_ACTIVE*: Active-
indicate to an external Bluetooth IC
of the 3-wire coexistence interface.
*This pin is intended to act as
WLAN_ACTIVE for wireless coexistence.
It is however not available in the current
firmware. Please contact Silicon Labs to
learn about availability in the future
silabs.com | Building a more connected world. Rev 1.0.7 14 | Page
PRELIMINARY | Subject to change.
versions.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Pin Name
Pin Number
I/O Supply Domain
Direction
Initial State (Power up,
Description
1,2,3,4
ULP_GPIO_1
44
VIN_3P3
Inout
HighZ
Default: HighZ
ULP_GPIO_6
30
VIN_3P3
Inout
HighZ
Default: HighZ
ULP_GPIO_8
25
VIN_3P3
Inout
HighZ
Default: HighZ
Active Reset)
Sleep: HighZ
This pin can be configured by software to
be any of the following
• BT_ACTIVE*: Active-High signal from
an external Bluetooth IC that it is
transmitting. Part of the 3-wire
coexistence interface.
*This pin is intended to act as BT_ACTIVE
for Bluetooth coexistence. It is however
not available in the current firmware.
Please contact Silicon Labs to learn about
availability in the future versions.
Sleep: HighZ
This pin can be configured by software to
be any of the following
• WAKEUP_FROM_Dev - Used as a
wakeup indication to host from device
• BT_PRIORITY**: Active-high signal
from an external Bluetooth IC that
indicates that the Bluetooth
transmissions are a higher priority.
*For Wake-on-Wireless feature this pin
needs to have a weak pull up resistor
externally.
**This pin is intended to act as
BT_PRIORITY for Bluetooth coexistence.
It is however not available in the current
firmware. Please contact Silicon Labs to
learn about availability in the future
versions.
silabs.com | Building a more connected world. Rev 1.0.7 15 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Pin Name
Pin Number
I/O Supply Domain
Direction
Initial State (Power up,
Description
1,2,3,4
Sleep: HighZ
UART2_TX
38
VIN_3P3
Inout
HighZ
Default: UART2_TX- Debug UART
ULP_GPIO_10
26
VIN_3P3
Inout
HighZ
Default: HighZ
ULP_GPIO_11
32
VIN_3P3
Inout
HighZ
Default: HighZ
UULP_VBAT_GPIO_0
39
UULP_VBATT_1
Output
High
Default : EXT_PG_EN
is used to send an indication to the
Active Reset)
This pin can be configured by software to
be any of the following
• LED0: Control signal to an external
LED.
(* LED0 functionality currently not
available in WiSeConnect™ modules)
Interface serial output
Sleep: HighZ
UART2_TX: Debug UART interface serial
output.
Sleep: HighZ
This pin can be configured by software to
be any of the following
• I2C_SCL: I2C interface clock.
Sleep: HighZ
This pin can be configured by software to
be any of the following
• I2C_SDA: I2C interface data.
Sleep: SLEEP_IND_FROM_DEV /
EXT_PG_EN
silabs.com | Building a more connected world. Rev 1.0.7 16 | Page
PRELIMINARY | Subject to change.
This pin can be configured by software to
be any of the following
• SLEEP_IND_FROM_DEV: This signal
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Pin Name
Pin Number
I/O Supply Domain
Direction
Initial State (Power up,
Description
1,2,3,4
Host processor. An indication is sent
signal to an external power gate which
HOST_BYP_ULP_WAK
2, 24, 50
UULP_VBATT_1
Input
HighZ
Default: HOST_BYP
UULP_VBAT_GPIO_3
31
UULP_VBATT_1
Inout
HighZ
Default : HighZ
host processor or from external crystal
is used to send an indication to the
Active Reset)
when the chip enters (logic low) and
exits (logic high) the ULP Sleep mode.
• EXT_PG_EN: Active-high enable
can be used to control the power
supplies other than Always-ON
VBATT Power Supplies in ULP Sleep
mode.
EUP
Sleep: ULP_WAKEUP
This signal has two functionalities – one
during the bootloading process and one
after the bootloading. During bootloading,
this signal is an active-high input to
indicate that the bootloader should bypass
any inputs from the Host processor and
continue to load the default firmware from
Flash. After bootloading, this signal is an
active-high input to indicate that the
module should wakeup from it's Ultra Low
Power (ULP) sleep mode. The bootloader
bypass functionality is supported only in
WiSeConnect™.
Sleep: XTAL_32KHZ_IN /
SLEEP_IND_FROM_DEV
This pin can be configured by software to
be any of the following
• XTAL_32KHZ_IN: This pin can be
used to feed external clock from a
oscillator.
• SLEEP_IND_FROM_DEV: This signal
silabs.com | Building a more connected world. Rev 1.0.7 17 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Pin Name
Pin Number
I/O Supply Domain
Direction
Initial State (Power up,
Description
1,2,3,4
Host processor. An indication is sent
JP0
47
VIN_3P3
Input
Pullup
Default: JP0
Reserved. Connect to a test point for
JP1
48
VIN_3P3
Input
Pullup
Default: JP1
Reserved. Connect to a test point for
JP2
45
VIN_3P3
Input
Pullup
Default: JP2
Reserved. Connect to a test point for
JNC
46
VIN_3P3
NC
Pullup
Default: JNC
USB_DP
11
USB_AVDD_3P3
Inout
NA
Positive data channel from the USB
USB_DM
10
USB_AVDD_3P3
Inout
NA
Negative data channel from the USB
USB_ID
12
USB_AVDD_3P3
Input
NA
ID signal from the USB connector.
USB_VBUS
9
USB_AVDD_3P3
Input
NA
5V USB VBUS signal from the USB
Active Reset)
when the chip enters (logic low) and
exits (logic high) the ULP Sleep mode.
Sleep: HighZ
JP0 debugging purposes.
Sleep: HighZ
JP1 debugging purposes.
Sleep: HighZ
JP2 debugging purposes.
Sleep: HighZ
JNC - Reserved. Connect to a test point
for debugging purposes.
connector.
connector.
connector
Table 3 Host and Peripheral Interfaces
silabs.com | Building a more connected world. Rev 1.0.7 18 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
1. "Default" state refers to the state of the device after initial boot loading and firmware loading is complete.
Pin Name
Pin Number
I/O Supply Domain
Direction
Initial State (Power up,
Description
NC
1, 3, 4, 20, 22, 27, 34,
NA
NA
NA
No connect.
2. "Sleep" state refers to the state of the device after entering Sleep state which is indicated by Active-High "SLEEP_IND_FROM_DEV" signal.
3. Please refer to "RS9116 nLink Technical Reference Manual" for software programming information in hosted mode.
4. Please refer to "RS9116 Wireless SAPI Manual" for software programming information in embedded mode.
5. There are some functionalities, such as SLEEP_IND_FROM_DEV, that are available on multiple pins. However, these pins have other multiplexed functionalities.
Any pin can be used based on the required functionality. Customer has to note the default states before using appropriate pin.
2.2.4 Miscellaneous Pins
Active Reset)
35, 36, 40, 42
Table 4 Miscellaneous Pins
silabs.com | Building a more connected world. Rev 1.0.7 19 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Symbol
Parameter
Min
Max
Units
T
Storage temperature
-40
+125
o
C
T
Maximum junction temperature
-
+125
o
C
UULP_VBATT_1
Always-on VBATT supply to the UULP
-0.5
3.63
V
VIN_3P3
3.3V Power Supply.
-0.6
3.63
V
SDIO_IO_VDD
I/O supplies for SDIO I/Os
-0.5
3.63
V
AVDD_1P9_3P3
Power supply for the 5 GHz RF
-0.5
3.63
V
USB_AVDD_3P3
Power supply for the USB interface
-0.5
3.63
V
USB_AVDD_1P1
Power supply for the USB core
-0.5
1.26
V
ESD
Electrostatic discharge tolerance (HBM)
-
2000
V
ESD
Electrostatic discharge tolerance (CDM)
-
500
V
LU
Latchup Immunity ICE criteria at ambient temp
-50
100
mA
I
Maximum Current consumption in TX mode
-
400
mA
P
RF Power Level Input to the chip on pins RF
-
10
dBm
I
Peak current rating for power supply
-
500
mA
Symbol
Parameter
Min.
Typ.
Max.
Units
Max
T
Ambient temperature
-40
25
85 oC
NA
UULP_VBATT_1
Always-on VBATT supply to the
1.8
3.3
3.63
V VIN_3P3
Always-on VBATT Power supply
1.8
3.3
3.63
V
SDIO_IO_VDD
I/O supply for SDIO I/Os
1.8
3.3
3.63
V
AVDD_1P9_3P3
Power supply for the 5 GHz RF
1.8
3.3
3.6 V
3 RS9116 AA1 module Specifications
3.1 Absolute Maximum Ratings
Functional operation above maximum ratings is not guaranteed and may damage the device.
store
j(max)
Domains
HBM
Compliant with JEDEC specification JS-0012017
CDM
Compliant with JEDEC specification JS-0022014
of 25oC
Compliant with JESD78D
max
max
pins
Pmax
Table 5 Absolute Maximum Ratings
3.2 Recommended Operating Conditions
Current
(A)
ambient
UULP Domains
to the RF
silabs.com | Building a more connected world. Rev 1.0.7 20 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Symbol
Parameter
Min.
Typ.
Max.
Units
Max
USB_AVDD_3P3
Power supply for the USB
3.0
3.3
3.63
V
USB_AVDD_1P1
Power supply for the USB core
0.99
1.1
1.21
V
Symbol
Parameter
Min.
Typ.
Max.
Unit
VIH
High level input voltage @3.3V
0.8 * VDD
-
3.63
V
High level input voltage @1.8V
1.17 - 2.1
V
VIL
Low level input voltage @3.3V
-0.5
-
0.3 * VDD
V
Low level input voltage @1.8V
-0.3
-
0.63
V
V
Hysteresis voltage
0.05 *
- - V
interface
Table 6 Recommended Operating Conditions
3.3 DC Characteristics
3.3.1 Reset Pin
Current
(A)
hys
VDD
Table 7 Reset Pin
silabs.com | Building a more connected world. Rev 1.0.7 21 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
3.3.2 Power Sequence
The POC_IN and RESET_N signals should be controlled from external sources such as R/C circuits, and/or other MCU's GPIOs. However POC_OUT can be connected to
POC_IN, if the supply voltage is 3.3V. Below waveforms show power sequence (Up & Down) requirements under various application needs. Note that below waveforms are
not to scale.
3.3.2.1 Power-Up and Down Sequence with External 1.4V supply and POC_IN
Below diagram shows connections of various power supply voltages, POC_IN and RESET_N. These connections can be used when:
• System PMU (outside RS9116) can provide 1.4V supply, and hence the internal Buck regulator in RS9116 can be disabled.
• The 1.1V supply is still derived from LDO SoC (internal to RS9116).
• POC_IN is controlled externally.
NOTE:
1. Above shown is a typical connection diagram. Some of the supply pins shown above may or may not be present in the IC/Module. Check the Pinout table in this
datasheet and connect accordingly.
2. * = Provide the supply voltages as per the specifications mentioned in this datasheet.
3. ** = USB power supply input connection is required if USB interface is present and used. Else, follow the connection as shown in Reference Schematics.
silabs.com | Building a more connected world. Rev 1.0.7 22 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
NOTE:
1. 3.3V/1.85V/VBATT supply shown above must be connected to the power supply pins of IC/Module. For example, SDIO_IO_VDD, ULP_IO_VDD, UULP_VBATT_1, etc.
2. Above POC_IN waveform is applicable if it is externally driven. Else, that particular waveform can be ignored, and the RESET_N timing can be considered after/before
external power supplies ramp-up/down.
3.3.2.2 Power-Up and Down Sequence with External POC_IN
Below diagram shows connections of various power supply voltages, POC_IN and RESET_N. These connections can be used when:
• System PMU cannot provide 1.4V or 1.1V supplies and the internal buck and LDO of RS9116 are used.
• POC_IN is controlled externally.
NOTE:
1. Above shown is a typical connection diagram. Check the Reference Schematics for connections of other power supplies.
silabs.com | Building a more connected world. Rev 1.0.7 23 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
NOTE:
1. 3.3V/1.85V/VBATT supply shown above must be connected to the power supply pins of IC/Module. For example, SDIO_IO_VDD, ULP_IO_VDD, UULP_VBATT_1, etc.
3.3.2.3 Power-Up and Down Sequence with POC_IN connected internally
Below diagram shows connections of various power supply voltages, POC_IN and RESET_N. The typical applications of this connection can be as followws.
• System cannot provide external 1.4V & 1.1V supplies and the internal buck and LDO of RS9116 are used.
• POC_IN is looped back from POC_OUT.
NOTE:
1. Above shown is a typical connection diagram. Check the Reference Schematics for connections of other power supplies.
2. POC_OUT can be connected to POC_IN if the supply voltage is 3.3V only. Else, POC_IN has to be driven externally.
silabs.com | Building a more connected world. Rev 1.0.7 24 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
NOTE:
1. 3.3V/VBATT supply shown above must be connected to the power supply pins of IC/Module. For example, SDIO_IO_VDD, ULP_IO_VDD, UULP_VBATT_1, etc.
silabs.com | Building a more connected world. Rev 1.0.7 25 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Symbol
Parameter
Min.
Typ.
Max.
Unit
VIH
High level input voltage @3.3V
2.0 - 3.63
V
High level input voltage @1.8V
1.17 - 2.1
V
VIL
Low level input voltage @3.3V
-0.3 - 0.8
V
Low level input voltage @1.8V
-0.3
-
0.63
V
V
Hysteresis voltage
0.1 VDD
-
-
V
VOL
Low level output voltage
- - 0.4
V
VOH
High level output voltage
VDD-0.4
- - V
IOL
Low level output current (programmable)
2.0
4.0
12.0
mA
IOH
High level output current (programmable)
2.0
4.0
12.0
mA
Parameter
Conditions
Min.
Typ.
Max.
Units
Vcm DC (DC level measured at receiver
HS Mode
-0.05
-
0.5
V
Crossover Voltages
LS Mode
1.3
-
2 2 V
Power supply ripple noise (Analog 3.3V)
< 160 MHz
-50 - 50
mV
Symbol
Parameter
Min.
Typ.
Max.
Unit
Cio
Input/output capacitance, digital pins only
- - 2.0
pF
3.3.3 Digital Input Output Signals
hys
3.3.4 USB
connector)
3.3.5 Pin Capacitances
3.4 AC Characteristics
Table 8 Digital I/O Signals
LS/FS Mode
FS Mode
Table 9 USB
Table 10 Pin Capacitances
0.8
1.3
2.5
3.4.1 Clock Specifications
RS9116 chipsets require two primary clocks:
• Low frequency 32 KHz clock for sleep manager and RTC
o Internal 32 KHz RC clock is used for applications with low timing accuracy requirements
o 32 KHz crystal clock is used for applications with low timing accuracy requirements
• High frequency 40 MHz clock for the threadArch® processor, baseband subsystem and the radio
The chipsets have integrated internal oscillators including crystal oscillators to generate the required clocks.
Integrated crystal oscillators enable the use of low-cost passive crystal components. Additionally, in a system where
an external clock source is already present, the clock can be reused. The following are the recommended options for
the clocks for different functionalities:
silabs.com | Building a more connected world. Rev 1.0.7 26 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Functionality
Default Clock
Other Clock option
Comments
Wi-Fi or Wi-Fi + BLE
Internal 32KHz RC
oscillator calibrated
32KHz XTAL
32KHz XTAL Oscillator clock is optional.
Wi-Fi + BT or Wi-Fi + BT + BLE
32KHz XTAL
Internal 32KHz RC
32KHz XTAL Oscillator clock is
Parameter
Parameter Description
Min
Typ
Max
Units
F
Oscillator Frequency
32.0
KHz
F
Frequency Variation with Temp and Voltage
1.2 %
Jitter
RMS value of Edge jitter (TIE)
91 ns
Peak Period Jitter
Peak value of Cycle Jitter with 6σ variation
789 ns
option
Connectivity
to <200ppm
oscillator input on
UULPGPIO.
No significant power consumption
impact on connected power numbers
(<10uA).
Connectivity with low power
Audio Streaming operation
oscillator input on
UULPGPIO
oscillator calibrated
to <200ppm
important for Low-power Audio
Streaming operation (A2DP Source).
(A2DP Source)
There is no impact on sleep/deep-sleep power consumption with/without 32KHz XTAL oscillator clock
32KHz XTAL sources:
Option 1: From Host MCU/MPU LVCMOS rail to rail clock input on UULPGPIO
Option 2: External Xtal oscillator providing LVCMOS rail to rail clock input on UULPGPIO (Nano-drive clock should
not be supplied).
3.4.1.1 32 KHz Clock
The 32 KHz clock selection can be done through software. RC oscillator clock is not suited for high timing accuracy
applications and can increase system current consumption in duty-cycled power modes.
3.4.1.1.1 RC Oscillator
osc
osc_Acc
Table 11 32 KHz RC oscillator
3.4.1.1.2 32 KHz External Oscillator
An external 32 KHz low-frequency clock can be fed through the XTAL_32KHZ_IN functionality.
Figure 6 External 32 KHz oscillator - Rail to Rail
silabs.com | Building a more connected world. Rev 1.0.7 27 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Parameter Description
Min
Typ
Max
Units
F
Oscillator Frequency
32.768
KHz
F
Frequency Variation with Temp and Voltage
-100
100
ppm
Duty cycle
Input duty cycle
30
50
70
%
VAC
Input AC peak-peak voltage swing at input
0.3
-
VBATT-
Vpp
Parameter
Parameter Description
Min
Typ
Max
Units
F
Oscillator Frequency
40 MHz
F
Frequency Variation with Temp and Voltage
-20 20
ppm
ESR
Equivalent series resistance
60
Ω
Load cap
Load capacitance range
5 10
pF
Parameter
Parameter Description
Min.
Typ.
Max.
Unit
T
SDIO_CLK
-
-
25
MHz
Ts
SDIO_DATA, input setup time
4 - -
ns
Th
SDIO_DATA, input hold time
1 - -
ns
Tod
SDIO_DATA, clock to output delay
- - 13
ns
CL
Output Load
5 - 10
pF
osc
osc_Acc
pin.
0.3
Table 12 32 KHz external oscillator specifications
3.4.1.2 40 MHz Clock
Load capacitance with 40 MHz internal oscillator is integrated inside the chipset and calibrated. The calibrated value
can be stored in eFuse using calibration software. The module provides the below characteristics.
osc
osc_Acc
Table 13 40 MHz crystal specifications
3.4.2 SDIO 2.0 Slave
3.4.2.1 Full Speed Mode
sdio
Table 14 AC Characteristics - SDIO 2.0 Slave Full Speed Mode
Figure 7 Interface Timing Diagram for SDIO 2.0 Slave Full Speed Mode
silabs.com | Building a more connected world. Rev 1.0.7 28 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Parameter Description
Min.
Typ.
Max.
Unit
T
SDIO_CLK
25 - 50
MHz
Ts
SDIO_DATA, input setup time
4 - -
ns
Th
SDIO_DATA, input hold time
1 - -
ns
Tod
SDIO_DATA, clock to output delay
2.5 - 13
ns
CL
Output Load
5 - 10
pF
Parameter
Parameter Description
Min.
Typ.
Max.
Unit
T
SPI_CLK
0 - 25
MHz
Tcs
SPI_CS to output delay
- - 7.5
ns
T
SPI CS to input setup time
4.5 - -
-
Ts
SPI_MOSI, input setup time
1.33 - -
ns
Th
SPI_MOSI, input hold time
1.2 - -
ns
Tod
SPI_MISO, clock to output delay
- - 8.75
ns
CL
Output Load
5 - 10
pF
3.4.2.2 High Speed Mode
sdio
Table 15 AC Characteristics - SDIO 2.0 Slave High Speed Mode
Figure 8 Interface Timing Diagram for SDIO 2.0 Slave High Speed Mode
3.4.3 SPI Slave
3.4.3.1 Low Speed Mode
spi
cst
Table 16 AC Characteristics - SPI Slave Low Speed Mode
Figure 9 Interface Timing Diagram for SPI Slave Low Speed Mode
silabs.com | Building a more connected world. Rev 1.0.7 29 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Parameter Description
Min.
Typ.
Max.
Unit
T
SPI_CLK
25 - 80
MHz
Tcs
SPI_CS to output delay
- - 7.5
ns
T
SPI CS to input setup time
4.5 - -
-
Ts
SPI_MOSI, input setup time
1.33 - -
ns
Th
SPI_MOSI, input hold time
1.2 - -
ns
Tod
SPI_MISO, clock to output delay
2.5 - 8.75
ns
CL
Output Load
5 - 10
pF
Parameter
Parameter Description
Min.
Typ.
Max.
Unit
T
SPI_CLK
-
-
100
MHz
Ts
SPI_MOSI, input setup time
1.33 - -
ns
Th
SPI_MOSI, input hold time
1.2 - -
ns
Tod
SPI_MISO, clock to output delay
1.5 - 8.75
ns
CL
Output Load
5 - 10
pF
3.4.3.2 High Speed Mode
spi
cst
Table 17 AC Characteristics - SPI Slave High Speed Mode
Figure 10 Interface Timing Diagram for SPI Slave High Speed Mode
3.4.3.3 Ultra High Speed Mode
spi
Table 18 AC Characteristics - SPI Slave Ultra High Speed Mode
Figure 11 Interface Timing Diagram for SPI Slave Ultra High Speed Mode
silabs.com | Building a more connected world. Rev 1.0.7 30 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Parameter Description
Min.
Typ.
Max.
Unit
Tr
Rise Time
75 - 300
ns
Tf
Fall Time
75 - 300
ns
Jitter
Jitter - -
10
ns
Parameter
Parameter
Min.
Typ.
Max.
Unit
Tr
Rise Time
4 - 20
ns
Tf
Fall Time
4 - 20
ns
Jitter
Jitter - - 1 ns
Parameter
Parameter Description
Min.
Typ.
Max.
Unit
Tr
Rise Time
0.5 - -
ns
Tf
Fall Time
0.5 - -
ns
Jitter
Jitter - -
0.1
ns
Parameter
Parameter Description
Min.
Typ.
Max.
Unit
T
CLK 0 -
20
MHz
Tod
Output delay
0 - 10
ns
Ts
Input setup time
0 - 5
ns
CL
Output load
5 - 25
pF
Parameter
Parameter Description
Min.
Typ.
Max.
Unit
T
SCL
100 - 400
KHz
T
clock low period
1.3 - -
us
T
clock high period
0.6 - -
us
T
start condition, setup time
0.6 - -
us
T
start condition, hold time
0.6 - -
us
3.4.4 USB
3.4.4.1 Low Speed Mode
Table 19 AC Characteristics - USB Low Speed Mode
3.4.4.2 Full Speed Mode
Table 20 AC Characteristics - USB Full Speed Mode
3.4.4.3 High Speed Mode
3.4.5 UART
uart
Table 21 AC Characteristics - USB High Speed Mode
Table 22 AC Characteristics - UART
3.4.6 I2C Master and Slave
3.4.6.1 Fast Speed Mode
i2c
low
high
sstart
hstart
silabs.com | Building a more connected world. Rev 1.0.7 31 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Parameter Description
Min.
Typ.
Max.
Unit
Ts
data, setup time
100 - -
ns
T
stop condition, setup time
0.6 - -
us
CL
Output Load
5 - 10
pF
Parameter
Parameter Description
Min.
Typ.
Max.
Unit
T
SCL
0.4 - 3.4
MHz
T
clock low period
160 - -
ns
T
clock high period
60 - -
ns
T
start condition, setup time
160 - -
ns
T
start condition, hold time
160 - -
ns
Ts
data, setup time
10 - -
ns
Th
data, hold time
0 - 70
ns
T
stop condition, setup time
160 - -
ns
CL
Output Load
5 - 10
pF
sstop
Table 23 AC Characteristics - I2C Fast Speed Mode
Figure 12 Interface Timing Diagram for I2C Fast Speed Mode
3.4.6.2 High Speed Mode
i2c
low
high
sstart
hstart
sstop
Table 24 AC Characteristics - I2C High Speed Mode
Figure 13 Interface Timing Diagram for I2C High Speed Mode
silabs.com | Building a more connected world. Rev 1.0.7 32 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Parameter Description
Min.
Typ.
Max.
Unit
T
i2s_clk 0 -
25
MHz
Ts
i2s_din,i2s_ws setup time
10 - -
ns
Th
i2s_din,i2s_ws hold time
0 - -
ns
Tod
i2s_dout output delay
0 - 12
ns
CL
i2s_dout output load
5 - 10
pF
Parameter
Parameter Description
Min.
Typ.
Max.
Unit
T
i2s_clk 0 -
25
MHz
Ts
i2s_din,i2s_ws setup time
8 - -
ns
Th
i2s_din,i2s_ws hold time
0 - -
ns
Tod
i2s_dout output delay
0 - 17
ns
CL
i2s_dout output load
5 - 10
pF
3.4.7 I2S/PCM Master and Slave
3.4.7.1 Master Mode
Negedge driving and posedge sampling for I2S
Posedge driving and negedge sampling for PCM
i2s
Table 25 AC Characteristics – I2S/PCM Master Mode

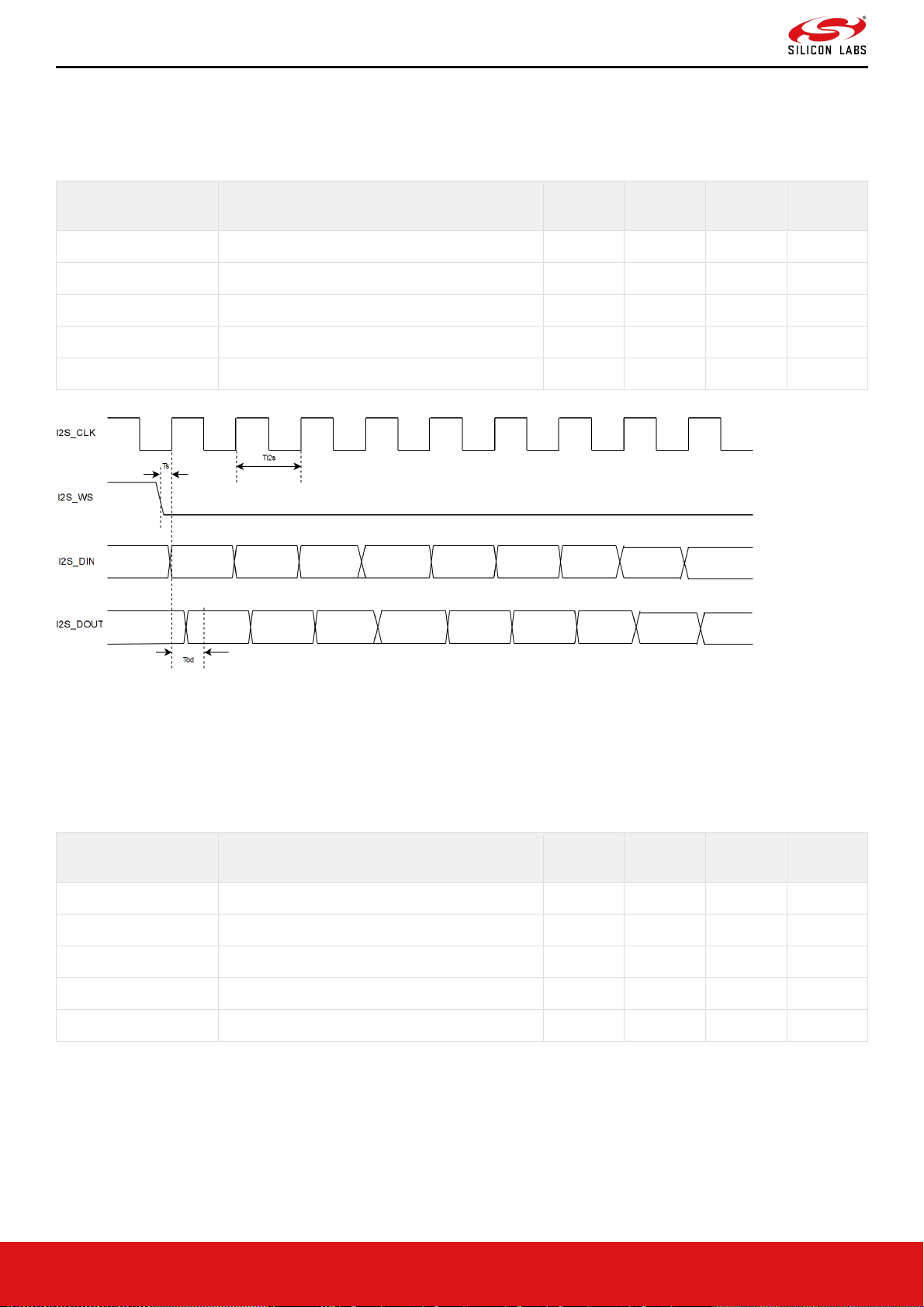

Figure 14 Interface Timing Diagram for I2S Master Mode
3.4.7.2 Slave Mode
Negedge driving and posedge sampling for I2S
Posedge driving and negedge sampling for PCM
i2s
Table 26 AC Characteristics - I2S/PCM Slave Mode
silabs.com | Building a more connected world. Rev 1.0.7 33 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Parameter
Conditions
Min.
Typ.
Max.
Unit
Trf
Rise time
Pin configured as output; SLEW =
1.0 - 2.5
ns
Tff
Fall time
Pin configured as output; SLEW =
0.9 - 2.5
ns
Trs
Rise time
Pin configured as output; SLEW =
1.9 - 4.3
ns
Tfs
Fall time
Pin configured as output; SLEW =
1.9 - 4.0
ns
Tr
Rise time
Pin configured as input
0.3 - 1.3
ns
Tf
Fall time
Pin configured as input
0.2 - 1.2
ns
In the sub-sections below,
Figure 15 Interface Timing Diagram for I2S Slave Mode
3.4.8 GPIO pins
Description
1(fast mode)
1(fast mode)
0(standard mode)
0(standard mode)
Table 27 AC Characteristics - GPIO Pins
3.5 RF Characteristics
• All WLAN Sensitivity numbers and Adjacent channel numbers are at < 10% PER limit. Packet sizes are 1024
bytes for 802.11 b/g data rates and 4096 bytes for 802.11n data rates.
• For WLAN ACI cases, the desired signal power is 3dB above standard defined sensitivity level.
• For Bluetooth C/I cases, the desired signal power is 3dB above standard defined sensitivity level.
• For support of 1.85 V on RF/PA, please contact Silicon Labs.
Unless otherwise stated, the specifications in this section apply when the operating conditions are within the
limits specified in the Recommended Operating Conditions
silabs.com | Building a more connected world. Rev 1.0.7 34 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
TA = 25°C, PA2G_AVDD/VINBCKDC = 3.3V. Remaining supplies are at typical operating conditions.
Parameter
Condition
Notes
Min
Typ
Max
Units
Transmit Power for 20MHz
DSSS - 1 Mbps
EVM< -9 dB
-
17.5
-
dBm
DSSS - 2 Mbps
EVM< -9 dB
-
17.5
-
dBm
CCK- 5.5 Mbps
EVM< -9 dB
-
17.5
-
dBm
CCK - 11 Mbps
EVM< -9 dB
-
17.5
-
dBm
OFDM - 6 Mbps
EVM< -5 dB
-
17 - dBm
OFDM - 9 Mbps
EVM< -8 dB
-
17 - dBm
OFDM - 12
EVM< -10 dB
-
17 - dBm
OFDM - 18
EVM< -13 dB
-
17 - dBm
OFDM - 24
EVM< -16 dB
-
17 - dBm
OFDM - 36
EVM< -19 dB
-
16.5
-
dBm
OFDM - 48
EVM< -22 dB
-
16 - dBm
OFDM - 54
EVM< -25 dB
-
14.5
-
dBm
MCS0 Mixed
EVM< -5 dB
-
17 - dBm
MCS1 Mixed
EVM< -10 dB
-
17 - dBm
MCS2 Mixed
EVM< -13 dB
-
17 - dBm
MCS3 Mixed
EVM< -16 dB
-
16 - dBm
MCS4 Mixed
EVM< -19 dB
-
15 - dBm
MCS5 Mixed
EVM< -22 dB
-
15 - dBm
MCS6 Mixed
EVM< -25 dB
-
14 - dBm
3.5.1 WLAN 2.4 GHz Transmitter Characteristics
3.5.1.1 Transmitter characteristics with 3.3V Supply
Parameters are measured at antenna port on channel 6 (2437 MHz)
Bandwidth, compliant with IEEE
mask and EVM
Mbps
Mbps
(1)
Mbps
Mbps
Mbps
Mbps
Mode
Mode
Mode
Mode
Mode
Mode
Mode
silabs.com | Building a more connected world. Rev 1.0.7 35 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition
Notes
Min
Typ
Max
Units
MCS7 Mixed
EVM< -27 dB
-
9.5 - dBm
Transmitter Emissions (6 Mbps @
776-794 MHz
CDMA2000
-
-148
-
dBm/Hz
869–960 MHz
CDMAOne,
-
-158
-
dBm/Hz
1450–1495 MHz
DAB - -158
-
dBm/Hz
1570–1580 MHz
GPS
-
-148
-
dBm/Hz
1592–1610 MHz
GLONASS
-
-122
-
dBm/Hz
1710–1800 MHz
DSC-1800-
-
-130
-
dBm/Hz
1805–1880 MHz
GSM 1800
-
-110
-
dBm/Hz
1850–1910 MHz
GSM 1900
-
-123
-
dBm/Hz
1910–1930 MHz
TDSCDMA,LTE
-
-134
-
dBm/Hz
1930–1990 MHz
GSM1900,
-
-132
-
dBm/Hz
2010–2075 MHz
TDSCDMA
-
-127
-
dBm/Hz
2110–2170 MHz
WCDMA
-
-120
-
dBm/Hz
2305–2370 MHz
LTE Band 40
-
-116
-
dBm/Hz
2370–2400 MHz
LTE Band 40
-
-95
-
dBm/Hz
2496–2530 MHz
LTE Band 41
-
-103
-
dBm/Hz
2530–2560 MHz
LTE Band 41
-
-114
-
dBm/Hz
2570–2690 MHz
LTE Band 41
-
-130
-
dBm/Hz
5000–5900 MHz
WLAN 5G
-
-148
-
dBm/Hz
Harmonic Emissions (1 Mbps @
4.8-5.0 GHz
2nd Harmonic
-
-51
-
dBm/MHz
7.2-7.5 GHz
3rd Harmonic
-
-42
-
dBm/MHz
1. Up to 2dB variation in power from channel-to-channel. To meet FCC emission limits, edge channels (1 and
TA = 25°C, PA2G_AVDD/VINBCKDC = 1.85 V. Remaining supplies are at typical operating conditions.
Parameter
Condition
Notes
Min
Typ
Max
Units
DSSS - 1 Mbps
EVM< -9 dB
-
14 - dBm
DSSS - 2 Mbps
EVM< -9 dB
-
14 - dBm
Mode
Maximum Power)
GSM850
Uplink
Maximum Power)
11) have reduced TX power.
CDMAOne,WCD
MA
Table 28 WLAN 2.4 GHz Transmitter Characteristics (3.3V)
3.5.1.2 Transmitter characteristics with 1.85V Supply
Parameters are measured at antenna port on channel 6 (2437 MHz)
(1)
silabs.com | Building a more connected world. Rev 1.0.7 36 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition
Notes
Min
Typ
Max
Units
Transmit Power for 20MHz
CCK- 5.5 Mbps
EVM< -9 dB
-
14 - dBm
CCK - 11 Mbps
EVM< -9 dB
-
14 - dBm
OFDM - 6 Mbps
EVM< -5 dB
-
14 - dBm
OFDM - 9 Mbps
EVM< -8 dB
-
14 - dBm
OFDM - 12
EVM< -10 dB
-
14 - dBm
OFDM - 18
EVM< -13 dB
-
14 - dBm
OFDM - 24
EVM< -16 dB
-
14 - dBm
OFDM - 36
EVM< -19 dB
-
13 - dBm
OFDM - 48
EVM< -22 dB
-
12 - dBm
OFDM - 54
EVM< -25 dB
-
11 - dBm
MCS0 Mixed
EVM< -5 dB
-
13 - dBm
MCS1 Mixed
EVM< -10 dB
-
13 - dBm
MCS2 Mixed
EVM< -13 dB
-
13 - dBm
MCS3 Mixed
EVM< -16 dB
-
12.5
-
dBm
MCS4 Mixed
EVM< -19 dB
-
11.5
-
dBm
MCS5 Mixed
EVM< -22 dB
-
11.5
-
dBm
MCS6 Mixed
EVM< -25 dB
-
11 - dBm
MCS7 Mixed
EVM< -27 dB
- 9 -
dBm
Transmitter Emissions (1 Mbps @
776-794 MHz
CDMA2000
-
-158
-
dBm/Hz
869–960 MHz
CDMAOne,
-
-158
-
dBm/Hz
1450–1495 MHz
DAB
-
-158
-
dBm/Hz
1570–1580 MHz
GPS
-
-158
-
dBm/Hz
1592--1610 MHz
GLONASS
-
-136
-
dBm/Hz
1710–1800 MHz
DSC-1800-
-
-136
-
dBm/Hz
1805–1880 MHz
GSM 1800
-
-133
-
dBm/Hz
1850–1910 MHz
GSM 1900
-
-133
-
dBm/Hz
Bandwidth, compliant with IEEE
mask and EVM
Mbps
Mbps
Mbps
Mbps
Mbps
Mbps
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Mode
Maximum Power)
GSM850
Uplink
silabs.com | Building a more connected world. Rev 1.0.7 37 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition
Notes
Min
Typ
Max
Units
1910–1930 MHz
TDSCDMA,LTE
-
-138
-
dBm/Hz
1930–1990 MHz
GSM1900,
-
-132
-
dBm/Hz
2010–2075 MHz
TDSCDMA
-
-141
-
dBm/Hz
2110–2170 MHz
WCDMA
-
-141
-
dBm/Hz
2305–2370 MHz
LTE Band 40
-
-112
-
dBm/Hz
2370–2400 MHz
LTE Band 40
-
-98 - dBm/Hz
2496–2530 MHz
LTE Band 41
-
-116
-
dBm/Hz
2530–2560 MHz
LTE Band 41
-
-121
-
dBm/Hz
2570–2690 MHz
LTE Band 41
-
-133
-
dBm/Hz
5000–5900 MHz
WLAN 5G
-
-148
-
dBm/Hz
Harmonic Emissions (1 Mbps @
4.8-5.0 GHz
2nd Harmonic
-
-51 - dBm/MHz
7.2-7.5 GHz
3rd Harmonic
-
-42 - dBm/MHz
1. Up to 2dB variation in power from channel-to-channel. To meet FCC emission limits, edge channels (1 and
TA = 25°C. Parameters are measured at antenna port on channel 1(2412 MHz)
Parameter
Condition
Notes
Min
Typ
Max
Units
Sensitivity for 20MHz Bandwidth
(1)
1 Mbps DSSS
- -96.5
-
dBm
2 Mbps DSSS
- -90 - dBm
5.5 Mbps CCK
- -88 - dBm
11 Mbps CCK
- -85 - dBm
6 Mbps OFDM
- -90 - dBm
9 Mbps OFDM
- -89.5
-
dBm
12 Mbps OFDM
- -89 - dBm
18 Mbps OFDM
- -86.5
-
dBm
24 Mbps OFDM
- -83.5
-
dBm
36 Mbps OFDM
- -80 - dBm
48 Mbps OFDM
- -75.5
-
dBm
54 Mbps OFDM
- -74 - dBm
CDMAOne,WCD
MA
Maximum Power)
11) have reduced TX power.
3.5.2 WLAN 2.4 GHz Receiver Characteristics on High-Performance (HP) RF Chain
Table 29 WLAN 2.4 GHz Transmitter Characteristics (1.85V)
silabs.com | Building a more connected world. Rev 1.0.7 38 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition
Notes
Min
Typ
Max
Units
MCS0 Mixed
- -89 - dBm
MCS1 Mixed
- -86.5
-
dBm
MCS2 Mixed
- -85 - dBm
MCS3 Mixed
- -81.5
-
dBm
MCS4 Mixed
- -77.5
-
dBm
MCS5 Mixed
- -73 - dBm
MCS6 Mixed
- -71 - dBm
MCS7 Mixed
- -70 - dBm
Maximum Input Level for PER
802.11 b - 5 -
dBm
802.11g -
-9 - dBm
802.11n -
-11 - dBm
RSSI Accuracy Range
-3 - 3
dB
Blocking level for 3 dB RX
776–794 MHz
- -3 - dBm
824–849 MHz
- -3 - dBm
880–915 MHz
- -3 - dBm
1710–1785 MHz
- -17 - dBm
1850–1910 MHz
- -18 - dBm
1920–1980 MHz
- -18 - dBm
2300–2400 MHz
- -58 - dBm
2570–2620 MHz
- -21 - dBm
2545–2575 MHz
- -20 - dBm
Return Loss
-10 - -
dB
Adjacent Channel Interference
1 Mbps DSSS
- 36 - dB
11 Mbps DSSS
- 37 - dB
6 Mbps OFDM
- 38 - dB
54 Mbps OFDM
- 22 - dB
MCS0 Mixed
- 38 - dB
MCS7 Mixed
- 20 - dB
1 Mbps DSSS
- 44 - dB
Mode
Mode
Mode
Mode
Mode
Mode
Mode
below 10%
Sensitivity Degradation(Data rate
6Mbps OFDM, Desired signal at 79dBm)
Mode
Mode
Mode
silabs.com | Building a more connected world. Rev 1.0.7 39 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition
Notes
Min
Typ
Max
Units
Alternate Adjacent Channel
11 Mbps DSSS
- 35 - dB
6 Mbps OFDM
- 46 - dB
54 Mbps OFDM
- 30 - dB
MCS0 Mixed
- 46 - dB
MCS7 Mixed
- 28 - dB
1. Sensitivities for channels 6,7,8 & 11 are up to 2dB worse
TA = 25°C. Parameters are measured at antenna port on channel 1(2412 MHz)
Parameter
Condition
Notes
Min
Typ
Max
Units
Sensitivity for 20MHz Bandwidth
(1)
1 Mbps DSSS
- -94.5
-
dBm
2 Mbps DSSS
- -89 - dBm
5.5 Mbps CCK
- -87 - dBm
11 Mbps CCK
- -84 - dBm
6 Mbps OFDM
- -88 - dBm
9 Mbps OFDM
- -87.5
-
dBm
12 Mbps OFDM
- -87 - dBm
18 Mbps OFDM
- -84.5
-
dBm
24 Mbps OFDM
- -81.5
-
dBm
36 Mbps OFDM
- -77.5
-
dBm
MCS0 Mixed
- -87 - dBm
MCS1 Mixed
- -84.5
-
dBm
MCS2 Mixed
- -82 - dBm
MCS3 Mixed
- -79.5
-
dBm
MCS4 Mixed
- -75 - dBm
Maximum Input Level for PER
802.11 b -
-12 - dBm
802.11g -
-15 - dBm
Interference
Mode
Mode
Table 30 WLAN 2.4 GHz Receiver Characteristics on HP RF Chain
3.5.3 WLAN 2.4 GHz Receiver Characteristics on Low-Power (LP) RF Chain
Mode
Mode
Mode
Mode
Mode
below 10%
silabs.com | Building a more connected world. Rev 1.0.7 40 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition
Notes
Min
Typ
Max
Units
802.11n -
-15 - dBm
RSSI Accuracy Range
-3
- 3
dB
Blocking level for 3 dB RX
776–794 MHz
- -3.5
-
dBm
824–849 MHz
- -3.5
-
dBm
880–915 MHz
- -3.5
-
dBm
1710–1785 MHz
- -19 - dBm
1850–1910 MHz
- -18 - dBm
1920–1980 MHz
- -23 - dBm
2300–2400 MHz
- -60 - dBm
2570–2620 MHz
- -22 - dBm
2545–2575 MHz
- -21 - dBm
Return Loss
-10 - -
dB
Adjacent Channel Interference
1 Mbps DSSS
- 40 - dB
11 Mbps DSSS
- 36 - dB
6 Mbps OFDM
- 42 - dB
36 Mbps OFDM
- 30 - dB
MCS0 Mixed
- 40 - dB
MCS4 Mixed
- 30 - dB
Alternate Adjacent Channel
1 Mbps DSSS
- 50 - dB
11 Mbps DSSS
- 38 - dB
6 Mbps OFDM
- 48 - dB
36 Mbps OFDM
- 38 - dB
MCS0 Mixed
- 48 - dB
MCS4 Mixed
- 36 - dB
1. Sensitivities for channels 6,7,8 & 11 are up to 2dB worse.
Sensitivity Degradation(Data rate
6Mbps OFDM, Desired signal at 79dBm)
Interference
Mode
Mode
Mode
Mode
Table 31 WLAN 2.4 GHz Receiver Characteristics on LP RF Chain
silabs.com | Building a more connected world. Rev 1.0.7 41 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
TA = 25°C, PA2G_AVDD/VINBCKDC = 3.3 V. Remaining supplies are at typical operating conditions.
Parameter
Condition
Notes
Min
Typ
Max
Units
Transmit Power
BR -
12 - dBm
EDR 2Mbps
- 12 - dBm
EDR 3Mbps
- 10.5
-
dBm
LE 1Mbps
- 16.5
-
dBm
LE 2Mbps
- 16 - dBm
LR 500 Kbps
- 16 - dBm
LR 125 Kbps
- 16 - dBm
Power Control Step
BR, EDR
- 3 - dB
Adjacent Channel Power |M-N| = 2
BR - - -20
dBm
EDR - - -20
dBm
LE - - -20
dBm
LR - - -20
dBm
Adjacent Channel Power |M-N| > 2
BR - - -40
dBm
EDR - - -40
dBm
LE - - -30
dBm
LR - - -30
dBm
BR Modulation Characteristics
DH1 -25 - 25
kHz
DH3 -40 - 40
kHz
DH5 -40 - 40
kHz
Drift Rate
-20 - 20
kHz/50 us
Δf1 Avg
140 - 175
kHz
Δf2 Max
115 - -
kHz
EDR Modulation Characteristics
RMS DEVM,
- 15 - %
RMS DEVM,
- 5.5 - %
99% DEVM,
- 23 - %
99% DEVM,
- 9.5 - %
peak
- 28 - %
3.5.4 Bluetooth Transmitter Characteristics on High-Performance (HP) RF Chain
3.5.4.1 Transmitter characteristics with 3.3 V Supply
Parameters are measured at antenna port.
(1)
EDR2
EDR3
EDR2
EDR3
silabs.com | Building a more connected world. Rev 1.0.7 42 | Page
PRELIMINARY | Subject to change.
DEVM,EDR2
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition
Notes
Min
Typ
Max
Units
peak
- 13.5 - %
BLE Modulation Characteristics
Δf1 Avg
225 - 275
kHz
Δf2 Max
185 - -
kHz
Δf2 Avg/Δf1 Avg
0.8 - -
-
Transmitter Emissions (BR
776-794 MHz
CDMA2000
-
-160
-
dBm/Hz
869–960 MHz
CDMAOne,
-
-160
-
dBm/Hz
1450–1495 MHz
DAB - -160
-
dBm/Hz
1570–1580 MHz
GPS - -160
-
dBm/Hz
1592–1610 MHz
GLONASS
-
-160
(2)
-
dBm/Hz
1710–1800 MHz
DSC-1800-
-
-115
-
dBm/Hz
1805–1880 MHz
GSM 1800
-
-148
-
dBm/Hz
1850–1910 MHz
GSM 1900
-
-148
-
dBm/Hz
1910–1930 MHz
TDSCDMA,LTE
-
-136
-
dBm/Hz
1930–1990 MHz
GSM1900,
-
-148
-
dBm/Hz
2010–2075 MHz
TDSCDMA
-
-148
-
dBm/Hz
2110–2170 MHz
WCDMA
-
-116
-
dBm/Hz
2305–2370 MHz
LTE Band 40
-
-142
-
dBm/Hz
2370–2400 MHz
LTE Band 40
-
-134
-
dBm/Hz
2496–2530 MHz
LTE Band 41
-
-128
-
dBm/Hz
2530–2560 MHz
LTE Band 41
-
-139
-
dBm/Hz
2570–2690 MHz
LTE Band 41
-
-139
-
dBm/Hz
5000–5900 MHz
WLAN 5G
-
-148
-
dBm/Hz
1. Up to 2dB variation in power from channel-to-channel.
TA = 25°C, PA2G_AVDD/VINBCKDC = 1.85 V. Remaining supplies are at typical operating
DEVM,EDR3
@Maximum output power)
GSM850
Uplink
CDMAOne,WCD
MA
Table 32 Bluetooth Transmitter Characteristics on HP RF Chain 3.3V
2. Noise-floor is -160dBm/Hz with spurious tone power of -68dBm at 1601.33 MHz when transmitted signal is at
2402 MHz
3.5.4.2 Transmitter characteristics with 1.85 V Supply
conditions.Parameters are measured at antenna port.
(1)
silabs.com | Building a more connected world. Rev 1.0.7 43 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition
Notes
Min
Typ
Max
Units
Transmit Power
BR -
11 - dBm
EDR 2Mbps
- 11 - dBm
EDR 3Mbps
- 11 - dBm
LE 1Mbps
- 13 - dBm
LE 2Mbps
- 13 - dBm
LR 500 Kbps
- 13 - dBm
LR 125 Kbps
- 13 - dBm
Power Control Step
BR, EDR
- 3 - dB
Adjacent Channel Power |M-N| = 2
BR - - -20
dBm
EDR - - -20
dBm
LE - - -20
dBm
LR - - -20
dBm
Adjacent Channel Power |M-N| > 2
BR - - -40
dBm
EDR - - -40
dBm
LE - - -30
dBm
LR - - -30
dBm
BR Modulation Characteristics
DH1 -25 - 25
kHz
DH3 -40 - 40
kHz
DH5 -40 - 40
kHz
Drift Rate
-20 - 20
kHz/50 us
Δf1 Avg
140 - 175
kHz
Δf2 Max
115 -
kHz
EDR Modulation Characteristics
RMS DEVM,
- 6.5 - %
RMS DEVM,
- 5.5 - %
99% DEVM,
- 11.5 - %
99% DEVM,
- 10.5 - %
peak
- 20 - %
peak
- 14.5 - %
BLE Modulation Characteristics
Δf1 Avg
225 - 275
kHz
Δf2 Max
185 - -
kHz
Δf2 Avg/Δf1 Avg
0.8 - -
-
776-794 MHz
CDMA2000
-
-160
-
dBm/Hz
EDR2
EDR3
EDR2
EDR3
DEVM,EDR2
DEVM,EDR3
silabs.com | Building a more connected world. Rev 1.0.7 44 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition
Notes
Min
Typ
Max
Units
Transmitter Emissions (BR
869–960 MHz
CDMAOne,
-
-160
-
dBm/Hz
1450–1495 MHz
DAB - -160
-
dBm/Hz
1570–1580 MHz
GPS - -160
-
dBm/Hz
1592–1610 MHz
GLONASS
-
-160
(2)
-
dBm/Hz
1710–1800 MHz
DSC-1800-
-
-115
-
dBm/Hz
1805–1880 MHz
GSM 1800
-
-148
-
dBm/Hz
1850–1910 MHz
GSM 1900
-
-148
-
dBm/Hz
1910–1930 MHz
TDSCDMA,LTE
-
-135
-
dBm/Hz
1930–1990 MHz
GSM1900,
-
-101
-
dBm/Hz
2010–2075 MHz
TDSCDMA
-
-148
-
dBm/Hz
2110–2170 MHz
WCDMA
-
-115
-
dBm/Hz
2305–2370 MHz
LTE Band 40
-
-140
-
dBm/Hz
2370–2400 MHz
LTE Band 40
-
-134
-
dBm/Hz
2496–2530 MHz
LTE Band 41
-
-125
-
dBm/Hz
2530–2560 MHz
LTE Band 41
-
-138
-
dBm/Hz
2570–2690 MHz
LTE Band 41
-
-138
-
dBm/Hz
5000–5900 MHz
WLAN 5G
-
-148
-
dBm/Hz
1. Up to 2dB variation in power from channel-to-channel.
TA = 25°C. Parameters are measured at antenna port and applicable to both PA2G_AVDD/VINBCKDC=1.85V
Parameter
Condition/Notes
Min
Typ
Max
Units
Transmit Power
BR - -
-4.5
dBm
LE 1Mbps
- - -4.5
dBm
LE 2Mbps
- - -4.5
dBm
LR 500 Kbps
- - -4.5
dBm
LR 125 kbps
- - -4.5
dBm
@Maximum output power)
GSM850
Uplink
CDMAOne,WCD
MA
2. Noise-floor is -160dBm/Hz with spurious tone power of -70dBm at 1601.33 MHz when transmitted signal is at
2402 MHz
3.5.5 Bluetooth Transmitter Characteristics on Low-Power (LP) 0 dBm RF Chain
and PA2G_AVDD/VINBCKDC=3.3V
Table 33 Bluetooth Transmitter Characteristics on HP RF Chain 1.85V
silabs.com | Building a more connected world. Rev 1.0.7 45 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition/Notes
Min
Typ
Max
Units
Adjacent Channel Power |M-N| = 2
BR - -
-20
dBm
LE - -
-20
dBm
LR - -
-20
dBm
Adjacent Channel Power |M-N| > 2
BR - -
-40
dBm
LE - -
-30
dBm
LR - -
-30
dBm
BR Modulation Characteristics
DH1
-25 - 25
kHz
DH3
-40 - 40
kHz
DH5
-40 - 40
kHz
Drift Rate
-20 - 20
kHz
Δf1 Avg
140 - 175
kHz
Δf2 Max
115 - -
kHz
BLE Modulation Characteristics
Δf1 Avg
225 - 275
kHz
Δf2 Max
185 - -
kHz
Δf2 Avg/Δf1 Avg
0.8 - -
-
TA = 25°C. Parameters are measured at antenna port and applicable to both PA2G_AVDD/VINBCKDC=1.85V
Parameter
Condition/Notes
Min
Typ
Max
Units
Sensitivity,Dirty TX off
(1),(2)
BR (1 Mbps), 339 bytes, DH5
-
-91 - dBm
EDR2 (2 Mbps), 679 bytes, 2-DH5
-
-92.5
-
dBm
EDR3 (3 Mbps), 1020 bytes, 3-
-
-85.5
-
dBm
LE (1 Mbps), 37 bytes,
-
-91.5
-
dBm
LE (2 Mbps), 37 bytes,
-
-90 - dBm
LR (500 Kbps), 37 bytes,
-
-99 - dBm
LR (125 Kbps), 37 bytes,
-
-103.5
-
dBm
Maximum Input Level
BR, EDR2, EDR3,BER= 0.1%
-
-13 - dBm
LE 1Mbps, 2Mbps,PER=30.8%
-
10 - dBm
3.5.6 Bluetooth Receiver Characteristics on High-Performance (HP) RF Chain
and PA2G_AVDD/VINBCKDC=3.3V
Table 34 Bluetooth Transmitter Characteristics on LP 0 dBm RF Chain
Packet, BER= 0.1%
Packet, BER= 0.01%
DH5 Packet, BER= 0.01%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
silabs.com | Building a more connected world. Rev 1.0.7 46 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition/Notes
Min
Typ
Max
Units
LR 500kps, 125kbps,PER=30.8%
-
10 - dBm
C/I Performance
BR, co-channel, BER=0.1%
9 - -
dB
BR, adjacent +1/-1 MHz,
-2 - -
dB
BR, adjacent +2/-2 MHz
-19 - -
dB
BR, adjacent >=|±3| MHz
-19 - -
dB
BR, Image channel BER=0.1%
-11 - -
dB
BR, adjacent to Image channel
-22 - -
dB
EDR2, co-channel BER=0.1%
11 - -
dB
EDR2, adjacent +1/-1 MHz
-2 - -
dB
EDR2, adjacent +2/-2 MHz
-17 - -
dB
EDR2, adjacent >=|±3| MHz
-17 - -
dB
EDR2, Image channel BER=0.1%
-9 - -
dB
EDR2, adjacent to Image channel
-22 - -
dB
EDR3, co-channel BER=0.1%
19 - -
dB
EDR3, adjacent +1/- MHz
3 - -
dB
EDR3, adjacent +2/-2 MHz
-12 - -
dB
EDR3, adjacent >=|±3| MHz
-12 - -
dB
EDR3, Image channel BER=0.1%
-2 - -
dB
EDR3, adjacent to Image channel
-15 - -
dB
LE 1Mbps, co-channel
-
11 - dB
LE 1Mbps, adjacent +1 MHz
- 4 -
dB
LE 1Mbps, adjacent -1 MHz
-
-5 - dB
LE 1Mbps, adjacent +2 MHz
-
-21 - dB
LE 1Mbps, adjacent -2 MHz
-
-28 - dB
LE 1Mbps, adjacent +3 MHz
-
-21 - dB
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
silabs.com | Building a more connected world. Rev 1.0.7 47 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition/Notes
Min
Typ
Max
Units
LE 1Mbps, adjacent -3 MHz
-
-31 - dB
LE 1Mbps, adjacent >= |±4| MHz
-
-36 - dB
LE 1Mbps, Image channel
-
-26 - dB
LE 1Mbps, +1MHz adjacent to
-
-36 - dB
LE 1Mbps, -1MHz adjacent to
-
-21 - dB
LE 2Mbps, co-channel
-
10 - dB
LE 2Mbps, adjacent +2 MHz
-
-3 - dB
LE 2Mbps, adjacent -2 MHz
-
-5 - dB
LE 2Mbps, adjacent +4 MHz
-
-14 - dB
LE 2Mbps, adjacent -4 MHz
-
-20 - dB
LE 2Mbps, adjacent >= |±6| MHz
-
-34 - dB
LE 2Mbps, Image channel
-
-14 - dB
LE 2Mbps, +2MHz adjacent to
-
-26 - dB
LE 2Mbps, -2MHz adjacent to
-
-3 - dB
1. BR,EDR: Sensitivities for channels 38,78 are up to 4dB worse, due to the desensitization of the receiver
TA = 25°C. Parameters are measured at antenna port and applicable to both PA2G_AVDD/VINBCKDC=1.85V
Parameter
Condition/Notes
Min
Typ
Max
Units
Sensitivity,Dirty TX off
(1),(2)
BR (1 Mbps), 339 bytes, DH5
-
-87.5
-
dBm
PER=30.8%
PER=30.8%
PER=30.8%
Image channel PER=30.8%
Image channel PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
Image channel PER=30.8%
Image channel PER=30.8%
Table 35 Bluetooth Receiver Characteristics on HP RF Chain
from harmonics of the system clock (40MHz)
2. BLE,LR: Sensitivities for channels 19,39 are up to 3dB worse, due to the desensitization of the receiver
from harmonics of the system clock (40MHz)
3.5.7 Bluetooth Receiver Characteristics on Low-Power (LP) RF Chain
and PA2G_AVDD/VINBCKDC=3.3V
Packet BER= 0.1%
silabs.com | Building a more connected world. Rev 1.0.7 48 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition/Notes
Min
Typ
Max
Units
EDR2 (2 Mbps), 679 bytes, 2-DH5
-
-90.5
-
dBm
LE (1 Mbps), 37 bytes,
-
-90 - dBm
LE (2 Mbps), 37
-
-88.5
-
dBm
LR (500 Kbps), 37 bytes,
-
-97 - dBm
LR (125 Kbps), 37
-
-102.5
-
dBm
Maximum Input Level
BR, EDR2 BER= 0.1%
-
-16 - dBm
LE 1Mbps, 2Mbps PER=30.8%
- 3 -
dBm
LR 500kps, 125kbps PER=30.8%
-
10 - dBm
BER Floor
- 1e-4 - %
C/I Performance
BR, co-channel BER= 0.1%
9 - -
dB
BR, adjacent +1/-1 MHz,
-2 - -
dB
BR, adjacent +2/-2 MHz
-19 - -
dB
BR, adjacent >=|±3| MHz
-19 - -
dB
BR, Image channel BER=0.1%
-11 - -
dB
BR, adjacent to Image channel
-22 - -
dB
EDR2, co-channel BER=0.1%
11 - -
dB
EDR2, adjacent +1/-1 MHz
-2 - -
dB
EDR2, adjacent +2/-2 MHz
-17 - -
dB
EDR2, adjacent >=|±3| MHz
-17 - -
dB
EDR2, Image channel BER=0.1%
-9 - -
dB
EDR2, adjacent to Image channel
-22 - -
dB
LE 1Mbps, co-channel
-
11 - dB
LE 1Mbps, adjacent +1 MHz
- 5 -
dB
LE 1Mbps, adjacent -1 MHz
-
-4 - dB
LE 1Mbps, adjacent +2 MHz
-
-21 - dB
Packet, BER= 0.01%
PER=30.8%
bytes, PER=30.8%
PER=30.8%
bytes, PER=30.8%
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
BER=0.1%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
silabs.com | Building a more connected world. Rev 1.0.7 49 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Condition/Notes
Min
Typ
Max
Units
LE 1Mbps, adjacent -2 MHz
-
-28 - dB
LE 1Mbps, adjacent +3 MHz
-
-22 - dB
LE 1Mbps, adjacent -3 MHz
-
-29 - dB
LE 1Mbps, adjacent >= |±4| MHz
-
-36 - dB
LE 1Mbps, Image channel
-
-29 - dB
LE 1Mbps, +1MHz adjacent to
-
-35 - dB
LE 1Mbps, -1MHz adjacent to
-
-22 - dB
LE 2Mbps, co-channel
- 9 -
dB
LE 2Mbps, adjacent +2 MHz
-
-4 - dB
LE 2Mbps, adjacent -2 MHz
-
-4 - dB
LE 2Mbps, adjacent +4 MHz
-
-13 - dB
LE 2Mbps, adjacent -4 MHz
-
-20 - dB
LE 2Mbps, adjacent >= |±6| MHz
-
-35 - dB
LE 2Mbps, Image channel
-
-13 - dB
LE 2Mbps, +2MHz adjacent to
-
-25 - dB
LE 2Mbps, -2MHz adjacent to
-
-4 - dB
1. BR,EDR: Sensitivities for channels 38,78 are up to 4dB worse, due to the desensitization of the receiver
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
Image channel PER=30.8%
Image channel PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
PER=30.8%
Image channel PER=30.8%
Image channel PER=30.8%
Table 36 Bluetooth Receiver Characteristics on LP RF Chain
from harmonics of the system clock (40MHz)
2. BLE,LR: Sensitivities for channels 19,39 are up to 3dB worse, due to the desensitization of the receiver
from harmonics of the system clock (40MHz)
silabs.com | Building a more connected world. Rev 1.0.7 50 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Description
Value
Units
1 Mbps Listen
LP Chain
13.82
mA
1 Mbps RX Active
LP Chain
19.67
mA
6 Mbps RX Active
HP Chain
48.2
mA
72 Mbps RX Active
HP Chain
48.2
mA
11 Mbps TX Active
Tx Power = Maximum (18dBm)
270
mA
6 Mbps TX Active
Tx Power = Maximum (18dBm)
285
mA
54 Mbps TX Active
Tx Power = Maximum (15dBm)
200
mA
72 Mbps TX Active
Tx Power = Maximum (12dBm)
180
mA
Deep Sleep
GPIO Wake up
0.9
uA
Standby
State retained
13.1
uA
Standby Associated, DTIM = 1
293
uA
Standby Associated, DTIM = 3
119
uA
Standby Associated, DTIM = 10
51
uA
3.6 Typical Current Consumption
3.6.1 3.3 V
3.6.1.1 WLAN
Tx Power = 8dBm
Tx Power = 8dBm
Tx Power = 8dBm
130
130
130
mA
mA
mA
Tx Power = 8dBm
silabs.com | Building a more connected world. Rev 1.0.7 51 | Page
PRELIMINARY | Subject to change.
130
mA
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Description
Value
Units
TX Active Current, 1 Mbps BR
LP chain, Tx Power = -2 dBm
9.9
mA
RX Active Current, 1 Mbps BR
LP chain
10.2
mA
TX Active Current, 2 Mbps EDR
HP chain, Tx Power = Maximum (12 dBm)
130 mA
RX Active Current, 2 Mbps EDR
LP chain
10.2
mA
TX Active Current, 3 Mbps EDR
HP chain, Tx Power = Maximum (12 dBm)
140 mA
RX Active Current, 3 Mbps EDR
HP chain
26.7
mA
Deep Sleep
GPIO Wake up
0.9
uA
Standby
State retained
13.1
uA
Parameter
Description
Value
Units
TX Active Current
LP chain, Tx Power = -2 dBm
8.9
mA
RX Active Current
LP chain
10.9
mA
Deep Sleep
GPIO Wake up
0.9
uA
Standby
State retained
13.1
uA
Advertising, Unconnectable
Advertising on all 3 channels
22.4
uA
Advertising, Connectable
Advertising on all 3 channels
30.1 uA
Connected
Connection Interval = 1.28s
21.8
uA
Connected
Connection Interval = 200ms
72
uA
3.6.1.2 Bluetooth BR and EDR
HP chain, Tx Power = Maximum (12 dBm)
HP chain
HP chain
130
26.7
26.7
mA
mA
mA
3.6.1.3 Bluetooth LE
LP Chain, Tx Power = 2 dBm
HP Chain, Tx Power = Maximum (18 dBm)
HP chain
Advertising Interval = 1.28s
Tx Power = -2 dBm, LP chain
Advertising Interval = 1.28s
-
190
26.7
mA
mA
mA
Tx Power = -2 dBm, LP chain
No Data
Tx Power = -2 dBm, LP chain
silabs.com | Building a more connected world. Rev 1.0.7 52 | Page
PRELIMINARY | Subject to change.
No Data
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Description
Value
Units
Tx Power = -2 dBm, LP chain
Scanning
Scan Interval = 1.28s
-
uA
Parameter
Description
Value @
Value @
Units
1 Mbps Listen
LP Chain
13.4
23.5
mA
1 Mbps RX Active
LP Chain
19
33.3
mA
6 Mbps RX Active
HP Chain
37
65
mA
72 Mbps RX Active
HP Chain
39
68.3
mA
11 Mbps TX Active
Tx Power = Maximum (15dBm)
133
233
mA
6 Mbps TX Active
Tx Power = Maximum (15dBm)
136
238.2
mA
54 Mbps TX Active
Tx Power = Maximum (12dBm)
106
185.6
mA
72 Mbps TX Active
Tx Power = Maximum (10dBm)
97
170
mA
Scan Window = 11.25ms
LP Chain
3.6.2 1.85 V
**Please Note that the below efficiency values are at 3.6V applied on the Buck Converter. If a better voltage is
applied, then customer can expect better efficiencies.
3.6.2.1 WLAN
Tx Power = 8dBm
Tx Power = 8dBm
3.6V
69
67
1.85V
121
117.3
mA
mA
Tx Power = 8dBm
67
117.3
mA
Tx Power = 8dBm
silabs.com | Building a more connected world. Rev 1.0.7 53 | Page
PRELIMINARY | Subject to change.
87
152.4
mA
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Description
Value @
Value @
Units
Deep Sleep
GPIO Wake up
0.9
1.6
uA
Standby
State retained
12.3
21.5
uA
Standby Associated, DTIM = 1
250
438
uA
Standby Associated, DTIM = 3
92
161.2
uA
Standby Associated, DTIM = 10
41
72
uA
Parameter
Description
Value @
Value @
Units
TX Active Current, 1 Mbps BR
LP chain, Tx Power = -2 dBm
8.6 - 15 - mA
RX Active Current, 1 Mbps BR
LP chain
9.3
16.3
mA
TX Active Current, 2 Mbps EDR
HP chain, Tx Power = Maximum (12 dBm)
- -
mA
RX Active Current, 2 Mbps EDR
LP chain
10.2
18
mA
TX Active Current, 3 Mbps EDR
HP chain, Tx Power = Maximum (12 dBm)
- -
mA
RX Active Current, 3 Mbps EDR
HP chain
24 42
mA
Deep Sleep
GPIO Wake up
0.9
1.6
uA
Standby
State retained
12.3
21.5
uA
Inquiry Scan
Scan Interval = 1.28s
2.7
4.73
mA
Page Scan
Scan Interval = 1.28s
2.7 4.73
mA
Inquiry and Page Scan
Inquiry/Page Scan Interval = 1.28s
5.5
9.6
mA
SNIFF Mode
Sniff Interval = 500ms
263
461
uA
3.6.2.2 Bluetooth BR and EDR
HP chain, Tx Power = Maximum (12 dBm)
HP chain
3.6V
3.6V
23
1.85V
1.85V
mA
40.3
mA
HP chain
Scan Window = 128ms
Scan Window = 128ms
24
42
mA
Scan Window = 128ms
Attempts = 2
Tx Power = 2 dBm, HP chain
silabs.com | Building a more connected world. Rev 1.0.7 54 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Description
Value @
Value @
Units
TX Active Current
LP chain, Tx Power = -2 dBm
8.6
15.2
mA
RX Active Current
LP chain
9.6
17 - mA
Deep Sleep
GPIO Wake up
0.9
1.6
uA
Standby
State retained
12.3
21.5
uA
Advertising, Unconnectable
Advertising on all 3 channels
- - uA
Advertising, Connectable
Advertising on all 3 channels
31 54.3
uA
Connected
Connection Interval = 1.28s
25
44
uA
Connected
Connection Interval = 200ms
69
121
uA
Scanning
Scan Interval = 1.28s
- - uA
3.6.2.3 Bluetooth LE
LP Chain, Tx Power = 2 dBm
HP Chain, Tx Power = Maximum (14 dBm)
HP chain
Advertising Interval = 1.28s
Tx Power = -2 dBm, LP chain
Advertising Interval = 1.28s
3.6V
13.6
1.85V
23.8
-
-
mA
mA
-
mA
Tx Power = -2 dBm, LP chain
No Data
Tx Power = -2 dBm, LP chain
No Data
Tx Power = -2 dBm, LP chain
Scan Window = 11.25ms
LP Chain
silabs.com | Building a more connected world. Rev 1.0.7 55 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
4 RS9116 AA1 module Detailed Description
4.1 Overview
RS9116 AA1 module is based on Silicon Labs’ RS9116 ultra-low-power, single spatial stream, 802.11n + BT/BLE5.0
Convergence SoC. The RS9116 AA1 module provides low-cost CMOS integration of a multi-threaded MAC processor
(threadArch®), baseband digital signal processing, analog front-end, crystal oscillator, calibration eFuse, 2.4GHz RF
transceiver, integrated power amplifier, match, bandpass filters(BPF), antenna diversity switch (DPDT) and Quad-SPI
Flash thus providing a fully-integrated solution for a range of hosted and embedded wireless applications. With Silicon
Labs' embedded four-threaded processor and on-chip ROM and RAM, these chipsets enable integration into lowcost and zero host load applications. With an integrated PMU and support for a variety of digital peripherals, RS9116
enables very low-cost implementations for wireless hosted and embedded applications. It can be connected to a host
processor through SDIO, USB, SPI or UART interfaces. Wireless firmware upgrades and provisioning are supported.
4.2 Module Features
4.2.1 WLAN
• Compliant to single-spatial stream IEEE 802.11 b/g/n with single band support
• Support for 20 MHz channel bandwidth
• Transmit power up to +18 dBm with integrated PA
• Receive sensitivity as low as -96 dBm
• Data Rates:- 802.11b: Upto11 Mbps ; 802.11g: Upto54 Mbps ; 802.11n: MCS0 to MCS7
• Operating Frequency Range:- 2412 MHz – 2484 MHz
4.2.1.1 MAC
• Conforms to IEEE 802.11b/g/n/j standards for MAC
• Dynamic selection of fragment threshold, data rate, and antenna depending on the channel statistics
• Hardware accelerators for WEP 64/128-bit and AES
• WPA, WPA2, and WMM support
• AMPDU and AMSDU aggregation for high performance
• Firmware downloaded from host based on application
• Hardware accelerators for DH (for WPS)
4.2.1.2 Baseband Processing
• Supports DSSS for 1, 2 Mbps and CCK for 5.5, 11 Mbps
• Supports all OFDM data rates (6, 9, 12, 18, 24, 36, 48, 54 Mbps, MCS0 to MCS7), and Short GI in Hosted mode
• Supports IEEE 802.11n single-stream modes with data rates up to 150 Mbps
• Supports long, short, and HT preamble modes
• High-performance multipath compensation in OFDM, DSSS, and CCK modes
4.2.2 Bluetooth
• Transmit power up to +16 dBm with integrated PA
• Receive sensitivity:- LE: -92 dBm, LR 125 Kbps: -102 dBm
• Compliant to dual-mode Bluetooth 5
• <8 mA transmit current in Bluetooth 5 mode, 2 Mbps data rate
• Data rates: 125 Kbps, 500 Kbps, 1 Mbps, 2Mbps, 3 Mbps
• Operating Frequency Range:- 2.402 GHz - 2.480 GHz
silabs.com | Building a more connected world. Rev 1.0.7 56 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
* For detailed list of Software features, and available profiles, please refer the Software Reference Manuals, or,
• Bluetooth 2.1 + EDR, Bluetooth Low Energy 4.0 / 4.1 / 4.2 / 5.0
• Bluetooth Low Energy 1 Mbps, 2 Mbps and Long Range modes
• Bluetooth Low Energy Secure connections
• Bluetooth Low Energy supports central role and peripheral role concurrently.
• Bluetooth auto rate and auto TX power adaptation
• Scatternet* with two slave roles while still being visible.
Contact Silicon Labs for availability.
4.2.2.1 MAC
4.2.2.1.1 Link Manager
• Creation, modification & release of logical links
• Connection establishment between Link managers of two Bluetooth devices
• Link supervision is implemented in Link Manager
• Link power control is done depending on the inputs from Link Controller
• Enabling & disabling of encryption & decryption on logical links
• Services the data transport requests from L2CAP and provides required QOS
• Support for security using ECDH hardware accelerator
4.2.2.1.2 Link Controller
• Encodes and decodes header of BT packets
• Manages flow control, acknowledgment, retransmission requests, etc.
• Stores the last packet status for all logical transports
• Chooses between SCO & ACL buffers depending on the control information coming from BBP resource manager
• Indicates the success status of packet transmission to upper layers
• Indicates the link quality to the LMP layer
4.2.2.1.3 Host Controller
• Receives & decodes commands received from the Bluetooth Host.
• Propagates the decoded commands to respective modules
• Responsible for transmitting and receiving packets from and to Host
• Formats the responses coming from other modules of Bluetooth Controller as events and sends them to the Host.
4.2.2.1.4 Device Manager
• Controls Scan & Connection processes
• Controls all BT Device operations except data transport operations
• Storing link keys
• BT Controller state transition management
• Slot synchronization & management
• Access contract management
• Scheduler
4.2.2.2 Baseband Processing
• Supports GFSK (1 Mbps), EDR-DQPSK, EDR-D8PSK
silabs.com | Building a more connected world. Rev 1.0.7 57 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
• Supports BLE and Bluetooth long range
• Supports Data rates up to 3 Mbps
4.2.3 RF Transceiver
• Integrated 2.4 GHz transceiver with highly programmable operating modes
• Internal oscillator with 40 MHz crystal
• Inbuilt automatic boot up and periodic calibration enables ease of integration
4.2.4 Host Interfaces
• SDIO
o Version 2.0-compatible
o Supports SD-SPI, 1-bit, and 4-bit SDIO modes
o Operation up to a maximum clock speed of 50 MHz
• SPI Interface
o Operation up to a maximum clock speed of 100 MHz
• USB 2.0
o Supports 480Mbps “High Speed” (HS), 12Mbps “Full Speed” (FS) and 1.5Mbps “Low Speed” (LS) serial
data transmission
o Support USB CDC and device mode
• UART
o Supports variable baud rates between 9600 and 3686400 bps
o AT command interface for configuration and data transmission/reception
NOTE: Hosted mode (n-Link) supports USB 2.0 and SDIO. Embedded Mode (WiSeConnect) supports SPI, USB
CDC, and UART.
4.2.4.1 Auto Host detection
RS9116 detects the host interface automatically after connecting to respective host controllers like SDIO, SPI, UART,
USB and USB-CDC. SDIO/SPI host interface is detected through the hardware packet exchanges. UART host
interface is detected through the software based-on the received packets on the UART interface. USB-Device mode
interface is detected through the hardware based-on VBUS signal level. The host interface detection between USB &
USB-CDC will be taken care by the firmware based on the USB CDC SEL GPIO. This Host configuration is stored in
always-on domain registers after detection (on power up) and reused this information at each wakeup.
4.2.5 Wireless Coexistence Manager
• Arbitration between Wi-Fi, Bluetooth, and Bluetooth Low Energy
• Application aware arbitration
• Adaptive frequency hopping (AFH) in Bluetooth is based on WLAN channel usage
• Pre inter thread interrupts generation for radio switching
• QoS assurance across different traffics
4.2.6 Software
The RS9116 software package supports 802.11 b/g/n Client, Access Point (Up to 16 clients), Concurrent Client and
Access Point mode, Enterprise Security dual-mode BT 5.0 functionality on a variety of host platforms and operating
systems. The software package includes complete firmware, reference drivers, application profiles and configuration
graphical user interface (GUI) for Linux operating systems. The Wi-Fi driver has support for a simultaneous access
point, and client mode. Bluetooth host driver utilizes Opensource host stacks like BlueZ for Linux. The
application layer supports all profiles supported by BlueZ on Linux. It has a wireless coexistence manager to arbitrate
between protocols.
The RS9116 software package is available in two flavors
silabs.com | Building a more connected world. Rev 1.0.7 58 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
* For detailed list of Software features, and available profiles, please refer the Software Reference Manuals, or,
* For detailed list of Software features, and available profiles, please refer the Software Reference Manuals, or,
• Hosted mode (n-Link™): Wi-Fi stack, Bluetooth stack and profiles, and all network stacks reside on the host
processor. Support for multiple Virtual Access Points available.
• Embedded mode (WiSeConnect™): Wi-Fi stack, TCP/IP stack, IP modules, Bluetooth stack and some profiles
reside in RS9116; Some of the Bluetooth profiles reside in the host processor
NOTE: Please refer the Software Manuals (TRM and PRM) for more details.
4.2.6.1 Hosted Mode (n-Link™)
• Available host interfaces: SDIO 2.0 and USB HS
• Application data throughput up to 50 Mbps (Hosted Mode) in 802.11n with 20MHz bandwidth.
• Host drivers for Linux
• Support for Client mode, Access point mode (Upto 16 clients), Concurrent Client and Access Point mode,
Enterprise Security
• Support for concurrent Wi-Fi, dual-mode Bluetooth 5
4.2.6.2 Embedded Mode (WiSeConnect™)
• Available host interface: UART, SPI, SDIO*, and USB CDC
• TCP throughput > 20Mbps over SDIO host interface with 20 MHz bandwidth
• Support for Embedded Client mode, Access Point mode (Upto 8 clients), Concurrent Client and Access Point
mode, and Enterprise Security
• Supports advanced security features: WPA/WPA2-Personal and Enterprise*
• Integrated TCP/IP stack (IPV4/IPV6), HTTP/HTTPS, DHCP, ICMP, SSL 3.0/TLS1.2, WebSockets, IGMP, DNS,
DNS-SD, SNMP, FTP Client, MQTT*
• Bluetooth inbuilt stack support for L2CAP, RFCOMM, SDP, SPP, GAP
• Bluetooth profile support* for GAP, SDP, L2CAP, RFCOMM, SPP, GATT, PBAP
• Wireless firmware upgrade and provisioning
• Support for concurrent Wi-Fi, dual-mode Bluetooth 5
Contact Silicon Labs for availability.
4.2.7 Security
RS9116 supports multiple levels of security capabilities available for the development of IoT devices.
• Accelerators: AES128/256 in Embeded Mode
• WPA/WPA2-Personal, WPA/WPA2 Enterprise for Client*
• Secure Firmware upgrade* with backup
Contact Silicon Labs for availability.
4.2.8 Power Management
The RS9116 chipsets have an internal power management subsystem, including DC-DC converters and linear
regulators. This subsystem generates all the voltages required by the chipset to operate from a wide variety of input
sources.
silabs.com | Building a more connected world. Rev 1.0.7 59 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
ULP mode is not supported in the USB interface mode
• LC DC-DC switching converter for RF and Digital blocks
o Wide input voltage range (1.85 to 3.6V) on pin VINBCKDC
o Output - 1.4V and 300mA maximum load on pin VOUTBCKDC
• SC DC-DC - Switching converter for Always-ON core logic domain
o Wide input voltage range (1.85 to 3.6V) on pin UULP_VBATT_1 and UULP_VBATT_2
o Output - 1.05V
• LDO SOC - Linear regulator for digital blocks
o Input - 1.4V from LC DC-DC or external regulated supply on pin VINLDOSOC
o Output - 1.15V and 300mA maximum load on pin VOUTLDOSOC
• LDO RF and AFE - Linear regulator for RF and AFE
o Input - 1.4V from LC DC-DC or external regulated supply on pin RF_AVDD
o Output - 1.1V and 20mA maximum load on pin VOUTLDOAFE
• LDO FLASH - Linear regulator for internal and external Flash
o Input - Wide input voltage range (1.85 to 3.6V) on pin VINLDO1P8
o Output - 1.8V and 20mA maximum load on pin VOUTLDO1P8
4.2.9 Low power modes
It supports Ultra-low power consumption with multiple power modes to reduce the system energy consumption.
• Dynamic Voltage and Frequency Scaling
• Low Power (LP) mode with only the host interface active
• Deep sleep (ULP) mode with only the sleep timer active – with and without RAM retention
• Wi-Fi standby associated mode with automatic periodic wake-up
• Automatic clock gating of the unused blocks or transit the system from Normal to LP or ULP modes
4.2.9.1 ULP mode
In Ultra Low Power mode, the deep sleep manager has control over the other subsystems and processors and
controls their active and sleep states. During deep sleep, the always-on logic domain operates on a lowered supply
and a 32 KHz low-frequency clock to reduce power consumption. The ULP mode supports the following wake-up
options:
• Timeout wakeup - Exit sleep state after programmed timeout value.
• GPIO Based Wakeup: Exit sleep state when GPIO goes High/Low based on programmed polarity.
• Analog Comparator Based wakeup - Exit sleep state on an event at the analog comparator.
• RTC Timer wakeup - Exit Sleep state on timeout of RTC timer
• WatchDog Interrupt based wakeup - Exit Sleep state upon watchdog interrupt timeout.
4.2.9.2 LP mode
In Low Power mode, Network processor maintains system state and gate all internal high frequency clocks. But host
interface is ready to accept any command from host controller.
The LP mode supports the following wake-up options:
• Host Request - Exit sleep state on a command from HOST controller. whenever a command from the host is
received, the processor serves the request with minimum latency and the clock is gated immediately after the
completion of the operation to reduce power consumption
• GPIO based wakeup - Wakeup can be initiated through a GPIO pin
silabs.com | Building a more connected world. Rev 1.0.7 60 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
• Timeout wakeup - Exit sleep state after the programmed timeout value
4.2.10 Memory
4.2.10.1 On-chip memory
The threadArch® processor has the following memory:
• On-chip SRAM for the wireless stack.
• 512Kbytes of ROM which holds the Secure primary bootloader, Network Stack, Wireless stacks and security
functions.
• 16Kbytes of Instruction cache enabling eXecute In Place (XIP) with quad SPI flash memory.
• eFuse of 512 bytes (used to store primary boot configuration, security and calibration parameters)
4.2.10.2 Serial Flash
The RS9116 utilizes a serial Flash to store processor instructions and other data. The SPI Flash Controller is a 1/2/4wired interface for serial access of data from Flash. It can be used in either Single, Dual or Quad modes. Instructions
are read using the Direct Fetch mode while data transfers use the Indirect Access mode. The SPI Flash Controller in
RS9116 has been designed with programmable options for most of the single and multi-bit operations. RS9116 AA1
module has 4 Mbytes internal flash memory.
silabs.com | Building a more connected world. Rev 1.0.7 61 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
5 RS9116 AA1 module Reference Schematics, BOM and Layout Guidelines
5.1 SDIO/SPI/UART
5.1.1 Schematics
The below diagram shows the typical schematic with SDIO/SPI/UART Host Interface.
silabs.com | Building a more connected world. Rev 1.0.7 62 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
1. The supplies can be driven by different voltage sources within the recommended operating conditions specified in Specifications section.
S.No
Quantity
Reference
Value
Description
JEDEC
Manufacturer
Part Number
1 1 C1
10uF
CAP CER 10UF 10V X5R
0805
Murata
GRM21BR61A106KE19L
2 1 C2
1uF
CAP CER 1UF 10V 10% X5R
0402
Murata
GRM155R61A105KE15D
3 1 C3
0.1uF
CAP CER 0.1UF 10V X5R
0402
Murata
GRM155R61A104KA01D
4 1 R1
33E
RES SMD 33 OHM 5% 1/10W
0402
Panasonic
ERJ-2GEJ330X
Figure 16 Schematics with SDIO/SPI/UART Host Interface
2. SDIO_IO_VDD can be driven by a different source irrespective of other sources to support different interfaces.
3. In the SDIO mode, pull-up resistors should be present on SDIO_CMD & SDIO Data lines as per the SDIO physical layer specification, version 2.0
4. In SPI mode, ensure that the input signals, SPI_CS and SPI_CLK are not floating when the device is powered up and reset is deasserted. This can be done by
ensuring that the host processor configures its signals (outputs) before deasserting the reset. SPI_INTR is the interrupt signal driven by the slave device. This signal
may be configured as Active-high or Active-low. If it is active-high, an external pull-down resistor may be required. If it is active-low, an external pull-up resistor may
be required. This resistor can be avoided if the following action needs to be carried out in the host processor
a. To use the signal in the Active-high or Active-low mode, ensure that, during the power up of the device, the Interrupt is disabled in the Host processor before
deasserting the reset. After deasserting the reset, the Interrupt needs to be enabled only after the SPI initialization is done and the Interrupt mode is
programmed to either Active-high or Active-low mode as required.
b. The Host processor needs to be disable the interrupt before the ULP Sleep mode is entered and enable it after SPI interface is reinitialized upon wakeup
from ULP Sleep.
5. In UART mode, ensure that the input signals, UART_RX and UART_CTS are not floating when the device is powered up and reset is deasserted. This can be done
by ensuring that the host processor configures its signals (outputs) before deasserting the reset.
6. Resistor "R1" need not be populated if UART is used as Host Interface.
5.1.2 Bill of Materials
0805
0402
0402
silabs.com | Building a more connected world. Rev 1.0.7 63 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
S.No
Quantity
Reference
Value
Description
JEDEC
Manufacturer
Part Number
5 1 U1 Wireless Single Band Module
Redpine
RS9116N-SB00-AA1 /
Table 37 Bill of Materials with SDIO/SPI/UART Host Interface
5.2 USB/USB-CDC
5.2.1 Schematics
The below diagram shows the typical schematic with USB/USB-CDC Host Interface.
RS9116W-SB00-AA1
silabs.com | Building a more connected world. Rev 1.0.7 64 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
silabs.com | Building a more connected world. Rev 1.0.7 65 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
1. The supplies can be driven by different voltage sources within the recommended operating conditions specified in Specifications section.
S.No
Quantity
Reference
Value
Description
JEDEC
Manufacturer
Part Number
1 1 C1
10uF
CAP CER 10UF 10V X5R
0805
Murata
GRM21BR61A106KE19L
2 1 C2
1uF
CAP CER 1UF 10V 10% X5R
0402
Murata
GRM155R61A105KE15D
3 3 C3,C4,C5
0.1uF
CAP CER 0.1UF 10V X5R
0402
Murata
GRM155R61A104KA01D
4 1 R2
4.7K
RES SMD 4.7K OHM 5%
0402
Panasonic
ERJ-2GEJ472X
5 1 U1 Wireless Single Band Module
Redpine
RS9116N-SB00-AA1 /
Figure 17 Schematics with USB/USB-CDC Host Interface
2. Ensure that the pin USB_CDC_DIS is left unconnected to ensure normal USB functionality.
3. Resistor "R2" should not be populated if normal USB is used as Host Interface.
5.2.2 Bill of Materials
0805
0402
0402
1/10W 0402
RS9116W-SB00-AA1
Table 38 USB Bill of Materials
silabs.com | Building a more connected world. Rev 1.0.7 66 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
5.3 Layout Guidelines
The following guidelines outline the integration of the AA1 module:-
1. The following Supply Pins needs to be STAR routed from the Supply Source
a. VIN_3P3
b. UULP_VBATT_1
c. SDIO_IO_VDD
2. The module has 27 Ground pads, with two different sizes as mentioned below. Note that all ground pads are
present around the center of the module on the bottom side.
a. Provide one ground copper pad of size 3.60mm x 3.60mm and 26 ground copper pads of size 1.4mm x
1.4 mm on the top side of the PCB. Make sure to open the solder mask in this area so that the Cu is
exposed.
b. Provide one ground copper pad of size 3.60mm x 3.60mm or higher on the bottom side of the PCB and
keep open the solder mask in this area so that the Cu is exposed.
c. The RF ground pad (pin number 53) should have 16 Vias, each of which should have a pad size of 24mil
in diameter and a 16mil drill.
3. There should be no metal planes or traces in the region under the PCB antenna and beside it for at least 3 mm.
The module should be placed such that the antenna portion is on the edge of the PCB.
Figure 18 PCB Antenna Guidelines
4. For USB, it is recommended that the components and their values in the BoM be adhered to.
5. It is highly recommended that the two USB differential signals (USB_DP and USB_DN) be routed in parallel with a
spacing (say, a) which achieves 90 Ω of differential impedance, 45 Ω for each trace.
silabs.com | Building a more connected world. Rev 1.0.7 67 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Figure 19 Spacing between USB_DP and USB_DM
6. In order to minimize crosstalk between the two USB differential signals (USB_DP and USB_DN) and other signal
traces routed close to them, it is recommended that a minimum spacing of 3 x a be maintained for low-speed nonperiodic signals and a minimum spacing of 7 x a be maintained for high-speed periodic signals.
Figure 20 Spacing for Low-speed and High-speed signals around USB_DP/USB_DN
7. It is recommended that the total trace length of the signals between the RS9116 module and the USB connector
be less than 450mm.
8. If the USB high-speed signals are routed on the Top layer, best results will be achieved if Layer2 is a ground
plane. Furthermore, there must be only one ground plane under high-speed signals in order to avoid the highspeed signals crossing to another ground plane.
Figure 21 USB Signals and the Ground Plane
9. Each GND pin must have a separate GND via.
10. All decoupling capacitors placement must be as much close as possible to the corresponding power pins, and the
trace lengths as short as possible.
11. Ensure all power supply traces widths are sufficient enough to carry corresponding currents.
12. Add GND copper pour underneath IC/Module in all layers, for better thermal dissipation.
silabs.com | Building a more connected world. Rev 1.0.7 68 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
The details of u.FL connector for external antenna :-
The module with integrated antenna comes with an option to connect an external antenna through a u.FL
connector. The choice between the on board antenna and the external antenna can be made through a software
command. The figures below show the u.FL connector integrated on the module. The connector on the external
antenna should be pushed down to fit into the u.FL connector connected to the module.
Figure 22 u.FL Connector (Part No: Hirose U.FL-R-SMT (01))
silabs.com | Building a more connected world. Rev 1.0.7 69 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Figure 23 External Antenna
silabs.com | Building a more connected world. Rev 1.0.7 70 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
6 RS9116 AA1 module Antenna Specifications
6.1 Overview
The RS9116 Single band modules have been certified for FCC, IC and ETSI/CE with Silicon Labs’ Single-band PCB
antenna. The sections which follow list down the performance specifications of the PCB antenna.
6.2 PCB Antenna Performance Specifications
6.2.1 Return Loss Characteristic of the Antenna
Figure 24 Return Loss Characteristic of the Antenna
6.2.2 Module Reference Orientation
Figure 25 Module Reference Orientation
silabs.com | Building a more connected world. Rev 1.0.7 71 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020

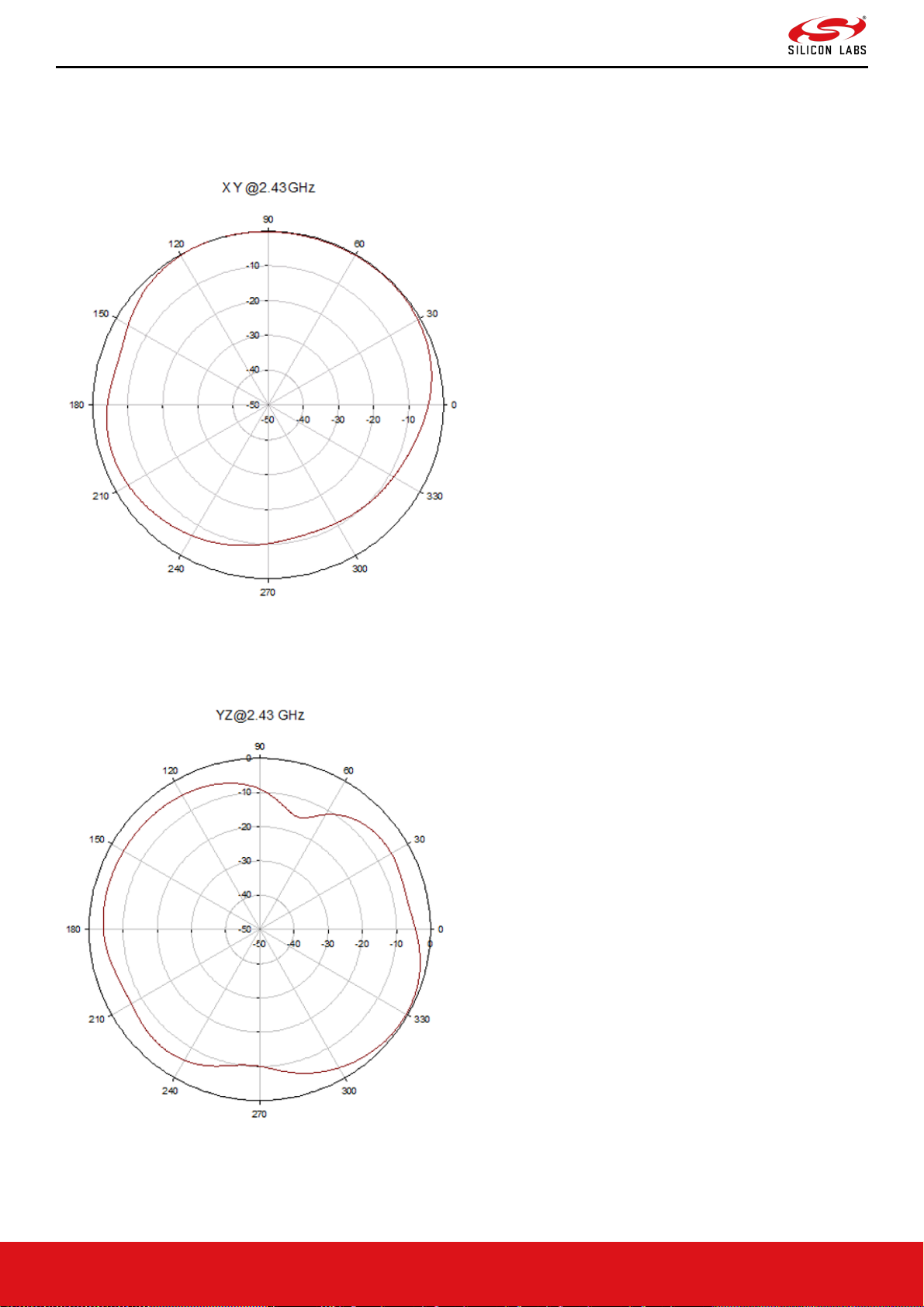

6.2.3 Gain Plots
6.2.3.1 XY at 2.43 GHz
6.2.3.2 YZ at 2.43 GHz
Figure 26 2D Gain Plot for XY at 2.43 GHz
Figure 27 2D Gain Plot for YZ at 2.43 GHz
silabs.com | Building a more connected world. Rev 1.0.7 72 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
@ 2.43 GHz
@ 5.5 GHz
Peak Gain
0.99 dBi
4.42 dBi
Average Efficiency
87 %
85 %
6.2.3.3 ZX at 2.43 GHz
6.3 Antenna Parameters
Figure 28 2D Gain Plot for ZX at 2.43 GHz
Table 39 Antenna Parameters
silabs.com | Building a more connected world. Rev 1.0.7 73 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Note:
7 RS9116 AA1 module Storage, Handling and Soldering Conditions
7.1 Recommended Reflow Profile
Figure 29 Reflow Diagram
The profile shown is based on SAC 305 solder (3% silver, 0.5% copper). We recommend the ALPHA OM-338
lead-free solder paste. This profile is provided mainly for guidance. The total dwell time depends on the thermal
mass of the assembled board and the sensitivity of the components on it. The recommended belt speed is 5060 Cm/Min. A finished module can go through two more reflow processes.
7.2 Baking Instructions
The packages are moisture sensitive (MSL3 grade) and devices must be handled appropriately. After the devices are
removed from their vacuum-sealed packs, they should be taken through reflow for board assembly within 168 hours at
room conditions or stored at under 10% relative humidity. If these conditions are not met, the devices must be baked
before reflow. The recommended baking time is nine hours at 125°C.
silabs.com | Building a more connected world. Rev 1.0.7 74 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Parameter
Typical
Units
Module Dimensions
27 x 16 x 3.1
mm
Tolerance
±0.2
mm
8 RS9116 AA1 module Package Description
8.1 Dimensions
Table 40 Module Dimensions
silabs.com | Building a more connected world. Rev 1.0.7 75 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
8.2 Package Outline
8.2.1 Top View
Figure 30 Package Outline
silabs.com | Building a more connected world. Rev 1.0.7 76 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
8.2.2 Side View
silabs.com | Building a more connected world. Rev 1.0.7 77 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
8.3 PCB Landing Pattern
Figure 31 PCB Landing Pattern
silabs.com | Building a more connected world. Rev 1.0.7 78 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
8.3.1 Packing Information of Modules with Package Codes AA1
The modules are packaged and shipped in Trays.
Each tray for the AA1 packages can accommodate 70 modules. The mechanical details of the tray for the AA1
package are given in the figure below.
Figure 32 Packing Information of Modules with Package Codes AA1
silabs.com | Building a more connected world. Rev 1.0.7 79 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Note
9 RS9116 AA1 module Certification and Ordering Information
9.1 Certification Information
This section will outline the regulatory certification information for the RS9116 modules for the countries listed below.
This information will be updated when available.
1. United States
2. Canada
3. Europe
4. Japan
5. Other Regulatory Jurisdictions
The RS9116 SIngle Band AA1 modules from Redpine Signals have undergone modular certification for FCC, IC and
CE/ETSI . Note that any changes to the module’s configuration including (but not limited to) the programming values
of the RF Transceiver and Baseband can cause the performance to change beyond the scope of the certification.
These changes, if made, may result in the module having to be certified afresh. The table below lists the details of the
regulatory certifications. The certification for geographies not listed in the table is in progress.
9.2 Compliance and Certification
M15SB module is FCC/IC/CE certified. This section outlines the regulatory information for the M15SB module. This
allows integrating the module in an end product without the need to obtain subsequent and separate approvals from
these regulatory agencies. This is valid in the case no other intentional or un-intentional radiator components are
incorporated into the product and no change in the module circuitry. Without these certifications, an end product
cannot be marketed in the relevant regions.
• RF Testing Software is provided for any end product certification requirements.
9.2.1 Federal Communication Commission Statement
Any changes or modifications not expressly approved by the party responsible for compliance could void your
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
9.2.1.1 RF exposure statements
1. This Transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter.
silabs.com | Building a more connected world. Rev 1.0.7 80 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator
and your body or nearby persons.
For a host using a certified modular with a standard fixed label, if (1) the module’s FCC ID is not visible when installed
in the host, or (2) if the host is marketed so that end users do not have straightforward commonly used methods for
access to remove the module so that the FCC ID of the module is visible; then an additional permanent label referring
to the enclosed module:“Contains Transmitter Module FCC ID: XF6-M15SB” or “Contains FCC ID: XF6-M15SB” must
be used. The host OEM user manual must also contain clear instructions on how end users can find and/or access
the module and the FCC ID.
9.2.1.2 Labeling and User Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.
9.2.2 Industry Canada / ISED Statement
This product meets the applicable Innovation, Science and Economic Development Canada technical specifications.
Ce produit repond aux specifications techniques applicables a l'innovation, Science et Developpement economique
Canada.
9.2.2.1 Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non
contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de
rayonnement et votre corps.
This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the
device.
Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisee aux deux conditions suivantes :
1. l’appareil ne doit pas produire de brouillage;
2. l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible
d’en compromettre le fonctionnement.
9.2.2.2 Labeling and User Information
Innovation, Science and Economic Development Canada ICES003 Compliance Label: CAN ICES-3 (B)/NMB3(B)
The M15SB module has been labeled with its own IC ID number (8407A-M15SB) and if the IC ID is not visible
when the module is installed inside another device, then the outside of the finished product into which the
module is installed must also display a label referring to the enclosed module. This exterior label can use
following wording: Contains Transmitter Module IC ID: 8407A-M15SB or Contains IC ID: 8407A-M15SB User
manuals for license-exempt radio apparatus shall contain the above mentioned statement or equivalent notice
in a conspicuous location in the user manual or alternatively on the device or both
Warning:
1. The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems;
2. For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350
MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;
3. For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850
MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and nonpoint-to-point operation as appropriate; and
The high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 56505850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
silabs.com | Building a more connected world. Rev 1.0.7 81 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Antenna Model
Antenna Type
Gain
Qualified Region
RSIA15
PCB Trace Antenna
0.99 dBi
FCC/IC, CE, TELEC
WS.01.B.305151
Heavy Duty Screw Mount Antenna
4.1 dBi
FCC/IC, CE, TELEC
AEM6P-100000
Dipole Antenna
2 dBi
TELEC
AEM6P-100001
Dipole Antenna
2 dBi
TELEC
AEEE0-000000
Multilayer ceramic Antenna
2.13 dBi
TELEC
AEEE0-000001
Chip Antenna
4 dBi
TELEC
AEEE0-000002
Chip Antenna
4 dBi
TELEC
DFS (Dynamic Frequency Selection) products that operate in the bands 5250- 5350 MHz, 5470-5600MHz, and
5650-5725MHz.
This device is not capable of transmitting in the band 5600-5650 MHz in Canada.
Avertissement:
1. Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à l’intérieur
afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes
canaux;
2. Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant les bandes 5250-5350
MHz et 5470-5725 MHz doit se conformer à la imitation P.I.R.E.;
3. Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant la bande 5725-5850
MHz doit se conformer à la limitation P.I.R.E spécifiée pour l’exploitation point à point et non point à point, selon le
cas.
En outre, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont
désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz
et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Les produits utilisant la technique d’atténuation DFS (sélection dynamique des réquences) sur les bandes 52505350 MHz, 5470-5600MHz et 5650-5725MHz.
Cet appareil ne peut pas émettre dans la bande 5600-5650 MHz au Canada.
9.2.3 CE
M15SB is in conformity with the essential requirements and other relevant requirements of the R&TTE Directive
(1999/5/EC). The product is conformity with the following standards and/or normative documents.
• EMC (immunity only) EN 301 489-17 V.2.2.1 in accordance with EN 301 489-1 V1.9.2
• Radiated emissions EN 300 328 V1.9.1
• Safety standards: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
9.2.4 TELEC
Telefication, operating as Conformity Assessment Body (CAB ID Number:201) with respect to Japan, declares that
the M15SB complies with Technical Regulations Conformity Certification of specified Radio equipment (ordinance of
MPT No 37,1981)
• The validity of this Certificate is limited to products, which are equal to the one examined in the type-examination
• when the manufacturer (or holder of this certificate) is placing the product on the Japanese market, the product
must affixed with the following Specified Radio Equipment marking R201-190234
9.2.5 Qualified Antenna Types for M15SB
This device has been designed to operate with the antennas listed below. Antennas not included in this list or having a
gain greater than listed gains in each region are strictly prohibited for use with this device. The required antenna
impedance is 50 ohms.
silabs.com | Building a more connected world. Rev 1.0.7 82 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Antenna Model
Antenna Type
Gain
Qualified Region
AEP6P-100006X
PIFA Antenna
3 dBi
TELEC
AEP6P-100008X
PIFA Antenna
3 dBi
TELEC
Marking
Description
Model
M15SB
Model Number for Single-band
Firmware
RS9116X-SBX0-AAX
Software/Firmware supported – refer
FCC
XF6-M15SB
FCC Grant ID for Single-band
IC
8407A-M15SB
IC Grant ID for Single-band modules.
Lot Code Information
XXX-WWYY
XXX – Internal usage
Compliance Marks
FCC Compliance Mark
CE Compliance Mark
TELEC Compliance Mark
Table 41 Qualified Antenna List
Any antenna that is of the same type and of equal or less directional gain can be used without a need for retesting. To
reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. Using
an antenna of a different type or gain more than certified gain will require additional testing.
9.2.6 Module Marking Information
The figure and table below illustrates the marking on the Single band module, and explains the marking on the
module.
Figure 33 Module Marking Information
modules
to the Part Ordering Section for more
details.
modules.
WW – Week of manufacture
YY – Year of manufacture
silabs.com | Building a more connected world. Rev 1.0.7 83 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Package Code
Package Type,
Dimensions
Frequency Band
Integrated Antenna
Notes
AA1
LGA, 79
16 x 27 x 3.1
Single Band (2.4
Antenna and u.FL
RS9113
Part Number
Wireless
Hosted Connectivity (n-Link)
RS9116N-SB00-AA1-X00
SBW+BT5; Rev 1.3 Silicon
Embedded Connectivity (WiSeConnect)
RS9116W-SB00-AA1-X24
SBW+BT5; Rev 1.3 Silicon; Firmware Version: 1.2.24
9.3 Module Package
Pins
(mm)
GHz)
Table 42 Module Package
Connector
9.4 Ordering Information
Table 43 Part Ordering Options
Note: SBW: Single Band Wi-Fi (2.4 GHz); DBW: Dual Band Wi-Fi (2.4/5 GHz)
9.4.1 Device Nomenclature
Compatible
Figure 34 Device Nomenclature
silabs.com | Building a more connected world. Rev 1.0.7 84 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
10 RS9116 AA1 module Documentation and Support
Silicon Labs offers a set of documents which provide further information required for evaluating, and developing
products and applications using RS9116. These documents are available in RS9116 Document Library on the Silicon
Labs website. The documents include information related to Software releases, Evaluation Kits, User Guides,
Programming Reference Manuals, Application Notes, and others.
For further assistance, you can contact Silicon Labs Technical Support here.
silabs.com | Building a more connected world. Rev 1.0.7 85 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Revision No.
Version No.
Date
Changes
1
1.0
April, 2019
Initial version
2
1.0.1
May, 2019
• Updated host based schematics. Combined SDIO,
3
1.0.2
May, 2019
Removed 32KHz XTAL Pins and used UULP GPIO for
4
1.0.3
June, 2019
• Corrected the description of 32KHz external clock in
5
1.0.4
November, 2019
Bluetooth ACI specs corrected (earlier version shows
6
1.0.5
July, 2020
• Added note about voltage applied on external Buck
11 RS9116 AA1 module Revision History
• Updated 32 Khz external oscillator specifications
• Updated the Schematics for UART_RTS and
feeding in the External Clock. Updated the below sections
for the same
• Pinout Description.
• Specifications
• Reference Schematics
SPI & UART host interfaces into one
schematic.Combined USB and USB-CDC host
interfaces into one schematic.
UART_CTS Pin correction.
Specifications section
• Corrected the Part Number for SDIO/SPI/UART
based reference schematics
• Moved AVDD_1P9_3P3 to NC.
• Added host detection details and updated network
processor memory details in Detailed description.
• Corrected the initial state of SDIO_D3 to pullup and
SDIO_D2 to HighZ.
under Typ - should have been under “Min”)
Regulator for Typical Current Consumption at 1.85V.
• Updated Applications section.
• Updated 40 MHz Clock specifications.
• Updated LED0 software configuration note for
ULP_GPIO_8 under Pin Description.
• Mentioned need for weak pull up resistor under Pin
Description to use Wake-on-Wireless feature on
ULP_GPIO_6.
• Updated "Digital Input Output Signals" to separate
readings at 3.3V and 1.8V.
• Included TELEC certification details and updated
Module Marking Information.
• Updated Wireless Co-Existence modes in Features
list.
• The number of center roles supported by BLE
changed from 8 to 6.
• Added a note under Pin Description regarding
functionalities that are available on multiple Pins, and
their proper usage. Eg. SLEEP_IND_FROM_DEV
silabs.com | Building a more connected world. Rev 1.0.7 86 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
Revision No.
Version No.
Date
Changes
• Updated Generic PCB Layout Guidelines.
7
1.0.6
August, 2020
• Updated Features List, removed redundant
8
1.0.7
September, 2020
• Updated Device Information with new nomenclature to
• Updated Power Sequence Diagrams under DC
Characteristics for POC_IN and POC_OUT.
• Features list updated.
• Added Antenna specifications.
• Reflow profile diagram updated.
• Updated Typical values for BLE ACI characteristics.
• Updated GPIO pin descriptions.
information.
• Updated Applications, and Software Architecture
Diagrams.
• Updated pin descriptions - ULP_GPIO_0 and
ULP_GPIO_6.
• Updated Software section with latest information.
• Rebranded to Silicon Labs.
include Silicon revision, and firmware version.
• Updated schematics to include the new nomenclature.
• SoC Ordering information updated with new OPNs;
Device Nomenclature diagram updated.
Table 44 Revision History
silabs.com | Building a more connected world. Rev 1.0.7 87 | Page
PRELIMINARY | Subject to change.
RS9116 AA1 Connectivity Module Datasheet v1.0.7, Sep-2020
http://www.silabs.com
silabs.com | Building a more connected world. Rev 1.0.7 88 | Page
PRELIMINARY | Subject to change.
Loading...
