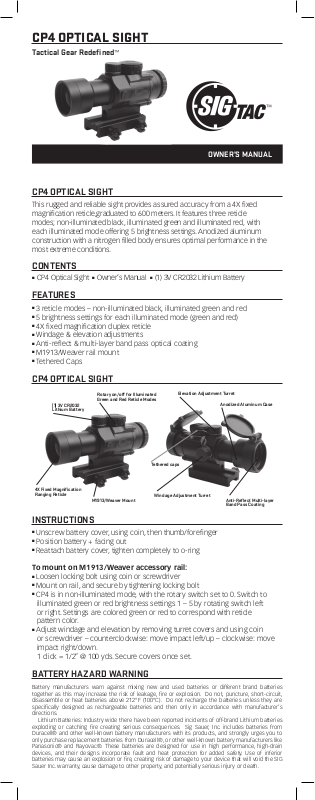

CP4 OPTICAL SIGHT
Tactical Gear Redefi ned
CP4 OPTICAL SIGHT
This rugged and reliable sight provides assured accuracy from a 4X fi xed
magnifi cation reticle,graduated to 600 meters. It features three reticle
modes; non-illuminated black, illuminated green and illuminated red, with
each illuminated mode offering 5 brightness settings. Anodized aluminum
construction with a nitrogen fi lled body ensures optimal performance in the
most extreme conditions.
CONTENTS
■
CP4 Optical Sight ■ Owner’s Manual ■ (1) 3V CR2032 Lithium Battery
™
OWNER’S MANUAL
FEATURES
■
3 reticle modes – non-illuminated black, illuminated green and red
■
5 brightness settings for each illuminated mode (green and red)
■
4X fi xed magnifi cation duplex reticle
■
Windage & elevation adjustments
■
Anti-refl ect & multi-layer band pass optical coating
■
M1913/Weaver rail mount
■
Tethered Caps
CP4 OPTICAL SIGHT
Elevation Adjustment Turret
Windage Adjustment Turret
Anodized Aluminum Case
Anti-Refl ect Multi-layer
Band Pass Coating
(1) 3V CR2032
Lithium Battery
4X Fixed Magnifi cation
Ranging Reticle
Rotary on/off for Illuminated
Green and Red Reticle Modes
M1913/Weaver Mount
Tethered caps
INSTRUCTIONS
■
Unscrew battery cover, using coin, then thumb/forefi nger
■
Position battery + facing out
■
Reattach battery cover, tighten completely to o-ring
To mount on M1913/Weaver accessory rail:
■
Loosen locking bolt using coin or screwdriver
■
Mount on rail, and secure by tightening locking bolt
■
CP4 is in non-illuminated mode, with the rotary switch set to 0. Switch to
illuminated green or red brightness settings 1 – 5 by rotating switch left
or right. Settings are colored green or red to correspond with reticle
pattern color.
■
Adjust windage and elevation by removing turret covers and using coin
or screwdriver – counterclockwise: move impact left/up – clockwise: move
impact right/down.
1 click = 1/2” @ 100 yds. Secure covers once set.
BATTERY HAZARD WARNING
Battery manufacturers warn against mixing new and used batteries or different brand batteries
together as this may increase the risk of leakage, fi re or explosion. Do not, puncture, short-circuit,
disassemble or heat batteries above 212°F (100°C). Do not recharge the batteries unless they are
specifi cally designed as rechargeable batteries and then only in accordance with manufacturer’s
directions.
Lithium Batteries: Industry wide there have been reported incidents of off-brand Lithium batteries
exploding or catching fi re creating serious consequences. Sig Sauer, Inc. includes batteries from
Duracell® and other well-known battery manufacturers with its products, and strongly urges you to
only purchase replacement batteries from Duracell®, or other well-known battery manufacturers like
Panasonic® and Rayovac®. These batteries are designed for use in high performance, high-drain
devices, and their designs incorporate fault and heat protection for added safety. Use of inferior
batteries may cause an explosion or fi re, creating risk of damage to your device that will void the SIG
Sauer Inc. warranty, cause damage to other property, and potentially serious injury or death.
CP4 OPTICAL SIGHT
Reticle type
Reticle color
Magnification
Eye Relief
Exit Pupil
Parallax setting
Optical coating
Power/Obj. lens
Reflective prism
ranging reticle
Illuminated red, green
or non-illuminated
black
4X
3.2” / 82mm
.4” / 10.6mm
100 yds
Anti-reflect & multilayer band pass
1.2” / 32mm
RANGE TABLE
The CP4 reticle is used to determine the
range of a target of known size. The example
below shows an 18” wide target bracketed
between the first two shorter vertical stadia
lines of the reticle. The distance between
these two stadia lines is 18” at 100 yds as
stated in diagram XX (which will be the
reticle diagram with dimensions).
Target In Size in Inches
Target In Size in M.O.A.
Range Est. in Yards
The lower range scales is for bracketing a
32” tall target.
If you reference the MOA chart you will
see that the distance between the short
line at the top of the target and the bottom
horizontal line is 16 MOA.
The formula is then: 32 (height of the target)
÷16 (MOA from chart) x 100 = 200 yds.
32 in 32 in 32 in 32 in 32 in
16 8 5.3 4 3.2
200 400 600 800 1000
Field of view
Adjustment range
Windage/elevation
Mounting
Temp range
Water resistance
Length/diameter
Weight
6 degrees,
10.5m@100m
2 degrees
1/2” @ 100 yds
M1913 / Weaver
-5 degrees F to +113
degrees F
0.5m for 15 minutes
5.8” x 1.2” (146mm x
30mm)
13.9 oz / 390g
AIMING
The CP4 reticle can be used for aiming even
though it is not a bullet drop design.
To use the reticle for aiming you must know
several data points. First, you must know
the bullet drop of your specific cartridge.
For example let’s use M855 5.56 NATO. Zero
the firearm at 100 yds. Move to 200 yards
and fire a three to five shot group. Measure
the distance between your point of aim
and center of the group. Let’s say it drops
4.0”. You must then have a reference of a known measurement on the reticle to use
as an aiming point. In this case the center dot of the reticle measures 1.8” at 100 yds.
So at 200 yds it will be 3.6” (1.8” x 2=3.6”) which is as close to a 4.0” reference point as
you will get with the reticle. Hold over the height of the dot from your intended point of
impact at 200.
At 300 yds the M855 will drop approx. 15.2”. The measurement of reference “J” of the
reticle is 10.1” at 100 yds, so at 300 yds it is 30.0”. Use the halfway point of the vertical
stadia line as a hold point on the target at 300 yds.
STATEMENT OF LIABILITY
This device is classified as a FIREARMS ACCESSORY and is sold by us with the specific
understanding that we are not responsible in any manner whatsoever for its safe handling
or resale under local laws and regulations. SIGTac shall not be responsible in any manner
whatsoever for malfunctioning of the firearm, for physical injury or for property damage resulting
in whole or in part from (1) criminal or negligent discharge, (2) improper or careless handling,
(3) unauthorized modifications, (4) defective, improper, hand-loaded, or reloaded ammunition,
(5) corrosion, (6) neglect, or (7) other influences beyond our direct and immediate control. This
limitation applies regardless of whether liability is asserted on the basis of contract, negligence
or strict liability (including any failure to warn). Under no circumstances shall SIGTac be liable
for incidental or consequential damages, such as loss of use of property, commercial loss and
loss of earnings or profits.
WARRANTY STATEMENT
SIGTac warrants that our sight and illumination tool products are free from defect in parts and workmanship
for a period of ninety (90) days from original date of purchase. At our discretion, we will repair, replace,
or refund your original purchase price of this product if it is determined to be defective. Normal wear
and tear, including lamps burning out, batteries draining, and switches wearing out, is not covered, nor
is damage resulting from abuse, neglect, battery leakage, or altering this product from its original state.
CONTACT
72 Pease Boulevard, Newington, NH 03801
1-866-964-4822 • www.sigtac.com
