Sigma 853 DATASHEET

Lens construction

12 – 16

Angle of View

69.3 – 11.4°

Minimum Aperture

22

Minimum Focusing Distance

0.35m (1.15 ft)

Magnification

1:3.8

Filter Size

67mm

Dimensions Dia.×Length

74×88.5mm (2.91×3.48 in)

Weight

505g (17.8 oz)

rective conformity mark of the European

SIGMA (Deutschland) GmbH Carl-Zeiss-Str. 10/2, D-63322 Rödermark, F.R.GERMANY

Verkauf: 01805-90 90 85-0 Service: 01805-90 90 85-85 Fax: [phone]

① Filter Attachment Thread

⑥ Focus Mode Switch

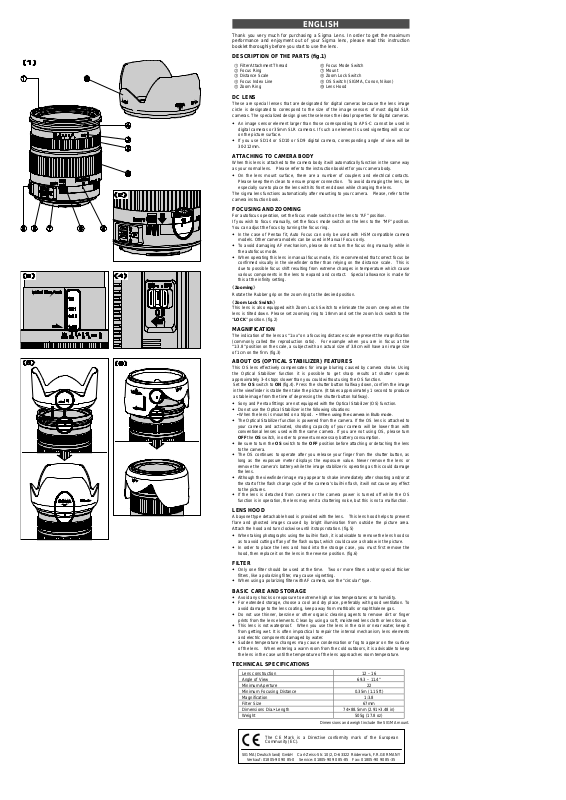

ENGLISH

Thank you very much f or purchasing a Sigma Lens. In order to get the maxim um
performance and enjoyment out of your Sigma lens, please read this instruction
booklet thoroughly before you start to use the lens.

DESCRIPTION OF THE PARTS (fig.1)

② Focus Ring
③ Distance Scale
④ Focus Index Line
⑤ Zoom Ring

⑦ Mount
⑧ Zoom Lock Switch
⑨ OS Switch (SIGMA, Conon, Nikon)
⑩ Lens Hood

DC LENS

These are special lenses that are designated for digi tal cameras because the lens image
circle is designated to correspond to the si ze of the image sensors of most digital SLR
cameras. The specialized design gives these lenses the ideal properties for digital cameras.

◆ An image sensor element larger than those corresponding to APS-C ca nnot be used in
digital cameras or 35mm SLR cameras. If such an el ement is used vi gnetting will occur
on the picture surface.

◆ If you use SD14 or SD10 or SD9 di gital camera, corresponding angle of view will be
30-212mm.

ATTACHING TO CAMERA BODY

When this lens is attached to the camera body it will automatically function in the same way
as your normal lens. Please refer to the instruction booklet for your camera body.

◆ On the lens mount surface, there are a number of couplers and electrical contacts.
Please keep them clean to ensure pro per connection. To avoid damagi ng the lens, be
especially sure to place the lens with its front end down while changing the lens.

The sigma lens functions automatically after mounting to your camera. Please, refer to the
camera instruction book.

FOCUSING AND ZOOMING

For autofocus operation, set the focus mode switch on the lens to “AF” position.
If you wish to focus manually, set the focus mode switch on the lens to the “MF” position.
You can adjust the focus by turning the focus ring.

◆ In the case of Pentax fit, Auto Focus can only be used with HSM compatible camera
models. Other camera models can be used in Manual Focus only.

◆ To avoid damagi ng AF mechanism, please do not turn the focus ring manually while in
the autofocus mode.

◆ When operating this lens in manual focus mode, it is recommended that correct focus be
confirmed visually in the viewfinder rather t han relying on the distance scale. This is
due to possible focus shift resulti ng from extreme changes i n temperature which cause
various components in the lens to expand a nd contact. Special allowance is mad e for
this at the infinity setting.

《Zooming》

Rotate the Rubber grip on the zoom ring to the desired position.

《Zoom Lock Switch》

This lens is also equipped with Zoom Lock Swi tch to eliminate the zoom creep when the
lens is tilted down. Please set zooming ring to 18mm and set the zoom lock switch to the
“LOCK” position. (fig.2)

MAGNIFICATION

The indication of the lens as “1:xx” on a focusing distance scale represent the magnifi cation
(commonly called the reproduction ratio). For example when you are in focus at the
“1:3.8” position on the scale, a s ubject wi th an actual size of 3.8cm will have an image si ze
of 1cm on the firm. (fig.3)

ABOUT OS (OPTICAL STABILIZER) FEATURES

This OS lens effectively compensates for image blurring caused by camera shake. Using
the Optical Stabilizer function it is possible to get sharp results at shutter speeds
approximately 3-4 stops slower than you could without using the OS function.
Set the OS switch to ON (fig.4). Press the shutter button halfway down, confirm the image
in the viewfinder is stable then take the picture. (It takes approximately 1 second to produce
a stable image from the time of depressing the shutter button halfway).

◆ Sony and Pentax fittings are not equipped with the Optical Stabilizer (OS) function.

◆ Do not use the Optical Stabilizer in the following situations:

▪ When the lens is mounted on a tripod. ▪ When using the camera in Bulb mode.

◆ The Optical Stabilizer function is powered from t he camera. If t he OS lens i s attached to

your camera and activated, shooting capacity of your camera will be lower than with
conventional lenses used with the same camera. If you are not usi ng OS, please turn
OFF the OS switch, in order to prevent unnecessary battery consumption.

◆ Be sure to turn the OS switch to the OFF position before attaching or detaching the lens

to the camera.

◆ The OS continues to operate after you release your finger from the shutter button, as

long as the exposure meter displays the exposure value. Never remove the lens or
remove the camera’s battery while the image stabilizer is operating as this could damage
the lens.

◆ Although the viewfinder image may appear to s hake immed i atel y after shooting and/or at

the start of the flash charge cycle of the camera’s built-in flash, it will not cause any effect
to the pictures.
If the lens is detached from camera or the camera power is turned off while the OS

◆

function is in operation, the lens may emit a chatt er in g noise, but this is not a malfuncti on.

LENS HOOD

A bayonet type detachable hood is provided with the lens. This lens hood helps to prevent
flare and ghosted images caused by bright illumination from outside the picture area.
Attach the hood and turn clockwise until it stops rotation. (fig.5)

When taking photographs using the built-in flash, it is advisable to remove the lens hood so

◆

as to avoid cutting off any of the flash output, which could cause a shadow in the picture.

◆ In order to place the lens and hood into the storage case, you must first remove the
hood, then replace it on the lens in the reverse position. (fig.6)

FILTER

◆ Only one filter should be used at the time. Two or more filters and/or special thicker
filters, like a polarizing filter, may cause vignetting.

◆ When using a polarizing filter with AF camera, use the “circular” type.

BAS IC C A RE AND STORAGE

◆ Avoid any shocks or exposure to extreme high or low temperatures or to humidity.

◆ For extended storage, choose a cool and dry place, pref erably with good v entilation. To

avoid damage to the lens coating, keep away from mothballs or naphthalene gas.

◆ Do not use thinner, benzine or other organic cleaning agents to remove dirt or finger
prints from the lens elements. Clean by using a soft, moistened lens cloth or lens tissue.

◆ This lens is not waterproof. When you use t he lens in the rain or near water, keep it
from getting wet. It is often impractical to repair the internal mec hanism, lens elements
and electric components damaged by water.

◆ Sudden temperature changes may cause condensation or fog to appear on the surface
of the lens. W hen entering a warm room from the cold outdoors, it is advisable to keep
the lens in the case until the temperature of the lens approaches room temperature.

TECHNICAL SPECIFICATIONS

Dimensions and weight include the SIGMA mount.

The CE Mark is a Di
Community (EC).
