SSA3000X Spectrum Analyzer

Programming Guide

PG0703X-E04A

SIGLENT

Contents

1. Programming Overview ........................................................... 3

1.1 Remotely Operating the Analyzer ......................................................... 3

1.2 Build Communication ................................ ................................ ............ 4

1.3 Remote Control Capabilities ................................................................. 7

2. SCPI Overview ........................................................................ 11

2.1 Command Format................................................................................. 11

2.2 Symbol Instruction ............................................................................... 11

2.3 Parameter Type ..................................................................................... 12

2.4 Command Abbreviation ....................................................................... 13

3. System Commands ................................................................ 14

3.1 IEEE Common Commands .................................................................. 14

3.2 System Subsystem .............................................................................. 16

3.3 Instrument Subsystem ......................................................................... 21

3.4 Initiate Subsystem................................................................................ 22

3.5 Sense Subsystem................................................................................. 23

3.6 Calculate Subsystem ........................................................................... 41

3.7 Measurement Subsystem .................................................................... 58

3.8 Trigger Subsystem ............................................................................... 67

3.9 TG Subsystem ...................................................................................... 68

3.10 Demod Subsystem ............................................................................... 70

3.11 Calibration Subsystem ........................................................................ 71

3.12 Memory Subsystem ............................................................................. 72

4. Programming Examples ........................................................ 73

4.1 Examples of Using VISA ...................................................................... 73

4.2 Examples of Using Sockets/Telnet ..................................................... 84

2 SSA3000X Programming Guide

SIGLENT

1.Programming Overview

SSA3000X Series Spectrum Analyzer support LAN, USB Device, and GPIB--USB Host interfaces. By using these interfaces, in combination with programming languages and/or NIVISA software, users can remotely control the analyzer based on SCPI (Standard Commands for Programmable Instruments) command set, and interoperate with other programmable instruments.

This chapter introduces how to build communication between the spectrum analyzer and a controller computer with these interfaces.

1.1 Remotely Operating the Analyzer

The analyzer provides both the USB and LAN connection which allows you to set up a remote operation environment with a controller computer. A controller computer could be a personal computer (PC) or a minicomputer. Some intelligent instruments also function as controllers.

1.1.1 Connecting the Analyzer via the USB Device port

Refer to the following steps to finish the connection via USB-Device:

1. Install NI-VISA on your PC for USB-TMC driver.

2. Connect the analyzer USB Device port to a PC with a USB A-B cable.

3. Switch on the analyzer

The analyzer will be detected automatically as a new USB hardware.

1.1.2 Connecting the Analyzer via the LAN port

Refer to the following steps to finish the connection via LAN:

1. Install NI-VISA on your PC for VXI driver. Or without NI-VISA, using socket or telnet in your PC’s Operating System.

2. Connect the analzyer to PC or the local area network with a LAN cable

3. Switch on the analyzer

SSA3000X Programming Guide 3

SIGLENT

4. Press button on the front panel System →Interface→LAN to enter the LAN Config function menu.

5. Select the IP Config between Static and DHCP

 DHCP: the DHCP server in the current network will assign the network parameters

automaticlly (IP address, subnet mask, gate way) for the analzyer.

 Static: you can set the IP address, subnet mask, gate way manually. Press Apply.

The analyzer will be detected automatically or manually as a new LAN point.

1.1.3 Connecting the Analyzer via the USB-Host port (With USB-GPIB Adaptor)

Refer to the following steps to finish the connection via USB:

1. Install NI-VISA on your PC for GPIB driver.

2. Connect the analyzer USB Host port to a PC’s GPIB card port, with SIGLENT USBGPIB adaptor.

3. Switch on the analyzer

4. Press button on the front panel System→Interface→GPIB to enter the GPIB number.

The analyzer will be detected automatically as a new GPIB point.

1.2 Build Communication

1.2.1 Build Communication Using VISA

NI-VISA includes a Run-Time Engine version and a Full version. The Run-Time Engine version provides NI device drivers such as USB-TMC, VXI, GPIB, etc. The full version includes the Run-Time Engine and a software tool named NI MAX that provides a user interface to control the device.

You can get NI-VISA full version from:

4 SSA3000X Programming Guide

SIGLENT

http://www.ni.com/download/.

After download you can follow the steps below to install it: a. Double click the visa_full.exe, dialog shown as below:

b. Click Unzip, the installation process will automatically launch after unzipping files. If your computer needs to install .NET Framework 4, its setup process will auto start.

c. The NI-VISA installing dialog is shown above. Click Next to start the installation process.

Set the install path, default path is “C:\Program Files\National Instruments\” , you can change it. Click Next, dialog shown as above.

SSA3000X Programming Guide 5

SIGLENT

d. Click Next twice, in the License Agreement dialog, select the “ I accept the above 2 License Agreement(s).” ,and click Next, dialog shown as below:

e. Click Next to run installation.

Now the installation is complete, reboot your PC.

1.2.2 Build Communication Using Sockets/Telnet

Through LAN interface, VXI-11, Sockets and Telnet protocols can be used to communicate with the spectrum analyzer. VXI-11 is provided in NI-VISA, while Sockets and Telnet are

6 SSA3000X Programming Guide

SIGLENT

commonly included in PC’s OS initially. Sockets LAN is a method used to communicate with the spectrum analyzer over the LAN

interface using the Transmission Control Protocol/Internet Protocol (TCP/IP). A socket is a fundamental technology used for computer networking and allows applications to communicate using standard mechanisms built into network hardware and operating systems. The method accesses a port on the spectrum analyzer from which bidirectional communication with a network computer can be established.

Before you can use sockets LAN, you must select the analyzer’s sockets port number to use:

 Standard mode. Available on port 5025. Use this port for programming.  Telnet mode. The telnet SCPI service is available on port 5024.

1.3 Remote Control Capabilities

1.3.1 User-defined Programming

Users can use SCPI commands to program and control the spectrum analyzer. For details, refer to the introductions in “Programming Examples”.

1.3.2 Send SCPI Commands via NI MAX

Users can control the spectrum analyzer remotely by sending SCPI commands via NI-MAX software.

1.3.2.1 Using USB

Run NI MAX software. 1, Click “Device and interface” at the upper left corner of the software; 2, Find the “USBTMC” device symbol

3, Click “Open VISA Test Panel” option button, then the following interface will appear. 4, Click the “Input/Output” option button and click the “Query” option button in order to view the operation information.

SSA3000X Programming Guide 7

SIGLENT

NOTE: The *IDN? command (known as the Identification Query) returns the instrument

manufacturer, instrument model, serial number, and other identification information.

1.3.2.2 Using LAN

select, Add Network Device, and select VISA TCP/IP Resource as shown:. Run NI MAX software.

1, Click “Device and interface” at the upper left corner of the software; 2, Find the “Network Devices” symbol , click “Add Network Devices”;

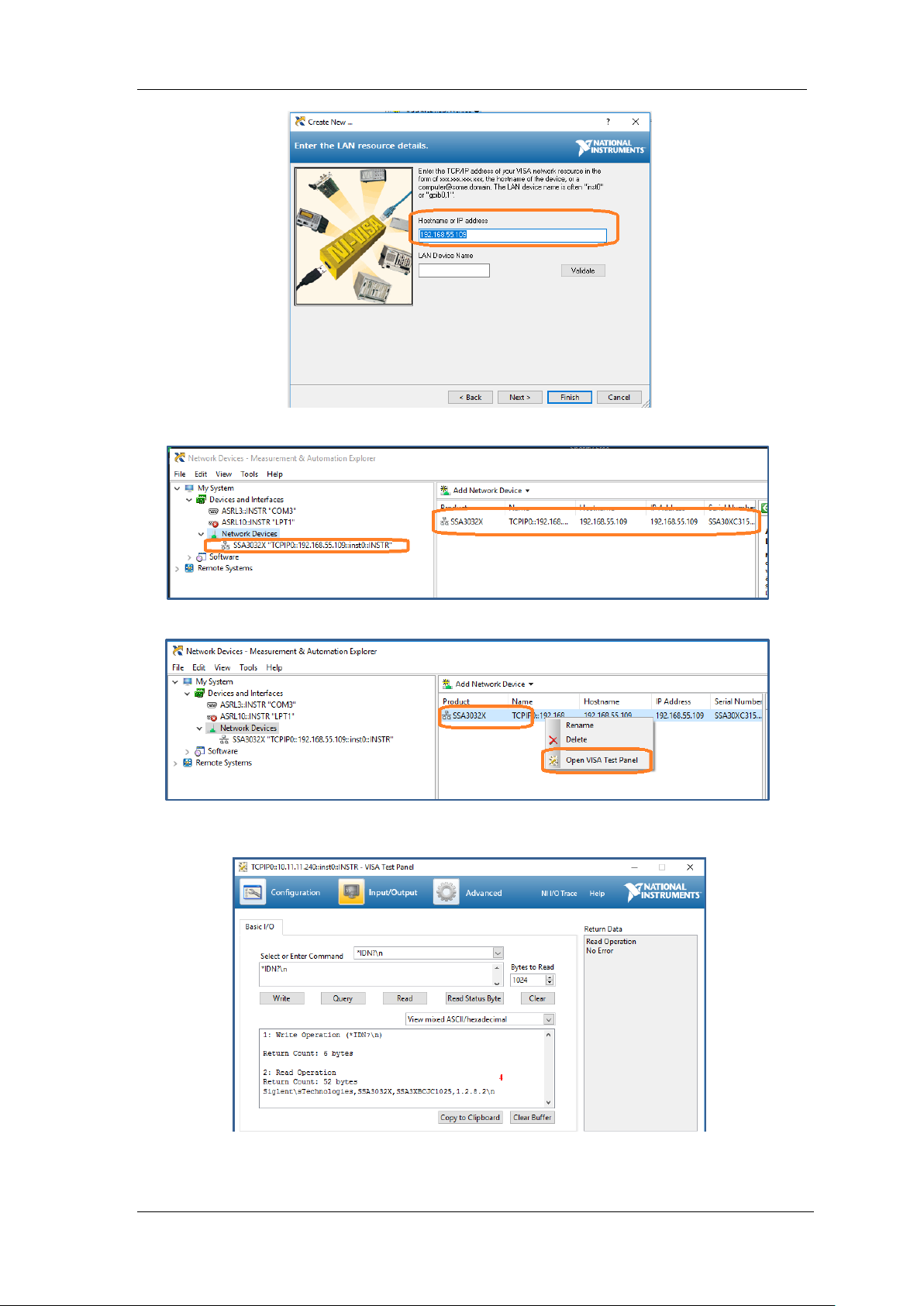

3. Select Manual Entry of LAN instrument, select Next, and enter the IP address as shown. Click Finish to establish the connection:

NOTE: Leave the LAN Device Name BLANK or the connection will fail.

8 SSA3000X Programming Guide

SIGLENT

4. After a brief scan, the connection should be shown under Network Devices:

5. Right-click on the product and select Open NI-VISA Test Panel:

6. Click “Input/Output” option button and click “Query” option button. If everything is OK, you will see the Read operation information returned as shown below.

SSA3000X Programming Guide 9

SIGLENT

1.3.3 EasySpectrum Software

Users can control the spectrum analyzer remotely by EasySpectrum. PC software EasySpectrum is an easy-to-use, PC-Windows-based remote control tool for Siglent’s spectrum analyzer. You can download it from Siglent’s website. To connect the analyzer via the USB/LAN port to a PC, you need install the NI VISA first.

It is able to be used as:

 A monitor to display and control the trace scans simultaneously with the analyzer;  A filemaker to get user defined Limit/Correction files, and load them to the anaylzer;  An EMI receiver to perform EMI Pre-compliance test including prescan, peak search,

finalscan and report generating.

For the further descrption of the software, please refer to the online help embedded in this software.

10 SSA3000X Programming Guide

SIGLENT

2.SCPI Overview

2.1 Command Format

SCPI commands present a hierarchical tree structure containing multiple subsystems, each of the subsystems is made up of a root keyword and several subkeywords. The command string usually starts with “:”, the keywords are separated by “:” and the followed parameter settings are separated by space. Query commands add “?” at the end of the string.

For example: :SENSe:FREQuency:CENTer <freq> :SENSe:FREQuency:CENTer? SENSe is the root key of the command, FREQuency and CENTer are second and third

keywords. The command begins with “:”, and separates the keywords at the same time, <freq> separated by space and represents the parameter available for setting; “?” represents a query.

2.2 Symbol Instruction

The following four symbols are not the content of SCPI commands and can not be sent with the commands, but are usually used in the commands.

1, Triangle Brackets < >

The parameter in the triangle brackets must be replaced by an effective value. For example: Send the “:DEMod:VOLume <value>” command in “:DEMod:VOLume 5”.

2, Square Brackets [ ]

The content in the square brackets can be ignored. When the parameter is ignored, the instrument will set the parameter to its default. For example,

In the “[:SENSe]:POWer[:RF]:ATTenuation?” command, sending any of the four commands below can generate the same effect:

:POWer:ATTenuation? :POWer:RF:ATTenuation? :SENSe:POWer:ATTenuation? :SENSe:POWer:RF:ATTenuation?

3, Vertical Bar |

The vertical bar is used to separate multiple parameters and when sending the command, you can choose one of the parameters. For example,

SSA3000X Programming Guide 11

SIGLENT

In the “[:SENSe]:FREQuency:CENTer:STEP:AUTO OFF|ON|0|1” command, the parameters available are “OFF”, “ON”, “0” or “1”.

4, Braces { }

The parameters in the braces are optional which can be ignored or set for one or more times. For example：

:CALCulate:LLINe[1]|2:DATA <x-axis>,<ampl>{,<x-axis>, <ampl>}, in the command, the {,<x-

axis>, <ampl>} parameters can be ignored or set for one or more times.

2.3 Parameter Type

The parameters in the commands introduced in this manual include 6 types: boolean, enumeration, integer, float, discrete and string.

1, Boolean

The parameters in the commands could be “OFF”, “ON”, “0” or “1”. For example:

[:SENSe]:FREQuency:CENTer:STEP:AUTO OFF|ON|0|1

2, Enumeration

The parameter could be any of the values listed. For example:

[:SENSe]:AVERage:TYPE LOGPower|POWer|VOLTage

The parameter is “OGPower”, “POWer” or “VOLTage”.

3, String

The parameter should be the combinations of ASCII characters. For example:

:SYSTem:COMMunicate:LAN:IPADdress <“xxx.xxx.xxx.xxx”>

The parameter can be set as “192.168.1.12” string.

4, Integer

Except other notes, the parameter can be any integer within the effective value range. For example:

[:SENSe]:DEMod:VOLume <value>

The parameter < value > can be set to any integer between 0 and 10.

5, Float

The parameter could be any value within the effective value range according to the accuracy requirement (the default accuracy contains up to 9 digits after the decimal points). For example:

:CALCulate:BANDwidth:NDB <value> The parameter < value > can be set to any real number between -100 and 100.

12 SSA3000X Programming Guide

SIGLENT

6, Discrete

The parameter could only be one of the specified values and these values are discontinuous. For

example: [:SENSe]:BWIDth:VIDeo:RATio <number>

The parameter <number> could only be one of 0.001, 0.003, 0.01, 0.03, 0.1, 0.3, 1.0, 3.0, 10.0,

30.0, 100.0, 300.0, 1000.0.

2.4 Command Abbreviation

All of the commands are not case sensitive, so you can use any of them. But if abbreviation is used, all the capital letters in the command must be written completely. For example:

:DISPlay:WINDow:TRACe:Y:DLINe:STATe? Can be abbreviated to: :DISP:WIND:TRAC:Y:DLIN:STAT?

SSA3000X Programming Guide 13

SIGLENT

Command Format

*IDN?

Instruction

Returns an instrument identification information string. The string will contain the manufacturer, model number, serial number, software number, FPGA number and CPLD number.

None

Example

*IDN? Return: Siglent Technologies,SSA3032,1234567890,100.01.01.06.01

Command Format

*RST

Instruction

This command presets the instrument to a factory defined condition that is appropriate for remote programming operation. *RST is equivalent to performing the two commands :SYSTem:PRESet and *CLS. This command always performs a factory preset.

None

Example

*RST

Command Format

*CLS

Instruction

Clears the status byte register. It does this by emptying the error queue and

3.System Commands

This chapter introduces the Siglent Technologies SSA3000X SCPI commands, include:

IEEE Common Commands 0 System Subsystem 3.2 Instrument Subsystem 3.3 Initiate Subsystem 3.4 Sense Subsystem 3.5 Calculate Subsystem 3.6 Measurement Subsystem 3.7 Trigger Subsystem 3.8 TG Subsystem 3.9 Demod Subsystem 3.10 Calibration Subsystem 3.11

3.1 IEEE Common Commands

3.1.1 Identification Query (*IDN)

3.1.2 Reset (*RST)

3.1.3 Clear Status (*CLS)

14 SSA3000X Programming Guide

SIGLENT

clearing all bits in all of the event registers. The status byte register summarizes the states of the other registers. It is also responsible for generating service requests.

None

Example

*CLS

Command Format

*ESE <number> *ESE?

Instruction

Set the bits in the standard event status enable register. This register monitors I/O errors and synchronization conditions such as operation complete, request control, query error, device dependent error,execution error, command error and power on. A summary bit is generated on execution of the command. The query returns the state of the standard event status enable register.

None

Example

*ESE 16

Command Format

*ESR?

Instruction

Queries and clears the standard event status event register. (This is a destructive read.) The value returned reflects the current state (0/1) of all the bits in the register.

None

Example

*ESR?

Command Format

*OPC *OPC?

Instruction

Set bit 0 in the standard event status register to “1” when all pending operations have finished. The query stops any new commands from being processed until the current processing is complete. Then it returns a “1”, and the program continues. This query can be used to synchronize events of other instruments on the external bus. Returns a “1” if the last processing is complete. Use this query when there’s a need to monitor the command execution status, such as a sweep execution.

None

Example

*OPC?

Command Format

*SRE <integer> *SRE?

Instruction

This command enables the desired bits of the service request enable register. The query returns the value of the register, indicating which bits are currently enabled. The default value is 255.

None

Example

*SRE 1

3.1.4 Standard Event Status Enable (*ESE)

3.1.5 Standard Event Status Register Query (*ESR)

3.1.6 Operation Complete Query (*OPC)

3.1.7 Service Request Enable (*SRE)

SSA3000X Programming Guide 15

SIGLENT

Command Format

*STB

Instruction

This query is used by some instruments for a self test.

None

Example

*STB

Command Format

*WAI

Instruction

This command causes the instrument to wait until all pending commands are completed before executing any additional commands. There is no query form to the command.

None

Example

*WAI

Command Format

*TST?

Instruction

This query is used by some instruments for a self test.

None

Example

*TRG

Command Format

:SYSTem:TIME <hhmmss> :SYSTem:TIME?

Instruction

Sets System time. Gets System time.

Parameter Type

String

Parameter Range

hour(0~23), minute(0~59), second(0~59)

Return

String

Default

None

System > date & time

Example

Sets System time: :SYSTem:TIME 182559 Gets System time: :SYSTem:TIME?

Command Format

:SYSTem:DATE <yyyymmdd> :SYSTem:DATE?

Instruction

Sets system date. Gets system date.

3.1.8 Status Byte Query (*STB)

3.1.9 Wait-to-Continue (*WAI)

3.1.10 Self Test Query (*TST)

3.2 System Subsystem

3.2.1 System Time (:SYSTem:TIME)

3.2.2 System Date (:SYSTem:DATE)

16 SSA3000X Programming Guide

Parameter Type

String

Parameter Range

year(four digits), month(1~12), date(1~31) Return

String

Default

None

System > date&time

Example

Sets System date: :SYSTem:DATE 20050101 Gets System date: :SYSTem:DATE?

3.2.3 IP Address

Command Format

:SYSTem:COMMunicate:LAN:IPADdress <“xxx.xxx.xxx.xxx”> :SYSTem:COMMunicate:LAN:IPADdress?

Instruction

Sets a host name for the analyzer in network. Gets IP address.

Parameter Type

String

Parameter Range

Conform to the IP Sets standard(0-255:0-255:0-255:0-255)

Return

IP adress String

Default

None

System > Interface > LAN > IP Address

Example

:SYSTem:COMMunicate:LAN:IPADdress “192.168.1.12” :SYSTem:COMMunicate:LAN:IPADdress?

Command Format

:SYSTem:COMMunicate:LAN:GATeway <“xxx.xxx.xxx.xxx”> :SYSTem:COMMunicate:LAN:GATeway?

Instruction

Sets the gateway for the analyzer in the network. The gateway will be fetched automatically if the IP assignment is set to DHCP. Gets gateway.

Parameter Type

String

Parameter Range

Conform to the IP standard (0-255:0-255:0-255:0-255) Return

gateway string.

Default

None

System > Interface > LAN > Gateway

Example

:SYSTem:COMMunicate:LAN:GATeway “192.168.1.1” :SYSTem:COMMunicate:LAN:GATeway?

Command Format

:SYSTem:COMMunicate:LAN:SMASk <“xxx.xxx.xxx.xxx”> :SYSTem:COMMunicate:LAN:SMASk?

Instruction

Sets the subnet mask according to the PC network Settings. The subnet mask

(:SYSTem:COMMunicate:LAN:IPADdress)

SIGLENT

3.2.4 Gateway (:SYSTem:COMMunicate:LAN:GATeway)

3.2.5 Subnet Mask (:SYSTem:COMMunicate:LAN:SMASk)

SSA3000X Programming Guide 17

SIGLENT

will be set automatically if the IP assignment is set to DHCP.

Parameter Type

String

Parameter Range

Conform to the IP standard (0-255:0-255:0-255:0-255)

Return

Subnet mask string

Default

None

System > Interface > LAN > Subnet Mask

Example

:SYSTem:COMMunicate:LAN:SMASk?

Command Format

:SYSTem:COMMunicate:LAN:TYPE STATIC|DHCP :SYSTem:COMMunicate:LAN:TYPE?

Instruction

Toggles the IP assignment Setting between static (manual) and DHCP (dynamic assignment) mode. Gets IP config.

Parameter Type

Enumeration

Parameter Range

STATIC|DHCP

Return

Enumeration

Default

None

System > Interface > LAN > IP Config

Example

:SYSTem:COMMunicate:LAN:TYPE DHCP :SYSTem:COMMunicate:LAN:TYPE?

Command Format

:SYSTem:LANGuage SCHINESE|ENGLISH :SYSTem:LANGuage?

Instruction

Sets language. Gets language.

Parameter Type

Enumeration

Parameter Range

SCHINESE: Chinese ENGLISH: English

Return

Enumeration

Default

None

System > Language

Example

Sets language :SYSTem:LANGuage SCHINESE Gets language :SYSTem:LANGuage?

Command Format

:SYSTem:PON:TYPE DFT|LAST|USER :SYSTem:PON:TYPE?

Instruction

Uses command to set analyzer to power on in default, user, or last state. Gets power on type.

Parameter Type

Enumeration

3.2.6 IP Config (:SYSTem:COMMunicate:LAN:TYPE)

3.2.7 Language (:SYSTem:LANGuage)

3.2.8 Power On Type (:SYSTem:PON:TYPE)

18 SSA3000X Programming Guide

Parameter Range

DFT: Default LAST: Last USER: Custom Configuration

Return

Enumeration

Default

DFT

System > Pwr/Preset > Power On

Example

SYSTem:PON:TYPE DFT

3.2.9 System Preset (:SYSTem:PRESet)

Command Format

:SYSTem:PRESet

Instruction

Use this command to preset the instrument. The preset type is based on the Setting of Preset Type: DFT, User or Last.

Parameter Type

None

Parameter Range

None Return

None

Default

None

Example

:SYSTem:PRESet

Command Format

:SYSTem:RESTart

Instruction

Use this command to restart the instrument (part of machine may not support).

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Example

:SYSTem:RESTart

Command Format

:SYSTem:PRESet:TYPE DFT|LAST|USER :SYSTem:PRESet:TYPE?

Instruction

Uses this command to preset the analyzer to default, user, or last state. Gets preset type.

Parameter Type

Enumeration

Parameter Range

DFT: Default LAST: Last USER: Custom Configuration

Return

Enumeration

Default

DFT

System > Pwr/Preset > Preset

Example

:SYSTem:PRESet:TYPE DFT

SIGLENT

3.2.10 System Restart (:SYSTem:RESTart)

3.2.11 Preset Type (:SYSTem:PRESet:TYPE)

SSA3000X Programming Guide 19

SIGLENT

Command Format

:SYSTem:FDEFault

Instruction

Sets both the measure and setting parameters to factory preset parameters.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

System > Pwr/Preset > Factory Reset

Example

:SYSTem:FDEFault

Command Format

:SYSTem:LKEY <“option”>,<“license key”>

Instruction

Use this command to enable the specified option with the license key, please restart the instrument to make license active.

Parameter Type

“option”: Enumeration “ license key”: String

Parameter Range

“option”: Meas|EMI|CAT|TG “ license key”: provided by Siglent Technologies, 16 bits String.

Return

None

Default

None

System > System Info > Load Option

Example

:SYSTem:LKEY EMI,fjbdajffnklmgwno

Command Format

:SYSTem:OPTions?

Instruction

This command returns a list of the options that are installed.

Parameter Type

None

Parameter Range

None

Return

Meas| EMI|CAT|TG

Default

None

System > System Info

Example

:SYSTem:OPTions?

Command Format

:SYSTem:POWer:OFF Instruction

Use this command to turn off the instrument.

Parameter Type

None

Parameter Range

None Return

None

Default

None

3.2.12 Factory ReSet (:SYSTem:FDEFault)

3.2.13 Enable Option (:SYSTem:LKEY)

3.2.14 Installed Options Query (:SYSTem:OPTions?)

3.2.15 Power Off (:SYSTem:POWer:OFF)

20 SSA3000X Programming Guide

SIGLENT

None

Example

:SYSTem:POWer:OFF

Command Format

:HCOPy:SDUMp:DATA? Instruction

Use this command to query the screenshot data(.bmp)

Parameter Type

None

Parameter Range

None

Return

String

Default

None

System > System Info

Example

:HCOPy:SDUMp:DATA?

Command Format

:SYSTem:CONFigure:SYSTem?

Instruction

Use this command to query the system message of the instrument.

Parameter Type

None

Parameter Range

None Return

String

Default

None

System > System Info

Example

:SYSTem:CONFigure:SYSTem?

Command Format

:INSTrument[:SELect] SA|CAT :INSTrument[:SELect]?

Instruction

Sets instrument mode.

Parameter Type

Enumeration

Parameter Range

SA: Spec Analyzer CAT: Reflection Meas

Return

Enumeration

Default

mode

Example

:INSTrument CAT

Command Format

:INSTrument:MEASure

OFF|ACPR|CHPower|OBW|TPOWer |SPECtrogram|TOI

:INSTrument:MEASure?

3.2.16 Screenshot Data (:HCOPy:SDUMp:DATA?)

3.2.17 System Info (:SYSTem:CONFigure:SYSTem?)

3.3 Instrument Subsystem

3.3.1 Instrument Mode (:INSTrument[:SELect])

3.3.2 Measure Mode (:INSTrument:MEASure)

SSA3000X Programming Guide 21

SIGLENT

Instruction

Sets measure mode. Gets measure mode.

Parameter Type

Enumeration

Parameter Range

OFF: measure off ACPR: ACPR CHPower: Channel Power OBW: Occupied BW TPOWer: T-POWer SPECtrogram: Spectrogram Monitor TOI: Third-order Intercept Point

Return

Enumeration

Default

OFF

Measure

Example

:INSTrument:MEASure ACPR

Command Format

:INITiate[:IMMediate]

Instruction

Sets single sweep.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Sweep > Single

Example

:INITiate:IMMediate

Command Format

:INITiate:CONTinuous OFF|ON|0|1 :INITiate:CONTinuous?

Instruction

Sets continuous sweep mode on-off. Gets continuous sweep mode state.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1 Return

0|1

Default

Sweep > Sweep Mode

Example

:INITiate:CONTinuous OFF

3.4 Initiate Subsystem

3.4.1 Single Sweep (:INITiate[:IMMediate])

3.4.2 Continuous or Single Sweep

(:INITiate:CONTinuous)

22 SSA3000X Programming Guide

SIGLENT

Command Format

[:SENSe]:FREQuency:CENTer <freq> [:SENSe]:FREQuency:CENTer?

Instruction

Sets the center frequency of the spectrum analyzer. Gets the center frequency.

Parameter Type

Float, unit: Hz, KHz, MHz, GHz

Parameter Range

50 Hz~3.199999950 GHz(2.999999950 GHz, 2.099999950 GHz, 1.799999950 GHz, 1.499999950 GHz, 0.999999950 GHz) Zero Span: 0~3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz)

Return

Float, unit: Hz

Default

1.6 GHz(1.5 GHz, 1.05 GHz, 0.9 GHz, 0.75 GHz, 0.5 GHz)

Frequency > Center Frequency

Example

:FREQuency:CENTer 0.2 GHz

Command Format

[:SENSe]:FREQuency:STARt <freq> [:SENSe]:FREQuency:STARt?

Instruction

Sets the start frequency of the spectrum analyzer. Gets the start Frequency.

Parameter Type

Float, unit: Hz, KHz, MHz, GHz

Parameter Range

0 Hz~3.199999900 GHz(2.999999900 GHz, 2.099999900 GHz, 1.799999900 GHz, 1.499999900 GHz, 0.999999900 GHz) Zero Span: 0~3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz)

Return

Float, unit: Hz

Default

0 Hz

Frequency > Start Frequency

Example

:FREQuency:STARt 100 Hz

Command Format

[:SENSe]:FREQuency:STOP <freq> [:SENSe]:FREQuency:STOP?

Instruction

Sets the stop frequency of the spectrum analyzer. Gets the stop frequency.

Parameter Type

Float, unit: Hz, KHz, MHz, GHz

Parameter Range

100 Hz~3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz) Zero Span: 0~3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz)

Return

Float, unit: Hz

Default

3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz)

Frequency > Stop Frequency

Example

:FREQuency:STOP 1.0 GHz

3.5 Sense Subsystem

3.5.1 Frequency Subsection

3.5.1.1 Center Frequency ([:SENSe]:FREQuency:CENTer)

3.5.1.2 Start Frequency ([:SENSe]:FREQuency:STARt)

3.5.1.3 Stop Frequency ([:SENSe]:FREQuency:STOP)

SSA3000X Programming Guide 23

SIGLENT

Command Format

[:SENSe]:FREQuency:CENTer:STEP[:INCRement] <freq> [:SENSe]:FREQuency:CENTer:STEP[:INCRement]?

Instruction

Specifies the center frequency step size. Gets the center frequency step.

Parameter Type

Float, unit: Hz, KHz, MHz, GHz

Parameter Range

1 Hz~3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz) Return

Float, unit: Hz

Default

320 MHz(300 MHz, 210 MHz, 180 MHz, 150 MHz, 100 MHz)

Frequency > Freq Step

Example

:FREQuency:CENTer:STEP 2 MHz

Command Format

[:SENSe]:FREQuency:CENTer:STEP:AUTO OFF|ON|0|1 [:SENSe]:FREQuency:CENTer:STEP:AUTO?

Instruction

Specifies whether the step size is set automatically based on the span. Gets center frequency step mode.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1

Return

0|1

Default

Frequency > Freq Step

Example

:FREQuency:CENTer:STEP:AUTO OFF

Command Format

[:SENSe]:FREQuency:CENTer:SET:STEP Instruction

Sets step value equal to center frequency.

Parameter Type

None

Parameter Range

None Return

None

Default

None

Frequency > CF→Step

Example

:FREQuency:CENTer:SET :STEP

Command Format

[:SENSe]:FREQuency:SPAN <freq> [:SENSe]:FREQuency:SPAN?

Instruction

Sets the frequency span. Setting the span to 0 Hz puts the analyzer into zero span.

3.5.1.4 Center Frequency Step ([:SENSe]:FREQuency:CENTer:STEP[:INCRement])

3.5.1.5 Center Frequency Step Mode ([:SENSe]:FREQuency:CENTer:STEP:AUTO)

3.5.1.6 Sets CF→Step ([:SENSe]:FREQuency:CENTer:SET:STEP)

3.5.1.7 Frequency Span ([:SENSe]:FREQuency:SPAN)

24 SSA3000X Programming Guide

Gets span value.

Parameter Type

Float, unit: Hz, KHz, MHz, GHz

Parameter Range

0 Hz, 100 Hz ~ 3.2GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz)

Return

Float, unit: Hz

Default

3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz)

Span > Span

Example

:FREQuency:SPAN 1 GHz

3.5.1.8 Full Span ([:SENSe]:FREQuency:SPAN:FULL)

Command Format

[:SENSe]:FREQuency:SPAN:FULL

Instruction

Sets the frequency span to full scale.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Span > Full Span

Example

:FREQuency:SPAN:FULL

Command Format

[:SENSe]:FREQuency:SPAN:ZERO

Instruction

Sets the frequency span to zero span.

Parameter Type

None

Parameter Range

None Return

None

Default

None

Span > Zero Span

Example

:FREQuency:SPAN:ZERO

Command Format

[:SENSe]:FREQuency:SPAN:PREVious Instruction

Sets the frequency span to the previous span setting.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Span > Last Span

Example

:FREQuency:SPAN:PREVious

SIGLENT

3.5.1.9 Zero Span ([:SENSe]:FREQuency:SPAN:ZERO)

3.5.1.10 Last Span ([:SENSe]:FREQuency:SPAN:PREVious)

SSA3000X Programming Guide 25

SIGLENT

Command Format

[:SENSe]:FREQuency:SPAN:DOUBle

Instruction

Sets the frequency span to half of the previous span setting.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Span> Zoom In

Example

:FREQuency:SPAN:DOUBle

Command Format

[:SENSe]:FREQuency:SPAN:HALF

Instruction

Sets the frequency span to double the previous span setting.

Parameter Type

None

Parameter Range

None Return

None

Default

None

Span> Zoom Out

Example

:FREQuency:SPAN:HALF

Command Format

[:SENSe]:FREQuency:TUNE:IMMediate Instruction

Auto tune the spectrum analyzer parameter to display the main signal.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Auto Tune

Example

:FREQuency:TUNE:IMMediate

Command

:DISPlay:WINDow:TRACe:Y[:SCALe]:RLEVel <value>

3.5.1.11 Zoom In ([:SENSe]:FREQuency:SPAN:DOUBle)

3.5.1.12 Zoom Out ([:SENSe]:FREQuency:SPAN:HALF)

3.5.2 Auto Tune Subsection

3.5.2.1 Auto Tune ([:SENSe]:FREQuency:TUNE:IMMediate)

3.5.3 Amplitude Subsection

3.5.3.1 Reference Level (:DISPlay:WINDow:TRACe:Y[:SCALe]:RLEVel)

26 SSA3000X Programming Guide

SIGLENT

Format

:DISPlay:WINDow:TRACe:Y[:SCALe]:RLEVel?

Instruction

This command sets the reference level for the Y-axis. Gets reference level.

Parameter Type

Float, unit: dBm, dBmV, dBuV, V, W

Parameter Range

Unit is dBm: -100 dBm ~ 30 dBm Unit is dBmV: -53.01 dBmV ~ 76.99 dBmV, Unit is dBuV: 6.99 dBuV ~ 136.99 dBuV, Unit is Volts: 2.24 uV ~ 7.07 V Unit is Watts: 100 fW ~ 1 W

Return

Float, unit: dBm

Default

0 dBm

Amplitude > Ref Level

Example

:DISPlay:WINDow:TRACe:Y:RLEVel 20 DBM

Command Format

[:SENSe]:POWer[:RF]:ATTenuation <value> [:SENSe]:POWer[:RF]:ATTenuation?

Instruction

Sets the input attenuator of the spectrum analyzer. Gets the input attenuator.

Parameter Type

Integer

Parameter Range

0 dB ~ 50 dB

Return

Integer, unit: dB

Default

20 dB

Amplitude > Attenuator

Example

:POWer:ATTenuation 10

Command Format

[:SENSe]:POWer[:RF]:ATTenuation:AUTO OFF|ON|0|1 [:SENSe]:POWer[:RF]:ATTenuation:AUTO?

Instruction

This command turns on/off auto input port attenuator state. Gets input port attenuator state.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1

Return

0|1

Default

Amplitude > Attenuator

Example

:POWer:ATTenuation:AUTO?

Command Format

[:SENSe]:POWer[:RF]:GAIN[:STATe] OFF|ON|0|1 [:SENSe]:POWer[:RF]:GAIN[:STATe]?

Instruction

Turns the internal preamp on/off. Gets preamp on-off state.

3.5.3.2 Input Attenuator ([:SENSe]:POWer[:RF]:ATTenuation)

3.5.3.3 Attenuator Auto Mode ([:SENSe]:POWer[:RF]:ATTenuation:AUTO)

3.5.3.4 Preamp on-off ([:SENSe]:POWer[:RF]:GAIN[:STATe])

SSA3000X Programming Guide 27

SIGLENT

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1 Return

0|1

Default

OFF

Amplitude > Preamp

Example

:POWer:GAIN ON

Command Format

:DISPlay:WINDow:TRACe:Y:SCALe:RLEVel:OFFSet <value> :DISPlay:WINDow:TRACe:Y:SCALe:RLEVel:OFFSet?

Instruction

Sets reference offsets. Gets reference offsets.

Parameter Type

Float

Parameter Range

-300dB~300dB

Return

Float, unit: dB

Default

0dB

Amplitude > Ref OffSets

Example

:DISPlay:WINDow:TRACe:Y:SCALe:RLEVel:OFFSet 2

Command Format

:UNIT:POWer DBM|DBMV|DBUV|V|W :UNIT:POWer?

Instruction

Specifies amplitude units for the input, output and display. Gets amplitude units.

Parameter Type

Enumeration

Parameter Range

DBM|DBMV|DBUV|V|W, Return

Enumeration

Default

DBM

Amplitude > Units

Example

:UNIT:POWer DBMV

Command Format

:DISPlay:WINDow:TRACe:Y[:SCALe]:SPACing LINear|LOGarithmic :DISPlay:WINDow:TRACe:Y[:SCALe]:SPACing?

Instruction

Toggles the vertical graticule divisions between logarithmic unit and linear unit. The default logarithmic unit is dBm, and the linear unit is V. Gets scale type.

Parameter Type

Enumeration

Parameter Range

LINear|LOGarithmic

3.5.3.5 Amplitude OffSets (:DISPlay:WINDow:TRACe:Y:SCALe:RLEVel:OFFSet )

3.5.3.6 Amplitude Units (:UNIT:POWer)

3.5.3.7 Scale Type (:DISPlay:WINDow:TRACe:Y[:SCALe]:SPACing)

28 SSA3000X Programming Guide

SIGLENT

Return

Enumeration

Default

LOGarithmic

Amplitude > Scale Type

Example

:DISPlay:WINDow:TRACe:Y:SPACing LINear

Command Format

:DISPlay:WINDow:TRACe:Y[:SCALe]:PDIVision <integer> :DISPlay:WINDow:TRACe:Y[:SCALe]:PDIVision?

Instruction

This command sets the per-division display scaling for the y-axis when scale type of Y axis is set to Log. Gets Scale/Div when scale type of Y axis is set to Log.

Parameter Type

Float

Parameter Range

1 dB ~ 10 dB

Return

Float, unit: dB

Default

10 dB

Amplitude > Scale/Div

Example

:DISPlay:WINDow:TRACe:Y:PDIVision 10 dB

Command Format

[:SENSe]:CORRection:OFF

Instruction

Turn off the amplitude correction function off and all of the correction sets are off.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Example

:SENSe:CORRection:OFF

Command Format

[:SENSe]:CORRection:CSET:ALL[:STATe] OFF|ON|0|1 [:SENSe]:CORRection:CSET:ALL[:STATe]?

Instruction

Turns on or off the amplitude corrections. When turned on, only the correction sets that were turned on are enabled. When turned off, all of the correction Sets are disabled. If there is no correction enabled, state can not be set to on.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1

Return

0|1

Default

OFF

Amplitude > Corrections > Apply Corrections

3.5.3.8 Scale/Div (:DISPlay:WINDow:TRACe:Y[:SCALe]:PDIVision)

3.5.3.9 Correction Off ([:SENSe]:CORRection:OFF)

3.5.3.10 Correction Apply State ([:SENSe]:CORRection:CSET:ALL[:STATe])

SSA3000X Programming Guide 29

SIGLENT

Example

:SENSe:CORRection:CSET:ALL:STATe OFF

Command Format

[:SENSe]:CORRection:CSET[1]|2|3|4:OFF [:SENSe]:CORRection:CSET[1]|2|3|4[:STATe]?

Instruction

Turns the amplitude correction function on/off. Gets the amplitude correction function state.

Parameter Type

None

Parameter Range

None

Return

0|1

Default

OFF

Amplitude > Corrections > Correction1|2|3|4

Example

:CORRection:CSET2:OFF

Command Format

[:SENSe]:CORRection:CSET[1]|2|3|4:DATA <x1,y1,x2,y2;…> [:SENSe]:CORRection:CSET[1]|2|3|4:DATA?

Instruction

Set correction X data 1|2|3|4 Read correction X data.

Parameter Type

None

Parameter Range

None

Return

String

Default

None

Example

:CORRection:CSET2:DATA?

Command Format

[:SENSe]:CORRection:SELect 1|2|3|4 [:SENSe]:CORRection:SELect?

Instruction

Set current correction for load COR file onto proper CorrectionX. Read current correction.

Parameter Type

Enumeration

Parameter Range

1|2|3|4 Return

1|2|3|4

Default

1 Menu

Amplitude > Corrections > Correction1|2|3|4

Example

:CORRection:CSET2:SELect 1

3.5.3.11 Sets Correction X State Off ([:SENSe]:CORRection:CSET[1]|2|3|4:OFF)

3.5.3.12 Set Correction Data ([:SENSe]:CORRection:CSET[1]|2|3|4:DATA)

3.5.3.13 Current Correction Select ([:SENSe]:CORRection:SELect)

30 SSA3000X Programming Guide

3.5.3.14 Load Correction Data

Command Format

:MMEMory:LOAD:CORRection:CSET[1]|2|3|4 <name.COR>

Instruction

Load correction data.

Parameter Type

String

Parameter Range

None

Return

None

Default

None

Amplitude > Corrections > Correction1|2|3|4 > Load Data

Example

:MMEMory:LOAD:CORRection:CSET1 “oldname.COR”

Command Format

[:SENSe]:CORRection:IMPedance[:INPut][:MAGNitude] OHM50 |OHM75 [:SENSe]:CORRection:IMPedance[:INPut][:MAGNitude]?

Instruction

Set the input impedance for voltage-to-power conversions. Get the input impedance.

Parameter Type

Enumeration

Parameter Range

OHM50 |OHM75 Return

OHM50 |OHM75

Default

OHM50

Amplitude > Corrections

Example

CORRection:IMPedance?

Command Format

[:SENSe]:BWIDth[:RESolution] <freq> [:SENSe]:BWIDth[:RESolution]?

Instruction

Specifies the resolution bandwidth. For numeric entries, all RBW types choose the nearest (arithmetically, on a linear scale, rounding up) available RBW to the value entered.

Parameter Type

Discrete

Parameter Range

10 Hz, 30 Hz, 100 Hz, 300 Hz, 1 KHz, 3 KHz, 10 KHz, 30 KHz, 100 KHz, 300 KHz, 1 MHz

Return

Float, unit: Hz

Default

1 MHz

BW > RBW

Example

:BWIDth 1 KHz

(:MMEMory:LOAD:CORRection:CSET[1]|2|3|4)

3.5.3.15 Input Impedance ([:SENSe]:CORRection:IMPedance[:INPut][:MAGNitude])

SIGLENT

3.5.4 Bandwidth Subsection

3.5.4.1 Resolution Bandwidth ([:SENSe]:BWIDth[:RESolution])

SSA3000X Programming Guide 31

SIGLENT

Command Format

[:SENSe]:BWIDth[:RESolution]:AUTO OFF|ON|0|1 [:SENSe]:BWIDth[:RESolution]:AUTO?

Instruction

Turns on/off auto resolution bandwidth state.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1

Return

0|1

Default

BW > RBW

Example

:BWID:AUTO On

Command Format

[:SENSe]:BWIDth:VIDeo <freq> [:SENSe]:BWIDth:VIDeo?

Instruction

Specifies the video bandwidth.

Parameter Type

Discrete

Parameter Range

1 Hz, 3 Hz, 10 Hz, 30 Hz, 100 Hz, 300 Hz, 1 KHz, 3 KHz, 10 KHz, 30 KHz, 100 KHz, 300 KHz, 1 MHz

Return

Float, unit: Hz

Default

1 MHz

BW > VBW

Example

:BWIDth:VIDeo 10 KHZ

Command Format

[:SENSe]:BWIDth:VIDeo:AUTO OFF|ON|0|1 [:SENSe]:BWIDth:VIDeo:AUTO?

Instruction

This command turns on/off auto video bandwidth state.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1 Return

0|1

Default

BW > VBW

Example

BWIDth:VIDeo:AUTO OFF

Command Format

[:SENSe]:BWIDth:VIDeo:RATio <number> [:SENSe]:BWIDth:VIDeo:RATio?

Instruction

Specifies the ratio of the video bandwidth to the resolution bandwidth.

Parameter

Discrete, Float

3.5.4.2 Resolution Bandwidth Auto Mode ([:SENSe]:BWIDth[:RESolution]:AUTO)

3.5.4.3 Video Bandwidth ([:SENSe]:BWIDth:VIDeo)

3.5.4.4 Auto Video Bandwidth State ([:SENSe]:BWIDth:VIDeo:AUTO)

3.5.4.5 Video to Resolution Bandwidth Ratio ([:SENSe]:BWIDth:VIDeo:RATio)

32 SSA3000X Programming Guide

Type

Parameter Range

0.001, 0.003, 0.01, 0.03, 0.1, 0.3, 1.0, 3.0, 10.0, 30.0, 100.0, 300.0, 1000.0

Return

Float

Default

1.0

BW > VBW/RBW

Example

:BWIDth:VIDeo:RATio 30

3.5.4.6 Auto Video to Resolution Bandwidth Ratio State

Command Format

[:SENSe]:BWIDth:VIDeo:RATio:CONfig?

Instruction

This command turns on/off auto video to resolution bandwidth ratio.

Parameter Type

None

Parameter Range

None Return

0|1

Default

1 Menu

None

Example

:BWIDth:VIDeo:RATio:CONfig?

Command Format

[:SENSe]:FILTer:TYPE EMI|GAUSS [:SENSe]:FILTer:TYPE?

Instruction

Sets filter type Gets filter type

Parameter Type

Enumeration

Parameter Range

EMI|GAUSS

Return

Enumeration

Default

GAUSS

BW > Filter Type

Example

:FILTer:TYPE EMI

Command Format

Instruction

Selects the display mode for the selected trace.

Parameter Type

Enumeration

Parameter Range

WRITe: puts the trace in the normal mode, updating the data. MAXHold: displays the highest measured trace value for all the data that has been measured since the function was turned on. MINHold: displays the lowest measured trace value for all the data that has

([:SENSe]:BWIDth:VIDeo:RATio:CONfig?)

SIGLENT

3.5.4.7 Filter Type ([:SENSe]:FILTer:TYPE)

3.5.5 Trace Subsection

3.5.5.1 Trace mode (:TRACe[1]|2|3|4:MODE)

SSA3000X Programming Guide 33

SIGLENT

been measured since the function was turned on. VIEW: turns on the trace data so that it can be viewed on the display. BLANk: turns off the trace data so that it is not viewed on the display. AVERage: averages the trace for test period.

Return

Enumeration

Default

Trace1: WRITe, Trace2|3|4: BLANk

Trace

Example

:TRAC1:MODE VIEW

Command Format

:TRACe[:DATA]? 1|2|3|4 Instruction

This query command returns the current displayed data.

Parameter Type

Enumeration

Parameter Range

1|2|3|4 Return

String

Default

1 Menu

None

Example

:TRACe:DATA? 1

Command Format

:TRACe:SWEep:STATe?

Instruction

This query command returns 1 if trace scan is completed else returns 0.

Parameter Type

None

Parameter Range

None

Return

Bool

Default

None

Example

TRACe:SWEep:STATe?

Command Format

:FORMat[:TRACe][:DATA] ASCii|REAL :FORMat[:TRACe][:DATA]?

Instruction

Sets trace data type. Gets trace data type.

Parameter Type

Enumeration

Parameter Range

ASCii|REAL

Return

String

Default

REAL

None

Example

:FORMat ASCii

3.5.5.2 Query Trace Data (:TRACe[:DATA]?)

3.5.5.3 Query Trace Sweep State (:TRACe:SWEep:STATe?)

3.5.5.4 Trace Data Format(:FORMat[:TRACe][:DATA])

34 SSA3000X Programming Guide

3.5.5.5 Trace Math Type (:TRACe:MATH:TYPE)

Command Format

:TRACe:MATH:TYPE

:TRACe:MATH:TYPE?

Instruction

Sets trace math type. Gets trace math type. In this command, the lower-case parameters should not be neglected, for example:X-Y+Ref->Z can not write as X-Y+R->Z.

Parameter Type

Enumeration

Parameter Range

Off: turns off the trace math function. X-Y+Ref->Z: math variable X minus math variable Y and add reference level then to output trace. Y-X+Ref->Z: math variable Y minus math variable X and add reference level then to output trace. X+Y-Ref->Z: math variable X add math variable Y and minus reference level then to output trace. X+Const->Z: math variable X add const then to output trace. X-Const->Z: math variable X minus const then to output trace.

Return

Enumeration

Default

Off

Trace > Math Type

Example

:TRACe:MATH:TYPE X-Y+Ref->Z

Command Format

:TRACe:MATH:X A|B|C :TRACe:MATH:X?

Instruction

Sets trace math variable X. Gets trace math variable X.

Parameter Type

Enumeration

Parameter Range

A|B|C

Return

Enumeration

Default

A Menu

Trace > Math > Variable X

Example

:TRACe:MATH:X A

Command Format

:TRACe:MATH:Y A|B|C :TRACe:MATH:Y?

Instruction

Sets trace math variable Y. Gets trace math variable Y.

Parameter Type

Enumeration

Parameter Range

A|B|C

Return

Enumeration

Default

B Menu

Trace > Math > Variable Y

SIGLENT

3.5.5.6 Trace Math Variable X (:TRACe:MATH:X)

3.5.5.7 Trace Math Variable Y (:TRACe:MATH:Y)

SSA3000X Programming Guide 35

SIGLENT

Example

:TRACe:MATH:Y A

Command Format

:TRACe:MATH:Z A|B|C :TRACe:MATH:Z?

Instruction

Sets trace math output. Gets trace math output.

Parameter Type

Enumeration

Parameter Range

A|B|C Return

Enumeration

Default

C Menu

Trace > Math > Output

Example

:TRACe:MATH:Z A

Command Format

:TRACe:MATH:CONSt <const> :TRACe:MATH:CONSt?

Instruction

Sets trace math const. Gets trace math const.

Parameter Type

Enumeration

Parameter Range

-300dB ~300 dB

Return

Float

Default

0.00dB

Trace > Math > Const

Example

:TRACe:MATH:CONSt 7

Command Format

[:SENSe]:DETector:TRACe[1]|2|3|4[:FUNCtion]

[:SENSe]:DETector:TRACe[1]|2|3|4[:FUNCtion]?

Instruction

Specifies the detection mode. For each trace interval (bucket), average detection displays the average of all the samples within the interval.

Parameter Type

Enumeration

Parameter Range

NEGative: Negative peak detection displays the lowest sample taken during the interval being displayed. POSitive: Positive peak detection displays the highest sample taken during the interval being displayed. SAMPle: Sample detection displays the sample taken during the interval being displayed, and is used primarily to display noise or noise-like signals. In sample mode, the instantaneous signal value at the present display point is placed into memory. This detection should not be used to make the most

3.5.5.8 Trace Math Output (:TRACe:MATH:Z)

3.5.5.9 Trace Math Const (:TRACe:MATH:CONSt)

3.5.6 Detector Subsection

3.5.6.1 Type of Detection ([:SENSe]:DETector:TRACe[1]|2|3|4[:FUNCtion])

36 SSA3000X Programming Guide

accurate amplitude measurement of non noise-like signals. AVERage: Average detection is used when measuring the average value of the amplitude across each trace interval (bucket). The averaging method used by the average detector is set to either video or power as appropriate when the average type is auto coupled. NORMAL: Normal detection selects the maximum and minimum video signal values alternately. When selecting Normal detection,”Norm”appears in the upper-left corner. QUASi: Quasipeak detection is a form of detection where a signal level is weighted based on the repetition frequency of the spectral components making up the signal. That is to say, the result of a quasi-peak measurement depends on the repetition rate of the signal.

Return

Enumeration

Default

POSitive

Detect

Example

:DETector:TRAC1 AVERage

3.5.7 Average Subsection

Command Format

[:SENSe]:AVERage:TYPE LOGPower|POWer|VOLTage [:SENSe]:AVERage:TYPE?

Instruction

Toggle the average type between Log power, power and voltage.

Parameter Type

Enumeration

Parameter Range

LOGPower|POWer|VOLTage

Return

Enumeration

Default

LOGPower

BW > Avg Type

Example

AVERage:TYPE VOLTage

Command Format

[:SENSe]:AVERage:TRACe[1]|2|3|4:COUNt <integer> [:SENSe]:AVERage:TRACe[1]|2|3|4:COUNt?

Instruction

Specifies the number of measurements that are combined.

Parameter Type

Integer

Parameter Range

1 ~ 999

Return

Integer

Default

1 Menu

Trace > Avg Times

Example

:AVERage:TRACe1:COUNt 10

3.5.7.1 Average Type ([:SENSe]:AVERage:TYPE)

SIGLENT

3.5.7.2 Average Number ([:SENSe]:AVERage:TRACe[1]|2|3|4:COUNt)

SSA3000X Programming Guide 37

SIGLENT

Command Format

[:SENSe]:AVERage:TRACe[1]|2|3|4:CLEar

Instruction

Restarts the trace average. This command is only available when average is on.

Parameter Type

None

Parameter Range

None Return

None

Default

None

Example

:AVERage:TRAC1:CLEar

Command Format

[:SENSe]:SWEep:MODE AUTO|FFT|SWEep [:SENSe]:SWEep: MODE?

Instruction

Sets sweep mode. Gets sweep mode.

Parameter Type

Enumeration

Parameter Range

AUTO|FFT|SWEep Return

Enumeration

Default

SWEep

Sweep

Example

:SWEep:MODE SWEep

Command Format

[:SENSe]:SWEep:TIME <time> [:SENSe]:SWEep:TIME?

Instruction

Specifies the time in which the instrument sweeps the display. A span value of 0 Hz causes the analyzer to enter zero span mode. In zero span the X-axis represents time rather than frequency.

Parameter Type

Float, unit: ks, s, ms, us

Parameter Range

917us ~ 1000 s Return

Float, unit: s

Default

312.416ms(216.288ms, 192.256ms, 168.224ms, 120.160ms)

Sweep > Sweep Time

Example

:SWEep:TIME 5s

3.5.7.3 Average Restart ([:SENSe]:AVERage:TRACe[1]|2|3|4:CLEar)

3.5.8 Sweep Subsection

3.5.8.1 Sweep Mode ([:SENSe]:SWEep:MODE)

3.5.8.2 Sweep Time ([:SENSe]:SWEep:TIME)

38 SSA3000X Programming Guide

3.5.8.3 Sweep Time State ([:SENSe]:SWEep:TIME:AUTO)

Command Format

[:SENSe]:SWEep:TIME:AUTO OFF|ON|0|1 [:SENSe]:SWEep:TIME:AUTO?

Instruction

This command turns on/off auto sweep time state.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1

Return

0|1

Default

Sweep > Sweep Time

Example

:SWEep:TIME:AUTO ON

Command Format

[:SENSe]:SWEep:SPEed NORMal|ACCUracy [:SENSe]:SWEep:SPEed?

Instruction

Toggles the sweep speed between normal and accuracy.

Parameter Type

Enumeration

Parameter Range

ACCUracy|NORMal Return

Enumeration

Default

NORMal

Sweep > Sweep Rule

Example

:SWEep: SPEed NORMal

Command Format

[:SENSe]:SWEep:COUNt <integer> [:SENSe]:SWEep:COUNt?

Instruction

Sets sweep numbers, when single sweep on. Gets sweep numbers, when single sweep on.

Parameter Type

Integer

Parameter Range

1 ~ 99999

Return

Integer

Default

1 Menu

Sweep > Numbers

Example

:SWEep:COUNt 10

Command Format

[:SENSe]:QPD:DWELl:TIME < time > [:SENSe]:QPD:DWELl:TIME?

Instruction

Sets QPD Time Gets QPD Time

Parameter Type

Float，unit: s、ms、us Parameter

0us ~ 10s(qusai-peak: 900us ~ 30ks)

3.5.8.4 Sweep Speed ([:SENSe]:SWEep:SPEed)

SIGLENT

3.5.8.5 Sweep Numbers ([:SENSe]:SWEep:COUNt)

3.5.8.6 QPD Time([:SENSe]:QPD:DWELl:TIME)

SSA3000X Programming Guide 39

SIGLENT

Range

Return

Float，unit: s

Default

500ms

Sweep > QPD Time

Example

:QPD:DWELl:TIME 10s

Command Format

:DISPlay:WINDow:TRACe:GRATicule:GRID:BRIGhtness <value> :DISPlay:WINDow:TRACe:GRATicule:GRID:BRIGhtness?

Instruction

Sets grid brightness. Gets grid brightness.

Parameter Type

Integer

Parameter Range

0 ~ 100

Return

Float

Default

30%

Display > Grid Brightness

Example

:DISPlay:WINDow:TRACe:GRATicule:GRID:BRIGhtness 50

Command Format

:DISPlay:WINDow:TRACe:Y:DLINe:STATe OFF|ON|0|1 :DISPlay:WINDow:TRACe:Y:DLINe:STATe?

Instruction

Toggles the display line between on and off. Gets the display line state.

Parameter Type

Enumeration

Parameter Range

OFF|ON|0|1

Return

0|1

Default

OFF

Display > Display Line

Example

:DISPlay:WINDow:TRACe:Y:DLINe:STATe ON

Command Format

:DISPlay:WINDow:TRACe:Y:DLINe <value> :DISPlay:WINDow:TRACe:Y:DLINe?

Instruction

Sets the amplitude value for the display line. Gets the amplitude value for the display line.

Parameter Type

Float, unit: dBm

Parameter Range

Ref Level ~ Ref Level - 100 dBm

Return

Float, unit: dBm

3.5.9 Display Subsection

3.5.9.1 Grid Brightness (:DISPlay:WINDow:TRACe:GRATicule:GRID:BRIGhtness)

3.5.9.2 Display Line on-off (:DISPlay:WINDow:TRACe:Y:DLINe:STATe)

3.5.9.3 Display Line (:DISPlay:WINDow:TRACe:Y:DLINe)

40 SSA3000X Programming Guide

SIGLENT

Default

0 dBm

Display > Display Line

Example

:DISPlay:WINDow:TRACe:Y:DLINe -10

Command Format

:CALCulate:MARKer[1]|2|3|4:STATe OFF|ON|0|1 :CALCulate:MARKer[1]|2|3|4:STATe?

Instruction

This command toggles the selected marker status between on and off. Gets marker state.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1 Return

0|1

Default

OFF

Marker

Example

:CALCulate:MARK1:STATe ON

Command Format

:CALCulate:MARKer:AOFF

Instruction

Turn all the markers off.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Example

:CALCulate:MARKer:AOFF

Command Format

Instruction

Selects the type of markers that you want to activate. Gets the type of markers.

Parameter Type

Enumeration

Parameter Range

POSition: selects a normal marker that can be positioned on a trace and from which trace information will be generated. DELTa: activates a pair of markers, one of which is fixed at the current marker location. The other marker can then be moved around on the trace. The marker readout shows the marker value which moves.

3.6 Calculate Subsystem

3.6.1 Marker Subsection

3.6.1.1 Marker On/Off (:CALCulate:MARKer[1]|2|3|4:STATe)

3.6.1.2 Marker All Off (:CALCulate:MARKer:AOFF)

3.6.1.3 Marker Mode (:CALCulate:MARKer[1]|2|3|4:MODE)

SSA3000X Programming Guide 41

SIGLENT

BAND: activates a pair of markers, one of which is fixed at the current marker location. The two marker can then be moved around on the trace. The marker readout shows the difference between the two markers. OFF: turns the designated marker off. If a marker is not active when the mode is queried, “off” will be returned.

Return

Enumeration

Default

OFF

Marker

Example

:CALCulate:MARK1:MODE POSition

Command Format

:CALCulate:MARKer[1]|2|3|4:TRACe 1|2|3|4 :CALCulate:MARKer[1]|2|3|4:TRACe?

Instruction

This command assigns the specified marker to the designated trace 1, 2, 3 or 4. Gets the specified marker to which trace.

Parameter Type

Enumeration

Parameter Range

1|2|3|4

Return

Enumeration

Default

1 Menu

Marker > Select Trace

Example

CALCulate:MARK:TRAC 1

Command Format

:CALCulate:MARKer[1]|2|3|4:RELative:TO:MARKer 1|2|3|4 :CALCulate:MARKer[1]|2|3|4:RELative:TO:MARKer?

Instruction

Sets marker relative to. Gets marker relative to.

Parameter Type

Enumeration

Parameter Range

1|2|3|4

Return

Enumeration

Default

1 Menu

Marker > Relative To

Example

:CALCulate:MARKer1:RELative:TO:MARK 3

Command Format

:CALCulate:MARKer[1]|2|3|4:X <para> :CALCulate:MARKer[1]|2|3|4:X?

Instruction

This command positions the designated marker on its assigned trace at the specified trace X value. The value is in the X-axis units, which can be a frequency or time. The query returns the current X value of the designated marker. When the readout mode is frequency, the query returns the X value of the span of the marker in integer and the unit is “Hz”. When the readout mode is time or period, the query returns the X value of the span of the marker in scientific notation and the unit is “s”.

3.6.1.4 Marker to Trace (:CALCulate:MARKer[1]|2|3|4:TRACe)

3.6.1.5 Marker Relative To (:CALCulate:MARKer[1]|2|3|4:RELative:TO)

3.6.1.6 Marker X Value (:CALCulate:MARKer[1]|2|3|4:X)

42 SSA3000X Programming Guide

Reference Command: :CALCulate:MARKer[1]|2|3|4:X:READout

Parameter Type

Frequency: Float, unit: Hz, KHz, MHz, GHz, Default “Hz” Time: Float, unit: us, ms, s, ks, Default “s”

Parameter Range

0 Hz ~ 3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz) or 10 ms ~ 1000 s

Return

Float

Default

1.6 GHz(1.5 GHz, 1.05 GHz, 0.9 GHz, 0.75 GHz, 0.5 GHz) or 312.64 ms

Marker > Normal

Example

:CALCulate:MARKer4:X 0.4 GHz :CALCulate:MARKer4:X 200 ms :CALCulate:MARKer4:X?

3.6.1.7 Reference Marker X Value

Command Format

:CALCulate:MARKer[1]|2|3|4:X:REFerence <para> :CALCulate:MARKer[1]|2|3|4:X:REFerenc?

Instruction

This command positions the designated reference marker on its assigned trace at the specified trace X value. The value is in the X-axis units, which can be a frequency or time. The query returns the current X value of the designated reference marker. This command only can be used when marker mode is DELTa|BAND, Reference Command: :CALCulate:MARKer[1]|2|3|4:MODE When the readout mode is frequency, the query returns the X value of the span of the marker in integer and the unit is “Hz”. When the readout mode is time or period, the query returns the X value of the span of the marker in scientific notation and the unit is “s”. Reference Command: :CALCulate:MARKer[1]|2|3|4:X:READout

Parameter Type

Frequency: Float, unit: Hz, KHz, MHz, GHz, Default “Hz” Time: Float, unit: us, ms, s, ks, Default “s”

Parameter Range

0 Hz ~ 3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz) or 10 ms ~ 1000 s

Return

Float

Default

1.6 GHz(1.5 GHz, 1.05 GHz, 0.9 GHz, 0.75 GHz, 0.5 GHz) or 312.64 ms

Marker > Delta Pair

Example

:CALCulate:MARKer1:X:REFerence 1.6 GHz

Command Format

:CALCulate:MARKer[1]|2|3|4:X:DELTa <para> :CALCulate:MARKer[1]|2|3|4:X:DELTa?

Instruction

This command positions the designated delta marker on its assigned trace at the specified trace X value. The value is in the X-axis units, which can be a frequency or time. The query returns the current X value of the designated delta marker. This command only can be used when marker mode is DELTa|BAND, Reference Command: :CALCulate:MARKer[1]|2|3|4:MODE When the readout mode is frequency, the query returns the X value of the span of the marker in integer and the unit is “Hz”.

(:CALCulate:MARKer[1]|2|3|4:X:REFerence)

SIGLENT

3.6.1.8 Marker Delta X Value (:CALCulate:MARKer[1]|2|3|4:X:DELTa)

SSA3000X Programming Guide 43

SIGLENT

When the readout mode is time or period, the query returns the X value of the span of the marker in scientific notation and the unit is “s”. Reference Command: :CALCulate:MARKer[1]|2|3|4:X:READout

Parameter Type

Frequency: Float, unit: Hz, KHz, MHz, GHz, Default “Hz” Time: Float, unit: us, ms, s, ks, Default “s”

Parameter Range

0 Hz ~ 3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz) or 10 ms ~ 1000 s

Return

Float

Default

0 Hz or 0 s

Marker > Delta Pair

Example

:CALCulate:MARKer2:X:DELTa 1.6 GHz

Command Format

:CALCulate:MARKer[1]|2|3|4:X:CENTer <para> :CALCulate:MARKer[1]|2|3|4:X:CENTer?

Instruction

Sets the center frequency of the center pair marker and the default unit is Hz. Gets the center frequency of the center pair marker. This command only can be used when marker mode is DELTa|BAND, Reference Command: :CALCulate:MARKer[1]|2|3|4:MODE When the readout mode is frequency, the query returns the X value of the span of the marker in integer and the unit is “Hz”. When the readout mode is time or period, the query returns the X value of the span of the marker in scientific notation and the unit is “s”. Reference Command: :CALCulate:MARKer[1]|2|3|4:X:READout

Parameter Type

Frequency: Float, unit: Hz, KHz, MHz, GHz, Default “Hz” Time: Float, unit: us, ms, s, ks, Default “s”

Parameter Range

0 Hz ~ 3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz) or 10 ms ~ 1000 s

Return

Float

Default

1.6 GHz(1.5 GHz, 1.05 GHz, 0.9 GHz, 0.75 GHz, 0.5 GHz) or 10 ms ~ 1000 s

Marker > Delta Pair > Center

Example

:CALCulate:MARKer3:X:CENTer 1.6 GHz

Command Format

:CALCulate:MARKer[1]|2|3|4:X:SPAN <para> :CALCulate:MARKer[1]|2|3|4:X:SPAN?

Instruction

Sets the X value corresponding to the span of the Span Pair marker. Gets the X value corresponding to the span of the Span Pair marker. This command only can be used when marker mode is DELTa|BAND, Reference Command: :CALCulate:MARKer[1]|2|3|4:MODE When the readout mode is frequency, the query returns the X value of the span of the marker in integer and the unit is “Hz”. When the readout mode is time or period, the query returns the X value of the span of the marker in scientific notation and the unit is “s”. Reference Command: :CALCulate:MARKer[1]|2|3|4:X:READout

3.6.1.9 Center Pair Marker X Value (:CALCulate:MARKer[1]|2|3|4:X:CENTer)

3.6.1.10 Span Pair Marker X Value (:CALCulate:MARKer[1]|2|3|4:X:SPAN)

44 SSA3000X Programming Guide

SIGLENT

Parameter Type

Frequency: Float, unit: Hz, KHz, MHz, GHz, Default “Hz” Time: Float, unit: us, ms, s, ks, Default “s”

Parameter Range

0 Hz ~ 3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz) or 10 ms ~ 1000 s

Return

Float

Default

0 Hz or0 s

Marker > Delta Pair > Span

Example

:CALCulate:MARKer4:X:SPAN 2 GHz

Command Format

:CALCulate:MARKer[1]|2|3|4:Y?

Instruction

This command reads the current Y value for the designated marker. This command can be used to read the results of noise marker. Make sure that Marker is on, Reference Command: :CALCulate:MARKer[1]|2|3|4:STATe :CALCulate:MARKer[1]|2|3|4:MODE

Parameter Type

None

Parameter Range

None Return

Float, unit: dBm

Default

None

Marker > Normal

Example

:CALCulate:MARKer1:Y? Return: -25

Command Format

:CALCulate:MARKer[1]|2|3|4:Y:REFerence?

Instruction

Gets the current Y value for the designated reference marker. This command only can be used when marker mode is DELTa|BAND, Reference Command: :CALCulate:MARKer[1]|2|3|4:MODE

Parameter Type

None

Parameter Range

None

Return

Float, unit: dBm

Default

None

Marker > Delta Pair

Example

:CALCulate:MARKer1:Y:REFerence? Return: -25

Command Format

:CALCulate:MARKer[1]|2|3|4:Y:DELTa?

3.6.1.11 Query Marker Y Value (:CALCulate:MARKer[1]|2|3|4:Y?)

3.6.1.12 Reference Marker Y Value (:CALCulate:MARKer[1]|2|3|4:Y:REFerence?)

3.6.1.13 Marker Delta Y Value (:CALCulate:MARKer[1]|2|3|4:Y:DELTa?)

SSA3000X Programming Guide 45

SIGLENT

Instruction

Gets the current Y value for the designated delta marker. This command only can be used when marker mode is DELTa|BAND, Reference Command: :CALCulate:MARKer[1]|2|3|4:MODE

Parameter Type

None

Parameter Range

None

Return

Float, unit: dBm

Default

None

Marker > Delta Pair

Example

:CALCulate:MARKer1:Y:DELTa? Return: -25

Command Format

:CALCulate:MARKer:TABLe ON|OFF|0|1 :CALCulate:MARKer: TABLe?

Instruction

Toggles the marker table between on and off. Gets the status of the marker table.

Parameter Type

Boolean

Parameter Range

ON|OFF|0|1

Return

0|1

Default

0 Menu

Marker > Marker Table

Example

:CALCulate:MARKer:TABLe ON

Command Format

:CALCulate:MARKer[1]|2|3|4[:SET]:START

Instruction

Sets the start frequency to the value of the specified marker frequency. This command is not available in zero span. If the Marker is OFF, it will set the marker on center.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Marker > M→Start Freq

Example

:CALCulate:MARKer1:START

Command Format

:CALCulate:MARKer[1]|2|3|4[:SET]:STOP Instruction

Sets the stop frequency to the value of the specified marker frequency. This

3.6.1.14 Marker Table (:CALCulate:MARKer:TABLe)

3.6.1.15 Marker to Start Frequency (:CALCulate:MARKer[1]|2|3|4[:SET]:START)

3.6.1.16 Marker to Stop Frequency (:CALCulate:MARKer[1]|2|3|4[:SET]:STOP)

46 SSA3000X Programming Guide

command is not available in zero span. If the Marker is OFF, it will set the marker on center.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Marker > Marker→Stop Freq

Example

:CALCulate:MARKer1:STOP

3.6.1.17 Marker to Center Frequency

Command Format

:CALCulate:MARKer[1]|2|3|4[:SET]:CENTer

Instruction

This command sets the center frequency equal to the specified marker frequency, which moves the marker to the center of the screen. This command is not available in zero span. If the Marker is OFF, it will set the marker on center.

Parameter Type

None

Parameter Range

None Return

None

Default

None

Marker > M→CF

Example

:CALCulate:MARKer1:CENTer

Command Format

:CALCulate:MARKer[1]|2|3|4[:SET]:STEP

Instruction

This command sets the center frequency step equal to the specified marker frequency. This command is not available in zero span. If the Marker is OFF, it will set the marker on center.

Parameter Type

None

Parameter Range

None Return

None

Default

None

Marker > M→CF Step

Example

:CALCulate:MARKer1:STEP

Command Format

:CALCulate:MARKer[1]|2|3|4[:SET]:RLEVel

Instruction

This command sets the reference level equal to the specified marker frequency.

(:CALCulate:MARKer[1]|2|3|4[:SET]:CENTer)

SIGLENT

3.6.1.18 Marker to Center Frequency Step (:CALCulate:MARKer[1]|2|3|4[:SET]:STEP)

3.6.1.19 Marker to Reference Level (:CALCulate:MARKer[1]|2|3|4[:SET]:RLEVel)

SSA3000X Programming Guide 47

SIGLENT

If the Marker is OFF, it will set the marker on center.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Marker > M→Ref Level

Example

:CALCulate:MARKer2:RLEVel

Command Format

:CALCulate:MARKer[1]|2|3|4:DELTa[:SET]:SPAN

Instruction

This command sets the span equal to the specified delta marker frequency. This command can be only used in DELTa|BAND marker mode, Reference Command:CALCulate:MARKer[1]|2|3|4:MODE

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Marker > △ M→Span

Example

:CALCulate:MARKer2:DELTa:SPAN

Command Format

:CALCulate:MARKer[1]|2|3|4:DELTa[:SET]:CENTer

Instruction

This command sets the center frequency equal to the specified delta marker frequency. This command can be only used in DELTa|BAND marker mode, Reference Command:CALCulate:MARKer[1]|2|3|4:MODE

Parameter Type

None

Parameter Range

None Return

None

Default

None

Marker > △ M→CF

Example

:CALCulate:MARKer3:DELTa:CENTer

Command Format

:CALCulate:MARKer:PEAK:SEARch:MODE MAXimum|MINimum :CALCulate:MARKer:PEAK:SEARch:MODE?

Instruction

This is for the analyzer’s internal peak identification routine to recognize a

3.6.1.20 Marker Delta to Span (:CALCulate:MARKer[1]|2|3|4:DELTa[:SET]:SPAN)

3.6.1.21 Marker Delta to Center Frequency (:CALCulate:MARKer[1]|2|3|4:DELTa[:SET]:CENTer)

3.6.1.22 Peak Search Type (:CALCulate:MARKer:PEAK:SEARch:MODE)

48 SSA3000X Programming Guide

SIGLENT

signal as a peak.

Parameter Type

Enumeration

Parameter Range

MAXimum|MINimum

Return

Enumeration

Default

MAXimum

Peak > Search Config > Peak Type

Example

:CALCulate:MARKer:PEAK:SEARch:MODE MINimum

Command Format

:CALCulate:MARKer:PEAK:THReshold <value> :CALCulate:MARKer:PEAK:THReshold?

Instruction

Specifies the minimum signal level for the analyzers internal peak identification routine to recognize a signal as a peak. This applies to all traces and all windows. Gets the minimum signal level for the analyzers internal peak identification routine to recognize a signal as a peak.

Parameter Type

Float, unit: dBm

Parameter Range

-200.0 dBm~ 200.0 dBm Return

Float, unit: dBm

Default

-160.0 dBm

Peak > Search Config > Peak Threshold

Example

:CALCulate:MARKer:PEAK:THReshold -50

Command Format

:CALCulate:MARKer:PEAK:EXCursion <value> :CALCulate:MARKer:PEAK:EXCursion?

Instruction

Specifies the minimum signal excursion above the threshold for the internal peak identification routine to recognize a signal as a peak.

Parameter Type

Float, unit: dB

Parameter Range

0 ~ 200.0dB Return

Float, unit: dB

Default

0 dB

Peak > Search Config > Peak Excursion

Example

:CALCulate:MARKer:PEAK:EXCursion 10

Command Format

:CALCulate:MARKer:PEAK:TABLe ON|OFF|0|1 :CALCulate:MARKer:PEAK:TABLe?

Instruction

Toggles the peak table between on and off. Gets the status of the peak table.

Parameter Type

Boolean

Parameter Range

ON|OFF|0|1

3.6.1.23 Peak Threshold (:CALCulate:MARKer:PEAK:THReshold)

3.6.1.24 Peak Excursion (:CALCulate:MARKer:PEAK:EXCursion)

3.6.1.25 Peak Table (:CALCulate:MARKer:PEAK:TABLe)

SSA3000X Programming Guide 49

SIGLENT

Return

0|1

Default

0 Menu

Peak > Peak Table

Example

:CALCulate:MARKer:PEAK:TABLe ON

Command Format

:CALCulate:PEAK:TABLe?

Instruction

Turning peak table data.

Parameter Type

None

Parameter Range

None

Return

String

Default

None

Peak

Example

: CALCulate:PEAK:TABLe?

Command Format

:CALCulate:MARKer[1]|2|3|4:CPEak[:STATe] OFF|ON|0|1 :CALCulate:MARKer[1]|2|3|4:CPEak[:STATe]?

Instruction

Toggles the continuous peak search function between on and off. Gets the continuous peak search function state.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1

Return

0|1

Default

None

Peak > Cont Peak

Example

:CALCulate:MARKer1:CPEak ON

Command Format

:CALCulate:MARKer[1]|2|3|4:MAXimum

Instruction

Performs a peak search based on the search mode settings. (based on the search mode settings, include: peak search mode, peak threshold and peak excursion, Reference Commands: :CALCulate:MARKer:PEAK:SEARch:MODE :CALCulate:MARKer:PEAK:THReshold :CALCulate:MARKer:PEAK: EXCursion)

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Peak

3.6.1.26 Query Peak Table Data (:CALCulate:PEAK:TABLe)

3.6.1.27 Continuous Peaking Marker (:CALCulate:MARKer[1]|2|3|4:CPEak[:STATe])

3.6.1.28 Peak Search (:CALCulate:MARKer[1]|2|3|4:MAXimum)

50 SSA3000X Programming Guide

Example

:CALCulate:MARKer4:MAXimum

3.6.1.29 Next Peak Search

Command Format

:CALCulate:MARKer[1]|2|3|4:MAXimum:NEXT

Instruction

Places the selected marker on the next highest signal peak of the current marked peak. (based on the search mode settings, include: peak search mode, peak threshold and peak excursion, Reference Commands: :CALCulate:MARKer:PEAK:SEARch:MODE :CALCulate:MARKer:PEAK:THReshold :CALCulate:MARKer:PEAK: EXCursion)

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Peak > Next Peak

Example

:CALCulate:MARKer1:MAXimum:NEXT

Command Format

:CALCulate:MARKer[1]|2|3|4:MAXimum:LEFT

Instruction

Places the selected marker on the next highest signal peak to the left of the current marked peak. (based on the search mode settings, include: peak search mode, peak threshold and peak excursion, Reference Commands: :CALCulate:MARKer:PEAK:SEARch:MODE :CALCulate:MARKer:PEAK:THReshold :CALCulate:MARKer:PEAK: EXCursion)

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Peak > Next Left Peak

Example

:CALCulate:MARKer1:MAXimum:LEFT

Command Format

:CALCulate:MARKer[1]|2|3|4:MAXimum:RIGHt

Instruction

Places the selected marker on the next highest signal peak to the right of the current marked peak. (based on the search mode settings, include: peak search mode, peak

(:CALCulate:MARKer[1]|2|3|4:MAXimum:NEXT)

SIGLENT

3.6.1.30 Marker Peak Left Search (:CALCulate:MARKer[1]|2|3|4:MAXimum:LEFT)

3.6.1.31 Marker Peak Right Search (:CALCulate:MARKer[1]|2|3|4:MAXimum:RIGHt)

SSA3000X Programming Guide 51

SIGLENT

threshold and peak excursion, Reference Commands: :CALCulate:MARKer:PEAK:SEARch:MODE :CALCulate:MARKer:PEAK:THReshold :CALCulate:MARKer:PEAK: EXCursion)

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Peak > Next Right Peak

Example

:CALCulate:MARKer1:MAXimum:RIGHt

Command Format

:CALCulate:MARKer[1]|2|3|4:PTPeak

Instruction

Positions a pair of delta markers on the highest and lowest points on the trace.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Peak > Peak Peak

Example

:CALCulate:MARKer1:PTPeak

Command Format

Instruction

This command selects the marker function for the designated marker. Gets the selected marker function for the designated marker.

Parameter Type

Enumeration

Parameter Range

OFF: refers to the normal function. FCOunt: refers to the frequency counter function. NOISe: refers to the noise measurement function. NDB: refers to the N dB bandwith function.

Return

Enumeration

Default

OFF

Marker Fn

Example

:CALCulate:MARK1:FUNCtion FCOunt

Command Format

:CALCulate:MARKer[1]|2|3|4:FCOunt:X?

Instruction

To query the frequency counter

Parameter

None

3.6.1.32 Peak to Peak Search (:CALCulate:MARKer[1]|2|3|4:PTPeak)

3.6.1.33 Marker Function (:CALCulate:MARKer[1]|2|3|4:FUNCtion)

3.6.1.34 Query Frequency Counter (:CALCulate:MARKer[1]|2|3|4:FCOunt:X?)

52 SSA3000X Programming Guide

Type

Parameter Range

None

Return

None

Default

None

Marker Fn > Freq Counter

Example

:CALCulate:MARK:FCOunt:X?

3.6.1.35 N dB Bandwidth Result

Command Format

:CALCulate:MARKer[1]|2|3|4:BANDwidth:RESult?

Instruction

Gets the result of N dB bandwidth measurement.

Parameter Type

None

Parameter Range

None Return

Float

Default

None

Marker Fn > N dB BW

Example

:CALCulate:MARK1:BANDwidth:RESult?

Command Format

:CALCulate:MARKer[1]|2|3|4:BANDwidth:NDB <value> :CALCulate:MARKer[1]|2|3|4:BANDwidth:NDB?

Instruction

Sets the reference value of N dB bandwidth measurement. Gets the reference value of N dB bandwidth measurement.

Parameter Type

Float

Parameter Range

-100dB ~ 100dB

Return

Float

Default

-3 dB

Marker Fn > N dB BW

Example

:CALCulate:MARK1:BANDwidth:NDB 10 DB

Command Format

:CALCulate:MARKer[1]|2|3|4:X:READout FREQuency|TIME|PERiod :CALCulate:MARKer[1]|2|3|4:X:READout?

Instruction

Toggles the marker X-Axis readout between frequency, time and period. Gets the marker X-Axis readout type.

Parameter Type

Enumeration

Parameter Range

FREQuency|TIME|PERiod

Return

Enumeration

(:CALCulate:MARKer[1]|2|3|4:BANDwidth:RESult?)

SIGLENT

3.6.1.36 N dB Bandwidth Reference Value (:CALCulate:MARKer[1]|2|3|4:BANDwidth[1]|2|3|4:RESult?)

3.6.1.37 Marker X-Axis Read Out (:CALCulate:MARKer[1]|2|3|4:X:READout)

SSA3000X Programming Guide 53

SIGLENT

Default

FREQuency

Marker Fn > Read Out

Example

:CALCulate:MARKer1:X:READout FREQuency

Command Format

:CALCulate:LLINe:TEST:STARt

Instruction

Sets limit test start.

Parameter Type

None

Parameter Range

None Return

None

Default

None

Limit > Test

Example

:CALCulate:LLINe:TEST:STARt

Command Format

:CALCulate:LLINe:TEST:STOP

Instruction

Sets limit test stop.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Limit > Test

Example

:CALCulate:LLINe:TEST:STOP

Command Format

:CALCulate:LLINe:TEST:STATe? Instruction

Gets limit test state.

Parameter Type

None

Parameter Range

None Return

0|1

Default

OFF

Limit > Test

Example

:CALCulate:LLINe:TEST:STAT?

Command

:CALCulate:LLINe[1]|2:STATe OFF|ON|0|1

3.6.2 Limit Subsection

3.6.2.1 Limit Test Start (:CALCulate:LLINe:TEST:STARt)

3.6.2.2 Limit Test Stop (:CALCulate:LLINe:TEST:STOP)

3.6.2.3 Gets Limit Test State (:CALCulate:LLINe:TEST:STATe?)

3.6.2.4 Limit Line State (:CALCulate:LLINe[1]|2:STATe)

54 SSA3000X Programming Guide

Format

:CALCulate:LLINe[1]|2:STATe?

Instruction

Sets limit line state. Gets limit line state.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1

Return

0|1

Default

OFF

Limit > Limit1|2

Example

:CALCulate:LLINe1:STATe OFF

3.6.2.5 Limit Type (:CALCulate:LLINe[1]|2:TYPE)

Command Format

:CALCulate:LLINe[1]|2:TYPE UPPer|LOWer :CALCulate:LLINe[1]|2:TYPE?

Instruction

Mode sets a limit line to be either an upper or lower type limit line. An upper line will be used as the maximum allowable value when comparing with the data. Gets limit type.

Parameter Type

Enumeration

Parameter Range

UPPer|LOWer Return

Enumeration

Default

The default setting of LINe1 is UPPer, the default setting of LINe2 is LOWer

Limit > Limit1|2 Edit > Type

Example

:CALCulate:LLINe1: TYPE LOWer

Command Format

:CALCulate:LLINe[1]|2:MODE LINE|POINt :CALCulate:LLINe[1]|2:MODE?

Instruction

Sets limit mode Gets limit mode

Parameter Type

Enumeration

Parameter Range

LINE|POINt

Return

Enumeration

Default

LINE

Limit > Limit1|2 Edit > Mode

Example

:CALCulate:LLINe1: MODE POINt

Command Format

:CALCulate:LLINe[1]|2:Y <value> :CALCulate:LLINe[1]|2:Y?

Instruction

Sets the Y-axis value of a limit line. Limit line Y-axis value is set independently and is not affected by the X-axis units. Gets the Y-axis value of a limit line.

Parameter Type

Float Parameter

-400 dBm~330 dBm

SIGLENT

3.6.2.6 Limit Mode (:CALCulate:LLINe[1]|2:MODE)

3.6.2.7 Limit Line Y-axis Value (:CALCulate:LLINe[1]|2:Y)

SSA3000X Programming Guide 55

SIGLENT

Range

Return

Float

Default

0dBm

Limit > Limit1|2 Edit > Amplitude

Example

:CALCulate:LLINe1:Y 5dBm

Command Format

:CALCulate:LLINe[1]|2:DATA <x-axis>,<ampl>{,<x-axis>, <ampl>} :CALCulate:LLINe[1]|2:DATA?

Instruction

Use this command to define the limit points. Gets the defined limit points.

Parameter Type

X-axis: Float Amplitude: Float

Parameter Range

X-axis: 0~3.2GHz Amplitude: -400 dBm~330 dBm

Return

X-axis: Float Amplitude: Float

Default

X-axis: -1Hz Amplitude: 0 dBm

Limit > Limit1|2 Edit

Example

:CALC:LLINe1:DATA 10000000,-20,20000000,-30

Command Format

:CALCulate:LLINe[1]|2:ADD <x-axis>,<ampl>

Instruction

Add limit point data

Parameter Type

X-axis: Float Amplitude: Float

Parameter Range

X-axis: 0~3.2GHz Amplitude: None

Return

X-axis: Float Amplitude: Float

Default

X-axis: -1Hz Amplitude: 0 dBm

Limit > Limit1|2 Edit

Example

:CALCulate:LLINe1:ADD 10000000,-20

Command Format

:CALCulate:LLINe[1]|2:DELete <number>

Instruction

Use this command to delete the assigned limit point.

Parameter Type

Integer

Parameter Range

None

Return

None

Default

None

Limit > Limit1|2 Edit > Del Point

3.6.2.8 Define Limit Points Data (:CALCulate:LLINe[1]|2:DATA)

3.6.2.9 Add Limit Point Data (:CALCulate:LLINe[1]|2:DATA)

3.6.2.10 Delete Assigned Limit Point (:CALCulate:LLINe[1]|2:DELete)

56 SSA3000X Programming Guide

SIGLENT

Example

:CALCulate:LLINe1:DELete 2

Command Format

:CALCulate:LLINe[1]|2:ALL:DELete

Instruction

Use this command to define all the limits points.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Limit > Limit1|2 Edit > Del All

Example

:CALCulate:LLINe2:ALL:DELete

Command Format

:CALCulate:LLINe:CONTrol:DOMain FREQuency|TIME :CALCulate:LLINe:CONTrol:DOMain?

Instruction

Toggles the limit X-axis value between frequency and time. Gets the limit X-axis unit.

Parameter Type

Enumeration

Parameter Range

FREQuency|TIME

Return

Enumeration

Default

FREQuency

Limit > Setup > X Axis

Example

:CALCulate:LLINe:CONTrol:DOMain FREQuency

Command Format

:CALCulate:LLINe:CONTrol:BEEP OFF|ON|0|1 :CALCulate:LLINe:CONTrol:BEEP?

Instruction

Use this command to turn on/off the limit beep status. Gets limit beep state.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1

Return

0|1

Default

Limit > Setup > Buzzer

Example

:CALCulate:LLINe:CONTrol:BEEP OFF

Command Format

:CALCulate:LLINe:FAIL?

Instruction

This query returns the limits pass/failed result. If the test result fails, this command will get result FAIL. If the test result passes, it will get result PASS.

3.6.2.11 Delete All Limit Points (:CALCulate:LLINe:ALL:DELete)

3.6.2.12 Limit X-axis Unit (:CALCulate:LLINe:CONTrol:DOMain)

3.6.2.13 Limit Beep State (:CALCulate:LLINe:CONTrol:BEEP)

3.6.2.14 Query Limits Result (:CALCulate:LLINe:FAIL?)

SSA3000X Programming Guide 57

SIGLENT

Parameter Type

None

Parameter Range

None Return

PASS|FAIL

Default

None

Example

:CALCulate:LLINe:FAIL?

Command Format

:CALCulate:LLINe:FAIL:STOP OFF|ON|0|1 :CALCulate:LLINe:FAIL:STOP?

Instruction

Sets whether to stop the test if the test fails. Gets whether to stop the test if the test fails.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1 Return

0|1

Default

OFF

Limit > Setup > Fail to stop

Example

:CALCulate:LLINe:FAIL:STOP OFF

Command Format

[:SENSe]:ACPRatio:BWIDth:INTegration <freq> [:SENSe]:ACPRatio:BWIDth:INTegration?

Instruction

Specifies the range of integration used in calculating the power in the main channel. Gets the range of integration used in calculating the power in the main channel.

Parameter Type

Float, unit: Hz, KHz, MHz, GHz

Parameter Range

100 Hz~3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz) Return

Float, unit: Hz

Default

1MHz

Meas > ACPR > Meas Setup > Main Channel

Example

:ACPRatio:BWIDth:INTegration 20 MHz

Command Format

[:SENSe]:ACPRatio:OFFSet:BWIDth[:INTegration] <freq> [:SENSe]:ACPRatio:OFFSet:BWIDth[:INTegration]?

3.6.2.15 Limit Fail to Stop (:CALCulate:LLINe:FAIL:STOP)

3.7 Measurement Subsystem

3.7.1 ACPR Subsection

3.7.1.1 Main Channel ([:SENSe]:ACPRatio:BWIDth:INTegration)

3.7.1.2 Adjacent Channel Bandwidth ([:SENSe]:ACPRatio:OFFSet:BWIDth[:INTegration])

58 SSA3000X Programming Guide

Instruction

Specifies the bandwidth used in calculating the power in the adjacent channel. Gets the bandwidth used in calculating the power in the adjacent channel.

Parameter Type

Float, unit: Hz, KHz, MHz, GHz

Parameter Range

100 Hz~3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz)

Return

Float, unit: Hz

Default

1MHz

Meas > ACPR > Meas Setup > Adjacent Chn

Example

:ACPRatio:OFFSet:BWIDth 20 MHz

3.7.1.3 Channel Space

Command Format

[:SENSe]:ACPRatio:OFFSet[:FREQuency] <freq> [:SENSe]:ACPRatio:OFFSet[:FREQuency]?

Instruction

Sets the space value between the center frequency of main channel power and that of the adjacent channel power. Gets adjacent channel space

Parameter Type

Float, unit: Hz, KHz, MHz, GHz

Parameter Range

100 Hz~700 MHz

Return

Float, unit: Hz

Default

3MHz

Meas > ACPR > Meas Setup > Adj Chn Space

Example

:ACPRatio:OFFSets 20 MHz

Command Format

:MEASure:ACPRatio:MAIN? Instruction

Return the main channel power of ACPR measurement.

Parameter Type

None

Parameter Range

None Return

Float, unit: dBm

Default

None

Meas > ACPR

Example

:MEASure:ACPRatio:MAIN?

Command Format

:MEASure:ACPRatio:LOWer:POWer?

Instruction

Return the lower adjacent channel power of ACPR measurement.

Parameter Type

None

Parameter Range

None

([:SENSe]:ACPRatio:OFFSet[:FREQuency])

SIGLENT

3.7.1.4 Query Main Channel Power (:MEASure:ACPRatio:MAIN?)

3.7.1.5 Query Lower Adjacent Channel Power (:MEASure:ACPRatio:LOWer:POWer?)

SSA3000X Programming Guide 59

SIGLENT

Return

Float, unit: dBm

Default

None

Meas > ACPR

Example

:MEASure:ACPRatio:LOWer:POWer?

Command Format

:MEASure:ACPRatio:LOWer?

Instruction

Return the lower adjacent channel power to main channel power ratio.

Parameter Type

None

Parameter Range

None Return

Float, unit: dBm

Default

None

Meas > ACPR

Example

:MEASure:ACPRatio:LOWer?

Command Format

:MEASure:ACPRatio:UPPer:POWer? Instruction

Return the upper adjacent channel power of ACPR measurement.

Parameter Type

None

Parameter Range

None

Return

Float, unit: dBm

Default

None

Meas > ACPR

Example

:MEASure:ACPRatio:UPPer:POWer?

Command Format

:MEASure:ACPRatio:UPPer?

Instruction

Return the upper adjacent channel power to main channel power ratio.

Parameter Type

None

Parameter Range

None Return

Float

Default

None

Meas > ACPR

Example

:MEASure:ACPRatio:UPPer?

3.7.1.6 Query Lower Adjacent Channel Power Ratio (:MEASure:ACPRatio:LOWer?)

3.7.1.7 Query Upper Adjacent Channel Power (:MEASure:ACPRatio:UPPer:POWer?)

3.7.1.8 Query Upper Adjacent Channel Power Ratio (:MEASure:ACPRatio:UPPer?)

60 SSA3000X Programming Guide

SIGLENT

Command Format

[:SENSe]:CHPower:BWIDth:INTegration <freq> [:SENSe]:CHPower:BWIDth:INTegration?

Instruction

Specifies the integration bandwidth to calculate the power. Gets the integration bandwidth.

Parameter Type

Float, unit: Hz, KHz, MHz, GHz

Parameter Range

100 Hz~3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz) Zero Span: 0~3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz)

Return

Float, unit: Hz

Default

2 MHz

Meas > Ch Power > Meas Setup > Integration BW

Example

:CHPower:BWIDth:INTegration 1.8 GHz

Command Format

[:SENSe]:CHPower:FREQuency:SPAN:POWer

Instruction

Sets the analyzer span for the channel power measurement. Be sure the span is set larger than the integration bandwidth.

Parameter Type

None

Parameter Range

None

Return

None

Default

None

Meas > Ch Power > Meas Setup > Span

Example

:CHPower:FREQuency:SPAN:POWer

Command Format

:MEASure:CHPower? Instruction

This command returns scalar results of main channel power, and power density.

Parameter Type

None

Parameter Range

None

Return

Float, Channel Power unit: dBm Float, Density unit: dBm/Hz

Default

None

Meas > Ch Power

Example

:MEASure:CHPower?

3.7.2 CHP Subsection

3.7.2.1 Integration BW ([:SENSe]:CHPower:BWIDth:INTegration)

3.7.2.2 Channel Span ([:SENSe]:CHPower:FREQuency:SPAN:POWer)

3.7.2.3 Query Channel Power and Power Spectral Density (:MEASure:CHPower?)

SSA3000X Programming Guide 61

SIGLENT

Command Format

:MEASure:CHPower:CHPower?

Instruction

This command returns the value of the channel power in dBm units.

Parameter Type

None

Parameter Range

None

Return

Float

Default

None

Meas > Ch Power

Example

:MEASure:CHPower:CHPower?

Command Format

:MEASure:CHPower:DENSity? Instruction

This command returns the value of the channel power density in dBm/Hz.

Parameter Type

None

Parameter Range

None

Return

Float

Default

None

Meas > Ch Power

Example

:MEASure:CHPower:DENSity?

Command Format

[:SENSe]:OBWidth:METHod PERCent|DBC [:SENSe]:OBWidth:METHod?

Instruction

This command toggles the method of OBW measurement between percent and dBc. Gets the method of OBW measurement.

Parameter Type

Enumeration

Parameter Range

PERCent|DBC

Return

Enumeration

Default

PERCent

Meas > Occupied BW > Meas Setup > Method

Example

:OBW:METHod PERCent

Command

[:SENSe]:OBWidth:PERCent <para>

3.7.2.4 Query Channel Power (:MEASure:CHPower:CHPower?)

3.7.2.5 Query Power Spectral Density (:MEASure:CHPower:DENSity?)

3.7.3 OBW Subsection

3.7.3.1 Select the Method of OBW ([:SENSe]:OBWidth:METHod)

3.7.3.2 Set Percentage(%) Method of OBW ([:SENSe]:OBWidth:PERCent)

62 SSA3000X Programming Guide

SIGLENT

Format

[:SENSe]:OBWidth:PERCent?

Instruction

Edit the percentage of signal power used when determining the occupied bandwidth. Press {%} to set the percentage ranging from 10.00% to 99.99%. Gets the percentage of signal power.

Parameter Type

Float

Parameter Range

10~99.99 Return

Float

Default

Meas > Occupied BW > Meas Setup > %

Example

:OBW:PERCent 50

Command Format

[:SENSe]:OBWidth:XDB <value> [:SENSe]:OBWidth:XDB?

Instruction

Specify the power level used to determine the emission bandwidth as the number of dB down from the highest signal point, within the occupied bandwidth span. Gets dBc value.

Parameter Type

Float

Parameter Range

0.1~100

Return

Float

Default

Meas > Occupied BW > Meas Setup > dBc

Example

:OBWidth:XDB 3

Command Format

:MEASure:OBWidth?

Instruction

Use this command to query the occupied bandwidth and bandwidth centroid according to the method you set.

Parameter Type

None

Parameter Range

None

Return

Float, unit: Hz

Default

None

Meas > Occupied BW

Example

:MEASure:OBW?

Command Format

:MEASure:OBWidth:OBWidth?

Instruction

Use this command to query the occupied bandwidth according to the method you set. Query Centroid Result.

Parameter

None

3.7.3.3 Set dBc Method of OBW ([:SENSe]:OBWidth:XDB)

3.7.3.4 Query OBW and Centroid (:MEASure:OBWidth?)

3.7.3.5 Query OBW (:MEASure:OBWidth:OBWidth?)

SSA3000X Programming Guide 63

SIGLENT

Type

Parameter Range

None

Return

Float, unit: Hz

Default

None

Meas > Occupied BW

Example

:MEASure:OBW:OBW?

Command Format

:MEASure:OBWidth:CENTroid?

Instruction

Use this command to query the occupied bandwidth according to the method you set.

Parameter Type

None

Parameter Range

None

Return

Float, unit: Hz

Default

None

Meas > Occupied BW

Example

: MEASure:OBW:CENTroid?

Command Format

:MEASure:OBWidth:OBWidth:FERRor? Instruction

Use this command to query transmit frequency error.

Parameter Type

None

Parameter Range

None

Return

Float, unit: Hz

Default

None

Meas > Occupied BW

Example

:MEASure:OBWidth:OBWidth:FERRor?

Command Format

[:SENSe]:TPOWer:FREQuency:CENTer <freq> [:SENSe]:TPOWer:FREQuency:CENTer?

Instruction

Sets T-power center frequency. Gets T-power center frequency.

Parameter Type

Float, unit: Hz, KHz, MHz, GHz

Parameter Range

50 Hz~3.199999950 GHz(2.999999950 GHz, 2.099999950 GHz, 1.799999950 GHz, 1.499999950 GHz, 0.999999950 GHz)

3.7.3.6 Query OBW Centroid (:MEASure:OBWidth:CENTroid?)

3.7.3.7 Query Transmit Frequency Error (:MEASure:OBWidth:OBWidth:FERRor?)

3.7.4 SubsectionT-power(T-Power)

3.7.4.1 T-power Center Frequency ([:SENSe]:TPOWer:FREQuency:CENTer)

64 SSA3000X Programming Guide

Zero Span: 0~3.2 GHz(3.0 GHz, 2.1 GHz, 1.8 GHz, 1.5 GHz, 1.0 GHz)

Return

Float, unit: Hz

Default

1.6GHz(1.5 GHz, 1.05 GHz, 0.9 GHz, 0.75 GHz, 0.5 GHz)

Meas > T-power > Meas Setup > Center Freq

Example

:TPOWer:FREQuency:CENTer 15KHz

3.7.4.2 T-power Start Line ([:SENSe]:TPOWer:LLIMit)

Command Format

[:SENSe]:TPOWer:LLIMit <time> [:SENSe]:TPOWer:LLIMit?

Instruction

Sets T-power start line. Gets T-power start line.

Parameter Type

Float, unit: ks, s, ms, us

Parameter Range

0 ~ 1000 s

Return

Float, time unit: s

Default

0 Menu

Meas > T-power > Meas Setup > Start Line

Example

:TPOWer:LLIMit 0.01

Command Format

[:SENSe]:TPOWer:RLIMit <time> [:SENSe]:TPOWer:RLIMit?

Instruction

Sets T-power stop line. Gets T-power stop line.

Parameter Type

Float, unit: ks, s, ms, us

Parameter Range

0 ~ 1000 s Return

Float, time unit: s

Default

20ms

Meas > T-power > Meas Setup > Stop Line

Example

:TPOWer:RLIMit 0.02

Command Format

:MEASure:TPOWer?

Instruction

Query the result of T-power measurement.

Parameter Type

Float, unit: dBm

Parameter Range

None

Return

Float, unit: dBm

Default

None

Meas > T-power

Example

:MEASure:TPOWer?

SIGLENT

3.7.4.3 T-power Stop Line ([:SENSe]:TPOWer:RLIMit)

3.7.4.4 Query T-power (:MEASure:TPOWer?)

SSA3000X Programming Guide 65

SIGLENT

Command Format

[:SENSe]:SPECtrogram:STATe RUN|PAUSe [:SENSe]:SPECtrogram:STATe?

Instruction

Sets spectrogram state. Gets spectrogram state.

Parameter Type

Enumeration

Parameter Range

RUN: Start PAUSe: Pause

Return

RUN|PAUSe

Default

RUN

Meas > Spectrum Monitor > Meas Setup > Spectrogram

Example

:SPECtrogram:STATe PAUSe

Command Format

[:SENSe]:SPECtrogram:RESTart Instruction

Restart spectrogram.

Parameter Type

None

Parameter Range

None Return

None

Default

None

Meas > Spectrum Monitor > Meas Setup > Restart

Example

:SPECtrogram:RESTart

Command Format

:MEASure:TOI? Instruction

Gets the result of Third-order Intercept Point

Parameter Type

None

Parameter Range

None

Return

Float

Default

None

Meas > TOI

Example

:MEASure:TOI?

3.7.5 Spectrum Monitor（SPECtrogram）

3.7.5.1 Spectrogram state([:SENSe]:SPECtrogram:STATe)

3.7.5.2 Spectrogram Restart ([:SENSe]:SPECtrogram:RESTart)

3.7.6 Third-order Intercept Point（TOI）

3.7.6.1 Query Third-order Intercept Point result(:MEASure:TOI?)

66 SSA3000X Programming Guide

SIGLENT

Command Format

:MEASure:TOI:IP3?

Instruction

Gets the min intercept of the Lower TOI(Lower 3rd) and the Upper TOI(Upper 3rd)

Parameter Type

None

Parameter Range

None Return

Float

Default

None

Meas > TOI

Example

:MEASure:TOI:IP3?

Command Format

:TRIGger[:SEQuence]:SOURce IMMediate|VIDeo|EXTernal :TRIGger[:SEQuence]:SOURce?

Instruction

Specifies the source (or type) of triggering used to start a measurement. Gets trigger type.

Parameter Type

Enumeration

Parameter Range

IMMediate: free-run triggering. VIDeo: triggers on the video signal level. EXTernal: allows you to connect an external trigger source.

Return

Enumeration

Default

IMMediate

Trigger

Example

:TRIGger:SOURce IMMediate

Command Format

:TRIGger[:SEQuence]:VIDeo:LEVel <value> :TRIGger[:SEQuence]:VIDeo:LEVel?

Instruction

Specifies the level at which a video trigger will occur. Video is adjusted using this command, but must also be selected using the command. Gets video Trigger Level.

Parameter Type

Float, unit: dBm, dBmV, dBuV, V, W

Parameter Range

Unit is dBm: -300 dBm ~ 50 dBm uni is dBmV: -253.01 dBmV ~ 96.99 dBmV unit is dBuV: -193.01 dBuV ~ 156.99 dBuV unit is Volts: 223.61 aV ~ 70.71 V unit is Watts: 1.00E-33 W ~ 100 W

Return

Float, unit: dBm, dBmV, dBuV, V, W

Default

0 dBm

Trigger > Video Level

Example

:TRIGger:VIDeo:LEVel 0.5 dBm

3.7.6.2 Query Third-order Intercept Point(:MEASure:TOI:IP3?)

3.8 Trigger Subsystem

3.8.1 Trigger Type (:TRIGger[:SEQuence]:SOURce)

3.8.2 Video Trigger Level

(:TRIGger[:SEQuence]:VIDeo:LEVel)

SSA3000X Programming Guide 67

SIGLENT

Command Format

:TRIGger[:SEQuence]:RFBurst:SLOPe POSitive|NEGative :TRIGger[:SEQuence]:RFBurst:SLOPe?

Instruction

This command activates the trigger condition that allows the next sweep to start when the external voltage (connected to EXT TRIG IN connector) passes through approximately 1.5 volts. The external trigger signal must be a 0V to +5V TTL signal. This function only controls the trigger polarity (for positive or negative-going signals). Gets Trigger edge.

Parameter Type

Enumeration

Parameter Range

POSitive: positive edge. NEGative: negative edge.

Return

Enumeration

Default

POSitive

Trigger > External Trigger

Example

:TRIGger:RFBurst:SLOPe POSitive

Command Format

:OUTPut[:STATe] OFF|ON|0|1 :OUTPut[:STATe]?

Instruction

Sets TG on-off. Gets TG state.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1 Return

0|1

Default

0 Menu

TG > TG

Example

:OUTPut ON

Command Format

:SOURce:POWer[:LEVel][:IMMediate][:AMPLitude] <value> :SOURce:POWer[:LEVel][:IMMediate][:AMPLitude]?

Instruction

Sets TG level. Gets TG level.

Parameter Type

Float, unit: dBm

Parameter Range

0 dBm ~ -20 dBm

Return

Float

Default

0 dBm

TG > TG Level

Example

:SOURce:POWer -20

3.8.3 Trigger Edge (:TRIGger[:SEQuence]:RFBurst:SLOPe)

3.9 TG Subsystem

3.9.1 TG On-off (:OUTPut[:STATe])

3.9.2 TG Level

(:SOURce:POWer[:LEVel][:IMMediate][:AMPLitude])

68 SSA3000X Programming Guide

3.9.3 TG Level OffSets

Command Format

:SOURce:CORRection:OFFSet <value> :SOURce:CORRection:OFFSet?

Instruction

Sets TG level offsets. Gets TG level offsets.

Parameter Type

Float, unit: dBm

Parameter Range

200 dBm ~ -200 dBm

Return

Float

Default

0 dBm

TG > Lel OffSets

Example

:SOURce:CORRection:OFFSet 1

Command Format

:CALCulate:NTData[:STATe] OFF|ON|0|1 :CALCulate:NTData[:STATe]?

Instruction

Sets TG normalize on-off. Gets TG normalize state.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1

Return

0|1

Default

0 Menu

TG > Normalize > Normalize

Example

:CALCulate:NTData ON

Command Format

:DISPlay:WINDow:TRACe:Y[:SCALe]:NRLevel <value> :DISPlay:WINDow:TRACe:Y[:SCALe]:NRLevel?

Instruction

Sets TG normalize reference level. Gets TG normalize reference level.

Parameter Type

Float, unit: dB

Parameter Range

-200 dB ~ 200 dB

Return

Float, unit: dB

Default

0 dB

TG > Normalize > Ref Lvl

Example

:DISPlay:WINDow:TRACe:Y:NRLevel 10

Command

:DISPlay:WINDow:TRACe:Y[:SCALe]:NRPosition <integer>

(:SOURce:CORRection:OFFSet )

3.9.4 TG Normalize on-off (:CALCulate:NTData[:STATe])

SIGLENT

3.9.5 TG Normalize Reference Level (:DISPlay:WINDow:TRACe:Y[:SCALe]:NRLevel)

3.9.6 TG Normalize Reference Position (:DISPlay:WINDow:TRACe:Y[:SCALe]:NRPosition)

SSA3000X Programming Guide 69

SIGLENT

Format

:DISPlay:WINDow:TRACe:Y[:SCALe]:NRPosition?

Instruction

Sets TG normalize reference position. Gets TG normalize reference position.

Parameter Type

Integer

Parameter Range

0 ~ 100%

Return

Float

Default

100%

TG > Normalize > Position

Example

:DISPlay:WINDow:TRACe:Y:NRPosition 10

Command Format

:DISPlay:WINDow:NTTRace[:STATe] OFF|ON|0|1 :DISPlay:WINDow:NTTRace[:STATe]?

Instruction

Sets TG normalize reference trace on-off.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1

Return

0|1

Default

TG > Normalize > Ref Trace

Example

:DISPlay:WINDow:NTTRace ON

Command Format

[:SENSe]:DEMod AM|FM|OFF [:SENSe]:DEMod?

Instruction

Sets demod mode. Gets demod mode.

Parameter Type

Enumeration

Parameter Range

AM|FM|OFF Return

Enumeration

Default

OFF

Demod

Example

:DEMod AM

Command Format

[:SENSe]:DEMod:TIME <time> [:SENSe]:DEMod:TIME?

Instruction

Sets demod time. Gets demod time.

Parameter Type

Float, unit: ms, us, s

3.9.7 TG Normalize Reference Trace on-off (:DISPlay:WINDow:NTTRace[:STATe])

3.10 Demod Subsystem

3.10.1 Demod Mode ([:SENSe]:DEMod)

3.10.2 Demod Time ([:SENSe]:DEMod:TIME)

70 SSA3000X Programming Guide

Parameter Range

5 ms ~1000 s Return

Float, unit: s

Default

5 ms

Demod

Example

DEMod:TIME 5 ms

3.10.3 Earphone ([:SENSe]:DEMod:EPHone)

Command Format

[:SENSe]:DEMod:EPHone OFF|ON|0|1 [:SENSe]:DEMod:EPHone?

Instruction

Sets earphone on-off. Gets earphone on-off.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1

Return

0|1

Default

OFF

Demod > Earphone

Example

:DEMod:EPHone ON

Command Format

[:SENSe]:DEMod:VOLume <value> [:SENSe]:DEMod:VOLume?

Instruction

Sets volume value. Gets volume value.

Parameter Type

Integer

Parameter Range

0 ~ 10

Return

Integer

Default

6 Menu

Demod > Volume

Example

:DEMod:EPHone ON

Command Format

[:SENSe]:CALibration:STATe OFF|ON|0|1 [:SENSe]:CALibration:STATe?

Instruction

Sets calibration on-off. Gets calibration on-off.

Parameter Type

Boolean

Parameter Range

OFF|ON|0|1

Return

0|1

Default

OFF

SIGLENT

3.10.4 Volume ([:SENSe]:DEMod:VOLume)

3.11 Calibration Subsystem

3.11.1 Calibration on-off

([:SENSe]:CALibration:STATe)

SSA3000X Programming Guide 71

SIGLENT

Syetem > Calibration > Auto Cal

Example

:CALibration:STATe ON

Command Format

:MMEMory:STORe STA|TRC|COR|CSV|LIM|JPG|BMP|PNG,<file>

Instruction

Store file

Parameter Type

String

Parameter Range

None

Return

None

Default

None

File > Save

Example

:MMEMory:STORe STA,ABC.sta

Command Format

:MMEMory:LOAD STA|TRC|COR|LIM,<file>

Instruction

Load file

Parameter Type

String

Parameter Range

None

Return

None

Default

None

File > Open/Load

Example

:MMEMory:LOAD STA,ABC.sta

Command Format

:MMEMory:DELete <file>

Instruction

Delete file or folder

Parameter Type

String

Parameter Range

None

Return

None

Default

None

File > Operate > Delete

Example

:MMEMory:DELete ABC.sta

3.12 Memory Subsystem

3.12.1 Store File (:MMEMory:STORe)

3.12.2 Load File (:MMEMory:LOAD)

3.12.3 Delete File (:MMEMory:DELete)

72 SSA3000X Programming Guide

SIGLENT

4.Programming Examples

This chapter gives some examples for the programmer. In these examples you can see how to use the VISA or sockets, in combination with the commands have been described above to control the spectrum analyzer. By following these examples, you can develop many more applications.

4.1 Examples of Using VISA

4.1.1 Example of VC++

Environment: Win7 32bit system, Visual Studio The functions of this example: use the NI-VISA, to control the device with USBTMC or

TCP/IP access to do a write and read. Follow the steps to finish the example:

1、 Open Visual Studio, create a new VC++ win32 console project. 2、 Set the project environment to use the NI-VISA lib, there are two ways to use NI-VISA,

static or automatic: (1) Static: find files: visa.h, visatype.h, visa32.lib in NI-VISA install path. Copy them to your

project, and add them into project. In the projectname.cpp file, add the follow two lines:

#include "visa.h" #pragma comment(lib,"visa32.lib")

(2) Automatic: Set the .h file include directory, the NI-VISA install path, in our computer we set the path is:

C:\Program Files\IVI Foundation \VISA\WinNT\include. Set this path to project---properties--c/c++---General---Additional Include Directories: See the picture.

Set lib path set lib file: Set lib path: the NI-VISA install path, in our computer we set the path is: C:\Program Files\IVI

Foundation\VISA\WinNT \lib\msc. Set this path to project---properties---Linker---General---Additional Library

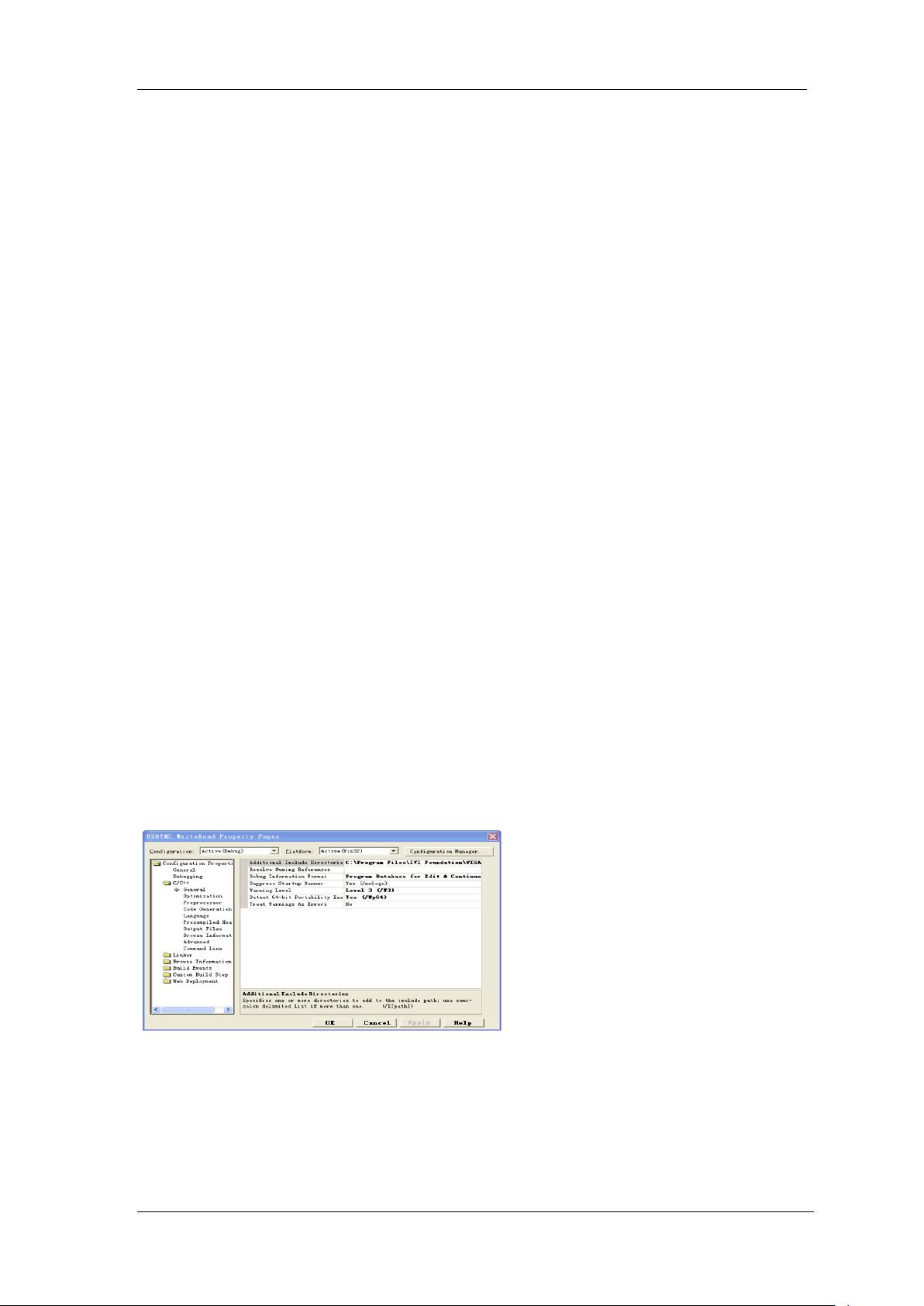

Directories: as seen in the pictures below.

SSA3000X Programming Guide 73

SIGLENT

Set lib file:project---properties---Linker--- Command Line---Additional Options: visa32.lib

Include visa.h file: In the projectname.cpp file:

#include <visa.h>

3、Add codes:

(1)USBTMC access code. Write a function Usbtmc_test:

int Usbtmc_test()

{ /* This code demonstrates sending synchronous read & write commands */ /* to an USB Test & Measurement Class (USBTMC) instrument using */ /* NI-VISA */ /* The example writes the "*IDN?\n" string to all the USBTMC */ /* devices connected to the system and attempts to read back */ /* results using the write and read functions. */ /* The general flow of the code is */ /* Open Resource Manager */ /* Open VISA Session to an Instrument */ /* Write the Identification Query Using viPrintf */ /* Try to Read a Response With viScanf */ /* Close the VISA Session */ /***********************************************************/ ViSessiondefaultRM; ViSessioninstr; ViUInt32numInstrs; ViFindListfindList;

ViStatus status;

char instrResourceString[VI_FIND_BUFLEN]; unsigned char buffer[100]; int i; /** First we must call viOpenDefaultRM to get the manager

* handle. We will store this handle in defaultRM.*/

status=viOpenDefaultRM (&defaultRM); if (status<VI_SUCCESS) { printf ("Could not open a session to the VISA Resource Manager!\n"); return status; }

74 SSA3000X Programming Guide

SIGLENT

/* Find all the USB TMC VISA resources in our system and store the number of resources in the system in

numInstrs.*/

status = viFindRsrc (defaultRM, "USB?*INSTR", &findList, &numInstrs, instrResourceString); if (status<VI_SUCCESS) { printf ("An error occurred while finding resources.\nPress 'Enter' to continue."); fflush(stdin); getchar(); viClose (defaultRM); return status; } /** Now we will open VISA sessions to all USB TMC instruments.

* We must use the handle from viOpenDefaultRM and we must * also use a string that indicates which instrument to open. This * is called the instrument descriptor. The format for this string * can be found in the function panel by right clicking on the * descriptor parameter. After opening a session to the * device, we will get a handle to the instrument which we * will use in later VISA functions. The AccessMode and Timeout * parameters in this function are reserved for future * functionality. These two parameters are given the value VI_NULL.*/

for (i=0; i<int(numInstrs); i++) { if (i> 0) { viFindNext (findList, instrResourceString); } status = viOpen (defaultRM, instrResourceString, VI_NULL, VI_NULL, &instr); if (status<VI_SUCCESS) { printf ("Cannot open a session to the device %d.\n", i+1); continue; } /* * At this point we now have a session open to the USB TMC instrument.

* We will now use the viPrintf function to send the device the string "*IDN?\n", * asking for the device's identification. */

char * cmmand ="*IDN?\n"; status = viPrintf (instr, cmmand); if (status<VI_SUCCESS) { printf ("Error writing to the device %d.\n", i+1); status = viClose (instr); continue; } /** Now we will attempt to read back a response from the device to

* the identification query that was sent. We will use the viScanf * function to acquire the data. * After the data has been read the response is displayed.*/

status = viScanf(instr, "%t", buffer); if (status<VI_SUCCESS) { printf ("Error reading a response from the device %d.\n", i+1); } else { printf ("\nDevice %d: %s\n", i+1, buffer); }status = viClose (instr); } /** Now we will close the session to the instrument using

* viClose. This operation frees all system resources. */

status = viClose (defaultRM); printf("Press 'Enter' to exit."); fflush(stdin);

getchar();return 0;

}

int _tmain(int argc, _TCHAR* argv[])

{ Usbtmc_test(); return 0; }

Run result.

SSA3000X Programming Guide 75

SIGLENT

(2)TCP/IP access code.

Write a function TCP_IP_Test:

int TCP_IP_Test(char *pIP)

{

char outputBuffer[VI_FIND_BUFLEN];

ViSessiondefaultRM, instr;

ViStatusstatus;

/* First we will need to open the default resource manager. */

status = viOpenDefaultRM (&defaultRM);

if (status<VI_SUCCESS)

{

printf("Could not open a session to the VISA Resource Manager!\n");

}

/* Now we will open a session via TCP/IP device */

char head[256] ="TCPIP0::";

char tail[] ="::INSTR";

strcat(head,pIP);

strcat(head,tail);

status = viOpen (defaultRM, head, VI_LOAD_CONFIG, VI_NULL, &instr);

if (status<VI_SUCCESS)

{

printf ("An error occurred opening the session\n");

viClose(defaultRM);

}

status = viPrintf(instr, "*idn?\n");

status = viScanf(instr, "%t", outputBuffer);

if (status<VI_SUCCESS)

{

printf("viRead failed with error code: %x \n",status);

viClose(defaultRM);

}else

{ printf ("\nMesseage read from device: %*s\n", 0,outputBuffer);

} status = viClose (instr);

status = viClose (defaultRM);

printf("Press 'Enter' to exit.");

fflush(stdin);

getchar(); return 0;

}

int _tmain(int argc, _TCHAR* argv[])

{

printf("Please input IP address:");

char ip[256];

fflush(stdin);

gets(ip);

TCP_IP_Test(ip);

return 0;

}

Run result.

76 SSA3000X Programming Guide

SIGLENT

4.1.2 Example of VB

Environment: Win7 32bit system, Microsoft Visual Basic 6.0 The function of this example: Use the NI-VISA, to control the device with USBTMC and

TCP/IP access to do a write and read. Follow the steps to complete the example:

1、 Open Visual Basic, build a standard application program project (Standard EXE) 2、 Set the project environment to use the NI-VISA lib, Click the Existing tab of Project>>Add

Existing Item. Search for the visa32.bas file in the include folder under the NI-VISA installation path and add the file.

This allows the VISA functions and VISA data types to be used in a program. 3、 Add codes:

(1)USBTMC access code.

Write a function Usbtmc_test:

Private Function Usbtmc_test() As Long

' This code demonstrates sending synchronous read & write commands ' to an USB Test & Measurement Class (USBTMC) instrument using ' NI-VISA ' The example writes the "*IDN?\n" string to all the USBTMC ' devices connected to the system and attempts to read back ' results using the write and read functions. ' The general flow of the code is ' Open Resource Manager ' Open VISA Session to an Instrument ' Write the Identification Query Using viWrite ' Try to Read a Response With viRead ' Close the VISA Session

SSA3000X Programming Guide 77

SIGLENT

Const MAX_CNT = 200 Dim defaultRM As Long

Dim instrsesn As Long Dim numlnstrs As Long Dim findList As Long Dim retCount As Long

Dim status As Long Dim instrResourceString As String * VI_FIND_BUFLEN Dim Buffer As String * MAX_CNT Dim i As Integer

' First we must call viOpenDefaultRM to get the manager ' handle. We will store this handle in defaultRM.

status = viOpenDefaultRM(defaultRM)

If (status < VI_SUCCESS) Then

resultTxt.Text = "Could not open a session to the VISA Resource Manager!" Usbtmc_test = status Exit Function

End If

' Find all the USB TMC VISA resources in our system and store the ' number of resources in the system in numInstrs.

status = viFindRsrc(defaultRM, "USB?*INSTR", findList, numlnstrs, instrResourceString)

If (status < VI_SUCCESS) Then

resultTxt.Text = "An error occurred while finding resources." viClose (defaultRM) Usbtmc_test = status

Exit Function End If

' Now we will open VISA sessions to all USB TMC instruments. ' We must use the handle from viOpenDefaultRM and we must ' also use a string that indicates which instrument to open. This ' is called the instrument descriptor. The format for this string ' can be found in the function panel by right clicking on the ' descriptor parameter. After opening a session to the ' device, we will get a handle to the instrument which we ' will use in later VISA functions. The AccessMode and Timeout ' parameters in this function are reserved for future ' functionality. These two parameters are given the value VI_NULL.

For i = 0 To numInstrs If (i > 0) Then

status = viFindNext(findList, instrResourceString)

End If

status = viOpen(defaultRM, instrResourceString, VI_NULL, VI_NULL, instrsesn)

If (status < VI_SUCCESS) Then resultTxt.Text = "Cannot open a session to the device " + CStr(i + 1)

GoTo NextFind

End If

' At this point we now have a session open to the USB TMC instrument. ' We will now use the viWrite function to send the device the string "*IDN?", ' asking for the device's identification.

status = viWrite(instrsesn, "*IDN?", 5, retCount)

If (status < VI_SUCCESS) Then

resultTxt.Text = "Error writing to the device." status = viClose(instrsesn) GoTo NextFind

End If

78 SSA3000X Programming Guide

SIGLENT

' Now we will attempt to read back a response from the device to ' the identification query that was sent. We will use the viRead ' function to acquire the data. ' After the data has been read the response is displayed.

status = viRead(instrsesn, Buffer, MAX_CNT, retCount)

If (status < VI_SUCCESS) Then

resultTxt.Text = "Error reading a response from the device." + CStr(i + 1)

Else

resultTxt.Text = "Read from device: " + CStr(i + 1) + " " + Buffer

End If

status = viClose(instrsesn)

Next i

' Now we will close the session to the instrument using ' viClose. This operation frees all system resources.

status = viClose(defaultRM) Usbtmc_test = 0

End Function

(2)TCP/IP access code.

Write a function TCP_IP_Test:

Private Function TCP_IP_Test(ByVal ip As String) As Long Dim outputBuffer As String * VI_FIND_BUFLEN Dim defaultRM As Long Dim instrsesn As Long Dim status As Long Dim count As Long

' First we will need to open the default resource manager.

status = viOpenDefaultRM (defaultRM)

If (status < VI_SUCCESS) Then

resultTxt.Text = "Could not open a session to the VISA Resource Manager!" TCP_IP_Test = status Exit Function

End If

' Now we will open a session via TCP/IP device

status = viOpen(defaultRM, "TCPIP0::" + ip + "::INSTR", VI_LOAD_CONFIG, VI_NULL, instrsesn)

If (status < VI_SUCCESS) Then resultTxt.Text = "An error occurred opening the session"

viClose (defaultRM) TCP_IP_Test = status

Exit Function End If

status = viWrite(instrsesn, "*IDN?", 5, count)

If (status < VI_SUCCESS) Then

resultTxt.Text = "Error writing to the device."

End If

status = viRead(instrsesn, outputBuffer, VI_FIND_BUFLEN, count)

If (status < VI_SUCCESS) Then

resultTxt.Text = "Error reading a response from the device." + CStr(i + 1)

Else

resultTxt.Text = "read from device:" + outputBuffer

End If

status = viClose(instrsesn) status = viClose(defaultRM) TCP_IP_Test = 0

End Function

(3) Button control code:

Private Sub exitBtn_Click()

End

End Sub Private Sub tcpipBtn_Click()

SSA3000X Programming Guide 79

SIGLENT

Dim stat As Long stat = TCP_IP_Test(ipTxt.Text) If (stat < VI_SUCCESS) Then resultTxt.Text = Hex(stat) End If

End Sub Private Sub usbBtn_Click()

Dim stat As Long stat = Usbtmc_test If (stat < VI_SUCCESS) Then resultTxt.Text = Hex(stat) End If

End Sub

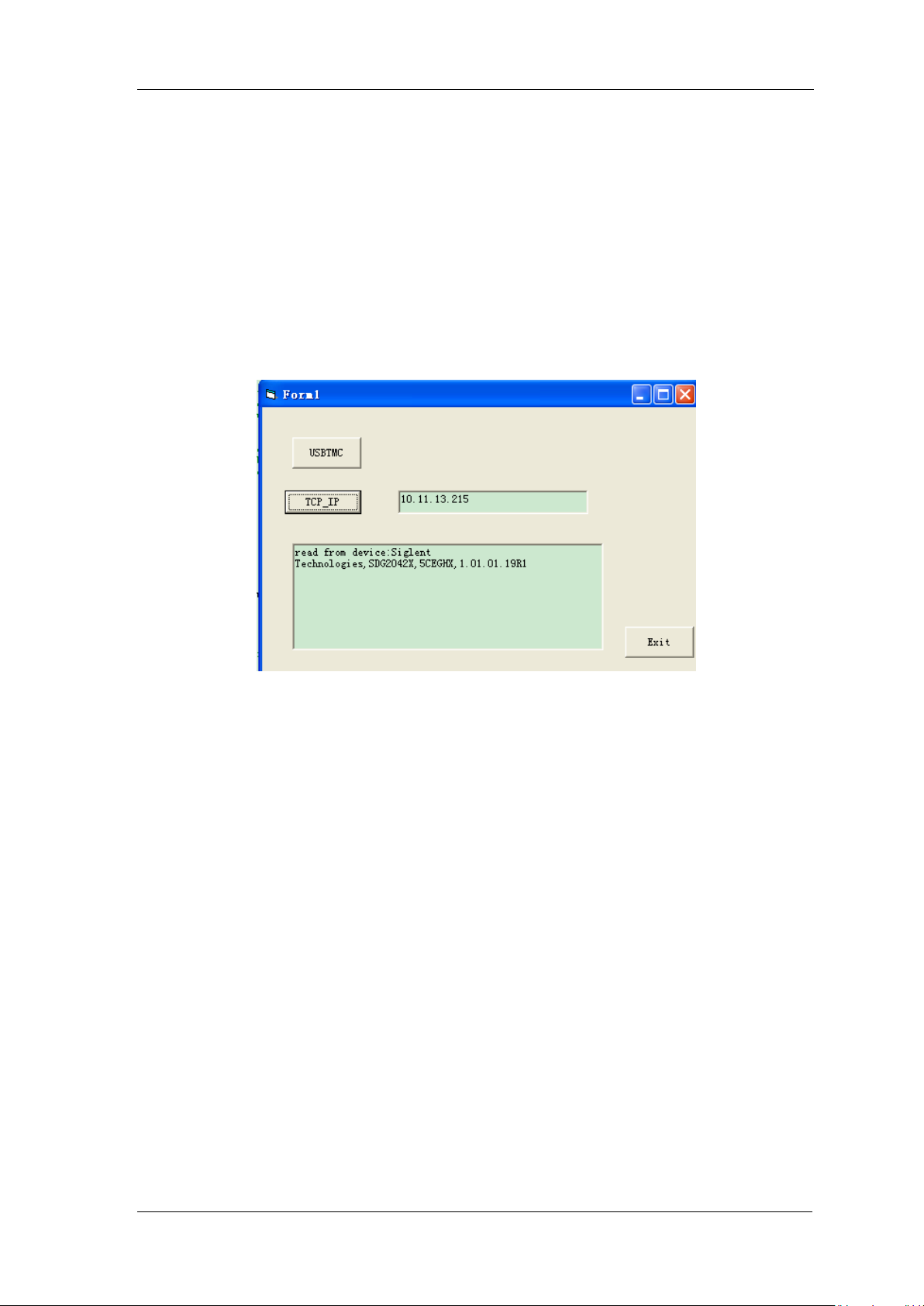

Run result:

4.1.3 Example of MATLAB

Environment: Win7 32bit system, MATLAB R2013a The function of this example: Use the NI-VISA, to control the device with USBTMC or

TCP/IP access to do a write and read. Follow the steps to complete the example:

1、 Open MATLAB, modify the current directory. In this demo, the current directory is modified to D:\USBTMC_TCPIP_Demo.

2、 Click File>>New>>Script in the Matlab interface to create an empty M file 3、 Add codes:

(1)USBTMC access code

Write a function Usbtmc_test.

function USBTMC_test()

% This code demonstrates sending synchronous read & write commands % to an USB Test & Measurement Class (USBTMC) instrument using % NI-VISA

%Create a VISA-USB object connected to a USB instrument

vu = visa('ni','USB0::0xF4ED::0xEE3A::sdg2000x::INSTR');

%Open the VISA object created

fopen(vu);

%Send the string "*IDN?",asking for the device's identification.

80 SSA3000X Programming Guide

fprintf(vu,'*IDN?');

%Request the data

outputbuffer = fscanf(vu); disp(outputbuffer);

%Close the VISA object

fclose(vu); delete(vu); clear vu;

end

Run result:

2)TCP/IP access code.

Write a function TCP_IP_Test:

function TCP_IP_test()

% This code demonstrates sending synchronous read & write commands % to an TCP/IP instrument using NI-VISA

%Create a VISA-TCPIP object connected to an instrument %configured with IP address.

vt = visa('ni',['TCPIP0::','10.11.13.32','::INSTR']);

%Open the VISA object created

fopen(vt);

%Send the string "*IDN?",asking for the device's identification.

fprintf(vt,'*IDN?');

%Request the data

outputbuffer = fscanf(vt); disp(outputbuffer);

%Close the VISA object

fclose(vt); delete(vt); clear vt;

end

Run result:

SIGLENT

(

4.1.4 Example of LabVIEW

Environment: Win7 32bit system, LabVIEW 2011 The functions of this example: use the NI-VISA, to control the device with USBTMC and

TCP/IP access to do a write and read.

SSA3000X Programming Guide 81

SIGLENT

Follow the steps to complete the example: 1、 Open LabVIEW, create a VI file. 2、 Add controls. Right-click in the Front Panel interface, select and add VISA resource

name, error in, error out and some indicators from the Controls column. 3、 Open the Block Diagram interface. Right-click on the VISA resource name and you can

select and add the following functions from VISA Palette from the pop-up menu: VISA Write, VISA Read, VISA Open and VISA Close.

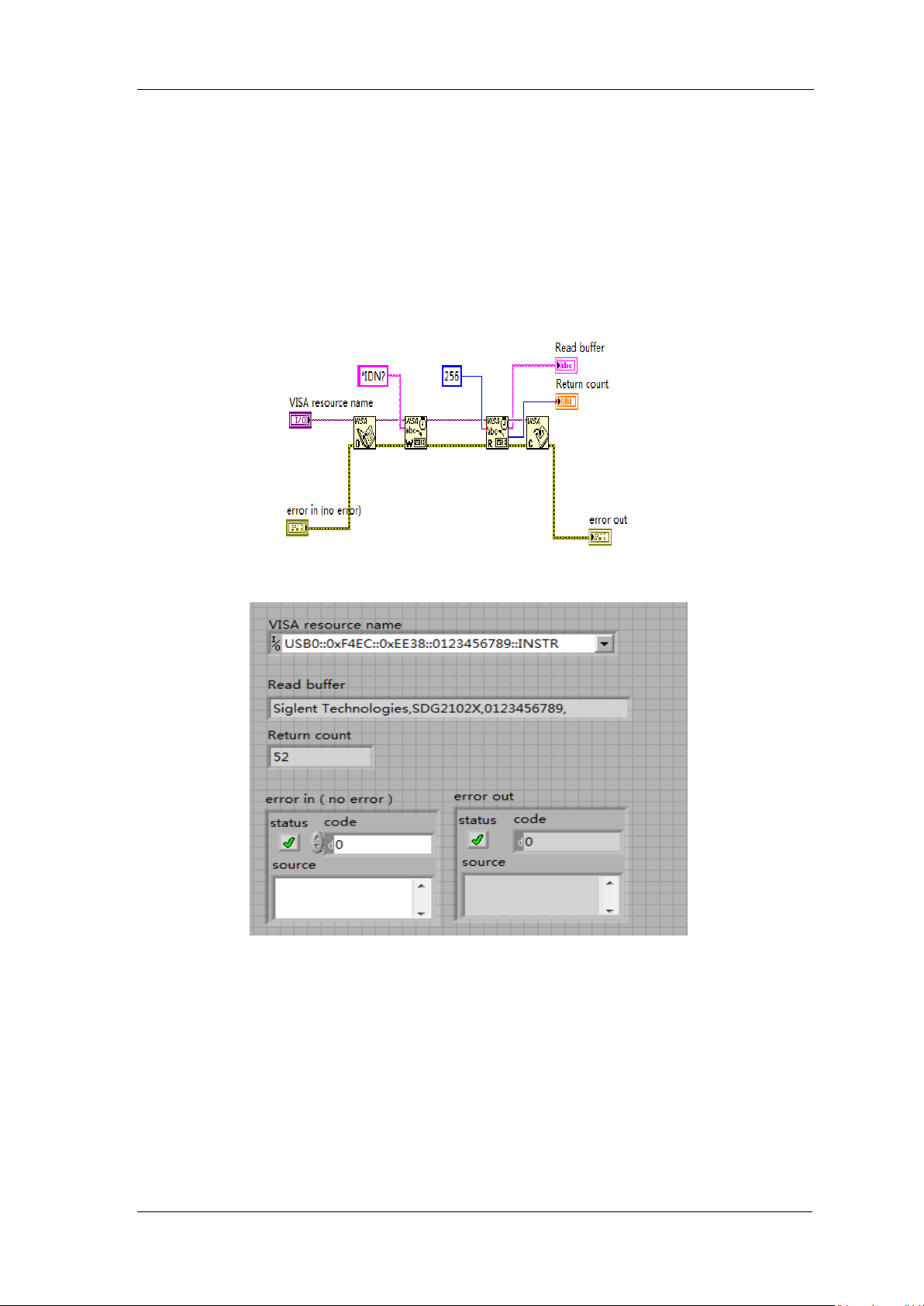

4、 Connect them as shown in the figure below

5、 Select the device resource from the VISA Resource Name list box and run the program.

In this example, the VI opens a VISA session to a USBTMC device, writes a command to the device, and reads back the response. In this example, the specific command being sent is the device ID query. Check with your device manufacturer for the device command set. After all communication is complete, the VI closes the VISA session.

6、Communicating with the device via TCP/IP is similar to USBTMC. But you need to change VISA Write and VISA Read Function to Synchronous I/O. The LabVIEW default is

asynchronous I/O. Right-click the node and select Synchronous I/O Mod>>Synchronous from the shortcut menu to write or read data synchronously.

7、 Connect them as shown in the figure below

82 SSA3000X Programming Guide

8、 Input the IP address and run the program.

SIGLENT

SSA3000X Programming Guide 83

SIGLENT

4.2 Examples of Using Sockets/Telnet

4.2.1 Example of Python

Python is an interpreted programming language that lets you work quickly and is very portable.Python has a low-level networking module that provides access to the socket interface.Python scripts can be written for sockets to do a variety of test and measurements tasks.

Environment: Win7 32bit system, Python v2.7.5 The functions of this example: Open a socket, sends a query, and closes the socket. It

does this loop 10 times.

Below is the code of the script:

#!/usr/bin/env python #-*- coding:utf-8 –*#----------------------------------------------------------------------------# The short script is a example that open a socket, sends a query, # print the return message and closes the socket. #----------------------------------------------------------------------------import socket # for sockets import sys # for exit import time # for sleep #-----------------------------------------------------------------------------

remote_ip = "10.11.13.32" # should match the instrument’s IP addressport = 5024 # the port number of the instrument service count = 0

def SocketConnect(): try: #create an AF_INET, STREAM socket (TCP) s = socket.socket(socket.AF_INET, socket.SOCK_STREAM) except socket.error: print ('Failed to create socket.') sys.exit(); try: #Connect to remote server s.connect((remote_ip , port)) info = s.recv(4096) print (info) except socket.error: print ('failed to connect to ip ' + remote_ip) return s

def SocketQuery(Sock, cmd): try :

#Send cmd string Sock.sendall(cmd) time.sleep(1)

except socket.error: #Send failed print ('Send failed') sys.exit() reply = Sock.recv(4096) return reply

def SocketClose(Sock): #close the socket

84 SSA3000X Programming Guide

SIGLENT

Sock.close() time.sleep(.300)

def main(): global remote_ip global port global count

# Body: send the SCPI commands *IDN? 10 times and print the return message s = SocketConnect() for i in range(10): qStr = SocketQuery(s, b'*IDN?') print (str(count) + ":: " + str(qStr)) count = count + 1 SocketClose(s) input('Press "Enter" to exit')

if __name__ == '__main__': proc = main()

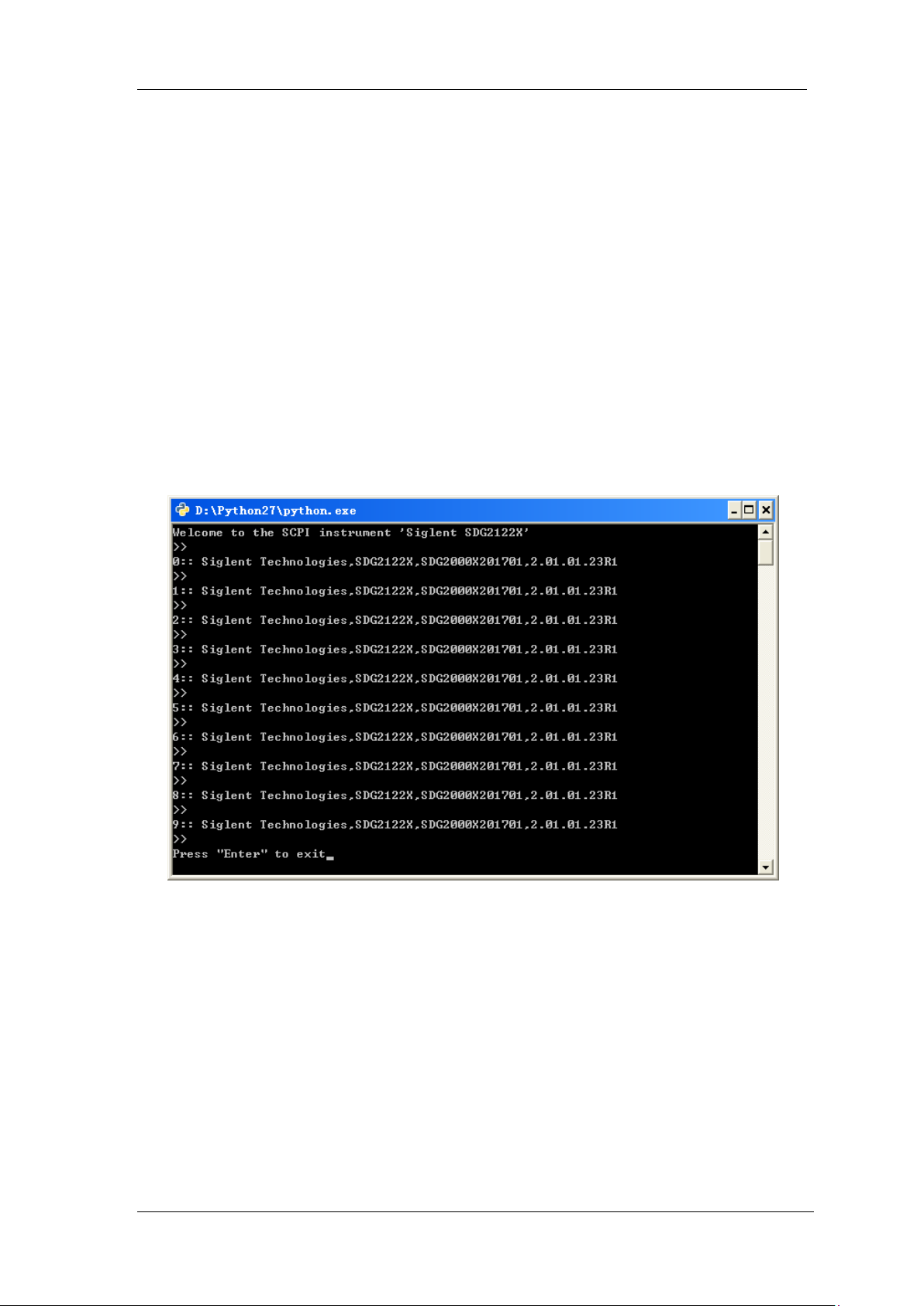

Run result:

4.2.2 Example of Telnet

Telnet SCPI: Provides the ability to send single SCPI commands from a remote PC to the

analyzer using LAN port number 5024. How to send single SCPI commands using Telnet:

1. On the remote PC, click Start, then Run

2. Type: telnet <ip address> 5024

3. A Telnet window with a >> prompt should appear on the remote PC screen.

4. From the SCPI prompt:  Type single SCPI commands. Press Enter to send the command.

SSA3000X Programming Guide 85

SIGLENT

 To exit the telnet window click X in the upper-right corner.  To get a normal telnet prompt, press Ctrl ] (closing bracket).  To get SCPI prompt again, type open <ip Address> 5024.  To close the normal telnet window, type Quit and press Enter.

86 SSA3000X Programming Guide

Siglent SSA3021X Programming Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

1.Programming Overview

1.1 Remotely Operating the Analyzer

1.1.1 Connecting the Analyzer via the USB Device port

1.1.2 Connecting the Analyzer via the LAN port

1.1.3 Connecting the Analyzer via the USB-Host port (With USB-GPIB Adaptor)

1.2 Build Communication

1.2.1 Build Communication Using VISA

1.2.2 Build Communication Using Sockets/Telnet

1.3 Remote Control Capabilities

1.3.1 User-defined Programming

1.3.2 Send SCPI Commands via NI MAX

1.3.2.1 Using USB

1.3.2.2 Using LAN

1.3.3 EasySpectrum Software

2.SCPI Overview

2.1 Command Format

2.2 Symbol Instruction

2.3 Parameter Type

2.4 Command Abbreviation

3.System Commands

3.1 IEEE Common Commands

3.1.1 Identification Query (*IDN)

3.1.2 Reset (*RST)

3.1.3 Clear Status (*CLS)

3.1.4 Standard Event Status Enable (*ESE)

3.1.5 Standard Event Status Register Query (*ESR)

3.1.6 Operation Complete Query (*OPC)

3.1.7 Service Request Enable (*SRE)

3.1.8 Status Byte Query (*STB)

3.1.9 Wait-to-Continue (*WAI)

3.1.10 Self Test Query (*TST)

3.2 System Subsystem

3.2.1 System Time (:SYSTem:TIME)

3.2.2 System Date (:SYSTem:DATE)

3.2.4 Gateway (:SYSTem:COMMunicate:LAN:GATeway)

3.2.5 Subnet Mask (:SYSTem:COMMunicate:LAN:SMASk)

3.2.6 IP Config (:SYSTem:COMMunicate:LAN:TYPE)

3.2.7 Language (:SYSTem:LANGuage)

3.2.8 Power On Type (:SYSTem:PON:TYPE)

3.2.9 System Preset (:SYSTem:PRESet)

3.2.10 System Restart (:SYSTem:RESTart)

3.2.11 Preset Type (:SYSTem:PRESet:TYPE)

3.2.12 Factory ReSet (:SYSTem:FDEFault)

3.2.13 Enable Option (:SYSTem:LKEY)

3.2.14 Installed Options Query (:SYSTem:OPTions?)

3.2.15 Power Off (:SYSTem:POWer:OFF)

3.2.16 Screenshot Data (:HCOPy:SDUMp:DATA?)

3.2.17 System Info (:SYSTem:CONFigure:SYSTem?)

3.3 Instrument Subsystem

3.3.1 Instrument Mode (:INSTrument[:SELect])

3.3.2 Measure Mode (:INSTrument:MEASure)

3.4 Initiate Subsystem

3.4.1 Single Sweep (:INITiate[:IMMediate])

3.5 Sense Subsystem

3.5.1 Frequency Subsection

3.5.1.1 Center Frequency ([:SENSe]:FREQuency:CENTer)

3.5.1.2 Start Frequency ([:SENSe]:FREQuency:STARt)

3.5.1.3 Stop Frequency ([:SENSe]:FREQuency:STOP)

3.5.1.4 Center Frequency Step ([:SENSe]:FREQuency:CENTer:STEP[:INCRement])

3.5.1.5 Center Frequency Step Mode ([:SENSe]:FREQuency:CENTer:STEP:AUTO)

3.5.1.6 Sets CF→Step ([:SENSe]:FREQuency:CENTer:SET:STEP)

3.5.1.7 Frequency Span ([:SENSe]:FREQuency:SPAN)

3.5.1.8 Full Span ([:SENSe]:FREQuency:SPAN:FULL)

3.5.1.9 Zero Span ([:SENSe]:FREQuency:SPAN:ZERO)

3.5.1.10 Last Span ([:SENSe]:FREQuency:SPAN:PREVious)

3.5.1.11 Zoom In ([:SENSe]:FREQuency:SPAN:DOUBle)

3.5.1.12 Zoom Out ([:SENSe]:FREQuency:SPAN:HALF)

3.5.2 Auto Tune Subsection

3.5.2.1 Auto Tune ([:SENSe]:FREQuency:TUNE:IMMediate)

3.5.3 Amplitude Subsection

3.5.3.1 Reference Level (:DISPlay:WINDow:TRACe:Y[:SCALe]:RLEVel)

3.5.3.2 Input Attenuator ([:SENSe]:POWer[:RF]:ATTenuation)

3.5.3.3 Attenuator Auto Mode ([:SENSe]:POWer[:RF]:ATTenuation:AUTO)

3.5.3.4 Preamp on-off ([:SENSe]:POWer[:RF]:GAIN[:STATe])

3.5.3.5 Amplitude OffSets (:DISPlay:WINDow:TRACe:Y:SCALe:RLEVel:OFFSet )

3.5.3.6 Amplitude Units (:UNIT:POWer)
