Quick Start

SPD3303C Series Programmable DC Power Supply

QS0503C-E01B

2014 SIGLENT TECHNOLOGIES CO., LTD

SIGLENT

2. Information in this publication replaces all previous corresponding material.

3. SIGLENT reserves the right to change the specifications and price of the product.

4. Any way of copying, extracting and translating the contents of the manual are not allowed without permission of SIGLENT.

Note: SIGLENT is the registered trademark of SIGLENT.

SPD3303C Quick Start I

SIGLENT

General Safety Summary

Please review the following safety precautions carefully to avoid personal injury or damage to this product or any product connected to it. To prevent potential danger, please use the instrument as specified.

Use proper power cord

Only the power cord designed for the instrument and authorized by local country could be used.

Power supply

AC Input Voltages: 100V/110V/220V/230V ±10%, 50/60Hz.

Use proper fuse

The fuse types: 100V/110V(T6.3A/250V); 220V/230V (T3.15A/250V); Make sure to use the correct type of fuse before turning on the instrument. Do not connect the power cord before replacing the fuse. Find out the reason why the fuse burned out before replacing the fuse.

Ground the instrument

The instrument is grounded through the protective terra conductor of the power cord. To avoid electric shock, the grounding conductor must be connected to the earth. Make sure that the instrument is properly grounded before any inputs or outputs.

Observe all terminal ratings

To avoid fire or electric shock, please observe all ratings and symbols on the instrument. Read this guide carefully to know more details about the ratings before connection.

II SPD3303C Quick Start

SIGLENT

Keep proper ventilation

Inadequate ventilation may cause an increase of temperature, which will lead to further damage. Please keep proper ventilation and check the fan and air-vents regularly when using the instrument.

Operate condition

Location: indoor, no strong light, almost no Interfering pollution; Comparative humidity: <80% Altitude: <2000m Temperature: 0℃ to 40℃

Do not operate in an explosive atmosphere

To avoid personal injury or damage to instrument, please do not operate in an explosive atmosphere.

Keep surface of the product clean and dry To avoid dust or moisture in the air influence the performance of the instrument, please keep surface of the product clean and dry.

SPD3303C Quick Start III

SIGLENT

Safety Terms and Symbols

Terms may appear on the product:

DANGER: Indicates direct injury or hazard that may happen. WARNING: Indicates potential injury or hazard that may happen. CAUTION: Indicates potential damage to the instrument or other

property that may happen.

Symbols may appear on the product:

Hazardous Protective Warning Earth Power

Voltage Earth Ground Ground Switch

IV SPD3303C Quick Start

SIGLENT

Brief Introduction

SPD3303C LED series Programmable DC Power Supply is convenient, flexible and multi-function. It is designed with three groups of independent output terminals, the output voltage of two groups is adjustable and another group is fixed to select: 2.5V, 3.3V, and 5V. The instrument also provides output short circuit and overload protection.

Main Features

 Three independent output channels, two of which are

controllable, with a total power up to 220W;

 Compatible design for power voltage: 100V, 110V, 220V and

230V to satisfy different power network;

 Capable of saving and recalling set parameters;  Perfect PC software to realize the real-time control through

USBTMC.

SPD3303C Quick Start V

SIGLENT

Content

Copyright Information ........................................................................................................ I

General Safety Summary .................................................................................................. II

Safety Terms and Symbols ............................................................................................. IV

Brief Introduction .............................................................................................................. V

Chapter 1 Quick Guide ...................................................................................................... 1

General Inspection ............................................................................................................... 1

Safety Considerations......................................................................................................... 2

The Front Panel .................................................................................................................... 3

Instruction for Buttons ....................................................................................................... 4

The Front Panel Terminals ................................................................................................. 5

User Interface ........................................................................................................................ 6

The Rear Panel ...................................................................................................................... 7

Output Checking................................................................................................................... 8

Chapter 2 Control Panel Operation ................................................................................. 9

Output Summary ................................................................................................................ 10

CH1/CH2 Independent Output ......................................................................................... 11

CH3 Independent mode .................................................................................................... 12

CH1/CH2 Series Mode ....................................................................................................... 13

CH1/CH2 Parallel Mode ..................................................................................................... 14

Save and Recall .................................................................................................................. 15

Version Upgrade ................................................................................................................. 16

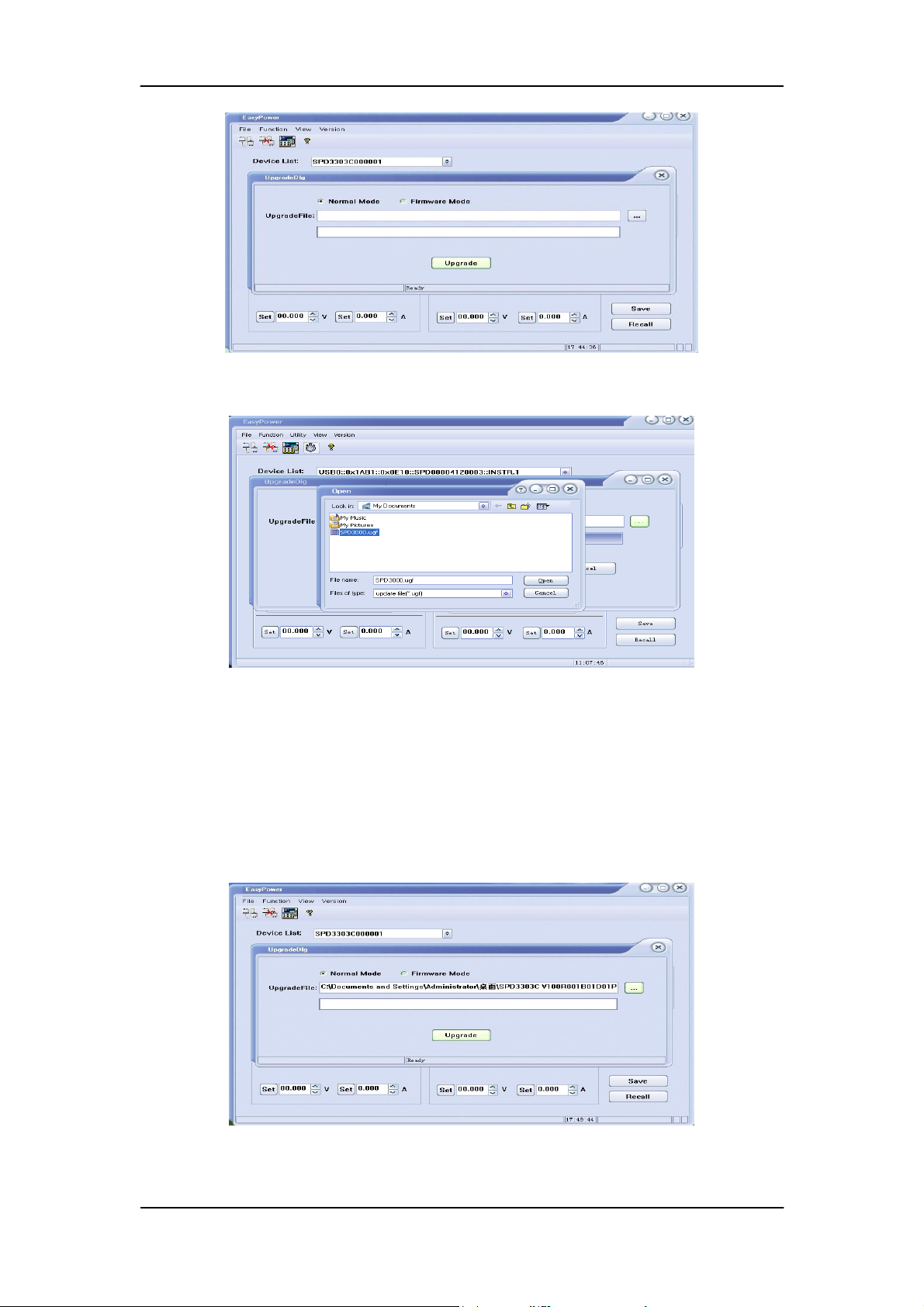

Upgrade in normal Interface .................................................................................... 16

Upgrade via the Guiding Procedure ...................................................................... 18

Chapter 3 Remote Control .............................................................................................. 19

Command List ..................................................................................................................... 19

Command Description ...................................................................................................... 20

Chapter 4 Troubleshooting ............................................................................................. 25

Specification ..................................................................................................................... 26

Contact SIGLENT ............................................................................................................. 28

VI SPD3303C Quick Start

SIGLENT

Chapter 1 Quick Guide

In this chapter, we mainly introduce the panel and display of SPD3303C, as well as the new machine inspection and attentions at first use. Reading the following steps will give you a quick understanding on operation.

General Inspection

1. Inspect the shipping container.

Keep the damaged shipping container or cushioning material until the contents of the shipment have been completely checked and the instrument has passed both electrical and mechanical tests. The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT would not provide free maintenance or replacement.

2. Inspect the instrument.

If there are instruments found damaged, defective or failure in electrical and mechanical tests, please contact SIGLENT.

3. Check the accessories.

Please check the accessories according to the packing list. If the accessories are incomplete or damaged, please contact your SIGLENT sales representative.

SPD3303C Quick Start 1

SIGLENT

Safety Considerations

To ensure that the instrument can work normally, please conduct necessary inspection before using the SPD3303C.

Input Power Requirement

The SPD3303C allows a 50Hz/60Hz frequency, and four levels of AC power: 100V/120V/220V/230V. You can select wanted power voltage with the “DIP Switch ” at the rear panel according to the actual demand.

Warning

To switch to the wanted power voltage, please disconnect the

power cord first.

Electrical Check

Please use the power cord provided as accessory and connects the instrument to AC power. Check the power as the following steps.

1. Connect the power supply

Warning

To avoid electric shock, please make sure that the instrument is

grounded correctly.

2. Turn on the power switch Press the button POWER to enter boot interface, and system

return to the default settings after a while.

2 SPD3303C Quick Start

The Front Panel

NO.

Description

NO.

Description

Logo

CH3 DIP Switch

LED Display

Power Switch

Model

CH1 Output Terminal

System Parameter Configuration button

Ground Terminal 5

Multi-function knob

CH2 Output Terminal

Fine Adjust button

CV/CC Indicator Light

Voltage/Current button

CH3 Output Terminal

Channel Control button

○

10 ○11 ○12 ○13 ○14 ○15

○

1 ○2 ○3 ○4 ○5

SIGLENT

SPD3303C Quick Start 3

SIGLENT

NO.1- 5

SER

PARA

RECALL

SAVE

LOCK

ALL ON/OFF

CH1

CH2

ON/OFF

CH3 ON/OFF

FINE

Instruction for Buttons

Buttons for setting parameters

: Press the button to choose the storage location;

: Press the button to set series mode of CH1/CH2.

: Press the button to set parallel mode of CH1/CH2.

: Long press the button to turn on/off the keylock function.

: Press the button to enter the storage system for saving files.

: Press the button to enter the storage system for recalling files.

Buttons for controlling the channel

: Press the button to select CH1 as the current channel;

: Press the button to select CH2 as the current channel;

: Press the button to turn on/off output of the current channel;

: Press the button to turn on/off the CH3 output.

: Press the button to turn on/off all channels;

Other buttons

: Press the button to open the fine adjust function and modify the

parameter in the minimum step;

: To select between voltage and current.

4 SPD3303C Quick Start

SIGLENT

The Front Panel Terminals

The positive/negative output terminals of CH1, CH2, CH3, and the common GND for CH1, CH2 are located on the front panel. Refer to later “control panel operation” for wiring method details.

SPD3303C Quick Start 5

SIGLENT

○

User Interface

1 Channel Logo;

○

2 Voltage set/Readback value;

○

3 Current set/Readback value;

○

6 SPD3303C Quick Start

The Rear Panel

○

1 ○2

○6 ○5 ○4 ○3

○

SIGLENT

Description:

1 Warning message

○

2 AC power DIP switch

○

3 Instruction for the AC input voltage

○

4 AC power socket

○

5 Fan vent

○

6 CE certification mark

○

7 USB interface

○

SPD3303C Quick Start 7

SIGLENT

Output Checking

To make sure the instrument can correctly respond to operation from the front panel, please perform the output checking, which includes voltage checking when all channels are with no load and current checking when short circuit occurs.

1. Output voltage checking

(1) With the instrument no load, turn on the power, and make

sure the current value displaying is not zero;

(2) Check the output voltage of CH1/CH2

Turn on CH1/CH2 channel and the instrument acquiescently

works in CV mode. Check whether the voltage value is adjustable from 0V to 32V.

2. Current output check

(1) Turn on the power. (2) Check the output current of CH1/CH2.

Use an insulated wire to connect the positive and negative

terminal of CH1/CH2; Turn on CH1/CH2; Select voltage and revolve the knob to set the value to 32V; Select current and revolve the knob to set the value to 0A;

Check whether the current value is adjustable from 0A to

3.2A.

8 SPD3303C Quick Start

SIGLENT

Chapter 2 Control Panel Operation

In this chapter，the function and operation of SPD3303C control

panel will be introduced in detail to give you an all-around understanding of it.

Brief introduction Output Summary CH1/CH2 Independent Output CH3 Independent Output Parallel Output Series Output Save and Recall

SPD3303C Quick Start 9

SIGLENT

Output Summary

SPD3303C is designed with three independent outputs, two of which are adjustable in voltage value and the other includes a set of selectable voltage values: 2.5V, 3.3V or 5.0V.

Independent/Parallel/Series

SPD3303C has three output modes: independent, parallel and series that could be selected through the track switch on the front panel. In independent mode, the output current and voltage are controlled respectively. In parallel mode, the current value is twice that of single channel. In the series mode, the voltage value is twice that of single channel.

Constant Current/Voltage

In constant current mode (series/track mode), the current value is rated. The indicator light displays red and the voltage value are under its rating. The instrument will automatically turn to constant voltage mode when the current value gets less than its dating. (In parallel mode, the accessory channel remains in constant current mode neglecting shift of the current value.)

In constant voltage mode, the voltage value is rated. The indicator light displays green and the current value are under its rating. The instrument will turn to constant current mode when the current value gets up to d its dating.

10 SPD3303C Quick Start

SIGLENT

CH1/CH2 Independent Output

Instruction CH1 and CH2 are working in independent mode and

insulated from the ground.

Output ratings 0~32V/0~3.2A

Operation steps

1. Make sure that parallel/series mode is off.

2. Connect load to the positive and negative terminals of CH1/CH2.

3. Set the voltage (current) value of CH1/CH2: Firstly, press V (or A ) to select the voltage (current) parameter needed to modify. Then revolve the multi-function knob to set the wanted value (You could press FINE to make accurate adjusting). Coarse adjusting: 0.1V or 0.1A each step. Fine adjusting: the least precision each step.

4. Open output: Press ON/OFF button to turn on the output, the

channel works in CC or CV mode and its indicator light gets lighted immediately.

SPD3303C Quick Start 11

SIGLENT

CH3 Independent mode

Instruction CH3 works independently from CH1, CH2, and its

voltage and current ratings are: 2.5V, 3.3V, 5V, 3.2A.

Output ratings 2.5V/3.3V/5V, 3.2A

Operation steps:

1. Connect the load to the positive and negative terminal of CH3

channel.

2. Select the wanted voltage value by moving the “DIP switch” of

CH3.

3. Open the output: Press ON/OFF button to turn on the channel

and the indicator light gets lighted immediately.

CV CC

When the current value gets higher than 3A, the overload indicator light turns red and the working mode of CH3 turns to CC mode from CV mode.

Note: “Overload” does not mean abnormal operation.

12 SPD3303C Quick Start

SIGLENT

CH1/CH2 Series Mode

Instruction：In the series mode, CH1 and CH2 are linked internally

into one channel controlled by CH1. The output voltage value is twice compared with that of single channel.

Output ratings 0~64V/0~3.2A

Operation steps：

1. Press the SER to start the Series mode, and the indicator light

turns bright

2. Connect the load to the positive terminal of CH2 and the

negative terminal of CH1;

3. Turn on CH1 and set its current value to 3.2A. In the default

setup, the instrument works in “Coarse”, you can turn to “Fine” by pressing FINE;

Coarse: 0.1V or 0.1A each step; Fine: the least precision each step;

4. Turn on CH1and set the output voltage/current value by

revolving the multi-function knob;

5. Press ON/OFF button to open the output.

Note: You can identify the current working state “CC” or “CV” by referring to the indicator light.(red means CV, green means CC).

SPD3303C Quick Start 13

SIGLENT

CH1/CH2 Parallel Mode

Instruction In the parallel mode, CH1 and CH2 are linked internally

into one channel controlled by CH1. The output current value is twice as much as the single channel.

Output ratings 0~32V/0~6.4A

Operation steps:

1. Press the PARA button to start Parallel mode, and the indicator

light turns bright immediately；

2. Connect the load to the positive and negative terminals of CH1；

3. Press ON/OFF button to open the output and the indicator light

turns bright. Turn on CH1 and set its output voltage/current value by revolving the multi-function knob. In the default setup, the instrument works in “Coarse”, you could turn to “Fine” by pressing FINE button.

Note: You can identity the current working state “CC” or “CV” refer

to the indicator light.(red means CV, green means CC). In parallel mode, CH2 only works in CC mode.

14 SPD3303C Quick Start

SIGLENT

Save and Recall

Five groups of setups can be saved in memory. Contents of setups including:

 Independent/series/parallel mode  Output voltage/current value

Steps for saving setup

1. Set the state needed to save;

2. Press SAVE to enter the save interface;

3. Select the wanted file group by pressing NO.1-5;

4. Press SAVE again to save the current state to the specified file

group.

Steps for recalling setup

1. Press RECALL to enter the recall interface;

2. Select the wanted file group by pressing NO.1-5;

3. Press RECALL again to read the previously saved file.

SPD3303C Quick Start 15

SIGLENT

Version Upgrade

The software of the instrument is upgraded with a fixed name file via PC management software with USBTMC. The upgrade method is below:

Upgrade in normal Interface

1. Open the EasyPower software after correct connection of the

USB cable with the instrument.

2. Click the Upgrade option under the Version menu to enter the

USB firmware upgrade interface. As shown in figure 1:

Figure 1

3. Click the “Normal Mode” option, then select the will upgrade file

which is of “ugf” format.

16 SPD3303C Quick Start

SIGLENT

Figure 2

Figure 3

4. As it shows in figure 4, click the “Upgrade” to start upgrading.

The instrument will run the upgraded software as soon as the upgrading completed.

Figure 4

SPD3303C Quick Start 17

SIGLENT

Upgrade via the Guiding Procedure

Upgrading via the guiding procedure can be used if the upgrading method above failed.

Specific steps:

1. Pressing the knob prior to power on the instrument to enter the

guiding procedure mode.

2. As shown in figure 2, select the “Firmware Mode” option instead

and the following upgrading steps are the same as method 1.

18 SPD3303C Quick Start

SIGLENT

Chapter 3 Remote Control

SCPI Commands can be used to conduct remote control on the SPD3303C Power Supply through the USBTMC. To realize the remote control, the installation of EasyPower or NI（Measurement & Automation ） software for the computer is required prior to connecting the instrument with it using an USB cable.

Command List

1. *IDN?

2. *SAV

3. *RCL

4. INSTrument {CH1|CH2}

5. INSTrument ?

6. MEASure:CURRent?

7. MEAsure:VOLTage?

8. [SOURce:]CURRent <current>

9. [SOURce:]CURRent ?

10. [SOURce:]VOLTage <volt>

11. [SOURce:] VOLTage?

12. OUTPut

13. OUTPut:TRACk

14. SYSTem:ERRor?

15. SYSTem:VERSion?

16. SYSTem: STATus?

SPD3303C Quick Start 19

SIGLENT

Command format

*IDN?

Description

Query the manufacturer, product model, series NO. and software version.

Return Info

Manufacturer, product model, series NO., software version.

Example

Siglent, SPD3303C, SPD00001130025, 1.01.01.02.

Command format

*SAV <name>

Description

Save the current state in nonvolatile memory with the specified name.

Example

*SAV 1

Command format

*RCL <name>

Description

Recall state that previously saved.

Example

*RCL 1

Command Description

1.*IDN?

2.*SAV

3.*RCL

20 SPD3303C Quick Start

4. INSTrument

Command format

INSTrument <CH1|CH2>

Description

Select the channel that will be operated.

Example

INSTrument CH1

Command format

INSTrument?

Description

Query the current operating channel

Example

INSTrument?

Return Info

CH1

Command format

MEASure: CURRent? < CH1|CH2>

Description

Query current value for specified channel, if there is no specified channel, query the current channel.

Example

MEASure: CURRent? CH1

Return Info

3.000

Command format

MEASure: VOLTage? < CH1|CH2>

Description

Query voltage value for specified channel, if there is no specified channel, query the current channel.

Example

MEASure: VOLTage? CH1

Return Info

30.000

5. MEASure

SIGLENT

SPD3303C Quick Start 21

SIGLENT

Command format

<SOURce:>CURRent <value> <SOURce>:={CH1 | CH2}

Description

Set current value for the current channel

Example

CH1:CURRent 0.5

Command format

<SOURce>: CURRent? <SOURce>:={CH1 | CH2}

Description

Query the current value for the current channel.

Example

CH1: CURRent?

Return Info

0.5

Command format

<SOURce>: VOLTage <value> <SOURce>:={CH1 | CH2}

Description

Set voltage value for the current channel

Example

CH1: VOLTage 25

Command format

<SOURce>: VOLTage? <SOURce>:={CH1 | CH2}

Description

Query the voltage value for the current channel.

Example

CH1: VOLTage?

Return Info

6. SOURce

22 SPD3303C Quick Start

7. OUTPut

Command format

OUTPut <SOURce>, <state> <SOURce>:={CH1 | CH2}; <state>:={ON | OFF}

Description

Turn on/off the specified channel.

Example

OUTPut CH1, ON

Command format

OUTPut: TRACK <NR1> <NR1>:={0[Independent] | 1[Series] | 2[Parallel]}

Description

Select the operation mode

Example

OUTPut: TRACK 0

Command format

SYSTem: ERRor?

Description

Query the error code and the information.

Command format

SYSTem: VERSion?

Description

Query the software version.

Example

SYSTem: VERSion?

Return Info

1.01.01.02

SIGLENT

8. SYSTem

SPD3303C Quick Start 23

SIGLENT

Command format

SYSTem: STATus?

Description

Query the current working state.

Example

SYSTem: STATus?

Return info

0x0224

Instruction

The return info is in Hexadecimal format, which means that you must translate the return info into binary format.

The correspondence relationship is as shown below.

Bit NO.

Corresponding State

0: CH1 CV mode; 1: CH1 CC mode

0: CH2 CV mode; 1: CH2 CC mode

2,3

01: Independent mode; 10: Parallel mode 11: Series mode

0: CH1 OFF 1: CH1 ON

0: CH2 OFF 1: CH2 ON

24 SPD3303C Quick Start

SIGLENT

Chapter 4 Troubleshooting

Question 1: What to do if there occurs a short circuit on output terminal? Answer1: There are over current protection and short circuit protection inside

the power, so the current will be controlled in safety range.

Question 2: Is it abnormal that the CH3 overload indicator turns bright ? Answer 2: No. That only means the current value reaches the maximum 3A.

For better use, you’d better decrease the output load.

Question 3: Is it normal that in the series mode, the voltage and current value of one channel is respectively 0V and not 0A, while that of another channel proves not to be 0? Answer 3: Yes. Because when the current output load gets higher than the limited, the working mode turns to CC from CV.

Question 4: what to do if upgrading fails? Answer 4: please do it again.

Question 5: Is it normal that the practical value is a little different from the value you set (exceed performance standard), or even shifts slowly on startup? Answer 5: Yes. During the startup, components inside the instrument are getting stable in 30 minutes, which lead to going up of the temperature.

Question 6: What if the circuit air switch turns off automatically when power on? Answer 6: First of all, make sure if the rating of the air switch is proper (For instance: the rating of air switch B and C should be respectively over 16A and 10A). If the failure still exits beyond the reason, check if there occurs a short circuit, or return it to the factory to have it repaired by qualified personnel.

SPD3303C Quick Start 25

SIGLENT

Output Ratings

CH1/CH2 independent

0～32V , 0～3.2A

CH1/CH2 series

0～64V , 0～3.2A

CH1/CH2 parallel

0～32V , 0～6.4A

CH3

2.5V/3.3V/5.0V , 3.2A

Constant Voltage Mode

Line regulation

≤0.01%+3mV

Load regulation

≤0.01%+3mV

Ripple and noise

≤1mVrms（5Hz ～ 1MHz）

Recover time

≤50μs(50% load change ,minimum load 0.5A)

Temperature coefficient

≤300ppm/℃

Constant Current Mode

Line regulation

≤0.2%+3mA

Load regulation

≤0.2%+3mA

Ripple and noise

≤3mArms

CH3

Line Regulation

≤0.01%+3mV

Load Regulation

≤0.01%+3mV

Ripple and noise

≤1mVrms（5Hz ～ 1MHz）

Tracking Operation

Track error

≤0.5%+10mV of Master(No Load)

Parallel Mode

Line Regulation

≤0.01%+3mV

Load Regulation

≤0.01%+3mV

Series Mode

Line Regulation

≤ 0.01%+5mV

Load Regulation

≤ 300mV

Resolution

Voltage

10mV

Current

10mA

Display

Ammeter

3.2A full scale, 3 digits LED display

Voltmeter

32V full scale, 4 digits LED display

Accuracy

Program accuracy

Voltage：± (0.5% of reading + 2digits) Current：± (0.5% of reading + 2digits)

Readback accuracy

Voltage：± (0.5% of reading + 2digits) Current：± (0.5% of reading + 2digits)

Insulation

Case to terminal

20MΩor above (DC 500V)

Case to AC line

30MΩor above (DC 500V)

Operating environment

Indoor

Elevation

≤2000 m

Environment temperature

0 ~ 40℃

Relative humidity

≤80%

Installation level

Ⅱ

Specification

Test conditions: warm-up for about 30minitus, with temperature between +20℃~+30℃.

26 SPD3303C Quick Start

SIGLENT

Pollution level

Storage environment

Environment temperature

-10 ~ 70℃

Relative humidity

≤ 70%

Power supply

AC 100V/120V/220V/230V±10%, 50/60HZ

Size

275mm x 225mm x 136mm

Weight

7.5kg

SPD3303C Quick Start 27

SIGLENT

Contact SIGLENT

MTR Add: 3/F, Building 4, Antongda Industrial Zone, 3rd Liuxian Road, 68 District, Baoan District, Shenzhen, P.R. CHINA Tel: +86-755-36615186 E-mail: sales@siglent.com http: //www.siglent.com

28 SPD3303C Quick Start

Siglent SPD3303C Quick Start Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
