ThinkPad R60 Series supplementary regulatory notice
Read first — regulatory information
Regulatory notice for ThinkPad R60 Series
This notice is a supplementary document of the ThinkPad R60 Series Service and
Troubleshooting Guide. Please read this document before you use the ThinkPad R60
Series computer.
The ThinkPad R60 Series computer complies with the radio frequency and safety
standards of any country or region in which it has been approved for wireless use. You
must install and use your ThinkPad R60 Series computer in strict accordance with the
instructions as described hereafter.
Part Number: 41WXXXX
Avis de réglementation pour les ThinkPad R60 Series
Le présent avis est un document qui vient compléter le ThinkPad R60 Series Guide de
maintenance et d’identification des incidents. Veuillez lire ce document avant d’utiliser
l’ordinateur ThinkPad R60 Series.
L’ordinateur ThinkPad R60 Series est conforme aux normes de sécurité et de
radiofréquence du pays ou de la région où son utilisation sans fil est agréée. Vous
devez installer et utiliser votre ordinateur ThinkPad R60 Series en respectant
scrupuleusement les instructions décrites ci-après.
USA — Federal Communications Commission (FCC)
If your computer integrates the Wireless WA N Adapter Model: MC8755, you
may connect it to the radiocommunication Public Network in the USA.
I. FCC ID of the wireless module
© Copyright Lenovo 2006 1
The Wireless WAN Adapter (Model: MC8755) was certified under the FCC ID:
N7NMC8755, but there is no FCC ID for the card shown on the enclosure of your
ThinkPad computer. Instead you will find an indicator pointing to the location of the
FCC ID on the bottom side of your ThinkPad computer as shown in the figure below.
The FCC ID is affixed on the approved module installed in the Mini PCI Express Card
slot.
TX FCC ID for an installed WWAN
transmitter card located under
customer removable Keyboard.
II. Installation of the approved wireless module
If no integrated wireless WA N Mini PCI Express Card has been preinstalled in your
ThinkPad computer, you can install one, provided by Lenovo as an option. Plug the
wireless card option into the Mini PCI Express Card slot located under the keyboard of
your ThinkPad computer as shown on the next page.
2
PCI Express Mini Card slot
for Wireless WAN adapter
Attention: The ThinkPad R60 Series computer contains an authentication mechanism
If
you install an unauthorized wireless WA N Mini PCI Express Card that is not
approved for use in the ThinkPad R60 Series computer, the computer will not start, but
only displays an error message and emits beeps.
Removable keyboard
Removable palm rest
III. RF safety compliance
The transmission antenna used for the Wireless WAN adapter in this notebook
computer is located at the lower right portion of the LCD screen. The total radiated
energy from all the antennas connected to the Wireless WA N adapter (Model:
MC8755), the Wireless LAN Mini PCI Express adapter (FCC ID: PPD-AR5BXB72-L or
FCC ID: PPD-AR5BXB6), and the Bluetooth module (Model: J07H081) conforms to the
FCC limit of the SAR (Specific Absorption Rate) requirement regarding 47 CFR Part 2
section 1093. The maximum SAR values measured for the ThinkPad R60 Series
computer were 0.130W/Kg at 800MHz band and 0.218W/Kg at 1.9GHz band, when
the ThinkPad computer was operated in a conventional setting. The FCC limit is
1.6W/Kg.
3

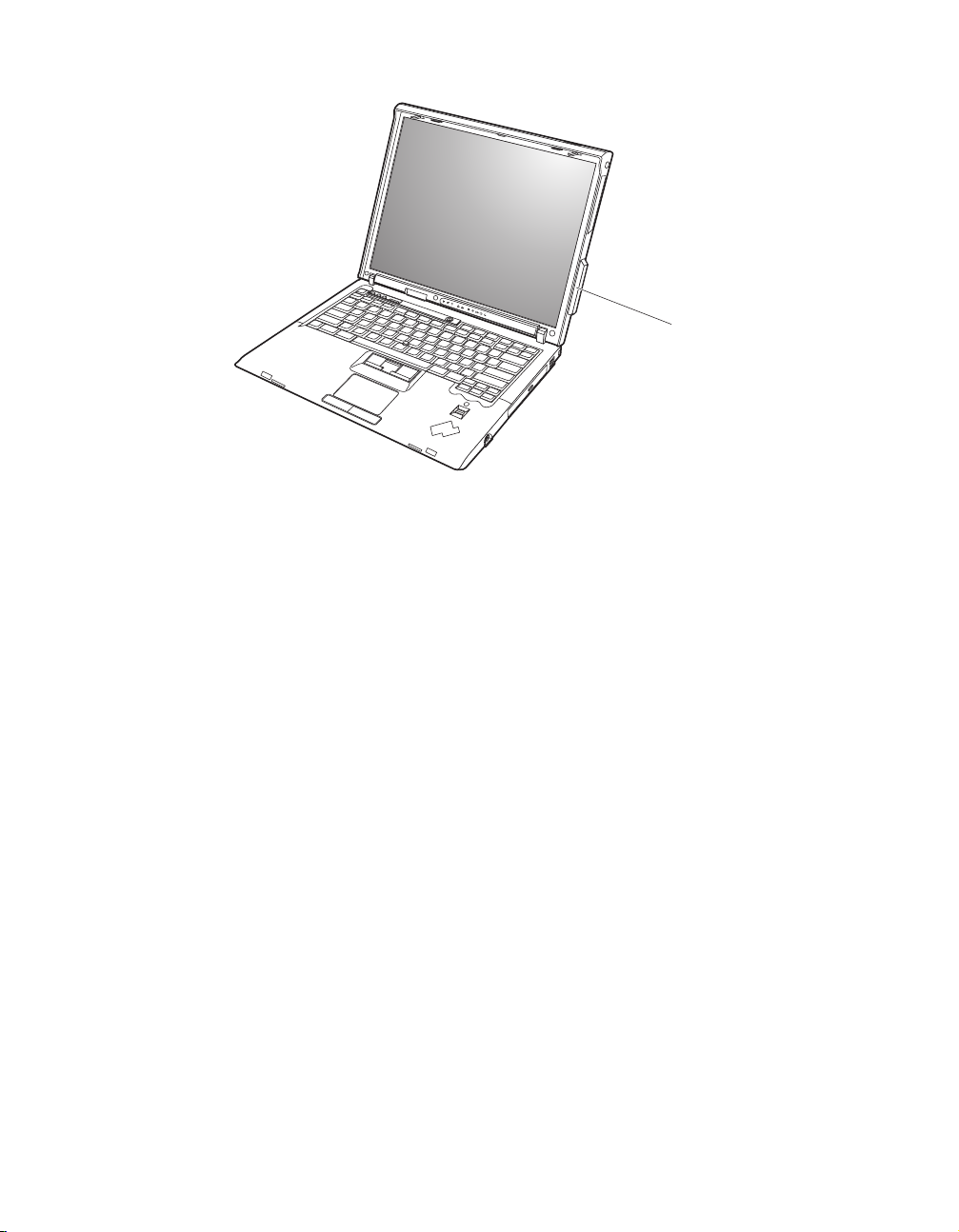

Wireless WAN antenna
IV. Emergency Calls
The Wireless WAN adapters embedded in the ThinkPad R60 Series do not support
voice calls, hence their use for essential communication is not possible, including
emergency calls regarding the E911 rule.
V. Simultaneous use of RF transmitters
If your ThinkPad computer contains the Model: WM3945ABG (Intel PRO/Wireless
3945ABG Network Connection), you are required to disable it when you are traveling
in the USA, because this WLAN radio carries EU specification and is not authorized
by the FCC for use in the USA.
If your ThinkPad computer contains the Model: AR5BXB6 (FCC ID: PPD-AR5BXB6),
Model: AR5BXB72 (FCC ID: PPD-AR5BXB72-L) or the Bluetooth module (FCC ID:
MCLJ07H081), the Wireless WAN module Model: MC8755 is approved for
simultaneous use with these two radio devices.
Please make sure of the following conditions on use of these wireless features:
1. When you use any other RF option device, all other wireless features including the
above integrated devices in your ThinkPad computer are required to be turned off.
2. Users must follow the RF Safety instructions on wireless option devices that are
included in the RF option device’s user’s manual.
Electronic emission notices
Federal Communications Commission (FCC) Statement
v Model: AR5BXB6
v Model: AR5BXB72
4
v Model: MC8755
The compliances of the FCC Part 15 Subpart B for Bluetooth device
Note:
(Model: J07H081) underwent the certification process, thus the FCC ID:
MCLJ07H081 includes both compliances for Part 15 Subpart B and C/E.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
v Reorient or relocate the receiving antenna.
v Increase the separation between the equipment and receiver.
v Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
v Consult an authorized dealer or service representative for help.
Lenovo is not responsible for any radio or television interference caused by
unauthorized changes or modifications to this equipment. Unauthorized
changes or modifications could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Responsible Party:
Lenovo (United States) Inc.
One Manhattanville Road
Purchase, New York 10577
Telephone: (919) 254-0532
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
5
