1: Introduction
This user guide explains how to set up and begin using the mangOH™ Green with
CF3 (Common Flexible Form Factor) modules.
Once you have the mangOH Green set up, visit mangoh.io for developer
documentation, code samples, and other materials.
Important: This User Guide applies to mangOH Green DV4. The guide for mangOH Green
DV3 is available at mangoh.io.
mangOH Green Components and Accessories
Table 1-1 details the required and optional components needed to begin using the
mangOH Green in your development environment. Some of these components are
available in mangOH Green development kits (kit contents are supplier-dependent).
Table 1-1: mangOH Green Components
Item Details
1
mangOH Green Pre-configured development board.
The mangOH Green supports CF3 modules.
CF3 module(s)
(See Table 1-2 on page 9
for a list of compatible
Sierra Wireless modules.)
CF3 module cover and
cover removal tool
• Primary (required)—Used in the primary CF3 socket, the module
includes a cellular modem and an application processor running Legato,
an open source embedded platform built on Linux for hosting IoT applications (see legato.io for details).
• Secondary (optional)—[Future Use] Used in the secondary CF3 socket,
the module includes a cellular modem that must be associated to an application processor in
the primary CF3 socket.
(In this socket, only the inner ring of pins of the CF3 footprint are used.)
Industrial-quality snap-in module cover, plus cover removal tool
to disconnect the cover from the mangOH Green (Note: The
cover and tool shown are for WP-series modules. A similar
cover and tool (not displayed) are used for HL-series modules.)
Rev 3 Nov.16 6 4118902
Table 1-1: mangOH Green Components (Continued)
Item Details
Introduction
Micro-USB cable Connects computer to the mangOH Green for communication
Power supply • Output voltage: 4.5V to 17V
and to provide power for non-transmitting tests.
• 10 W or higher
• The mangOH Green will operate with USB power, but DC
power may be required to make and establish a full-speed
mobile network connection.
Antenna Main RF antenna
GNSS Antenna GNSS (GPS/GLONASS) active antenna
Eurocard case and
mangOH Green
faceplates
The mangOH Green fits in a Eurocard standard size casing
(100x120mm).
3D-printable files for faceplates are available at mangoh.io.
Mini-USB cable Connects computer directly to the Arduino-compatible circuit integrated into
Mini-SIM card Mini-SIM card with an active account, or a test card for use with a call box.
Micro-SIM card Micro-SIM card with an active account, or a test card for use with a call box.
Audio cable (3.5 mm) Audio cable or headset
the mangOH Green
Note: Throughout this document, ‘SIM’ refers to ‘SIM’, ‘USIM’, and ‘UIM’.
The micro-SIM is used only if the CF3 module supports dual-SIMs (selecting either
the mini-SIM or the micro-SIM for use at a given time). It uses the dual SIM/SD
connector.
Rev 3 Nov.16 7 4118902
mangOH Green (DV4) User Guide
Table 1-1: mangOH Green Components (Continued)
Item Details
Ethernet cable Ethernet cable (Cat5 or better) for use with the mangOH Green’s 100 Mbps
RS-232 DB9 cable Serial cable used for console output (male connector required on mangOH
Battery Rechargeable Li-Ion or Li-Polymer battery (3V7 nominal) for use
Arduino-compatible
shields
Ethernet connector
end)
when USB/DC power supply is unavailable
Plug-in boards for the mangOH Green’s integrated Arduinocompatible circuit
Rev 3 Nov.16 8 4118902
Table 1-2: mangOH-compatible CF3 Modules
Series Notes
The mangOH schematic (available at mangoh.io), describes all interfaces that
are supported by the mangOH Green.
The following table identifies signals that (as of publication date of this
document) are currently not supported on WP85xx/WP75xx-series modules.
Refer to http://source.sierrawireless.com for current Product Technical
Specification Documents.
Signal Variations Between mangOH and Module
Pin # mangOH Name Primary CF3 Name
43 IOT2_GPIO4 EXT_GPS_LNA_EN EXT_GPS_LNA_EN
WP8548
WP7502
WP7504
92 SPI2CLK SPI2CLK GPIO38
93 SPI2_MOSI SPI2_MOSI GPIO39
94 SPI2_MISO SPI2_MISO GPIO40
95 SPI2_MRDY SPI2_CS0 GPIO41
Introduction
a
WP85/75
Name
100 GPIO_Lowpower2 GPIO34 GPIO34
101 GPIO_Lowpower1 GPIO35 GPIO35
102 GPIO20/SWD_CLK GPIO36 GPIO36
103 GPIO31/SWD_DIO GPIO37 GPIO37
152 PWR_IND SAFE_PWR_REMOVE SAFE_PWR_REMOVE
a. Refer to Product Technical Specification documents for detailed module information.
Rev 3 Nov.16 9 4118902
2: Setup and Installation
1 — J200 (Primary)
2 — J601 (Secondary)
Safe Handling Recommendations
To help prevent accidental damage to the mangOH Green:
• Use safe ESD-handling practices (such as wearing proper ESD straps) to avoid
possible ESD damage.
• Avoid touching the CF3 module sockets (J200, J601). These pins can be
damaged if they catch on clothing or other materials.
2

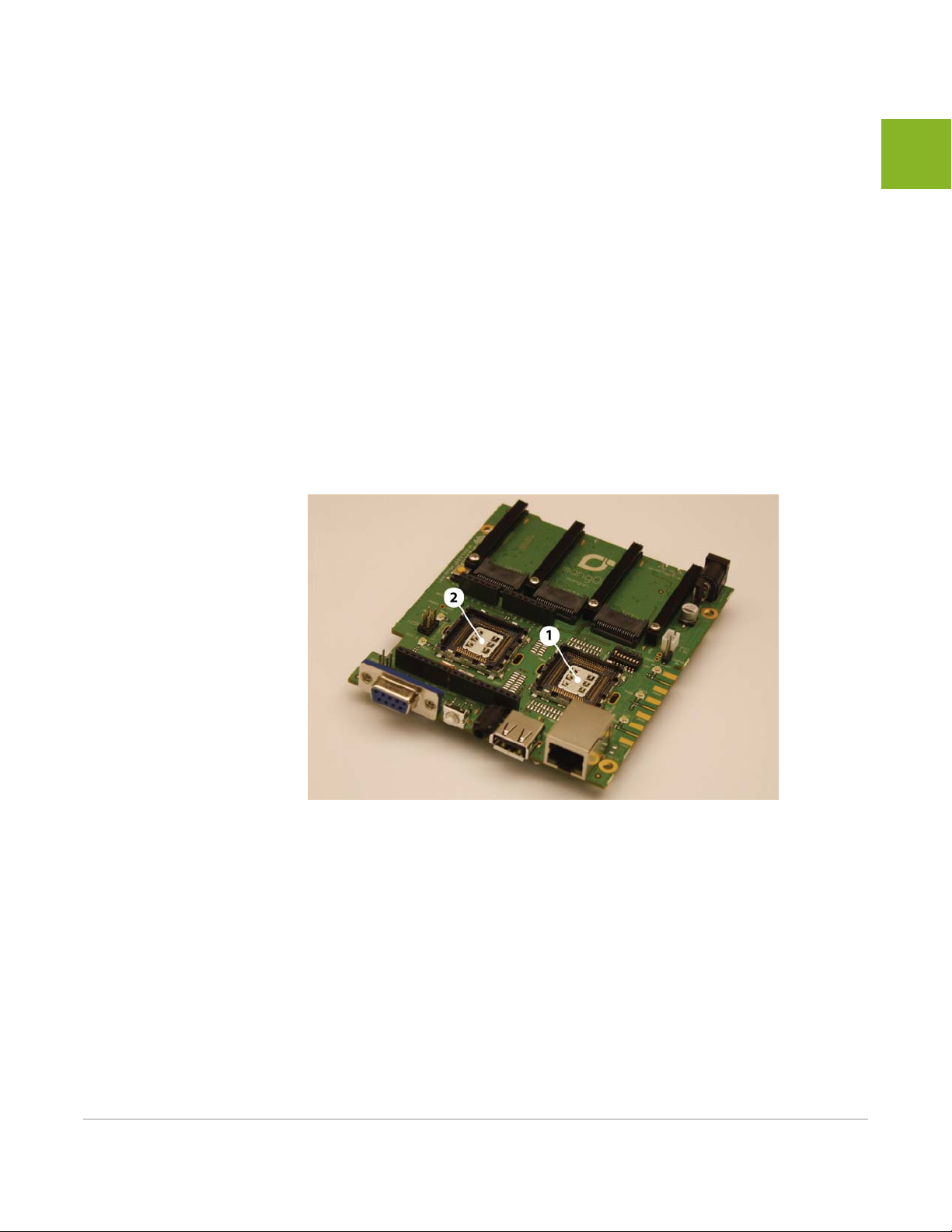

Figure 2-1: Safe Handling Recommendations—CF3 Socket Locations (Do Not Touch)
• Mount the mangOH Green in a case, or attach standoffs (not included) to the
mounting holes at each corner of the board to avoid damage to components on
the bottom side of the board.
Figure 2-2: Case-mounted mangOH Green
Rev 3 Nov.16 10 4118902
Setup and Installation
Initial Setup
To begin using the mangOH Green, set up your hardware and software:
1. Insert a suitable CF3 module in the primary socket. See Insert/ Remove
Embedded Modules on page 12.
2. Select Primary Power Supply. See page 16.
3. If you will be establishing a mobile network connection, insert a mini-SIM. See
Insert SIM Card(s) on page 18.
4. Connect Antenna(s). See page 22.
5. Install / Update Windows Driver. See page 38.
6. Connect the mangOH Green to your computer using the USB cable provided.
If you selected USB power in Step 2, the power LED lights up.
7. If you selected the DC power supply in Step 2, plug a DC wall adapter into the DC
barrel jack. (The wall adapter must meet the requirements in Table 1-1 on
page 6.)
The power LED lights up when power is supplied.
8. Install a Terminal Emulator. See page 39.
The mangOH Green is now ready to be used.
• For information on additional hardware features, see Hardware Setup and
Operation on page 12.
• For instructions on writing a program, see Write Your First Program on page 39.
Rev 3 Nov.16 11 4118902
3: Hardware Setup and Operation
1—J200 (Primary)
2— J601 (Secondary)
This chapter describes how to install various components on the mangOH Green, and
how to configure and control features using connectors and switches.
Insert/Remove Embedded Modules
The mangOH Green has two CF3 module sockets
• Primary (J200)— The primary module includes a wireless modem and application
processor. All pins are used.
• Secondary (J601)—The secondary module, if used, includes a wireless modem
that is associated with the primary module. Only the inner ring pins (of the CF3
footprint) are used.
To insert a CF3 module:
1. Place the mangOH Green face-up.
3
Rev 3 Nov.16 12 4118902
Figure 3-1: mangOH Green—Top View
Hardware Setup and Operation
2. Hold the module above the socket and line up the polarity marks on the module
and socket. (Primary module installation shown.)
Figure 3-2: CF3 Module Positioning
3. Place the module onto the socket. The module should drop into place when you
have it aligned properly. Do not insert at an angle as this may damage the socket
pins.
Figure 3-3: CF3 Module Inserted
Rev 3 Nov.16 13 4118902
mangOH Green (DV4) User Guide
4. Attach the module cover:
a. Hold the module cover above the CF3 module and line up the polarity marks
b. Place the cover on the module, then press down carefully until you hear the
on the module and cover.
Figure 3-4: Installing Module Cover
cover click into place. Make sure all sides of the cover have clicked into place.
Figure 3-5: Installing Module Cover
To remove a CF3 module (primary module displayed below):
1. Remove the module cover using the module cover removal tool—Starting at one
corner, insert the tool in the pair of holes and carefully pry the cover away from
the module.
2. Repeat at the other locations (there are pairs of pry holes on each side).
Rev 3 Nov.16 14 4118902
Hardware Setup and Operation
Figure 3-6: Removing the Module Cover
3. Lift the cover off the module.
4. Carefully pinch the module and pull it straight up out of the socket.
Power Supply
The mangOH Green has the following supplies:
Table 3-1: mangOH Green Power Supplies
Supply Details
DC power
Primary
USB
Backup Battery
Primary (Required if you want to maintain a fullspeed mobile network data connection)
Primary
Note: USB current (500 mA) is sufficient for nontransmitting tests, but may not be enough to satisfy
full power requirements of the mangOH Green.
An optional Li-Ion or Li-polymer (3V7 nominal)
rechargeable battery can be installed to power the
board if the primary power supply fails.
Rev 3 Nov.16 15 4118902
mangOH Green (DV4) User Guide
1—Power supply select (CN1204)
2—DC jack
3—micro-USB connector
(bottom side of board)
1—USB select (left + center pins)
2—DC select (center + right pins)
Select Primary Power Supply
To select the primary power supply:
1. Place the mangOH Green face-up and locate the power supply jumper pins
(CN1204).
Figure 3-7: Power Supply Select (CN1204)
2. Select the power source:
· USB power—Place a jumper across the two pins farthest from the DC power
jack.
· DC power—Place a jumper across the pins closest to the DC power jack.
Figure 3-8: Power Source Select (DC power shown)
Rev 3 Nov.16 16 4118902
Hardware Setup and Operation
1—Recharge select (CN1203)
2—Rechargeable battery connector (CN1202)
1—Jumper on Recharge select (CN1203)
Battery recharges when mangOH Green
is powered by DC or USB.
(DC power shown)
-/+ —Negative and positive terminals of
rechargeable battery connector (CN1202)
Connect Battery Backup
Optionally, you can connect a rechargeable Li-Ion/Li-Polymer battery to the mangOH
Green to provide uninterrupted power in the event that the primary power supply (DC
or USB) fails.
If a jumper is placed on CN1201, the mangOH Green recharges the battery and then
provides a trickle charge to maintain the battery’s full charge.
To connect a rechargeable Li-Ion/Li-Polymer battery to the mangOH Green:
1. Connect the battery to CN1202.
Figure 3-9: Battery Backup (CN1202/CN1203)
Figure 3-10: mangOH Green With Rechargeable Battery Connected
2. If you want the battery to recharge while connected to the board, place a jumper
across the pins on CN1203 (Recharge select).
Caution: If a rechargeable battery is not connected to the board, make sure to remove the
jumper from CN1203.
Rev 3 Nov.16 17 4118902
mangOH Green (DV4) User Guide
1—RTC capacitor (C346)
2—Discharge switch location (CN320)
Caution: The board is designed to use a rechargeable Li-Ion or Li-polymer battery. Regular
(non-rechargeable) batteries are NOT recommended. However, if a regular battery is used, DO
NOT place a jumper on CN1203 as this will damage the battery and possibly the board.
RTC Capacitor
The mangOH Green provides a capacitor that maintains the RTC.
To enable the ability to manually discharge the capacitor, install a switch on CN320.
(For details, see the mangOH Green schematics available at mangoh.io.) The
capacitor can then be discharged by pressing this switch.
Figure 3-11: RTC Capacitor
Insert SIM Card(s)
The mangOH Green supports dual SIM functionality (if supported by the CF3
module).
Table 3-2: SIM connectors
CF3
Interface Type Connector Details
Hot-swappable
UIM1 Mini-SIM CN801
UIM2 Micro-SIM CN802 Not hot-swappable
Rev 3 Nov.16 18 4118902
By default, a SIM detect switch is activated when a
mini-SIM is inserted or removed. For details, see
Table 3-6 on page 33.
Hardware Setup and Operation
1—mini-SIM (CN801)
2—micro-SIM (CN802—bottom)
3—micro-SD (CN802—top)
To establish a mobile network connection with a UMTS/LTE CF3 module, you must
install at least one SIM card:
• Live card(s) with active accounts, or
• Test card(s) for use with a call box (for example, an Agilent 8960 or
Rohde & Schwarz CMU200)
Note: A SIM card is not required if you want to connect to a LAN using the Ethernet port.
To install the SIM card(s):
1. Place the Dev Kit face-down (as shown).
Figure 3-12: SIM Connector and micro-SD Locations
2. Insert the SIM card(s) with contacts face-down into the desired slot(s)—note the
locations of the notched corners of the cards in Figure 3-13. (The mini-SIM is
inserted with the flat end first, and the micro-SIM is inserted with the notched end
first.)
Important: CN802 is a dual-connector—a micro-SIM can be placed in the lower slot,
and a micro-SD can be placed in the upper slot.
Rev 3 Nov.16 19 4118902
mangOH Green (DV4) User Guide
Figure 3-13: SIMs—Inserting
Figure 3-14: SIMs—Inserted
Rev 3 Nov.16 20 4118902
Hardware Setup and Operation
1—mini-SIM (CN801)
2—micro-SIM (CN802—bottom)
3—micro-SD (CN802—top)
Insert microSD Card
The mangOH Green includes a microSD card slot in the top part of CN802.
To install a microSD card:
1. Place the Dev Kit face-down (as shown).
Figure 3-15: SIM Connector and micro-SD Locations
2. Insert the microSD card with contacts face-down into the top slot of CN802.
Important: CN802 is a dual-connector—a micro-SIM can be placed in the lower slot,
and a micro-SD can be placed in the upper slot.
Figure 3-16: microSD—Inserting
Rev 3 Nov.16 21 4118902
mangOH Green (DV4) User Guide
Figure 3-17: microSD—Inserted
Connect Antenna(s)
The mangOH Green includes three antenna ports for the primary CF3 module.
Table 3-3: Antenna Ports
Type Connector
Main CN307 Required to establish a mobile network data connection
Diversity CN304 Used only if primary CF3 supports diversity.
a
Details
• Required to enable GNSS functionality
GNSS CN306
• Active
• 3.3 V bias voltage
a. U.FL connectors
Note: If needed, the board can be configured to use SMA connectors. For details, see
Table 3-6 on page 33.
To connect an antenna to the Main, Diversity, or GNSS antenna connector:
1. Place the mangOH Green face-up.
Rev 3 Nov.16 22 4118902
Hardware Setup and Operation
1—Main (CN307)
2—GNSS (CN306)
3—Diversity (CN304)
1—Main (CN307)
2—GNSS (CN306)
Figure 3-18: Antenna Connector Locations
2. Attach the antenna cable’s female connector to the board’s male connector and
press firmly to get a secure connection.
(Note that female connectors are rated for a limited number of reconnects before
the connector wears out, so should be left connected if possible. Use a U.FL
extraction tool to put less strain on the connector during removal.)
Figure 3-19: Main and GNSS Antennas Connected
Rev 3 Nov.16 23 4118902
mangOH Green (DV4) User Guide
Insert/Remove IoT Expansion Cards
The mangOH Green includes three single-width IoT Expansion Card slots.
If the board uses IoT Expansion Card mounting rails and you want to use a doublewidth (2-slot) or triple-width (3-slot) expansion card, remove the rails between the
slots you will be using.
Caution: Handle IoT Expansion Cards carefully to make sure components are not accidentally
damaged, and hold them by their edges to avoid possible ESD damage.
To install an IoT Expansion Card in any IoT slot:
1. Remove power from the mangOH Green. (This step is recommended in case the
expansion card is not hot-swappable or needs a reset.)
2. Check the expansion card to make sure you know which side is the top.
(Expansion cards must not be inserted upside-down.)
3. Slide the expansion card into the rails until it meets the IoT Connector, then press
firmly to seat the expansion card into the connector.
Figure 3-20: IoT Expansion Card Insertion
Rev 3 Nov.16 24 4118902
Hardware Setup and Operation
Figure 3-21: IoT Expansion Card Inserted
To remove an IoT Expansion Card:
1. Pull the expansion card straight out, using safe ESD-handling practices (such as
wearing proper ESD straps).
For detailed interface information for each IoT Expansion Card slot, refer to the
mangOH Green Developer’s Guide. For detailed information about expansion cards,
refer to the IoT Expansion Card Specification.
Rev 3 Nov.16 25 4118902
mangOH Green (DV4) User Guide
1—Arduino-compatible headers
2—mini-USB connector
Arduino-compatible Circuit
The mangOH Green includes an integrated Arduino-compatible circuit (with connector
for use with Arduino-compatible shields, and an Atmega32U4 microcontroller).
Figure 3-22: Integrated Arduino-compatible Circuit
The Arduino-compatible circuit is controlled directly via a mini-USB cable connection
from your computer. This connection is used to download sketches from your
computer using the Arduino IDE.
By default, the Arduino-compatible circuit’s UART is configured to connect to the
primary CF3 module‘s USB using an FTDI conversion chip (UART to USB). For
details, see Table 3-6 on page 33.
The Arduino-compatible circuit can also be accessed from the primary CF3 module,
as shown in Figure 3-23. The ‘Bridge application’ is a Legato application
(downloadable from legato.io) that allows communication between the primary CF3
module and the Arduino-compatible circuit. See the mangOH to Cloud Developer’s
Guide for details.
Rev 3 Nov.16 26 4118902
Figure 3-23: Arduino-compatible Circuit Control by Primary CF3 Module
Hardware Setup and Operation
1—18-pin header
2—14-pin header
1—18-pin header
2—14-pin header
Connect Arduino-compatible Shield
To connect an Arduino-compatible shield to the mangOH Green:
1. Position the shield above the headers. (Note that the two rows of headers have
different numbers of pins— make sure to position the shield correctly.)
Figure 3-24: Arduino-compatible Shield Example
2. Hold the shield by its edges and press straight down into the headers.
Figure 3-25: Installing an Arduino-compatible Shield
Rev 3 Nov.16 27 4118902
mangOH Green (DV4) User Guide
1—ICSP pins fully seated
2—Shield pins fully seated
3—mini-USB connection for direct control from computer
1—Audio jack (3.5mm)
Figure 3-26: Arduino-compatible Shield Installed on mangOH Green
Audio Connection
The mangOH Green includes a 3.5 mm audio jack for use with audio-enabled CF3
modules. If supported by the CF3 module, the jack can be used for making a voice
call.
By default, the audio jack is connected to the onboard mangOH codec, and is
configured for use with a CTIA/ AHJ-compatible headset. For details, see Table 3-6 on
page 33.
Figure 3-27: Audio Output Jack
Rev 3 Nov.16 28 4118902
Hardware Setup and Operation
1—Ethernet port (100 Mbps)
1—Connection state LED
2—Connection speed LED
Ethernet Connection
The mangOH Green includes a 100 Mbps Ethernet port that may be used to connect
the board to a LAN.
Figure 3-28: Ethernet Port
The Ethernet port has two LEDs that exhibit the behavior described in Table 3-4.
Table 3-4: Ethernet LED indicators
Pattern Purpose Description
• Solid—Connected
Green (Left side) Connection state
• Blinking—Connected and transmitting/
receiving
• Off—No conn ection
Amber (Right side) Connection speed
Figure 3-29: Ethernet Port LEDs
• On—100 Mbps
• Off—10 Mbps
Rev 3 Nov.16 29 4118902
mangOH Green (DV4) User Guide
1—USB Host port
1—RS-232 DB9 connector
USB Host Connection
The mangOH Green includes a USB Host port (USB 2.0) for attaching a peripheral
device, memory stick, etc.
Figure 3-30: USB Host Port
RS-232 Console Output Connection
The mangOH Green includes an RS-232 DB9 connector for console output.
By default, this port is enabled and configured to connect to the primary module’s
UART2 (two-wire interface).
Figure 3-31: RS-232 Console Output Connection
Rev 3 Nov.16 30 4118902
Hardware Setup and Operation
LED Indicators
The mangOH Green includes several LED indicators.
Table 3-5: mangOH Green LEDs
LED Description
1—Power (VCC_3V7)
2—Rx (Arduinocompatible circuit)
3—AirVantage connected On when device is connected to AirVantage
4— Tx (Arduino-
compatible circuit)
5—IoT Expansion Card 0 On when an IoT Expansion Card is installed in slot IOT0.
6—IoT Expansion Card 1 On when an IoT Expansion Card is installed in slot IOT1.
7—IoT Expansion Card 2 On when an IoT Expansion Card is installed in slot IOT2.
8—Battery charging On when the battery is recharging
9—SecCF3 RF Rx/Tx
10—PriCF3 RF Rx/Tx
11—WLAN connected On when the device is connected to a WLAN
12—W_DISABLE_N On when RF power for primary CF3 module is enabled
On when power is supplied by any power source (USB, DC,
battery)
On when the Arduino-compatible circuit is receiving data
On when the Arduino-compatible circuit is sending data
On when the secondary CF3 module is sending (Tx) or receiving
(Rx) data
On when the primary CF3 module is sending (Tx) or receiving
(Rx) data
Rev 3 Nov.16 31 4118902
mangOH Green (DV4) User Guide
1 - Power
2 - Rx (Arduino-compatible circuit)
3 - AirVantage connected
4 - Tx (Arduino-compatible circuit)
5 - IOT Expansion Card #0 installed
6 - IOT Expansion Card #1 installed
7 - IOT Expansion Card #2 installed
1
2 34
567
8
910 1112
8 - Battery charging
9 - Sec CF3 Rx/Tx
10 - Pri CF3 Rx/Tx
11 - WLAN connected
12 - RF disabled (W_DISABLE_N)
Figure 3-32: LED Indicators (mangOH Green DV4 Configuration)
Reset Switches
The mangOH Green includes two reset switches:
• Board reset (SW400)— Press and hold for 5 seconds to reset the board (including
the integrated Arduino-compatible circuit)
Note that when the board is resetting, the reset signal is held LOW until the
primary module is fully booted.
• Arduino-compatible circuit reset (SW1500)—Press and hold for 5 seconds to
reset the integrated Arduino-compatible circuit.
For details on resetting the mangOH Green or specific application blocks, see the
mangOH Green Developer’s Guide.
Rev 3 Nov.16 32 4118902
Hardware Setup and Operation
1—Board reset (SW400)
2—Arduino-compatible circuit reset (SW1500)
Figure 3-33: Reset Switches
mangOH Green Configuration
Default Configuration
The mangOH Green‘s default configuration is described in Table 3-6.
Table 3-6: mangOH Green Default Configuration
Component/
Switch Default Configuration/ Behavior Notes
Antenna connectors
(Main, Diversity,
GPS)
Audio connector
(CN500)
RS-232 connector
(CN700)
LEDs
System reset signal
(RESET_IN_N)
SIM1/SIM2 Detect
• U.FL connectors
• 3.3 V bias voltage for active antennas
• Connected to onboard mangOH codec
• CTIA/AHJ-compatible headset
• Enabled
• Connected to primary module’s UART2
All LEDs are enabled and will exhibit their default
behaviors
Held LOW until primary module is fully booted
• SIM1 Detect uses physical sensor to detect
SIM card insertion/removal
• SIM2—Switch SW401 (position 4) can be
used to indicate that a SIM is in SIM holder 2:
• OFF—SIM2 detected
• ON—No SIM
SMA connectors can be added, if required, by a
user who is proficient at soldering. For details,
refer to the mangOH Green schematic available at
mangoh.io.
Reconfiguration to use an OMTP-compatible
headset requires soldering.
Peripherals on the mangOH Green are not
activated until the module is fully booted.
Rev 3 Nov.16 33 4118902
mangOH Green (DV4) User Guide
Table 3-6: mangOH Green Default Configuration (Continued)
Component/
Switch Default Configuration/ Behavior Notes
SD connector
(CN802)
Peripheral interfaces
(UART, SPI, I2C,
etc.)
Arduino-compatible
circuit UART
Module Signals
Control
(SW401)
Connected to primary module
See the mangOH Green Developer‘s Guide for
details.
Connected to primary module’s USB using FTDI
conversion chip (UART to USB)
• POWER_ON (Dip 1)=ON (Unit is enabled)
• All others = OFF
Switch and Jumper Configuration Options
The mangOH Green uses several switches and jumpers to configure the board and
CF3 module‘s operation, as detailed below in Table 3-7 through Table 3-9.
To locate these switches and jumpers, see Figure 3-34 on page 36 and Figure 3-35
on page 37.
Table 3-7: CN1204—Board Power Select
Power supply selection
Board can be configured using a software
command to connect primary module’s SDIO
signals to IOT1 instead of SD connector.
Board can be configured using a software
command to connect Arduino-compatible circuit’s
UART to WP UART1
a
Jump
1–2
Jump
2–3
USB power, through micro-USB port (CN311–USB port) Yes
DC power, through DC barrel jack (CN1200–barrel jack power) Yes
a. Required: Select one option only (Jump 1–2 or Jump 2–3). For details, see Select Primary
Power Supply on page 16.
Table 3-8: CN1203—Battery Recharge Select
Battery recharge behavior Jump 1–2
Battery will recharge while power is supplied by USB or DC Yes
a
Battery will not recharge No
a. IMPORTANT: Jumper must not be used if there is no battery connected. For details, see
Connect Battery Backup on page 17.
Rev 3 Nov.16 34 4118902
Table 3-9: SW401—Module Signals Control
Signal Dip On/ Off State
Hardware Setup and Operation
POWER_ON 1
MDM_Power 2
W_DISABLE_N 3
SIM2_Detect 4
SW_PWR_ON 5
UART_CTRL 6
TP1_BOOT 7
On (Default)
Enable POWER_ON signal for primary
module (J200)
Off Disable POWER_ON signal
On
Reserved for future use
Off (Default)
On Disable RF power for primary CF3 module
Off (Default) Enable RF power for primary CF3 module
On Indicate that SIM Holder #2 is empty
Off (Default) Indicate that a SIM is in SIM Holder #2
On
Enable POWER_ON signal for secondary
module (J601)
Off (Default) Disable POWER_ON signal
Connect primary CF3 module’s UART1 signal
On
to IOT slot (#0 or #1, depending on current
configuration)
Off (Default)
Connect primary CF3 module’s UART1 signal
to the ATmega32U4
Enable primary CF3 module’s TP1 (boot)
On
signal functionality. Pull the signal low to enter
download mode for firmware updates.
Off (Default) Primary module functions normally.
Disable secondary power supplies (1V8, 3V3,
DCDC_shutdo
wn
8
On
and 5V0) so only the primary CF3 module is
powered
Off (Default) Enable power to entire board
Rev 3 Nov.16 35 4118902
mangOH Green (DV4) User Guide
1 - IoT Expansion Card slot #2
2 - IoT Expansion Card slot #1
3 - IoT Expansion Card slot #0
4 - DC power (CN1200)
5 - Power supply select (CN1204)
6 - Battery connector (CN1202)
7 - Recharge select (CN1203)
8 - Signals control (SW401)
9 - Main antenna
10 - GNSS antenna
11 - Diversity antenna
12 - Ethernet
13 - USB Host
14 - Audio
15 - Module reset
16 - Capacitor discharge (DNI)
17 - RS-232 DB9 console output
18 - Arduino-compatible circuit
19 - RTC backup capacitor
20 - Secondary Main
21 - Secondary GNSS
22 - Secondary Diversity
23 - Arduino-compatible circuit
24 - Arduino-compatible circuit
25 - Secondary CF3 socket
26 - Primary CF3 socket
1 2 3
4
5
6
7
8
9
10
11
121314151617
18
19
20
21
22
24
25
26
23
header
header
reset
Figure 3-34: mangOH Green Assembly—Top Side Switches/Connectors
Note: For reference only. For latest schematic, visit mangoh.io.
Rev 3 Nov.16 36 4118902
Hardware Setup and Operation
1 - USB power
2 - micro-SIM (bottom slot)
3 - microSD (top slot)
4 - mini-SIM
5 - Arduino-compatible
6 - ATmega32U4
1 2 3 4
5
6
circuit mini-USB
Figure 3-35: mangOH Green Assembly - Bottom Side Switches/Connectors
Note: For reference only. For latest schematic, visit mangoh.io.
Rev 3 Nov.16 37 4118902
4: Software Setup
This chapter describes software resources that you will need on your computer to
access the mangOH Green and develop applications for its CF3 module and
integrated Arduino-compatible circuit.
Sample applications and instructional materials are available from the sites
mentioned in this chapter. For detailed information on developing for the mangOH
Green, see the mangOH Green Developer’s Guide and related documents (available
from mangoh.io).
Install / Update Windows Driver
If you are using a Windows computer, you will need to install the Legato driver for the
CF3 module that you install in your mangOH Green.
1. Visit mangoh.io to download the Windows driver and driver installation instruc-
tions for your CF3 module.
2. Install the Windows driver.
3. When the mangOH Green is connected via USB to the computer, display the
Device Manager (Control Panel > System > Device Manager).
4
Figure 4-1: Windows Device Manager
If the driver installed correctly, you will see the following items listed:
• Modems > Sierra Wireless WWAN Modem (This is the module in socket J200.)
• Ports [COM & LPT] > Sierra Wireless DM Port
Rev 3 Nov.16 38 4118902
Software Setup
• Ports [COM & LPT] > Sierra Wireless NMEA Port (This is the port that you will
use to communicate with the module from your terminal emulator.)
Install a Terminal Emulator
To communicate with the mangOH Green, you need to use a terminal emulator
program such as Tera Term or HyperTerminal
When you have an emulator installed, use it to establish a console connection to the
mangOH Green:
• Port—Serial modem COM port (for Sierra Wireless devices, this is the Sierra
Wireless NMEA Port)
• Baud rate— 115200
®
.
Install the Arduino IDE
To work with the mangOH Green‘s integrated Arduino-compatible circuit, you must
download and install the Arduino IDE (Integrated Development Environment). The
IDE is used to write code (‘sketches’) and upload them to the mangOH Green’s
integrated Arduino-compatible circuit. Installation and usage information is available
at mangoh.io.
Install the Legato Developer Studio
To create Legato applications for the CF3 module, download and install the Open AT
Developer Studio (a Legato IDE) available at mangoh.io.
Download Firmware Updates
Firmware updates will be made available for download from mangoh.io.
Write Your First Program
For instructions on building applications (including writing a ‘Hello World’ program to
test your mangOH Green), and to download sample Arduino sketches and Legato
applications, visit mangoh.io.
Rev 3 Nov.16 39 4118902
Loading...
