Siemens WXB1060 Operating Instructions

Operating instructions and installation
š®µ¸åø µa yÿo¹pe¢a å å¸c¹aæåpa¸e	en

Návod k použití a pokyny pro instalaci bg

cs

electronic with temperature selector

Index
		Page
Points to remember	Notes on safety and general warnings . . . . . . . . . . . . . . . . .	. 3
	Notes on the removal and
	disposal of packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	. 4
	Protecting the environment / Hints on saving energy . . . . . .	4
Installation instructions	Removing the transport securing devices . . . . . . . . . . . . . . .	5
	Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	5
	Aligning the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	6
	Connecting to the water supply . . . . . . . . . . . . . . . . . . . . . . .	7
	Appliance outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	7
	Connecting to the power supply . . . . . . . . . . . . . . . . . . . . . .	8
Your new washing machine	Getting to know your new appliance . . . . . . . . . . . . . . . . . . .	9
	Programme and temperature selectors . . . . . . . . . . . . . . . . .	10
	Washing machine status indicator lights . . . . . . . . . . . . . . . .	10
	Function and «Start» selection button . . . . . . . . . . . . . . . . . .	10
Notes on detergent /	Detergents and softeners . . . . . . . . . . . . . . . . . . . . . . . . . . . .	11
Preparing the laundry	Preparing the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	12
First washing cycle	First washing cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	14

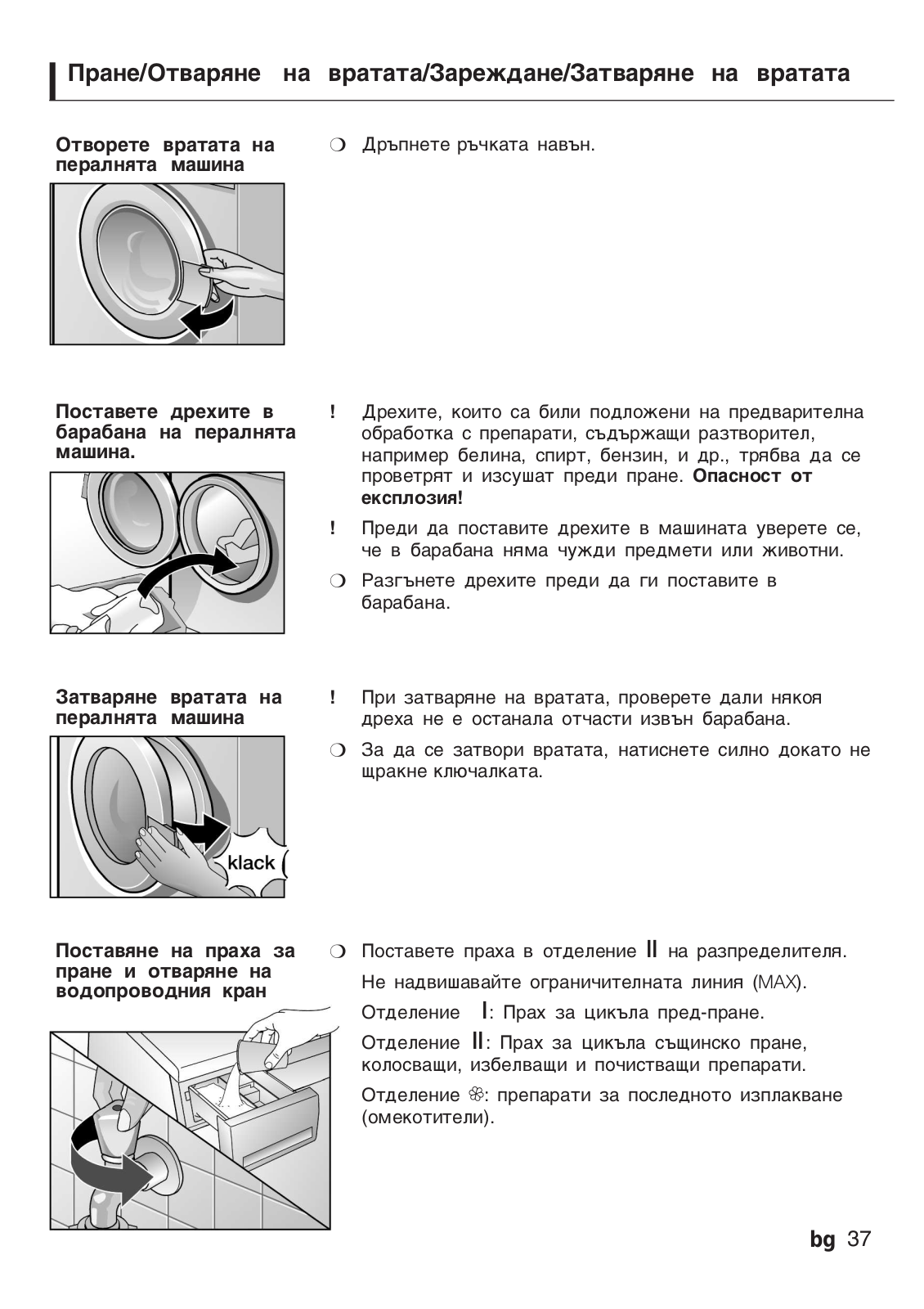

Wash	Washing / Opening the door / Loading the machine /
	Shutting the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	15
	Washing the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	16
	Wash programme end /
	Taking the laundry out of the machine . . . . . . . . . . . . . . . . . .	17
Cleaning Maintenance Frost	Cleaning/Maintenance/Frostprotection . . . . . . . . . . . . . . . .	18
protection
Malfunctions	Malfunctions with simple solutions . . . . . . . . . . . . . . . . . . . . .	21
	After-SalesService . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	22
	Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	22
	Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	23

2 en

Notes on safety and general warnings

This appliance complies with the industry safety regulations.

Points to remember before putting the appliance into operation:

!Read the enclosed instructions before putting the appliance

into operation. They contain important information and advice for installation, use and safety of the appliance.

!Keep the user documentation for the appliance so that later owners can use it.

!Install the appliance as described in the installation instructions. Remove the transport securing devices and keep them.

!If the appliance shows any sign of damage or imperfection it must not be connected to the power supply. If in doubt contact the After-sales Service or the Distributor that sold the appliance.

!A damaged power cable

must be replaced with another special cable available from the Manufacturer's Customer Service.

Points to remember when washing clothes:

!The appliance must only be operated using cold water from the water mains.

!The appliance may only be used for items that may be washed in a domestic washing machine.

!Never leave children unsupervised with the appliance.

!Keep pets away from the appliance.

!Take care when pumping out hot water.

!A flashing light does not indicate a fault. See the section: «Washing machine status indicator lights».

Maintenance and care of the appliance:

!Do not climb onto the appliance.

!Do not use the door as a footrest or stand on it.

Points to remember when moving the machine:

!Fit the transport securing devices.

!Empty any remaining water from inside the appliance.

!Take care when moving the appliance Do not use the front components or controls on the appliance as a lifting aid.

en 3

Notes on the removal and disposal of packaging

Removal and disposal of packaging material for a new appliance

!Remove and dispose of packaging in accordance with current legislation.

!Packaging material is not a toy.

Reprocessing and reusing materials saves raw materials and reduces waste. All packaging material used is environmentally friendly and can be recycled or reused. The cardboard packaging consists of 80% to 100% recycled paper. The transparent protective film is polyethylene (PE), the fastening bands are polypropylene (PP) and the chlorofluorocarbon-free (CFC) moulded pieces are polystyrene foam (PS). These materials are made of pure hydrocarbons and can be recycled.

Disposal of an old appliance

!The old appliance must be made unusable before it is disposed of:

Disconnect from the mains power supply. Cut off the connecting cable and remove it together with the mains plug. Remove the door locks and fastenings or make them unusable so that children cannot shut themselves inside and suffocate.

Worn-out appliances contain valuable materials that can be recovered, if the appliance is taken to an official recyclable waste recovery centre (a public tip or recycling centre, for example). Actively contribute to the protection of the environment by ensuring that your old appliance is disposed of in a way that respects the environment.

Protecting the environment / Hints on saving energy

mThe most economical and environmentally friendly way to use the machine is always to wash the maximum amount of laundry:

Cottons/coloureds

(hard-wearing fabrics)	4.50 kg / 9.9 lb
Synthetics	2.25 kg / 5.0 lb
Delicates and woollens	2.00 kg / 4.4 lb

mHow to save energy

The variable capacity automatic system reduces the amount of water and energy consumed accordingly if the amount of laundry loaded into the machine is small. Select the «Stains / Intensive» 60º C programme instead of «Cotton / Coloureds 90º C (hard-wearing fabrics). The program uses the longest wash cycle to reduce energy consumption whilst achieving the same results as washing at 90º C.

mHow to save water, energy and detergent: Omit the prewash programme for lightly or normally soiled laundry.

mHow to save energy and time:

Select the short programme suitable for the fabric if items are lightly soiled.

mHow to save detergent:

Measure the detergent according to the water hardness, degree of soiling and amount of laundry, and follow the instructions on the detergent package.

4 en

Removing the transport securing devices

!Remove all the transport securing devices from the back of the machine before starting the appliance for the first time.

!Caution. Risk of injury through spanner slipping.

mLoosen and remove the 4 fastening bolts «A», the tie bar and the seal.

mNext remove the four spacers «B» which will have fallen to the floor. Gently tilt the appliance forward.

mFit the protective covers «C» which are in the bag accompanying the appliance documentation.

!Keep the transport securing devices in case you need to move the appliance in future.

The appliance should only be moved with the transport securing devices in place. To fit them, remove the back panel «D» from the appliance and carry out the operations given above in reverse order.

Installing the appliance

!When installing the appliance and connecting the water and electricity supplies, the following should all be to hand: safety instructions, warnings, general advice and information, and standards or requirements from water and electricity suppliers.

!Take care when lifting the appliance. Risk of injury.

!Do not lift the appliance by the controls or protruding components.

!If you are in any doubt, commission a qualified person to connect the appliance to the water and electricity supplies.

All appliances are rigorously tested at the factory under normal working conditions. The appliance or the outlet hose may still be damp or contain residual water as a result of these tests.

en 5

Installing the unit	The appliance must be placed on a firm flat surface to ensure
	that it is stable during spinning.
	Soft floor coverings, such as carpets or foam-backed flooring
	are not suitable surfaces for installation.
	!	If you have a wooden joist floor, the appliance must be
		placed on a water-resistant wooden board, 30 mm thick.
		It must be screwed to the floor. The appliance should be
		installed in a corner of the room if possible.
		Secure the appliance to the floor using fastening brackets
		fitted to the machine's feet (especially if the machine is a
		combinedwasher/dryer).
	!	If the machine is placed on a pedestal or raised base, the feet
		must be fixed using brackets to prevent the machine from
		shifting during the spin cycle.

The fastening brackets are available as a spare parts set from your specialist distributor.

Aligning the appliance

!The appliance must sit firmly and horizontally on the four feet without rocking.

mUse a spirit level to ensure that all four sides of the appliance are level.

Correct any imbalance by adjusting the height of the feet.

mLoosen the locknuts.

mAdjust the height of the feet.

mTighten the locknuts securely so that the height set is retained.

6 en

Connecting to the water supply

A pipe or standard domestic fresh-water hose is required for the water supply, with a minimum pressure of 1 bar (water must flow at a rate of approximately 8 litres per minute with the tap fully open).

If the pressure is higher than 10 bar, a pressure reducing valve must be inserted between the appliance and the water supply.

!Never connect the appliance to the mixer tap of an unpressurized water heater. If in doubt have connections made by a qualified technician.

!Caution. Connections between the appliance and the water supply must be able to withstand the full water pressure. Check the ring seal with the tap fully open.

!Remove the filter located at the end of the solenoid valve only when it needs cleaning. The other filter, located at the end of the pipe inside the plastic locknut which screws onto tap, should be cleaned in its tube (it cannot be removed).

!To avoid damage caused by leaks and flooding,

the tap should always be closed after the appliance has completed a cycle and especially during long absences.

!Hand-tighten the plastic hose connection locknuts.

Appliance outlet

!Take care when fitting and connecting the appliance to the water outlet system that the hose is not bent or twisted. Do not pull on the hose.

!If the water is discharged via a sink, ensure that the outlet hose cannot be dislodged. Check also that the water drains away quickly enough. Ensure that the sink plug is not preventing drainage. Risk of flooding..

en 7

Connecting to the power supply

!The appliance must only be connected to an

A.C. mains supply via a correctly installed earthed socket.

!The voltage given on the appliance nameplate

must match that of the power supply where the appliance is installed.

!The power rating and the fuse or circuit breaker required are given on the appliance nameplate.

!Check that the socket and the plug on the machine are compatible, that the cables have a sufficient diameter and that it is earthed correctly.

!Never use multiple plugs, sockets or connectors or extension cables.

!If using a residual current-operated circuit breaker, it must display the 7symbol. Only this type of protective switch will ensure compliance with current regulations.

!Remove the appliance plug from the socket, holding onto the body of the plug.

!In order to fulfil the safety regulations, the plug of the ap& pliance must be accessible for the user; if this cannot be guaranteed, there must be incorporated in the fixed wiring a means for disconnection from the supply having a contact separation of at least 3 mm in all poles

8 en

Getting to know your new appliance

1.Protective plate (lid).

2.Detergent and softener drawer.

3.Control panel (printed keys, symbols or full text, depending on model).

4.Rating plate.

5.Door.

6.Door opener.

7.Outlet pump (water outlet filter), behind the kick panel.

8.Kick panel.

9.Height adjustable feet for aligning the appliance.

10.Water outlet pipe.

11.Water inlet hose.

(according to model)

12.Programme selector.

13.Washing machine status indicator lights

14.Temperature selector - O

15.C - «Rinse hold» button

16.t/ x- «Spin» button .

17.M - «Start» button

en 9

Programme and temperature selectors

The programme selector is used to select and adjust programmes. Turn the selector clockwise (to the right). Align the setting mark with the programme required.

See the programme table below.

The temperature selector is used to select the wash temperature. The

maximum programme temperature is set at 60º C for delicates and 40º C for woollens, even if a higher temperature has been selected, so as to avoid damaging delicate items.

Use cold wash or low temperature programs if the type of laundry and degree of soiling permits. Washing at

60º C consumes approximately half as much energy as washing at 90º C.

If the washing is very soiled and needs to be washed at 90º C, turn the rotary selector until it clicks into the 90 position. This will require some extra effort. It is not a fault but is because it is regarded as a safety measure.

Washing machine status indicator lights

The «WashQ/Ready»d indicator light flashes when the required programme has been selected. This indicator light remains lit when the «Start 3» button is pressed and the programme begins.

The «Rinse r» indicator light comes on (set) during the rinse programme.

While the washing machine is spinning and emptying out the water, the «Spin 5/Finishedm» indicator light remains lit. The indicator light flashes when the programme is completed. To turn the machine off, set the programme selector to «Stop»

Function and «Start» selection button

3- Start

The appliance starts the programme selected when the button is pressed. The «WashQ/Ready d» indicator light comes on. Preselect the wash programme.

Caution: To prevent damage to the appliance do not start the machine if the door is not properly shut, even if the «Wash Q/Readyd» indicator light is on and the

«Start 3» button is depressed.

The door of the washing machine cannot be opened during the washing cycle. The machine must first be switched off before the door can be opened (programme selector on «Stop»). Check that the «Spin 5/Finishedm» indicator light has gone out. The door can be opened after 2 minutes.

C - Rinse hold

When this button is pressed, the function indicator light comes on and the laundry remains in the last rinsing water to avoid creasing.

t/ x- Spin

The function indicator light comes on when this button is pressed. The spin cycle in the wash programme for hard-wearing white and coloured items is carried out at a lower speed.

In the delicates and woollens programme, the spin cycle is automatically carried out with the least number of spins, regardless of whether this button has been pressed

10 en

Detergents and softeners

You can use all powder and liquid detergents suitable for

	front-loading washing machines.
	!	Do not use hand washing detergents because they produce
		too much foam.
	!	Do not use solvent-based detergents in automatic washing
		machines. Risk of explosion.
	!	Do not use washing performance enhancers, stain removers
		or sprays near the machine as they could damage the
		machine.
	!	Store detergents and additives in a safe place out of the
		reach of children.
Detergent quantity	Only the correct dosage of detergent ensures good washing
	results. Follow the instructions on the detergent packaging.

Use the dispenser provided with the packaging, such as a detergent ball or sachet, for liquid detergent.

Never exceed the maximum mark, «MAX», on the dispenser.

The quantity of detergent required depends on:

-the water hardness.

-the degree of soiling.

-the amount of washing.

-the dosage recommended for the type of detergent.

Insufficient detergent will not be noticed until the laundry has been washed several times in the same way:

-The laundry turns grey or is not clean.

-Greyish brown spots may form on the laundry.

-Lime scale may start to form on the appliance heating elements.

An excessive amount of detergent may cause:

-Unnecessary environmental pollution.

-Slower washing movement in the machine due to the formation of foam leading to poor washing results.

The detergent dosage given on the packaging is based on a full washing machine load.

The quantity of detergent should be reduced for smaller loads or laundry that is lightly soiled.

en 11

Hints	Fabric softeners
	Put the fabric softener in the chamber marked 2. Do not exceed
	the «MAX» marking (maximum to the lower edge of the piece A)
	because the softener will be flushed into the water with the
	detergent at the start of the washing cycle and so have no effect
	in the fabric softening cycle. Thicker fabric softeners should first
	be diluted with a little water.
	Bleaching agents, stain removers
	Powdered bleaching agents and stain removers can be added.
	First put the detergent in the drawer. Next add the powdered
	bleaching agent or stain remover to the II chamber.

Preparing the laundry

Sorting the laundry	m	Sort the laundry according to the symbols on the labels.
	!	Items made of or containing, wool must have «Will not
		shrink» or «Machine washable» on the label. Otherwise there
		is a risk of the wool shrinking.

Only items displaying the following symbols should be machine washed:

Hard-wearing white fabrics

d

Coloured fabrics (hard-wearing colour-fast fabrics)

cba

Delicate items and coloured fabrics

hgf

Very delicate items

lgkf

Hand washable or machine washable at 30ºC, wool, cold

6lgkf

Items showing the following symbols should not be washed in the machine:

Do not wash at home B

m Sort the laundry into colours. Wash white and coloured items separately, otherwise whites may take on colour.

12 en

Practical advice

Removing stains

!Any new coloured items should be washed separately. Risk of colour running.

mSort the laundry according to the maximum permitted load for the machine. Do not overload the machine. Overloading the machine leads to poor washing results.

Maximum washing loads permitted:

Soiled or very soiled hard-wearing white laundry/colourfast

and hard-wearing laundry	4.50 kg /
9.9 lb
Synthetics	2.25 kg /
5 lb
Delicates and woollens	2.00 kg
/4.8 lb

mRemove all foreign material and metal objects from the items, for example, safety pins, fasteners, clips, etc.

mBrush sand out of pockets, cuffs and turnups.

mClose zips and fasten buttons on duvet covers and pillow cases.

mRemove curtain hooks or tie in a net or bag.

mWash particularly delicate items, such as tights or lace curtains, and small items, such as socks and handkerchieves, in a net, pillow case or cushion cover.

mTurn trousers and knitted items (for example knitwear, T-shirts, sweatshirts, etc.) inside out.

mEnsure that fasteners with inserts (hoops, etc.) can be washed in a machine.

!Place items with inserts in a pillowcase, for example, to prevent them from becoming detatched during washing and falling through the perforations in the drum, causing damage to the machine.

If possible, stains should be treated or removed as soon as they occur.

Try first with soap and water. Do not rub the material. Dried on stains will only be removed after several washes.

en 13

First washing cycle

Carry out the first wash without any laundry in the machine to remove residual water left from testing the machine at the factory.

mCheck that the transport security devices have been removed from at the back of the machine (refer to the removal instructions for the machine).

mOpen the water tap.

mOpen the detergent drawer as far as it will go.

mPour approximately one litre of water into chamber II of the drawer

mPut standard detergent in chamber II using the measuring cup. Never use detergent for delicate or woollen items because it produces too much foam.

mTurn the programme selector to the right (clockwise) to the «Cotton 90º C» programme. The «Wash Q/Ready d» indicator light flashes.

mPress the «Start 3» button. The programme starts and the «Wash Q/Ready d» indicator light stays on.

mWhen the programme has finished, the «Spin 5/Finished m» indicator light starts flashing. Set the programme selector to «Stop» and the light goes out.

14 en

Washing / Opening the door / Loading the machine / Shutting the door

Opening the door

m Pull the door catch towards you.

Put the laundry in the washing machine

!Items which have been pre-treated with detergents containing solvents, for example stain removers, cleaning fluids, etc., should be left to dry in the open air before washing. Risk of explosion.

!Check that there are no foreign bodies or animals inside the drum before putting the washing in.

mPlace the laundry loosely and unfolded in the drum. Mix large and small items.

Shutting the door

Adding the detergent and turning the tap on

!Shut the door, taking care to ensure that no items are trapped between the door and the rubber seal.

mShut the door pressing it against the door frame until the door lock can be heard to engage.

mPut detergent in chamber II of the drawer.

Do not exceed the maximum mark (MAX).

-Chamber I: Prewash detergent.

-Chamber II: Main wash detergent, water softener, starch, bleach and stain remover.

-Chamber 2: Additives for the final rinse, for example fabric softeners.

en 15

Washing the laundry

Selecting a wash programme

See the programme table below.

«Hard-wearing cottons» - y- v»

Heavily soiled whites, 90 ºC

Intensive wash programme for hard-wearing cotton or linen items.

Stains / Intensive, 60 ºC

Energy-saving programme. The longest washing cycle reduces energy consumption.

«Hard-wearing cottons» +P»

Whites and coloureds, hard-wearing fabrics and colourfast, 60 ºC, with pre-wash.

For heavily soiled laundry.

Coloureds, 30, 40, 60 ºC

Hard-wearing fabrics.

«Synthetics» - A

Delicates, 30, 40, 60 ºC (synthetics)

For washing delicate cottons, synthetic or mixed fibre fabrics.

«Woollens, delicates» - U- J

Very delicate, 30 ºC

For washing very delicate cotton garments, synthetic or mixed fibre fabrics, curtains. These programmes have no spin cycle between rinsing cycles.

Woollens, 6,30 ºC, cold

For machine washable woollens or wool mixtures.

Additional programmes

Rinse - r

Rinse cycle with low-energy spin. Can also be used for delicate items.

Spin - 4

Extra spin cycle, washing or rinsing water is pumped out before spinning the laundry.

Pumping (emptied) -b

Pumps out the rinse water if «Rinse hold C/5» has been selected. For careful washing of delicate items.

Additional functions

Rinse hold C

The laundry remains in the water after the final.

Spin t/9

Reduces the spin speed.

Starting a programme

mTurn the programme selector to the required wash programme.

mThe «Wash Q/Readyd» indicator light flashes.

mSelecting the required spin speed. Ensures careful washing by automatically limiting the maximum spin speed in the «Delicates (synthetics)», «Very delicate» and «Woollens» wash programmes.

mSet to the required temperature using the temperature selector.

mPress the additional function button(s) to activate them. The corresponding indicator light comes on.

mPress the «Start 3» button

The «Wash Q/Readyd» indicator light

comes on. The wash programme starts. The «Wash Q/Readyd» indicator light remains lit throughout the wash programme selected.

16 en

Modifying a selected programme

If you have selected and started an incorrect wash programme it can be corrected in the following way:

mTurn the programme selector to «Stop».

mSet the programme selector to the position

for the required programme. The «Wash Q/Readyd» indicator light flashes.

mPress the «Start 3» button

The «Wash Q/Readyd» indicator light comes on. The newly selected programme starts.

Interrupting a wash programme

If you should wish to stop a programme already in progress:

mTurn the programme selector to «Stop».

mTurn the programme selector to the «Pumping b» or «Spin 4» programme

position.

The «Spin 4/Finishedm» indicator light flashes.

If selecting the «Spin» function, adjust the required spin speed (do not select the «Rinse hold C/5» option.):

mPress the «Start 3» button.

The «Spin 4/Finished m» indicator light light comes on.

Wash programme end / Taking the laundry out of the machine

The «Spin 4/Finished m» indicator light flashes.

mTurn the programme selector to «Stop». If necessary:

mSelect an additional programme («Pump b», «Spin 4» or «Rinse r»).

mPress the «Start 3» button.

mWhen the additional programme selected has finished, turn the programme selector to «Stop».

Taking the laundry out of the machine

mClose the tap.

mOpen the door.

If the door cannot be opened:

Wait 2 minutes (the machine's safety device is activated)

or:

If the «Rinse hold C/5» option was selected, there will still be water inside the appliance.

Select an additional programme («Pump b» or «Spin 4») to pump out the water.

mTake the laundry out of the machine.

!Remove any foreign material or metal objects (clips, fasteners, money, etc.) which may have collected in the drum or rubber seal. Risk of rusting.

Leave the door open so that air can circulate inside and dry the appliance.

en 17

Cleaning/Maintenance/Frost protection

	!	Disconnect the appliance from the mains and shut off
		the water supply before carrying out any maintenance
		work.
Cleaning the outside	!	Do not use solvents. These products can damage
of the appliance		the washing machine's components, produce noxious fumes
		and may cause an explosion.
	!	Do not clean the appliance with a water jet.
	Clean the body of the appliance and the controls with lukewarm
	soapy water or a standard cleaning agent only. Do not use
	scouring products. Dry it with a soft cloth.
Cleaning the detergent	1.	Remove the drawer from the appliance. Disengage it by
drawer		pressing down on the tab at the back of the drawer in the
		fabric softener section. Hold the tab down and pull the
		drawer out of the appliance.
	2.	Clean all the parts and components under running water.
	3.	Replace the drawer.

Descaling the appliance	Descaling is not normally necessary if the correct dosage of
	detergent has been used.
	! Descaling agents contain acids which may attack the
	components and insides of the appliance or cause
	discolouration in the laundry.
	If you wish to descale the machine anyway, follow the
	manufacturer's instructions closely.

18 en

Cleaning the drum

Water inlet hose

Cleaning the water pump

Rust stains should be cleaned using chlorine-free detergents (look at the list of substances contained in the product on the packaging.) Never use wire wool.

It is recommended that the condition of the hose be checked every 5 years to prevent the risk of damage caused by leaks or flooding.

Cleaning is necessary:

mIf the pump is blocked by foreign material (for example buttons, fasteners, clips, etc.) or if used water is not drained.

mAfter washing fluffy items.

All water must be removed from inside the appliance before cleaning the pump. As much as 20 litres / 4.4 gal of water may remain if the pump is obstructed.

Procedure

1.Remove the base board from the front of the washing machine, turning the plastic screw heads using a coin.

!Risk of burning. Allow the used water to cool down

2.Place a shallow container under the drainage pump cover (outlet filter). Loosen the cover without removing it completely to allow the water to empty gradually. Close the drainage pump cover when the container is full. Repeat the operation until all the water has been emptied. Use a suitable container to remove any remaining water which may spill on the floor.

3.Loosen the drainage pump cover completely.

4.Remove any foreign material or fluff which may have collected there. Wipe the inside of the pump. The blades must move freely.

5.Loosen and fit the drainage pump cover in place. Ensure that it is correctly closed.

6.Fit the base board in place.

7.Pour 2 litres / 3.5 pt of water into the detergent drawer and start the «Pumping (emptied) b» additional programme. This will prevent the detergent from being flushed out before being used in the next wash.

en 19

Wiping the appliance's	The appliance's water inlet filters must be cleaned with the tap is
water inlet filters	open and no water flowing into the appliance.
	The filters are located in the hose connection joining the water
	supply pipe to the domestic water supply, and in the solenoid
	valve connection at the back of the machine.
	Procedure
	1.	First let the water pressure out of the supply pipe:
	m Close the tap.
	m Turn the programme selector to any wash programme
		(except «Spin 4» or «Pump b»
	m Press the «Start 3» button. Allow the machine to operate for
		40 seconds.
	m Turn the selector to «Stop».
	2.	Loosen the supply pipe from the tap. Rinse the filter under
		running water.
	3.	Reconnect the pipe to the tap fitting.
	4.	Remove the water supply hose from its connection on the
		back of the appliance.
	5.	Remove the filter using flat pliers; wipe it and replace it.
	6.	Tighten and fit the pipe on its coupling.
	7.	Open the tap and check that there are no water leaks.
	8.	Close the tap.
	If the machine has been installed in an area where it is not
	protected against low temperatures, residual water must be
	removed from the pump and the fresh-water hose after each
	wash cycle.
Frost protection	Empty the water from the pump:
	See the «Cleaning the pump» section.
	Empty the water from the water inlet hose:
	1.	Close the tap.
	2.	Loosen the supply pipe from the tap. Place the end of the
		hose in a container.
	3.	Select any wash programme for 40 seconds. Any water
		remaining in the hose is drained.
	4.	Reconnect the pipe to the closed tap.

20 en

Malfunctions with simple solutions

!Repairs to electrical appliances must only be carried out by qualified specialists. Repairs carried out incorrectly can be dangerous.

Malfunction

The On/Off light does not come on

Electrical power failure

The wash cycle does not start

Machine does not fill with water

Washing result is unsatisfactory

Foam comes out of the detergent drawer

Foam is visible after the final rinse

Unexpected motor noises

Pump noises

The machine vibrates when was! hing or spinning

The appliance does not spin or drain the used water.

The door does not open

The machine does not fill with water

Possible cause / Remedy

-The appliance plug is not inserted in the socket or not fully inserted in the socket.

-The fuse has blown.

-Electrical power failure.

In the event of a power failure or appliance malfunction, emergency draining is possible (refer to the «Cleaning the discharge pump» section, so that the laundry can be removed from the machine).

The «Start 3» button is not depressed. The door is not closed.

This is not a malfunction. The water remains below the visible area in the machine.

Abnormally high degree of soiling.

Insufficient detergent. Measure the detergent according to the manufacturer's instructions.

Select the most appropriate temperature and wash programme for the laundry.

Too much detergent was used. Switch the machine off for 5 1 10 minutes. Prevent foam building up by putting a tablespoon of fabric softener and half a litre / 1 pt of water into the deter1 gent drawer. Reduce the detergent dosage in the next wash.

Some detergents produce a large quantity of foam although this has no effect on the rinsing result.

This is not a malfunction. During the heating stage, the motor produces noises characteristic of starting.

This is not a malfunction. These noises are characteristic of the machine starting and the pump discharging.

The transport securing devices have not been removed. See the machine installation instructions.

The adjustable feet on the machine were not fixed during instal1 lation of the appliance. Align the machine using a spirit level and fix the feet as indicated in the installation instructions.

The outlet pump is blocked. The outlet pipe is bent or blocked.

The safety device is activated. The «Rinse hold C/ 5» option has been selected.

The tap is closed. The water inlet filters are dirty.

en 21
